High Output Stator for Yamaha 900 Triples
Yamaha FJ-09, FZ-09, MT-09, Tracer 900 and XSR 900 2014-2021 - Part reference RMS010-107777

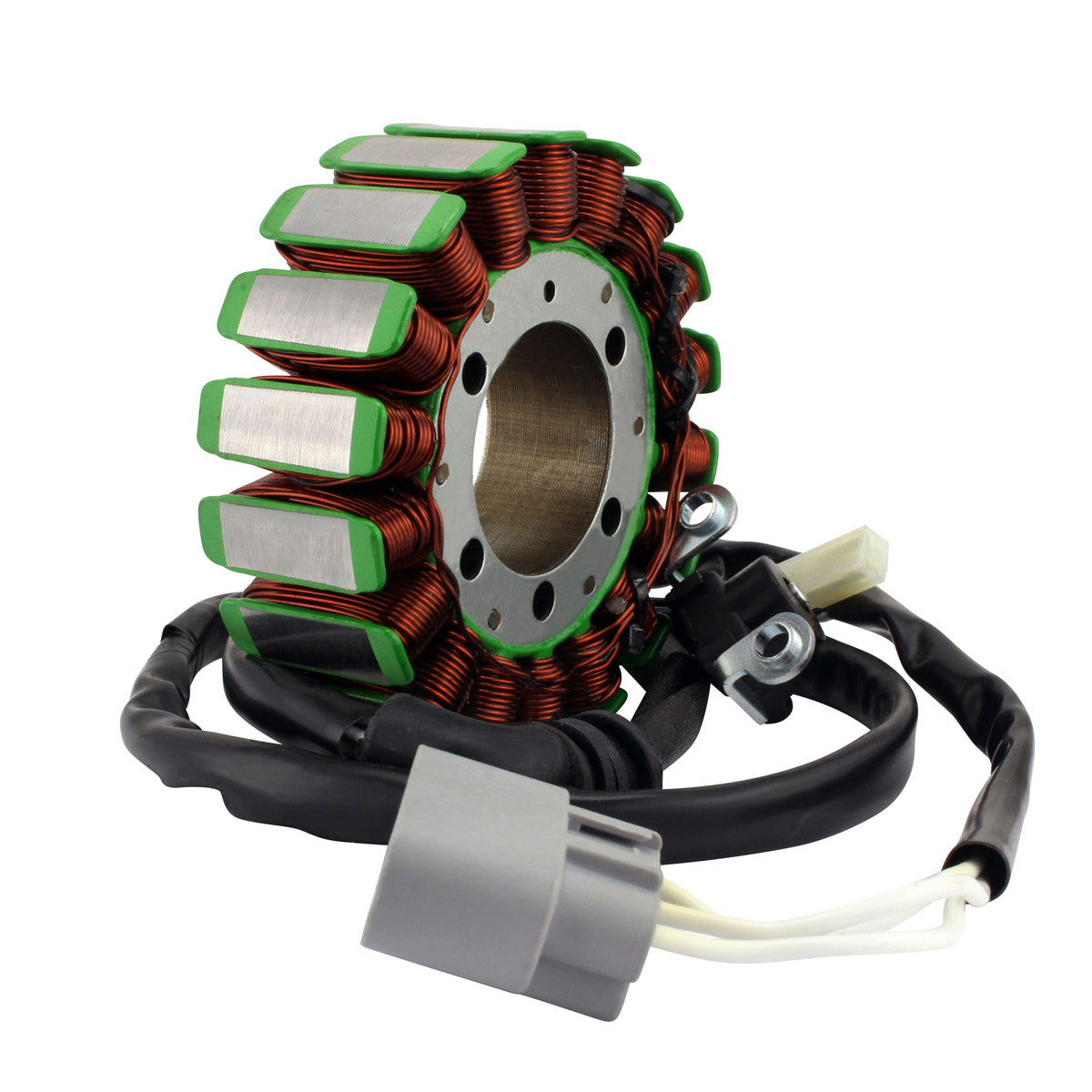

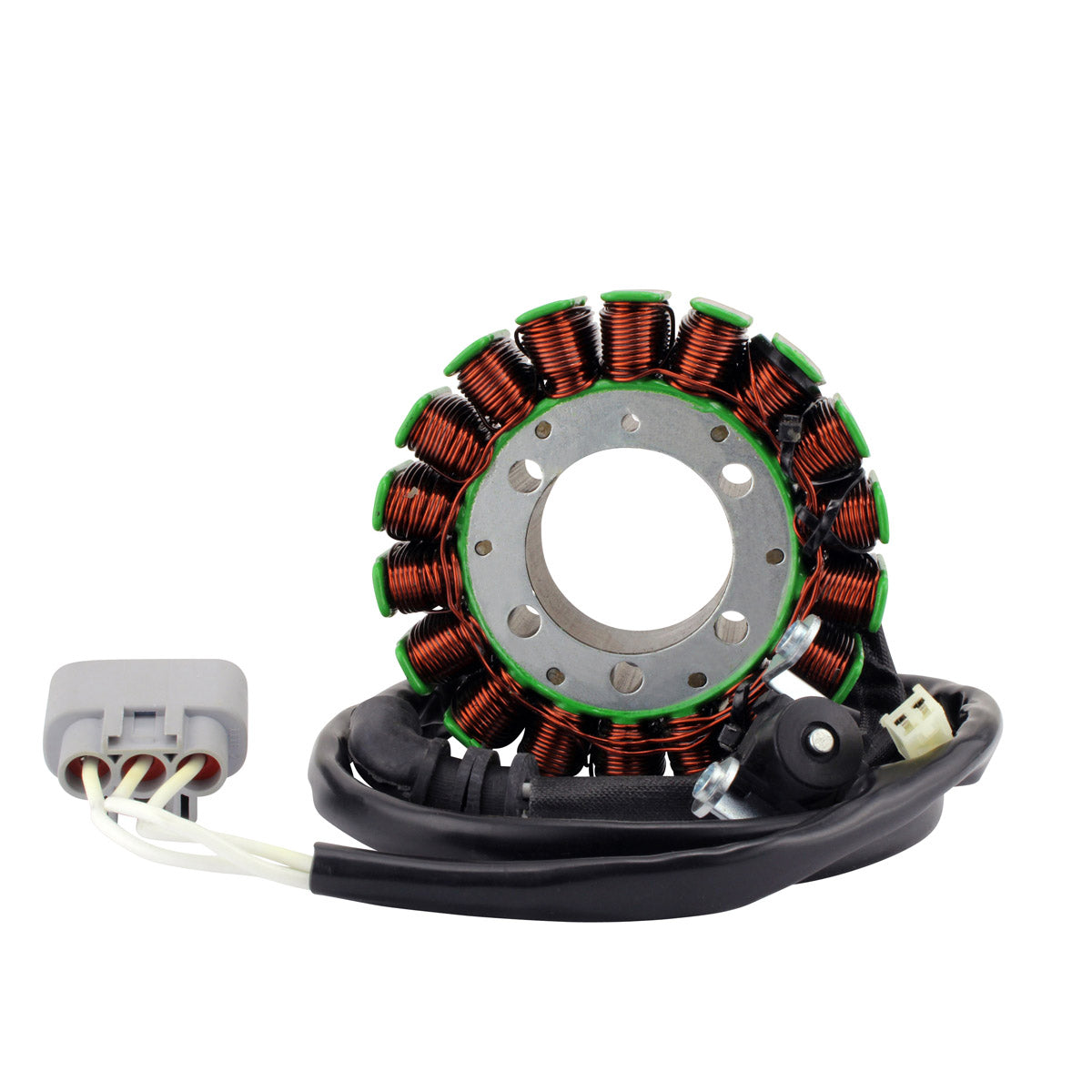

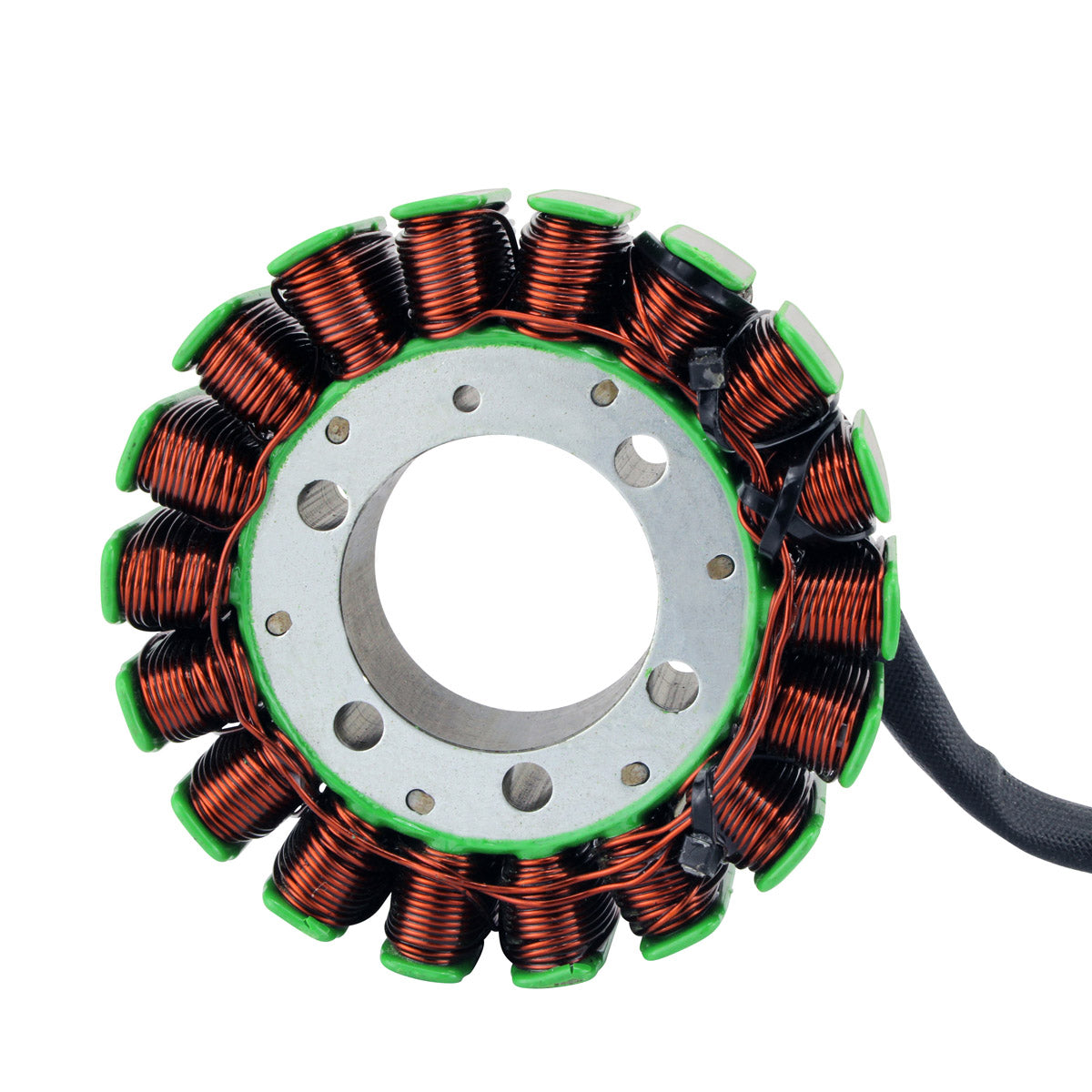

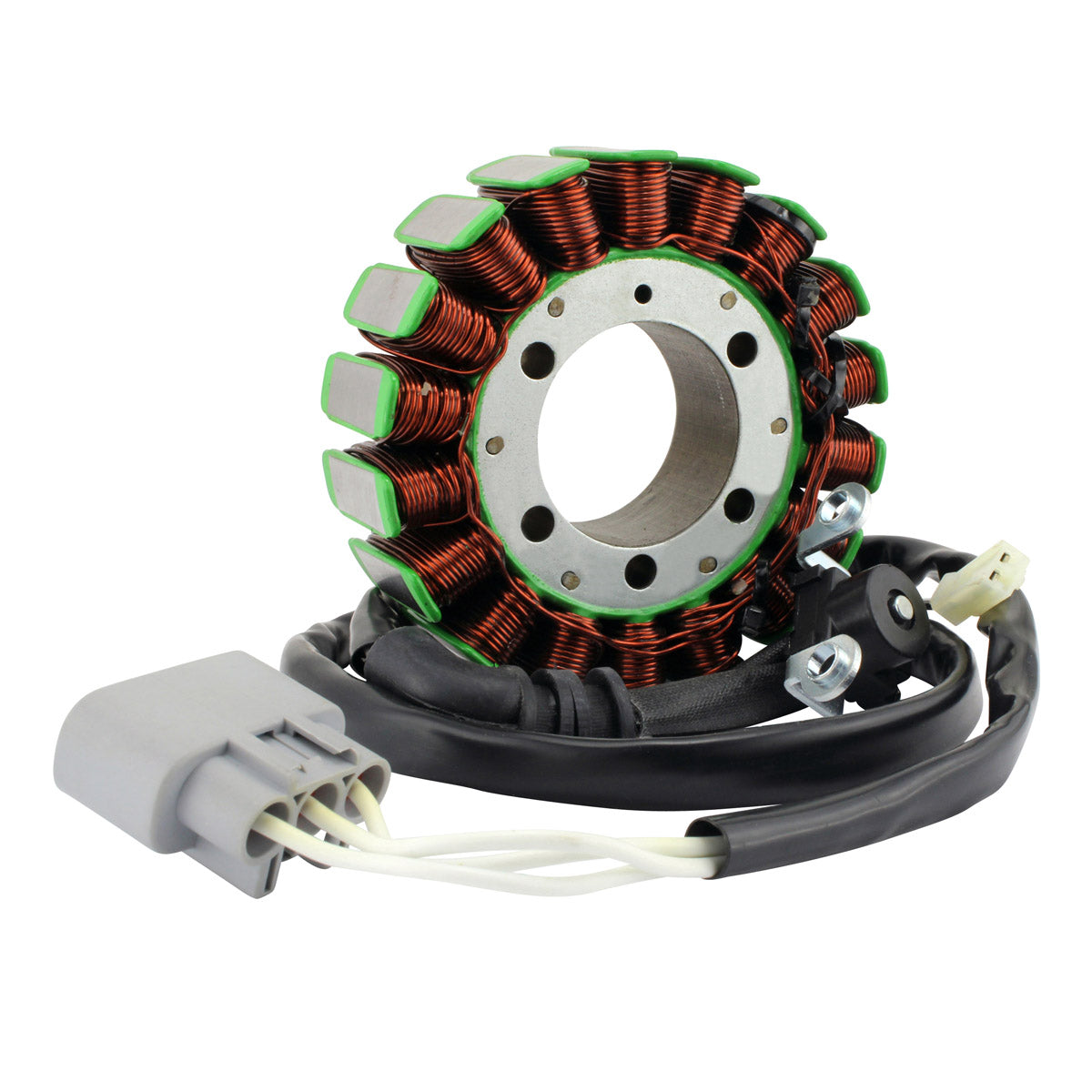

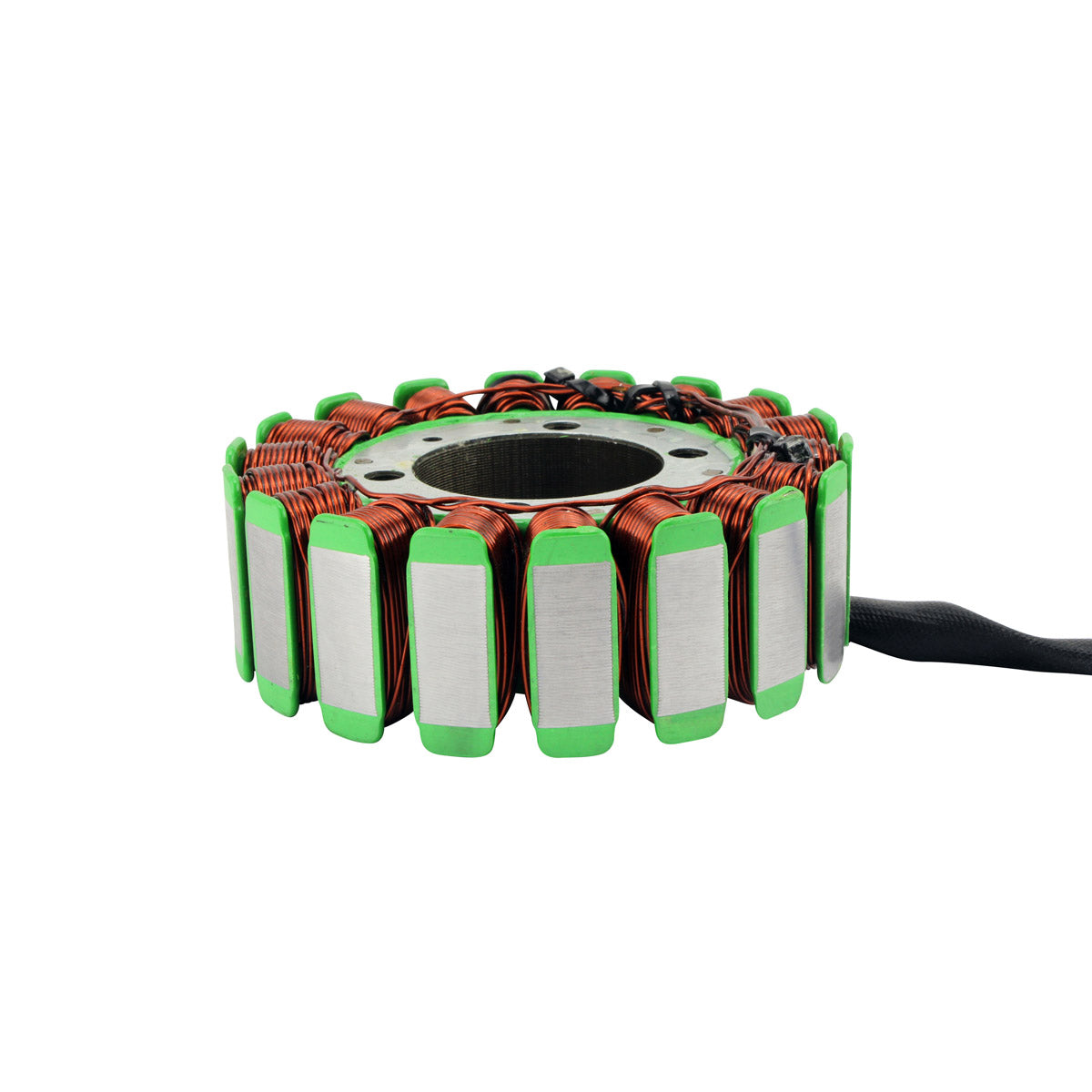

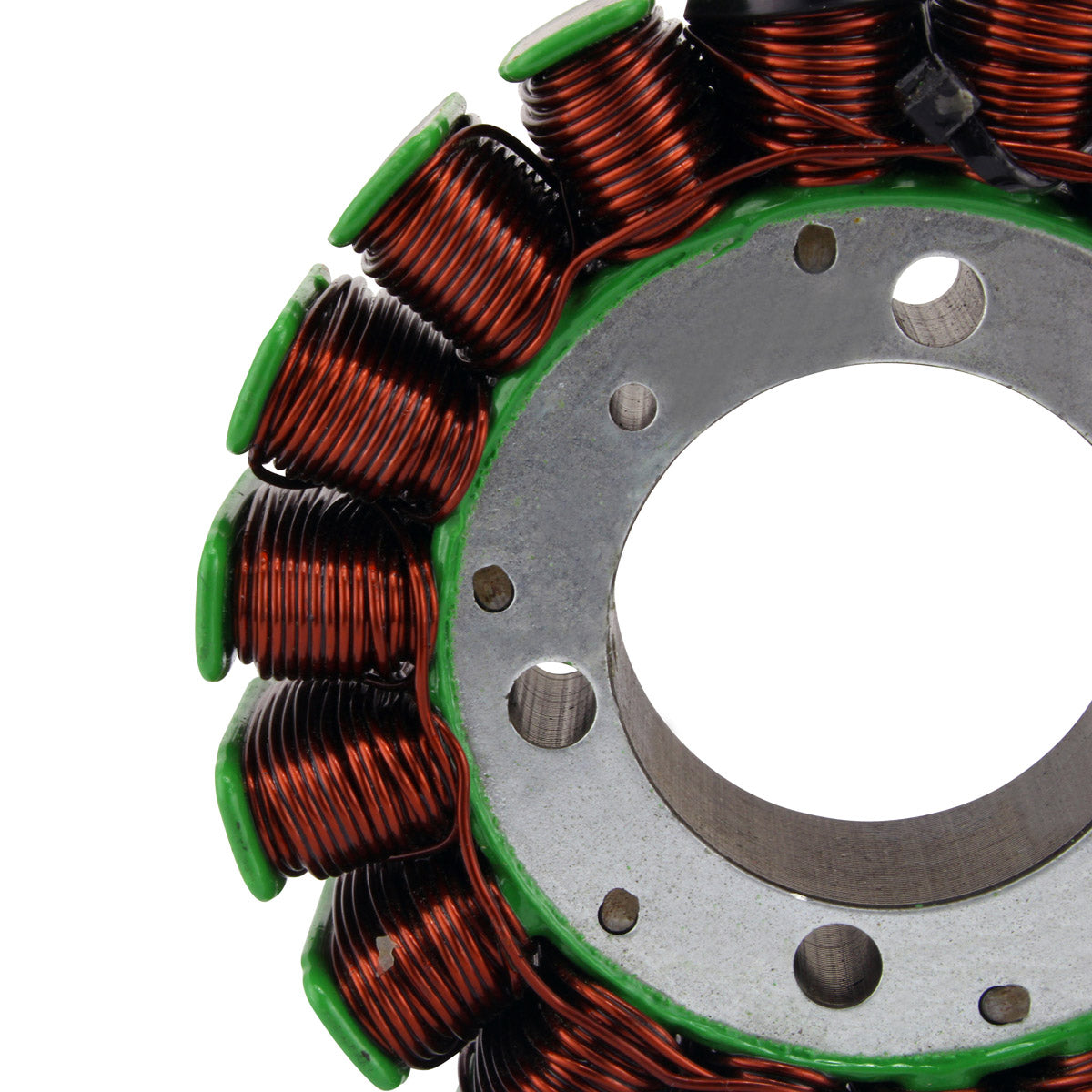

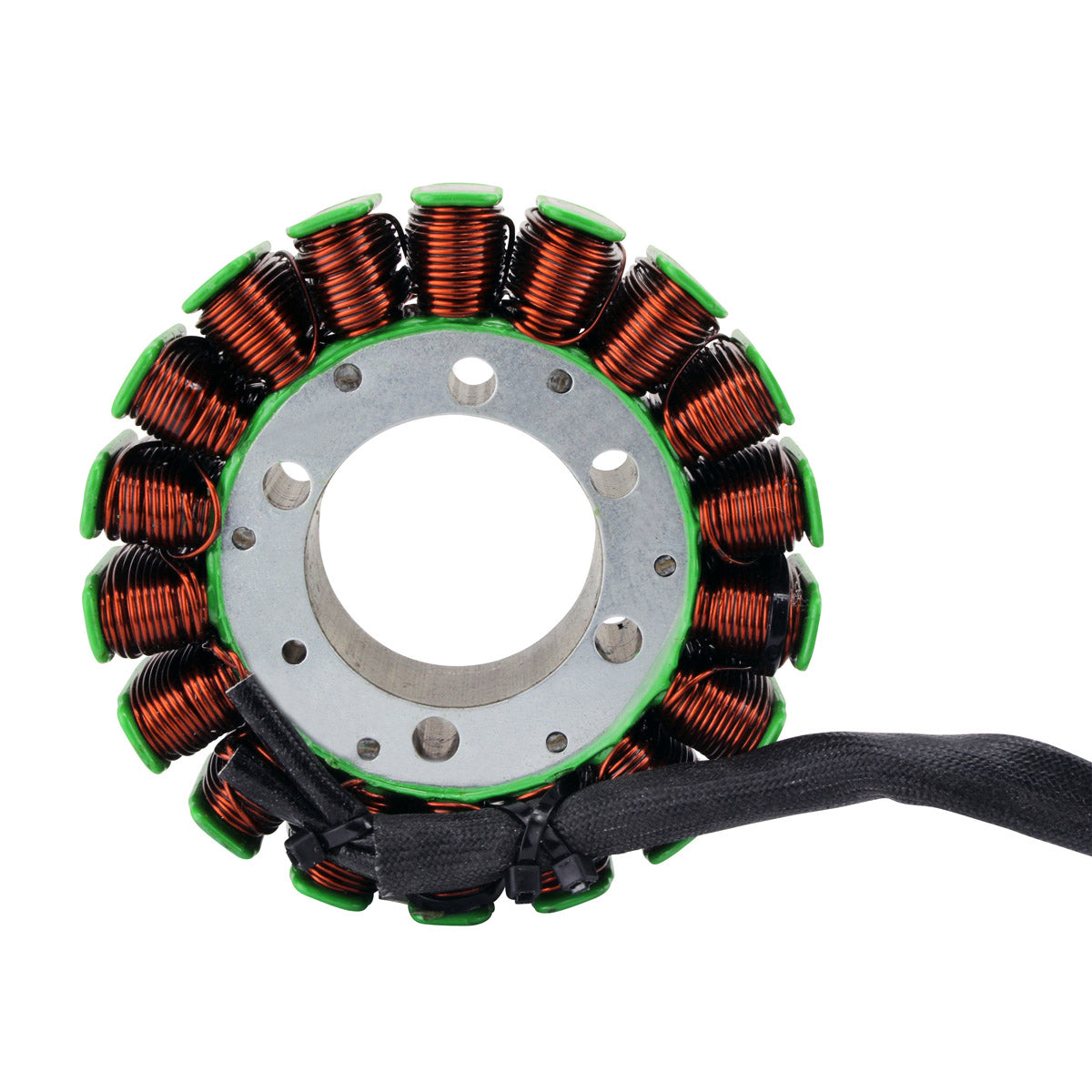

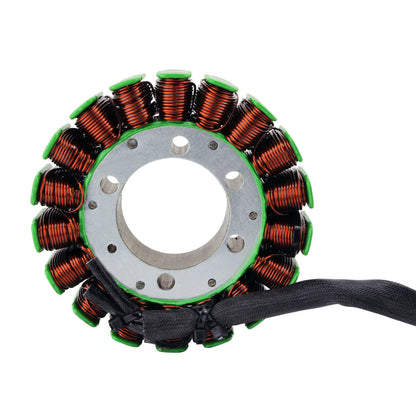

This is a brand new aftermarket stator built as a direct replacement for the original charging unit fitted to Yamaha's 900 triple range, covering the FJ-09, FZ-09, MT-09, Tracer 900 and XSR 900. It is plug-and-play and a direct fit, mounting in the standard position and connecting to the existing loom without cutting or modification. The pick-up pulsar coil is supplied on the assembly, so the ignition trigger is renewed at the same time.
RMSTATOR rate this unit at 20 per cent more output over stock while working with all other OEM components, which gives useful extra headroom on a machine carrying added electrical load. It is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. Connectors and a rubber grommet are included, along with the opposite connector for the main harness side, because that connector is often melted, corroded or defective. All products shipped are tested.
Key Features
- 20 per cent more output over stock, works with all other OEM components
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

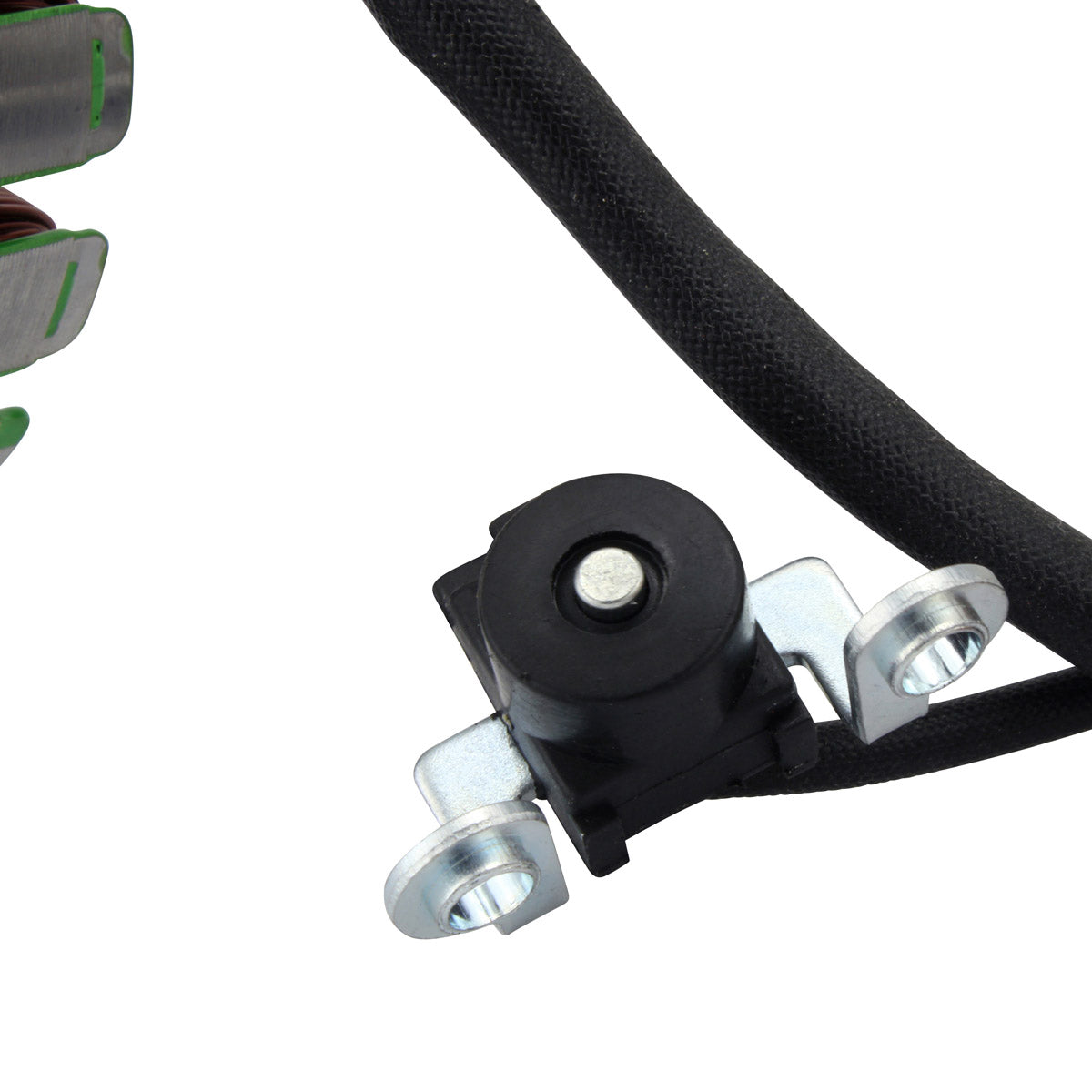

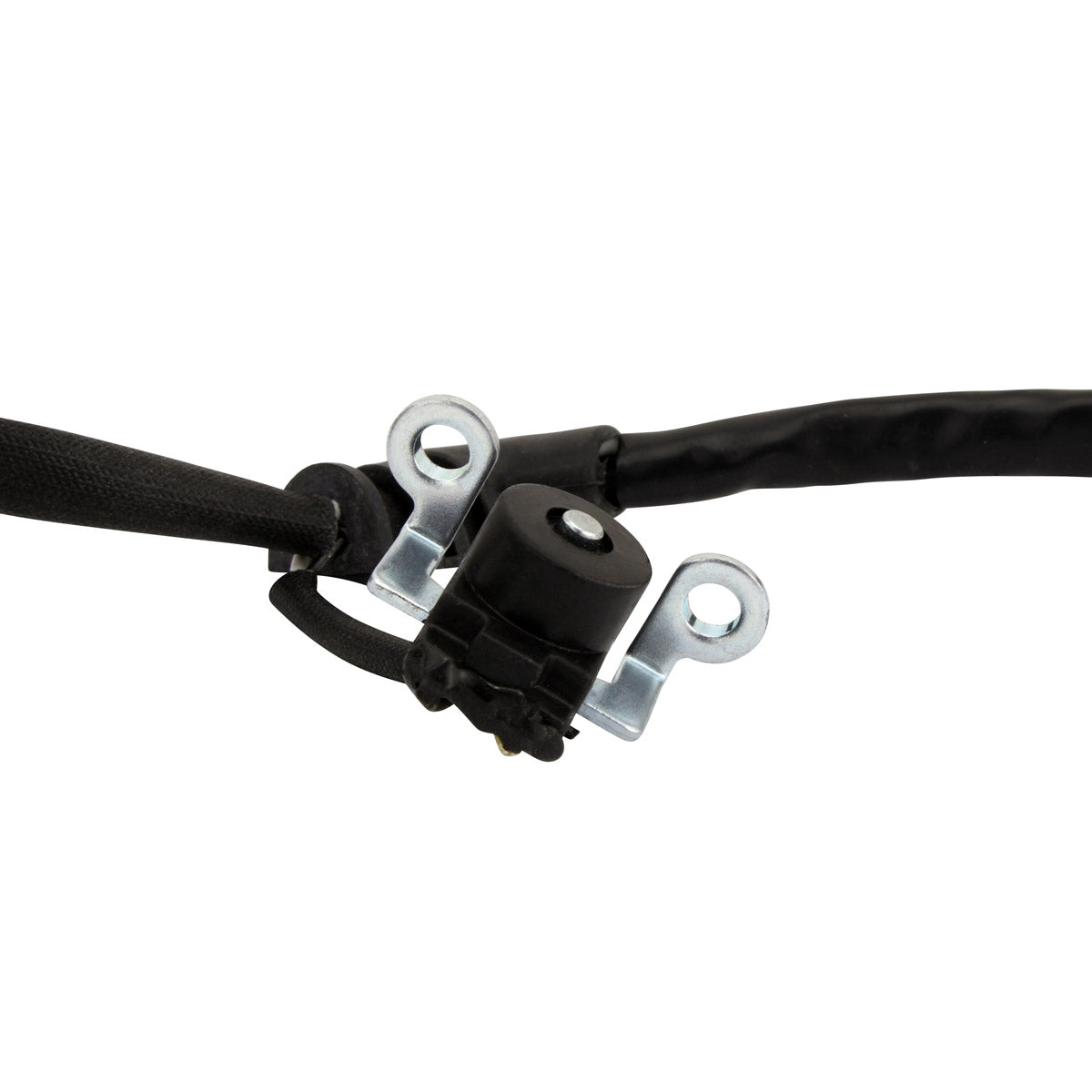

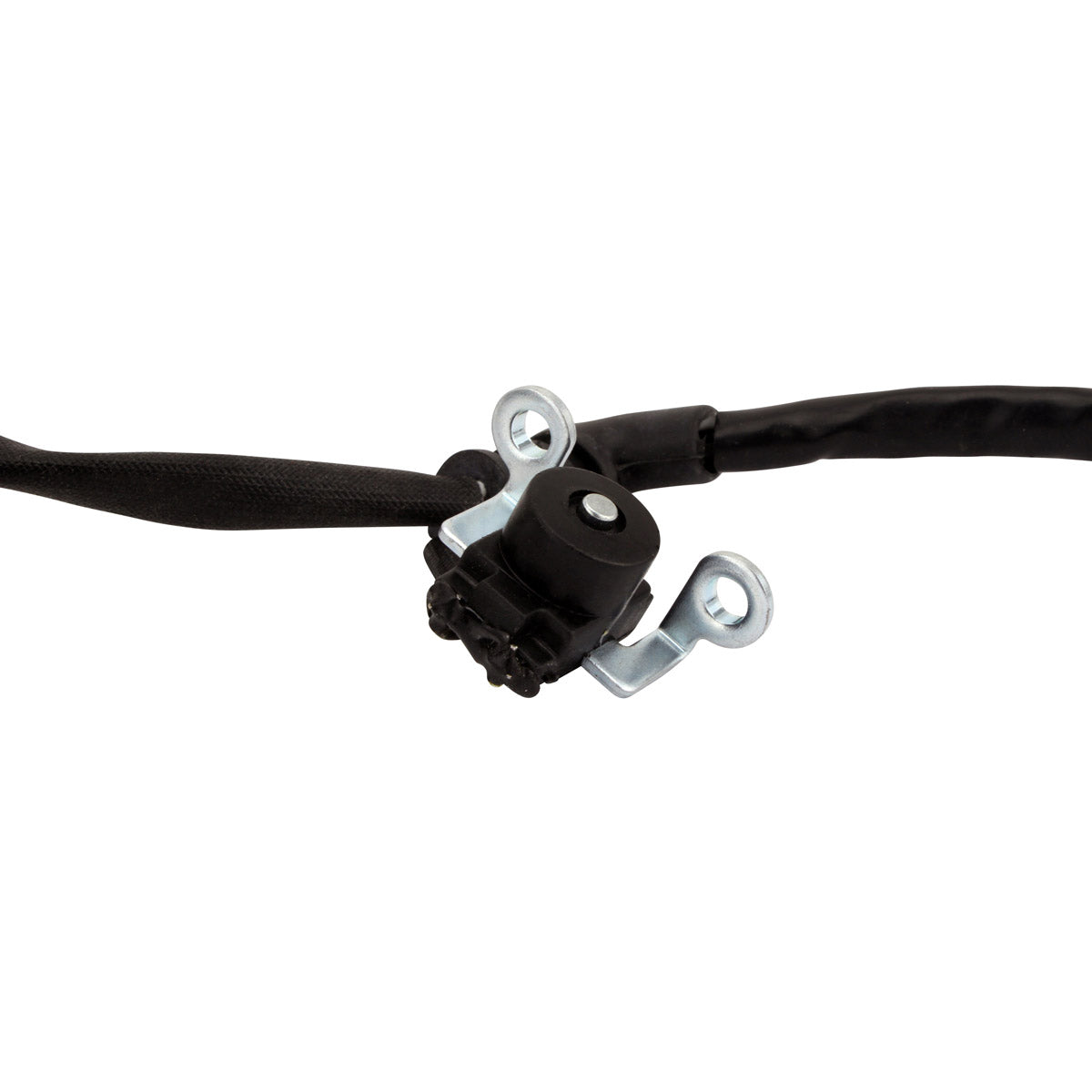

- Pick-up pulsar coil included on the assembly
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

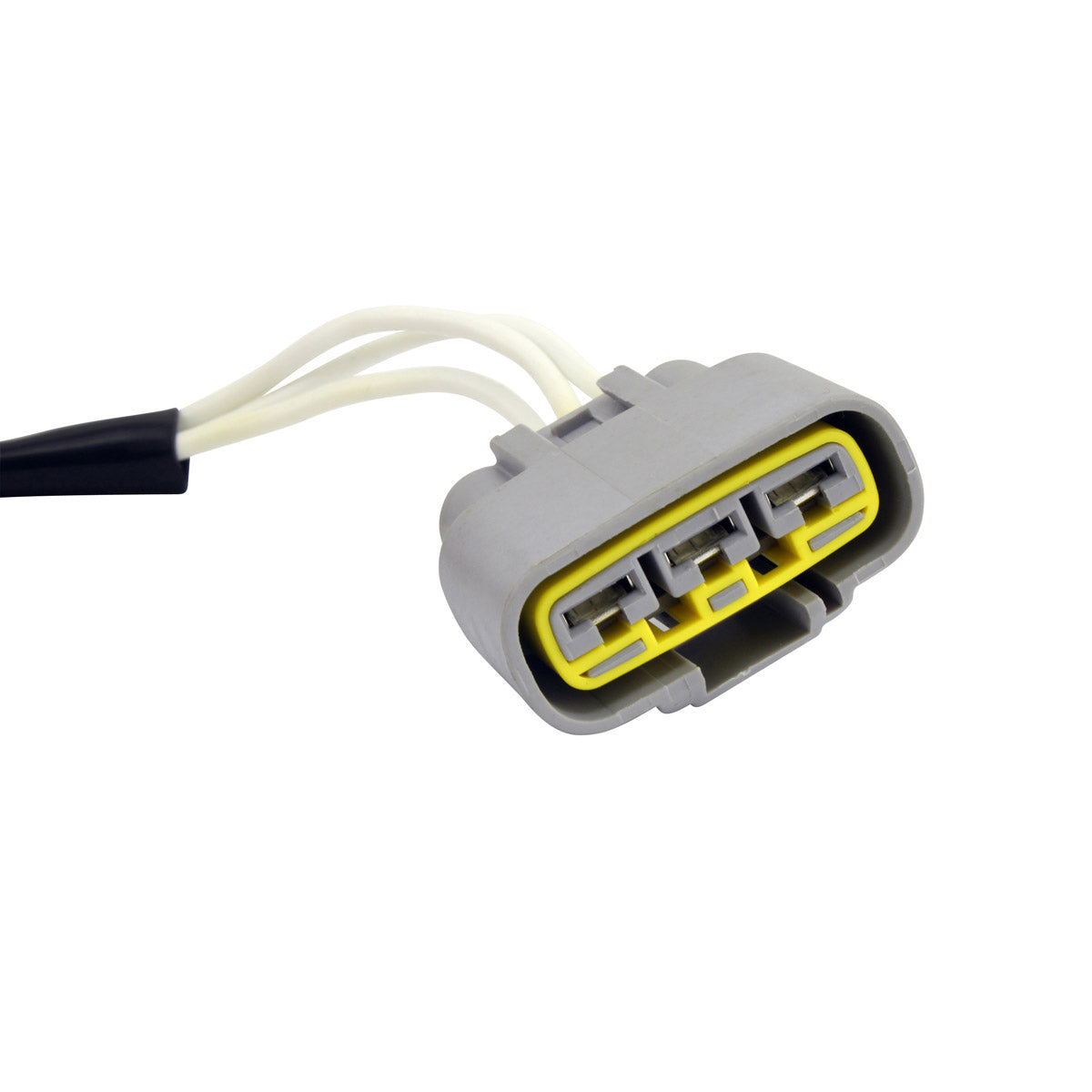

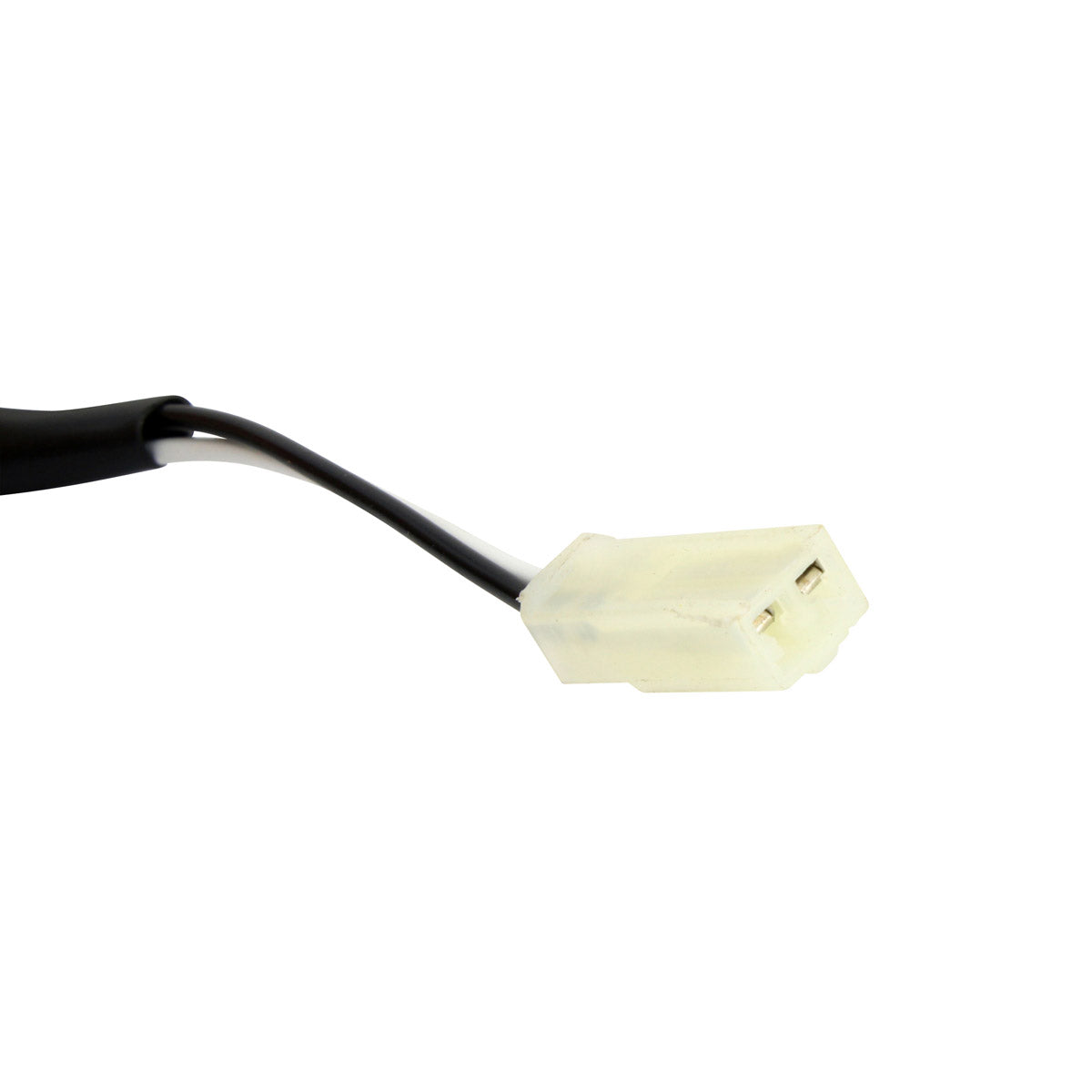

- Connectors included, plus the opposite main harness side connector
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
27 mm |
| Wire length, stator to grommet |
155 mm |
| Wire length, grommet to plug |
600 mm and 800 mm |
| Pick-up coil wire length |
60 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, White to White |
0.5 ohms +/-20% |
| Alternator resistance, White to ground |
O.L (open line) |
| Pick-up resistance, Black to Grey |
272 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha FJ-09 |
2014-2021 |
| Yamaha FZ-09 |
2014-2021 |
| Yamaha MT-09 |
2014-2021 |
| Yamaha Tracer 900 |
2014-2021 |
| Yamaha XSR 900 |
2014-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1RC-81410-00-00 |
Yamaha |
| 1RC-81410-02-00 |
Yamaha |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit and is plug-and-play, using the standard mounting position and the existing connectors. No cutting or splicing of the loom is required.
What is included in the box?
The stator with the pick-up pulsar coil fitted, the connectors including the opposite connector for the main harness side, and the rubber grommet. Every unit is tested before it is shipped.
How can I tell whether my old stator has failed?
Compare multimeter readings with the Technical Specs table above. The alternator windings should read about 0.5 ohms white to white and show an open line from any white wire to ground, and the pick-up should read about 272 ohms black to grey, each within 20 per cent. Continuity to ground or a reading far outside those figures indicates a failed unit.
Does the extra output cause any problem for the standard regulator rectifier?
No. RMSTATOR state that this unit delivers 20 per cent more output over stock and works with all other OEM components, so the standard regulator rectifier and battery are retained.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
