Stator for Yamaha MT-09, Tracer 900 & XSR 900 2021-2024
Fits Yamaha MT-09, Tracer 900 & XSR 900 2021-2024

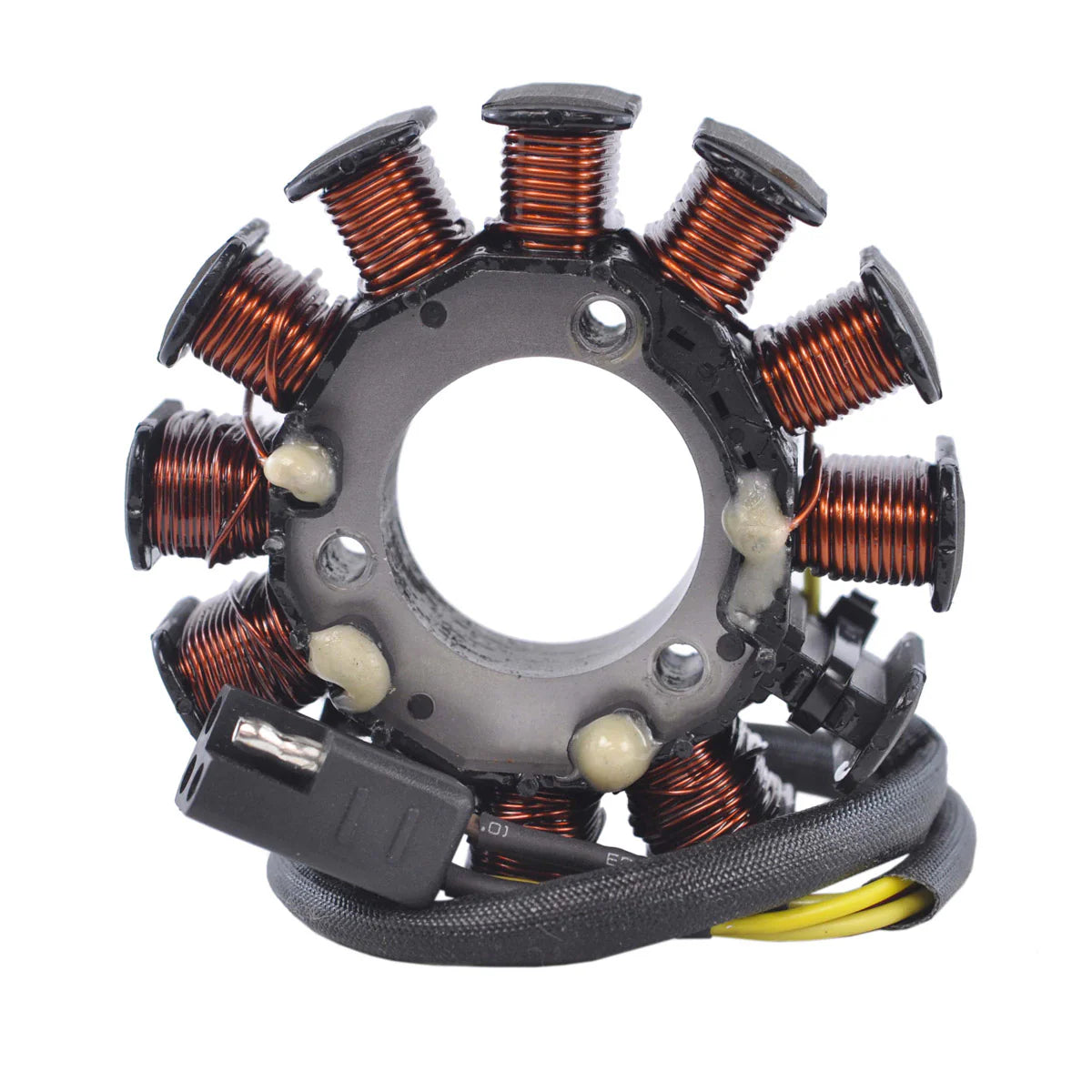

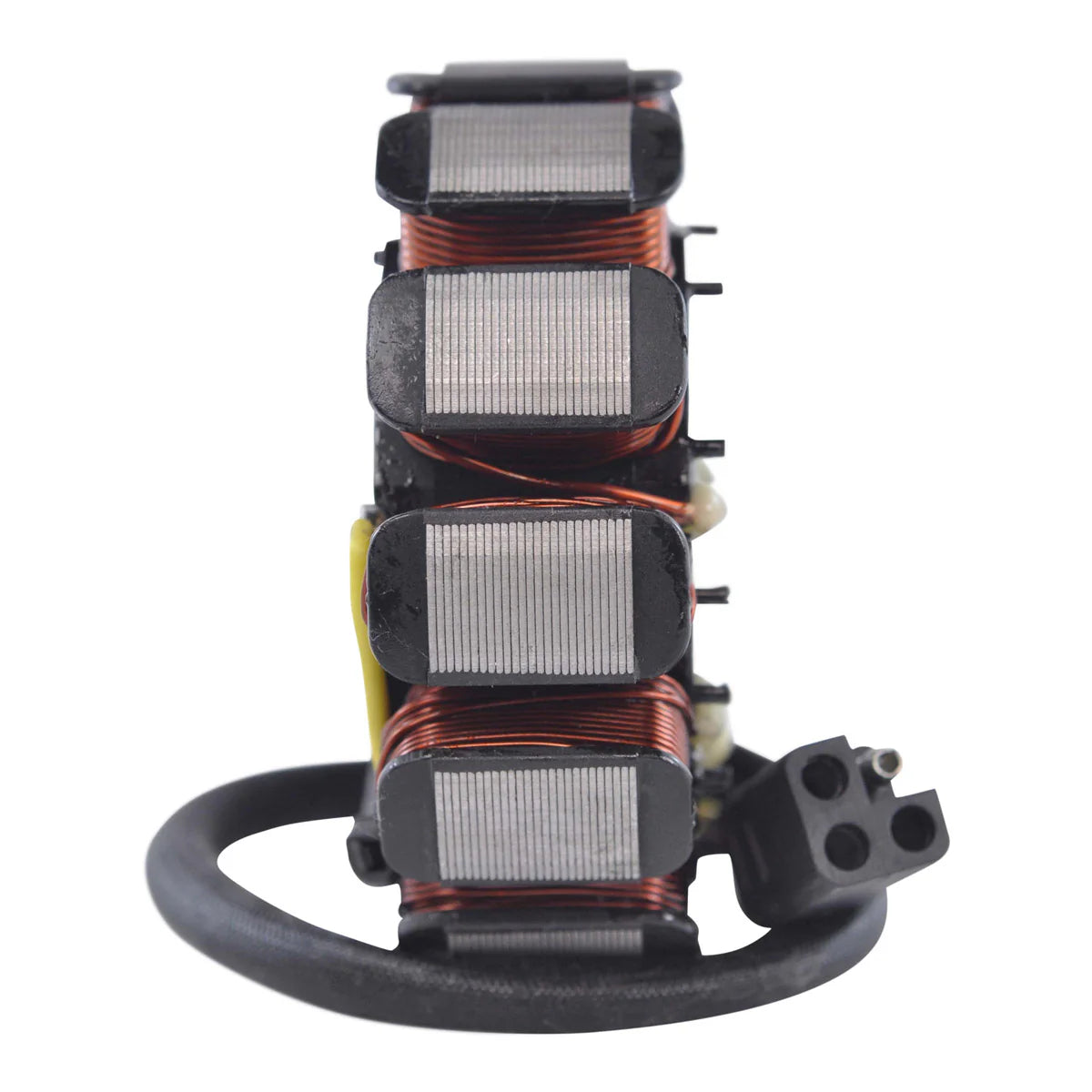

This stator is a direct-fit replacement for the Yamaha MT-09, Tracer 900 and XSR 900, built to OEM specifications to restore correct charging and ignition pickup signal and fits directly in place of the original unit.
The stator features 18 poles and 5 wires terminating in a 2-plug, 5-pin connector, with an alternator coil resistance of 0.7 ohms and a pickup coil resistance of 280 ohms, matching the original factory specification.
Key Features
- Direct OEM fit and finish, no modification required
- 18 poles, 5 wires
- 2 plugs, 5 pins
- Alternator resistance: 0.7 ohms; Pickup resistance: 280 ohms
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Interior Diameter | 42 mm |
| Exterior Diameter | 105 mm |
| Thickness | 27 mm |
| Wire Length (Stator to Grommet) | 160 mm |
| Wire Length (Grommet to Plug) | 220 mm & 350 mm |
| Pickup Coil Wire Length (to Grommet) | 55 mm |
| Number of Wires | 5 |
| Number of Plugs | 2 |
| Number of Pins | 5 |
| Number of Poles | 18 |
| Alternator Resistance (White-White) | 0.7 ohms +/-20% |
| Alternator Resistance (White-Ground) | O.L (open circuit) |
| Pickup Resistance (Grey-Black) | 280 ohms +/-20% |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha MT-09 | 2021-2023 |
| Yamaha Tracer 900 | 2021, 2022, 2024 |
| Yamaha XSR 900 | 2021-2023 |
OEM Part Number Cross Reference
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this stator fit without modification?
Yes. This stator is a direct OEM-fit replacement and connects using the factory 2-plug, 5-pin connector, no cutting or splicing required.
What's included?
One stator assembly, ready to fit directly in place of the original unit.
How can I tell my stator has failed?
Common signs include a battery that won't hold charge, dim lights, hard starting, or a stalling engine with the headlight on.
Does this match the original resistance readings?
Yes, it is built to the same 0.7 ohm alternator and 280 ohm pickup coil resistance as the OEM part.
