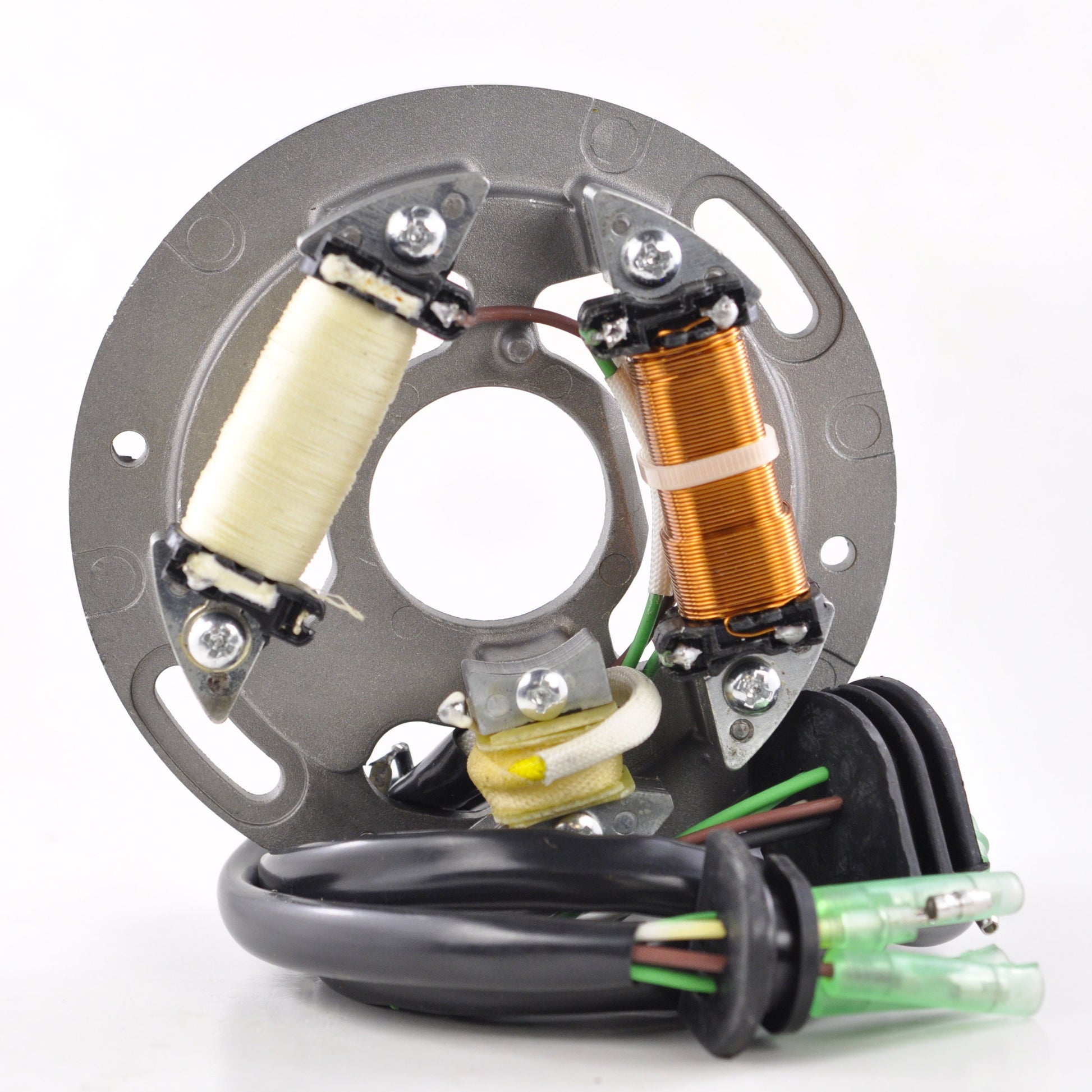

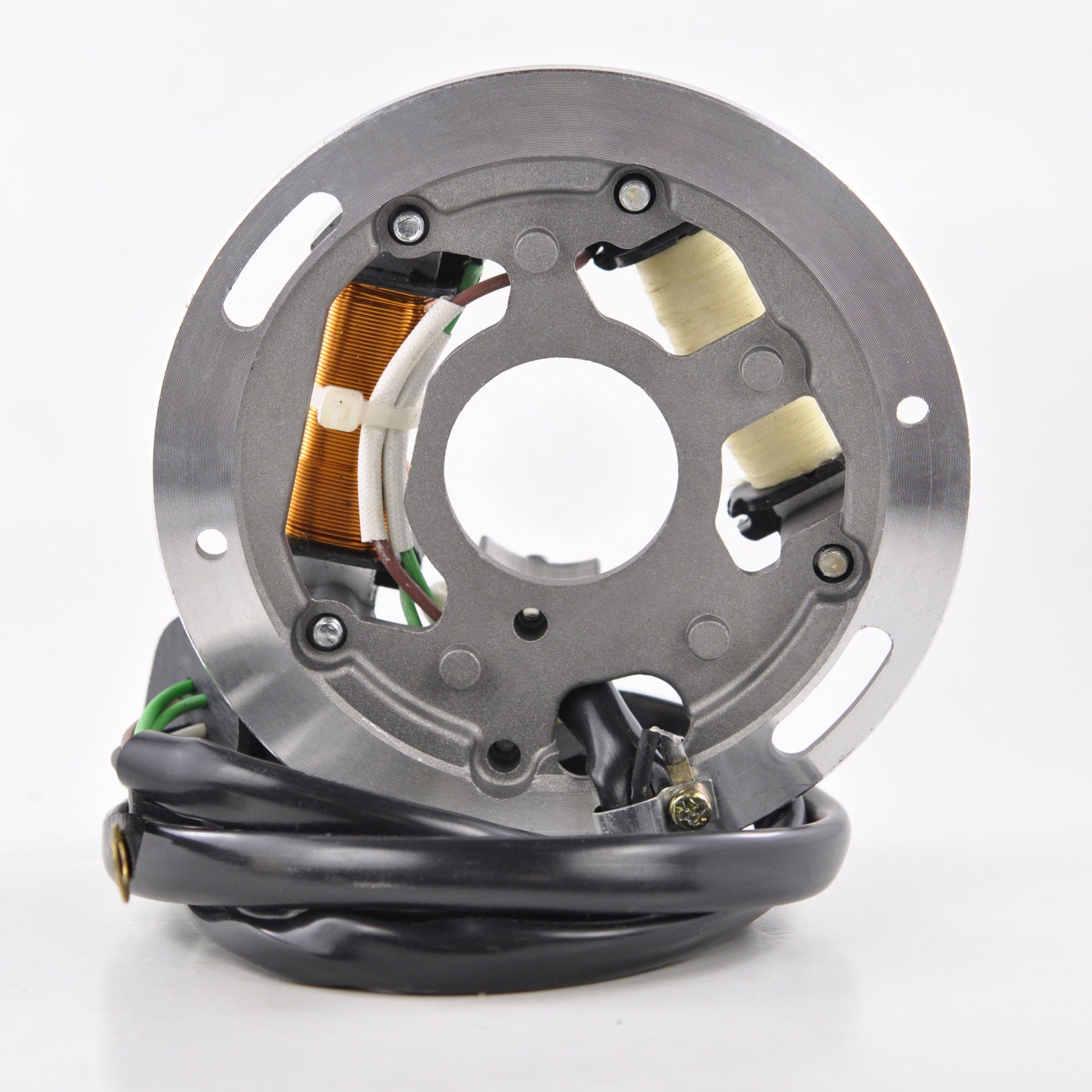

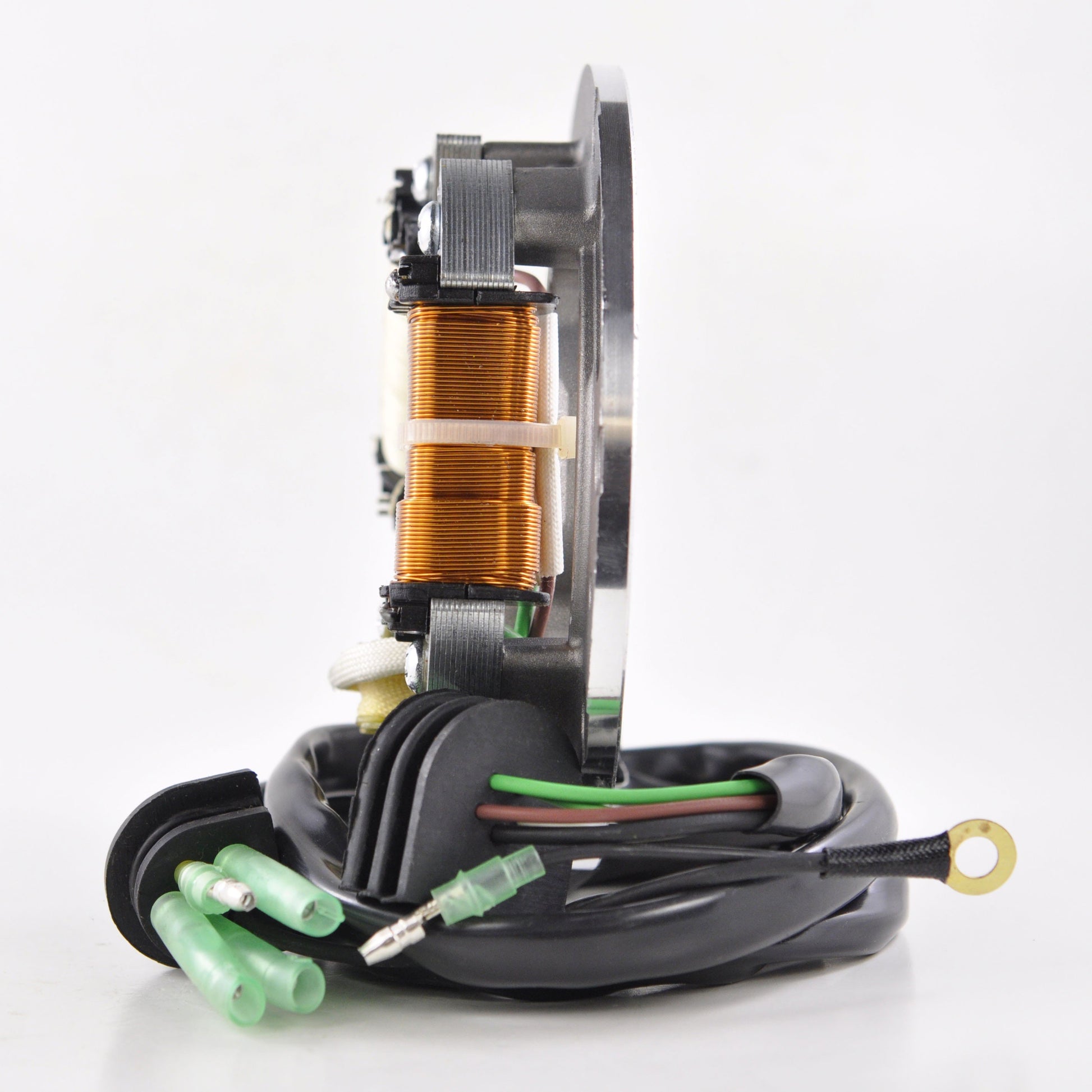

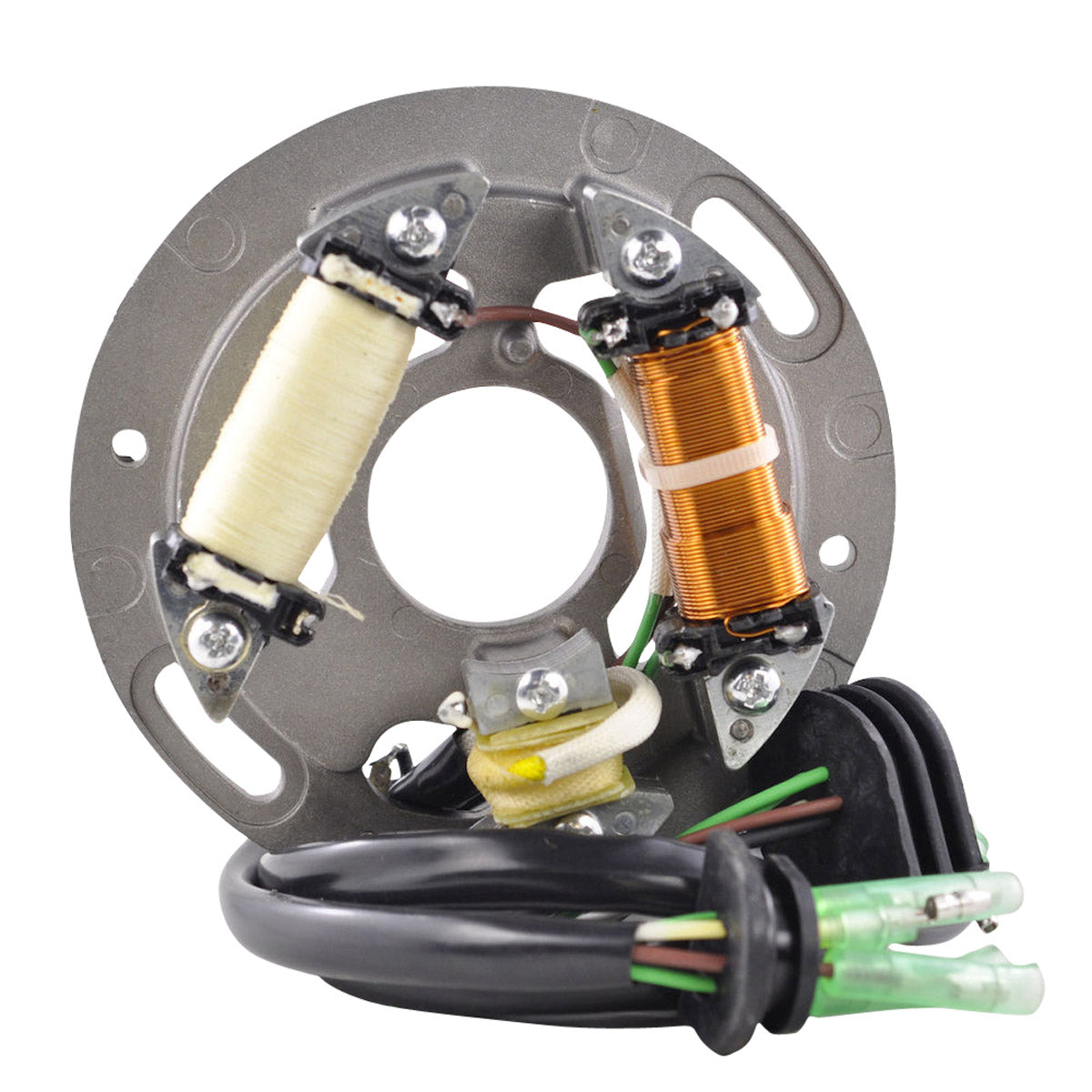

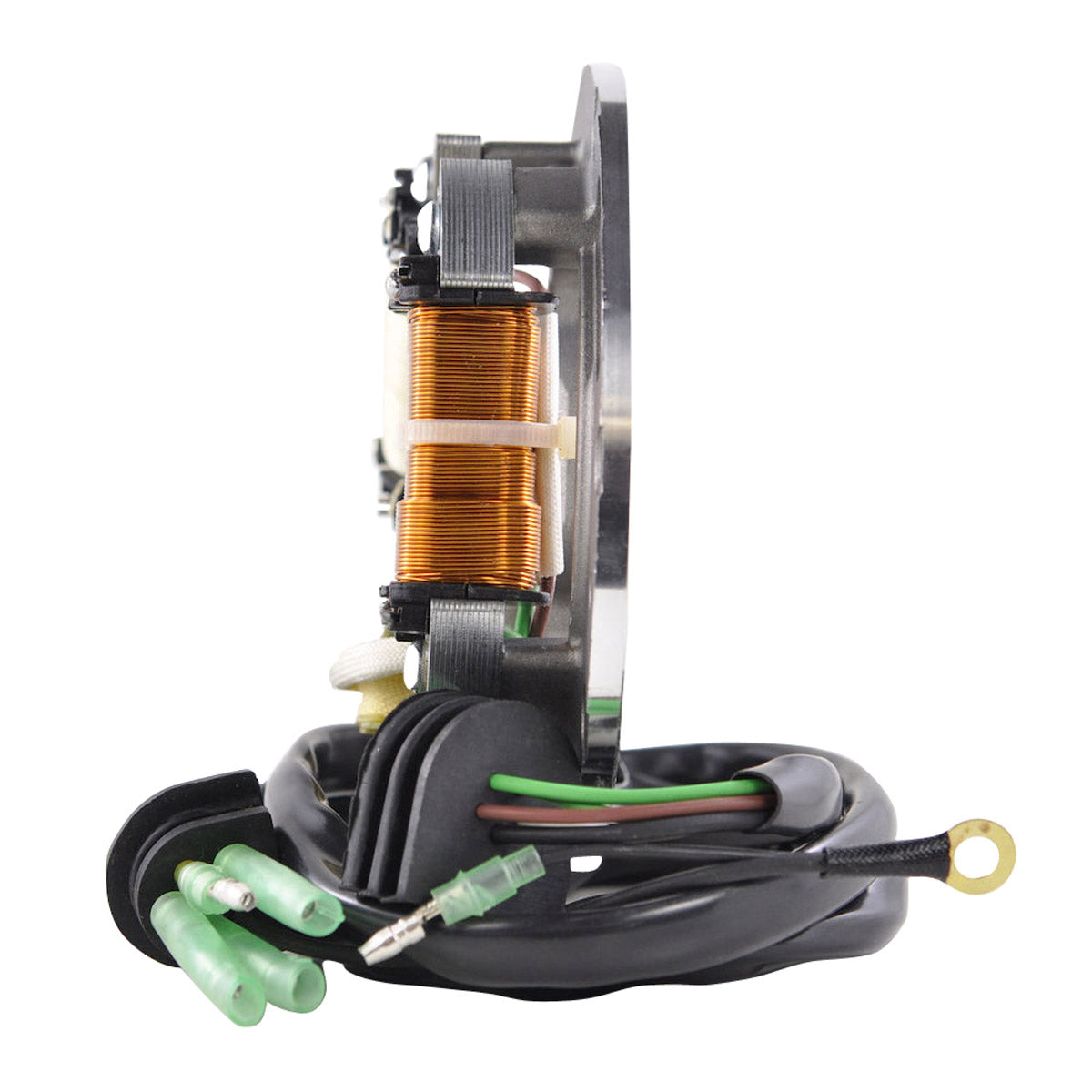

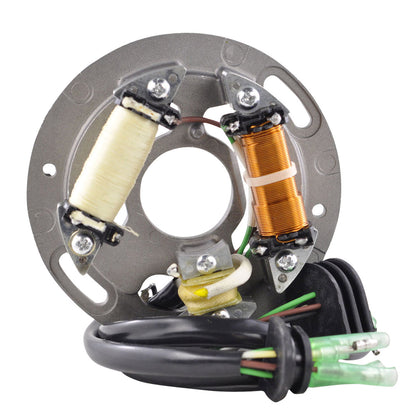

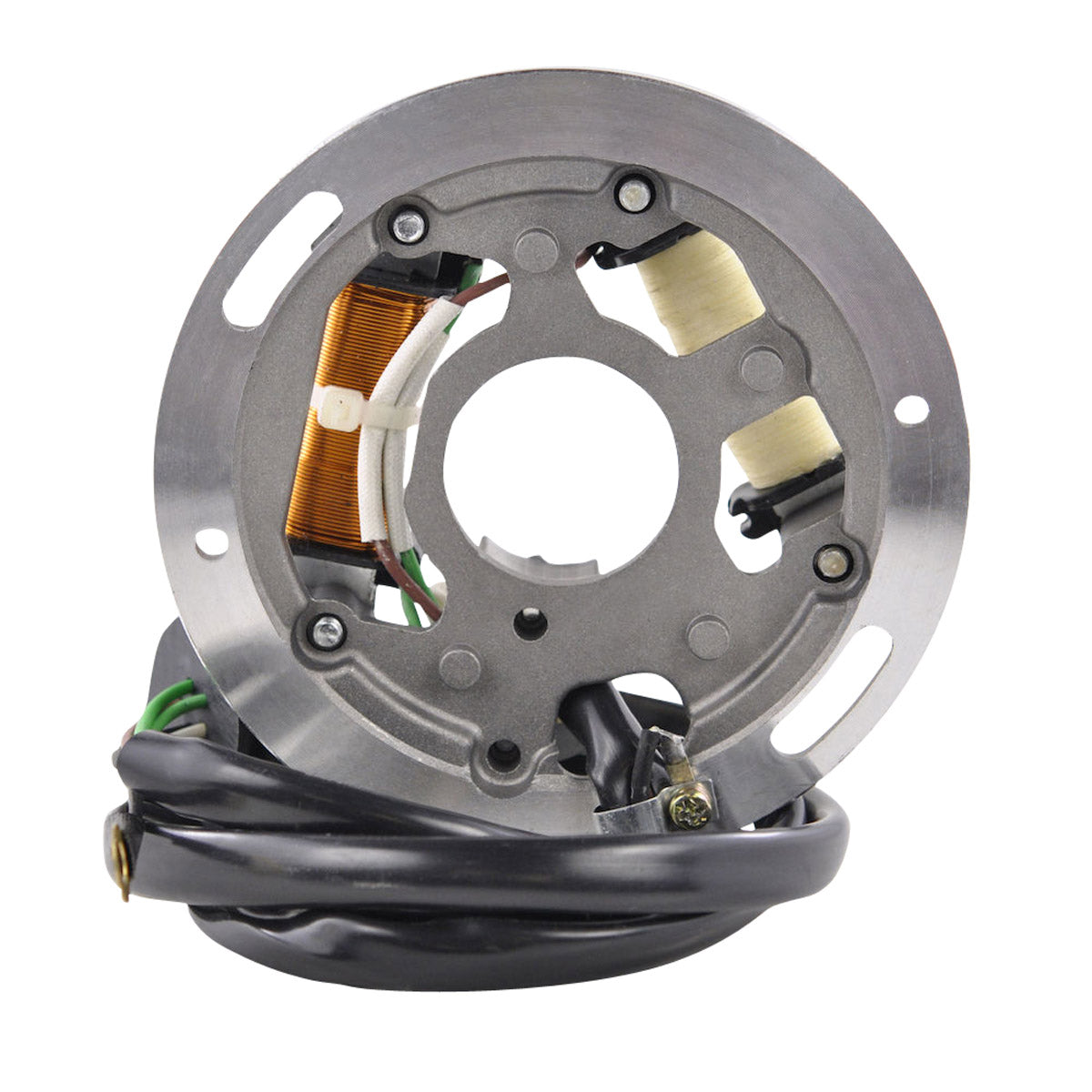

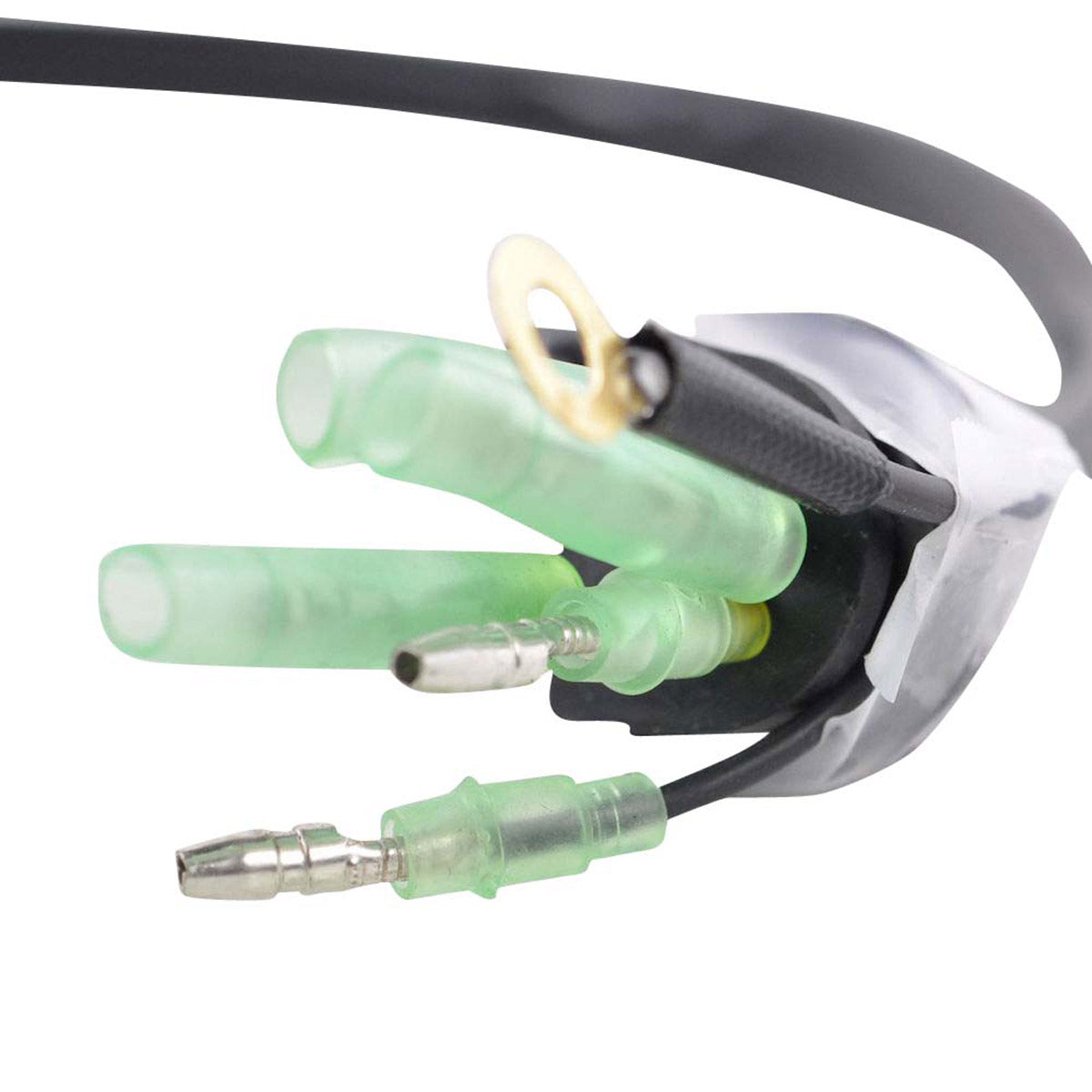

Stator for Yamaha PWC SuperJet and Wave Runner
SuperJet, Wave Raider, Wave Venture and Wave Runner - 1994 to 2017 - Part RMS010-103150
This is a brand new aftermarket replacement stator for Yamaha personal watercraft, covering the SuperJet, Wave Raider, Wave Venture and Wave Runner across the 1994 to 2017 span. It is a direct replacement for the original unit, so it mounts in the same position behind the flywheel, uses the same wire routing and needs no modification to the loom, the ignition or the charging circuit. Installation is plug-and-play.

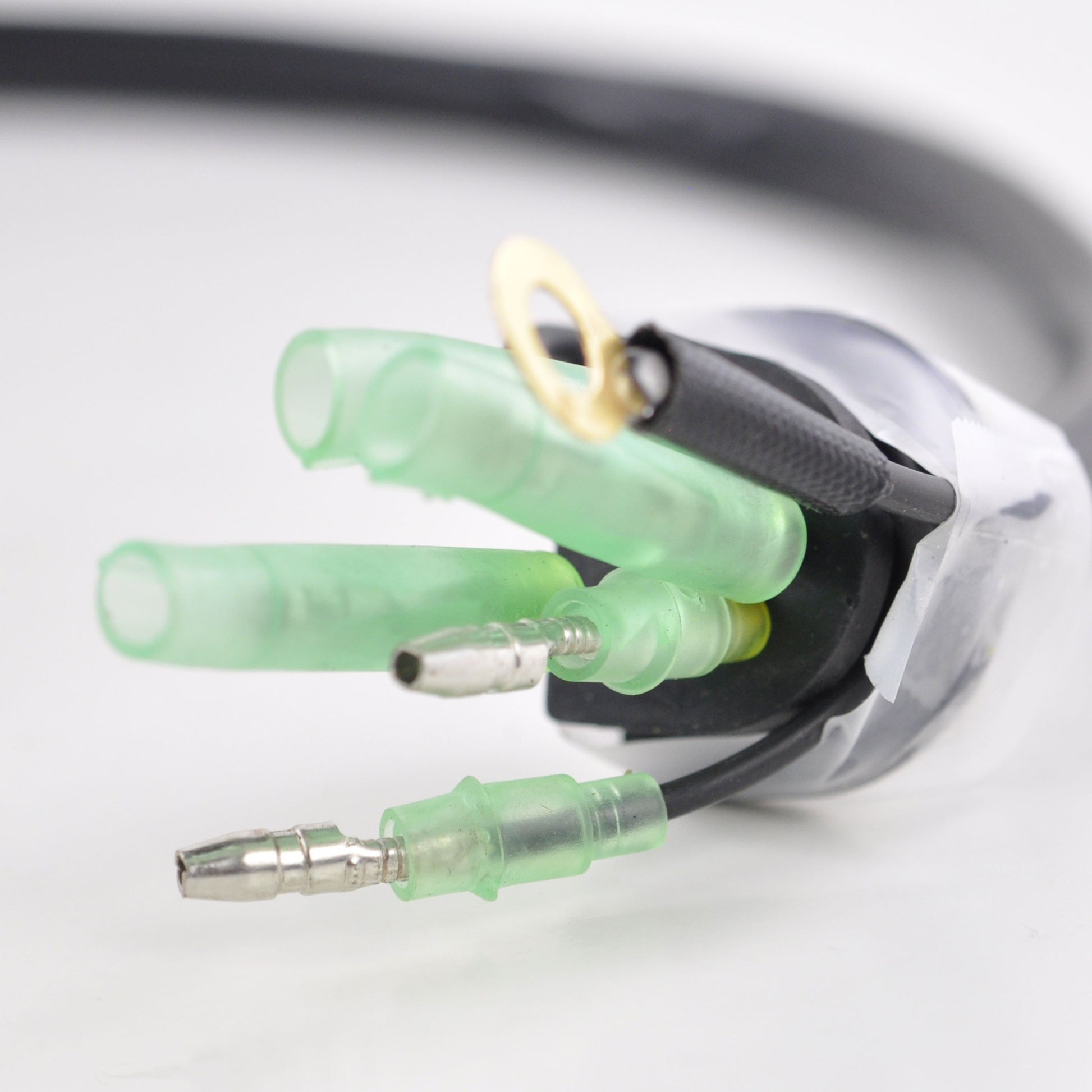

A watercraft stator carries three separate jobs on this platform: the alternator windings that charge the battery, the source coil that feeds the ignition, and the pick-up that times it. All three are wound here in the same assembly, with six wires and six pins, and each circuit has its own published resistance value so a failure can be traced to the exact winding rather than guessed at. The core uses the highest grade lamination materials and the windings the highest grade copper, resistant to 200 degrees Celsius, which matters in a hull where the engine bay gets hot and airflow is limited. The rubber grommet and the back plate are both included, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewound used core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Rubber grommet included
- Back plate included
- Alternator, pick-up and source windings in one assembly
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Source diameter | 89 mm |
| Number of wires | 6 |
| Number of pins | 6 |
| Alternator resistance, Green to Green | 1.6 ohms +/-20% |
| Pick-up resistance, Yellow/White to Black | 16 ohms +/-20% |
| Source resistance, Brown to Black | 560 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha SuperJet | 1994-2017 |
| Yamaha Wave Raider | 1994-2017 |
| Yamaha Wave Venture | 1994-2017 |
| Yamaha Wave Runner | 1994-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 62T-85560-00-00 | Yamaha |
| 6R8-85560-10-00 | Yamaha |
| 6R7-85560-10-00 | Yamaha |
| 6R7-85560-10-10 | Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on the listed craft, with the same mounting pattern, the same six-wire output and the same routing. No cutting, splicing or adapter loom is required.
What is included?
The stator assembly with its six wires and six pins, the rubber grommet, and the back plate. Every unit is bench tested before it is shipped.
How can I tell my old stator has failed?
Symptoms range from a battery that will not charge, through a weak or intermittent spark, to a craft that will not start at all. With a multimeter set to ohms, expect roughly 1.6 ohms Green to Green on the alternator winding, 16 ohms Yellow/White to Black on the pick-up and 560 ohms Brown to Black on the source coil, each within plus or minus 20 per cent. Any winding reading open circuit, near zero, or showing continuity to the engine case has failed.
Which of the three windings should I test first?
If the engine runs but the battery goes flat, test the Green to Green alternator winding. If the engine will not fire or cuts out, test the source coil Brown to Black and the pick-up Yellow/White to Black, because those two feed and time the ignition rather than the charging system.
