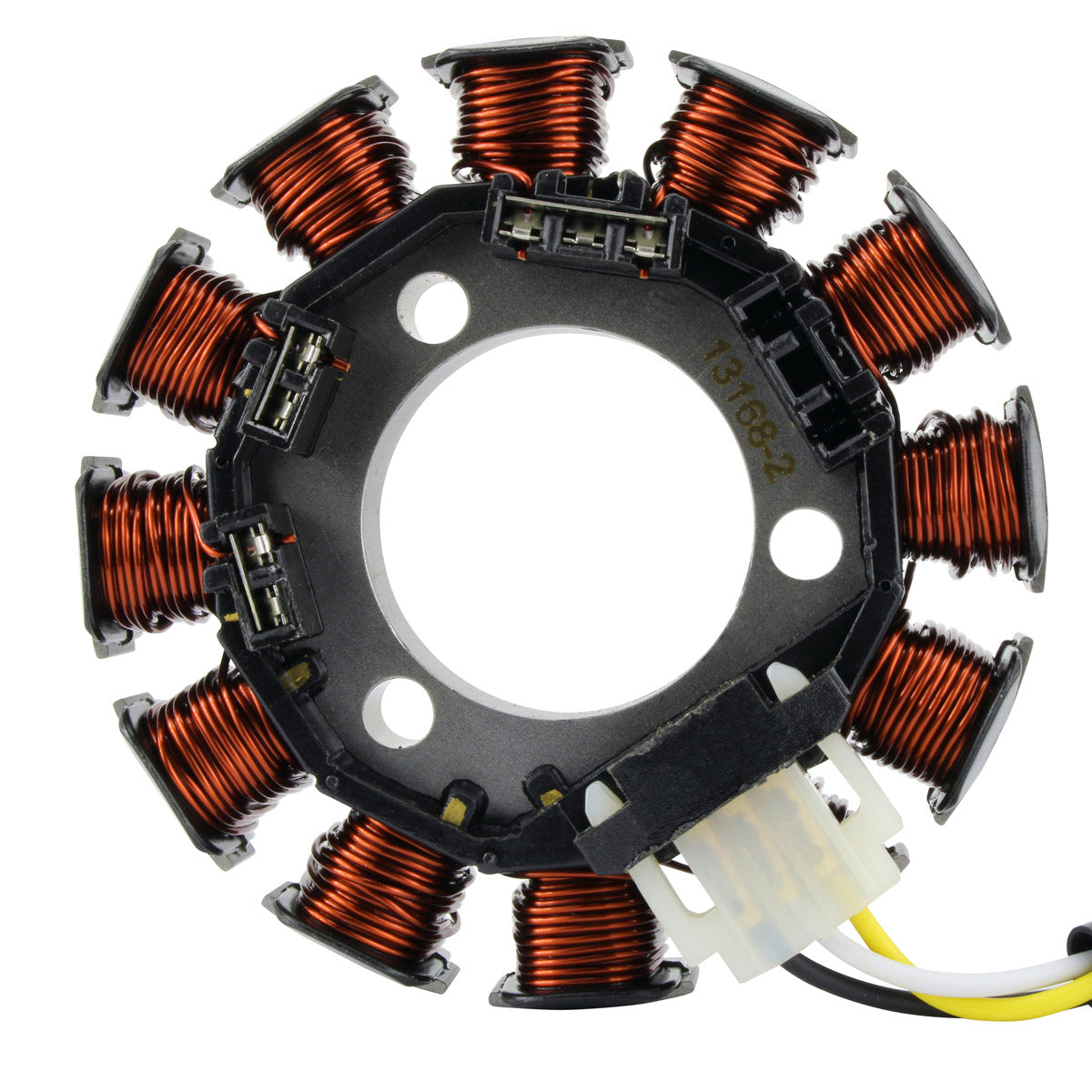

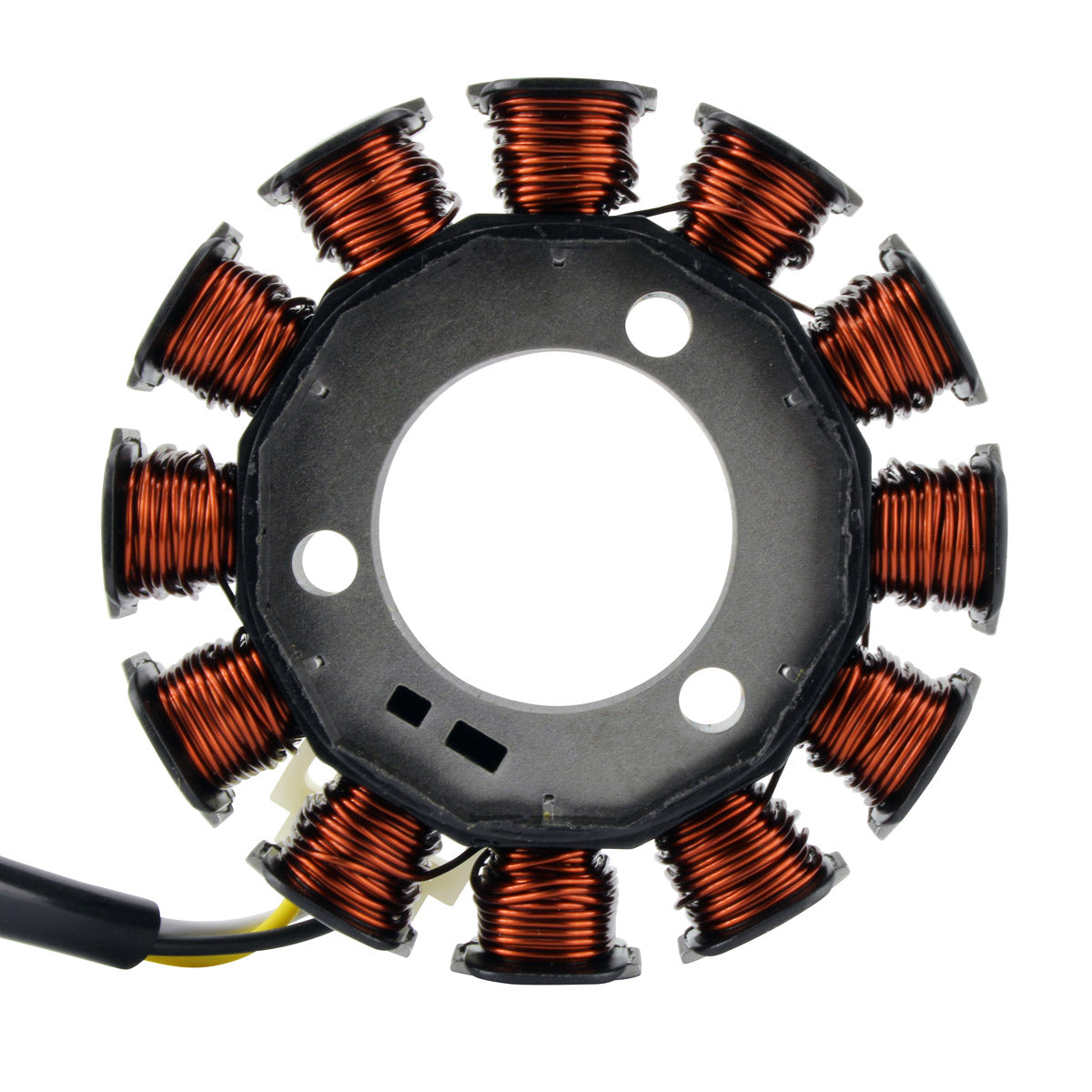

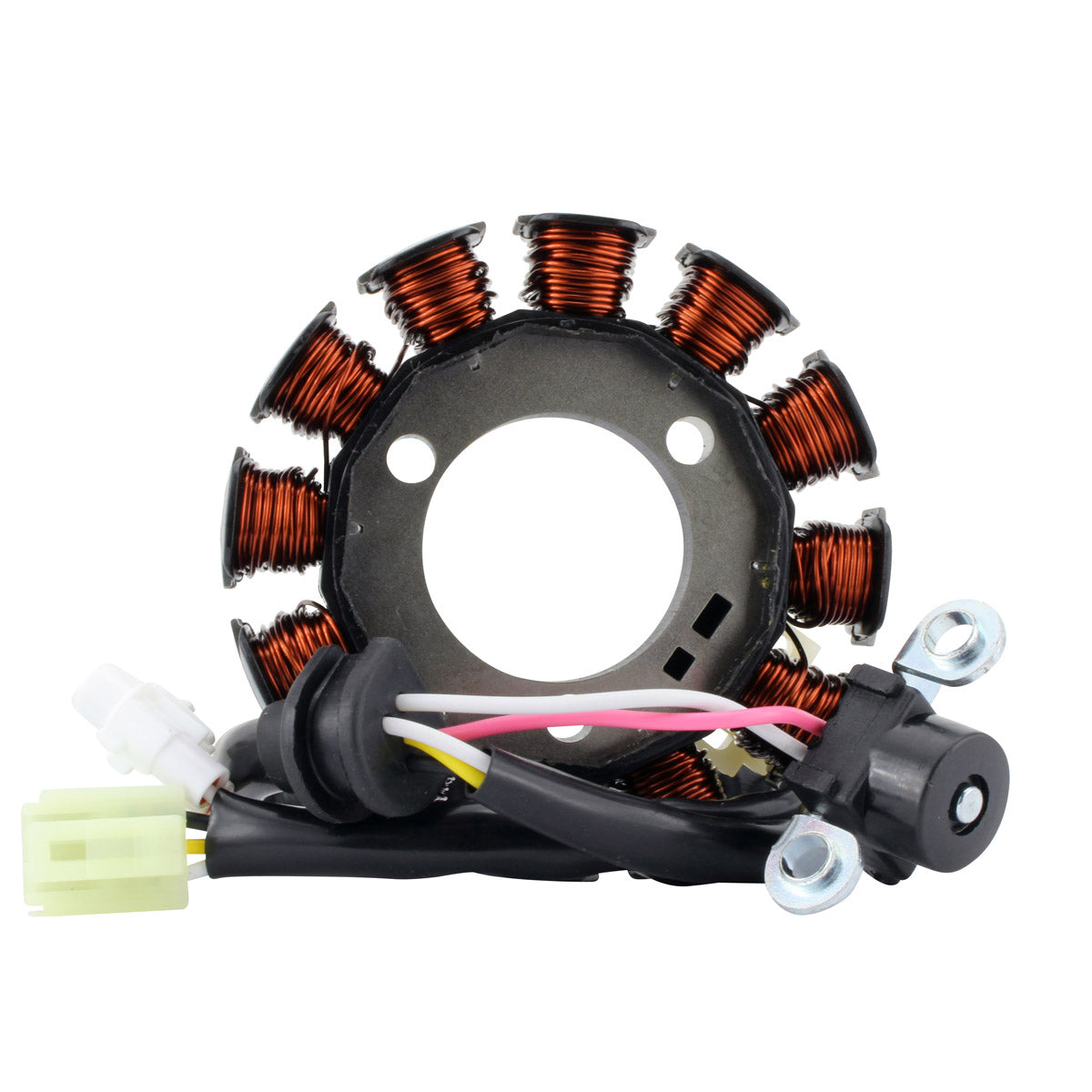

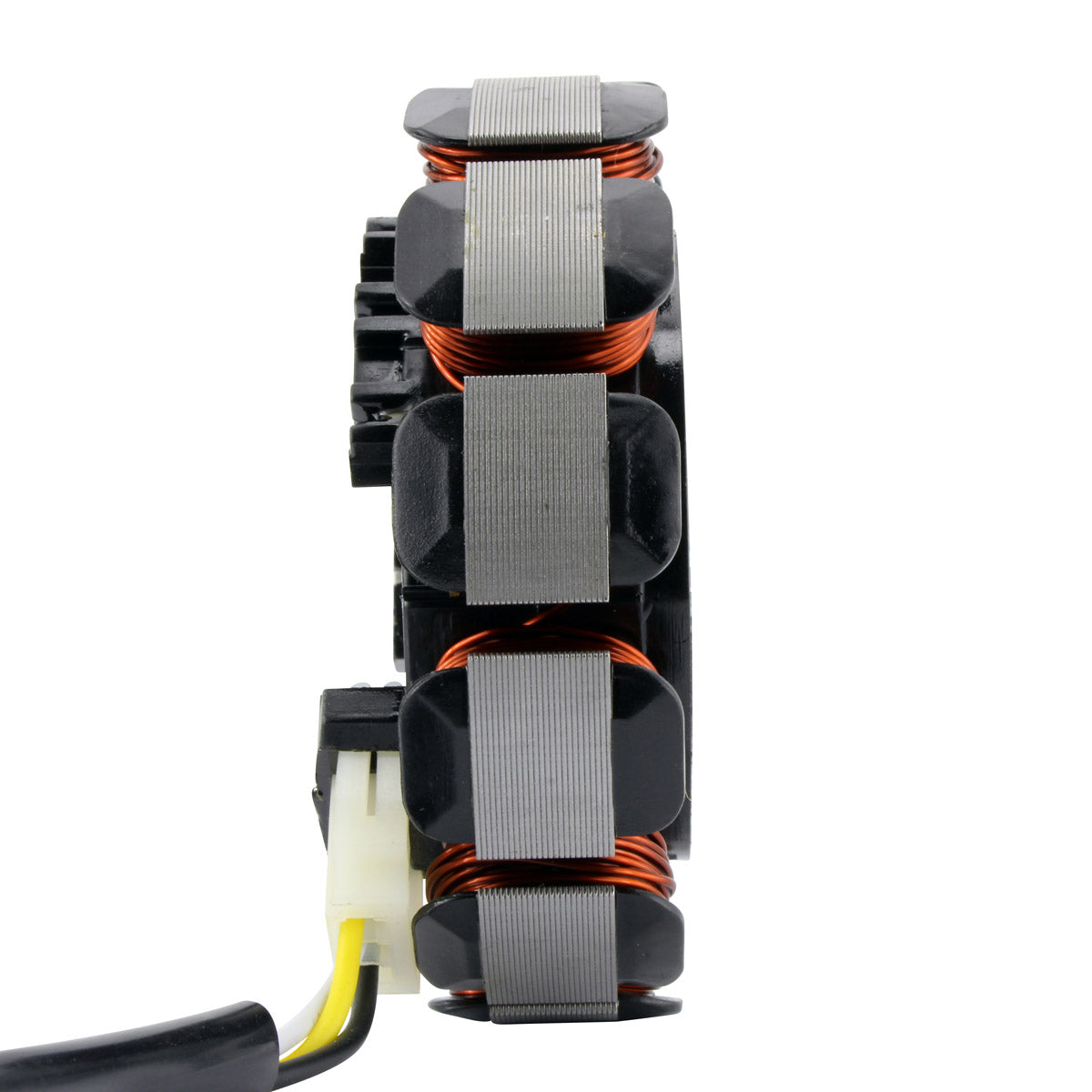

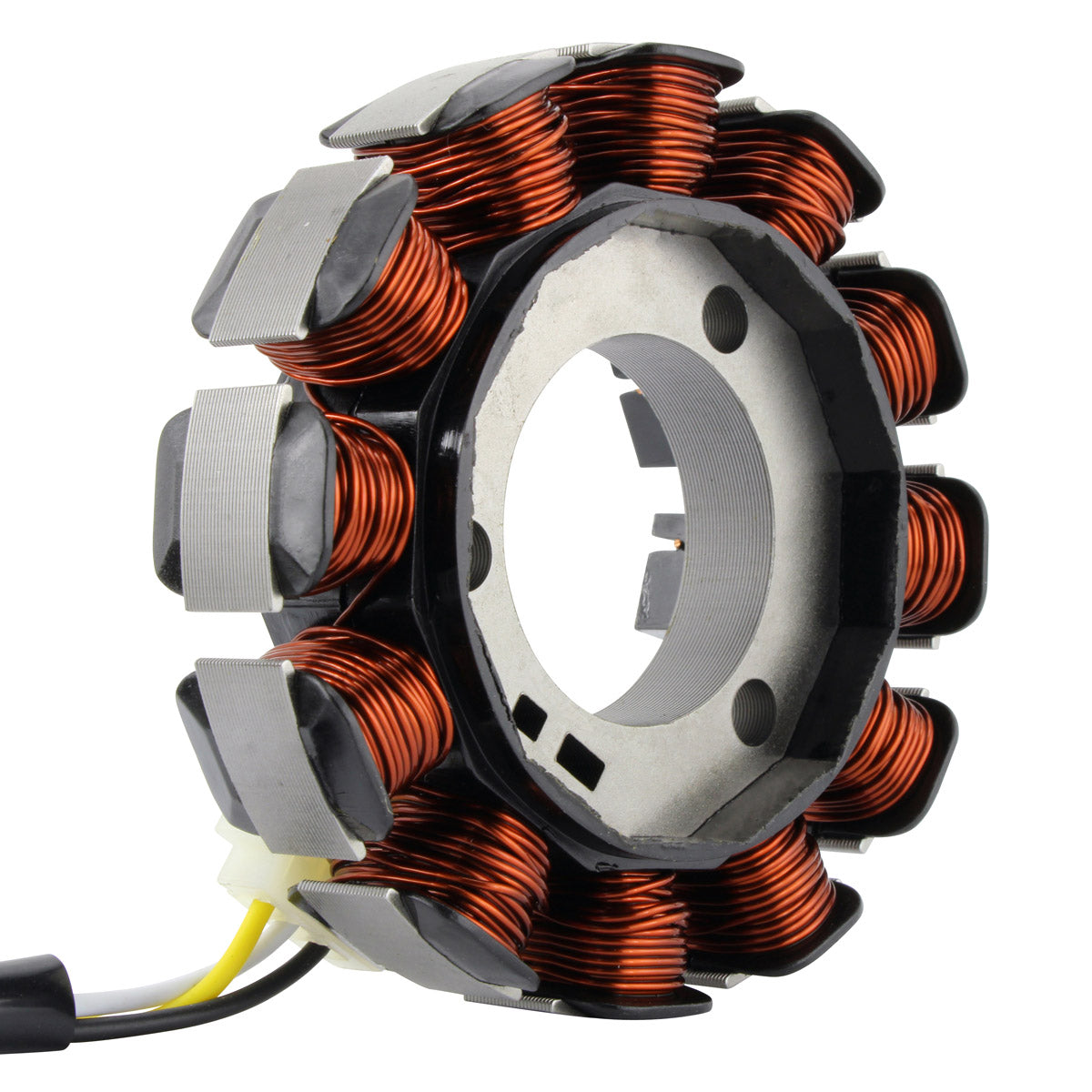

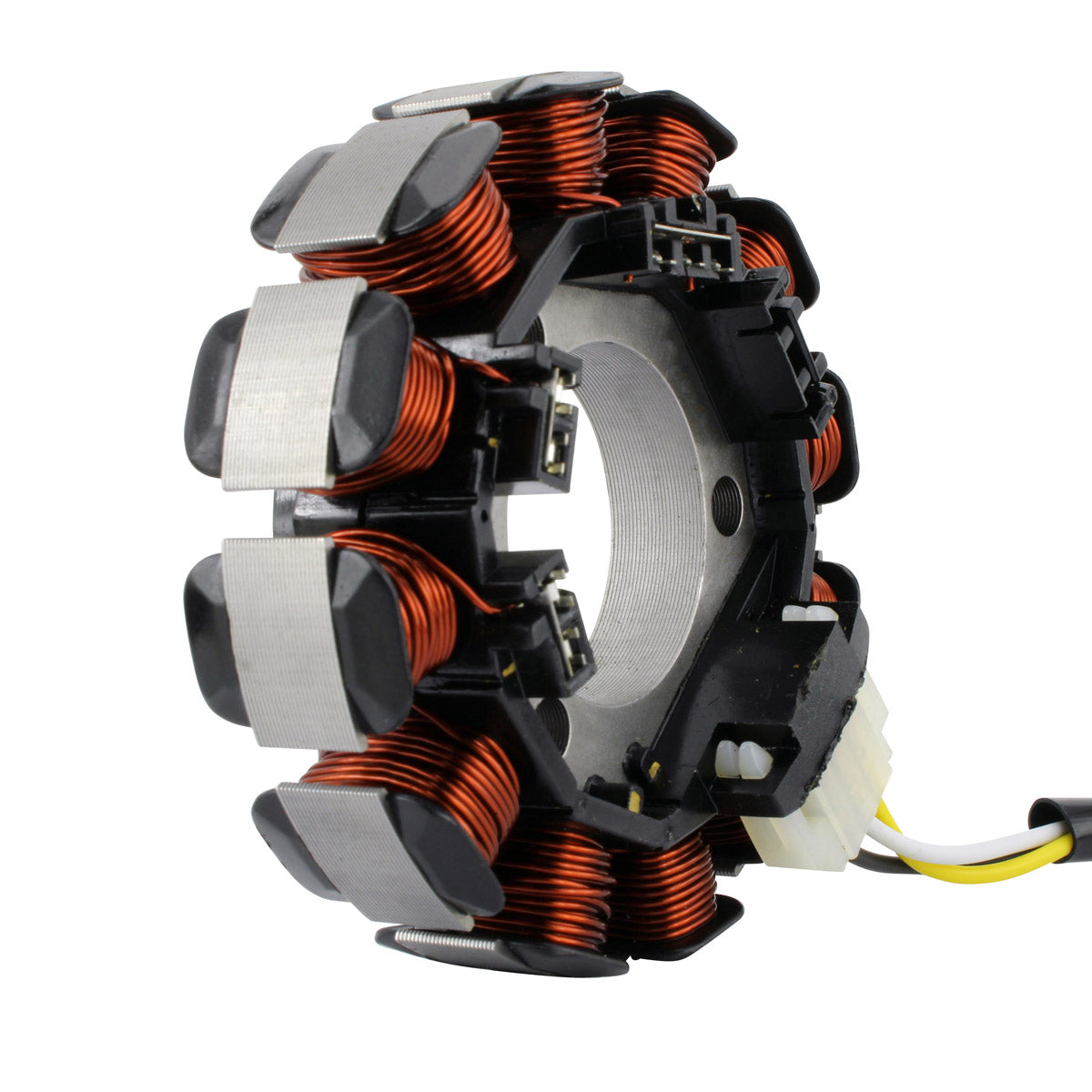

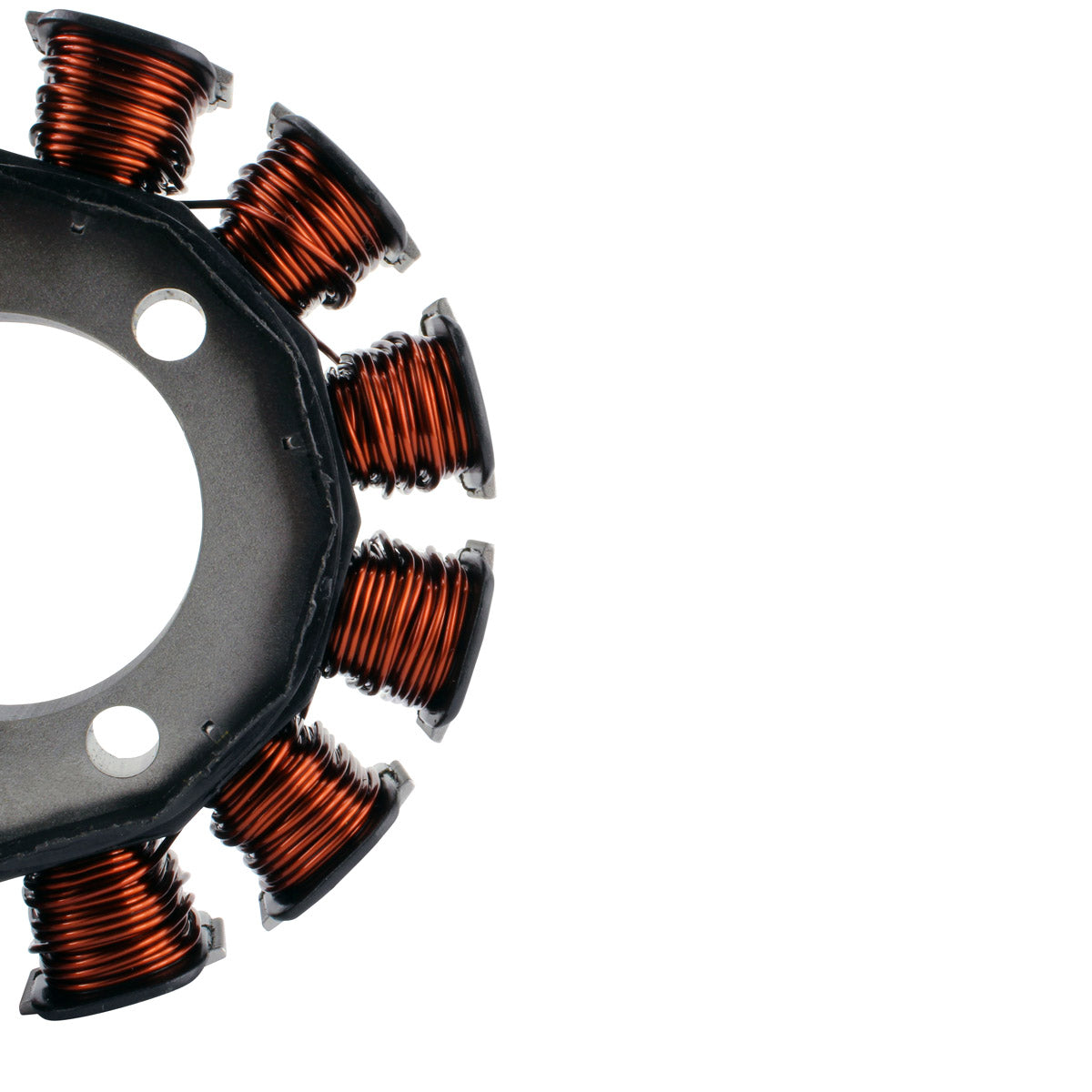

A brand new aftermarket stator for the Yamaha TTR 110, supplied as a direct replacement for the original unit. It is a plug-and-play, direct fit part - the mounting dimensions, wire lengths and connectors match the factory item, so the job is a straightforward swap with no rewiring or modification.
The stator is built with the highest grade of lamination material and copper winding rated to withstand 200 degrees Celsius, which is what keeps a small-capacity charging system alive through the heat cycling it sees in normal use. The pick-up pulsar coil is included and already fitted, along with the connectors and the rubber grommet, so you are not reusing tired parts from the old assembly. Every unit is tested before it ships.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

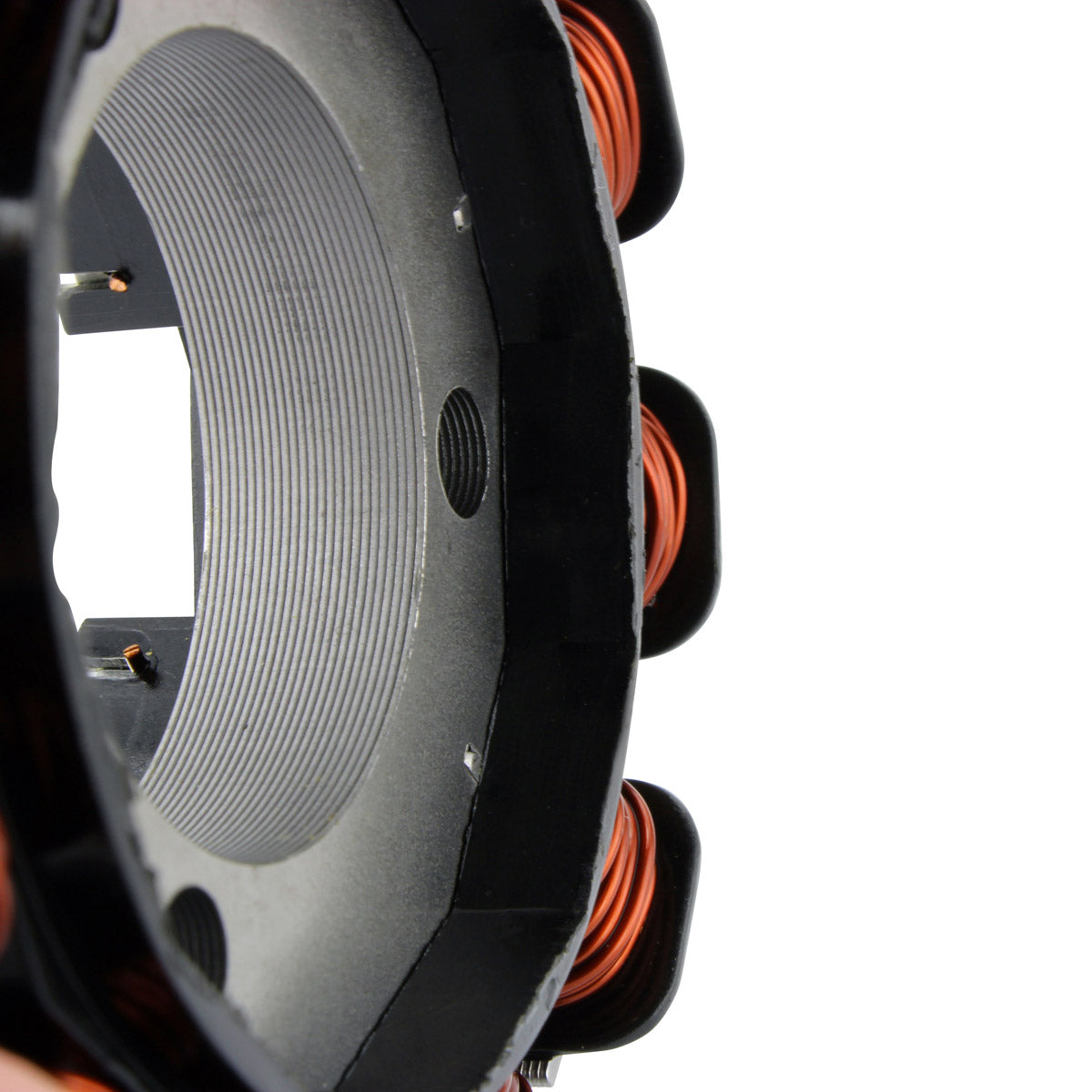

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

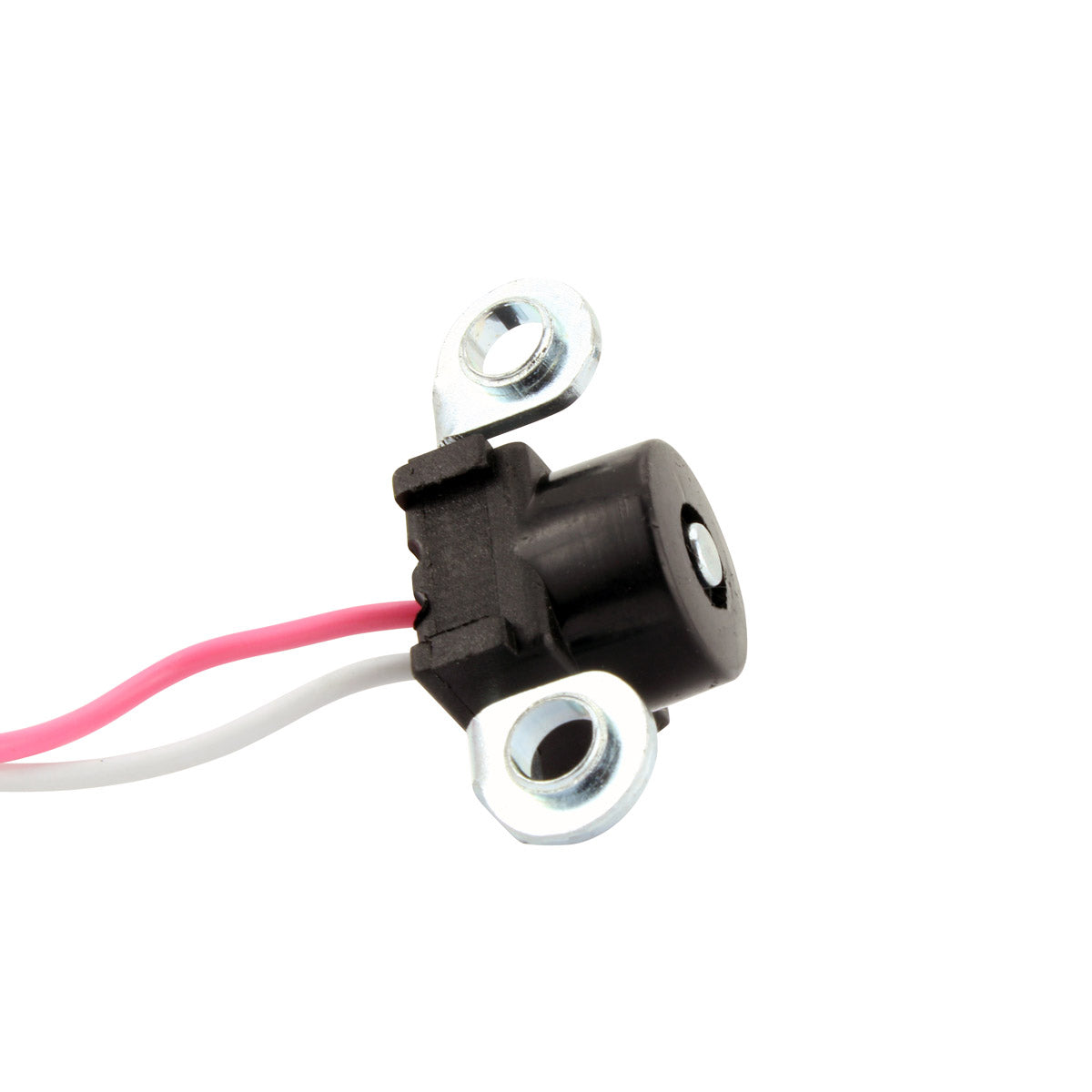

- Pick-up pulsar coil included

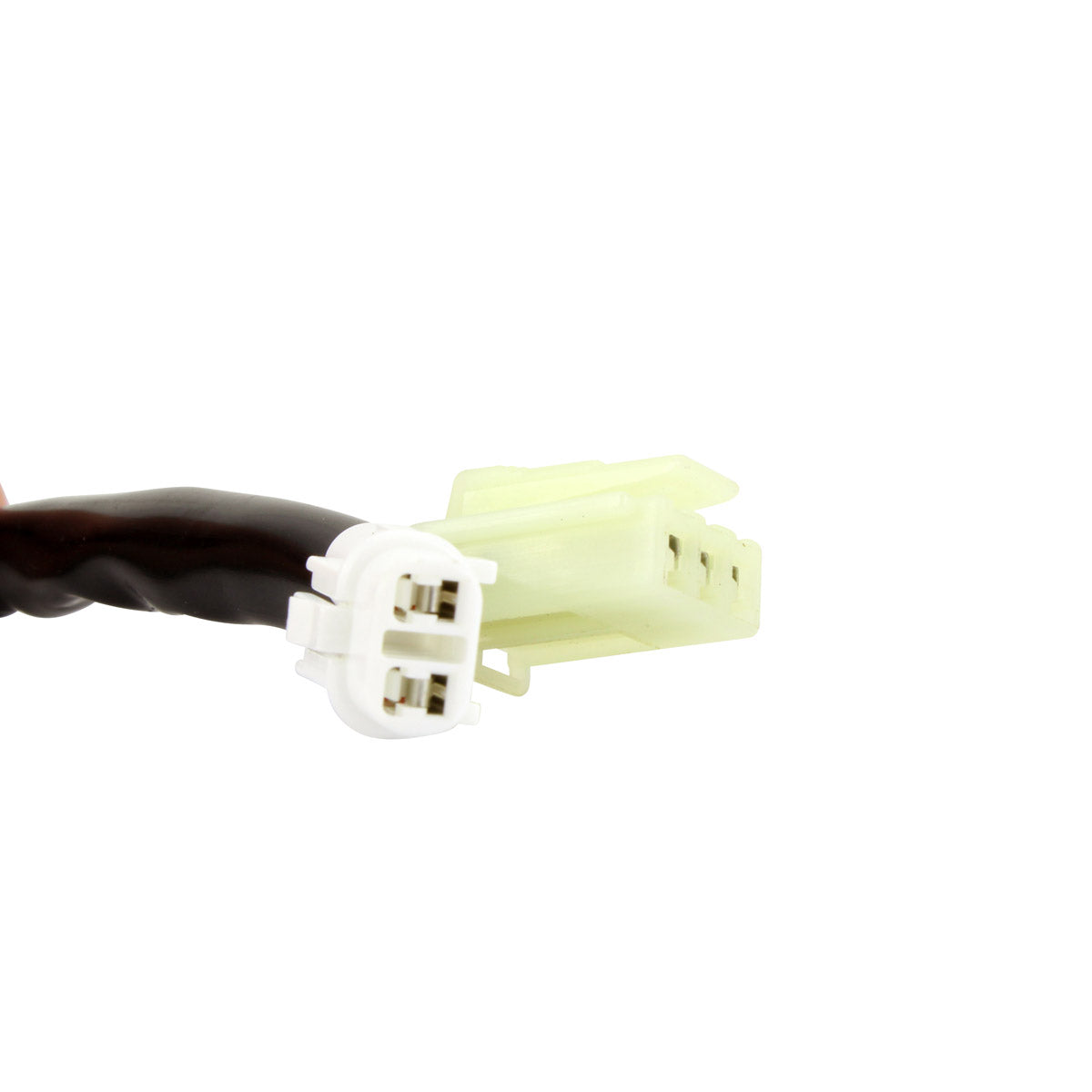

- Connectors included

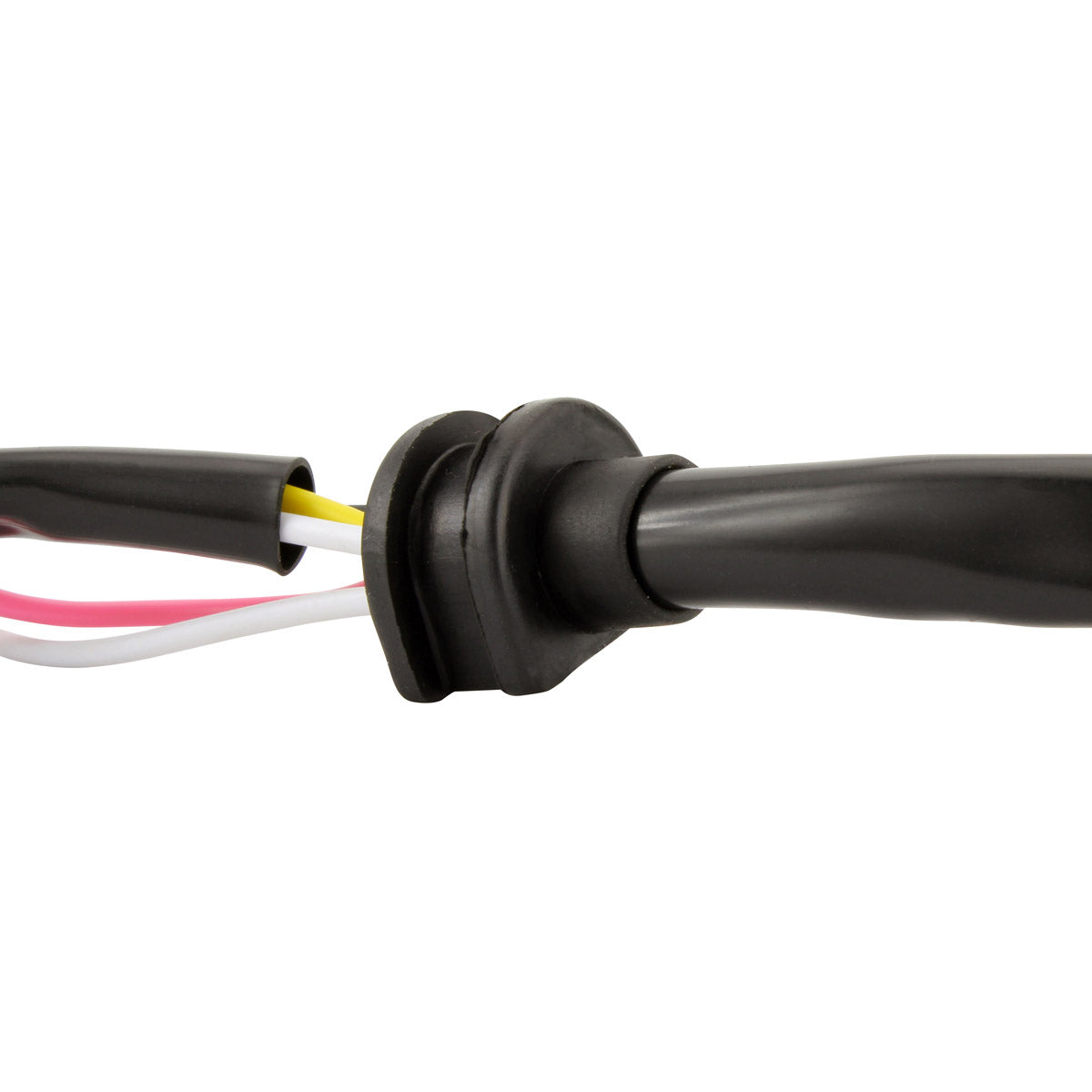

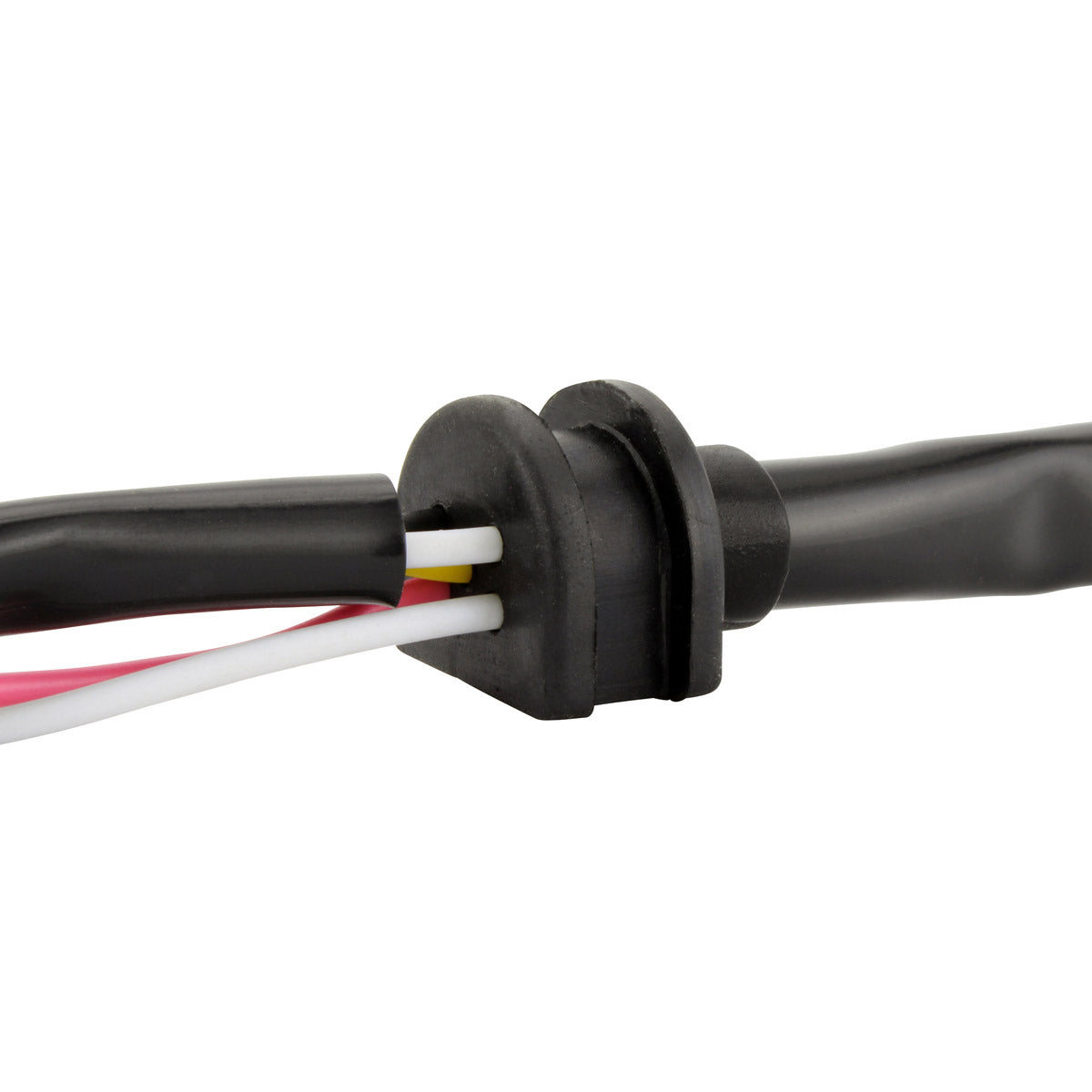

- Rubber grommet included
- All units tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
37 mm |
| Exterior diameter |
92 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
90 mm |
| Wire length, grommet to plug |
280 mm |
| Pick-up coil wire to grommet |
55 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
12 |
| Wire to wire resistance, black to white |
0.9 ohms +/-20% |
| Alternator 1, yellow to black |
0.6 ohms +/-20% |
| Alternator 2, yellow to white |
0.8 ohms +/-20% |
| Pick-up, pink to white |
280 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha TTR 110 |
2011-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5B6-H1410-01-00 |
Yamaha |
| 5B6-H1410-00-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a plug-and-play direct fit for the original unit on the Yamaha TTR 110, with matching connectors and wire lengths, so no cutting, splicing or drilling is required. Confirm the number on your original unit against 5B6-H1410-01-00 or 5B6-H1410-00-00 before ordering.
What is included?
The stator, the pick-up pulsar coil, the connectors and the rubber grommet.
How do I know my old stator has failed?
Measure the windings with a multimeter. Black to white should read 0.9 ohms +/-20%, yellow to black 0.6 ohms +/-20% and yellow to white 0.8 ohms +/-20%. An open circuit, a short to the stator core, or a reading well outside those figures means the winding has failed. A flat battery that will not recover and lights that dim as the revs rise are the usual symptoms.
How do I test the pick-up coil?
The pick-up circuit reads pink to white and should measure 280 ohms +/-20%. A pick-up that is open circuit or badly out of range will usually show up as a no-spark or intermittent-spark fault rather than a charging fault.
