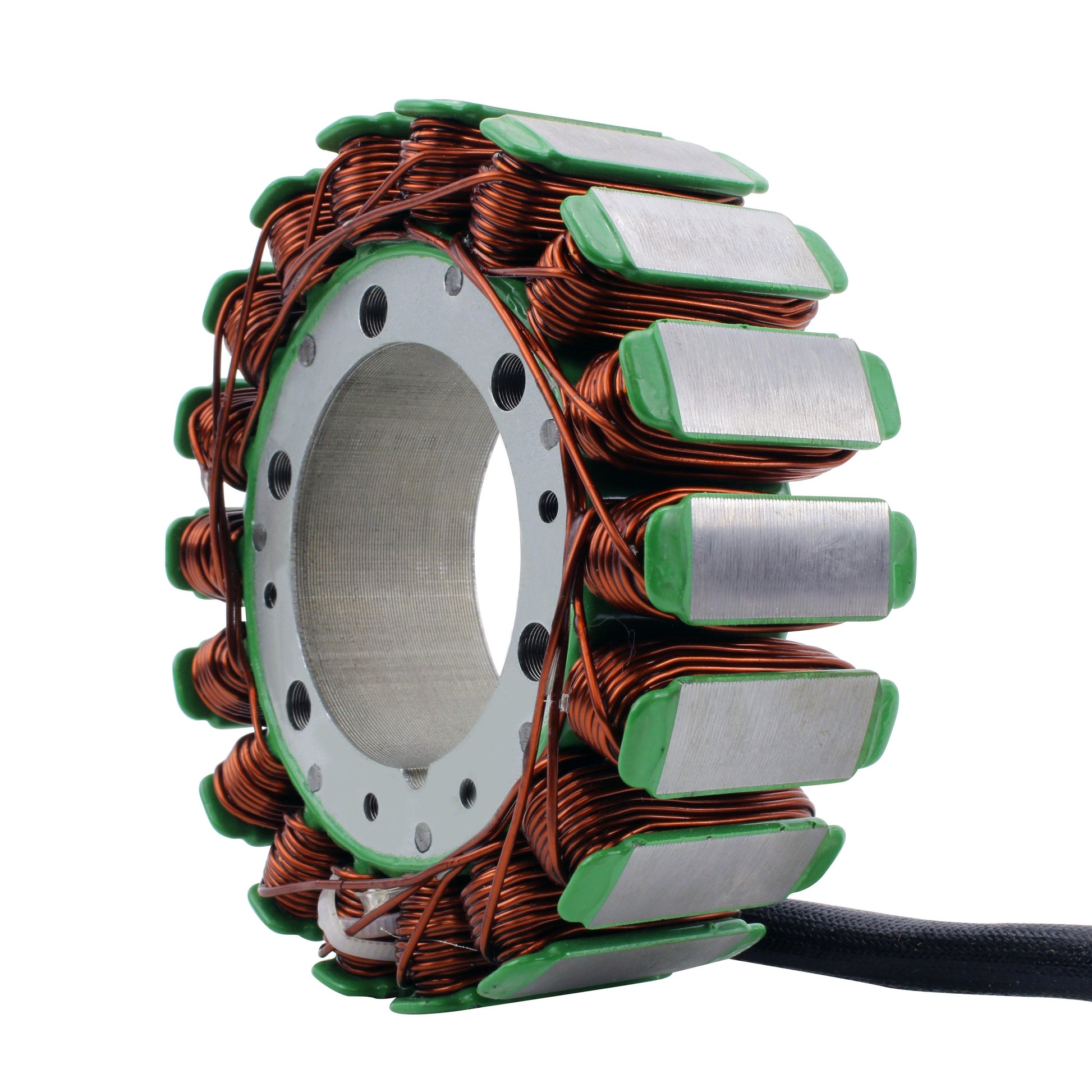

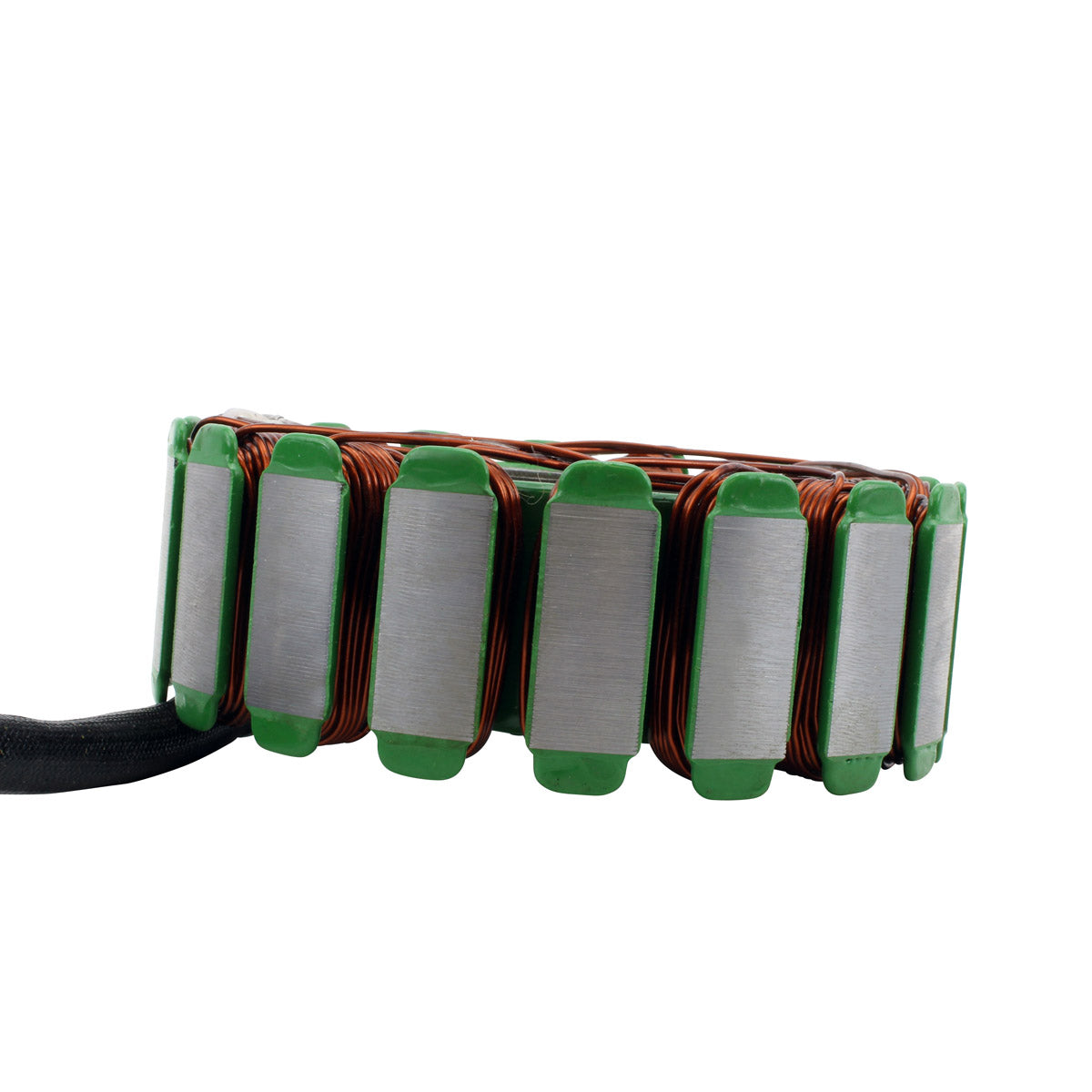

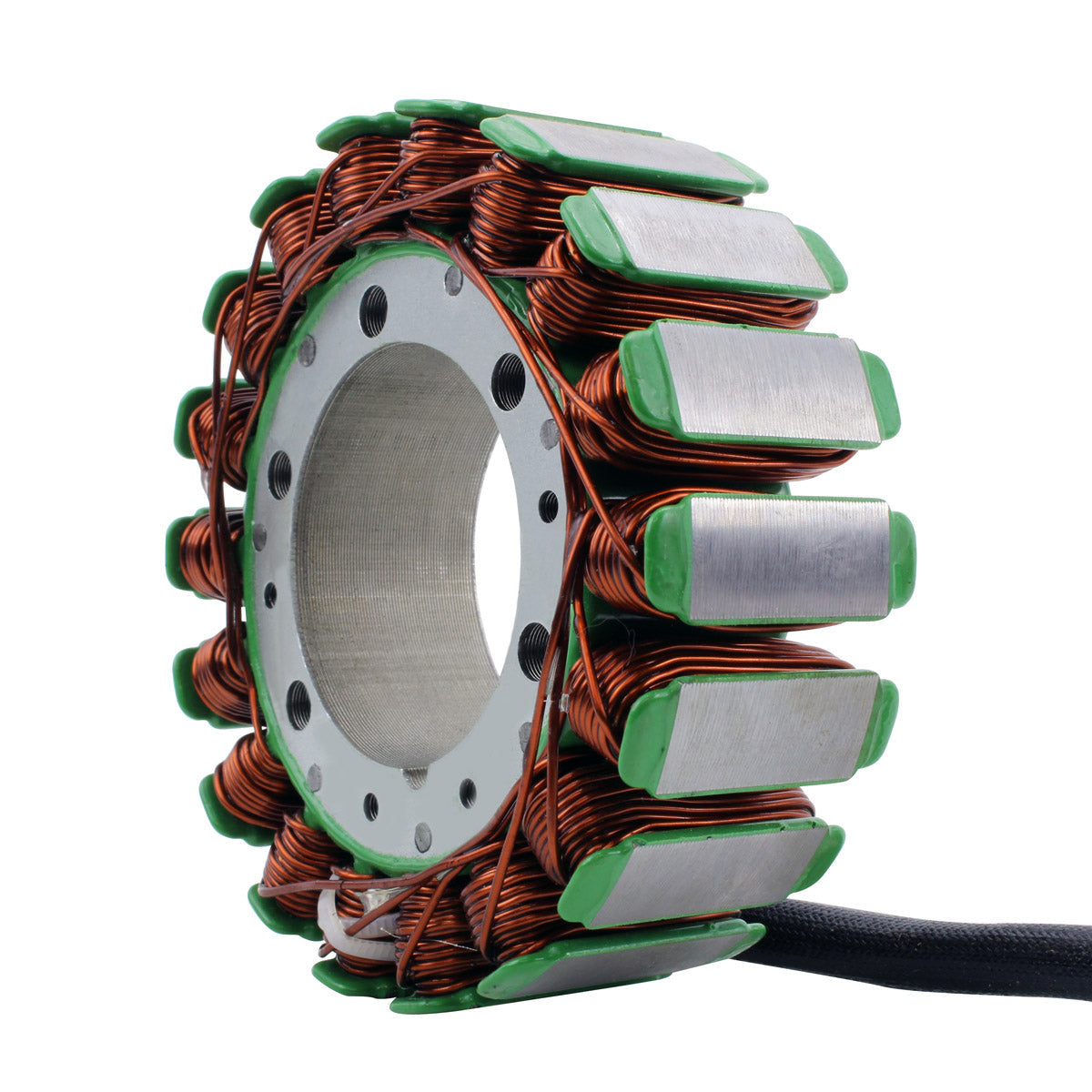

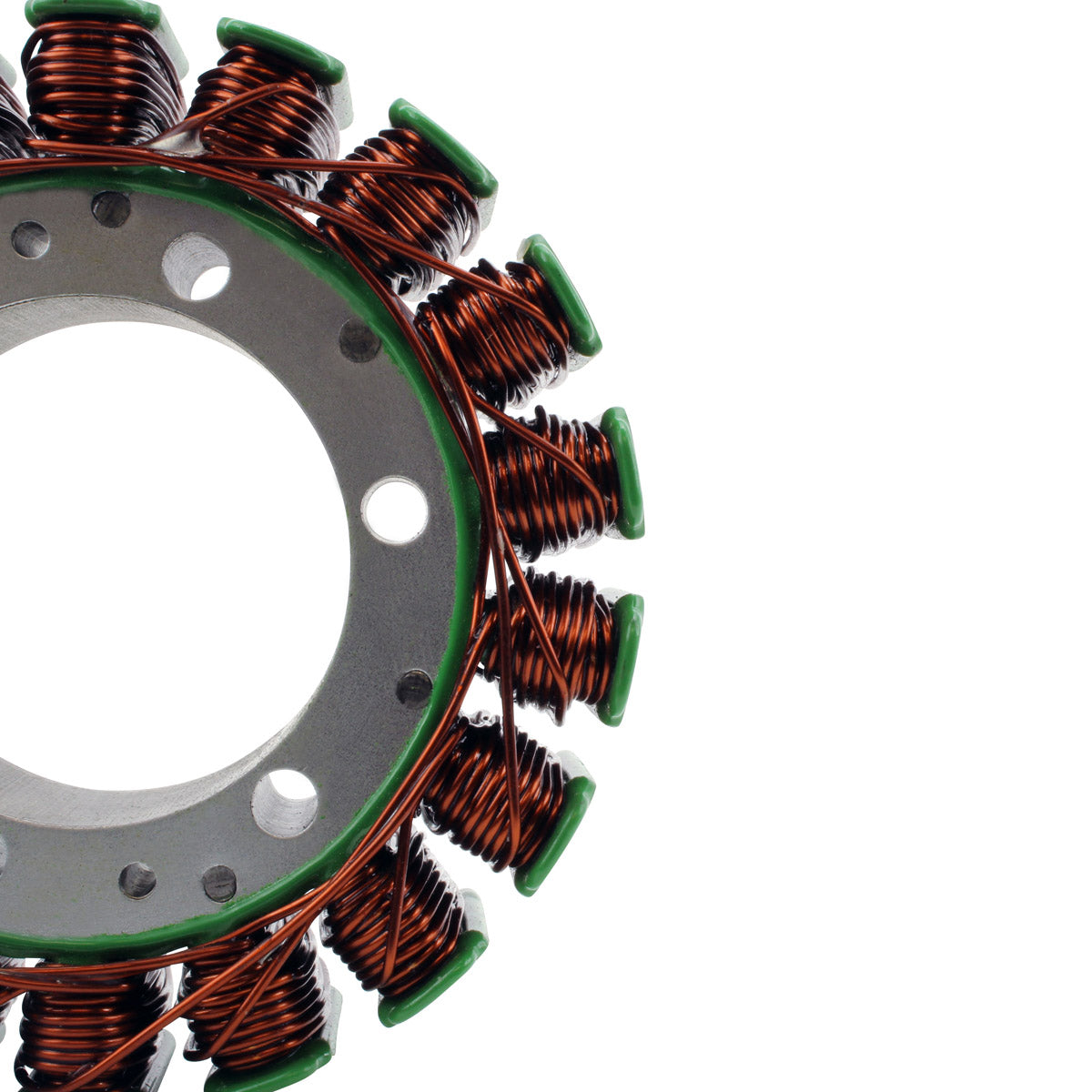

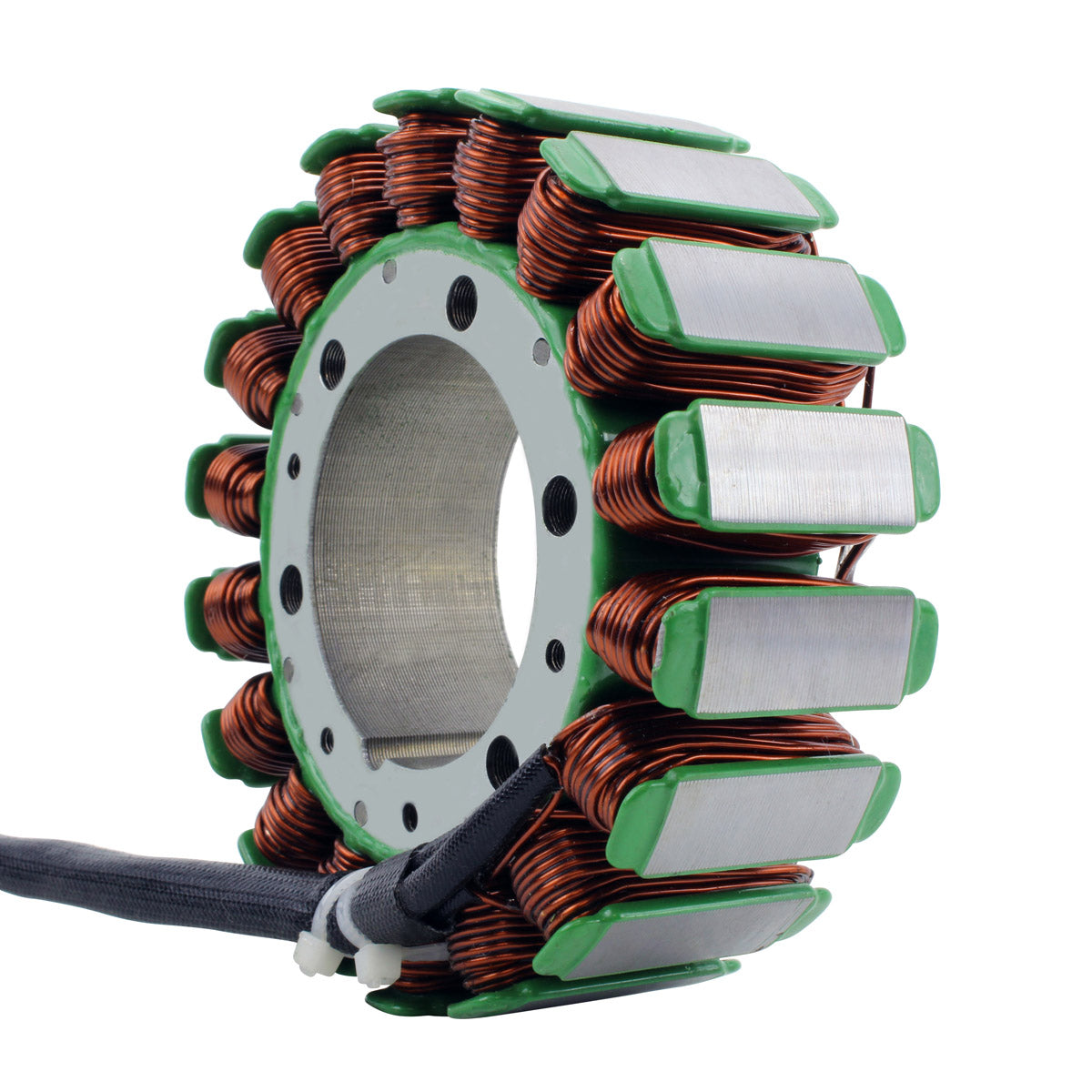

A brand new aftermarket stator built as a direct replacement for the original charging winding on the Yamaha Venture and Venture Royale 1200 and 1300. It is plug-and-play and a direct fit, so it mounts on the original fixings and connects to the original harness with no modification.

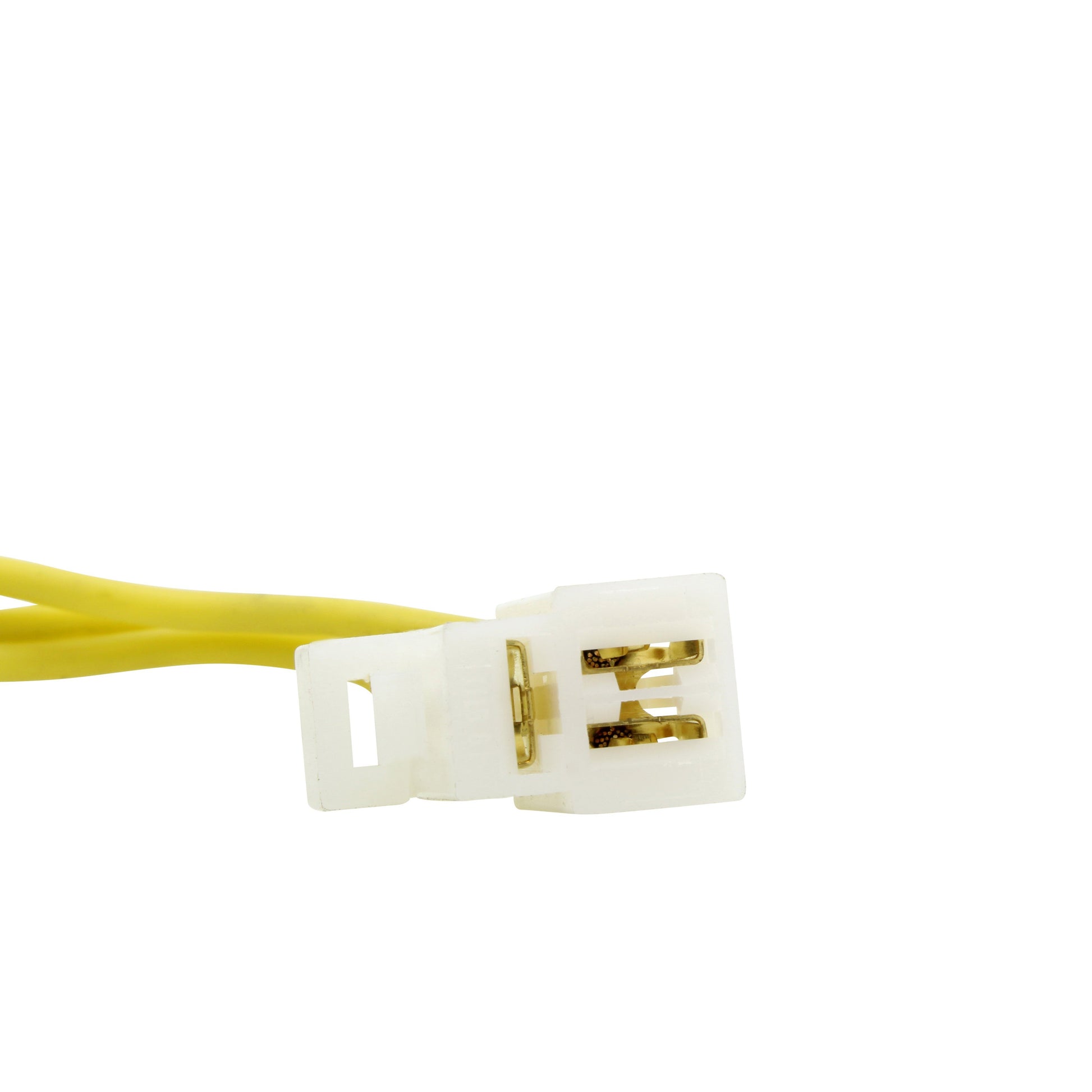

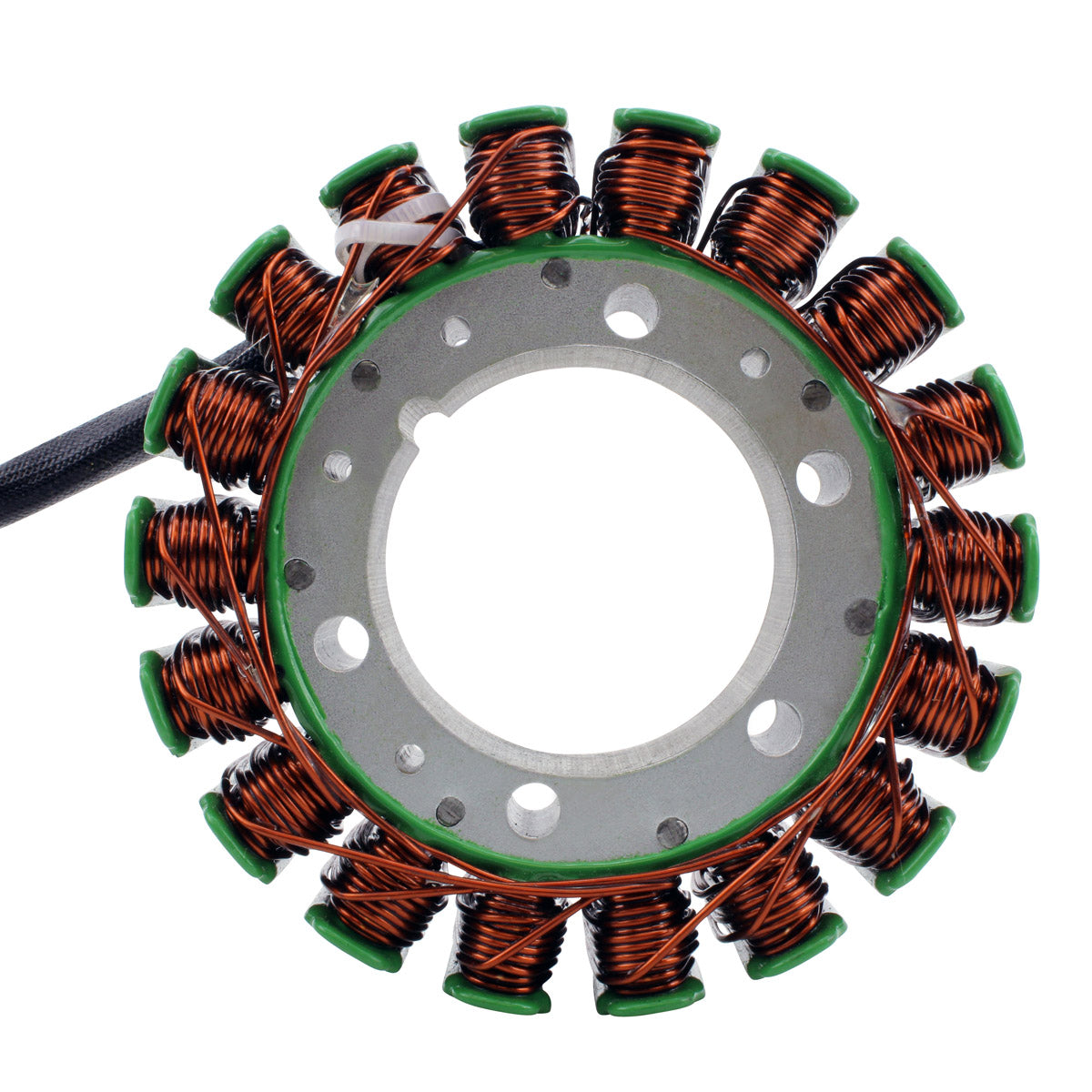

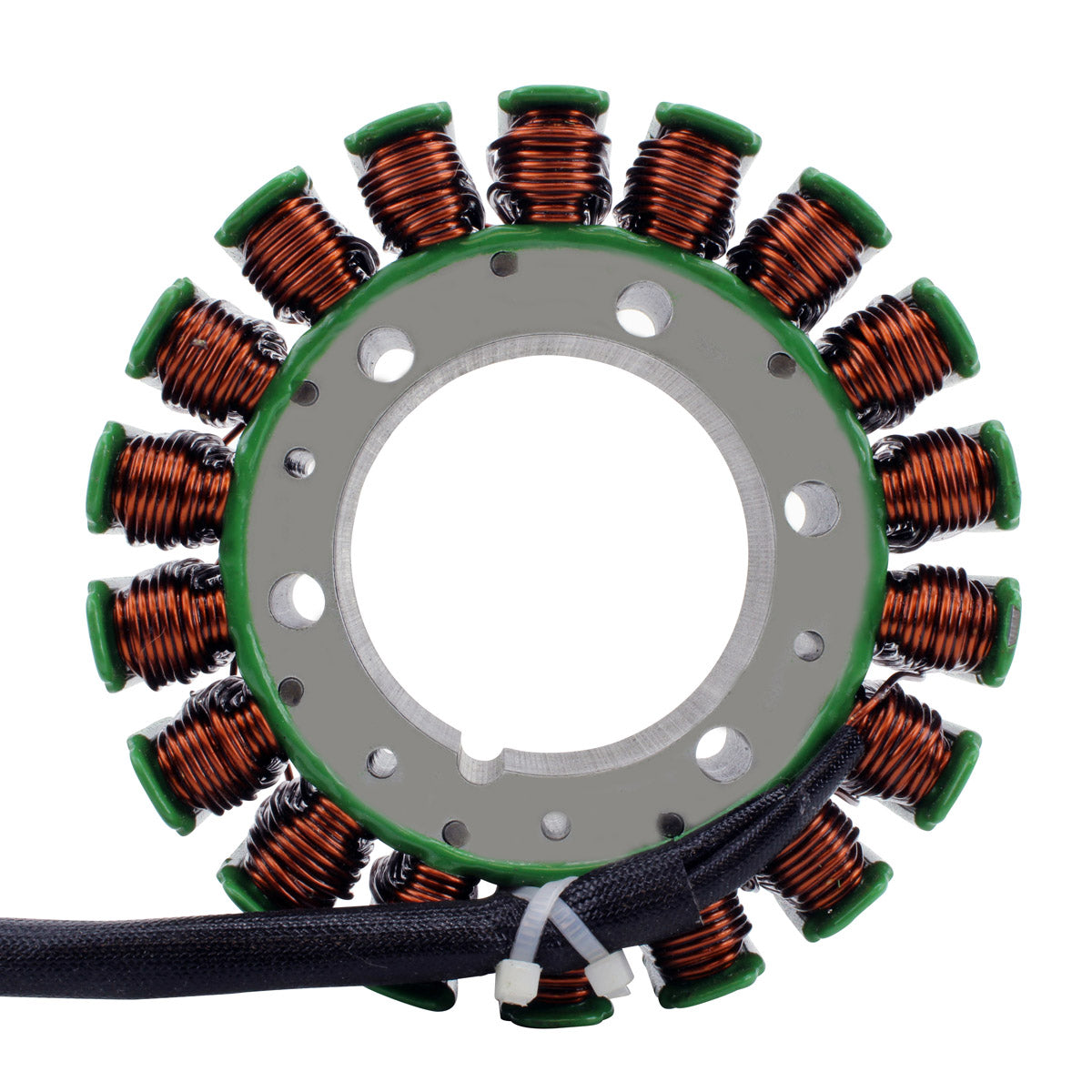

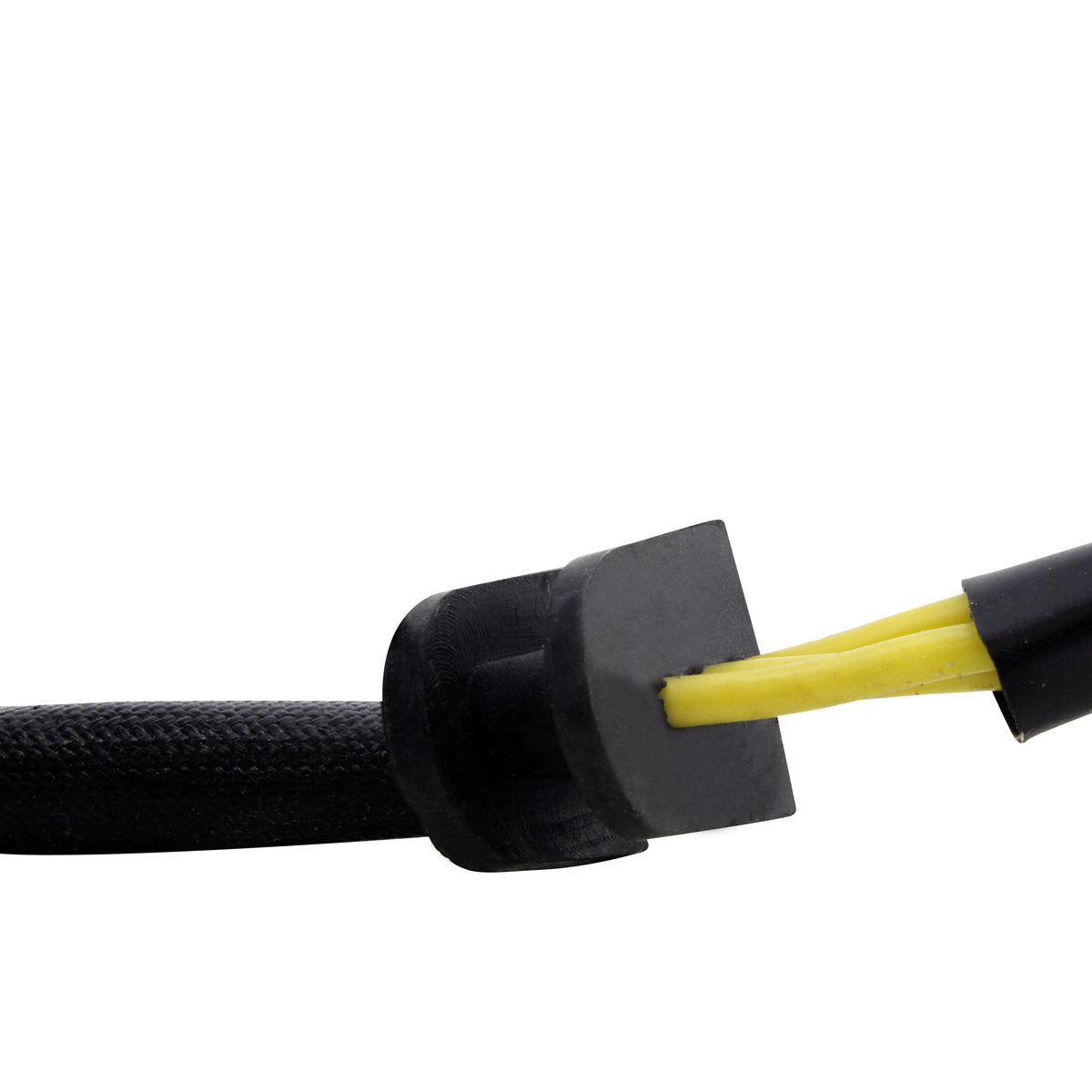

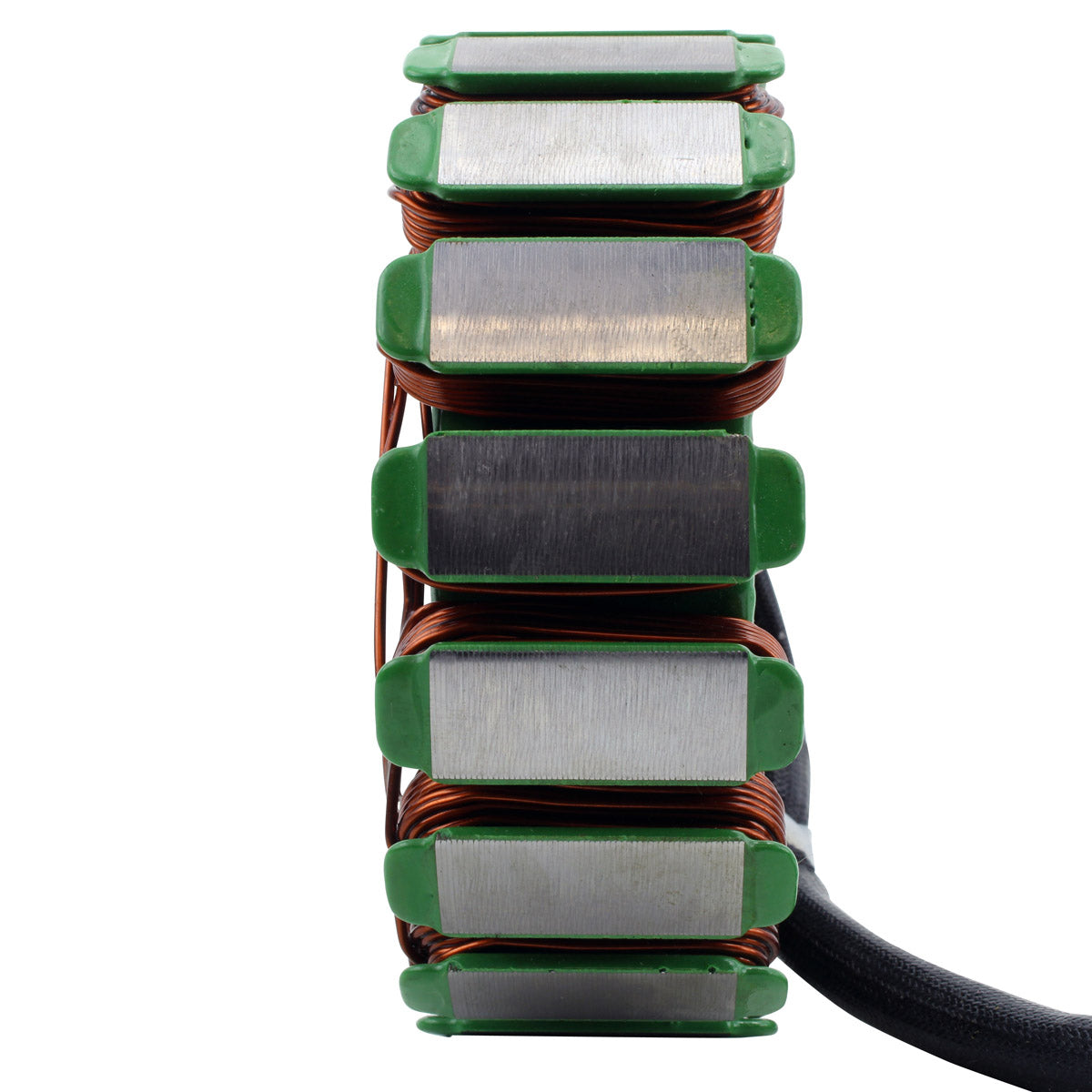

The 18-pole assembly measures 115 mm across the outside with a 55 mm interior diameter and a 40 mm thickness. Three wires run 110 mm from the stator to the grommet and a further 770 mm to a single three-pin plug, which is long enough to reach the original connector position on these touring models. The windings use the highest grade of copper, resistant to 200 degrees Celsius, on the highest grade of lamination materials. Connectors and a rubber grommet are included, along with the opposite connector for the main harness side, because the original plug on these bikes often melts or corrodes. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 18 poles, 3 wires, 1 plug and 3 pins
- Connectors and rubber grommet included

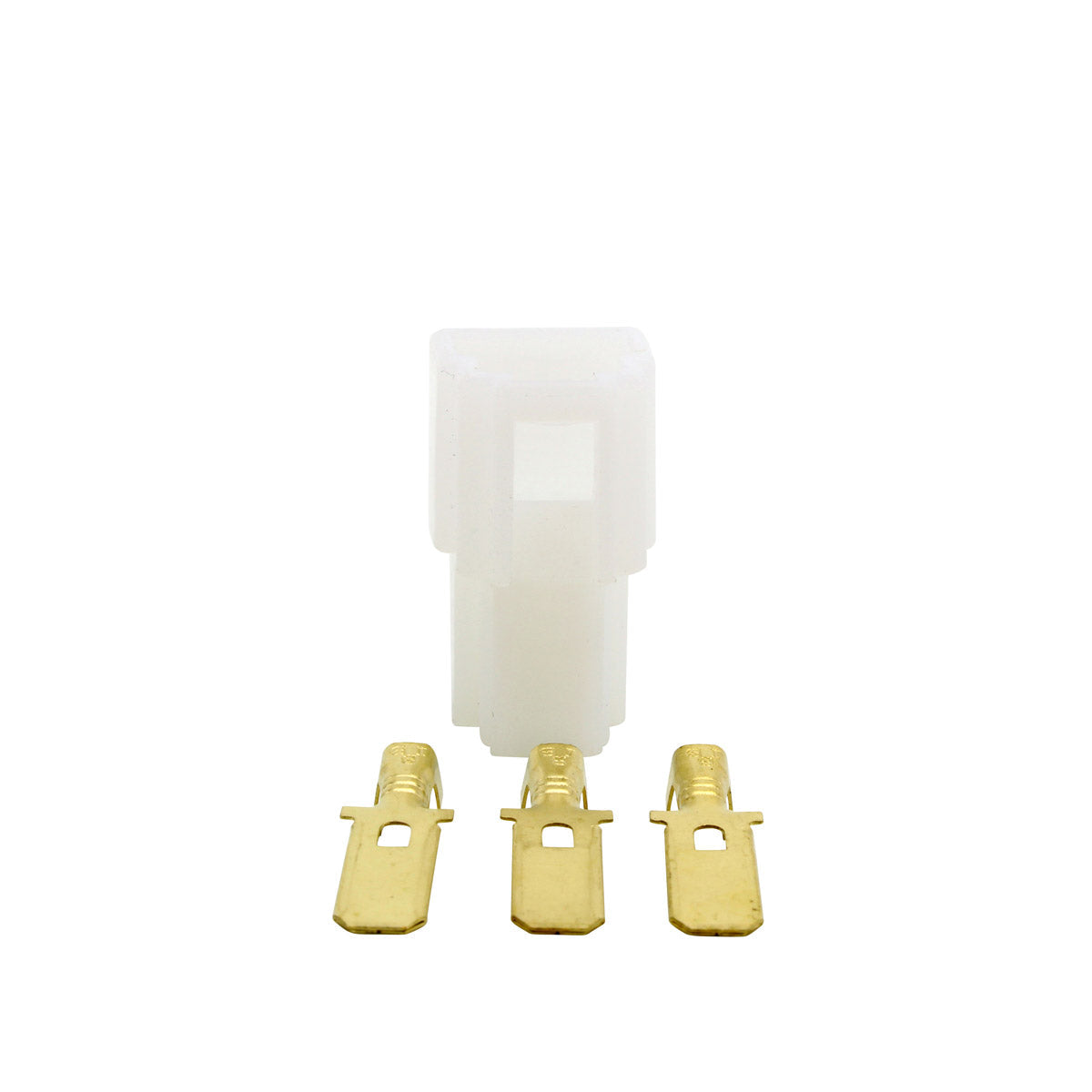

- Opposite connector for the main harness side supplied
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
55 mm |
| Exterior diameter |
115 mm |
| Thickness |
40 mm |
| Wire length (stator to grommet) |
110 mm |
| Wire length (grommet to plug) |
770 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
18 |
| Wire-to-wire resistance (alternator) |
Between each yellow = 0.4 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part number |
RMS010-105905 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha Venture 1200 |
1984-1989 |
| Yamaha Venture 1300 |
1984-1989 |
| Yamaha Venture Royale 1200 |
1984-1989 |
| Yamaha Venture Royale 1300 |
1984-1989 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 26H-81410-10-00 |
Yamaha |
| 26H-81410-12-00 |
Yamaha |
| 90891-30015-00 |
Yamaha |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the Venture and Venture Royale models listed above and needs no changes to the loom.
What is included?

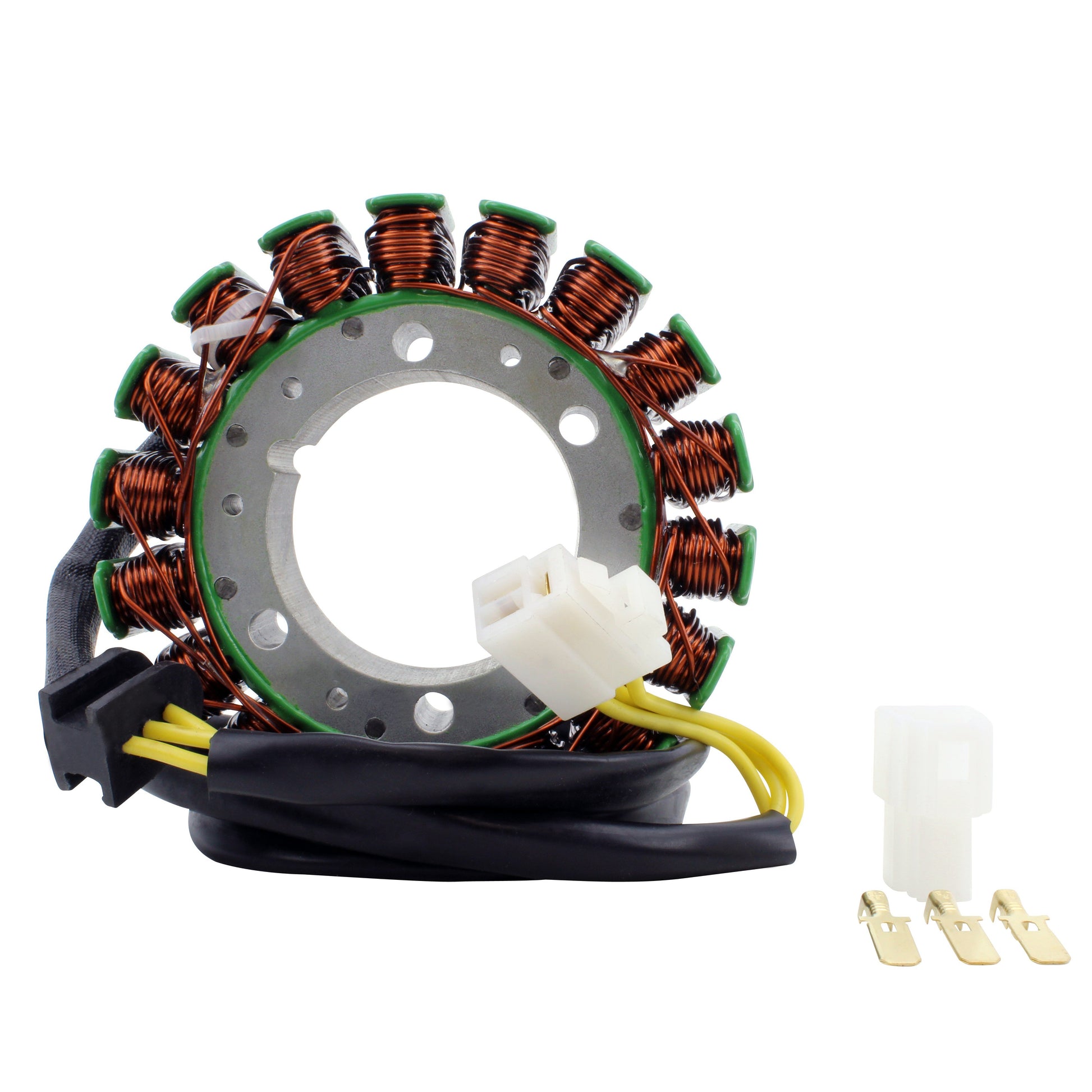

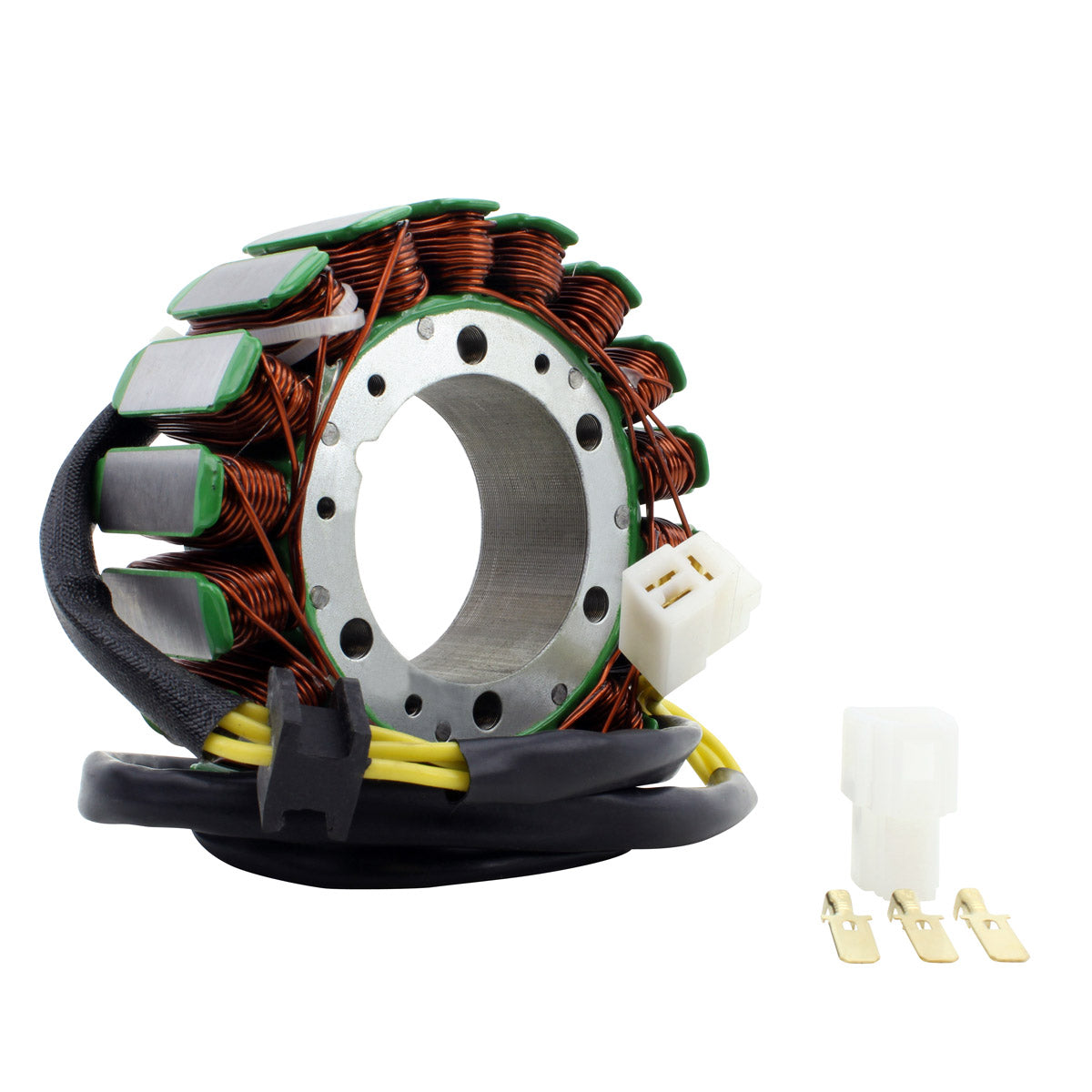

The stator, its connectors, a rubber grommet, and the opposite connector for the main harness side.
How can I tell my old stator has failed?
A battery that goes flat on a run, dim lights and charging voltage that stays at battery level with the engine running all point at the stator. On the bench, each pair of the three yellow wires should read about 0.4 ohms within 20 per cent, and none should show continuity to the core. Browned or melted pins in the three-pin plug are equally common on these models.
Why is an extra connector supplied?
The matching plug for the main harness side is included so that a connector damaged by heat or corrosion can be replaced at the same time as the stator, which avoids feeding a new winding through a plug that is already failing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
