Generator Stator for Yamaha WaveRunner 800 Series
GP 800, GP 800R, XL 800 and XLT 800 - 1998-2005

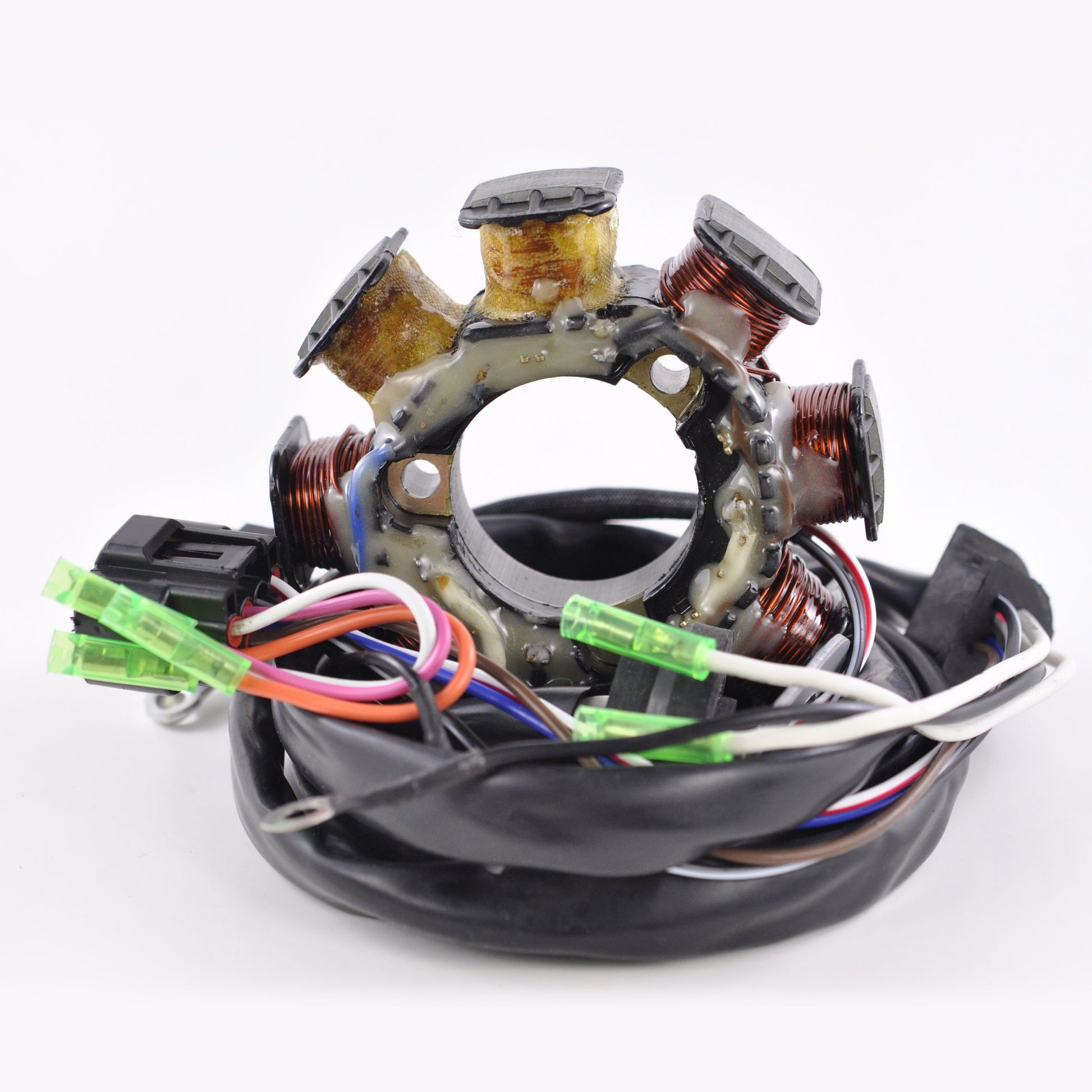

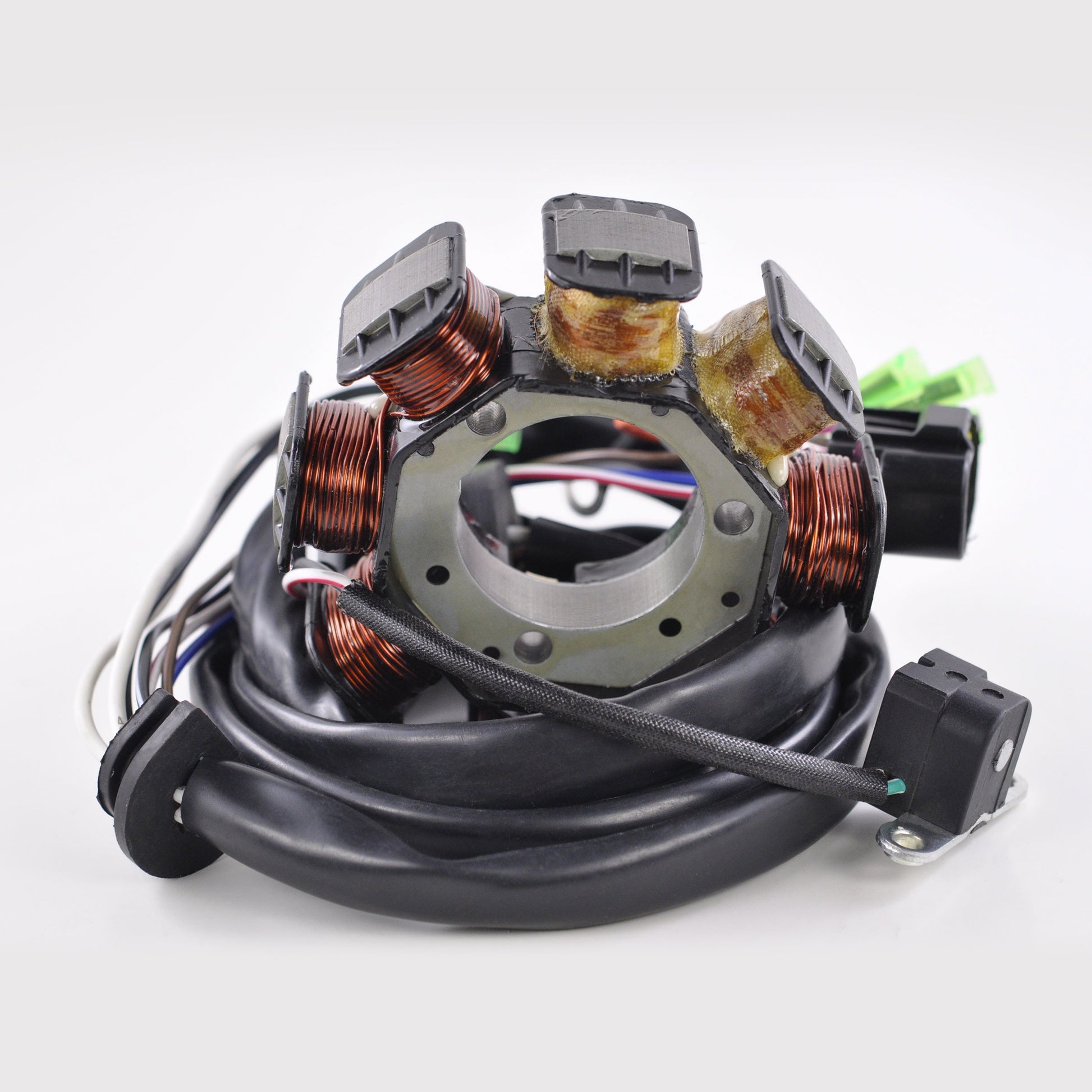

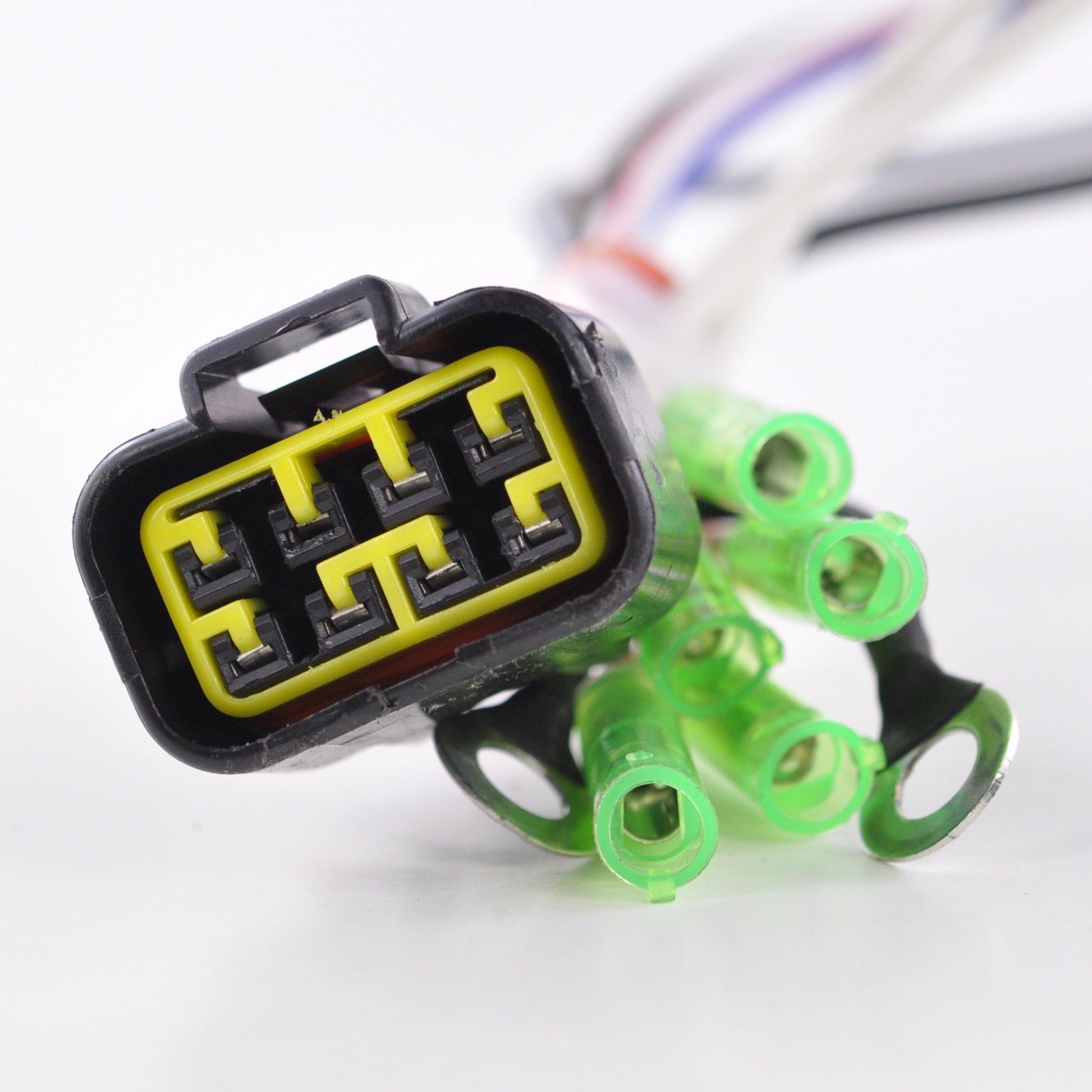

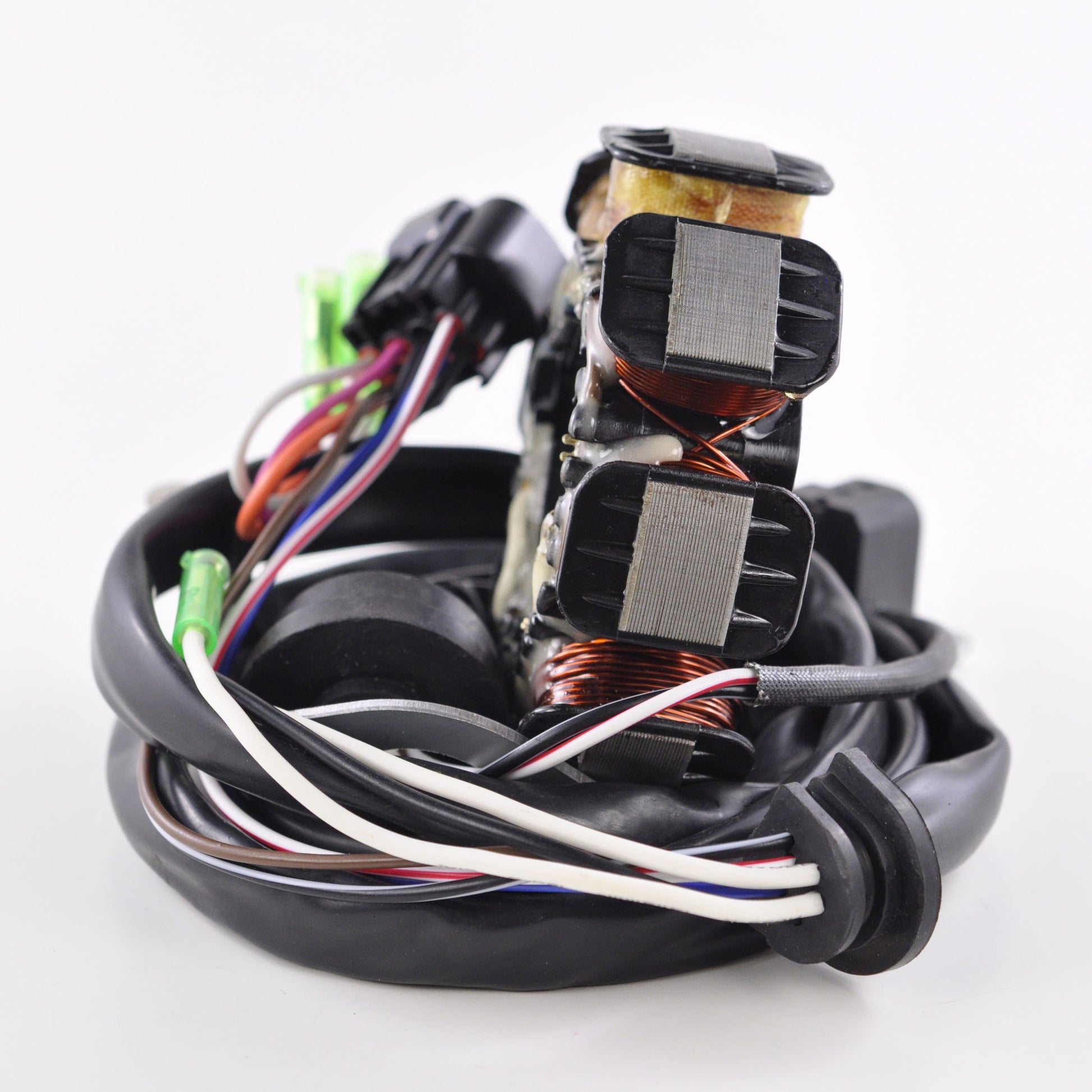

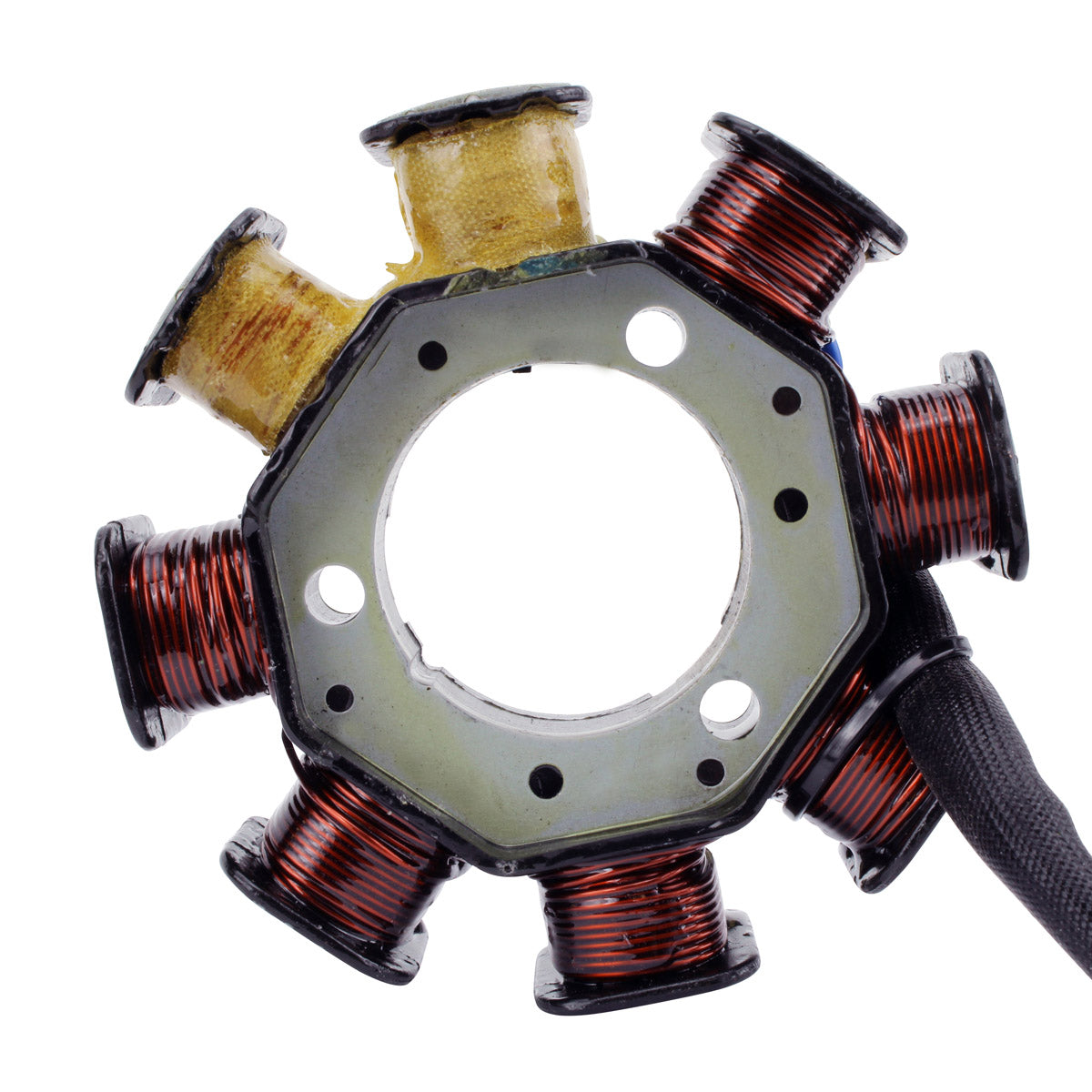

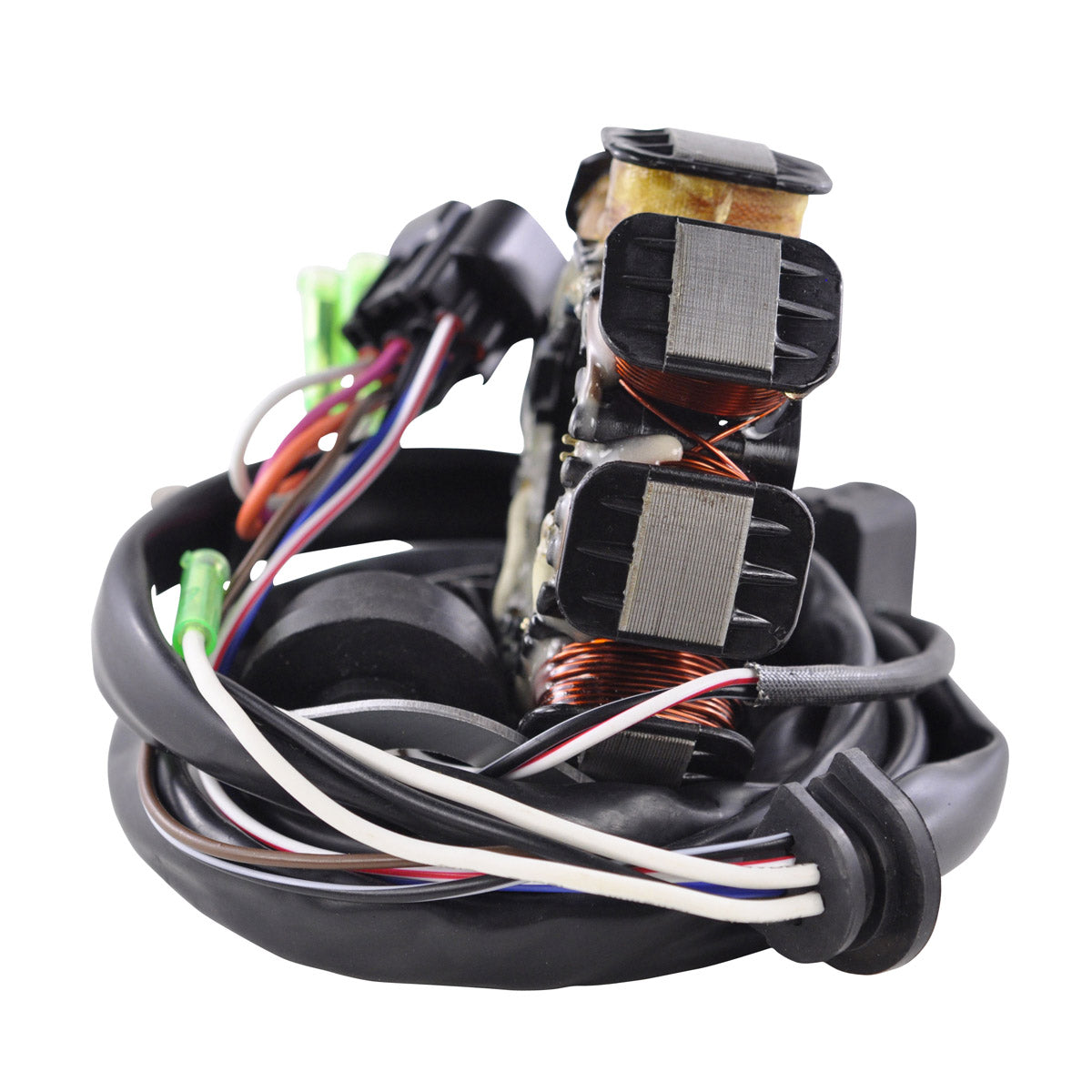

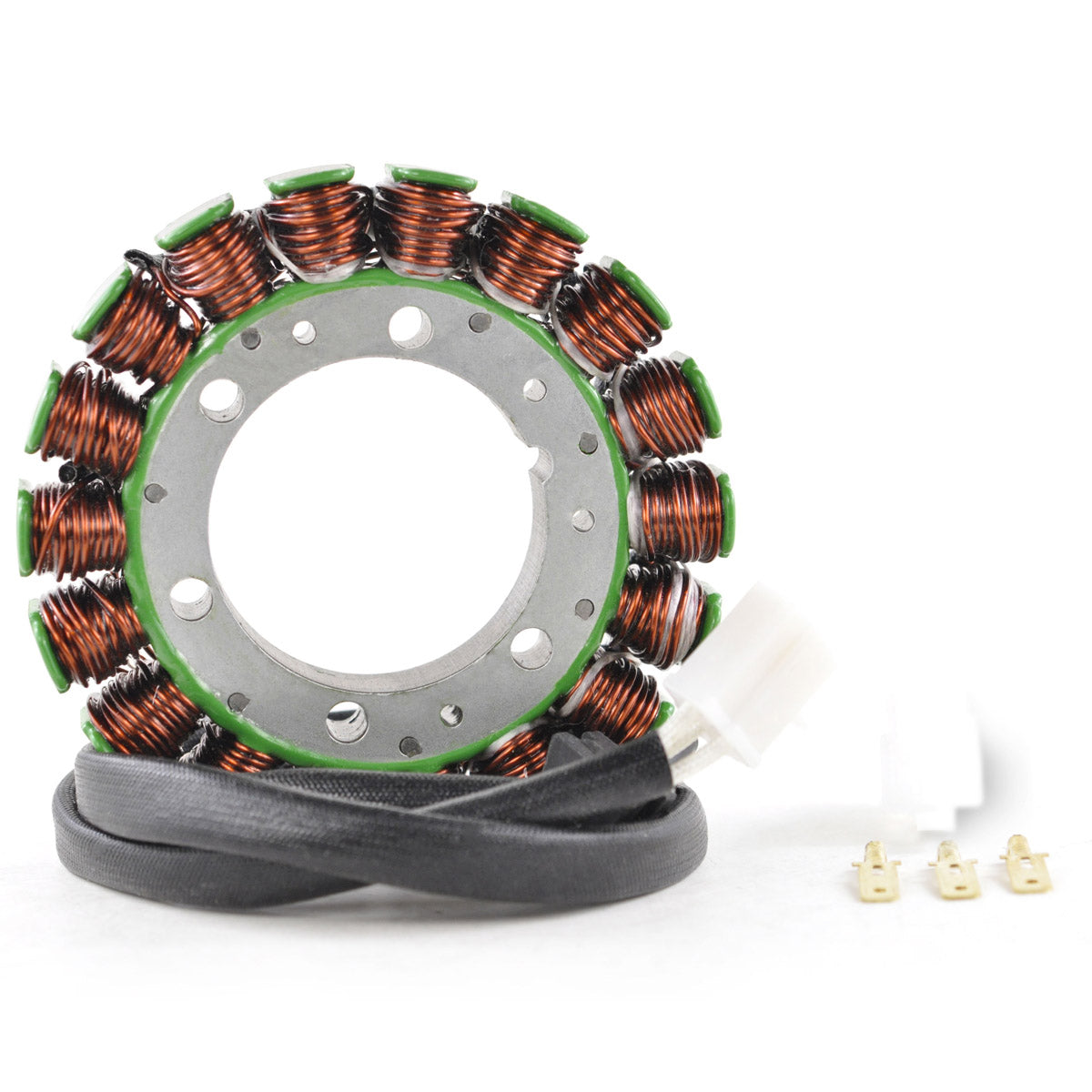

This is a brand new aftermarket stator, part number RM01519, built as a direct replacement for the original unit fitted to the Yamaha WaveRunner GP 800, GP 800R, XL 800 and XLT 800 from 1998 to 2005. It is a plug-and-play, direct fit assembly: the mounting holes, the grommet position and all six plugs match the original, so the loom is reconnected exactly as it came apart and nothing needs cutting, splicing or drilling.

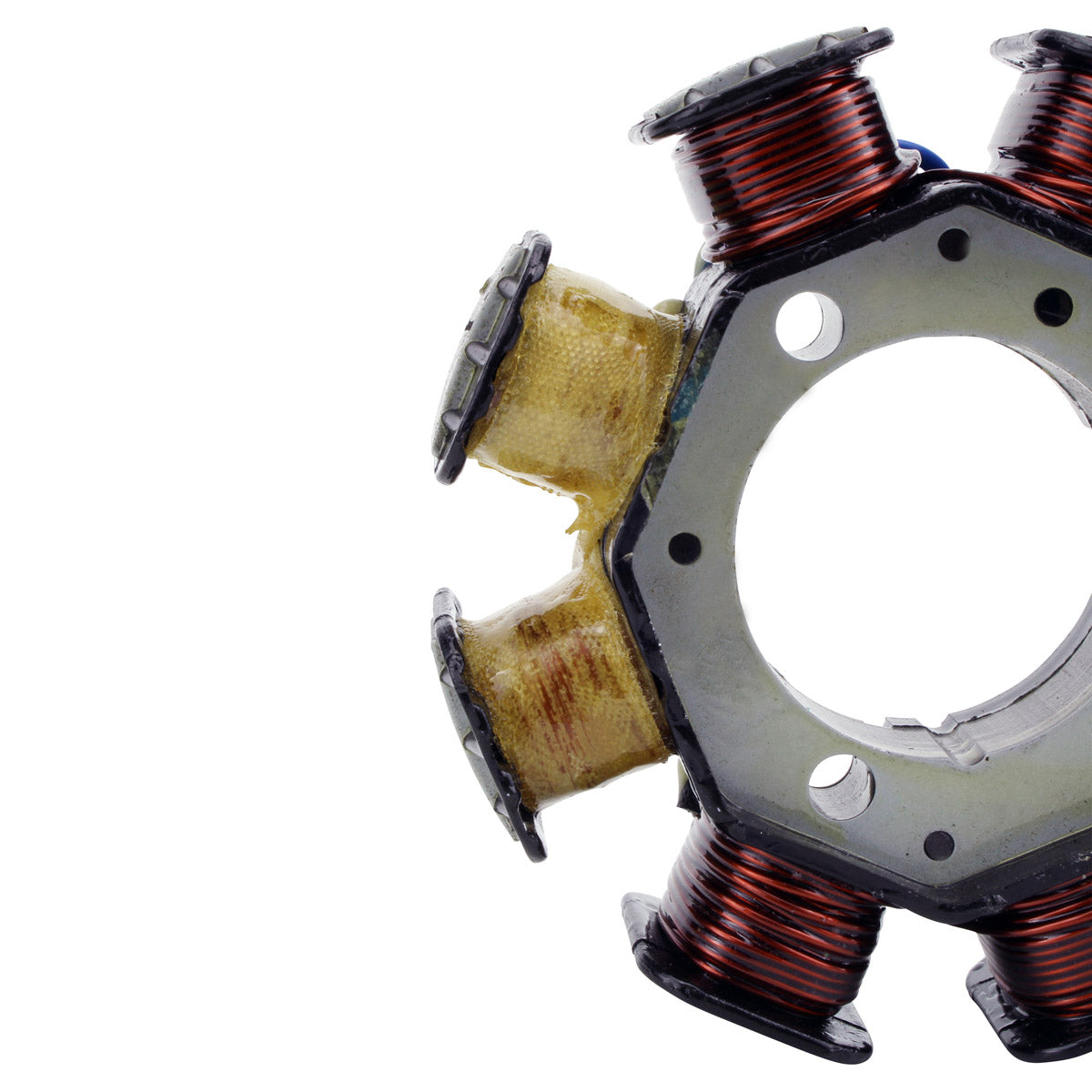

This is one of the more complex stators in the WaveRunner range. It carries eleven wires across six separate plugs and combines the alternator windings, the pickup coil and a dedicated source coil in a single assembly, which is why all three resistance figures below matter when you are diagnosing a fault. The unit is built on the highest grade lamination stack and wound with the highest grade copper, with insulation rated to 200 degrees Celsius so it copes with the heat that builds inside a sealed magneto cover. The pickup pulsar coil, the connector and the rubber grommet are all included, and every unit is tested before it ships.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

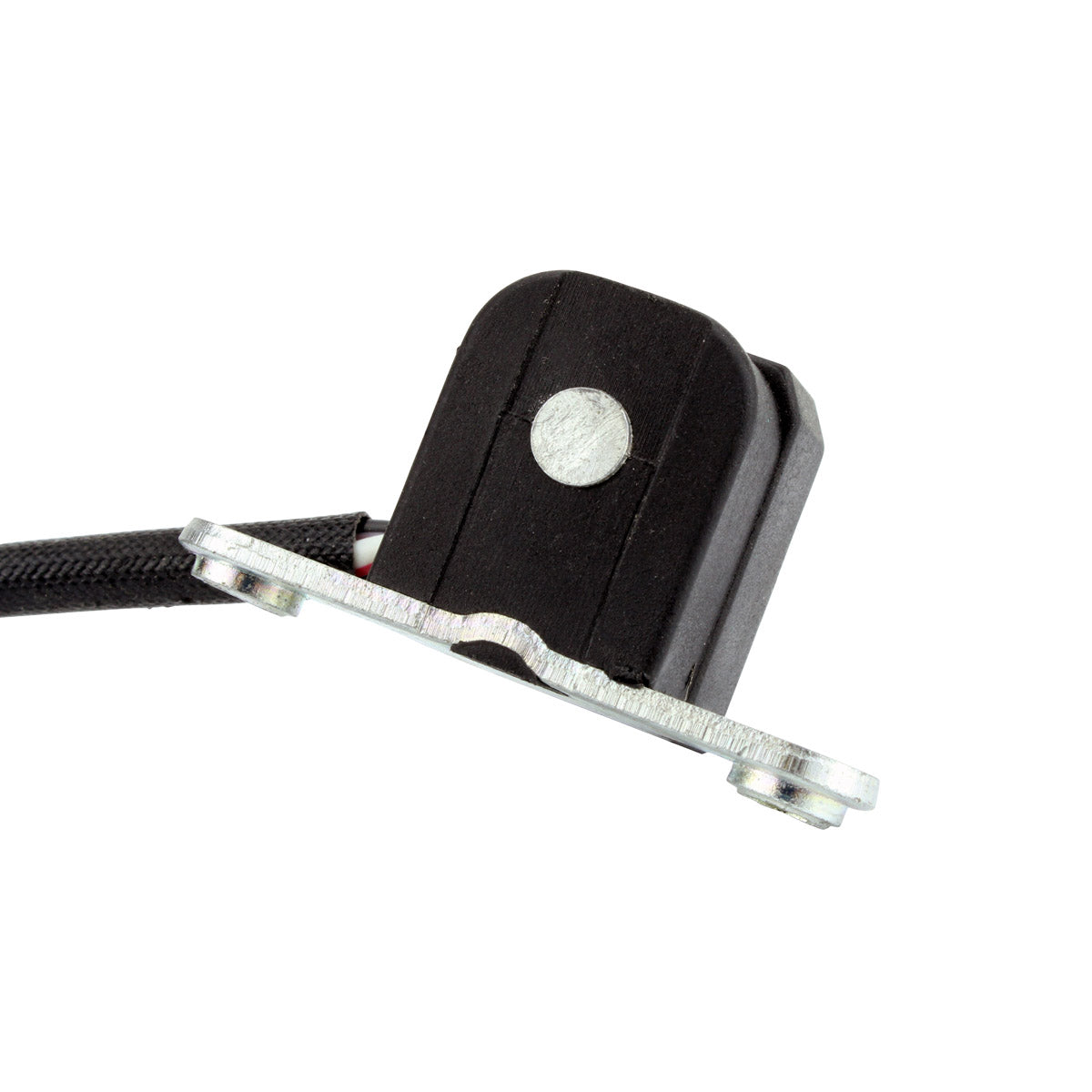

- Pickup pulsar coil included

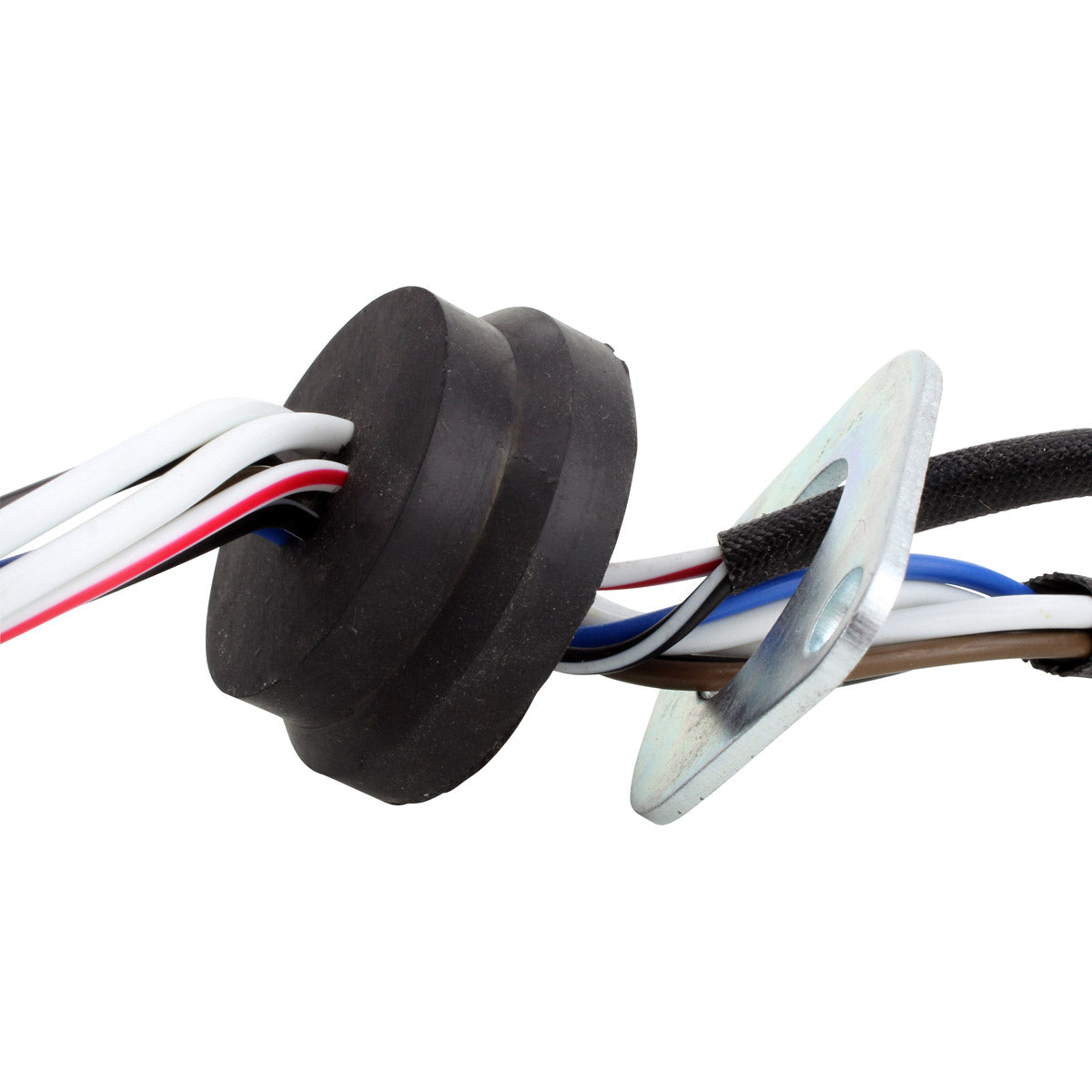

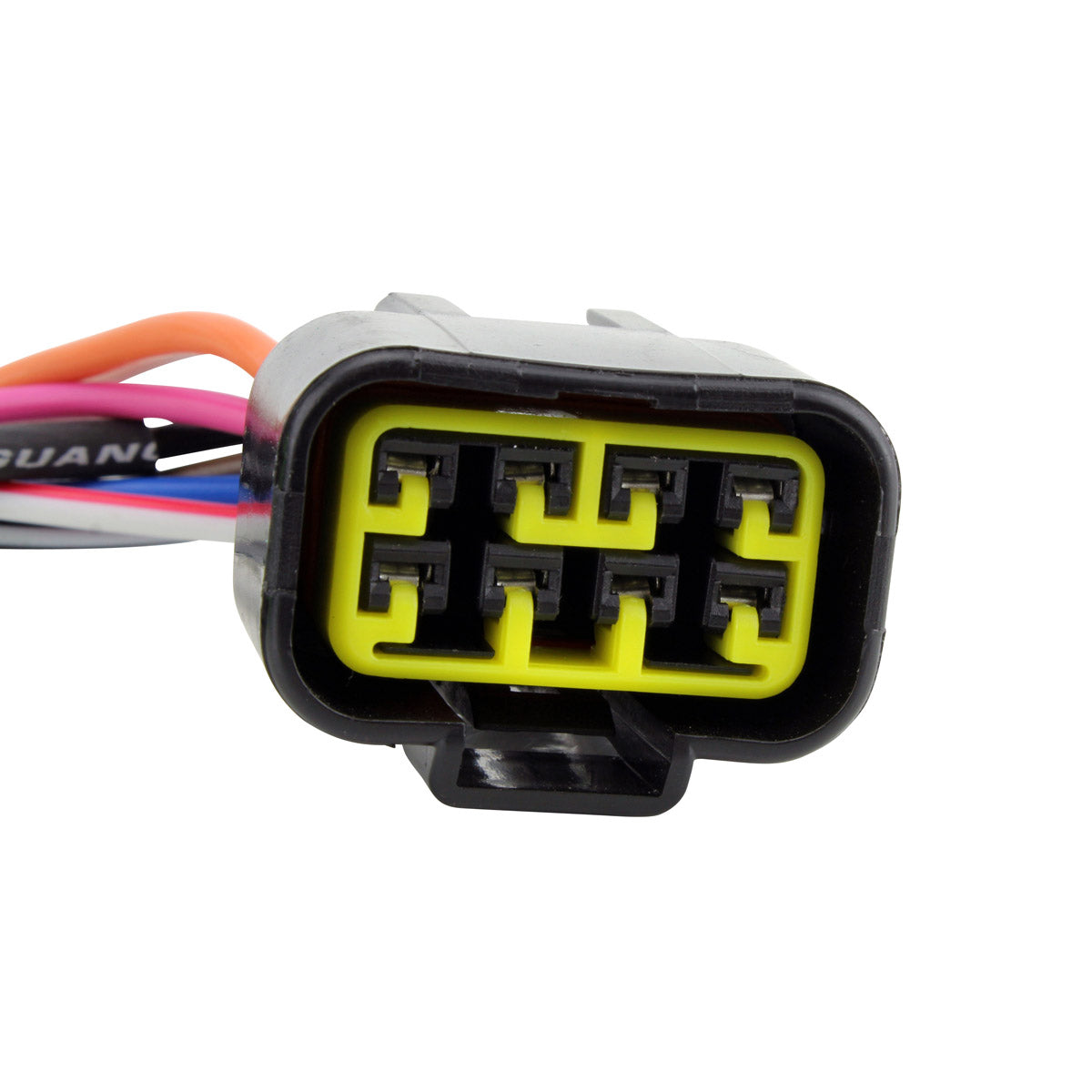

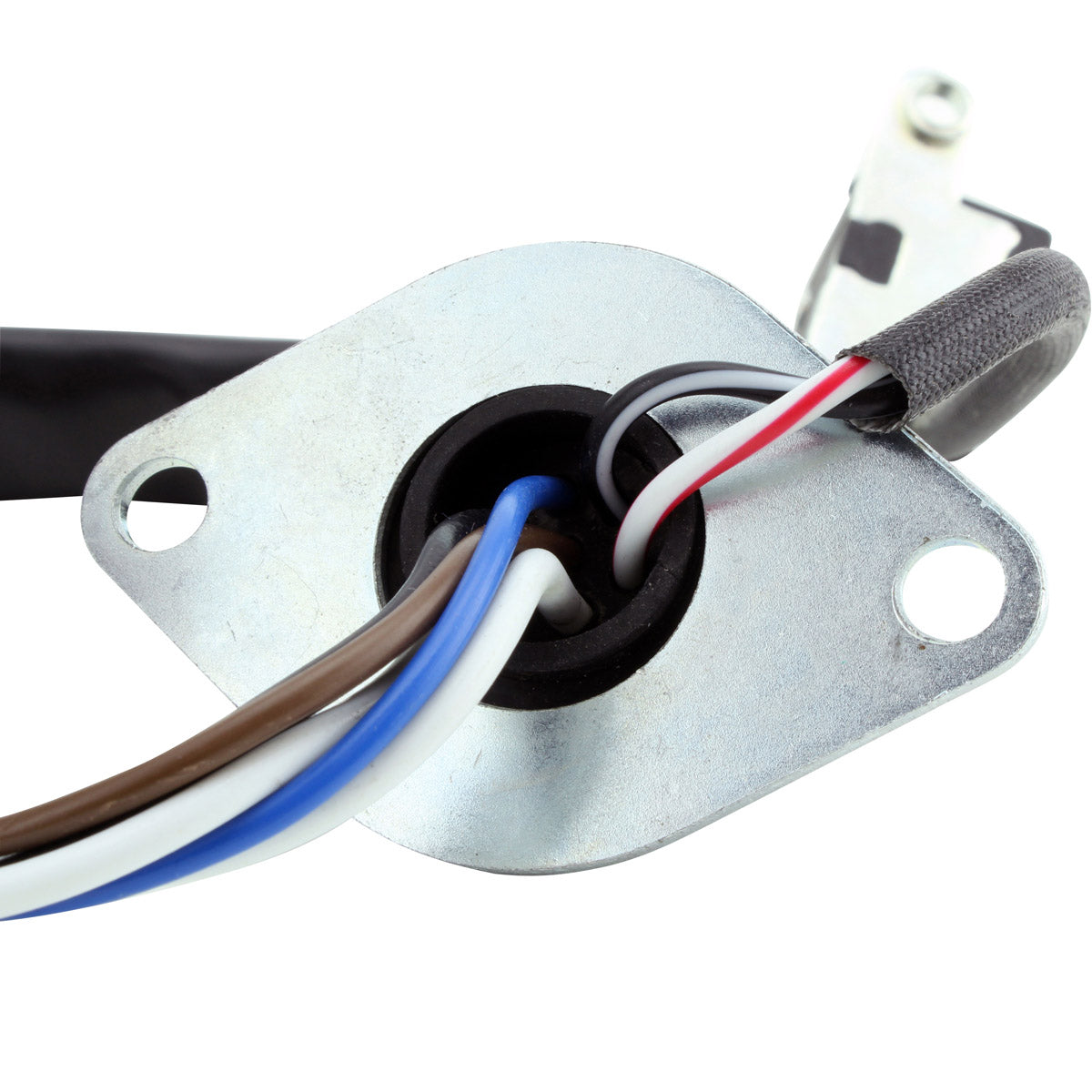

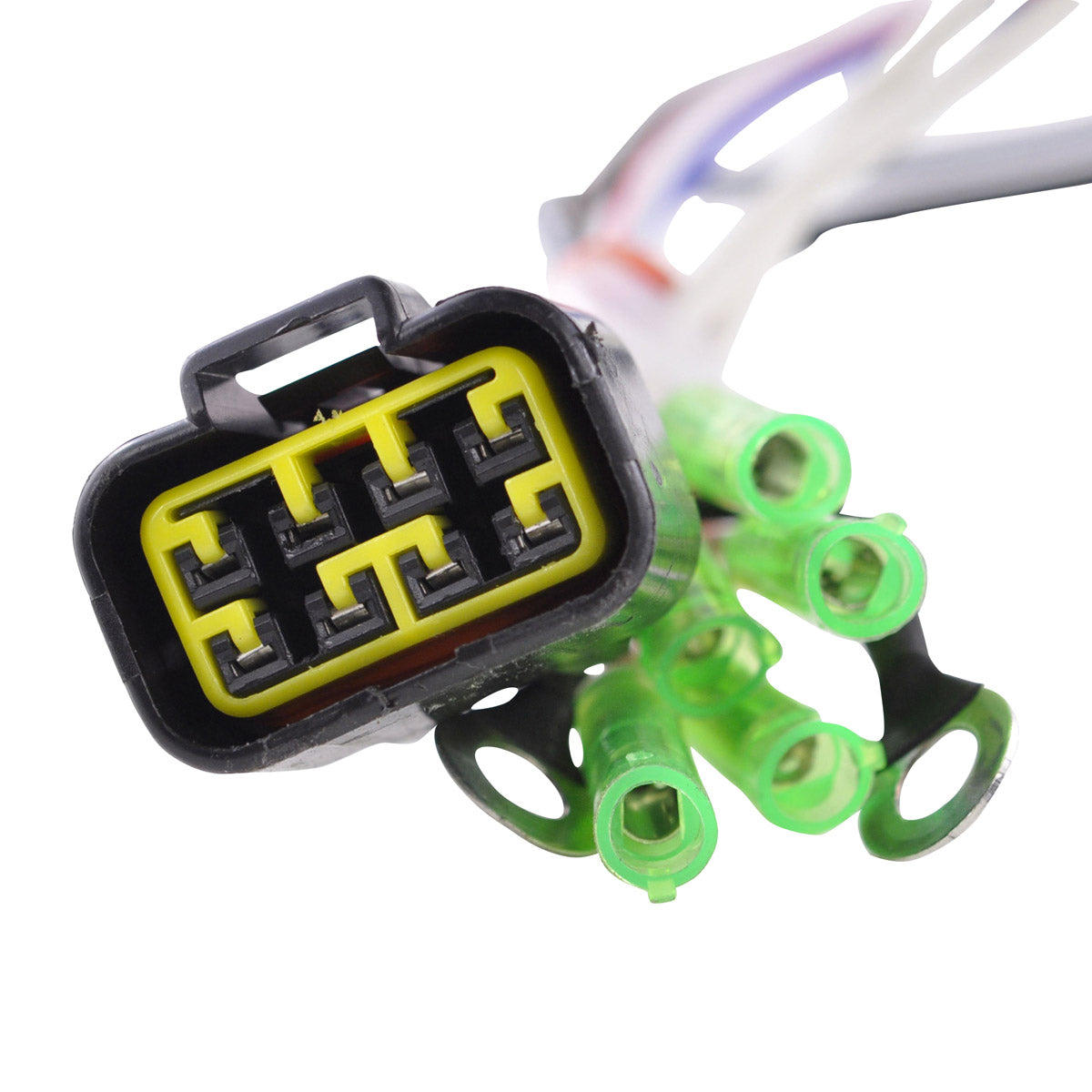

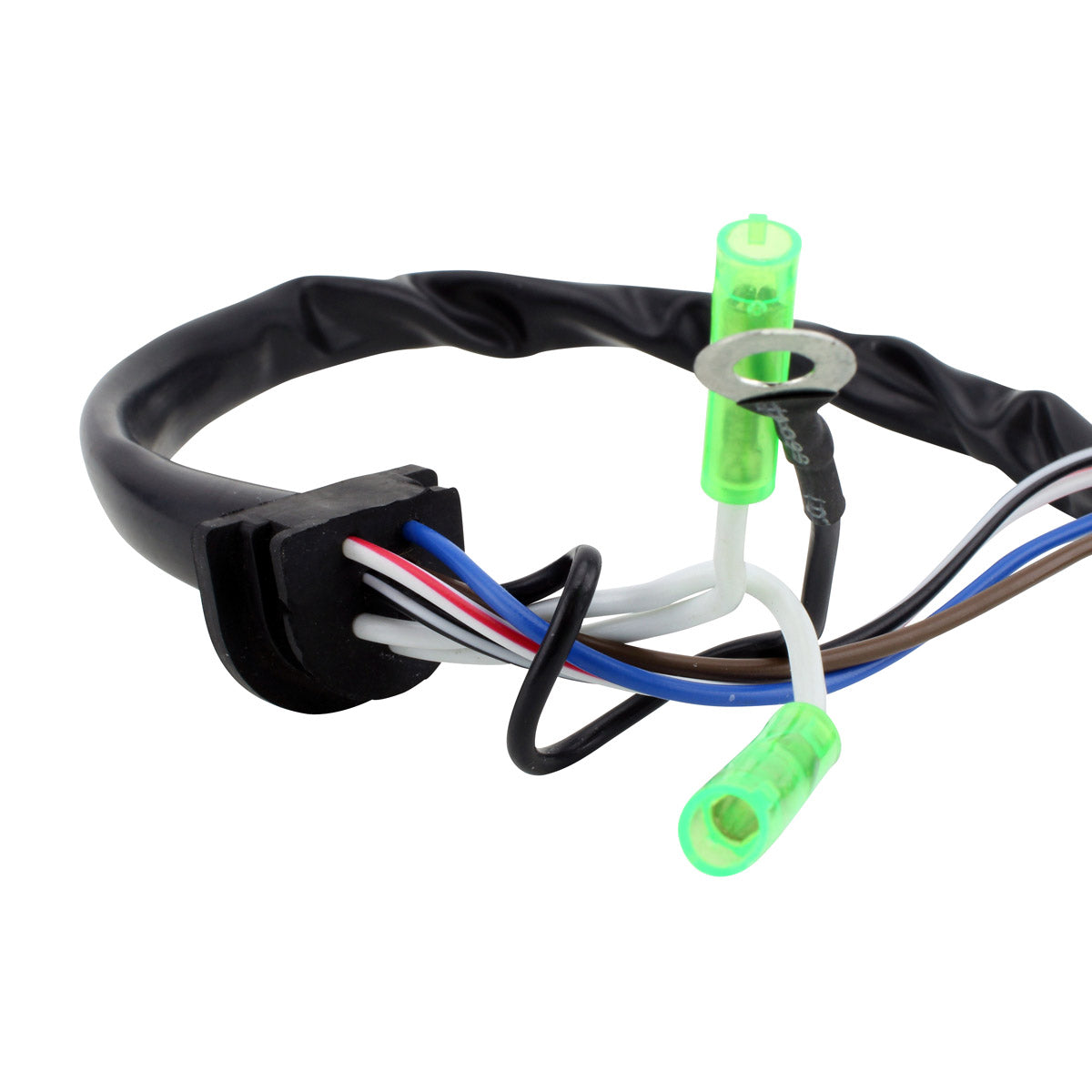

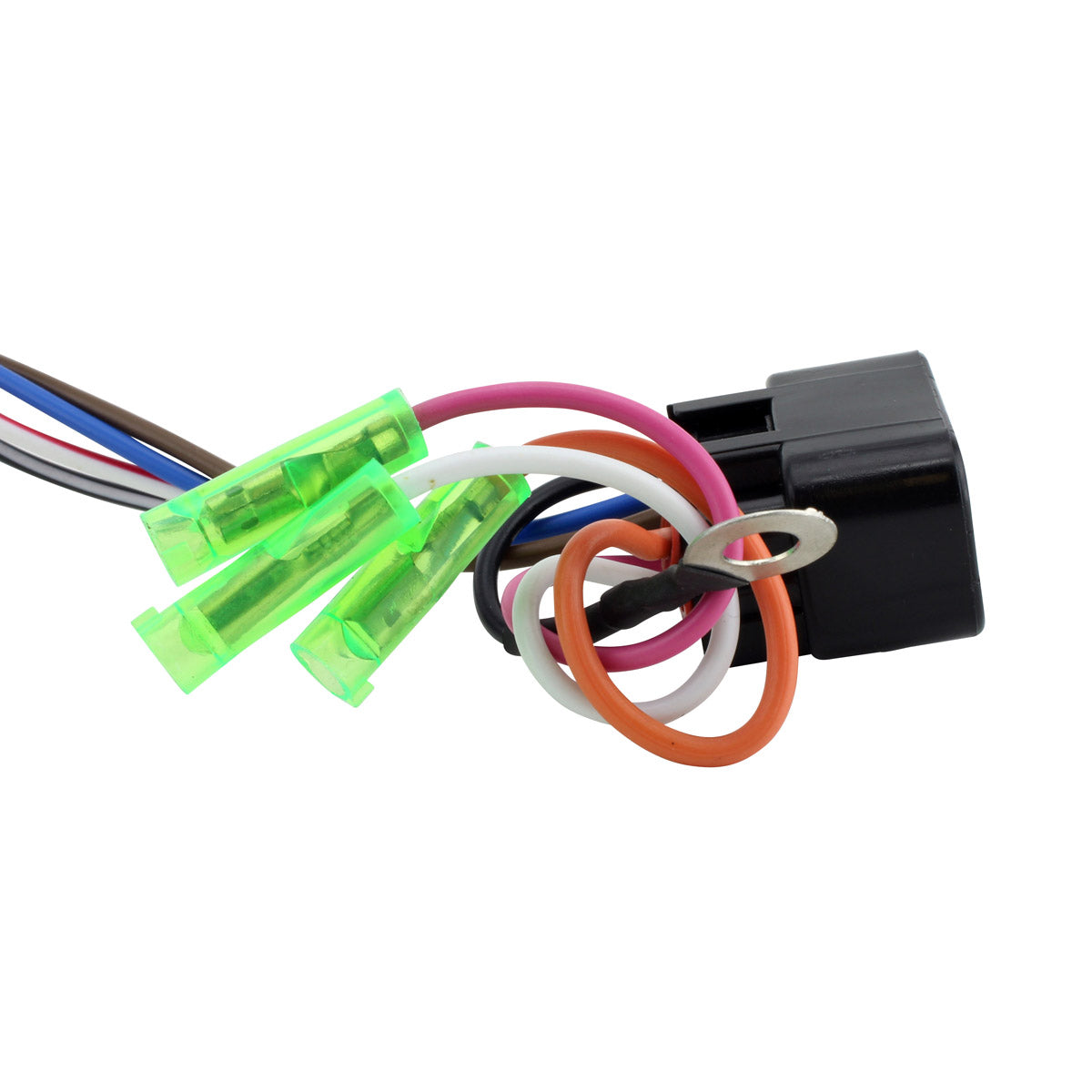

- Connector and rubber grommet included
- Combined alternator, pickup and source coil assembly
- Every unit factory tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 16 mm |
| Wire length, stator to grommet | 45 mm |
| Wire length, grommet to plug | 1485 mm |
| Pickup coil wire length to grommet | 80 mm |
| Number of wires | 11 |
| Number of plugs | 6 |
| Number of pins | 11 |
| Alternator resistance, white to white | 1.2 ohms, plus or minus 20% |
| Pickup resistance, white/black to white/red | 524 ohms, plus or minus 20% |
| Source coil resistance, blue to brown | 344 ohms, plus or minus 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RM01519 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha WaveRunner GP 800 | 1998-2005 |
| Yamaha WaveRunner GP 800R | 1998-2005 |
| Yamaha WaveRunner XL 800 | 1998-2005 |
| Yamaha WaveRunner XLT 800 | 1998-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 66E-85510-00-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit part and every one of the six plugs matches the original loom. No cutting, splicing or drilling is required on a craft that carries OEM part number 66E-85510-00-00.
What is included?
The stator assembly, the pickup pulsar coil, the connector and the rubber grommet. All units are factory tested before shipment.
How do I know my old stator has failed?
Test it cold with a multimeter against the three figures in the table. The alternator legs should read about 1.2 ohms white to white, the pickup about 524 ohms white/black to white/red, and the source coil about 344 ohms blue to brown, each within 20%. A reading that is open circuit, far out of range, or that shows continuity to the stator core indicates a failed winding. Common symptoms are a flat battery, no spark on one cylinder, or an engine that will not fire at all when the source coil has gone.
Why does this stator have so many wires?
Because it does three jobs at once. Eleven wires across six plugs carry the alternator output that charges the battery, the pickup signal that tells the ignition when to fire, and the source coil output that powers the ignition system itself. That is normal for the WaveRunner 800 series and it is why the full unit has to be replaced rather than just one coil.
