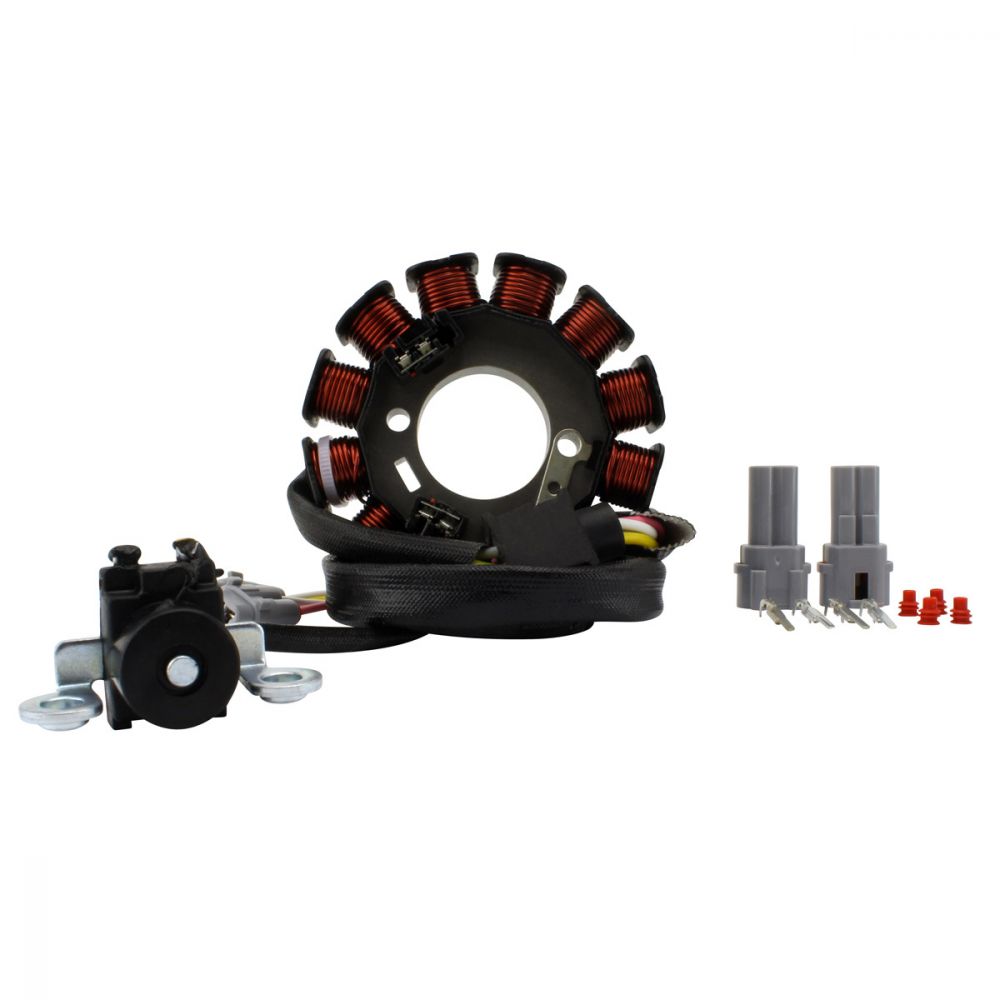

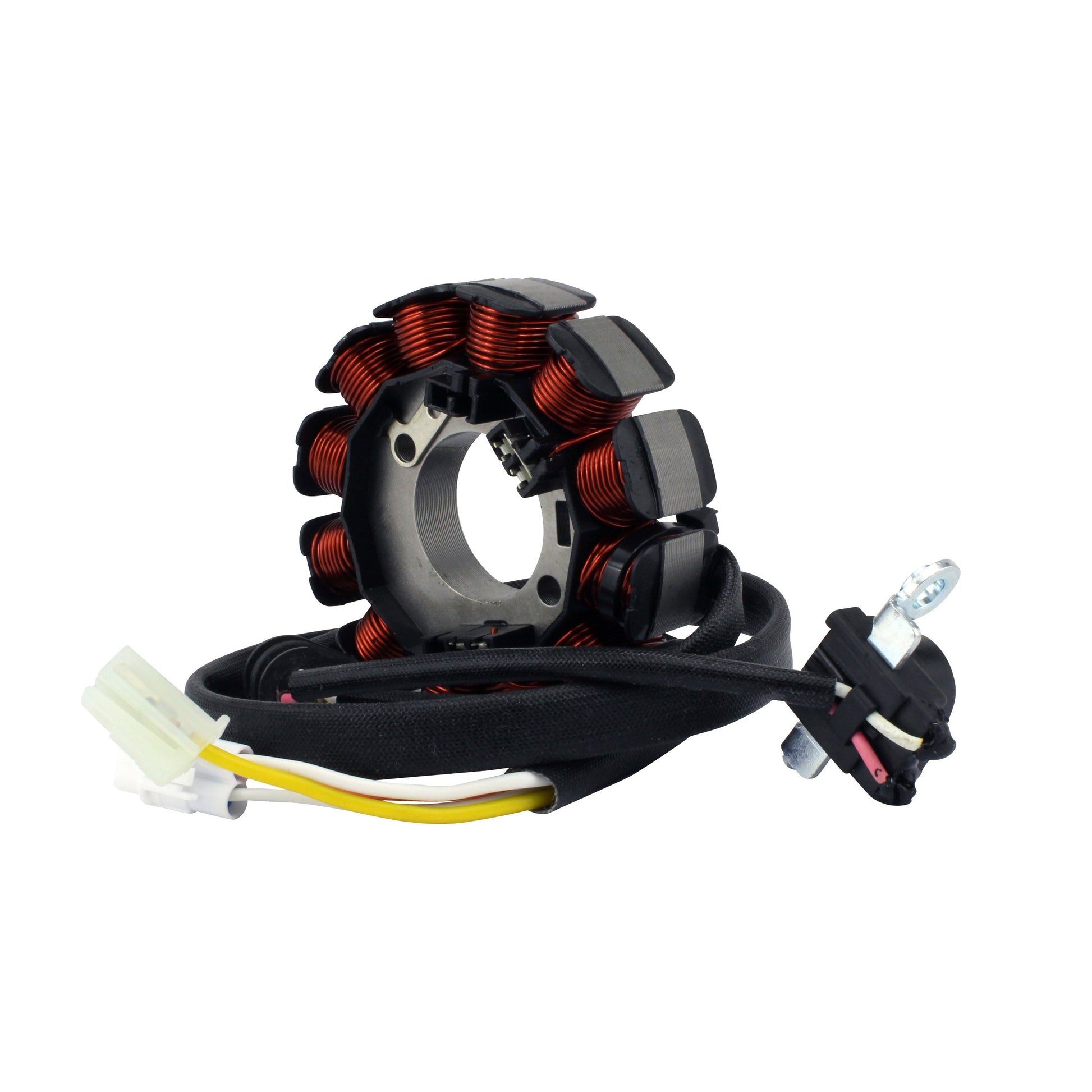

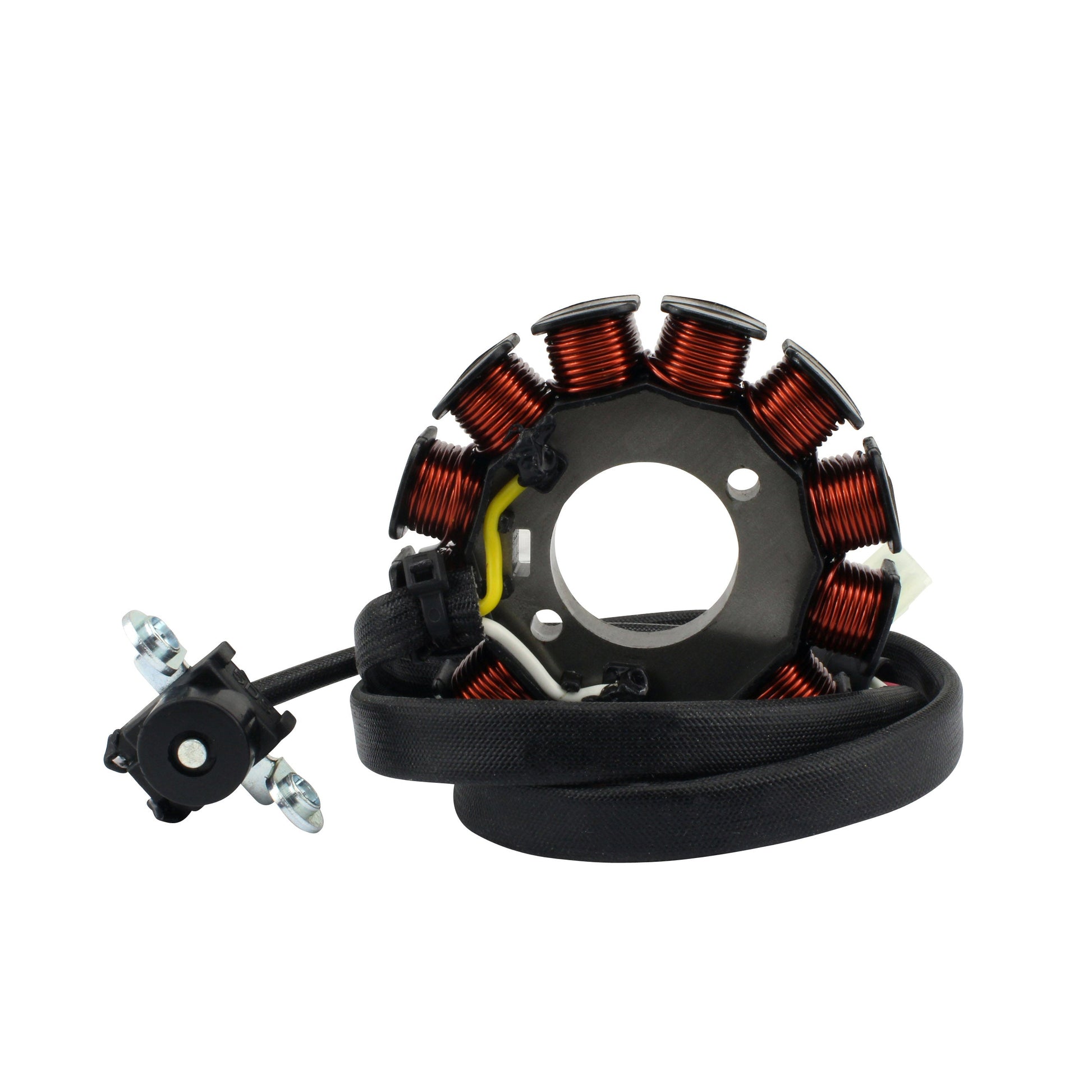

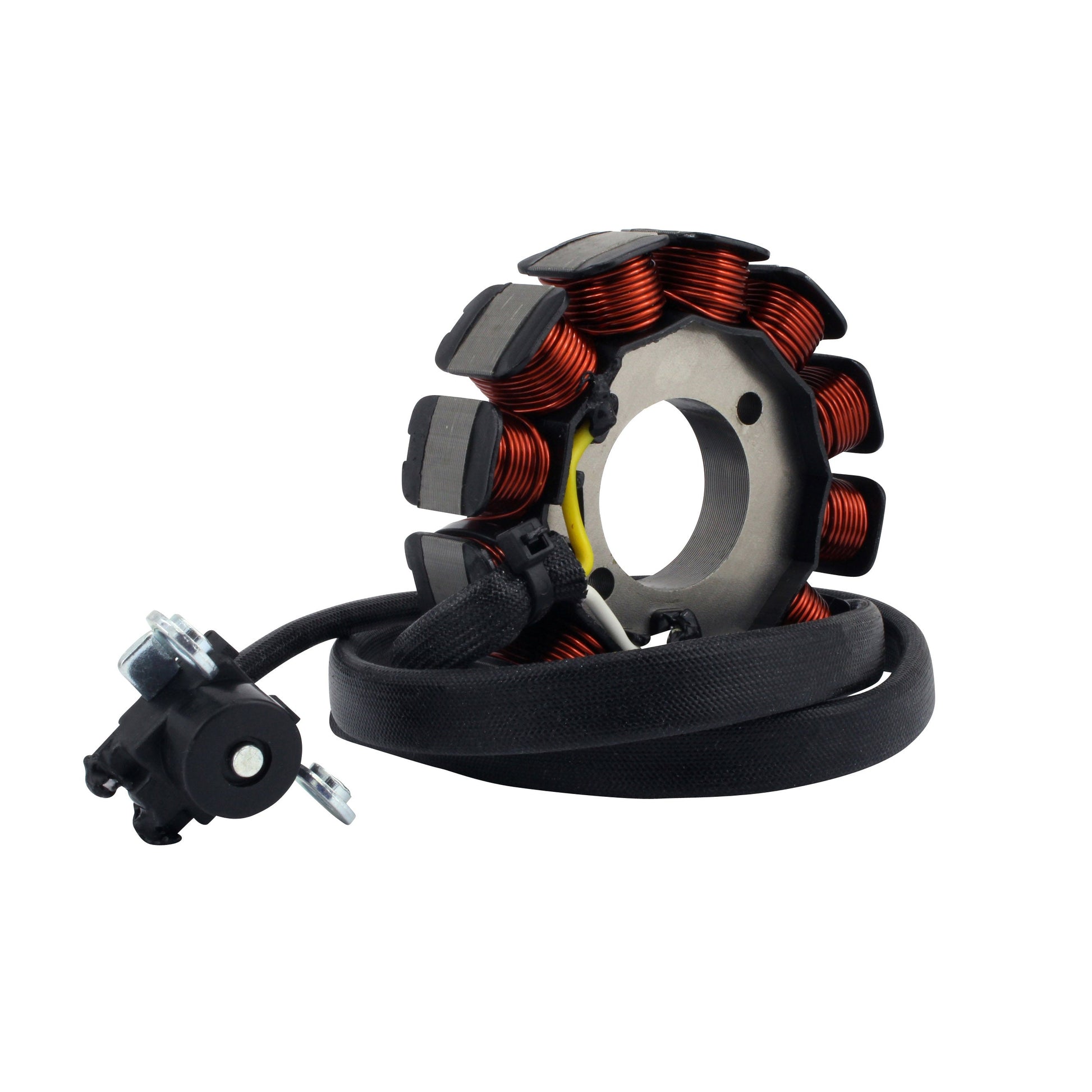

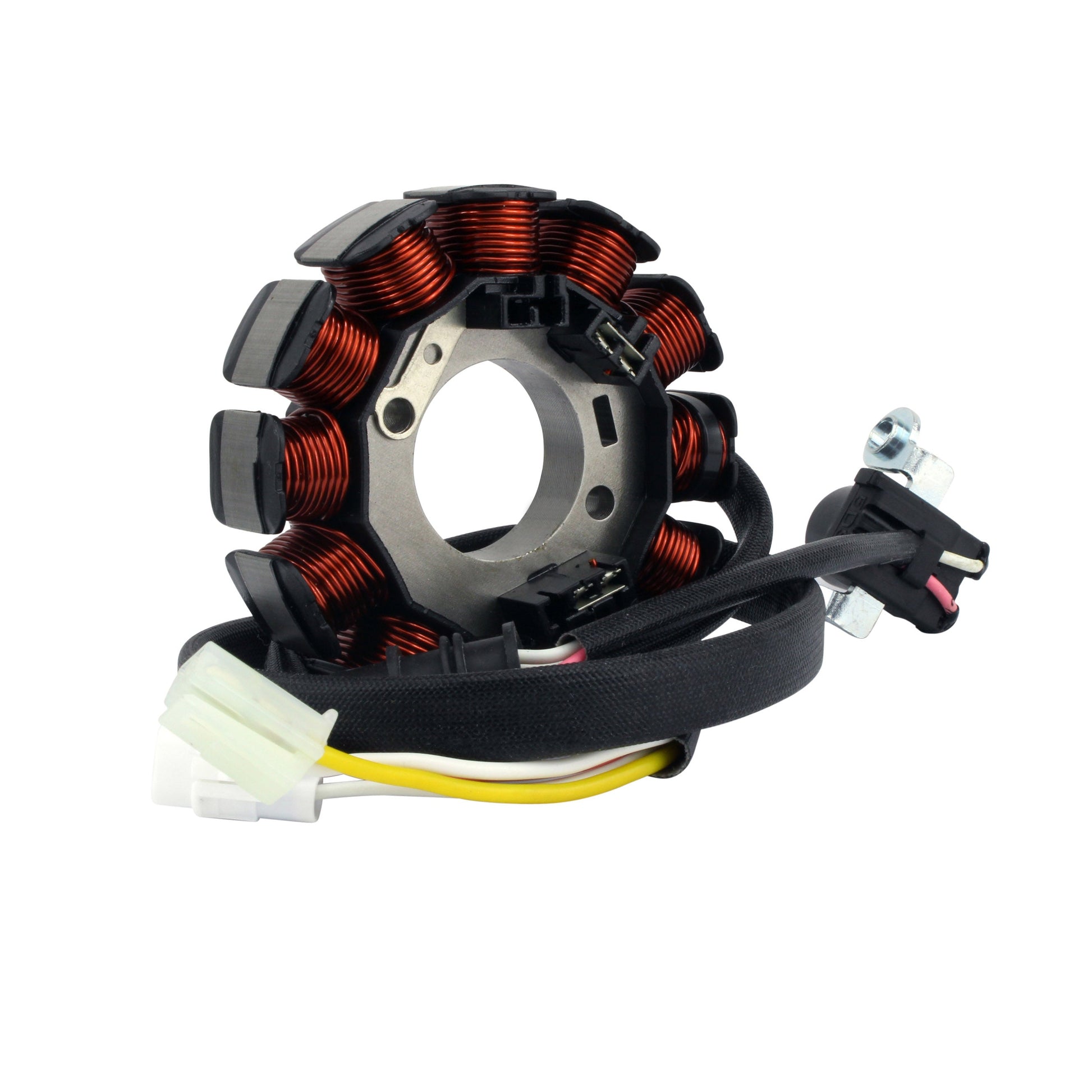

This is a brand new aftermarket stator, built as a direct replacement for the original unit fitted to the Yamaha WR250F from 2005 to 2013. It is plug-and-play and a direct fit, so it mounts on the original fixings behind the ignition cover and connects to the standard loom with no modification to the cases or the wiring. Every unit is tested before it is shipped.
The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius - an important detail on an enduro engine that spends long periods at low speed with little cooling airflow. The pick up pulsar coil is supplied with the assembly, so the ignition trigger is renewed at the same time as the charging coils. Connectors and a rubber grommet are included, and the opposite connector for the main harness side is supplied as well, because that plug is often melted, corroded or defective and is a major cause of repetitive electrical issues.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

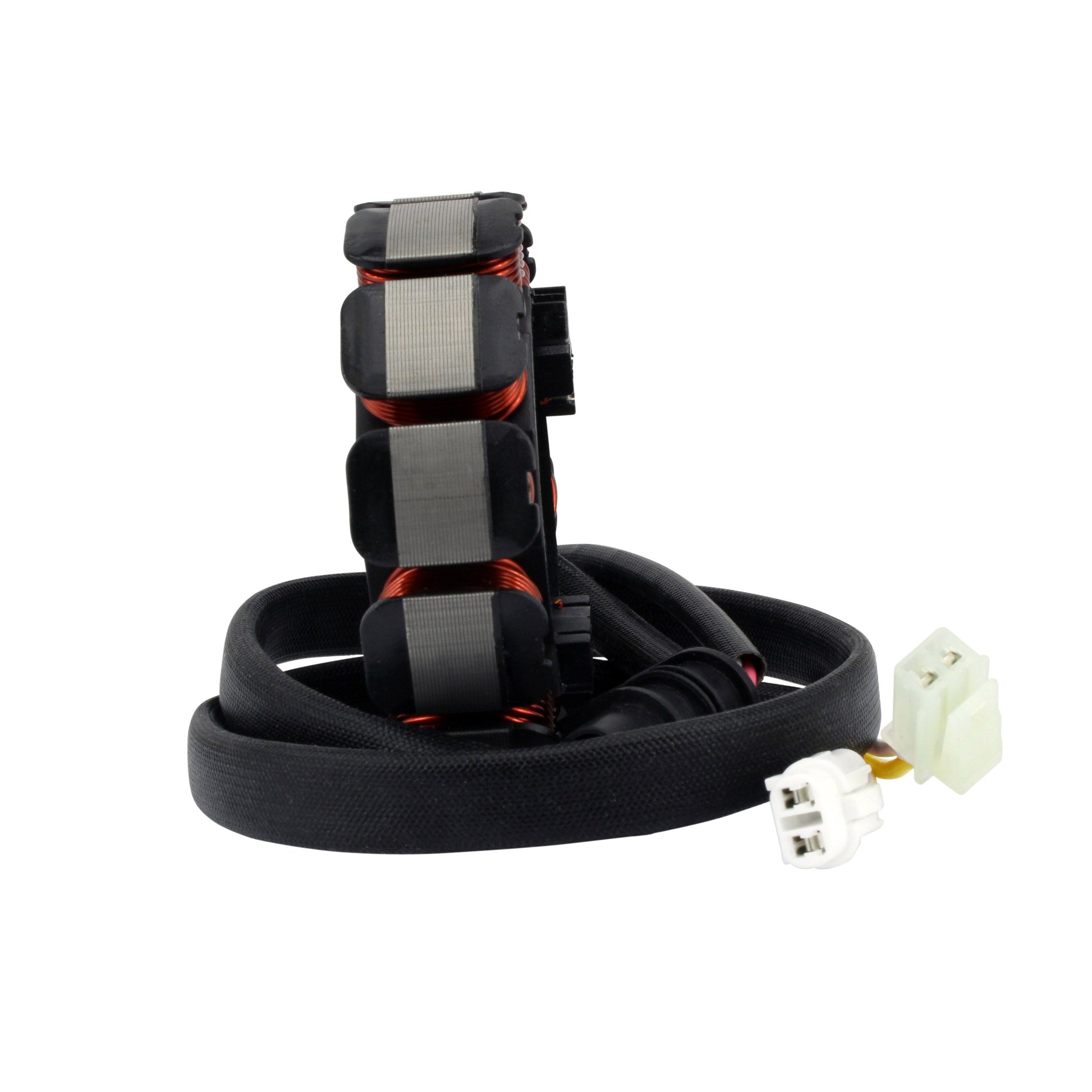

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

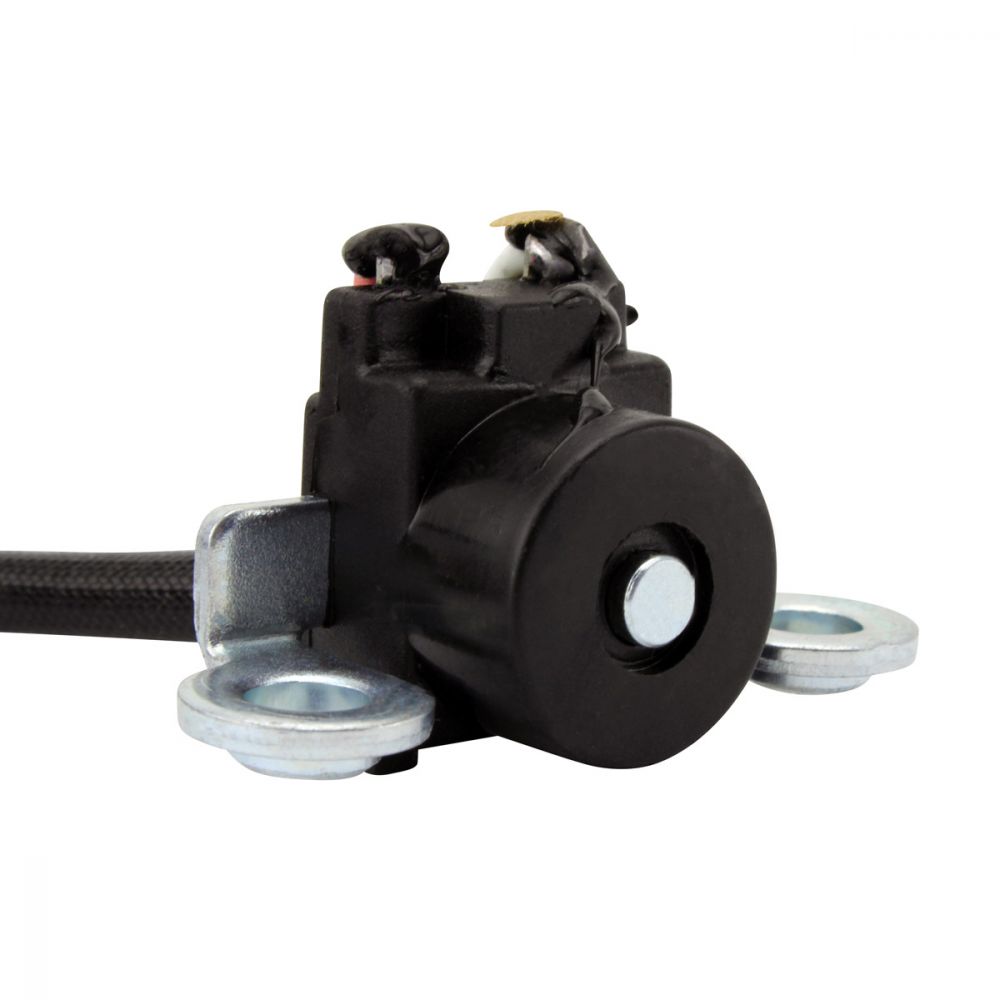

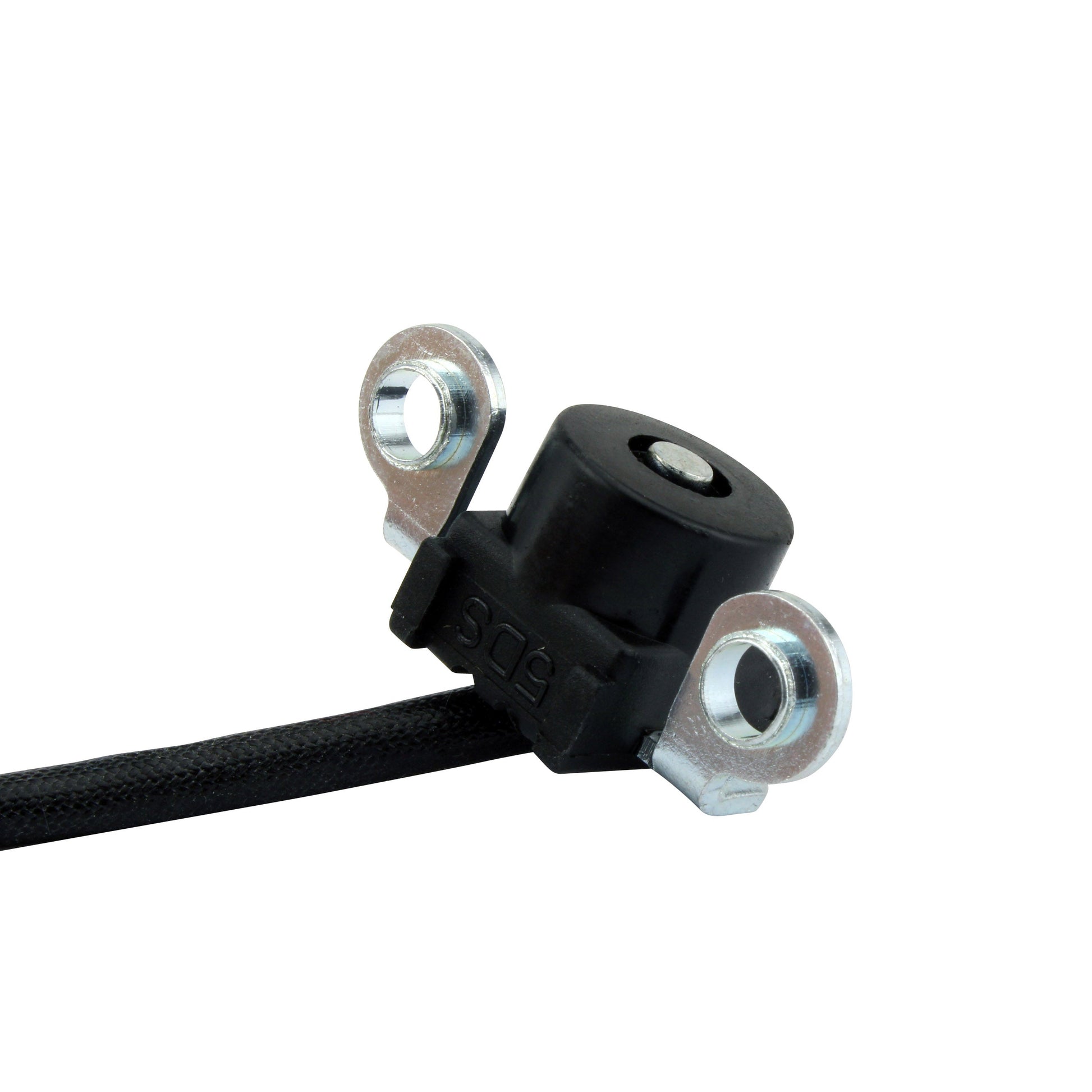

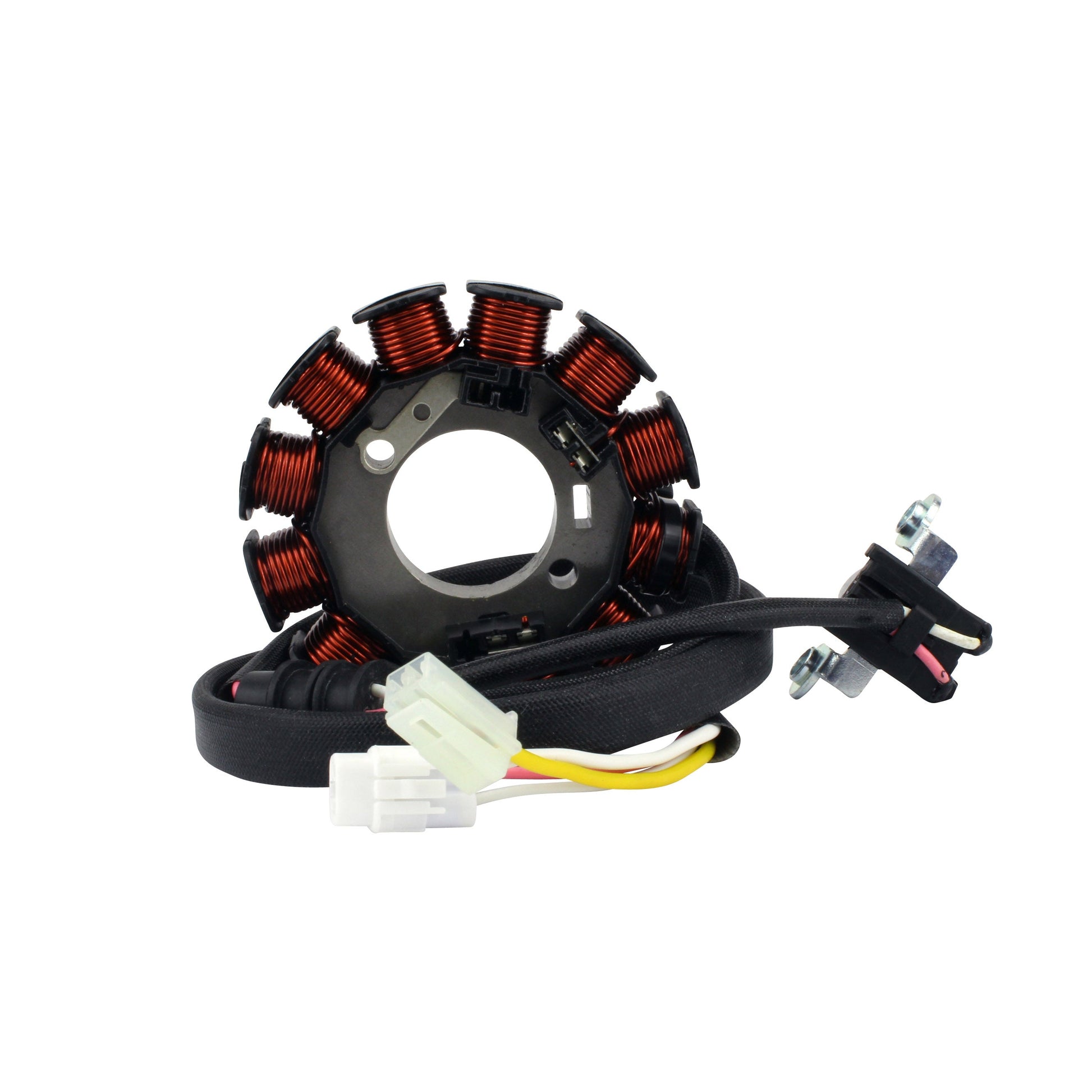

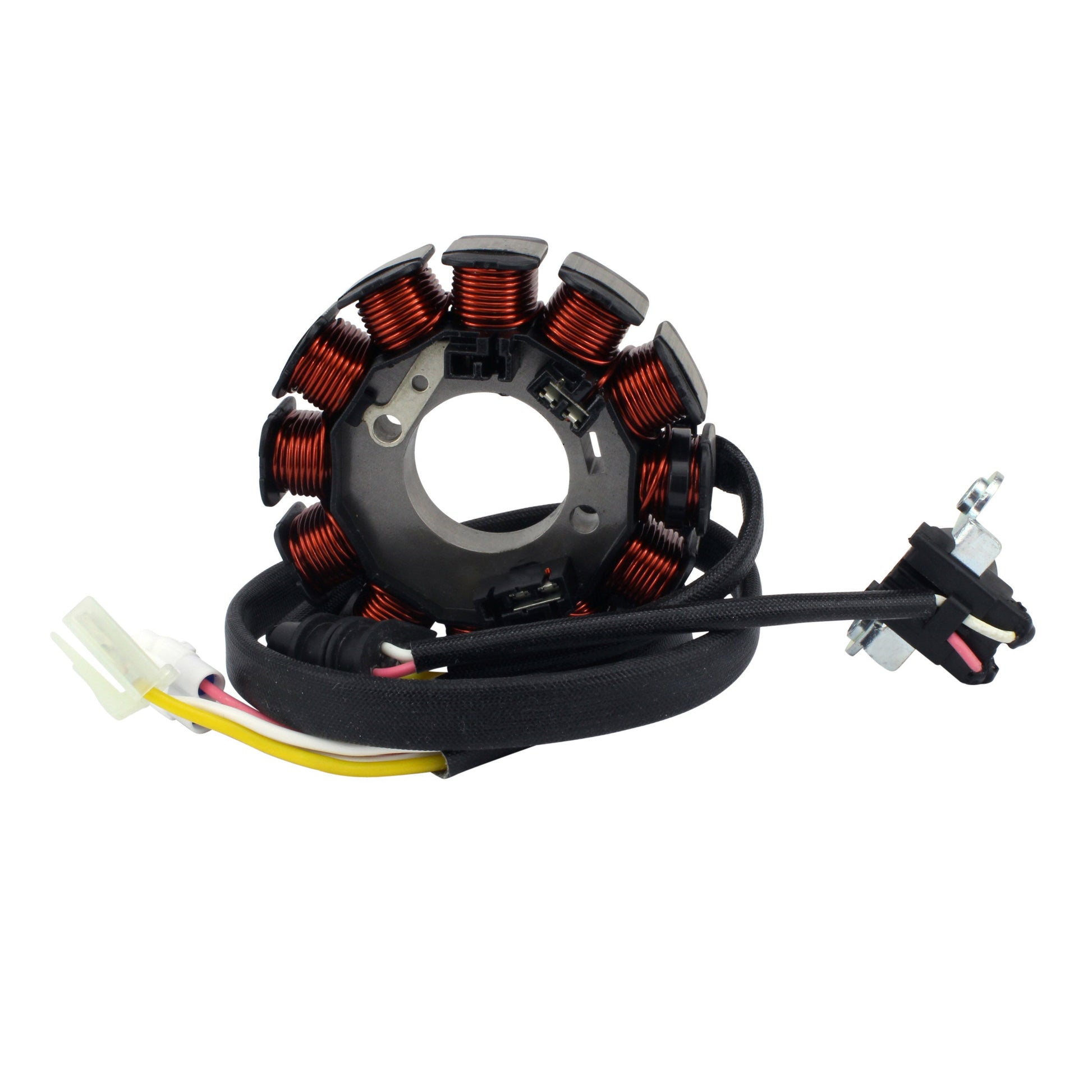

- Pick up pulsar coil included

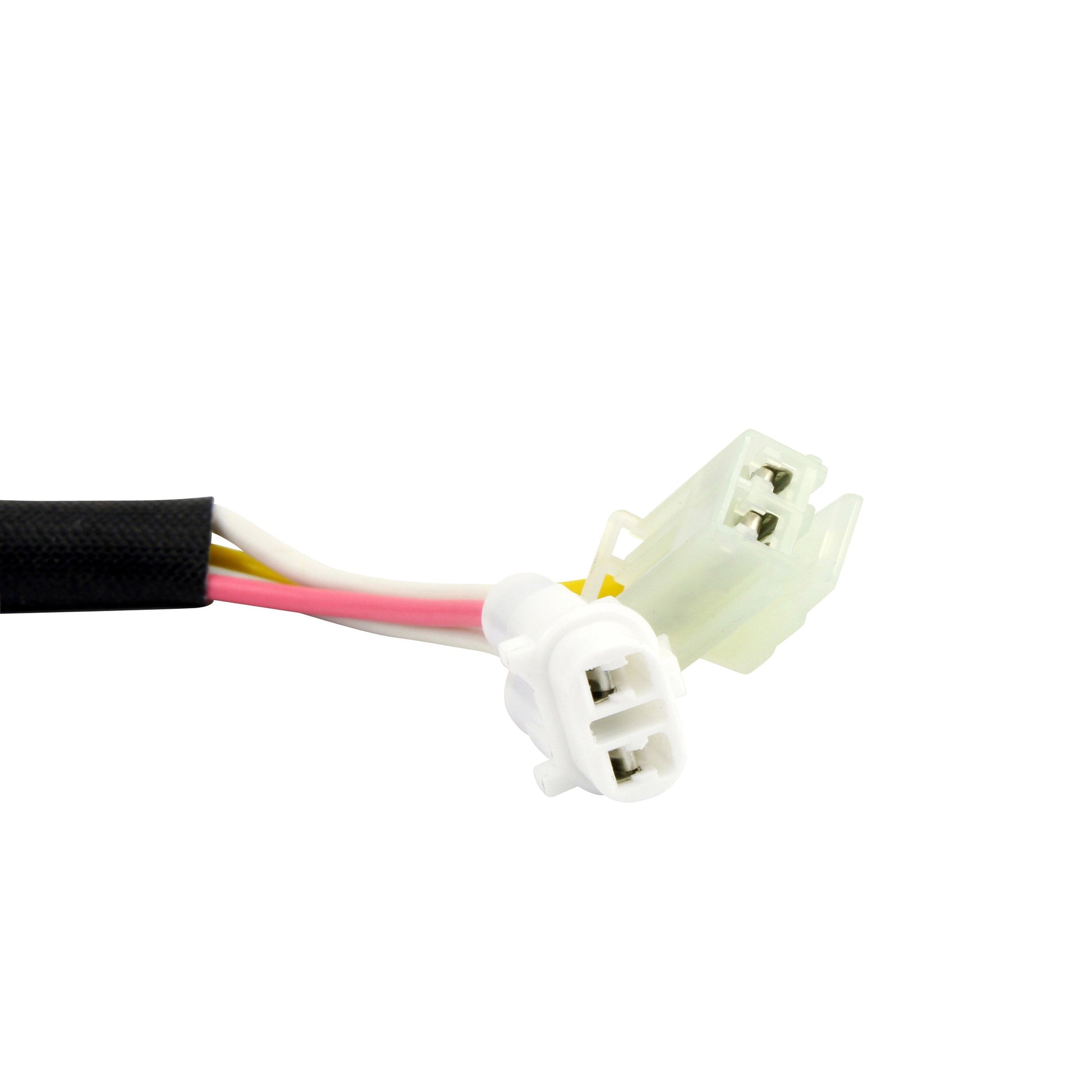

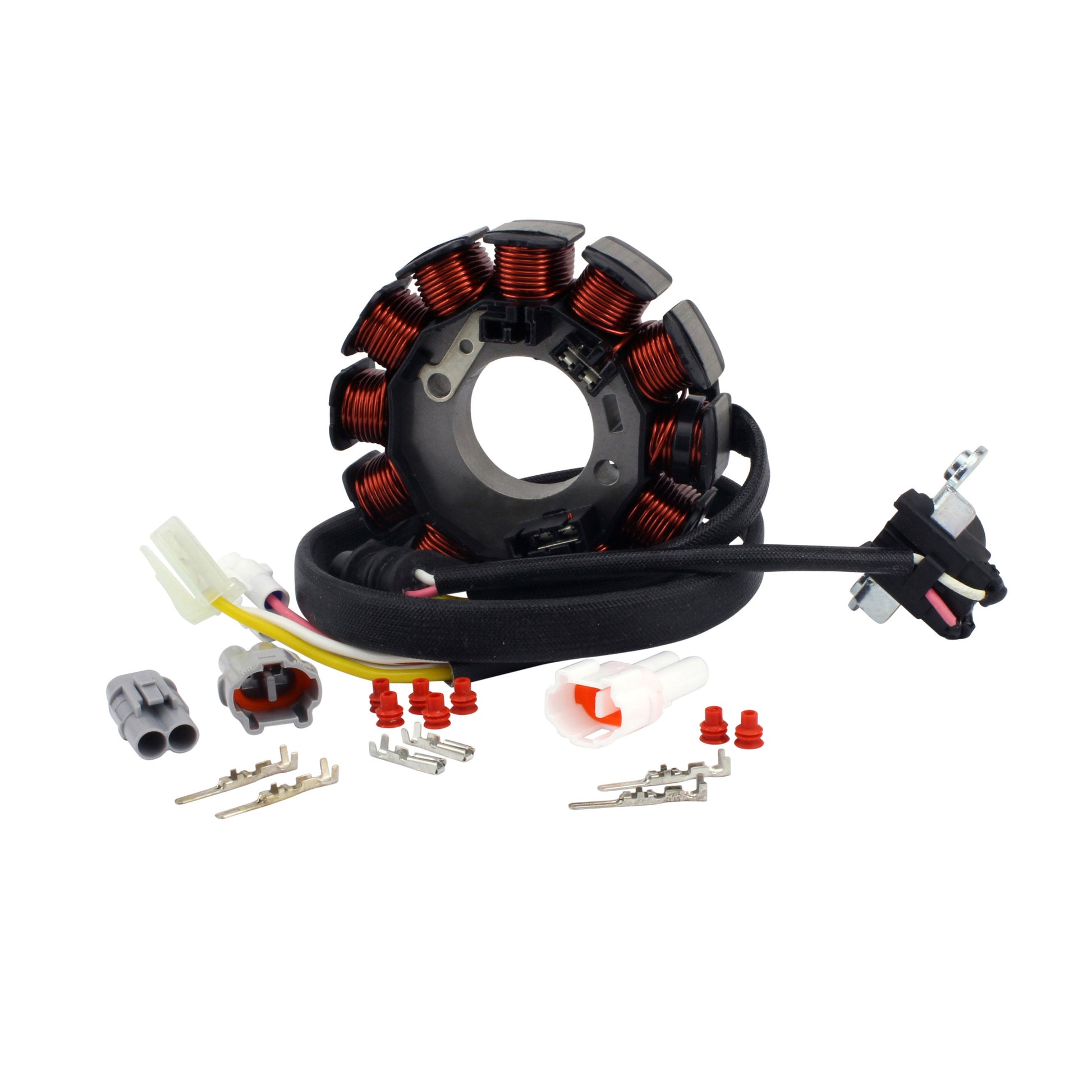

- Connectors included

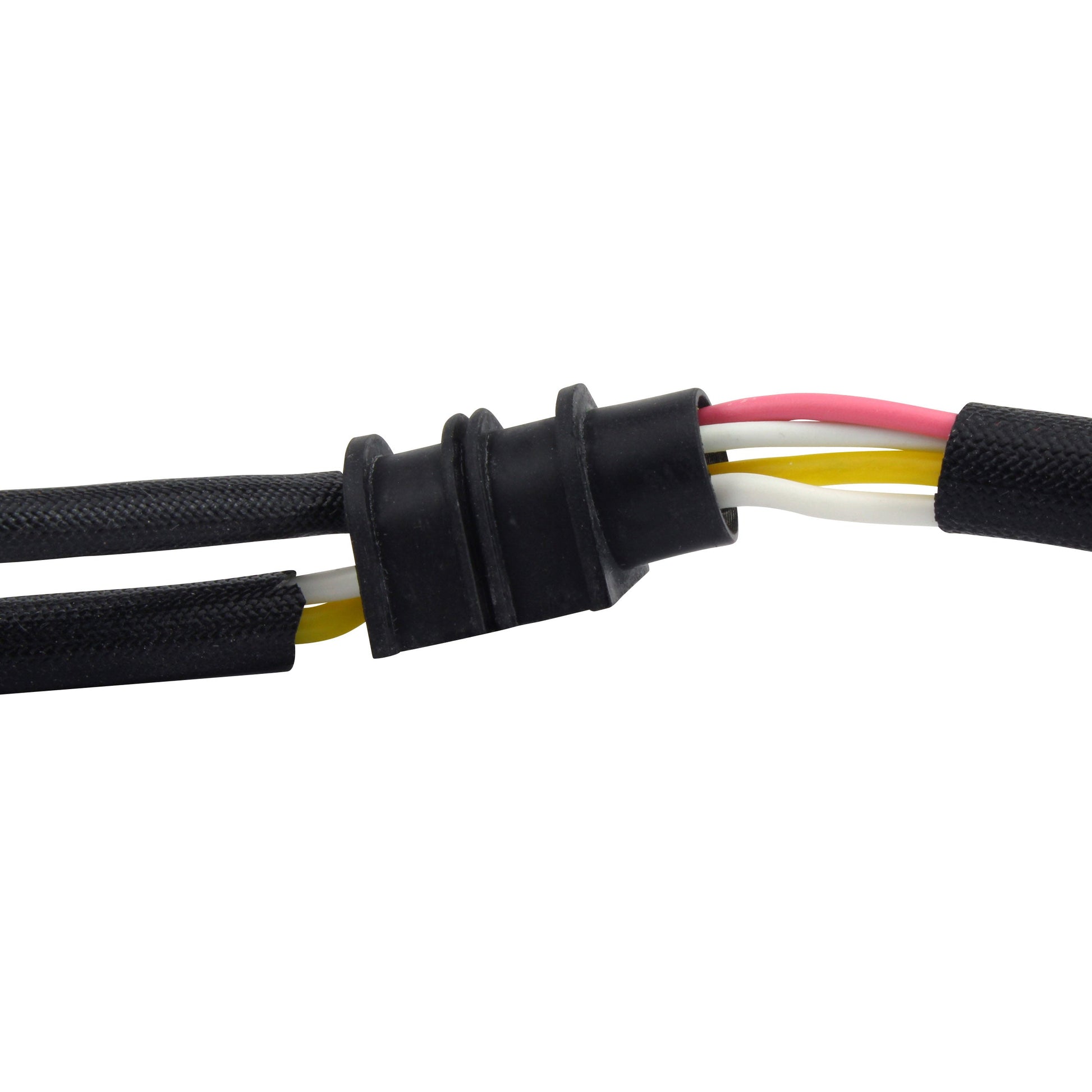

- Rubber grommet included

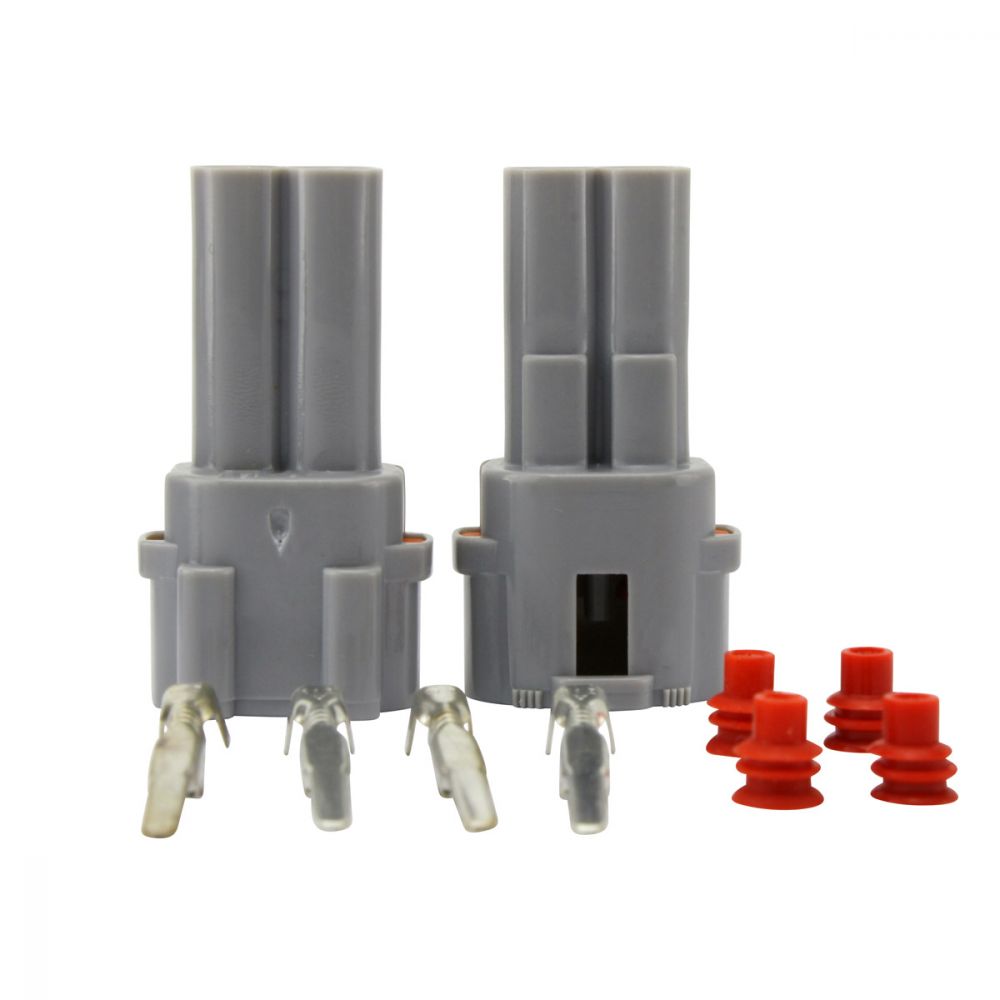

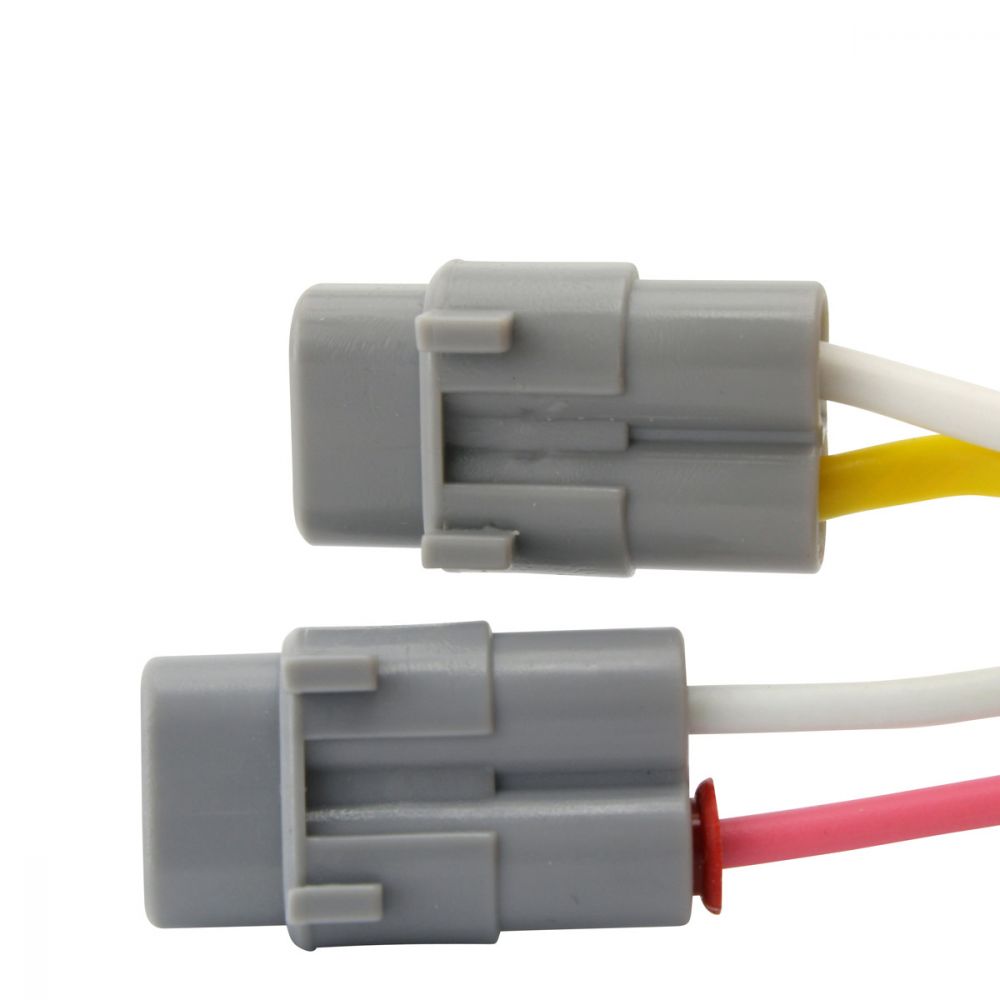

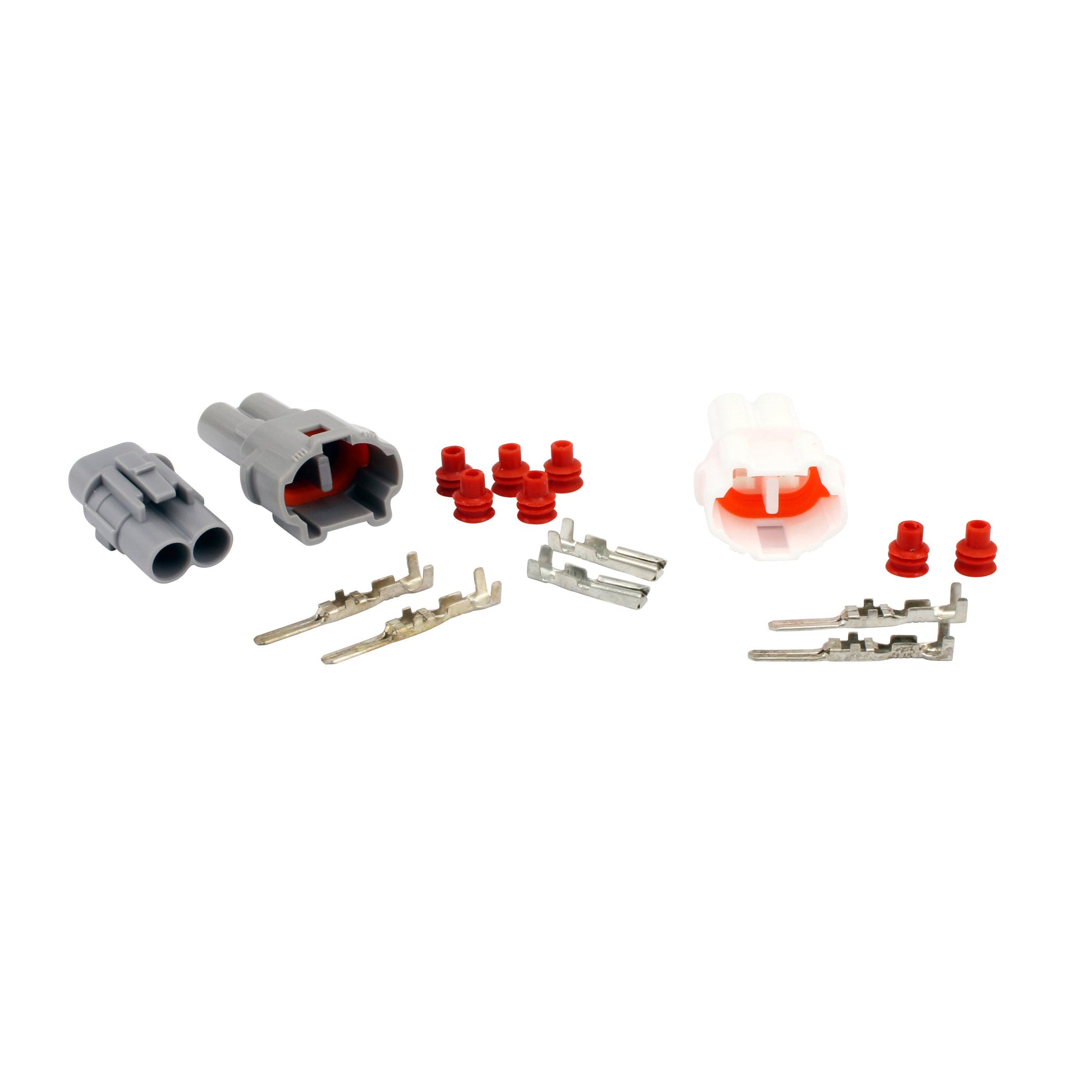

- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-107736 |
| Interior diameter |
31 mm |
| Exterior diameter |
83 mm |
| Thickness |
10 mm |
| Wire length, stator to grommet |
65 mm |
| Wire length, grommet to plug |
520 mm |
| Pick up coil wire to grommet |
125 mm |
| Number of wires |
4 |
| Number of plugs |
2 |
| Number of pins |
4 |
| Number of poles |
12 |
| Alternator resistance |
White to Yellow = 0.3 ohms +-20% |
| Alternator to ground |
White to ground = O.L |
| Pickup resistance |
White to Pink = 292 ohms +-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha WR250F |
2005-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5UM-81410-31-00 |
Yamaha |
| 5UM-81410-30-00 |
Yamaha |
| 5UM-81410-20-00 |
Yamaha |
| 5UM-81410-10-00 |
Yamaha |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit on the WR250F from 2005 to 2013, using the original mounting points and the standard plugs, so no cutting, splicing or modification of the engine cases or harness is required.
What is included?
The stator, the pick up pulsar coil, the connectors and a rubber grommet. The opposite connector for the main harness side is included too, so a plug that has melted or corroded on the bike can be renewed at the same time.
How do I tell whether my old stator has failed?
Look for a battery that will not stay charged, dim or flickering lights, a weak or intermittent spark, or a bike that cuts out once hot. A meter confirms it quickly: about 0.3 ohms white to yellow on the alternator side, open circuit (O.L) from white to ground, and about 292 ohms white to pink on the pickup. A reading well outside those figures means a shorted or open winding.
Which OEM numbers does this replace?
It replaces Yamaha part numbers 5UM-81410-31-00, 5UM-81410-30-00, 5UM-81410-20-00 and 5UM-81410-10-00. Any of those numbers stamped or labelled on your original unit indicates the correct part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
