Stator for Yamaha YFB 250 Timberwolf 1992-1993
Yamaha YFB 250 Timberwolf, 1992 and 1993 - RMSTATOR part RM01426 - replaces OEM 4BD-85510-00-00

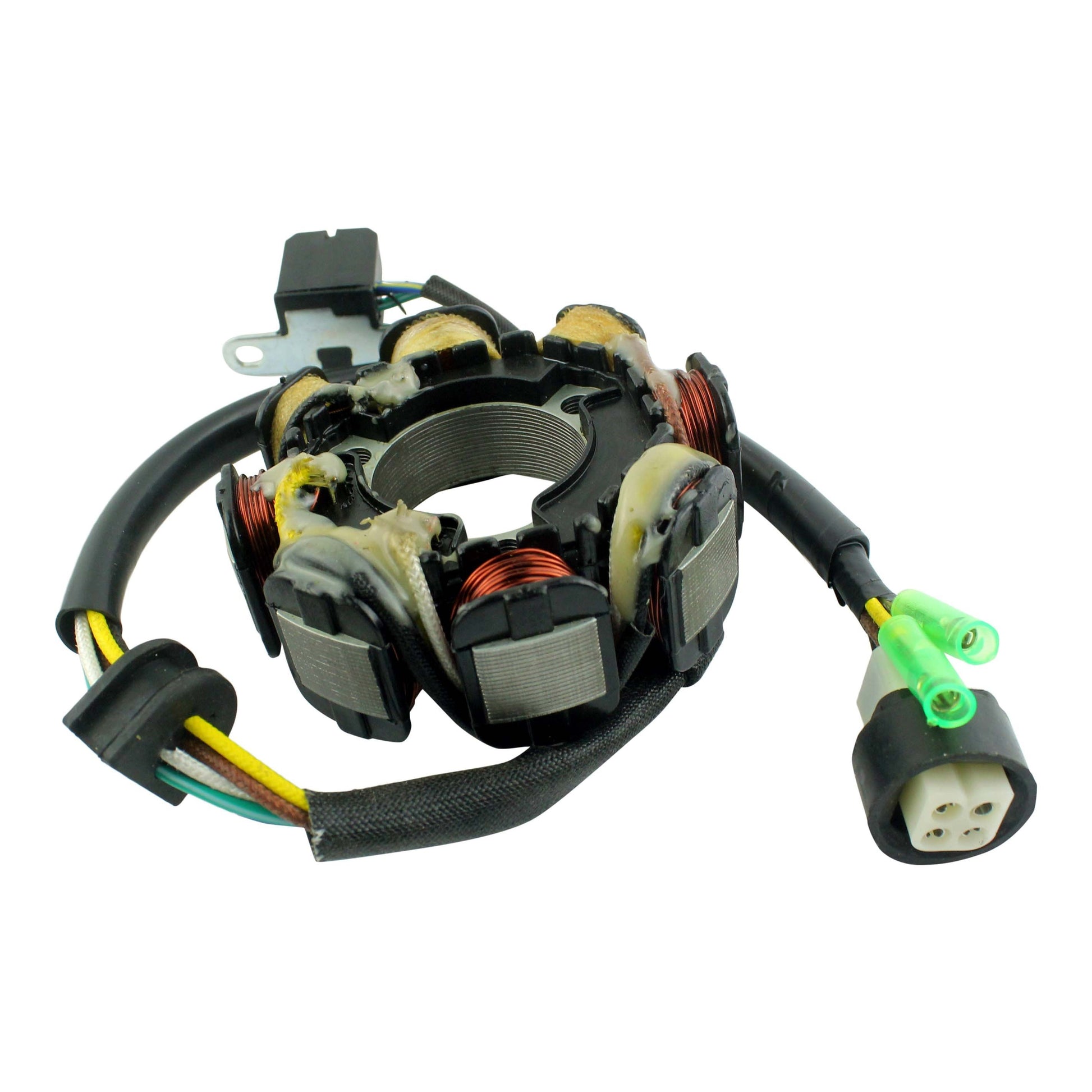

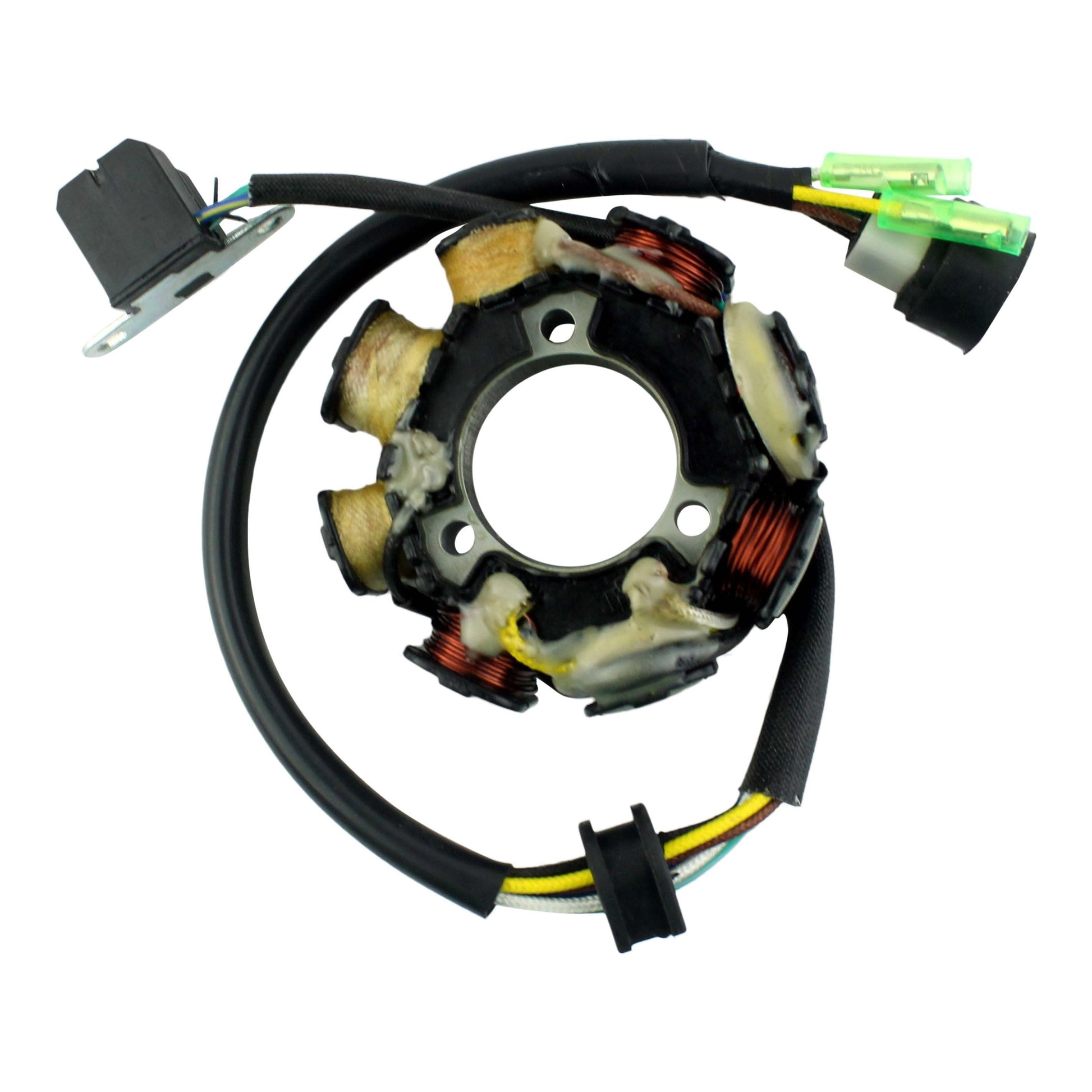

This is a brand new aftermarket stator, built as a direct replacement for the original unit fitted to the Yamaha YFB 250 Timberwolf in 1992 and 1993. It is a three-circuit plate: the alternator windings generate the charging current that goes to the regulator rectifier and the battery, a separate source winding feeds the ignition, and the pickup pulsar coil reads the flywheel and sets the timing. On machines this old the original windings have usually spent three decades absorbing heat and vibration, and the insulation eventually breaks down.
The unit is plug-and-play and a direct fit - six wires into three plugs, matching the factory connectors, wire lengths and mounting holes, so there is no cutting, splicing or modification to do. It is wound with the highest grade copper, rated to withstand 200 degrees C, on a highest grade lamination stack. The pickup pulsar coil, the connector and the rubber harness grommet are all supplied with it, and every stator is tested before it is packed and despatched.
Key Features
- Brand new stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification

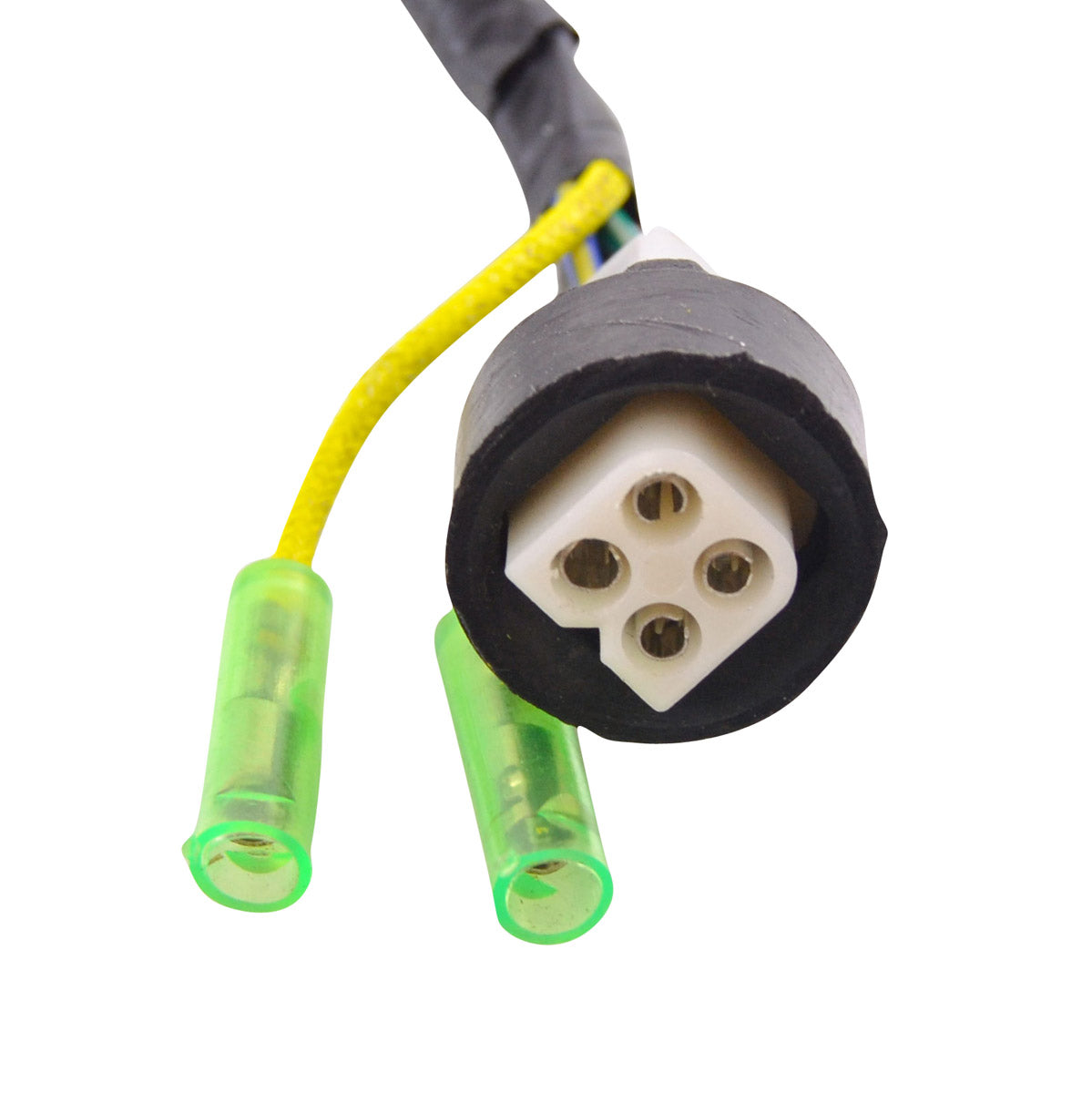

- Six-wire, three-plug layout matching the factory harness
- Alternator, source and pickup circuits on one plate

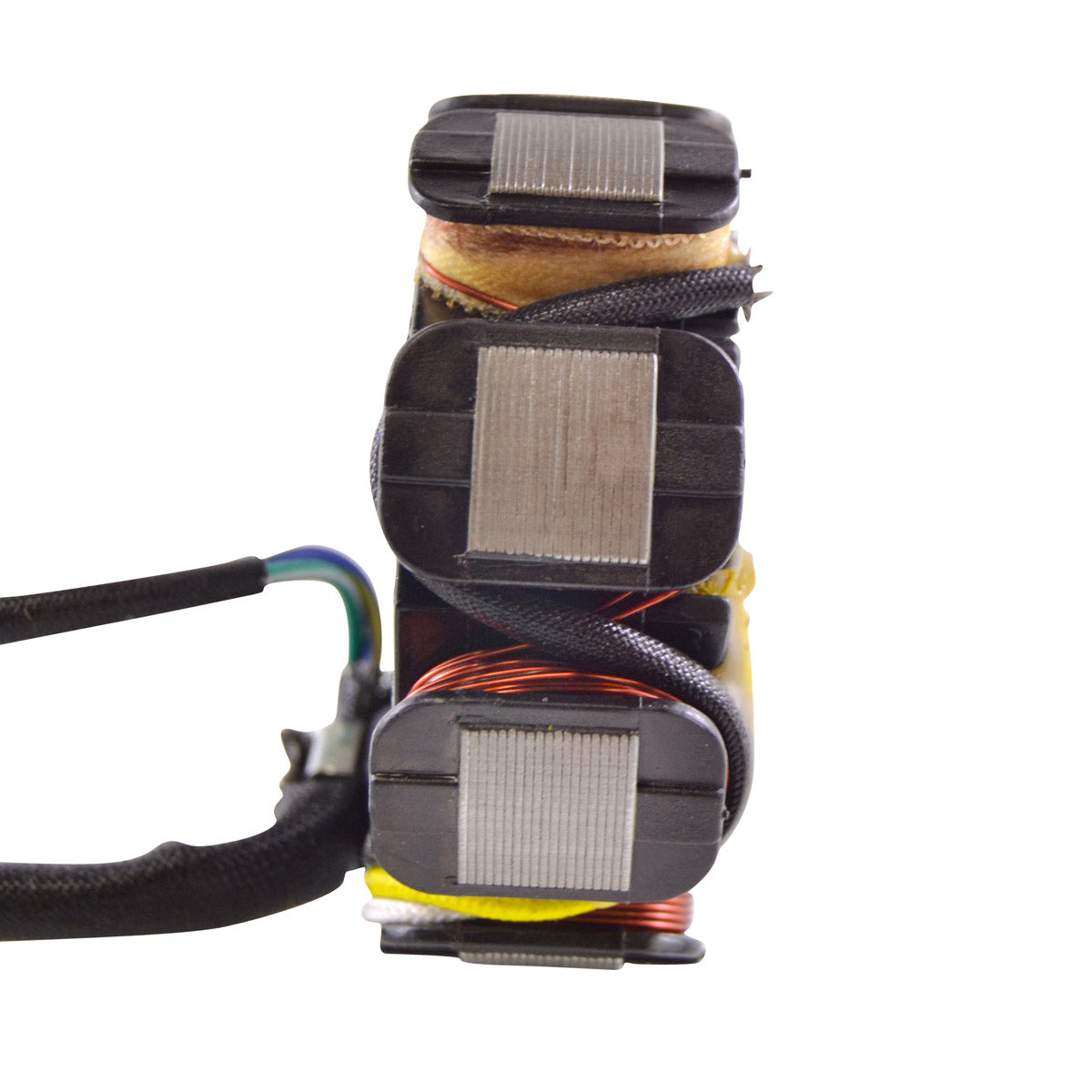

- Highest grade lamination materials for a stable magnetic core
- Highest grade copper windings, resistant to 200 degrees C

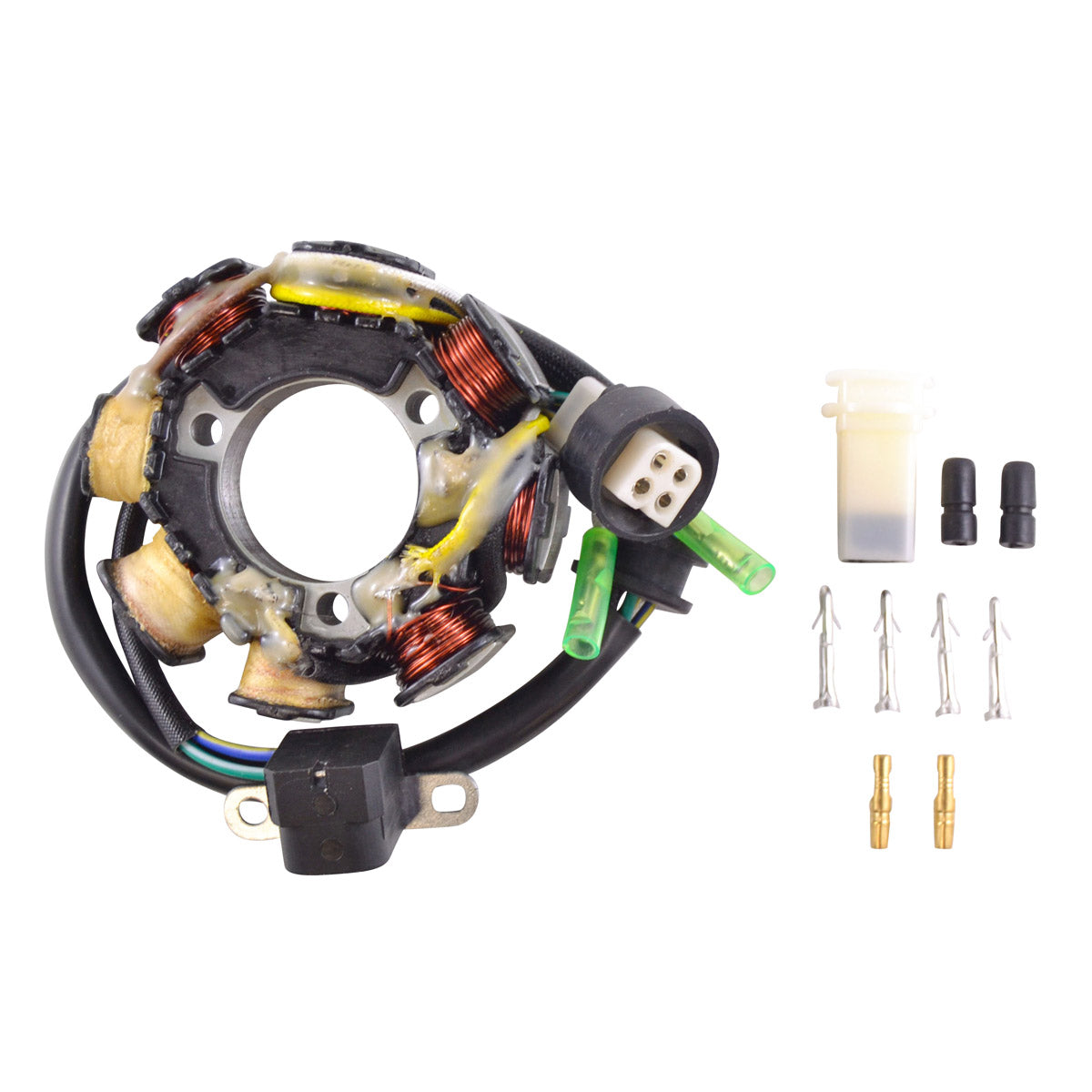

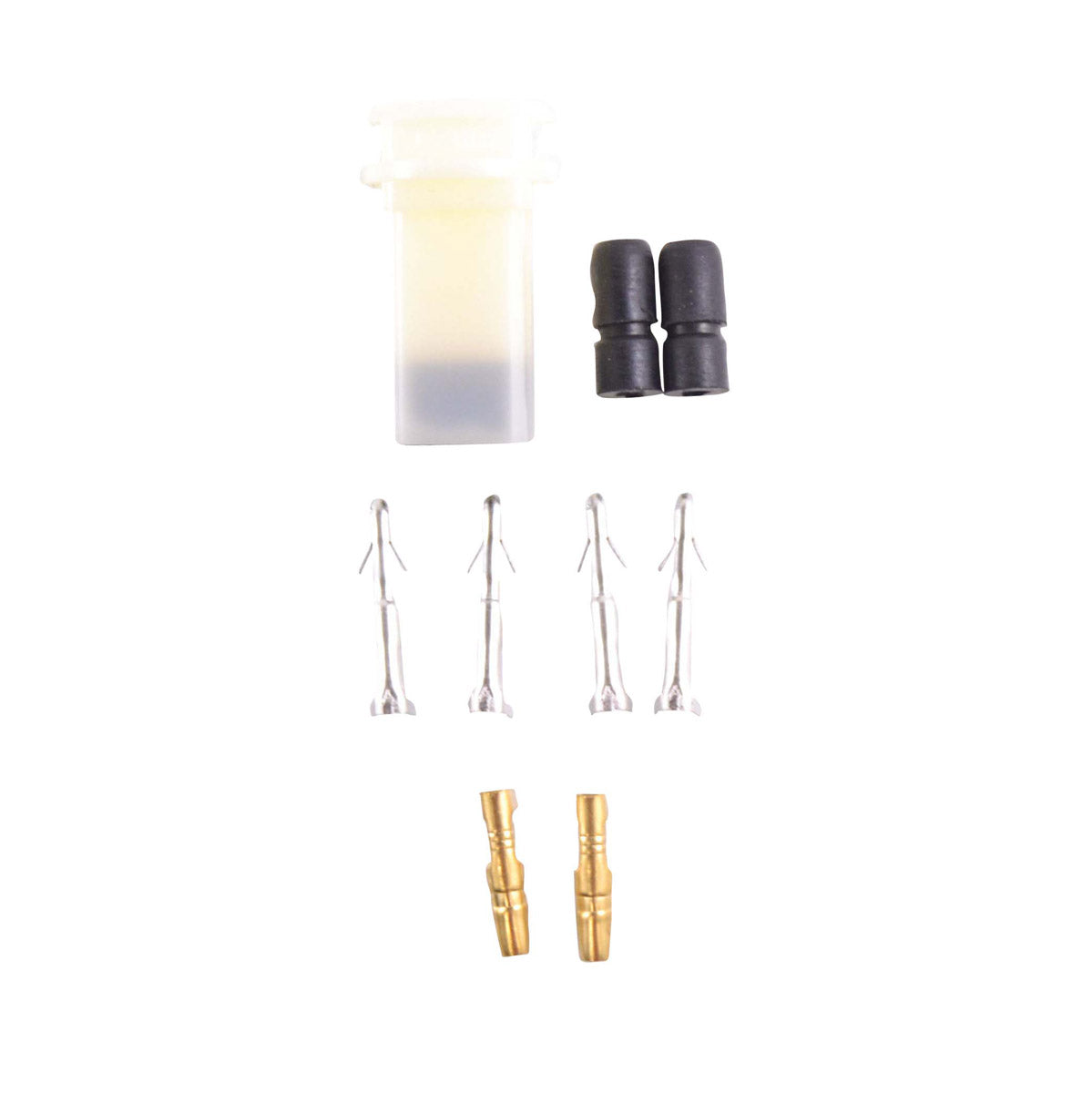

- Pickup pulsar coil, connector and rubber grommet included
- Every unit tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01426 |
| Interior diameter | 34 mm |
| Exterior diameter | 83 mm |
| Thickness | 14 mm |
| Wire length, stator to grommet | 90 mm |
| Wire length, grommet to plug | 225 mm |
| Pickup coil wire length to grommet | 160 mm |
| Number of wires | 6 |
| Number of plugs | 3 |
| Number of pins | 6 |
| Alternator resistance, Yellow to White | 0.4 ohms +/- 20% |
| Pickup resistance, Green/White to Blue/Yellow | 275 ohms +/- 20% |
| Source resistance, Black to Brown | 475 ohms +/- 20% |
| Temperature rating | 200 degrees C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFB 250 Timberwolf | 1992, 1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4BD-85510-00-00 | Yamaha |
| RM01426 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the 1992 and 1993 Yamaha YFB 250 Timberwolf. The six wires terminate in the same three plugs as the original and the lead lengths match, so no cutting or splicing is needed. Please still confirm the part number on your existing unit before ordering.
What is included in the box?
The stator, the pickup pulsar coil, the connector and the rubber harness grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
A flat battery that keeps coming back, lights that do not brighten with revs, weak or absent spark, or a machine that dies once warm are the common signs. Check with a multimeter: about 0.4 ohms +/- 20% Yellow to White on the alternator, about 275 ohms +/- 20% Green/White to Blue/Yellow on the pickup, and about 475 ohms +/- 20% Black to Brown on the source coil. An open circuit or continuity to the plate means that winding has failed.
Why does this stator have three plugs?
Because the Timberwolf runs three separate circuits from the one plate - charging, ignition source and pickup - each with its own connector. All three are supplied on this assembly, so the whole plate goes in as one piece.
