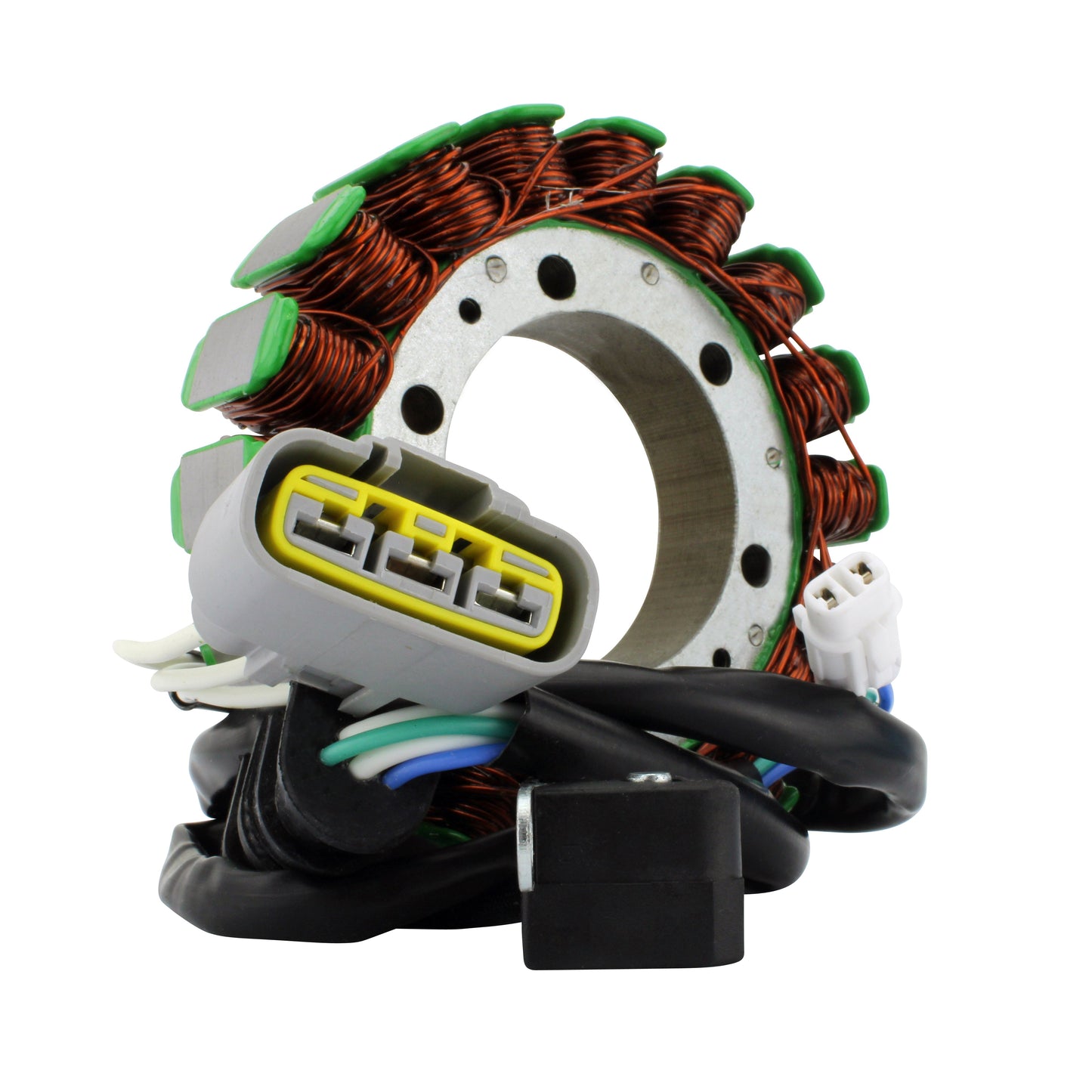

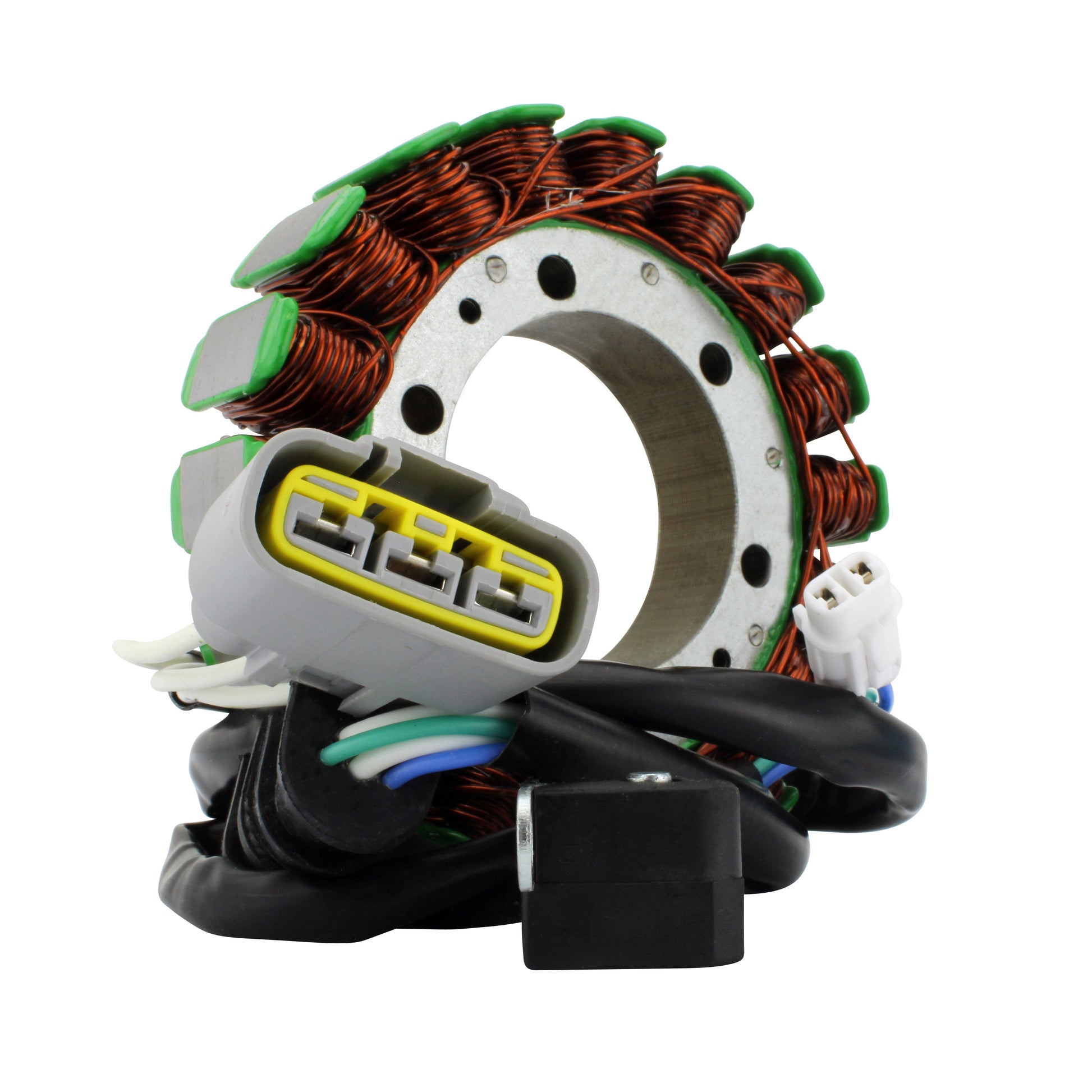

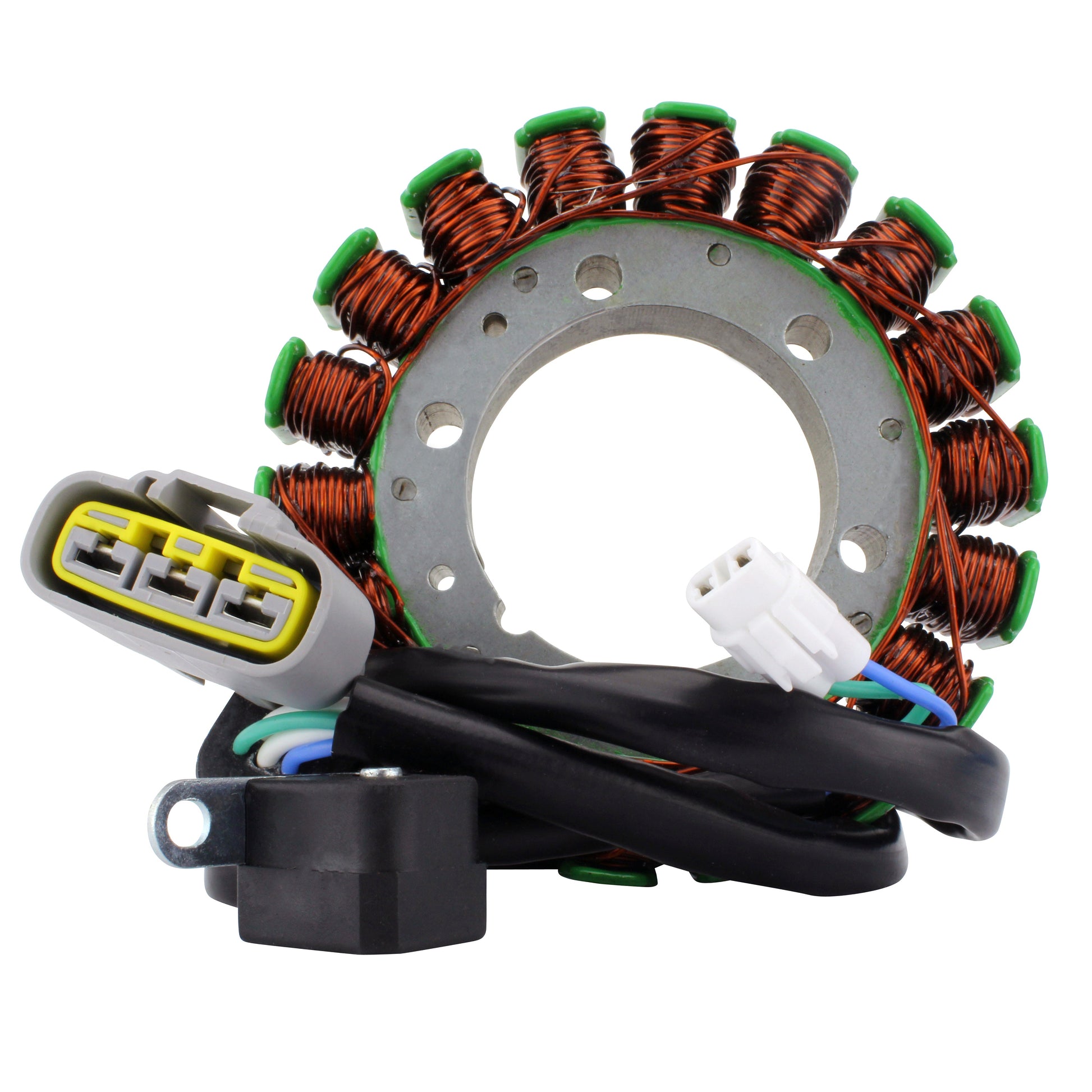

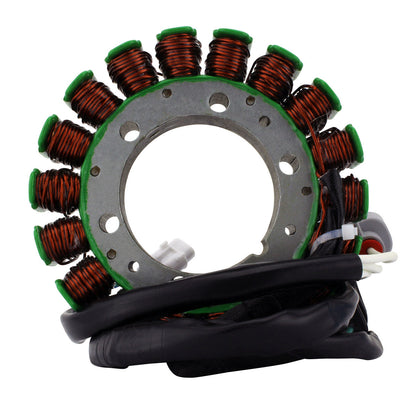

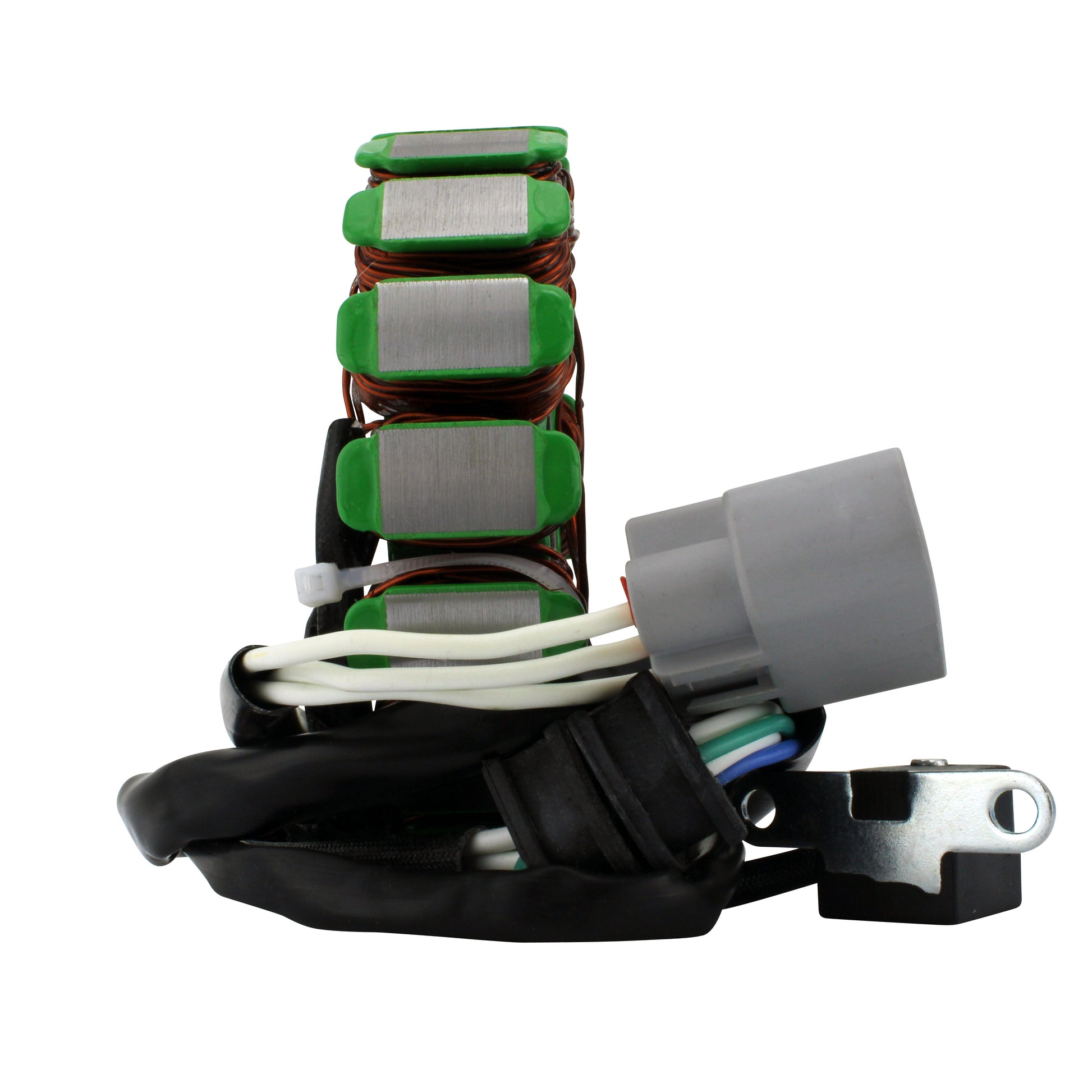

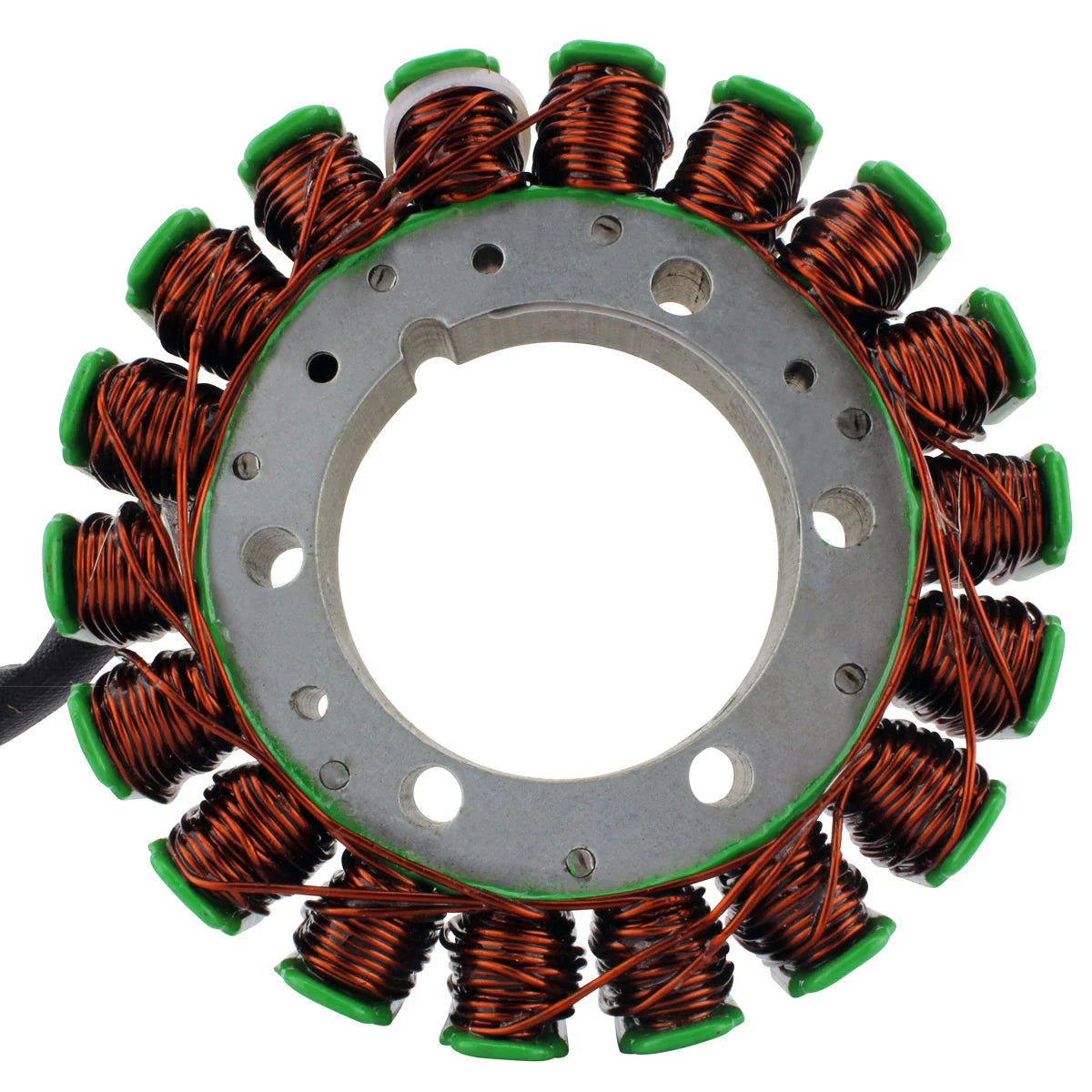

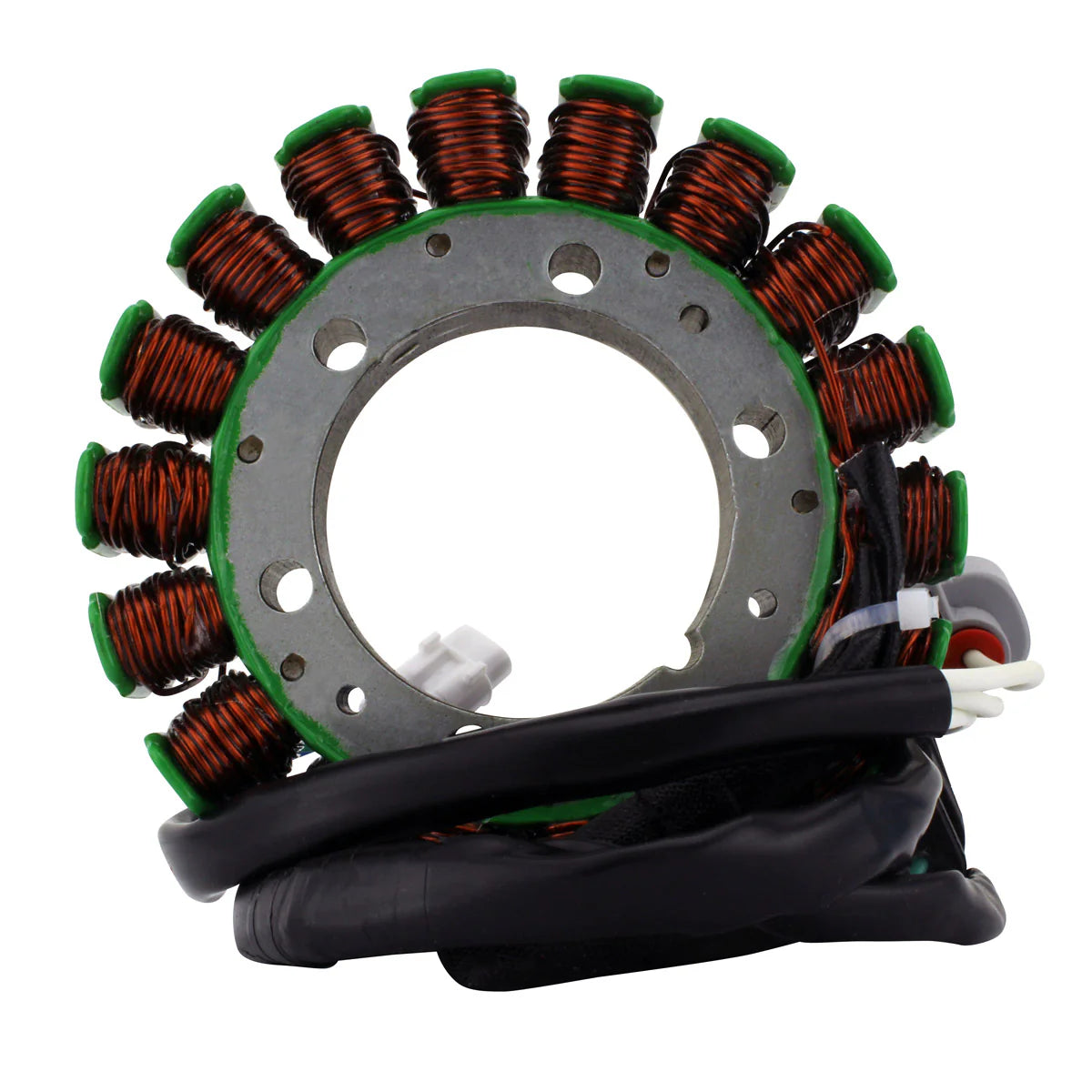

This is a brand new aftermarket stator built as a direct replacement for the original charging unit fitted to the Yamaha YFM 450 Kodiak. It is supplied complete with the pickup pulsar coil, the connectors and a rubber grommet, and it becomes a plug-and-play unit once the original grommet from your old stator has been reinstalled onto the new one.

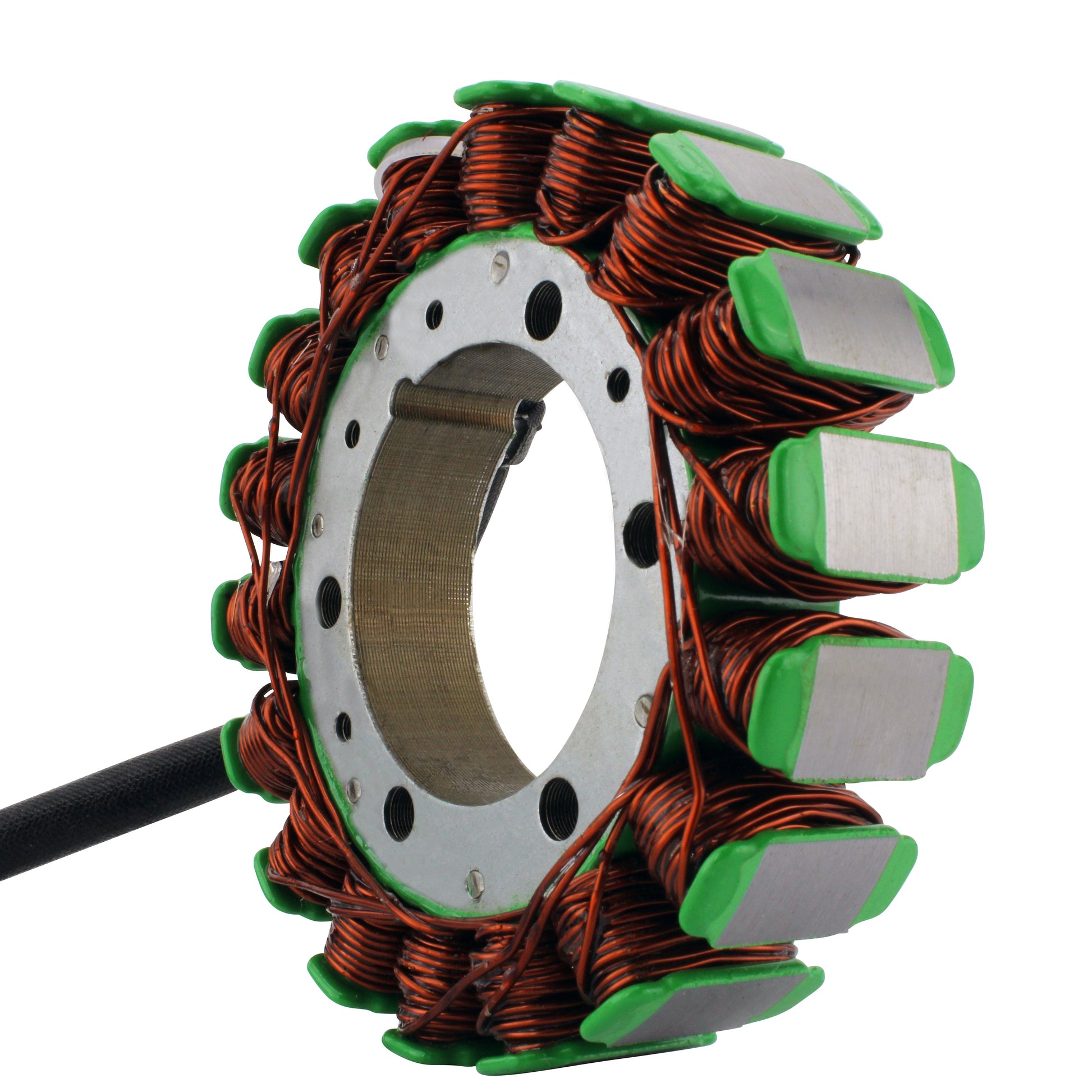

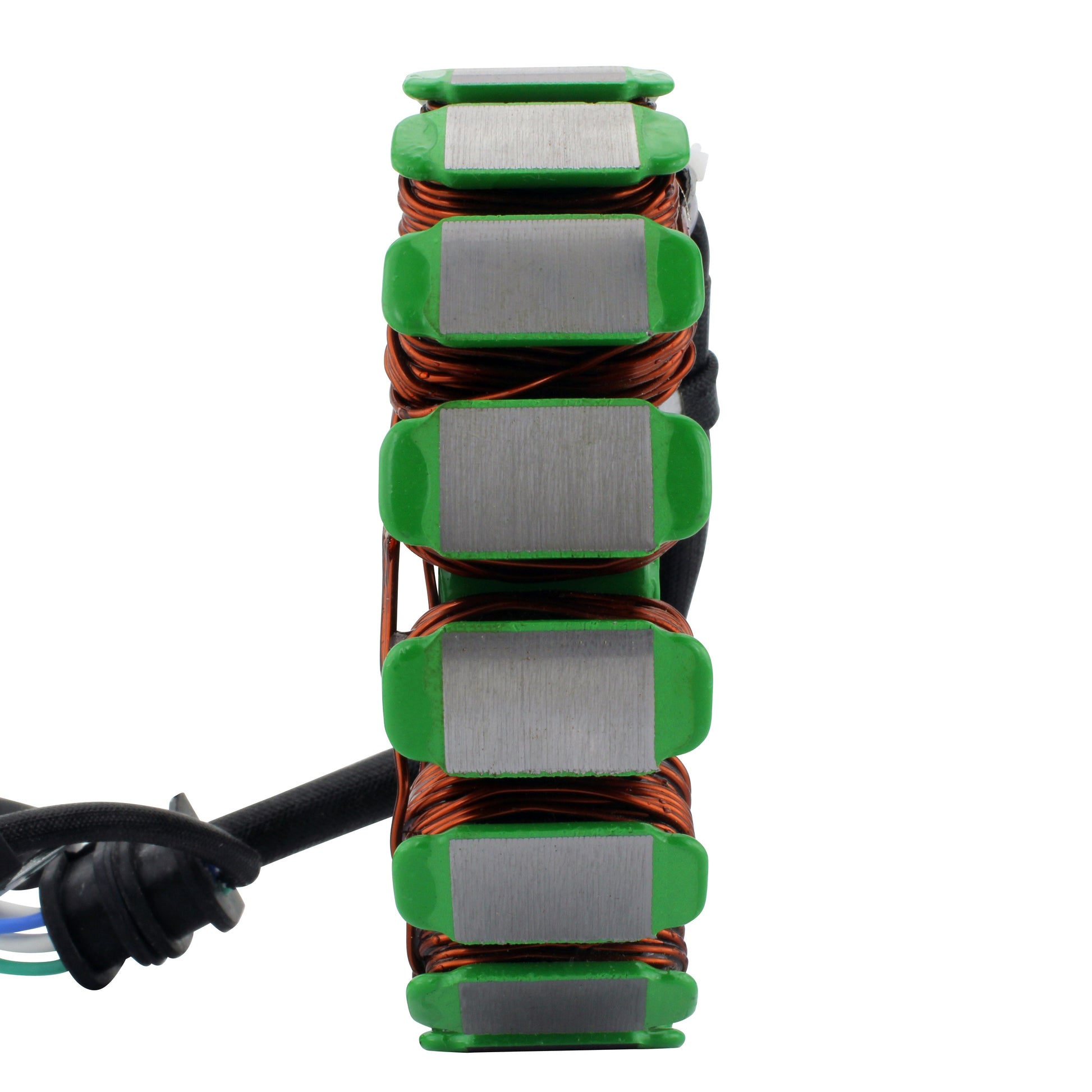

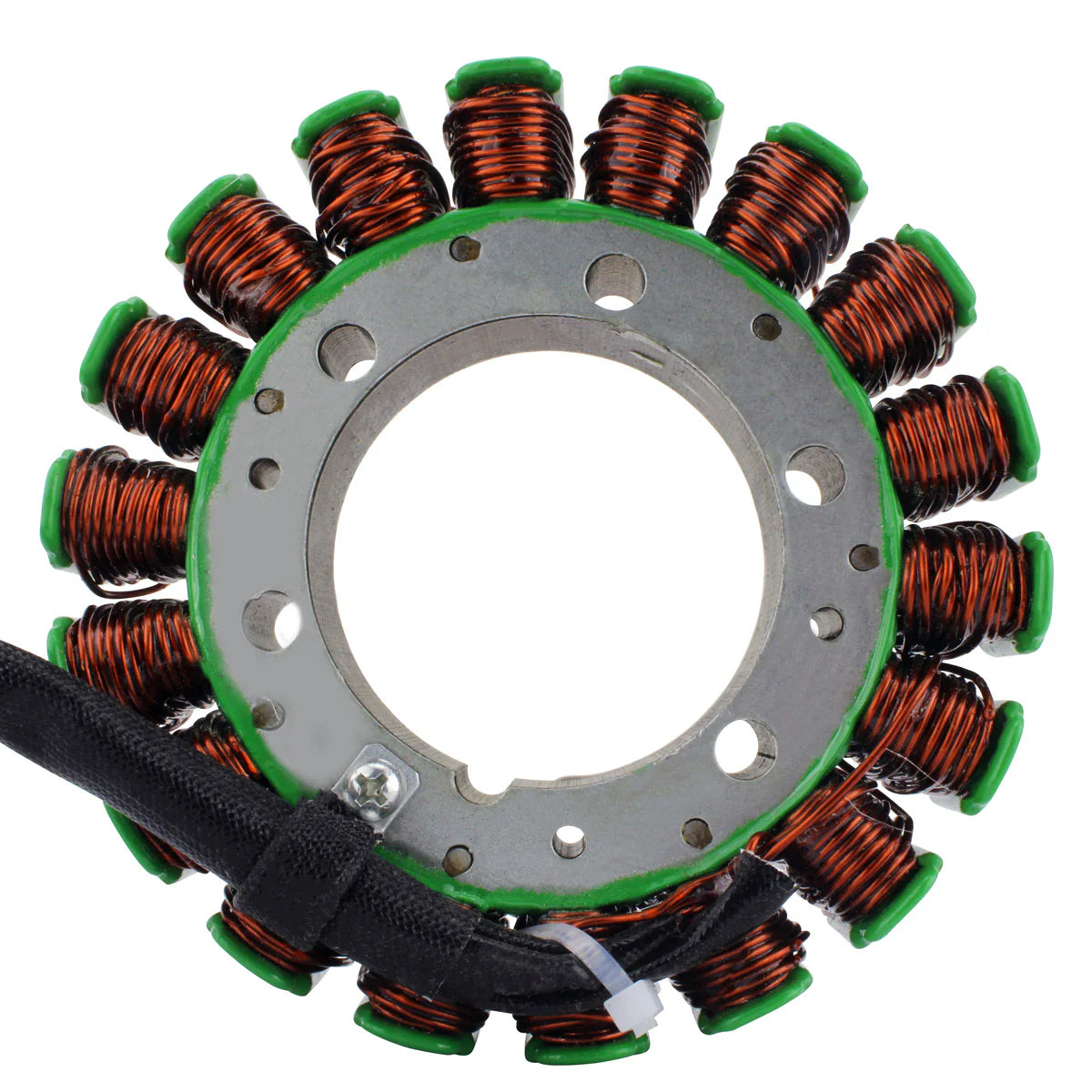

The winding is copper rated to 200 degrees C and it is laid over highest-grade lamination material, so the assembly stands up to the heat and vibration that eventually finishes a tired original unit. Every stator is tested before it leaves the factory. A weak or shorted stator is the usual reason a Kodiak will not hold a charge, so replacing it restores the full output the charging system was designed around.
Key Features

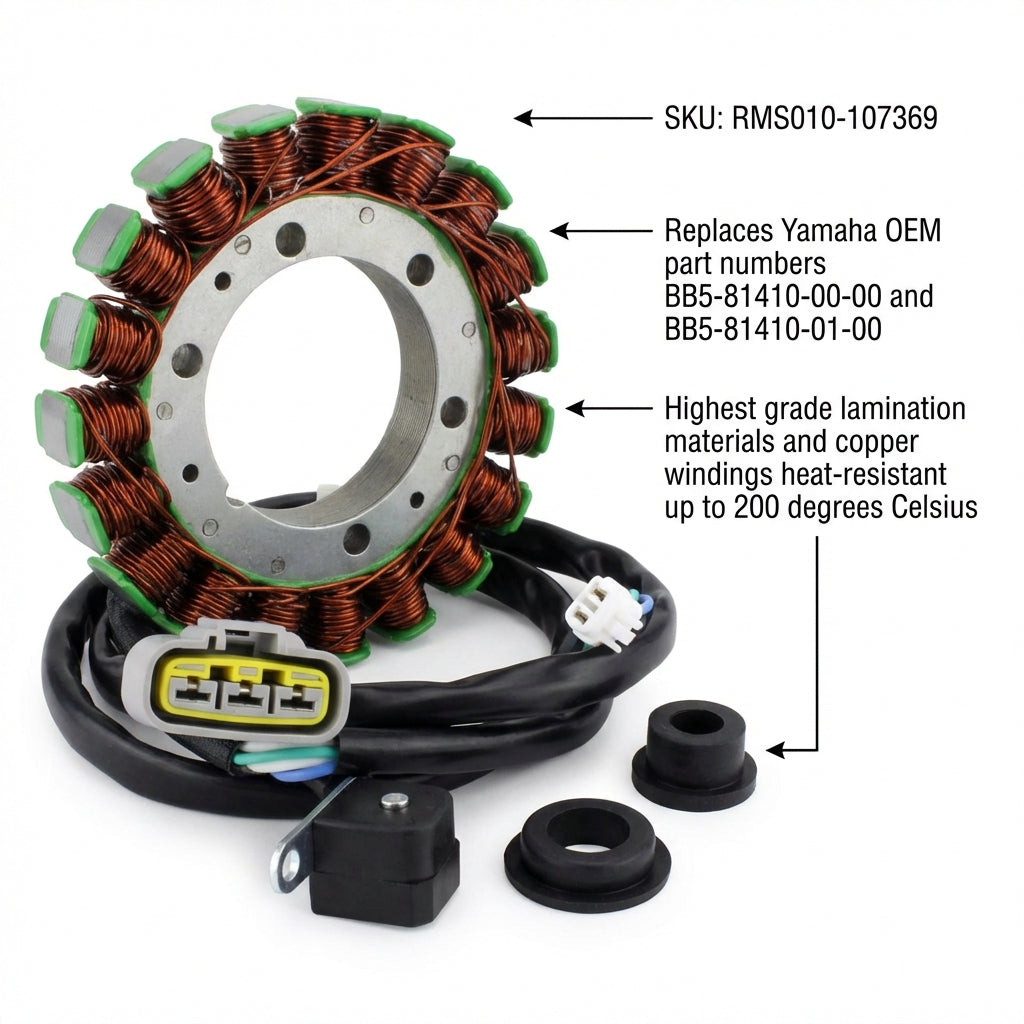

- Direct replacement for the original stator

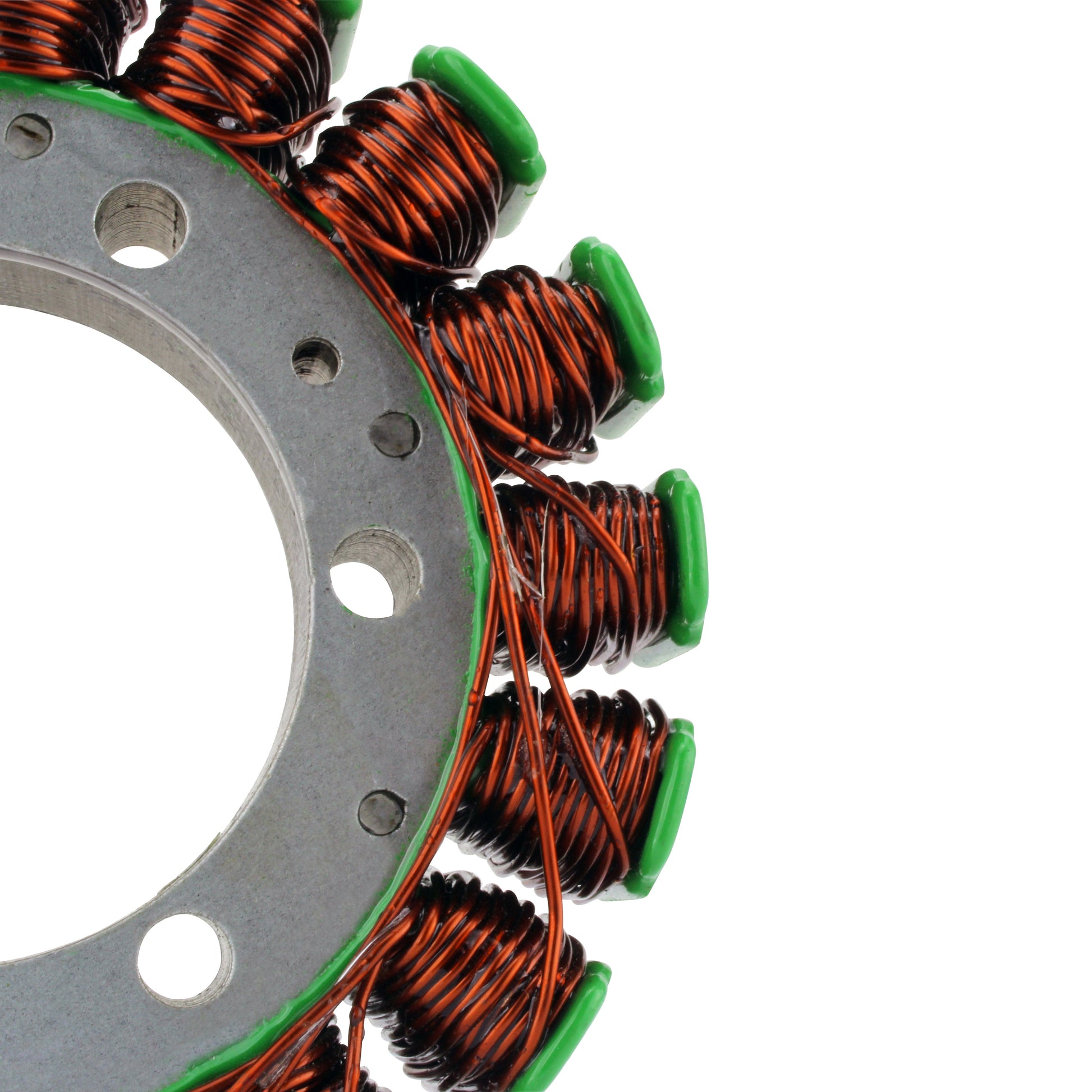

- Copper winding resistant to 200 degrees C
- Highest-grade lamination materials

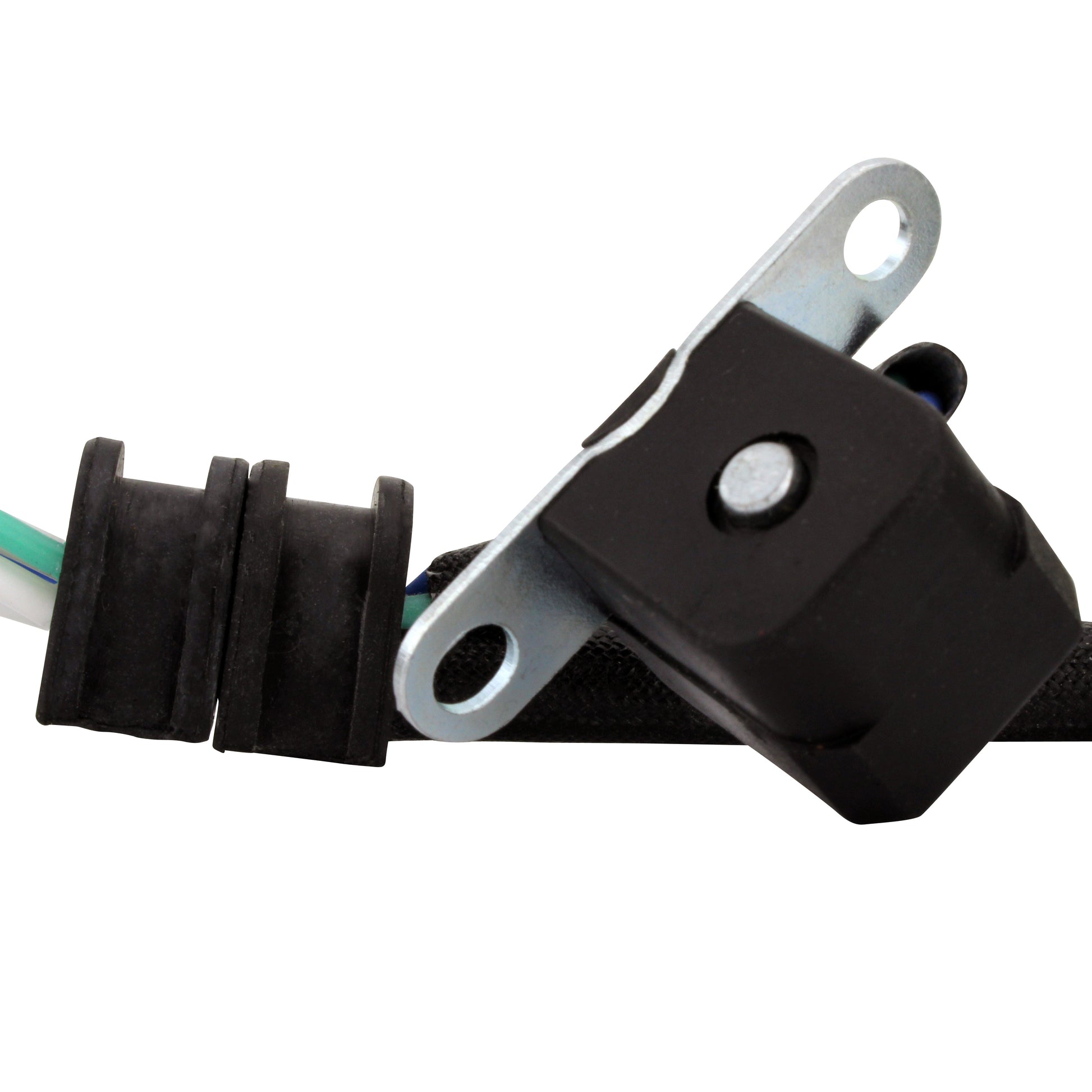

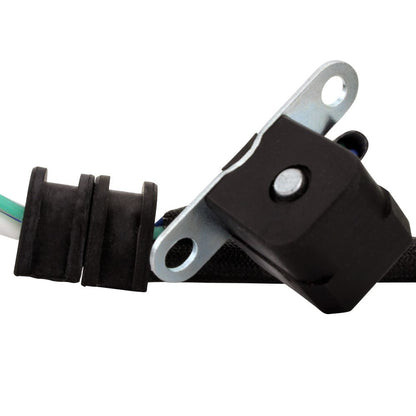

- Pickup pulsar coil included

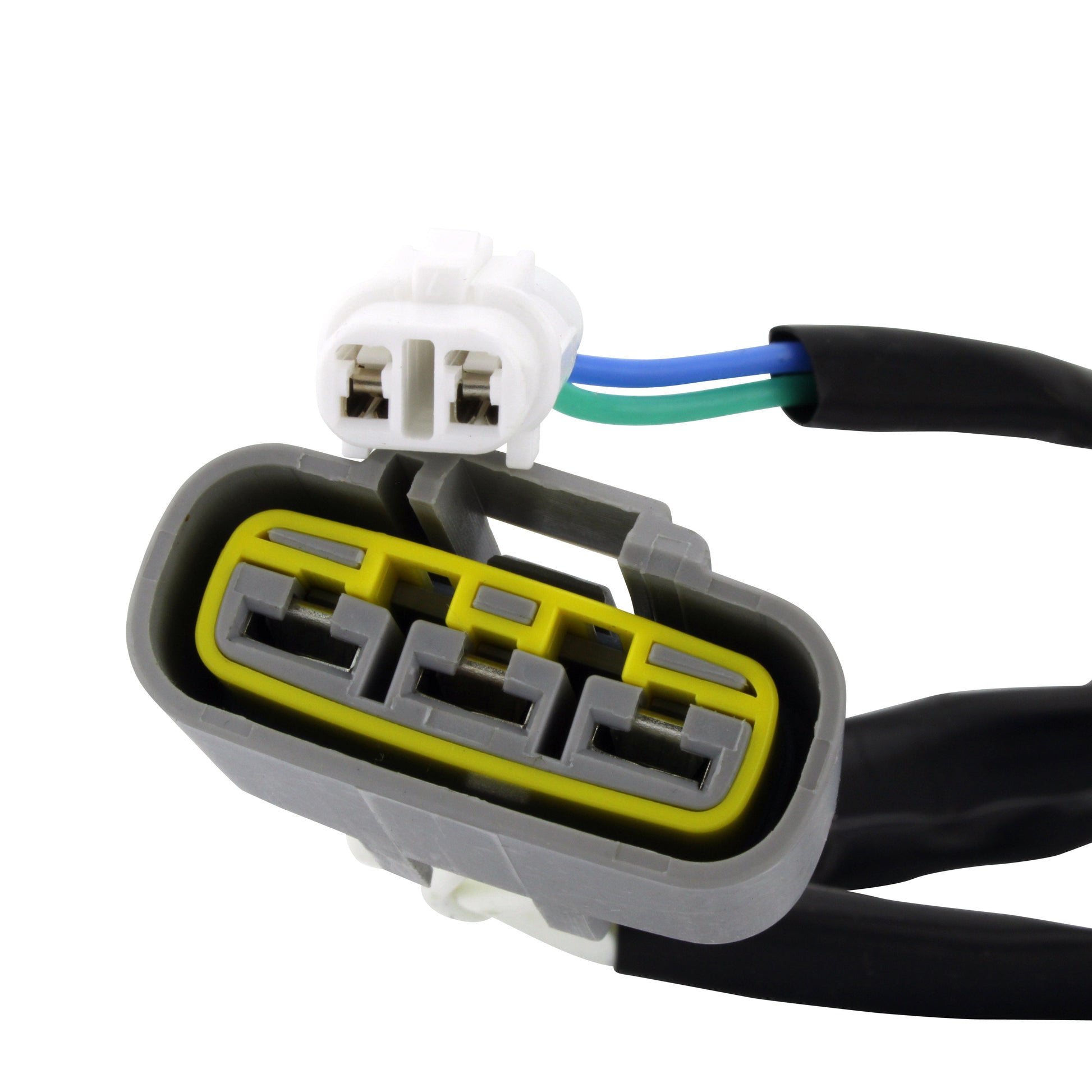

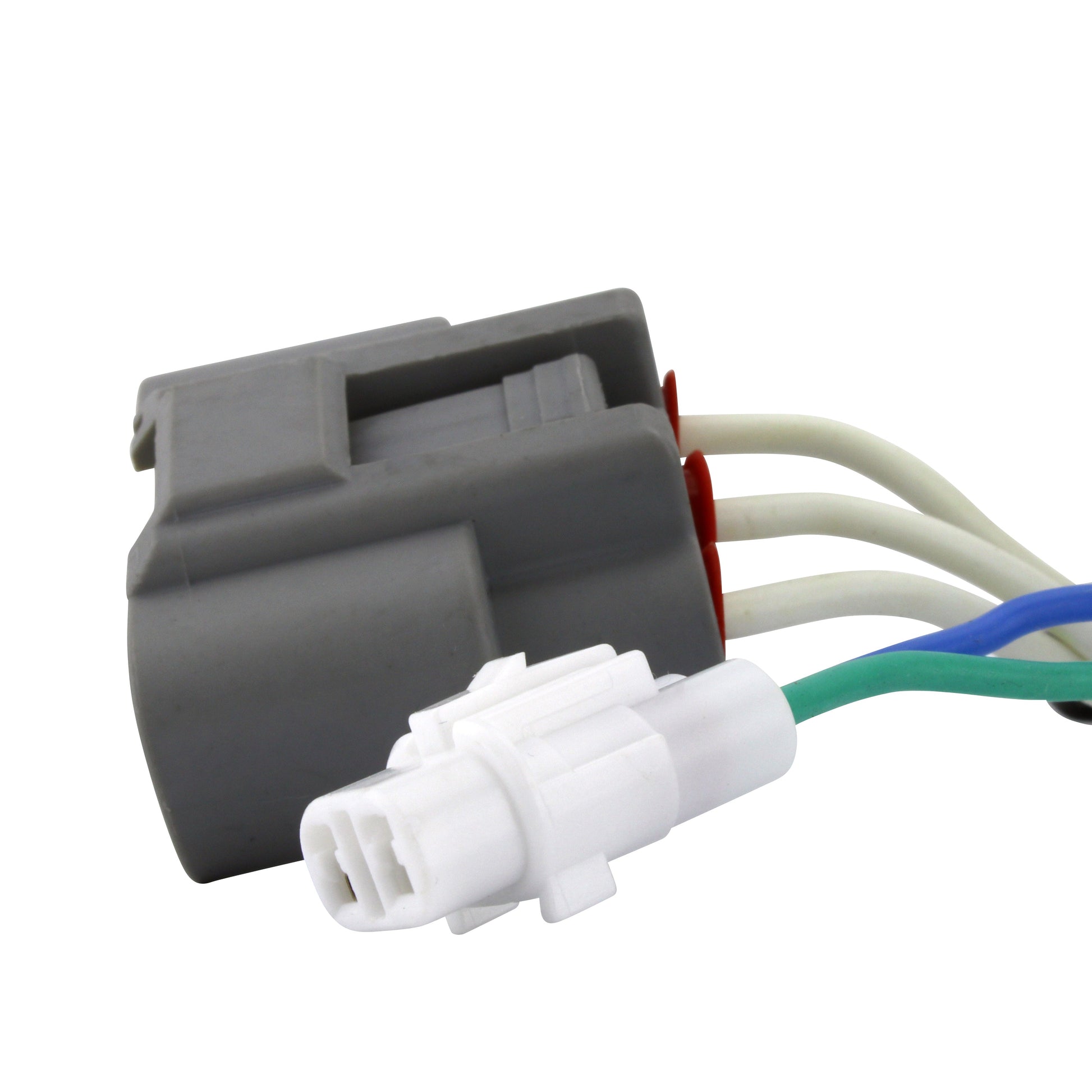

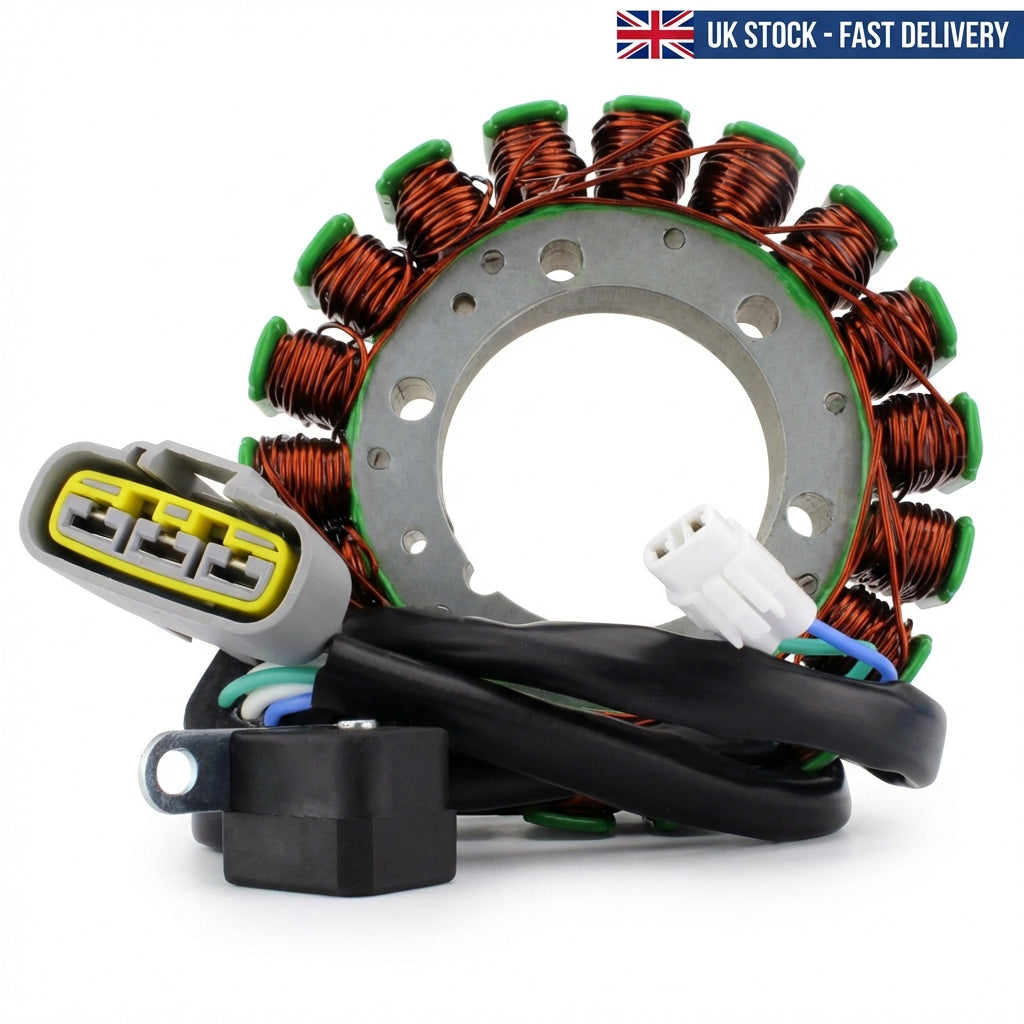

- Connectors and rubber grommet supplied
- Plug-and-play once the original grommet is reinstalled
- Every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
19 mm |
| Number of poles |
18 |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, White to White |
0.5 ohms plus or minus 20 percent |
| Pickup resistance, Grey to Black |
507 ohms plus or minus 20 percent |
| Wire length, stator to grommet |
125 mm |
| Wire length, grommet to plug 1 |
395 mm |
| Wire length, grommet to plug 2 |
560 mm |
| Pickup coil wire to grommet |
55 mm |
| Winding temperature rating |
200 degrees C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha YFM 450 Kodiak |
2018-2024 |

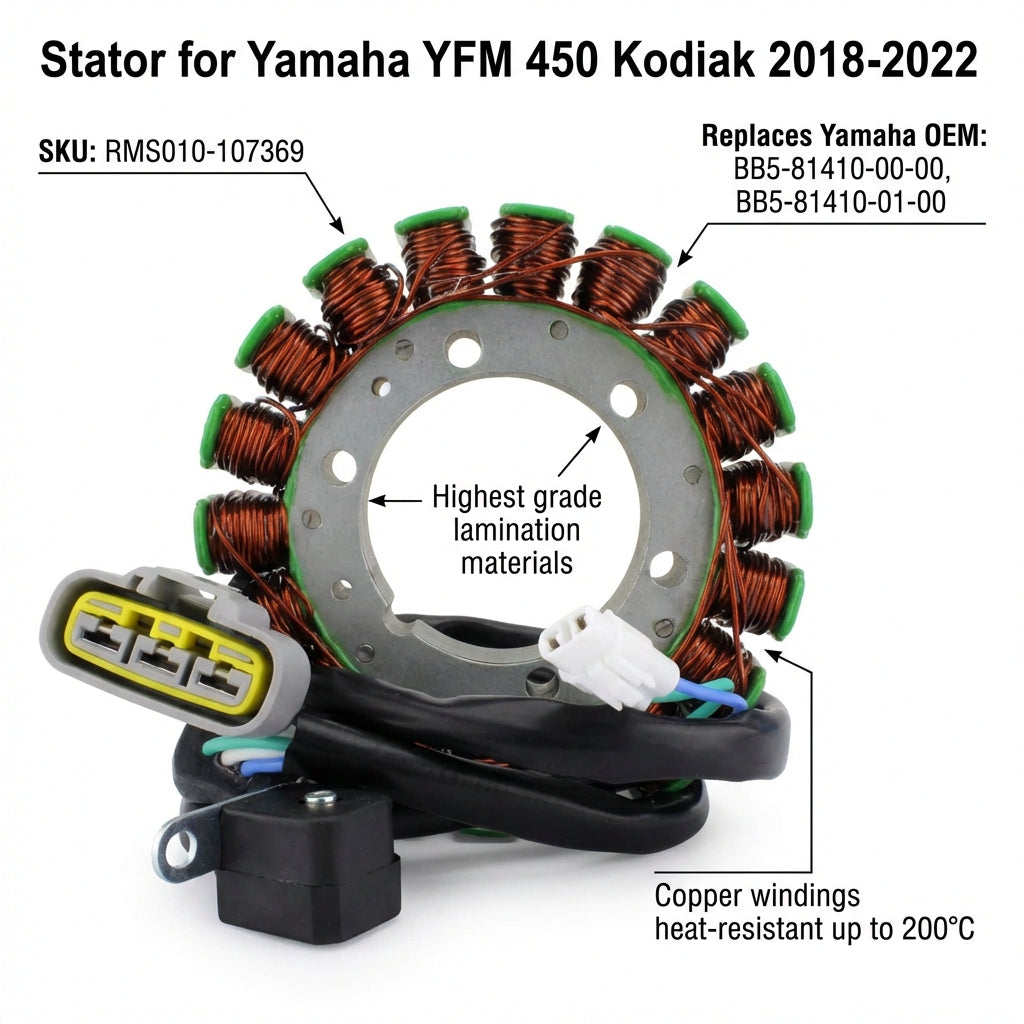

OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| BB5-81410-00-00 |
Yamaha |
| BB5-81410-01-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement that uses the original mounting points and the original wiring. The only step to carry out is transferring the rubber grommet from your old stator onto the new one, after which the unit is plug-and-play.
What is included in the box?
The stator unit, the pickup pulsar coil, the connectors and a rubber grommet.
How can I tell whether my old stator has failed?
Measure with a multimeter. The alternator windings should read about 0.5 ohms White to White and the pickup should read about 507 ohms Grey to Black, both within 20 percent. A reading far outside those figures, or any continuity between a winding and the stator body, points to a failed unit. A battery that will not stay charged and headlights that dim at idle are the usual symptoms.
Do I need to buy the pickup pulsar coil separately?
No. The pickup pulsar coil is part of this assembly and is supplied with the stator, so the ignition trigger and the charging winding are replaced together.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
