Stator - Yamaha YFM 600 Grizzly
Yamaha YFM 600 Grizzly 1998 - OEM 4WV-85510-00-00 - Part number RM01028

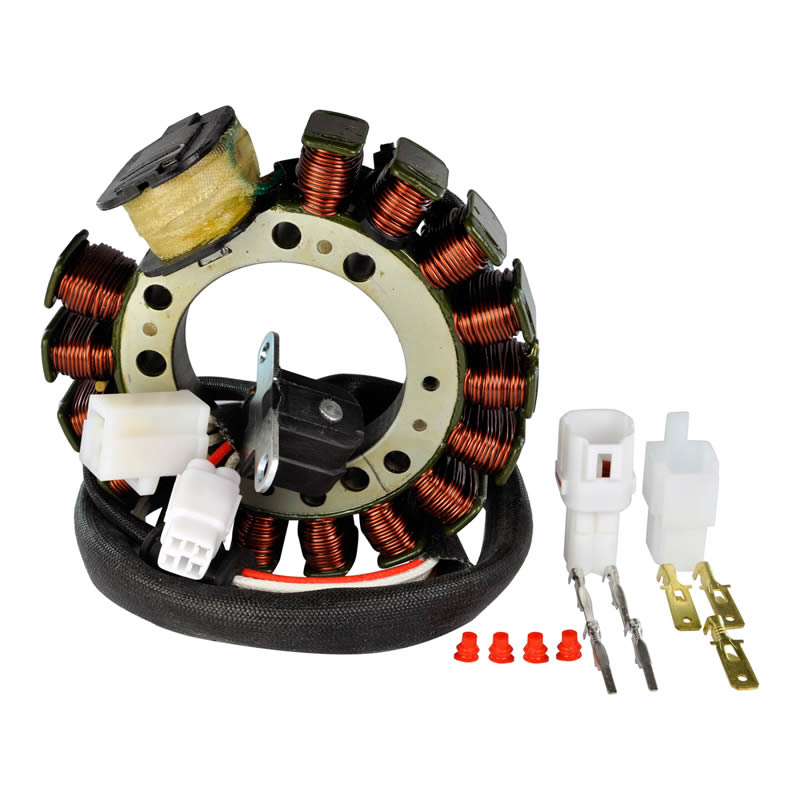

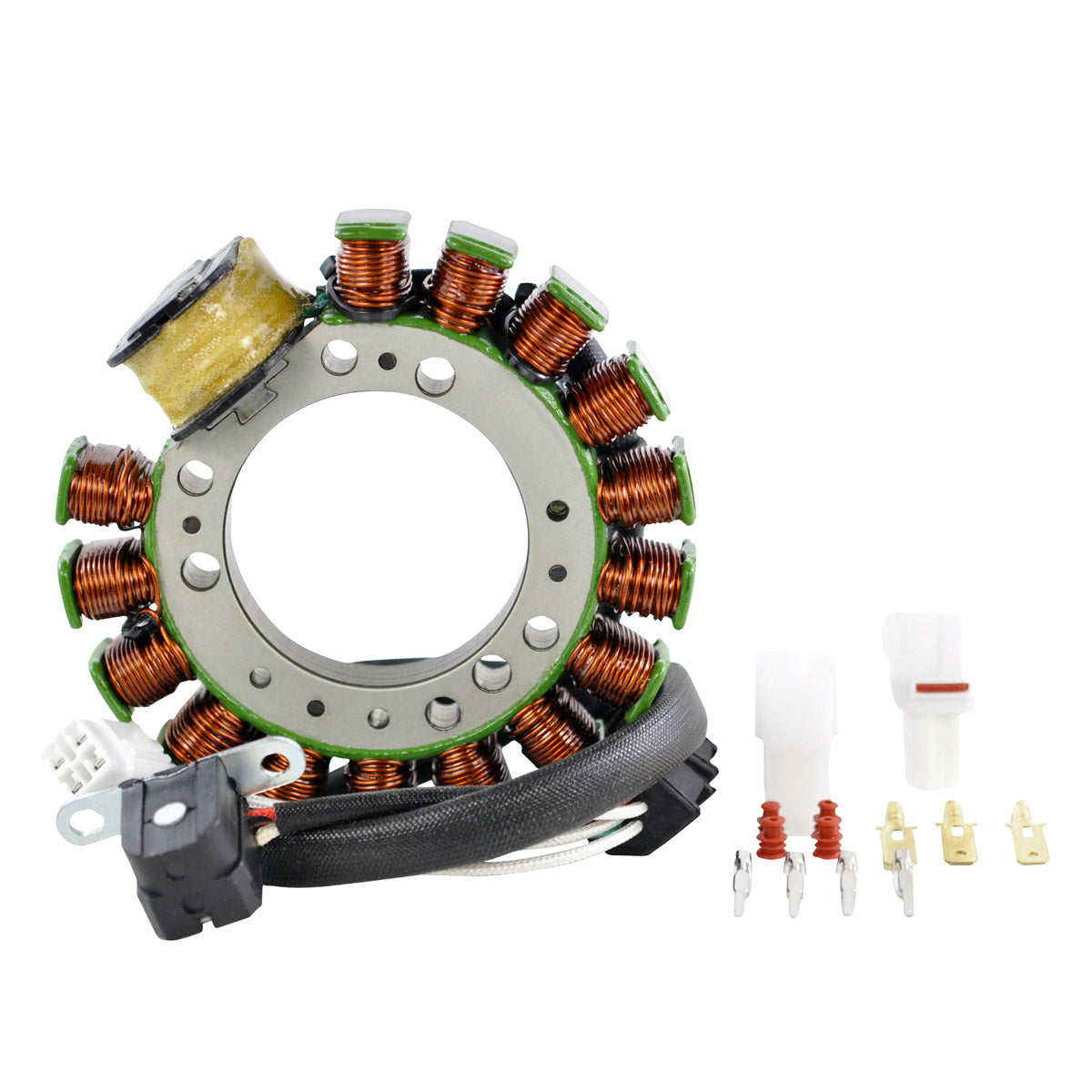

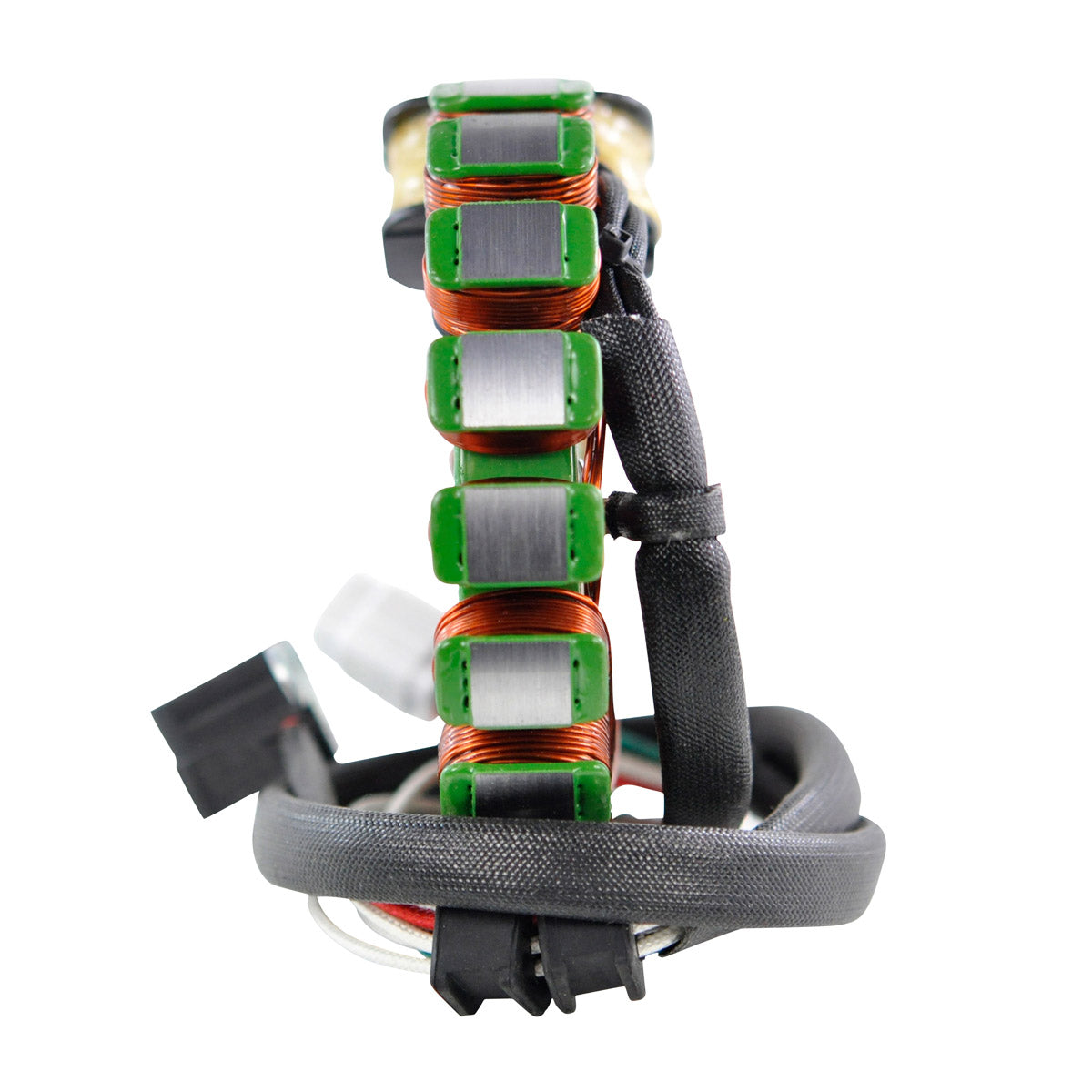

This is a brand new stator for the Yamaha YFM 600 Grizzly, a direct replacement for the original unit and cross referenced to Yamaha OEM part number 4WV-85510-00-00. Installation is plug and play and direct fit, using the original 113 mm outer diameter, 53 mm inner diameter and 19 mm thickness, and the same 14 pole, 7 wire, 7 pin layout as the factory part. On a working utility quad the stator has to keep up with the ignition, the lights and the battery at once, so when the windings break down you see a battery that will not hold charge, dim lights, and eventually a machine that will not start.
It is built from the highest grade lamination materials and wound with the highest grade copper, resistant to 200 degrees Celsius. It is supplied with the pickup pulsar coil, connector and rubber grommet fitted, and we have also included the opposite connector for the main harness side, because these are often melted or corroded and are a major cause of repetitive electrical issues. Every unit is tested before it is shipped.
Key Features
- Brand new stator, a direct replacement to your original unit
- Plug and play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius

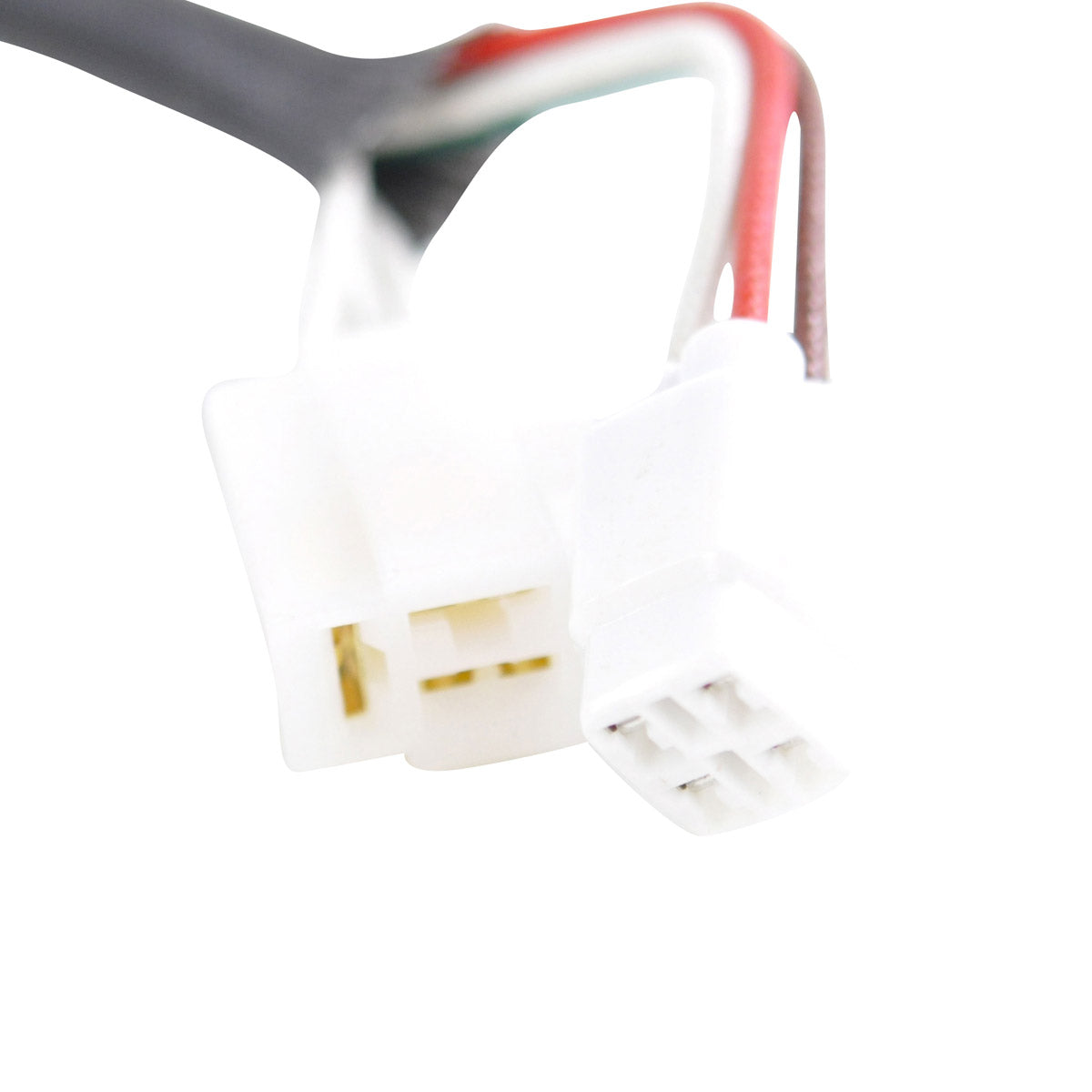

- 14 pole, 7 wire, 7 pin design matching the factory layout
- Pickup pulsar coil, connector and rubber grommet included

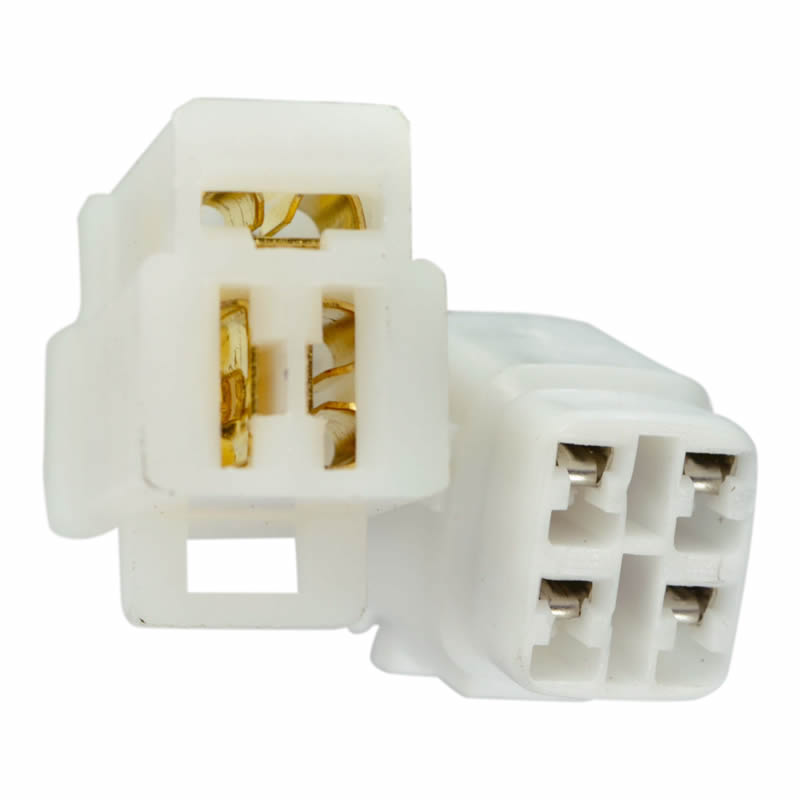

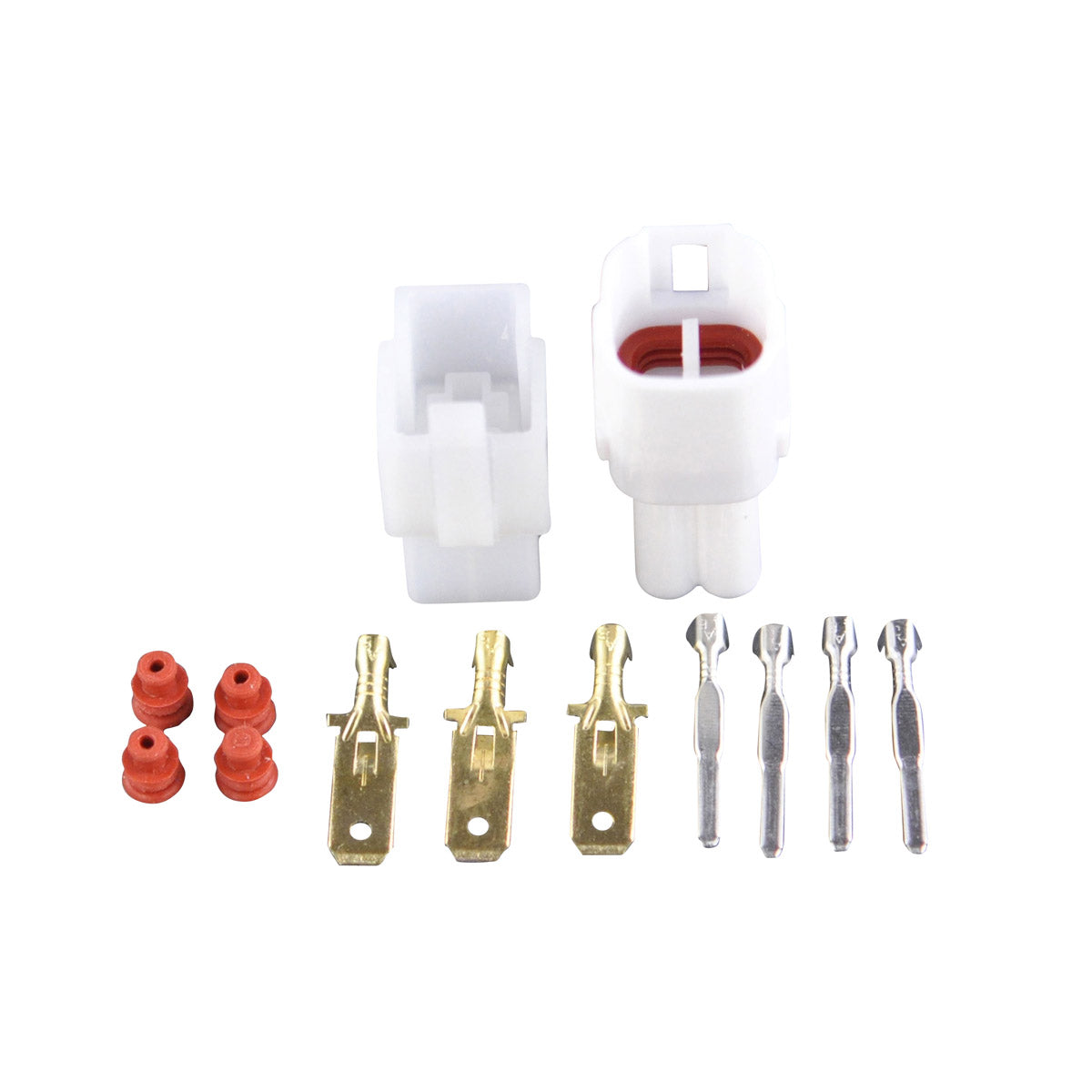

- Opposite connector for the main harness side also included
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01028 |
| Interior diameter | 53 mm |
| Exterior diameter | 113 mm |
| Thickness | 19 mm |
| Wire length, stator to grommet | 180 mm |
| Wire length, grommet to plug | 390 mm |
| Pickup coil wire length to grommet | 59 mm |
| Number of wires | 7 |
| Number of plugs | 2 |
| Number of pins | 7 |
| Number of poles | 14 |
| Source 1, green to black | 300 ohms +/-20% |
| Pickup 1, red to white | 500 ohms +/-20% |
| Alternator, white between each | 0.9 ohms +/-20% |
| Alternator, white to ground | O.L. on display |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 600 Grizzly | 1998 |
Confirm the application against Yamaha OEM part number 4WV-85510-00-00 and the dimensions above.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4WV-85510-00-00 | Yamaha |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is designed as a direct plug-in replacement, so no cutting, drilling or rewiring is needed. Our stator may use a different wire colour code from your original, but all wires are installed in the correct order, so please do not change the wiring configuration.
What is included in the box?
The stator assembly with pickup pulsar coil, connector and rubber grommet fitted, plus the opposite connector for the main harness side - included on purpose, as that plug is often melted or corroded and causes repetitive electrical issues if left in place.
How do I know my old stator has failed?
Check the AC output, then compare the winding resistances with the table above: 300 ohms plus or minus 20 per cent source 1 green to black, 500 ohms plus or minus 20 per cent pickup 1 red to white, and 0.9 ohms plus or minus 20 per cent between each white alternator wire. From any white wire to ground a healthy stator shows O.L. on the display - continuity there means a winding has shorted to the core.
What else should I check while fitting it?
Replace any burned or corroded connectors on the stator and regulator rectifier, repair melted wiring, and use high temperature dielectric grease. Set the pickup coil air gap no less than 0.010. Fully charge the battery before testing, as no stator works correctly with a weak one, and disconnect it before servicing.
