Generator Stator for Yamaha YFM 250 Raptor - RM01420
Yamaha YFM 250 Raptor 2008 to 2013 - OEM Repl. 4D3-81410-00-00 / 4D3-81410-02-00

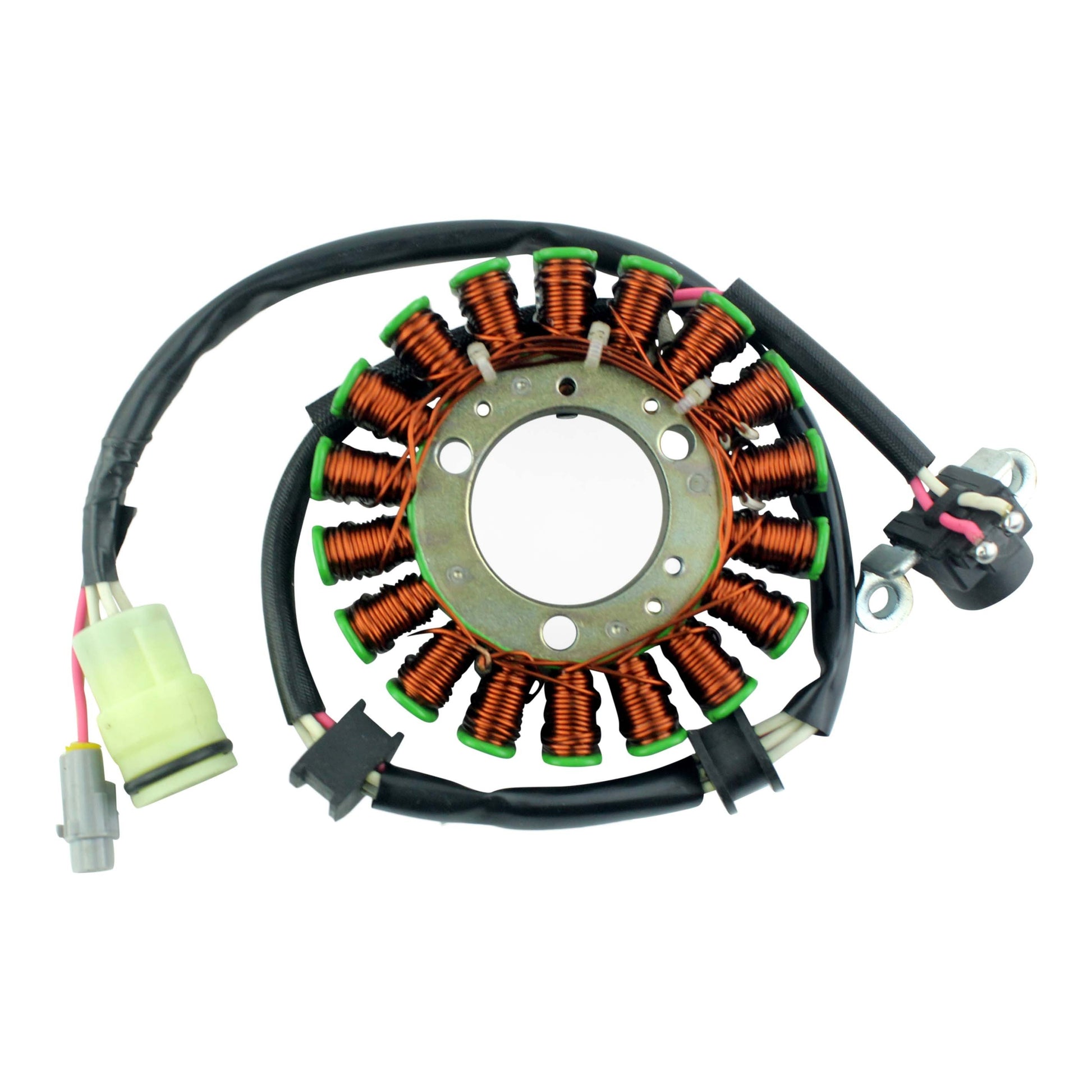

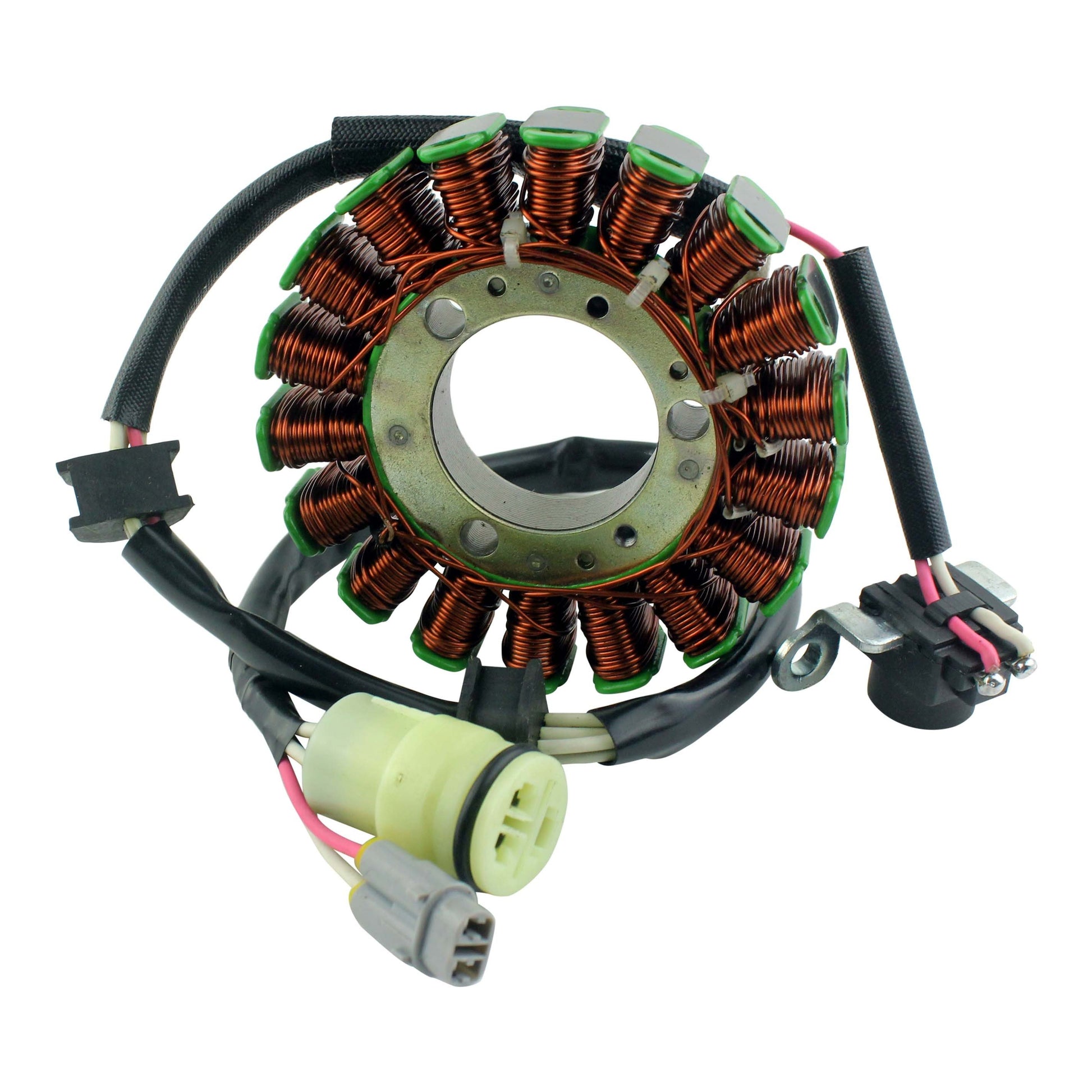

RM01420 is a brand new generator stator supplied as a direct replacement for the original unit fitted to the Yamaha YFM 250 Raptor from 2008 to 2013. It is a plug-and-play, direct-fit assembly that mounts in the standard position behind the flywheel and connects to the machine's existing wiring, so nothing needs to be cut, spliced or rewired to complete the installation.
The pickup pulsar coil is supplied as part of the assembly on a generous 185 mm lead, so the ignition trigger is renewed alongside the charging windings instead of being carried over from a part of unknown age. On a 250 Raptor the two failures look much alike from the saddle - a flat battery, dim lights, hard starting or an intermittent misfire - so replacing both at once saves stripping the engine cover twice. Construction uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius, and the connector and rubber grommet are both included.
Key Features
- Brand new generator stator, direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Pickup pulsar coil included

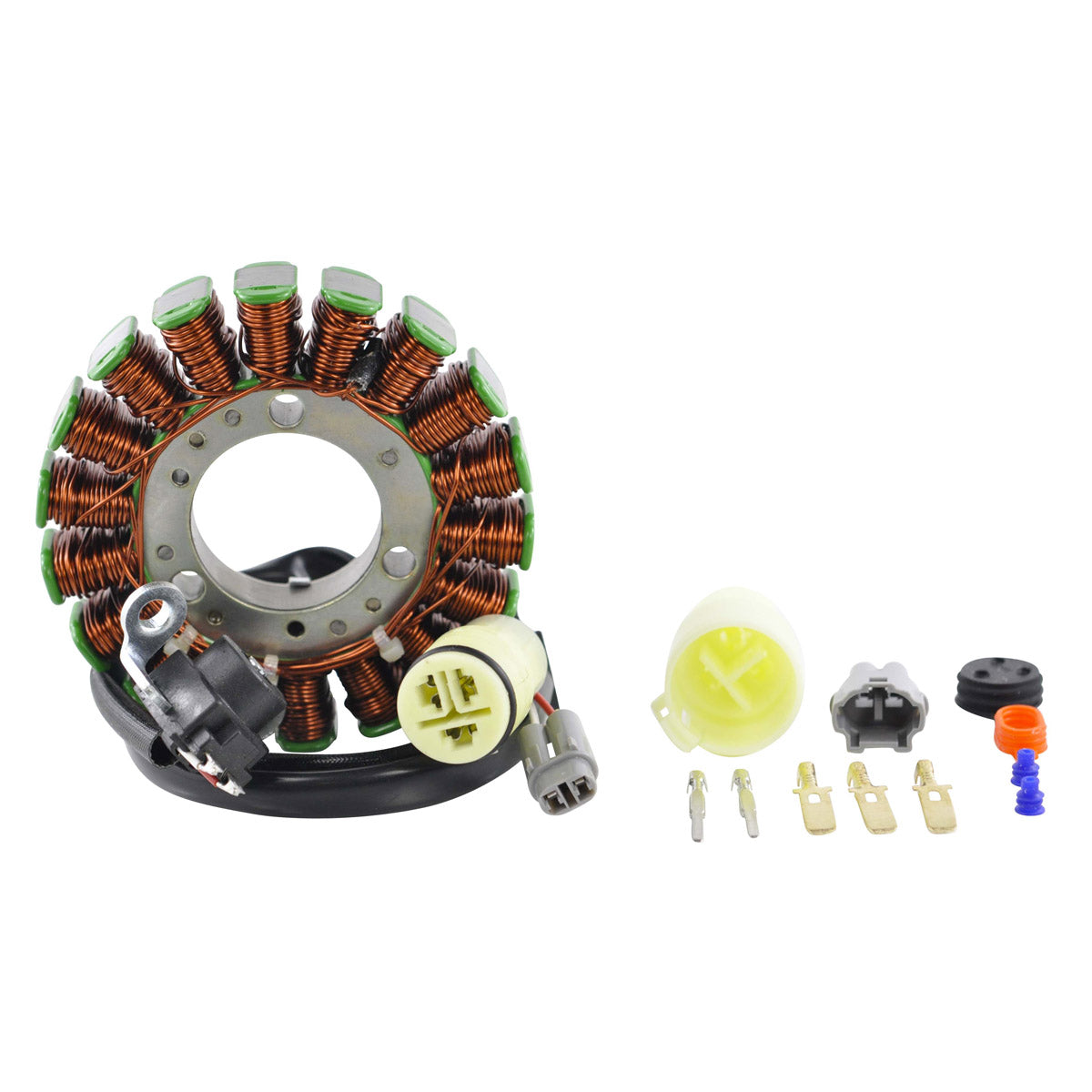

- Connector included

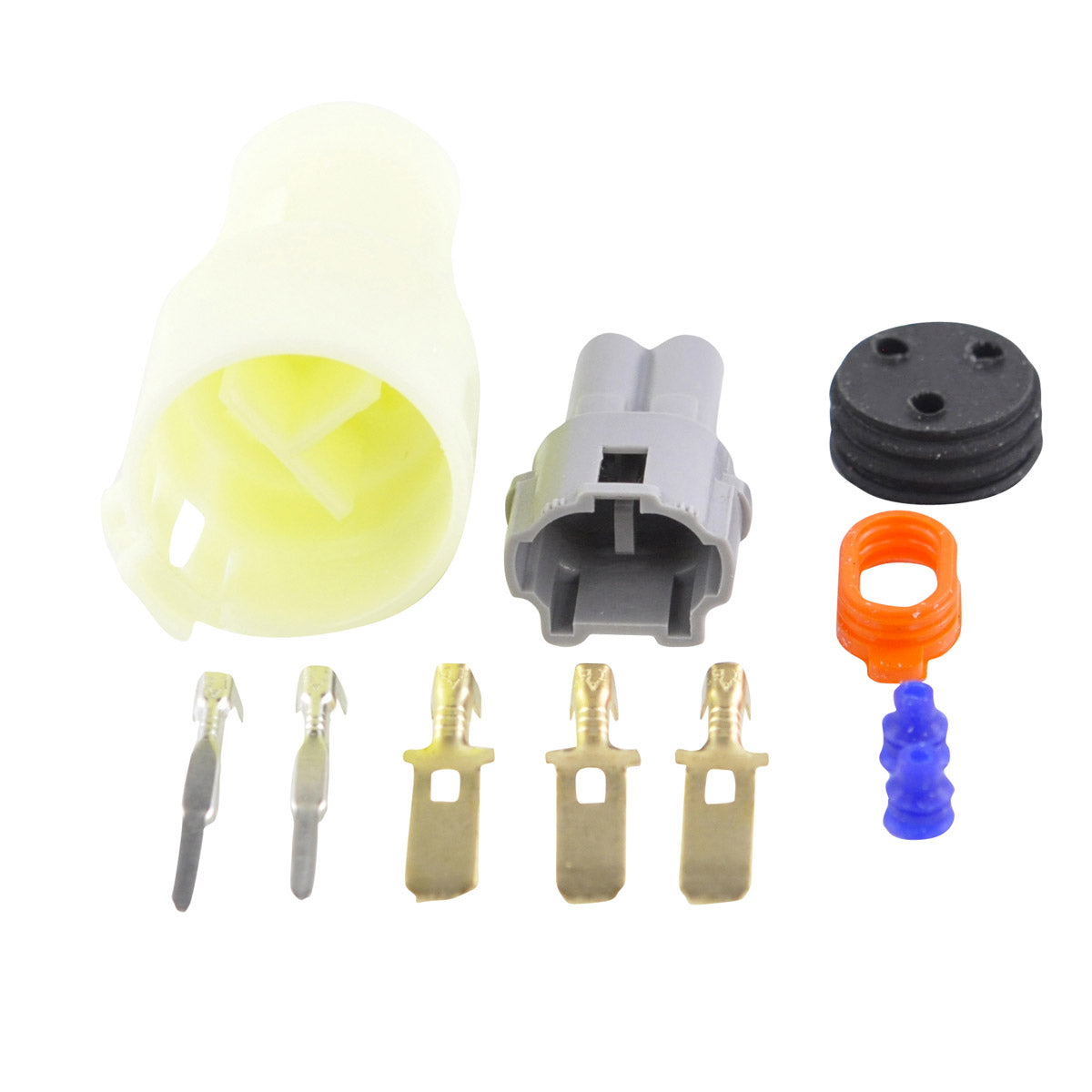

- Rubber grommet included

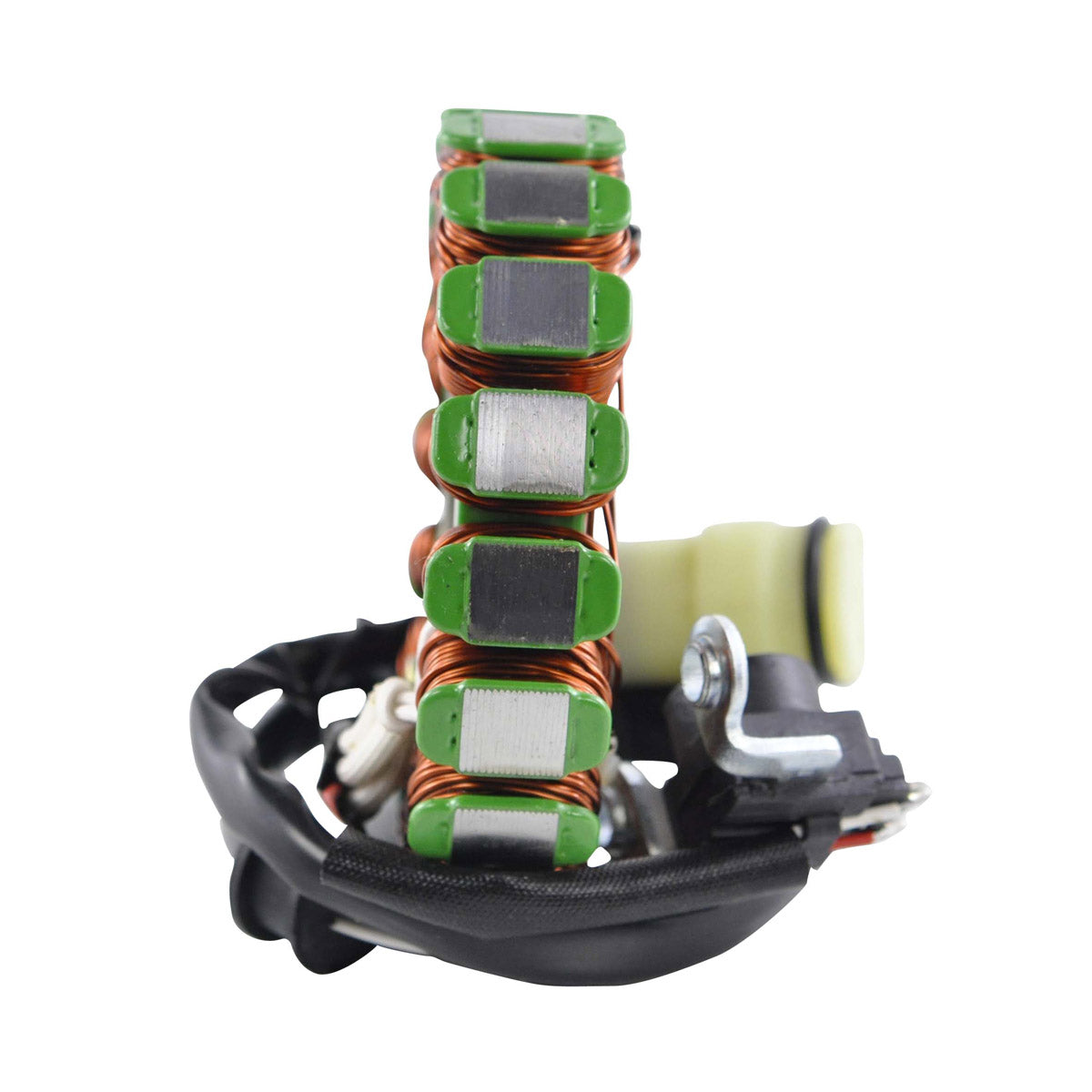

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Five wires across two plugs, as original
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 37 mm |
| Exterior diameter | 93 mm |
| Thickness | 13 mm |
| Wire length, stator to grommet | 85 mm |
| Wire length, grommet to plug | 335 mm and 350 mm |
| Pickup coil wire to grommet | 185 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance (white to white) | 0.4 ohms +/-20% |
| Pickup resistance (white to pink) | 280 ohms +/-20% |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 250 Raptor | 2008 - 2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4D3-81410-00-00 | Yamaha |
| 4D3-81410-02-00 | Yamaha |
| RM01420 | RMSTATOR (this part) |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct-fit replacement for the original unit. It mounts in the standard position and the supplied plugs mate with the machine's existing connectors, so there is no cutting or splicing to do.
What is included in the box?
The stator assembly, the pickup pulsar coil, the connector and the rubber grommet.
How can I tell whether the old stator has failed?
Unplug it and test cold with a multimeter. The alternator should read around 0.4 ohms white to white and the pickup around 280 ohms white to pink, both within 20 per cent. Readings that are open circuit, or that show any winding shorted to the stator core, confirm the unit has failed.
Why are the two plug leads different lengths?

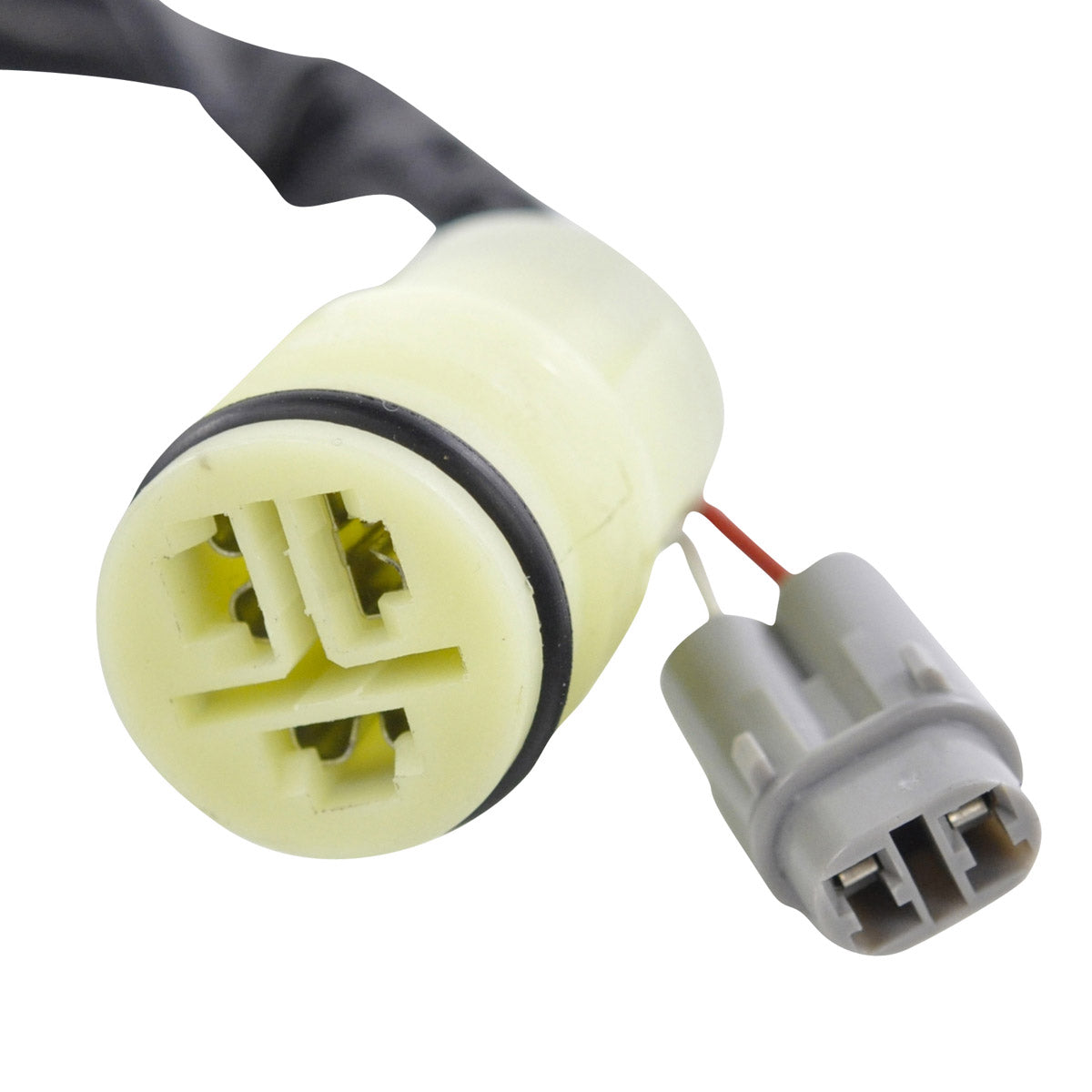

The two harness runs from the grommet measure 335 mm and 350 mm respectively, matching the original routing on the YFM 250 Raptor so each plug reaches its own connector without the loom being pulled tight or left slack against the engine.
