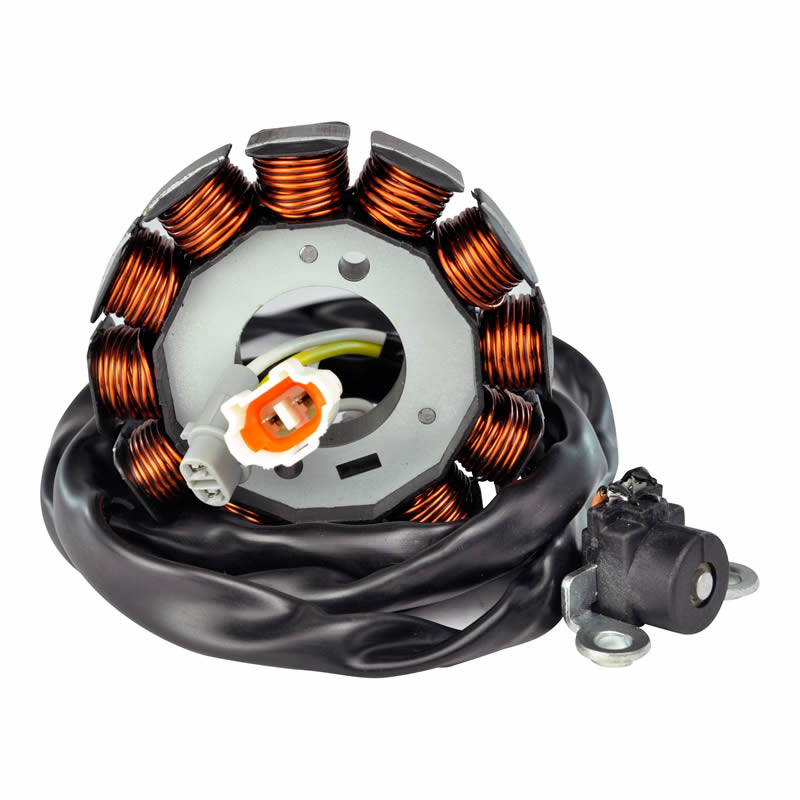

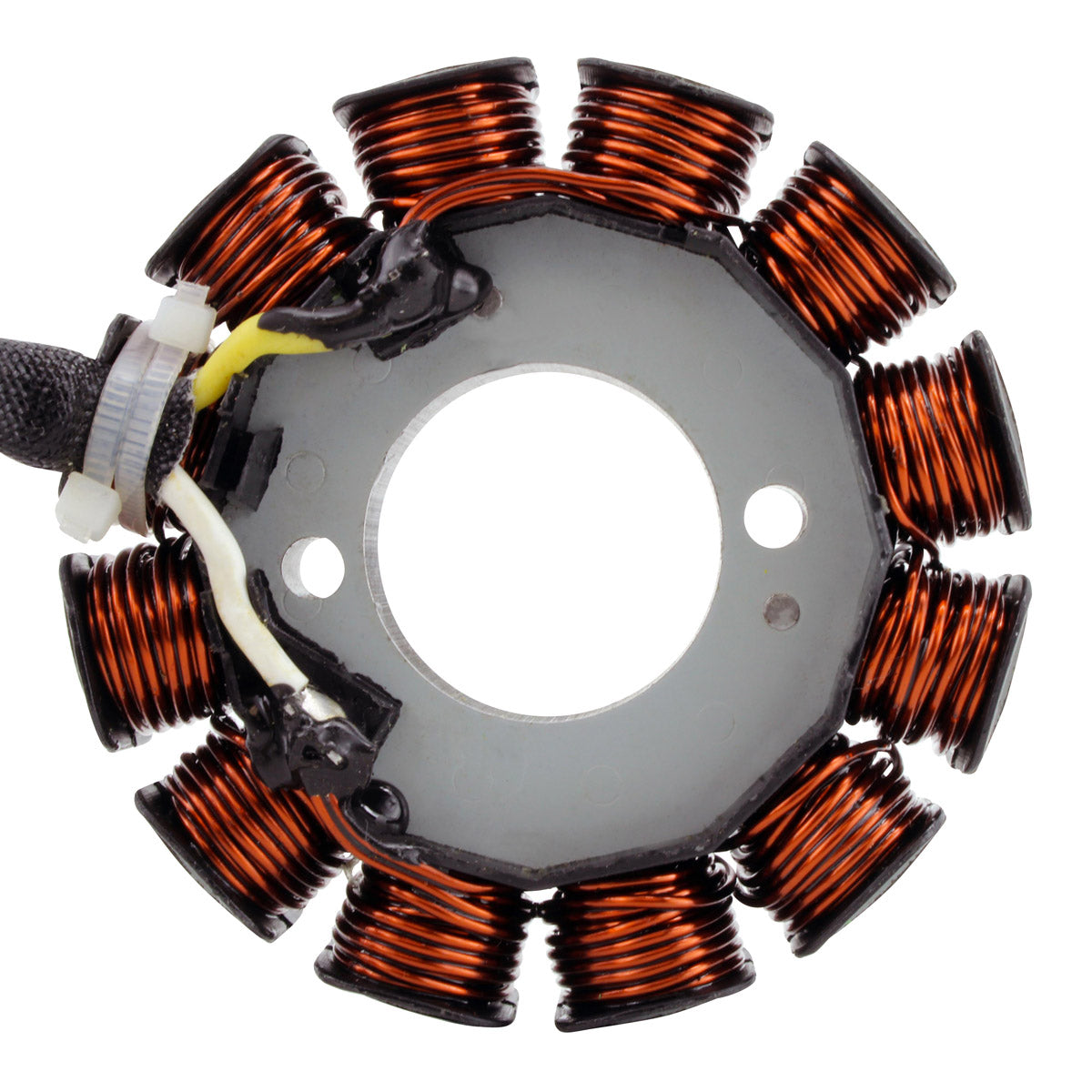

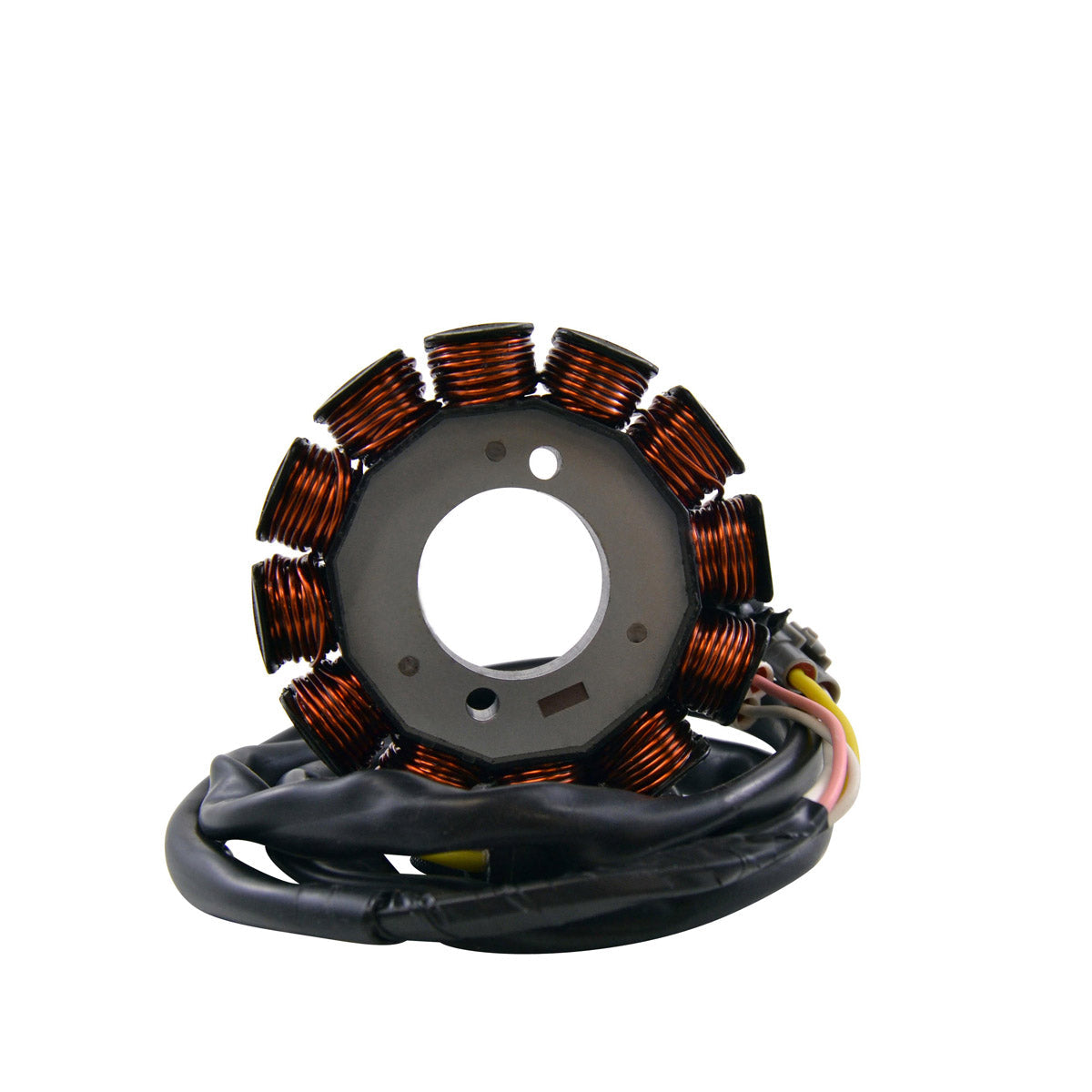

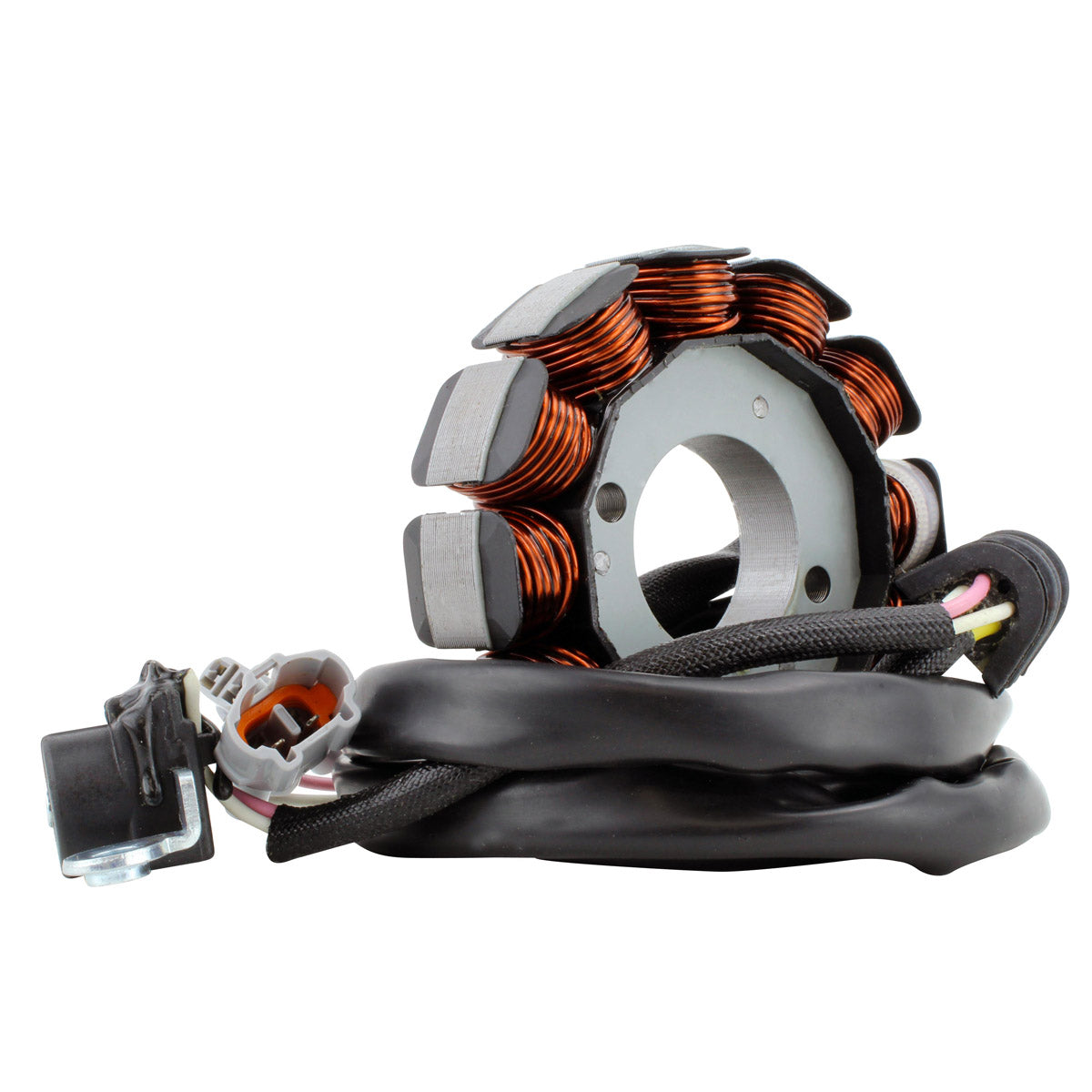

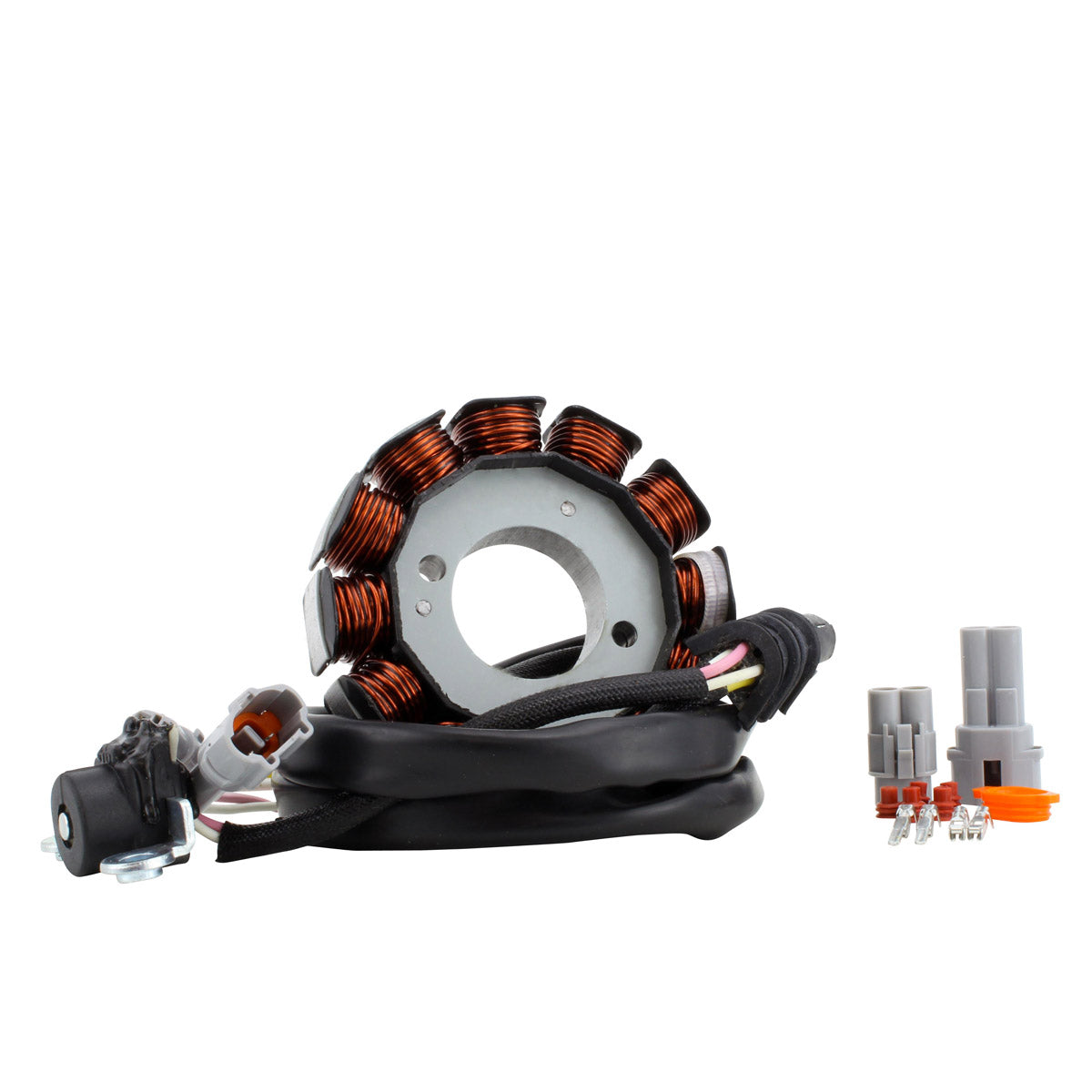

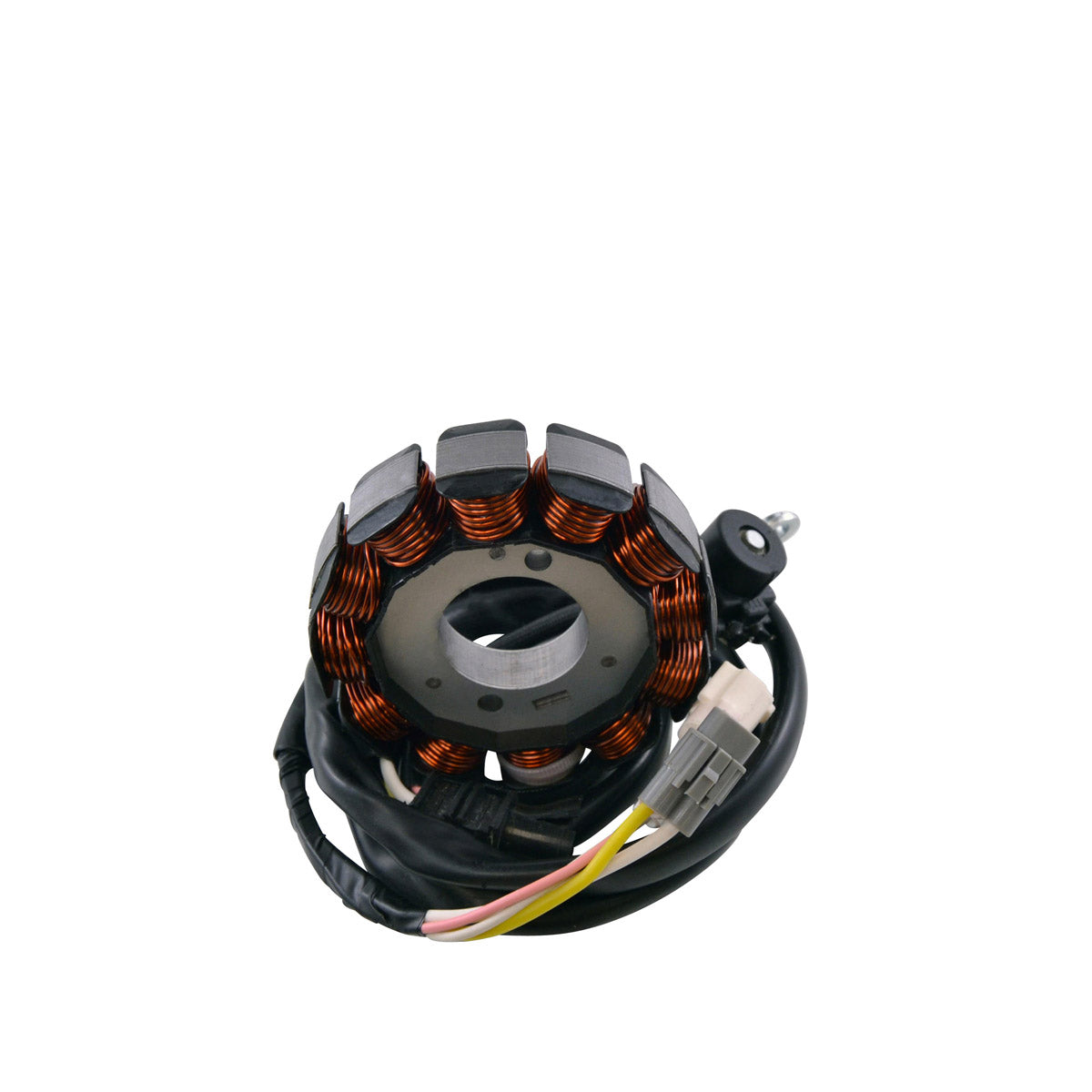

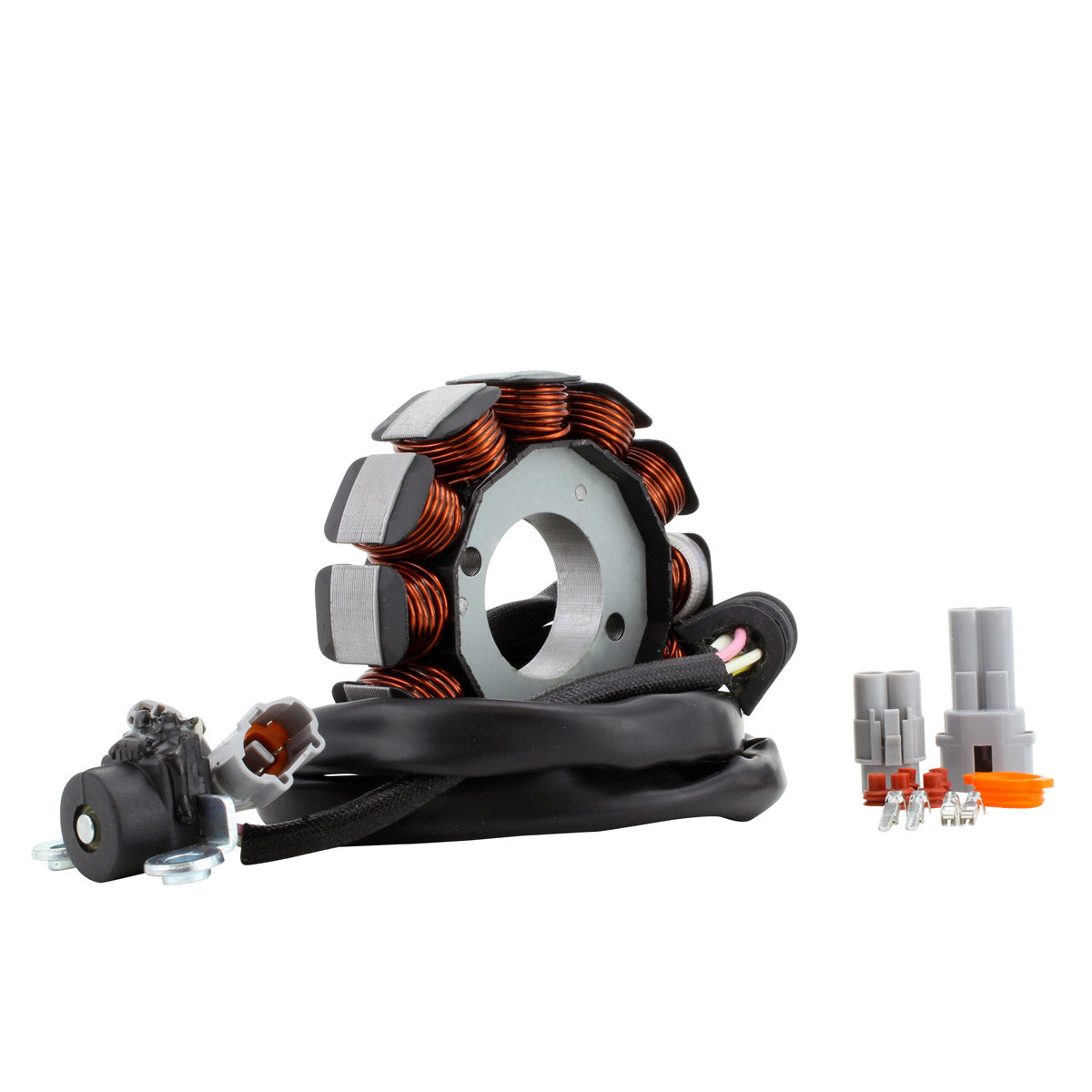

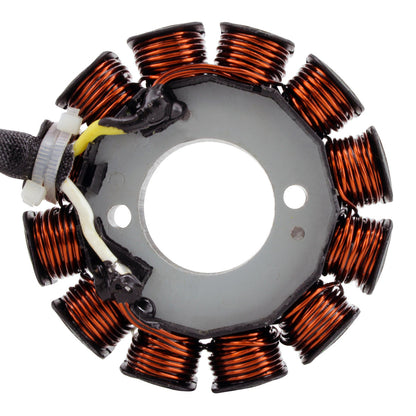

This is a brand new high output stator for the Yamaha YFZ 450 built from 2004 to 2009 and from 2012 to 2013, supplied as RMSTATOR part RM01331. It is a direct replacement for your original unit, so it uses the factory mounting points and the supplied connectors and needs no cutting or splicing.
The high output winding gives more charging capacity than the standard unit, which is what the YFZ 450 needs once lights or other electrical loads are added to a machine whose original charging system leaves very little margin. It is wound with the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius. The pick-up pulsar coil, the connector, the opposite connector and the rubber grommet are all supplied, and every unit is tested before it is shipped.
Key Features
- Brand new high output stator
- Direct replacement for the original unit

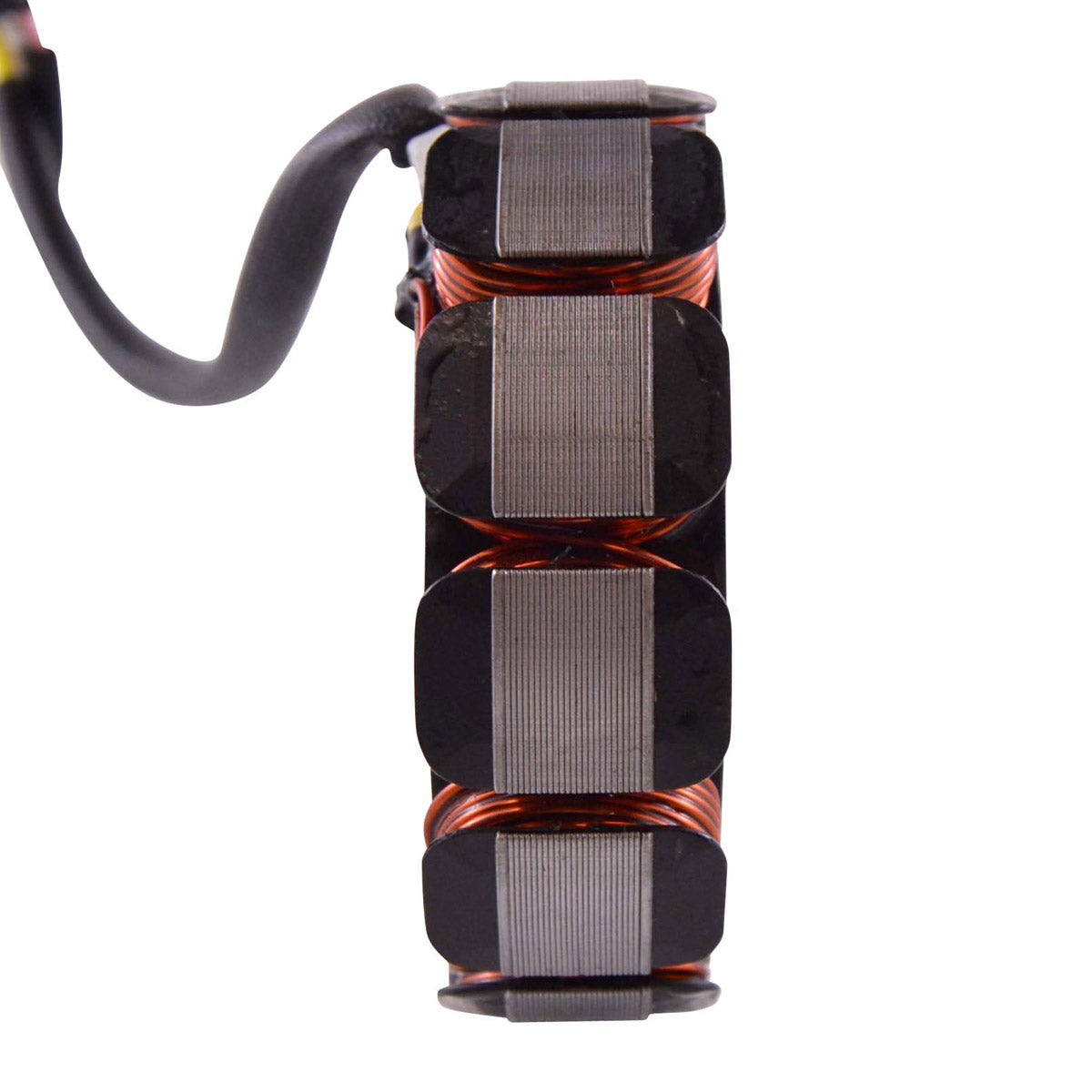

- Highest grade lamination materials

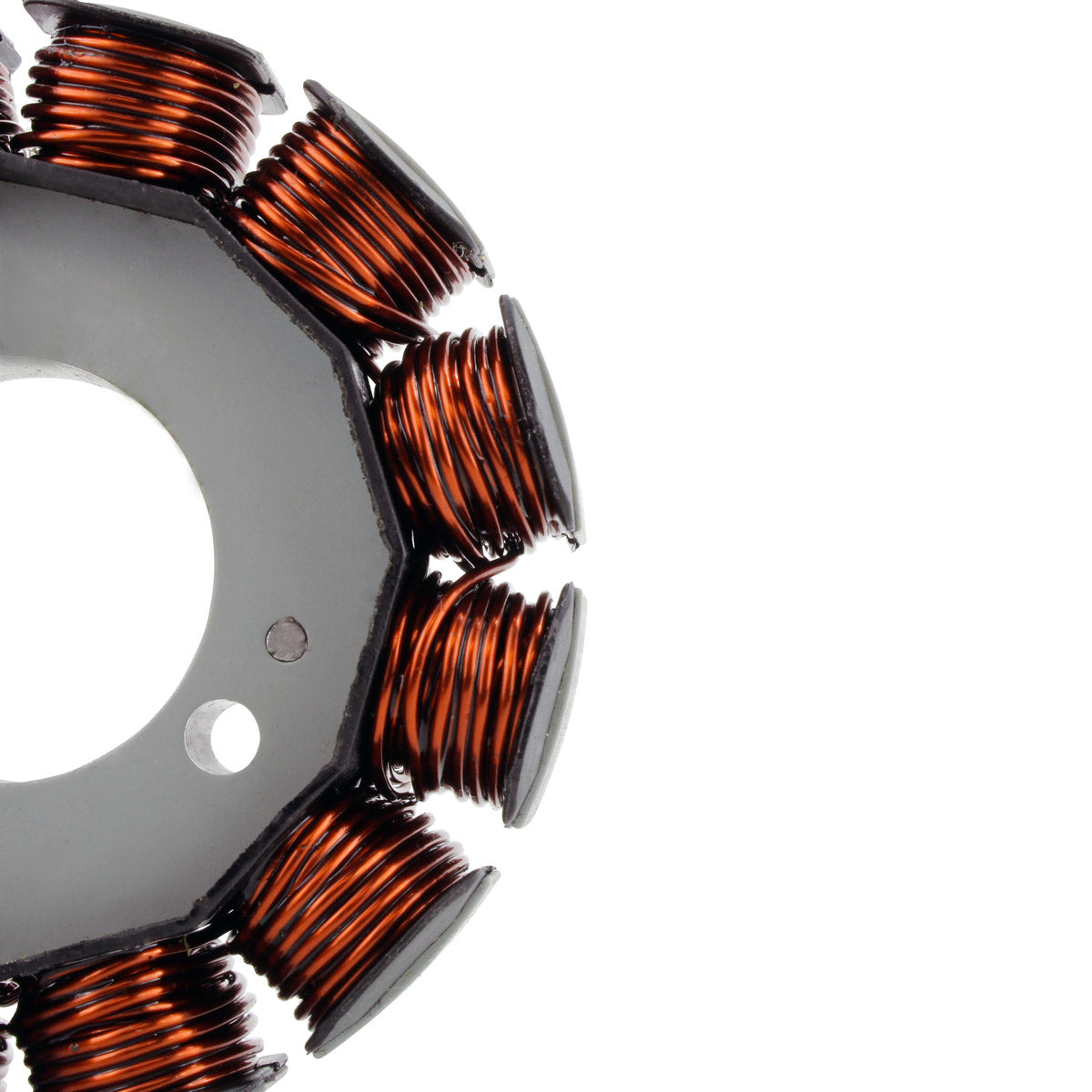

- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included

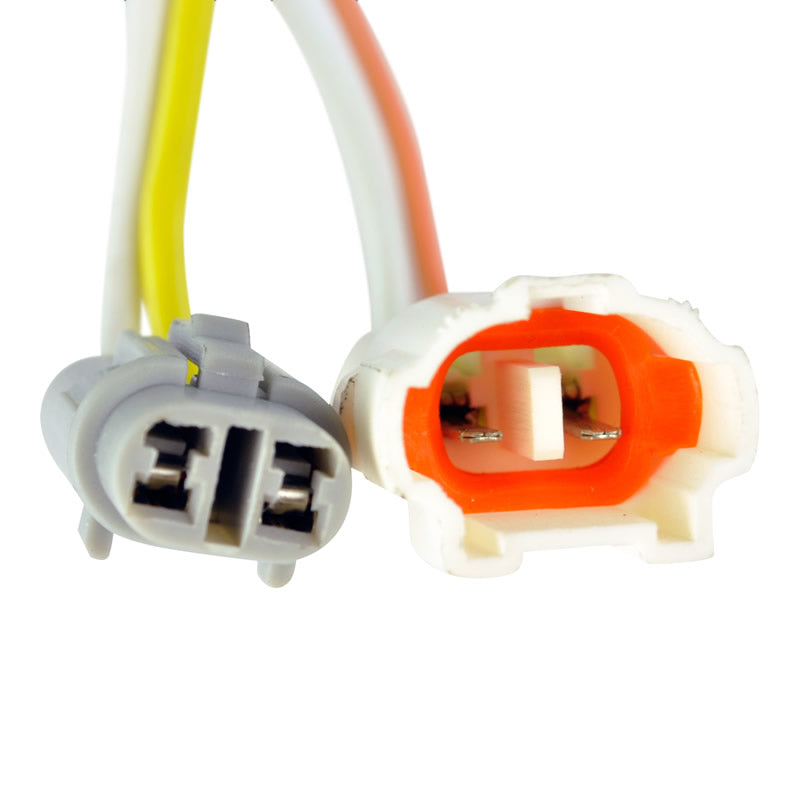

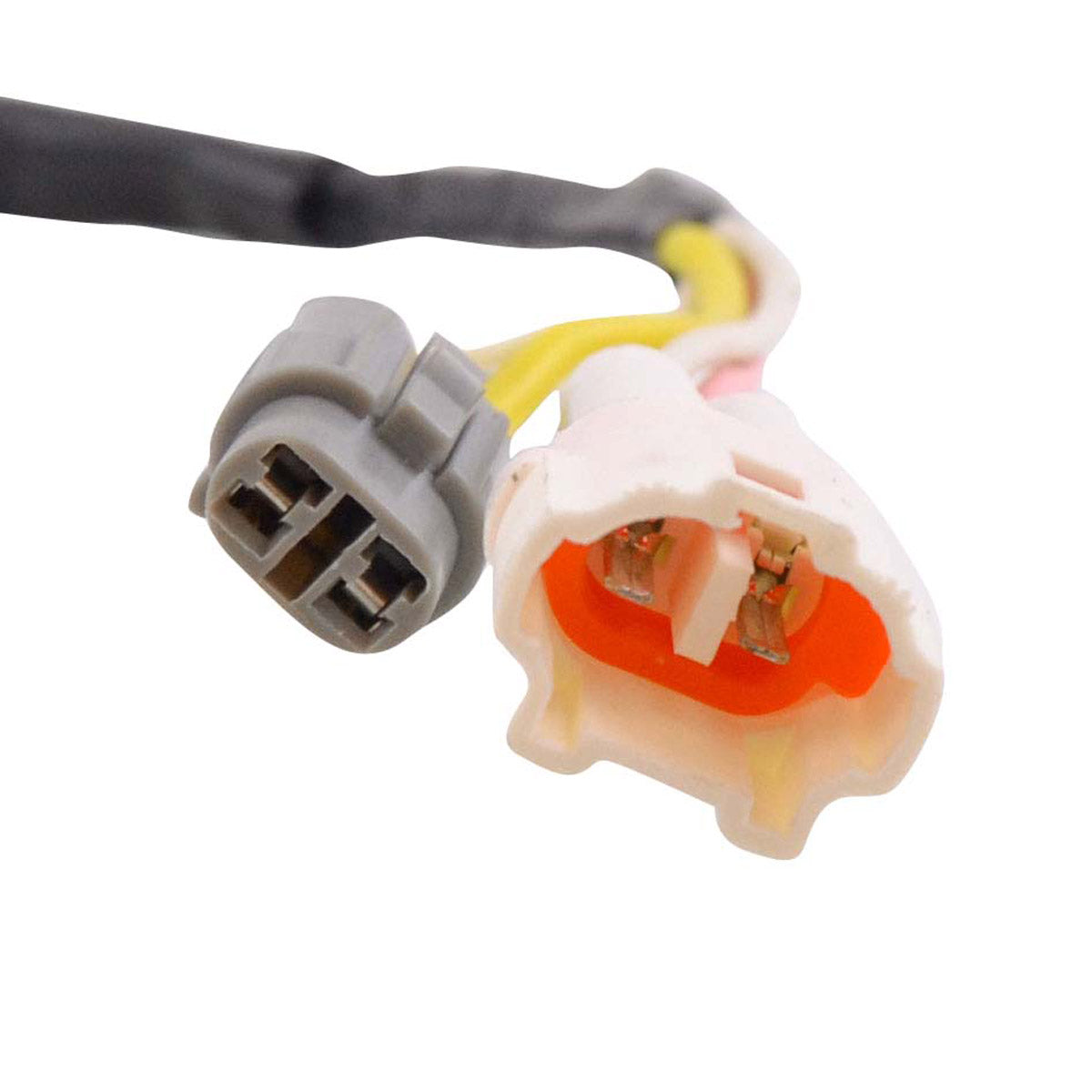

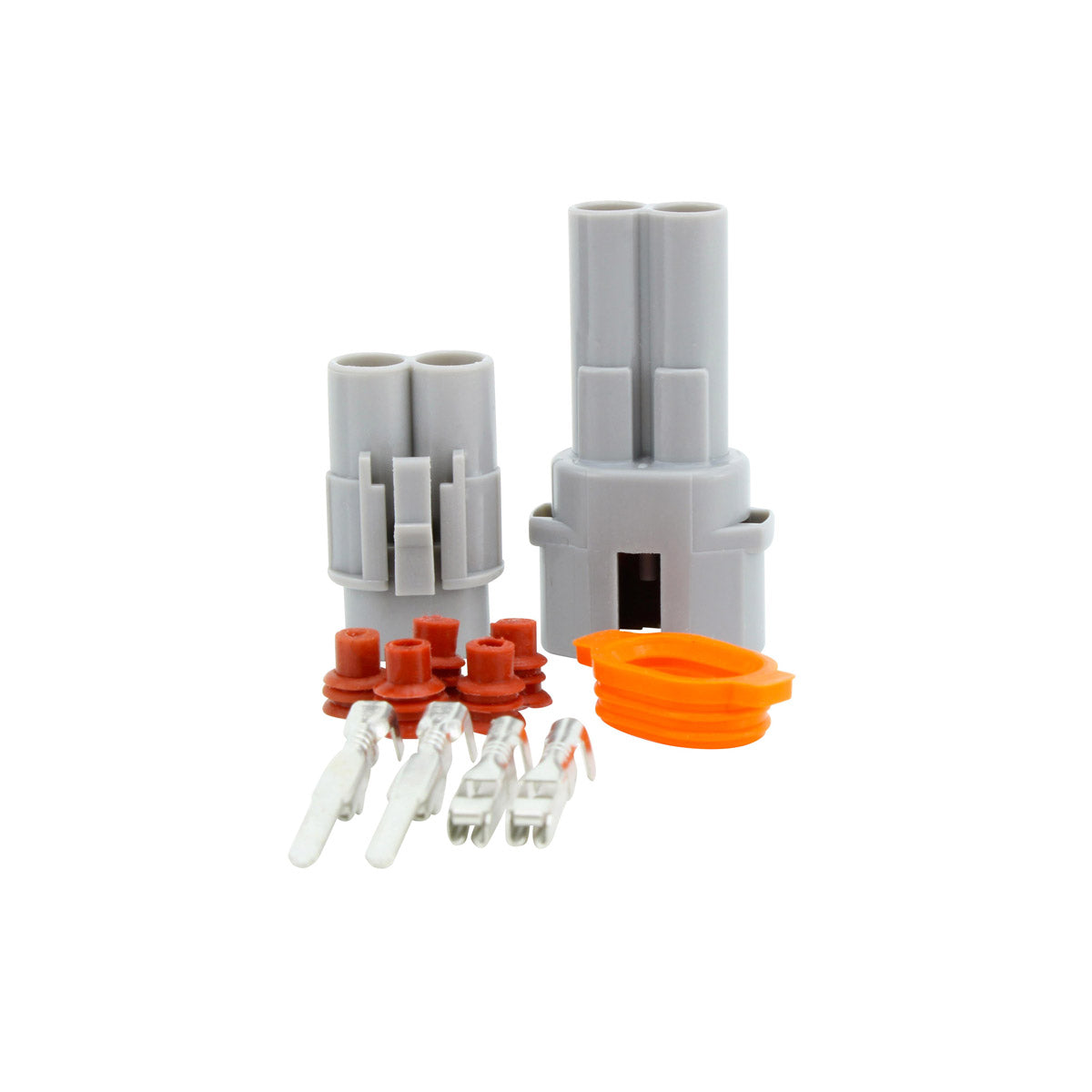

- Connector and opposite connector included
- Rubber grommet included
- All units are tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
30 mm |
| Exterior diameter |
84 mm |
| Thickness |
12 mm |
| Length of wires, stator to grommet |
180 mm |
| Length of wires, grommet to plug |
980 mm |
| Length of pick-up coil wire to grommet |
95 mm |
| Number of wires |
4 |
| Number of plugs |
2 |
| Number of pins |
4 |
| Alternator resistance, white to yellow |
0.3 ohms plus or minus 20% |
| Pick-up resistance, white to red |
264 ohms plus or minus 20% |
| Copper winding temperature rating |
200 degrees Celsius |
| Part number |
RM01331 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha YFZ 450 |
2004-2009 |
| Yamaha YFZ 450 |
2012-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5TG-81410-00-00 |
Yamaha |
| 5TG-81410-01-00 |
Yamaha |
| 5TG-81410-02-00 |
Yamaha |
| 5TG-81410-03-00 |
Yamaha |
| 5TG-81410-05-00 |
Yamaha |
| 5TG-81410-10-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit, matching it at 30 mm interior diameter, 84 mm exterior diameter and 12 mm thickness, and it comes with the connectors, so no cutting, splicing or drilling is needed.
What is included?

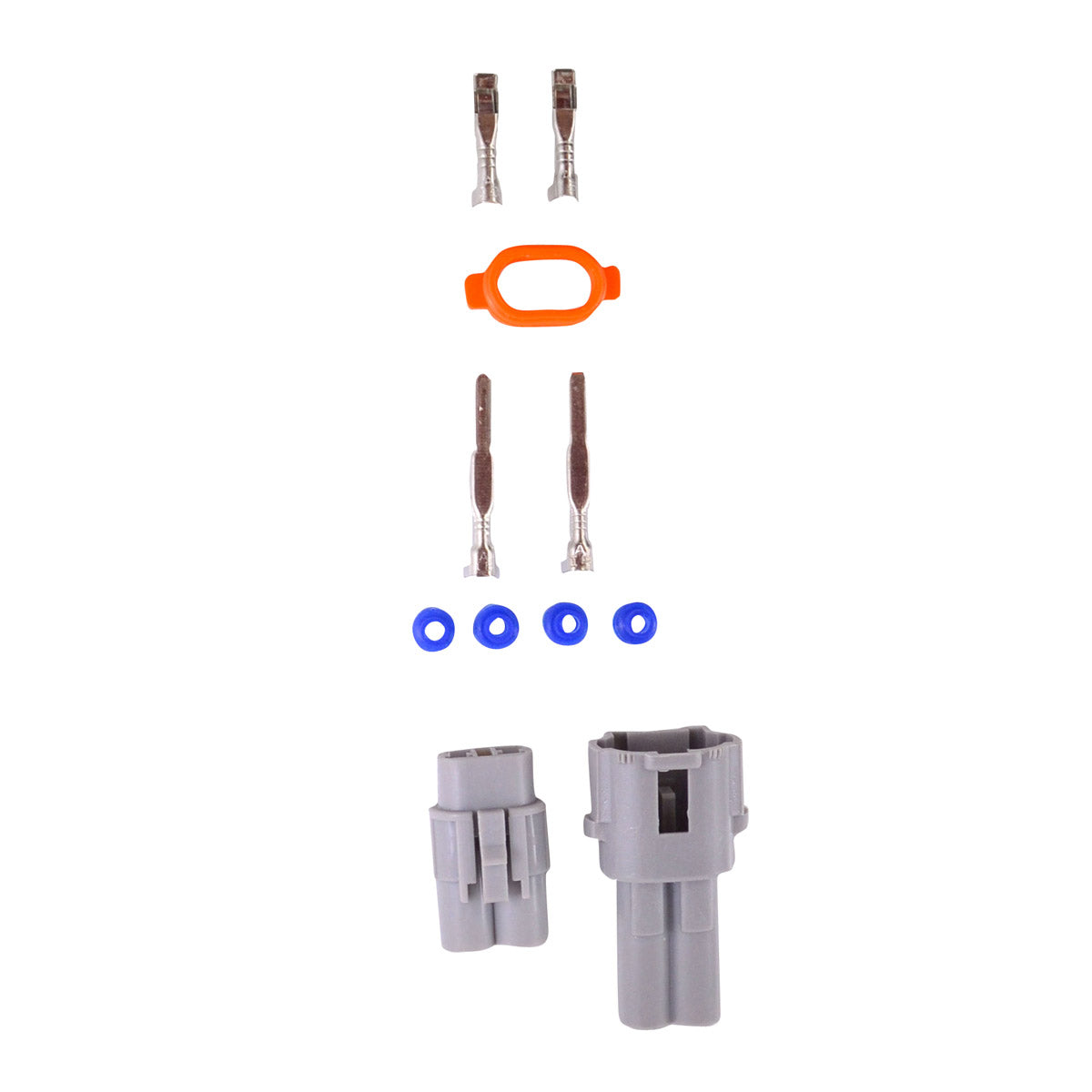

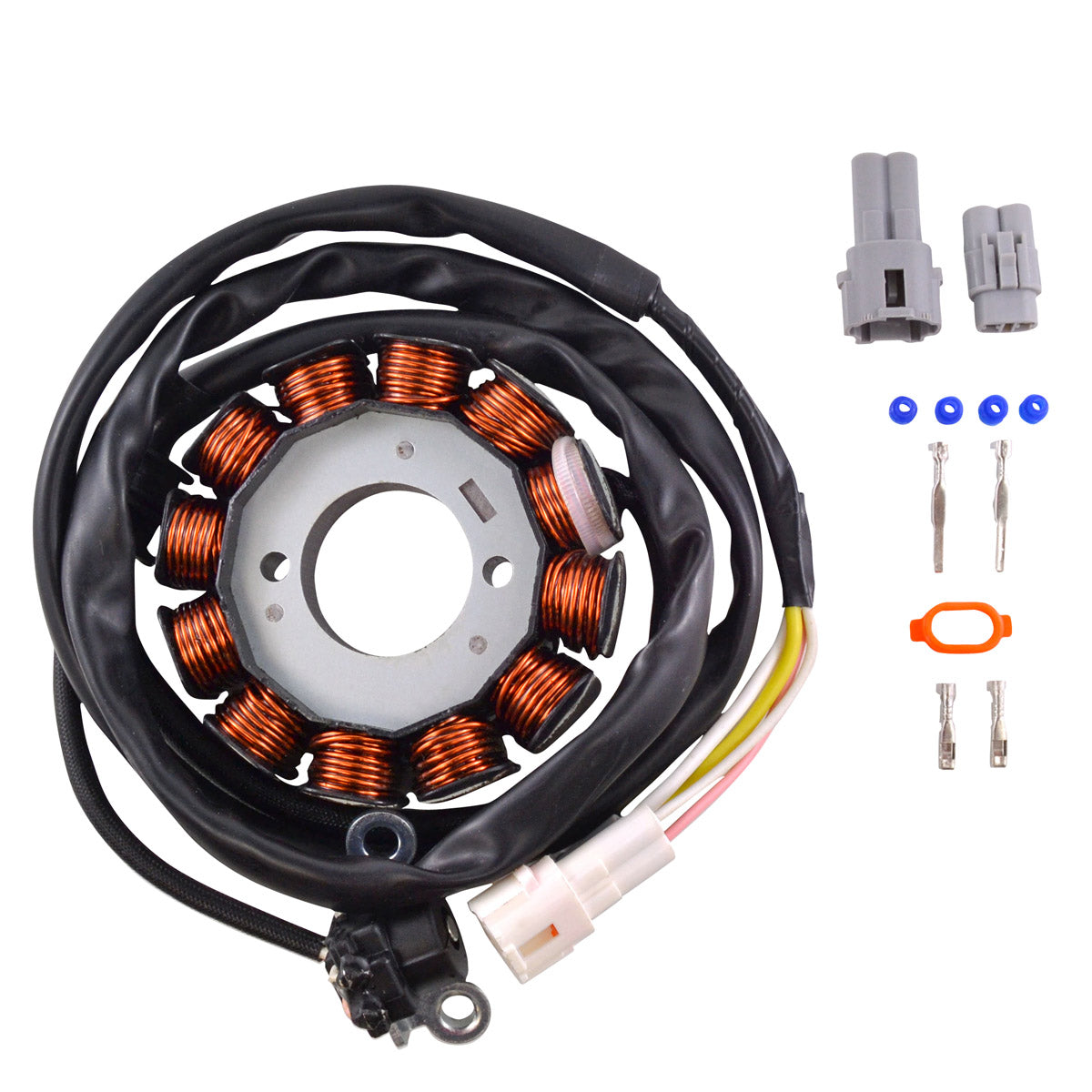

The high output stator, the pick-up pulsar coil, the connector, the opposite connector and the rubber grommet.
How can I tell my old stator has failed?
Measure it cold with a multimeter. The charging winding should read 0.3 ohms plus or minus 20% white to yellow and the pick-up 264 ohms plus or minus 20% white to red. An open circuit, a reading far outside those figures, or continuity from a winding to the stator body means the unit has failed.
What does high output mean here?
The winding is built to produce more charging output than the standard YFZ 450 stator while keeping the original dimensions, mounting points and plugs, so it fits as a straight swap and cross references to the Yamaha 5TG-81410 series part numbers listed above.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
