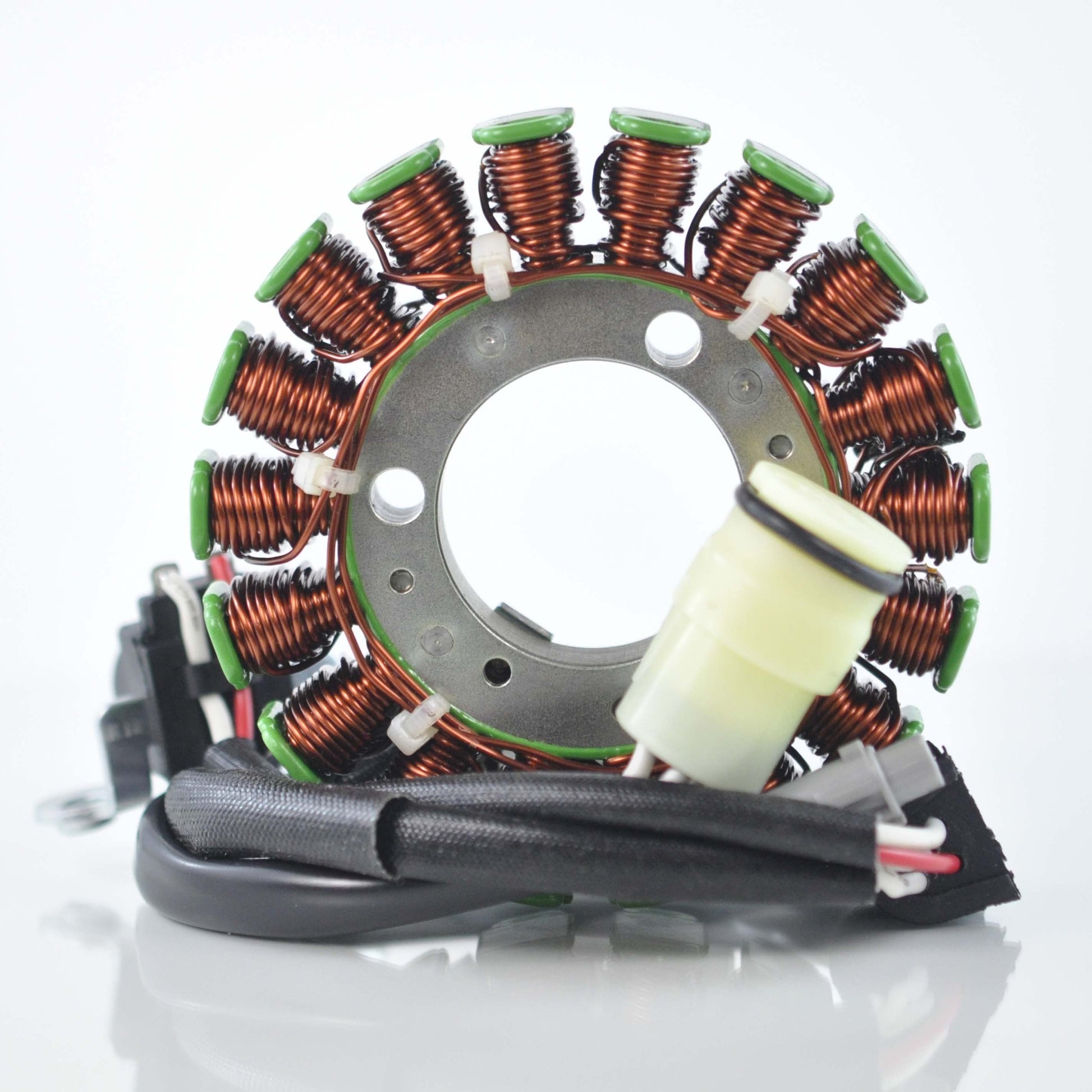

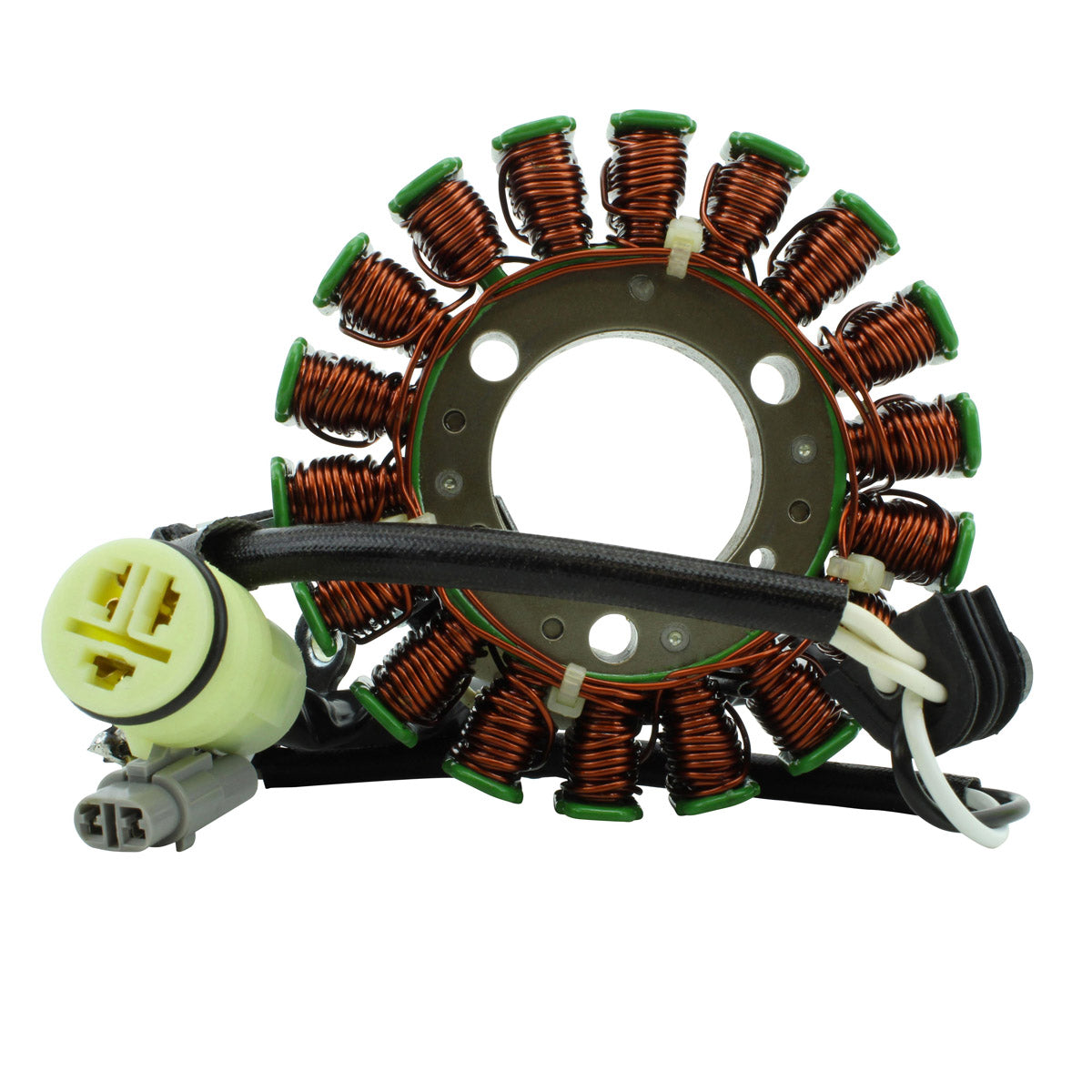

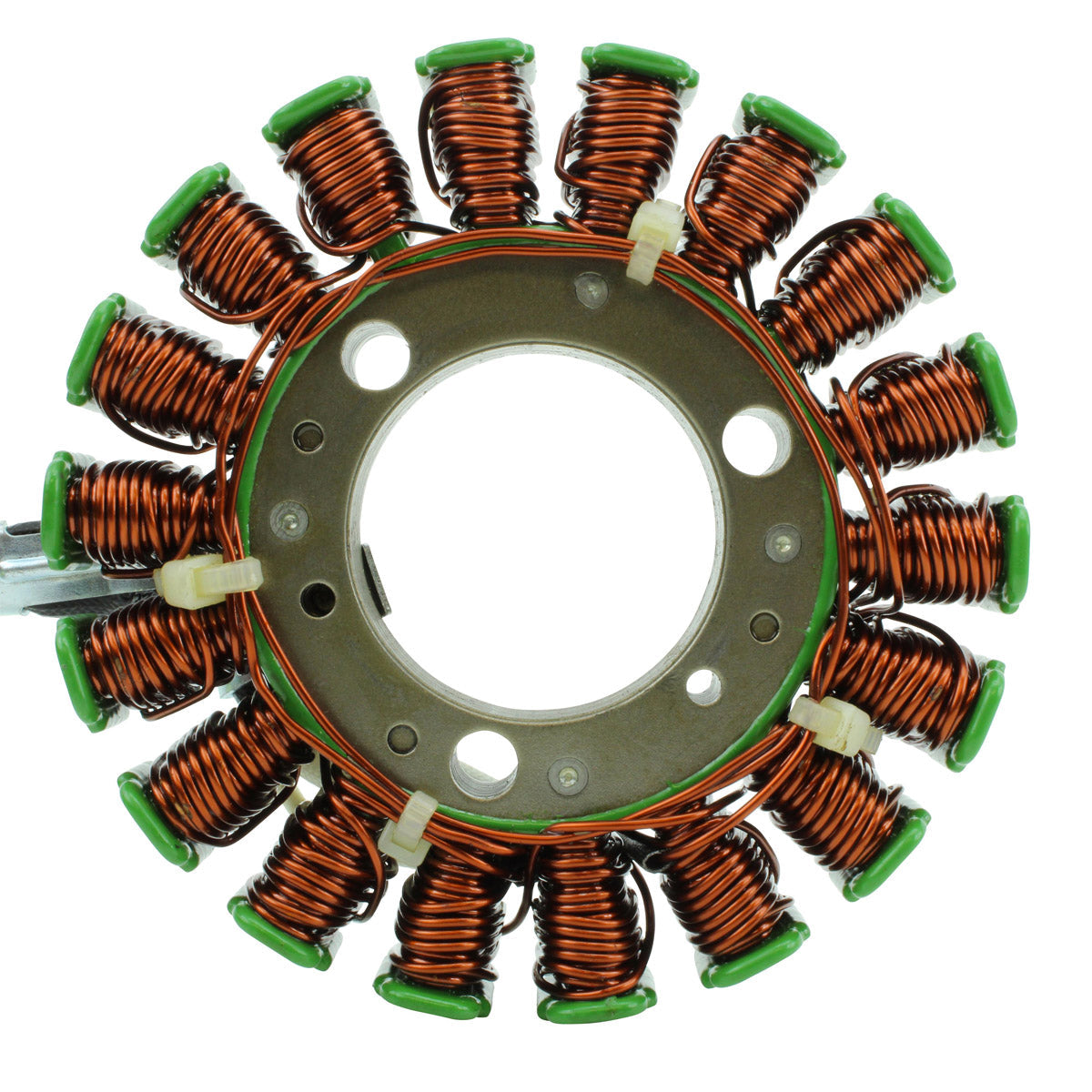

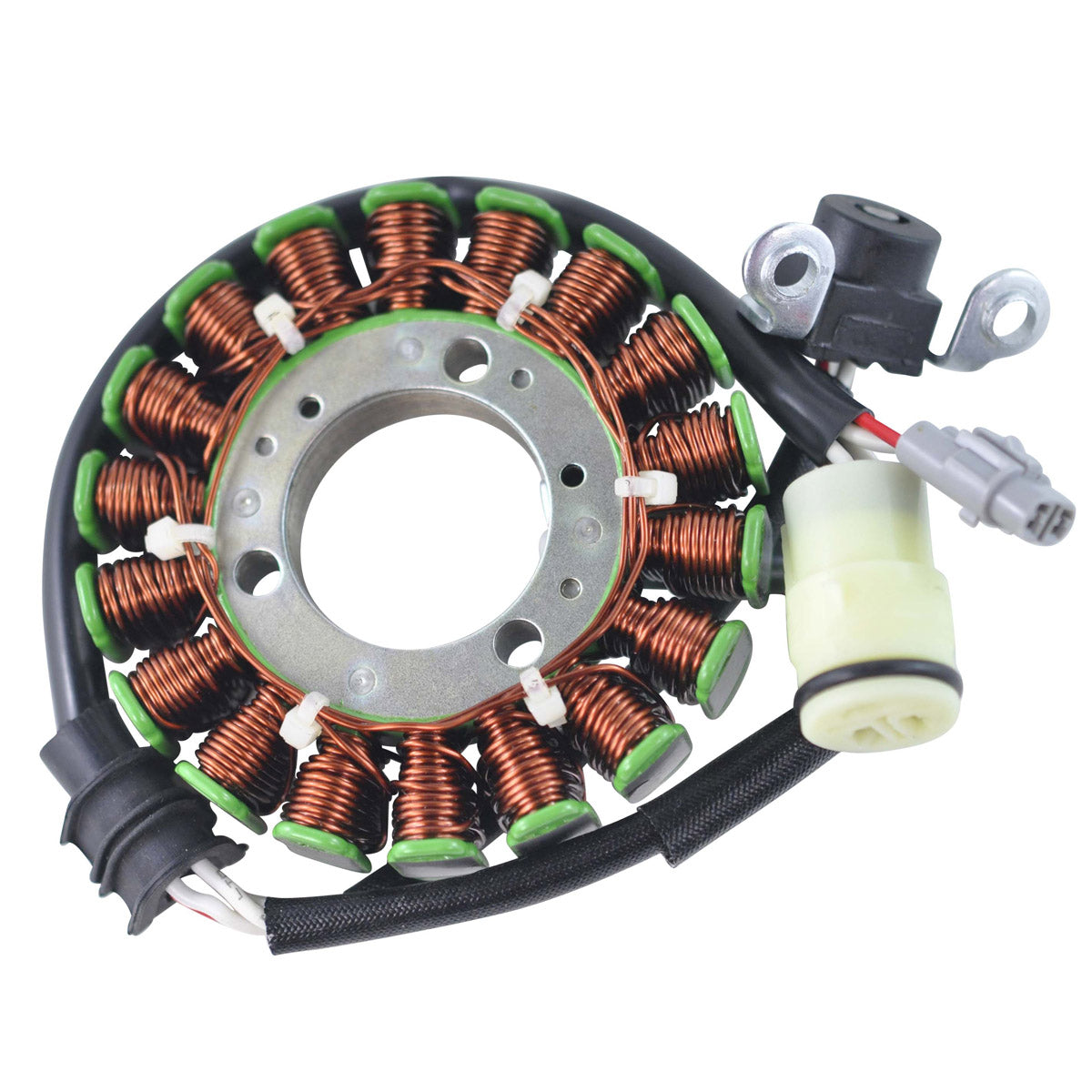

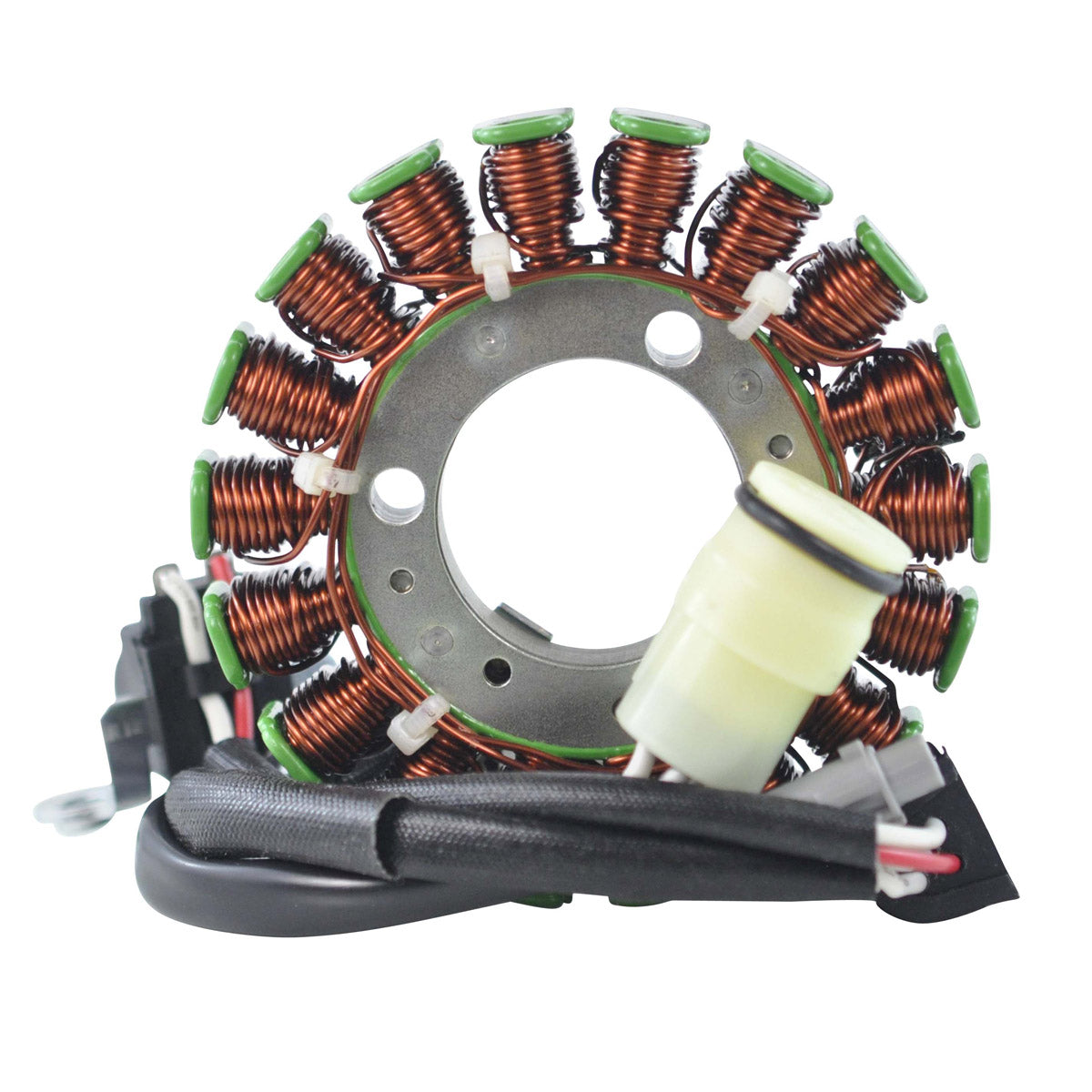

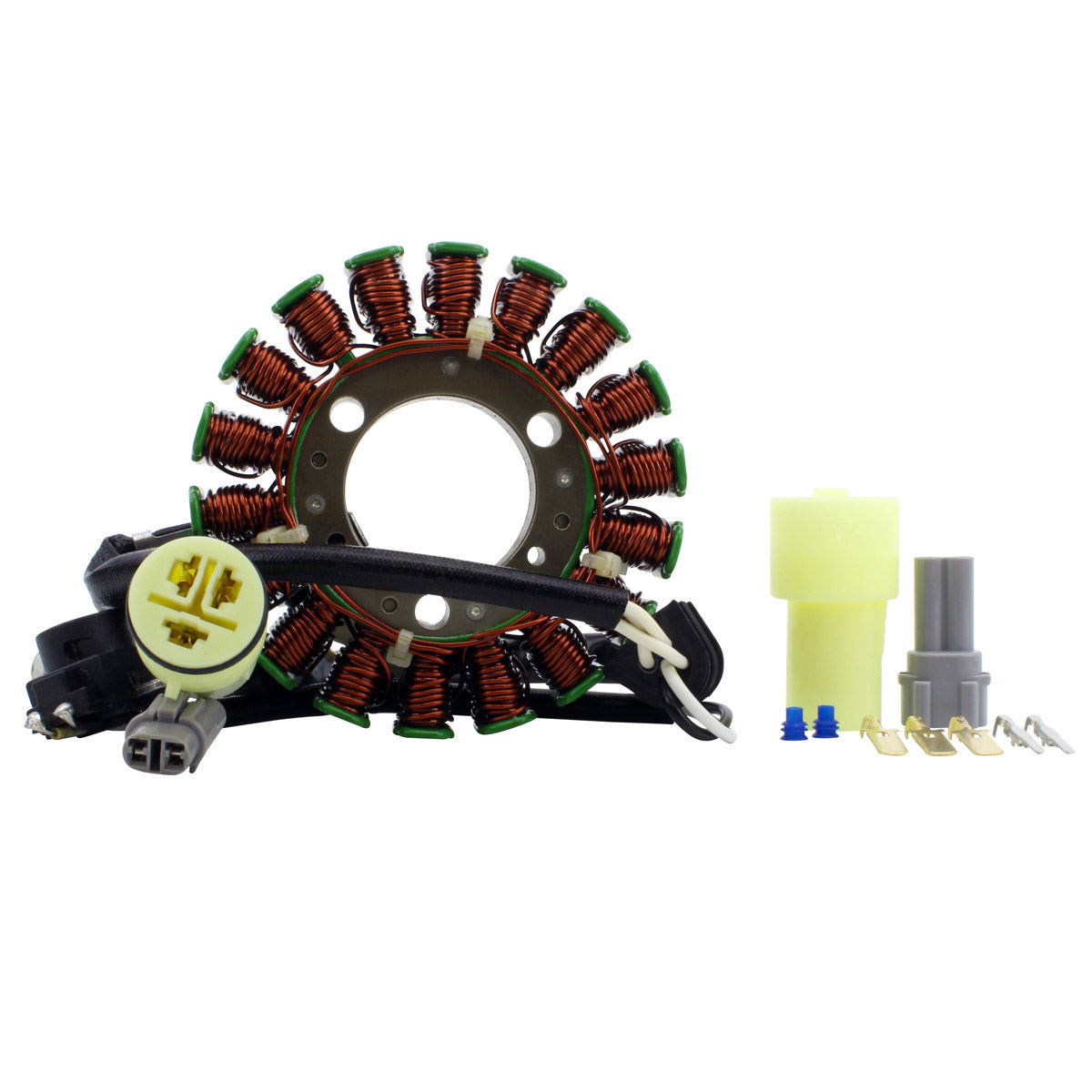

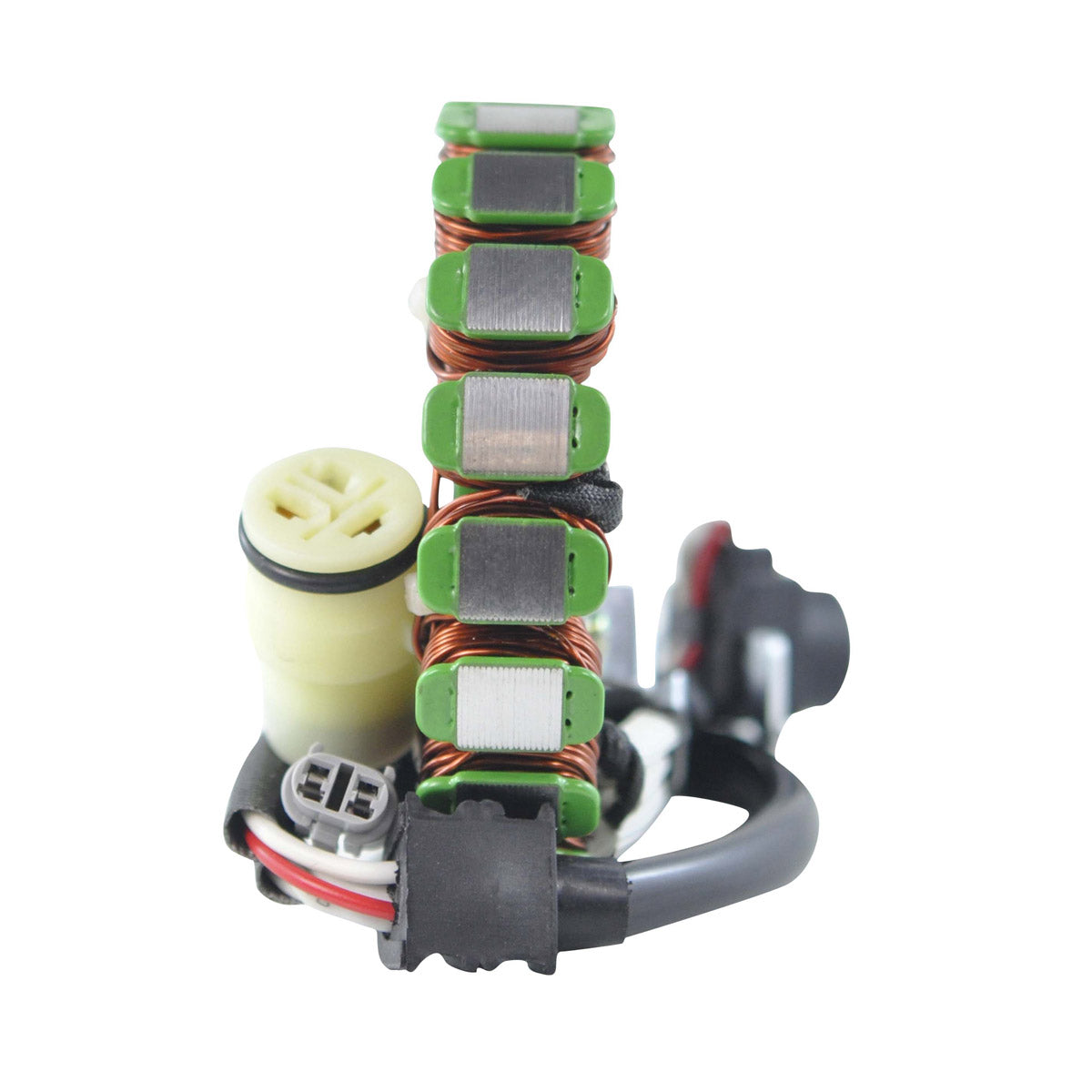

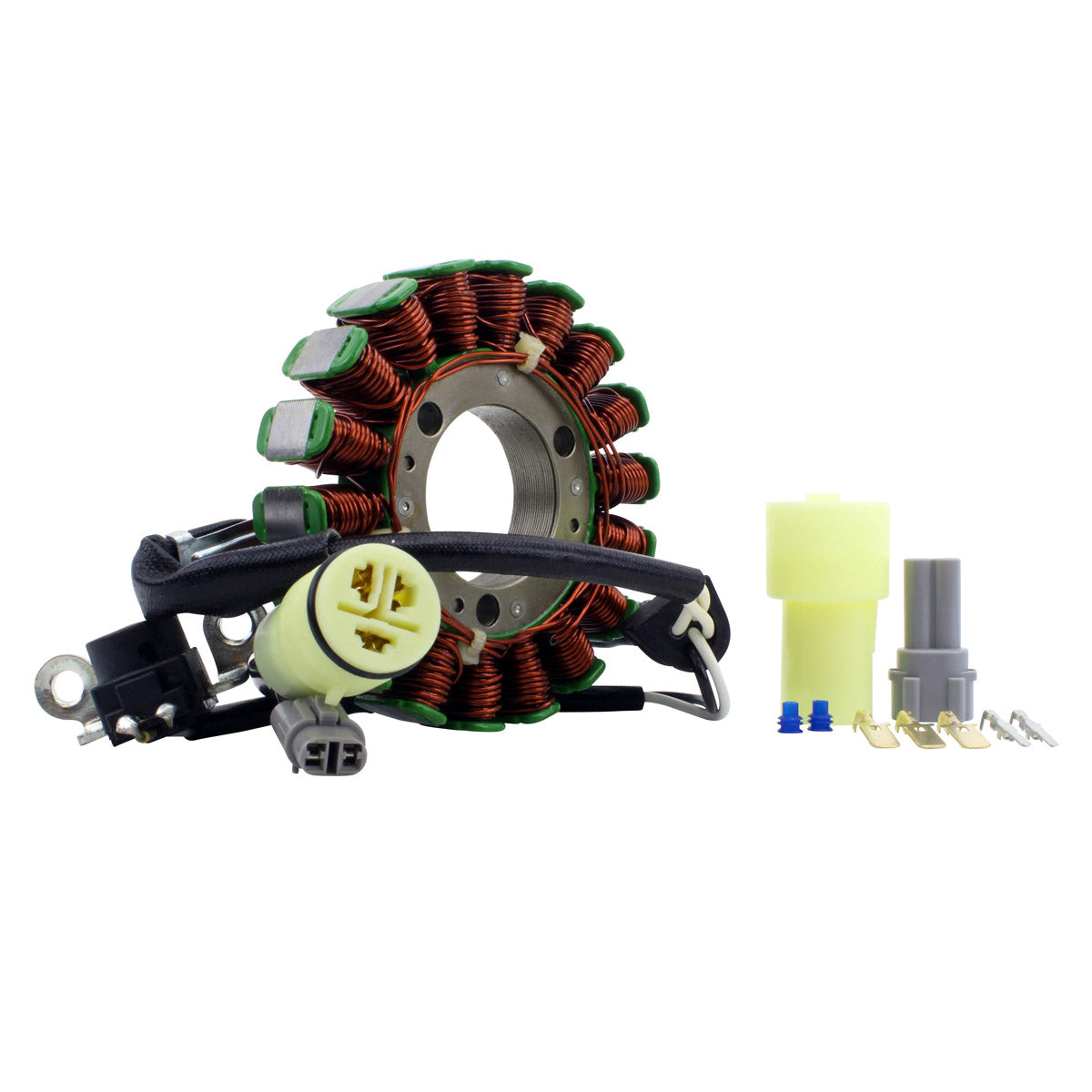

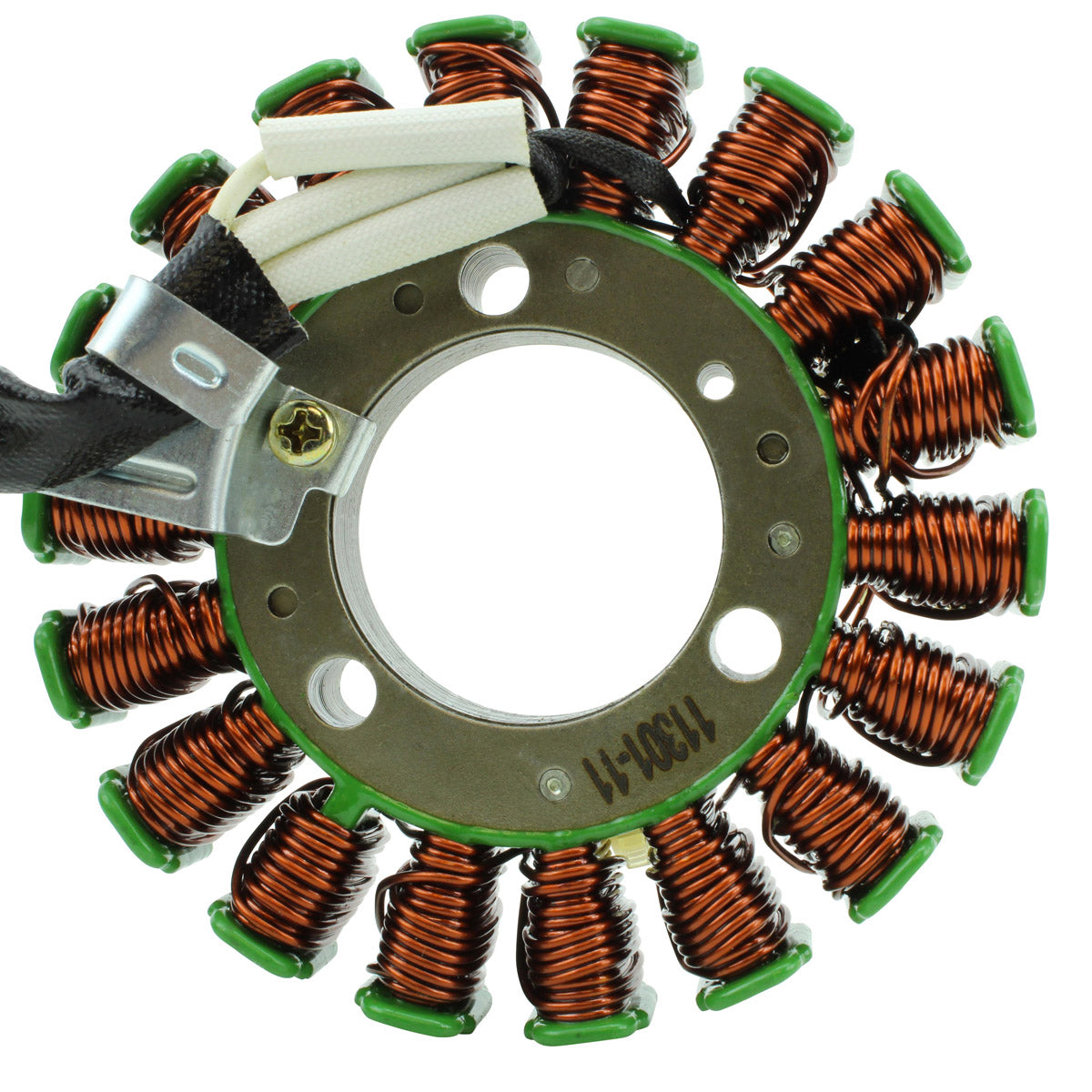

A brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Yamaha YFZ 450 X and YFZ 450 R sport quad. It is a plug-and-play, direct-fit component: the mounting pattern, the wire lengths and the connectors all match the factory part, so the job is a straight swap with no cutting, splicing or adaptation of the loom.
The stator is wound with the highest grade copper and built on the highest grade lamination material, with insulation rated to withstand 200 degrees Celsius - important on a hard-worked sport quad where the engine cases run hot. The pick-up pulsar coil and the connector are supplied already fitted, so the assembly arrives ready to bolt in. Every unit is electrically tested before it is despatched.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

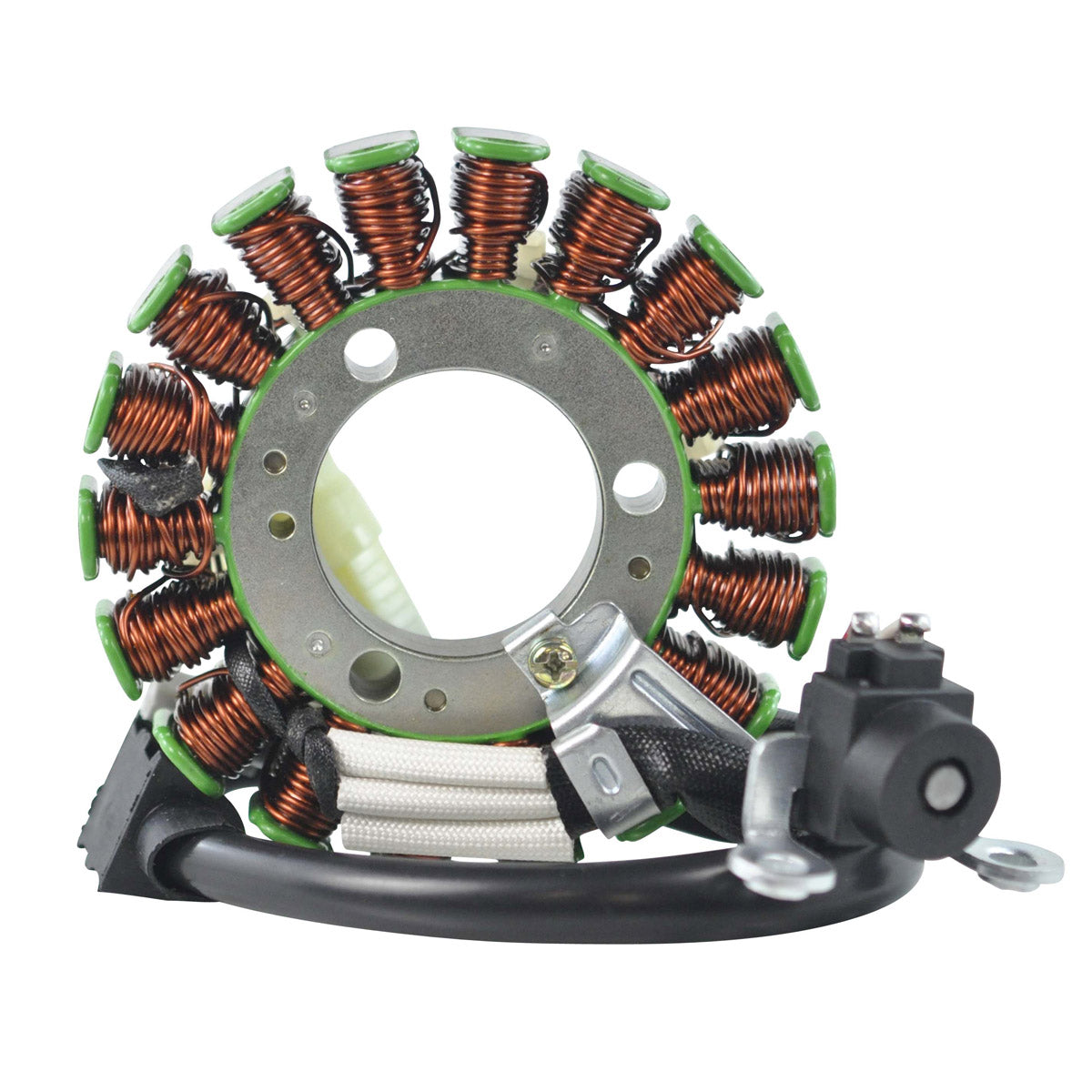

- Pick-up pulsar coil included and pre-fitted

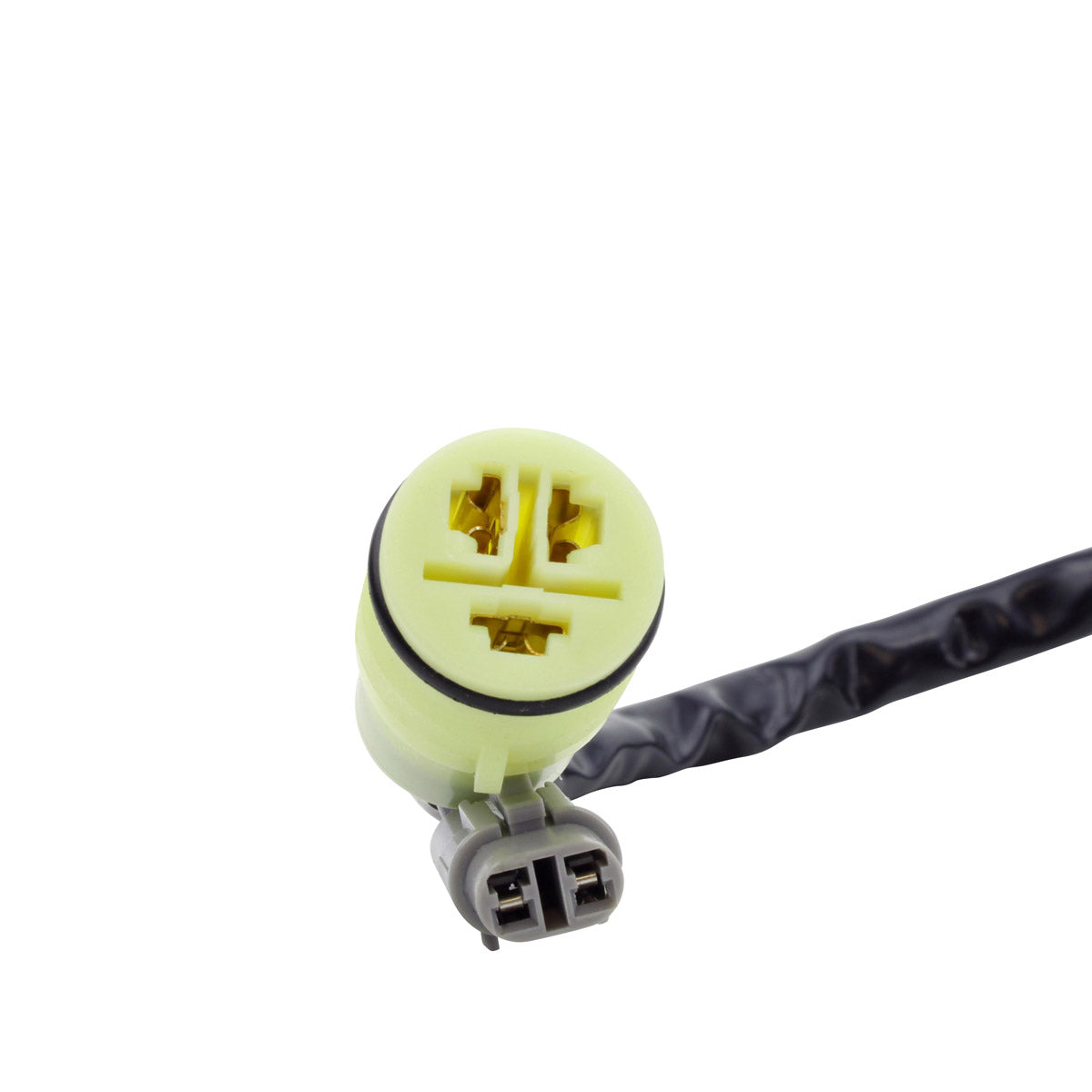

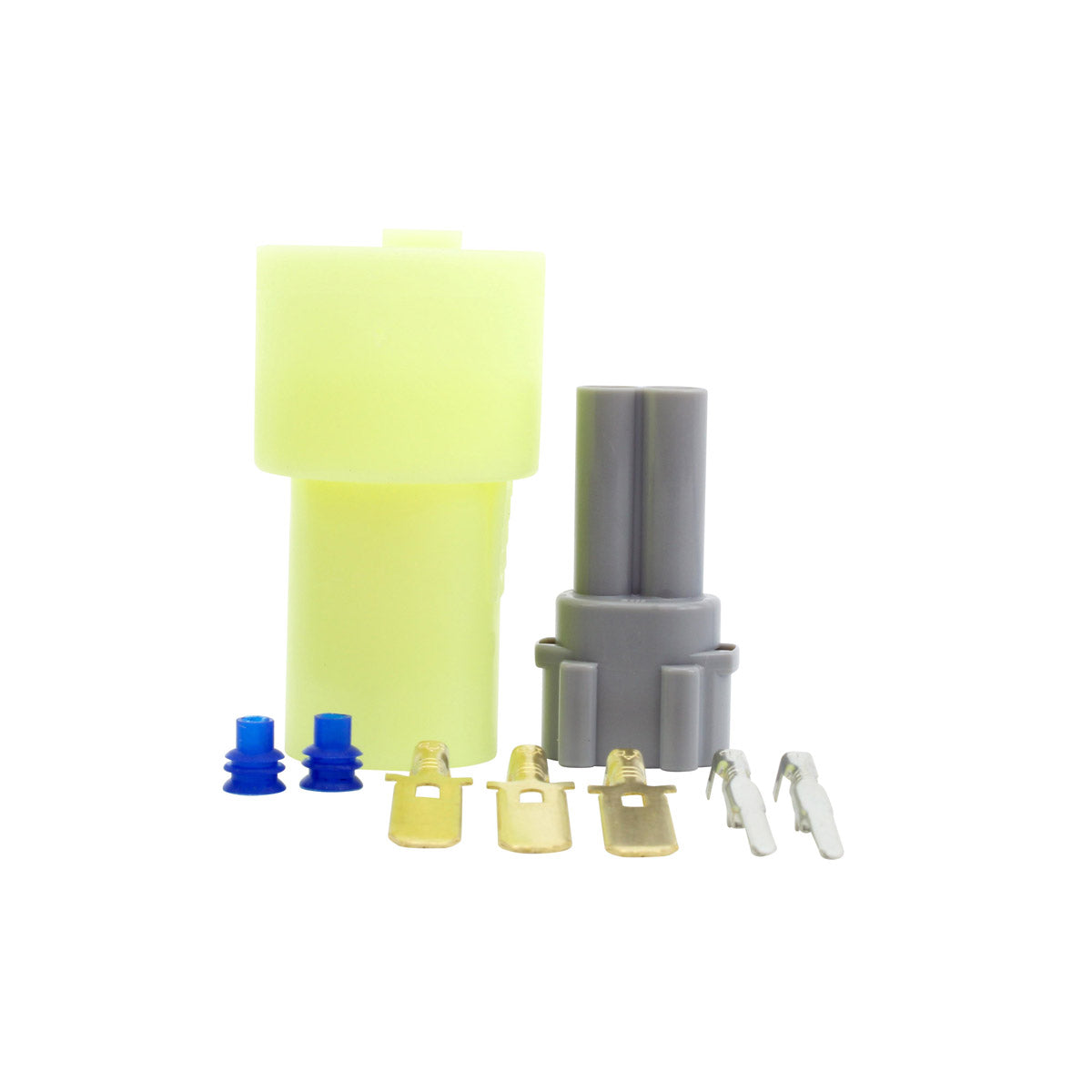

- Connector included
- Every unit tested before dispatch
Technical Specs
| Specification |
Detail |
| Manufacturer reference |
RM01493 |
| Interior diameter |
37 mm |
| Exterior diameter |
97 mm |
| Thickness |
14 mm |
| Wire length, stator to grommet |
130 mm |
| Wire length, grommet to plug |
110 mm |
| Pickup coil wire to grommet |
220 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, White to White |
0.4 ohms +/-20% |
| Pickup resistance, Black to White |
250 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YFZ 450 X |
2009-2025 |
| Yamaha YFZ 450 R |
2009-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 18P-81410-00-00 |
Yamaha |
| 18P-81410-02-00 |
Yamaha |
Frequently Asked Questions
Will this stator fit without modification?

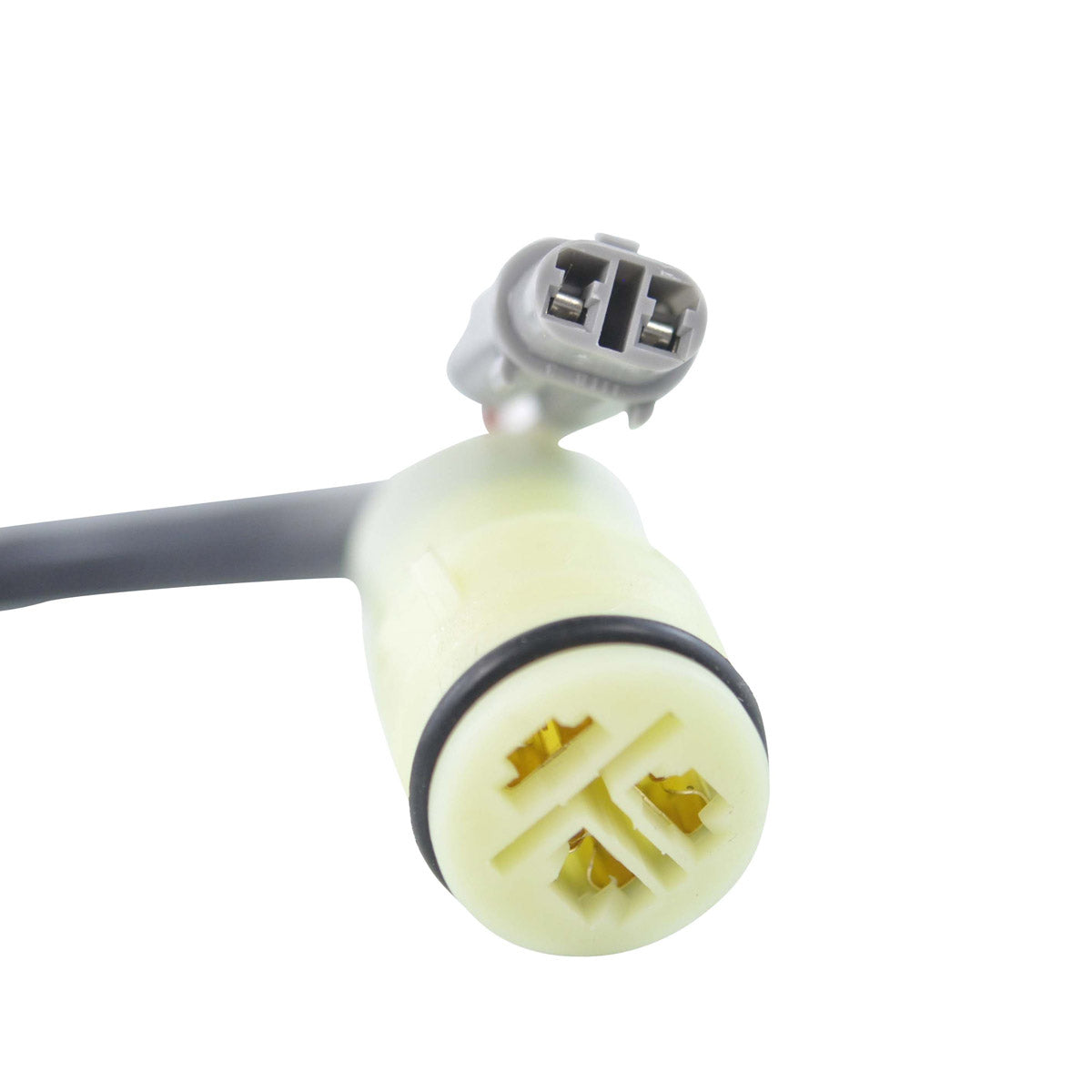

Yes. It is a plug-and-play direct fit for the listed models. The outer diameter of 97 mm, the inner bore of 37 mm and the 14 mm thickness match the original, and the two plugs with five pins between them mate with the standard loom. No cutting or splicing is needed. Confirm the number on your original unit against the cross reference table before ordering.
What is included?
The stator assembly with the pick-up pulsar coil already fitted, plus the connector. The flywheel, the rotor, the stator cover and its gasket are not supplied and should be reused from your machine.
How do I tell whether my old stator has failed?
Set a multimeter to ohms and measure between the White charging wires: a healthy alternator winding reads about 0.4 ohms, within plus or minus 20 per cent. Then measure the pickup circuit between the Black and White wires, which should read about 250 ohms on the same tolerance. Also check every wire against the stator body - any continuity to earth means a winding has shorted and the stator must be replaced. A flat battery that will not hold charge, dim lights at high revs, or a machine that will not start when hot are the usual symptoms.
Why does the winding temperature rating matter on a YFZ 450?
The stator sits inside the engine case in hot oil, and a sport quad ridden hard runs hotter than a trail machine. Copper windings insulated to 200 degrees Celsius resist the varnish breakdown that causes turn-to-turn shorts, which is the most common way a stator dies on this engine.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
