Stator for Yamaha YP400 Majesty Scooter 2004-2015
Stator for Yamaha YP400 Majesty Scooter 2004-2015
SKU:RMS010-108863
Free shipping over £150. Terms apply
Couldn't load pickup availability

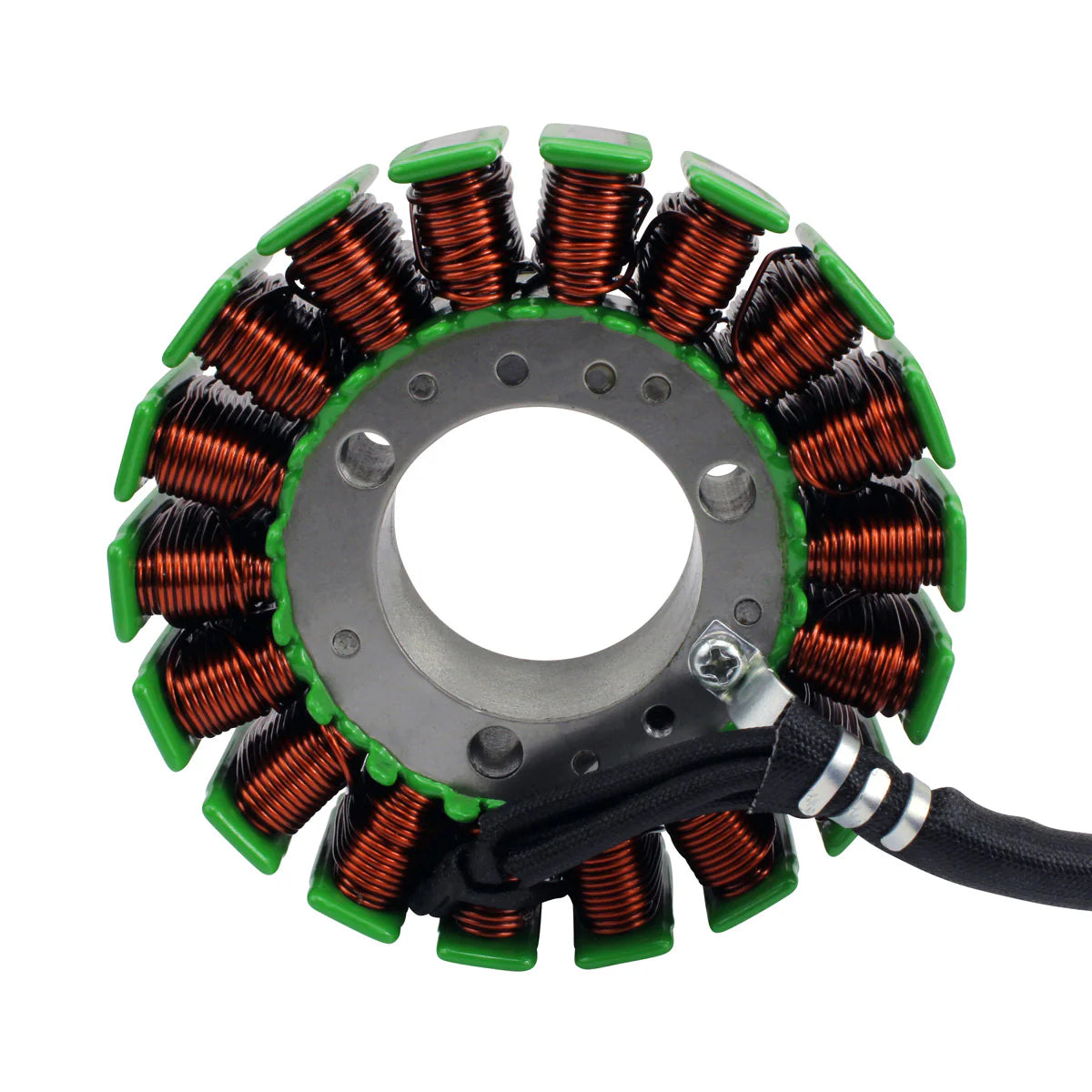

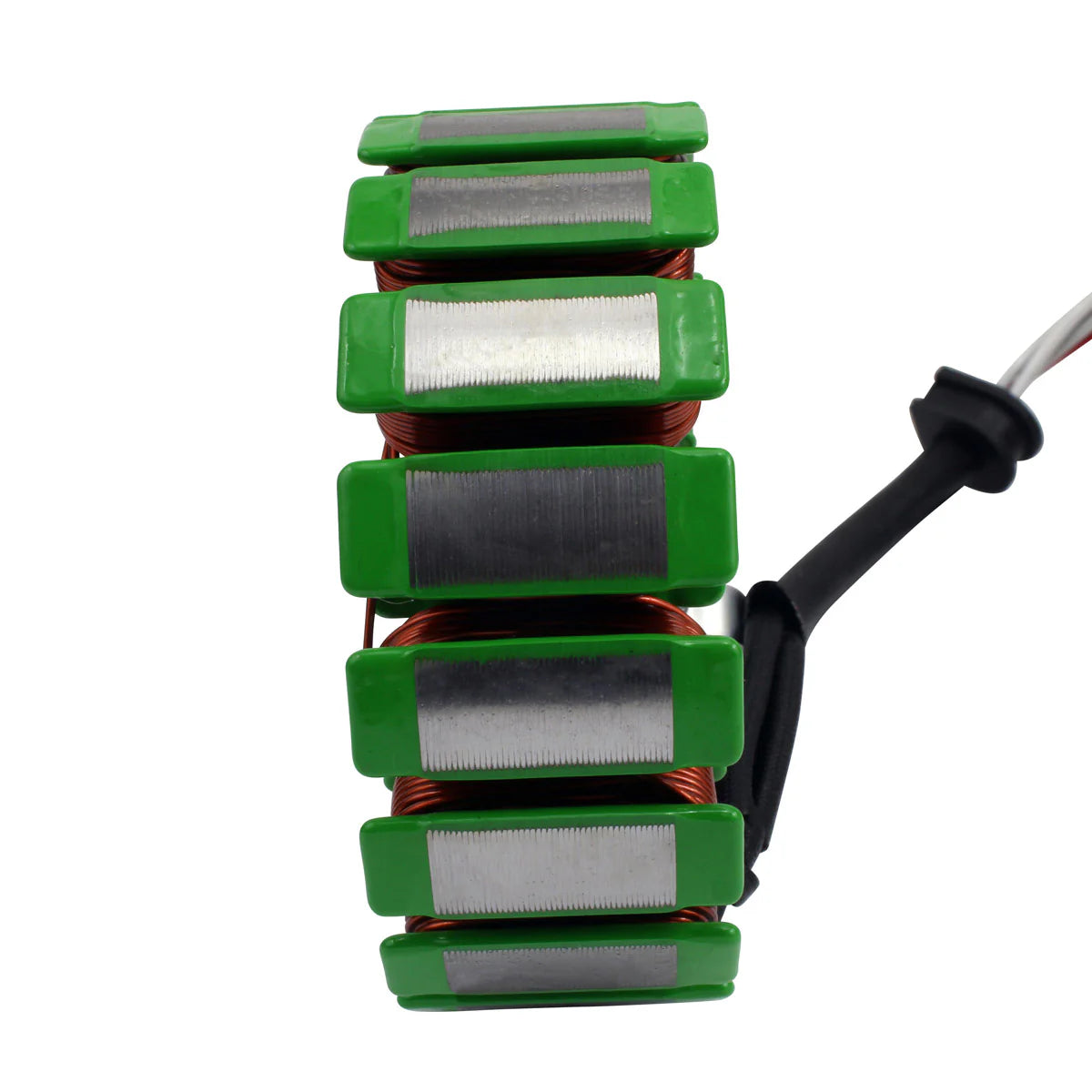

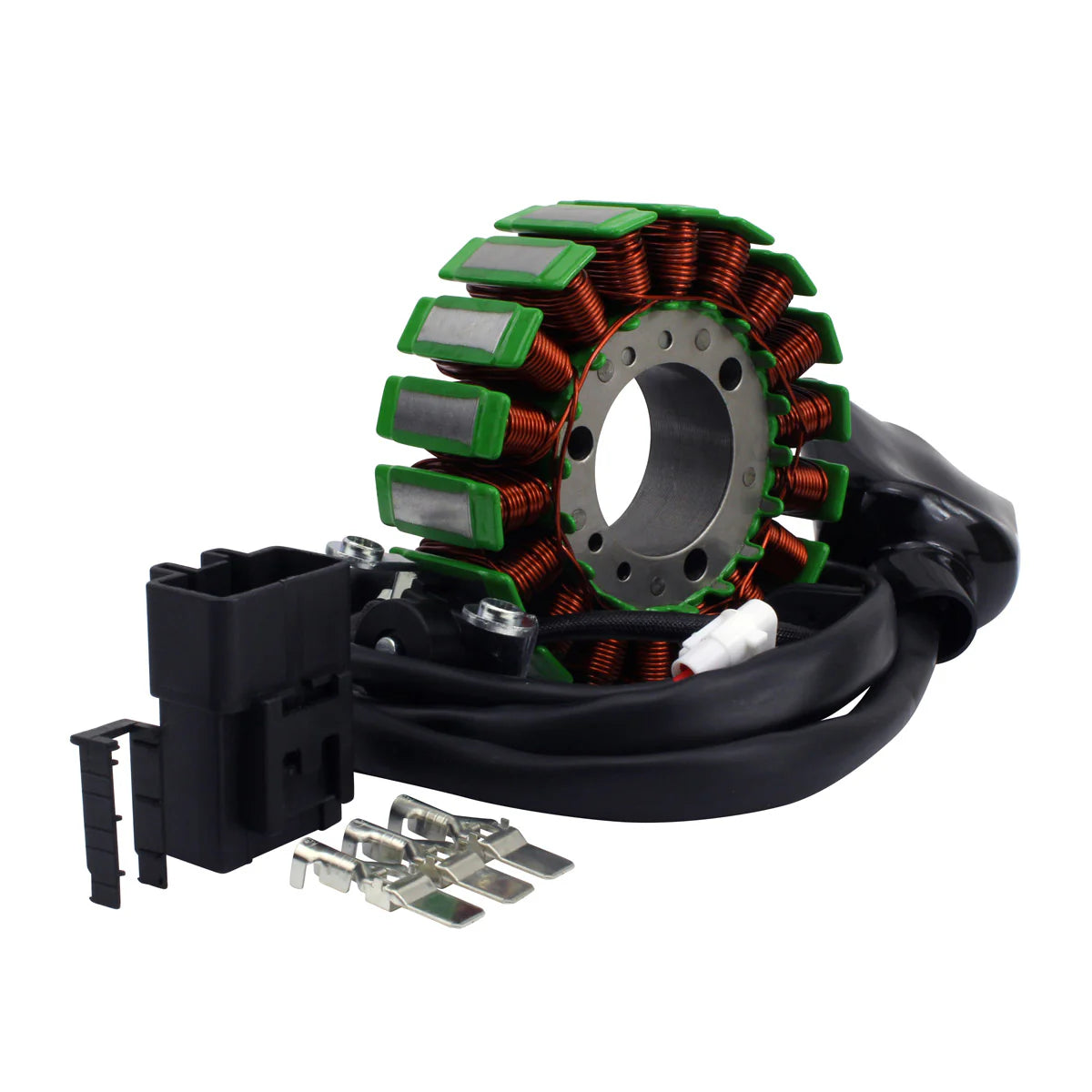

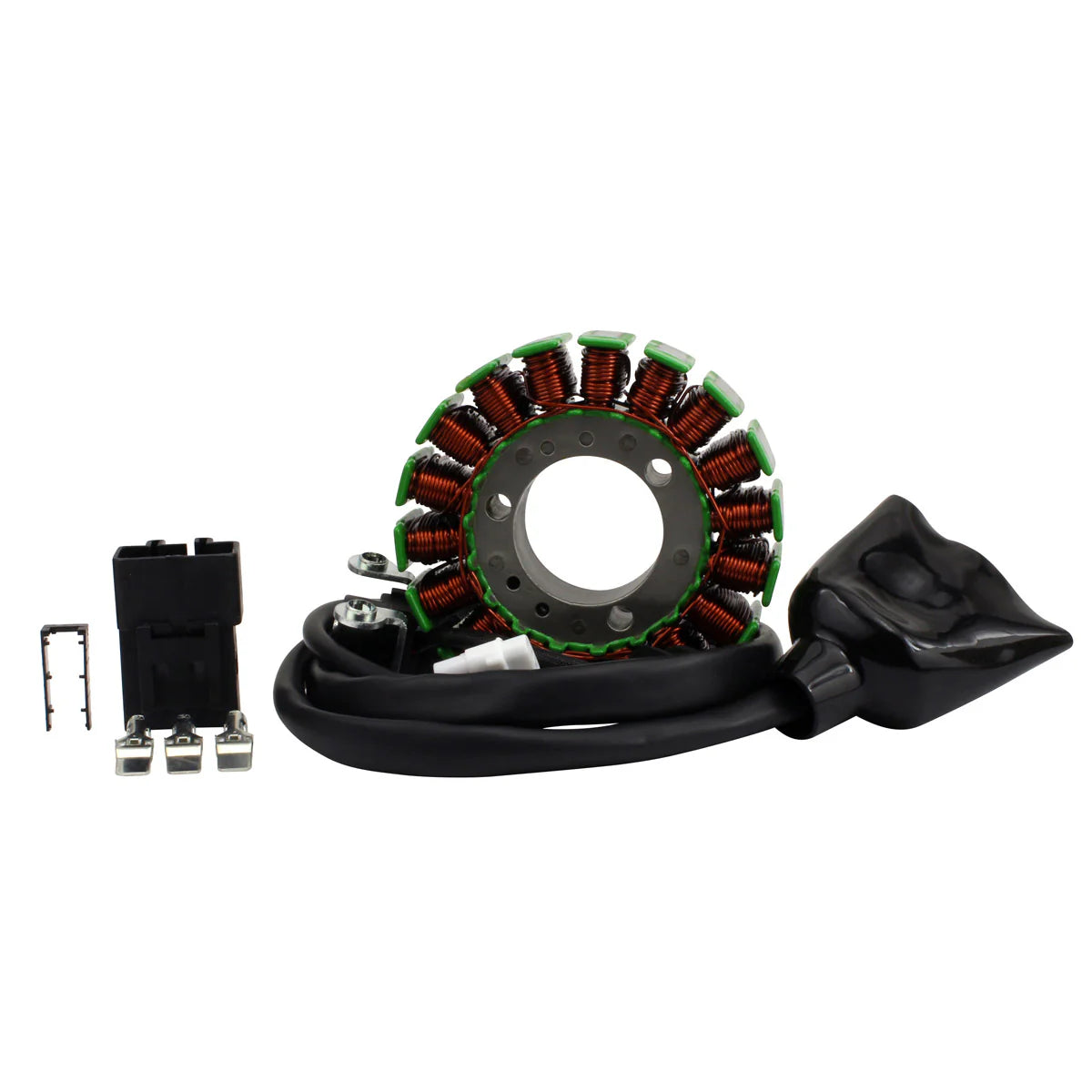

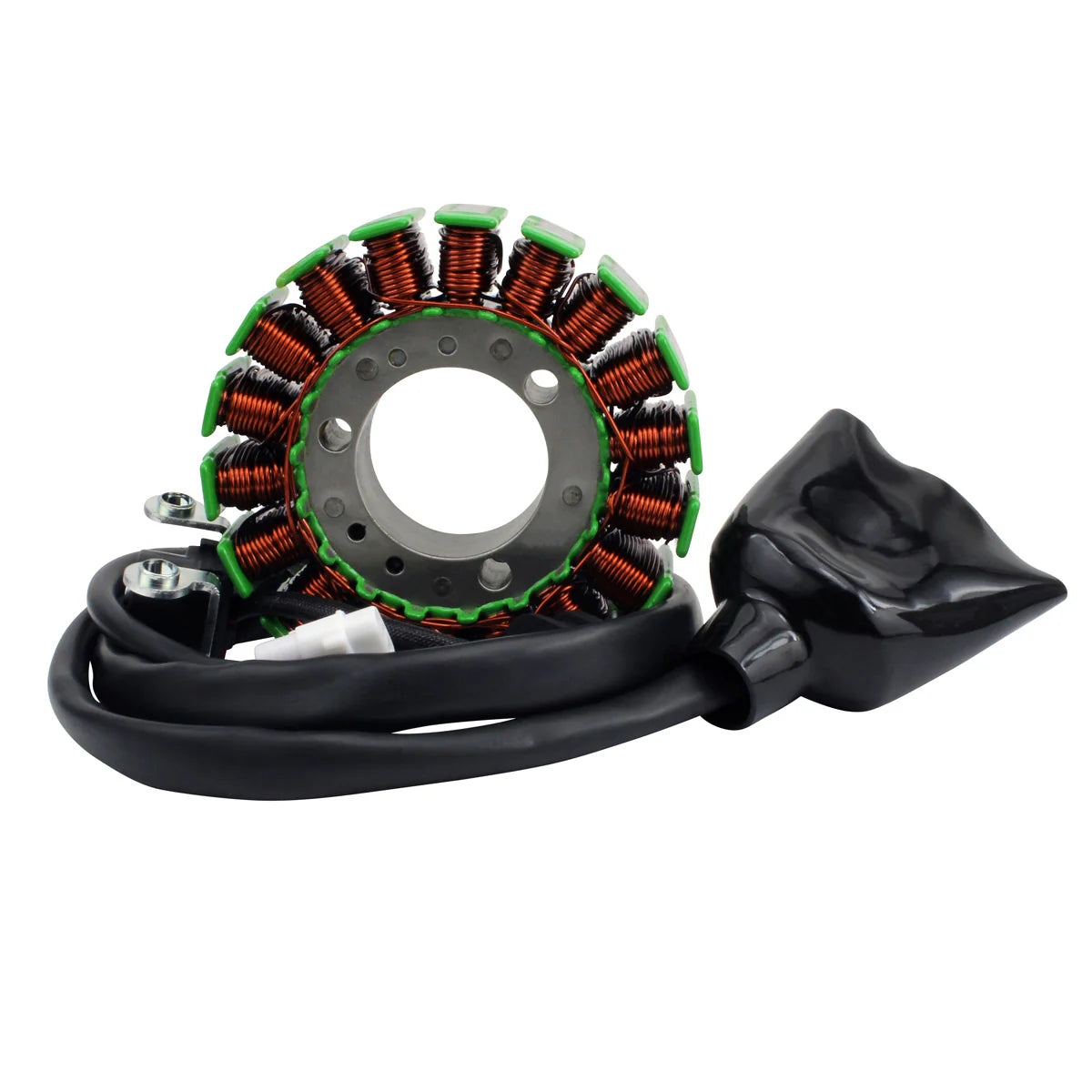

Stator for Yamaha YP400 Majesty Scooter 2004-2015
Fits Yamaha YP400 Majesty Scooter 2004-2015
This stator is a direct-fit replacement for the Yamaha YP400 Majesty, built to OEM specifications to restore correct charging and ignition pickup signal. It replaces Yamaha part numbers 5RU-81410-02-00 and 5RU-81410-00-00 and fits directly in place of the original unit.
The stator features 18 poles and 5 wires terminating in a 2-plug, 5-pin connector, with an alternator coil resistance of 0.8 ohms and a pickup coil resistance of 290 ohms, matching the original factory specification.
Key Features
- Direct OEM fit and finish, no modification required
- 18 poles, 5 wires
- 2 plugs, 5 pins
- Alternator resistance: 0.8 ohms; Pickup resistance: 290 ohms
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Interior Diameter | 37 mm |
| Exterior Diameter | 97 mm |
| Thickness | 26 mm |
| Wire Length (Stator to Grommet) | 140 mm |
| Wire Length (Grommet to Plug) | 700 mm and 770 mm |
| Pickup Coil Wire Length (to Grommet) | 70 mm |
| Number of Wires | 5 |
| Number of Plugs | 2 |
| Number of Pins | 5 |
| Number of Poles | 18 |
| Alternator Resistance (White-White) | 0.8 ohms +/-20% |
| Alternator Resistance (White-Ground) | O.L (open circuit) |
| Pickup Resistance (Pink-White) | 290 ohms +/-20% |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YP400 Majesty | 2004-2010, 2012-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5RU-81410-02-00 | Yamaha |
| 5RU-81410-00-00 | Yamaha |
Frequently Asked Questions
Will this stator fit without modification?
Yes. This stator is a direct OEM-fit replacement and connects using the factory 2-plug, 5-pin connector, no cutting or splicing required.
What's included?
One stator assembly, ready to fit directly in place of the original unit.
How can I tell my stator has failed?
Common signs include a battery that won't hold charge, dim lights, hard starting, or a stalling engine with the headlight on.
Does this match the original resistance readings?
Yes, it is built to the same 0.8 ohm alternator and 290 ohm pickup coil resistance as the OEM part.
