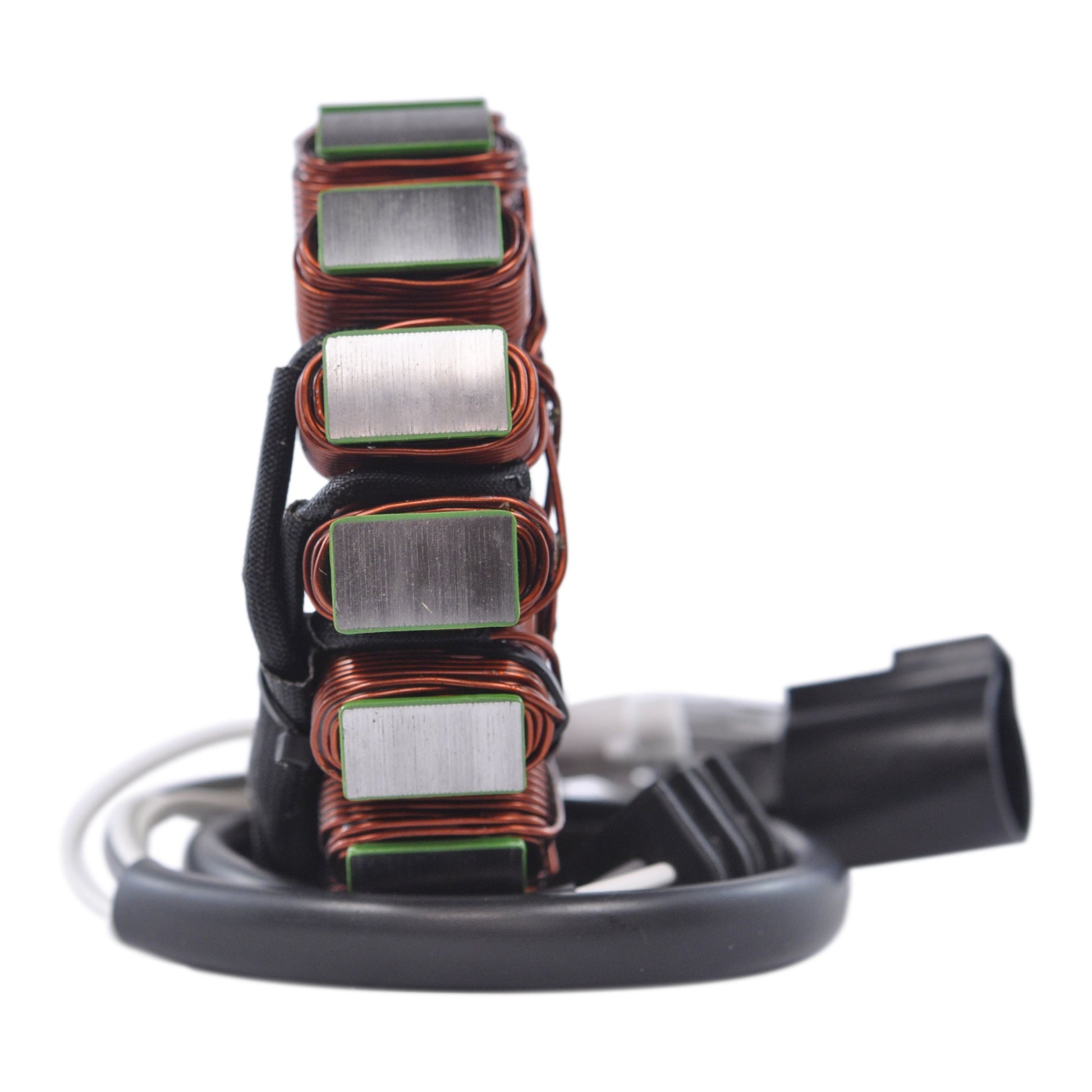

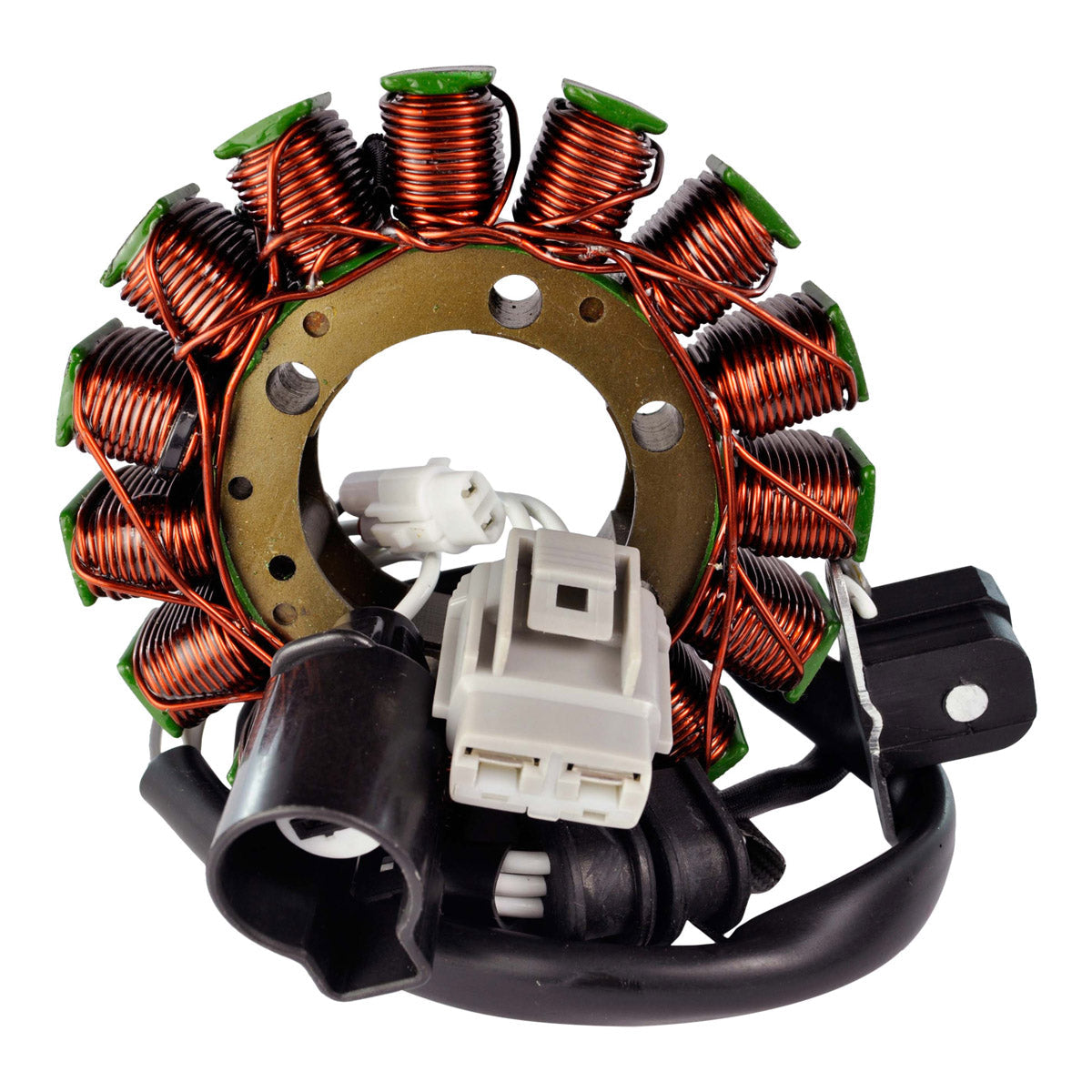

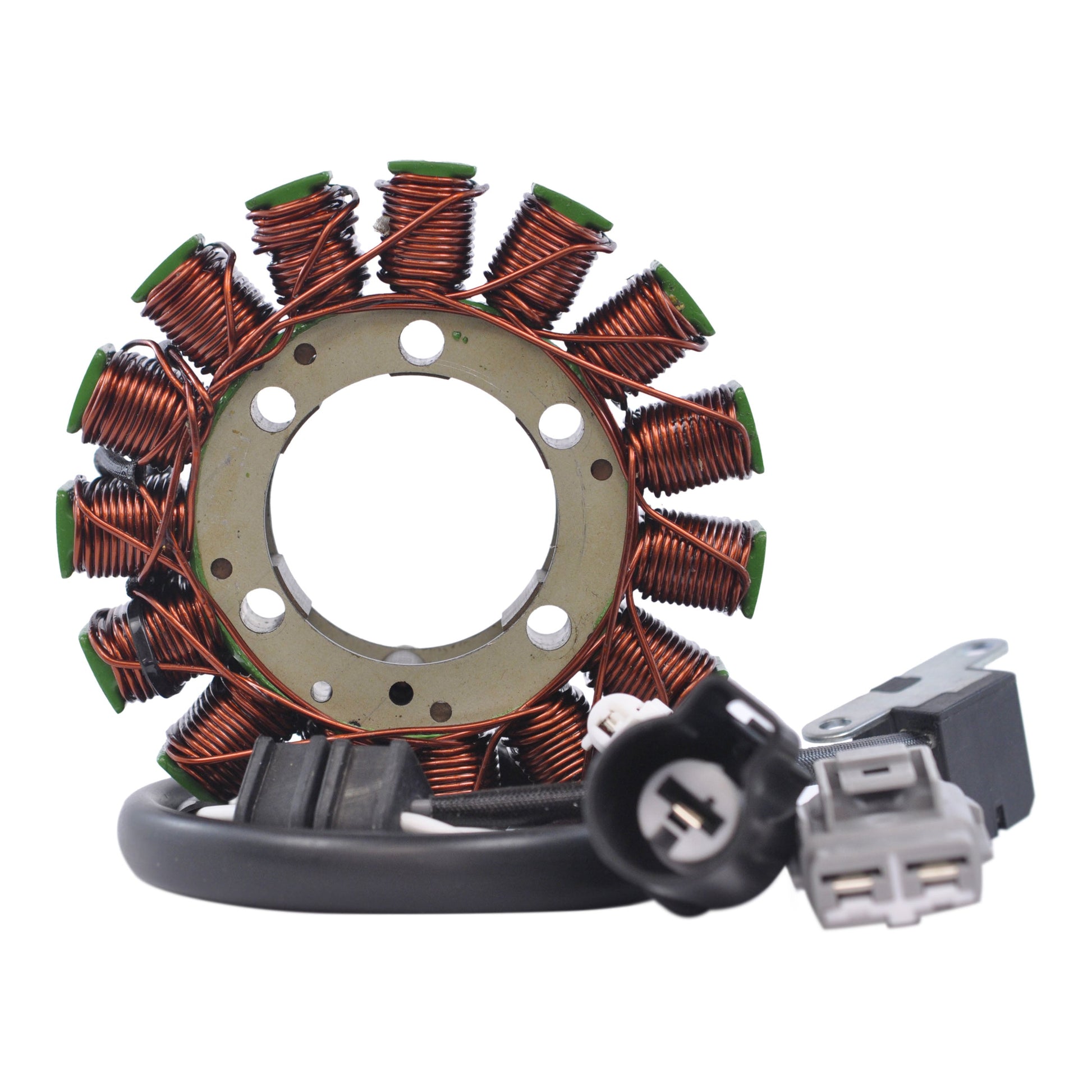

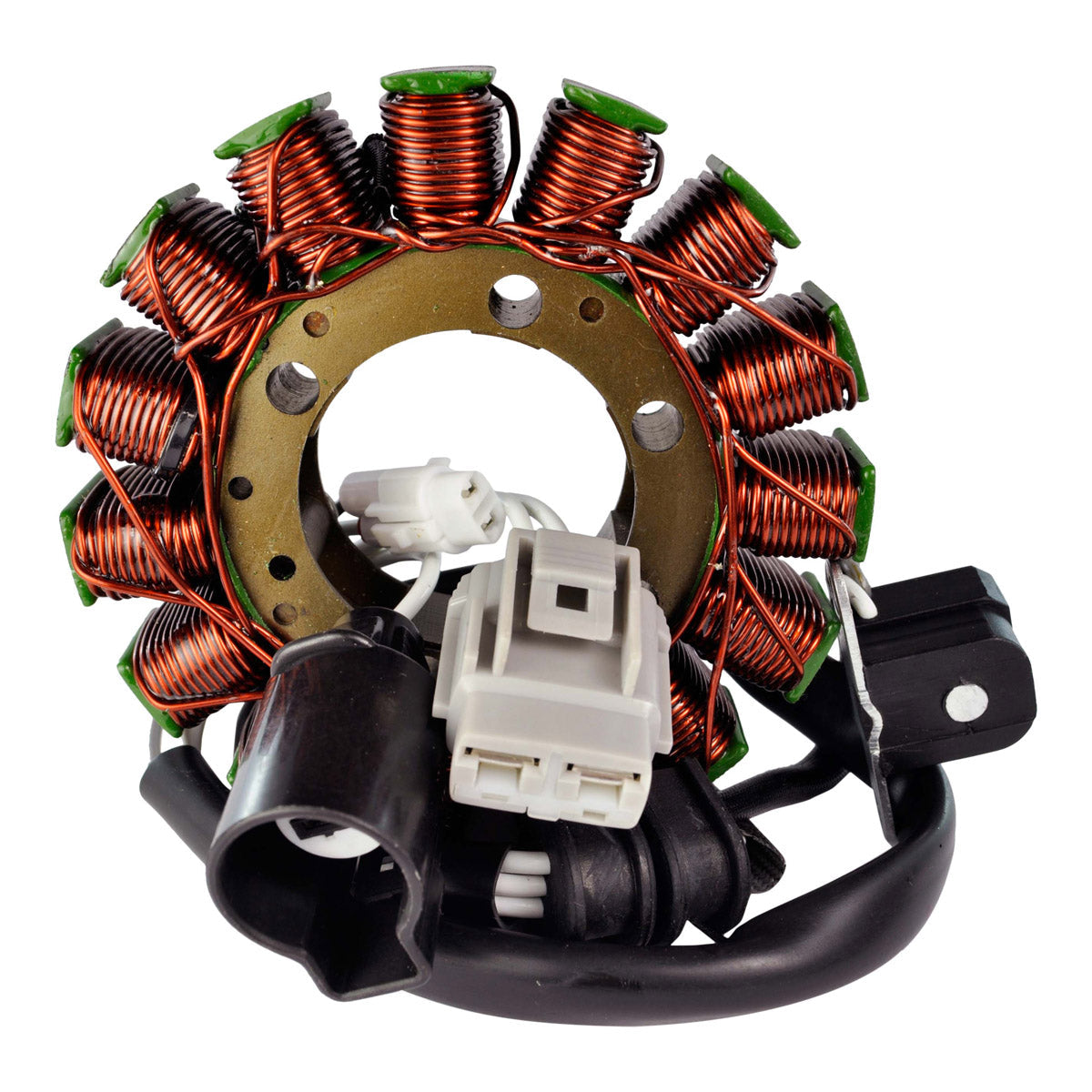

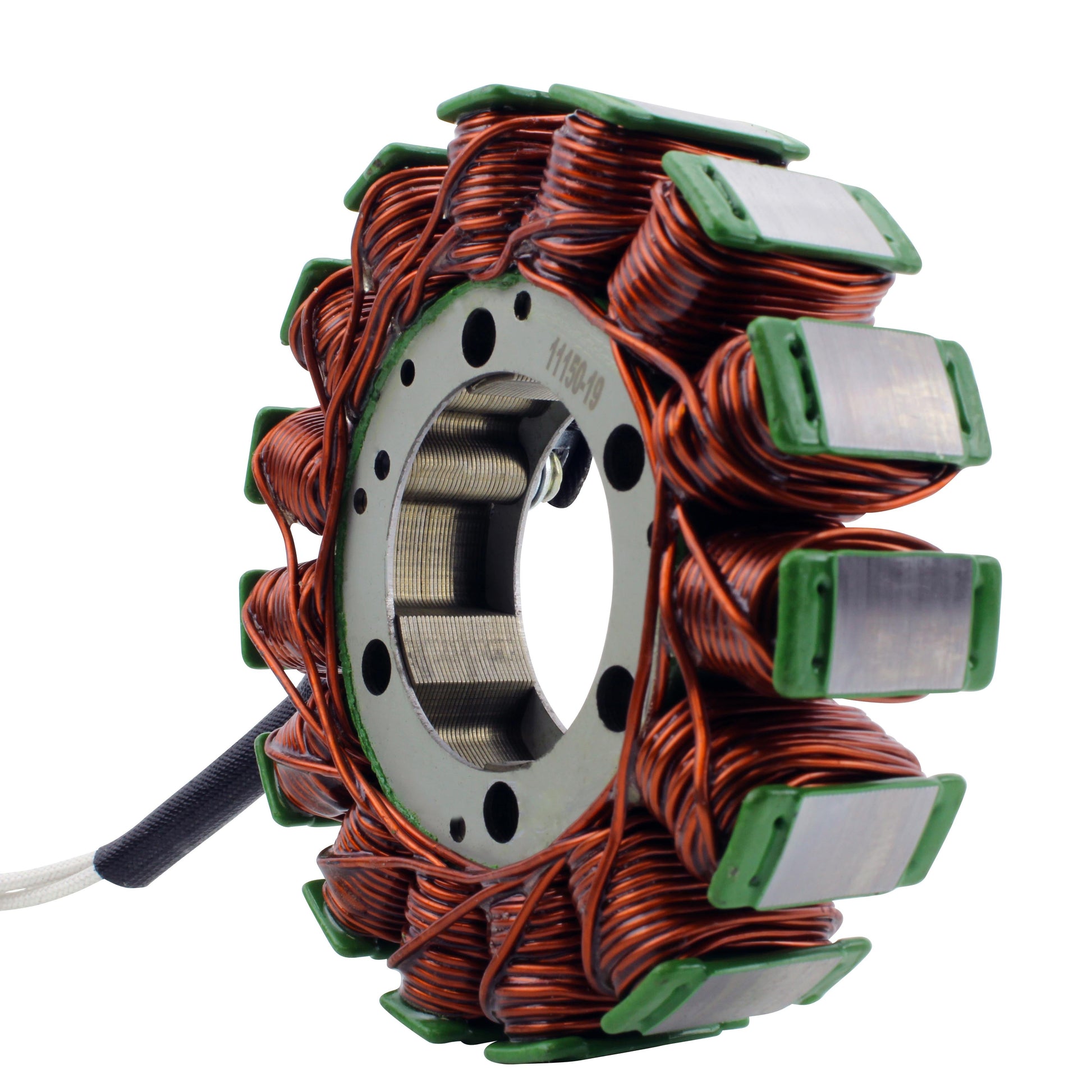

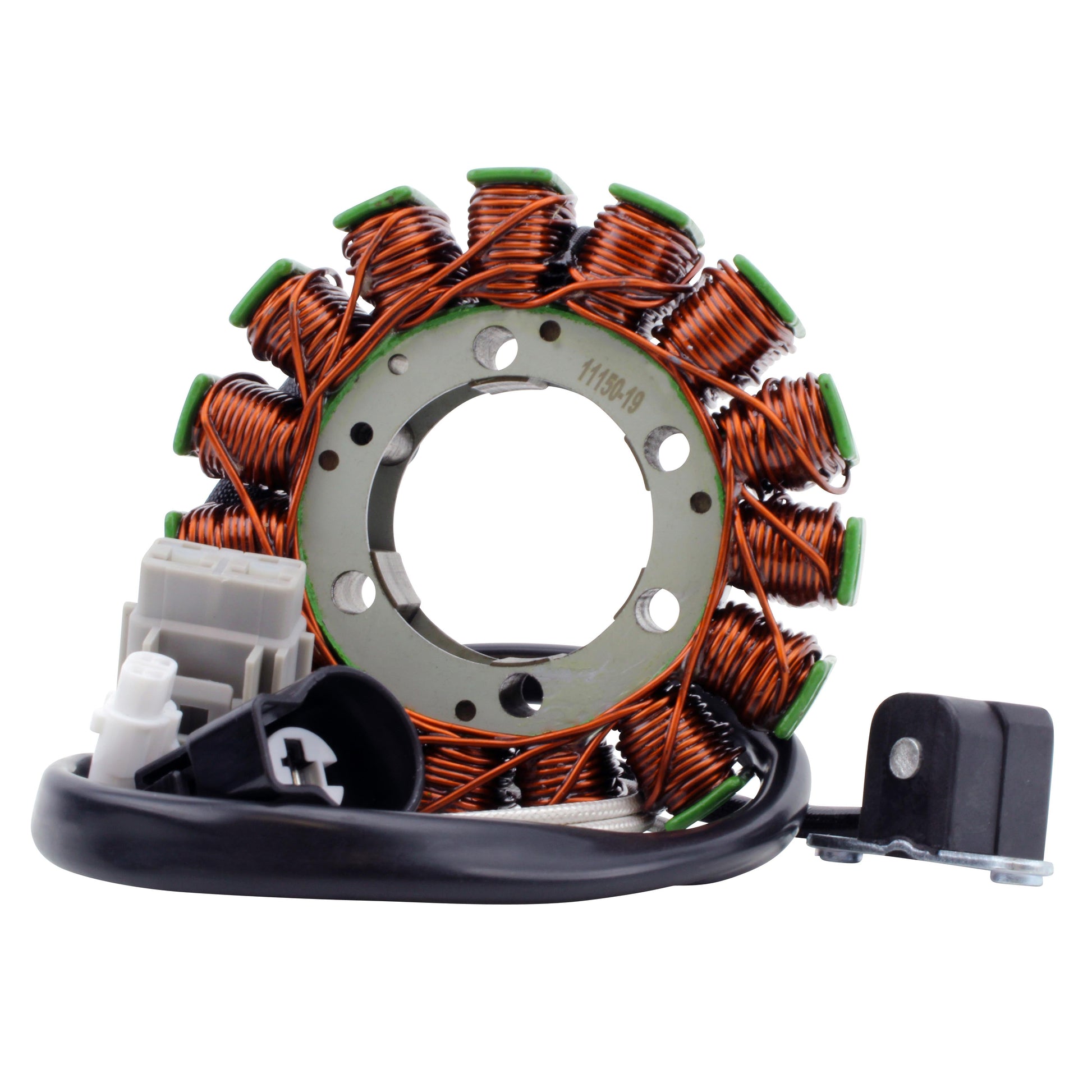

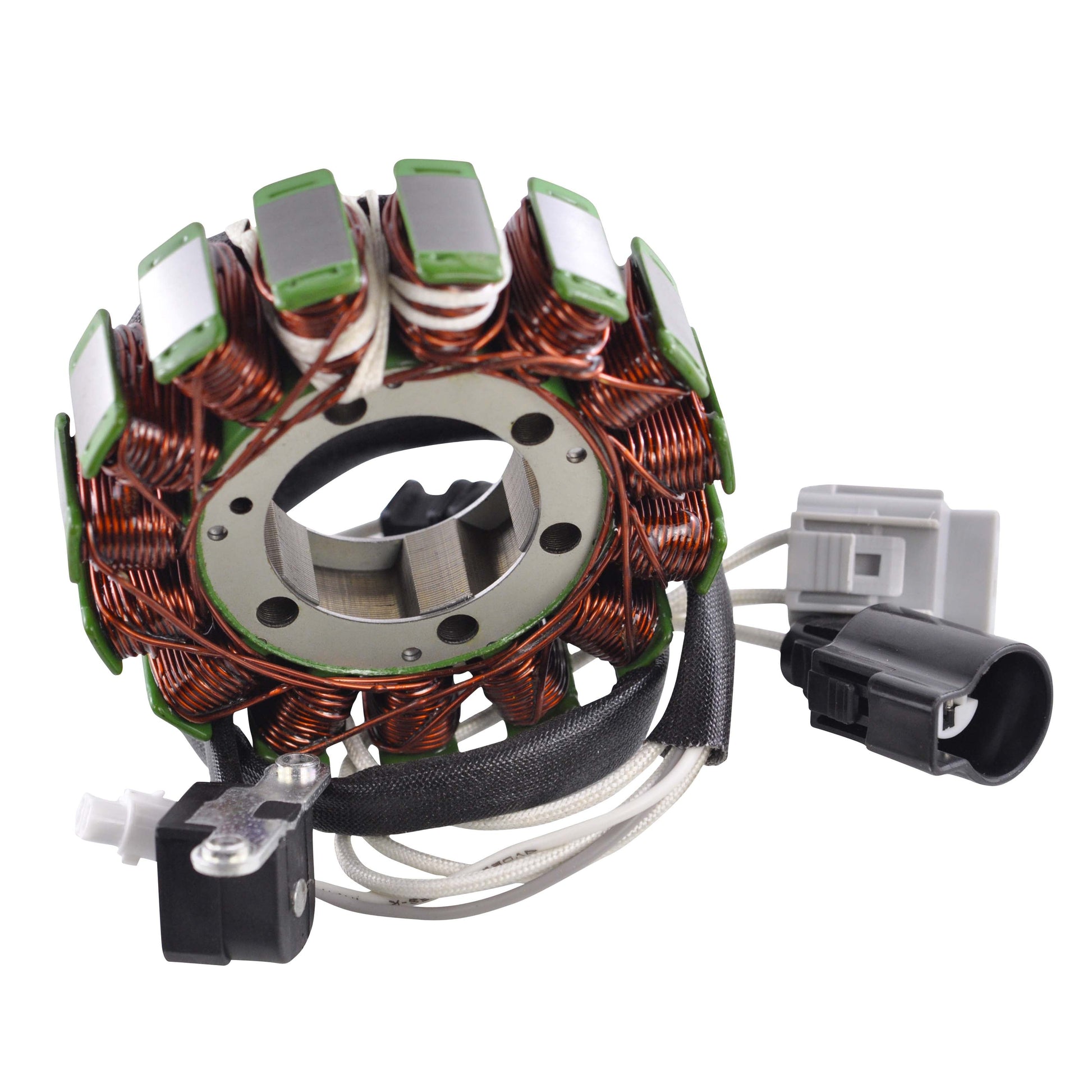

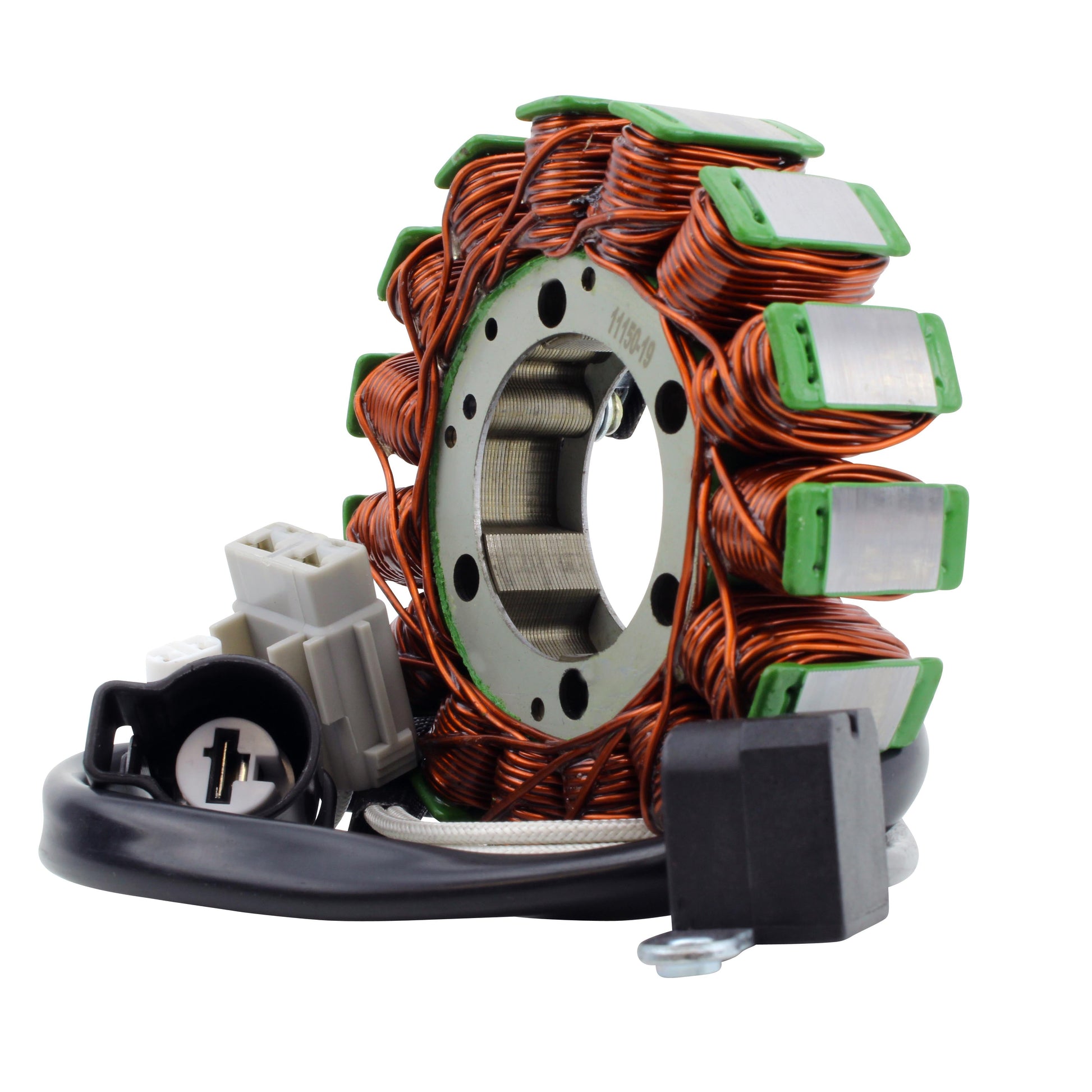

This is a brand new generator stator for the Yamaha YXR700 Rhino, YXM700 and YXC700 Viking VI built between 2008 and 2026, supplied as RMSTATOR part RM01191. It is a direct replacement for your original unit, so it uses the factory mounting points and the supplied connector plugs into the existing harness. No cutting, splicing or drilling is required.

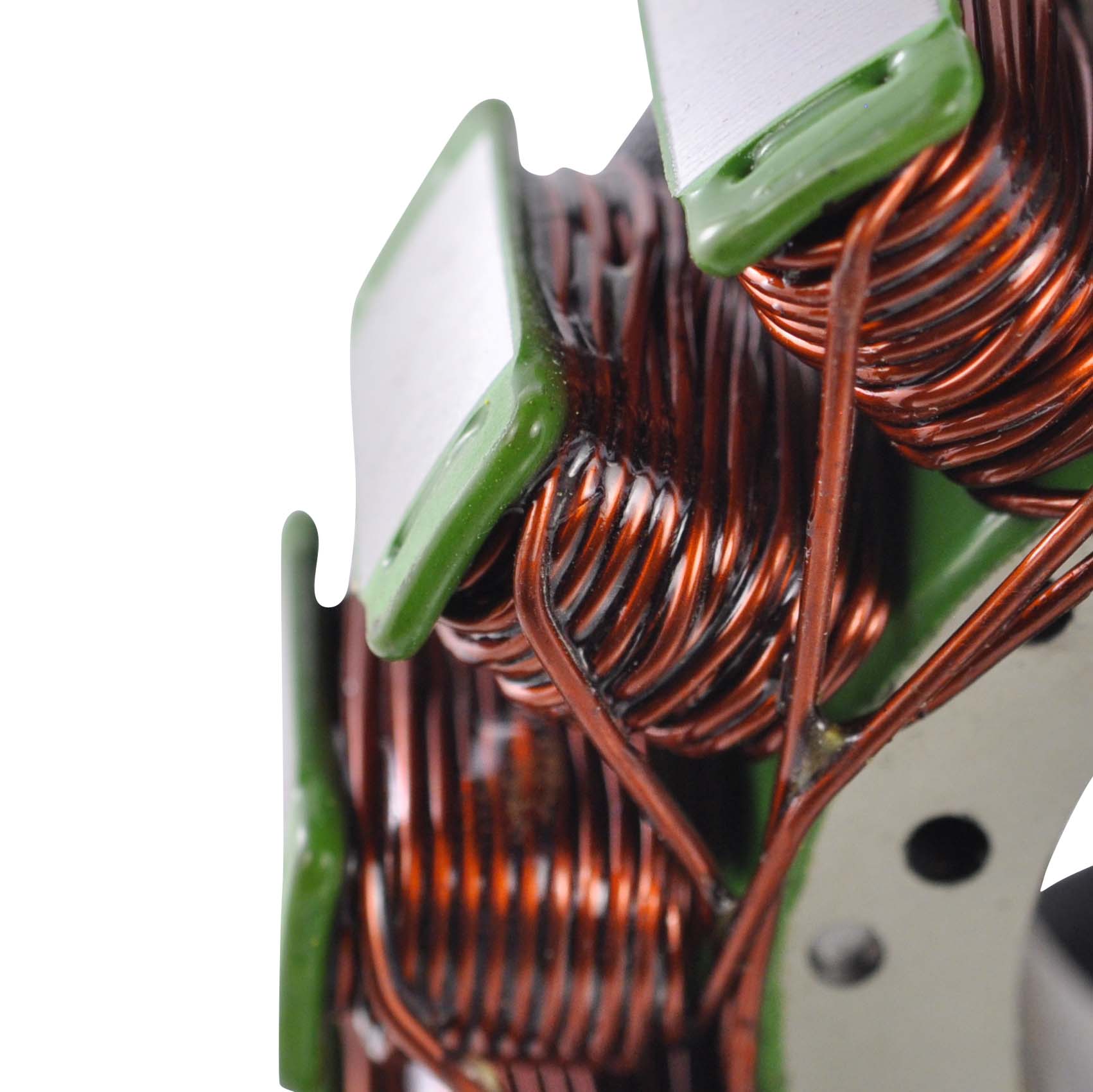

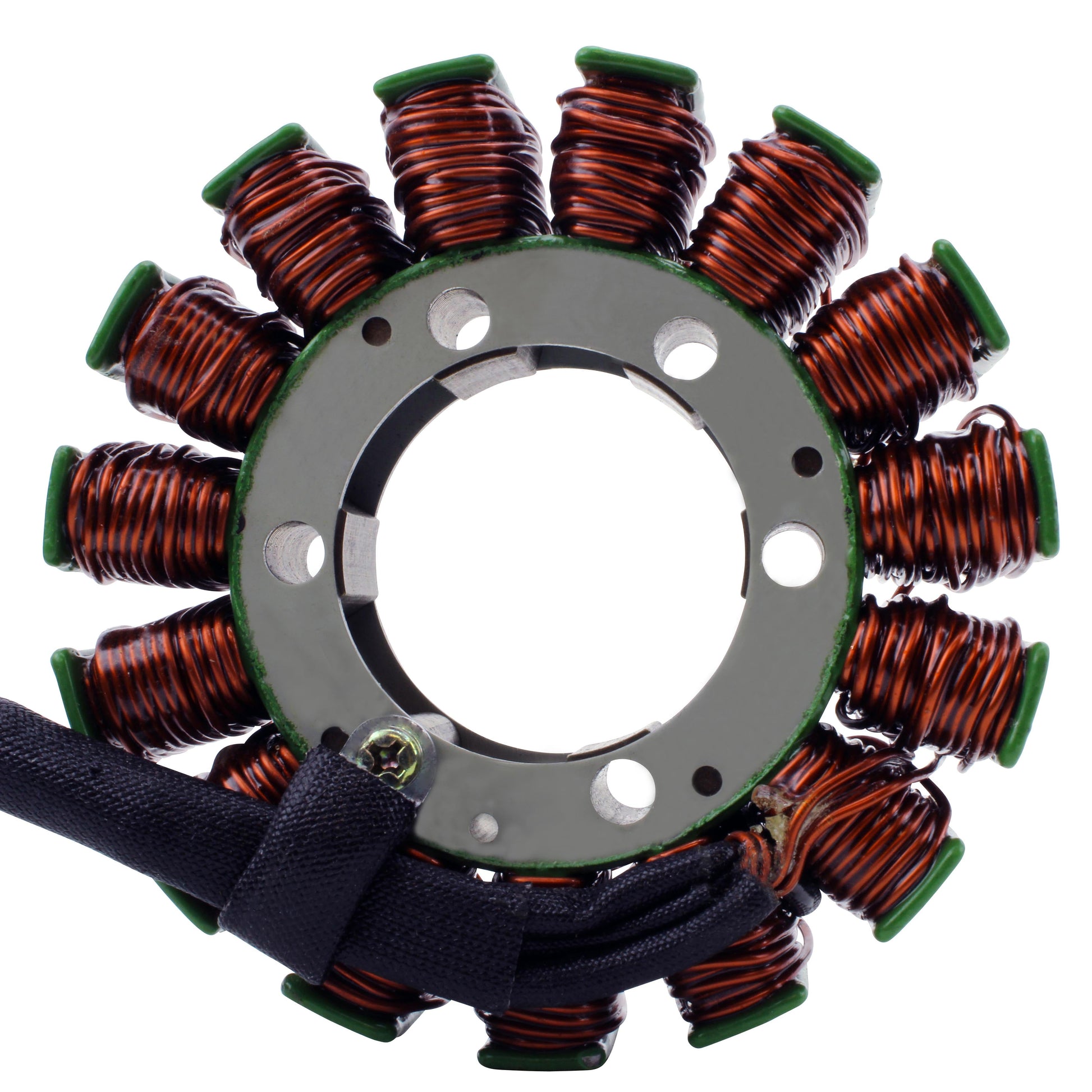

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, rated to resist 200 degrees Celsius. The pick-up pulsar coil is supplied with the stator, along with the connector and the rubber grommet, so the assembly goes in complete. Every unit is tested before it is shipped.
Key Features
- Brand new stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

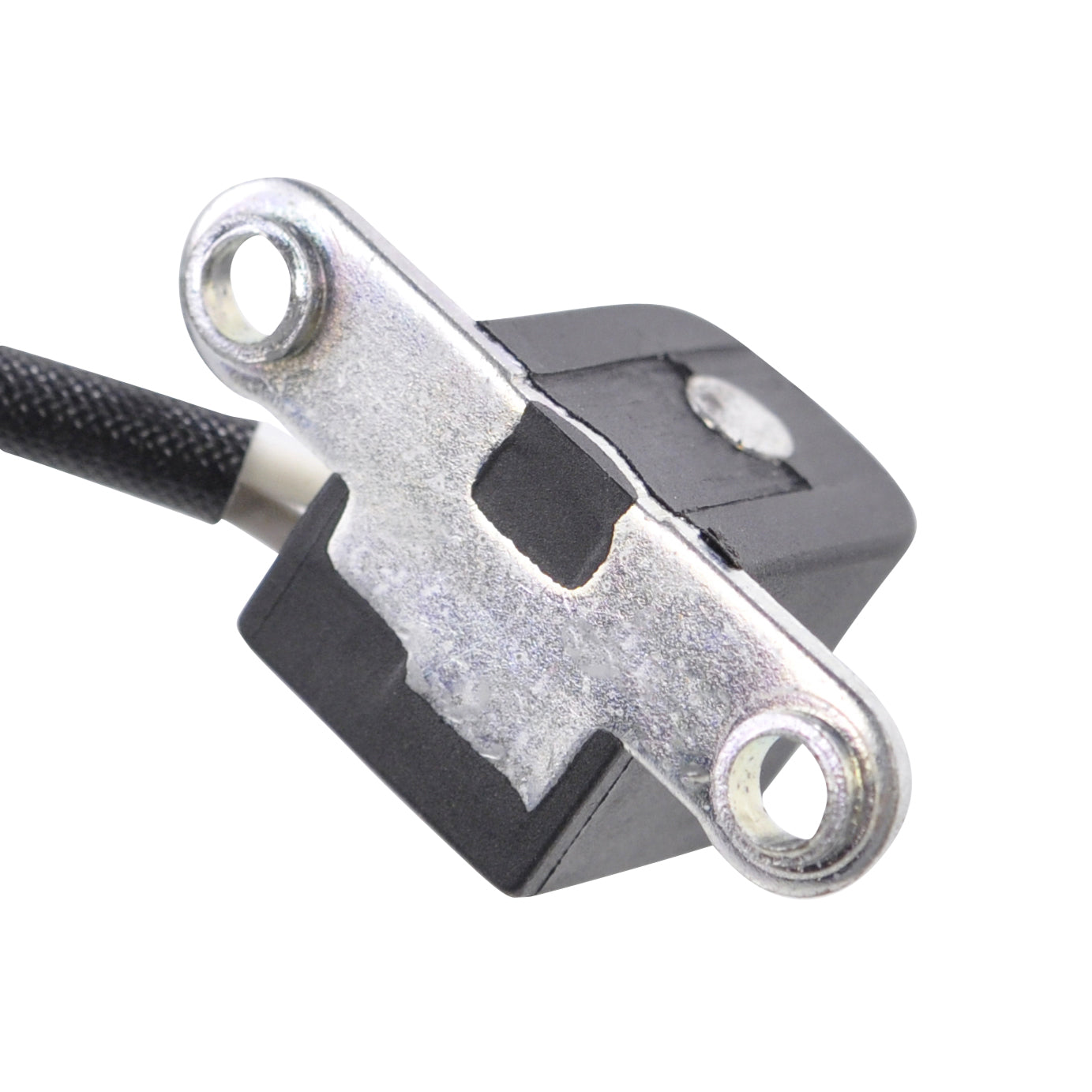

- Pick-up pulsar coil included

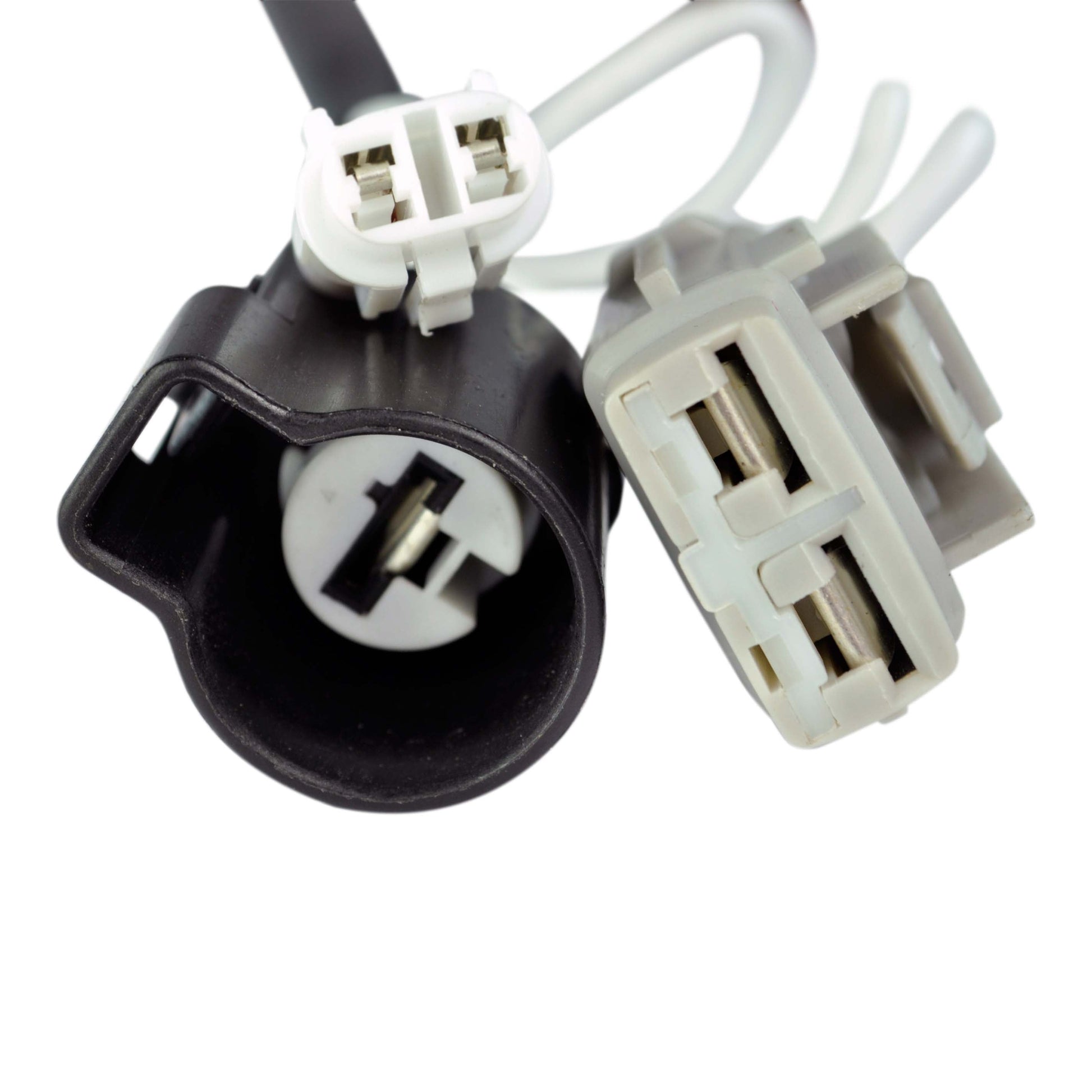

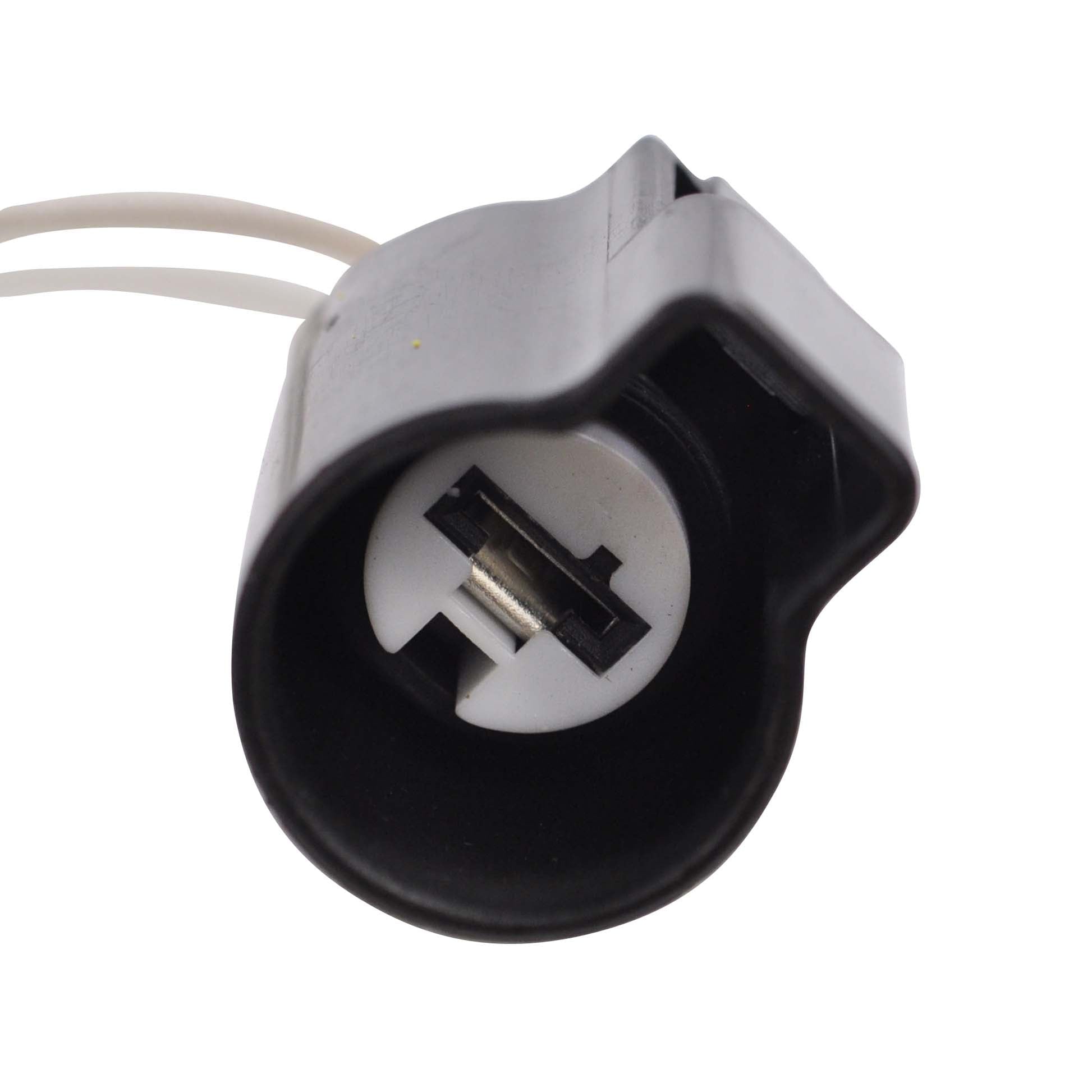

- Connector included
- Rubber grommet included
- All units are tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
41 mm |
| Exterior diameter |
105 mm |
| Thickness |
19 mm |
| Length of wires, stator to grommet |
65 mm |
| Length of wires, grommet to plug |
400 mm |
| Length of pick-up coil wire to grommet |
65 mm |
| Number of wires |
5 |
| Number of plugs |
3 |
| Number of pins |
5 |
| Alternator resistance, white to white |
0.4 ohms plus or minus 20% |
| Pick-up coil resistance, white to grey |
500 ohms plus or minus 20% |
| Copper winding temperature rating |
200 degrees Celsius |
| Part number |
RM01191 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YXR700 Rhino |
2008-2026 |
| Yamaha YXM700 |
2008-2026 |
| Yamaha YXC700 Viking VI |
2008-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1XD-81410-00-00 |
Yamaha |
| 5B4-81410-00-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit and matches it at 41 mm interior diameter, 105 mm exterior diameter and 19 mm thickness, with the connector supplied, so no cutting, splicing or drilling is needed.
What is included?
The generator stator, the pick-up pulsar coil, the connector and the rubber grommet.
How can I tell my old stator has failed?
Check it with a multimeter against the figures above. The alternator windings should read 0.4 ohms plus or minus 20% white to white, and the pick-up coil should read 500 ohms plus or minus 20% white to grey. Readings well outside those values, or continuity between a winding and the stator body, indicate a failed unit.
Do I need to buy the pick-up pulsar coil separately?
No. The pick-up pulsar coil is supplied with this stator, as is the rubber grommet, so the assembly can be fitted complete.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
