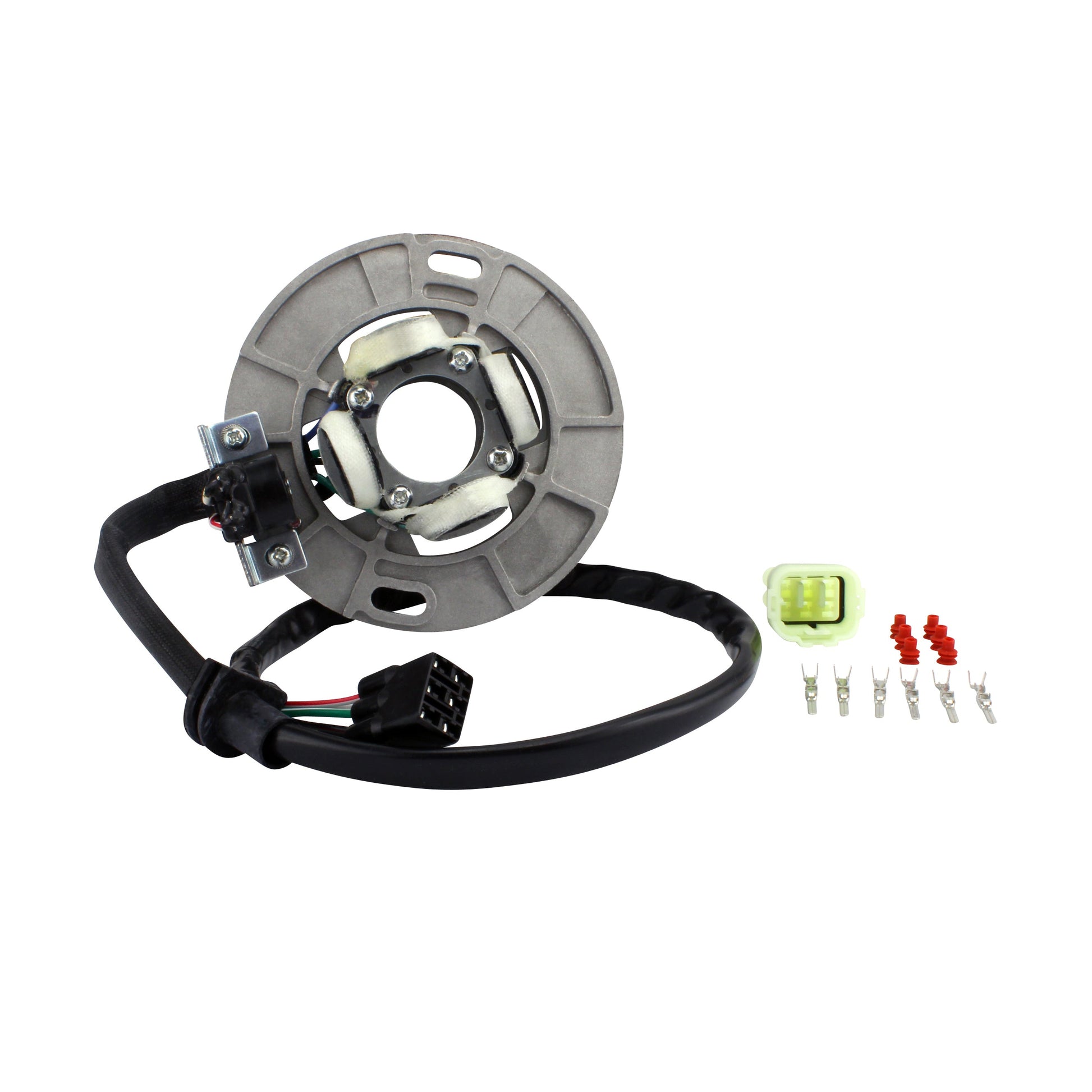

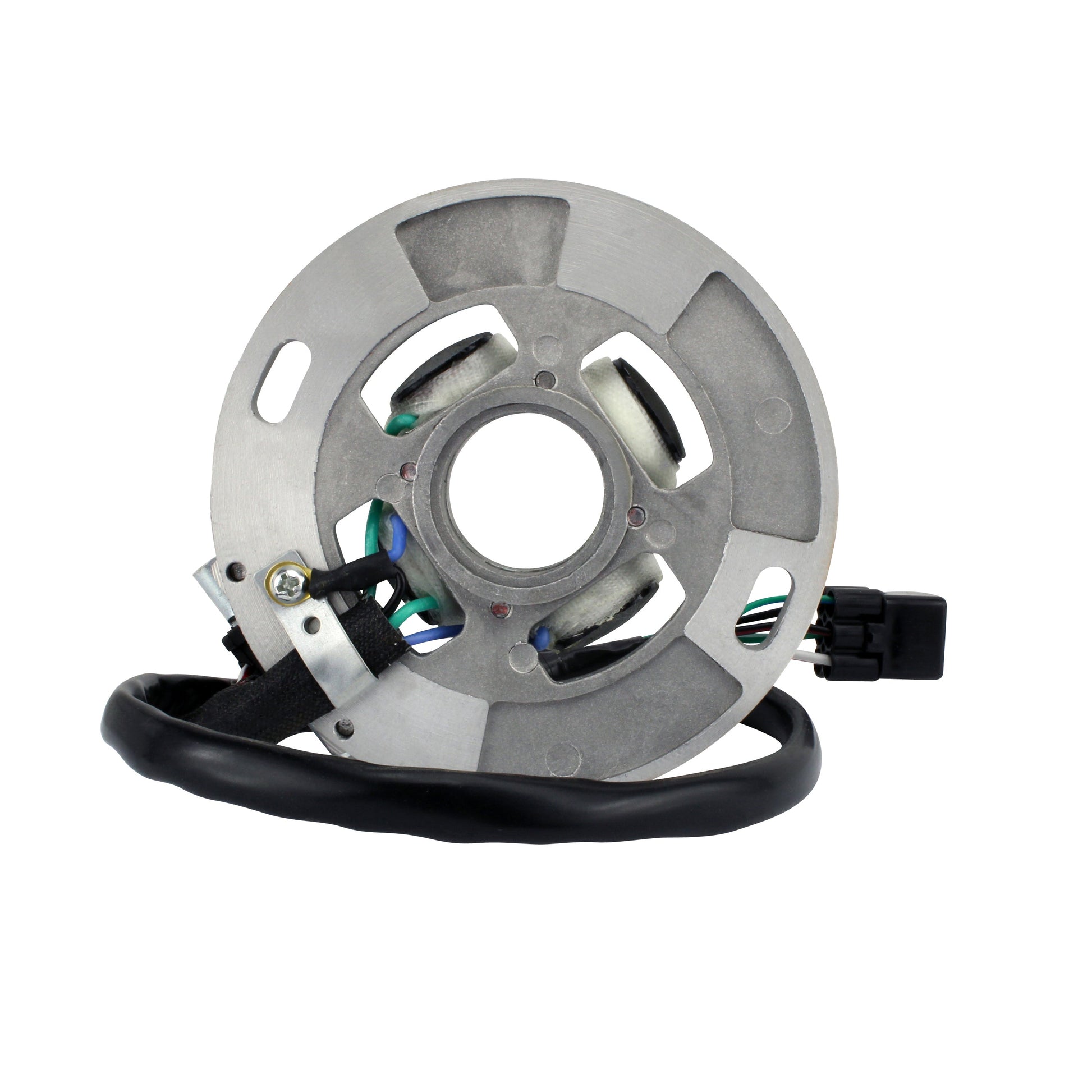

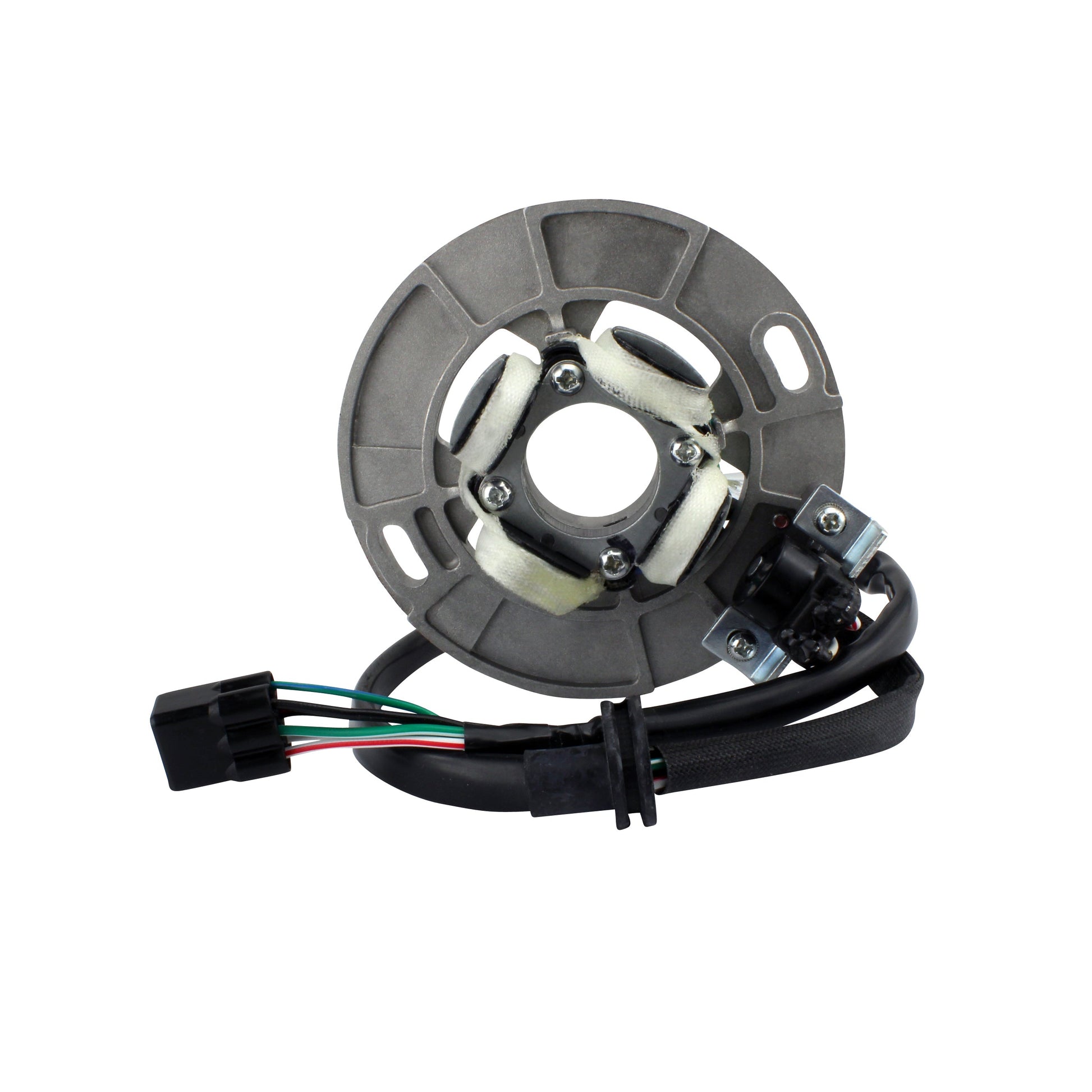

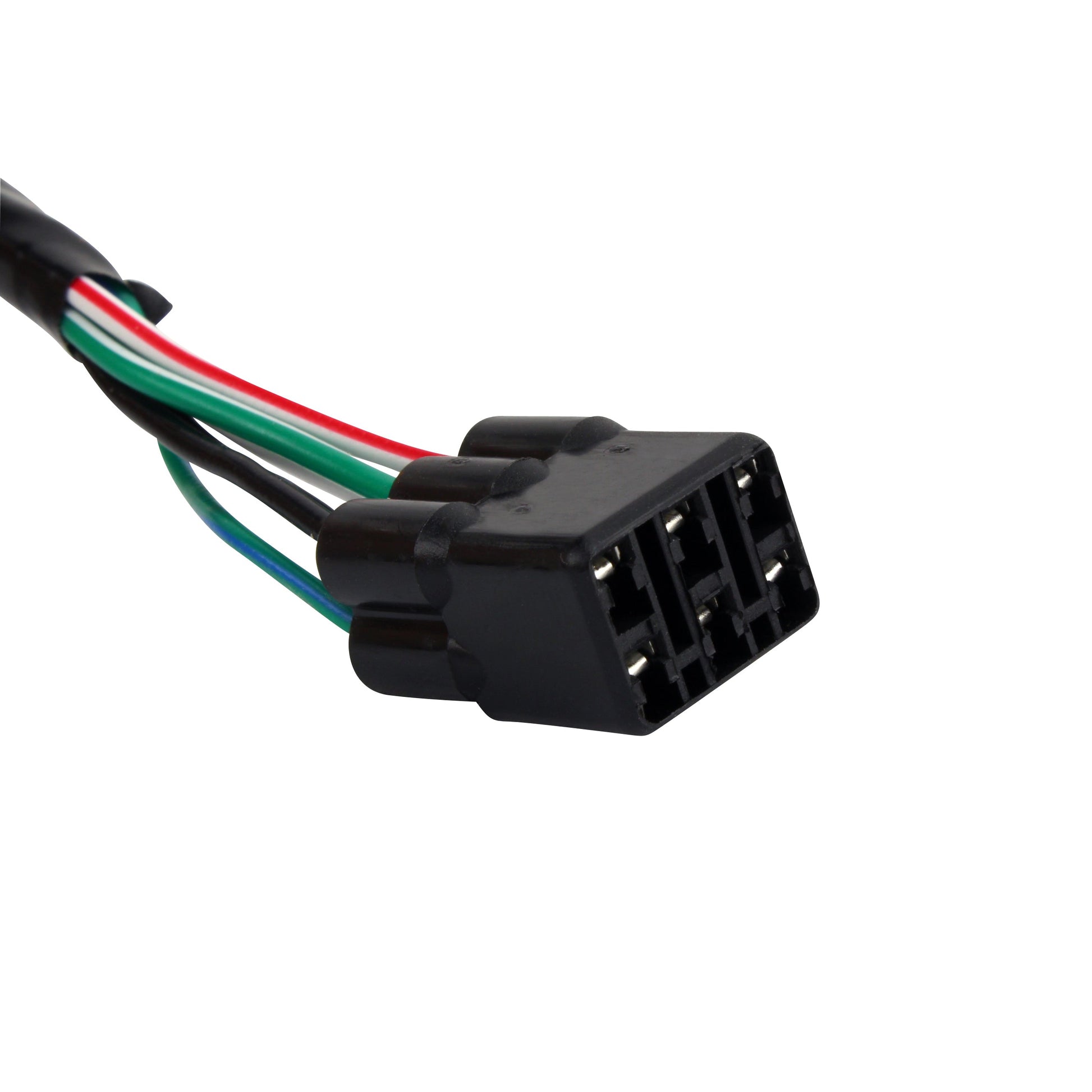

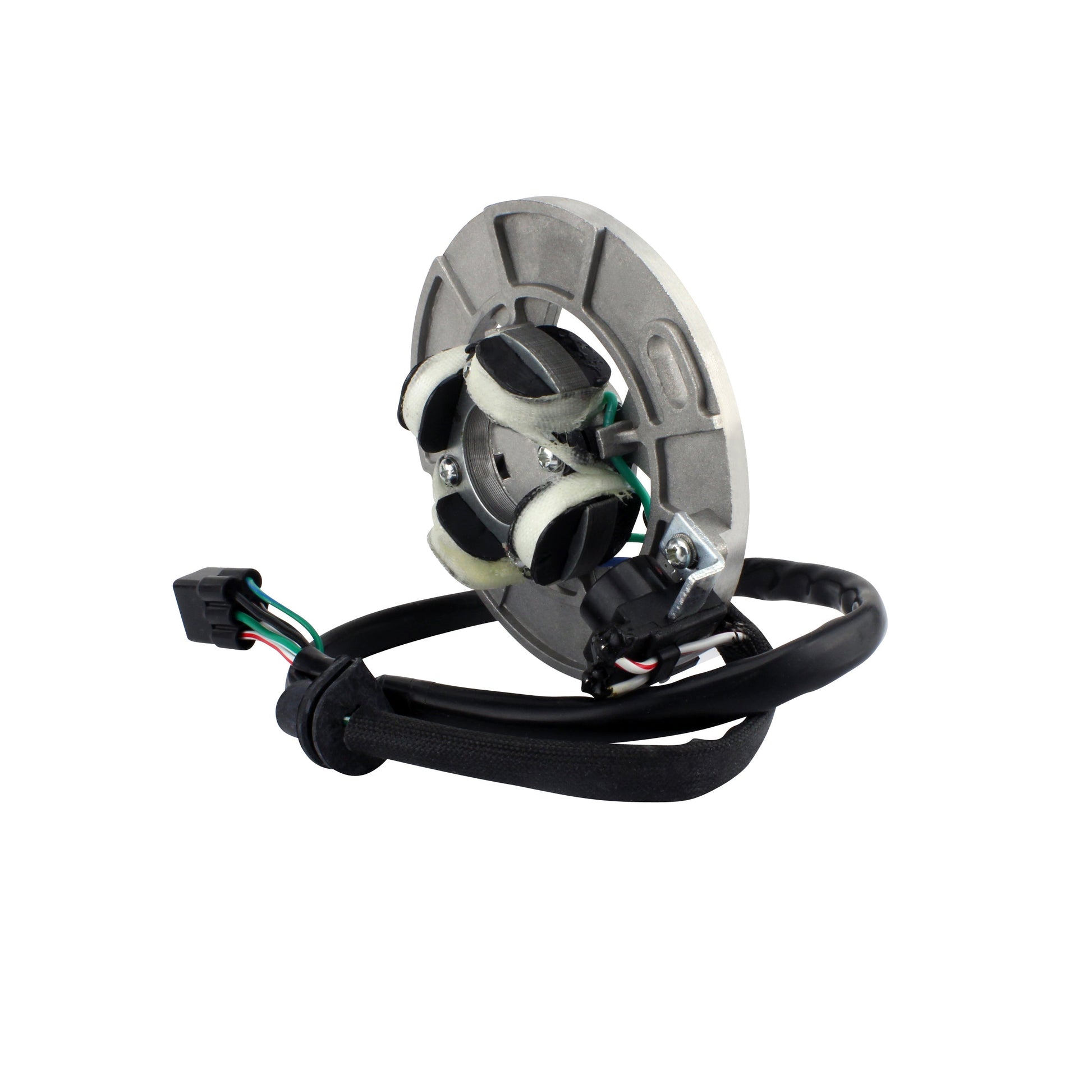

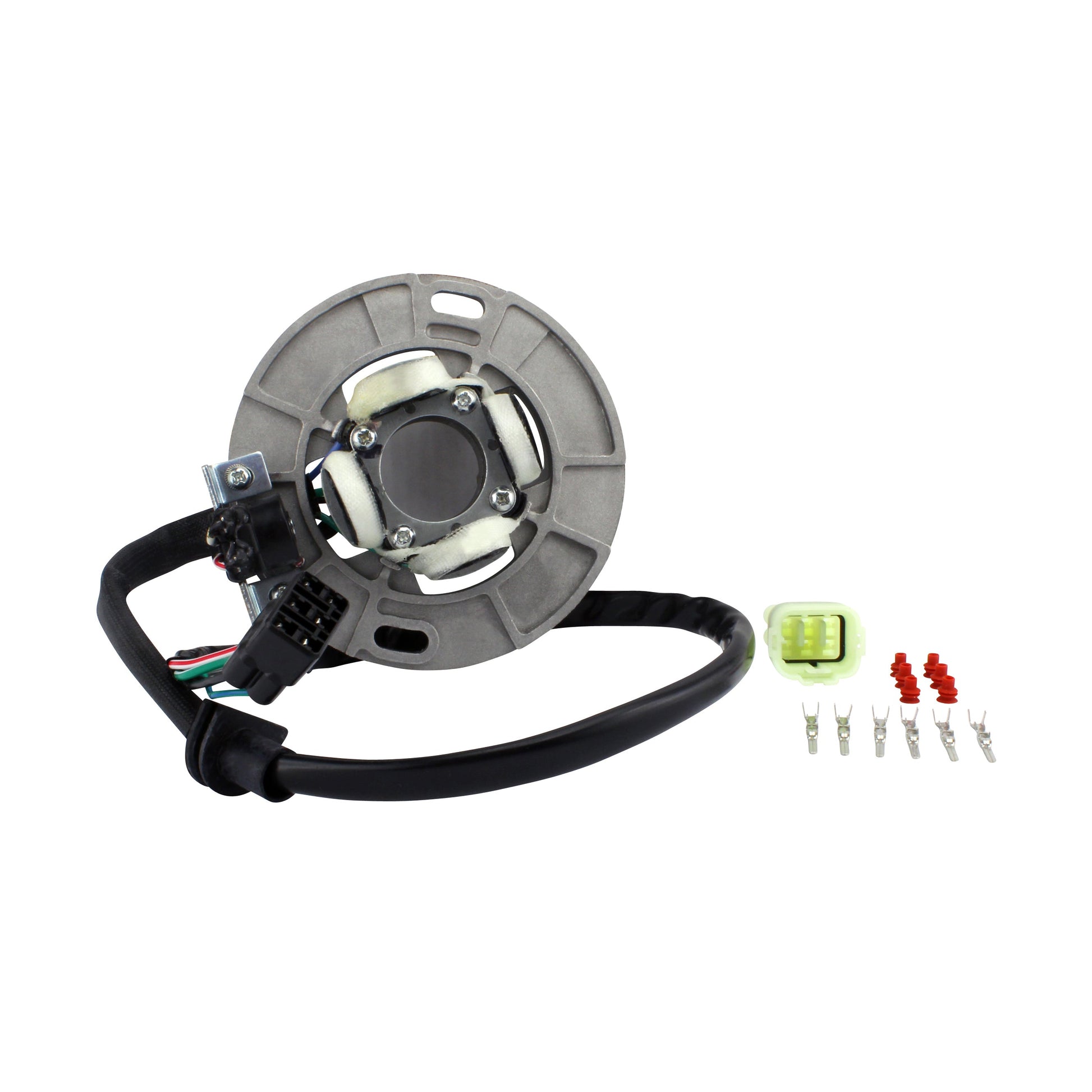

Brand new aftermarket stator, built as a direct replacement for your original unit. It is a plug-and-play, direct fit part with easy installation, and every unit is tested before it is shipped. The pickup pulsar coil, connectors, rubber grommet and back plate are all supplied with the stator, along with the opposite connector for the main harness side - harness connectors are often melted, corroded or defective and cause faults of their own.

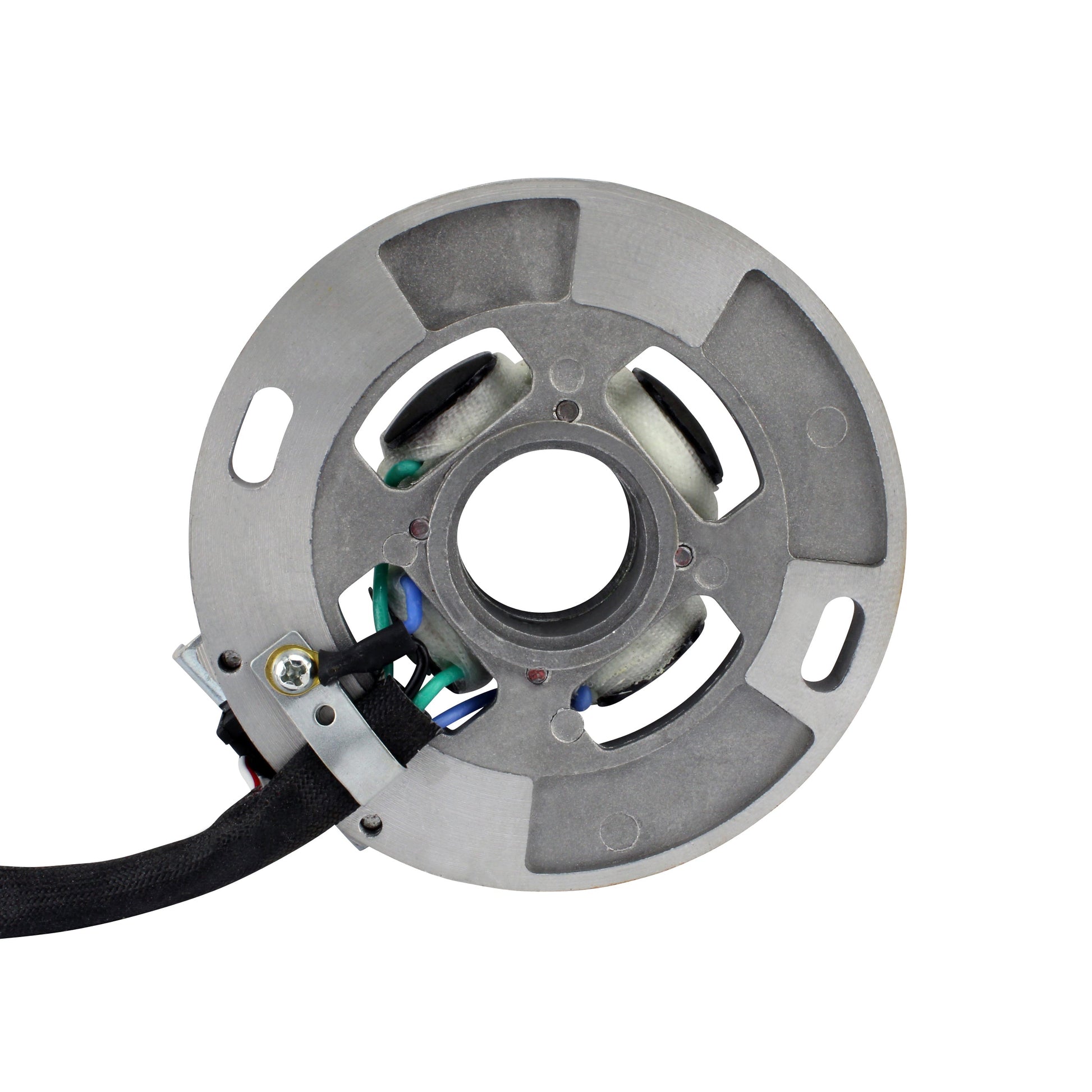

The stator is wound with the highest grade of copper winding, rated to 200 degrees Celsius, on the highest grade of lamination materials. It measures 109 mm on the exterior diameter and 27 mm on the interior diameter, is 32.6 mm thick and carries 4 poles across 6 wires into a single 6-pin plug. Pickup resistance reads 293 ohms plus or minus 20 per cent white/blue to white/red, with source coil readings of 858 ohms green/white to black/red and 53 ohms black to green/blue, each plus or minus 20 per cent.
Key Features
- Brand new aftermarket stator - not a remanufactured core
- Direct replacement to your original unit, plug-and-play and direct fit
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

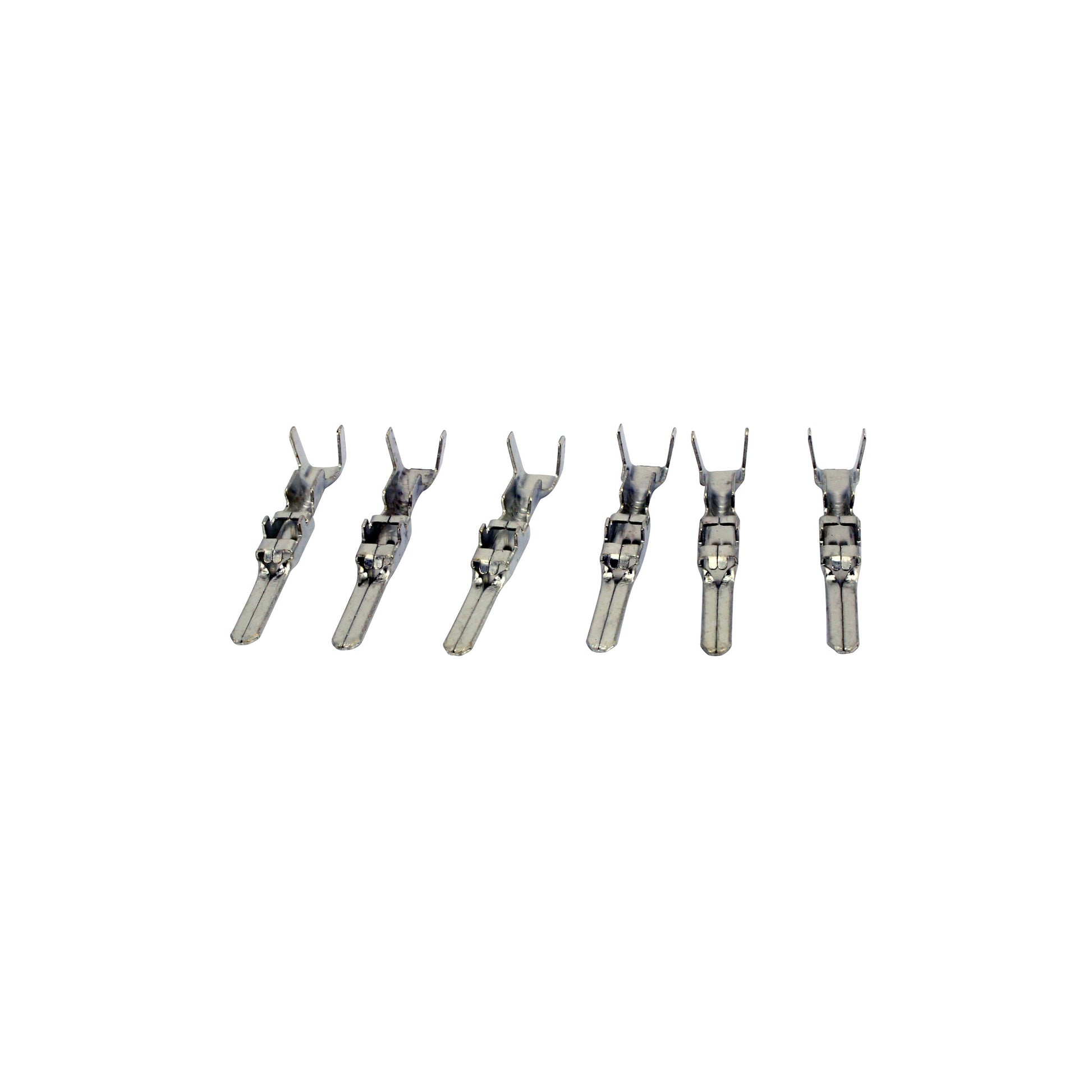

- Pickup pulsar coil, connectors, rubber grommet and back plate included

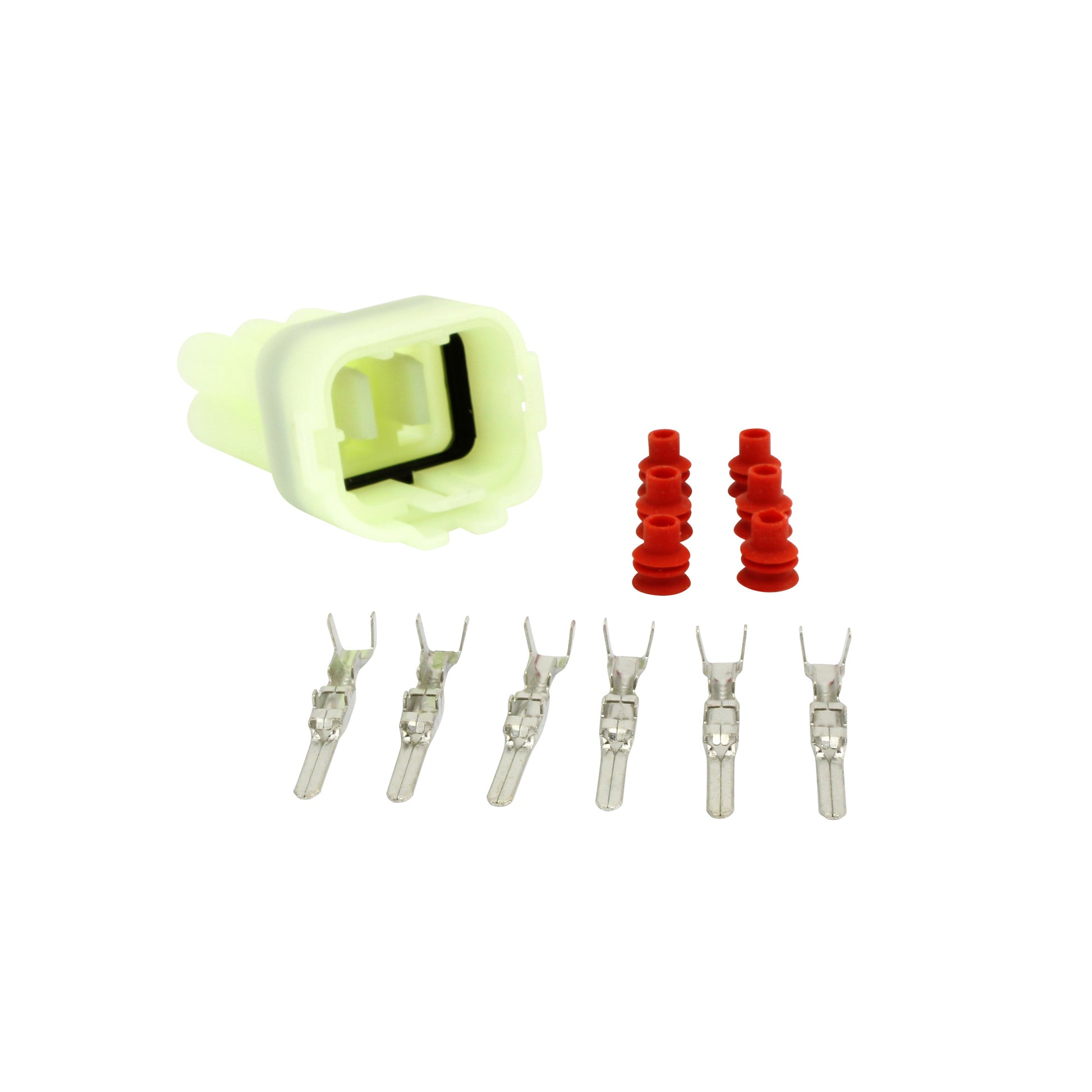

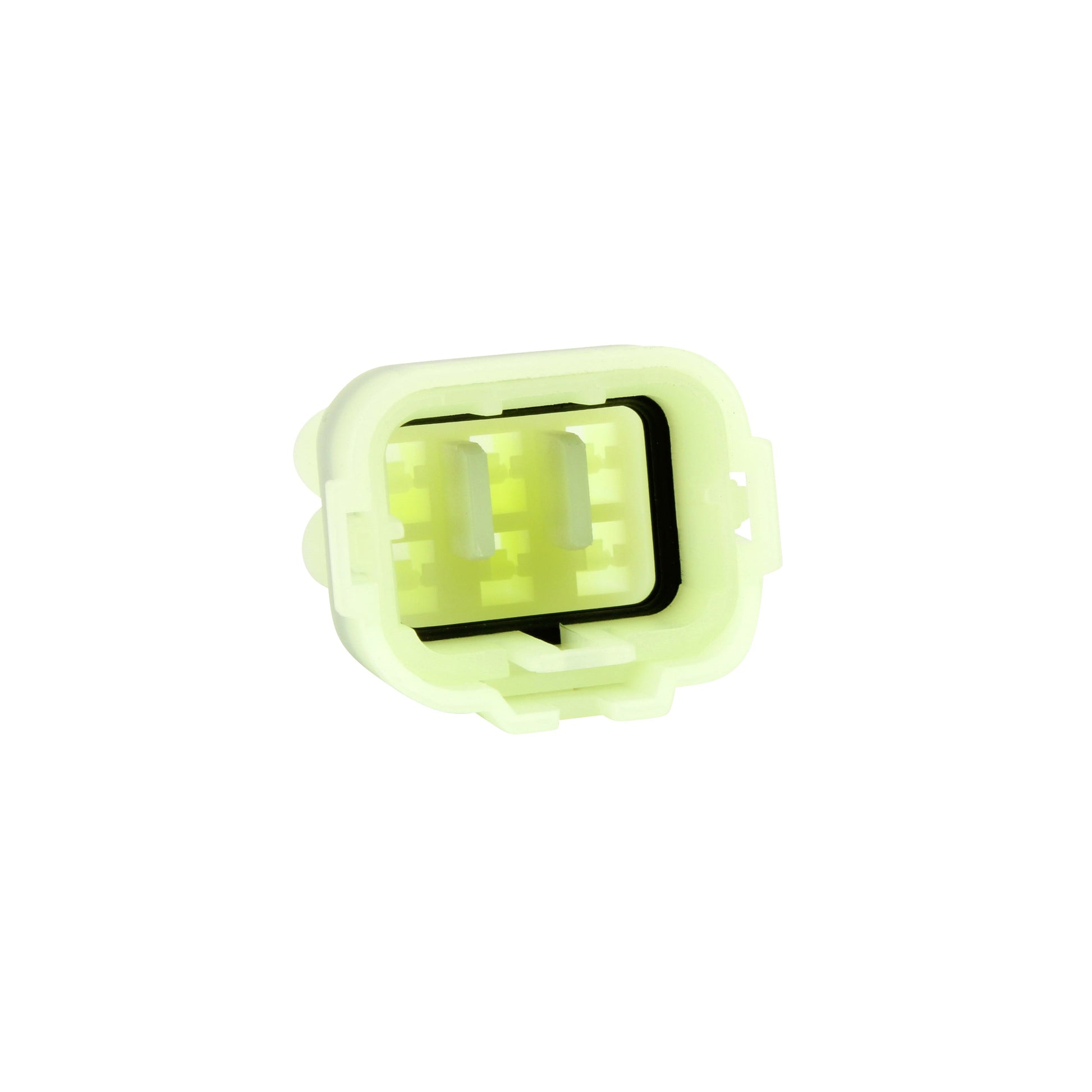

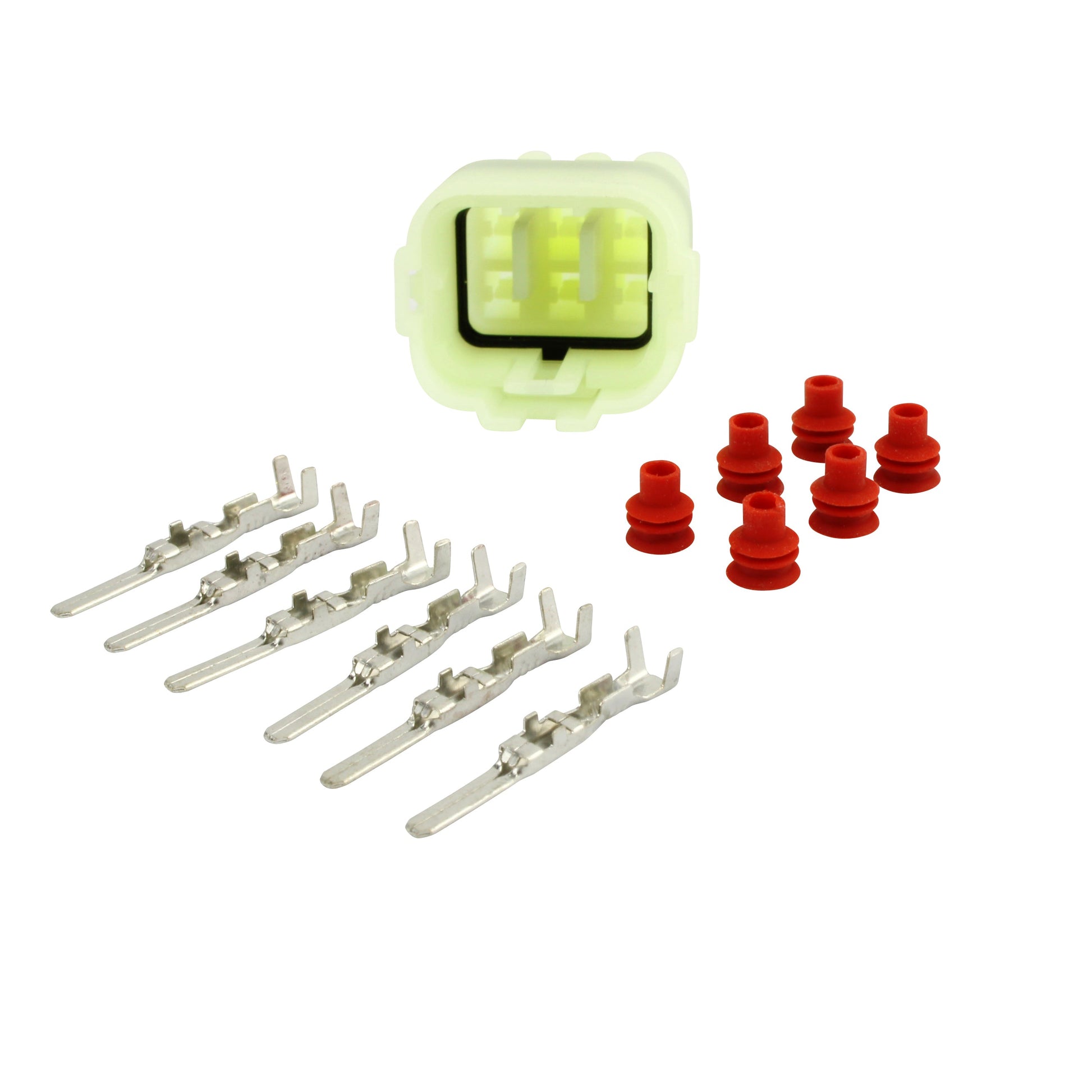

- Opposite connector for the main harness side supplied
- All products shipped are tested
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS010-108281 |
| Component |
Stator |
| Interior diameter |
27 mm |
| Exterior diameter |
109 mm |
| Thickness |
32.6 mm |
| Wire length (stator to grommet) |
135 mm |
| Wire length (grommet to plug) |
410 mm |
| Pickup coil wire length |
135 mm |
| Number of wires |
6 |
| Number of plugs |
1 |
| Number of pins |
6 |
| Number of poles |
4 |
| Pickup resistance |
White/Blue to White/Red = 293 ohms +/-20% |
| Source resistance |
Green/White to Black/Red = 858 ohms +/-20% |
| Source resistance |
Black to Green/Blue = 53 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YZ 65 |
2002-2025 |
| Yamaha YZ 85 |
2002-2025 |
| Yamaha M85YZ |
2002-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5PA-85560-00-00 |
Yamaha |
| 5PA-85560-01-00 |
Yamaha |
| 5PA-85560-03-00 |
Yamaha |
Frequently Asked Questions
Does it fit without modification?
Yes. On the models listed above it is a plug-and-play direct fit that replaces the original stator with no wiring changes or modification.
What is included?
The stator assembly, the pickup pulsar coil, the connectors including the opposite connector for the main harness side, the rubber grommet and the back plate.
How do I tell the old stator has failed?
Measure the coils cold with a multimeter: pickup white/blue to white/red should read 293 ohms, source green/white to black/red 858 ohms and black to green/blue 53 ohms, each within 20 per cent. Open circuit, shorted or badly out-of-range readings, or continuity from any winding to earth, mean the stator has failed.
Why is the harness connector supplied as well?
Because the connector on the main harness side is often melted, corroded or defective by the time a stator fails, and refitting a new stator into a burnt connector simply repeats the fault. The matching opposite connector is included so both halves can be renewed.
