Generator Stator for Yamaha YZF 600R 1995-2007 - Replaces 4JH-81410-00-00
Generator Stator for Yamaha YZF 600R 1995-2007 - Replaces 4JH-81410-00-00
SKU:RM01562
Free shipping over £150. Terms apply
Couldn't load pickup availability
Generator Stator for Yamaha YZF 600 R - OEM 4JH-81410-00-00 and 4TV Cross References
Yamaha YZF 600 R 1995-2007 - part number RM01562

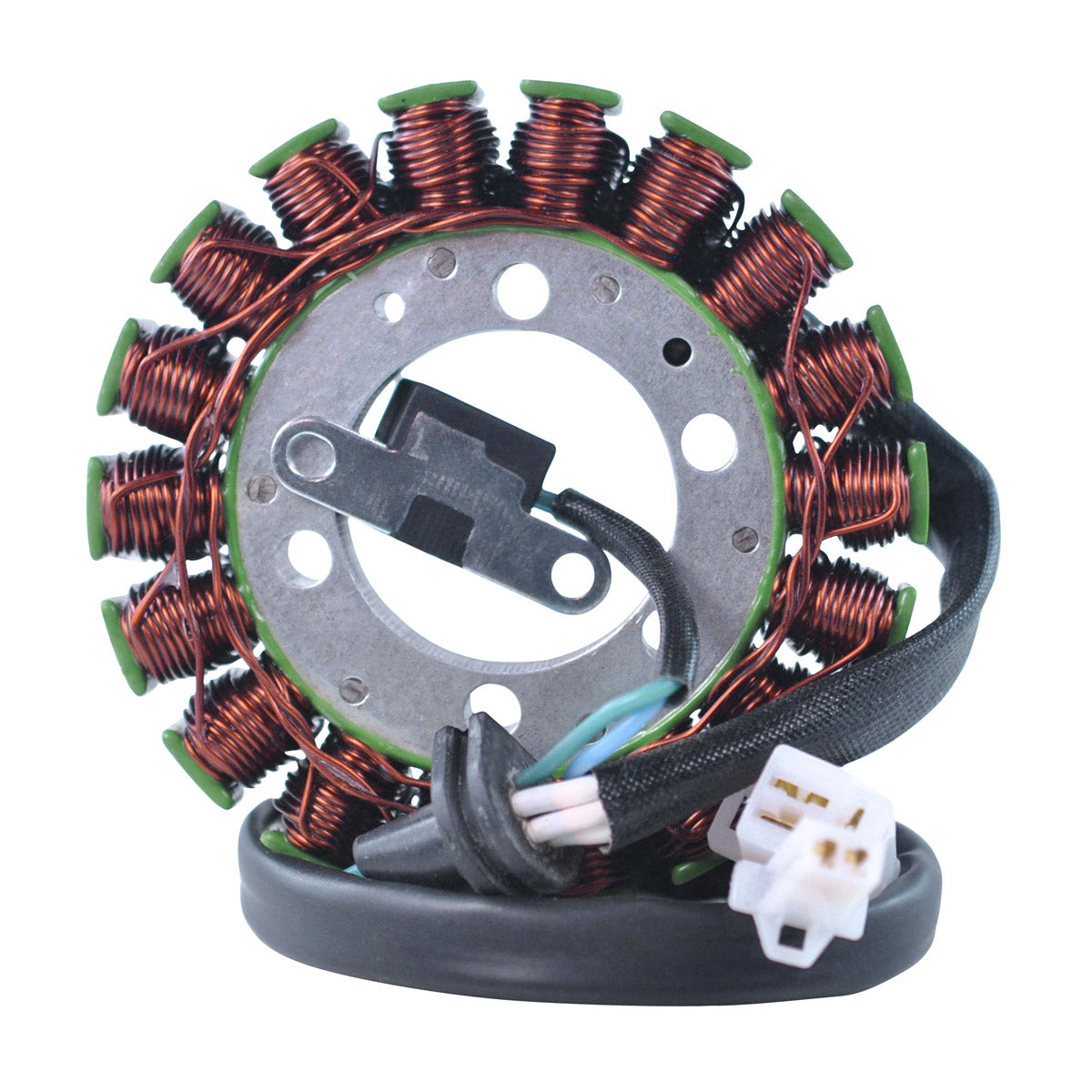

A brand new aftermarket generator stator for the Yamaha YZF 600 R of 1995 to 2007, supplied as a direct replacement for the original unit. It is plug-and-play and a direct fit, mounting on the standard fixings and connecting through the standard plugs, so no rewiring, splicing or modification to the bike is needed.

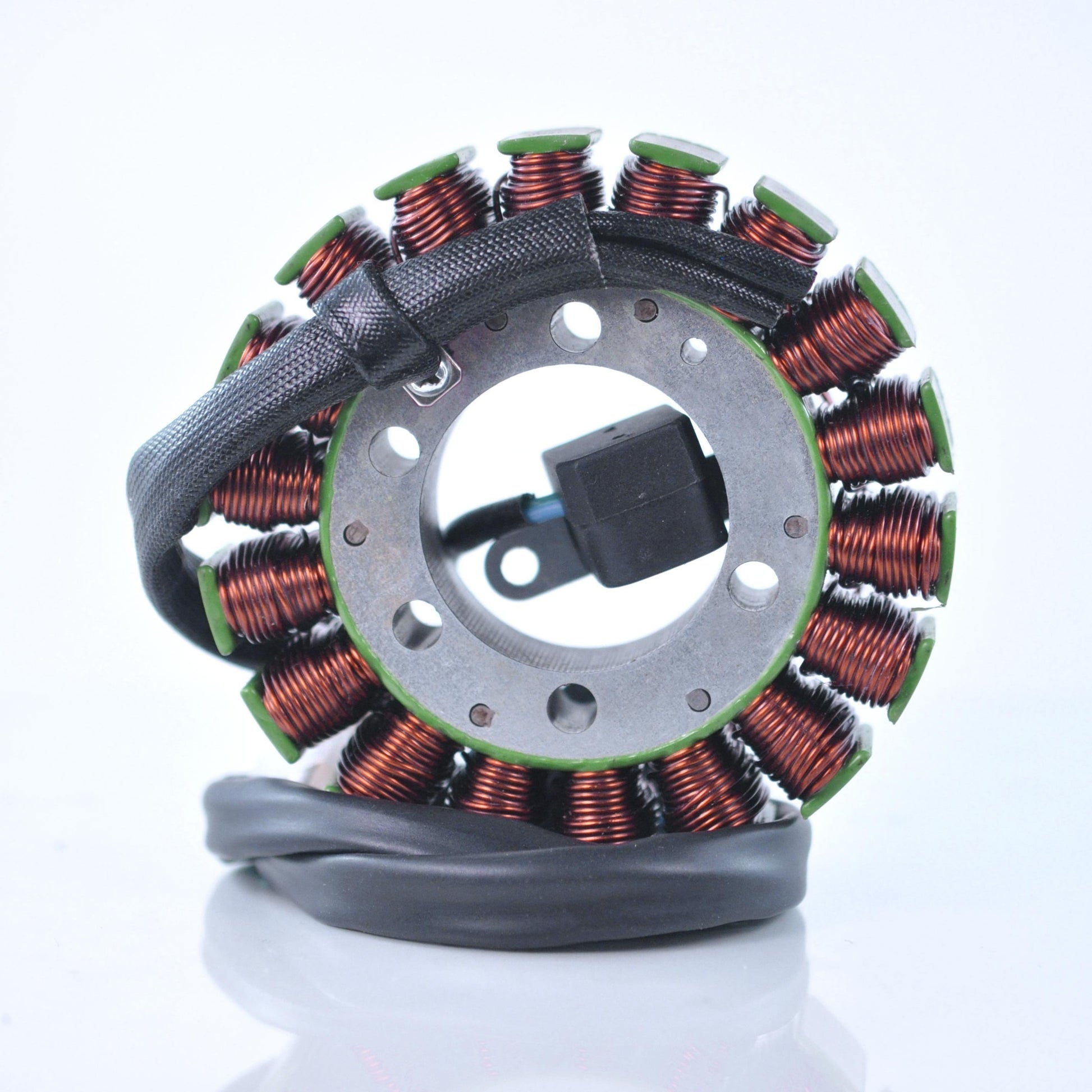

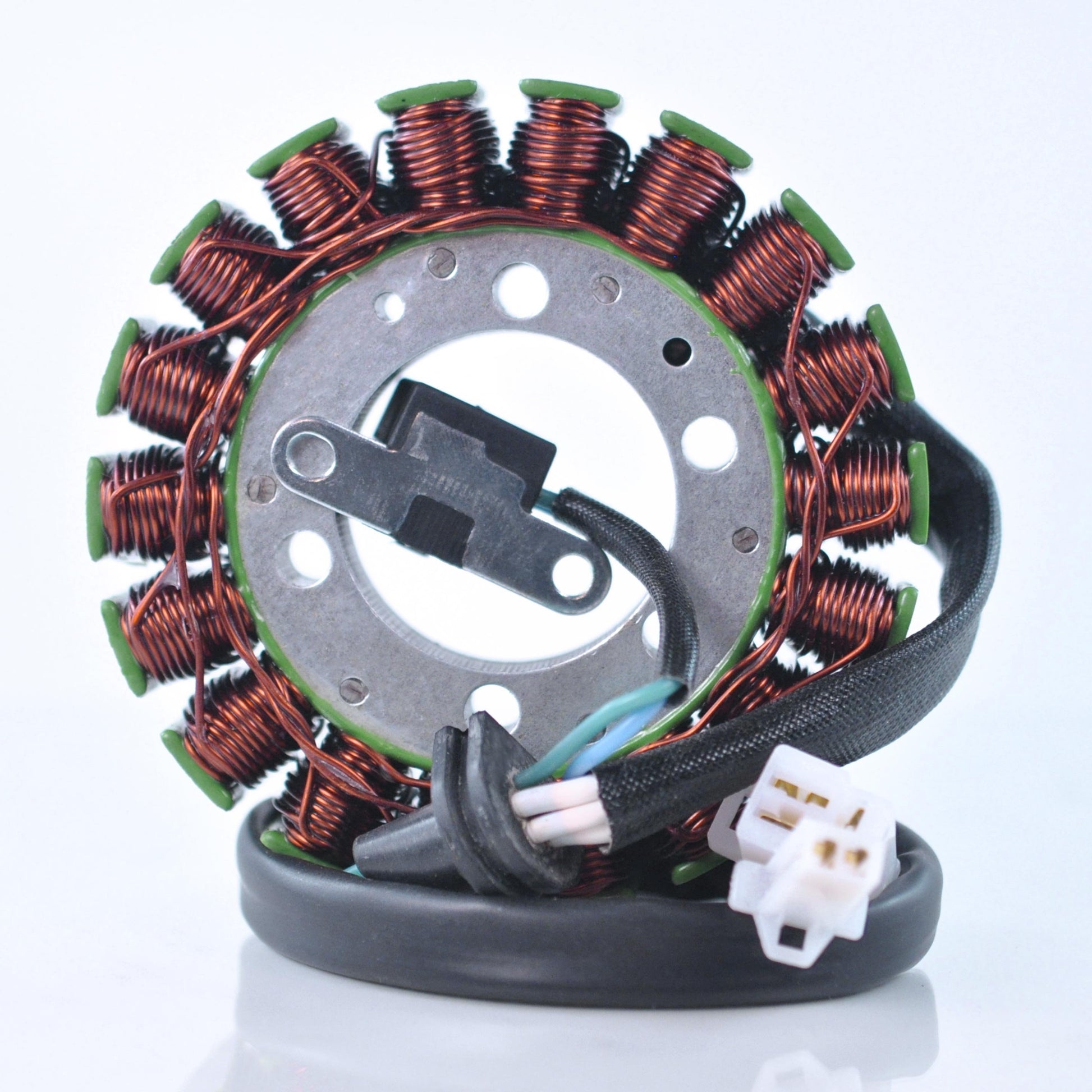

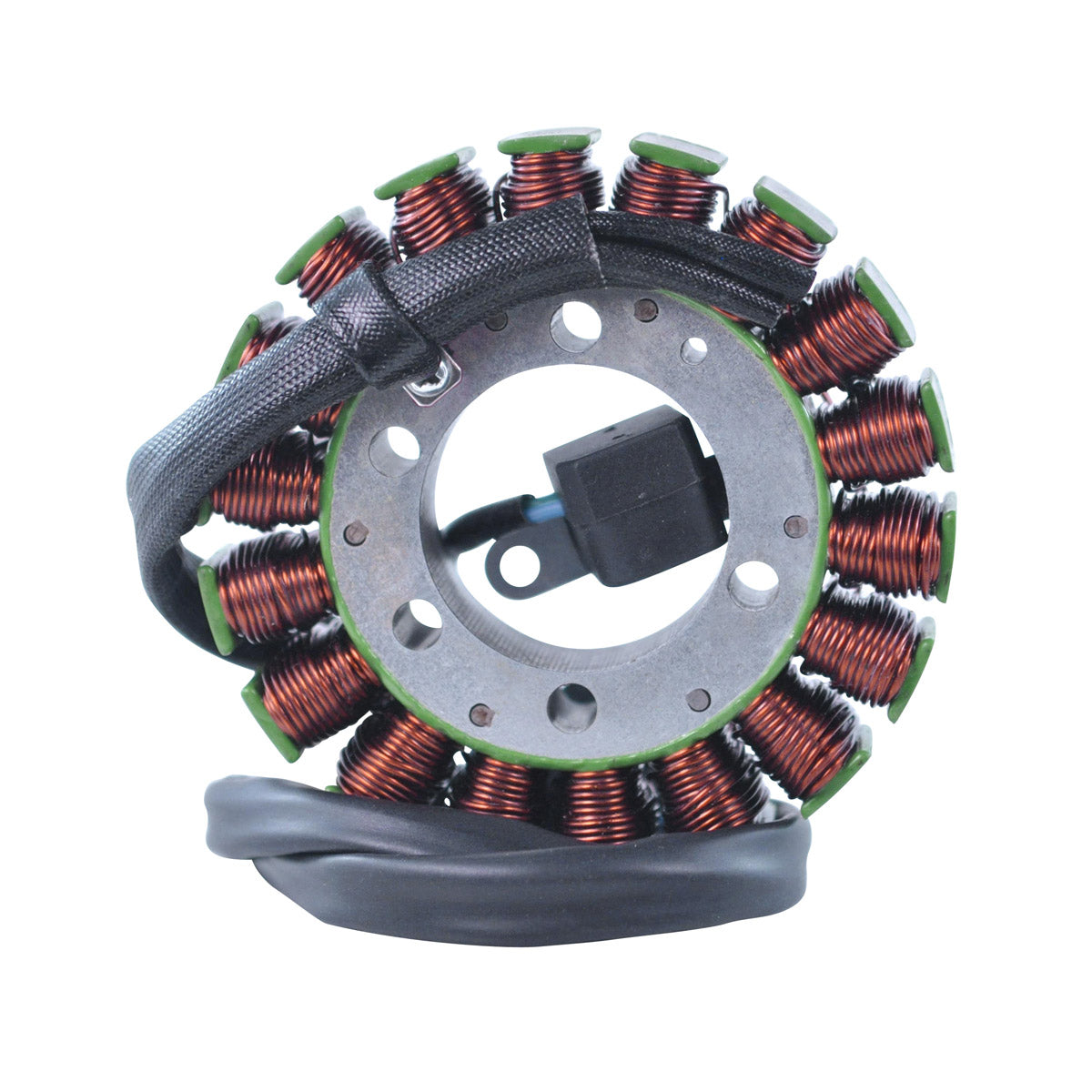

The pick up coil is supplied with the assembly, which means the ignition trigger and the alternator windings are renewed in the same job rather than leaving an ageing pickup behind a new stator. Construction uses highest grade lamination materials and highest grade copper windings rated to resist 200 degrees Celsius, a real consideration on a faired sports tourer where the generator cover sits in still air at low speed. At 22 mm thick with a 104 mm outer diameter and a 42 mm bore, the unit matches the original dimensions exactly. All products shipped are tested, and the connector and rubber grommet are included.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Covers three Yamaha OEM part numbers
- All products shipped are tested
Technical Specs

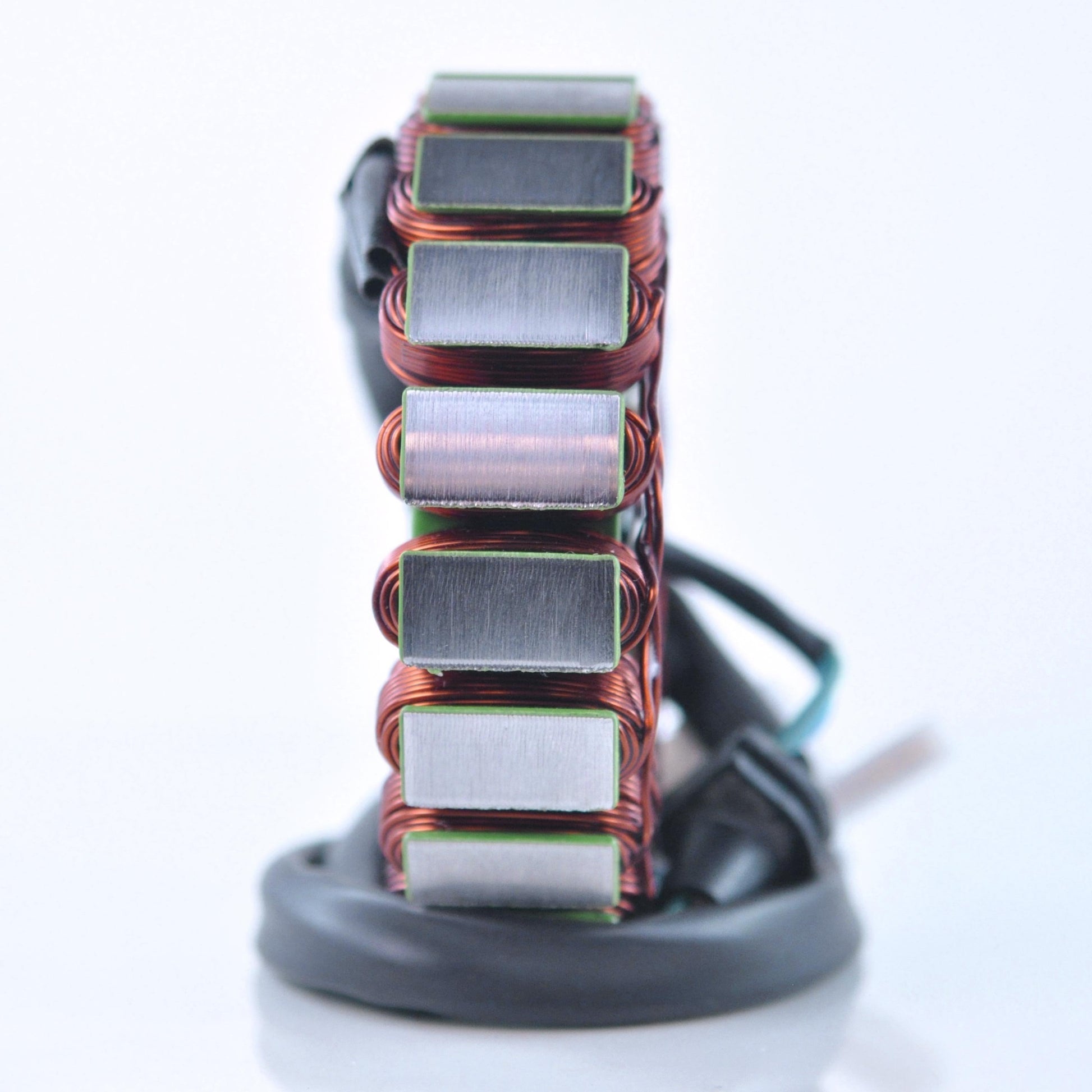

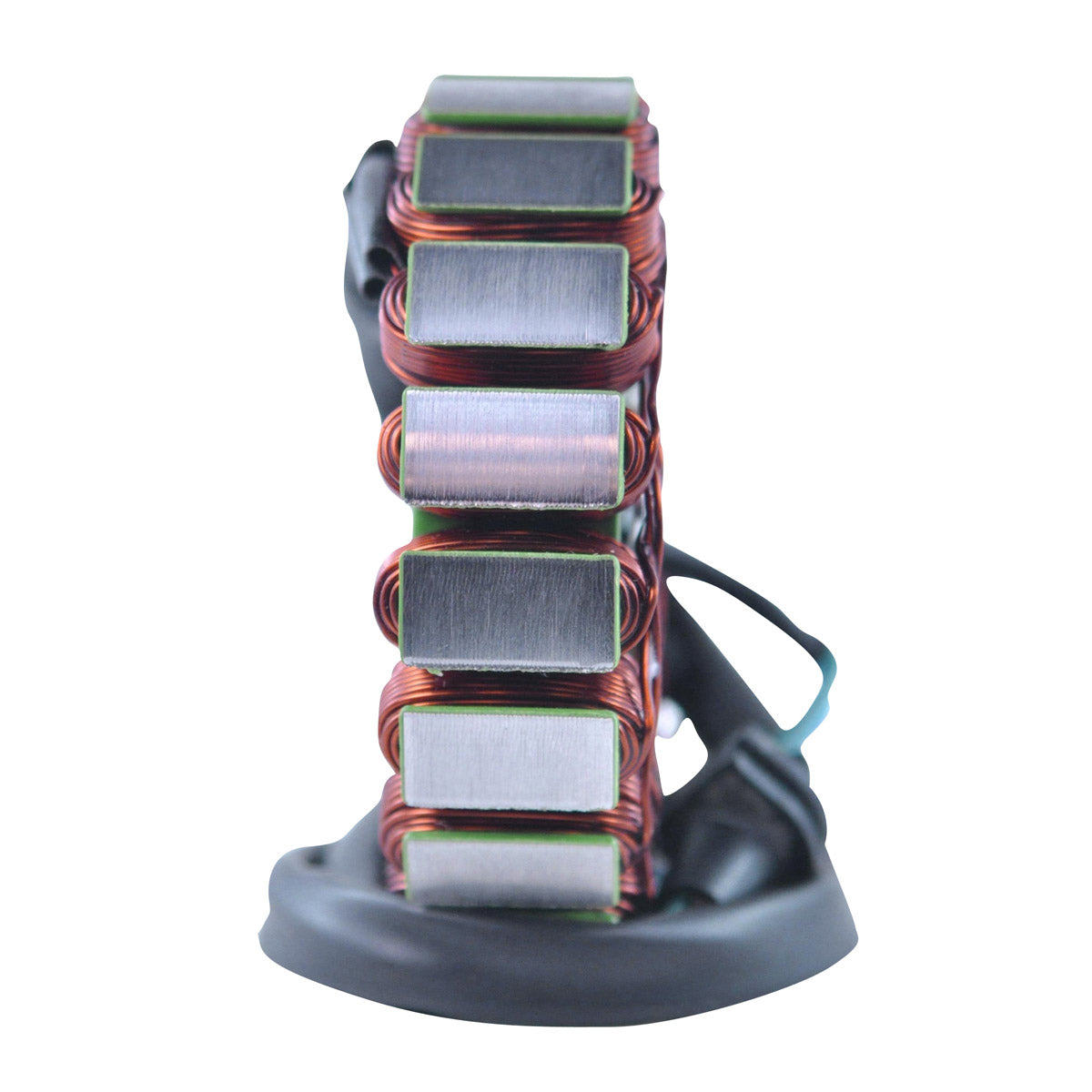

| Specification | Detail |
|---|---|
| Part number | RM01562 |
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 22 mm |
| Wire length, stator to grommet | 120 mm |
| Wire length, grommet to plug | 350 mm |
| Pickup coil wire to grommet | 40 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Alternator resistance, White to White | 0.8 ohms +/-20% |
| Pickup resistance, Blue to Yellow | 221 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YZF 600 R | 1995-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4JH-81410-00-00 | Yamaha |
| 4TV-81410-00-00 | Yamaha |
| 4TV-81410-01-00 | Yamaha |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit and fits plug-and-play on the standard mounts and connectors. Before ordering, check the number on your existing stator against 4JH-81410-00-00, 4TV-81410-00-00 or 4TV-81410-01-00.
What is included?
The stator, the pick up pulsar coil, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I check my old stator?
Two measurements cover it. The alternator windings, taken White to White across each pair, should read about 0.8 ohms, plus or minus 20 per cent. The pickup, taken Blue to Yellow, should read about 221 ohms, plus or minus 20 per cent. Open circuits, readings well outside those figures, or continuity to the stator body all indicate failure.
Why does it have two plugs?

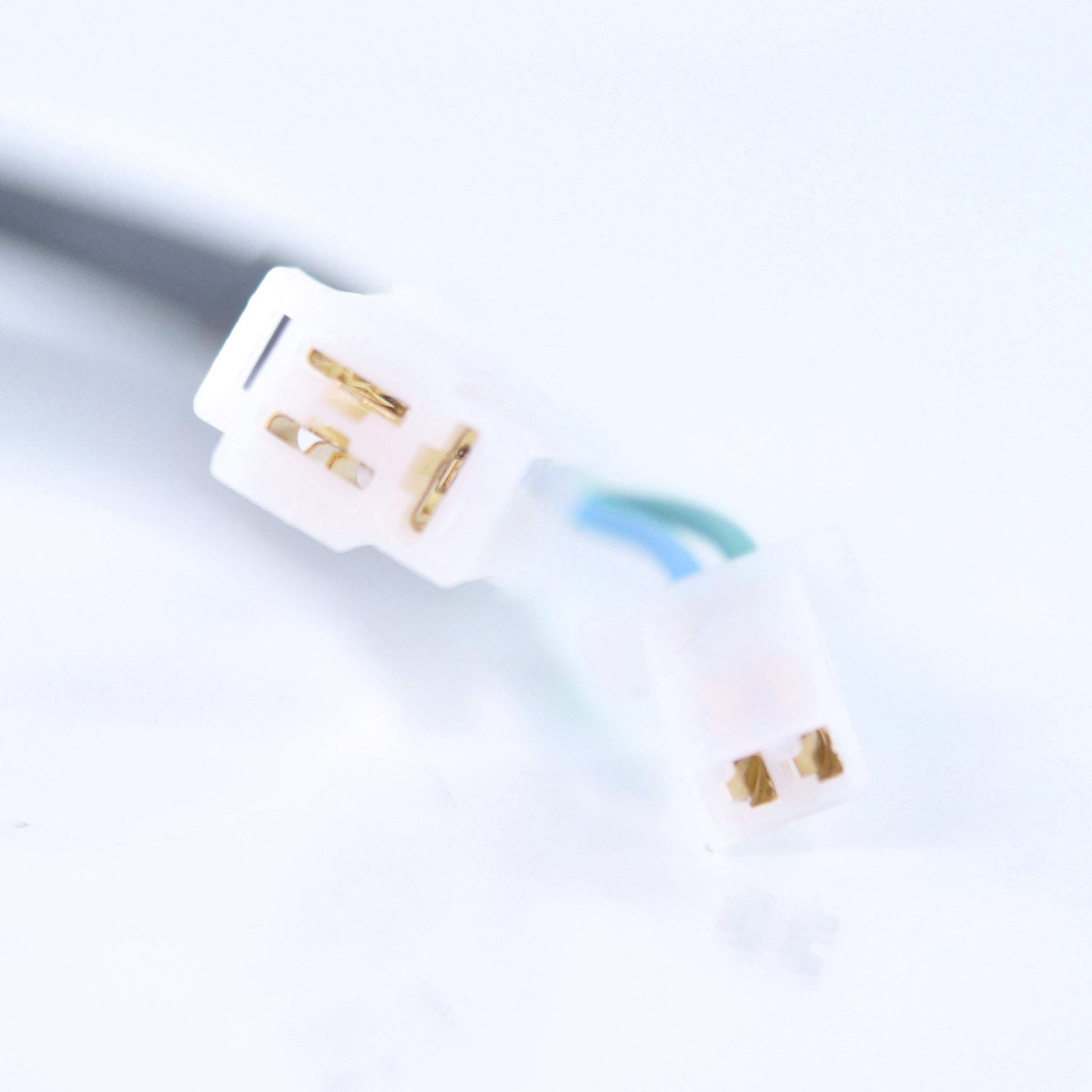

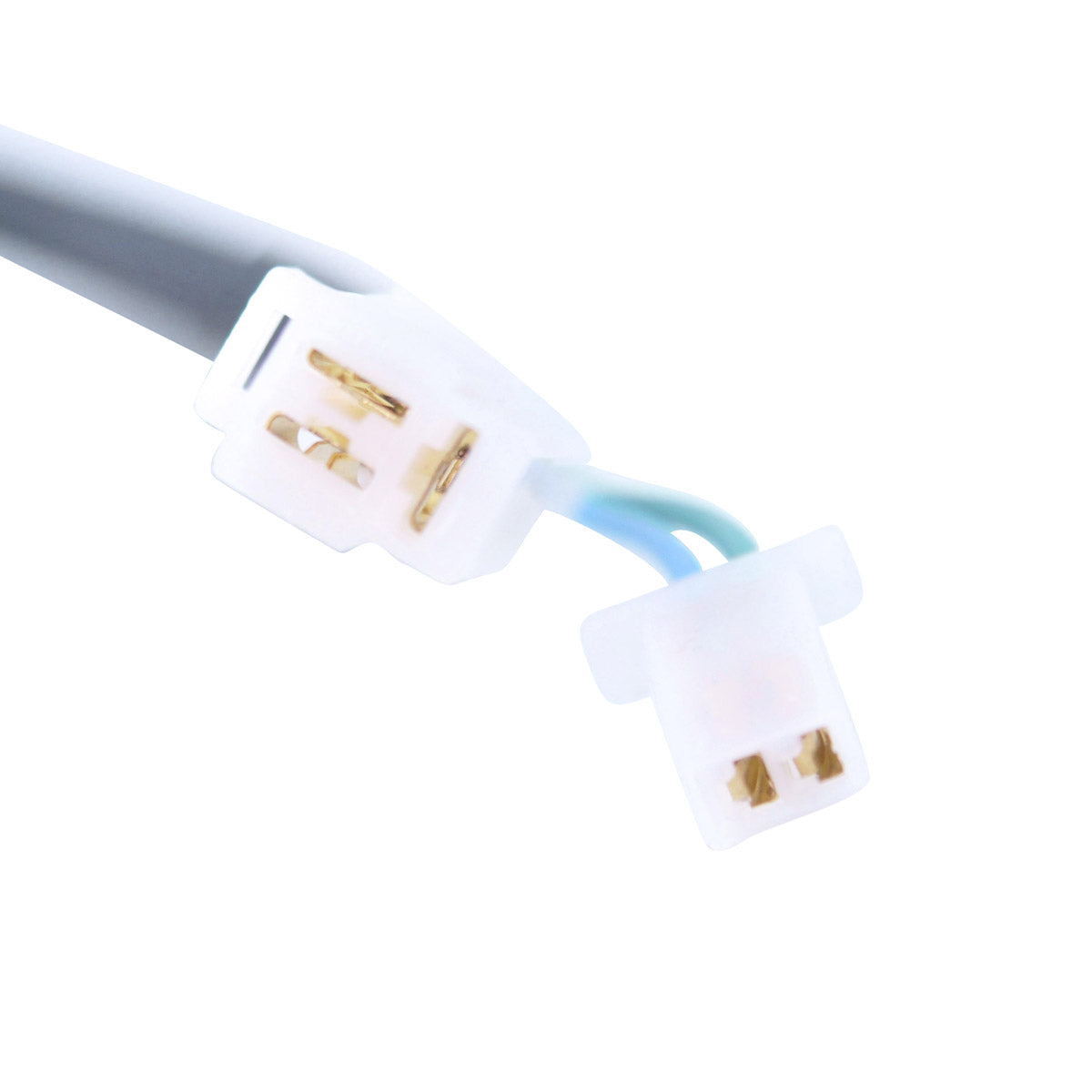

The five wires leave the engine as two separate circuits: the three alternator output wires and the two pickup wires. They terminate in two plugs, matching the original layout, so each connects to its own point on the loom.
