Stator for Yamaha YZF R1 1000, FZ10 and MT-10
Yamaha YZF R1 1000 2015-2026, FZ10 2017, MT-10 2018-2021 - OEM replacement B67-81410-00-00 / 2CR-81410-00-00

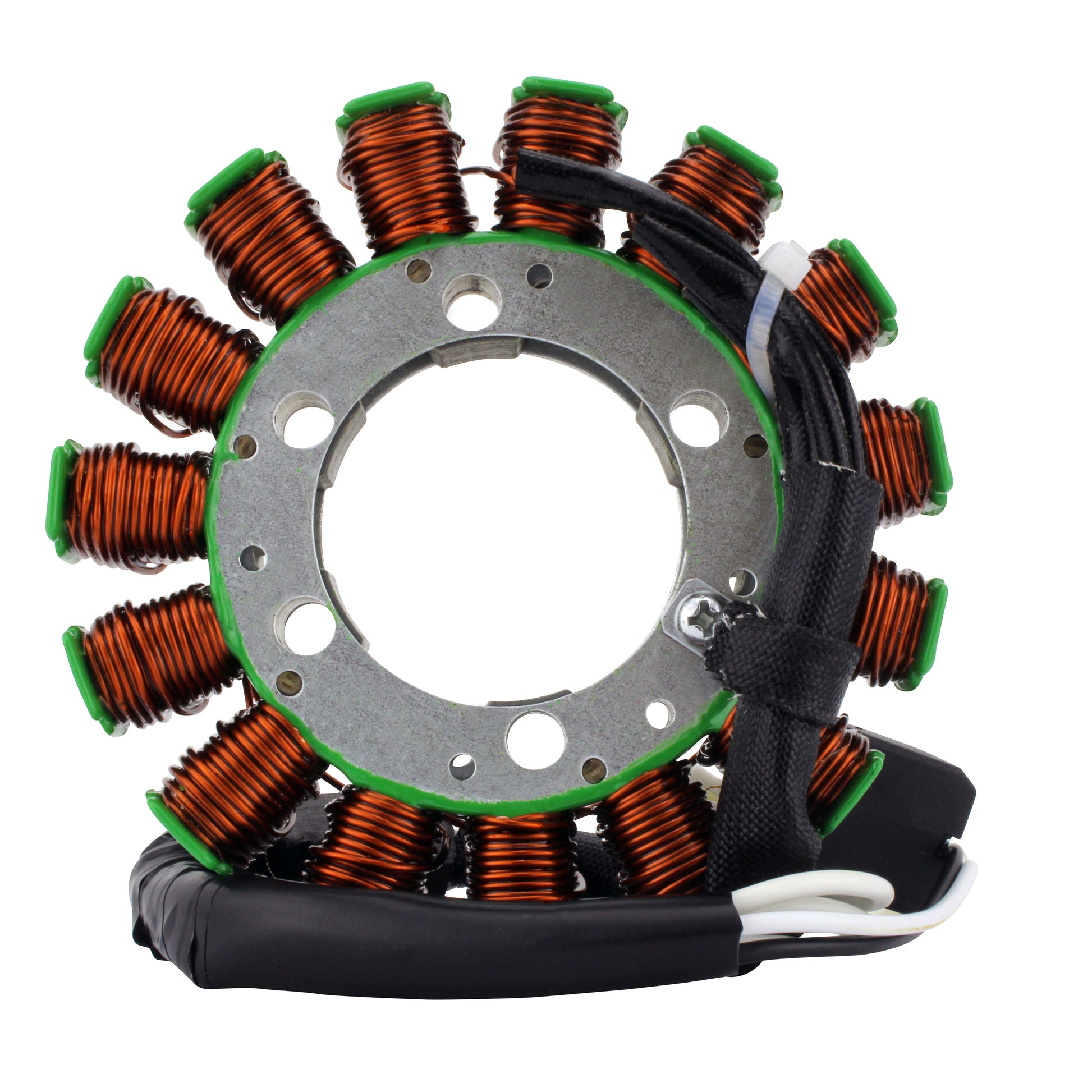

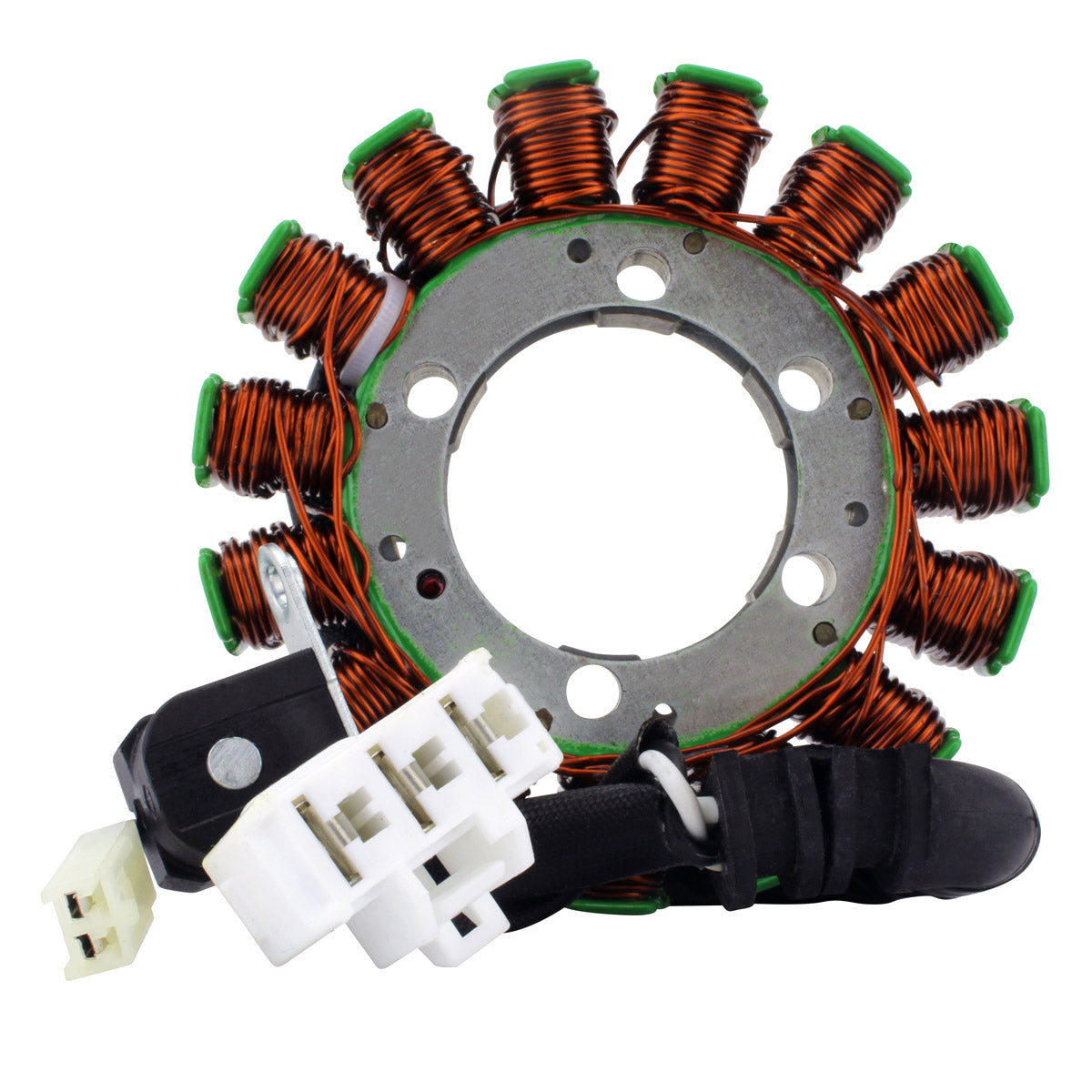

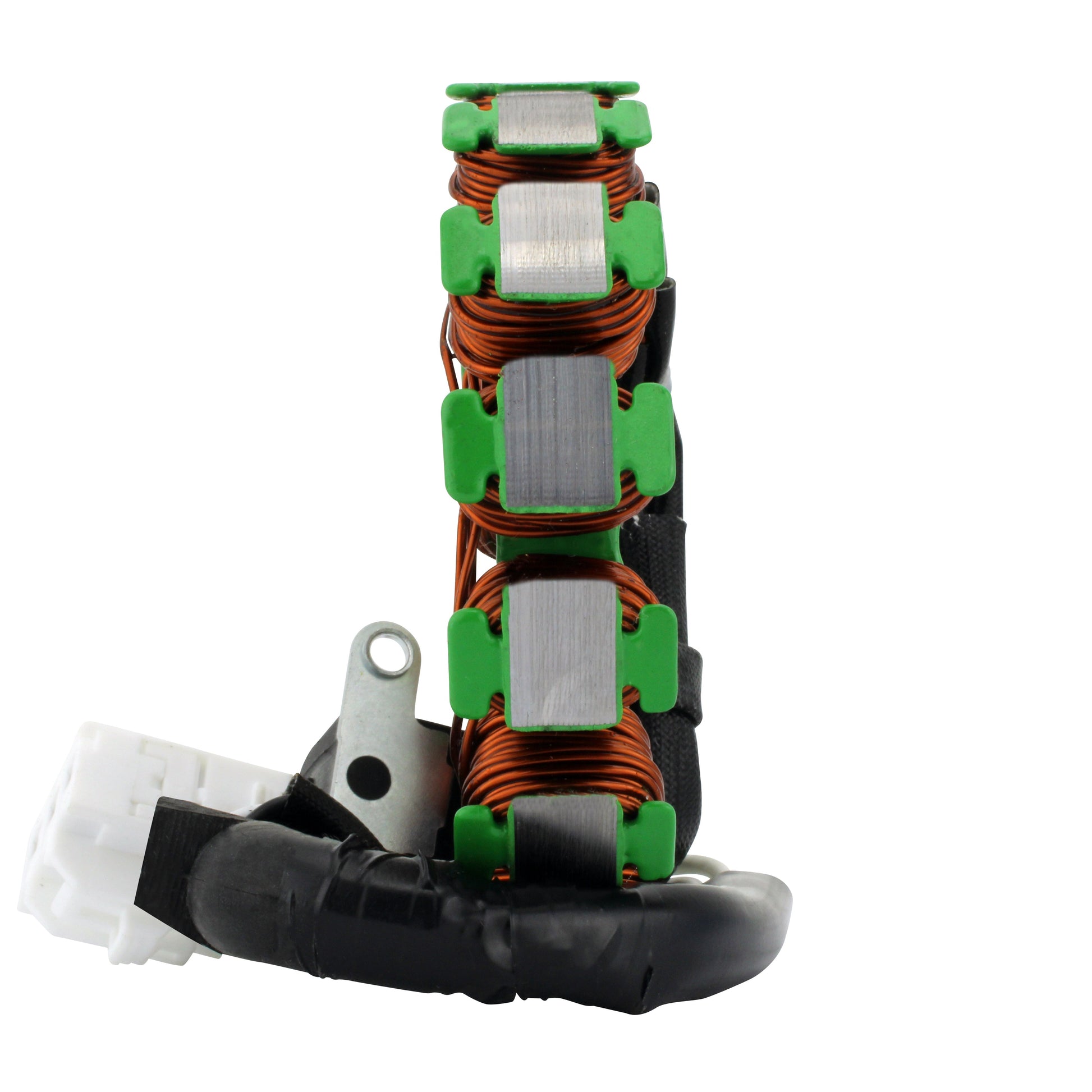

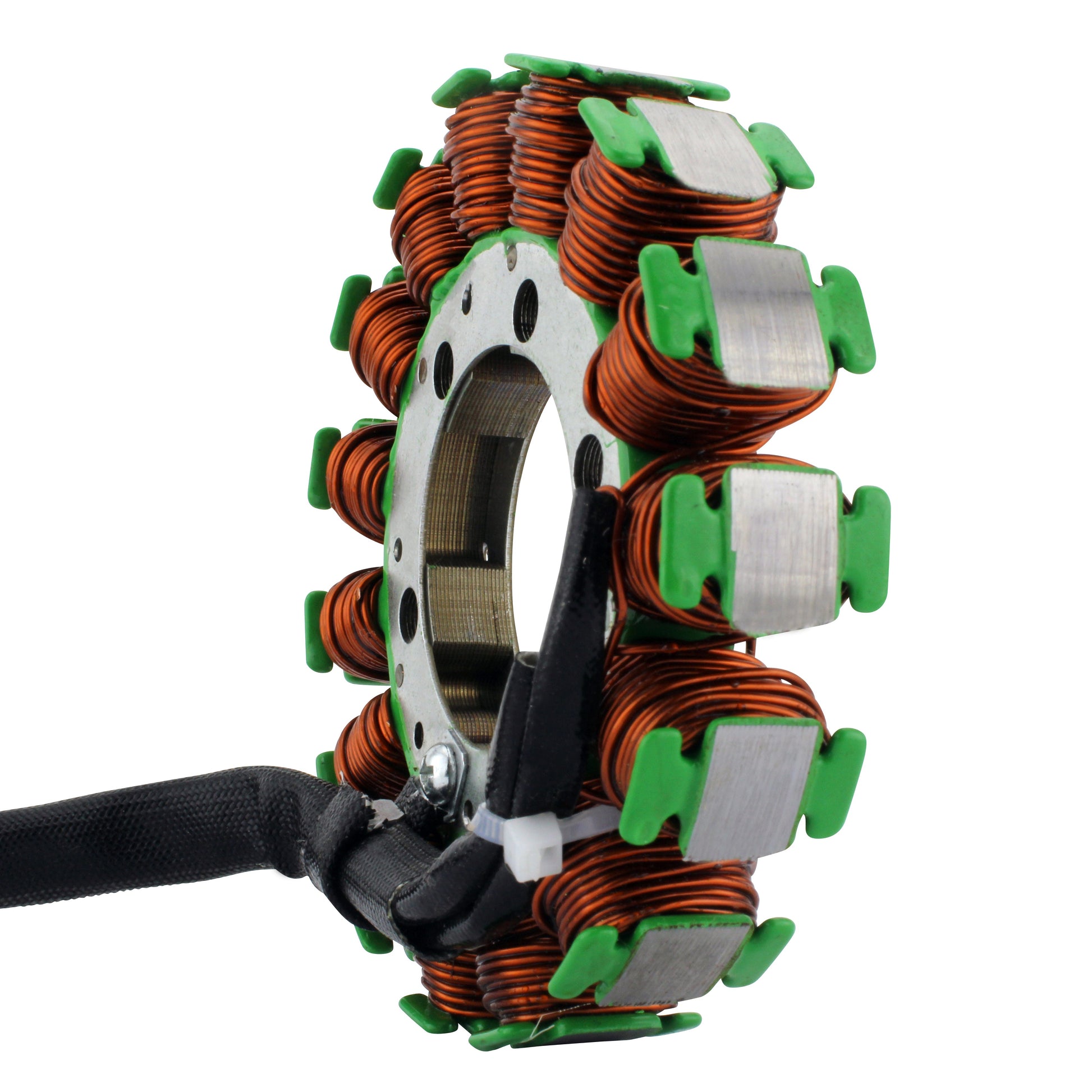

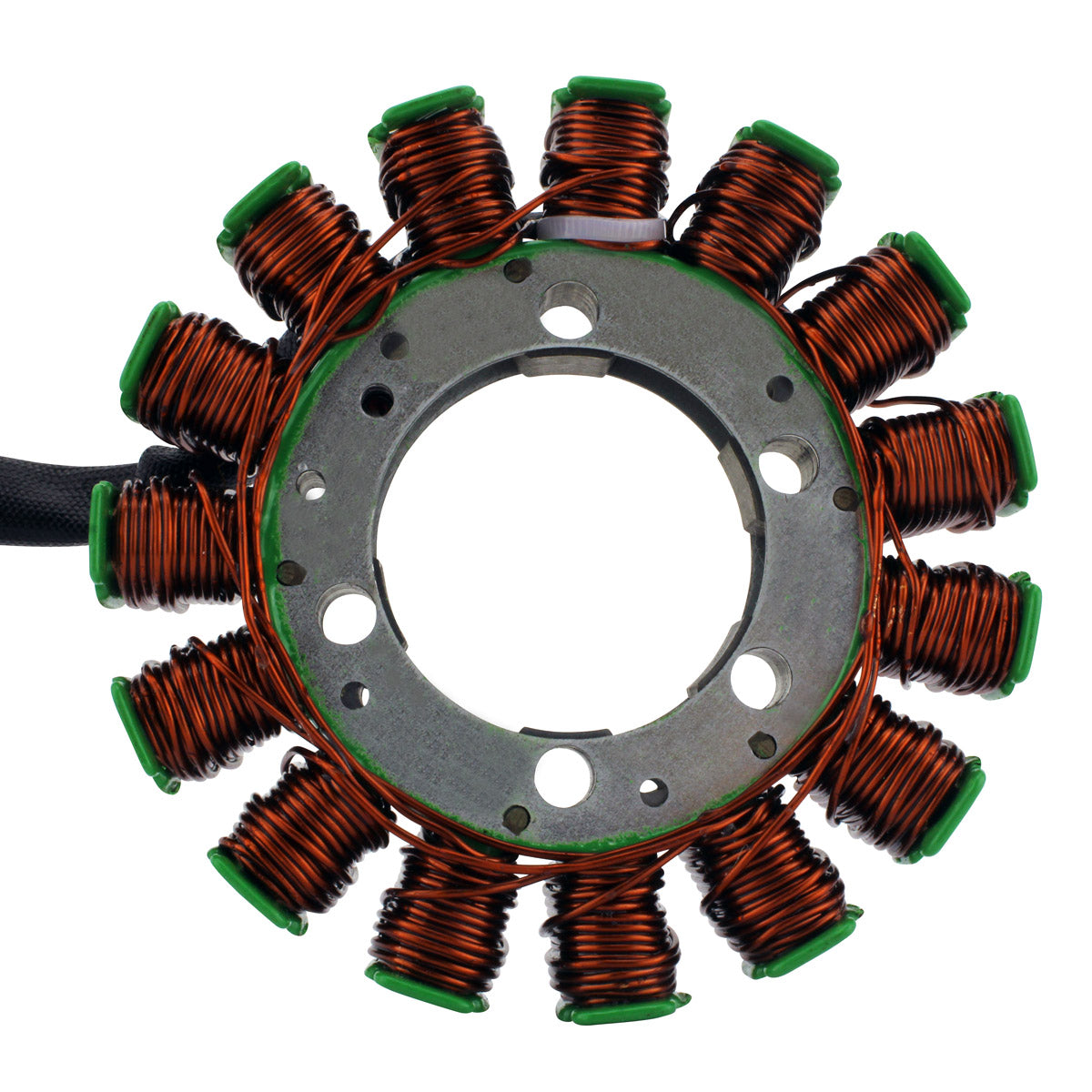

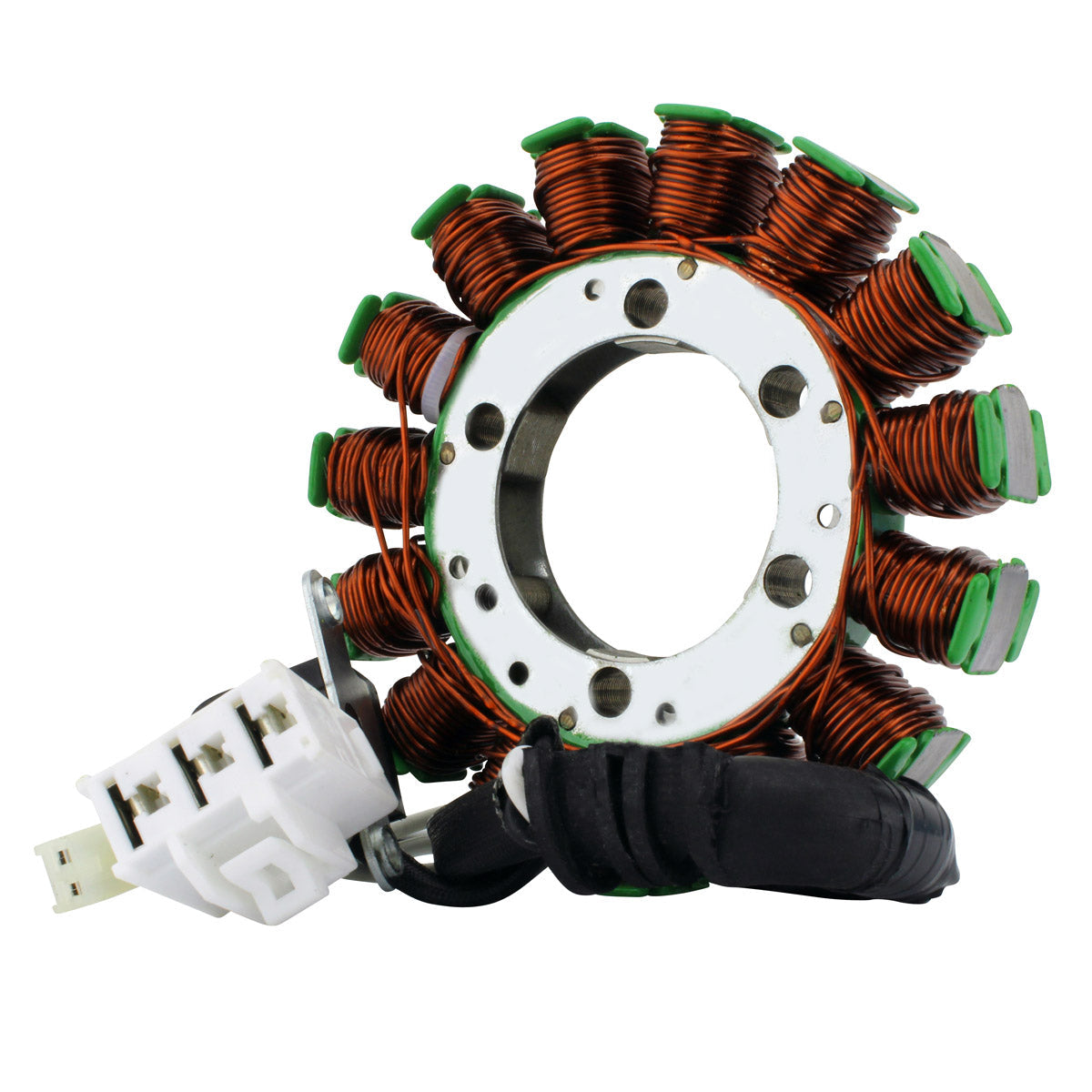

This is a brand new aftermarket stator, a direct replacement for the original unit fitted to the Yamaha YZF R1 1000 and the closely related FZ10 and MT-10 models. It is a plug-and-play, direct fit part: the 15-pole core, the twin plugs and the wire lengths all match the factory item, so it installs into the generator cover without modification to the loom.
The winding is the highest grade of copper, resistant to 200 degrees Celsius, laid over the highest grade of lamination material. The pick-up pulsar coil, connectors and rubber grommet are supplied with the stator, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a repaired or rewound core
- Direct replacement for the original unit - plug and play, direct fit

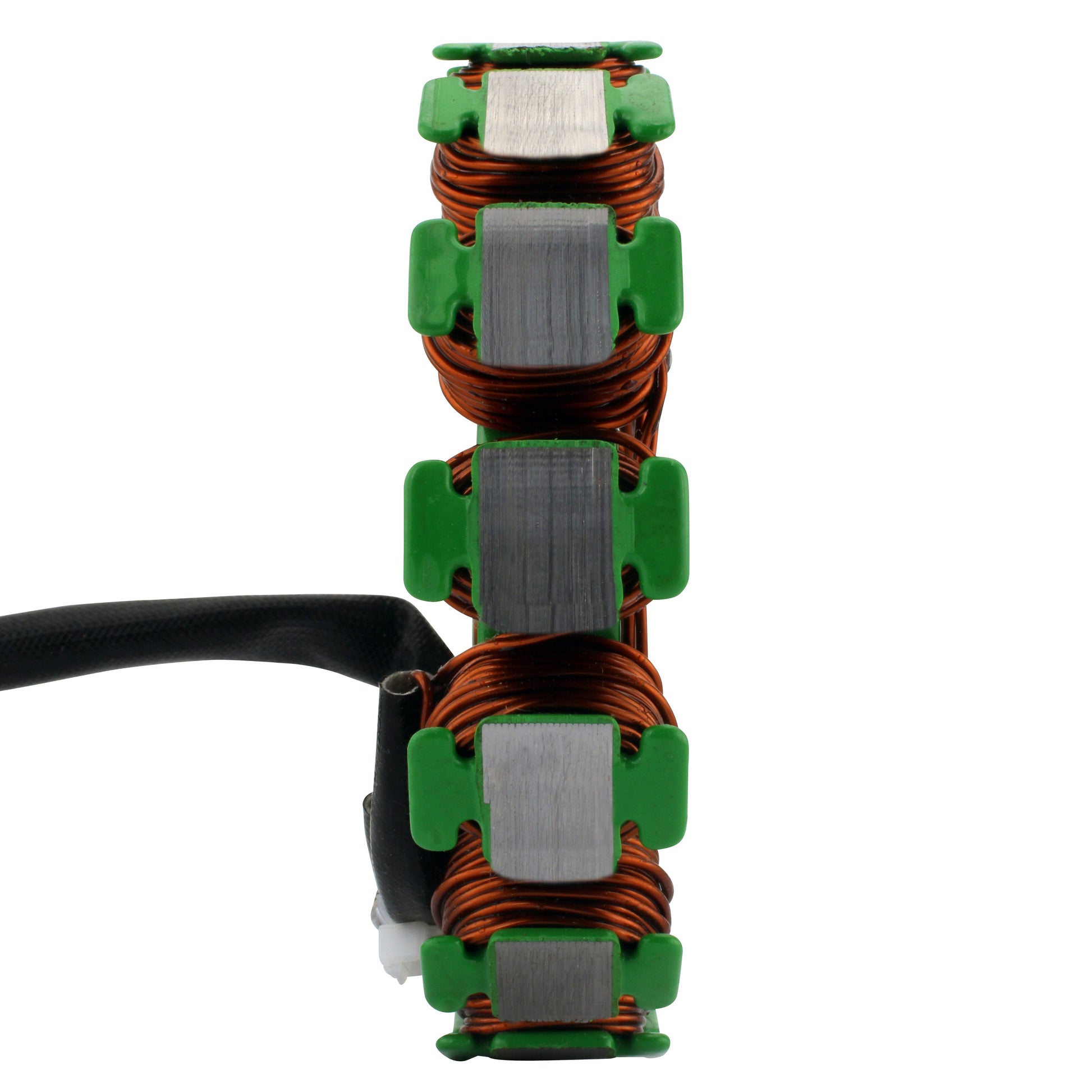

- Highest grade lamination materials for stable magnetic performance

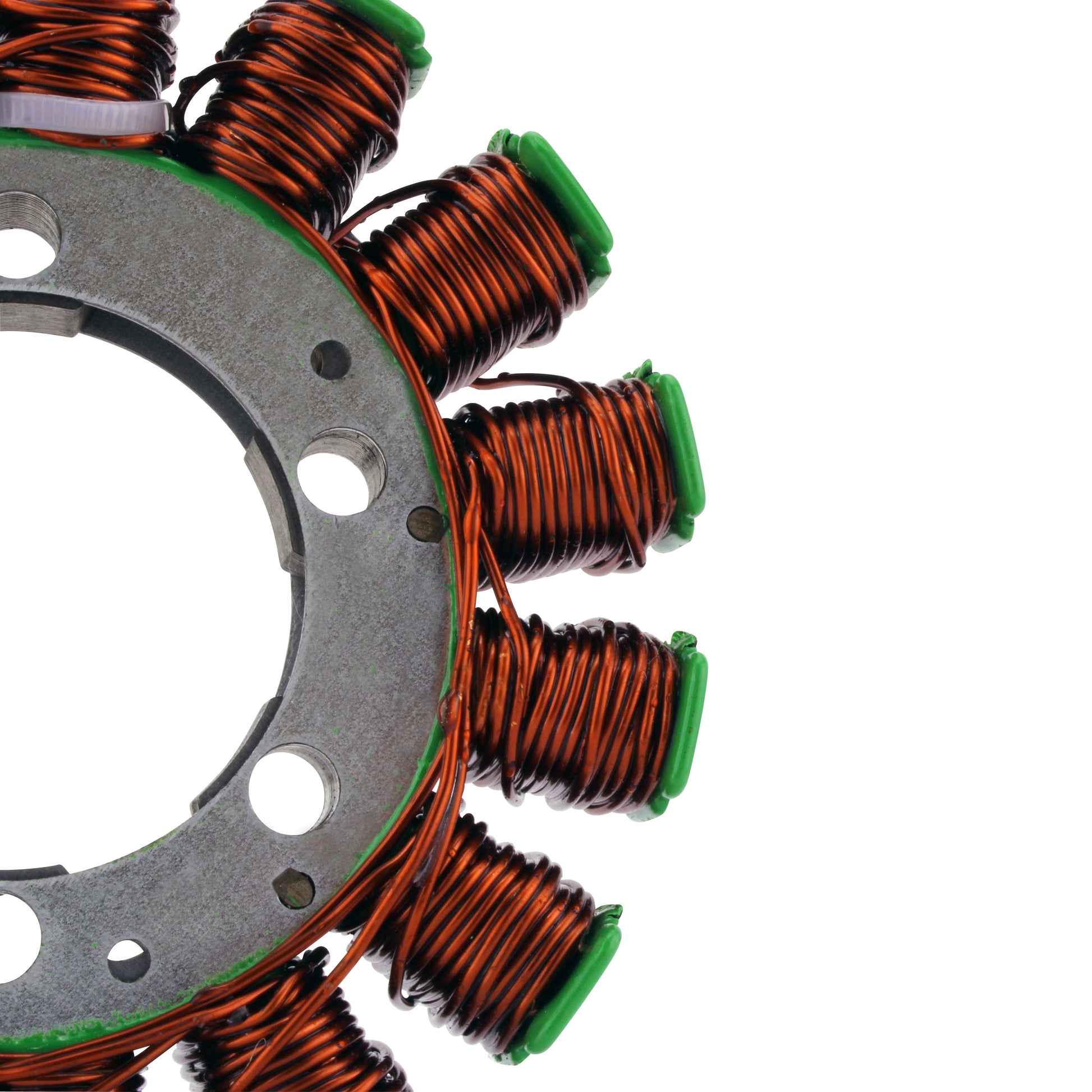

- Highest grade copper winding, resistant to 200 degrees Celsius

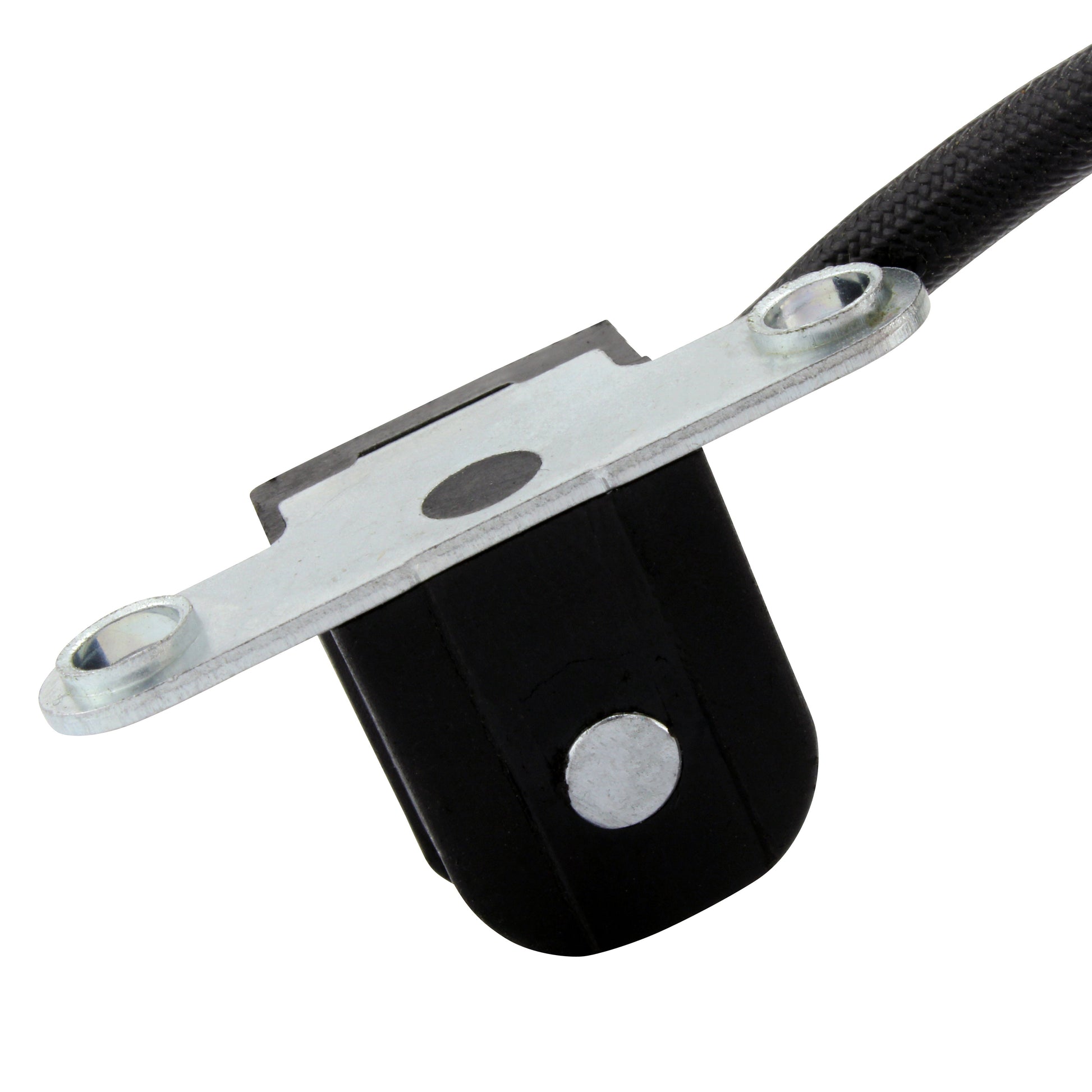

- Pick-up pulsar coil included

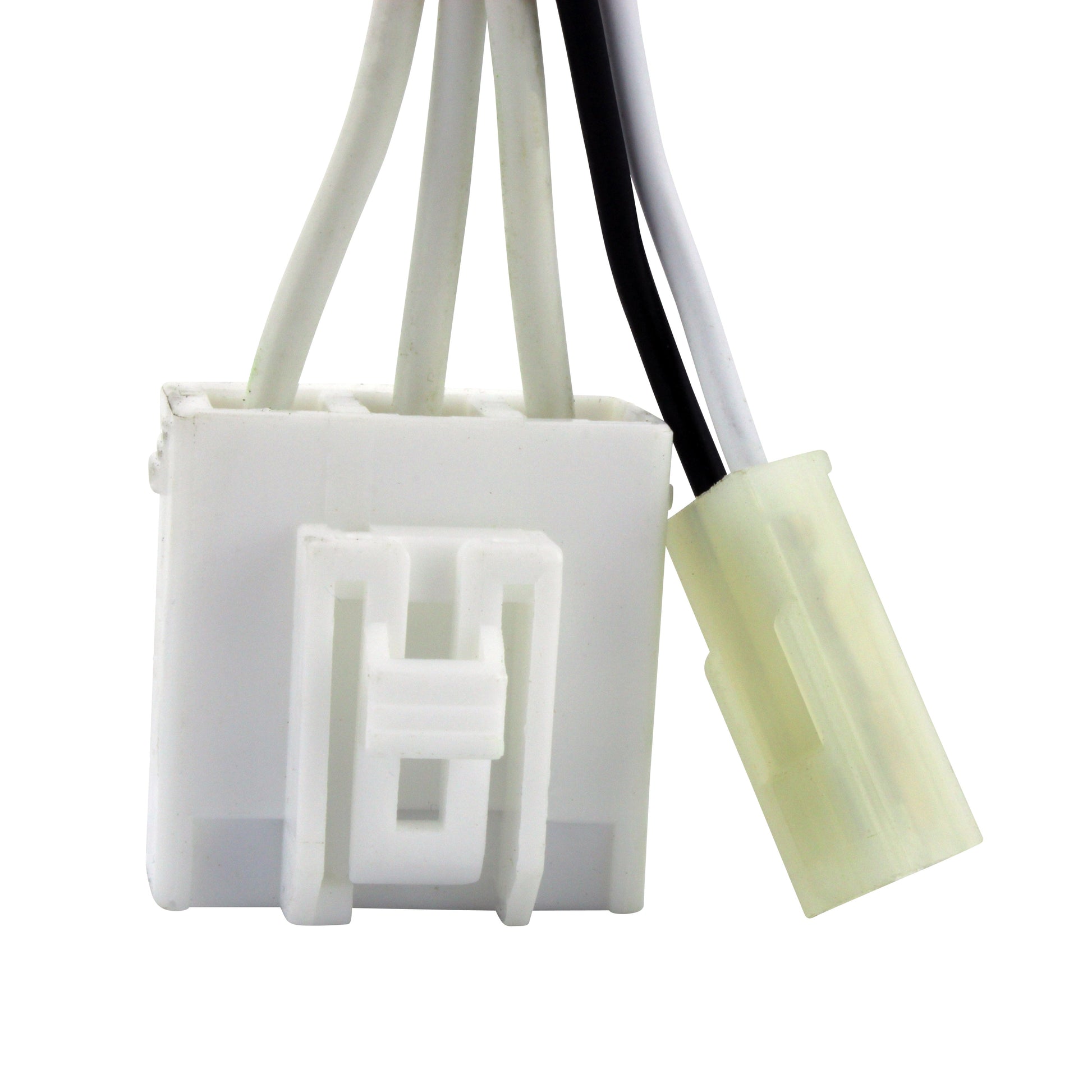

- Connectors included
- Rubber grommet included
- Every unit is tested before it is shipped

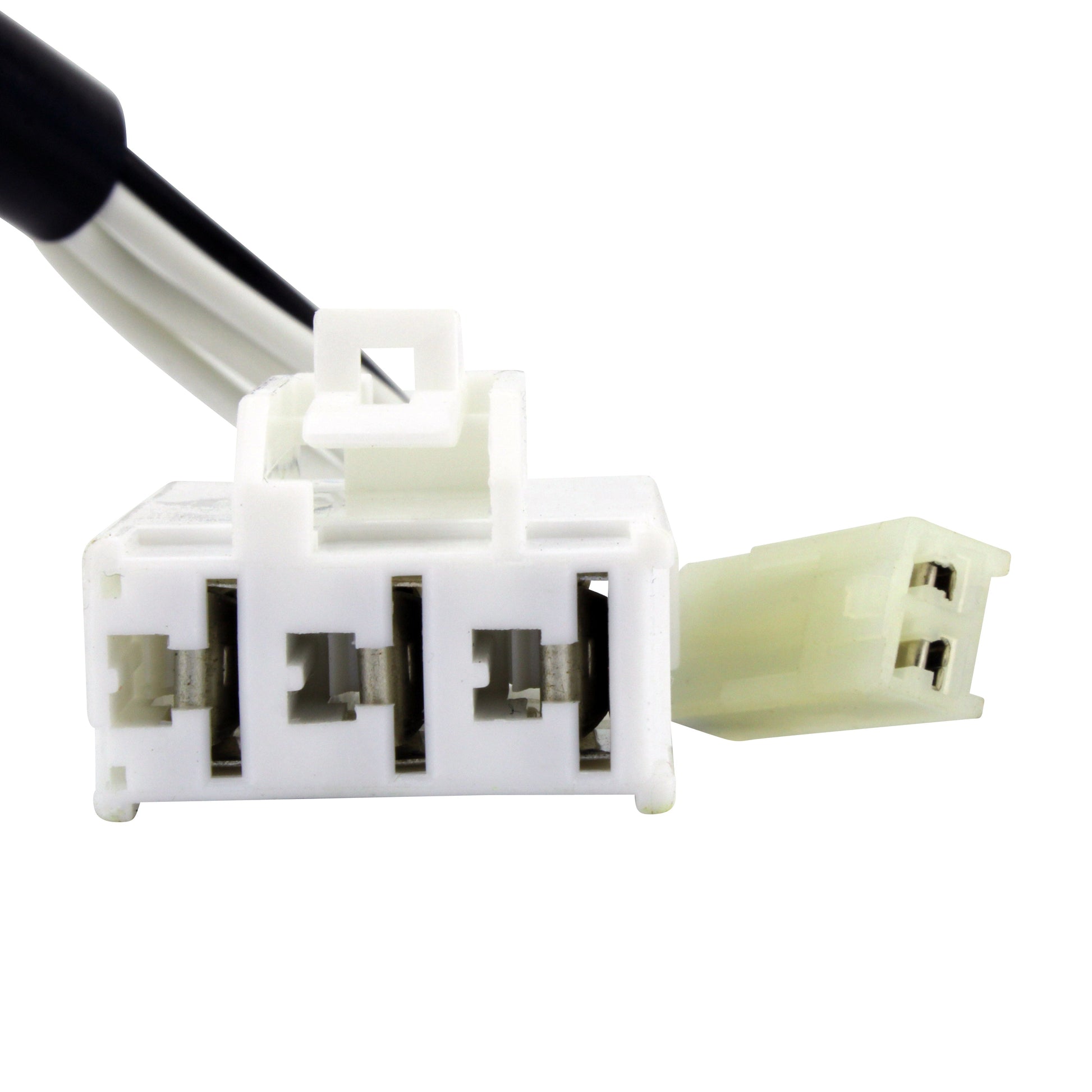

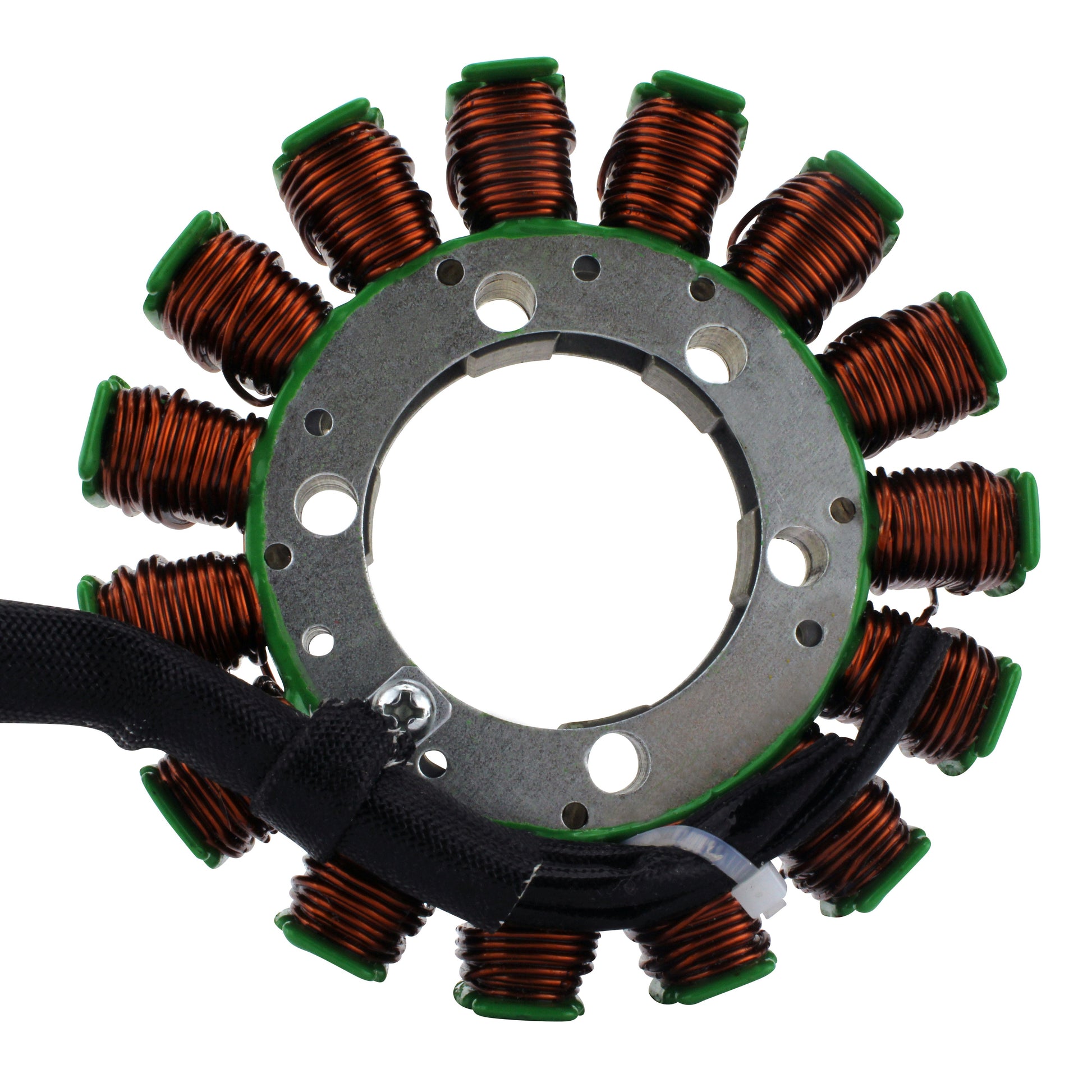

- 15-pole core with 5 wires across 2 plugs
Technical Specs
| Specification |
Detail |
| SKU |
RMS010-107373 |
| Interior diameter |
43 mm |
| Exterior diameter |
105 mm |
| Thickness |
13 mm |
| Wire length (stator to grommet) |
85 mm |
| Wire length (grommet to plug 1) |
135 mm |
| Wire length (grommet to plug 2) |
170 mm |
| Pick-up coil wire to grommet |
60 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
15 |
| Alternator resistance (White to White) |
0.4 ohms +/-20% |
| Source resistance (Grey to Black) |
208 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha YZF R1 1000 |
2015-2026 |
| Yamaha FZ10 |
2017 |
| Yamaha MT-10 |
2018-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| B67-81410-00-00 |
Yamaha |
| 2CR-81410-00-00 |
Yamaha |
| 2CR-81410-01-00 |
Yamaha |
| 2CR-81410-02-00 |
Yamaha |
Frequently Asked Questions
Will this fit my bike without modification?
Yes. It is a direct, plug-and-play replacement for the original Yamaha stator on the models and years listed above, with matching connectors and mounting points. No cutting, splicing or loom modification is required.
What is included?
The stator is supplied with the pick-up pulsar coil, the connectors and the rubber grommet.
How do I know my old stator has failed?
Watch for a battery that will not hold charge, warning lights or a dashboard that dims at idle, or an engine that dies once the battery is flat. To confirm, measure the windings: the alternator legs should read about 0.4 ohms White to White and the source circuit about 208 ohms Grey to Black, both within plus or minus 20 percent. A reading of open circuit, or continuity between any winding and the stator core, means the unit has failed.
Does this cover the MT-10 and FZ10 as well as the R1?
Yes. The same part number covers the YZF R1 1000 from 2015 to 2026, the FZ10 in 2017 and the MT-10 from 2018 to 2021, and it cross references to Yamaha part numbers B67-81410-00-00 and 2CR-81410-00-00.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
