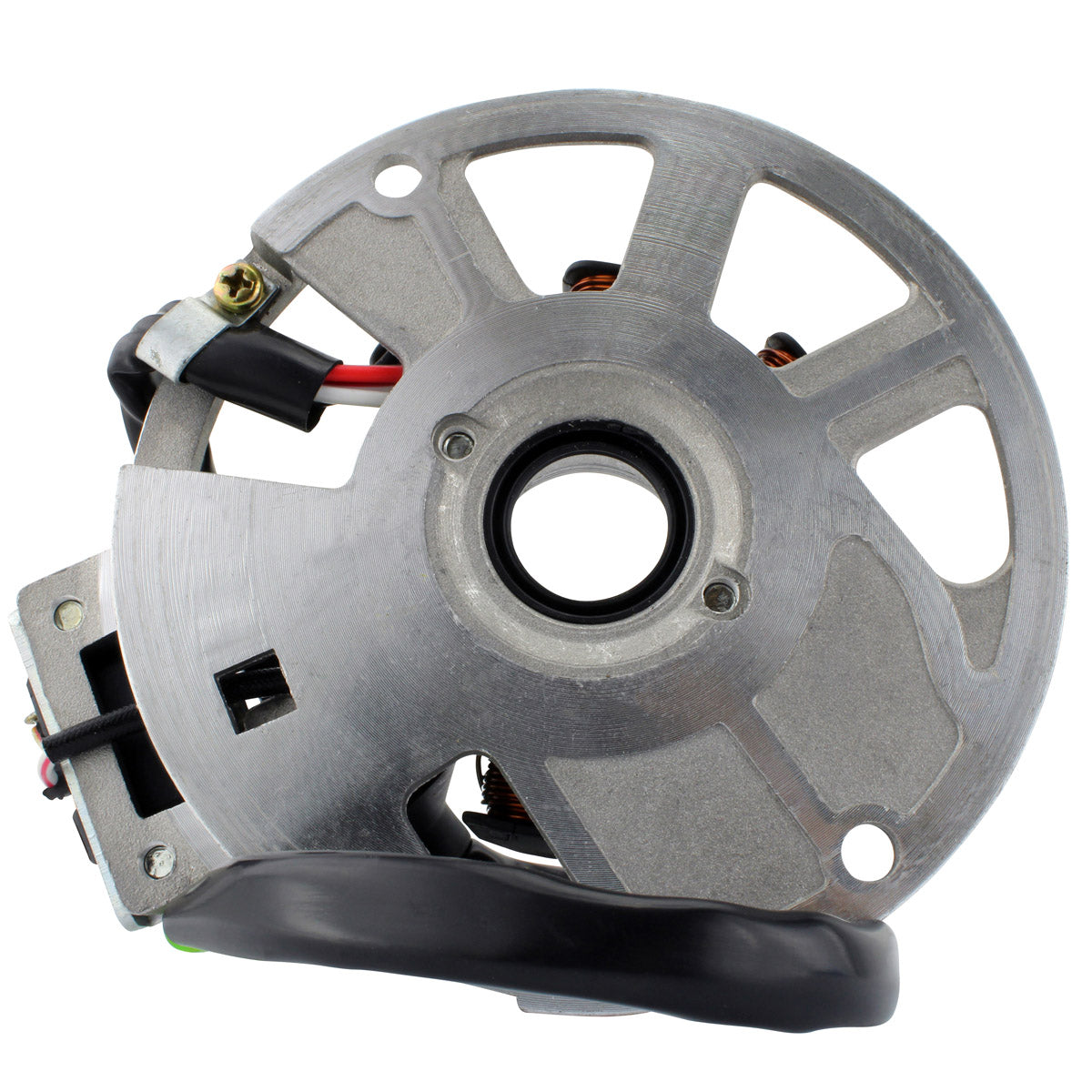

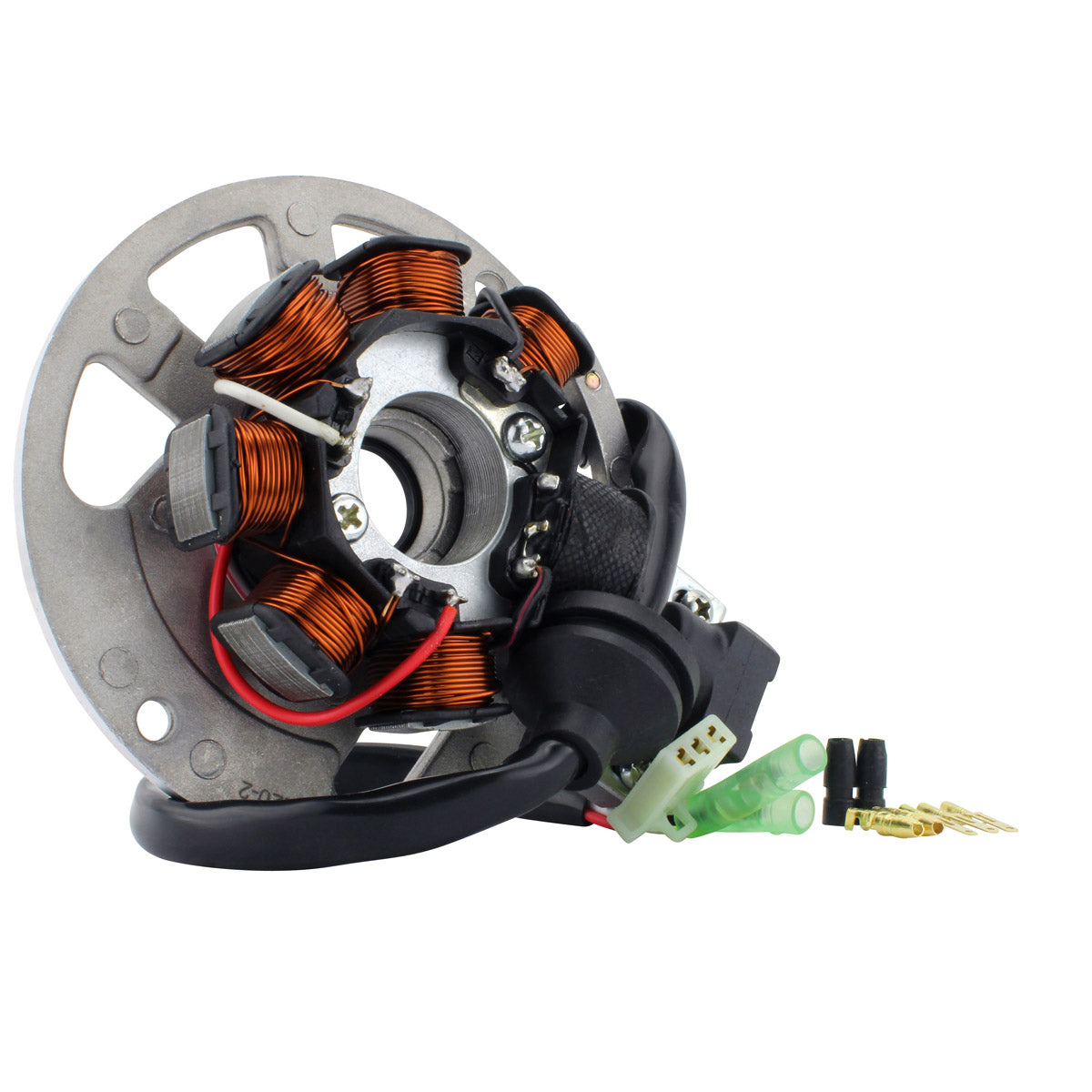

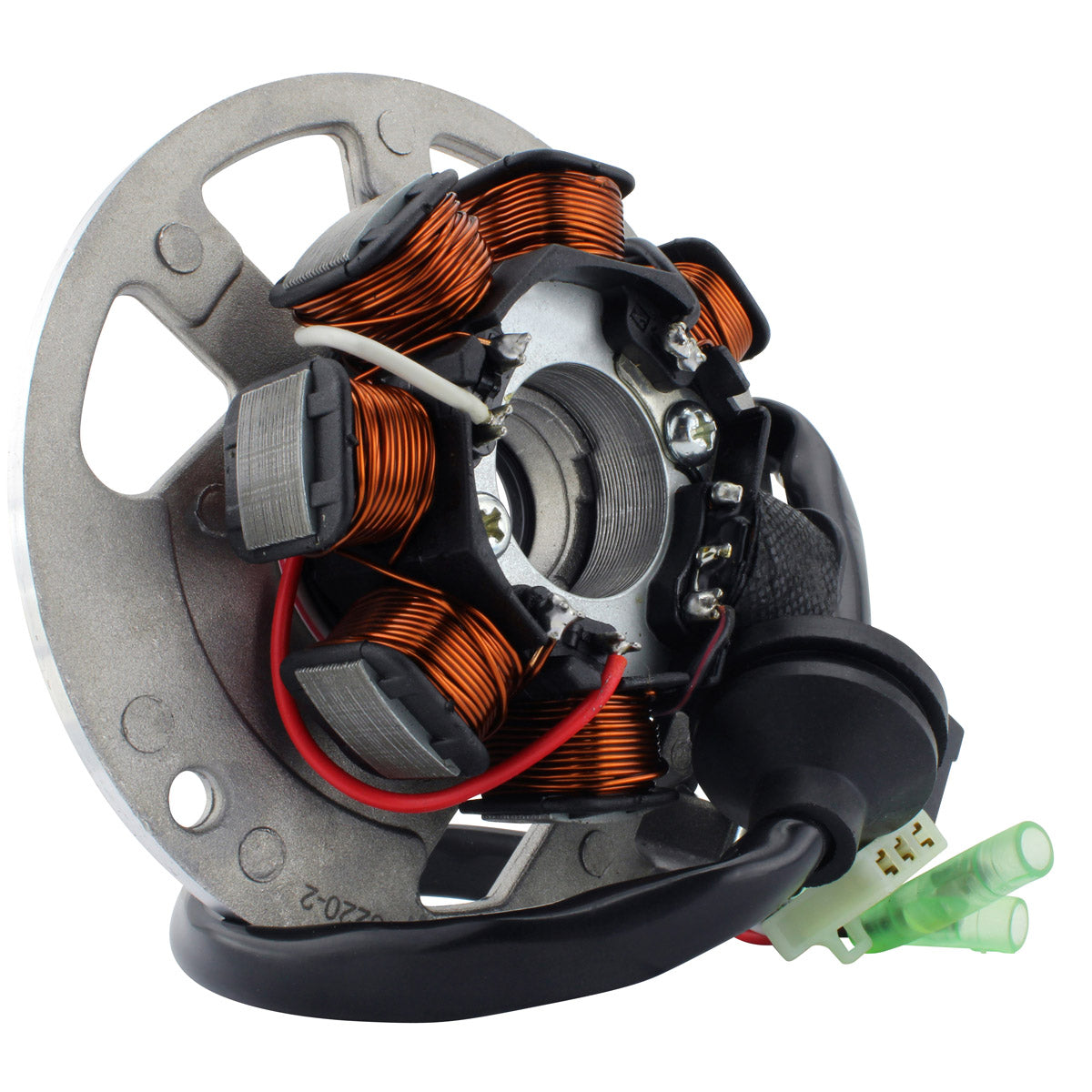

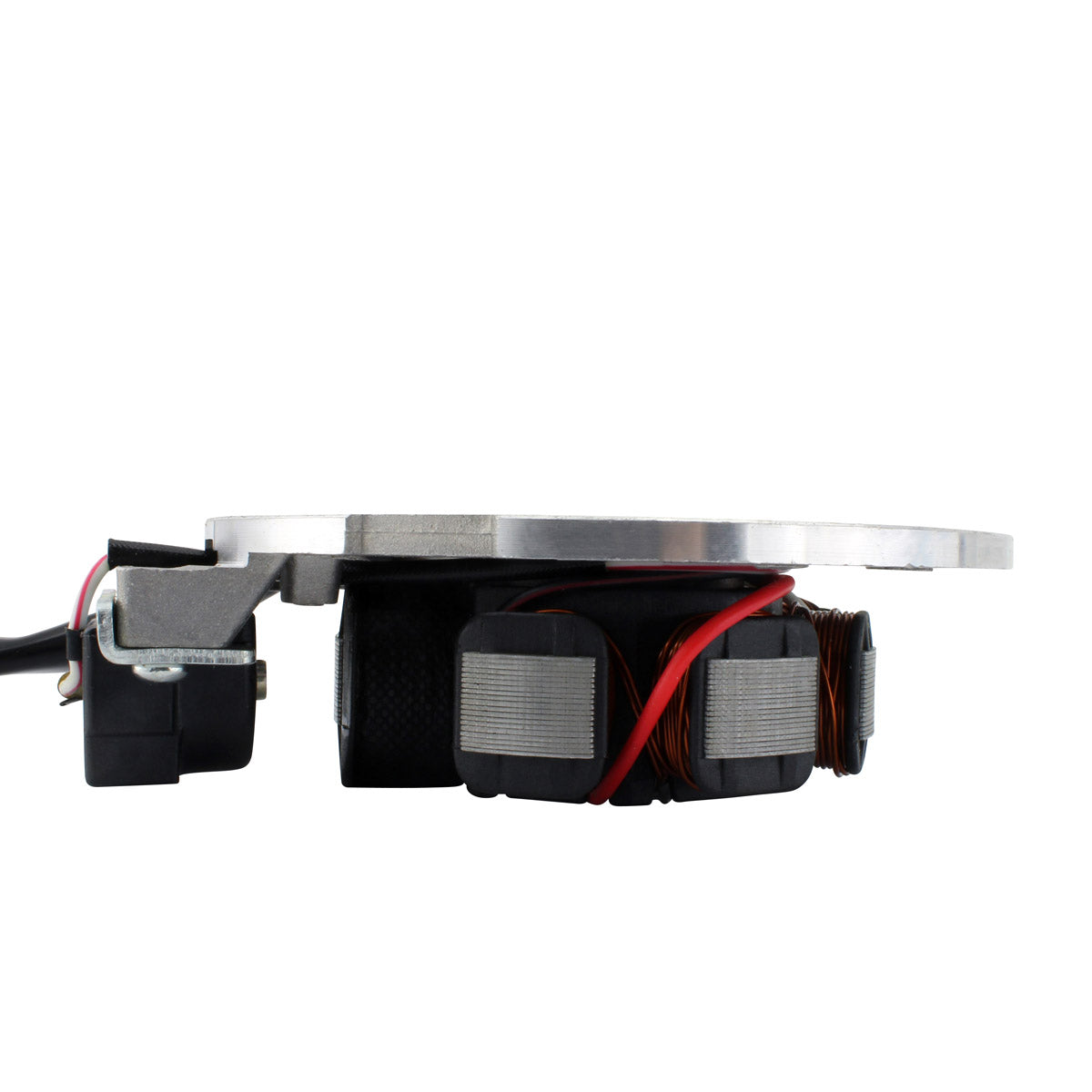

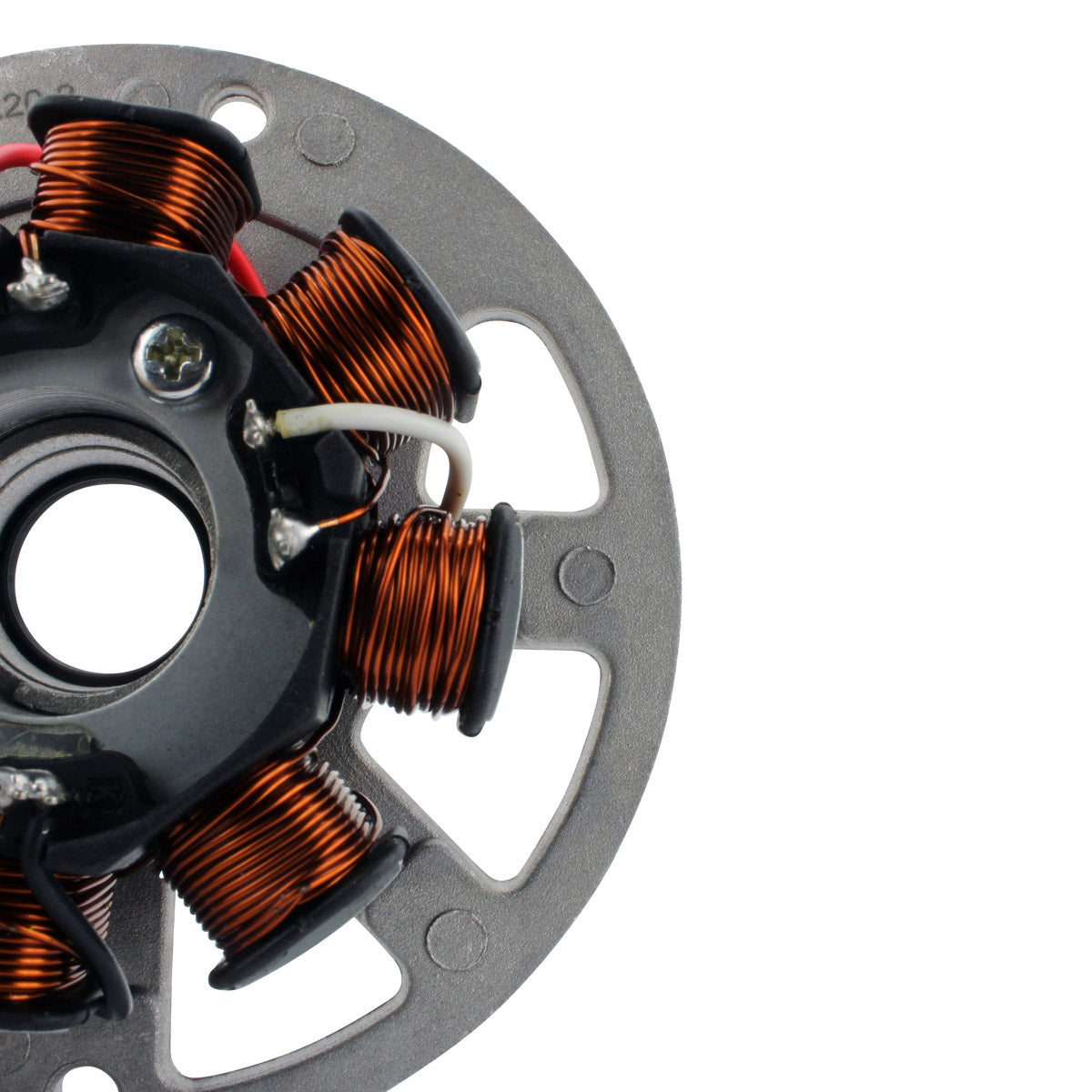

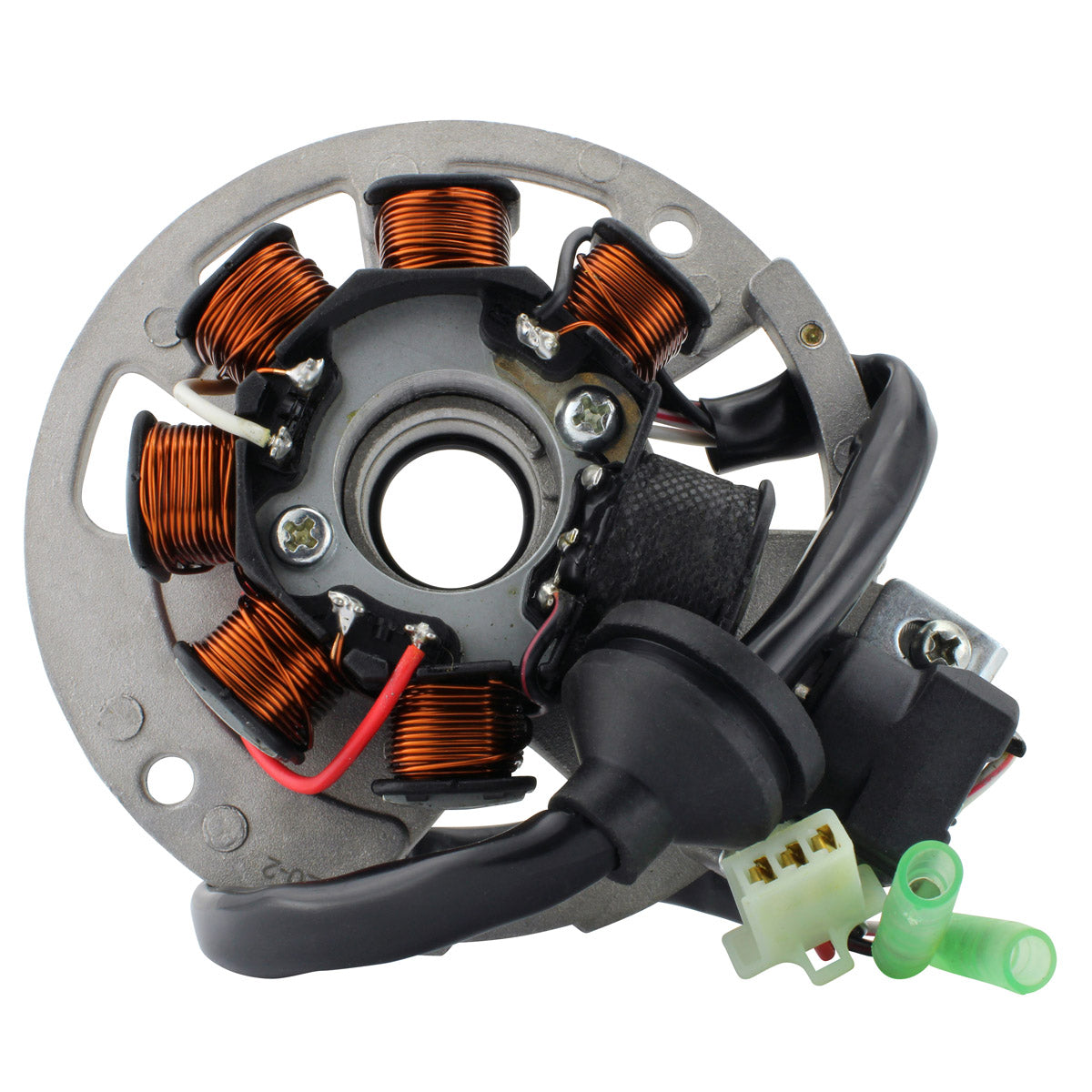

This is a brand new aftermarket stator for the Yamaha Zuma 50, supplied as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install. The assembly comes complete with the pick up pulsar coil, the connectors, the rubber grommet and the back plate, so everything needed to rebuild the ignition and charging side behind the flywheel is in the one box rather than being sourced separately.
The windings use the highest grade of copper, resistant to 200 degrees Celsius, on the highest grade of lamination materials. On a small scooter that runs constantly at high revs with the engine tucked away under bodywork, heat is what finishes an original stator - the insulation breaks down, one of the three circuits goes out of specification, and the scooter develops a weak spark, a hard hot start or a battery that will not stay charged. Every product shipped is tested.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

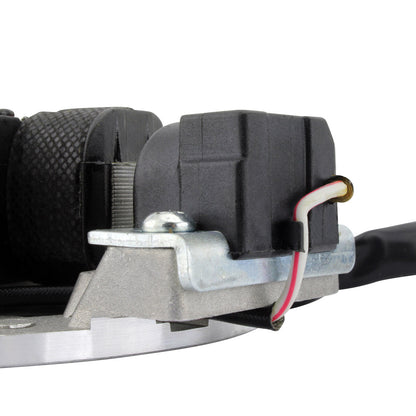

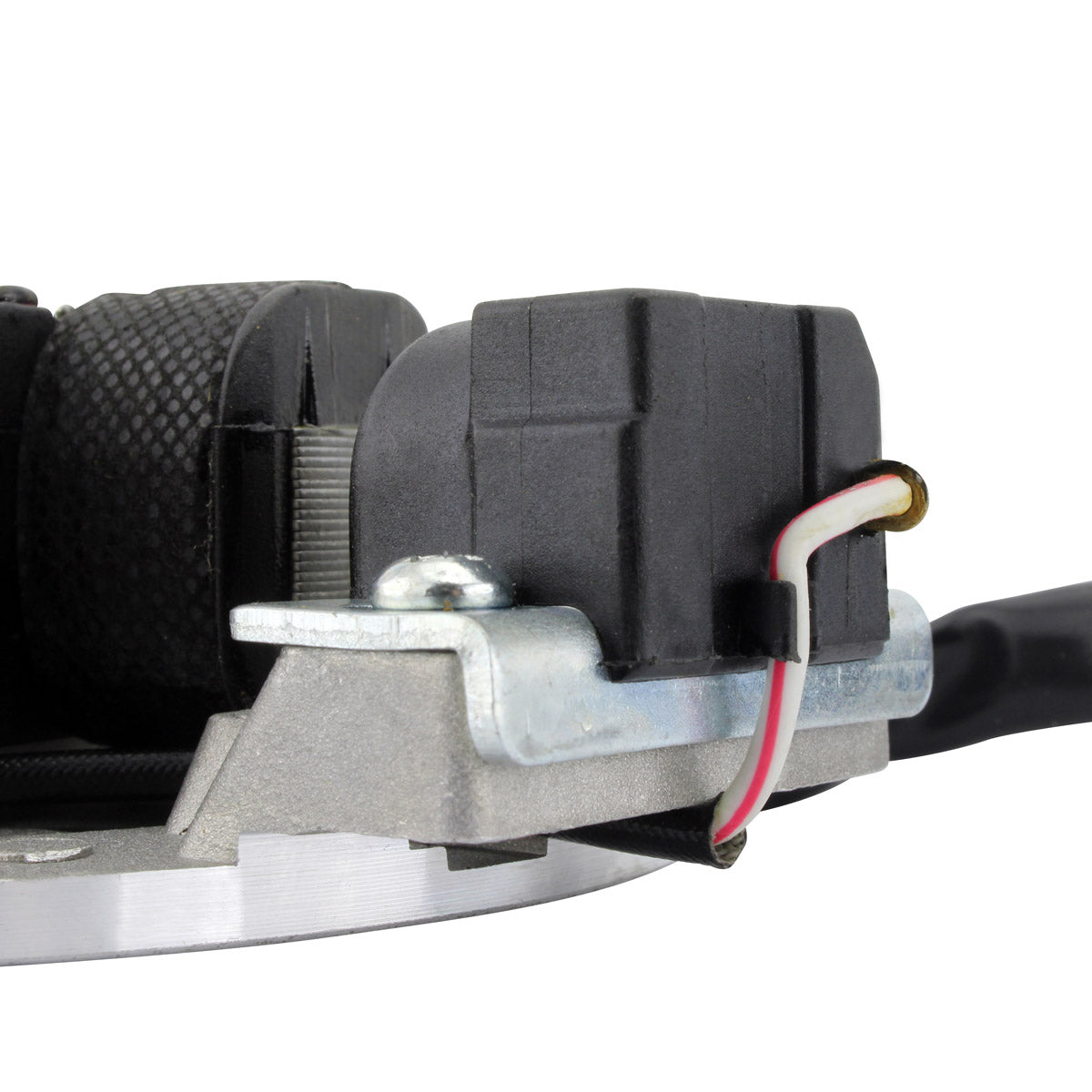

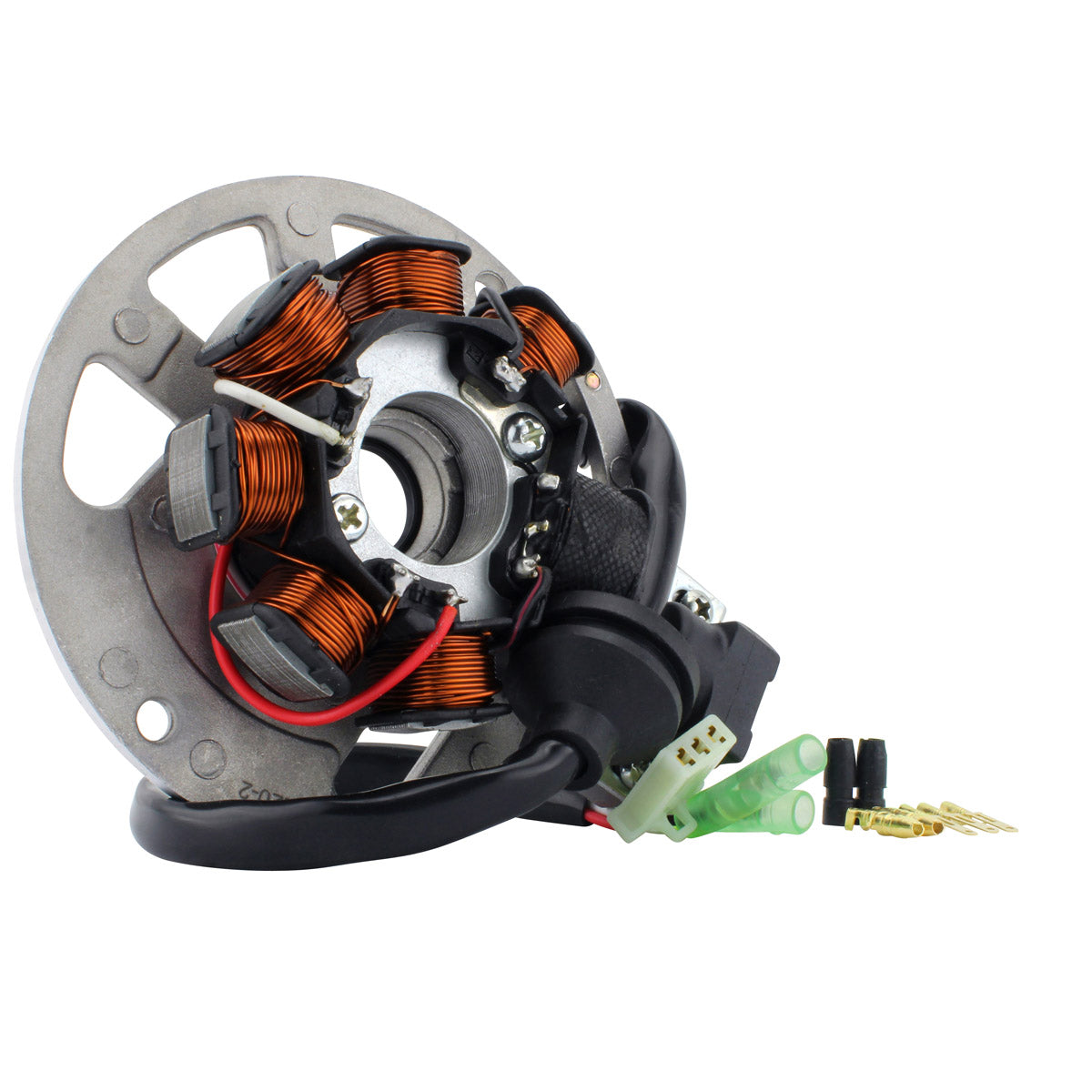

- Pick up pulsar coil included

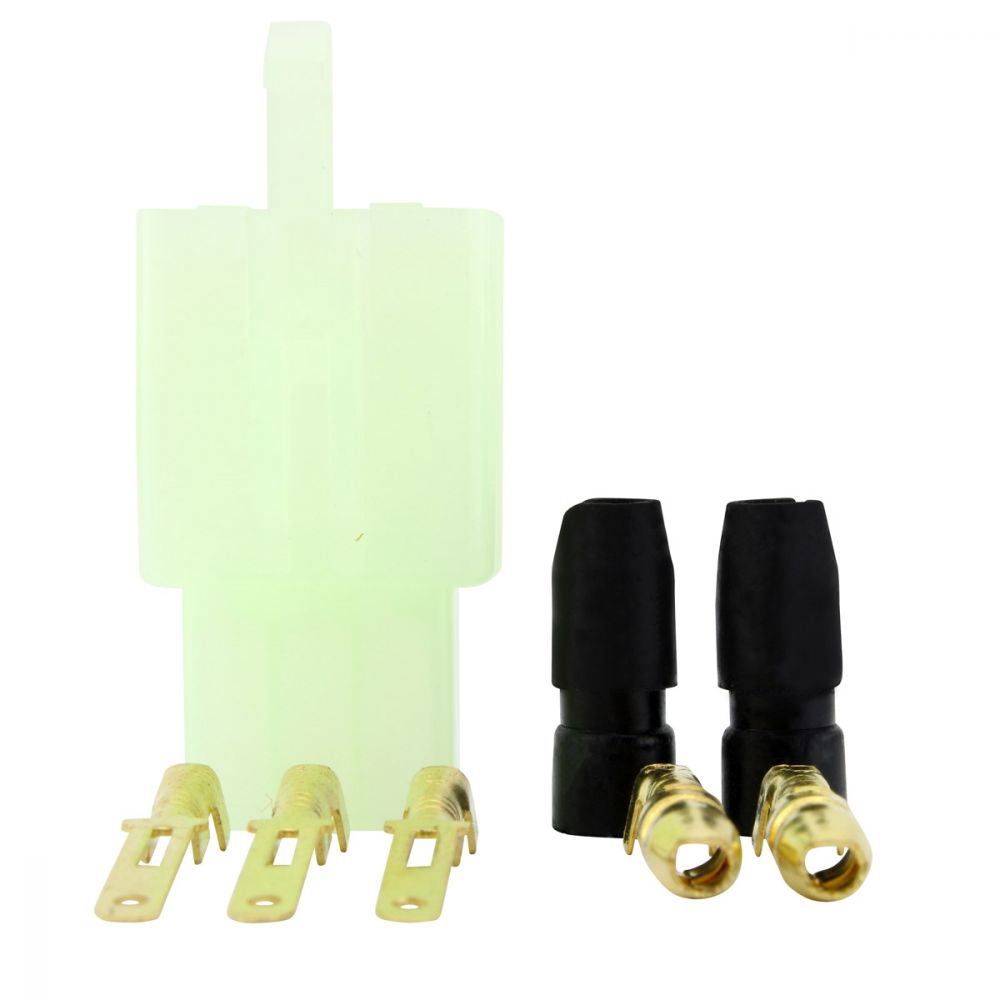

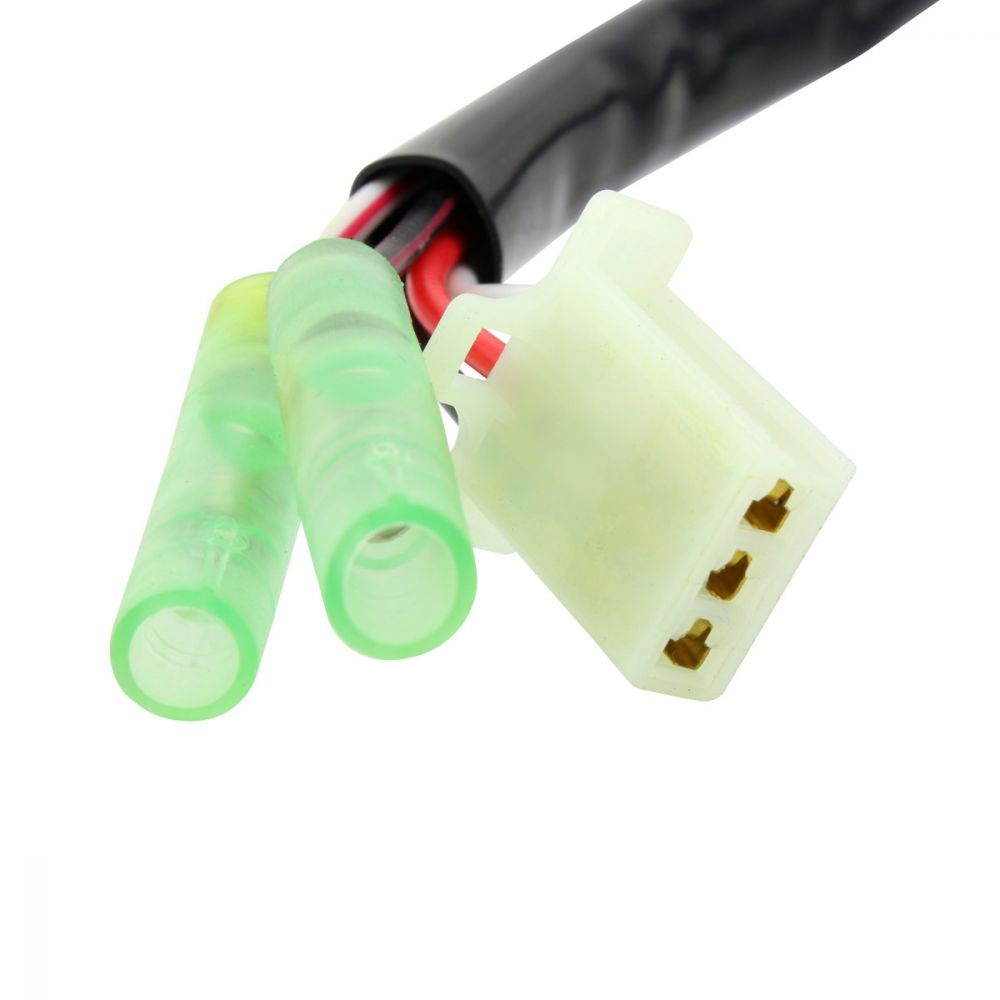

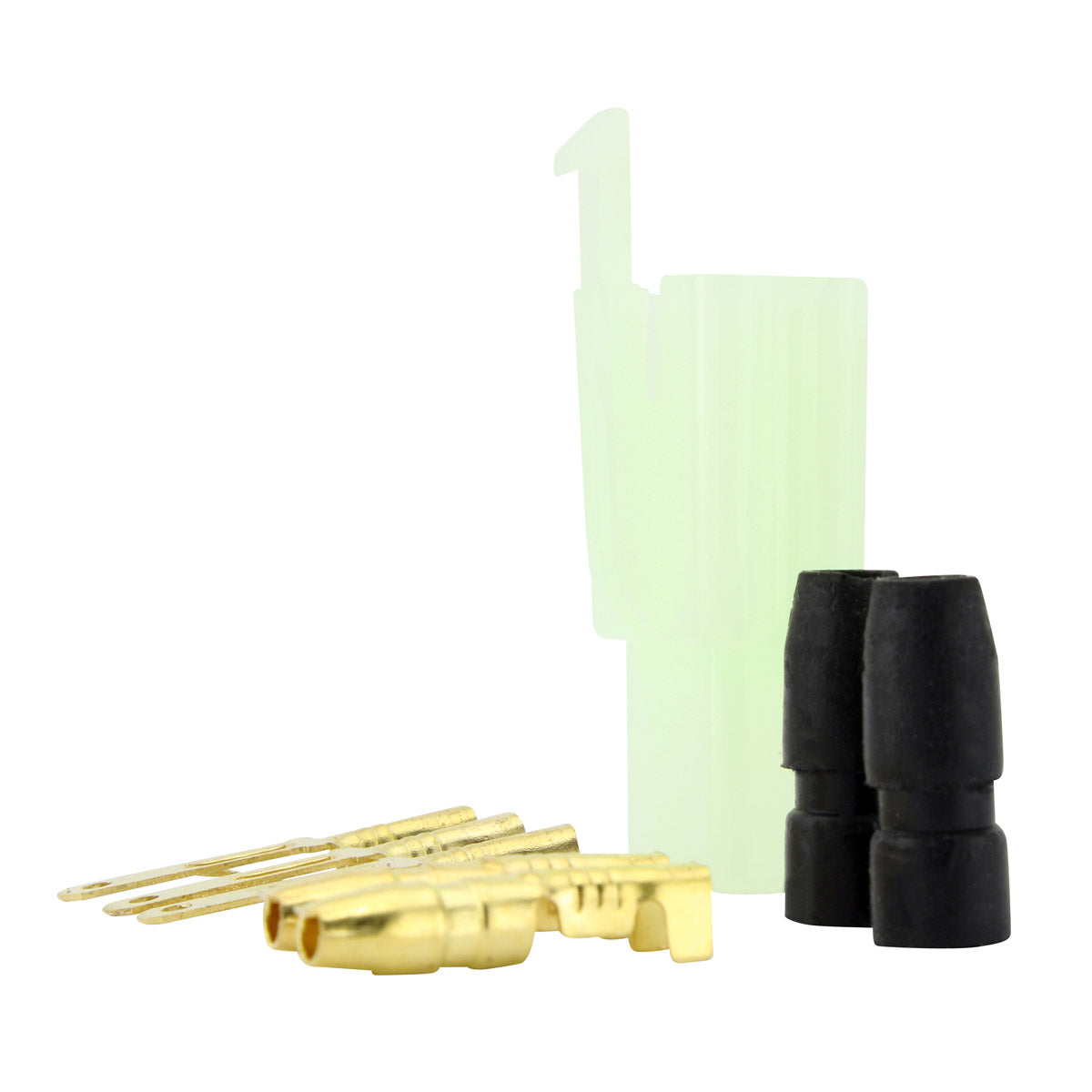

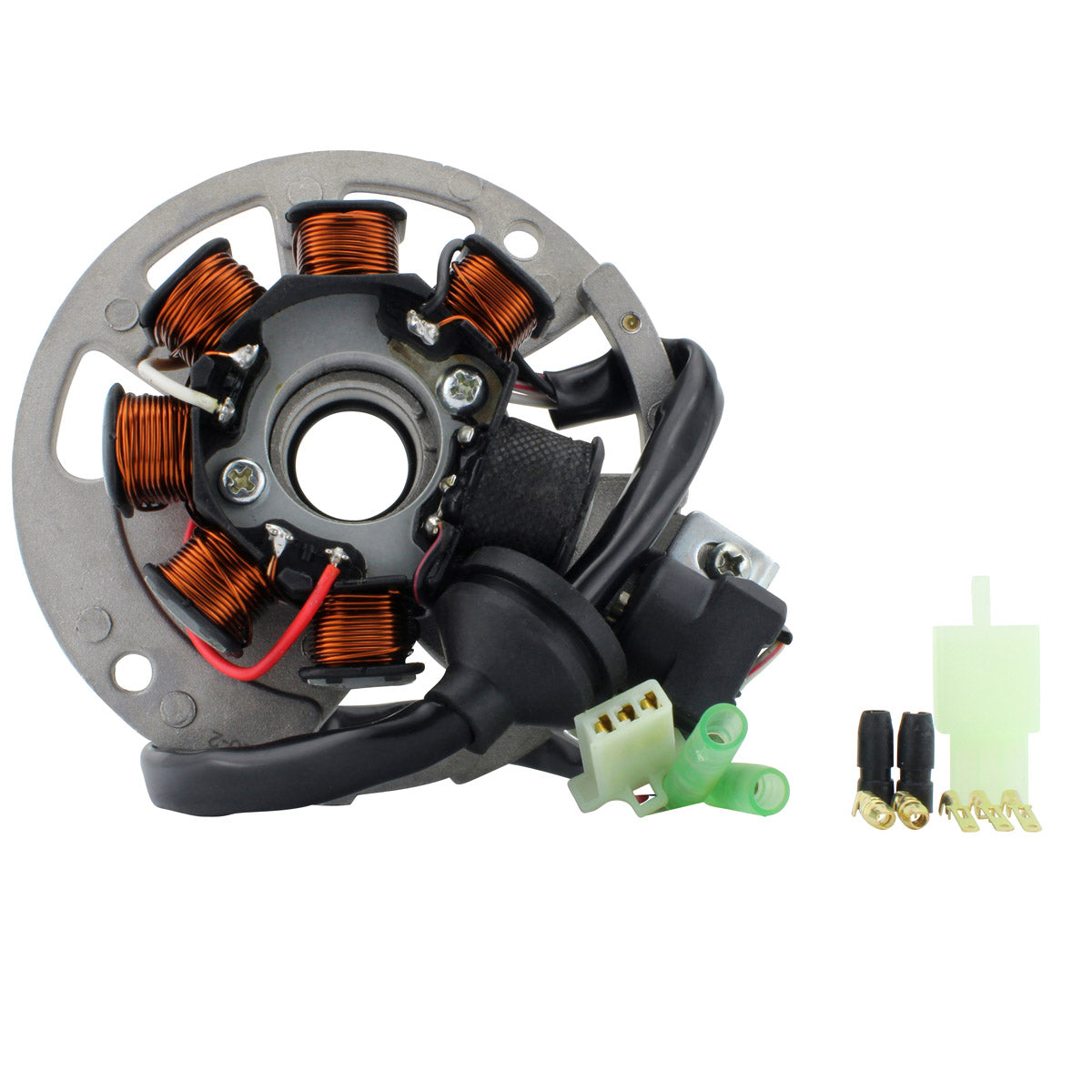

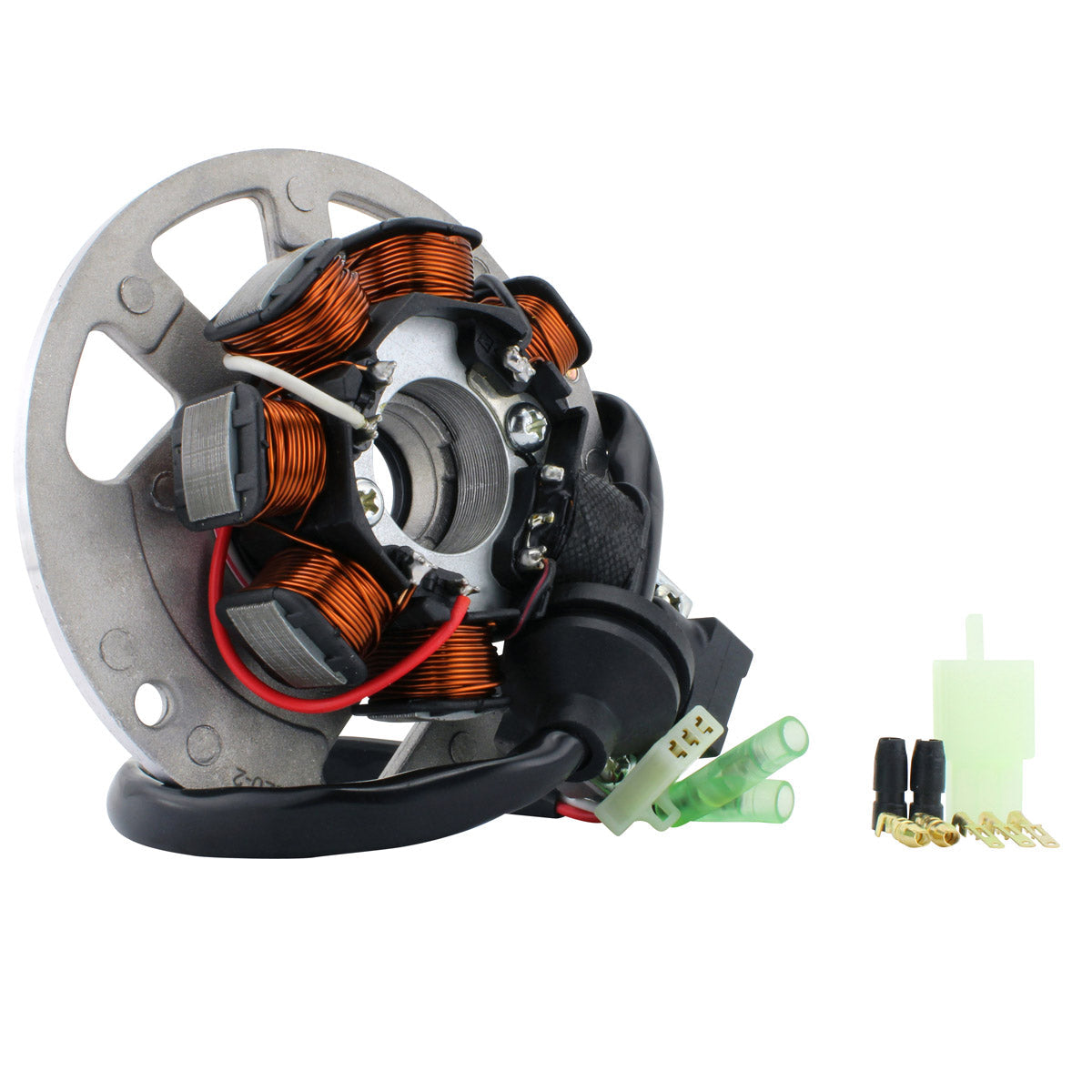

- Connectors included
- Rubber grommet included
- Back plate included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
28 mm |
| Exterior diameter |
80 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
30 mm |
| Wire length, grommet to plug |
280 mm |
| Number of wires |
5 |
| Number of plugs |
3 |
| Number of pins |
5 |
| Number of poles |
7 |
| Alternator resistance, white to yellow/red |
0.7 ohms +/- 20% |
| Pickup resistance, white/red to black (ground) |
478 ohms +/- 20% |
| Source resistance, black/red to black (ground) |
800 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha Zuma 50 |
2002-2005 |
| Yamaha Zuma 50 |
2008-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5PJ-H5560-00-00 |
Yamaha |
| RMS010-107292 |
Manufacturer SKU |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit, plug-and-play and a direct fit. The connectors, rubber grommet and back plate are all supplied, so nothing has to be reused from the old assembly or spliced into the loom.
What is included in the box?
The stator with the pick up pulsar coil, the connectors, the rubber grommet and the back plate. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
With the engine off and the plugs disconnected, check all three circuits: white to yellow/red should read approximately 0.7 ohms +/- 20%, white/red to black (ground) approximately 478 ohms +/- 20%, and black/red to black (ground) approximately 800 ohms +/- 20%. One circuit reading open, shorted or well outside tolerance is enough to confirm the stator has failed.
Why does this stator have three separate circuits?
Because the Zuma 50 runs the lighting and battery charging from the alternator winding, the ignition timing signal from the pickup, and the ignition energy itself from the separate source coil. All three are wound onto this one assembly, which is why a single failed circuit can cause a charging fault and a spark fault at the same time.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
