Stator Crankcase Cover Gasket for Yamaha FZ1, YZF R1 and FZ8
Yamaha FZ1 / FZS1 2006-2015 · YZF R1 2004-2008 · FZ8 2011-2013 · Part RMS050-105077

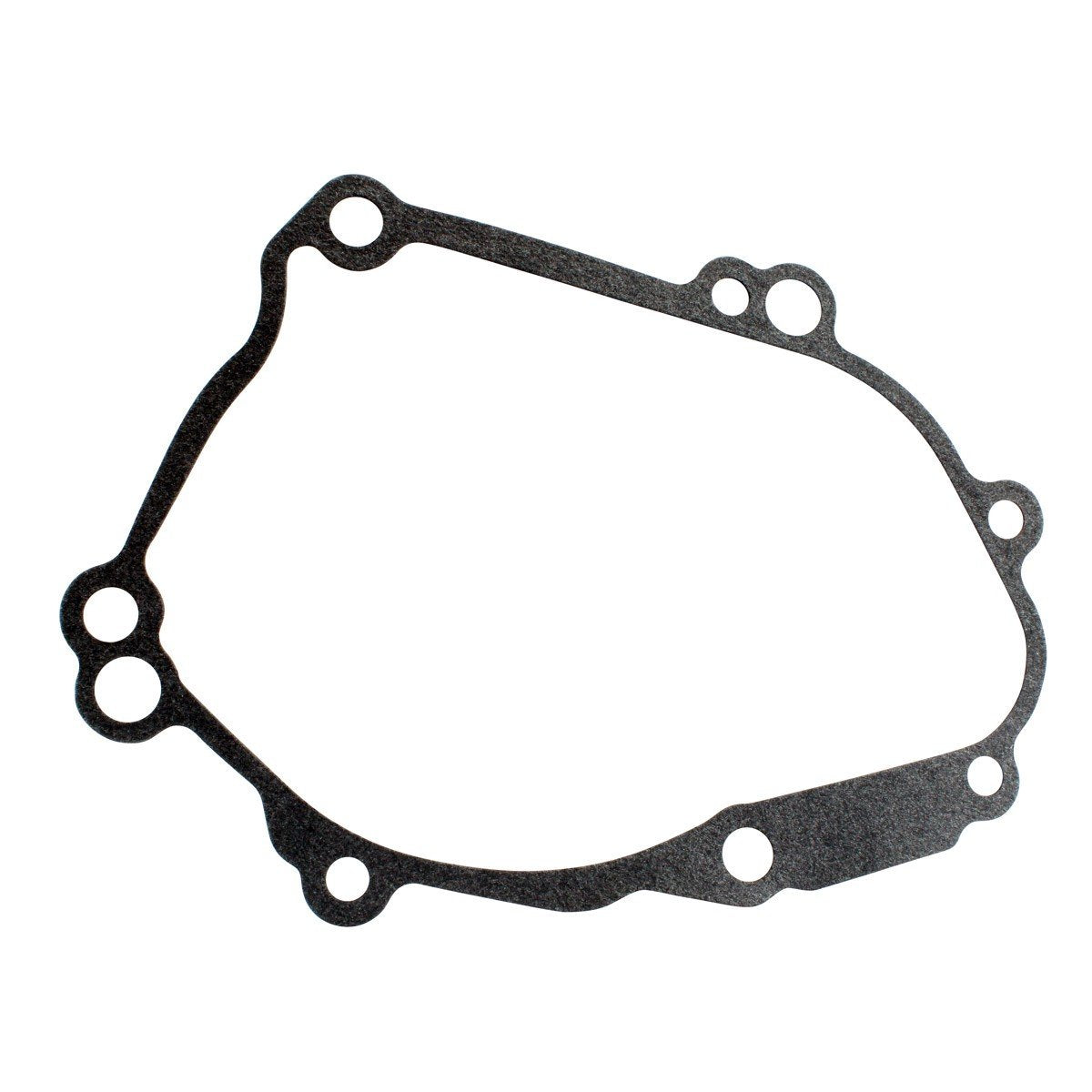

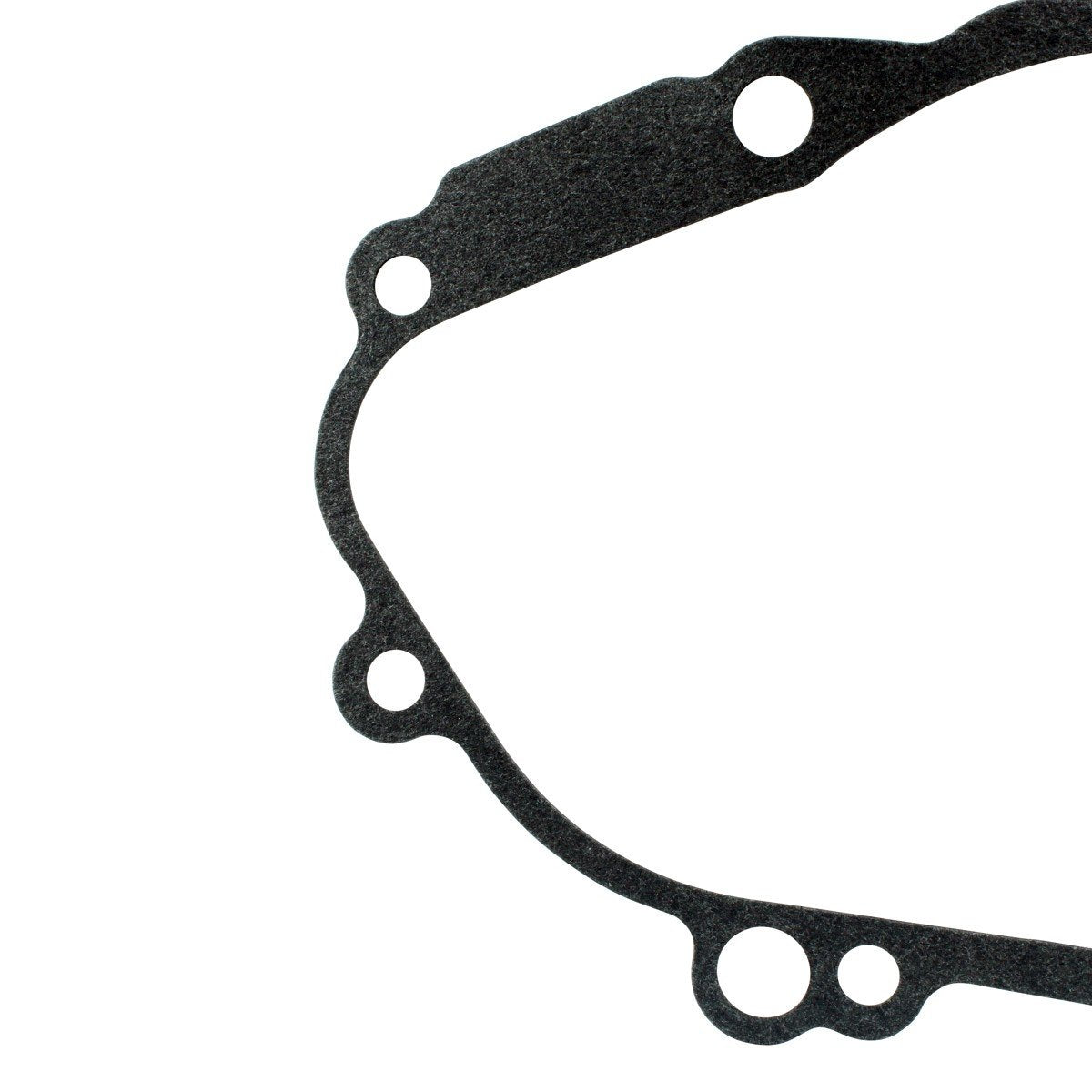

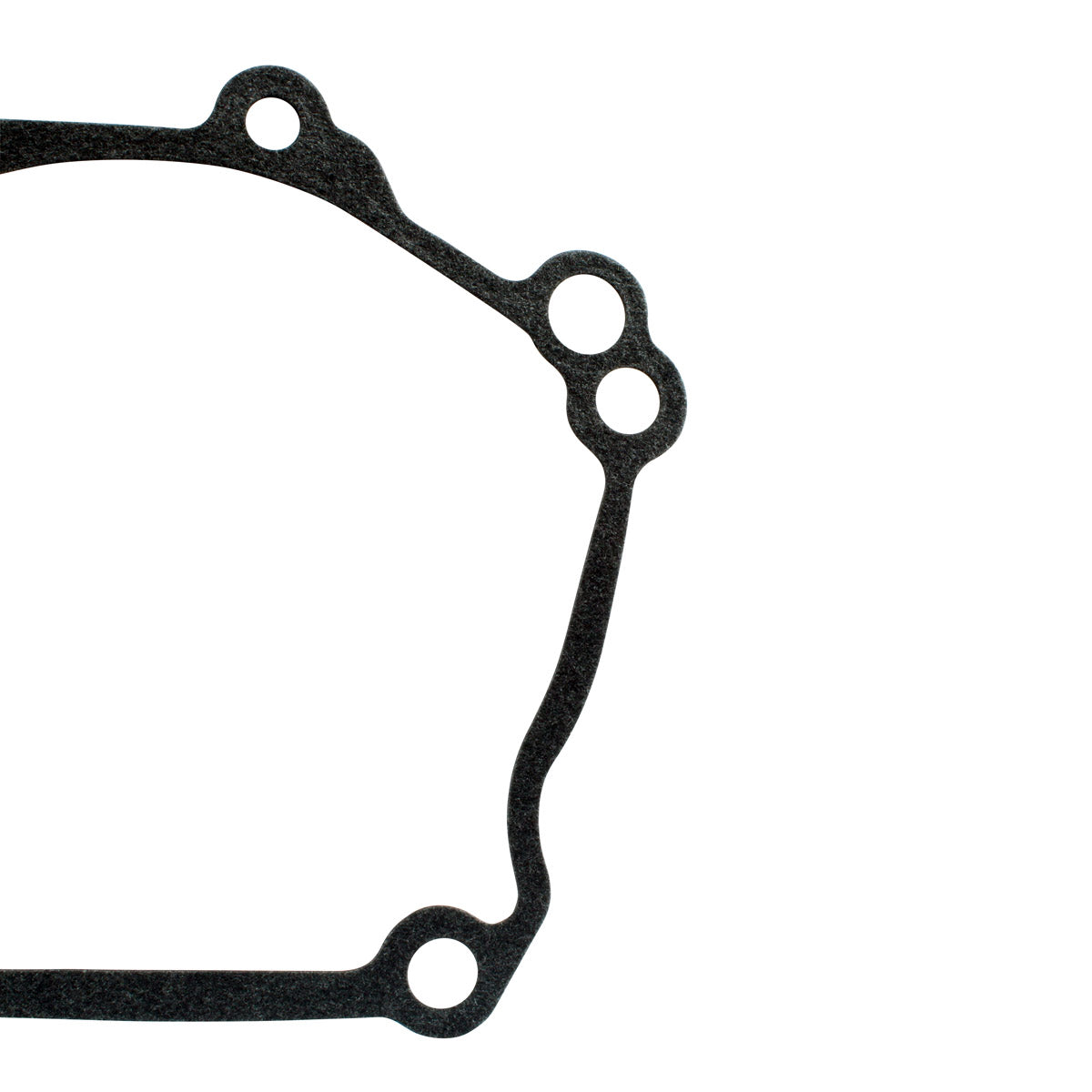

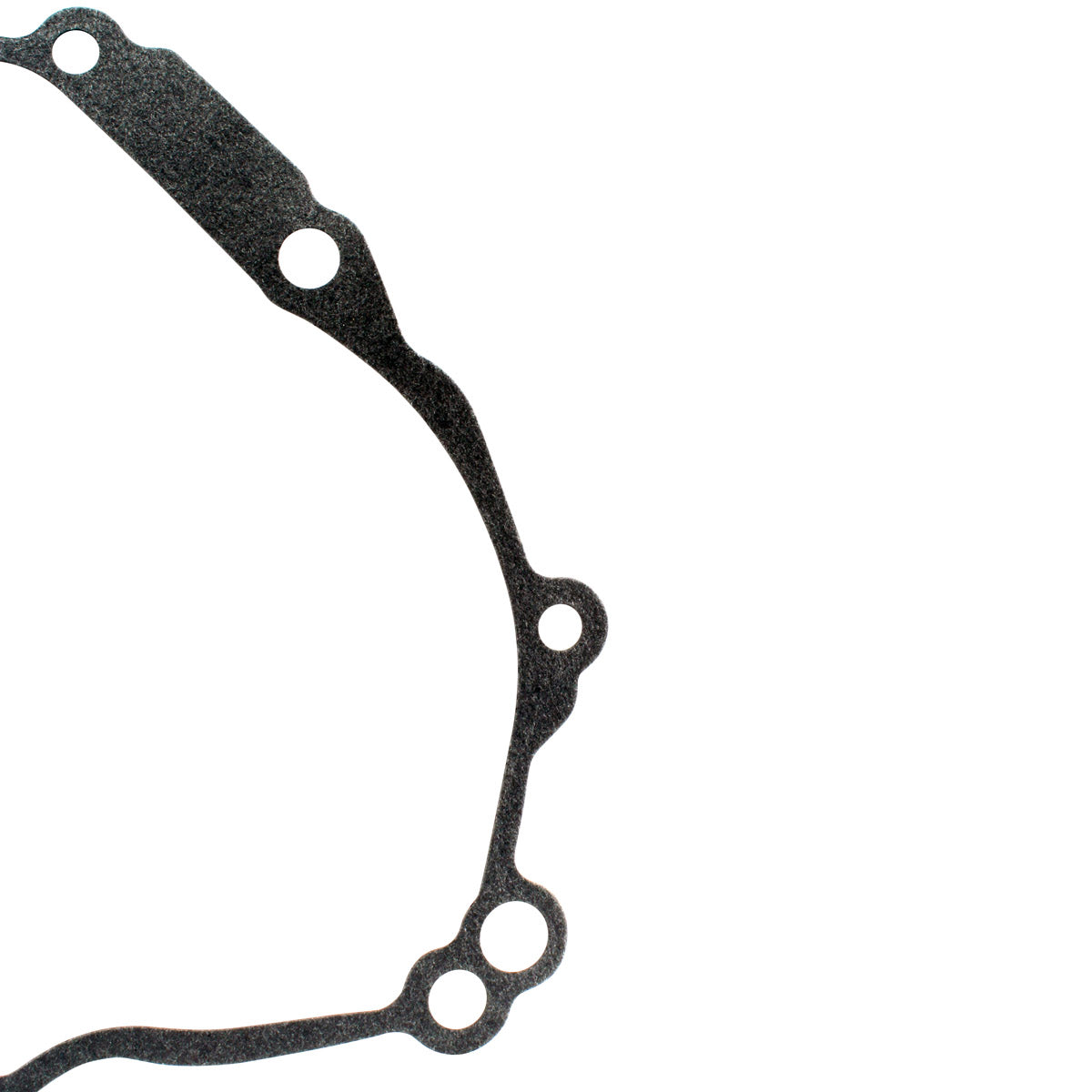

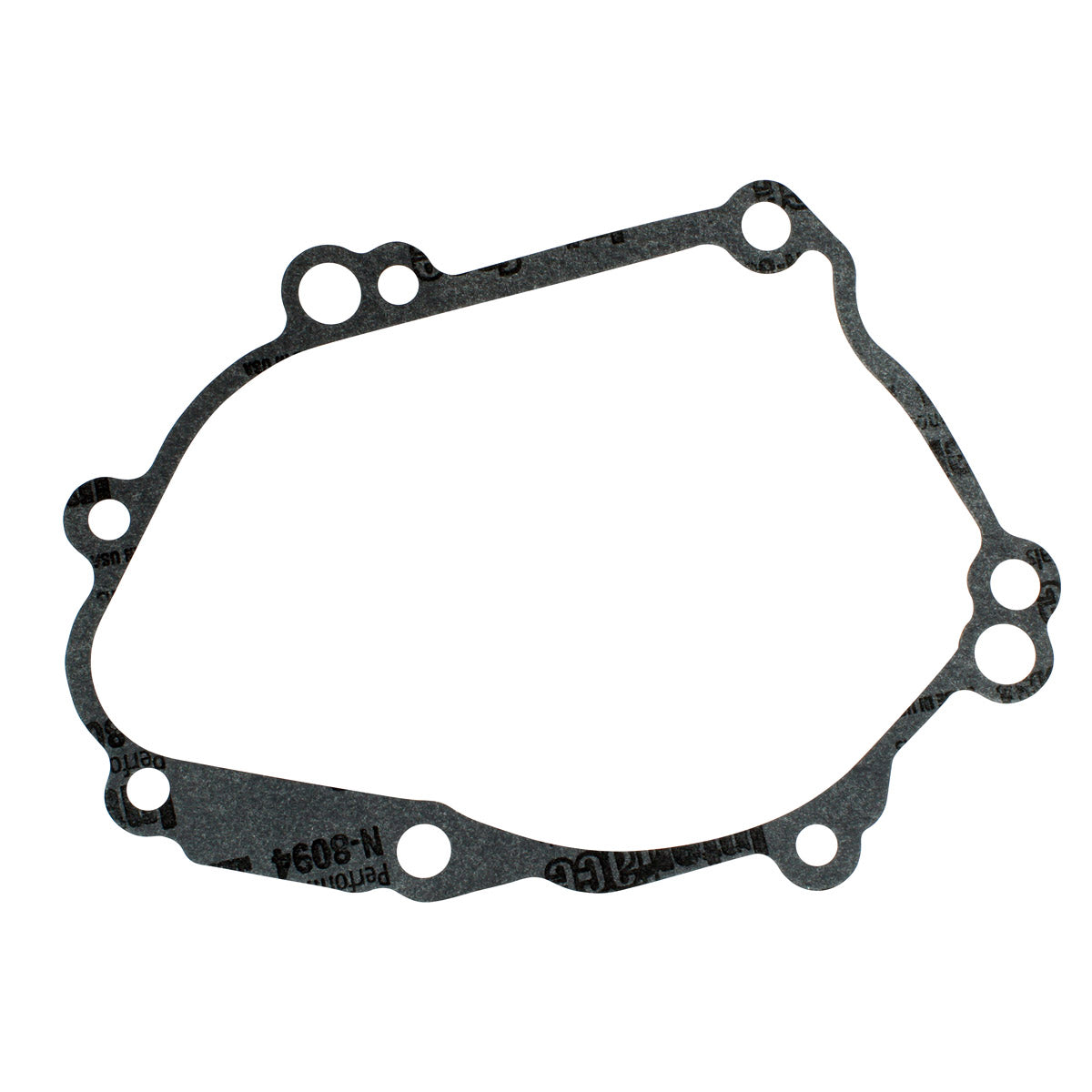

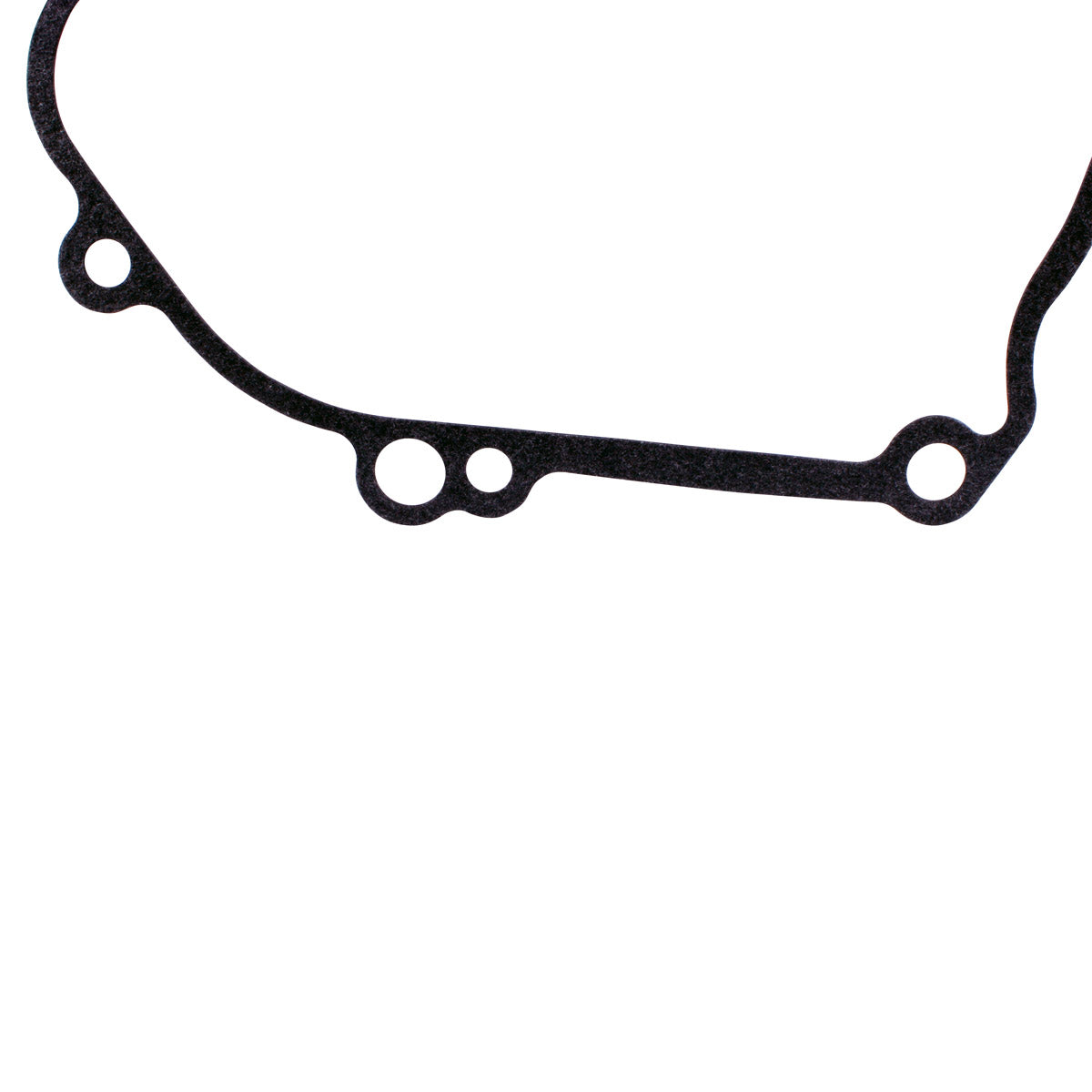

This is a brand new stator crankcase cover gasket for Yamaha FZ1, FZS1, YZF R1 and FZ8 models. It seals the joint between the left-hand crankcase and the stator cover, keeping engine oil inside the cases and dirt and water out of the charging system. Whenever the stator cover is removed - to change a stator, to fit a new flywheel, or simply to inspect the charging side of the engine - the original gasket is destroyed on removal and must be replaced. Refitting a cover onto a used, crushed or torn gasket is the most common cause of a weeping stator cover.
The gasket is supplied as a direct replacement for the original Yamaha item and matches the OEM outline, bolt hole pattern and thickness, so the cover pulls down evenly without needing sealant or trimming. All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part before fitting. It is a sensible item to have on the shelf before you start any stator or flywheel job, because the cover cannot be refitted properly without one.
Key Features
- Brand new stator crankcase cover gasket
- Direct replacement for the original Yamaha gasket
- Matches the OEM outline and bolt hole pattern
- Required whenever the stator cover is removed
- Product photographs show the actual item supplied
- Replaces Yamaha part numbers 2D1-15451-10-00, 5VY-15451-10-00 and 5VY-15451-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Part type | Stator crankcase cover gasket |
| Part number | RMS050-105077 |
| Condition | Brand new aftermarket |
| Fitment type | Ride specific - direct fit |
| Sold as | One gasket |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha FZ1 | 2006-2015 |
| Yamaha FZS1 | 2006-2015 |
| Yamaha YZF R1 | 2004-2008 |
| Yamaha FZ8 | 2011-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2D1-15451-10-00 | Yamaha |
| 5VY-15451-10-00 | Yamaha |
| 5VY-15451-00-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a ride specific, direct fit gasket cut to the original Yamaha profile for the models and years listed above. No trimming, drilling or sealant is required. Check the OEM number stamped on your parts list against the cross reference table before ordering.
What is included?
One brand new stator crankcase cover gasket. Cover bolts, the stator itself and any other engine parts are not included.
How do I know the old gasket has failed?
The usual signs are an oil film or drips along the lower edge of the stator cover, oil creeping down the left-hand side of the engine cases, or a gasket that has visibly split, hardened or stuck to the cover when it was last removed. A gasket that has already been compressed once will rarely seal a second time.
Do I need a new gasket if I am only changing the stator?
Yes. The stator is bolted to the inside of the cover, so the cover has to come off to reach it and the old gasket is disturbed in the process. Fitting a fresh gasket at the same time is the only reliable way to keep the joint oil tight afterwards.
