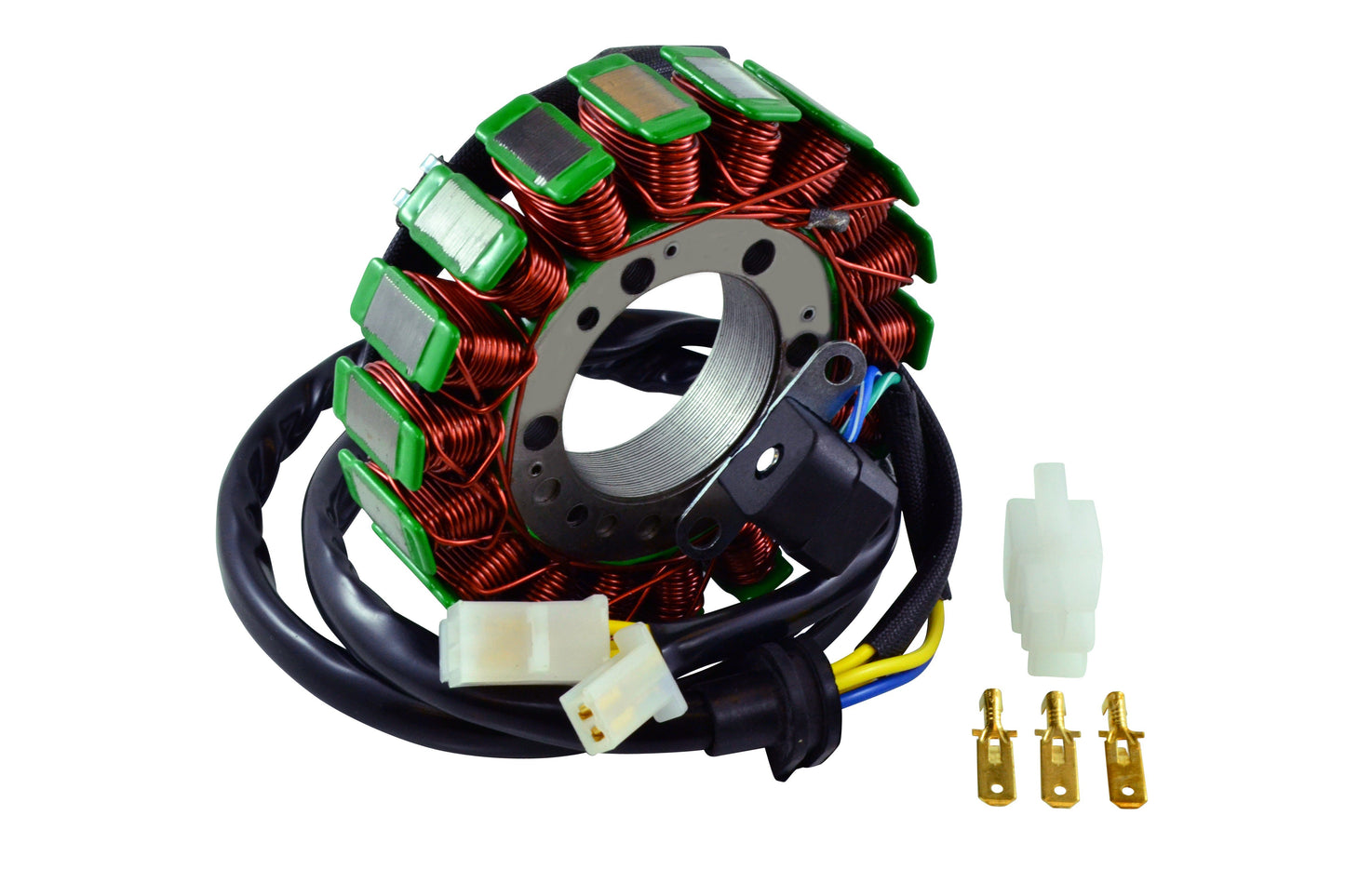

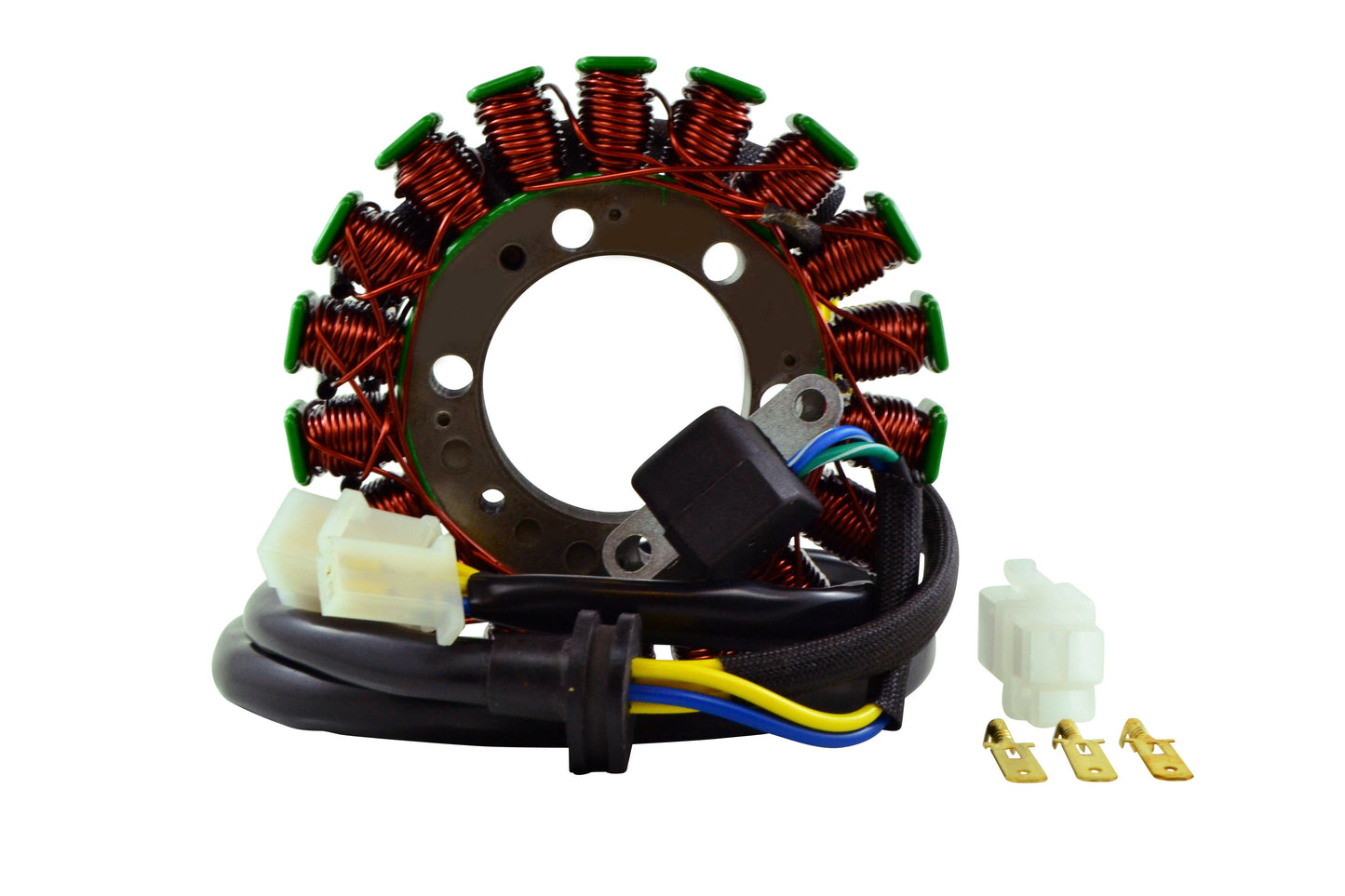

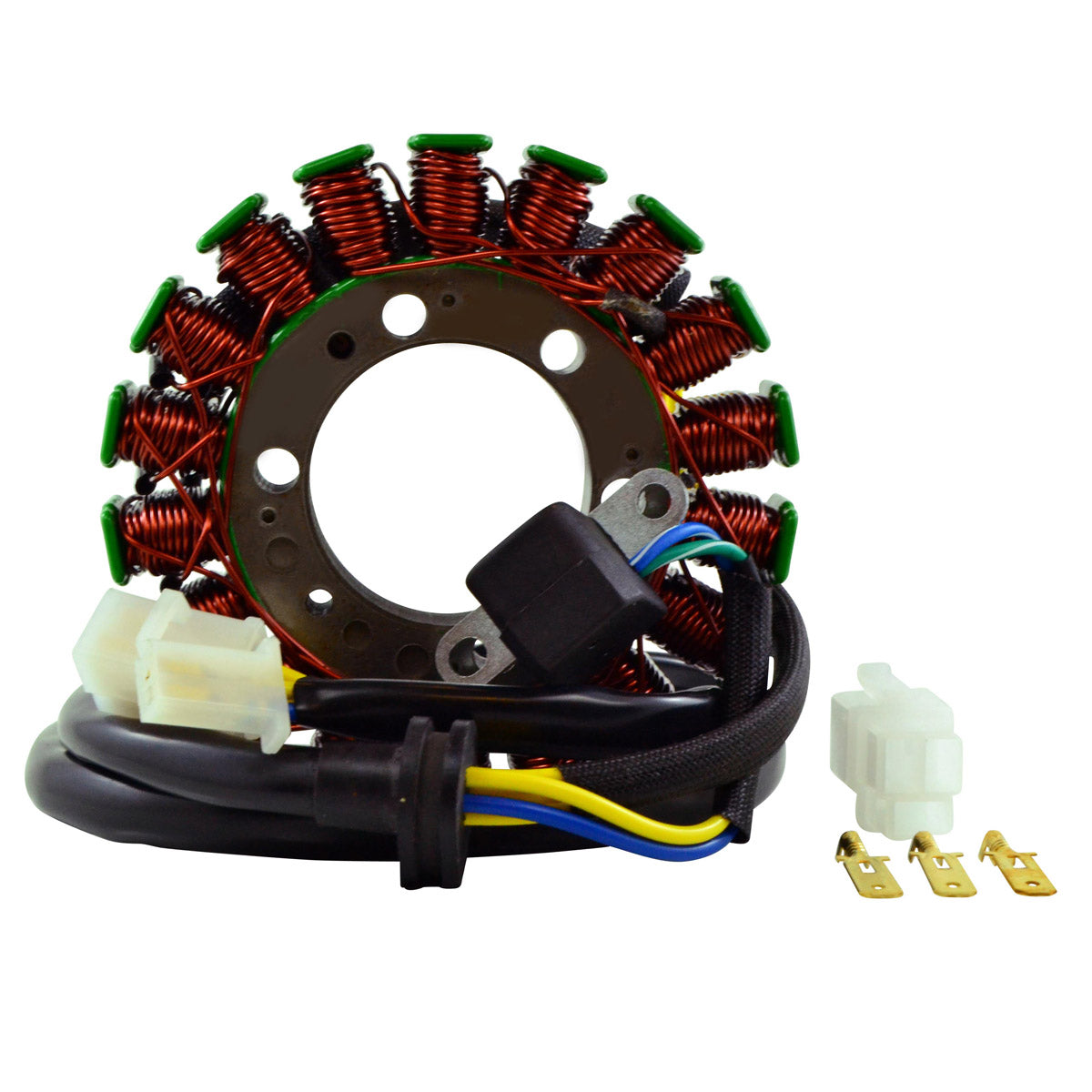

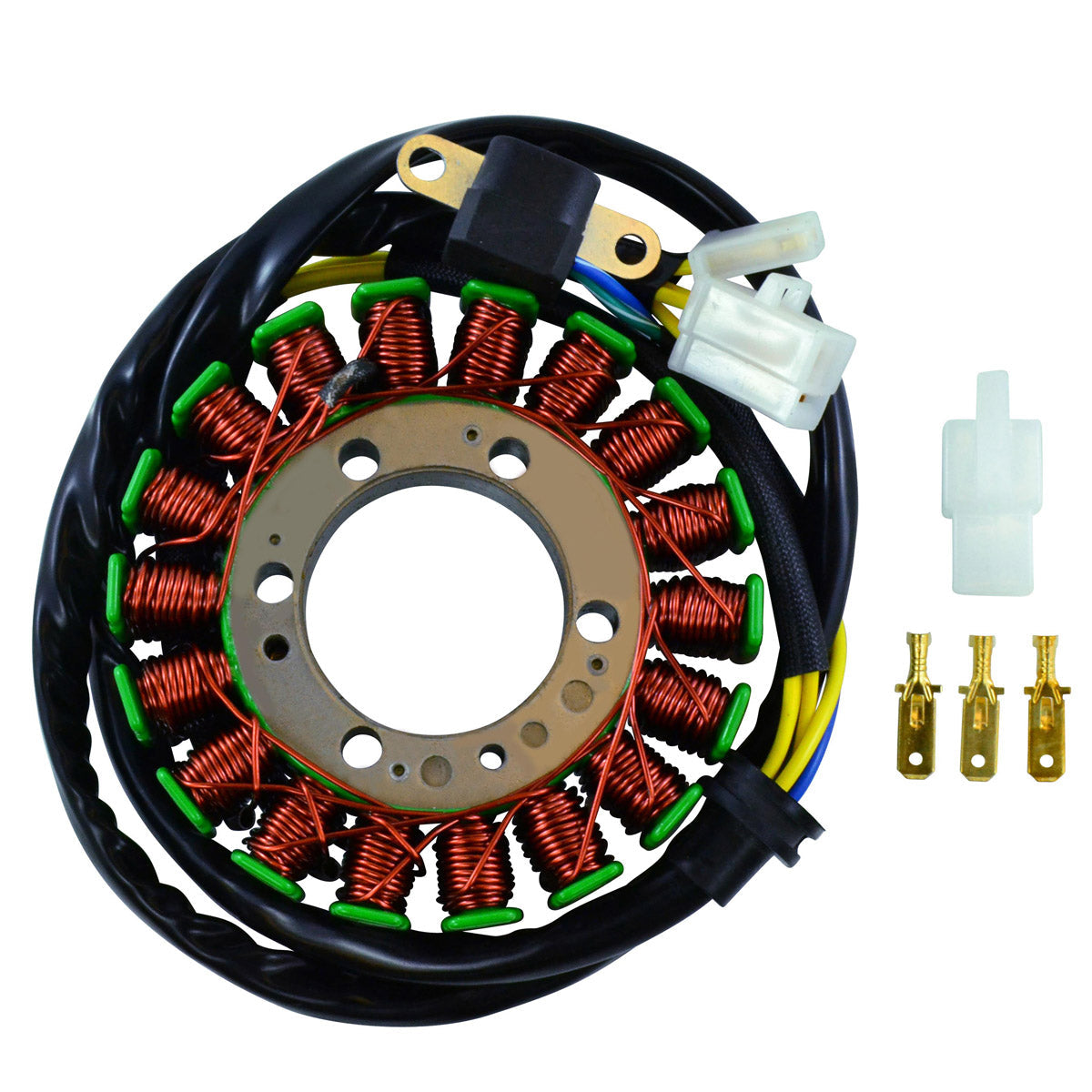

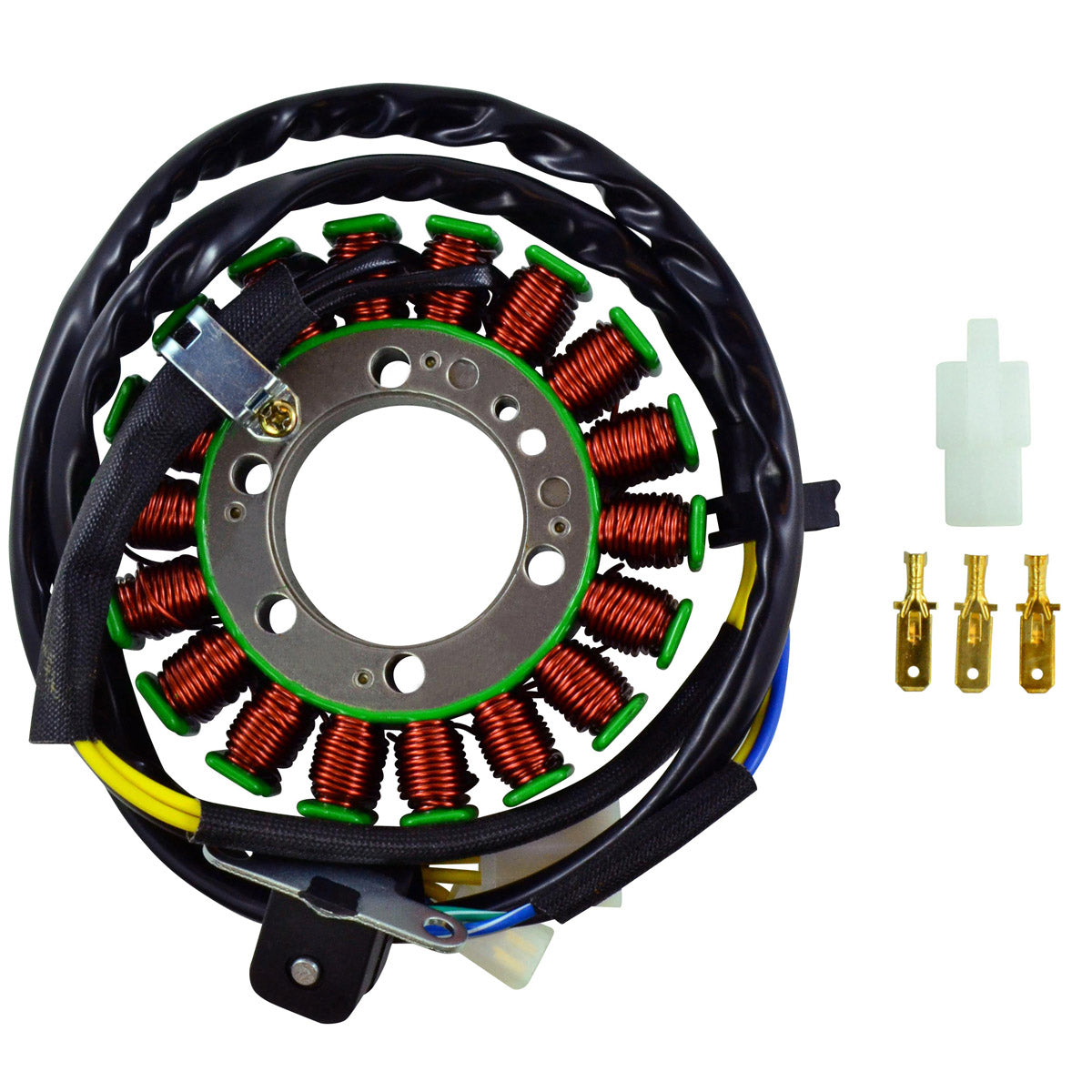

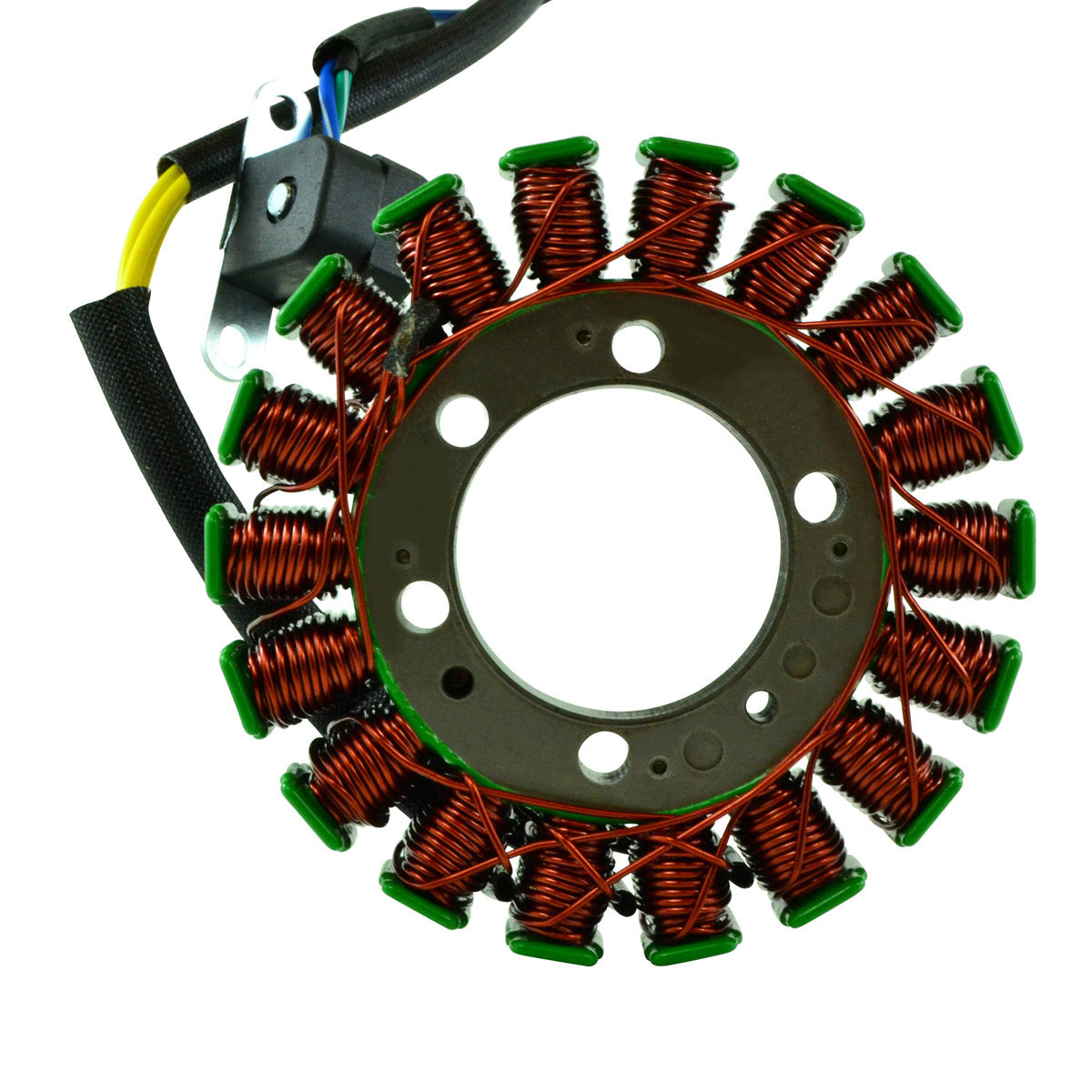

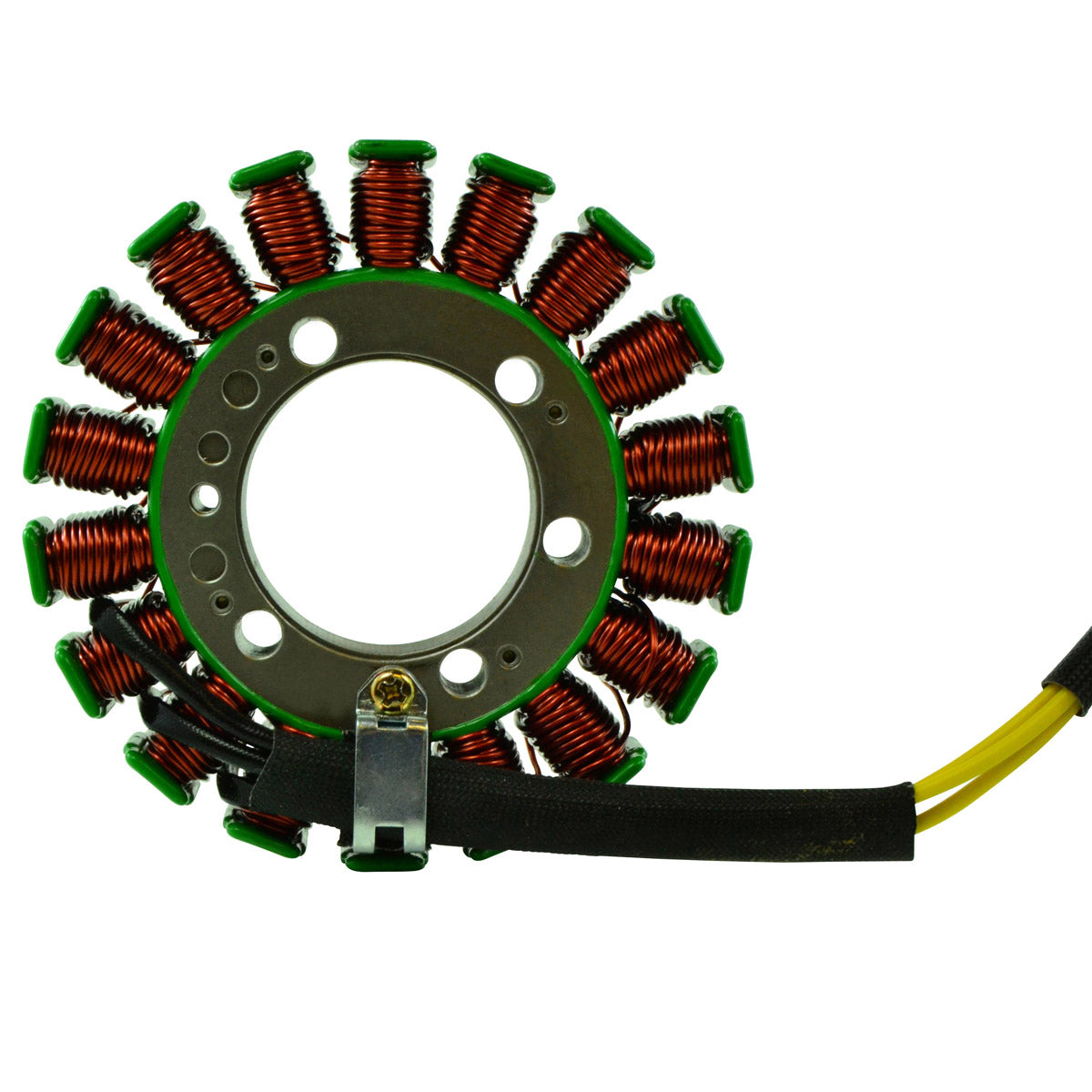

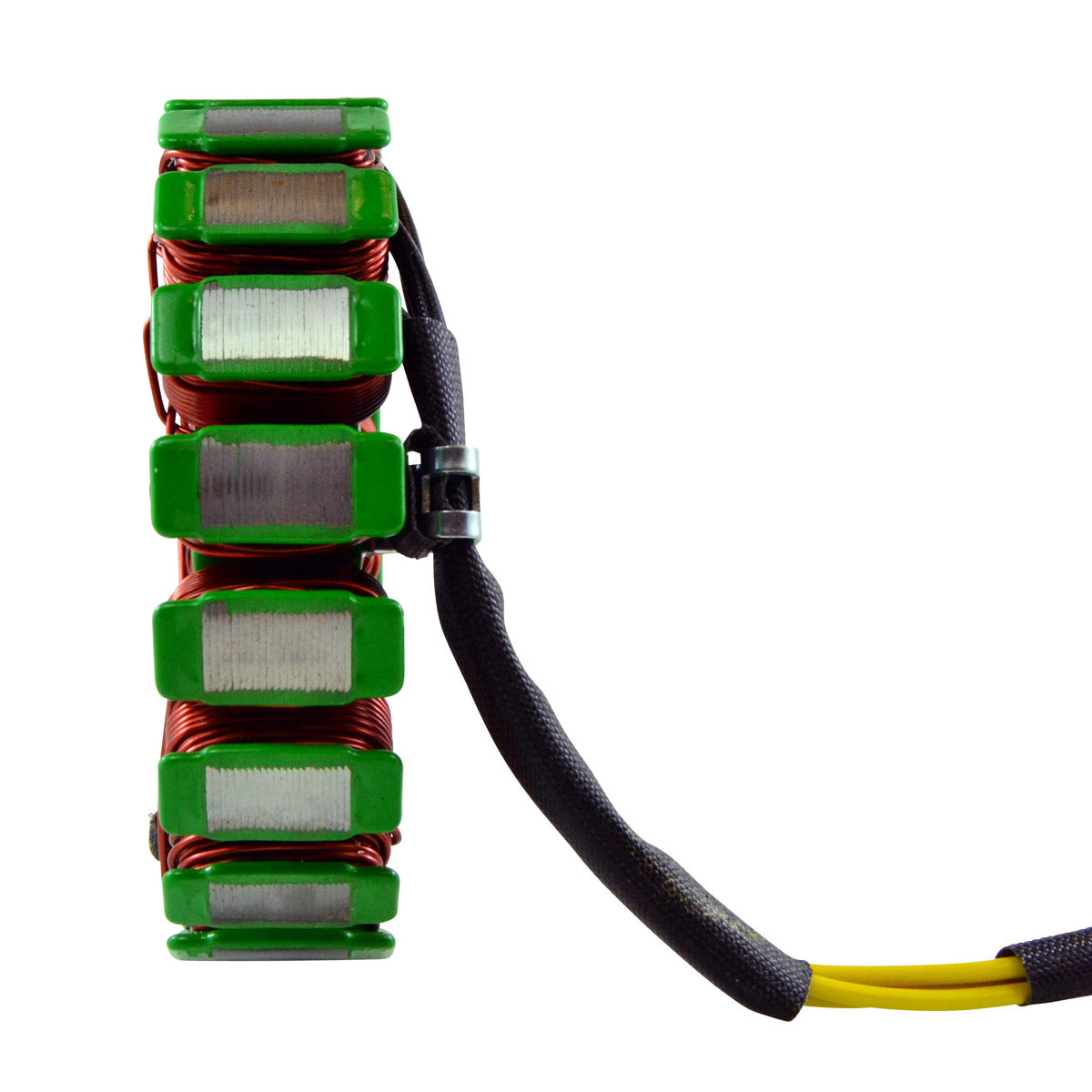

This is a brand new aftermarket stator generator for the Yamaha FZS 600 Fazer, supplied complete with the pickup pulsar coil. The stator is the stationary winding behind the flywheel that generates the three-phase AC feeding the regulator-rectifier, and it is the component responsible for keeping the battery charged once the engine is running. A tired or shorted stator typically shows itself as a battery that goes flat over a ride, headlights that dim and brighten with revs, or a machine that will start on a charged battery but never recovers it.

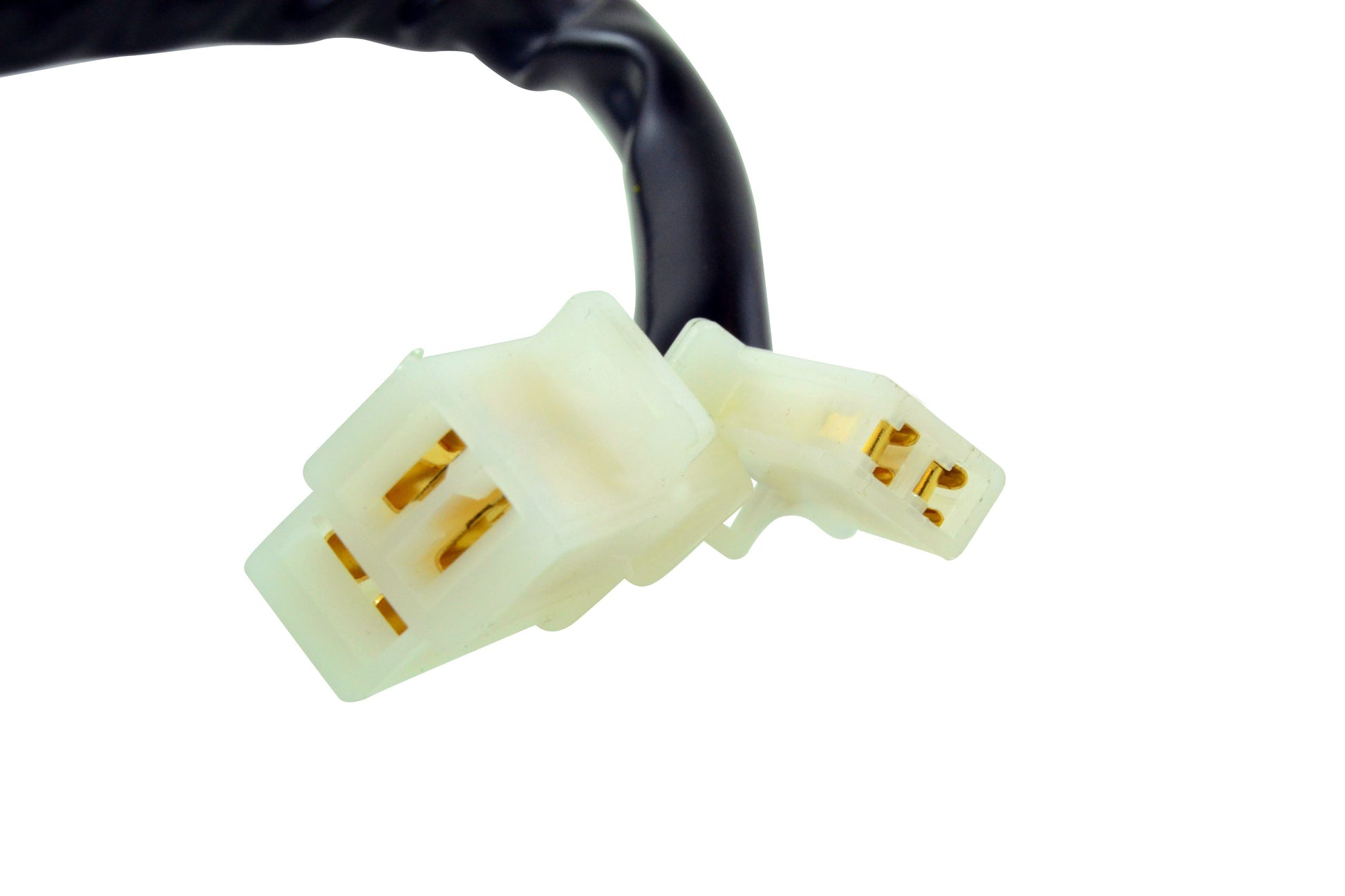

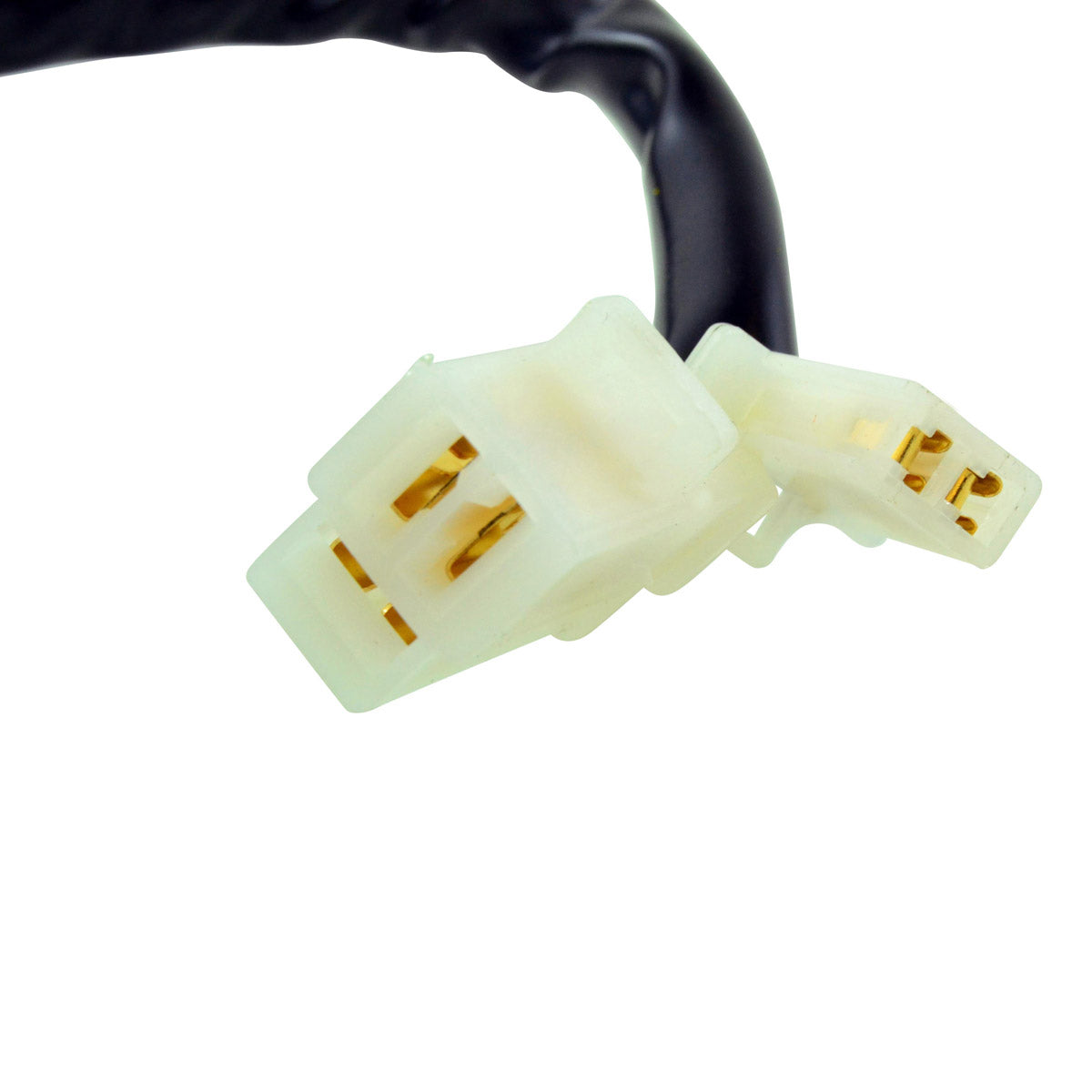

The unit is an 18-pole, plug-and-play direct fit replacement for the original. It matches the factory 104 mm outside diameter and 42 mm bore, uses the same five wires through two plugs, and needs no cutting, splicing or bracket modification. It is wound with the highest grade copper, resistant to 200 degrees Celsius, on the highest grade lamination stack, and every unit is tested before shipment. The connector and rubber grommet are included, and so is the opposite connector for the main harness side, because those plugs are often melted, corroded or defective and are a major cause of repeat electrical issues.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- 18-pole design matching the original specification

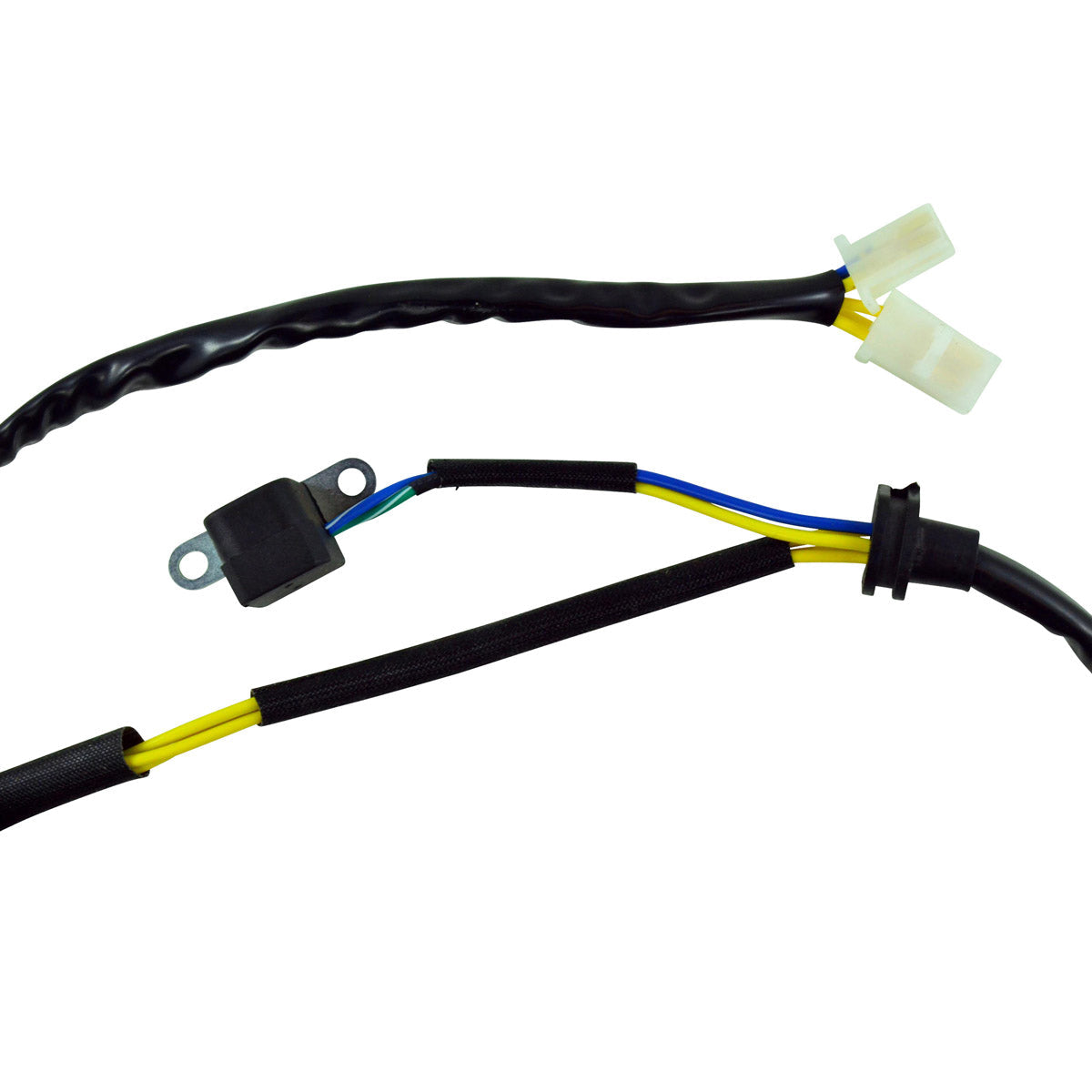

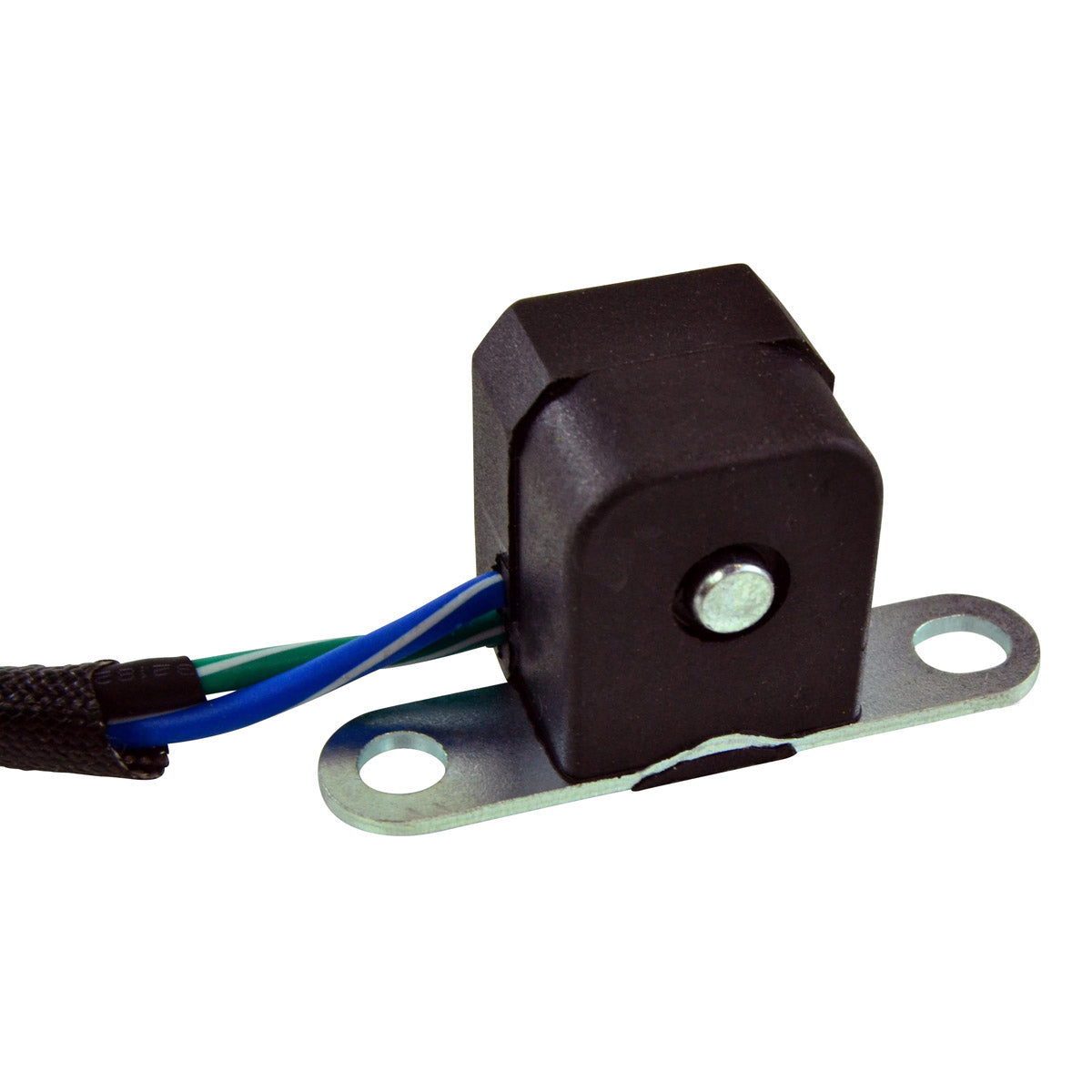

- Pickup pulsar coil included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

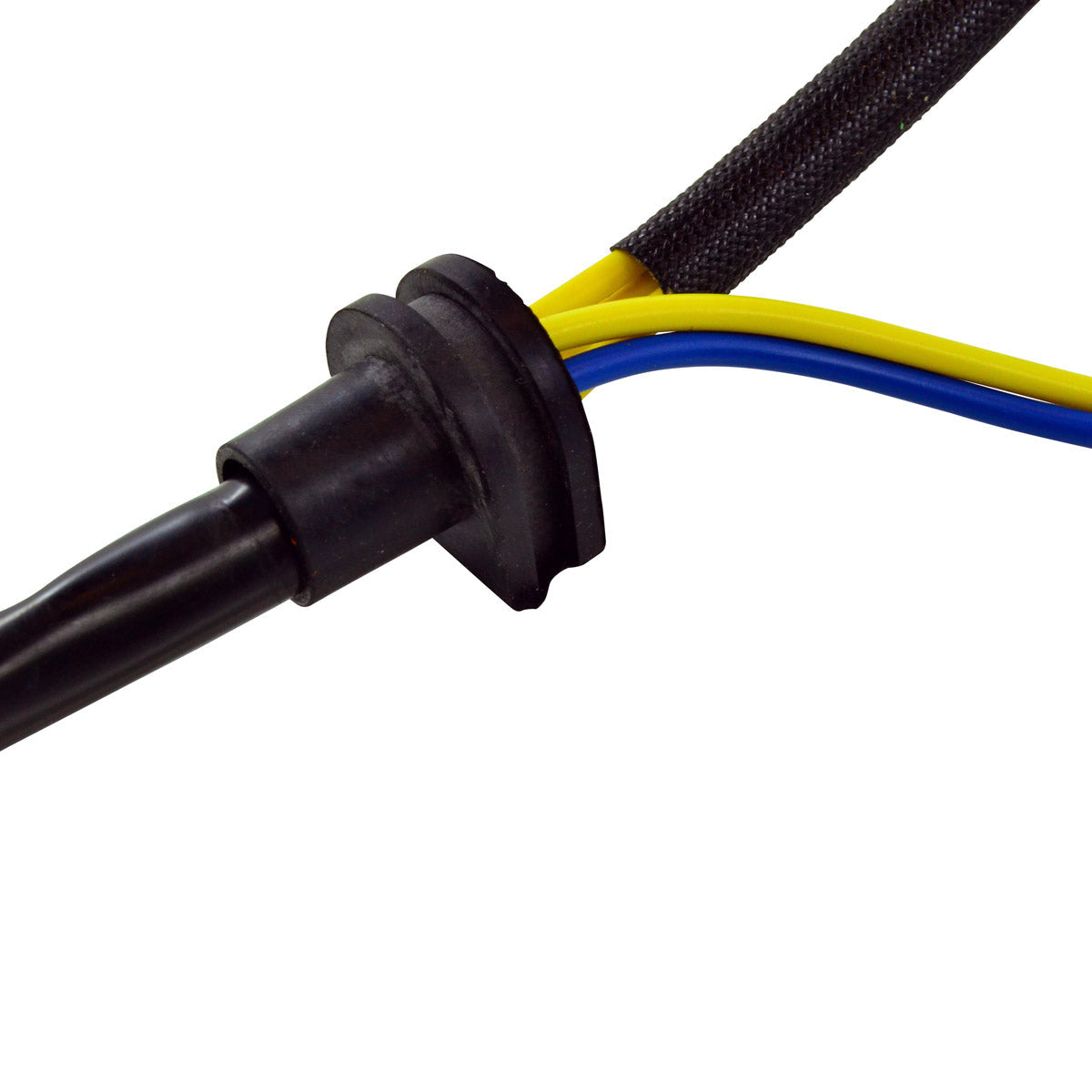

- Connector and rubber grommet included

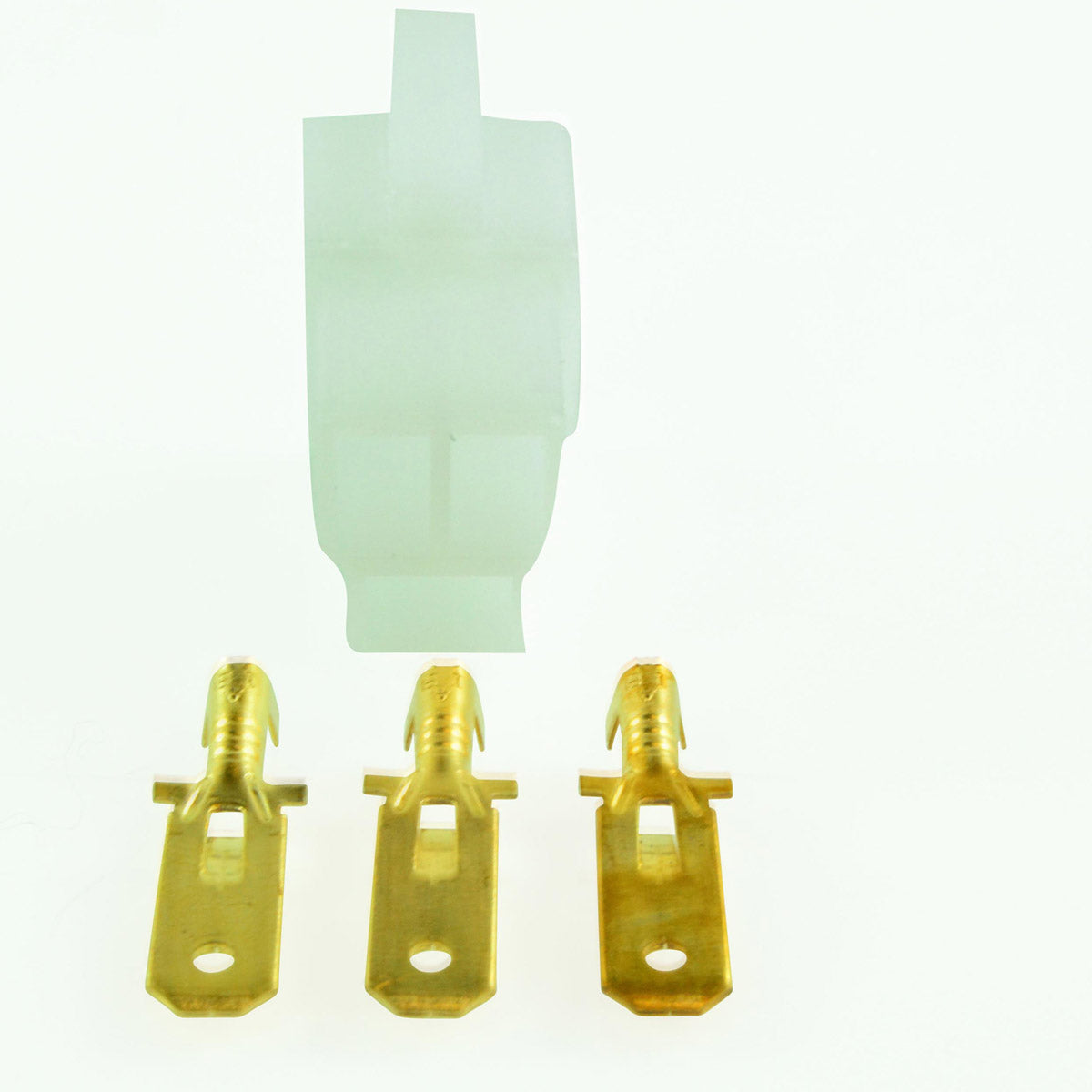

- Opposite connector for the main harness side included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104668 |
| Interior diameter |
42 mm |
| Exterior diameter |
104 mm |
| Stack thickness |
18 mm |
| Number of poles |
18 |
| Wire length, stator to grommet |
140 mm |
| Wire length, grommet to plug |
740 mm |
| Pickup coil wire length to grommet |
50 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance, white to white |
0.4 ohms +/- 20% |
| Alternator to ground |
Open line |
| Pickup coil resistance, blue to yellow |
550 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Yamaha FZS 600 Fazer |
1998-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4YR-81410-00-00 |
Yamaha |
| 4YR-81410-01-00 |
Yamaha |
Frequently Asked Questions
Is any modification needed to fit it?
No. This is a plug-and-play, direct fit replacement. The 104 mm outer diameter, 42 mm bore, 18-pole layout and five-wire output all match the original, so it fits the standard cover and plugs into the existing loom untouched.
What comes in the box?

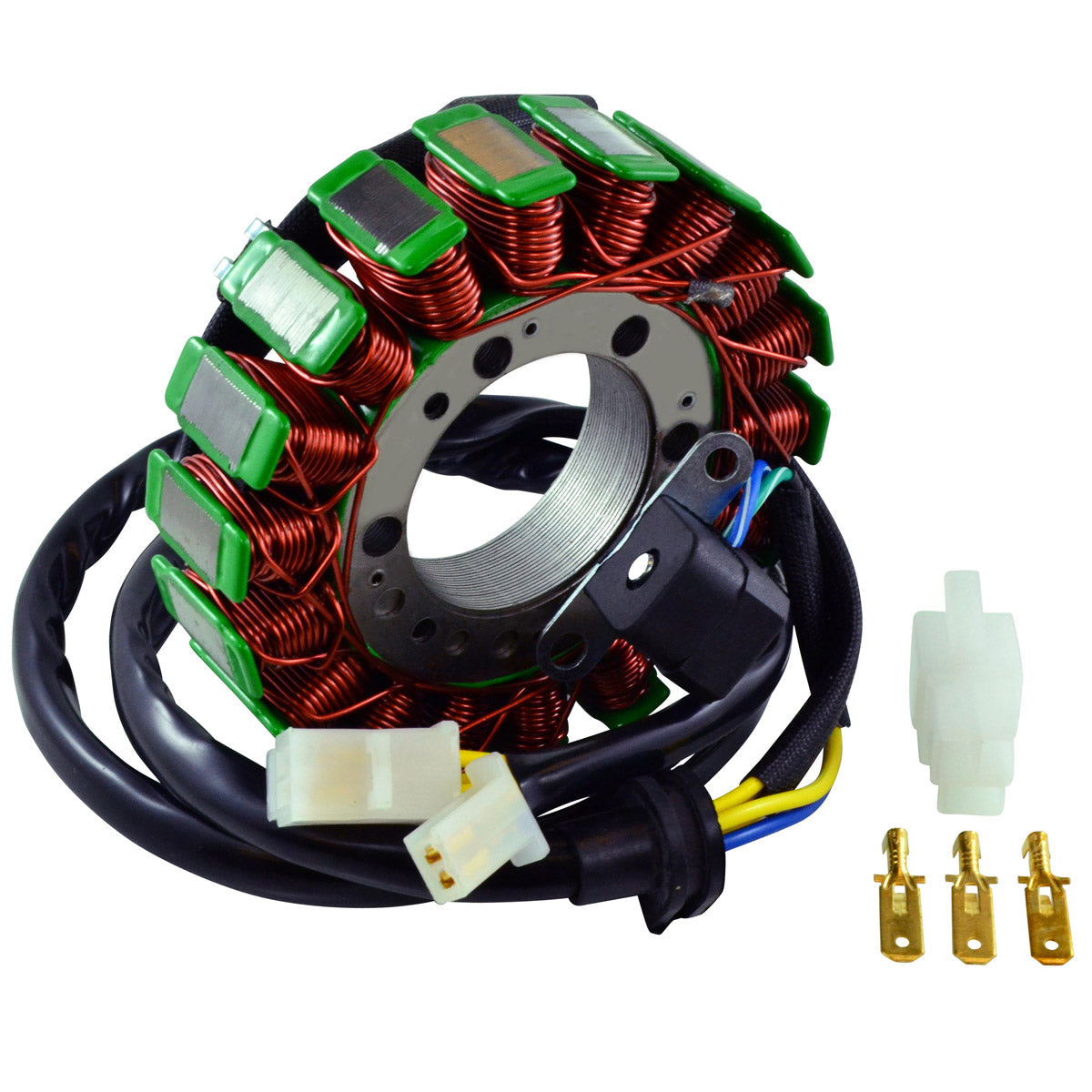

The stator with its connector, the pickup pulsar coil, the rubber grommet and the opposite connector for the main harness side.
How do I confirm the old stator is the problem?
Disconnect the plugs and measure between each pair of white wires - all three readings should be near 0.4 ohms and within about 20 per cent of one another. Each white wire should read open line to the engine casing; any continuity there is a short to earth. The pickup coil, measured blue to yellow, should read around 550 ohms.
Should I check anything else while the cover is off?
Inspect the harness-side plug and the wiring where it passes through the grommet. A high-resistance or partly melted connector loads the charging circuit and is a frequent reason a replacement stator fails early, which is why the matching harness-side connector is supplied with this kit.
