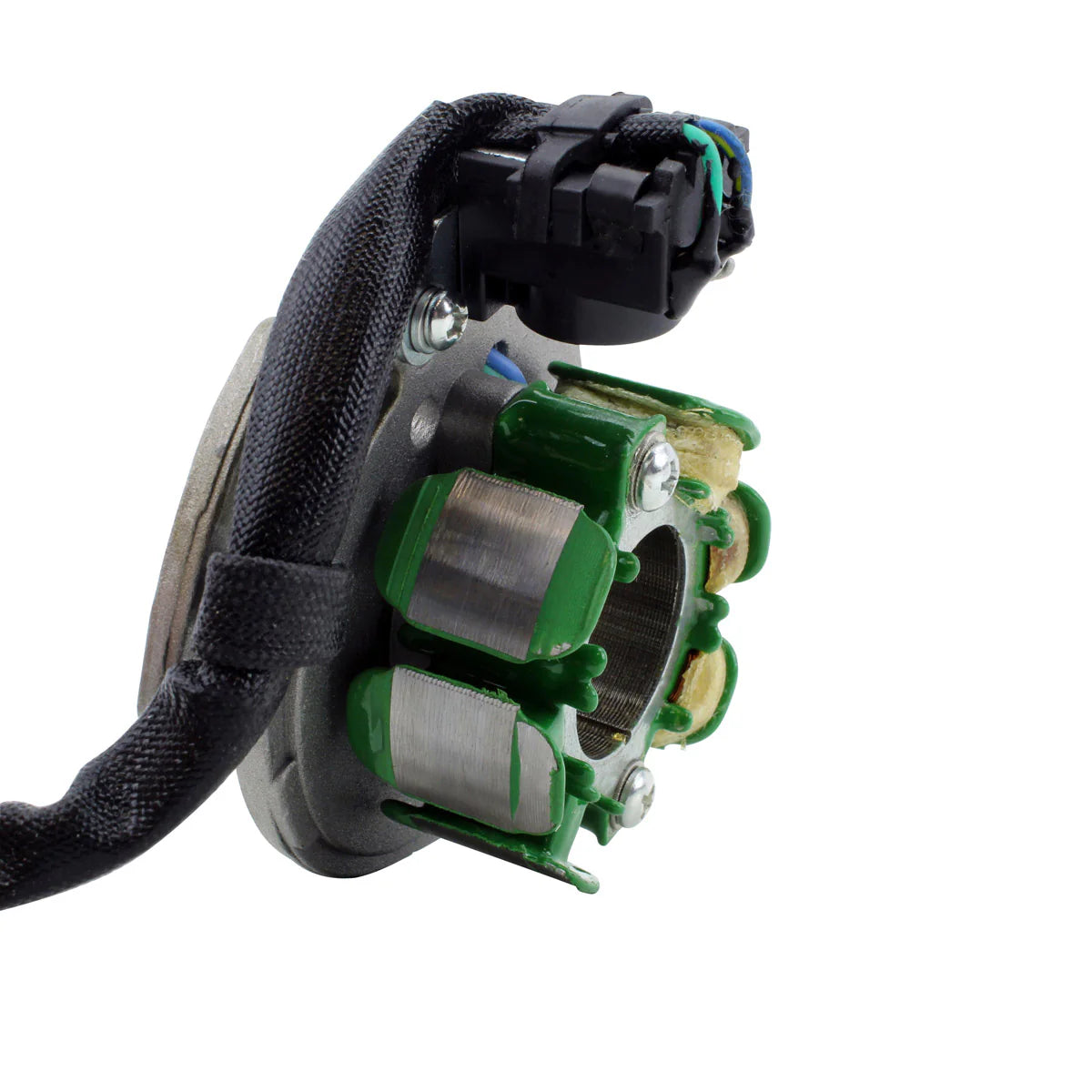

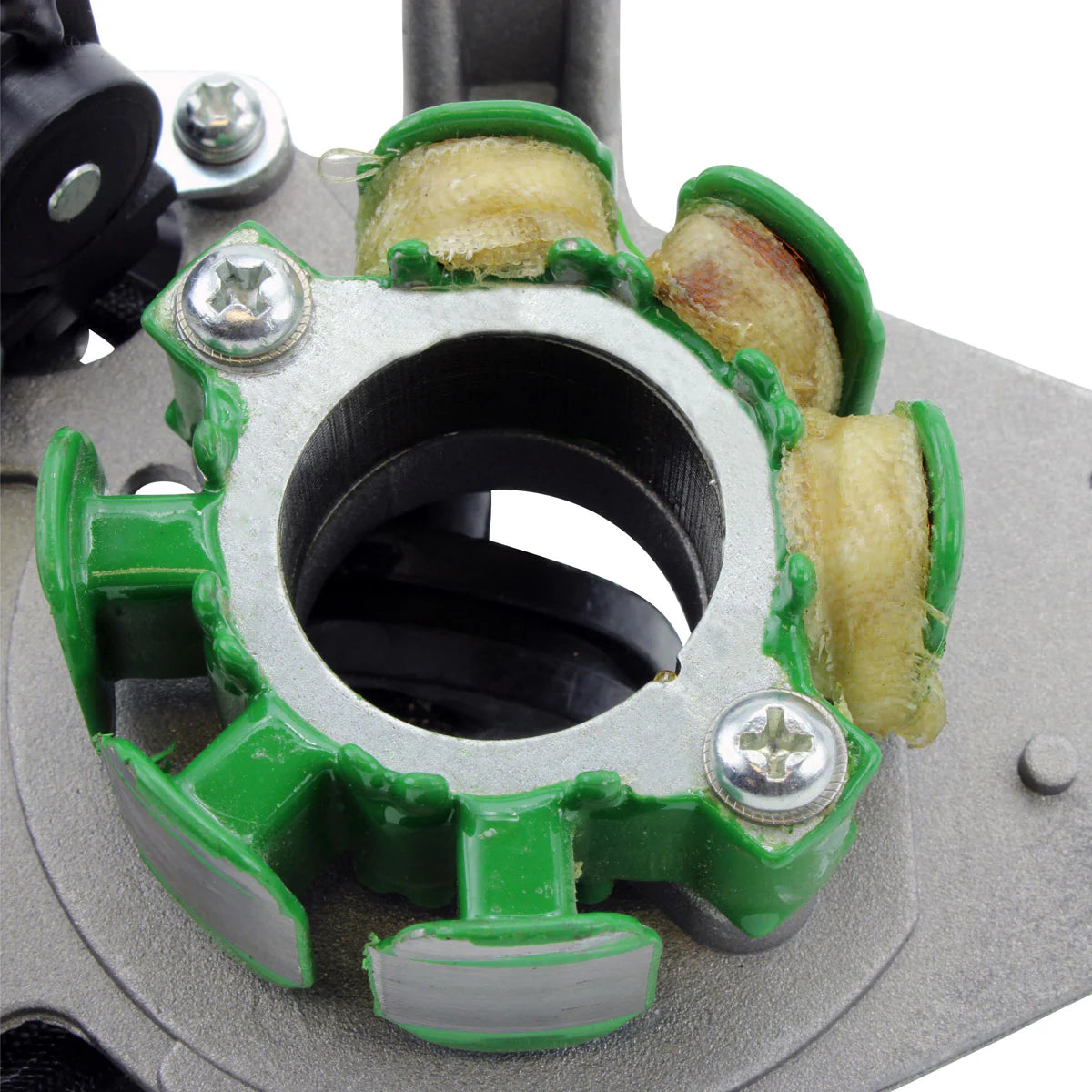

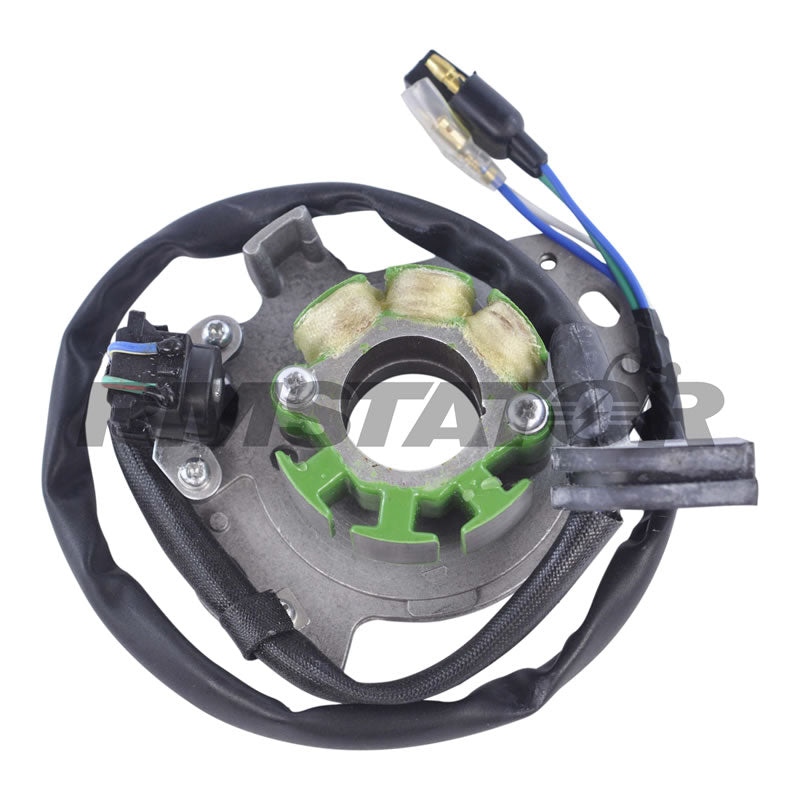

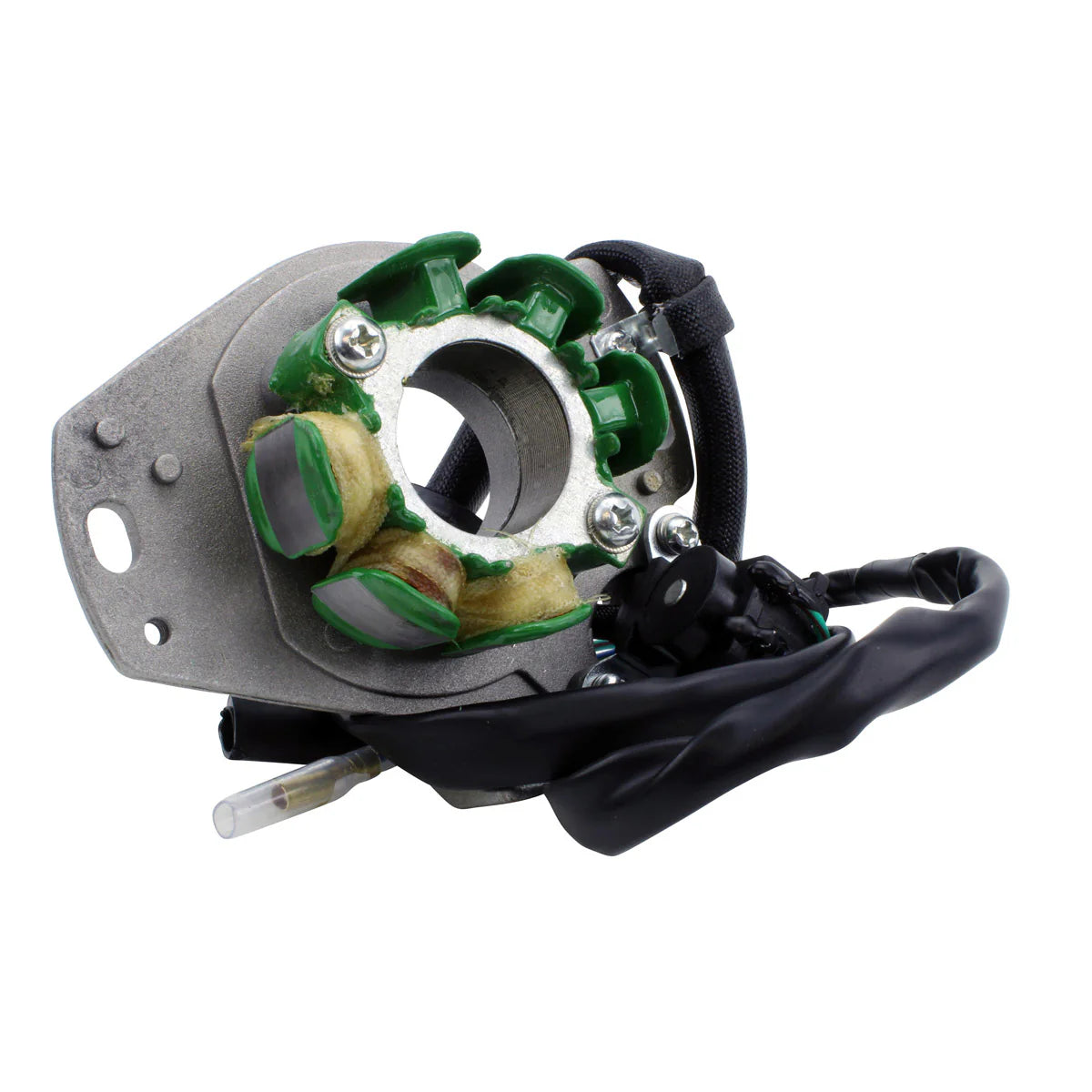

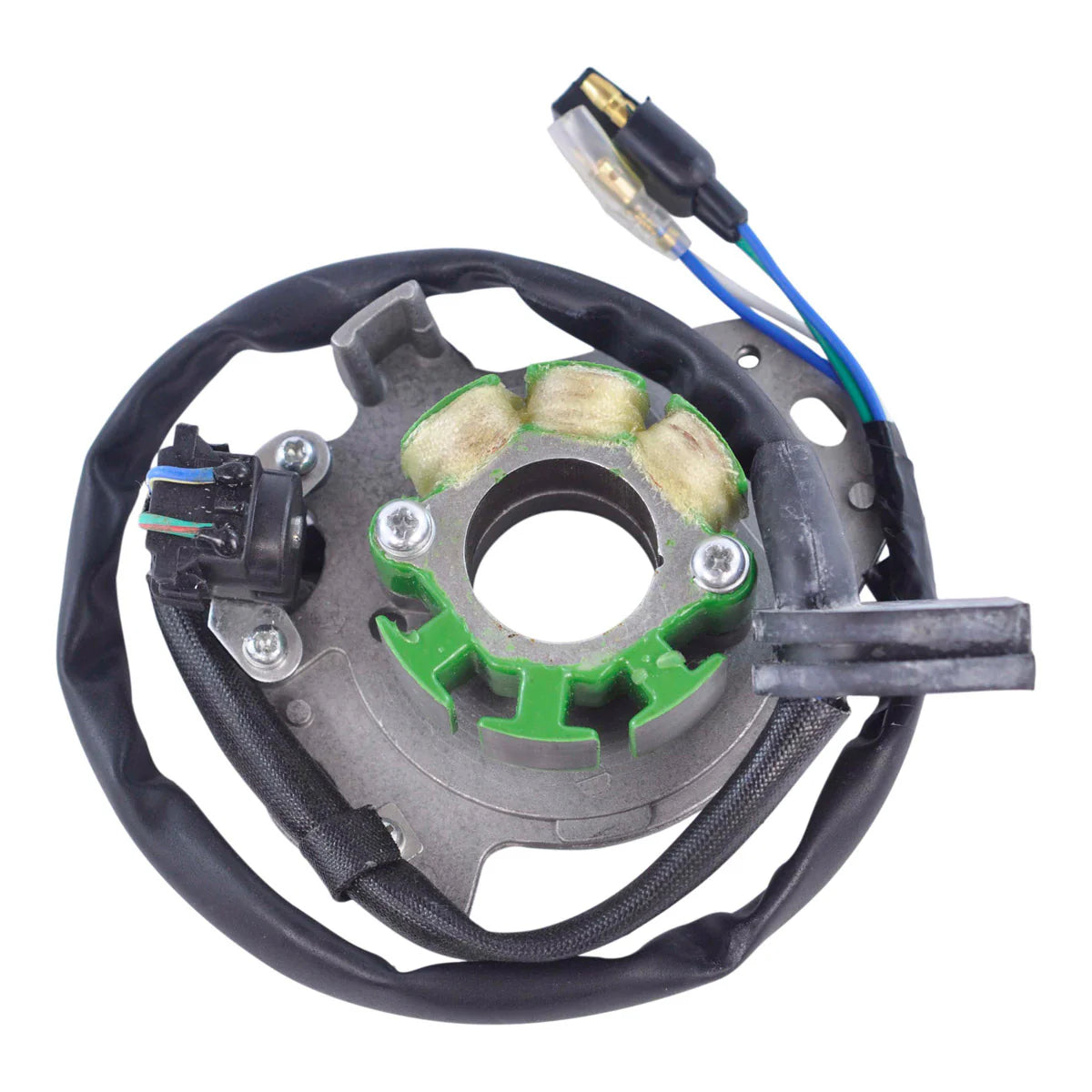

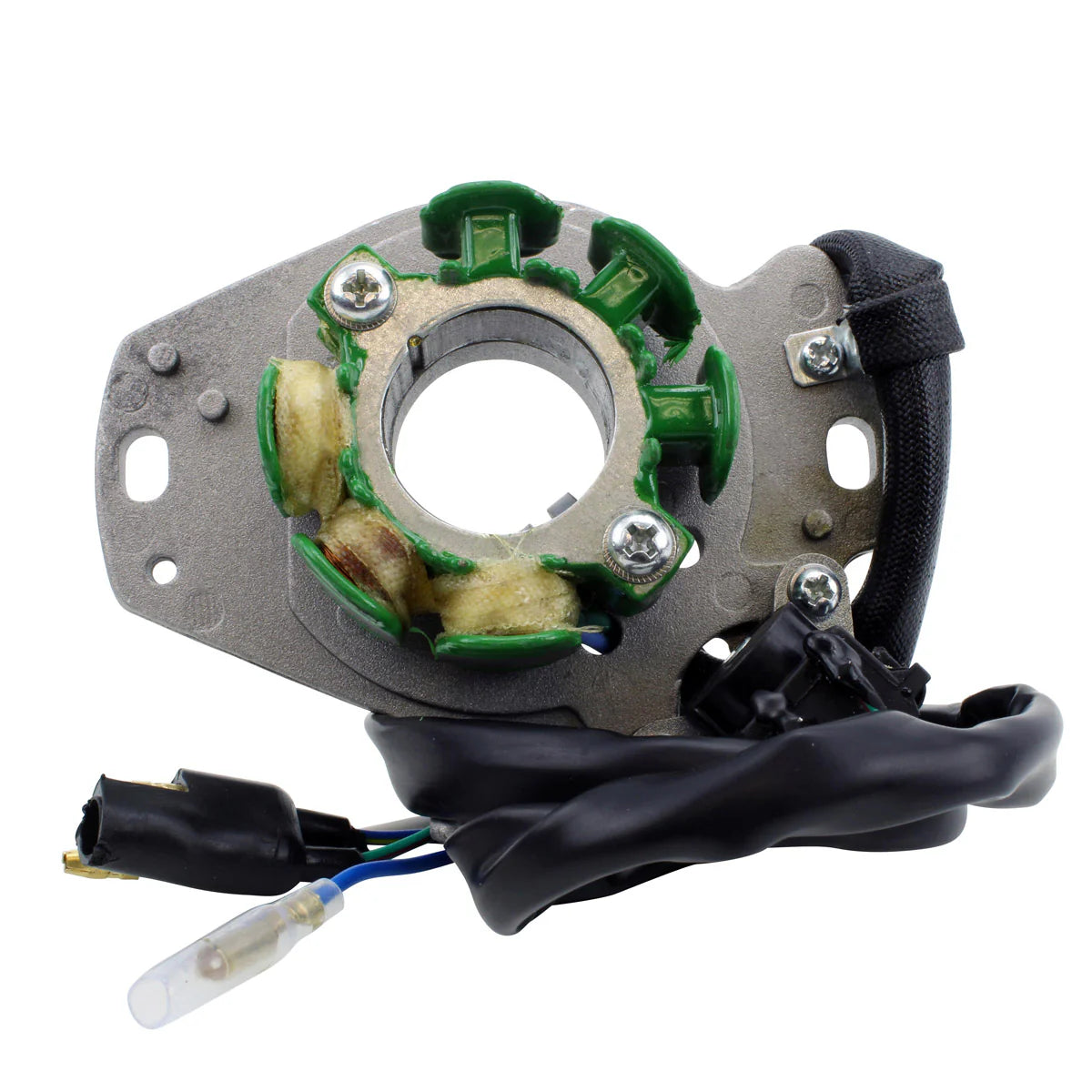

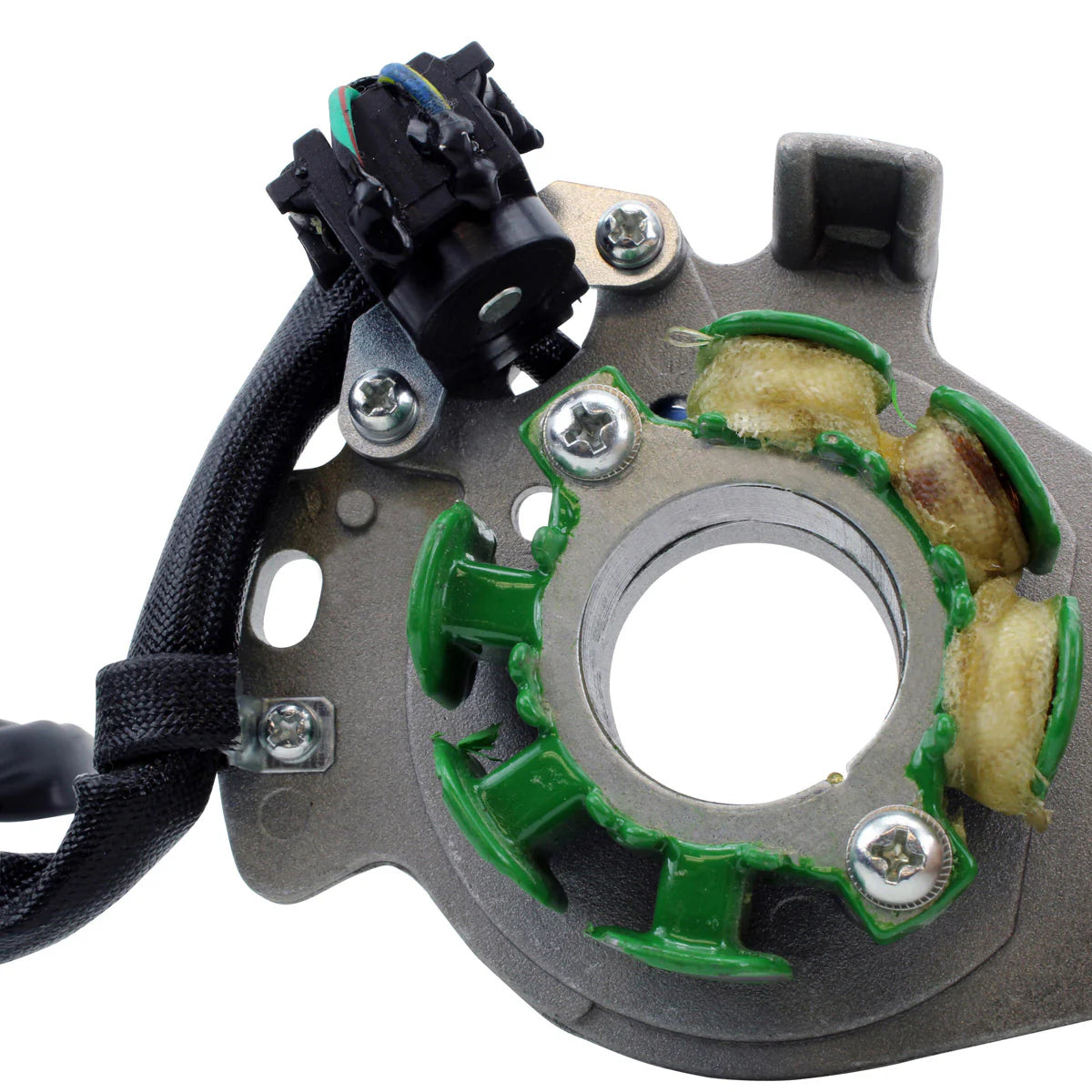

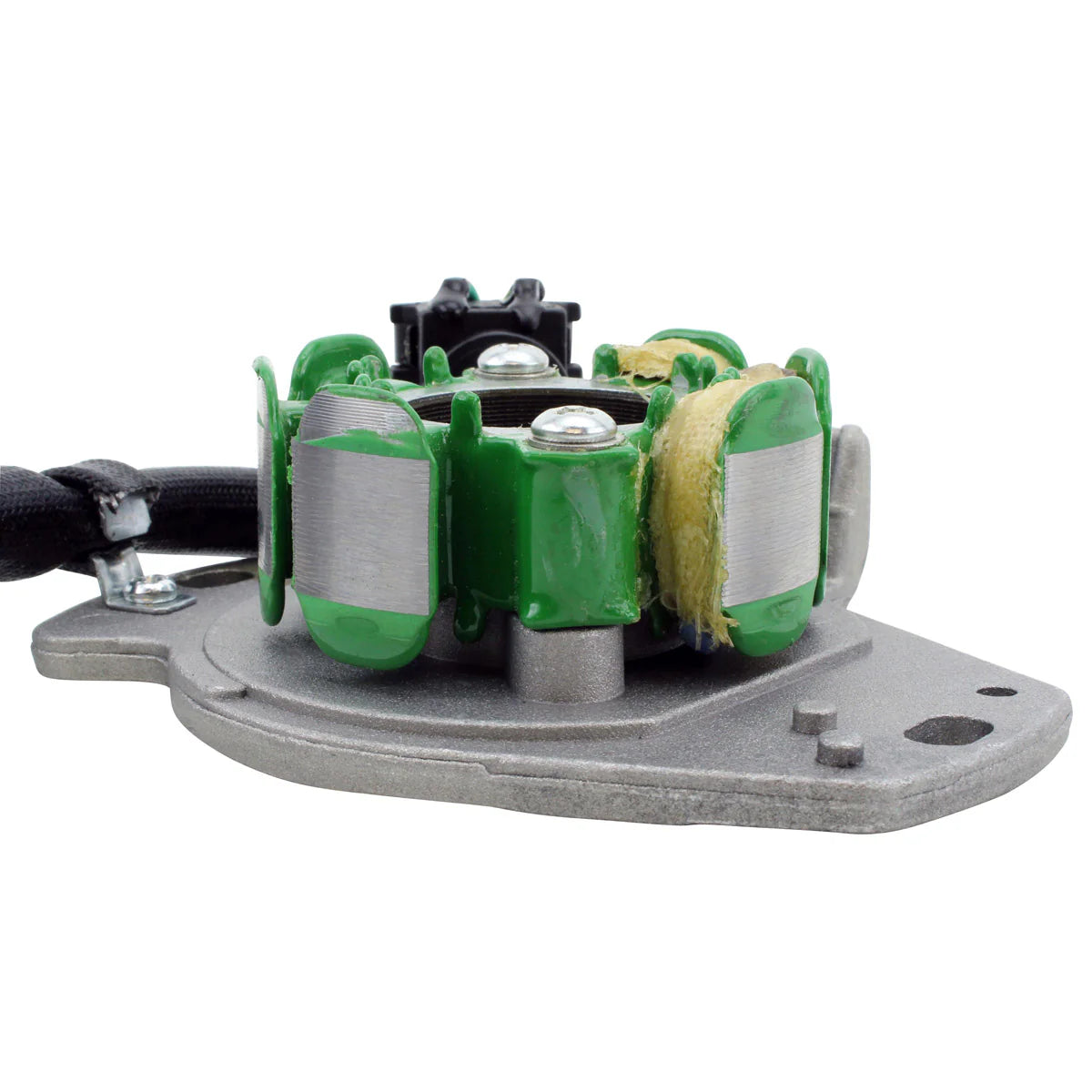

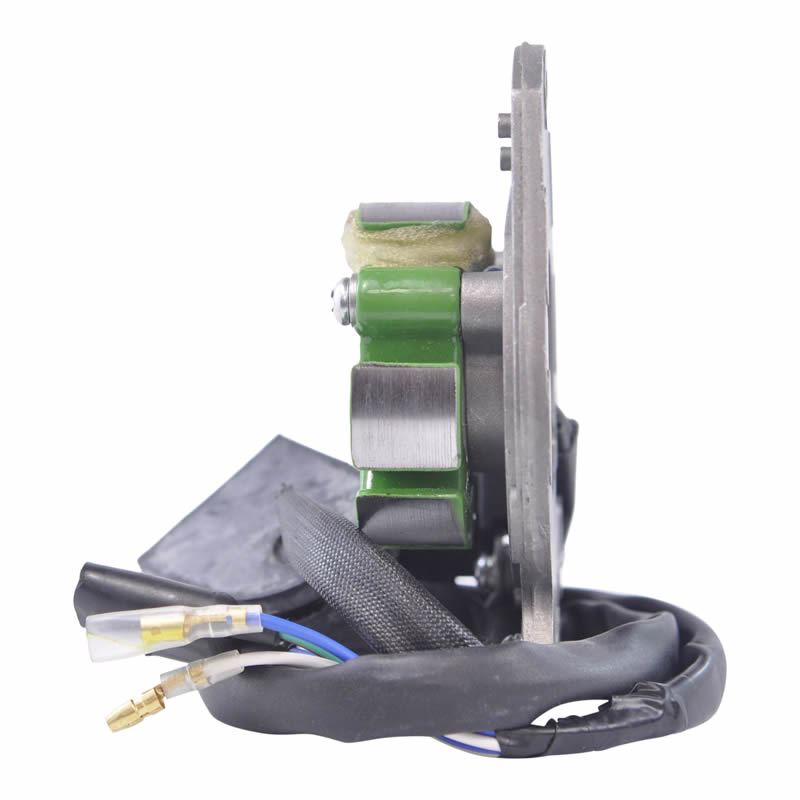

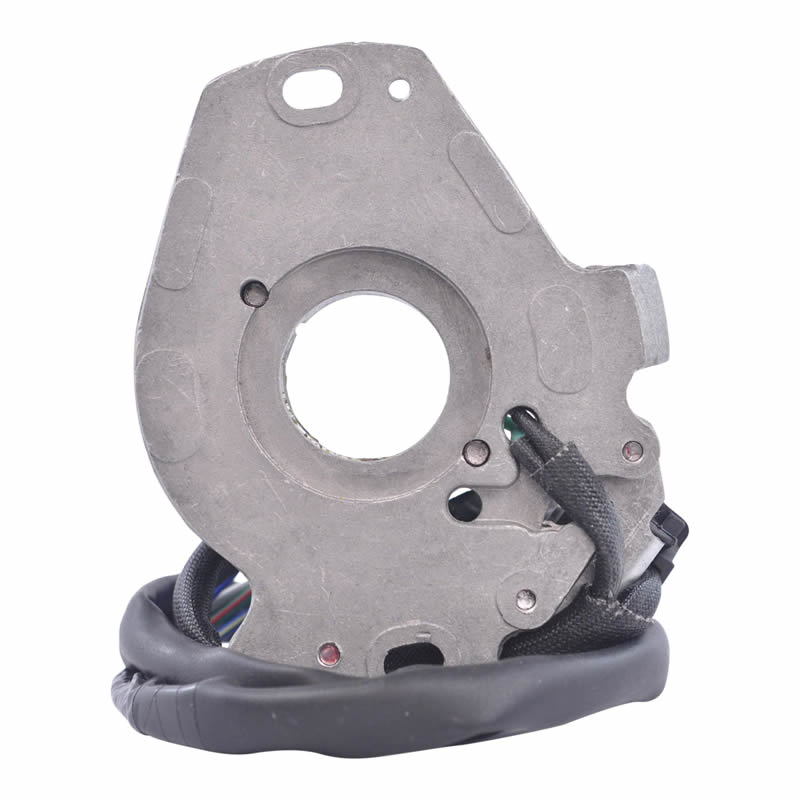

This is a brand new aftermarket stator for the Honda CR 125R and CR 250R built between 1990 and 1997. It is a direct replacement for the original unit - plug-and-play, direct fit and easy to install, mounting in the original position and connecting to the existing loom with no cutting or rewiring.

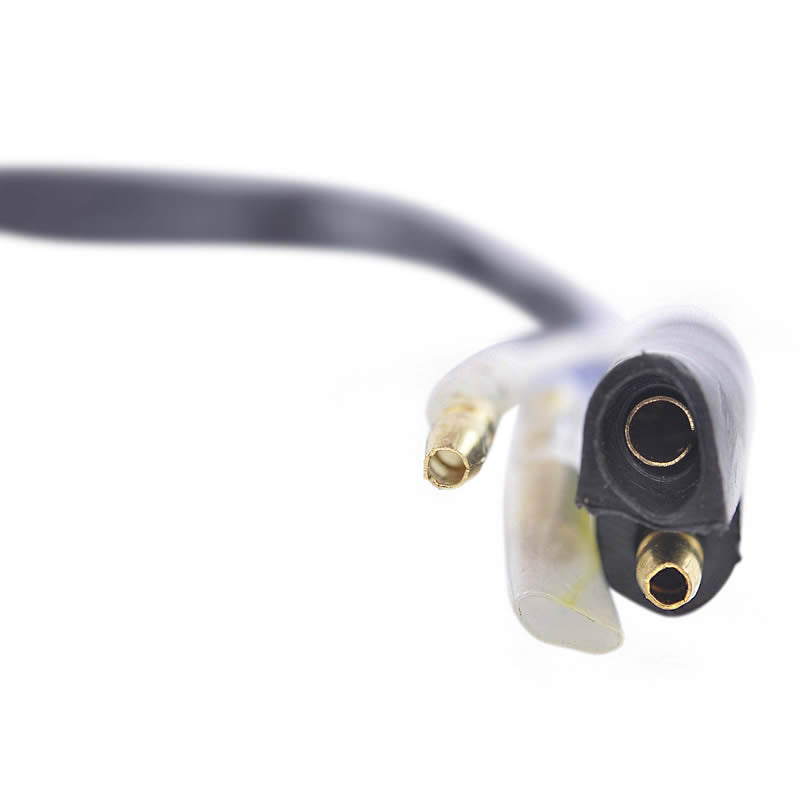

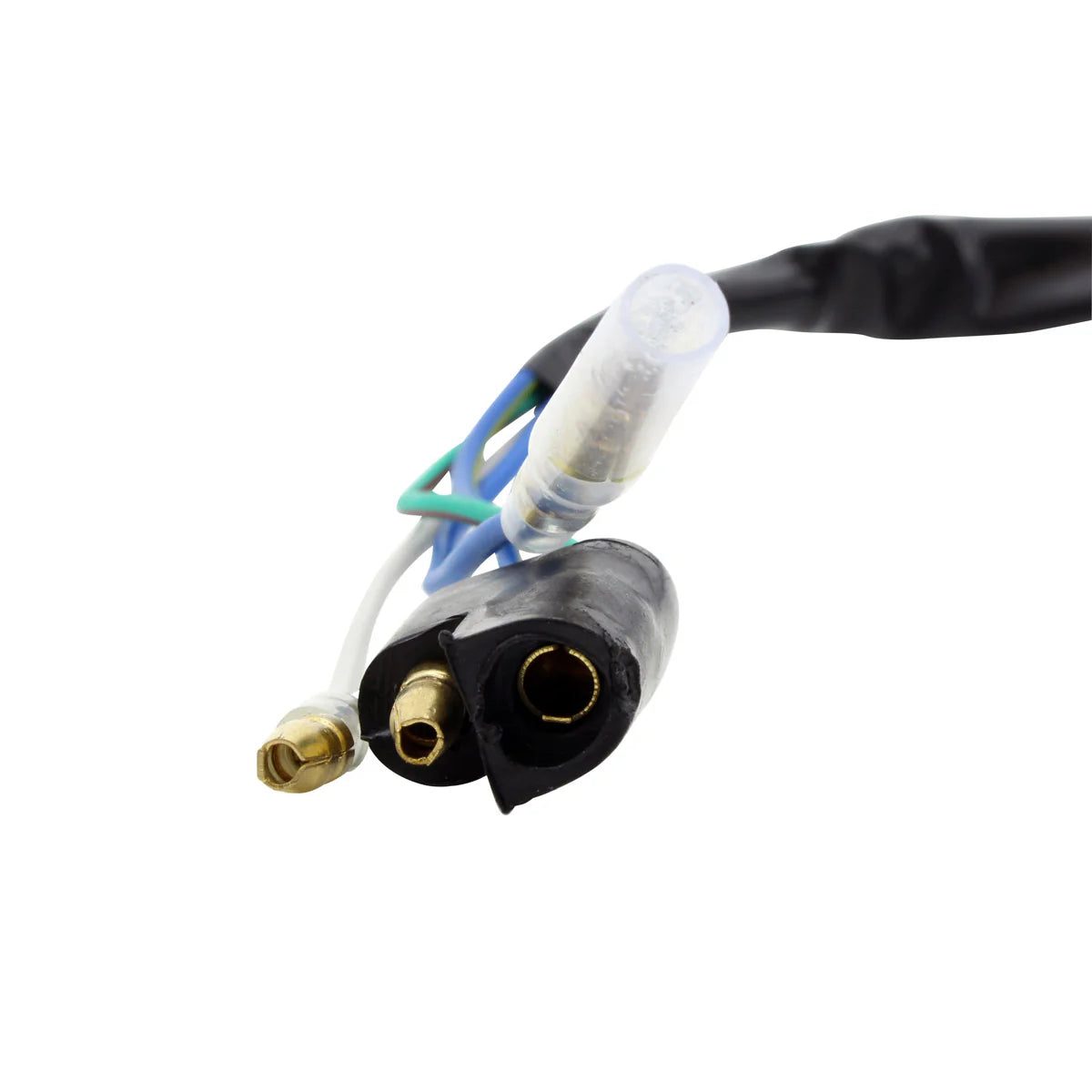

The unit delivers 20% more output over stock and works with all other OEM components, so it can be fitted on its own without changing the ignition or the rest of the charging circuit. It is built on the highest grade lamination materials and wound with copper rated to 200 degrees Celsius. The package is complete rather than just the stator plate: the pickup pulsar coil, the connector, the rubber grommet and the back plate are all included, and all products are tested before shipping. The stator measures 76 mm across the exterior with a 27 mm interior diameter and a 26 mm thickness, carrying four wires into three plugs.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- 20% more output over stock
- Works with all other OEM components
- Highest grade lamination materials
- Copper windings rated to 200 degrees Celsius
- Pickup pulsar coil included

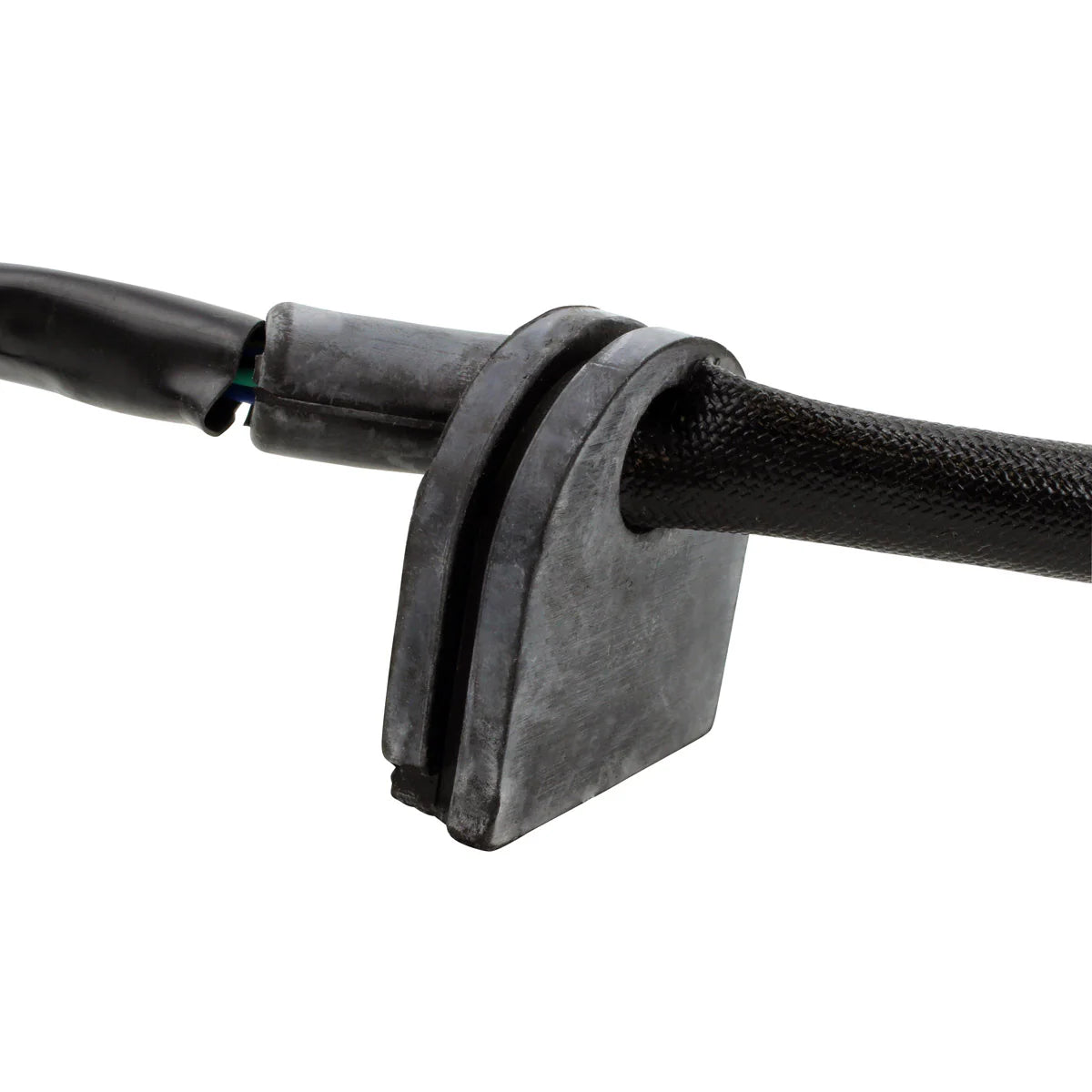

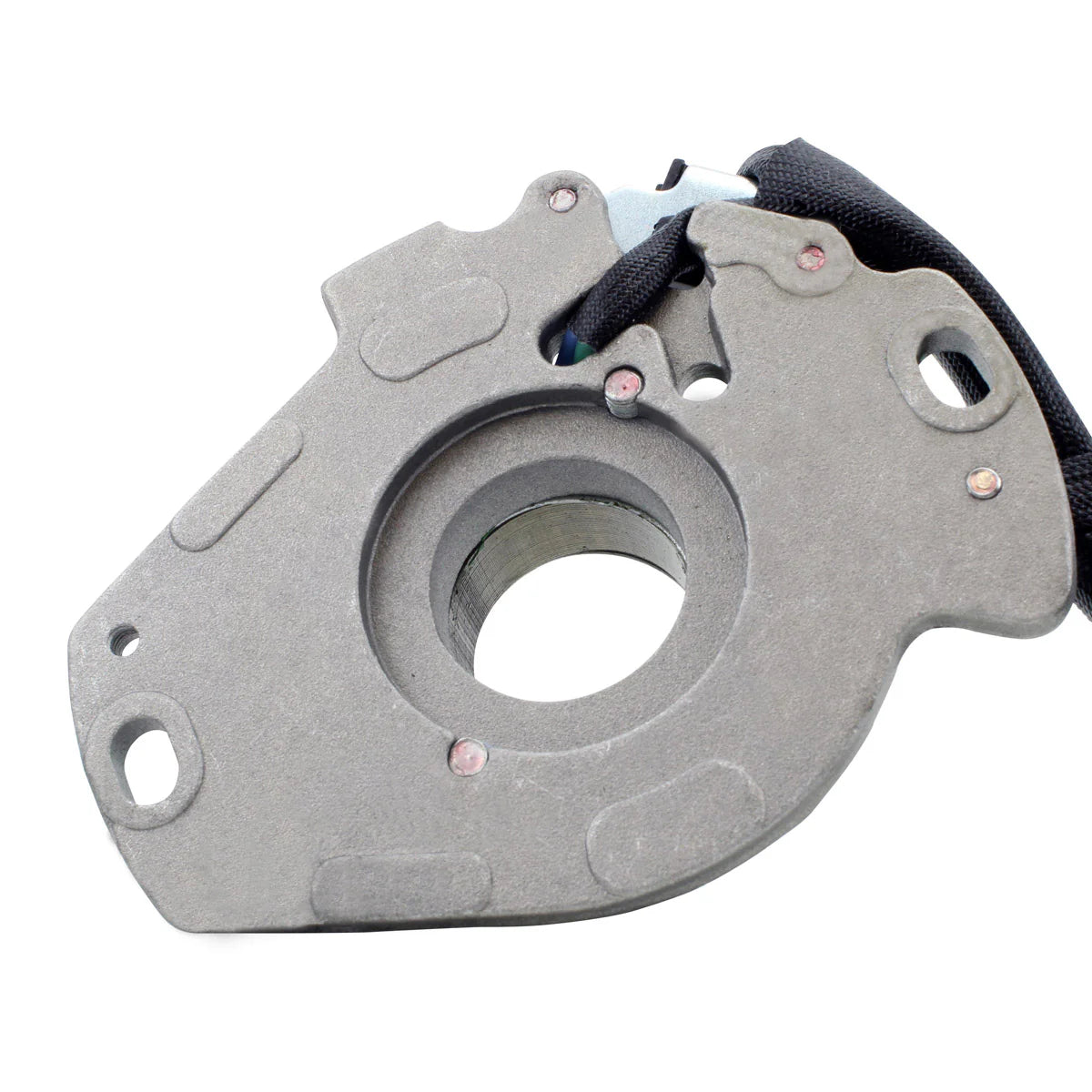

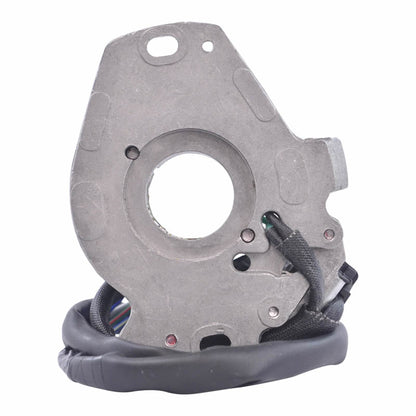

- Connector, rubber grommet and back plate included
- All products tested before shipping
Technical Specs
| Specification |
Detail |
| Part number |
RM01190 |
| Interior diameter |
27 mm |
| Exterior diameter |
76 mm |
| Thickness |
26 mm |
| Wire length (stator to grommet) |
80 mm |
| Wire length (grommet to plug) |
440 mm |
| Pickup coil wire length (to grommet) |
145 mm |
| Number of wires |
4 |
| Number of plugs |
3 |
| Number of pins |
4 |
| Pickup coil resistance |
255 ohms +/-20% |
| Source coil resistance |
35 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CR 125R |
1990-1997 |
| Honda CR 250R |
1990-1997 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31100-KZ3-691 |
Honda |
| 31100-KZ3-701 |
Honda |
| 31100-KZ3-861 |
Honda |
| 31100-KZ3-891 |
Honda |
| 31100-KZ4-701 |
Honda |
| 31100-KZ4-731 |
Honda |
| 31100-KZ4-861 |
Honda |
| 31100-KZ4-A11 |
Honda |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play direct replacement for the original unit on the 1990-1997 CR 125R and CR 250R, and it works with all other OEM components, so nothing else on the machine needs to change. Match the number on your existing unit against the cross reference table before ordering.
What is included?
The stator, the pickup pulsar coil, the connector, the rubber grommet and the back plate. Every unit is tested before shipping.
How do I tell whether my old stator has failed?
On these bikes a failed stator or pickup usually shows as no spark, an intermittent spark that comes and goes as the engine warms, or a machine that will not run consistently. Confirm it with a meter: the pickup coil should read approximately 255 ohms +/-20% and the source coil approximately 35 ohms +/-20%. Readings well outside those figures, or an open circuit, indicate a failed winding.
Does the extra 20% output require any other changes?
No. The unit is designed to work with all other OEM components, so the standard ignition and wiring are retained. The additional output goes to a stronger, more consistent spark rather than requiring an upgraded coil or CDI.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
