Stator for Honda TRX 350 Rancher FE FM TE TM 2000-2006
Honda TRX 350 Rancher FE, FM, TE and TM, 2000-2006 - RMSTATOR reference RM01359

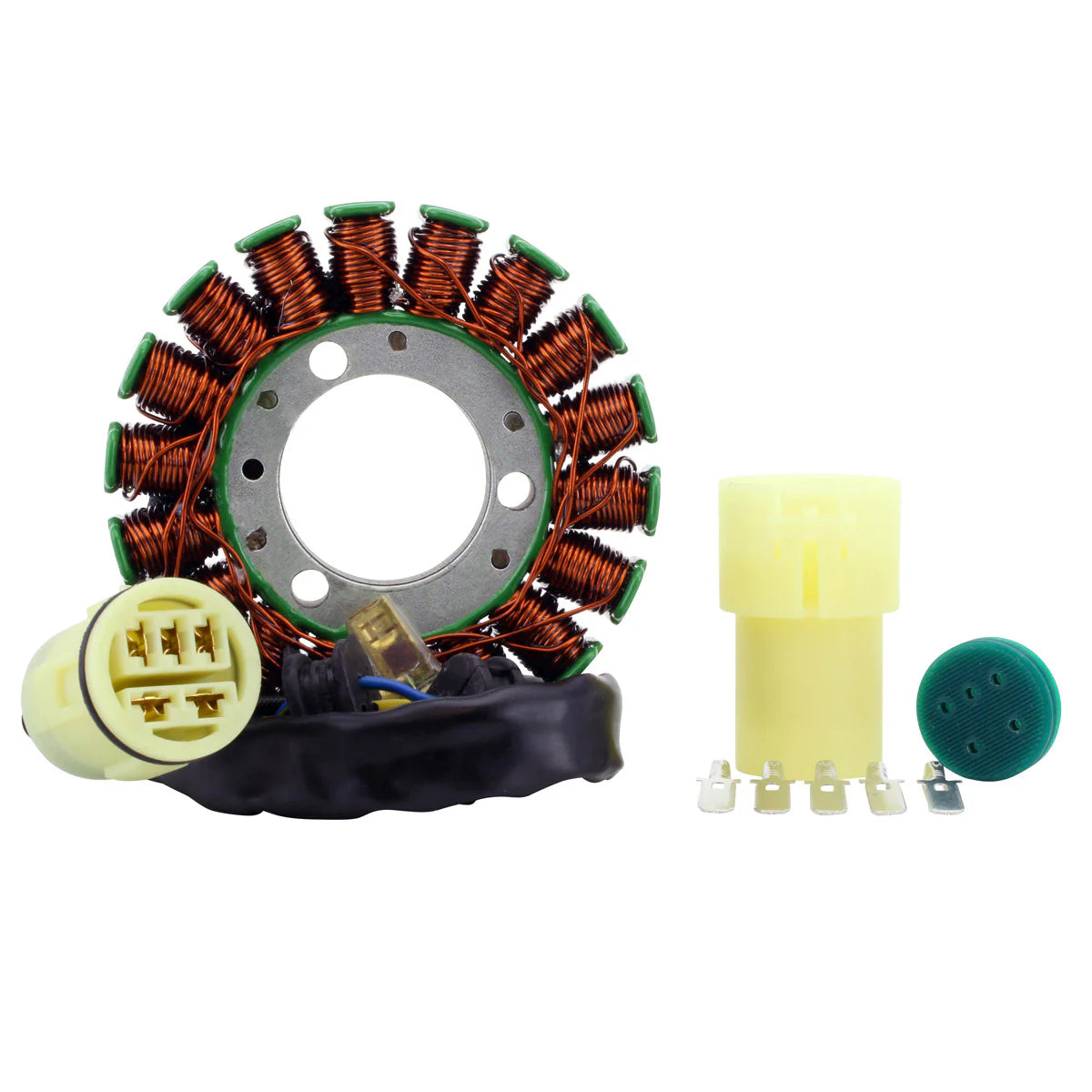

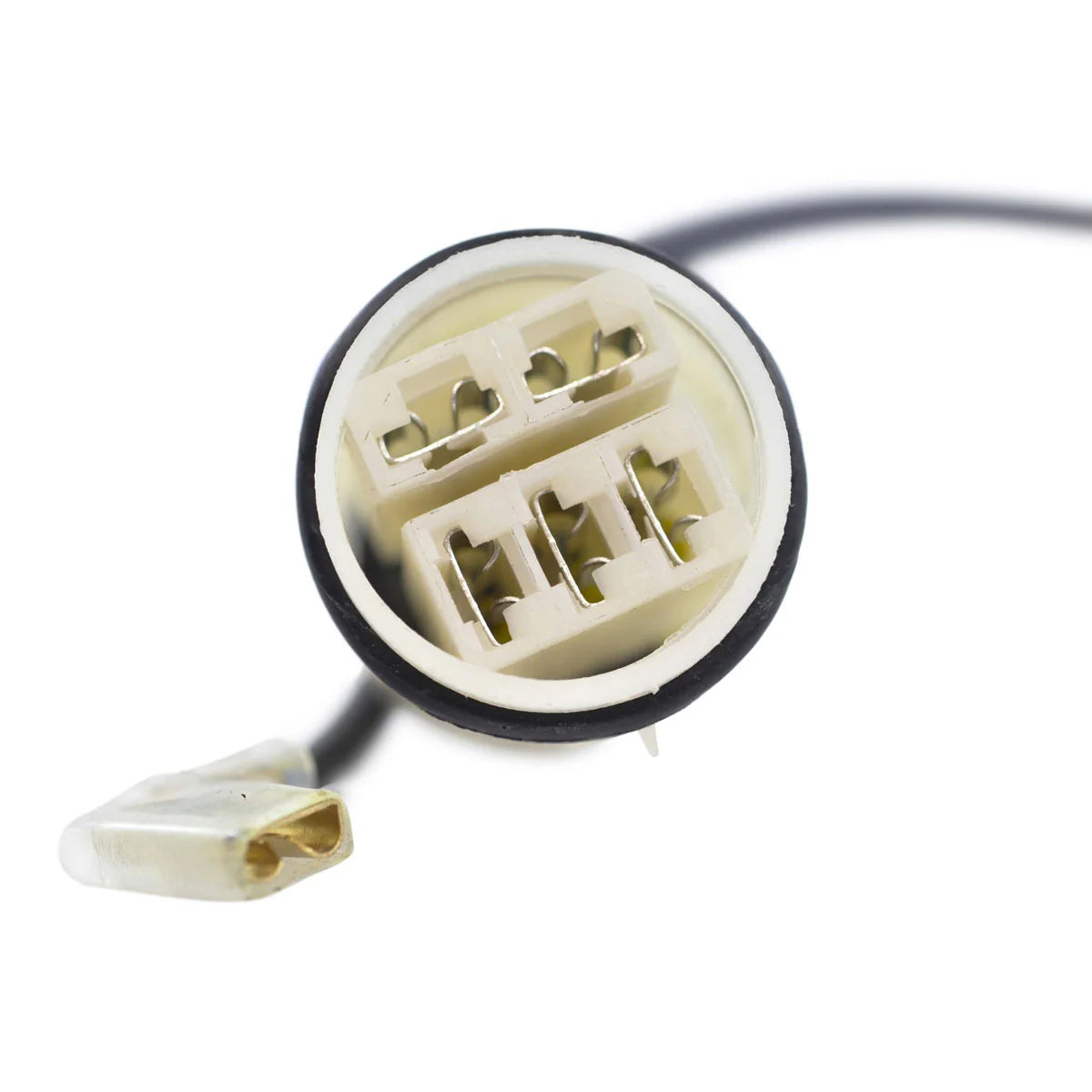

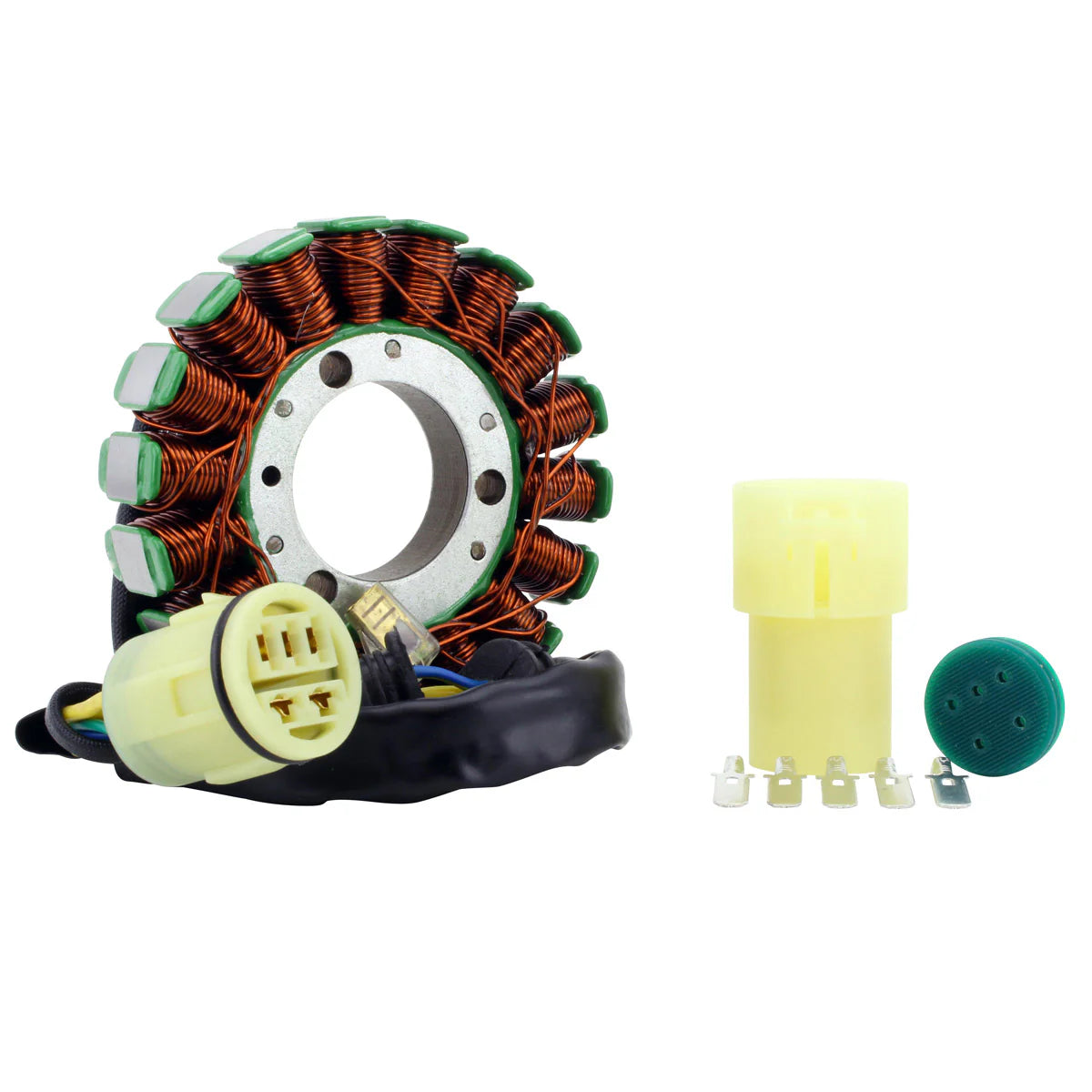

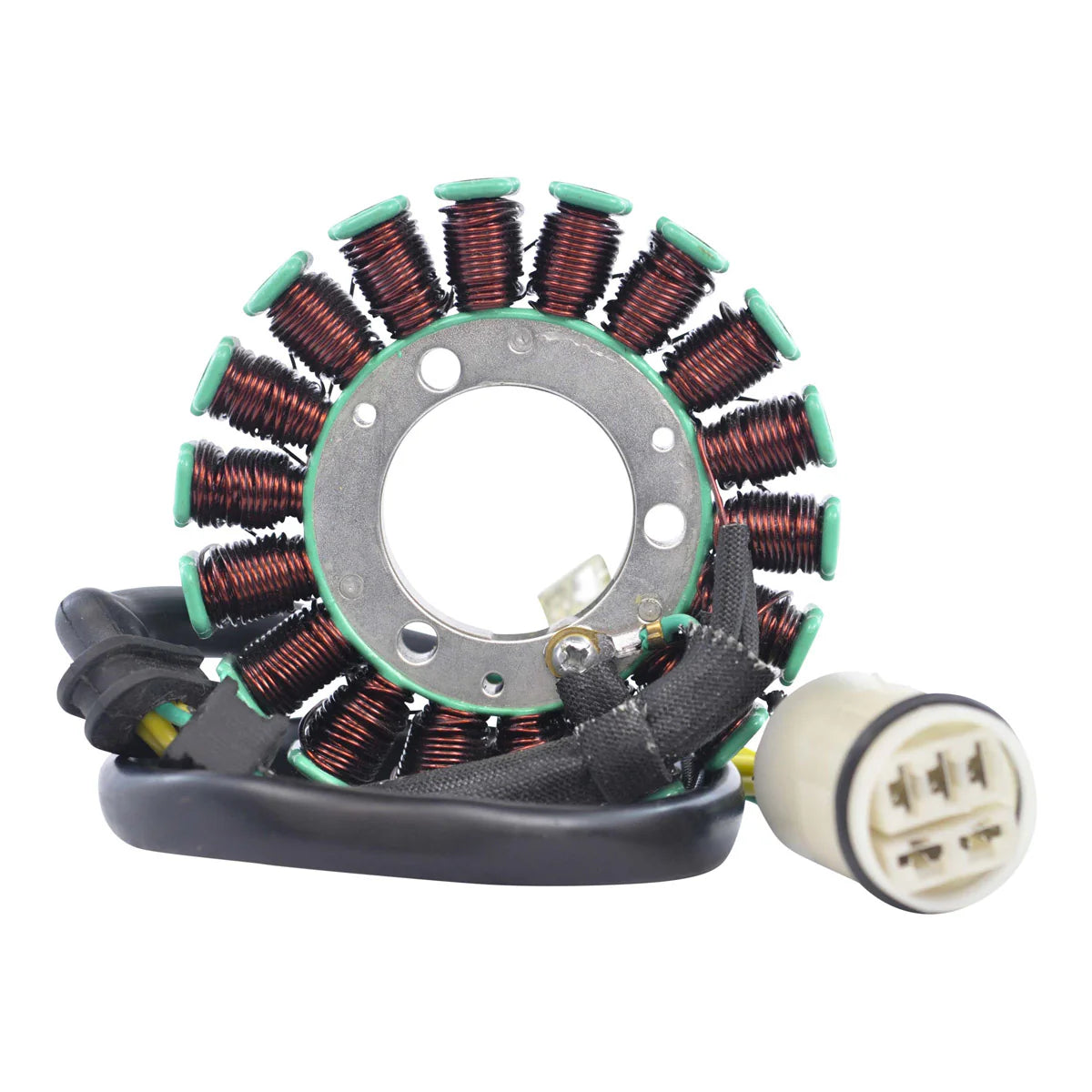

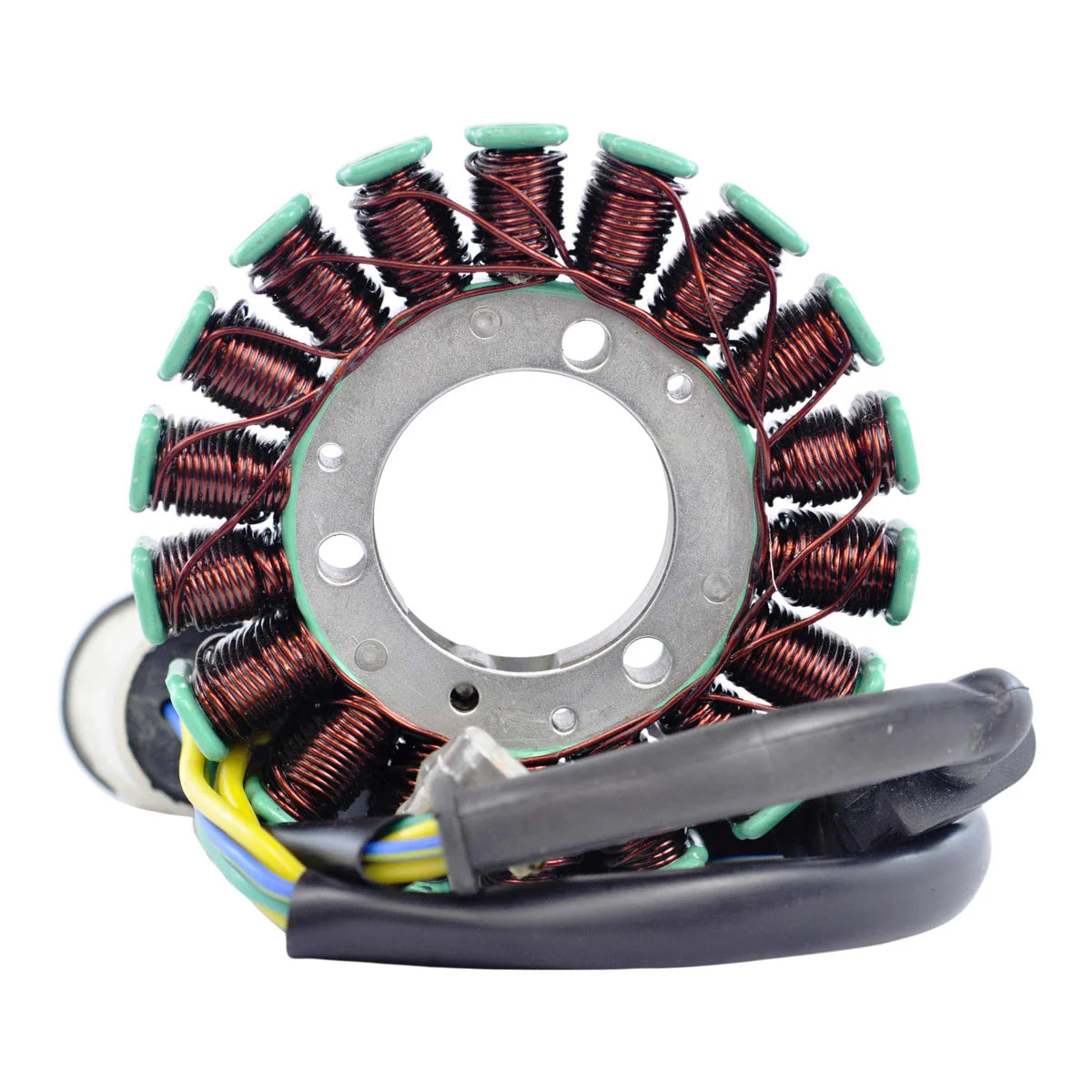

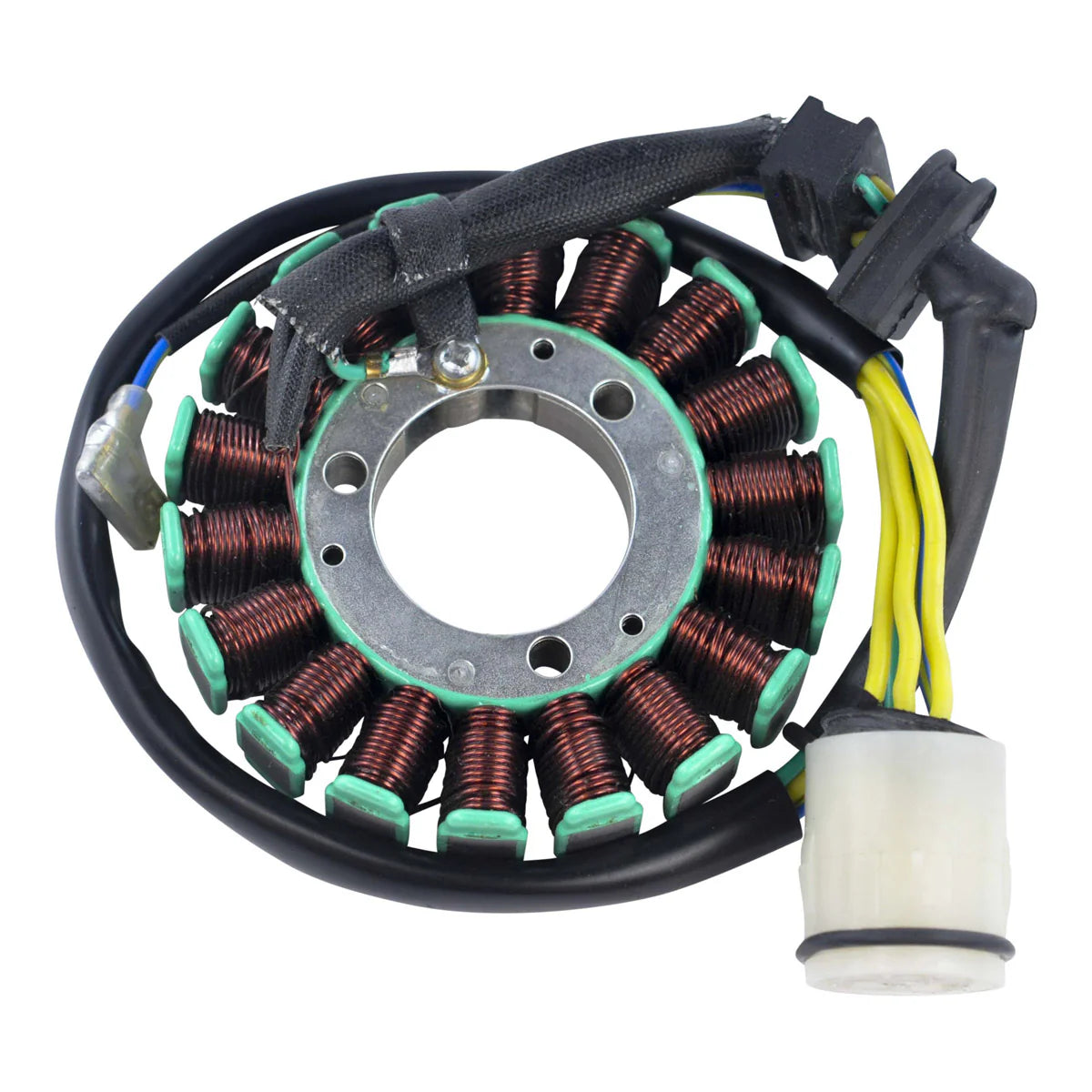

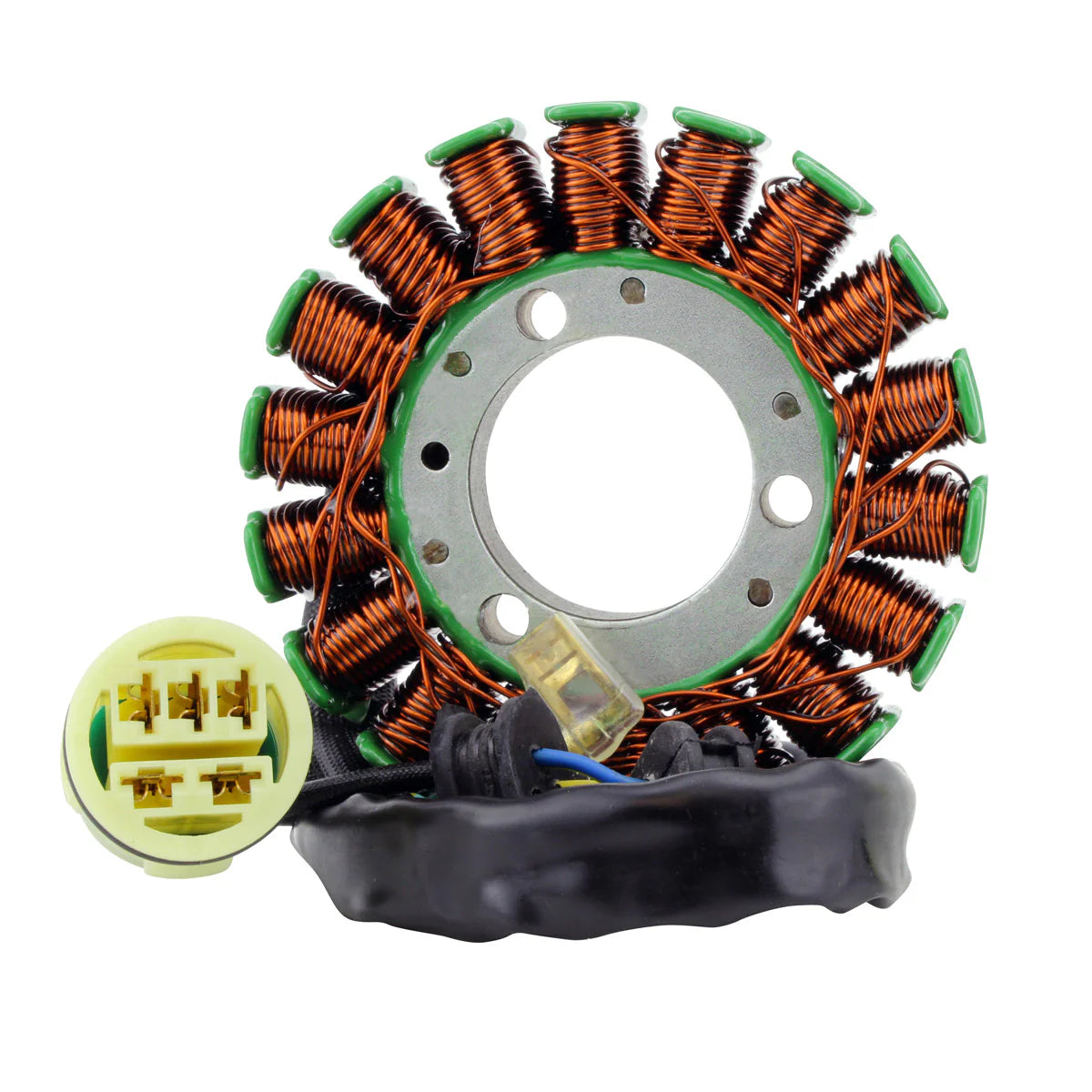

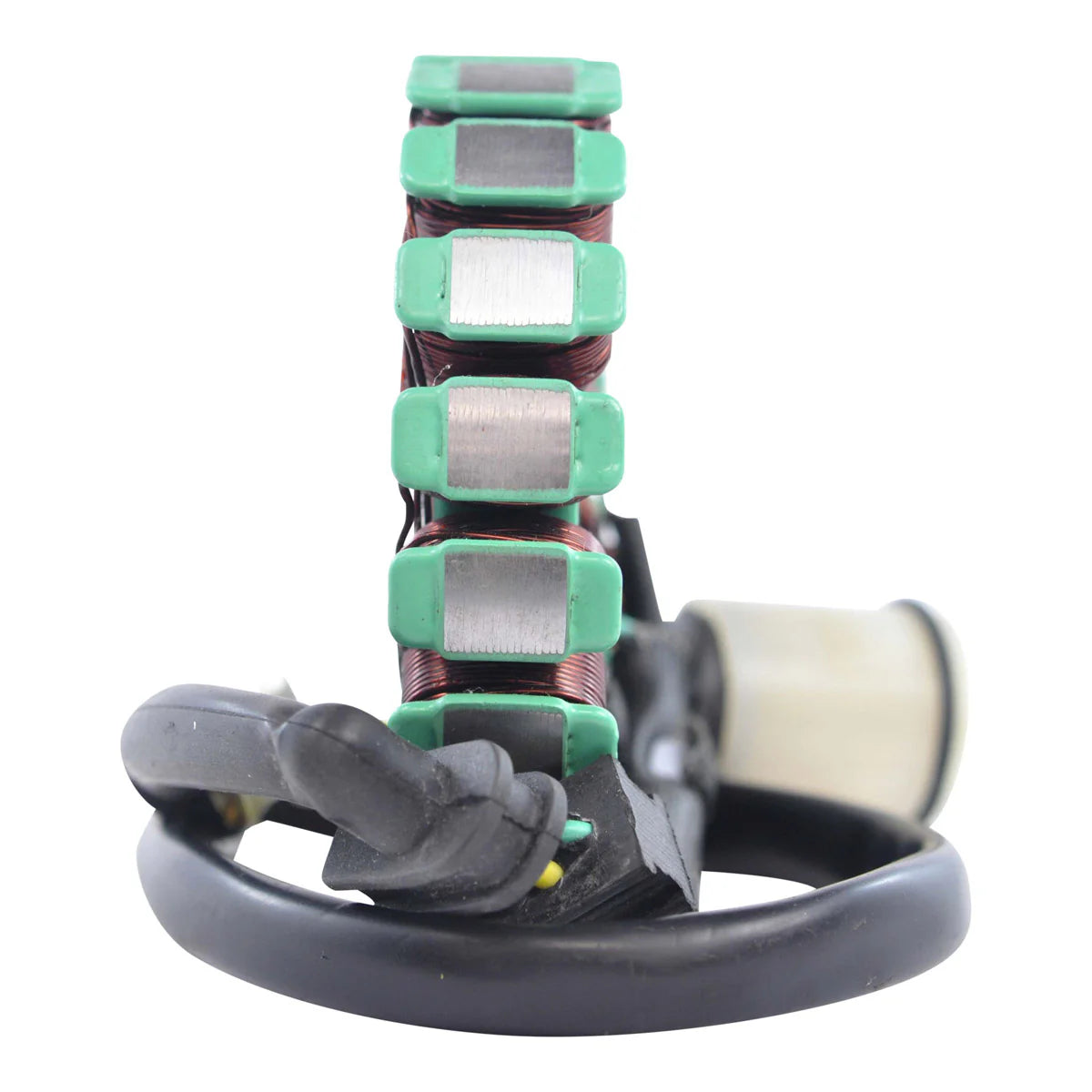

Brand new stator for the Honda TRX 350 Rancher in FE, FM, TE and TM specification, built as a direct replacement to your original unit. It is plug-and-play, a direct fit and an easy installation: the 18-pole core drops into the original position and the six-wire harness ends in the original two plugs, so the loom does not need cutting, splicing or re-pinning.
The unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. The connector and the rubber grommet are supplied with the stator, and all product shipped is tested. This part carries the reference RM01359 and cross-references four Honda OEM numbers, listed below.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

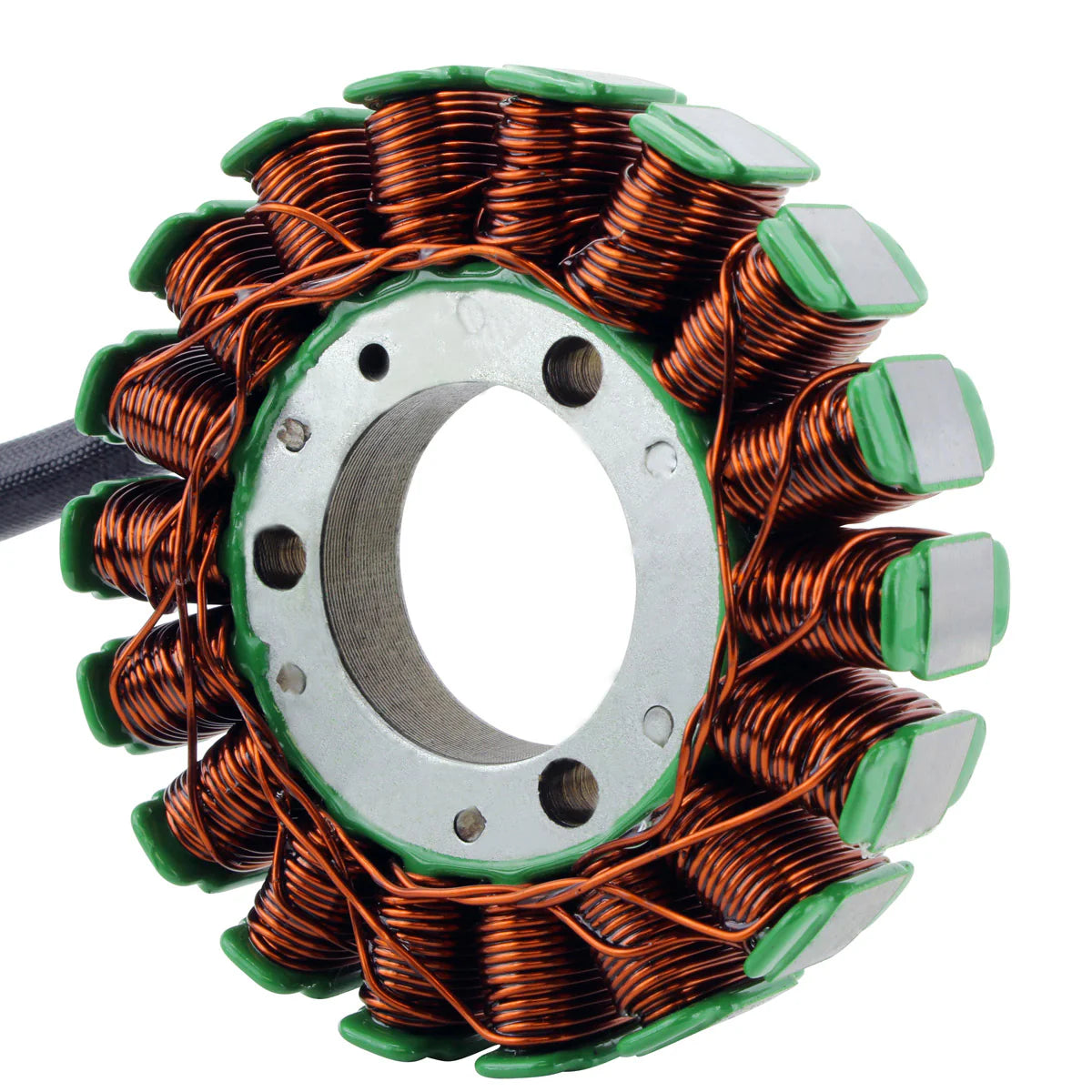

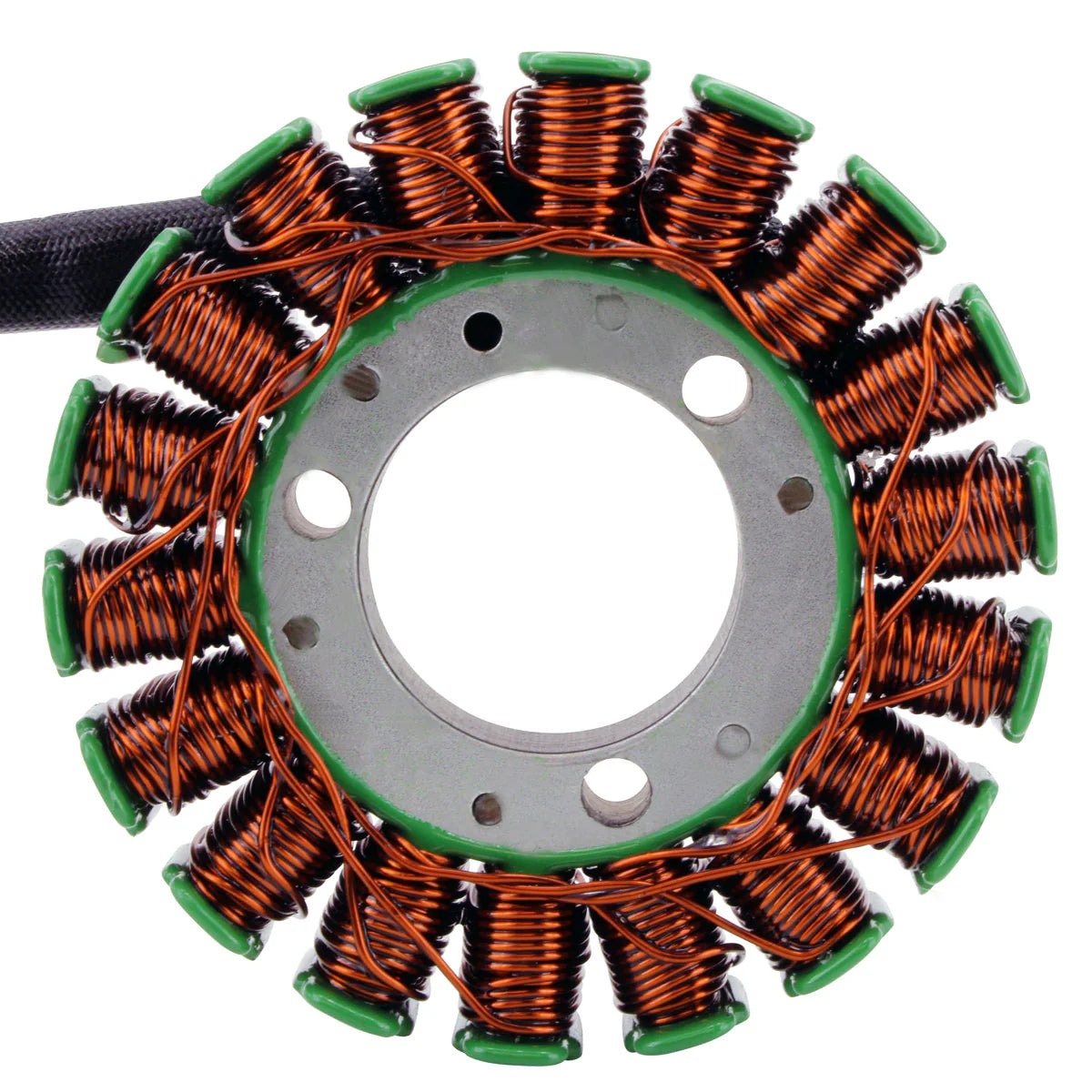

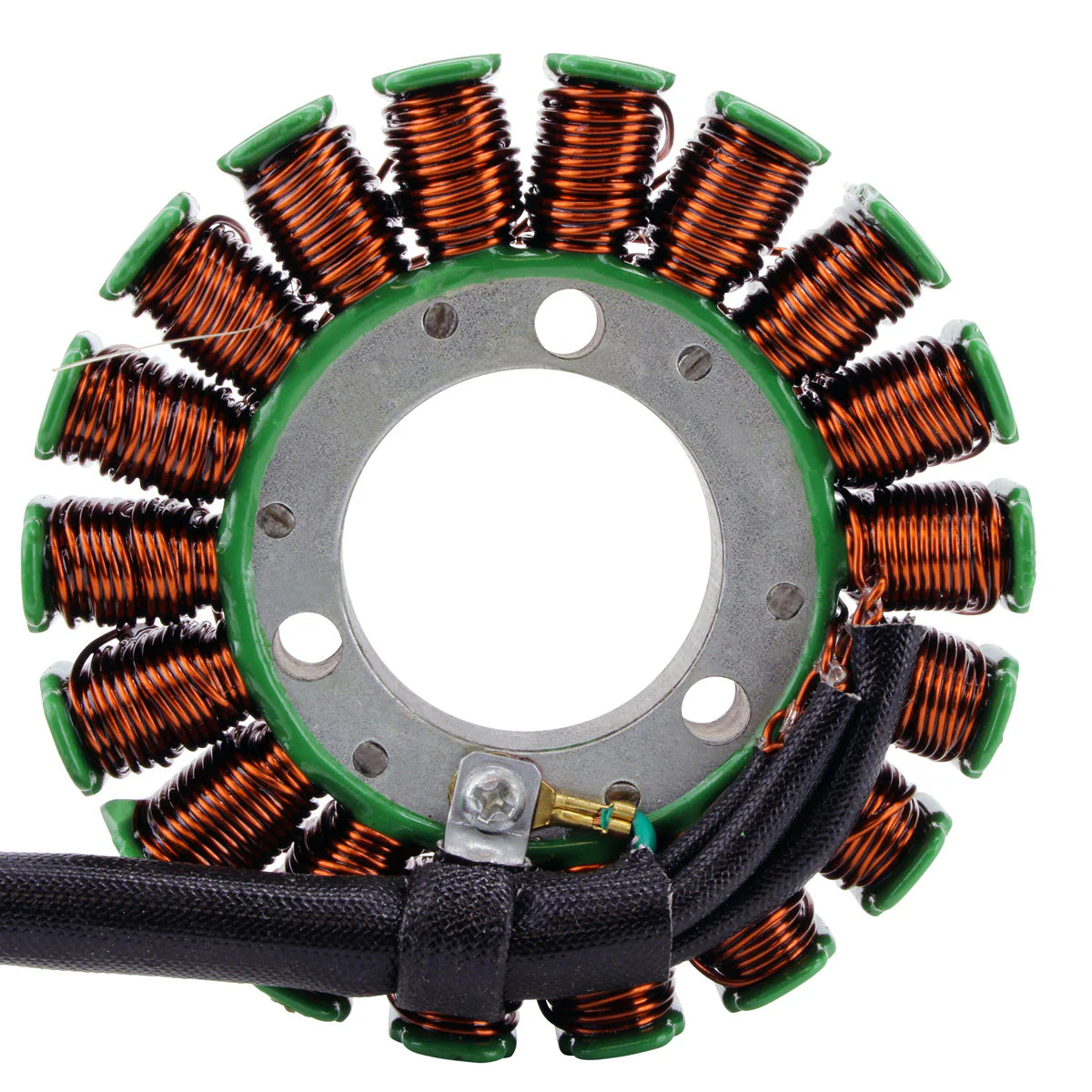

- 18-pole core
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

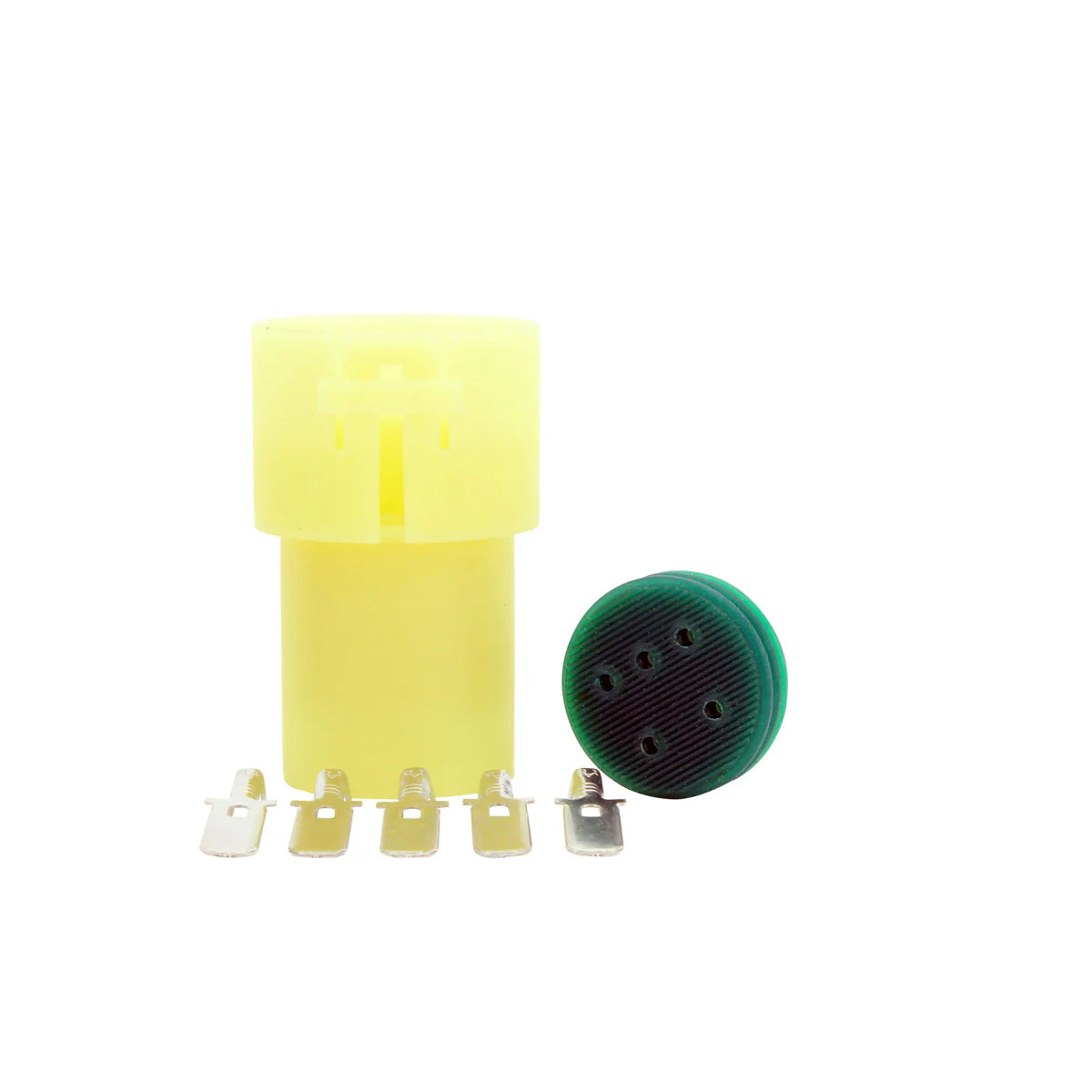

- Connector included
- Rubber grommet included
- All product shipped is tested
- Cross-references four Honda OEM part numbers
Technical Specs
| Specification |
Detail |
| Interior diameter |
35 mm |
| Exterior diameter |
93 mm |
| Thickness |
13 mm |
| Number of poles |
18 |
| Number of wires |
6 |
| Number of plugs |
2 |
| Number of pins |
6 |
| Wire length, stator to grommet |
75 mm |
| Wire length, grommet to plug |
390 mm |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Alternator, Yellow to ground |
O.L (open circuit) |
| Source resistance, Green to ground |
0.4 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part reference |
RM01359 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda TRX 350 Rancher FE |
2000-2006 |
| Honda TRX 350 Rancher FM |
2000-2006 |
| Honda TRX 350 Rancher TE |
2000-2006 |
| Honda TRX 350 Rancher TM |
2000-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HN5-M01 |
Honda |
| 31120-HN5-M02 |
Honda |
| 31120-HN5-671 |
Honda |
| 31120-HN5-672 |
Honda |
Frequently Asked Questions
Will it fit without modification?

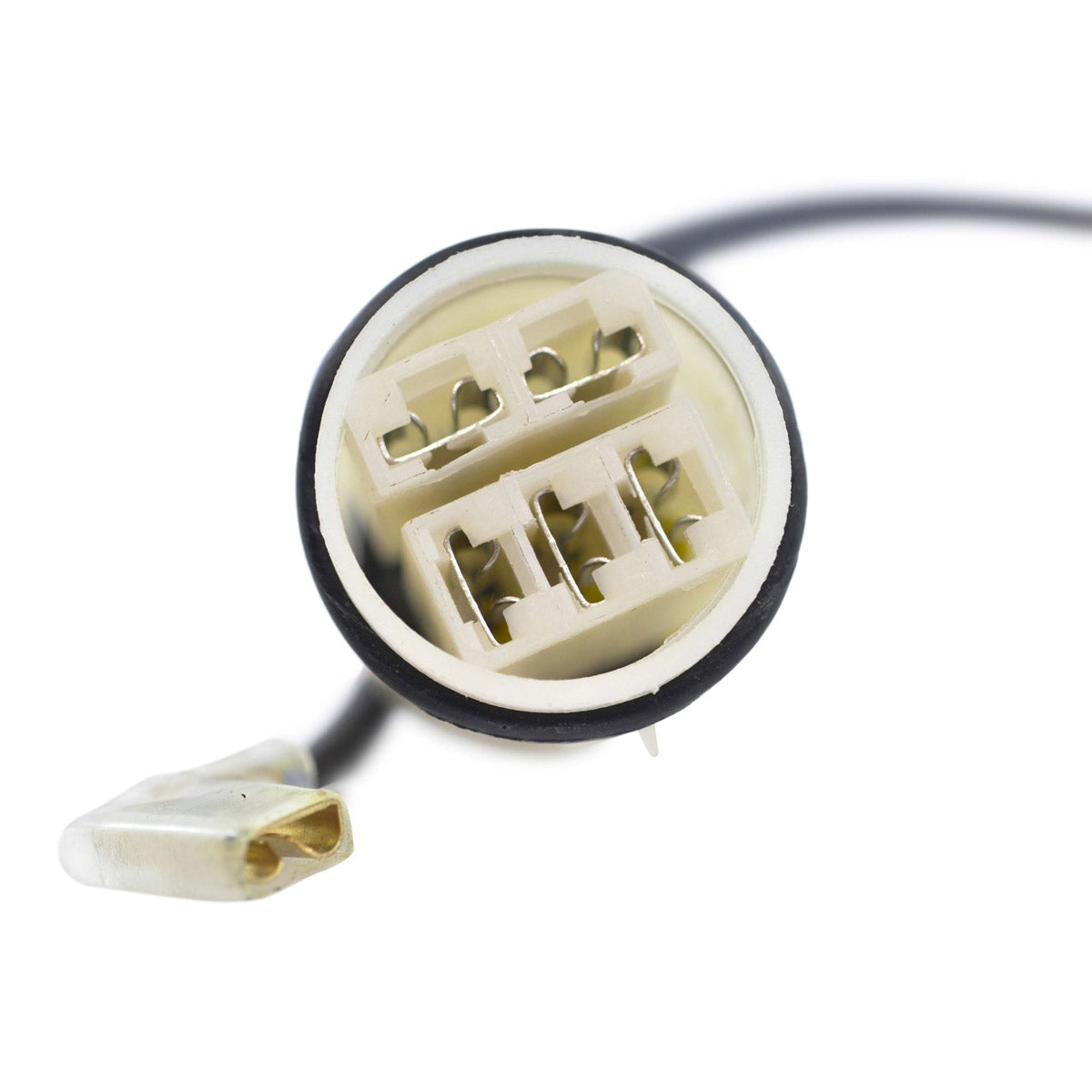

Yes. It is a direct replacement to your original unit on the TRX 350 Rancher FE, FM, TE and TM. The core is the original 35 mm by 93 mm by 13 mm size, and the six-wire harness ends in the original two plugs, so it is plug-and-play with no cutting or splicing.
What is included?
The stator assembly, the connector and the rubber grommet. All product shipped is tested before dispatch.
How do I tell whether my old stator has failed?
A flat battery, dim or flickering lights, and charging voltage that stays down at battery level as the engine is revved all point at the stator. Test it cold with a multimeter: the alternator windings should read 0.4 ohms +/-20% between the Yellow wires, the source coil 0.4 ohms +/-20% from Green to ground, and every Yellow wire must read O.L - open circuit - to ground. Any Yellow wire showing continuity to ground means a winding has shorted to the core and the stator has to be replaced.
Which Honda part numbers does it replace?
It cross-references Honda 31120-HN5-M01, 31120-HN5-M02, 31120-HN5-671 and 31120-HN5-672. This is an aftermarket part, not a Honda-manufactured one, and those numbers are quoted so you can check them against the number on the unit you are removing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
