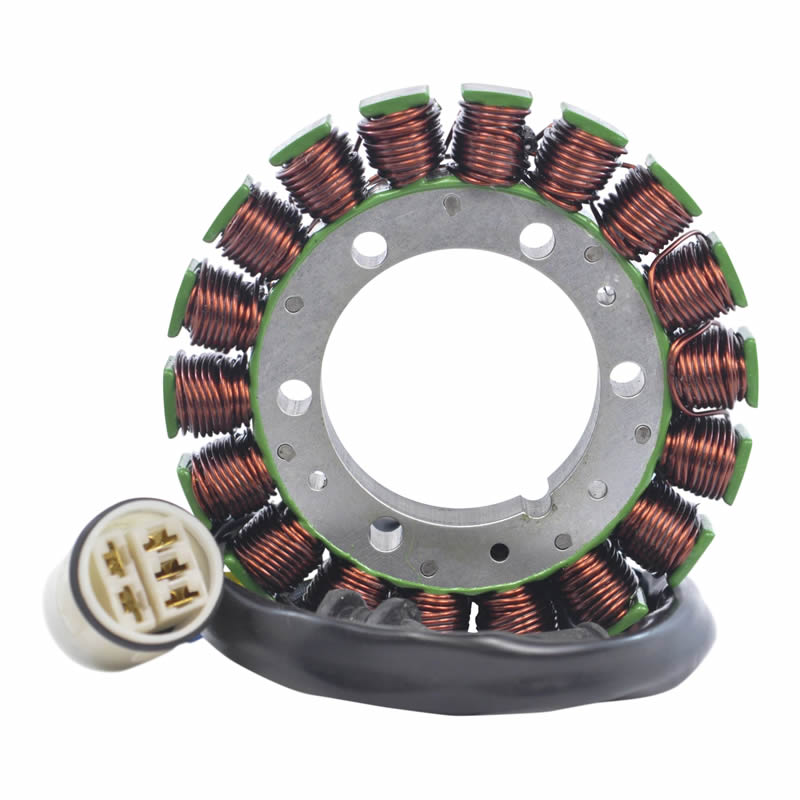

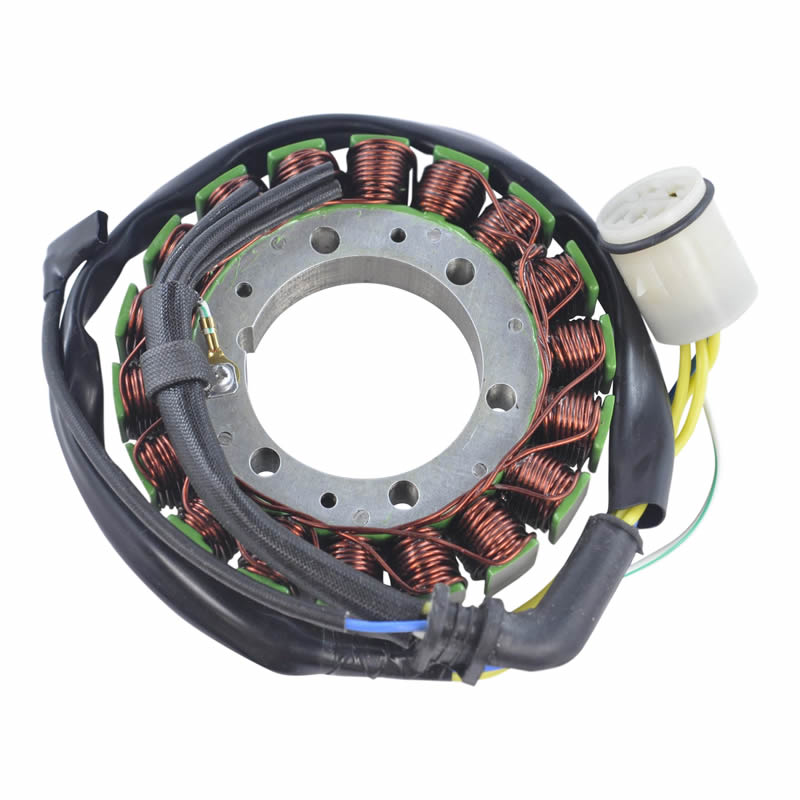

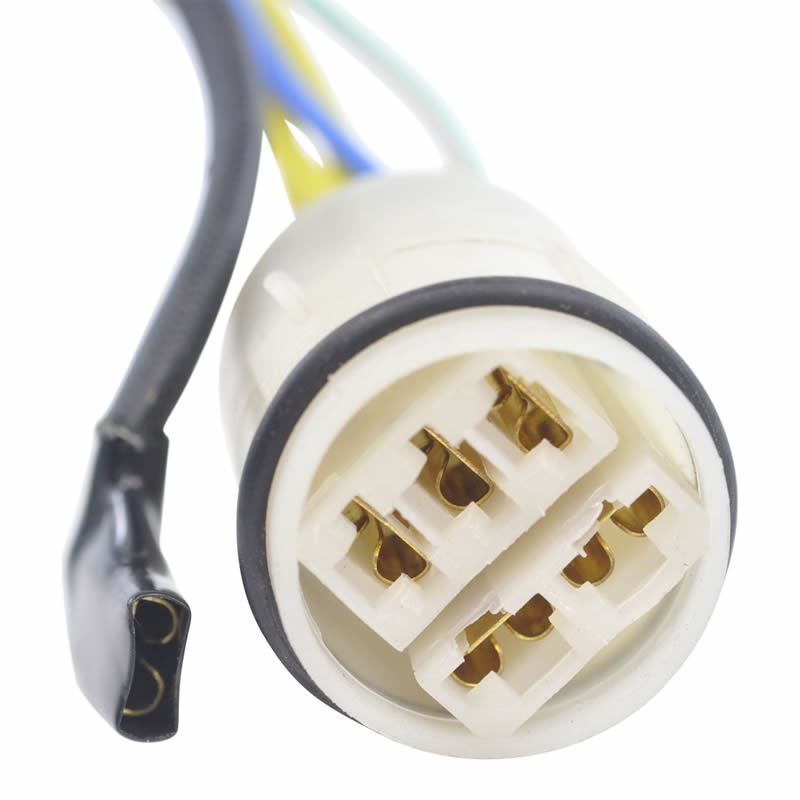

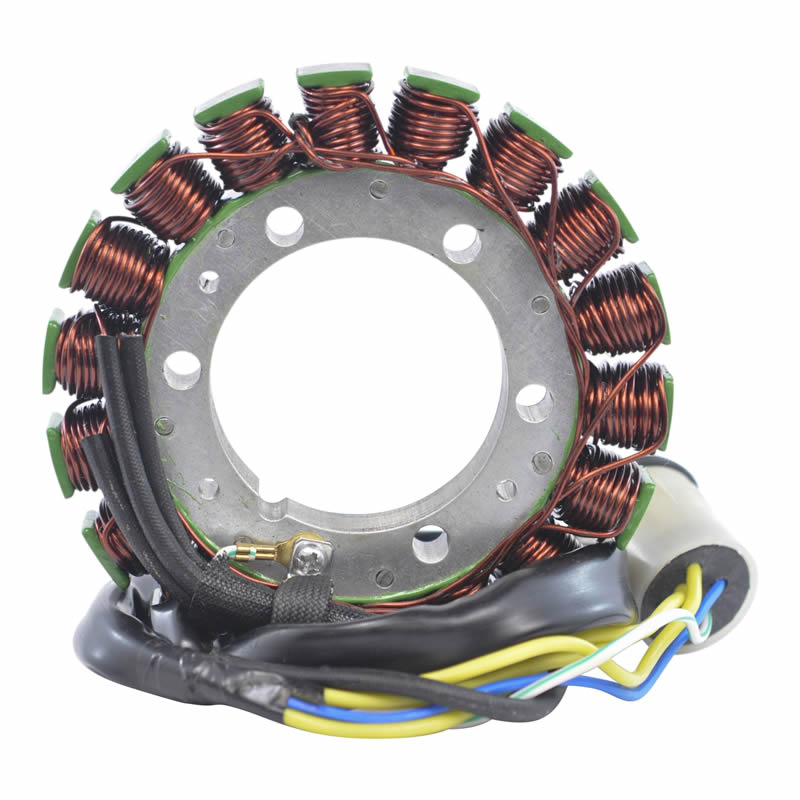

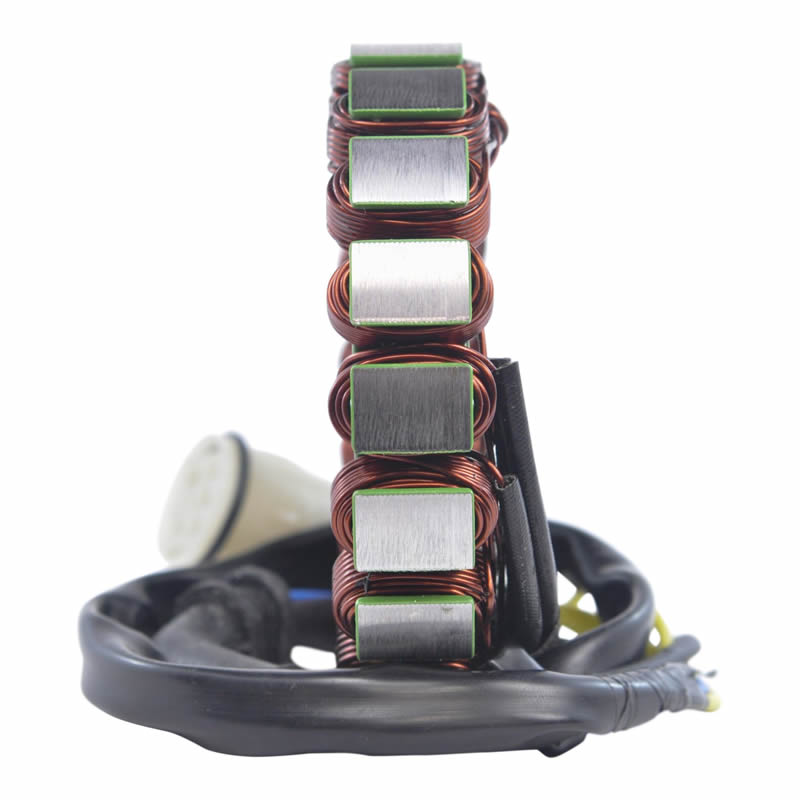

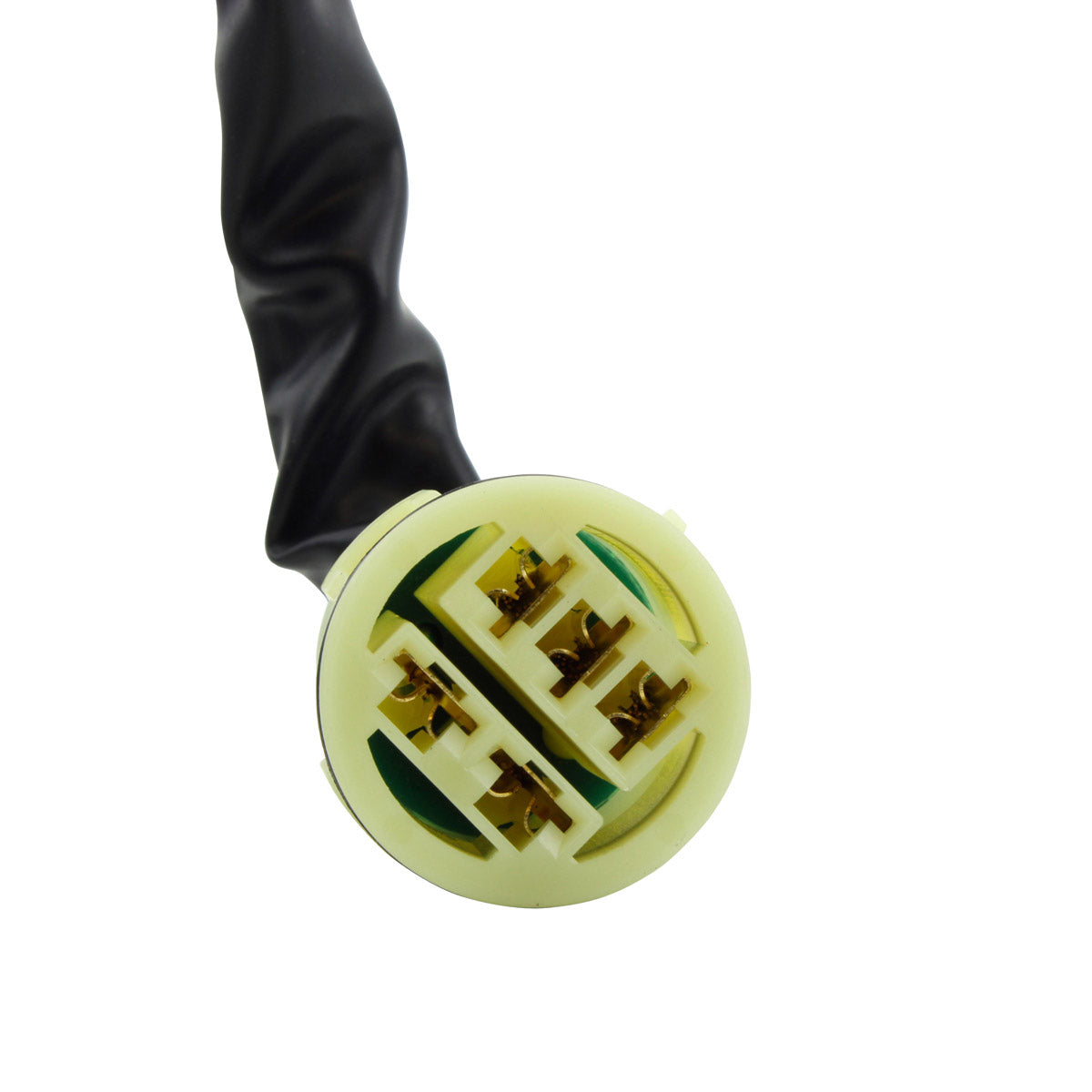

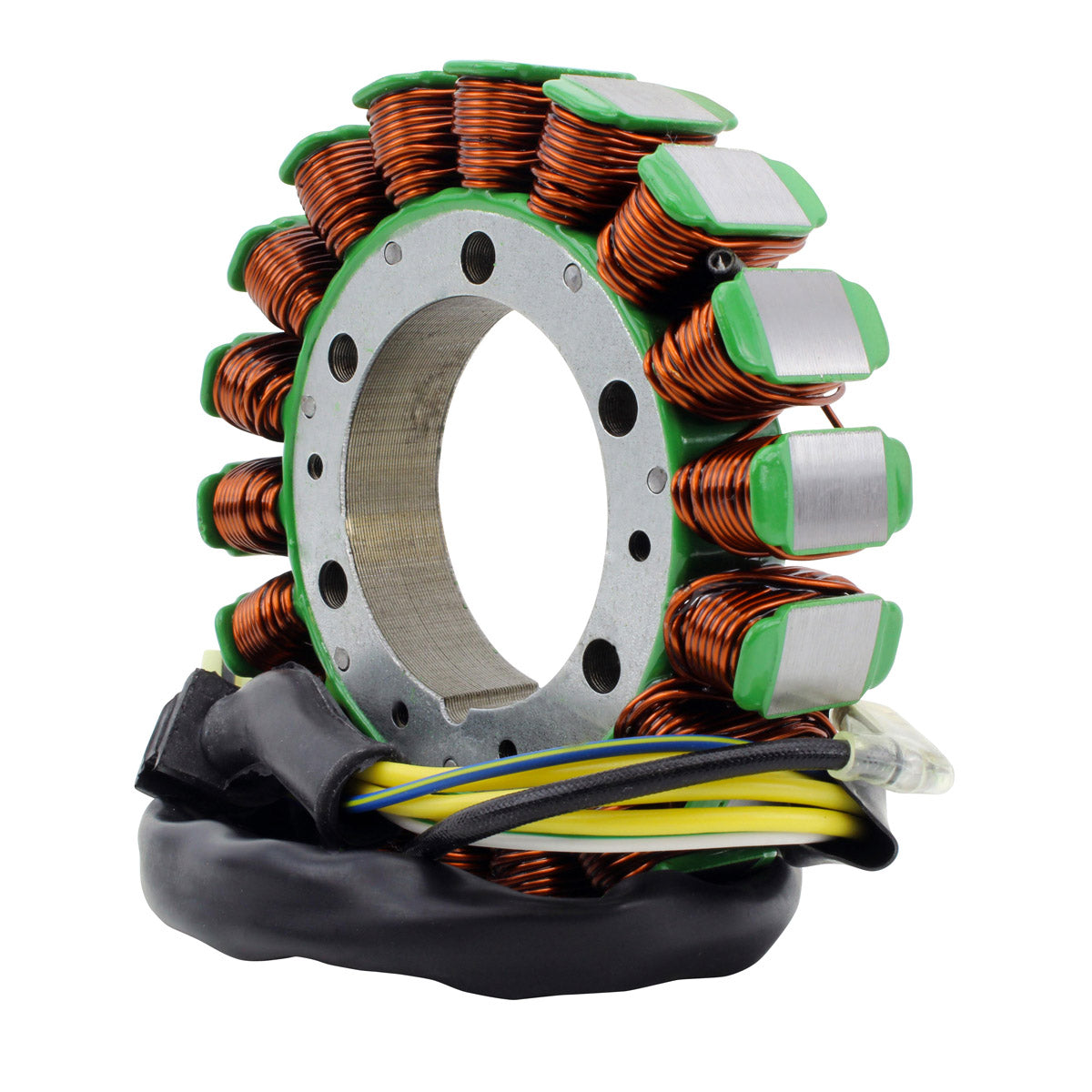

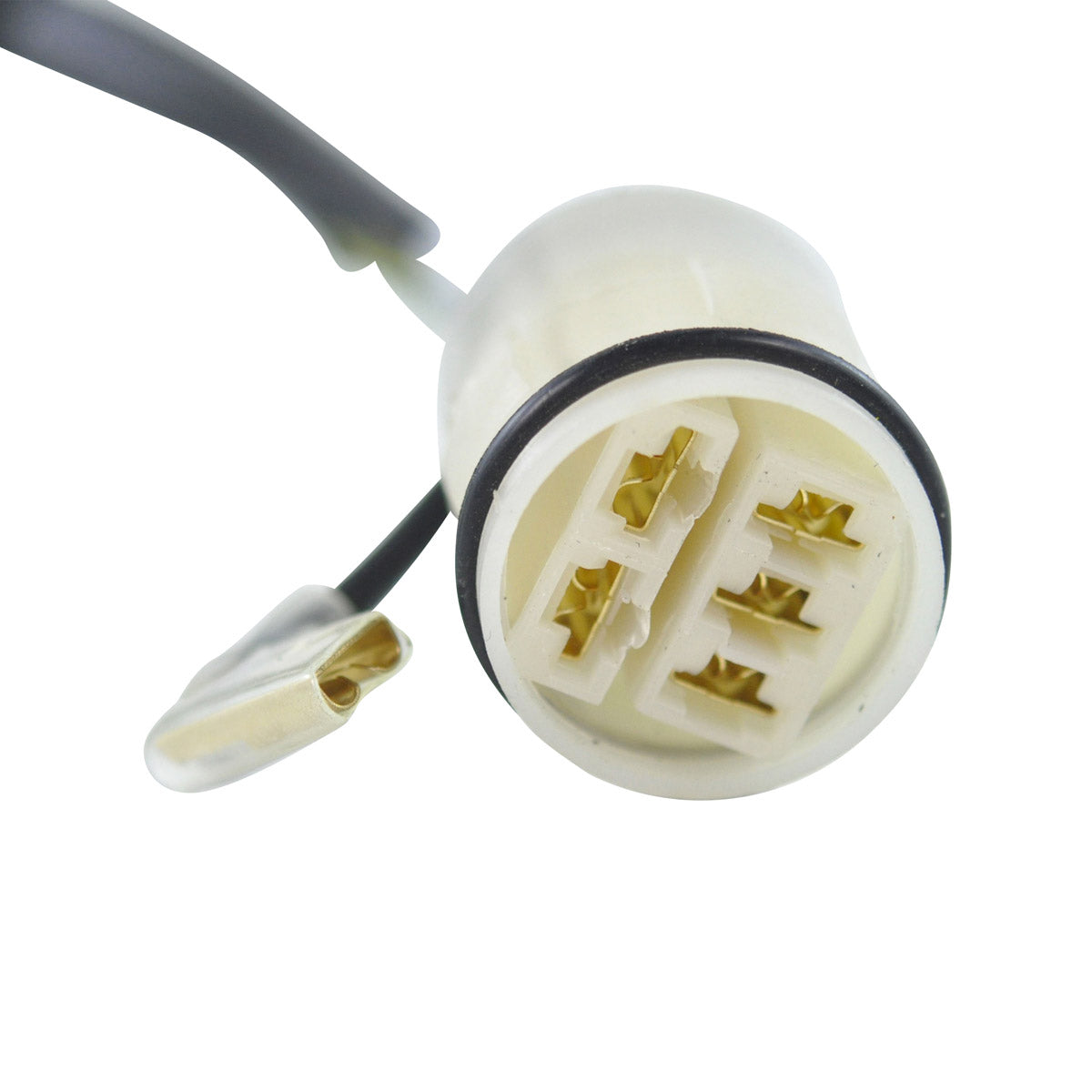

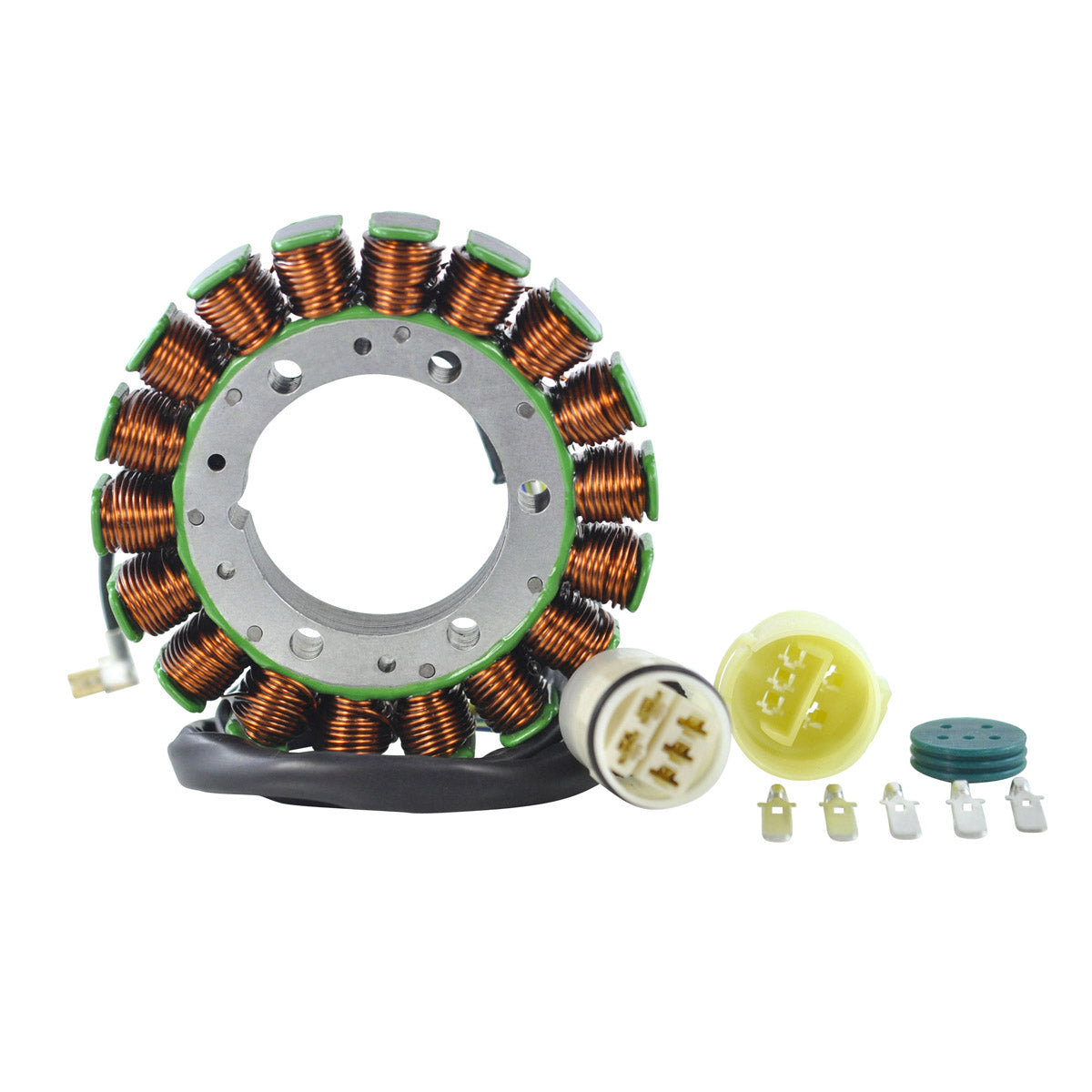

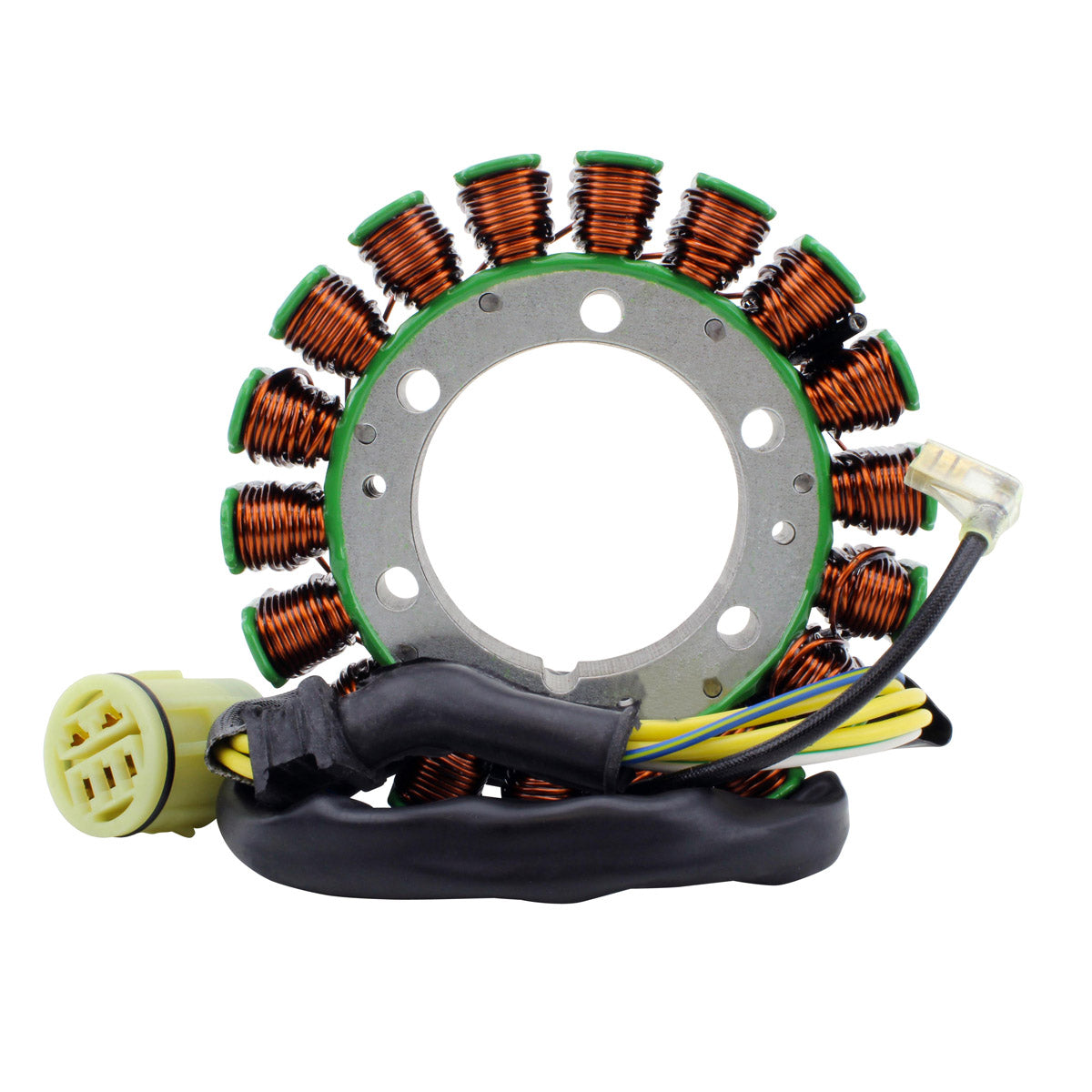

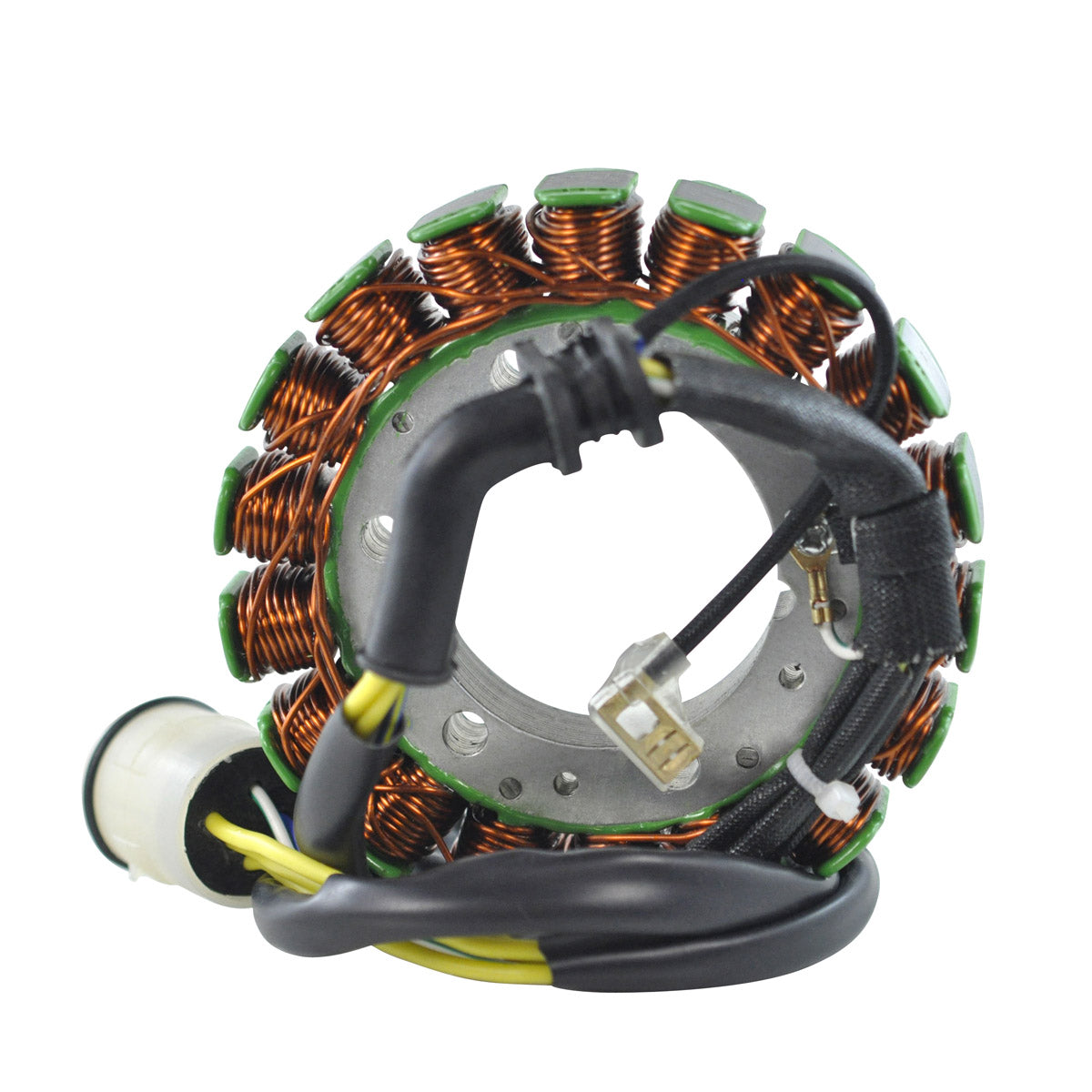

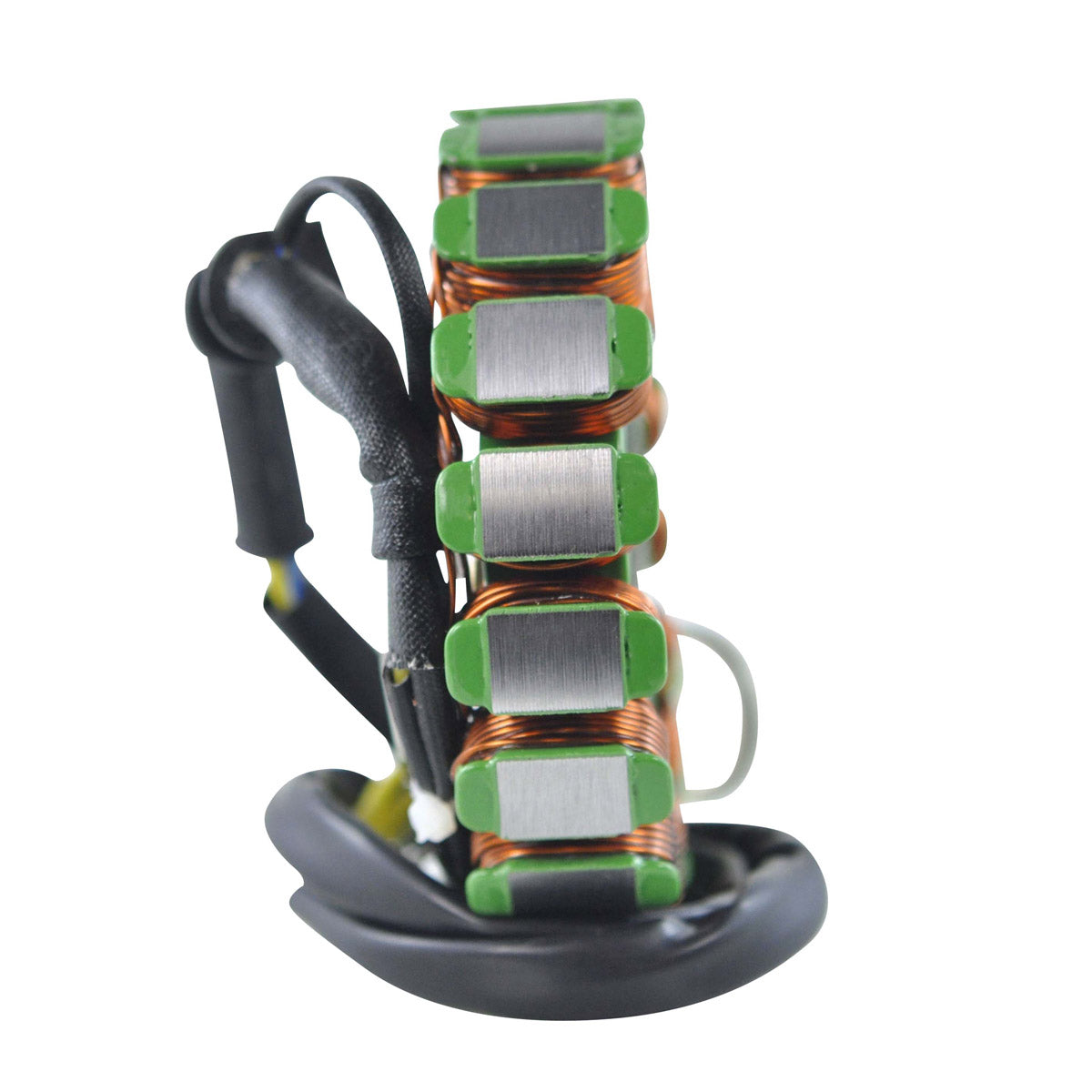

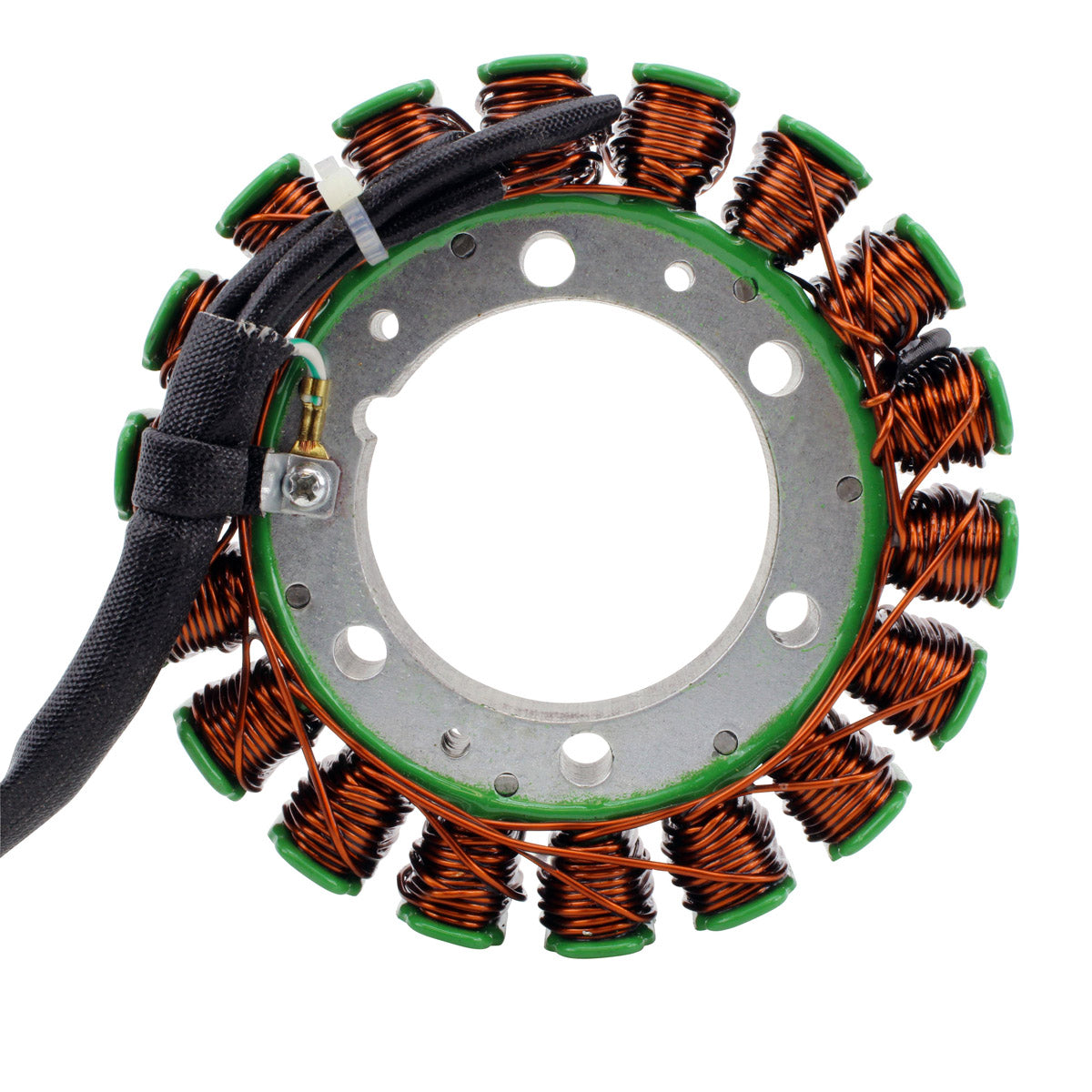

Brand new generator stator for the Honda TRX 400 and TRX 450 Fourtrax Foreman, built as a direct replacement to your original unit. It is plug-and-play, a direct fit and an easy installation - the core matches the original 54 mm by 115 mm by 18 mm dimensions and the six-wire harness terminates in the single original plug, so no cutting, splicing or re-pinning of the loom is required.
The unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. The pick-up pulsar coil wire and plug, the connector and the rubber grommet are supplied with the stator. This part carries the reference RM01361 and cross-references four Honda OEM numbers, listed below.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil wire and plug included
- Connector included
- Rubber grommet included
- Cross-references four Honda OEM part numbers
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
18 mm |
| Number of wires |
6 |
| Number of plugs |
1 |
| Number of pins |
6 |
| Wire length, stator to grommet |
55 mm |
| Wire length, grommet to plug |
500 mm |
| Pick-up coil wire to grommet |
90 mm |
| Alternator resistance, Yellow between each Yellow |
0.4 ohms +/-20% |
| Pickup resistance, Blue to ground |
360 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part reference |
RM01361 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda TRX 400 Fourtrax Foreman |
1995-2004 |
| Honda TRX 450 Fourtrax Foreman |
1995-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HM7-014 |
Honda |
| 31120-HM7-004 |
Honda |
| 31120-HM7-700 |
Honda |
| 31120-HN0-671 |
Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement to your original unit on the TRX 400 and TRX 450 Fourtrax Foreman, using the original core dimensions, the original single six-pin plug and the original grommet position, so it is plug-and-play with no wiring changes.
What is included?

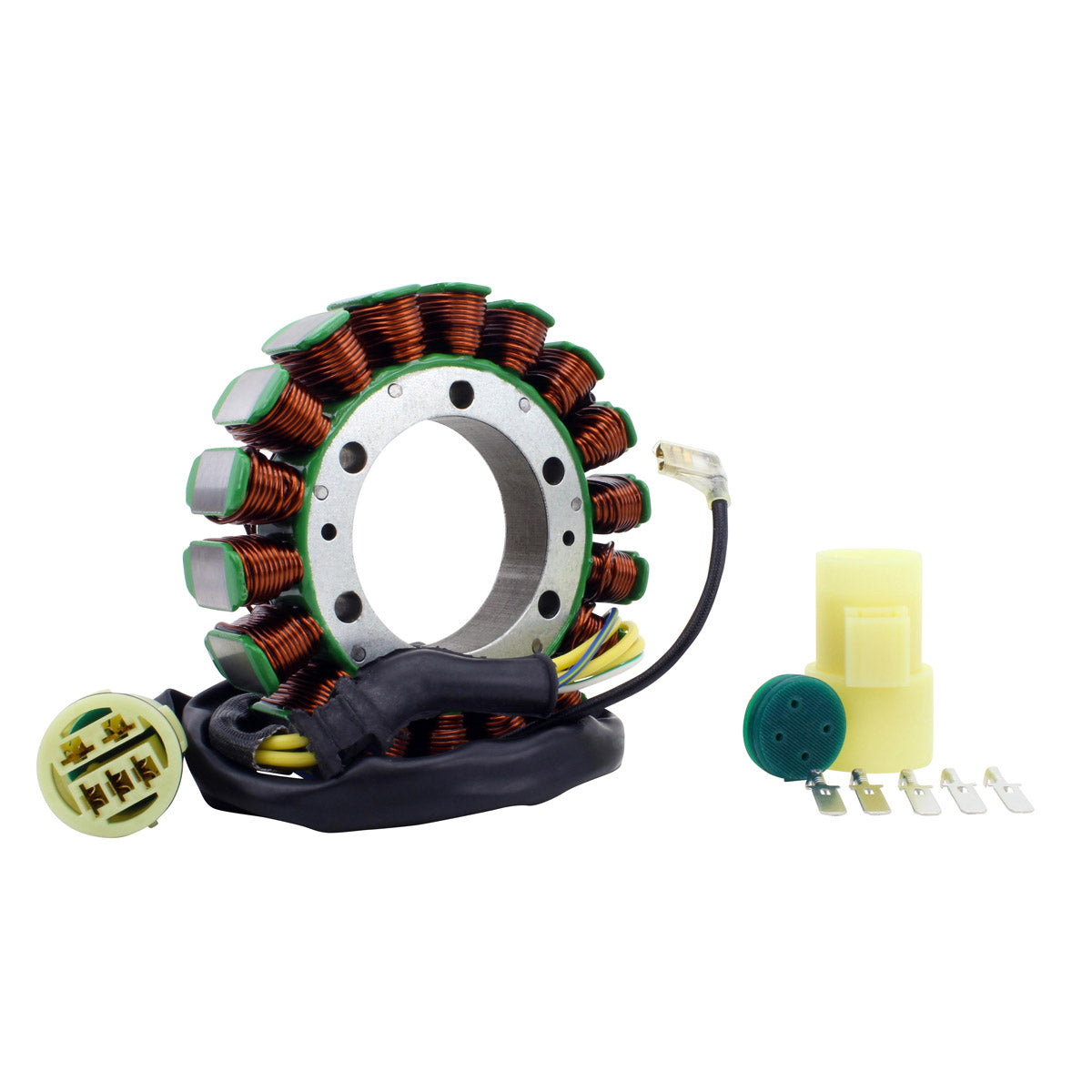

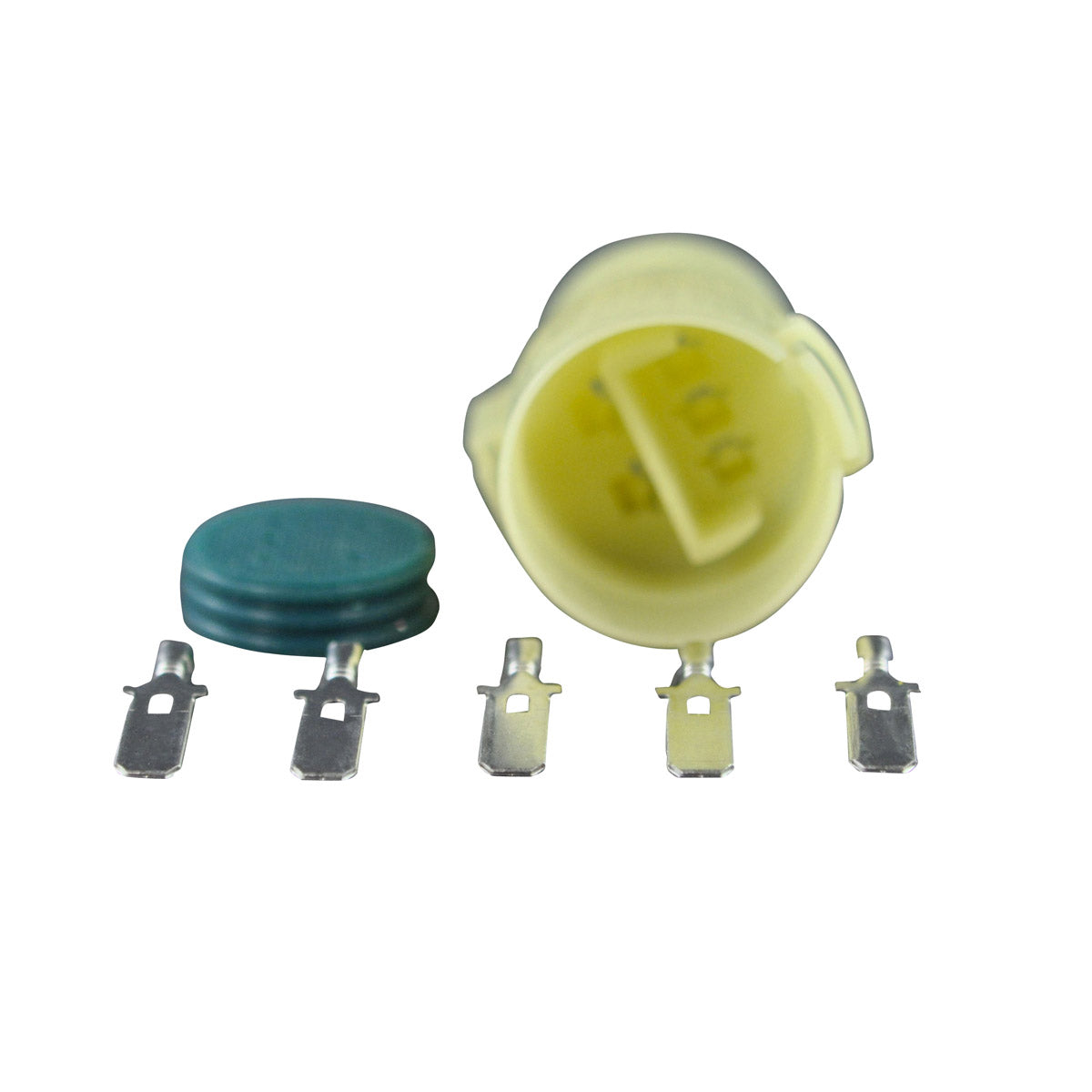

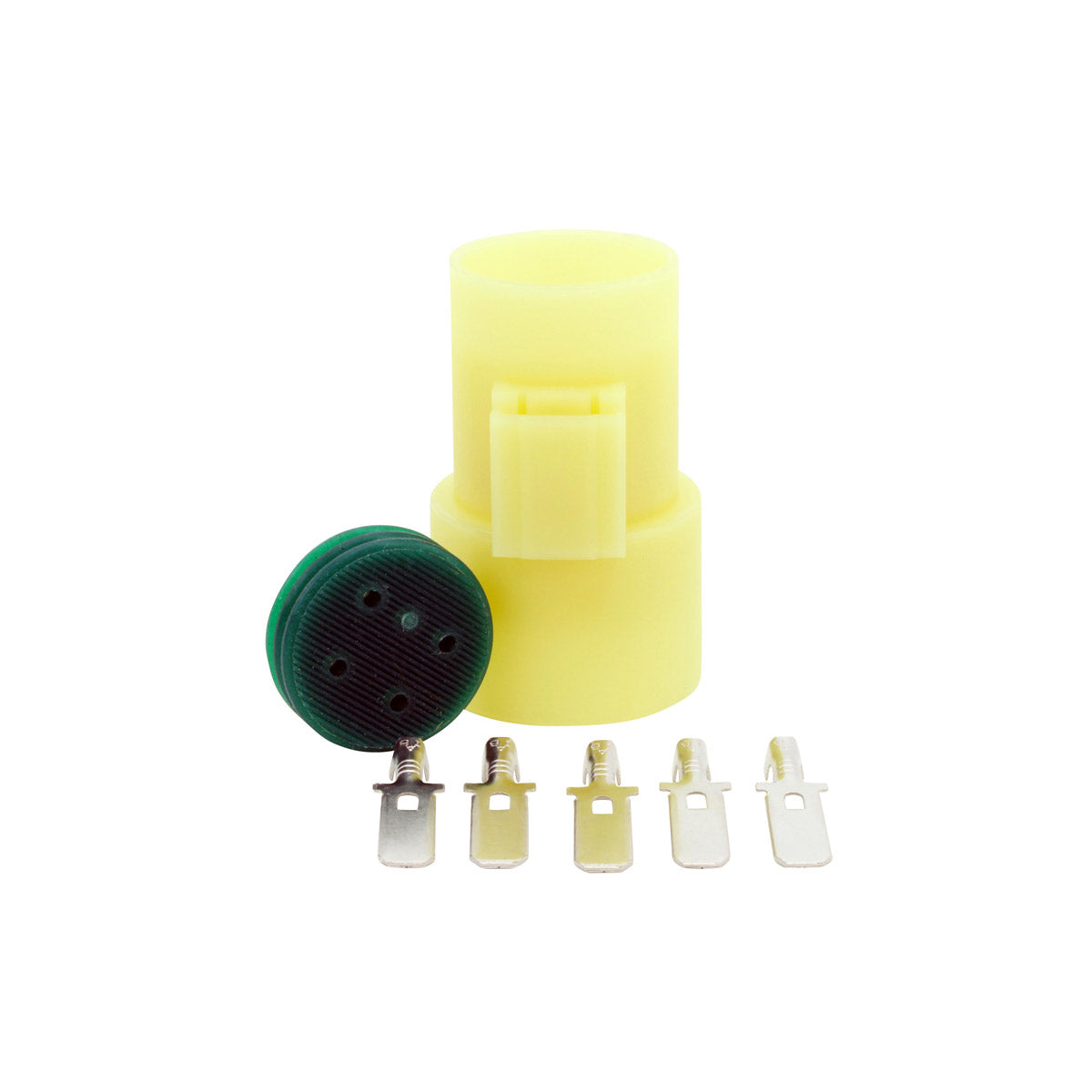

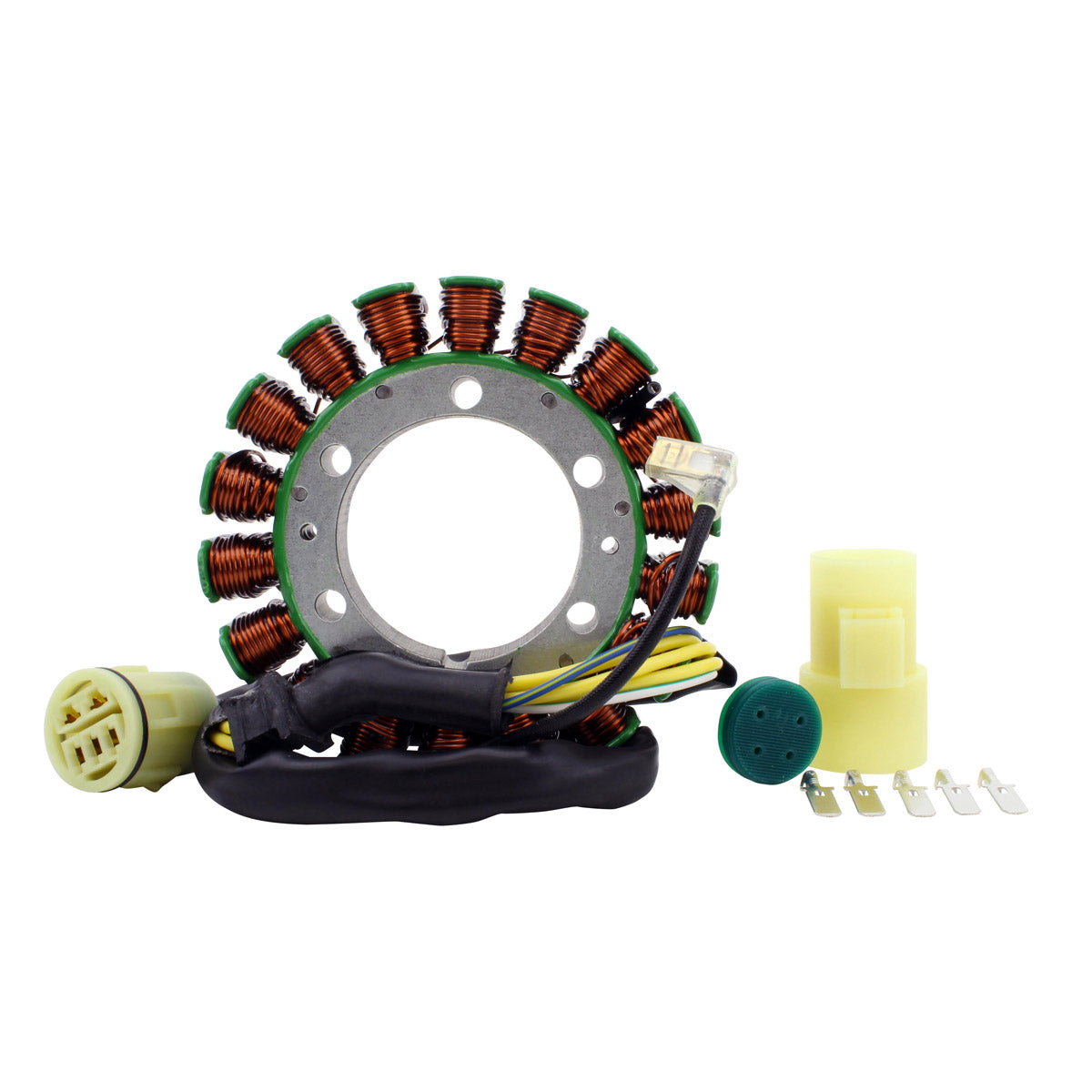

The stator assembly with the pick-up pulsar coil wire and plug, the connector and the rubber grommet.
How do I tell whether my old stator has failed?
The usual symptoms are a battery that will not stay charged, dim or flickering lights, weak or intermittent spark and charging voltage that will not rise with engine speed. Test the windings cold: the alternator should read 0.4 ohms +/-20% between each pair of Yellow wires, and the pickup 360 ohms +/-20% from Blue to ground. An open circuit, a near-zero reading, or continuity between an alternator winding and the stator body all confirm a failed unit.
Which Honda part numbers does it replace?
It cross-references Honda 31120-HM7-014, 31120-HM7-004, 31120-HM7-700 and 31120-HN0-671. This is an aftermarket part, not manufactured by Honda; the numbers are given so you can match them to the unit you are removing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
