Stator for Honda TRX 500 Fourtrax Foreman FE FM FPE FPM TM 2005-2011
Stator for Honda TRX 500 Fourtrax Foreman FE FM FPE FPM TM 2005-2011
SKU:RM01362
Free shipping over £150. Terms apply
Couldn't load pickup availability

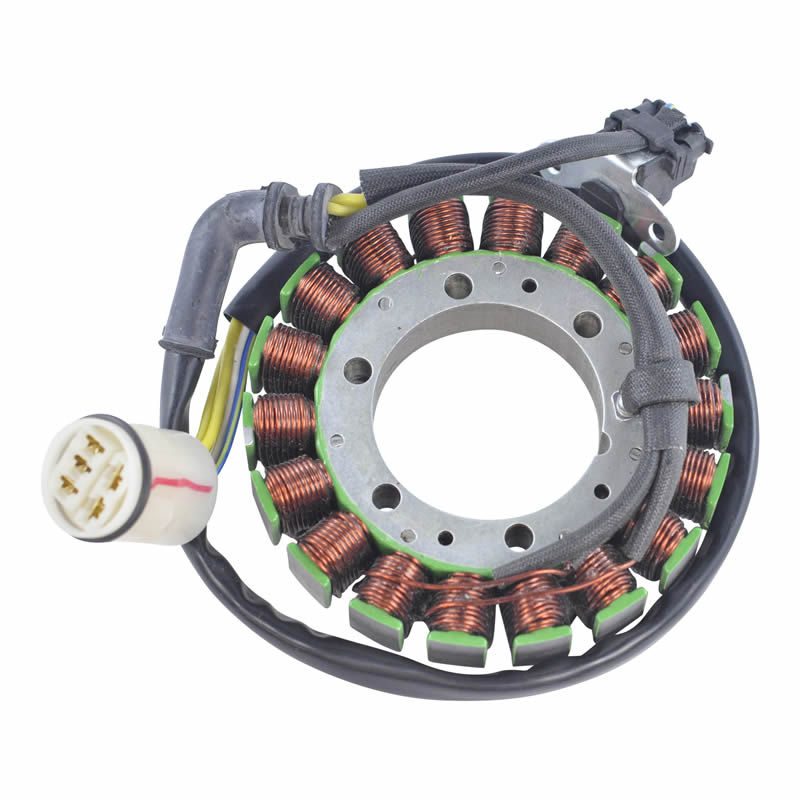

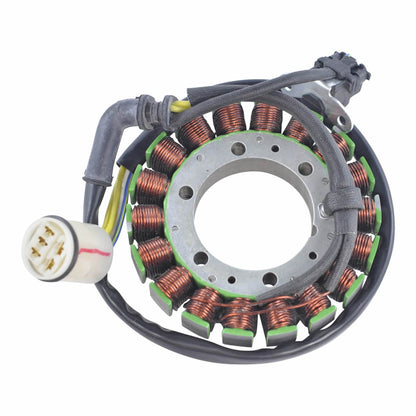

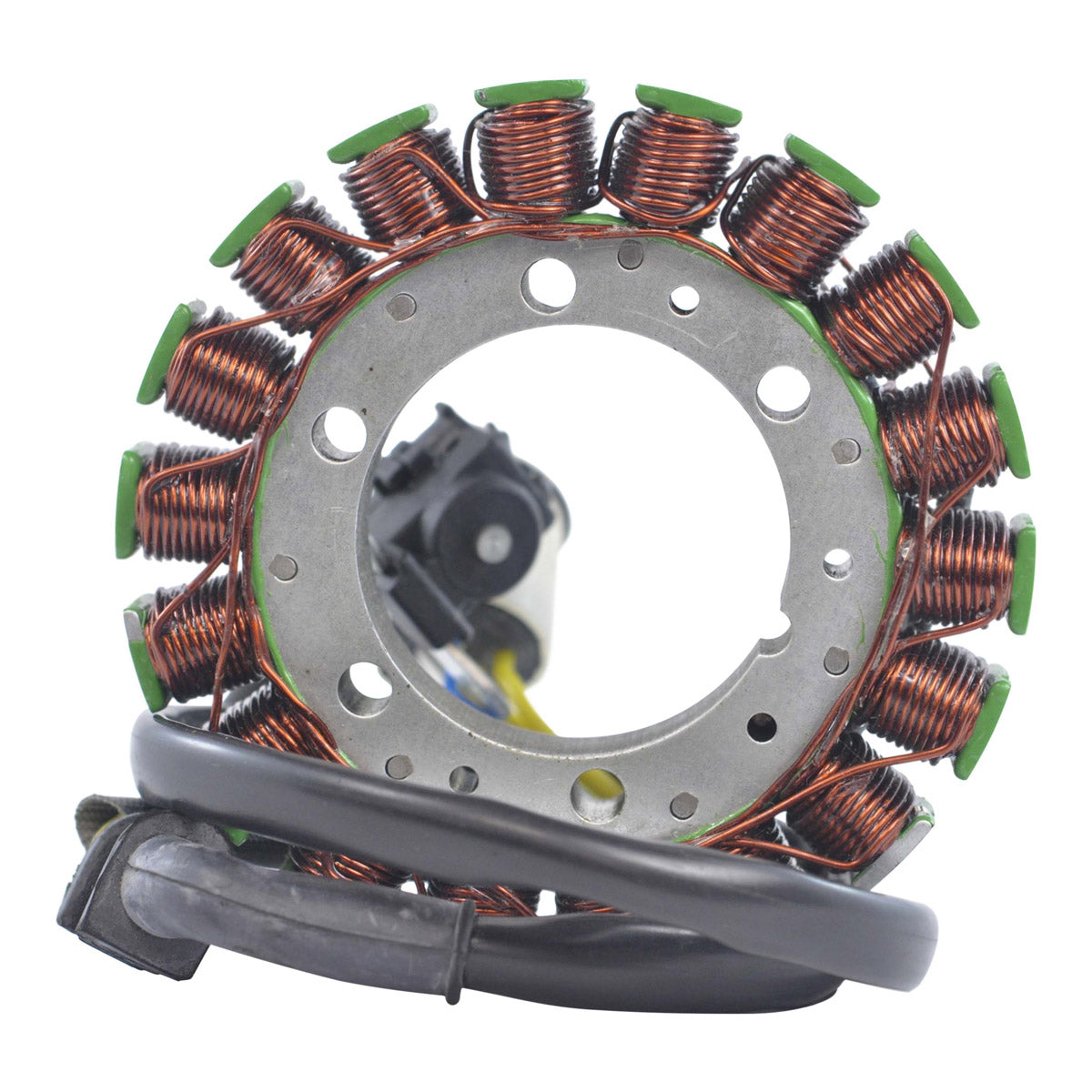

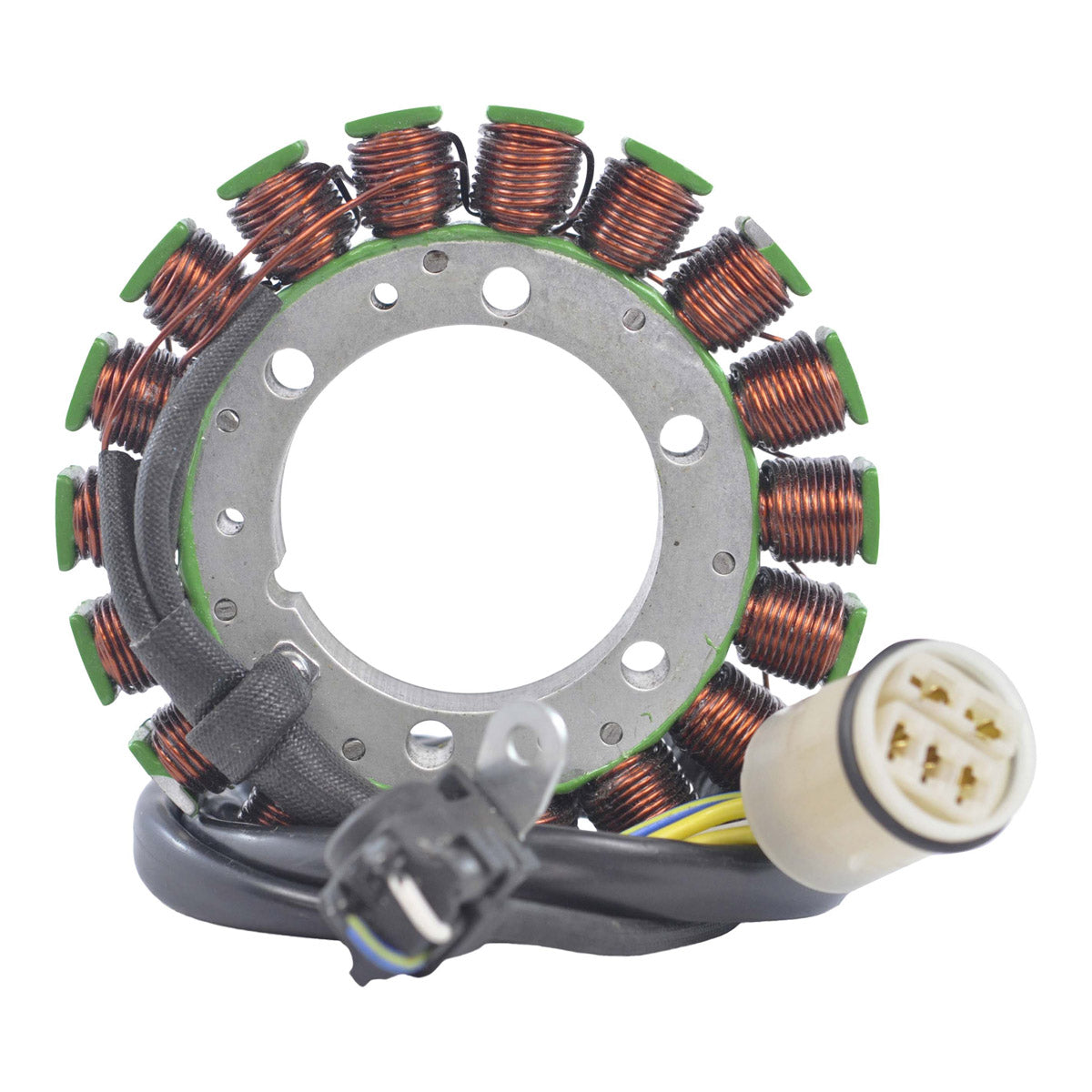

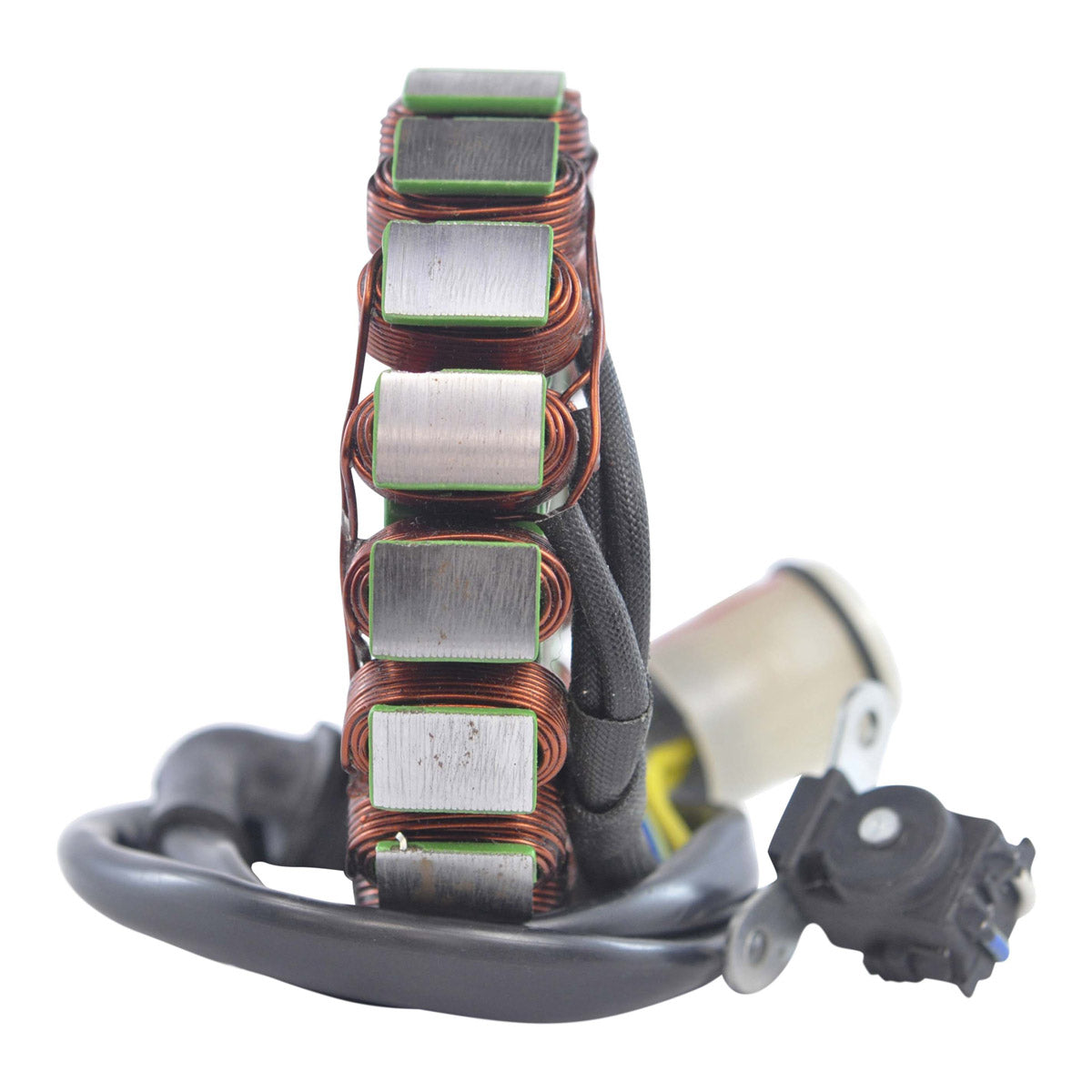

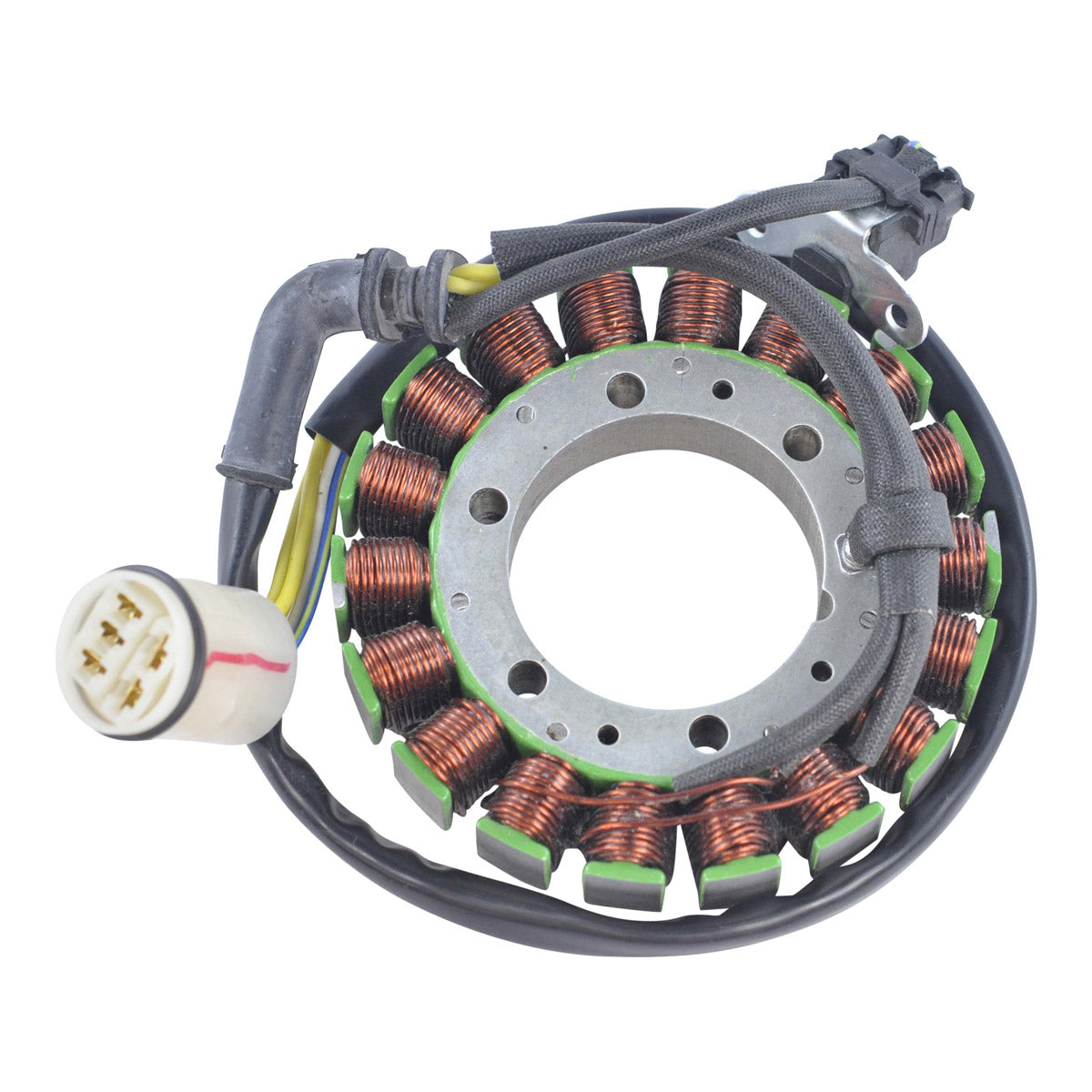

Stator for Honda TRX 500 Fourtrax Foreman FE FM FPE FPM TM 2005-2011
Honda TRX 500 Fourtrax Foreman FE, FM, FPE, FPM and TM, 2005-2011 - RMSTATOR reference RM01362

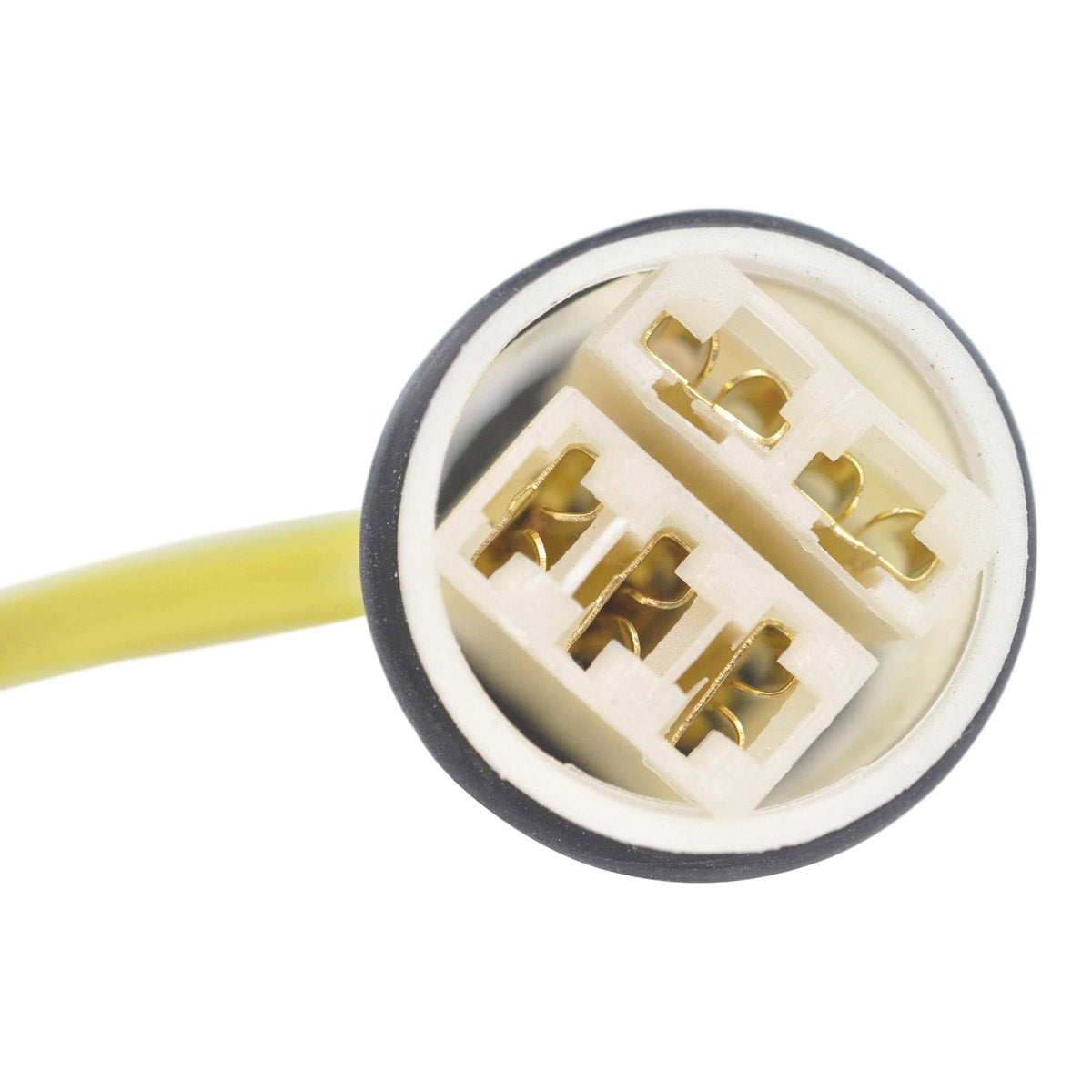

Brand new stator for the Honda TRX 500 Fourtrax Foreman in FE, FM, FPE, FPM and TM specification, built as a direct replacement to your original unit. It is plug-and-play, a direct fit and an easy installation: the core is the original 53 mm by 114 mm by 18 mm size and the five-wire harness ends in the single original plug, so nothing on the loom has to be cut, spliced or re-pinned.
The unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. The pick-up pulsar coil, the connector and the rubber grommet are supplied with the stator, and the unit is tested before shipment. This part carries the reference RM01362 and cross-references Honda OEM part number 31120-HP0-A01.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- Tested before shipment
- Cross-references Honda OEM 31120-HP0-A01
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 18 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Wire length, stator to grommet | 75 mm |
| Wire length, grommet to plug | 450 mm |
| Pick-up coil wire to grommet | 65 mm |
| Alternator resistance, Yellow between each Yellow | 0.4 ohms +/-20% |
| Pickup resistance, White to Blue/Yellow | 250 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
| Part reference | RM01362 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda TRX 500 Fourtrax Foreman FE | 2005-2011 |
| Honda TRX 500 Fourtrax Foreman FM | 2005-2011 |
| Honda TRX 500 Fourtrax Foreman FPE | 2005-2011 |
| Honda TRX 500 Fourtrax Foreman FPM | 2005-2011 |
| Honda TRX 500 Fourtrax Foreman TM | 2005-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HP0-A01 | Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement to your original unit and covers all five Foreman variants listed - FE, FM, FPE, FPM and TM. The core dimensions, the grommet position and the single five-pin plug all match the original, so it is plug-and-play.
What is included?
The stator assembly, the pick-up pulsar coil, the connector and the rubber grommet. The unit is tested before it is shipped.
How do I tell whether my old stator has failed?
Watch for a battery that will not stay charged, dim or flickering lights, weak or intermittent spark, and charging voltage that stays flat as the engine is revved. Confirm with a multimeter on a cold engine: the alternator windings should read 0.4 ohms +/-20% between each pair of Yellow wires, and the pickup 250 ohms +/-20% from White to Blue/Yellow. Readings that are open circuit, near zero, or that show continuity from a winding to the stator body mean the stator has failed.
Does it replace Honda 31120-HP0-A01?
Yes. This stator cross-references Honda OEM 31120-HP0-A01. It is an aftermarket part rather than a Honda-manufactured one, and the OEM number is quoted only so you can check it against the unit you are removing.
