Alternator Stator for Honda TRX 680 Rincon
Honda TRX 680 Rincon, 2006-2014 - pick-up pulsar coil, connector and grommet included

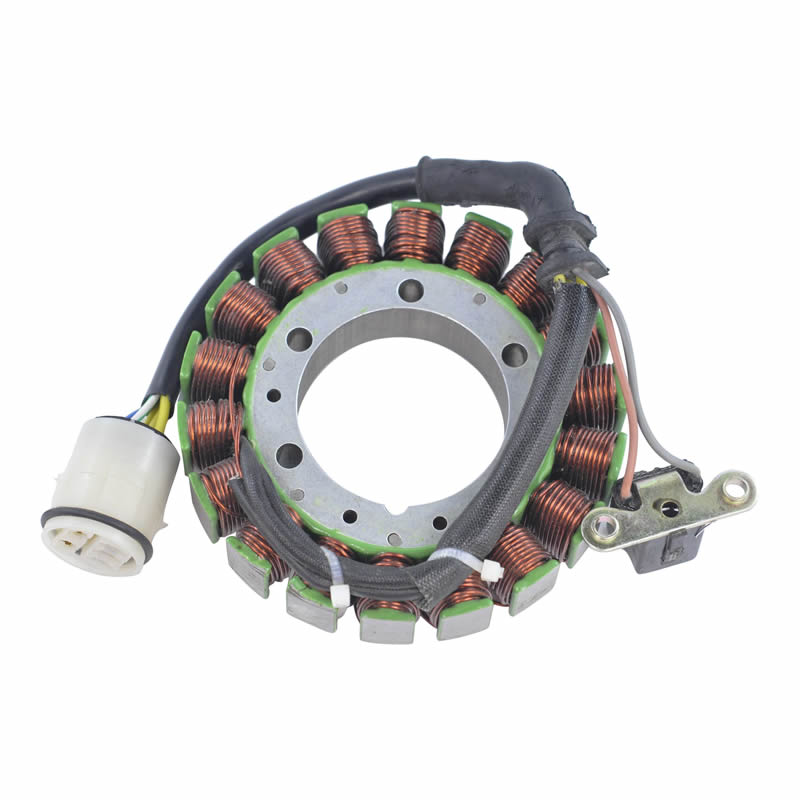

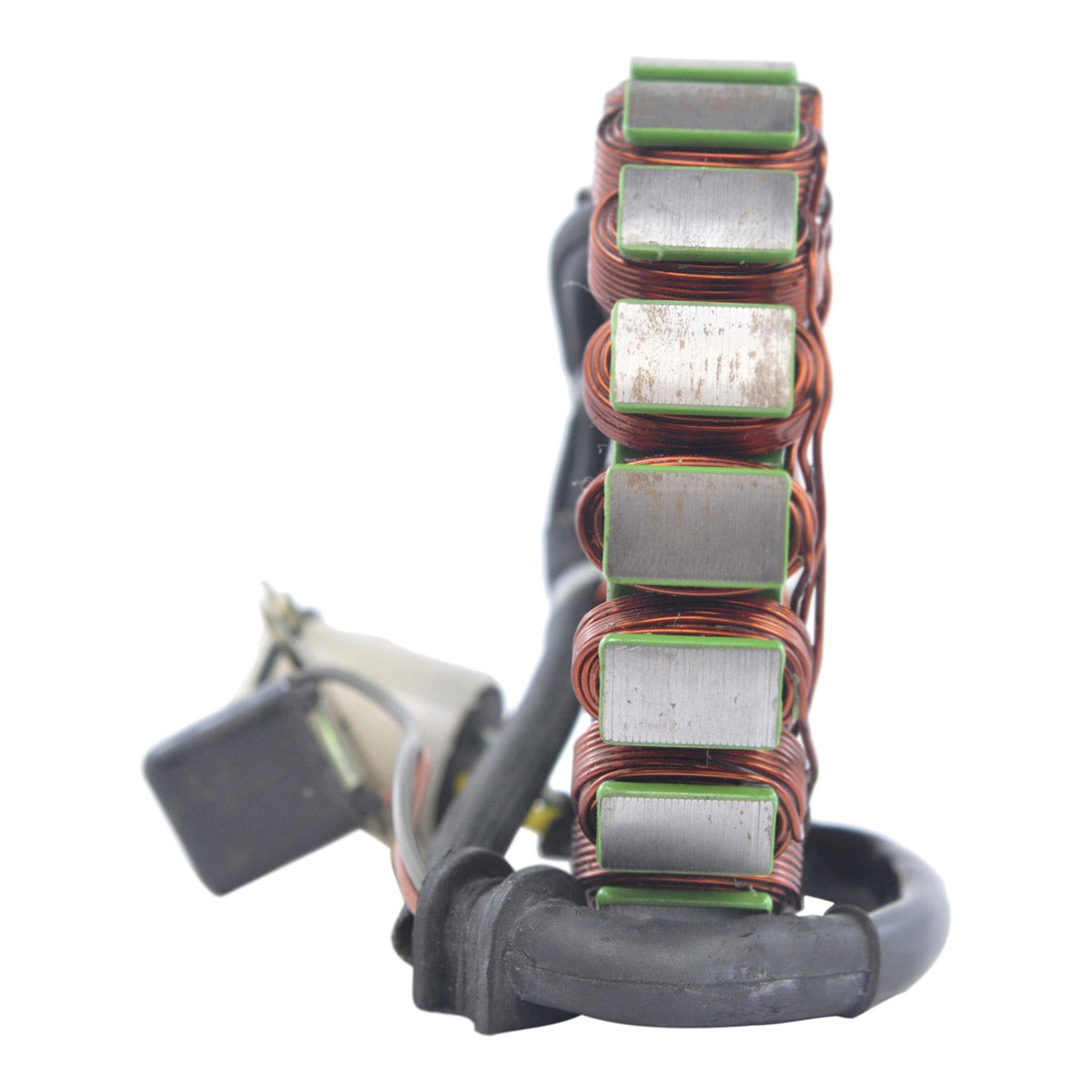

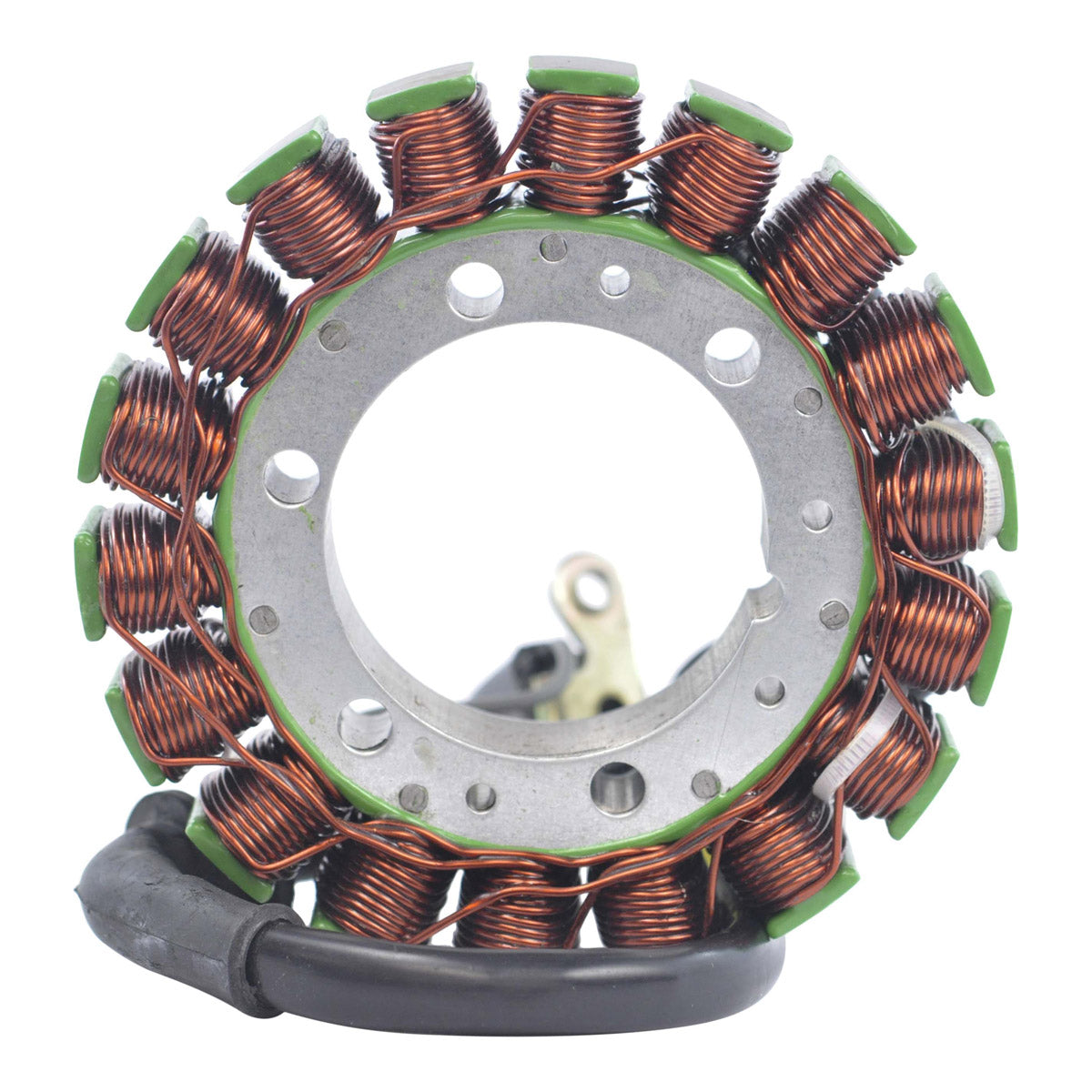

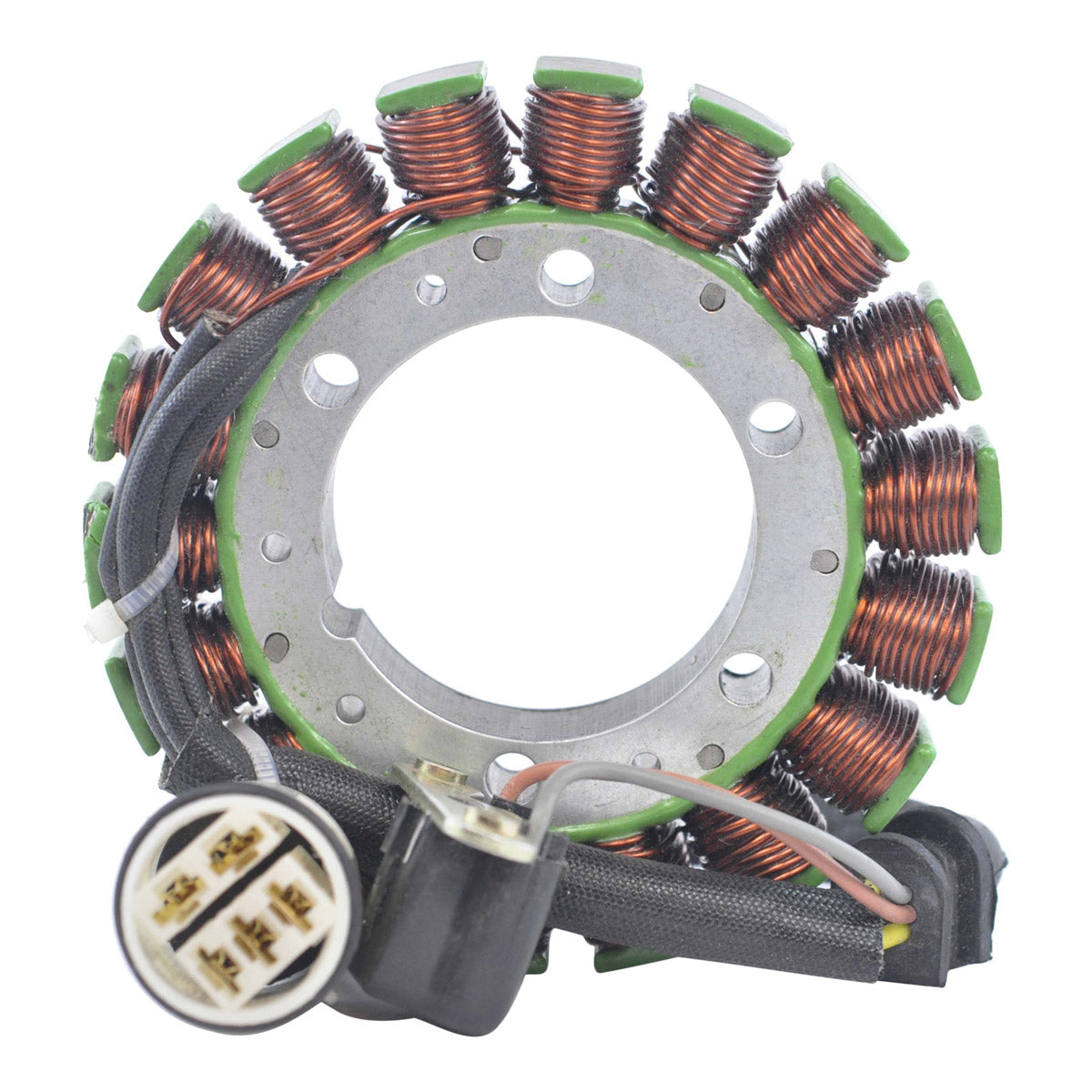

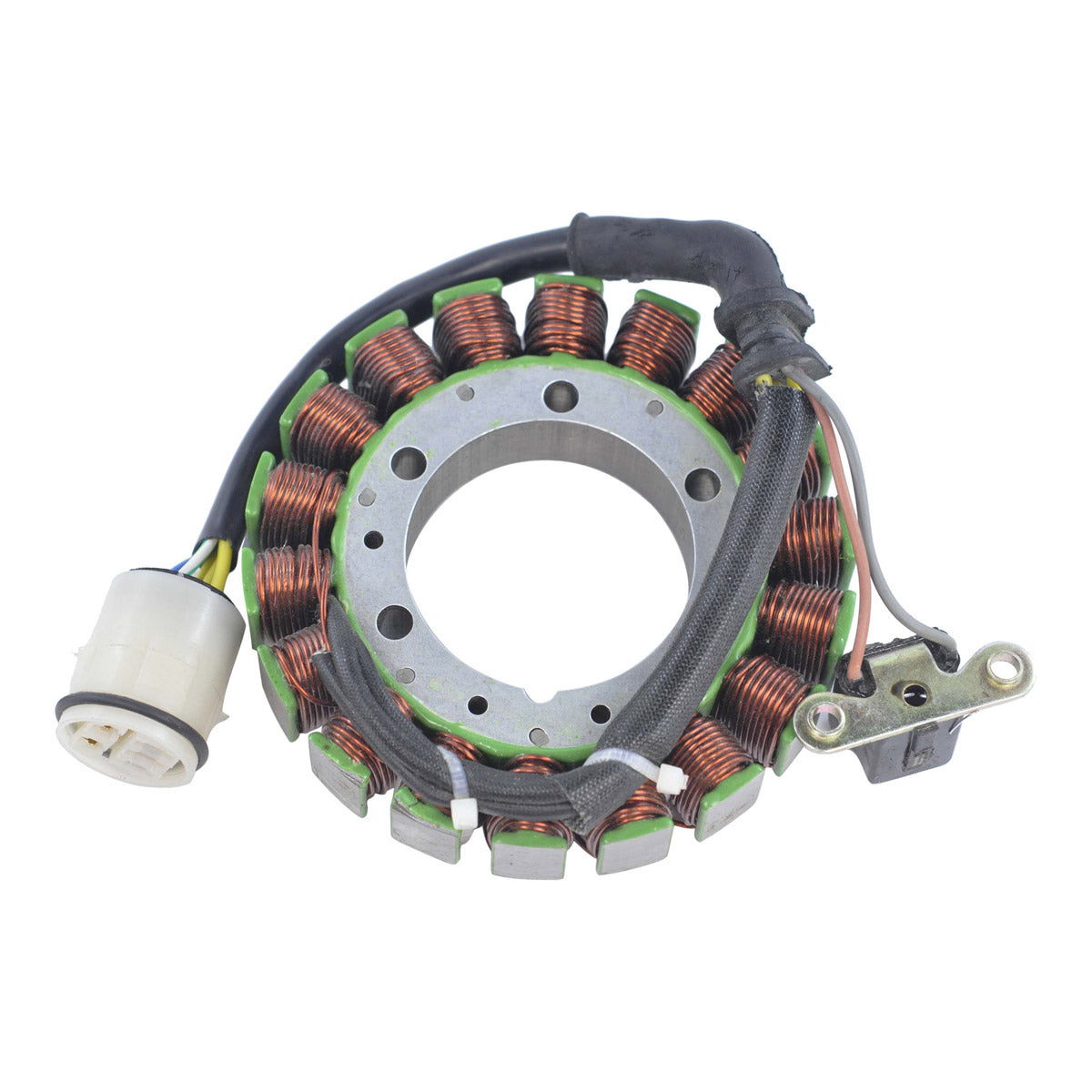

This is a brand new alternator stator for the Honda TRX 680 Rincon, covering model years 2006 to 2014. It is a direct replacement for your original unit - plug-and-play, direct fit and easy to install, with no modification needed to the wiring loom or the engine cases. The core is built from the highest grade lamination materials and wound with the highest grade copper, rated to resist 200 degrees Celsius, which is where lower quality rewinds tend to break down and fail again.

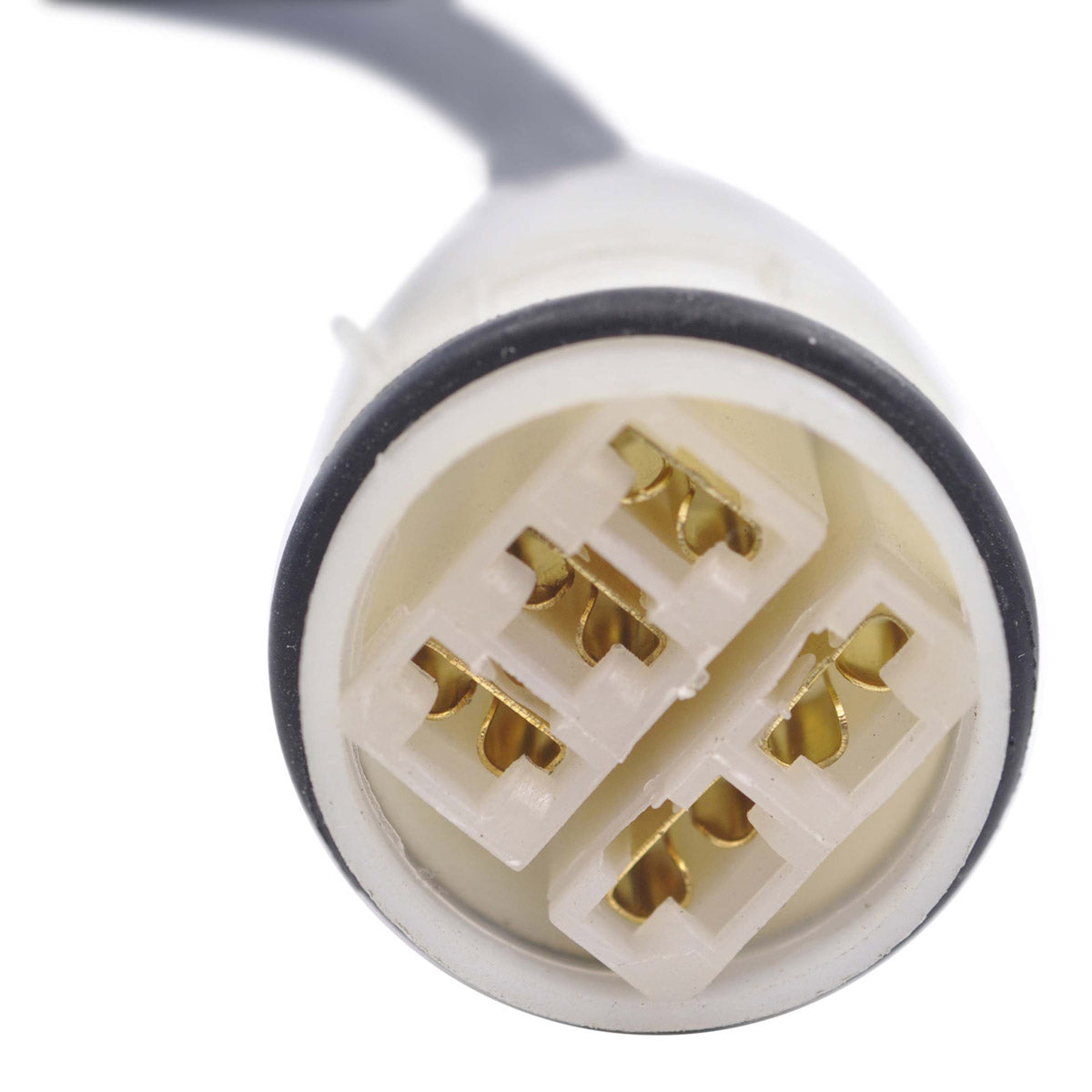

The pick-up pulsar coil is supplied as part of the assembly, together with the connector and the rubber grommet already fitted, so the complete unit goes in as one piece and nothing has to be salvaged from the old stator. We also include the opposite connector from the main harness side, because those plugs are often found melted, corroded or defective and are a major cause of repetitive electrical issues that outlast the stator itself. All products shipped are tested before dispatch.
Key Features
- Brand new alternator stator
- Pick-up pulsar coil included
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Opposite connector for the main harness side also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 40 mm |
| Wire length, grommet to plug | 210 mm |
| Pick-up coil wire to grommet | 50 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Alternator resistance, Yellow between each Yellow | 0.4 ohms +/-20% |
| Pick-up resistance, Blue/Yellow to White/Green | 196 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda TRX 680 Rincon | 2006-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HN8-A60 | Honda |
| 31120-HN8-A61 | Honda |
| 31120-HN8-A62 | Honda |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Honda unit, so no cutting, splicing or drilling is required. Please confirm the OEM part number on your original stator against the cross reference table above before ordering.
What is included?
The alternator stator, the pick-up pulsar coil, the connector and the rubber grommet, all supplied as a single assembly, plus the opposite connector for the main harness side.
How do I tell whether my old stator has failed?
The usual signs are a battery that will not hold charge, lights that dim or brighten with engine speed, or a no-spark condition where the pick-up coil has gone open circuit. With a multimeter, the three Yellow alternator wires should read about 0.4 ohms plus or minus 20 per cent between each other, and the pick-up should read about 196 ohms plus or minus 20 per cent from Blue/Yellow to White/Green. Readings well outside those, or continuity from any winding to the stator body, mean the unit has failed.
Why does it come with a spare connector?
The harness-side plug takes the same heat and current as the stator plug. If it is already melted or corroded, fitting a new stator into it simply reproduces the fault, so the matching main harness connector is supplied to let you renew both halves at the same time.
