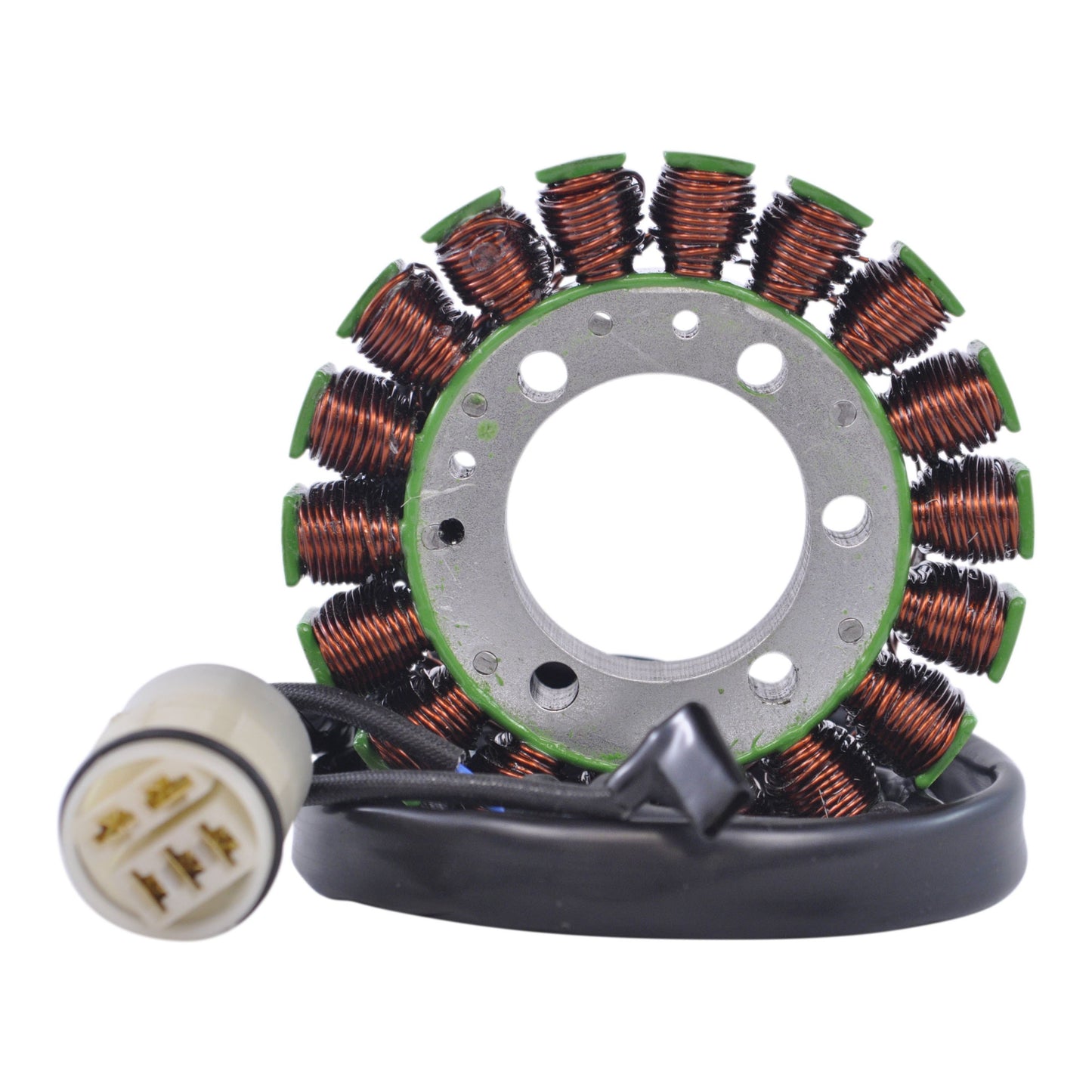

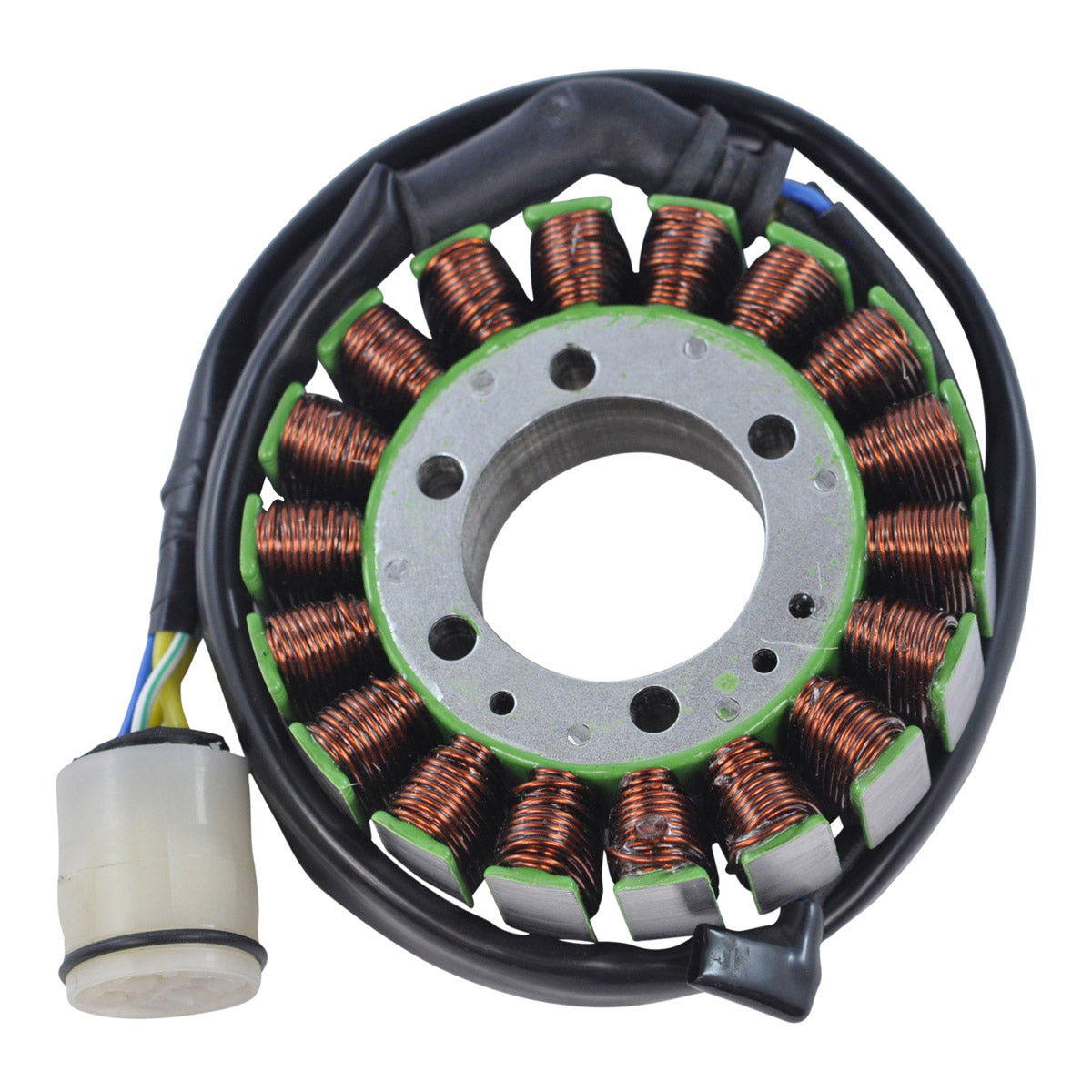

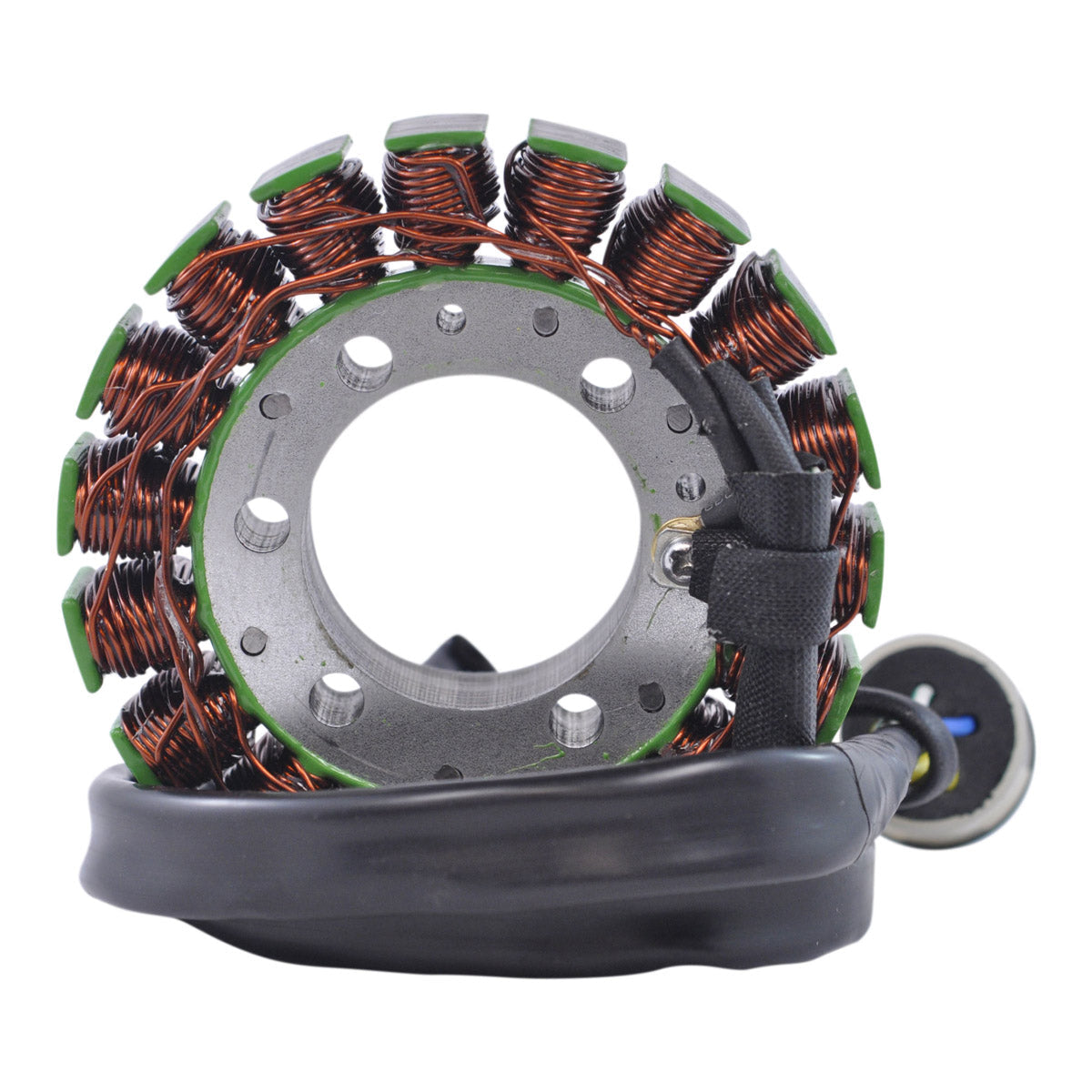

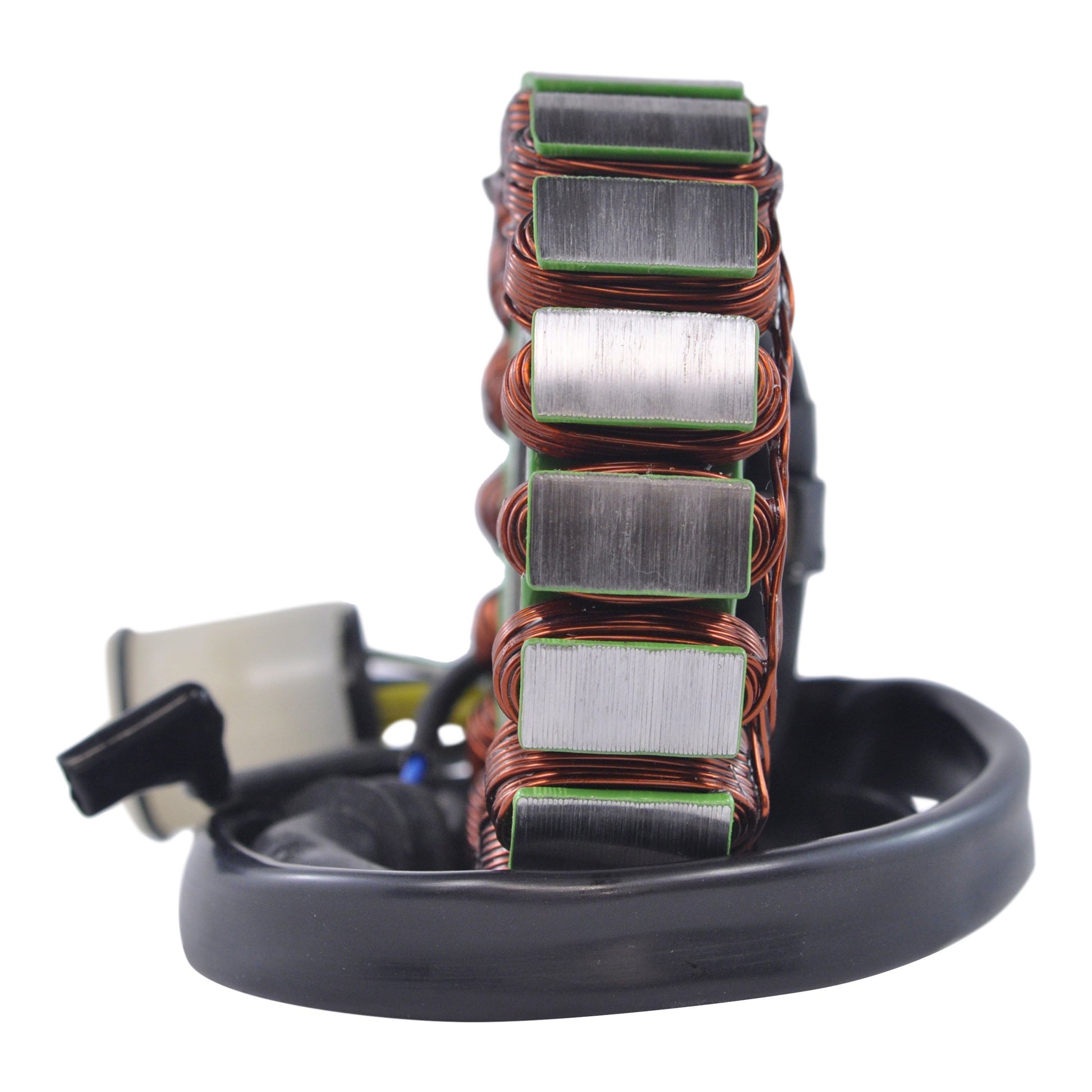

Stator for Honda TRX 500 Foreman Rubicon FA, FGA & FPA 4x4 Automatic 2001-2014
Stator for Honda TRX 500 Foreman Rubicon FA, FGA & FPA 4x4 Automatic 2001-2014
SKU:RM01428
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Honda TRX 500 Foreman Rubicon FA FGA FPA - RM01428

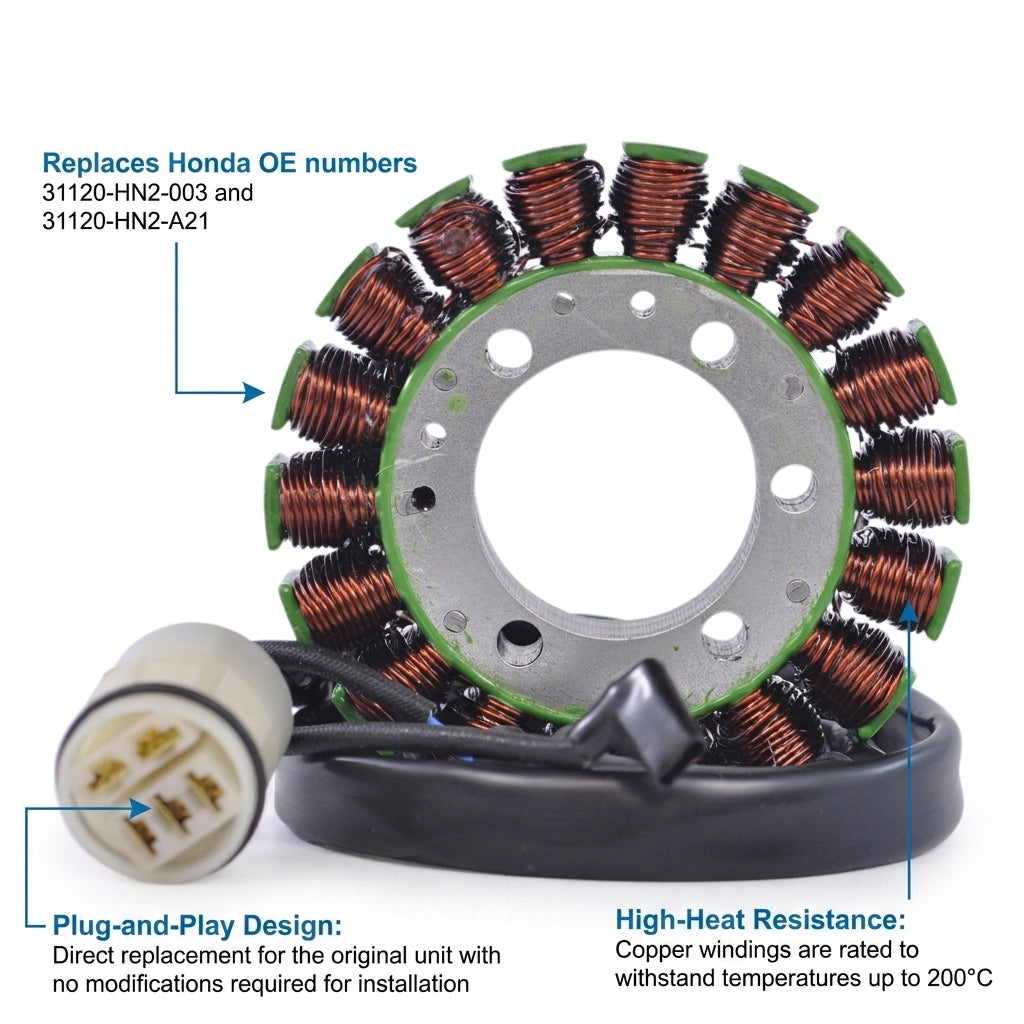

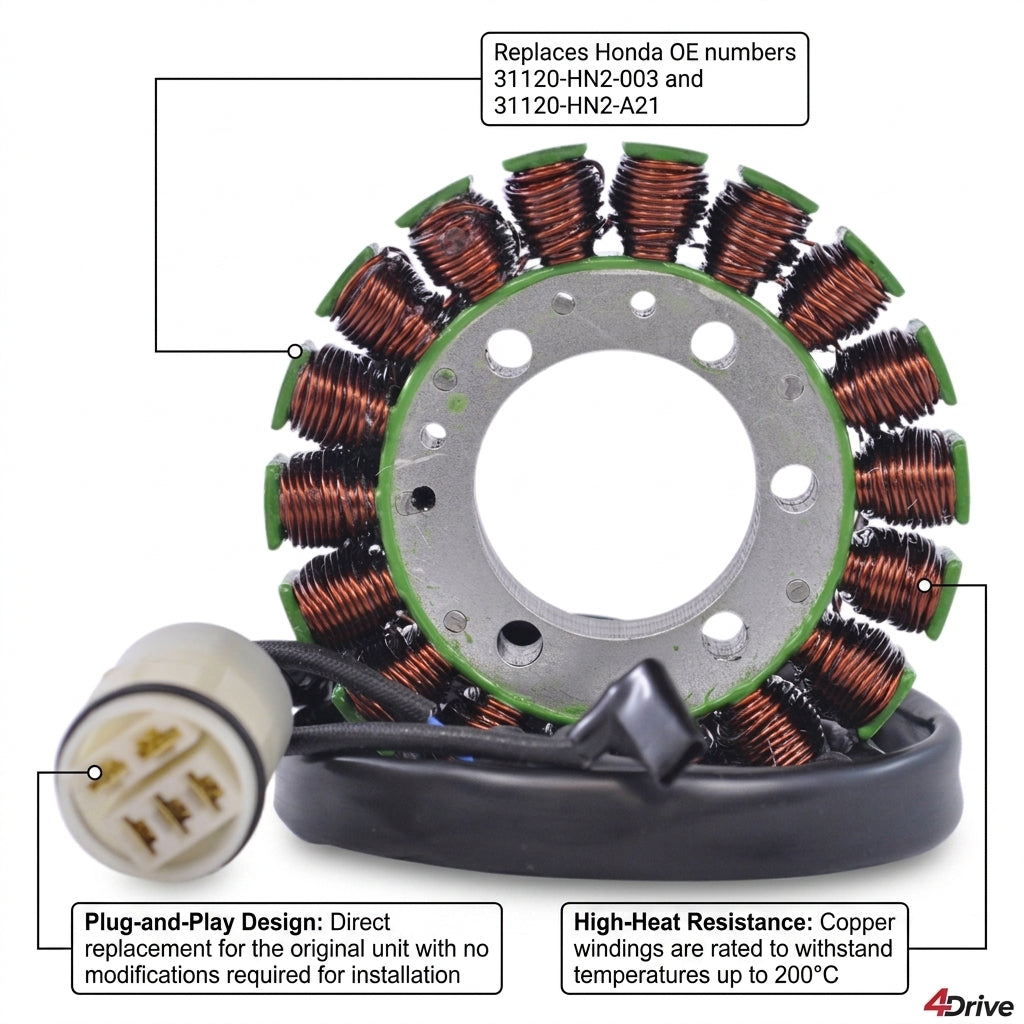

Honda TRX 500 Fourtrax Foreman Rubicon 4x4 Automatic 2001 to 2014 - OEM Repl. 31120-HN2-003 / 31120-HN2-A21
RM01428 is a brand new stator supplied as a direct replacement for the original unit fitted to the Honda TRX 500 Fourtrax Foreman Rubicon in FA, FGA and FPA 4x4 automatic specification from 2001 to 2014. It is a plug-and-play, direct-fit assembly: the core mounts in the standard position and the five wires terminate in a single five-pin plug that mates with the machine's existing harness, so the installation needs no cutting, splicing or rewiring.
A long thirteen-year production run means a great many of these machines are still working, and a Rubicon that has stopped charging, is flattening batteries overnight or is running the fan and lights dim under load is very often suffering a heat-damaged stator rather than a bad regulator. This unit is built with the highest grade lamination materials and highest grade copper windings resistant to 200 degrees Celsius, and the 500 mm of harness between grommet and plug gives plenty of length to route the loom back exactly as the factory did. The connector and rubber grommet are both supplied and every unit is tested before it ships.
Key Features
- Brand new stator, direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

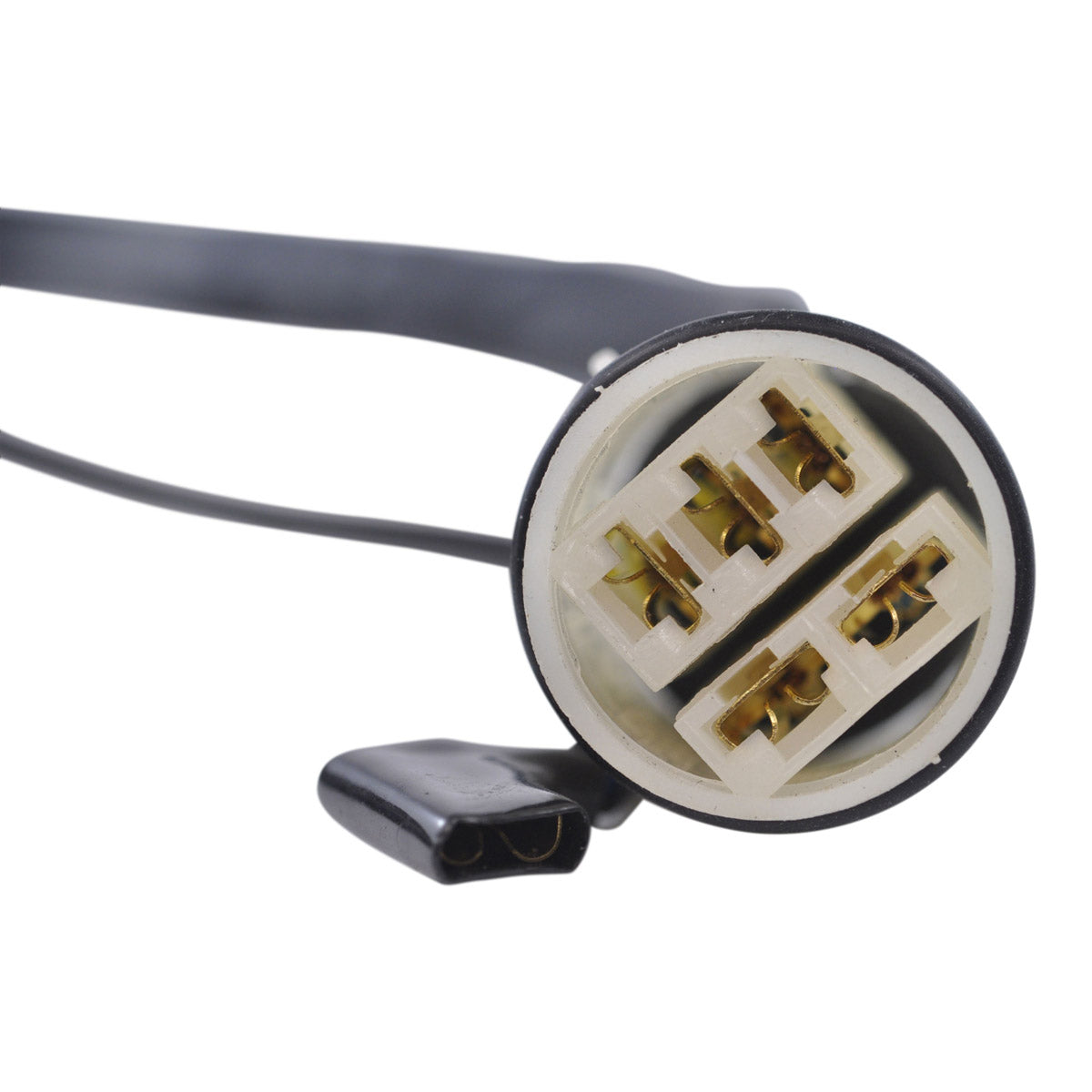

- Five wires into a single five-pin plug, as original
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 41 mm |
| Exterior diameter | 106 mm |
| Thickness | 21 mm |
| Wire length, stator to grommet | 70 mm |
| Wire length, grommet to plug | 500 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Alternator wire-to-wire resistance | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda TRX 500 Fourtrax Foreman Rubicon FA 4x4 Automatic | 2001 - 2014 |
| Honda TRX 500 Fourtrax Foreman Rubicon FGA 4x4 Automatic | 2001 - 2014 |
| Honda TRX 500 Fourtrax Foreman Rubicon FPA 4x4 Automatic | 2001 - 2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HN2-003 | Honda |
| 31120-HN2-A21 | Honda |
| RM01428 | RMSTATOR (this part) |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit, designed for plug-and-play installation. It mounts in the standard position and the five-pin plug connects to the existing harness, so no cutting or splicing is needed.
What is supplied with it?
The stator unit itself, the connector and the rubber grommet for sealing the harness where it passes out of the engine case.
How do I know the old stator has failed?
With the plug disconnected and the engine cold, measure between the alternator wires: the reading should be roughly 0.4 ohms, within 20 per cent. An open circuit, a near-zero short, or continuity between any output wire and the stator core all indicate a failed winding rather than a wiring fault.
Does one part number cover the whole 2001 to 2014 range?
Yes, this stator covers the FA, FGA and FPA 4x4 automatic Rubicon models across that span. If you want to be certain before ordering, check the number stamped on the part you are removing against the Honda references 31120-HN2-003 and 31120-HN2-A21.
