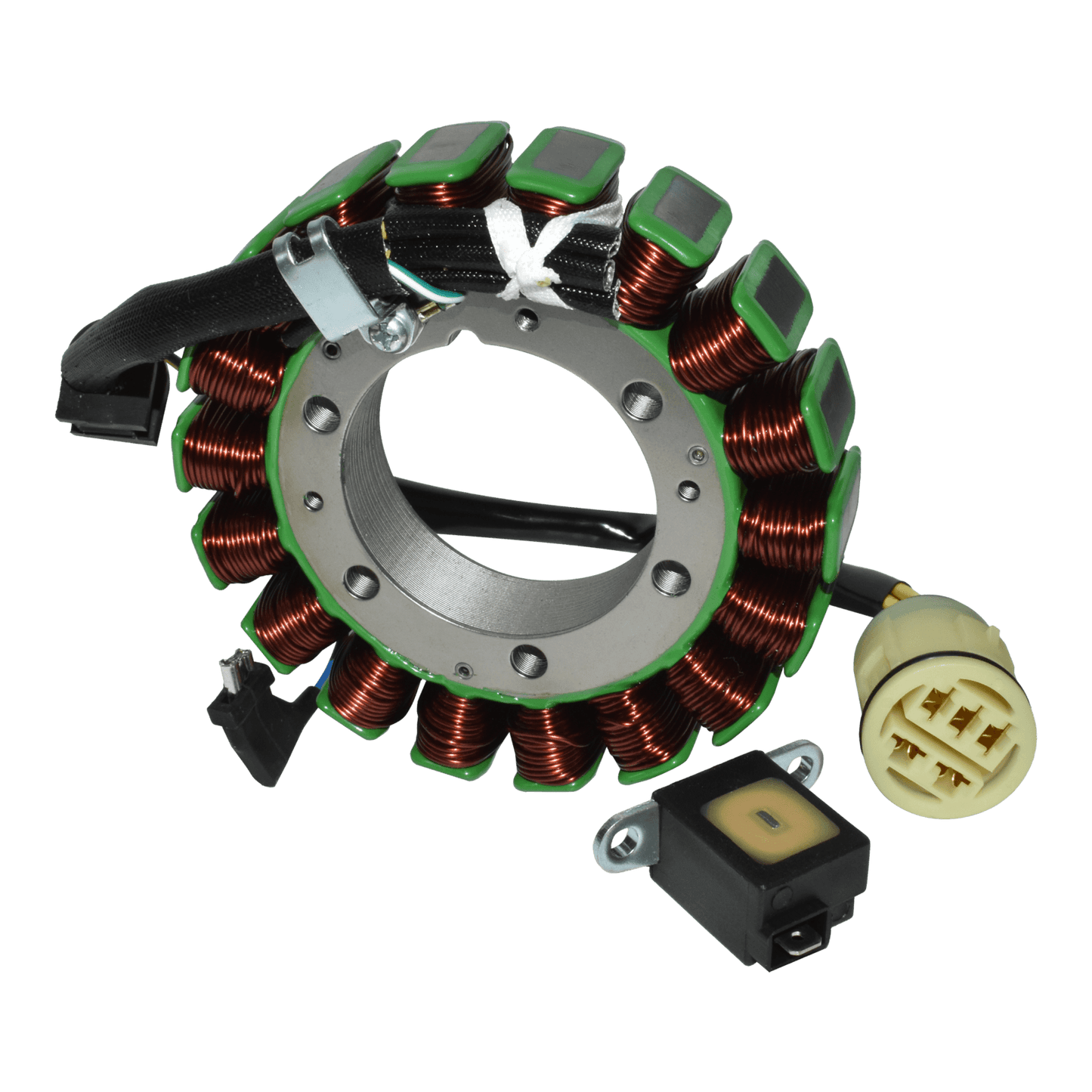

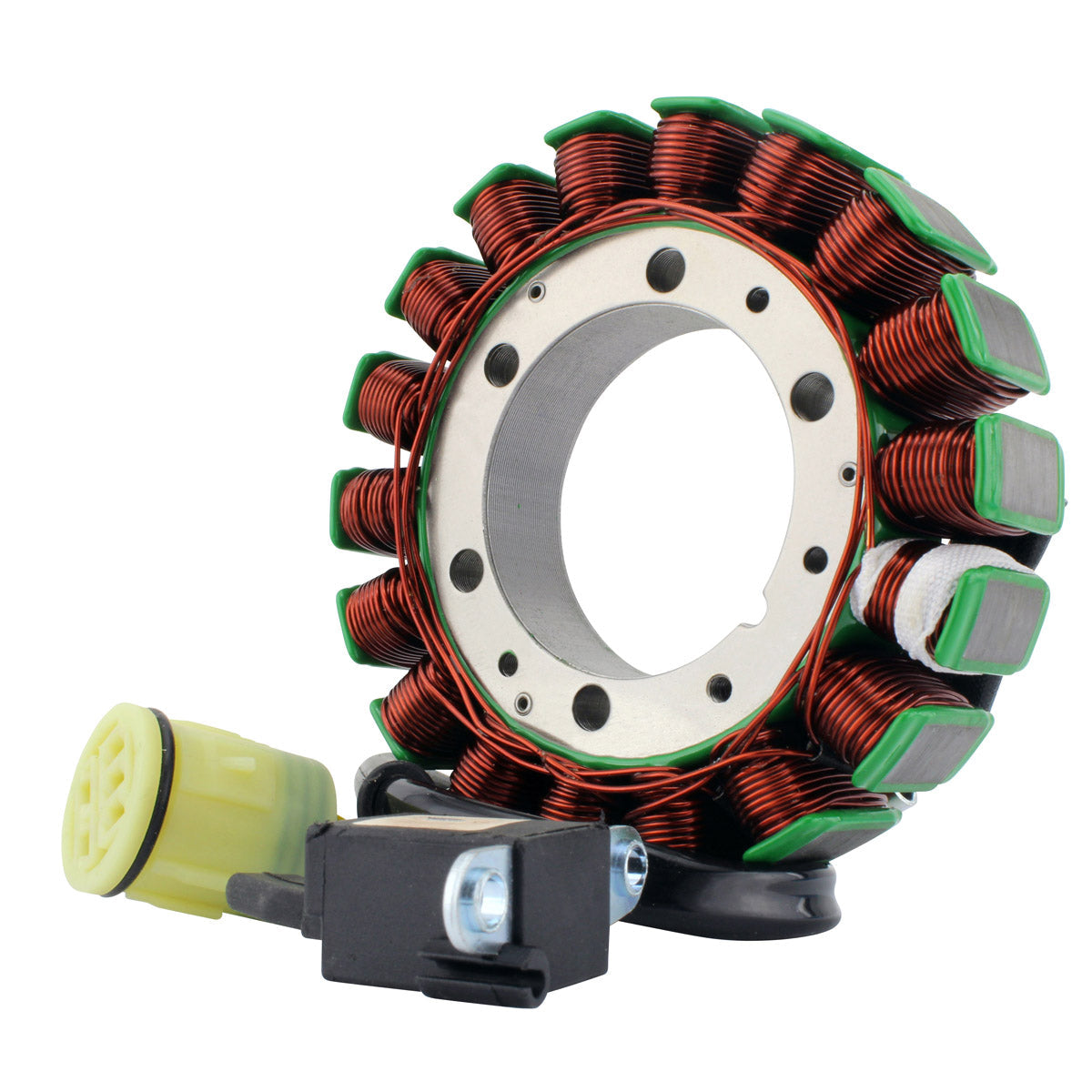

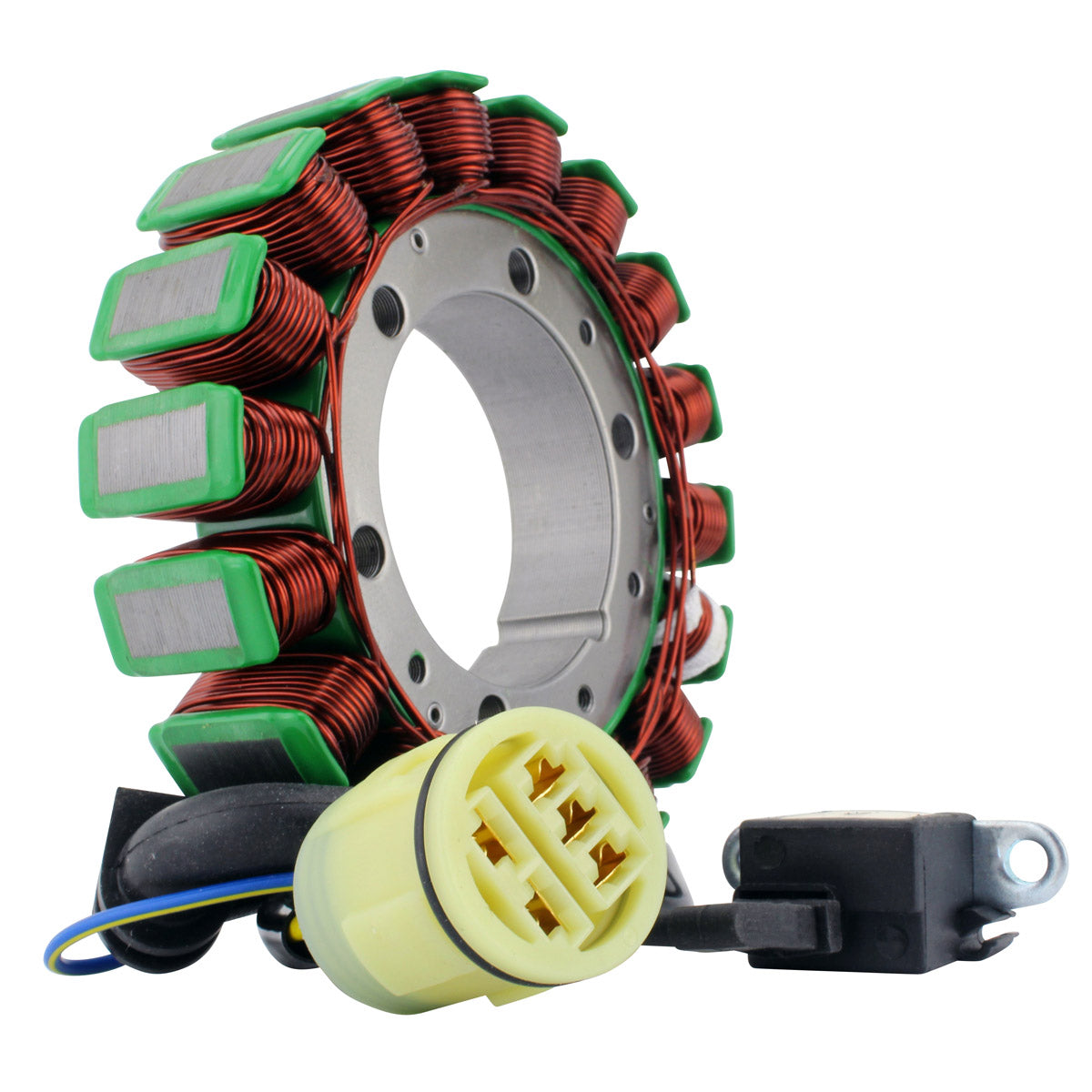

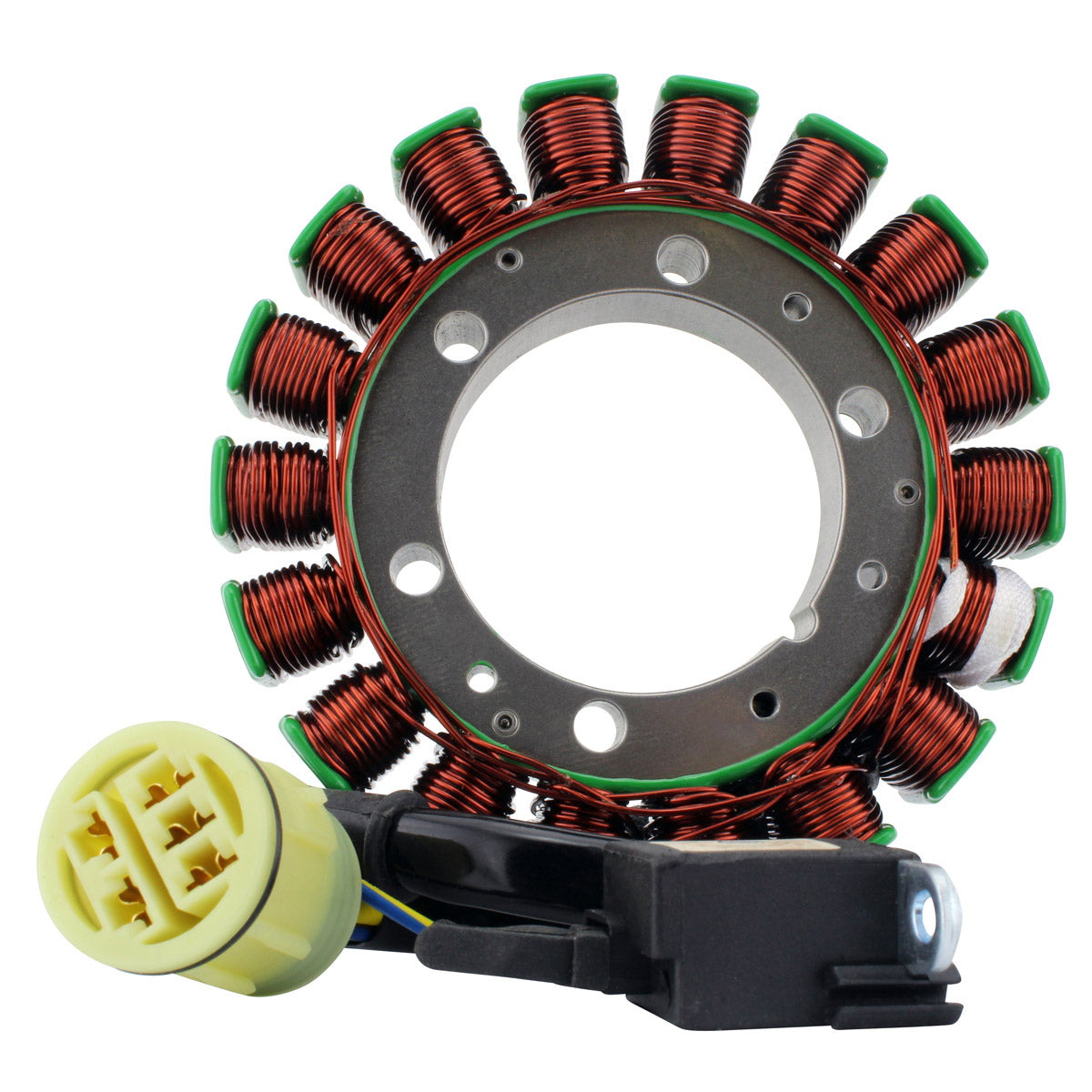

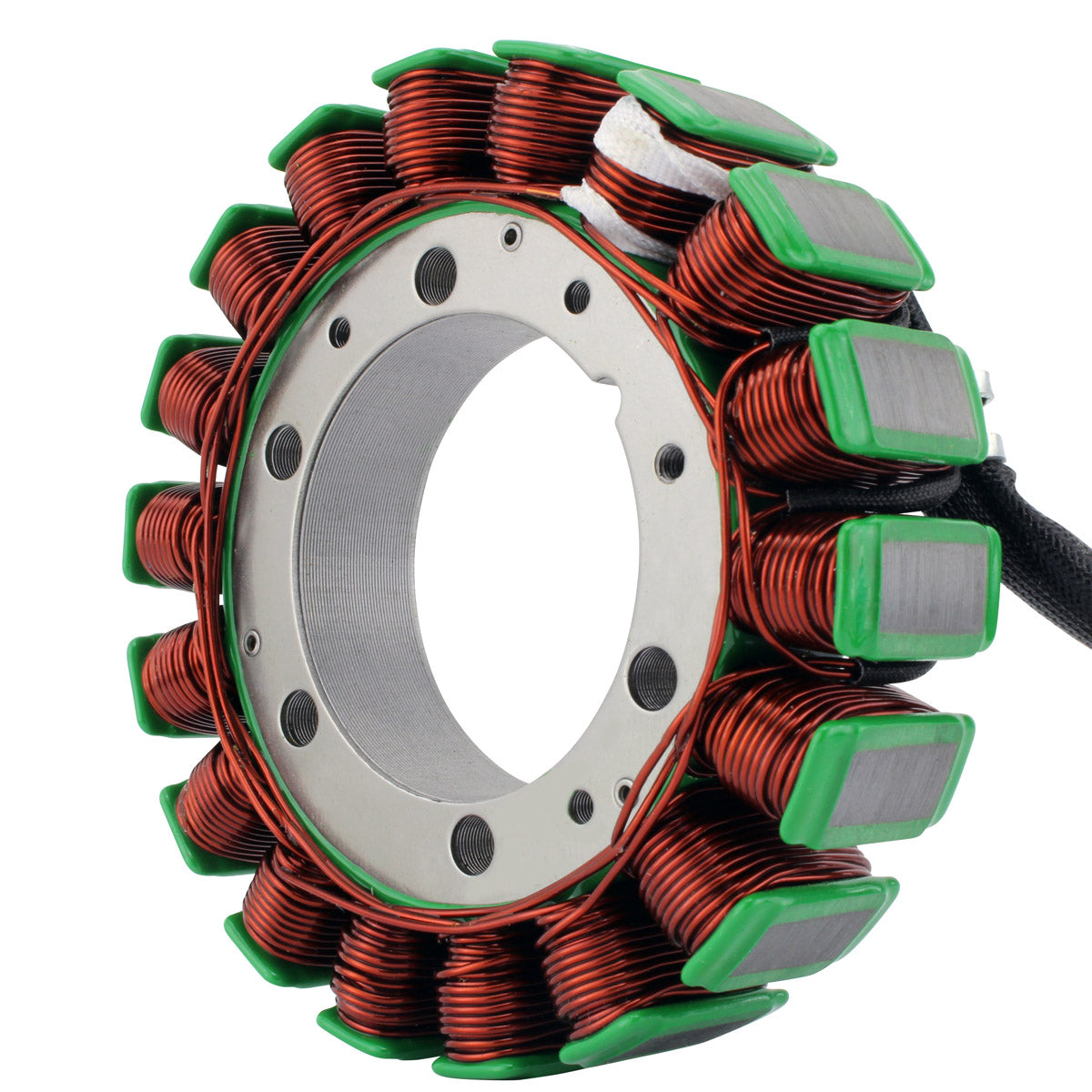

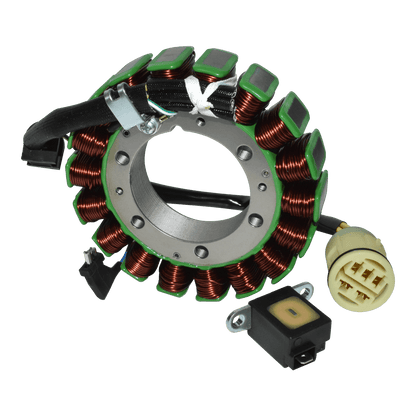

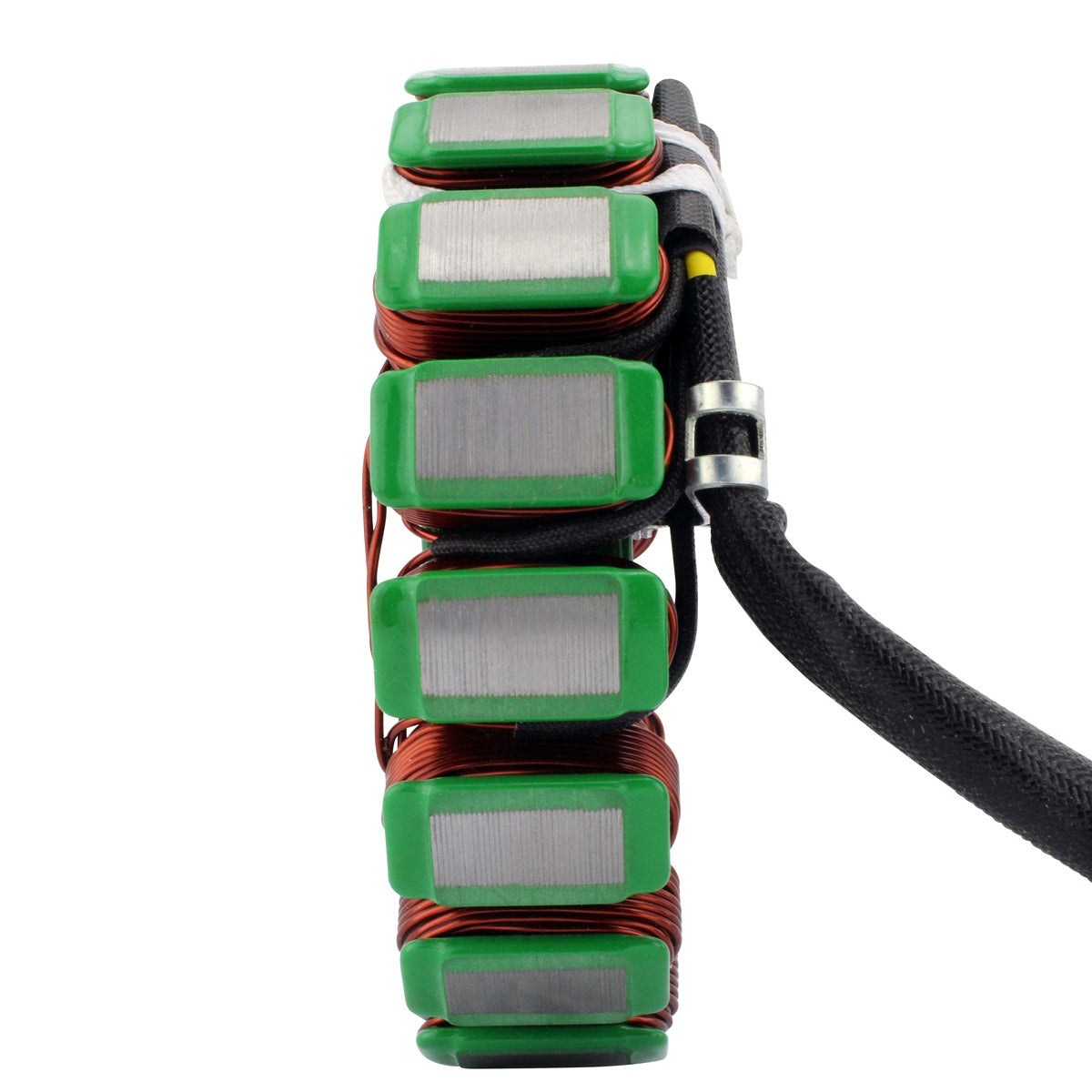

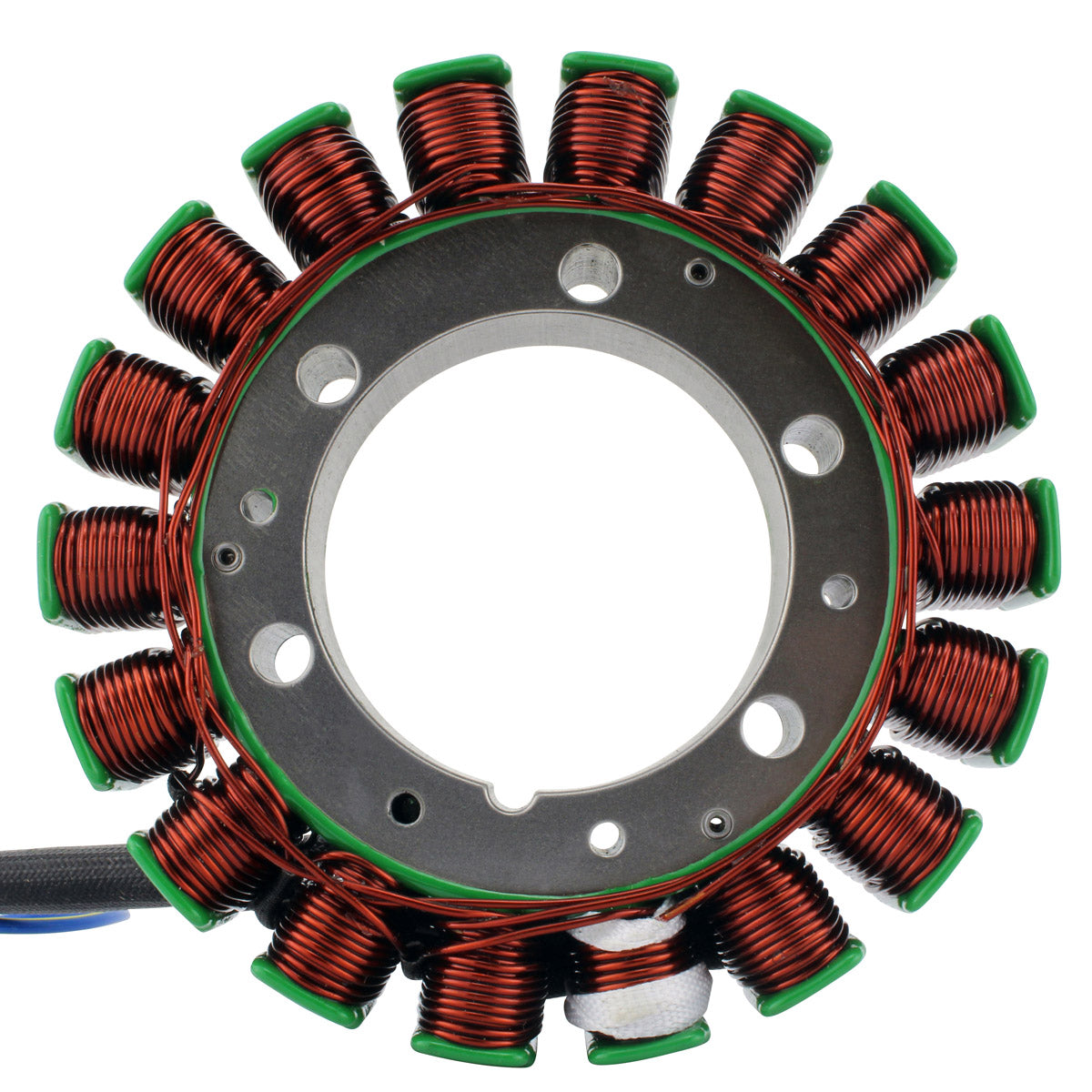

This is a brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Honda TRX 650 Fourtrax Rincon from 2003 to 2005. It is plug-and-play and a direct fit, so it mounts in the standard position and connects to the existing loom without cutting or modification. The pick-up pulsar coil is supplied on the assembly, which means the ignition trigger is renewed at the same time as the charging winding.
The unit is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. That heat tolerance matters on a large utility ATV, where a stator that has been cooked by sustained low speed work is one of the commonest causes of a flat battery. Connectors and a rubber grommet are included, and all products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

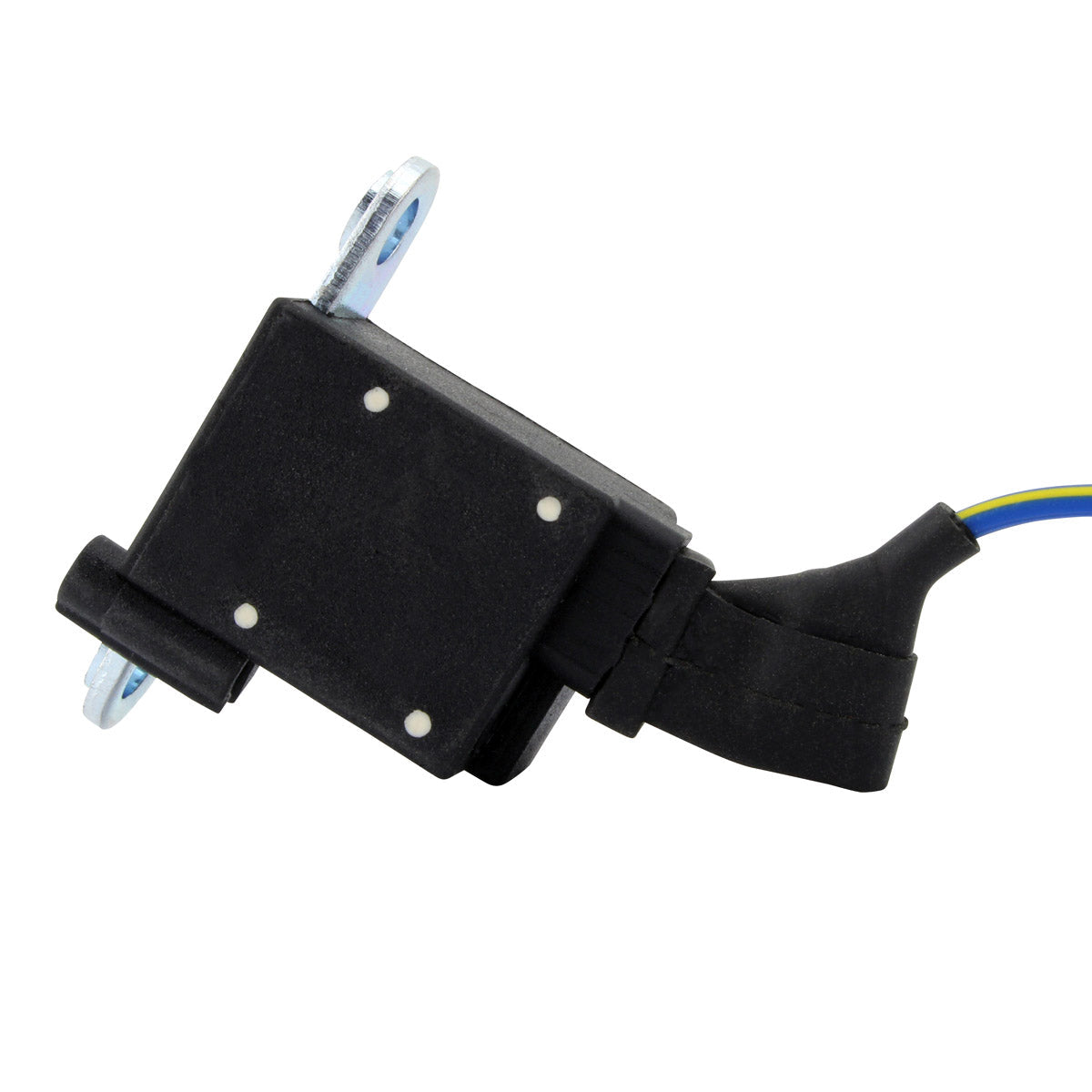

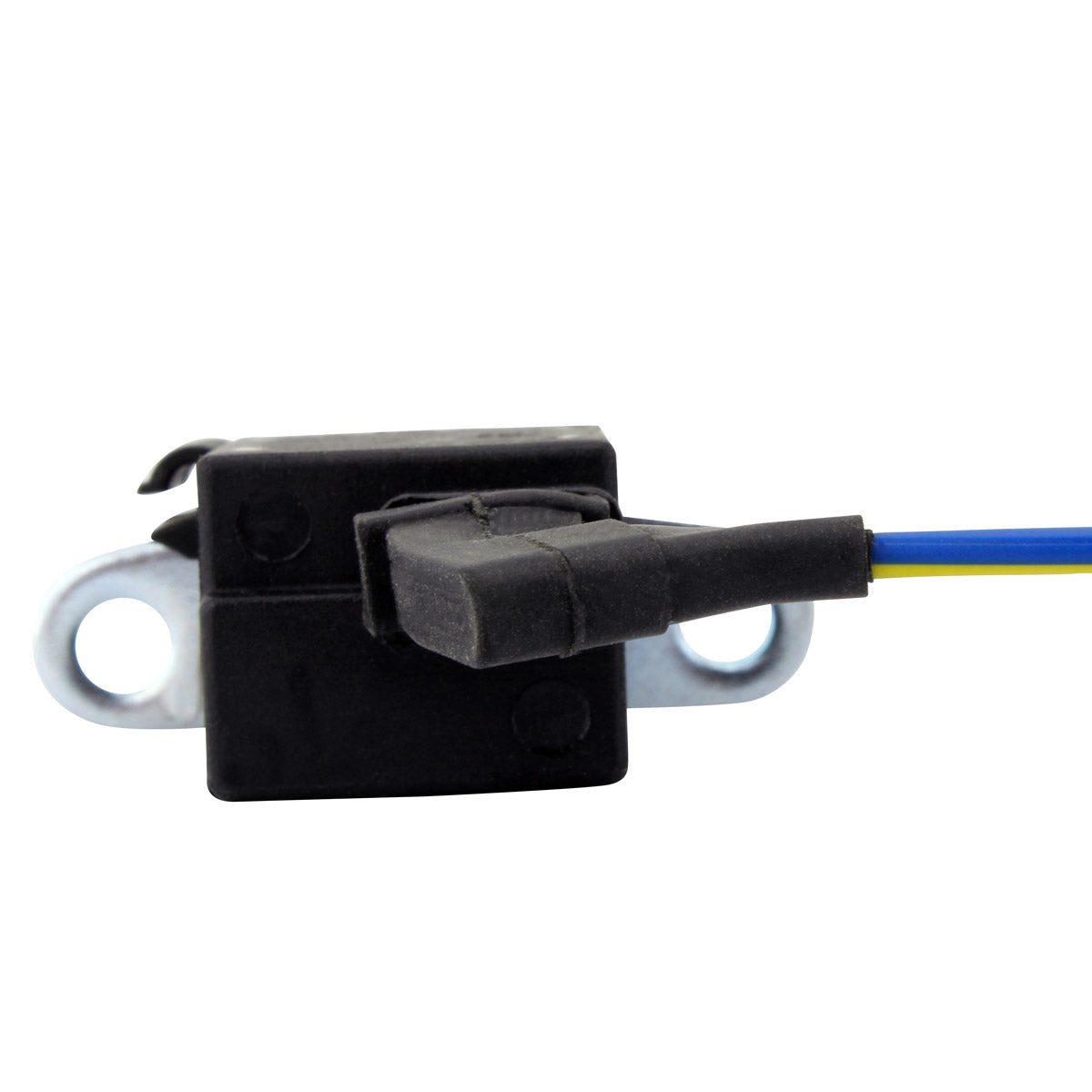

- Pick-up pulsar coil included on the assembly

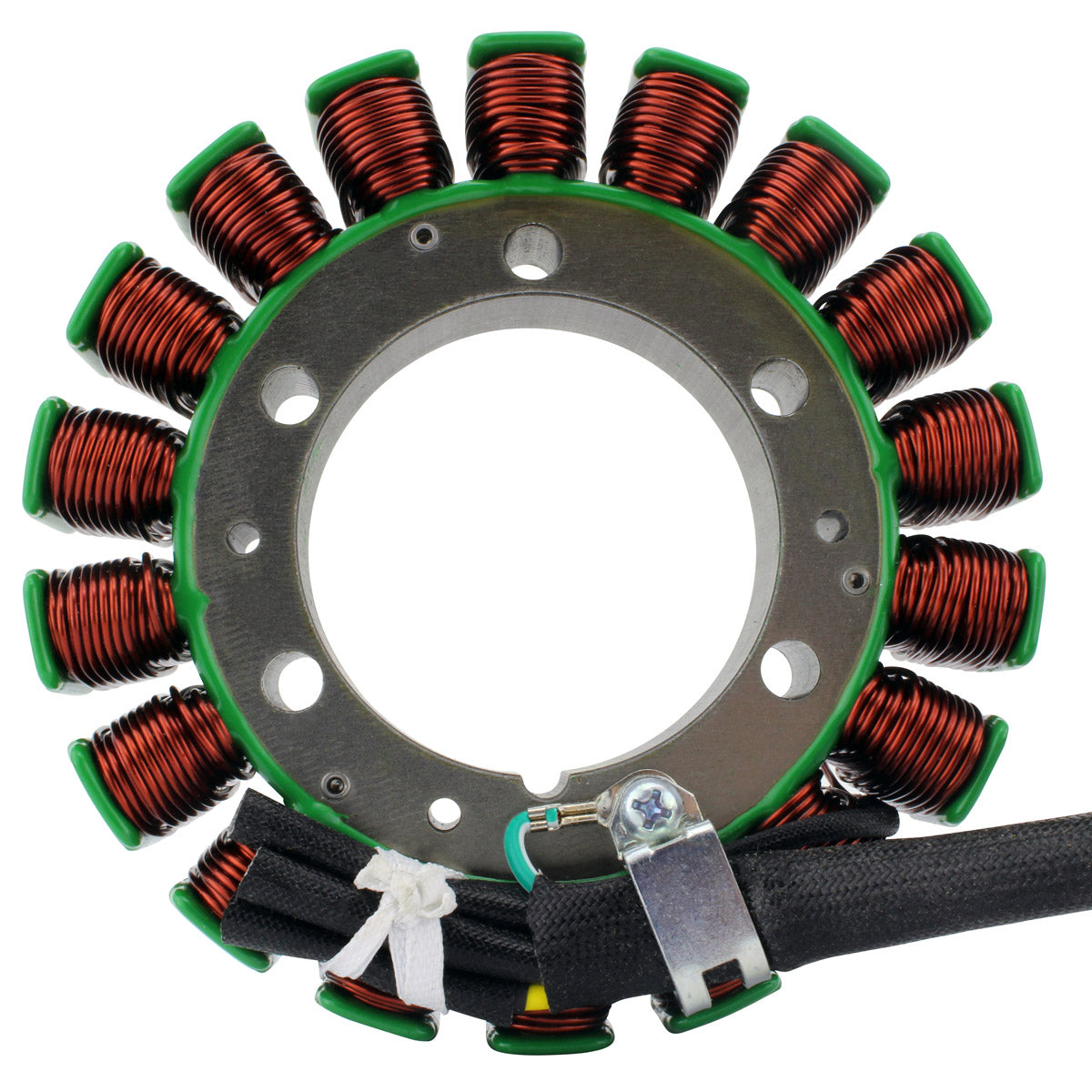

- 18 pole winding, five wire output
- Highest grade of lamination materials

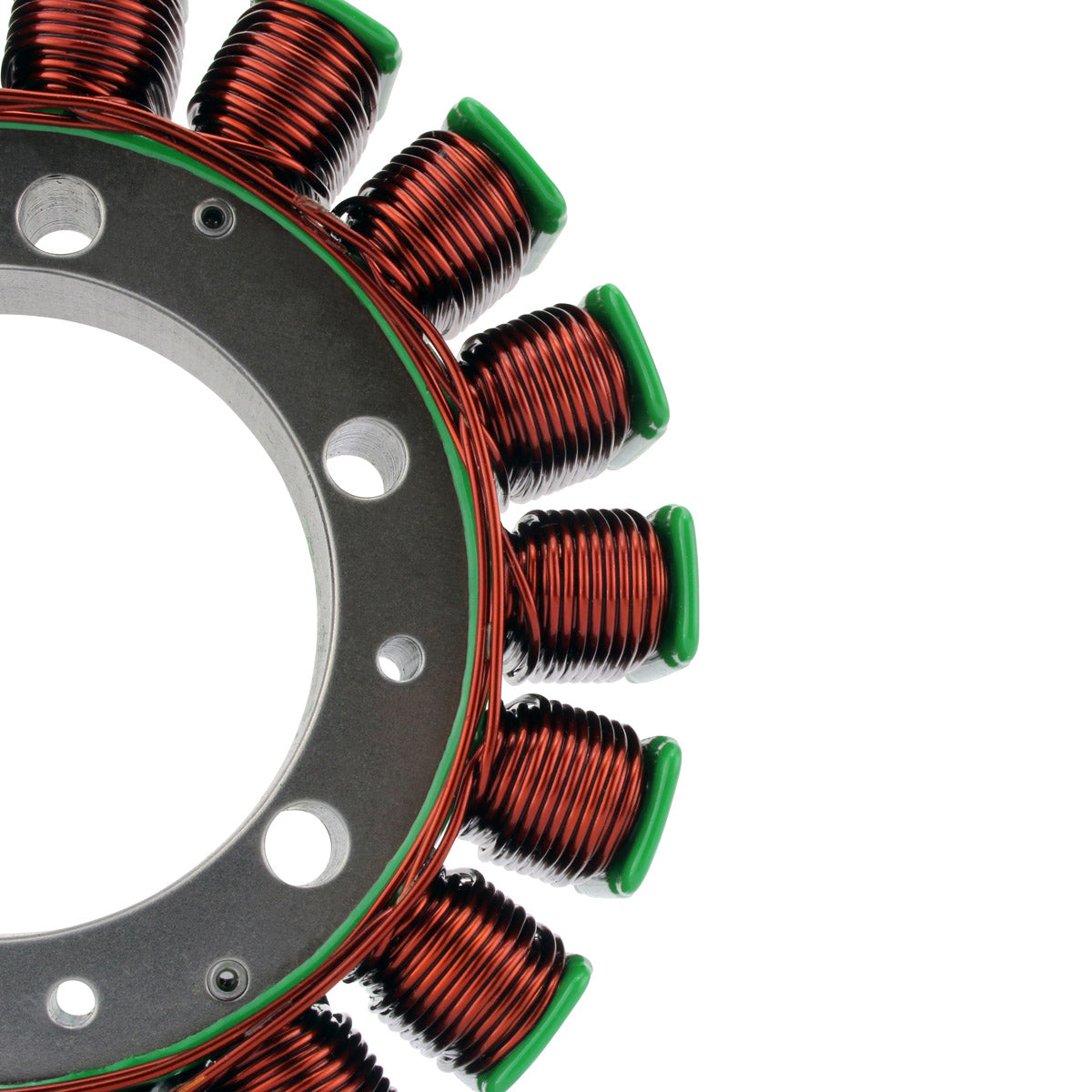

- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
20 mm |
| Wire length, stator to grommet |
75 mm |
| Wire length, grommet to plug |
180 mm |

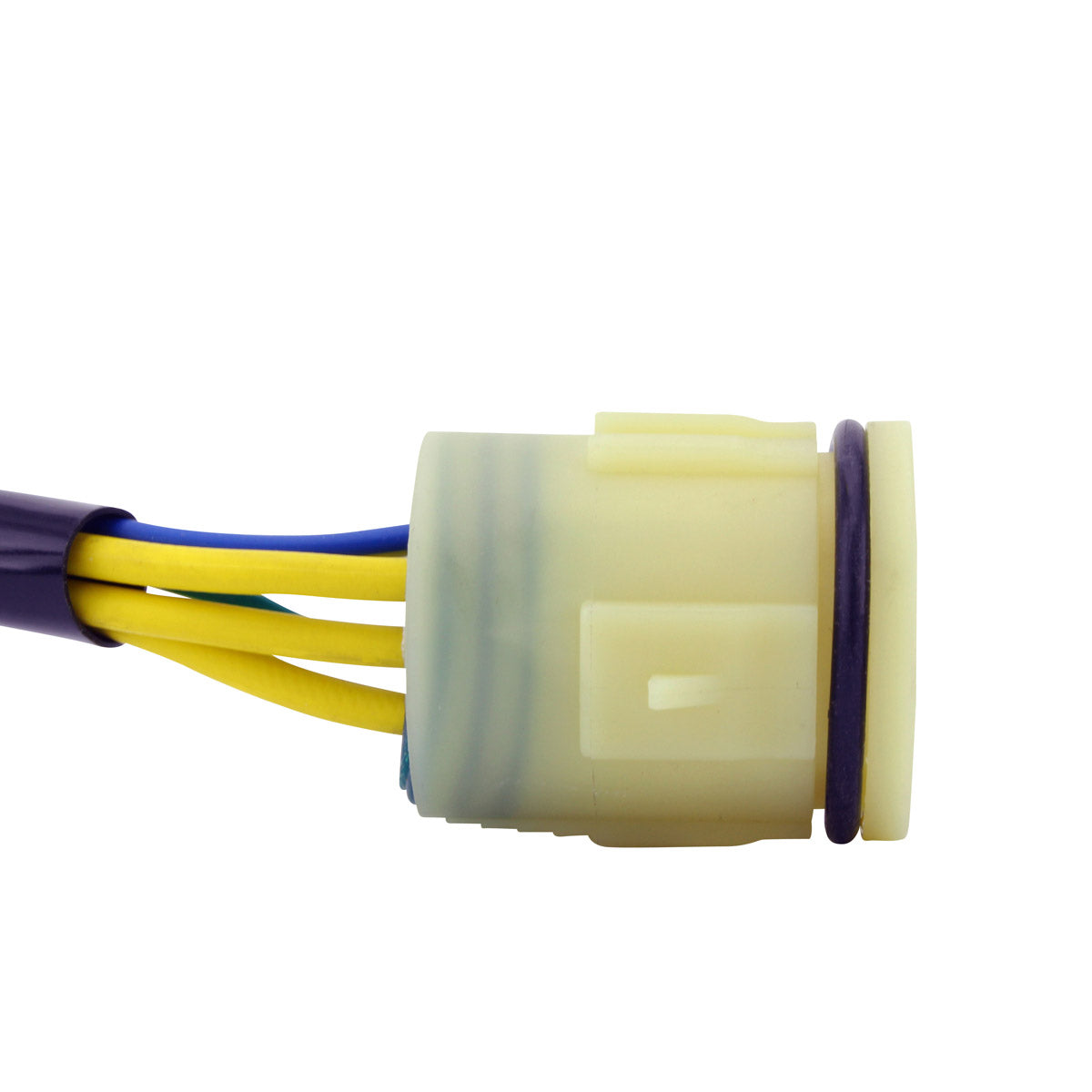

| Number of wires |
5 |

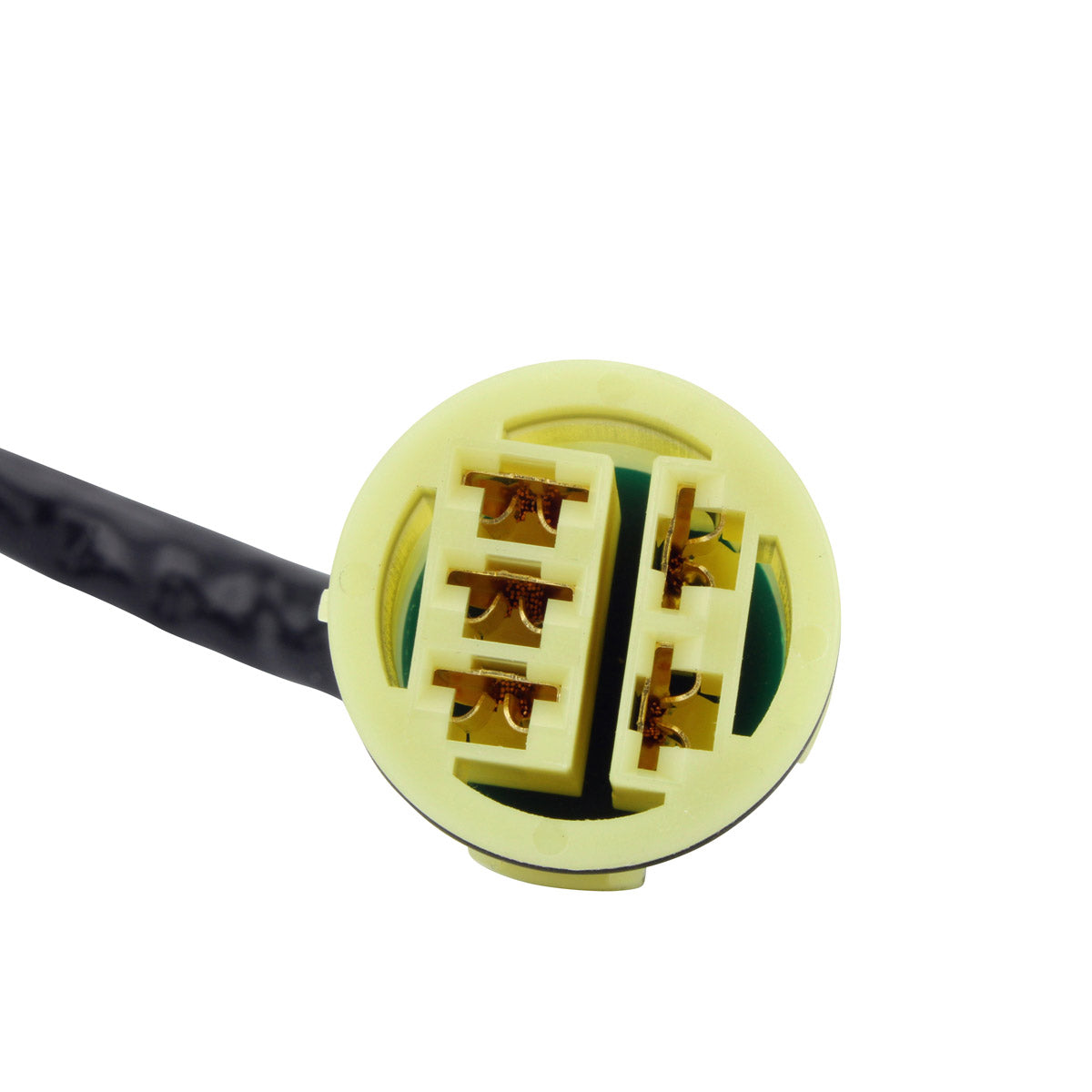

| Number of plugs |
1 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, Yellow to Yellow |
0.6 ohms +/-20% |
| Alternator resistance, Yellow to ground |
O.L (open line) |
| Pick-up resistance, Blue/Yellow to Green |
340 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 650 Fourtrax Rincon |
2003-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HN8-003 |
Honda |
| 31120-HN8-650 |
Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the standard mounting position and the existing connector. No cutting or splicing of the loom is needed.
What is included in the box?
The stator with the pick-up pulsar coil fitted, the connectors and the rubber grommet. Every unit is tested before it is shipped.
How do I check whether my old stator has failed?
Compare multimeter readings with the Technical Specs table above. Each pair of yellow output wires should read about 0.6 ohms, any yellow wire to ground should read as an open line, and the pick-up should read about 340 ohms blue/yellow to green, each within 20 per cent. Continuity to ground or a badly out of specification reading indicates a failed unit.
Do I need to replace the pick-up coil separately?
No. The pick-up pulsar coil is supplied already fitted to this assembly, so the ignition trigger is renewed as part of the same job.
