Stator Ignition Coil for Kawasaki KX 125 1987-1988 & Yamaha YZ 125 1990-1991
Fits Kawasaki KX 125 (1987-1988) and Yamaha YZ 125 (1990-1991)
This is a replacement ignition source coil (stator) built to OEM specifications for the Kawasaki KX 125 and Yamaha YZ 125. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, mounting on the same baseplate as the stock coil.

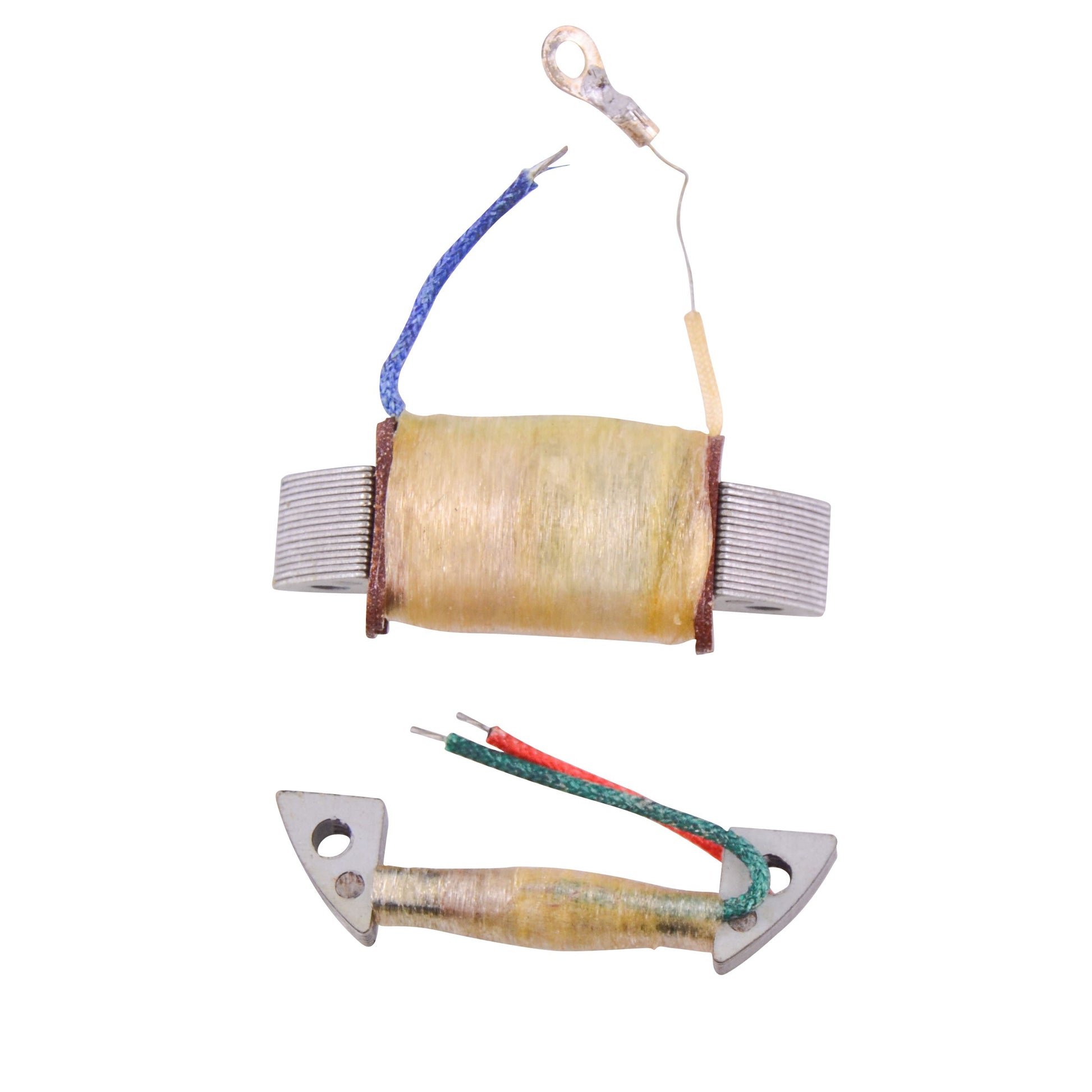

The coil pack uses two separate windings - a small source coil and a larger charge coil - each with its own resistance value, matching the electrical output of the original equipment on these two-stroke motocross engines.
Key Features
- Direct OEM fit and function - no modification required

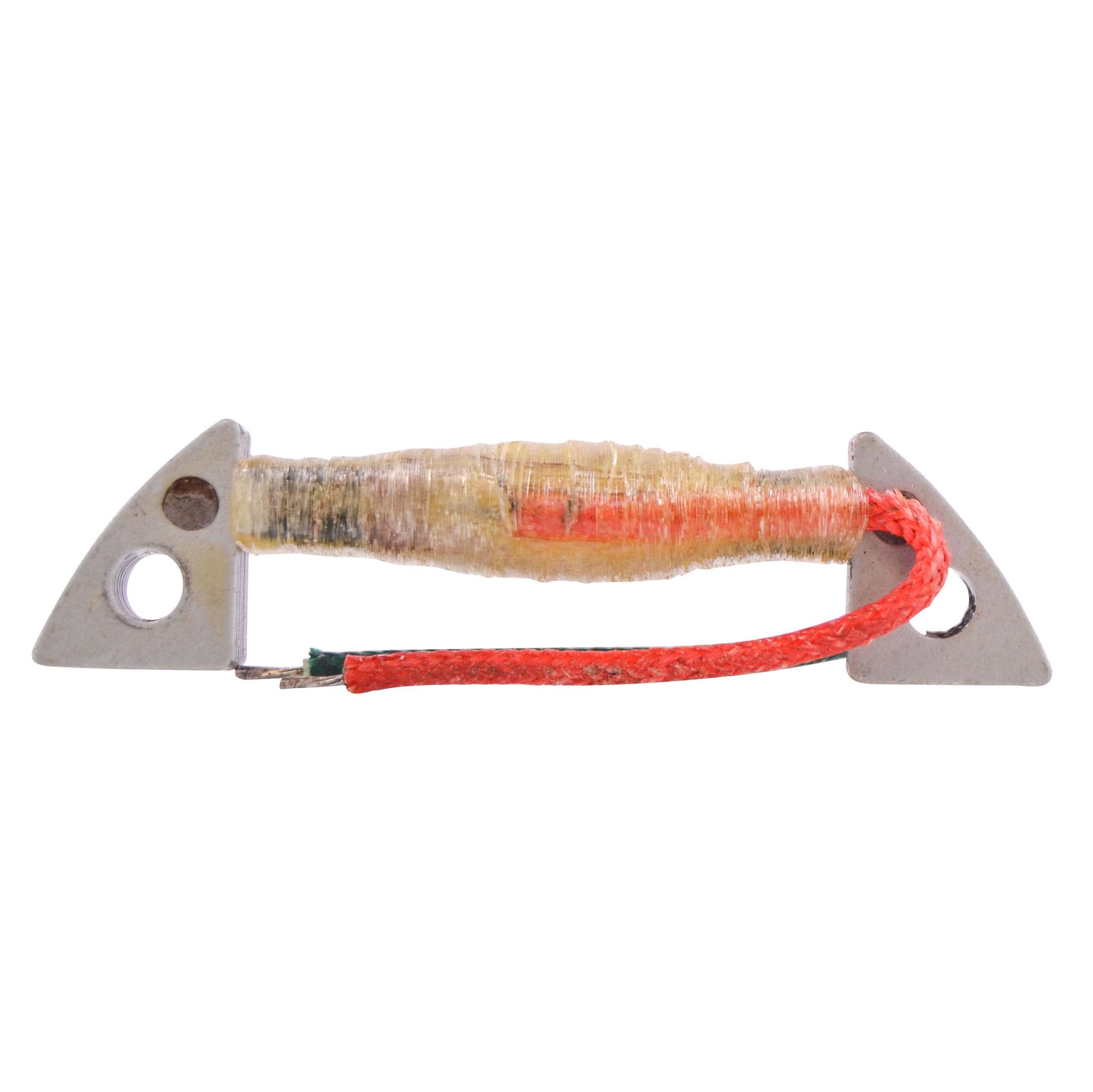

- Small coil resistance: 5 ohms +/-20% (Green to Red)

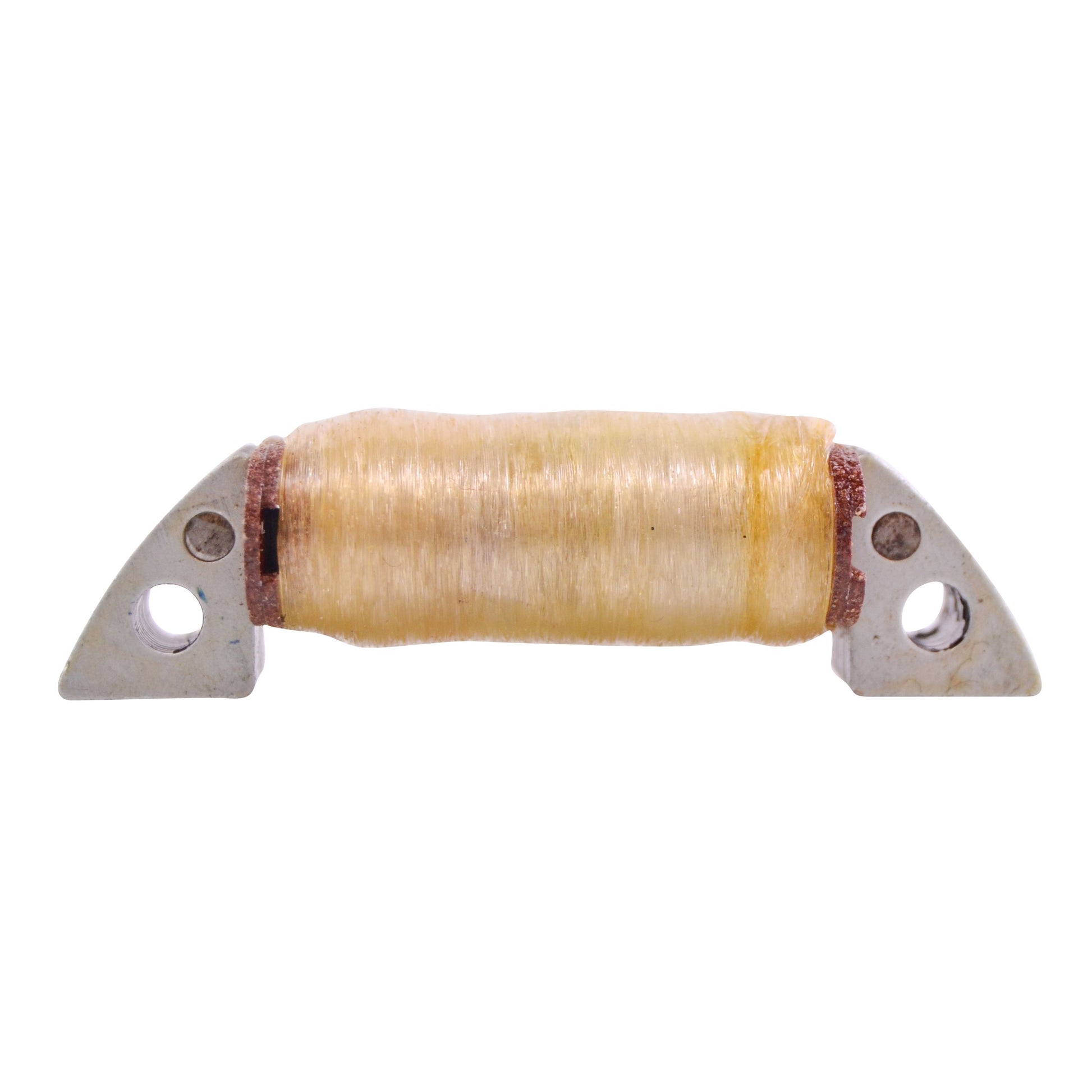

- Big coil resistance: 371 ohms +/-20% (Blue to Ground)
- Covers Kawasaki KX 125 and Yamaha YZ 125 applications
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Small Coil Resistance | 5 ohms +/-20% (Green to Red) |
| Big Coil Resistance | 371 ohms +/-20% (Blue to Ground) |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KX 125 | 1987-1988 |
| Yamaha YZ 125 | 1990-1991 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3SR-85510-10-00 | Yamaha |
| 3SR-85560-10-00 | Yamaha |
| 21003-1167 | Kawasaki |
| 21003-1175 | Kawasaki |
Frequently Asked Questions
Will this stator fit without any modification?
Yes, this coil mounts on the original baseplate in place of the factory unit for the listed Kawasaki KX 125 and Yamaha YZ 125 applications, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement stator coil pack, ready to mount to your existing baseplate.
How do I know my old stator has failed?
Common signs include no spark, a weak or intermittent spark, or the engine cutting out once warm - test the coil resistance against the values above to confirm.
Does fitting this coil require soldering?

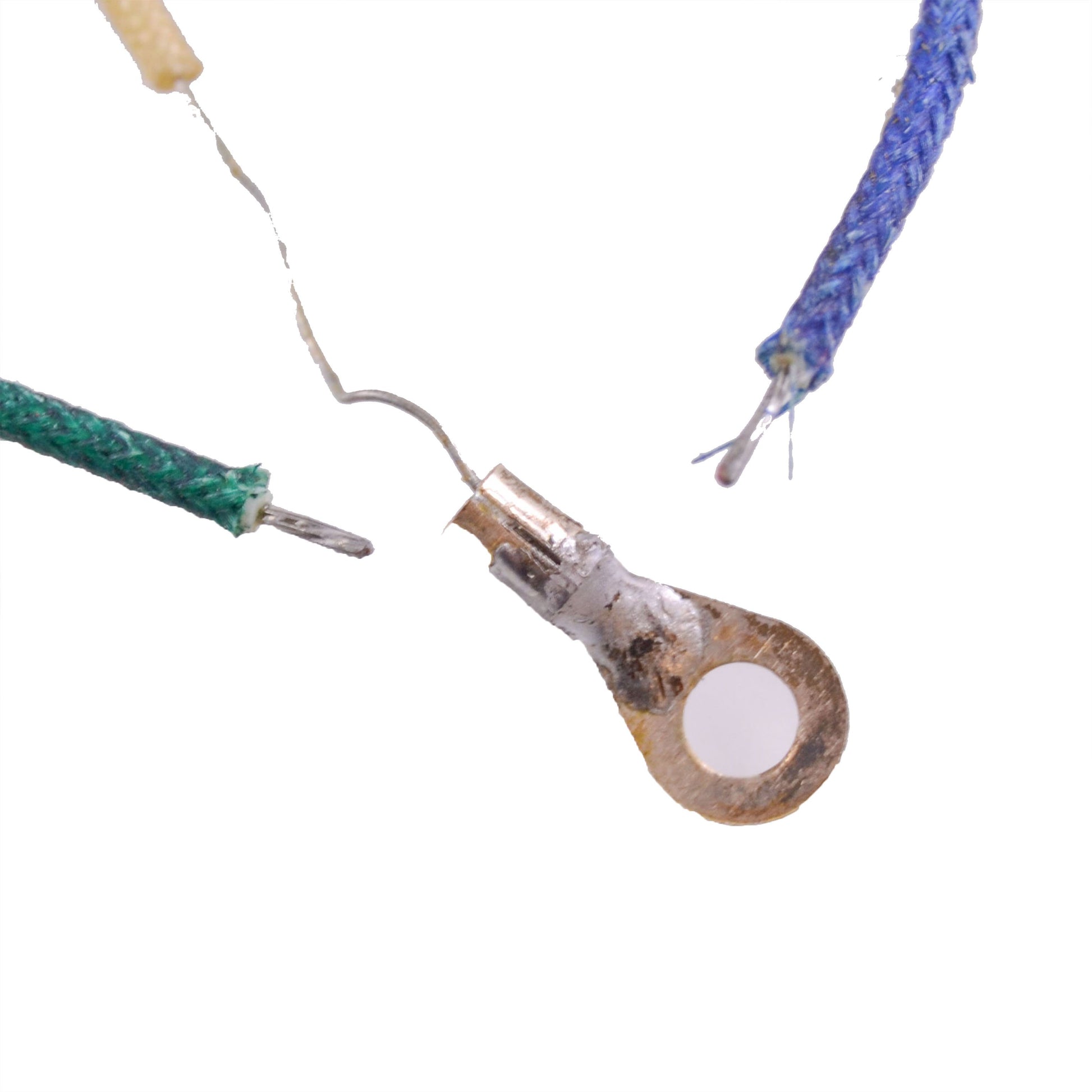

Yes, the original wiring loom is cut close to the old coil and the new coil's leads are soldered on and insulated with heat shrink, as this coil is supplied without a moulded connector.
