Stator Ignition Coil for Kawasaki KX 125 & KX 250 1992-1997, Yamaha YZ 125 1992
Fits Kawasaki KX 125 and KX 250 (1992-1997) and Yamaha YZ 125 (1992)

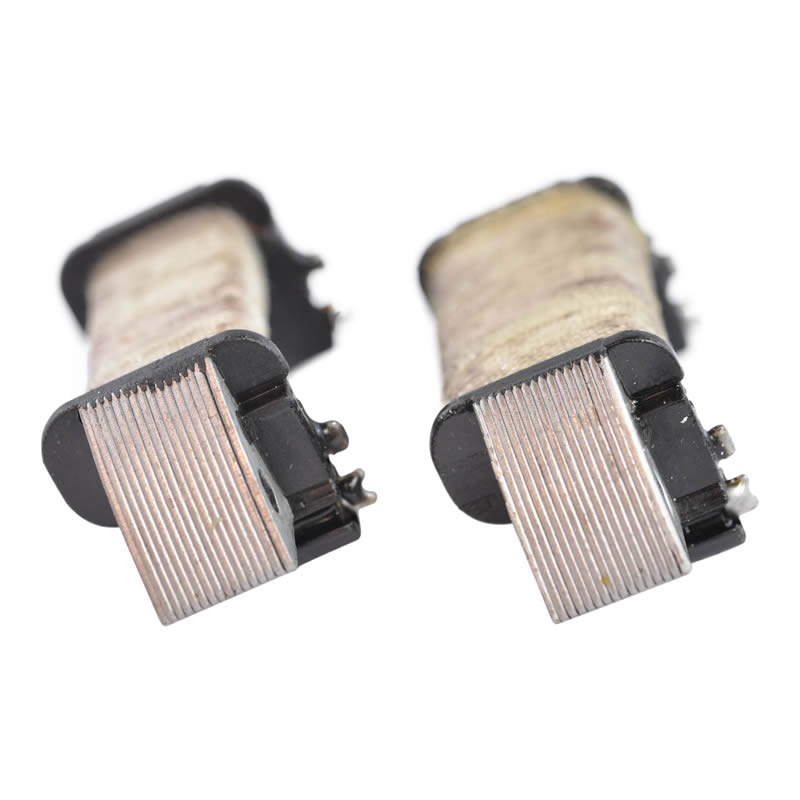

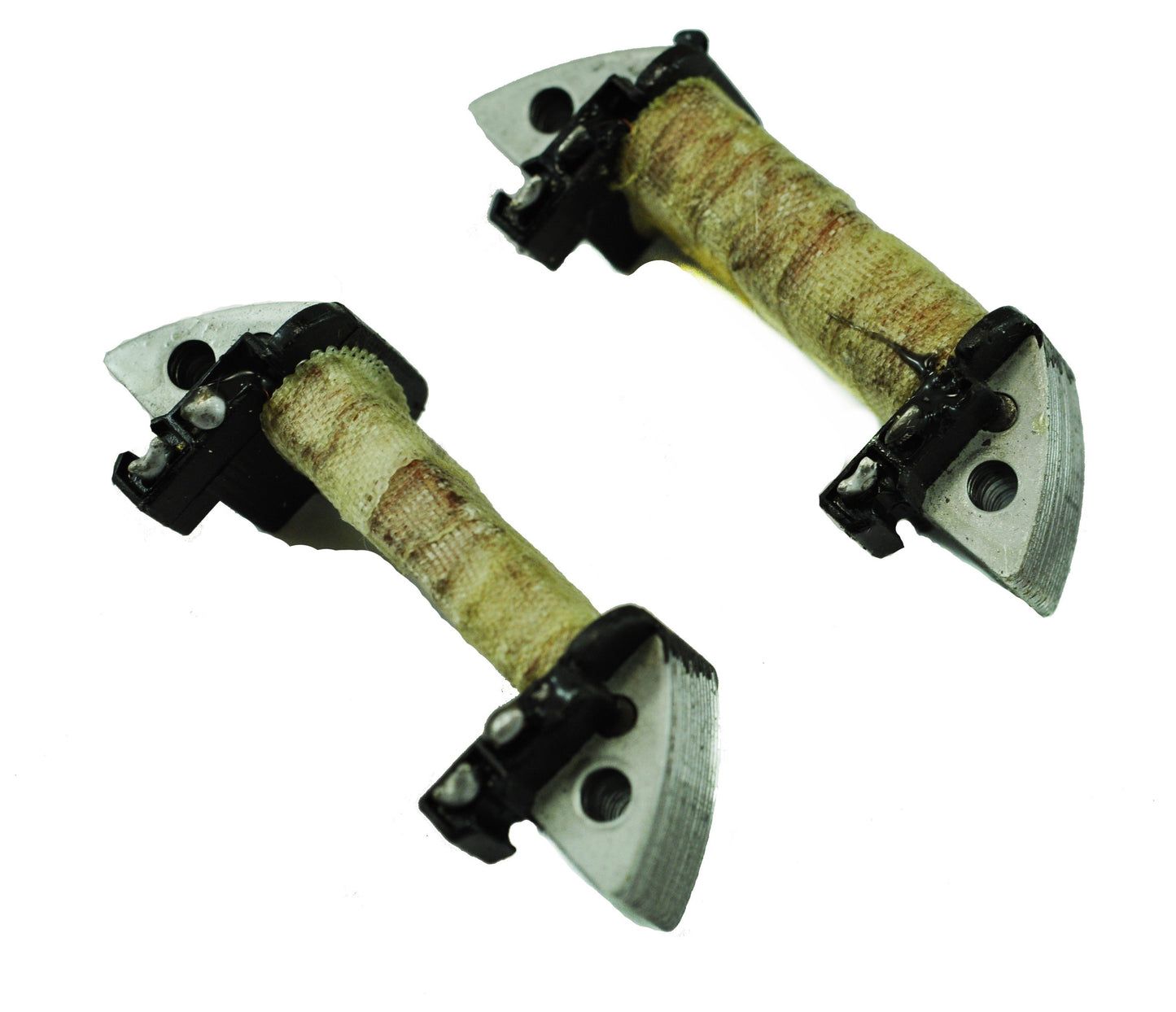

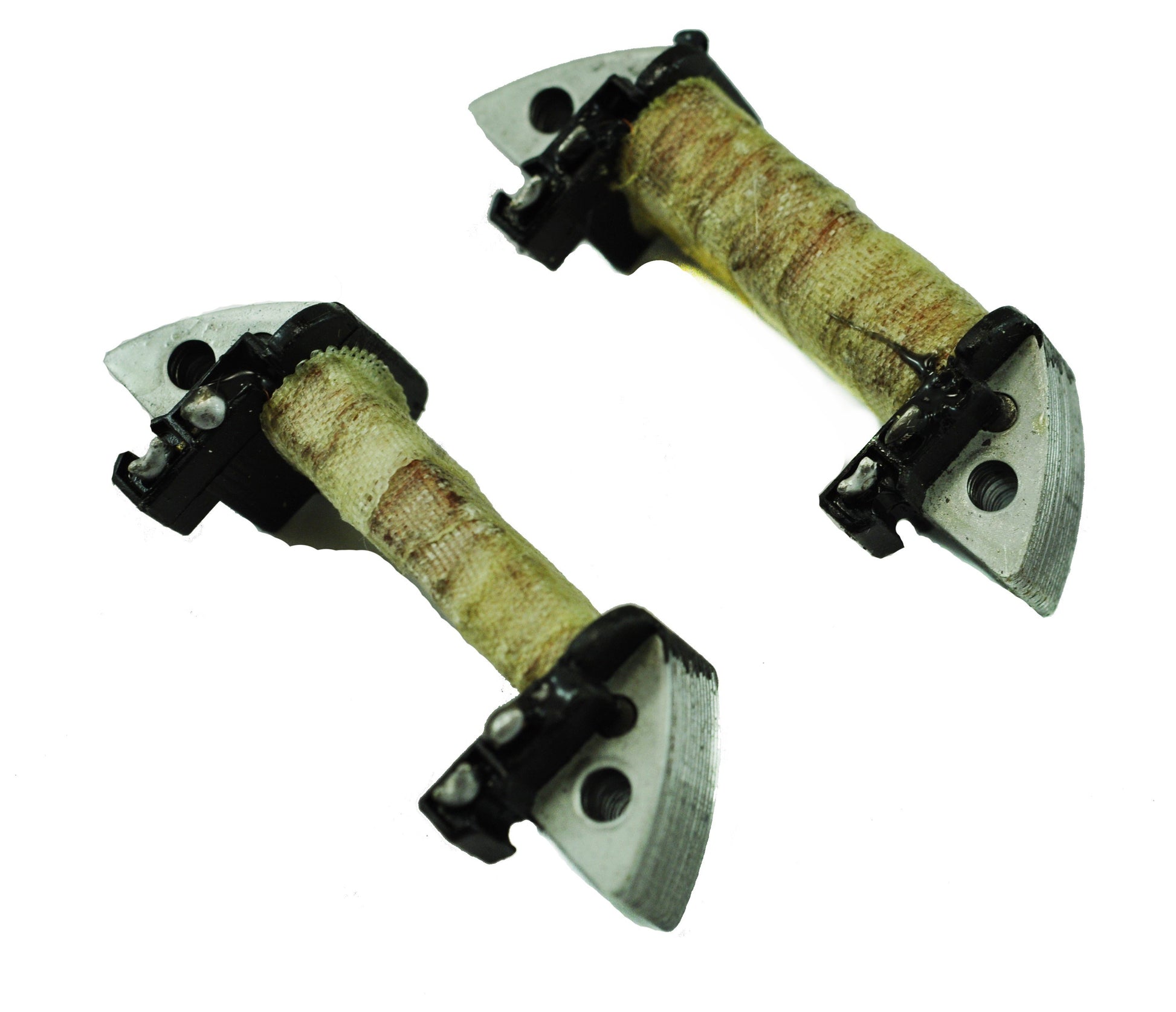

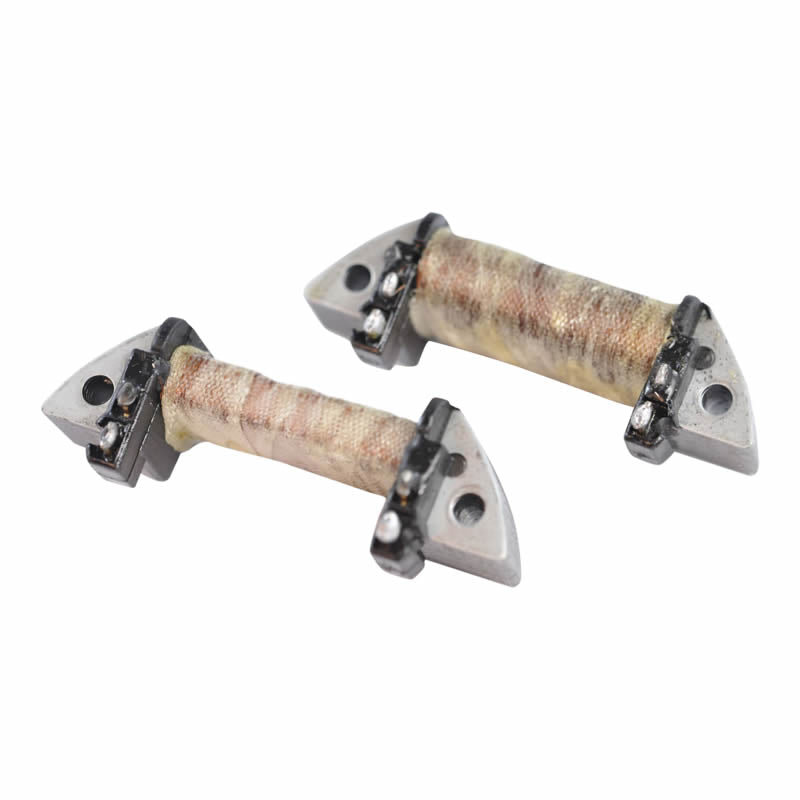

This is a replacement ignition source coil pack (stator) built to OEM specifications for the Kawasaki KX 125, KX 250 and Yamaha YZ 125. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment, mounting on the same baseplate as the stock coils.
The coil pack uses two separate windings - a small coil and a larger coil - each with its own resistance value, matching the electrical output of the original equipment on these two-stroke motocross engines.
Key Features
- Direct OEM fit and function - no modification required
- Big coil resistance: 323 ohms +/-20% (between each leg)
- Small coil resistance: 20 ohms +/-20% (between each leg)
- Covers Kawasaki KX 125, KX 250 and Yamaha YZ 125 applications
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Big Coil Resistance | 323 ohms +/-20% (between each leg) |
| Small Coil Resistance | 20 ohms +/-20% (between each leg) |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KX 125 | 1992-1997 |
| Kawasaki KX 250 | 1992-1997 |
| Yamaha YZ 125 | 1992 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
No OEM cross reference is published for this part.
Frequently Asked Questions
Will this stator fit without any modification?
Yes, this coil pack mounts on the original baseplate in place of the factory unit for the listed Kawasaki KX 125/250 and Yamaha YZ 125 applications, with wiring connected by soldering to your existing loom.
What is included in the box?
One replacement stator coil pack (large and small coil), ready to mount to your existing baseplate.
How do I know my old stator has failed?
Common signs include no spark, a weak or intermittent spark, or the engine cutting out once warm - test the coil resistances against the values above to confirm.
Does fitting this coil require soldering?
Yes, the original wiring is cut close to the old coils and the new coil leads are soldered on in the same positions and insulated with heat shrink.
