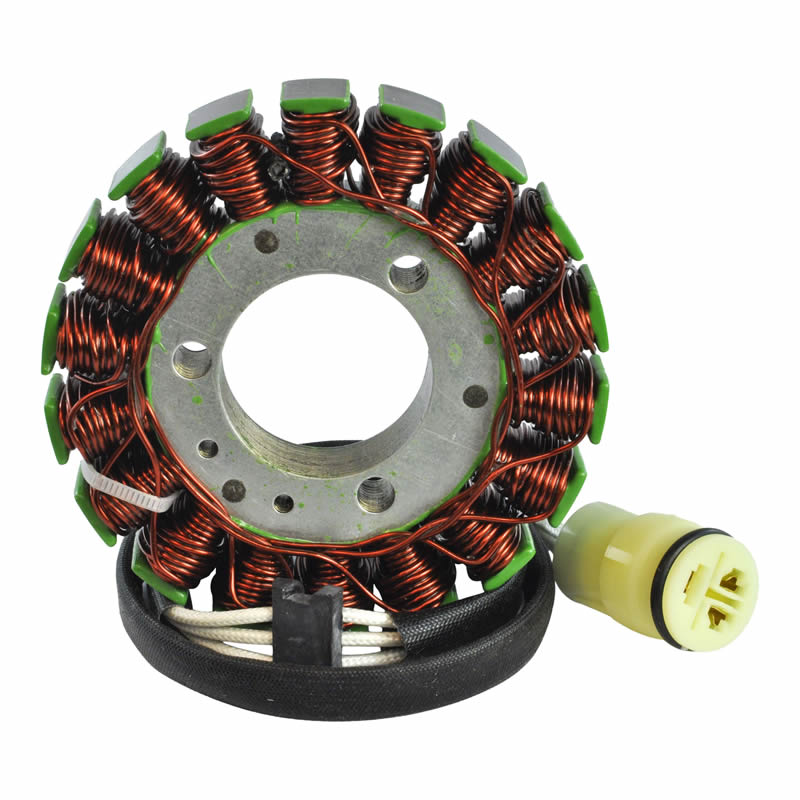

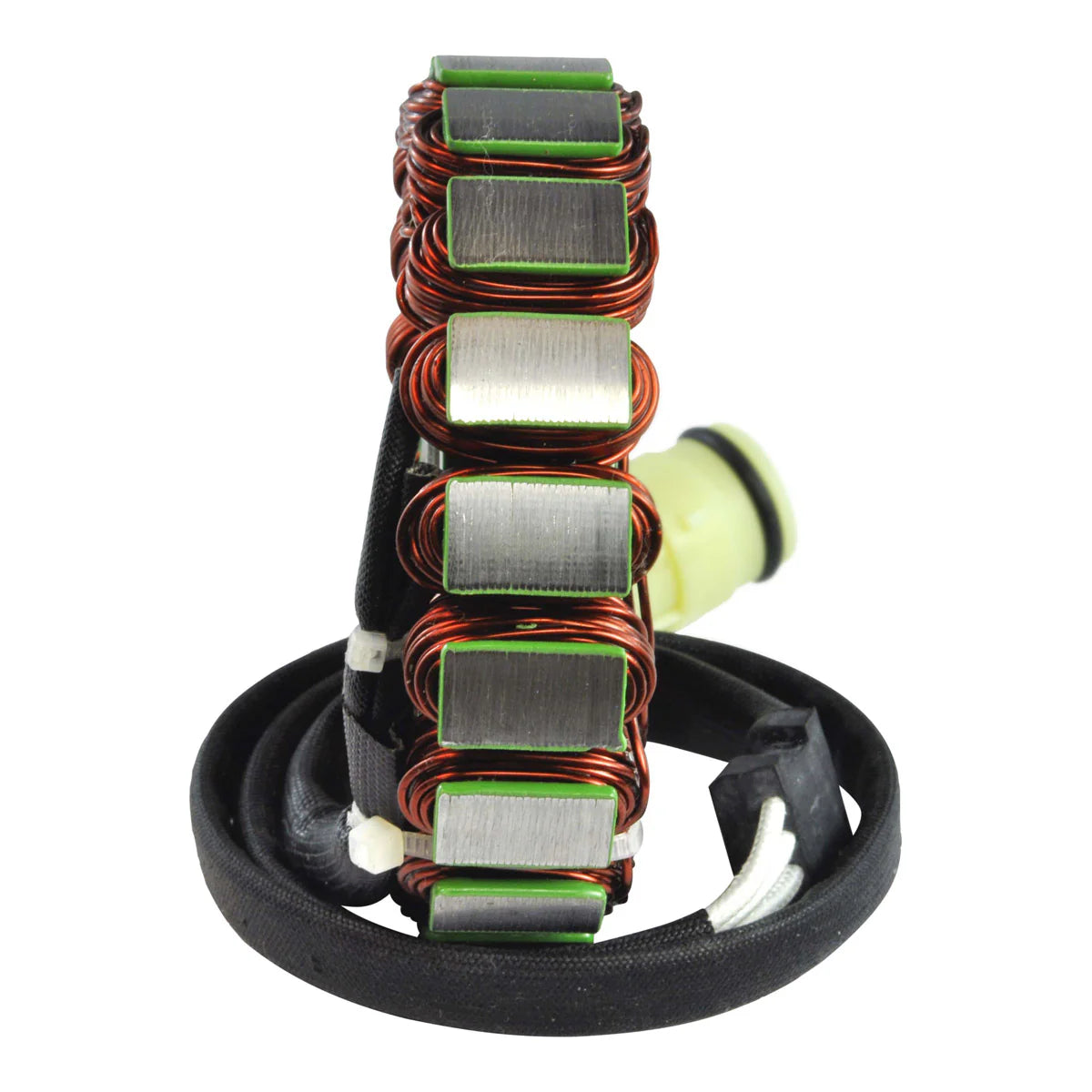

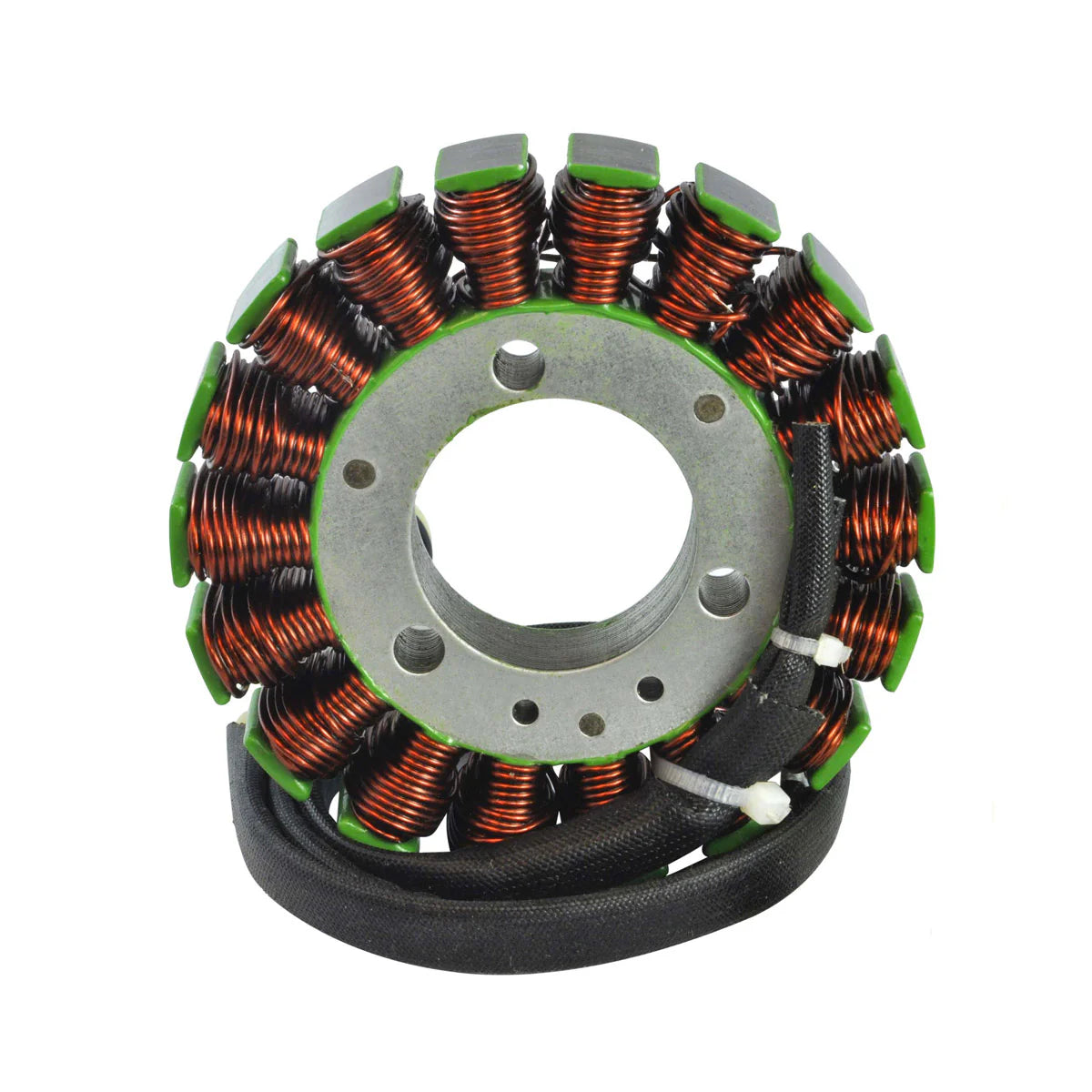

Generator Stator - Kawasaki KAF 450 Mule 1000
Part RM01112 - Kawasaki KAF 450 Mule 1000 1994-1997 - OEM reference 21003-1174
The RM01112 is a brand new aftermarket generator stator for the Kawasaki KAF 450 Mule 1000 built between 1994 and 1997. It is a direct replacement for the original magneto charging coil, so it mounts in the standard position and connects to the existing wiring. Installation is plug-and-play and direct fit, with no cutting, drilling or splicing needed.
The unit is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The connector and the rubber grommet are included in the box. RMSTATOR also supply the opposite connector for the main harness side, as the original is frequently melted, corroded or defective by the time a stator fails and is a major cause of repeat electrical faults. Every stator is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Opposite connector for the main harness side also included

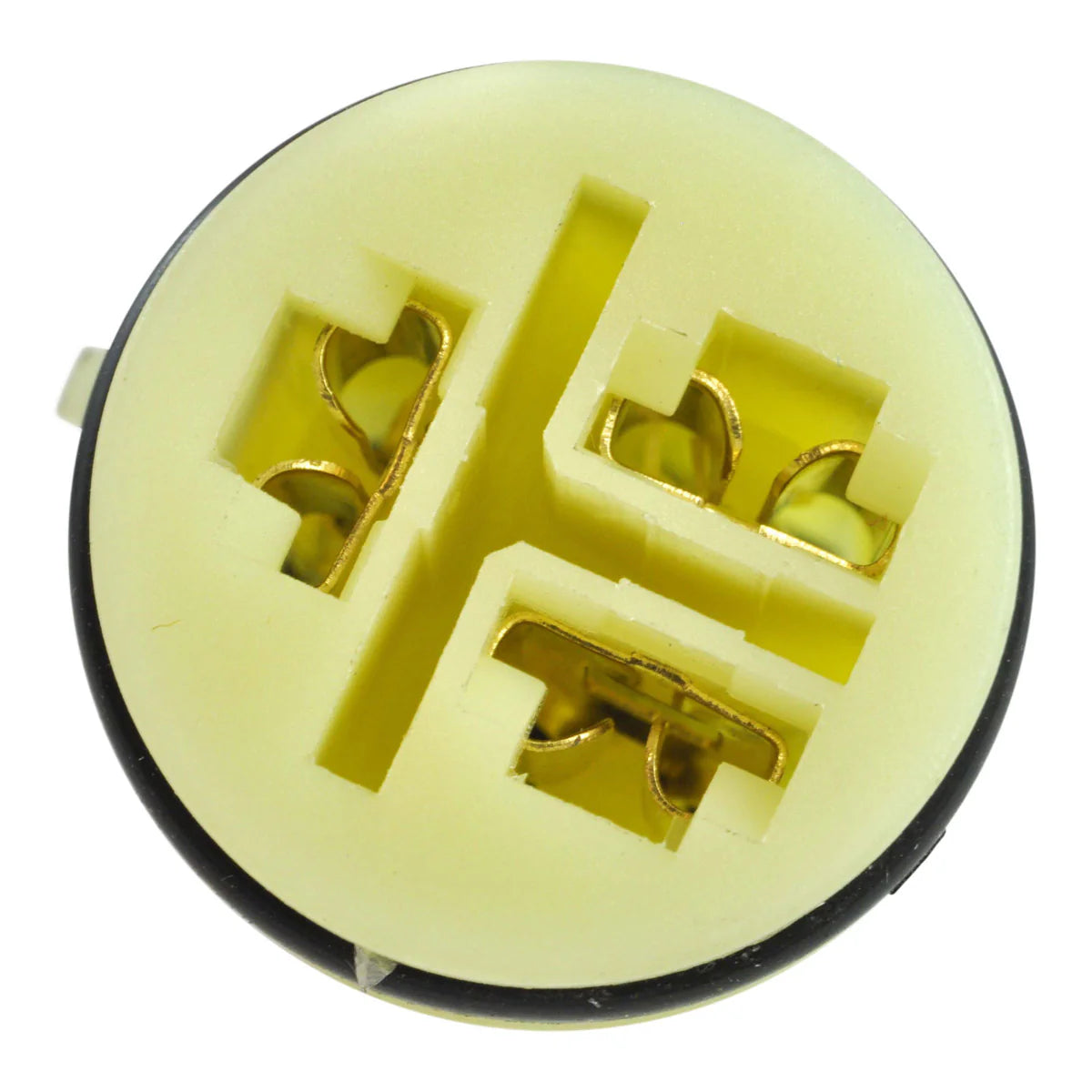

- Simple 3-wire, single-plug configuration
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01112 |
| Interior diameter | 38 mm |
| Exterior diameter | 102 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 150 mm |
| Wire length, grommet to plug | 400 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance, White to White | 1.2 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KAF 450 Mule 1000 | 1994-1997 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1174 | Kawasaki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. The RM01112 is a direct replacement for the original magneto stator on the Kawasaki KAF 450 Mule 1000 from 1994 to 1997. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting or splicing is required.
What is included in the box?

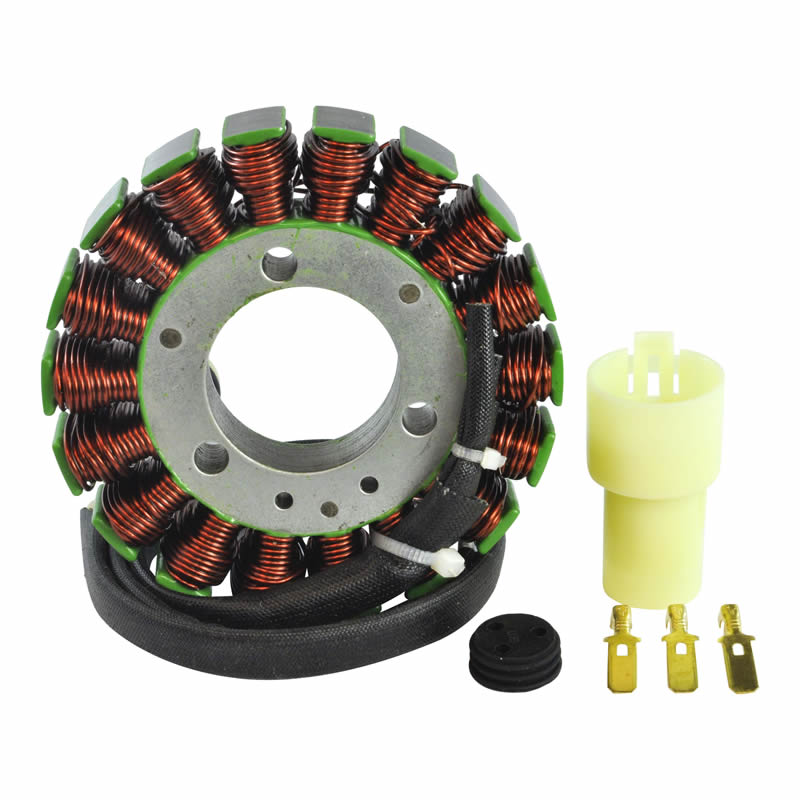

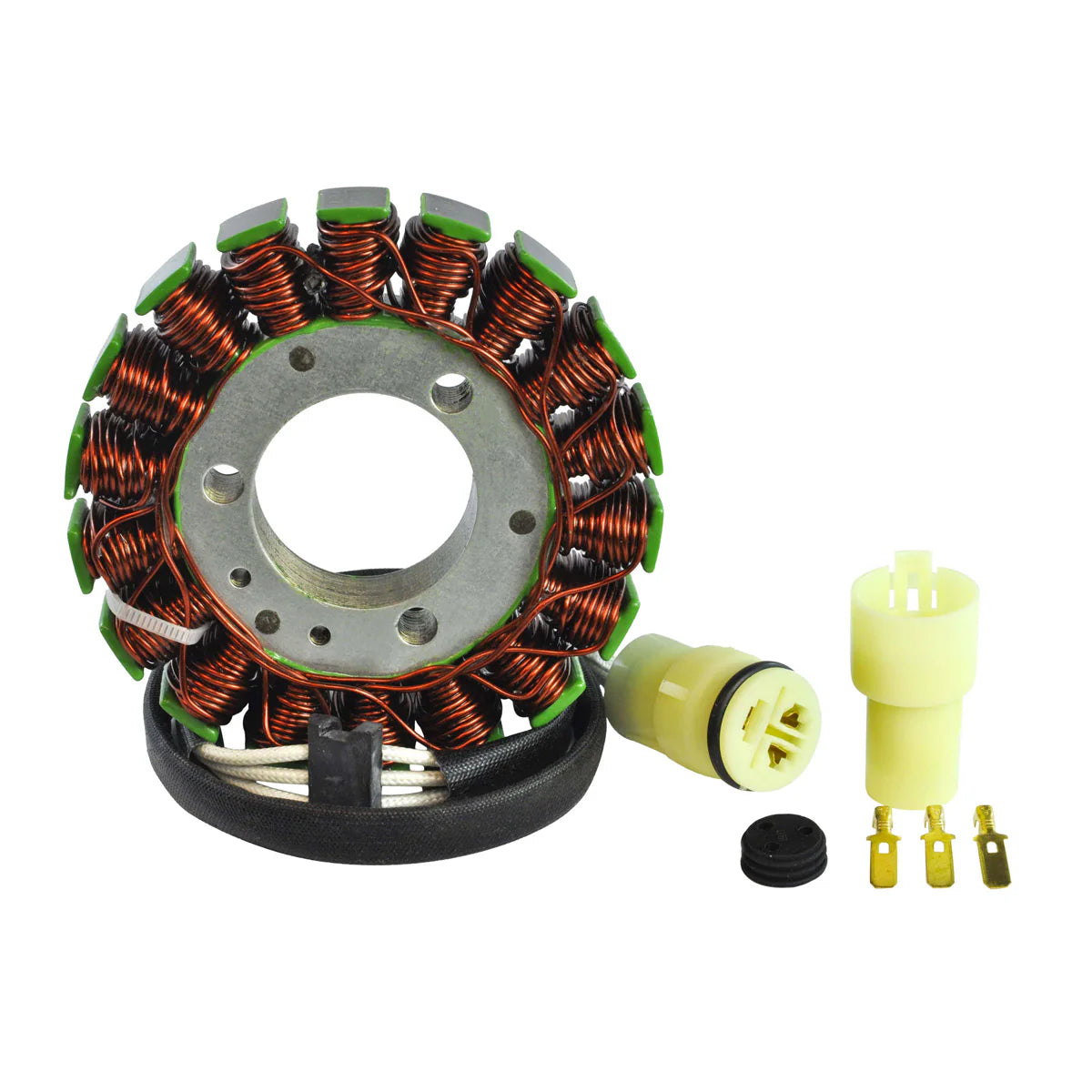

You receive the generator stator, the connector, the rubber grommet and an opposite connector for the main harness side.
How do I tell whether my old stator has failed?
Disconnect the stator plug and measure across the three White wires with a multimeter. A healthy winding reads about 1.2 ohms between each pair, within 20 percent. Also check each White wire to ground, which should show no continuity. An open circuit between phases, a short to ground, or readings well away from 1.2 ohms mean the stator has failed. A battery that will not hold charge while the machine is running points to the same fault.
Why does the harness-side connector matter?
The three-pin joint between the stator and the main harness carries the full charging current, so heat and corrosion build up there. Fitting a new stator into an already damaged harness connector often causes the fault to return. RMSTATOR supply the opposite connector so both halves can be renewed together.
