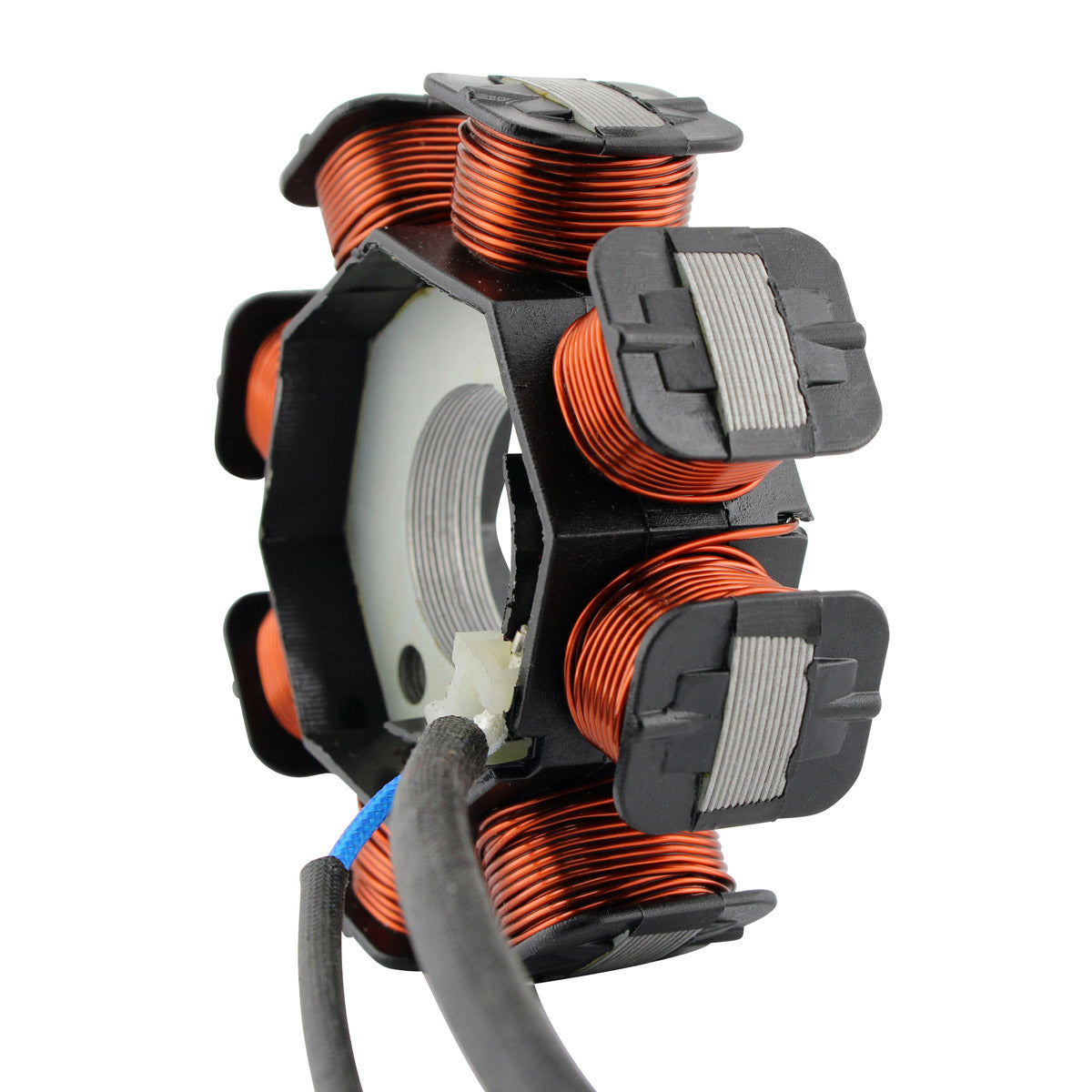

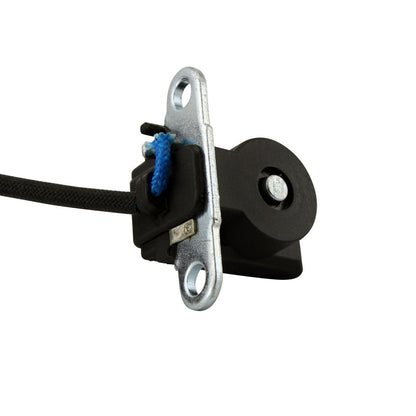

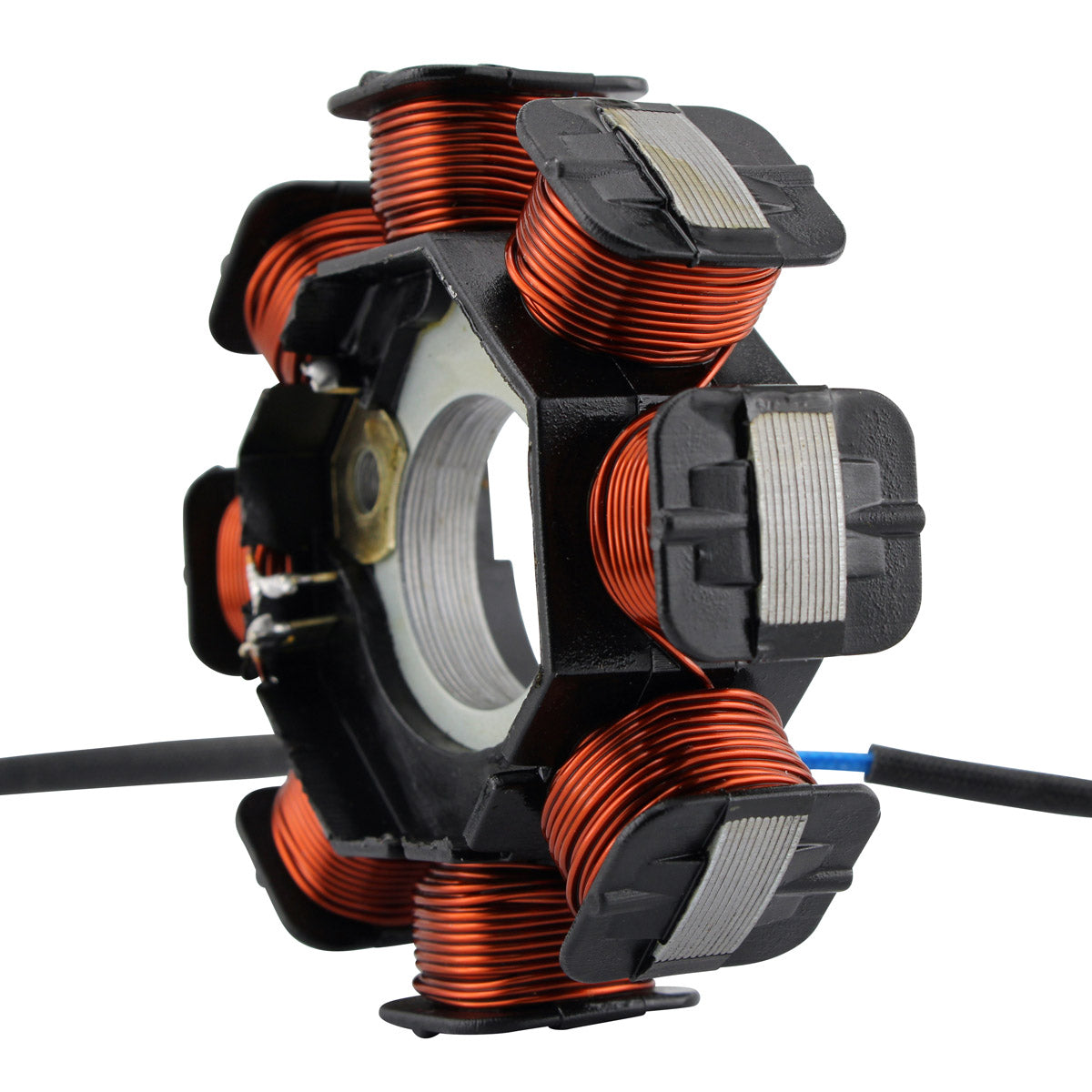

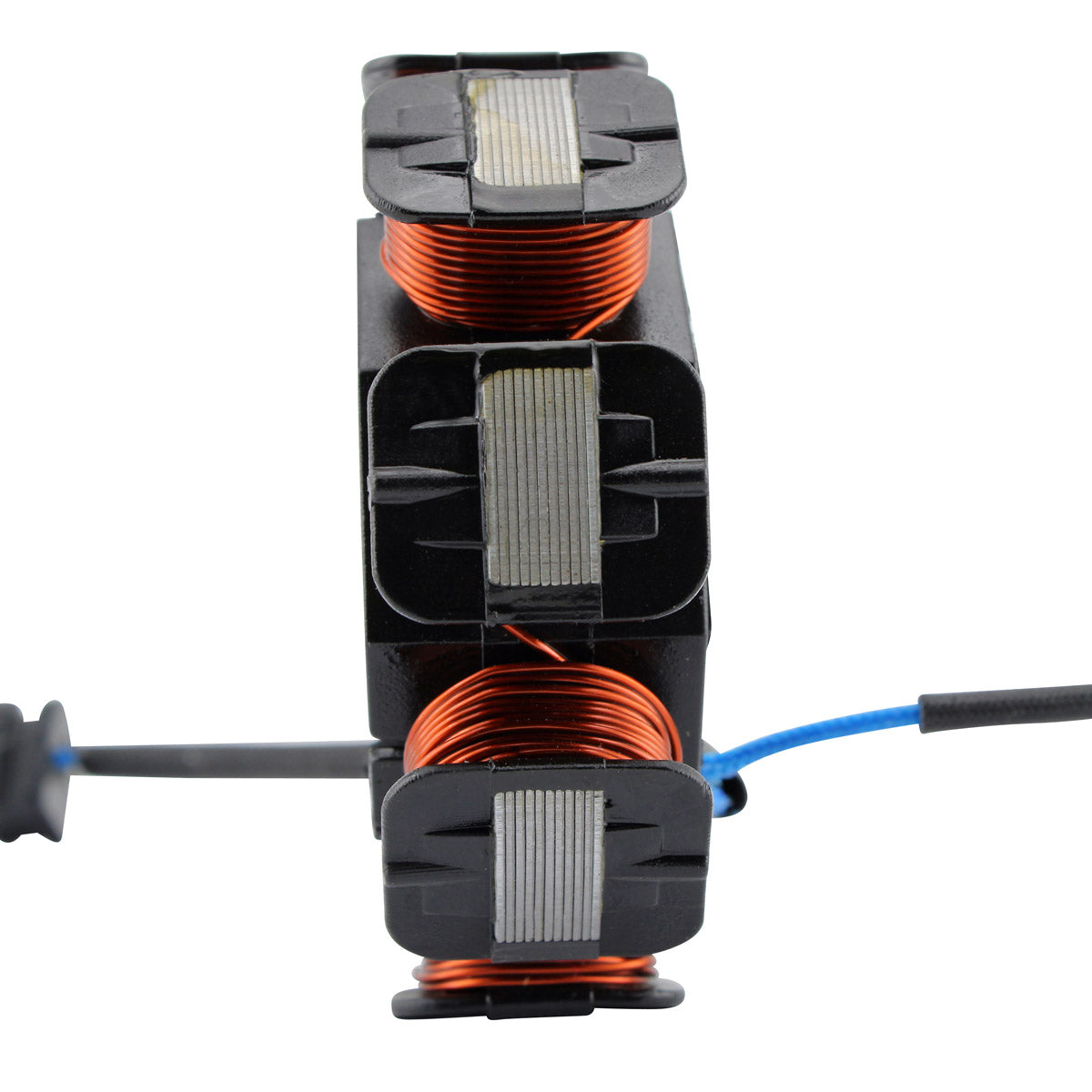

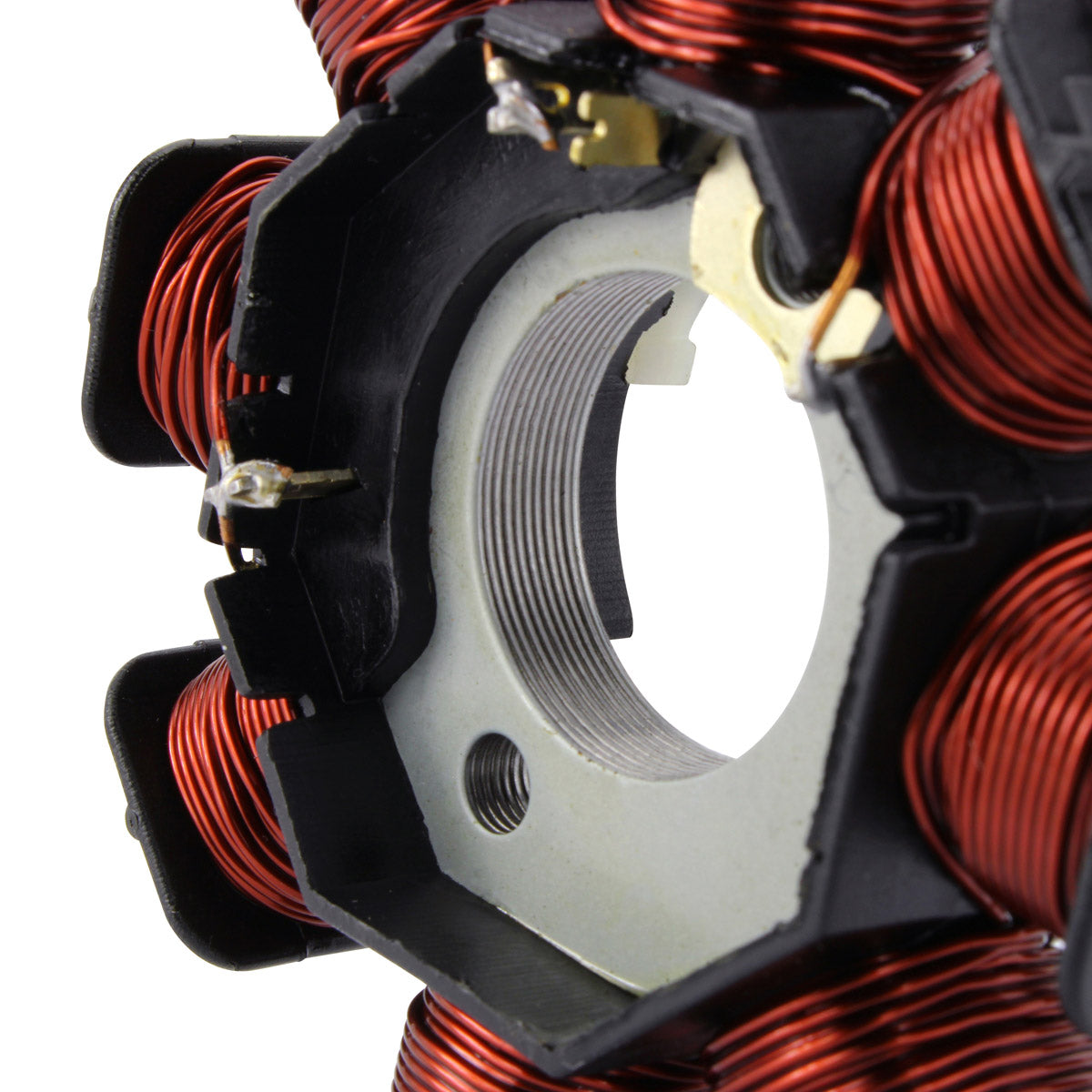

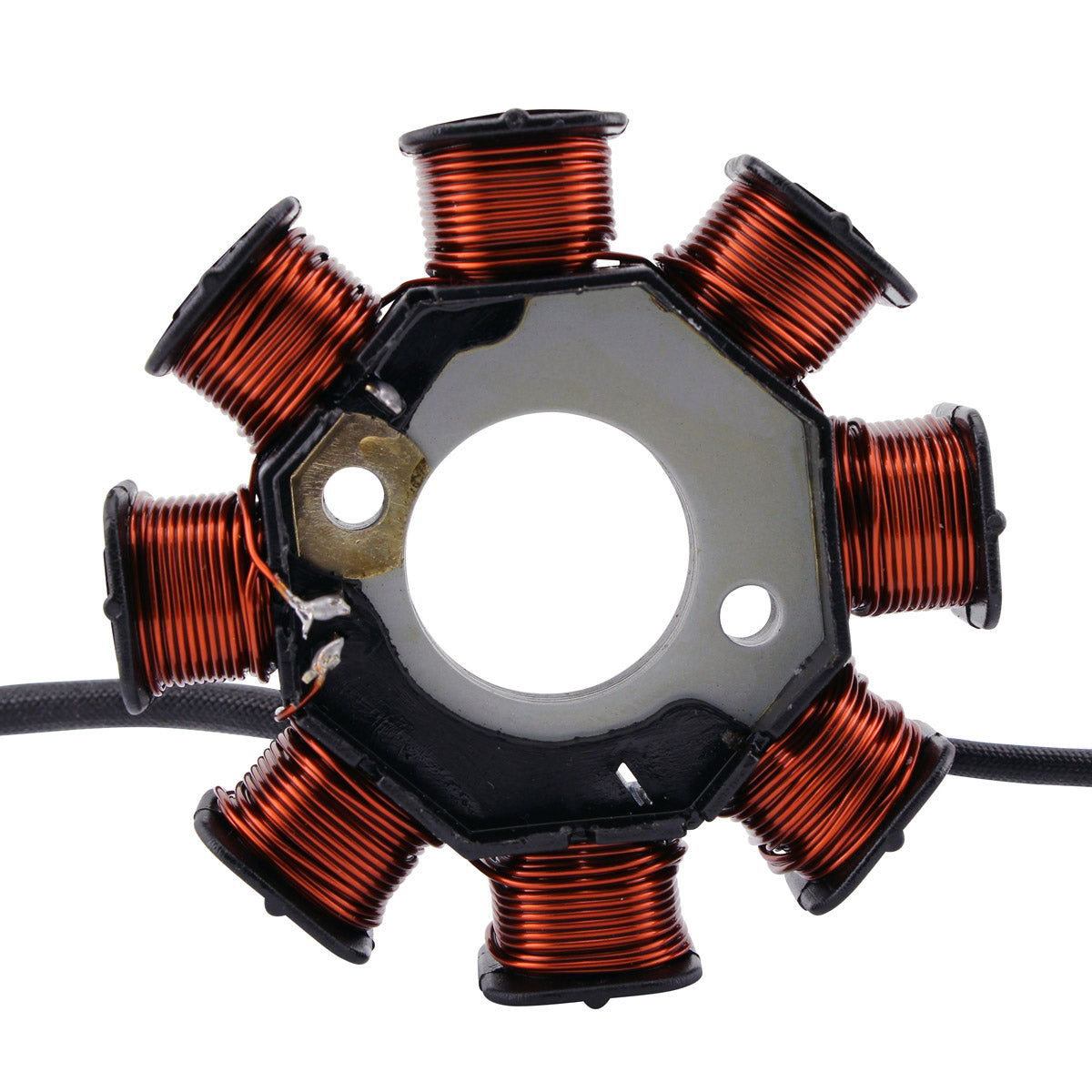

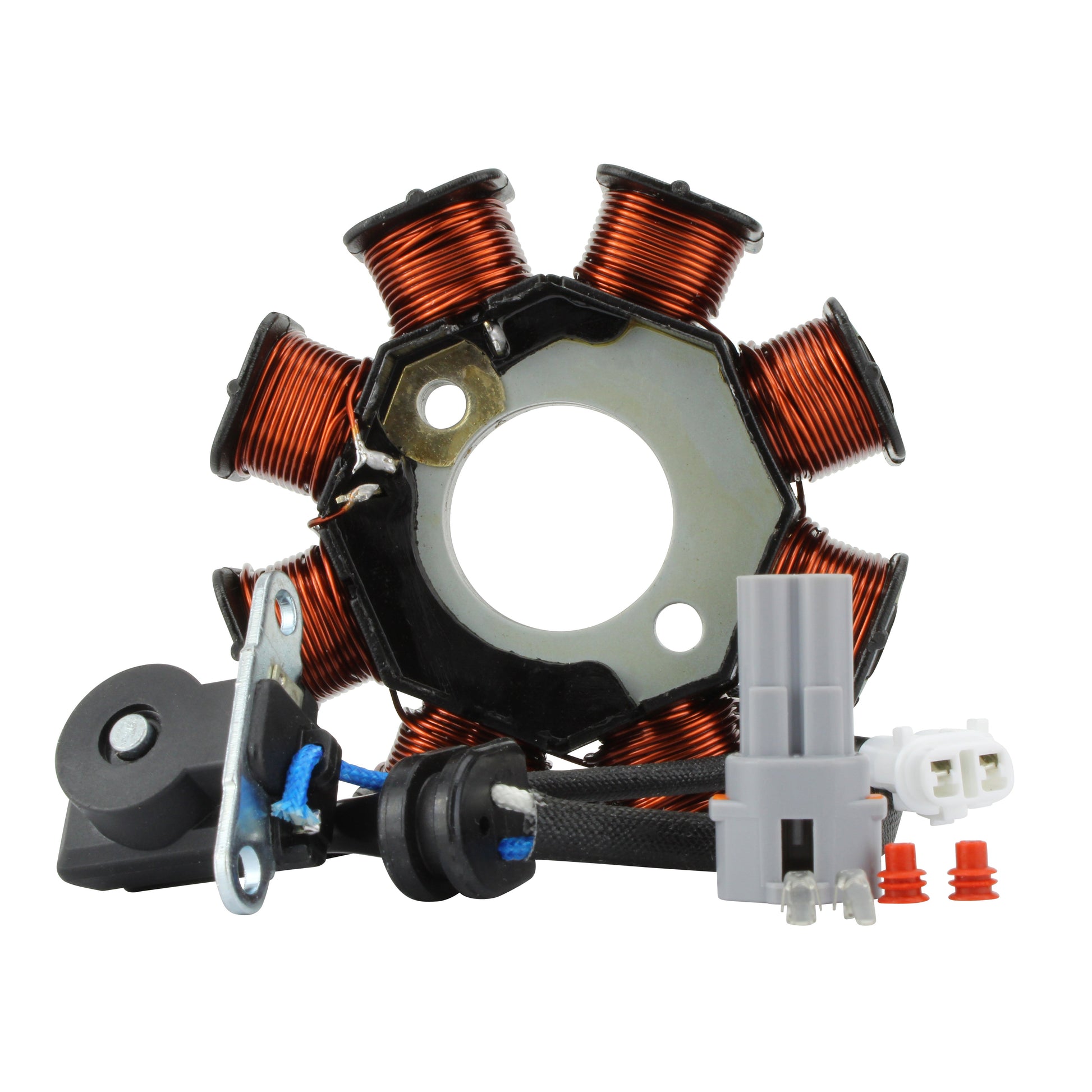

This is a brand new aftermarket stator for the Kawasaki KLX 110 and KLX 110L, supplied as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, and it comes as a complete assembly with the pick up pulsar coil already mounted, the connectors fitted and the rubber grommet in place - so the ignition trigger and the charging output are both renewed in one part.
The unit is built on the highest grade of lamination materials with the highest grade of copper winding, resistant to 200 degrees Celsius. On a small-bore trail bike that gets ridden hard, dropped, jet-washed and stored damp, that margin matters: a tired original typically shows itself as a weak or intermittent spark, a bike that will not restart when hot, or a battery that stops holding charge. Every product shipped is tested before it leaves us.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

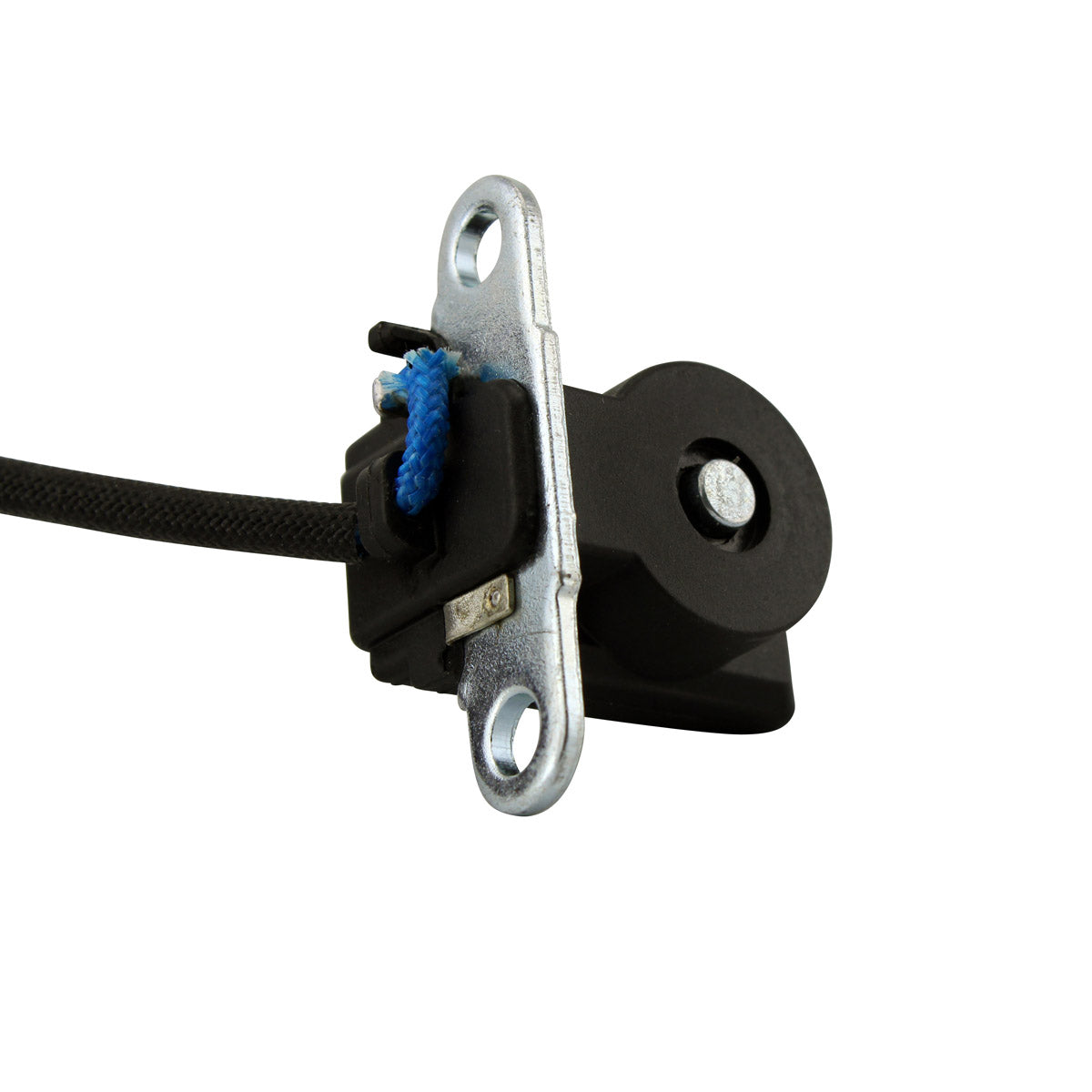

- Pick up pulsar coil included

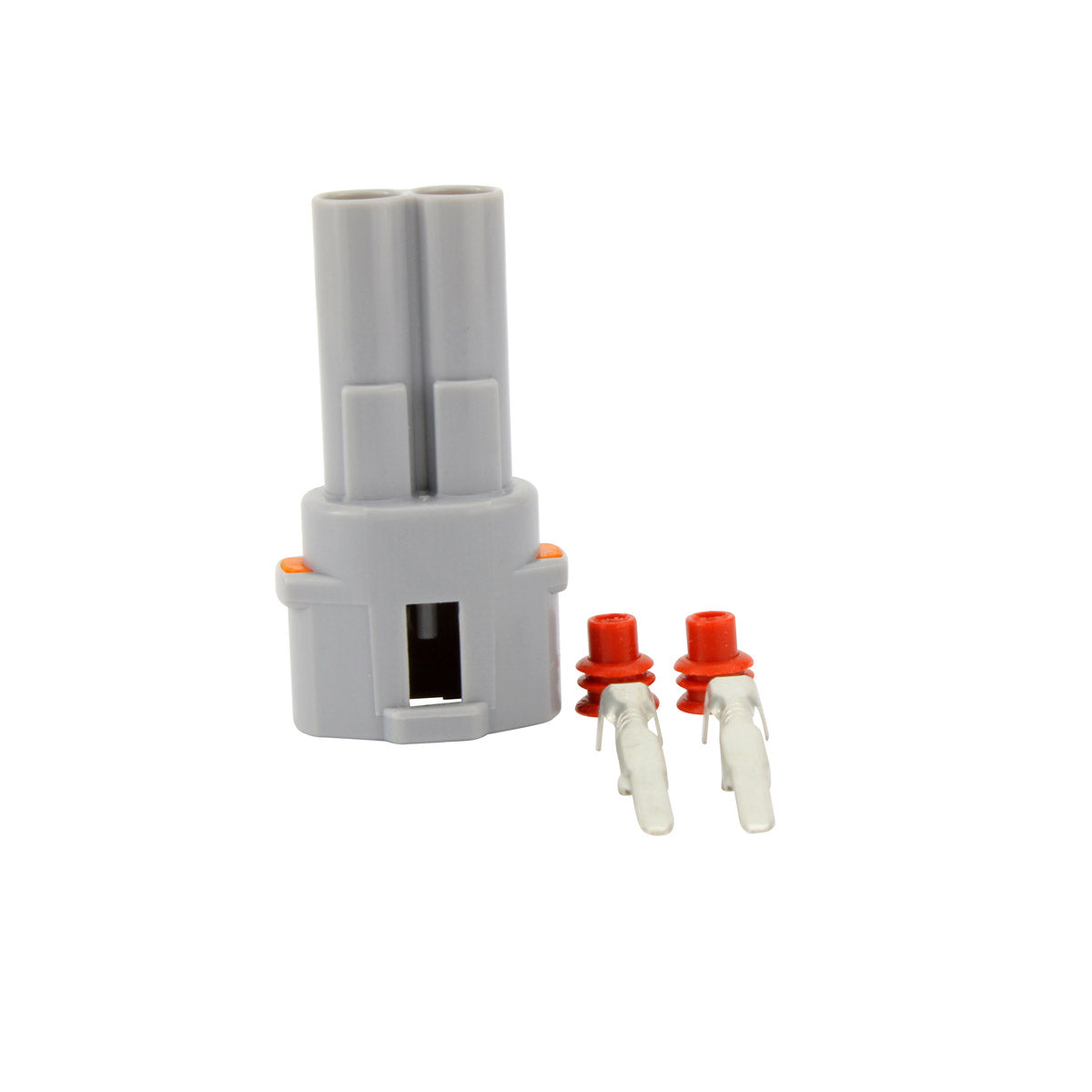

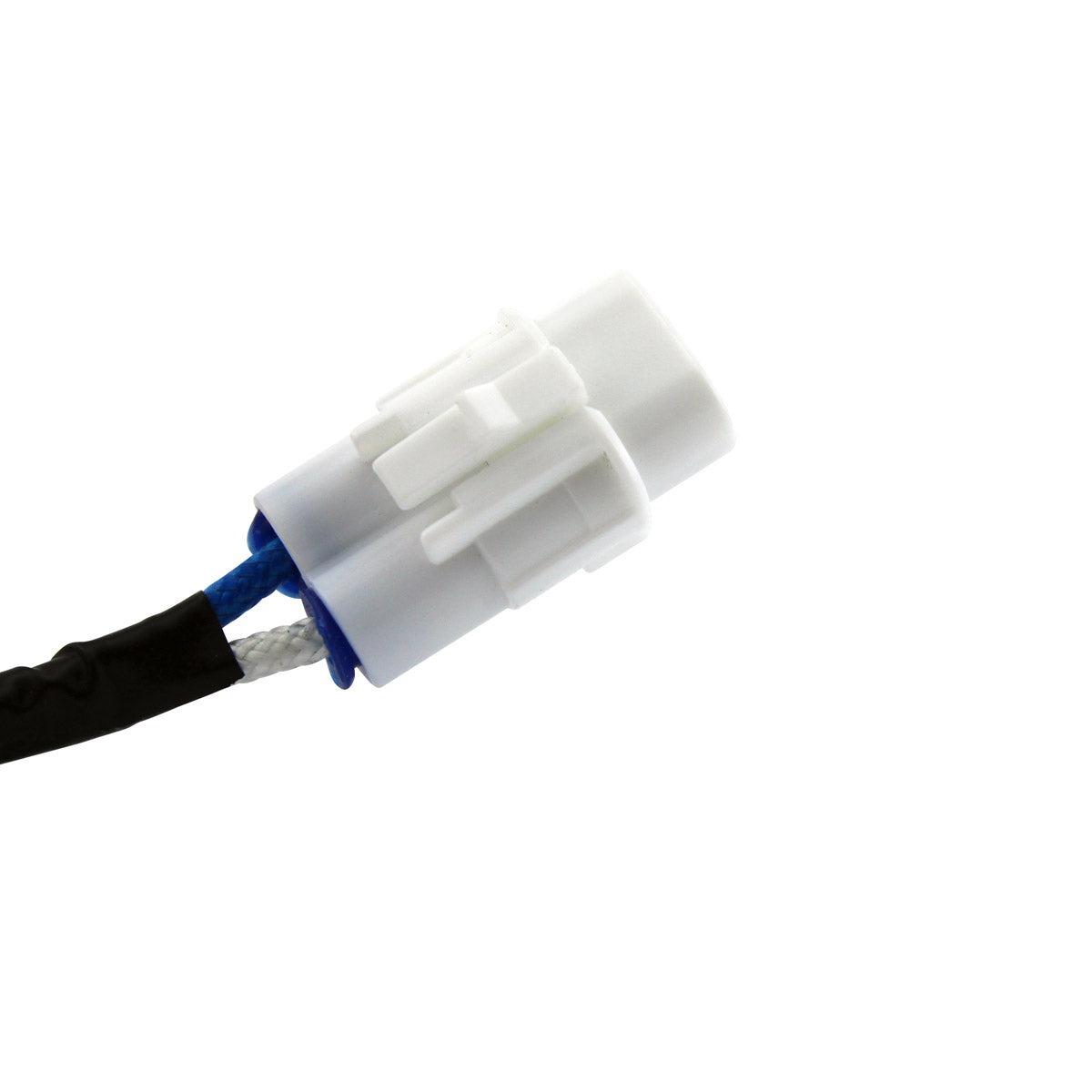

- Connectors included

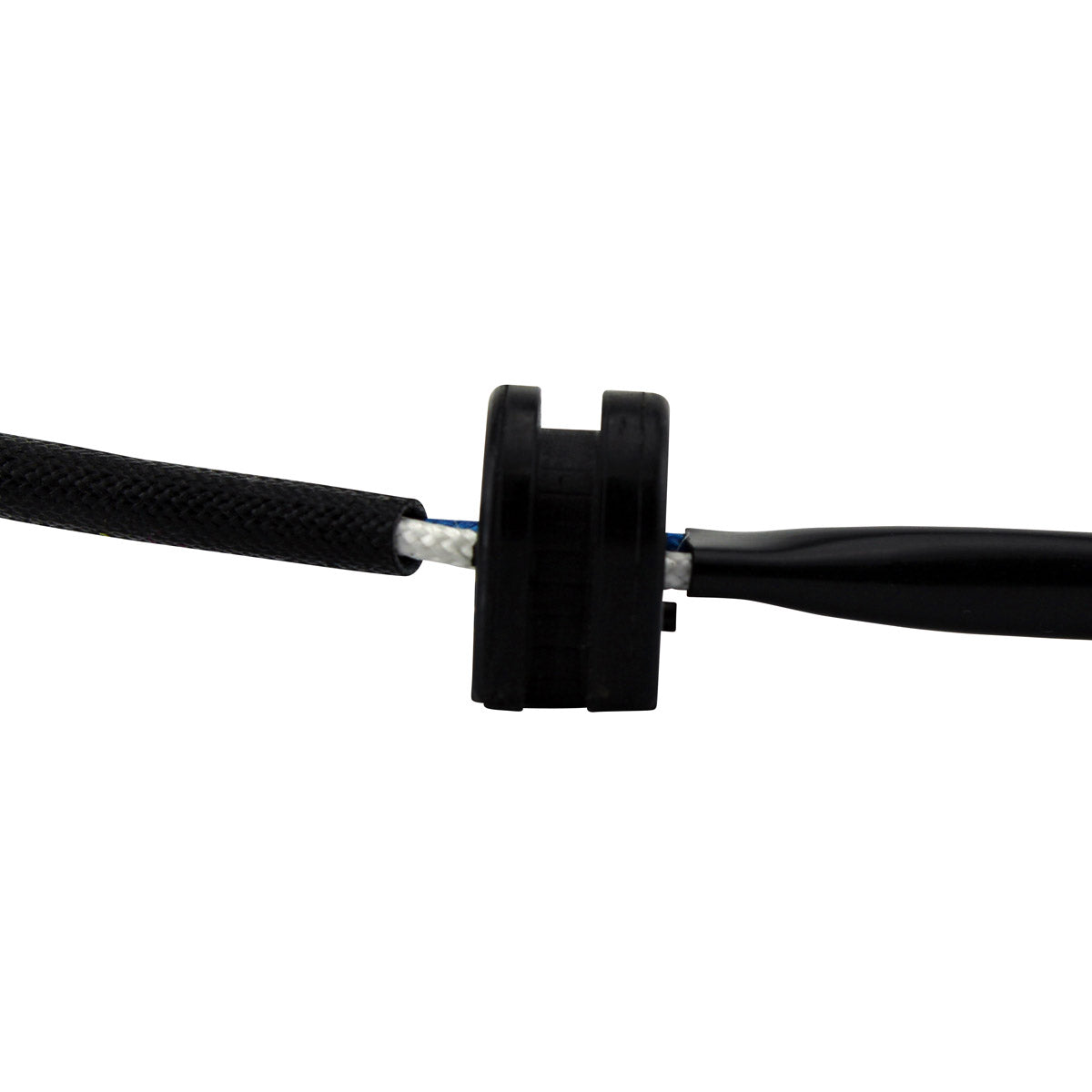

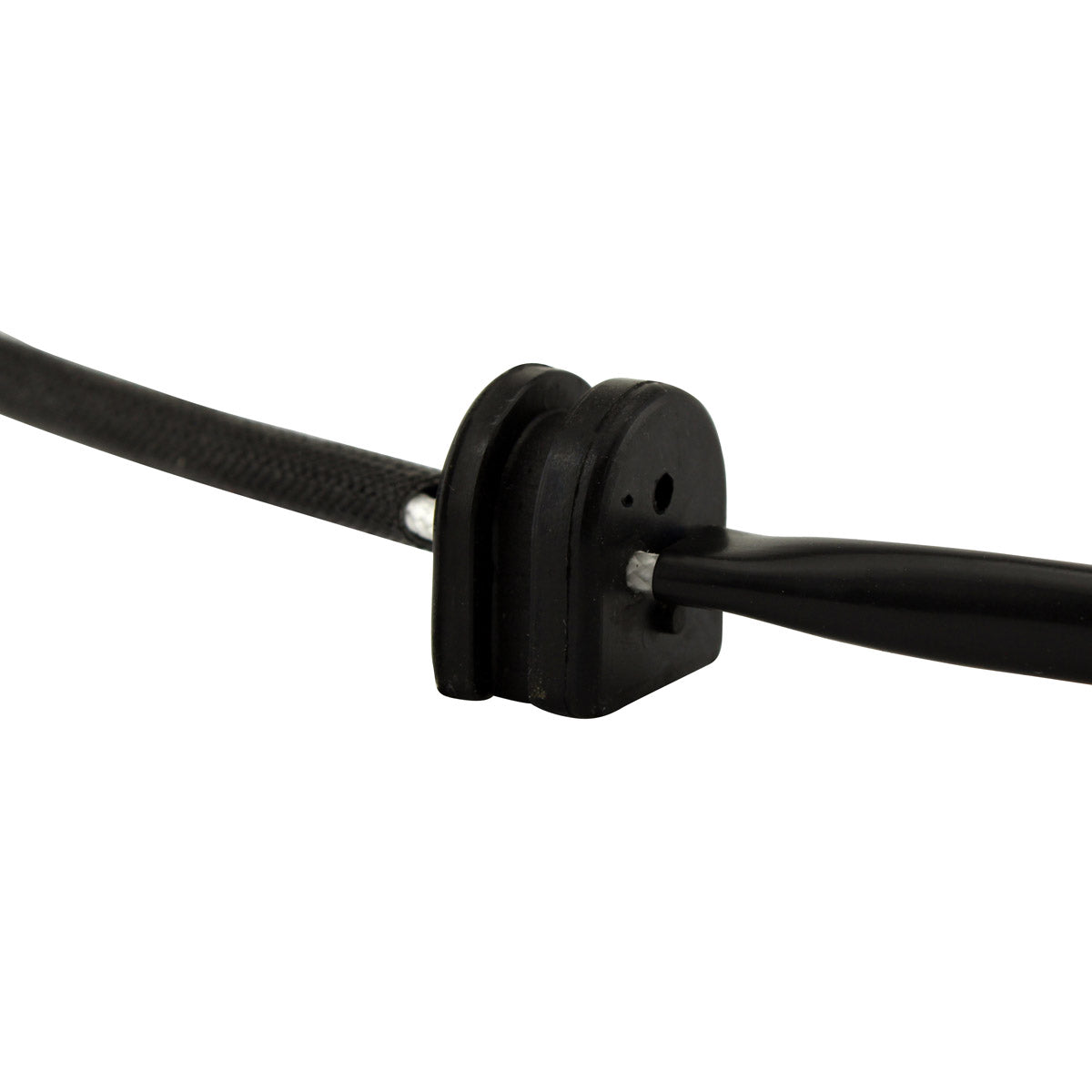

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
29 mm |
| Exterior diameter |
88 mm |
| Thickness |
10 mm |
| Wire length, stator to grommet |
150 mm |
| Wire length, grommet to plug |
150 mm |
| Pickup coil wire length to grommet |
120 mm |
| Number of wires |
2 |
| Number of plugs |
1 |
| Number of holes |
2 |
| Number of poles |
8 |
| Alternator resistance, white to ground |
1.2 ohms +/- 20% |
| Pickup resistance, blue/yellow to ground |
118 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki KLX 110 |
2010-2026 |
| Kawasaki KLX 110L |
2010-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0097 |
Kawasaki |
| RMS010-107078 |
Manufacturer SKU |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit, plug-and-play and a direct fit. The connectors and the rubber grommet are supplied fitted, so the loom does not need cutting or splicing.
What is included in the box?
The stator with the pick up pulsar coil, the connectors and the rubber grommet. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
With the engine off and the plug disconnected, measure from the white wire to ground - a healthy unit reads approximately 1.2 ohms +/- 20%. Then measure the pickup from blue/yellow to ground, which should read approximately 118 ohms +/- 20%. An open circuit or a reading well outside those tolerances confirms the unit has failed.
Does the KLX 110L use the same stator?
Yes. The KLX 110 and the taller-suspension KLX 110L share the same charging and ignition components and the same OEM number, 21003-0097, so this unit covers both.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
