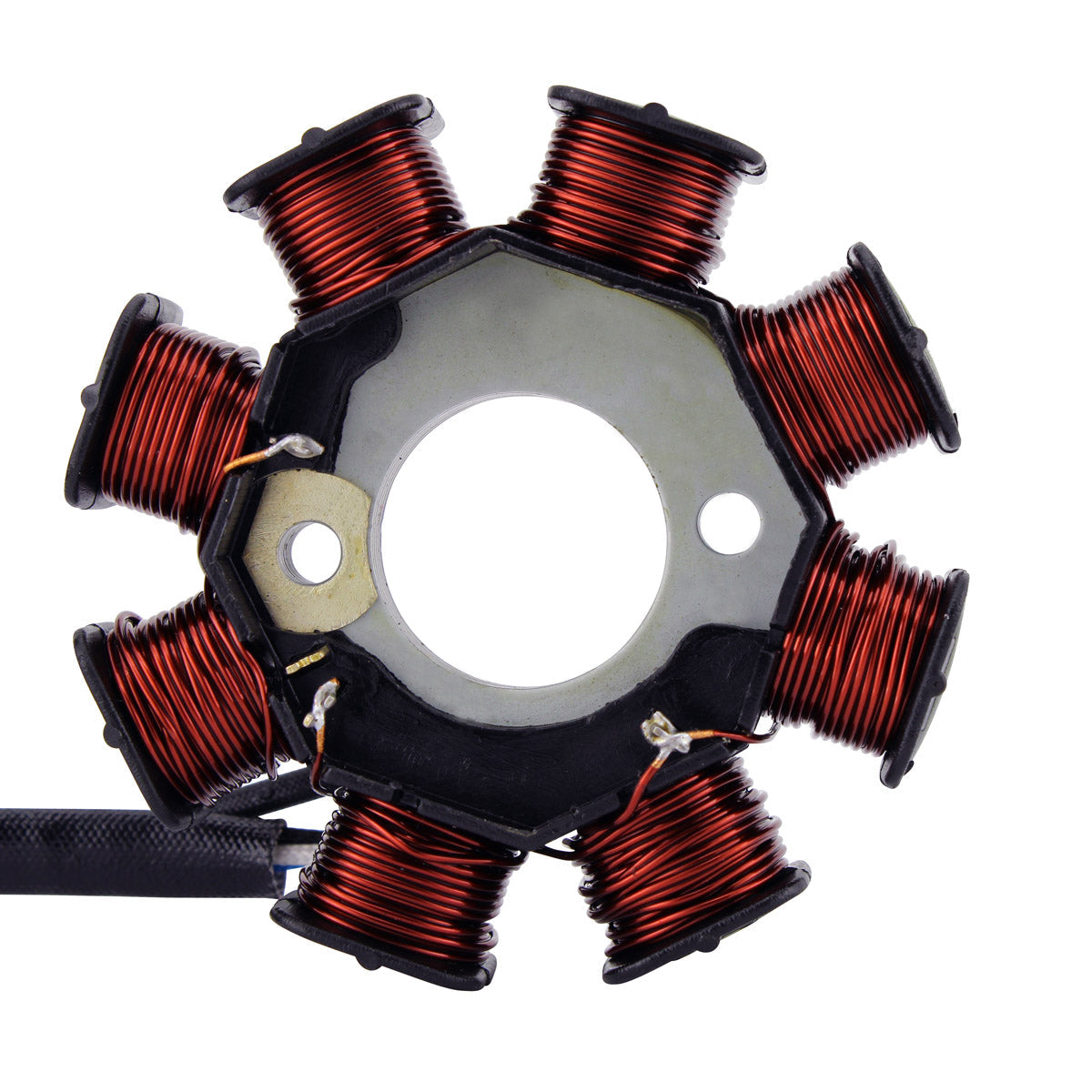

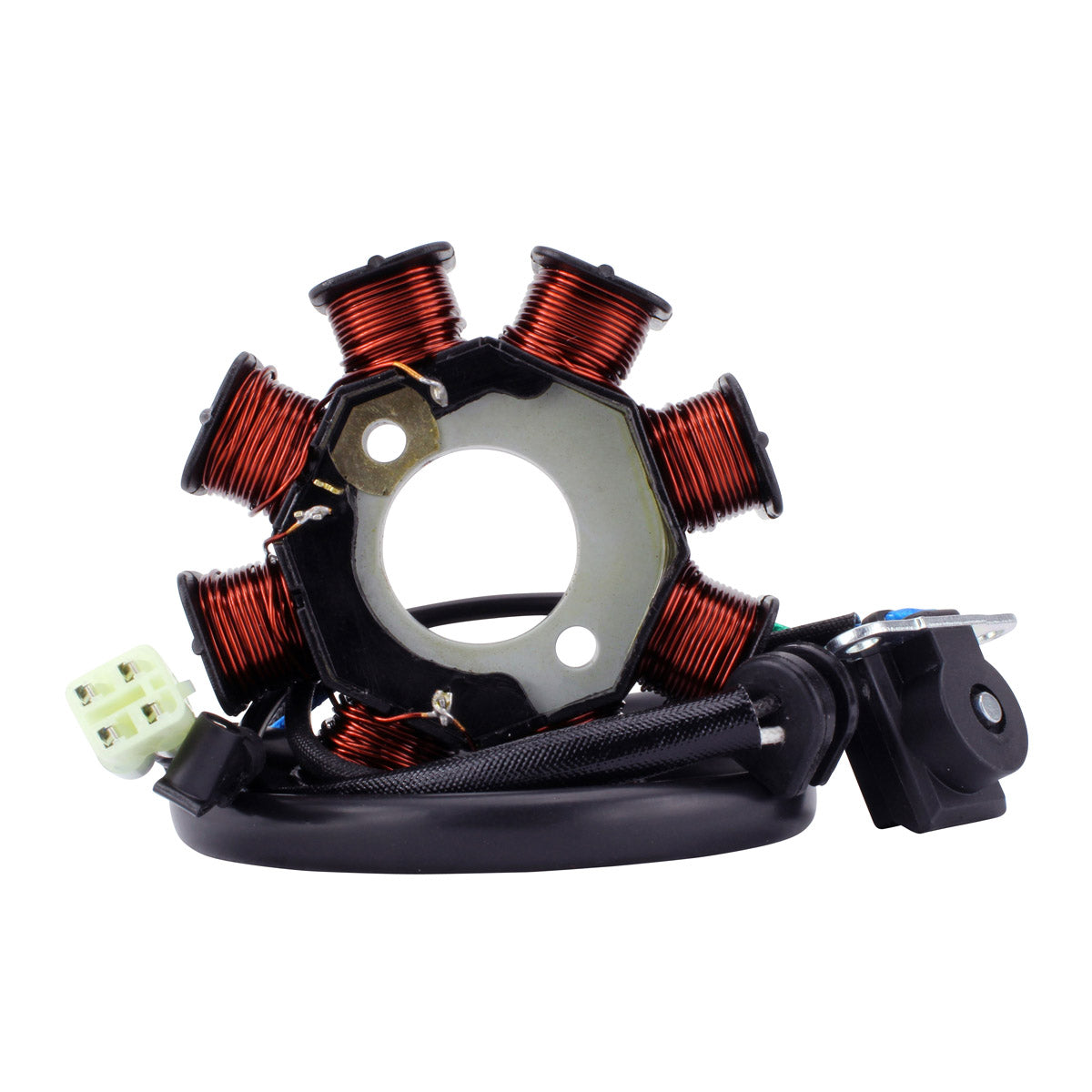

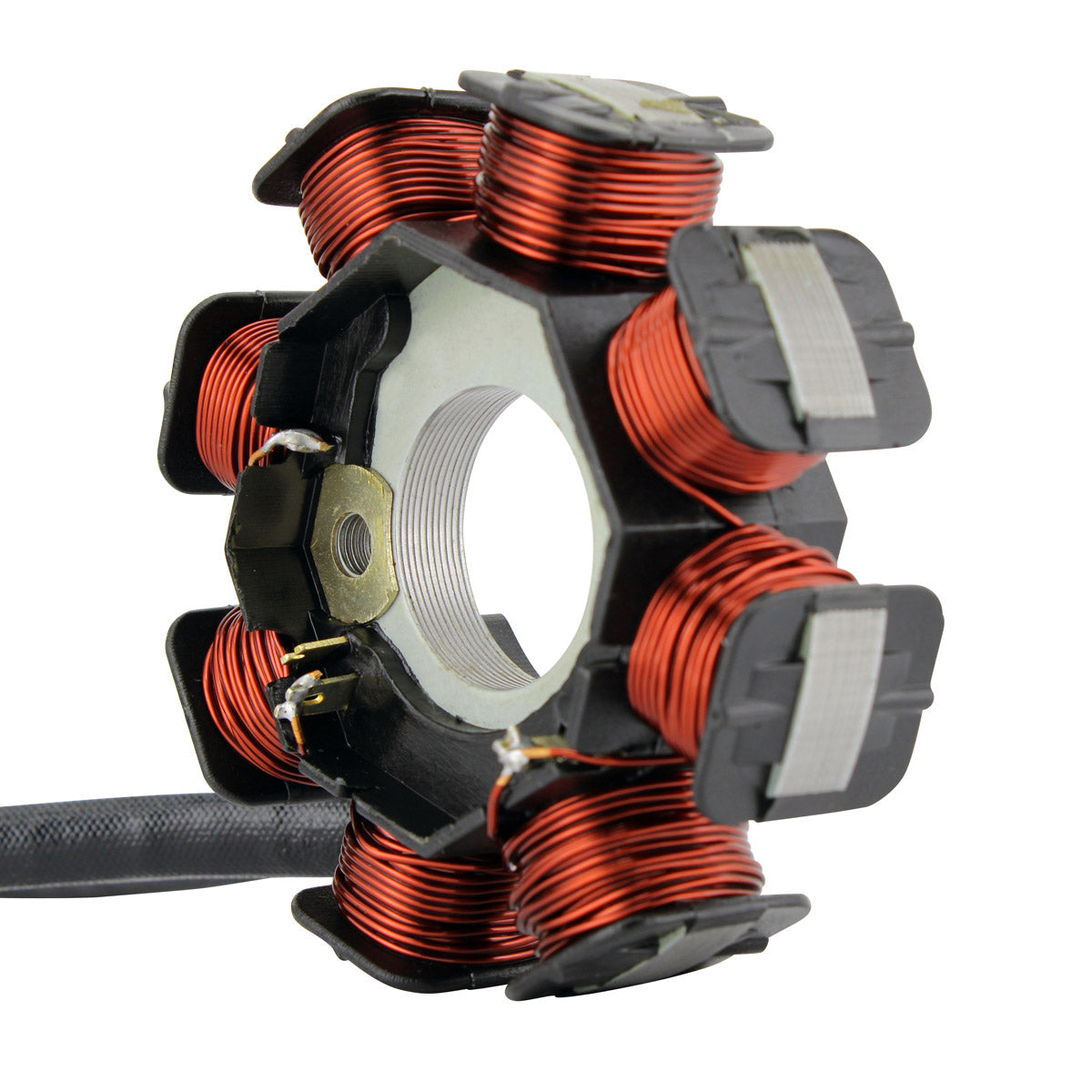

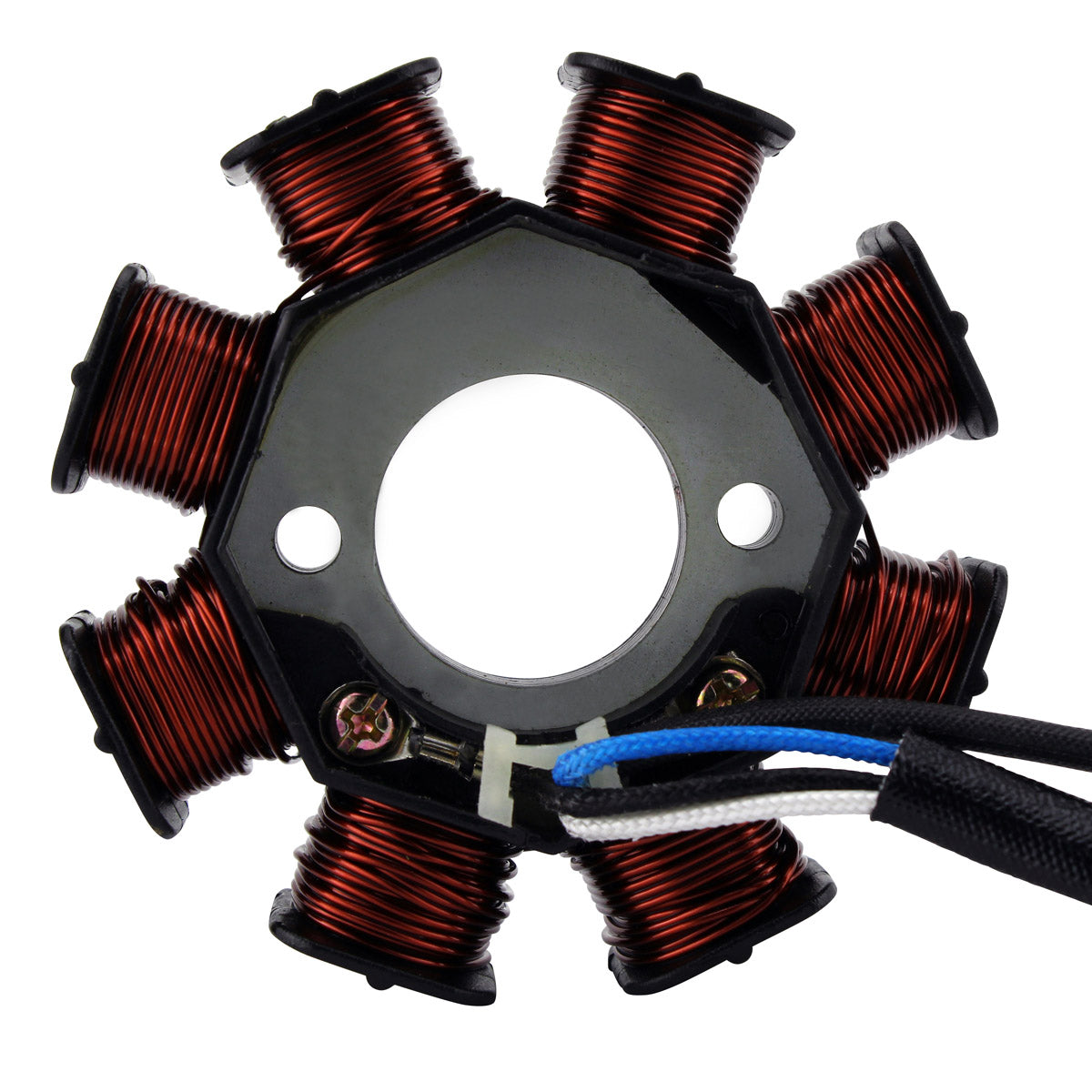

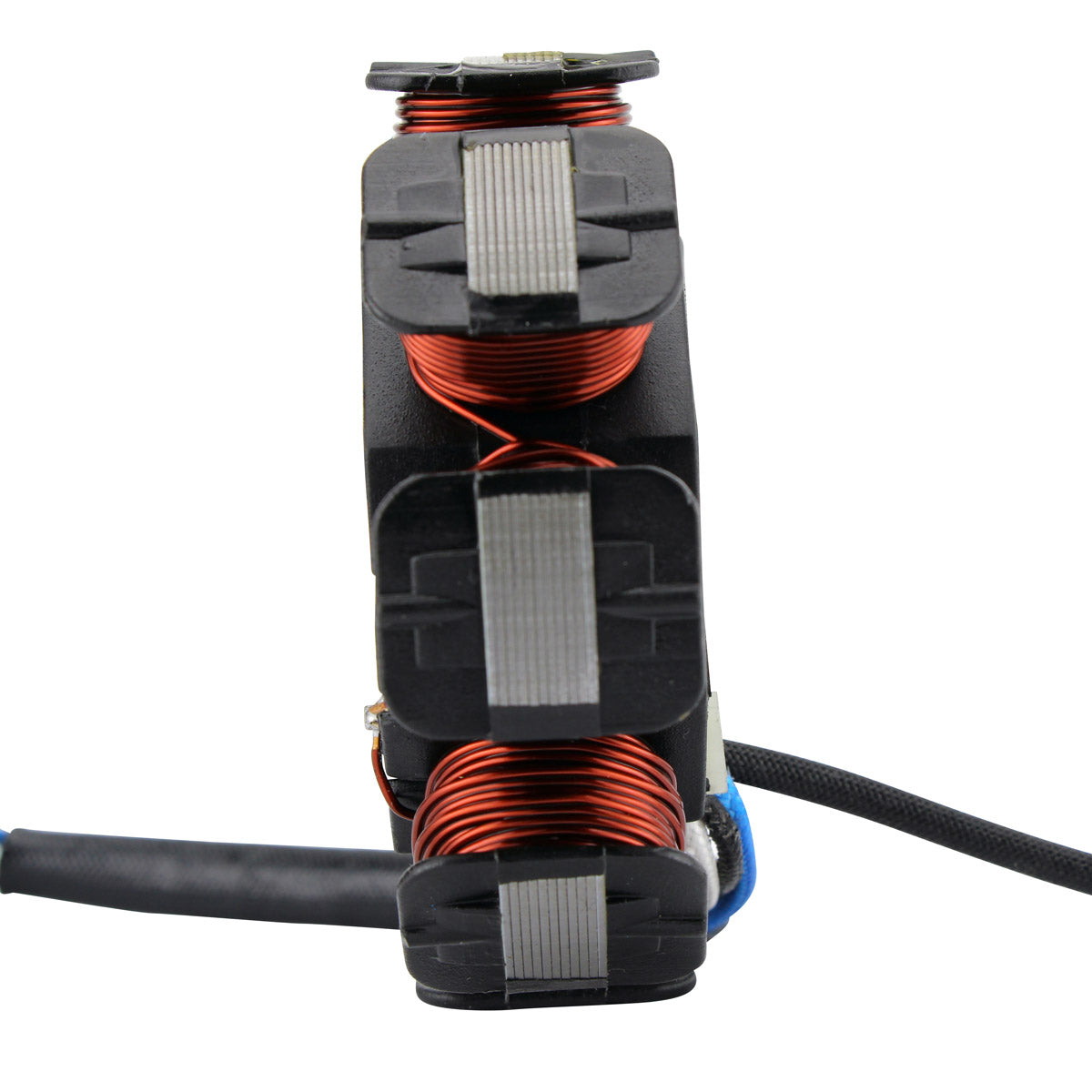

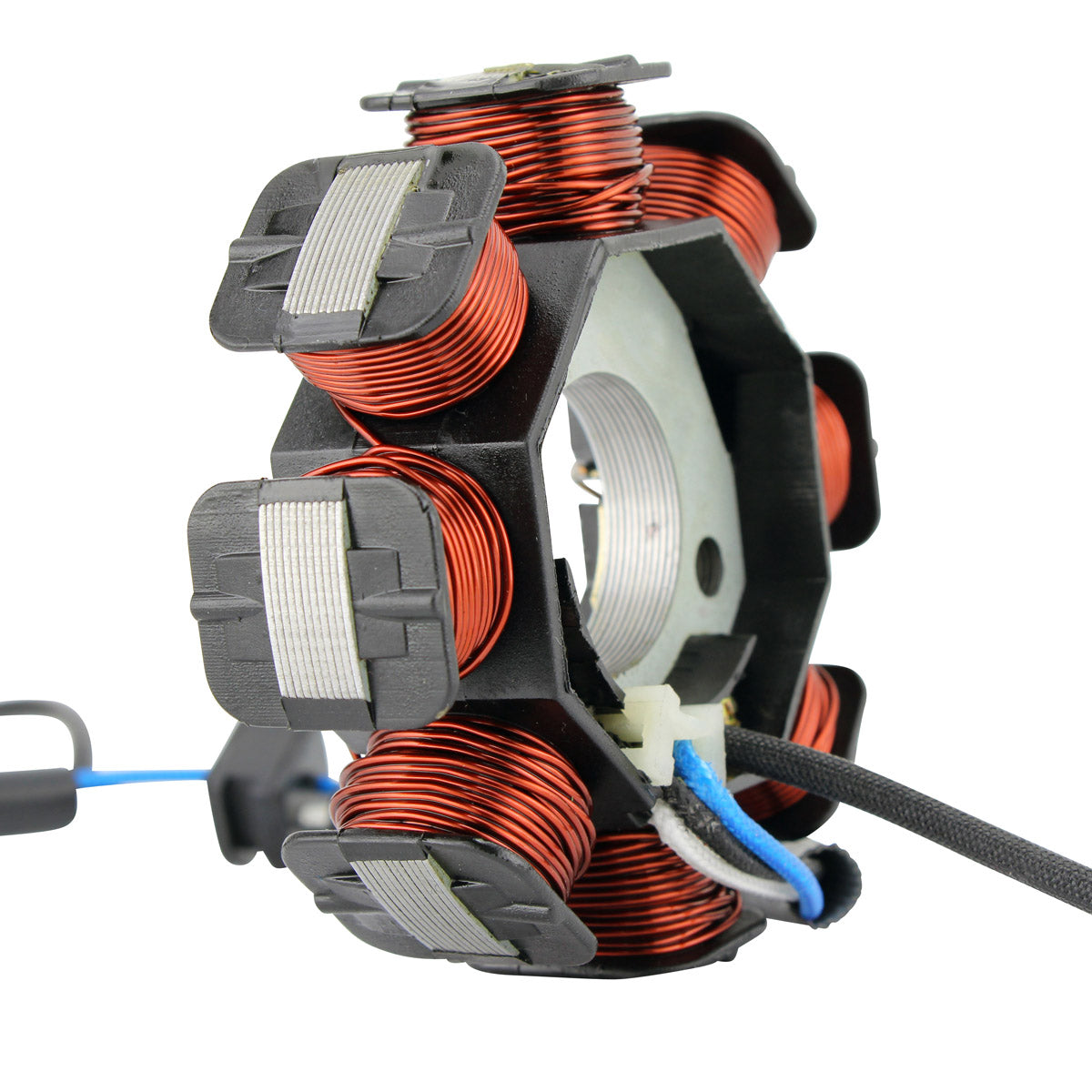

This is a brand new aftermarket stator for the Kawasaki KLX 140, built as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, and it is supplied as a complete assembly with the pick up pulsar coil already mounted, the connectors fitted and the rubber grommet in place. That means one part renews both the alternator output that keeps the battery charged and the pickup signal the ignition relies on.
Construction uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius. On a trail bike that spends its life at high revs and gets washed down after every ride, heat and moisture are what finish an original stator: insulation breaks down, a winding shorts to the case, and the bike develops a weak spark, a hot-start problem or a battery that will no longer hold charge. All products shipped are tested.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

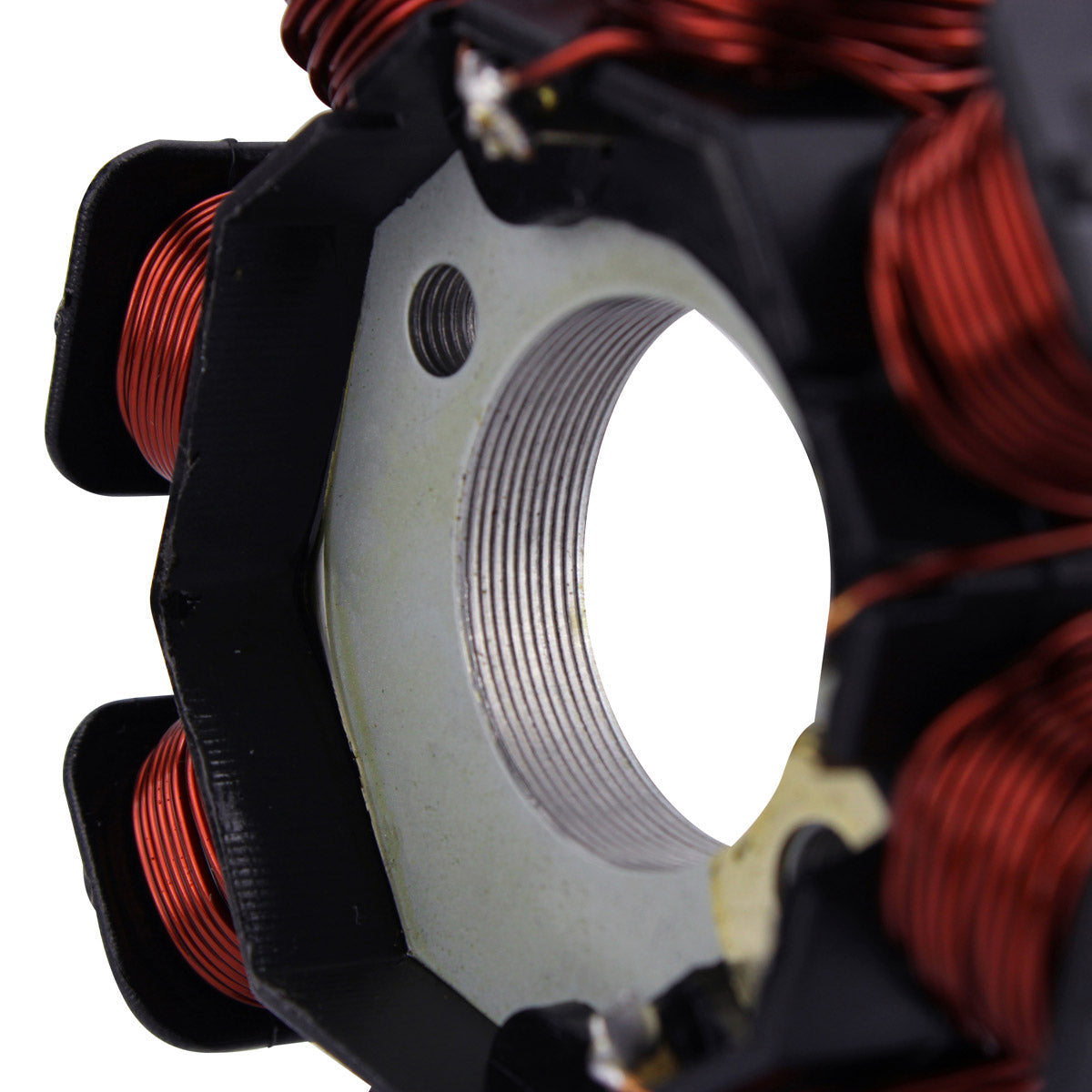

- Highest grade of lamination materials

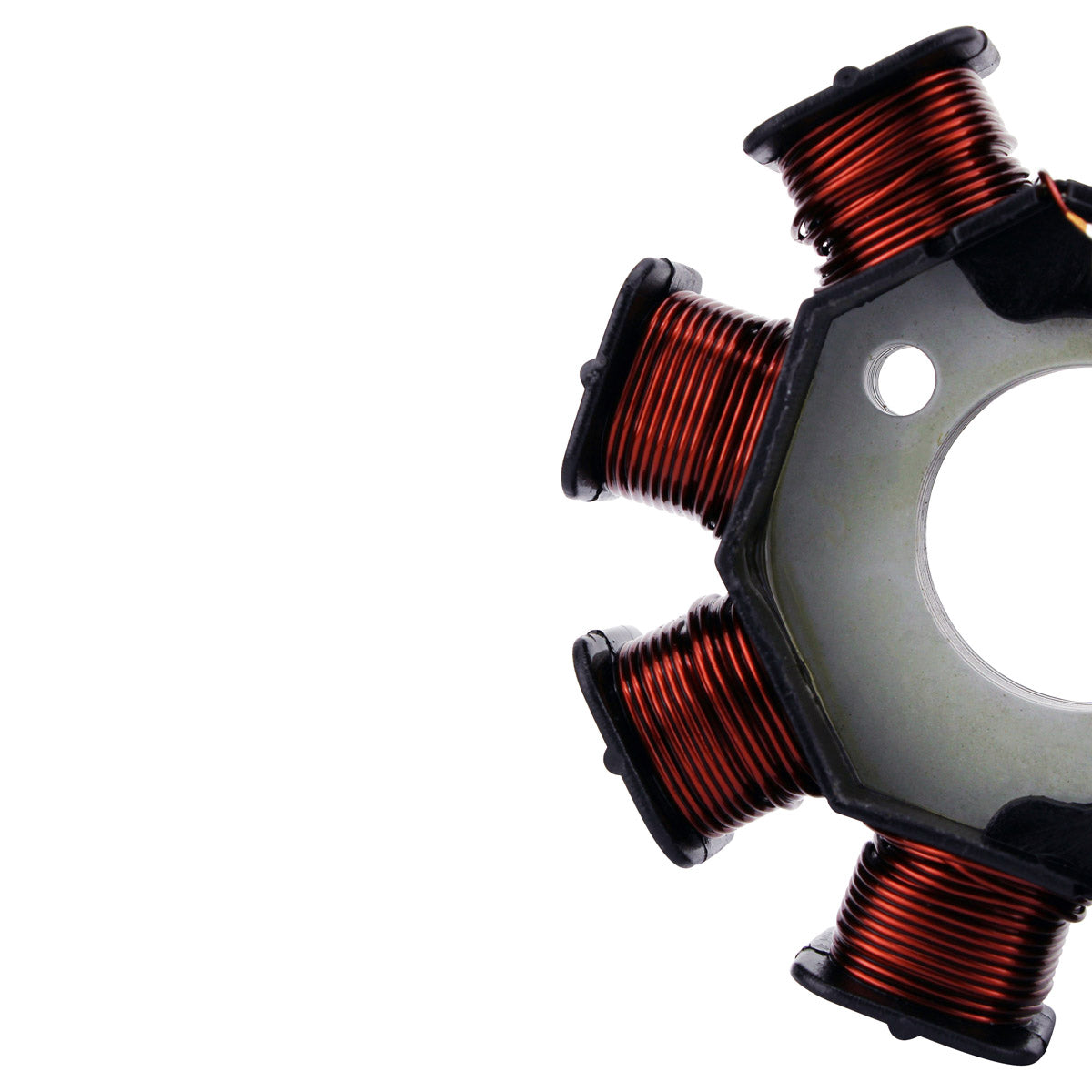

- Highest grade of copper winding, resistant to 200 degrees Celsius

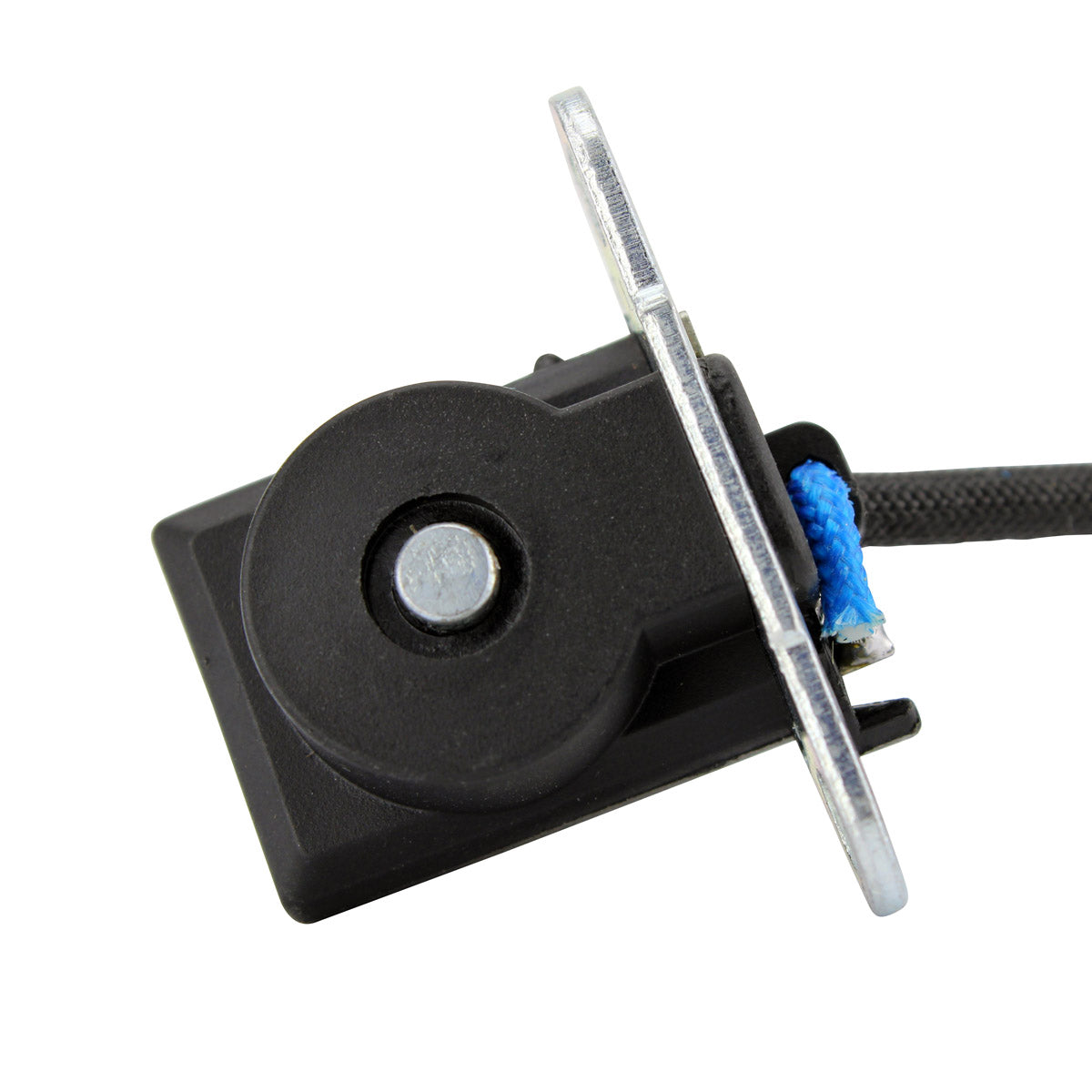

- Pick up pulsar coil included

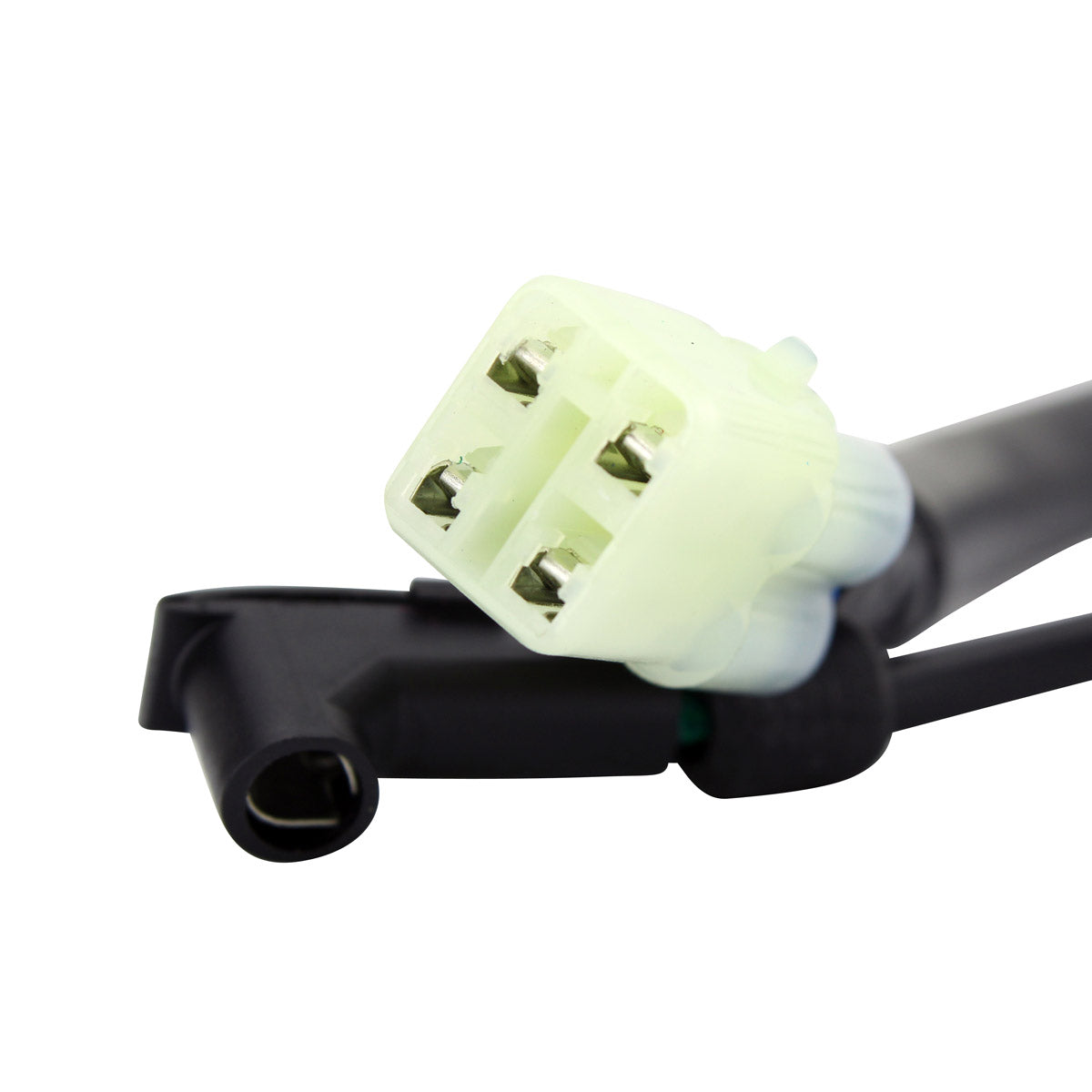

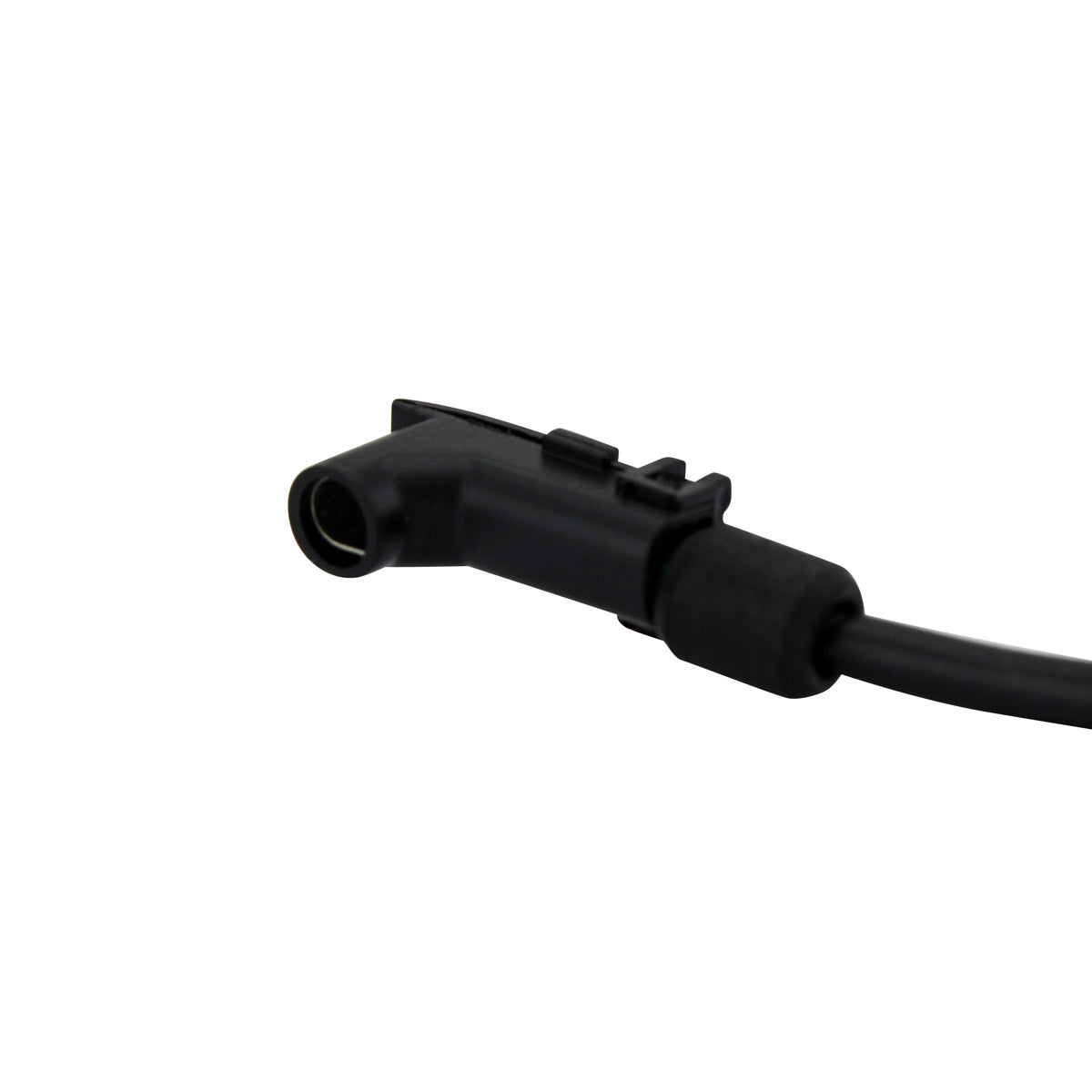

- Connectors included

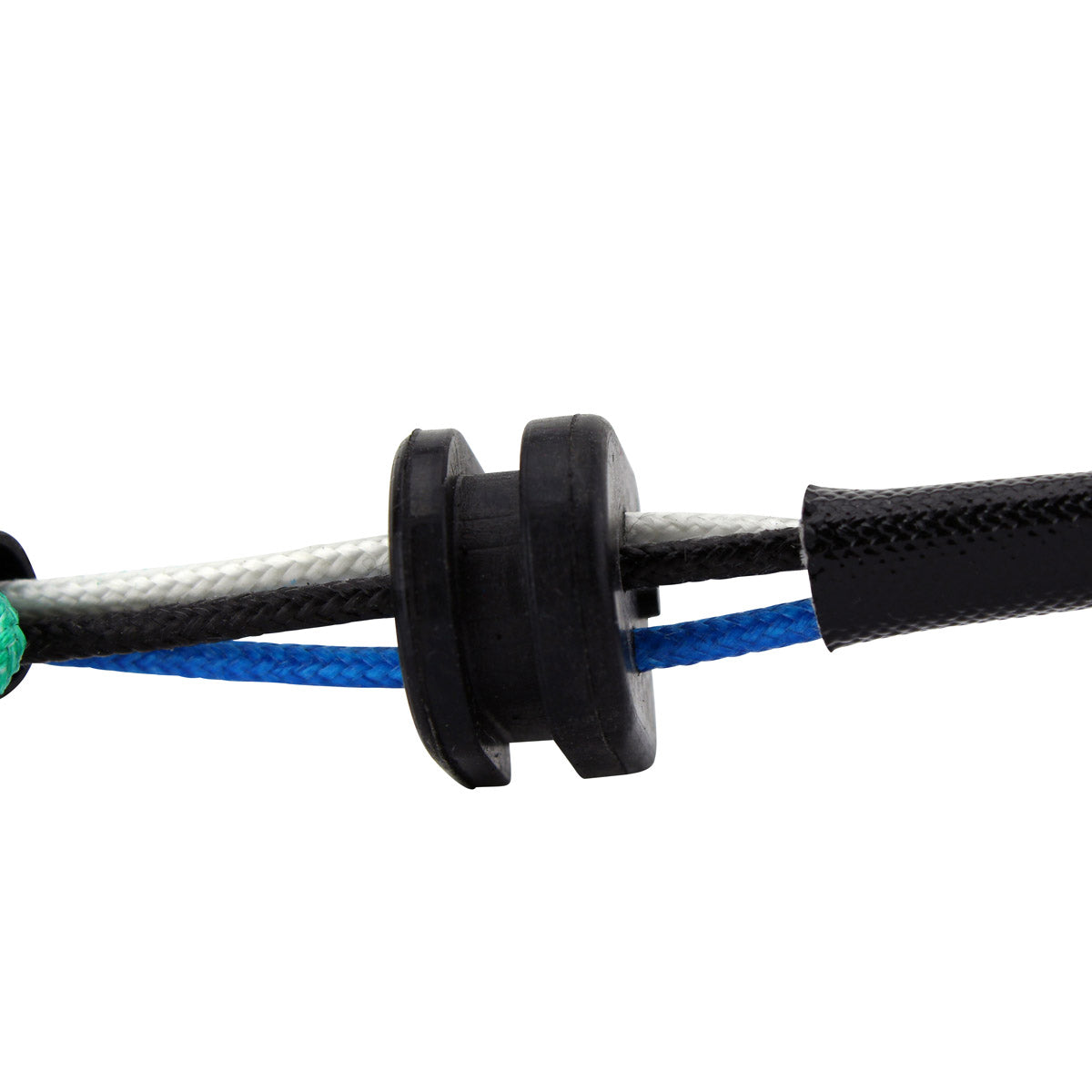

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
29 mm |
| Exterior diameter |
88 mm |
| Thickness |
10 mm |
| Wire length, stator to grommet |
110 mm |
| Wire length, grommet to plug |
475 mm and 100 mm |
| Pickup coil wire length to grommet |
145 mm |
| Number of wires |
4 |
| Number of plugs |
2 |
| Number of holes |
2 |
| Number of poles |
8 |
| Alternator resistance, white to ground |
1.1 ohms +/- 20% |
| Pickup resistance, blue/yellow to ground |
119 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki KLX 140 |
2008-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0066 |
Kawasaki |
| 21003-0116 |
Kawasaki |
| RMS010-107080 |
Manufacturer SKU |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for your original unit, plug-and-play and a direct fit. Connectors and the rubber grommet are supplied fitted, so nothing on the loom has to be cut or spliced.
What is included in the box?
The stator with the pick up pulsar coil, the connectors and the rubber grommet. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
With the engine off and the plugs disconnected, measure from the white wire to ground - a healthy unit reads approximately 1.1 ohms +/- 20%. Then measure the pickup from blue/yellow to ground, which should read approximately 119 ohms +/- 20%. An open circuit or a reading well outside those tolerances confirms the unit has failed.
Which OEM number should my original unit carry?
Either 21003-0066 or 21003-0116. Both Kawasaki numbers are covered by this single replacement across the KLX 140 range, so check the number stamped on your original stator against the cross reference table above before ordering.
