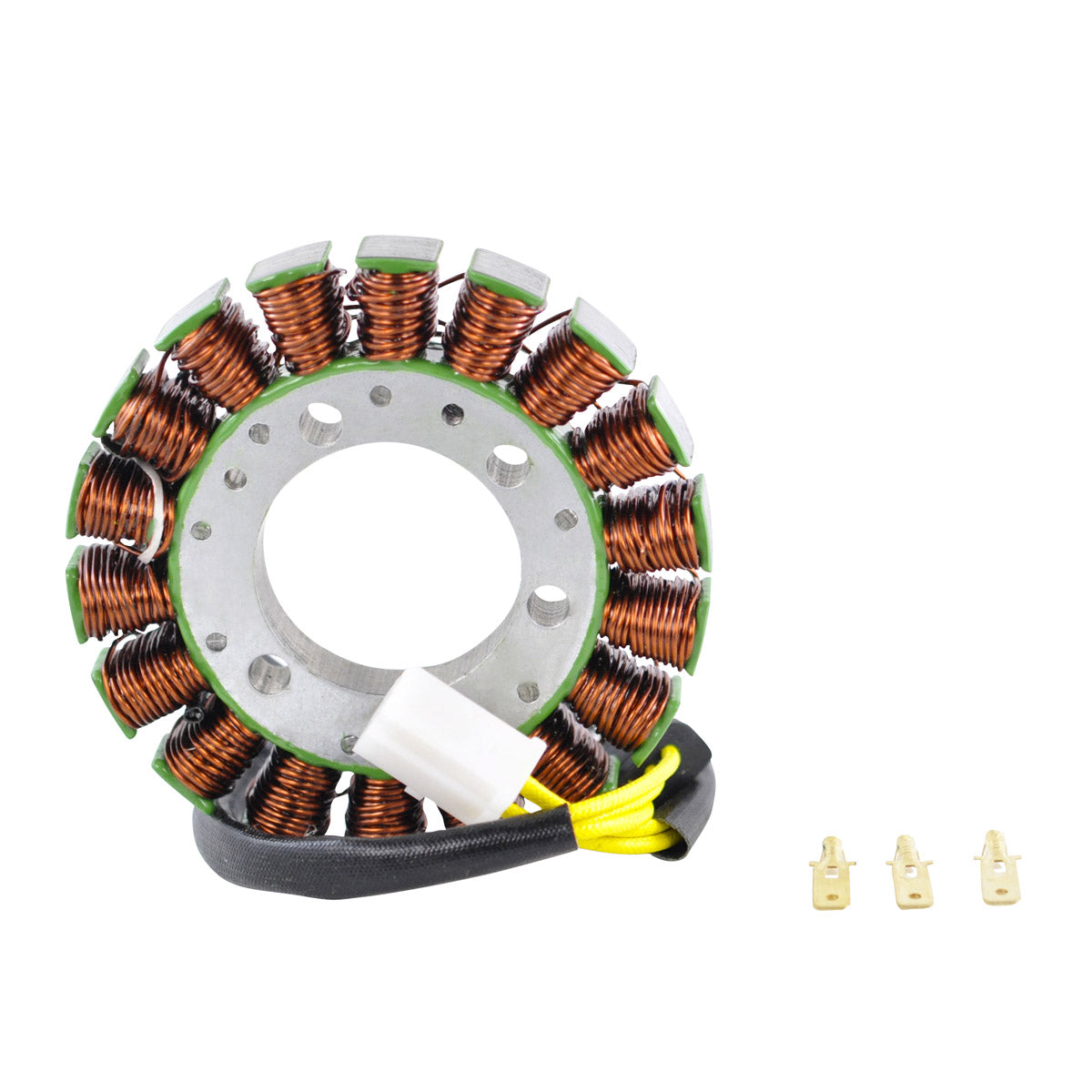

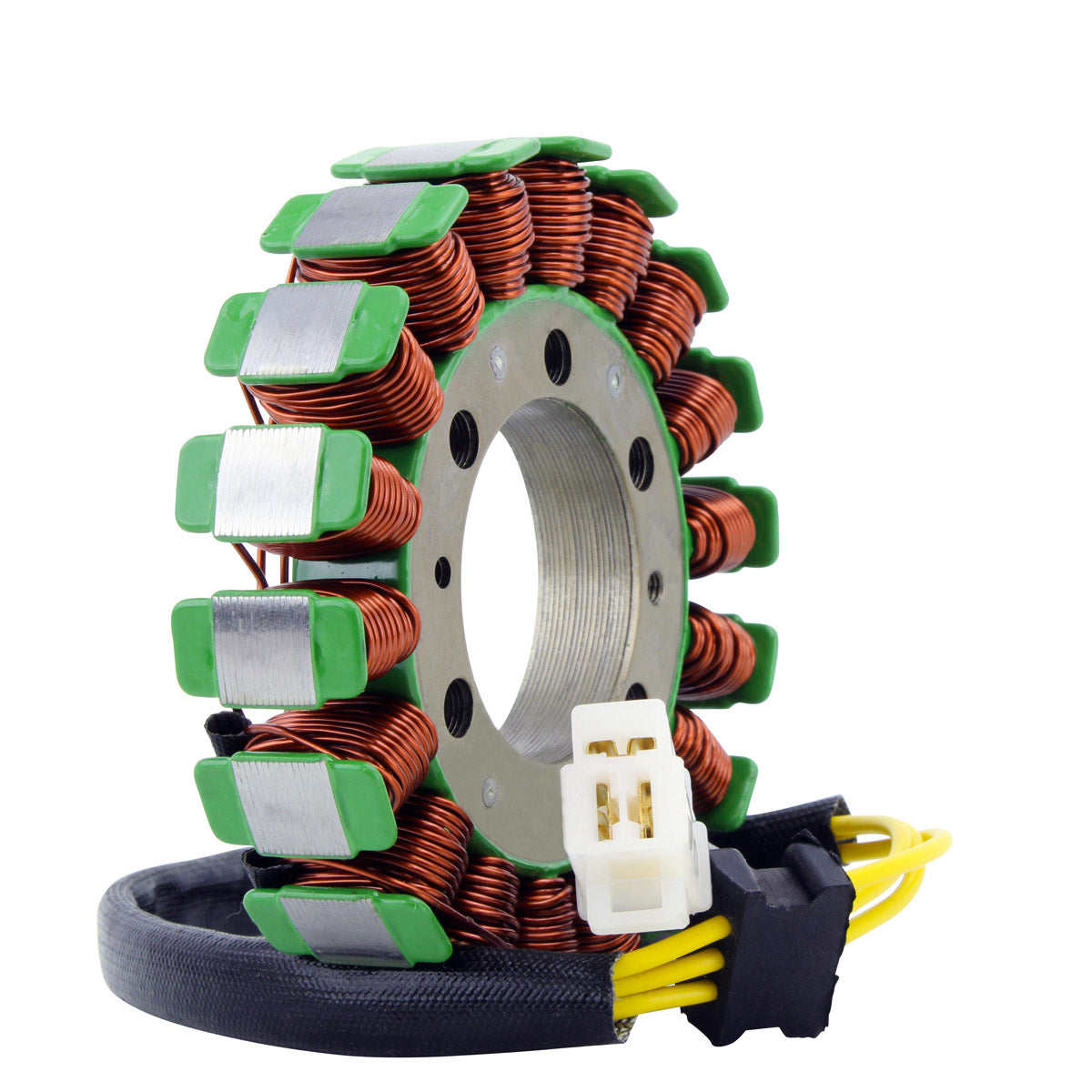

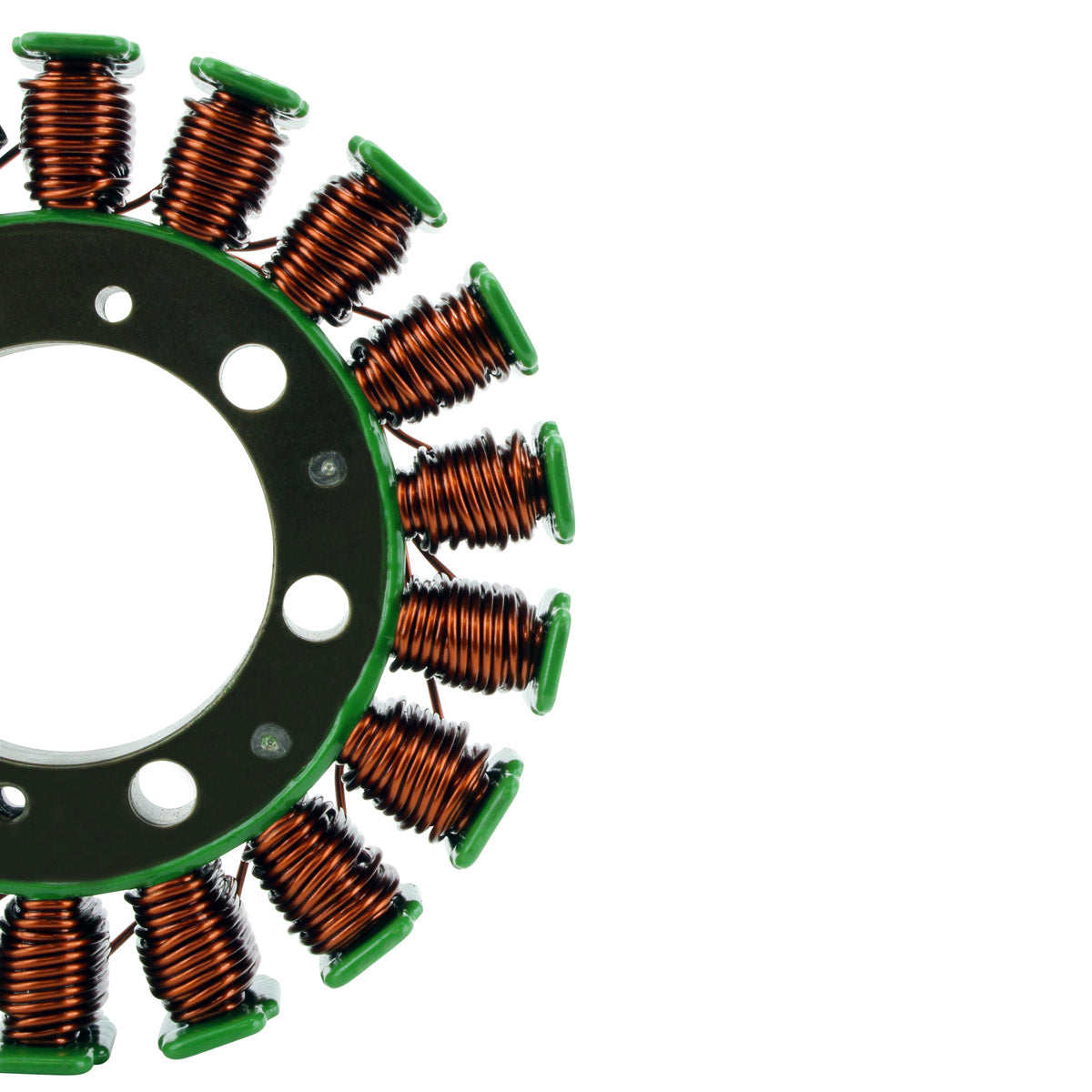

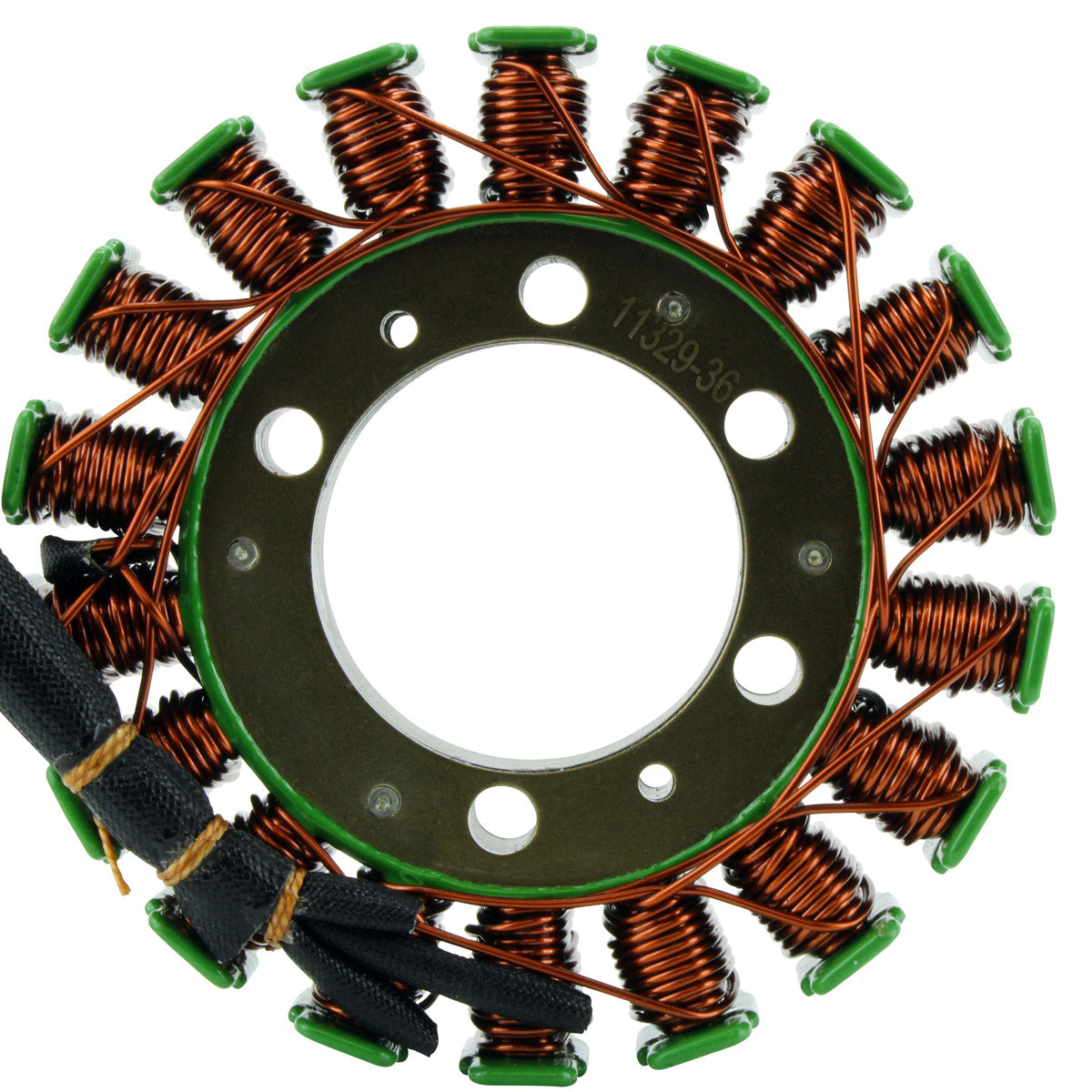

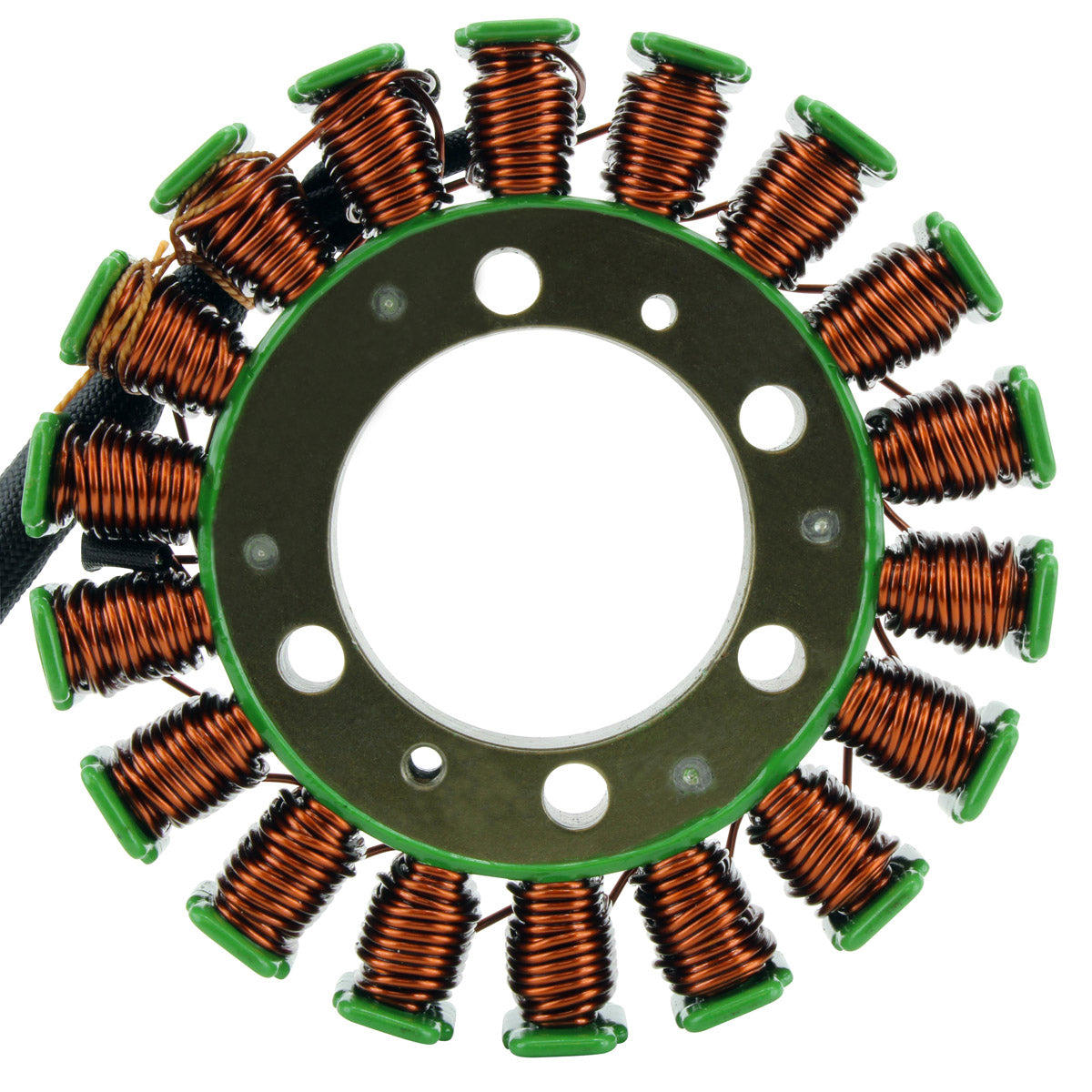

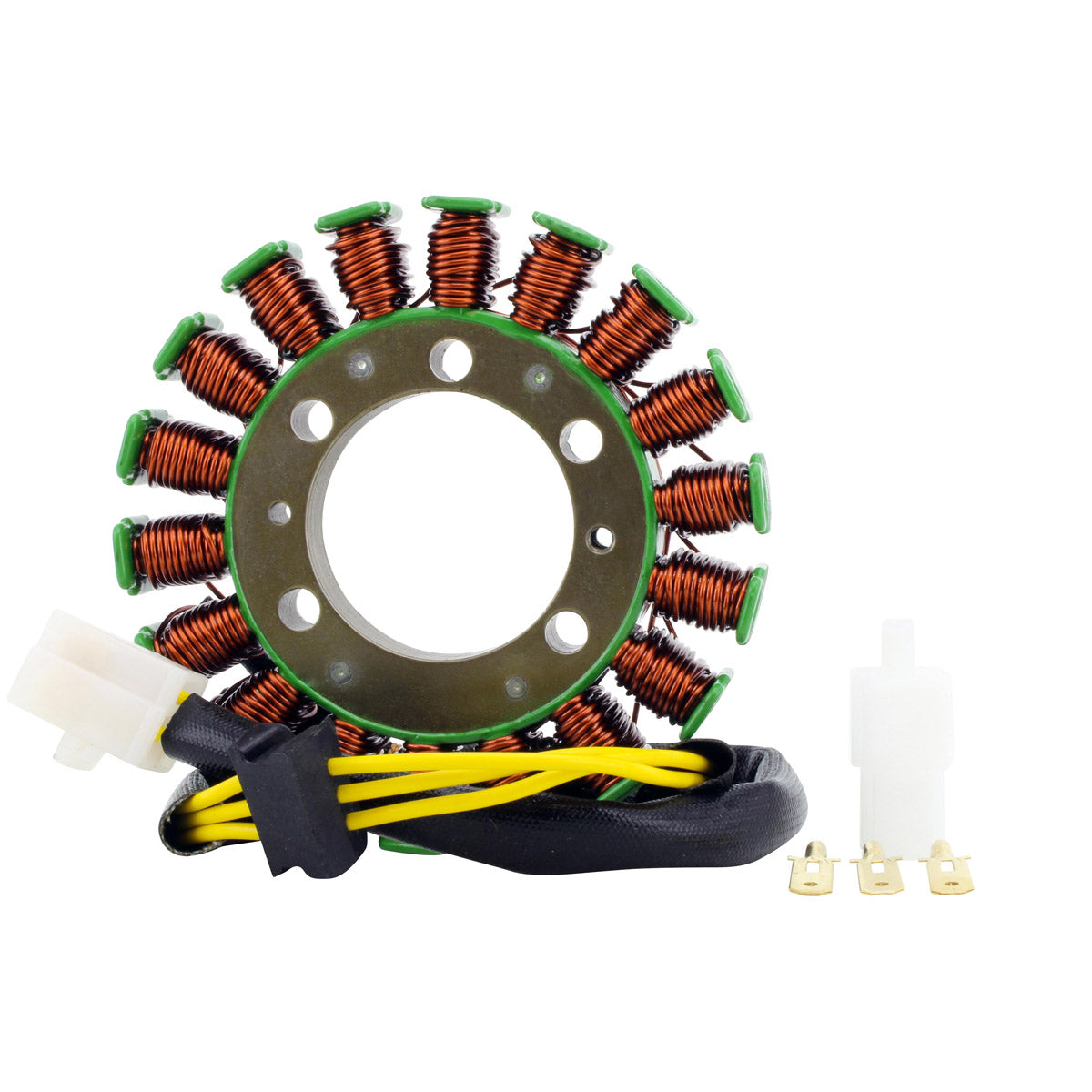

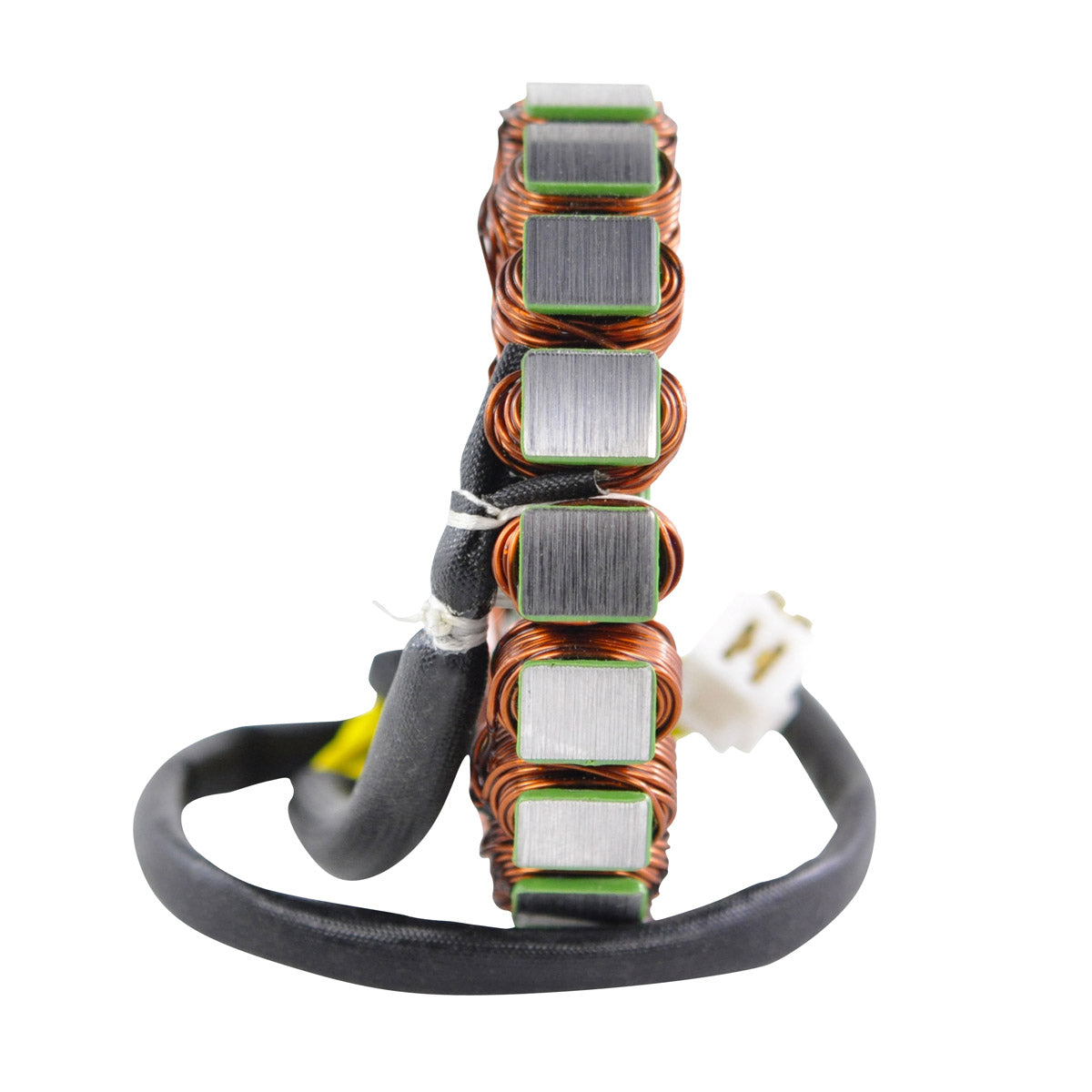

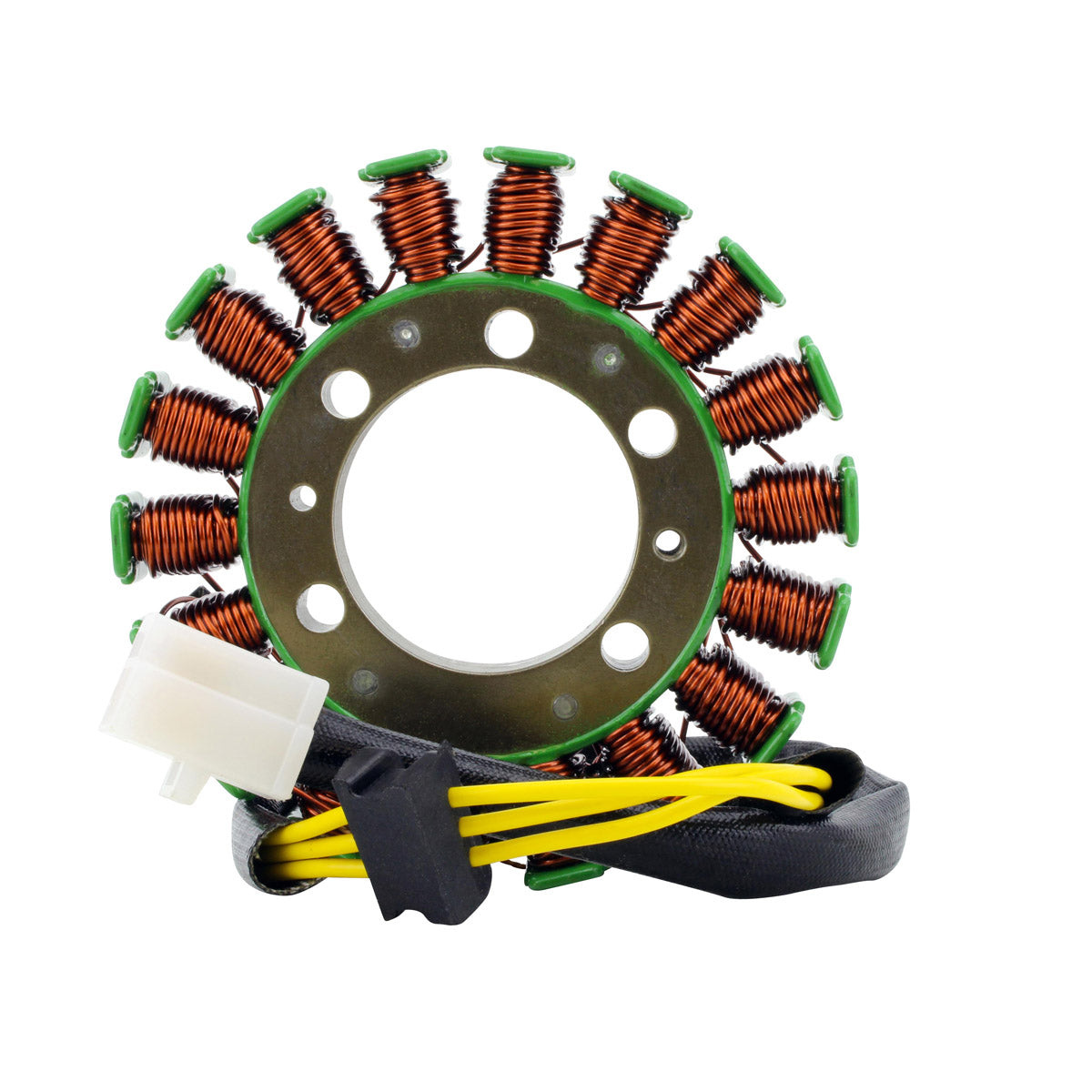

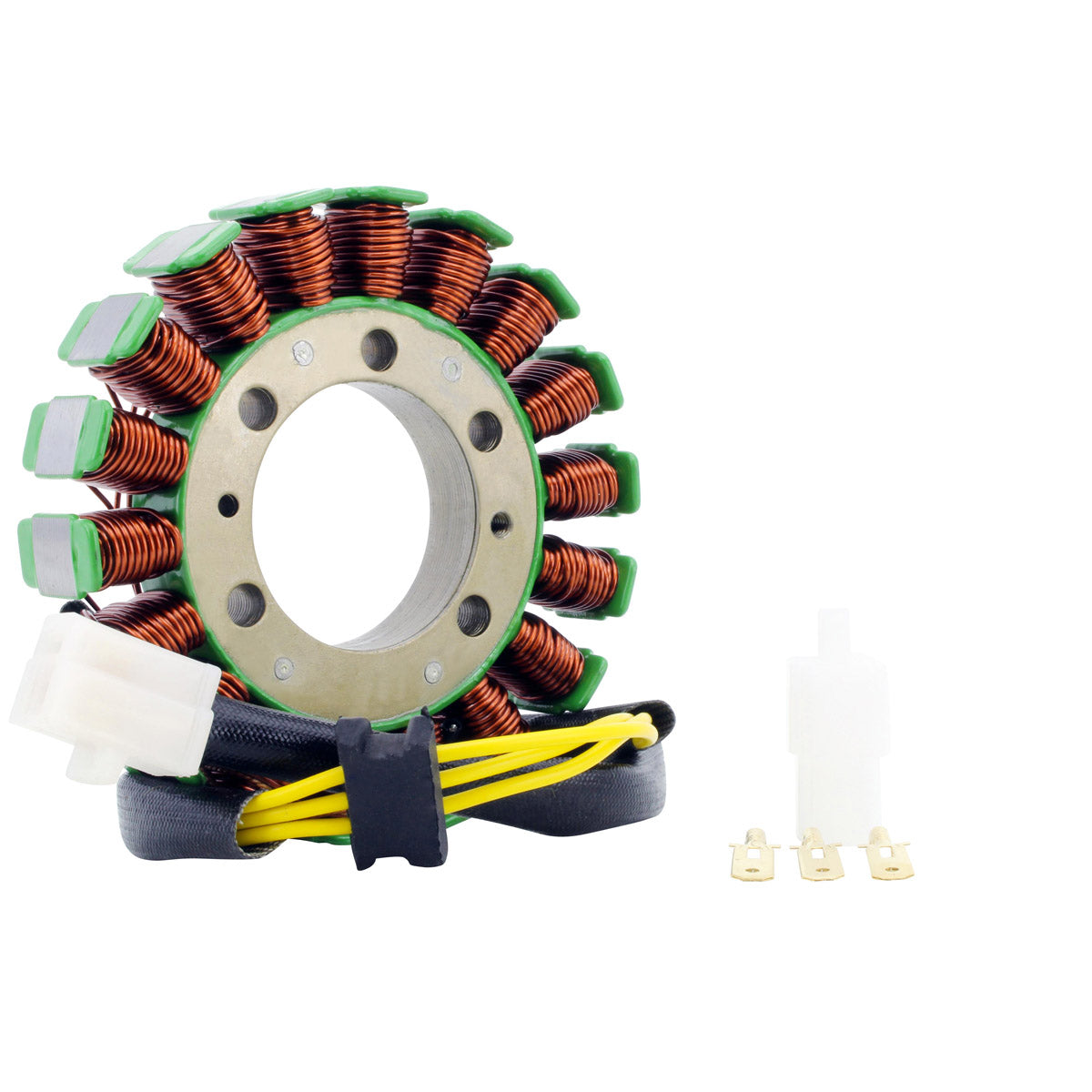

This is a brand new aftermarket generator stator for the Kawasaki ER-6N, Ninja 650 R and Versys 650 built between 2006 and 2014. All three share the same parallel twin platform and the same charging winding, so a single part covers the range. It is a direct replacement for the original unit and restores full charging output on a machine that is running its battery down.
Installation is plug-and-play and a direct fit, with the connector and rubber grommet included so nothing has to be cut or spliced. The stator is built on the highest grade lamination materials and wound with the highest grade copper, resistant to 200 degrees Celsius. The opposite connector for the main harness side is also supplied, since that half is frequently melted or corroded by the time the stator itself gives up. All products shipped are tested.
Key Features
- Brand new aftermarket generator stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius

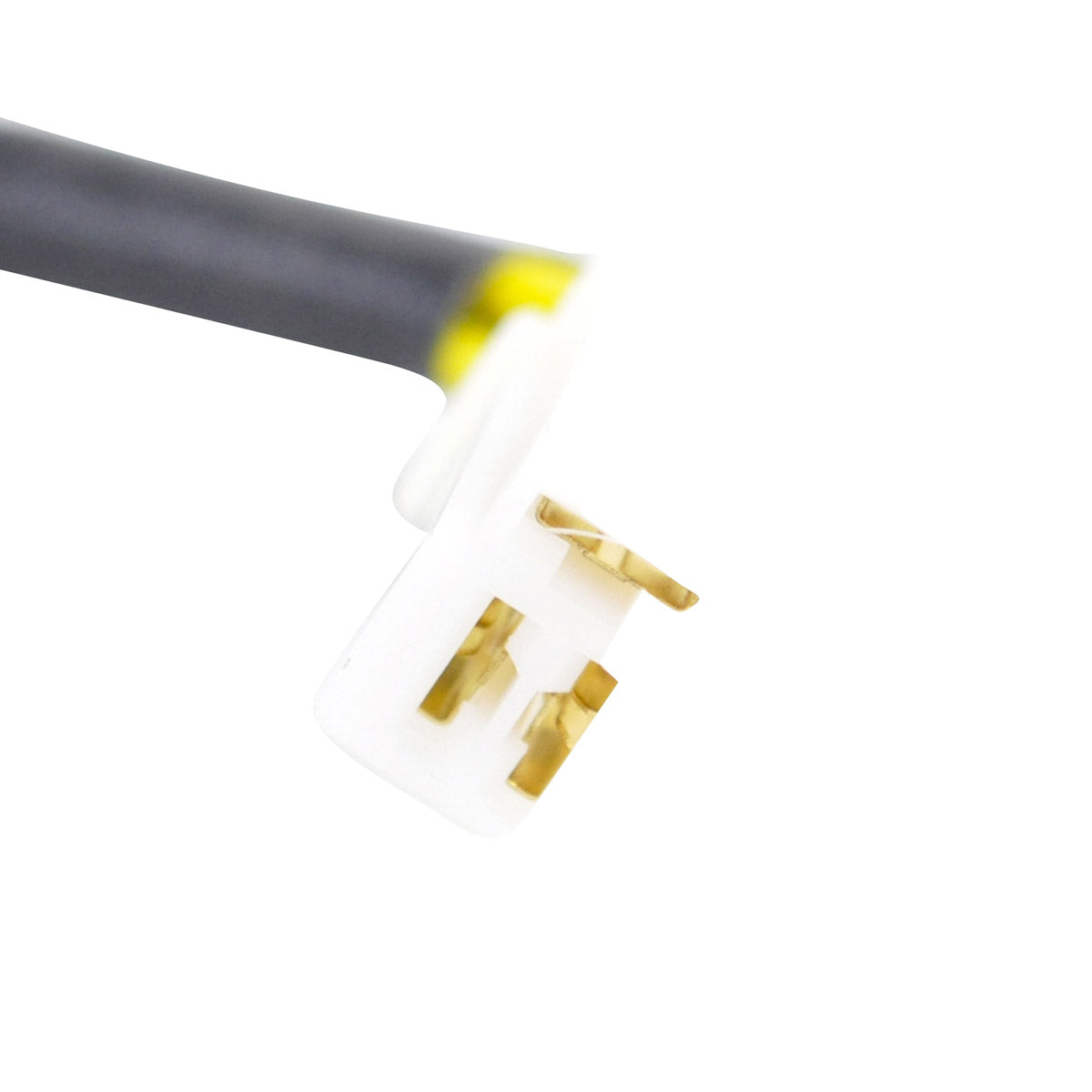

- Connector and rubber grommet included

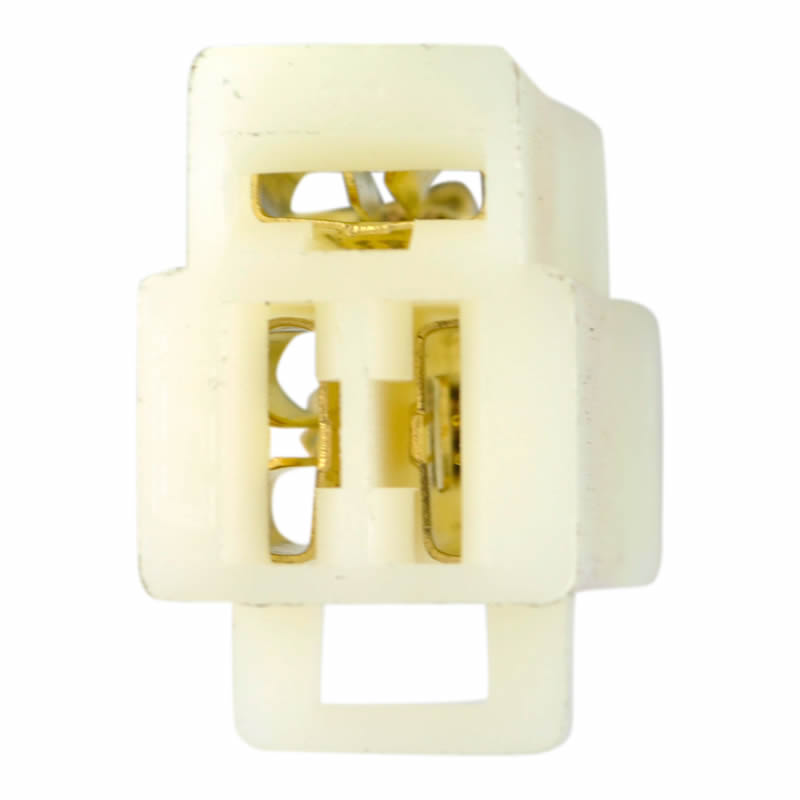

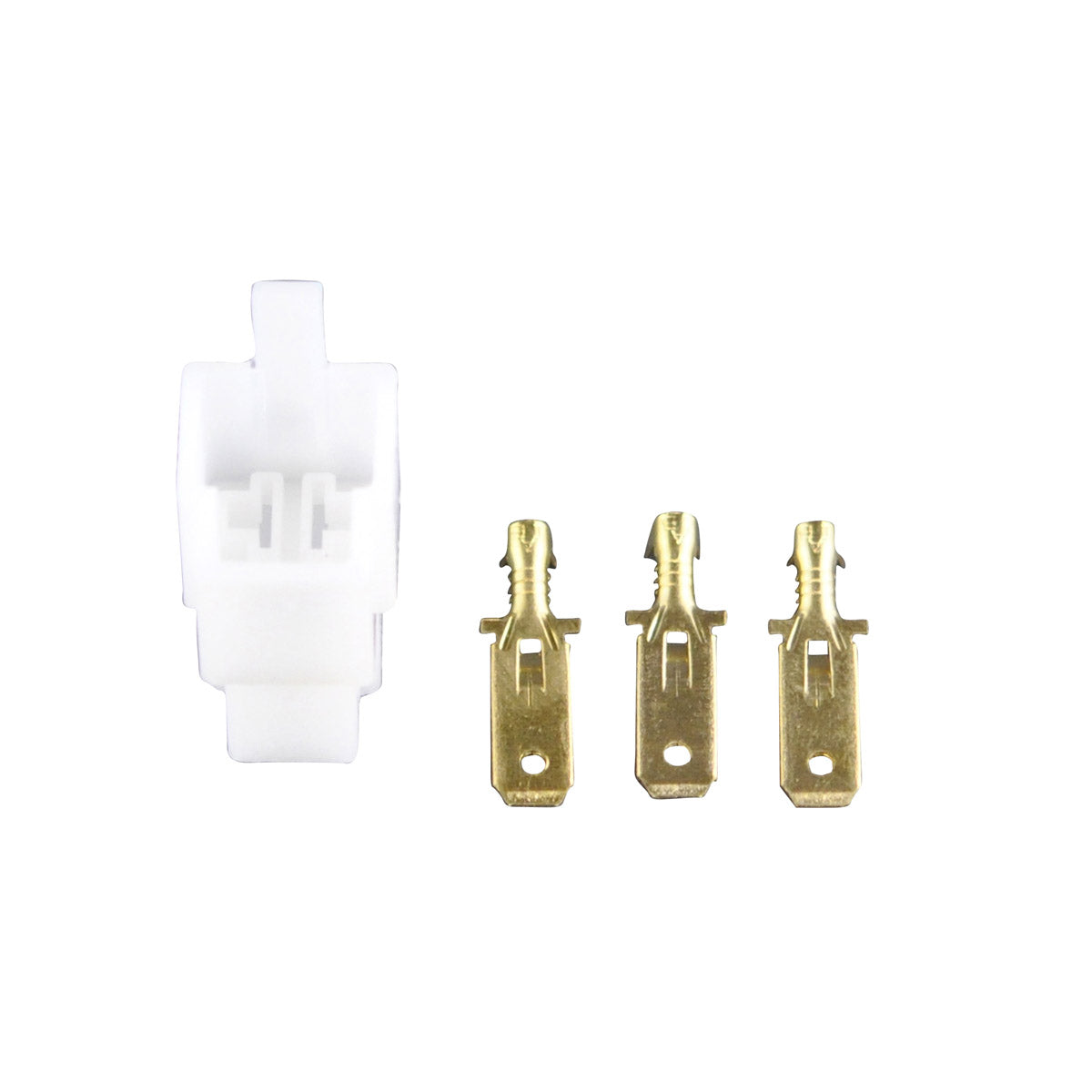

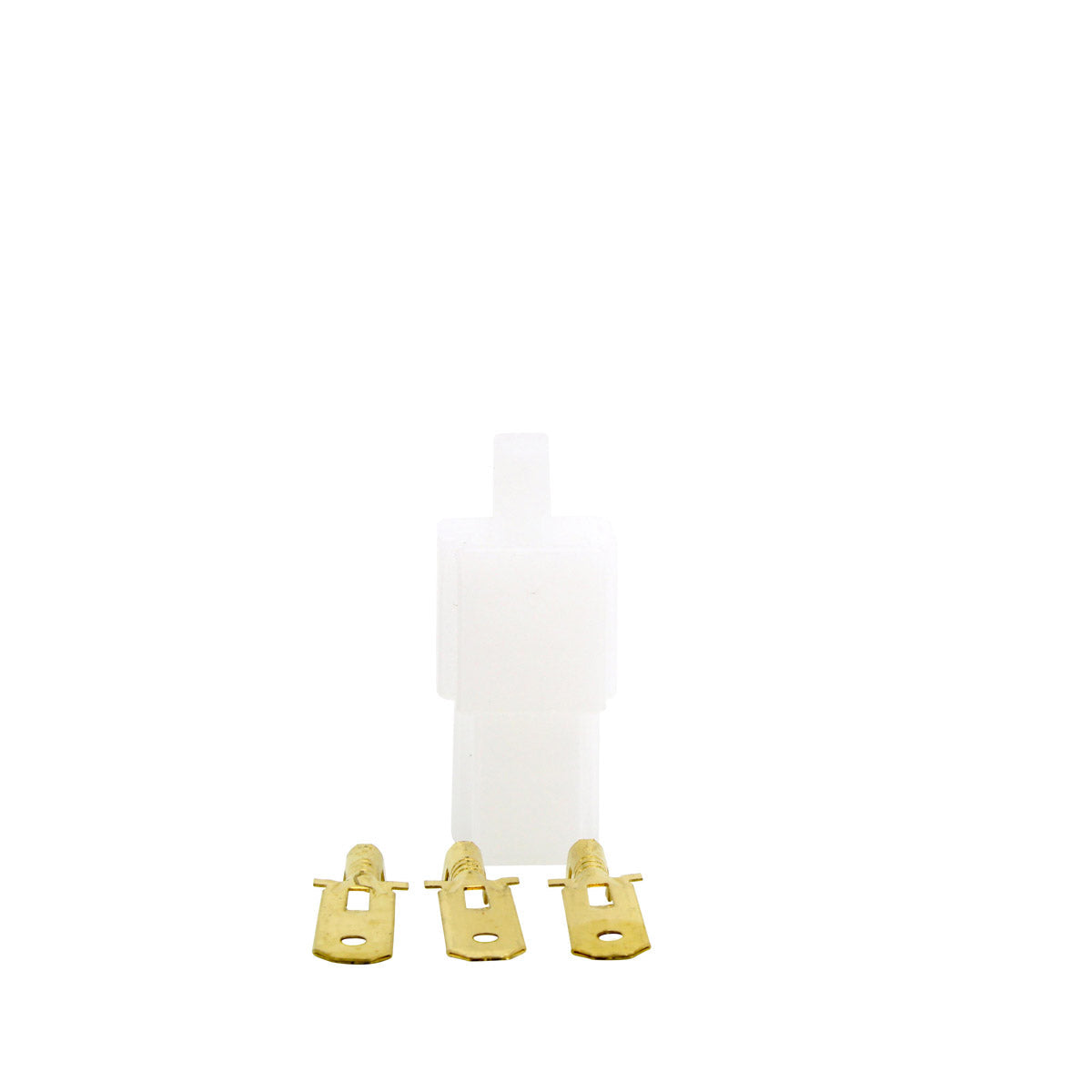

- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior Diameter |
41 mm |
| Exterior Diameter |
102 mm |
| Thickness |
14 mm |
| Wire Length (stator to grommet) |
65 mm |
| Wire Length (grommet to plug) |
300 mm |
| Number of Wires |
3 |
| Number of Plugs |
1 |
| Number of Pins |
3 |
| Alternator Wire-to-Wire Resistance |
0.4 ohms +/-20% |
| Winding Temperature Rating |
200 degrees Celsius |
| Manufacturer Part Number |
RM01041 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki ER-6N |
2006-2014 |
| Kawasaki Ninja 650 R |
2006-2014 |
| Kawasaki Versys 650 |
2006-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0041 |
Kawasaki |
| 21003-0042 |
Kawasaki |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit and installs plug-and-play. The connector and rubber grommet are included, so the loom does not need to be cut or spliced.
What is included in the box?

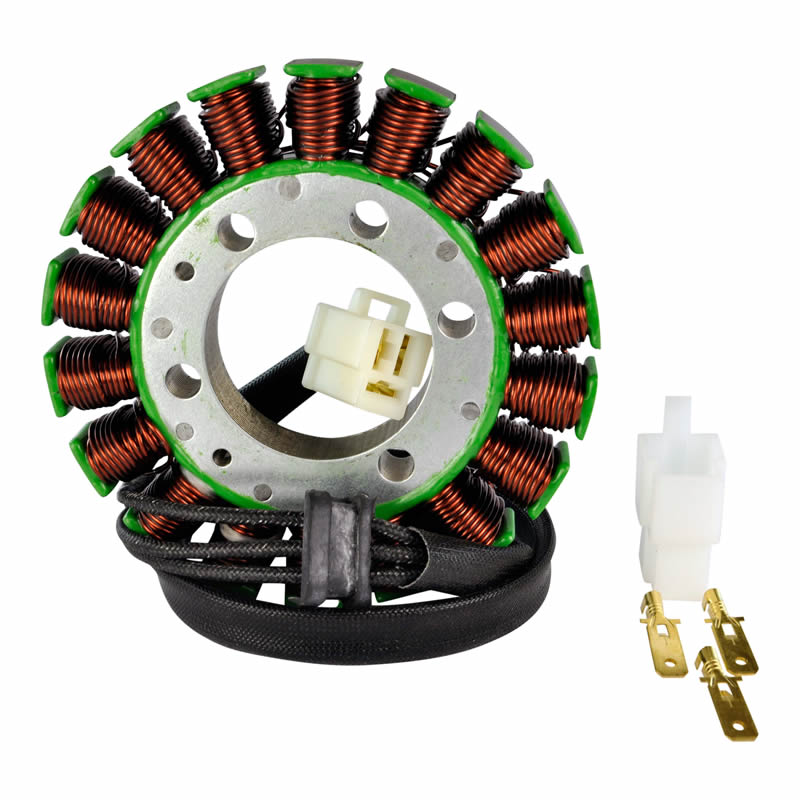

The generator stator unit, the connector, the rubber grommet and the opposite connector for the main harness side.
How can I tell my old stator has failed?
Unplug the stator and measure between each pair of the three wires with a multimeter. Each pair should read about 0.4 ohms, within plus or minus 20 percent. Then check each wire against the engine case, which should read open circuit. A pair reading open, or any wire with continuity to ground, confirms a failed winding. A battery going flat on a ride, or a charging voltage that stays at battery level with the engine running, are the common symptoms.
Does one stator really fit the ER-6N, Ninja 650 R and Versys 650?
Yes. All three models use the same 649 cc parallel twin engine and the same charging winding, which cross-references to Kawasaki 21003-0041 and 21003-0042. Check the number on your original unit against those before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
