Generator Stator for Kawasaki ZX-12R ZX12R 2000-2001
Kawasaki ZX-12R Ninja - 2000 and 2001 - Part RM01087 - Replaces 21003-1351 and 21003-0010

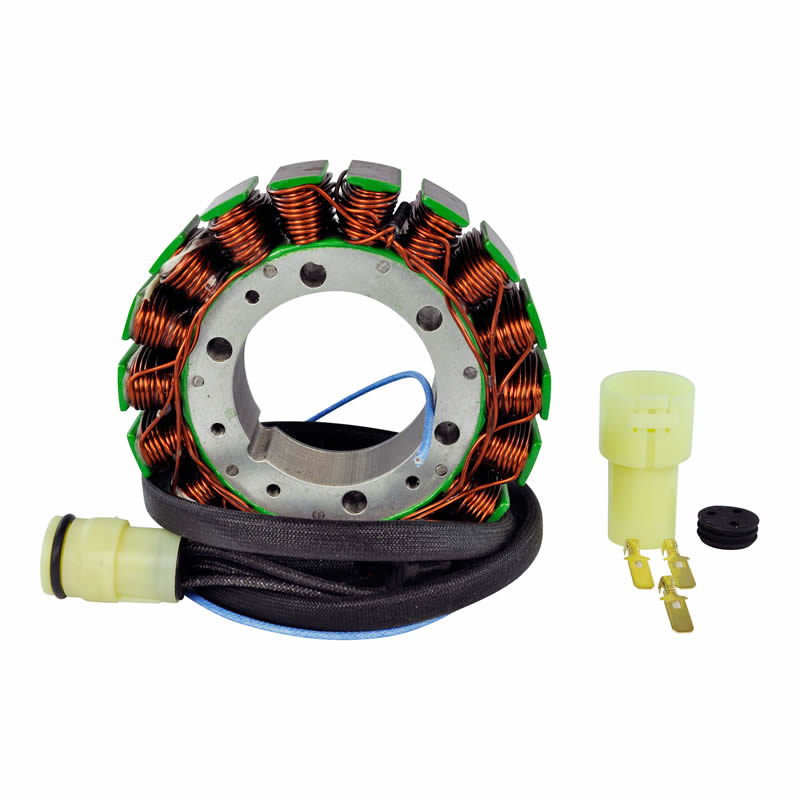

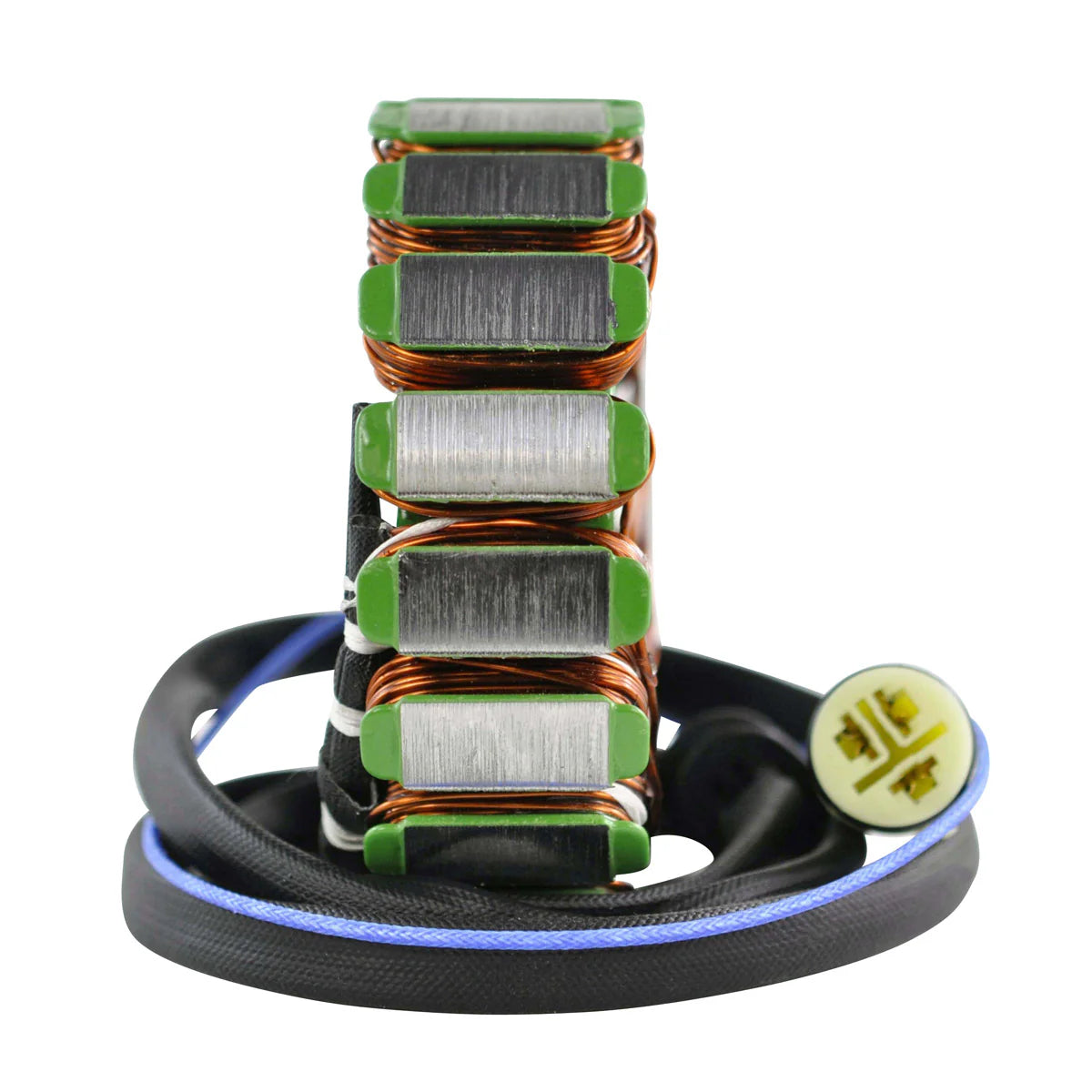

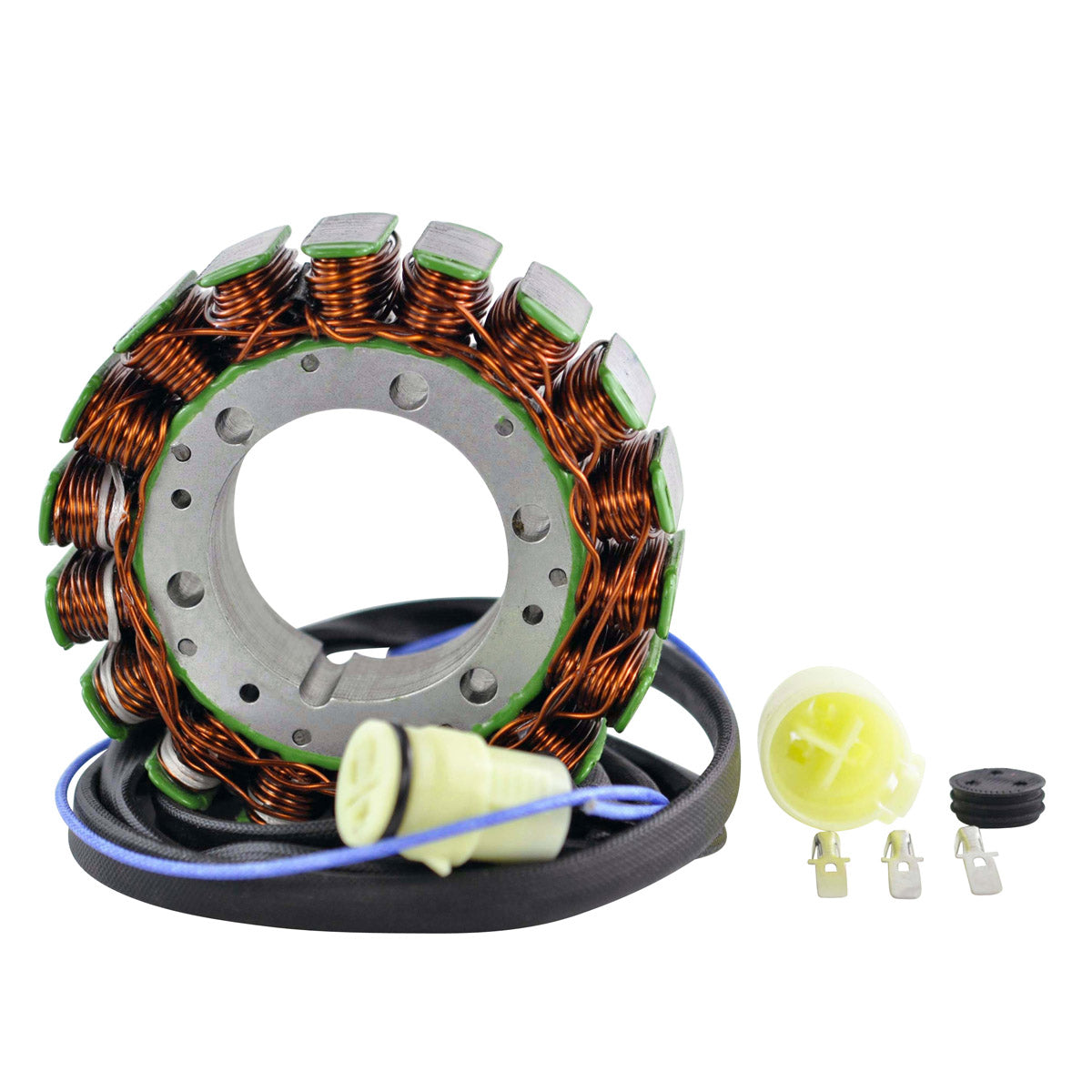

This is a brand new aftermarket generator stator, built as a direct replacement for the original charging unit on the 2000 and 2001 Kawasaki ZX-12R. It is a plug-and-play, direct fit part, so the original loom stays untouched and the repair is a straightforward stator cover job rather than an electrical rebuild. Every unit is tested before it is shipped, and the connector and rubber grommet needed to complete the installation are supplied in the box.
The stator uses the highest grade lamination materials and the highest grade copper windings, rated to withstand 200 degrees Celsius. Heat is what kills stators on a machine with this much electrical demand, so the temperature rating is the single most important difference between this unit and a worn original. The four wires terminate in one three-pin plug, and the brown alternator legs read approximately 0.4 ohms to one another, which gives a clear pass or fail test with an ordinary multimeter.
Typical symptoms that lead owners here are a battery that goes flat on a long run, headlights that dim and brighten with engine speed, charging voltage that never climbs above battery voltage at the terminals, or a regulator rectifier that has already been replaced without curing the fault. In a large proportion of those cases the stator winding has broken down and the correct fix is a new unit rather than another regulator.
Key Features
- Brand new aftermarket stator, not a reconditioned core
- Direct replacement for the original Kawasaki unit
- Plug-and-play installation, direct fit
- Highest grade lamination materials
- Highest grade copper windings resistant to 200 degrees Celsius

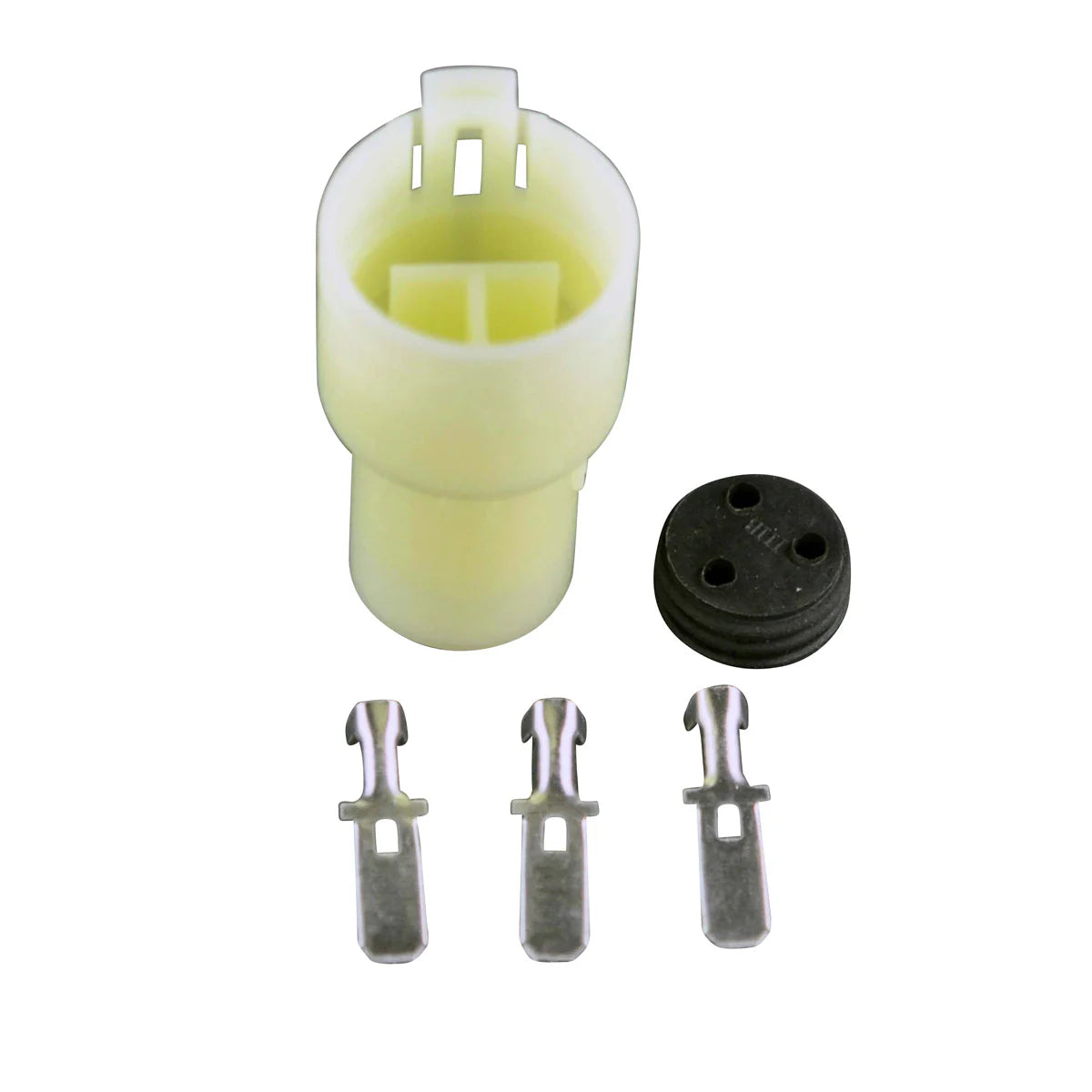

- Connector included
- Rubber grommet included

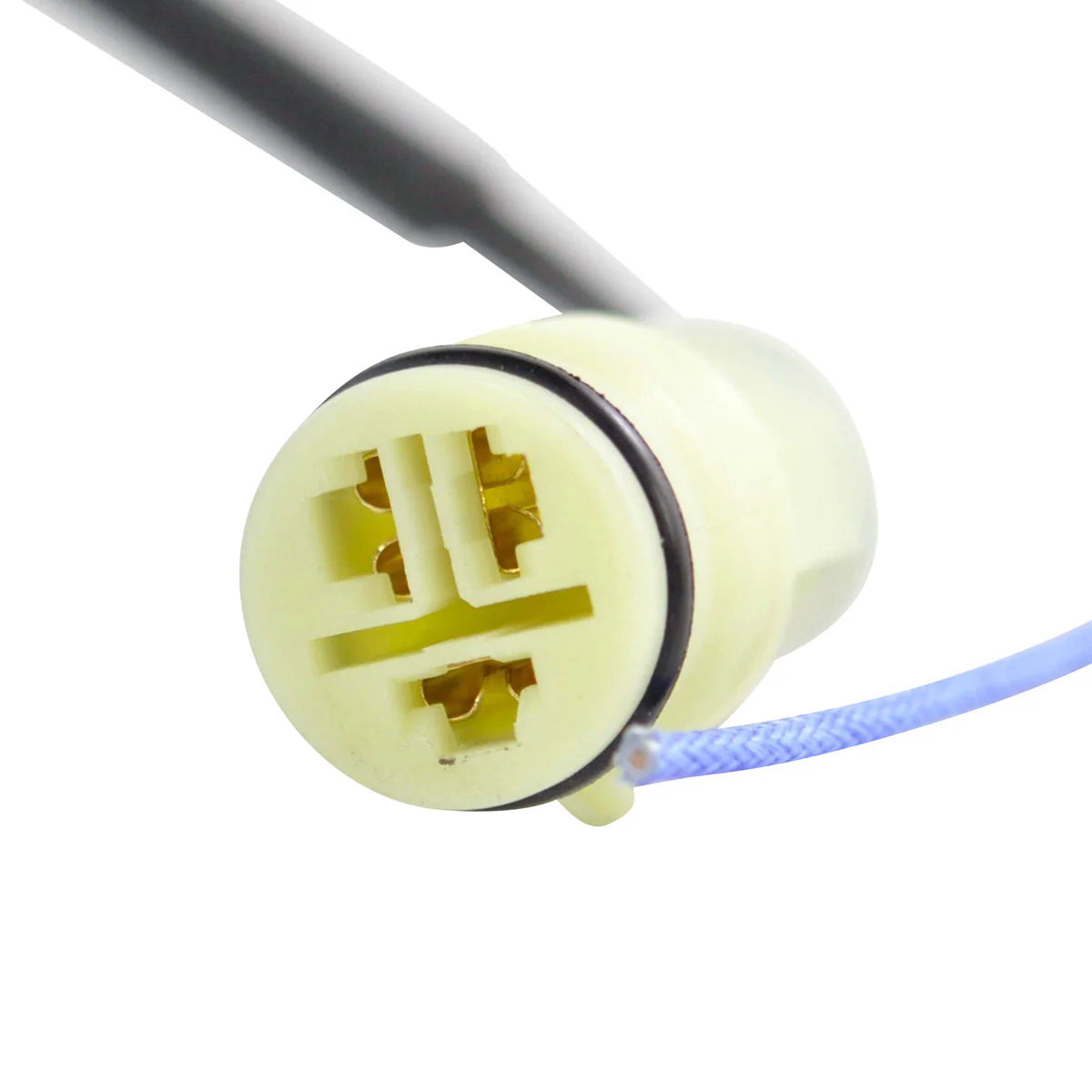

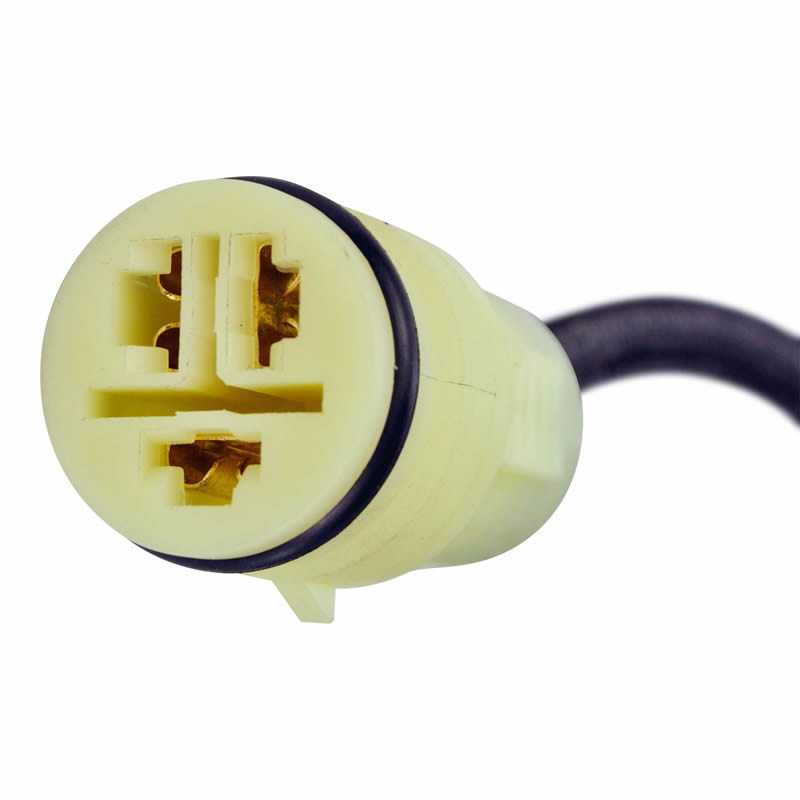

- Four wires into a single three-pin plug
- Every unit tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01087 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 27 mm |
| Wire length, stator to grommet | 95 mm |
| Wire length, grommet to plug | 940 mm |
| Number of wires | 4 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, brown to brown | 0.4 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki ZX-12R | 2000 |
| Kawasaki ZX-12R | 2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-1351 | Kawasaki |
| 21003-0010 | Kawasaki |
Frequently Asked Questions
Does fitting this require any modification?
No. It is a direct replacement for the original unit and installs plug-and-play using the standard connector. No cutting, splicing or re-routing of the loom is needed.
What comes in the box?
The generator stator, the connector and the rubber grommet.
How do I know my old stator is the problem?
Unplug the stator and measure across the brown alternator wires. A healthy winding reads about 0.4 ohms between each pair, within plus or minus 20 percent. An open circuit or a near-zero reading means a broken or shorted winding. Also check each brown wire against a bare part of the engine casing - any continuity to ground confirms the stator has failed and must be replaced.
Will this fit a 2002 or 2003 ZX-12R?
No. This part covers the 2000 and 2001 ZX-12R only. The later bikes use a physically different stator with different dimensions, so check the model year before ordering.
