Stator Lighting Coil for Yamaha YFS 200 Blaster
Yamaha YFS 200 Blaster 1988-2006 - Replaces 2XJ-81313-M0-00 - Part RM00038

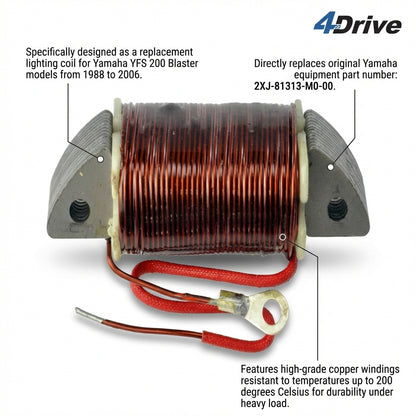

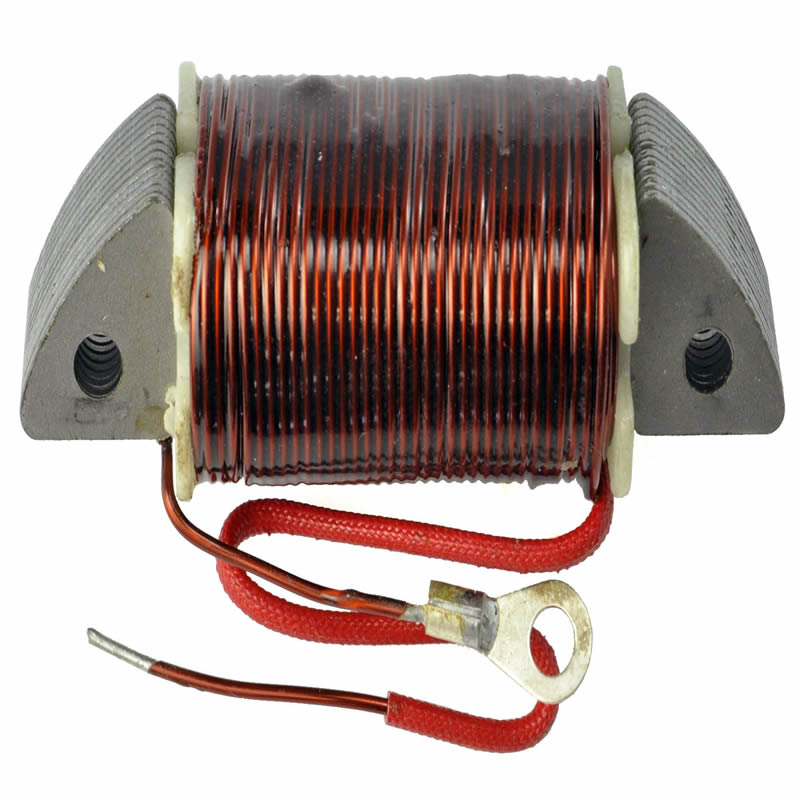

A brand new lighting coil for the Yamaha YFS 200 Blaster, supplied so that you can repair the stator you already have rather than replace the whole assembly. The lighting coil is the winding that produces the alternating current for the headlight, tail light and any accessory load, entirely separate from the ignition source coil that feeds the CDI. That separation is why a Blaster can run perfectly well while its lights stay dead, or flicker and dim as the revs rise.

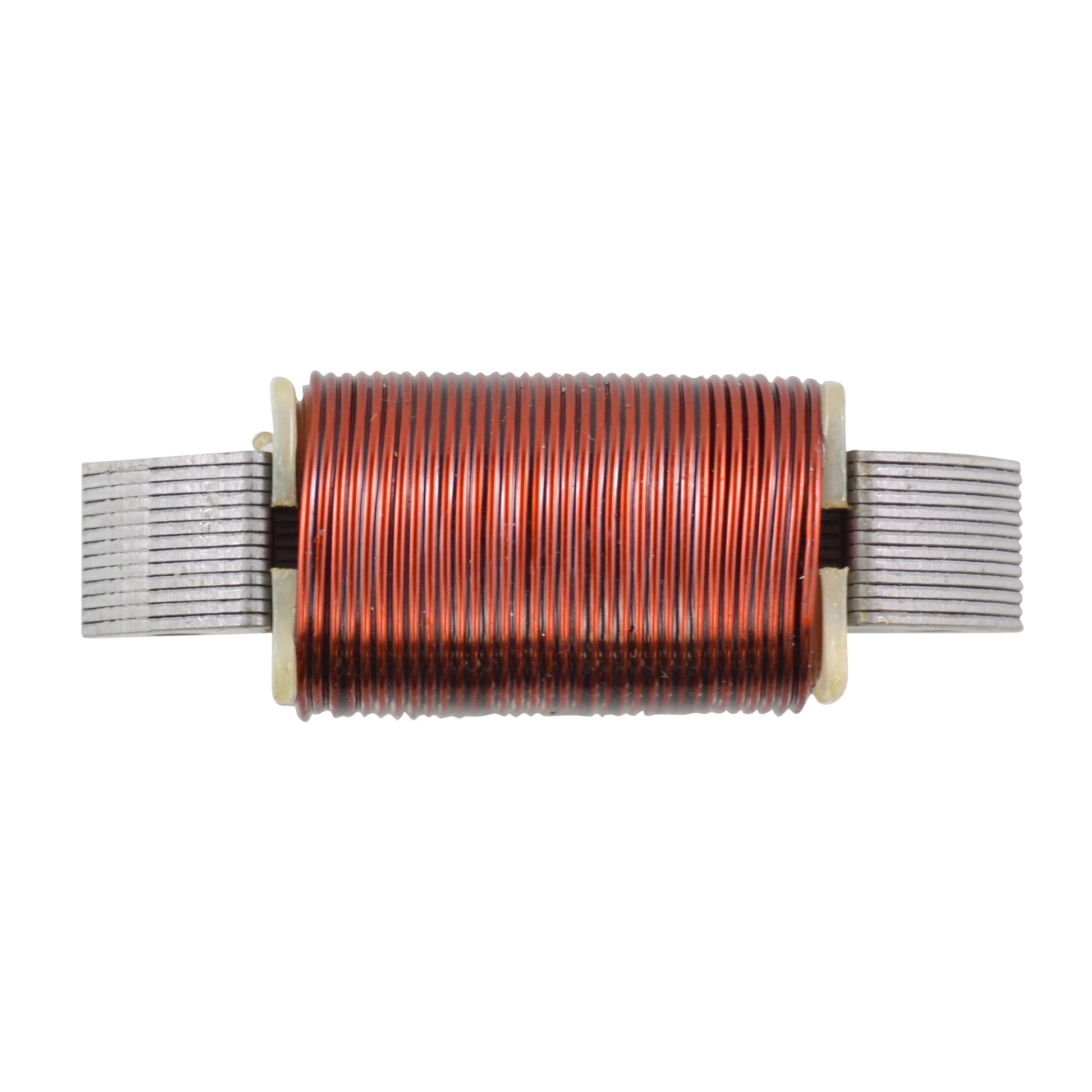

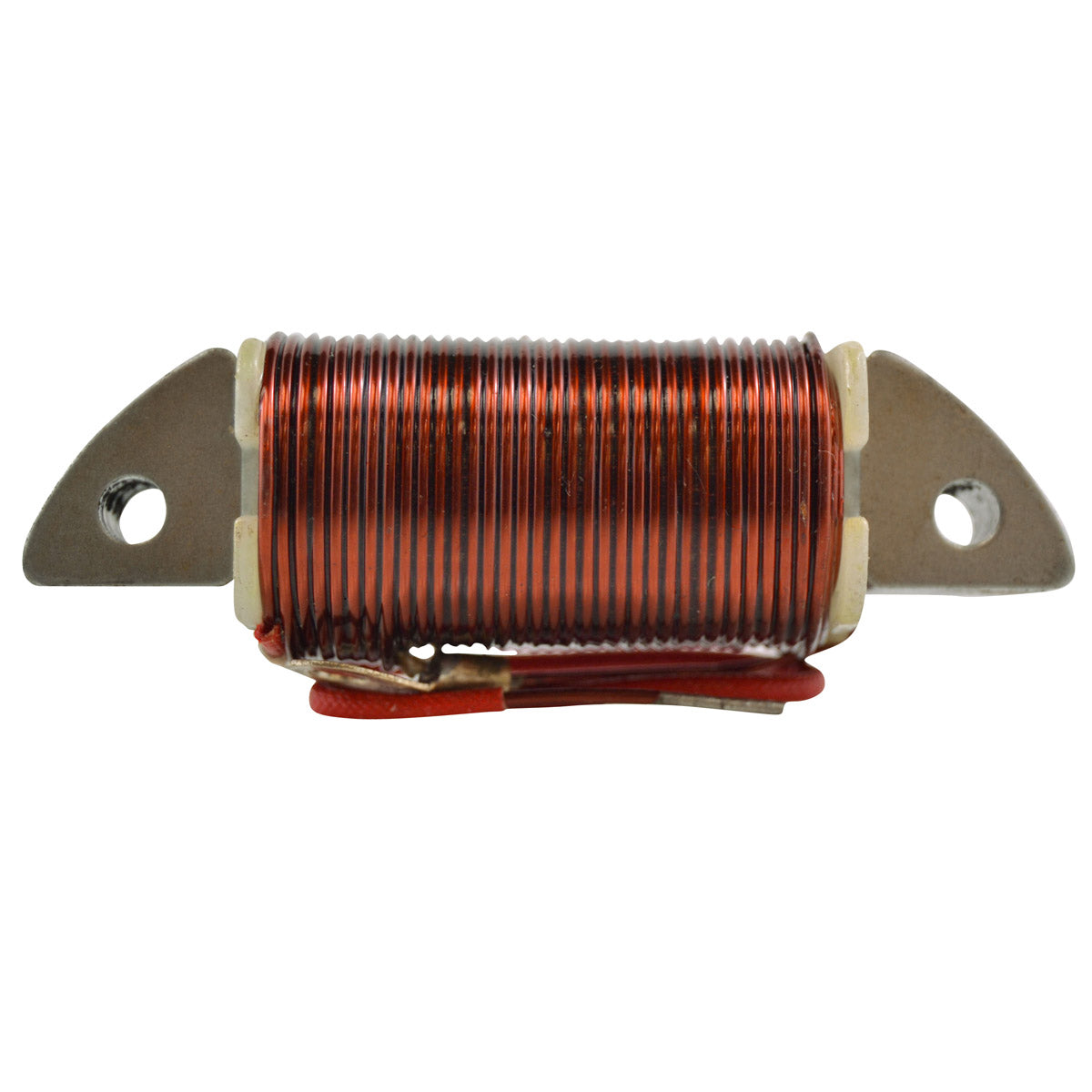

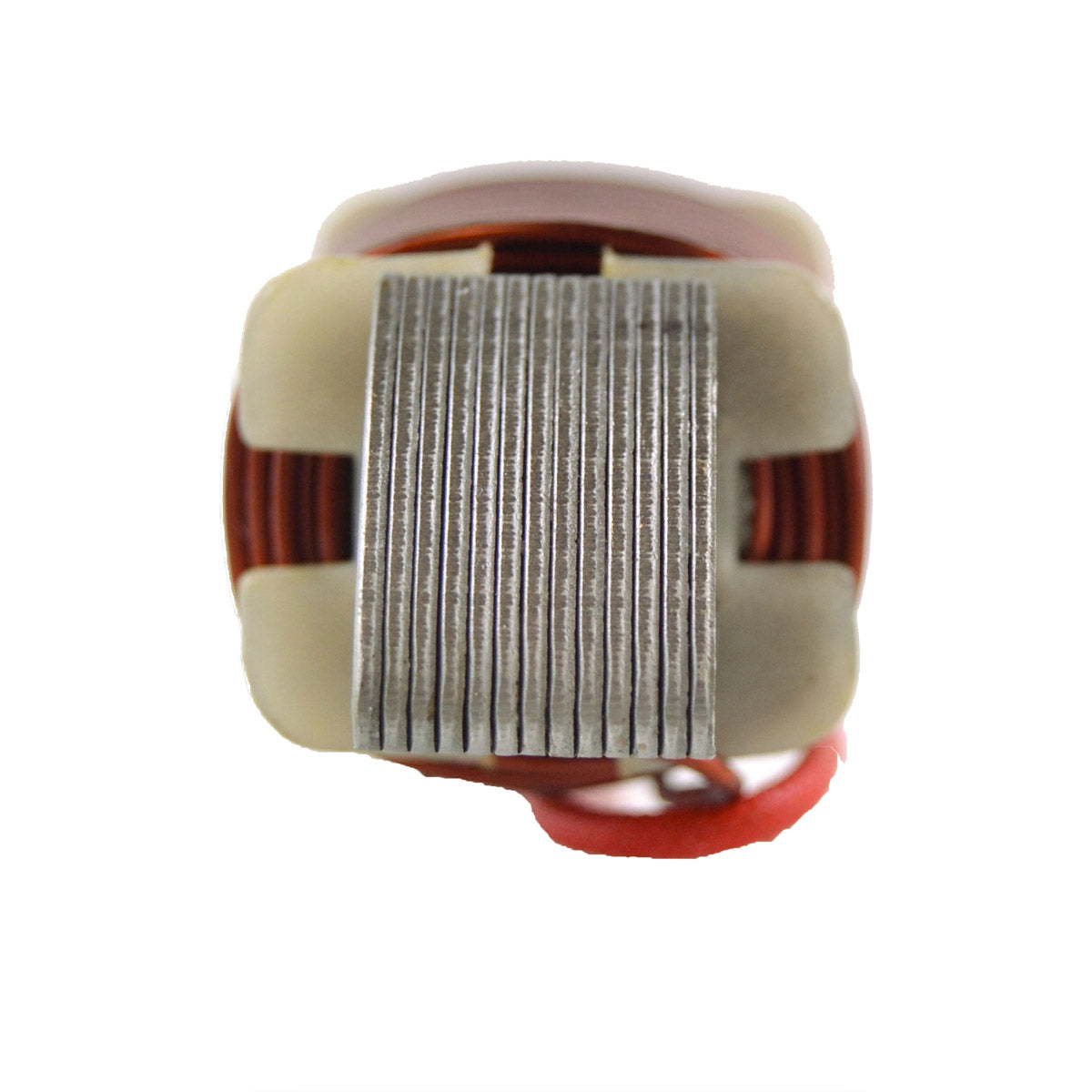

This coil is wound from the highest grade copper on the highest grade lamination materials, and the windings are rated to withstand 200 degrees Celsius. That matters on the Blaster, where the air-cooled engine puts the stator through repeated heat cycles and eventually cooks the original varnish off the windings. It measures 70 mm long by 22 mm wide by 25 mm high with 55 mm between the fixation hole centres, so it sits on the standard stator plate in the standard place, and it works with all your other original stator components. Every coil is tested before dispatch, and it is often unavailable from the OEM manufacturer, which is exactly why this repair part exists.
Key Features
- Brand new lighting coil for stator repair
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- 55 mm fixation hole centres to match the original
- Works with all other OEM stator parts
- Often unavailable from the OEM manufacturer
- Every unit tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM00038 |
| Component type | Stator lighting coil |
| Height | 25 mm |
| Length | 70 mm |
| Width | 22 mm |
| Fixation holes centre to centre | 55 mm |
| Winding temperature rating | 200 degrees Celsius |
| Condition | Brand new, tested before dispatch |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFS 200 Blaster | 1988-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2XJ-81313-M0-00 | Yamaha |
Frequently Asked Questions
Will it fit without modifying the quad?

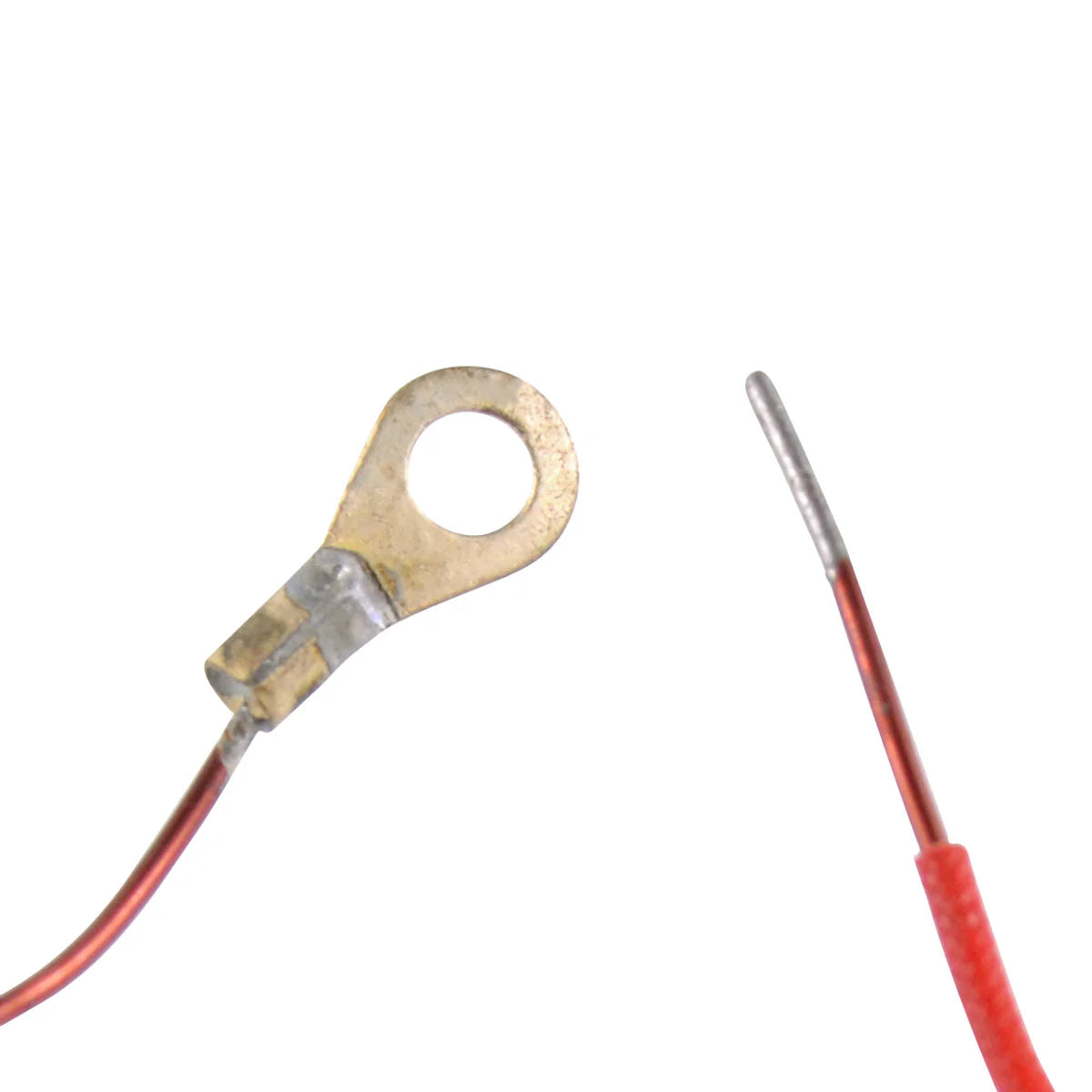

Yes. At 70 x 22 x 25 mm with 55 mm fixation hole centres it matches the original coil, so it mounts on the standard Blaster stator plate in the standard position. It is a repair coil rather than a plug-in assembly, so its leads are soldered into your existing harness. Nothing on the machine needs to be drilled, cut or re-routed.
What is included?
You receive the lighting coil itself. The stator plate, flywheel and gaskets are not supplied, as this is a repair part for the stator already on your machine. You will need your own soldering iron and resin core solder to fit it.
How do I know my lighting coil has failed?
The tell-tale sign is an engine that starts and runs normally while the lights do not, since the ignition runs from a separate winding. Dim or flickering lights that do not brighten with revs, lights that work cold and die once the engine is hot, or a complete absence of AC output at the lighting wire all point to the lighting coil. Check the bulbs, earths and the regulator first, because those are cheaper faults with the same symptoms.
Does replacing this coil affect the ignition?
No. The lighting coil is electrically independent of the ignition source coil and the pick-up coil, so replacing it restores the lighting circuit without altering how the engine runs or how the CDI is timed.
