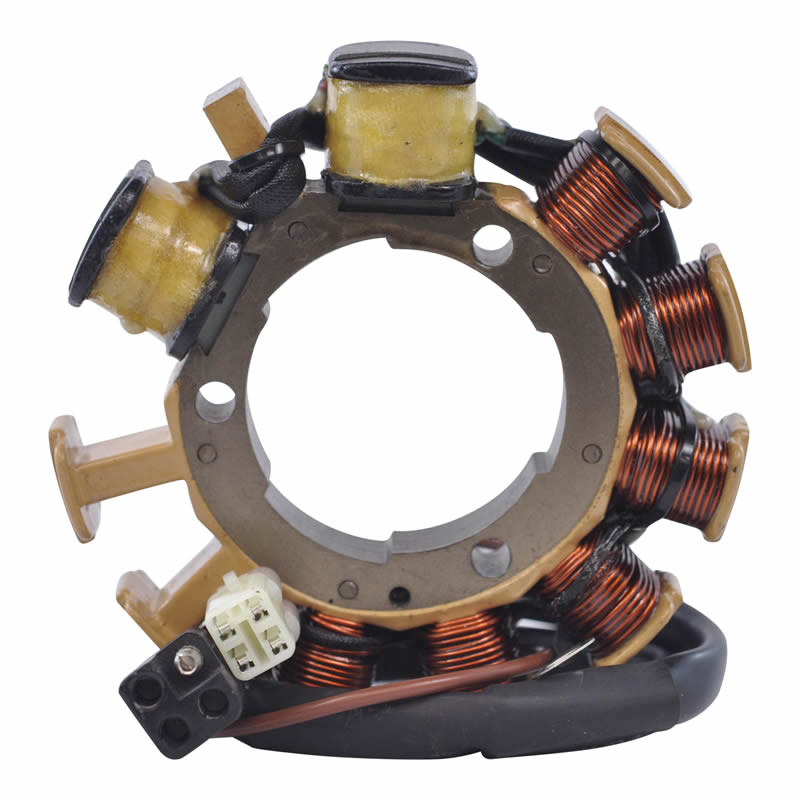

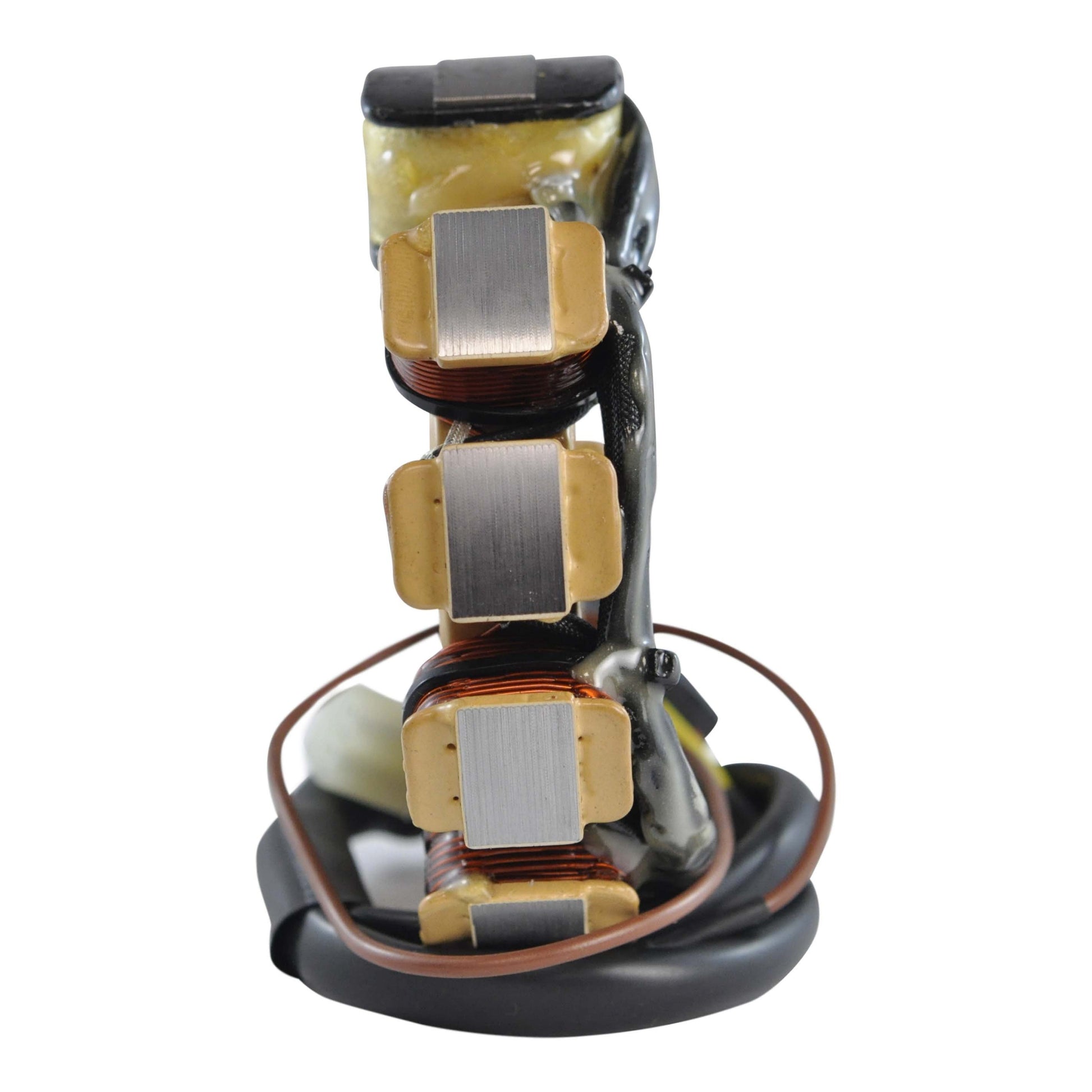

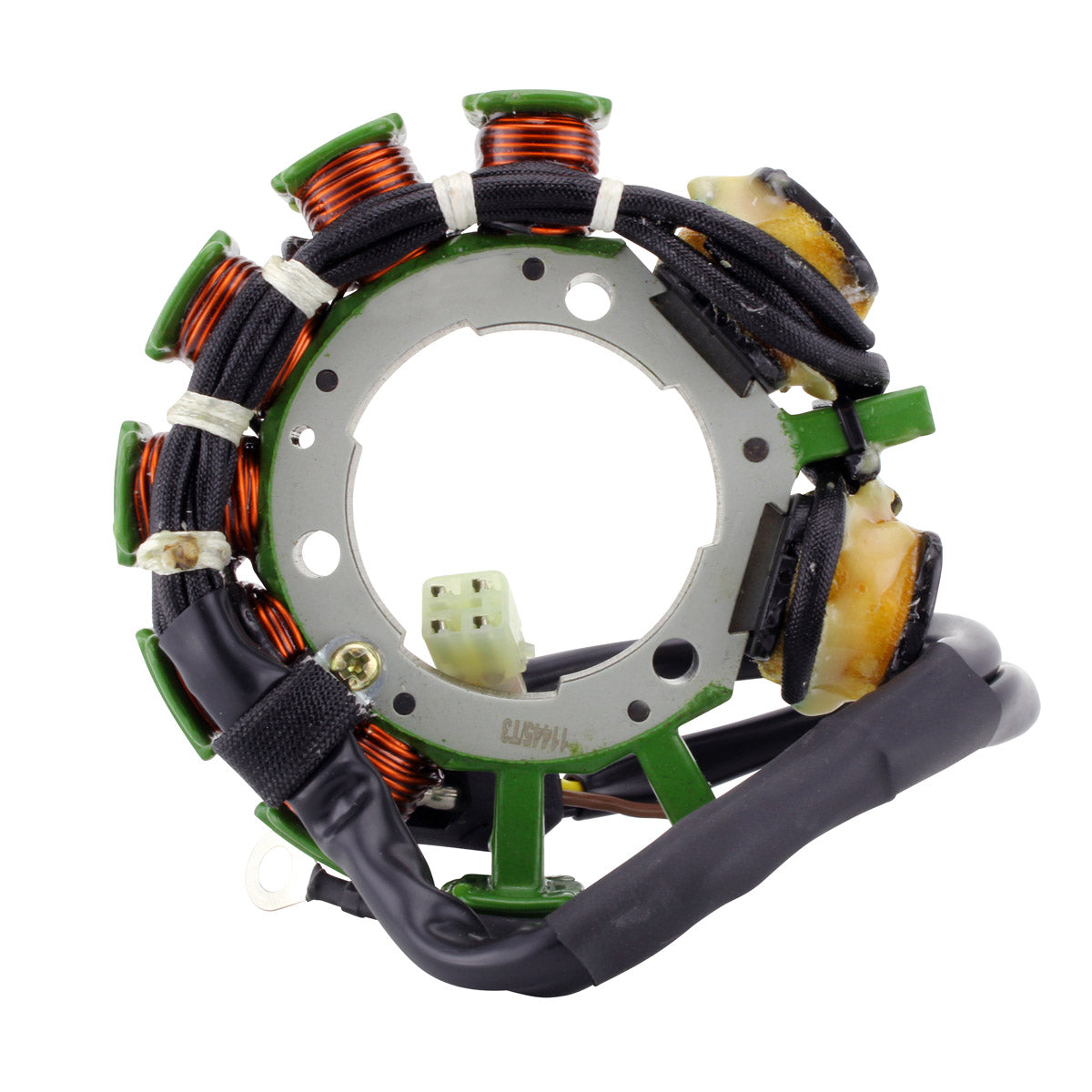

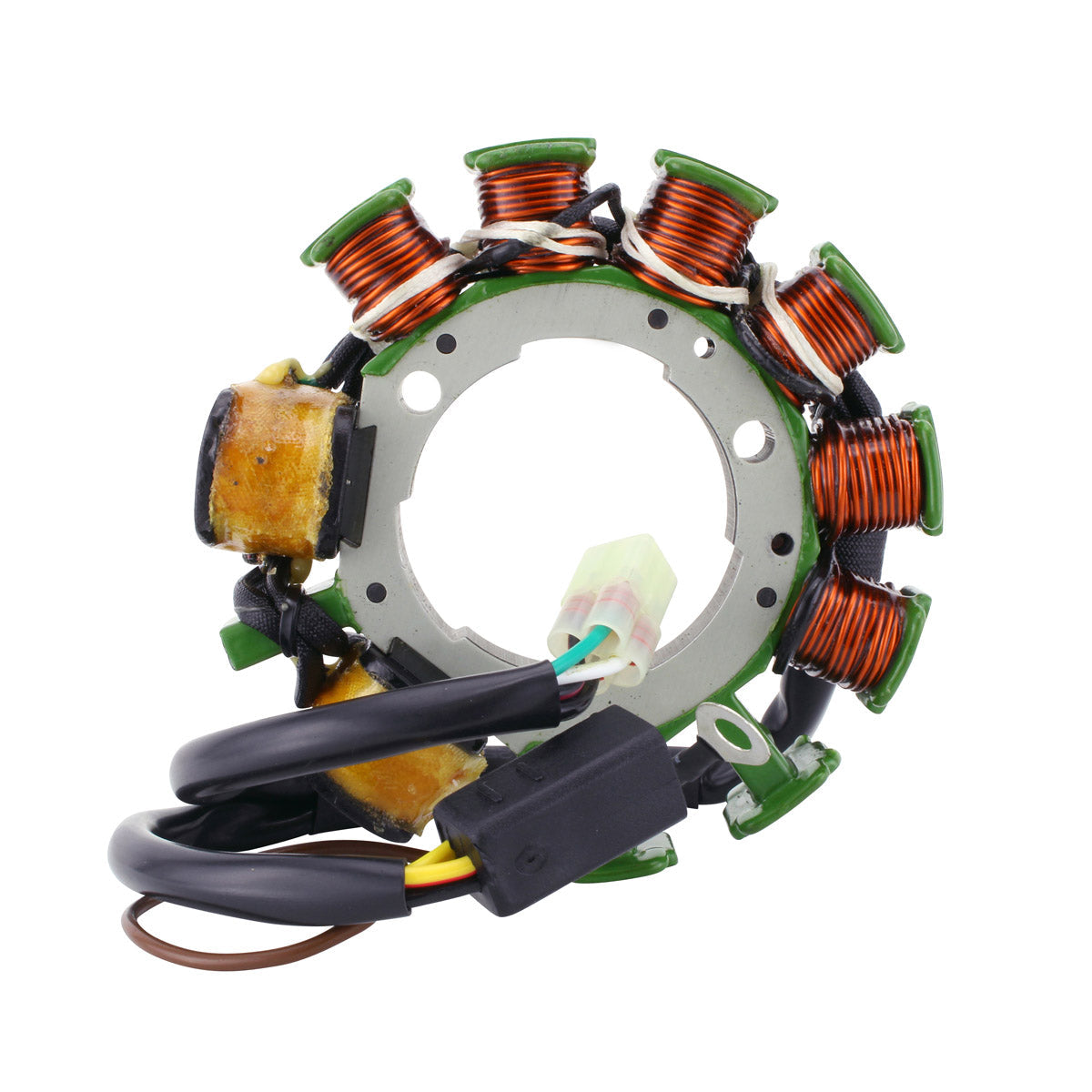

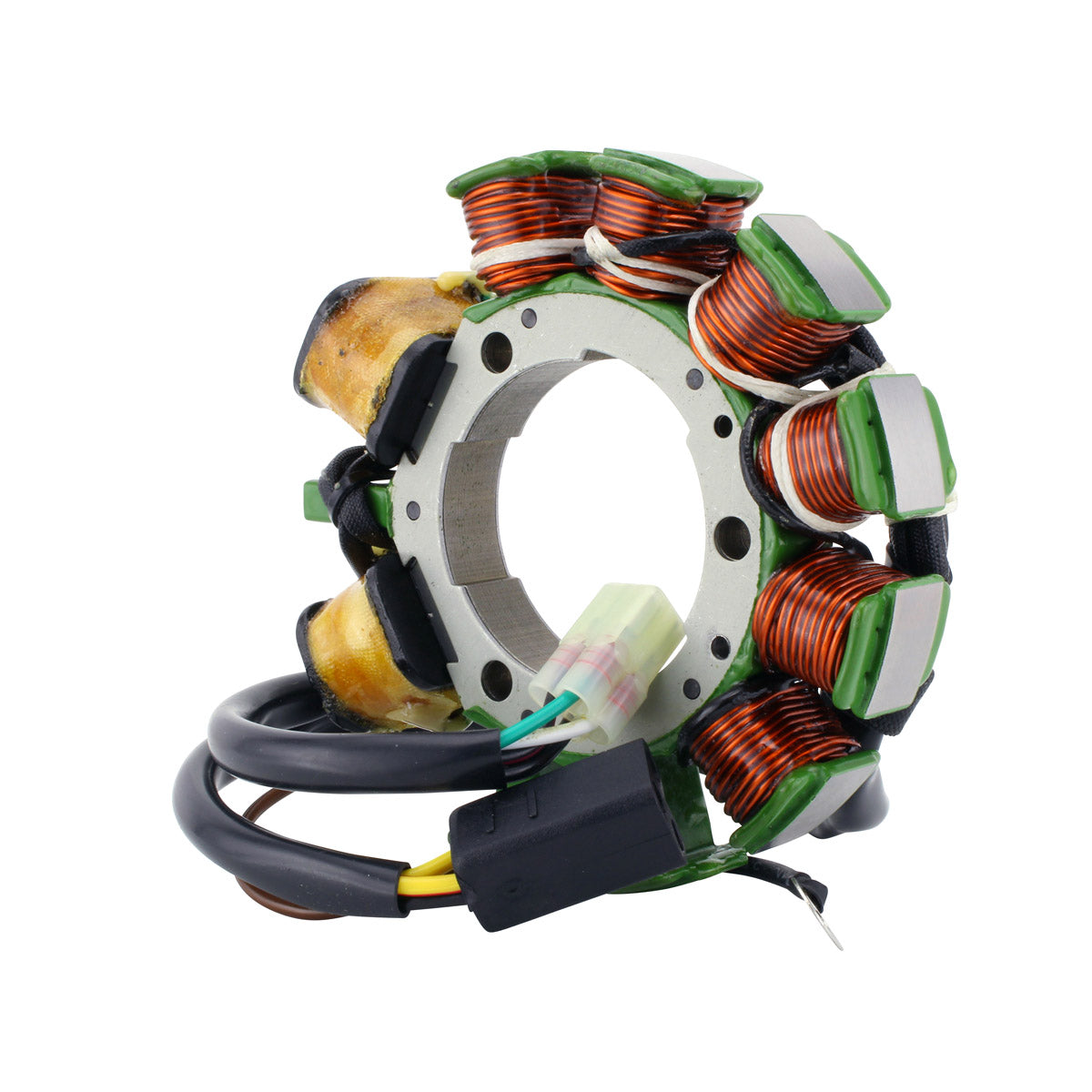

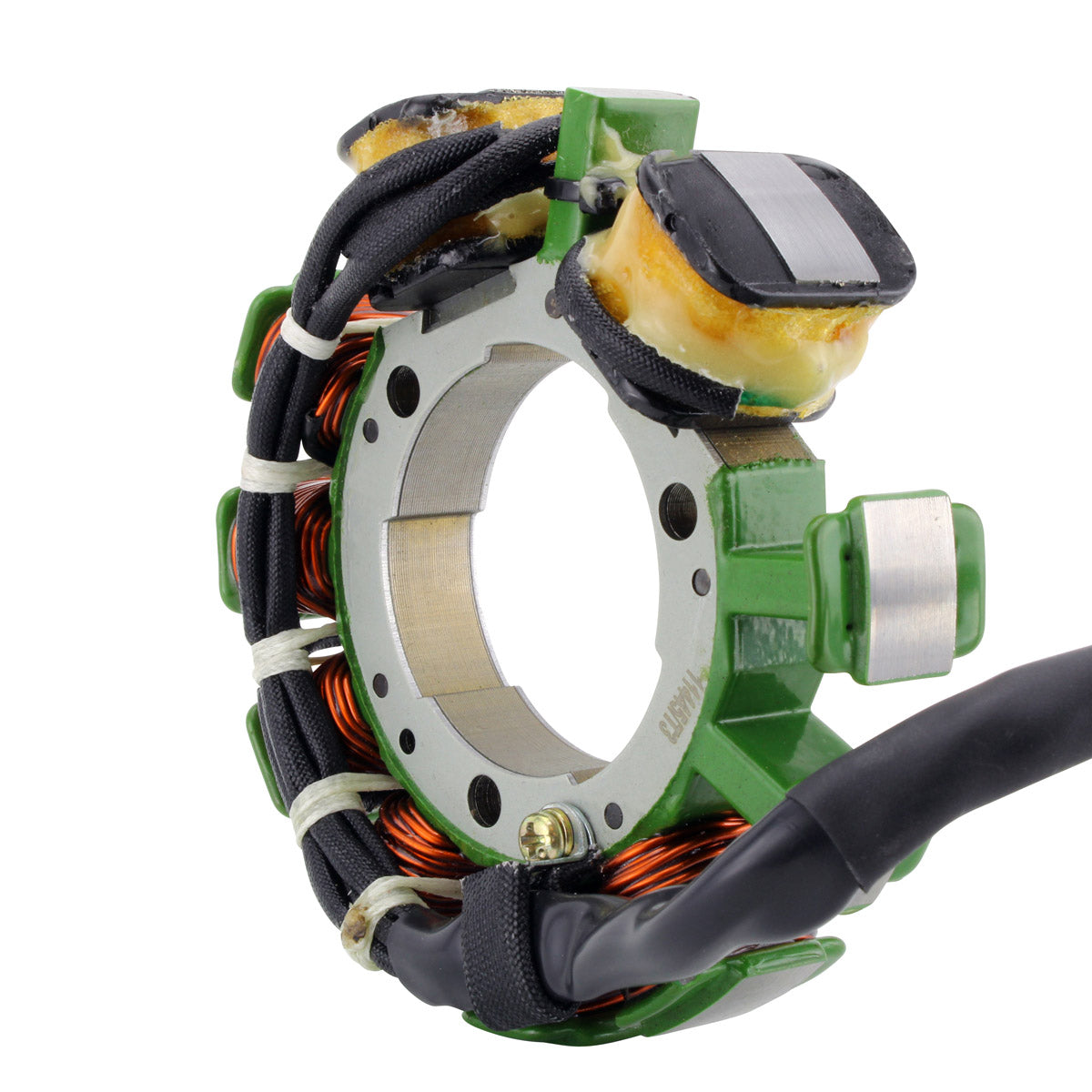

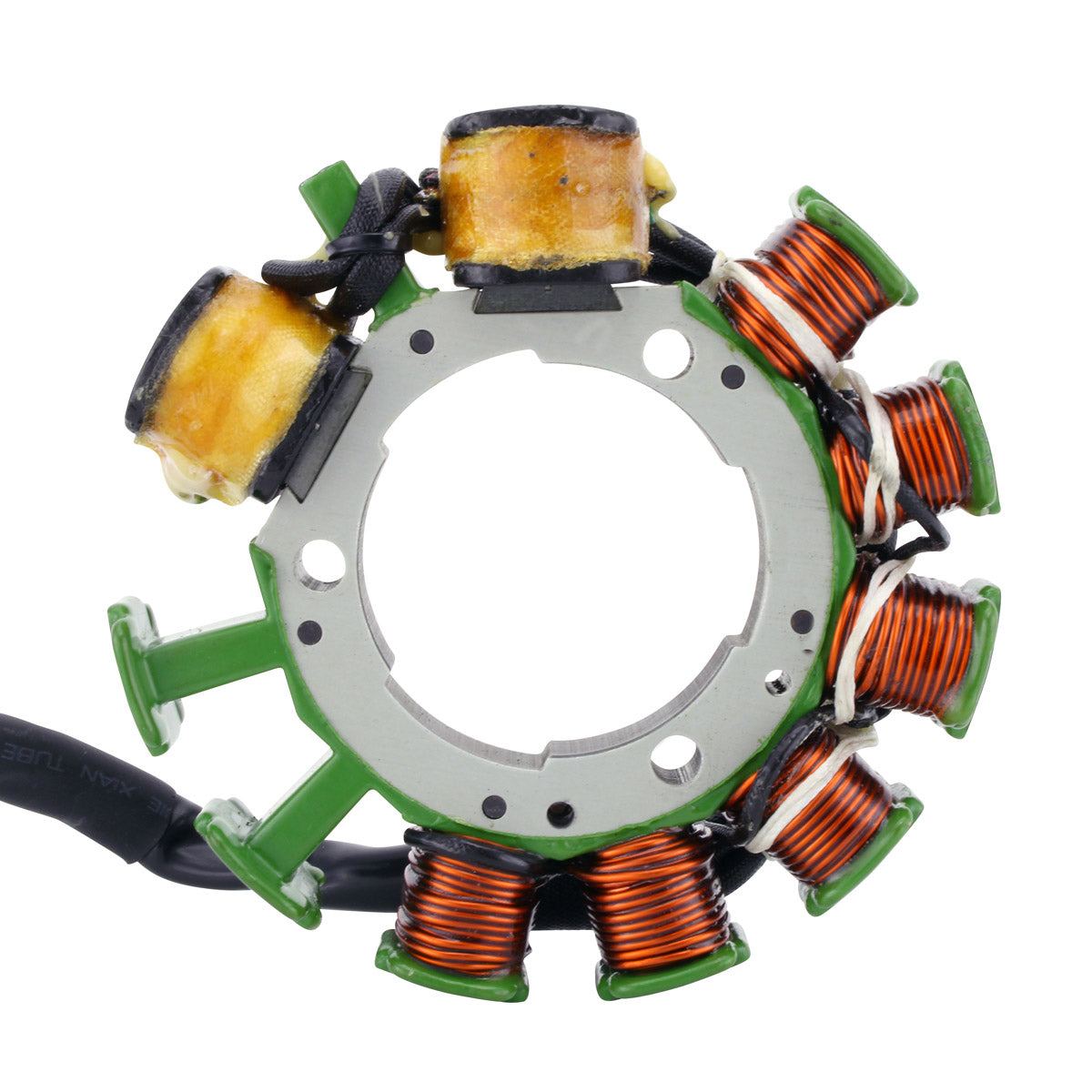

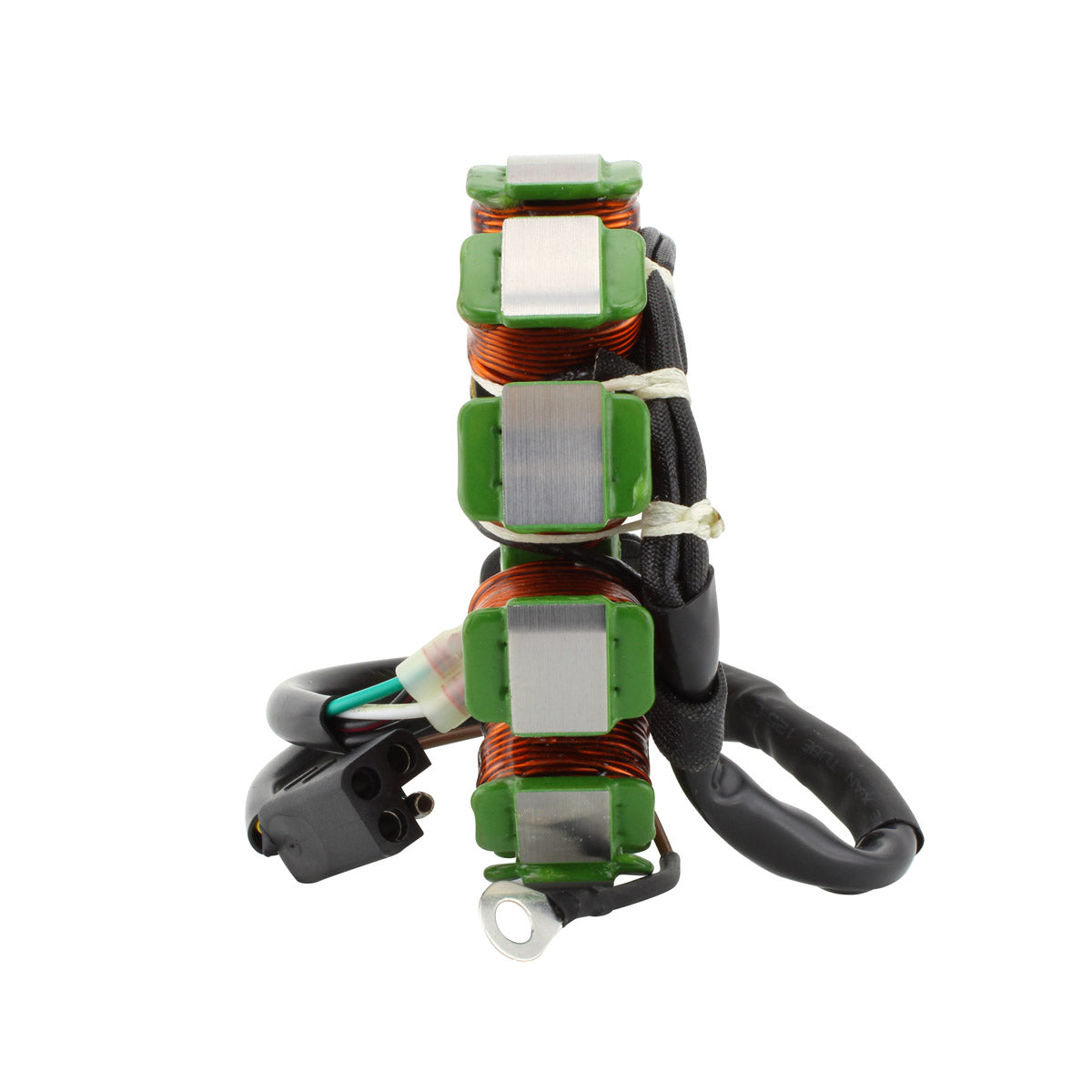

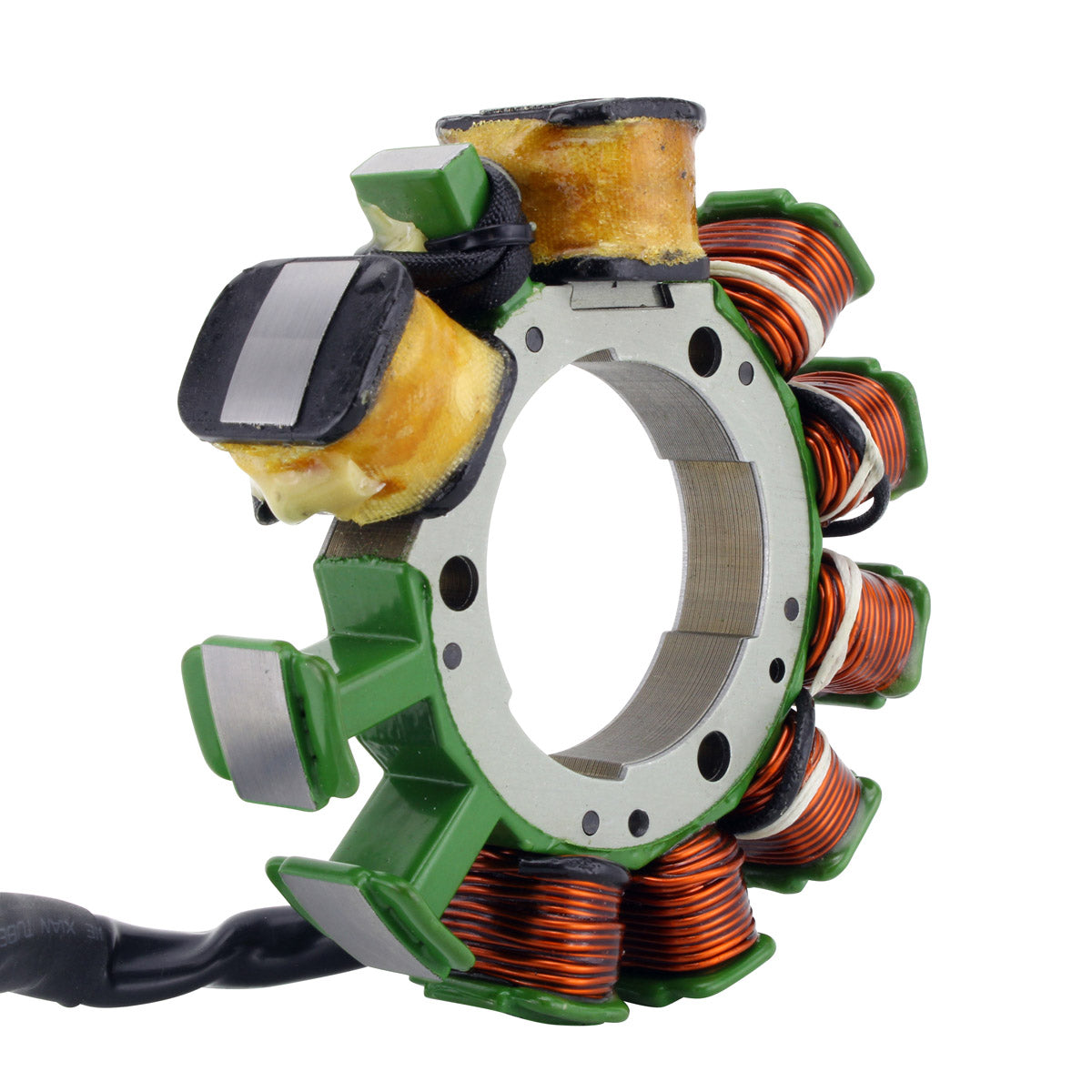

This is a brand new stator for the Arctic Cat EXT 600, Powder 600, ZL 440, ZL 500, ZL 600 and ZRT 600 built between 1995 and 2000. It is a direct replacement for the original unit - plug-and-play, direct fit and easy to install, so it mounts in the original position and connects to the existing loom without cutting, splicing or modification.

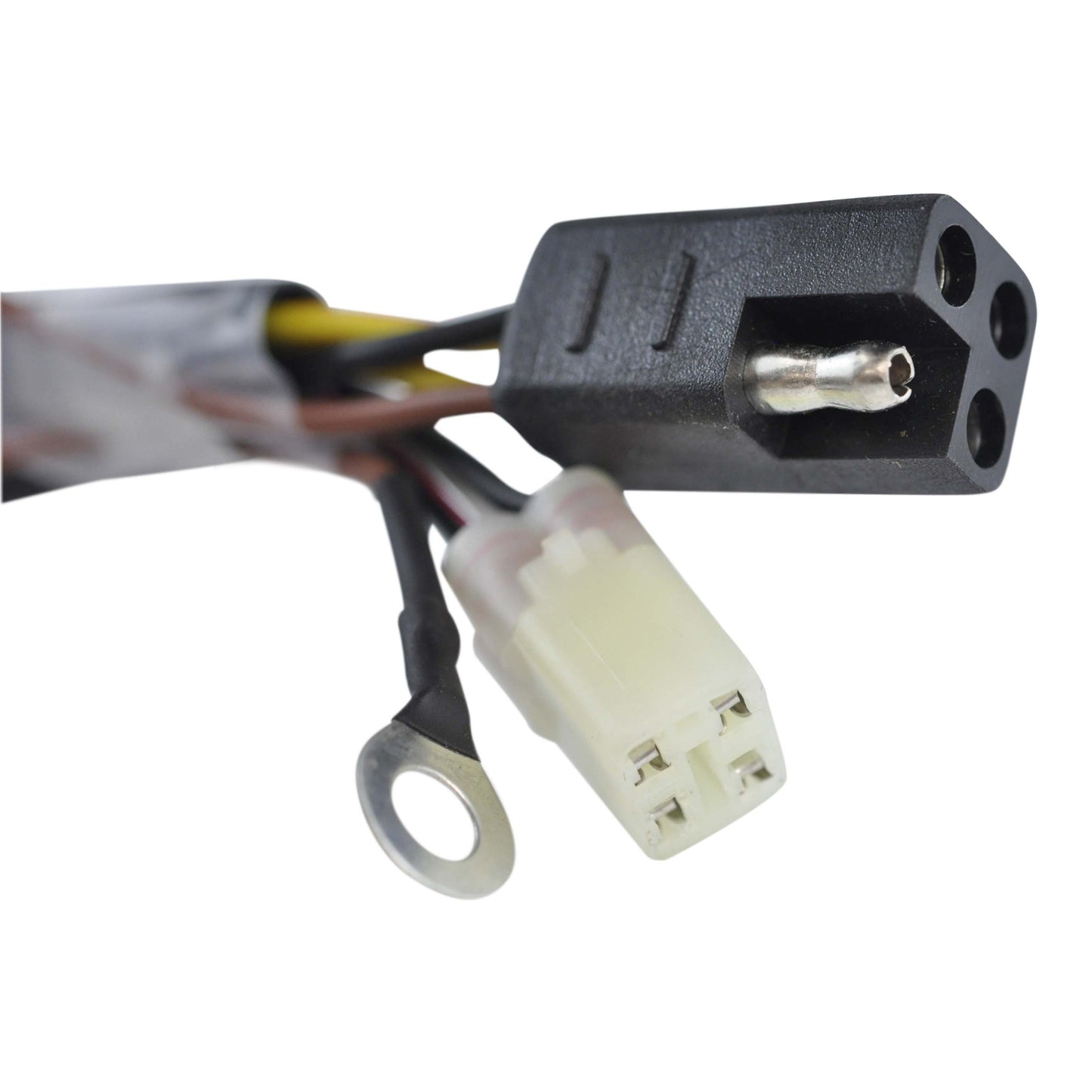

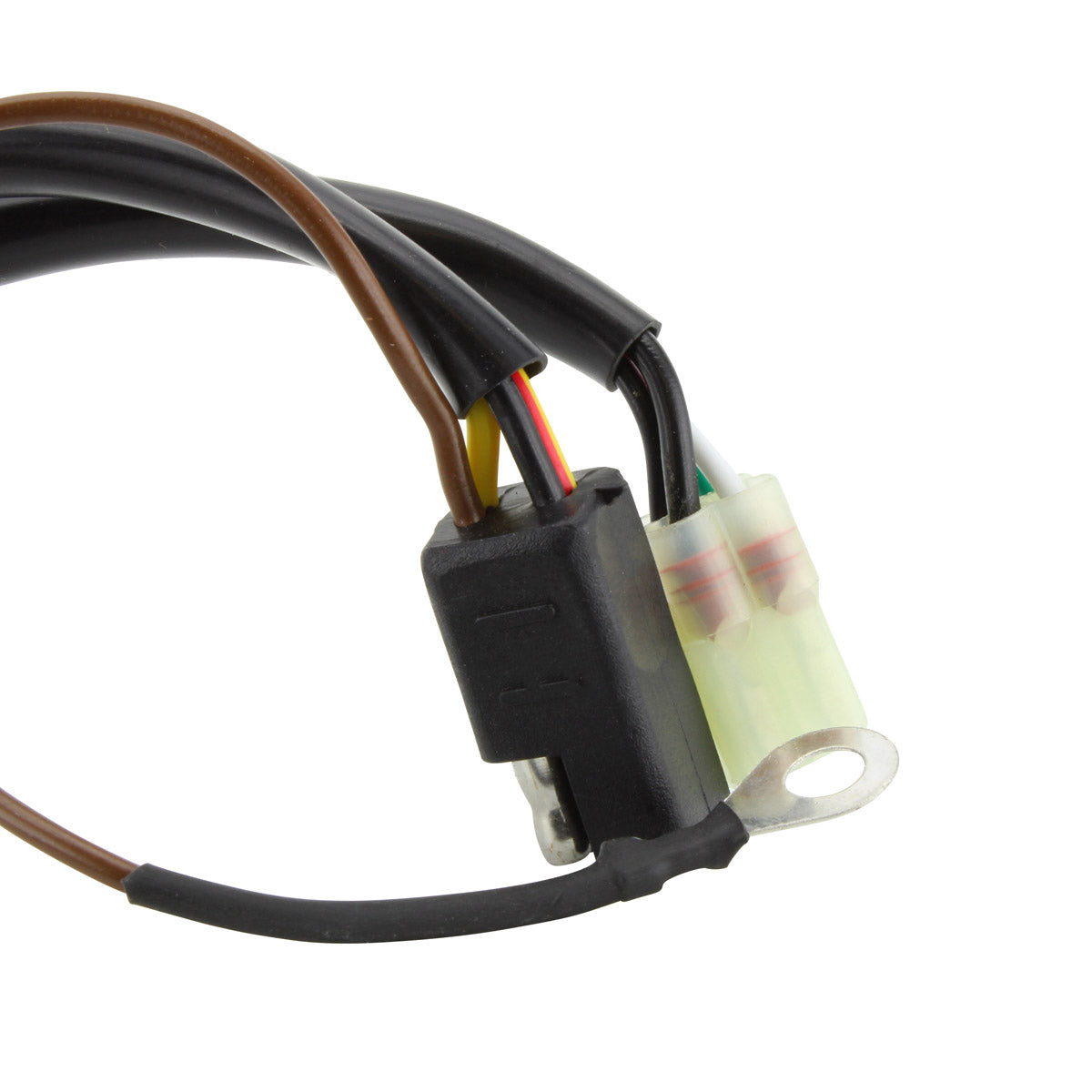

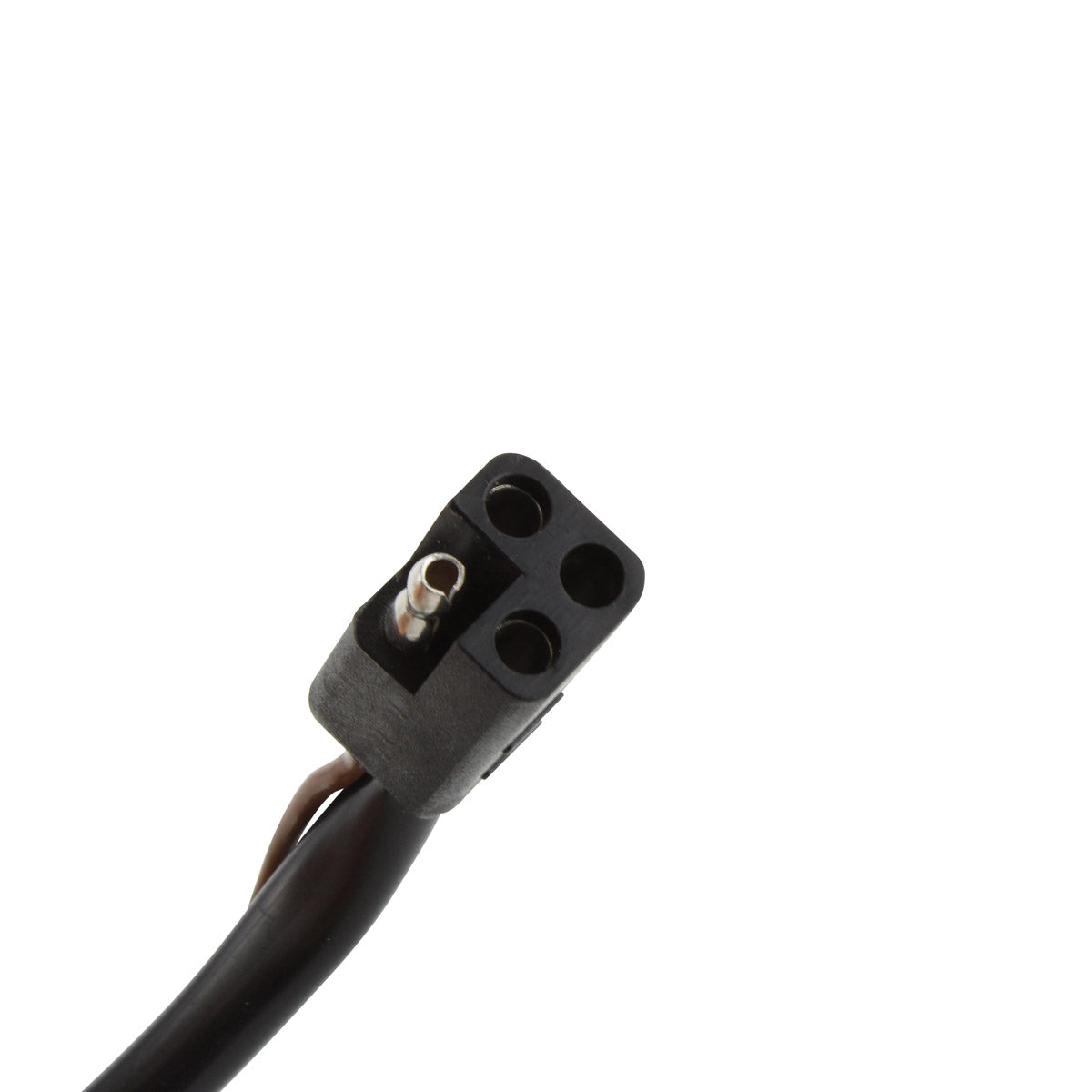

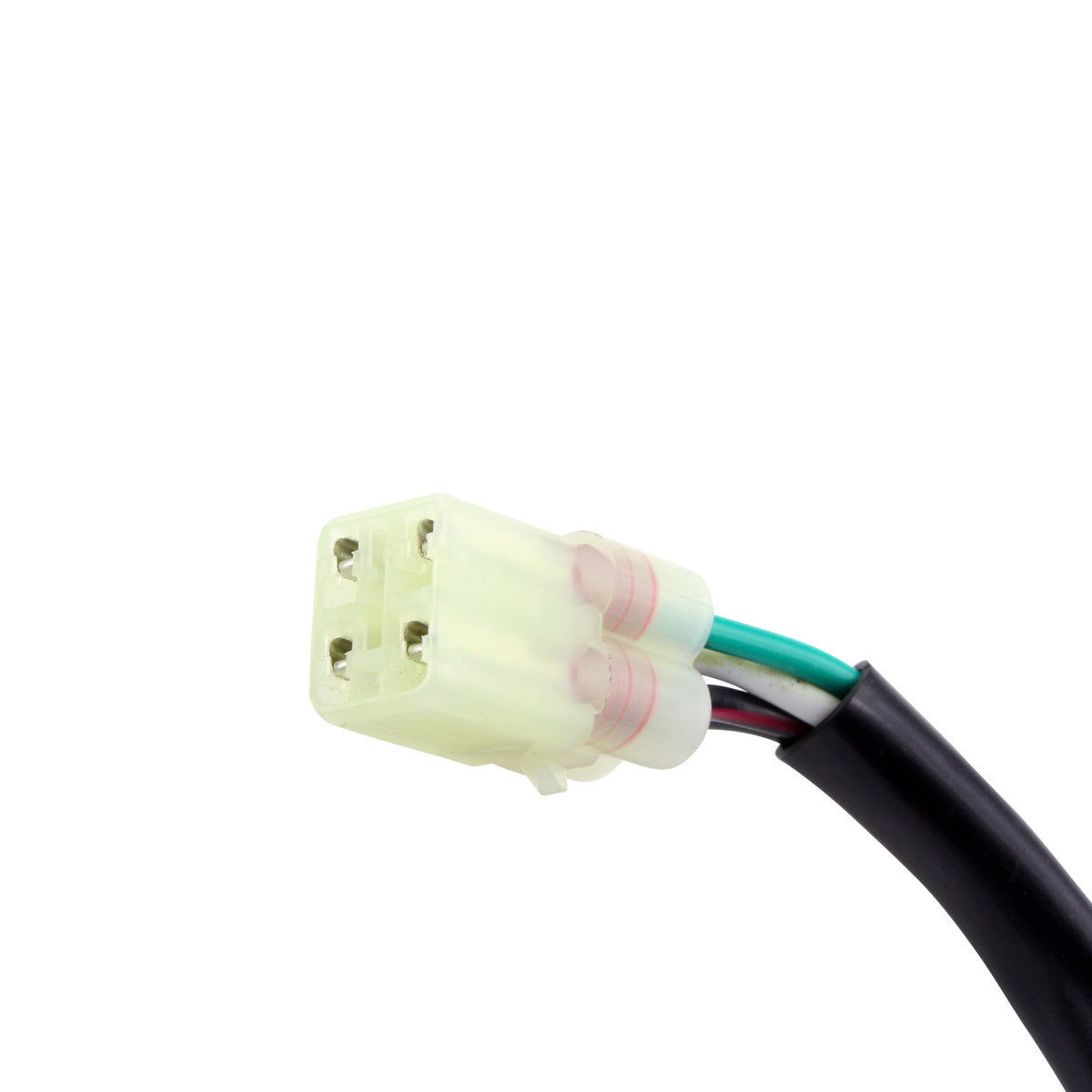

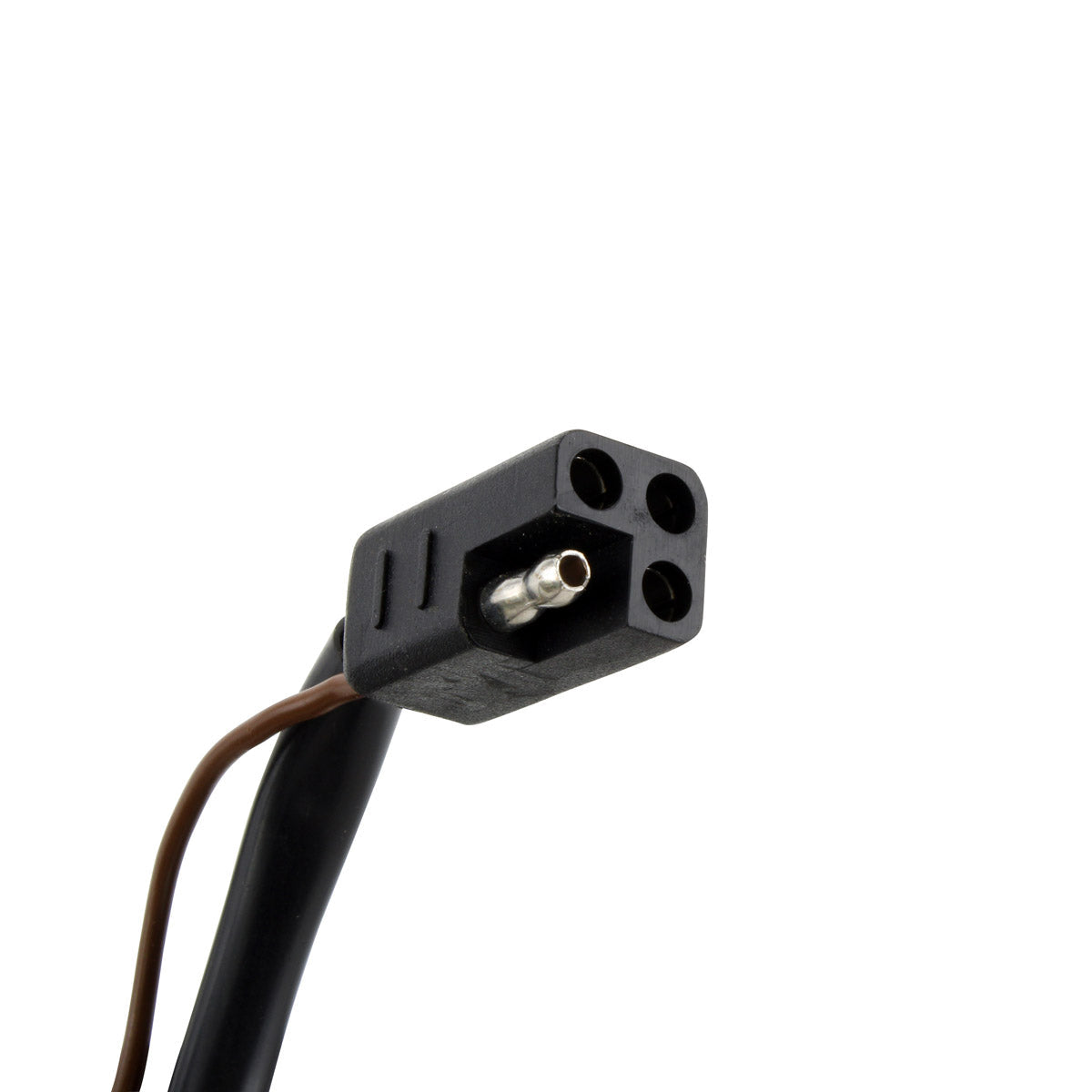

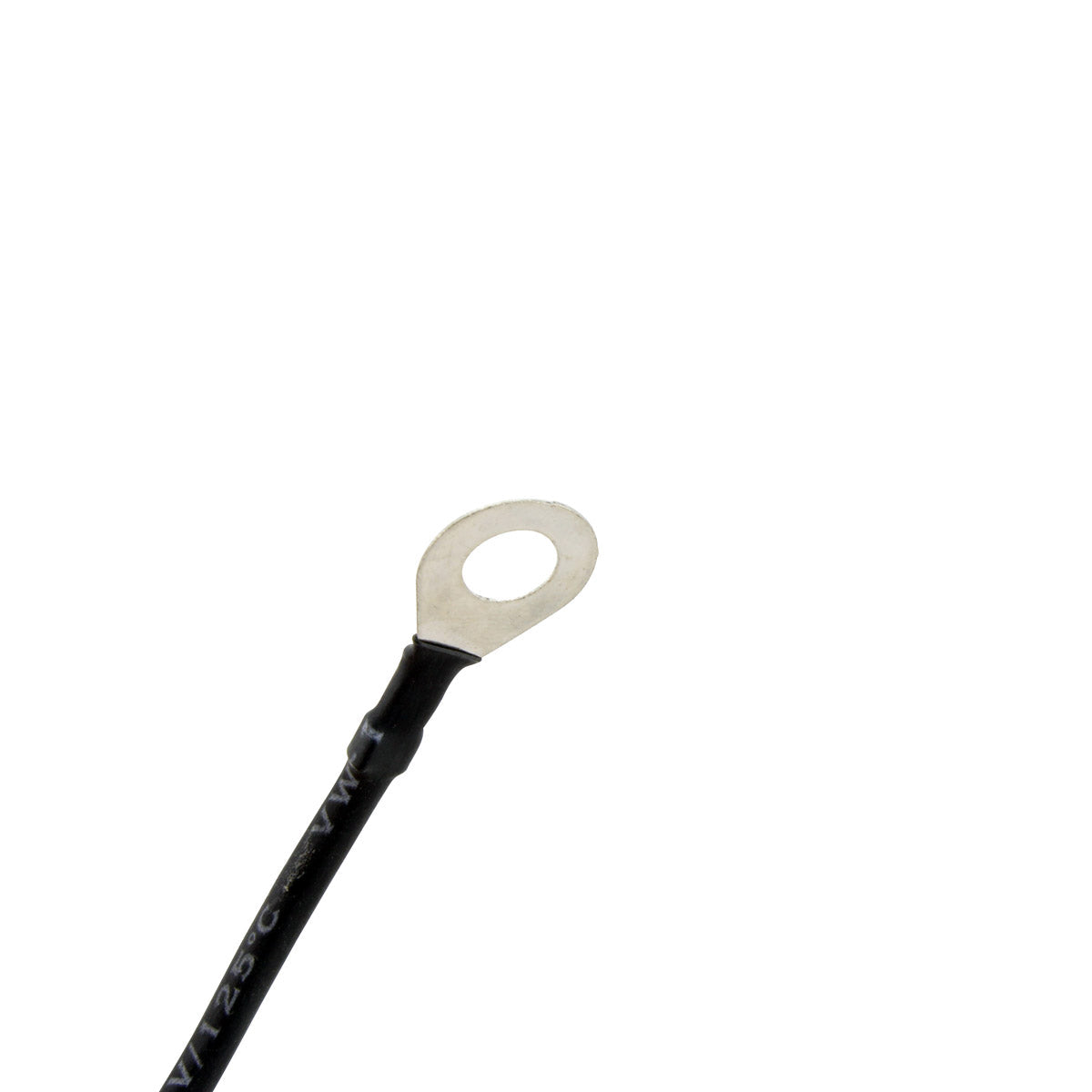

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. That heat resistance is what an original stator loses after years of service, and it is usually the source coils rather than the alternator windings that go first on these sleds. A connector is included with the part, and all product shipped is tested before it is dispatched. The stator measures 115 mm on the exterior diameter with a 51 mm interior diameter and a 15 mm thickness, and runs eight wires into two plugs across nine pins on a 250 mm lead.
Key Features
- Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- All product shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01299 |
| Interior diameter |
51 mm |
| Exterior diameter |
115 mm |
| Thickness |
15 mm |
| Wire length (stator to plug) |
250 mm |
| Number of wires |
8 |
| Number of plugs |
2 |
| Number of pins |
9 |
| Alternator resistance (Yellow to Yellow/Red) |
0.4 ohms +/-20% |
| Source resistance (Green to White) |
450 ohms +/-20% |
| Source 2 resistance (Black/Red to Green) |
45 ohms +/-20% |
| Temperature resistance rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat EXT 600 |
1995-2000 |
| Arctic Cat Powder 600 |
1995-2000 |
| Arctic Cat ZL 440 / 500 / 600 |
1995-2000 |
| Arctic Cat ZRT 600 |
1995-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3004-716 |
Arctic Cat |
| 3004-809 |
Arctic Cat |
| 3005-043 |
Arctic Cat |
| 3005-144 |
Arctic Cat |
| 3005-248 |
Arctic Cat |
| 3005-317 |
Arctic Cat |
| 3005-368 |
Arctic Cat |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models and years listed above, it mounts in the original position and it is plug-and-play, so no cutting or rewiring is required. As this part covers several models, confirm the number on your existing unit against the cross reference table before ordering.
What is included?
The stator and the connector. All product shipped is tested before dispatch.
How do I tell whether my old stator has failed?
The usual signs are a battery that will not hold its charge, dim or flickering lights, a weak or absent spark and an engine that cuts out. Confirm it with a meter against the specification table - a reading well outside the stated tolerance, an open circuit, or continuity between a winding and the stator body all indicate a failure.
What resistance readings should this unit give?
The alternator winding reads approximately 0.4 ohms +/-20% from Yellow to Yellow/Red. The source coil reads approximately 450 ohms +/-20% from Green to White, and the second source coil approximately 45 ohms +/-20% from Black/Red to Green.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
