Pickup Coil for Kawasaki KFX 450 R, Polaris 500 600 RMK & Suzuki V-Strom 650 1999-2016
Pickup Coil for Kawasaki KFX 450 R, Polaris 500 600 RMK & Suzuki V-Strom 650 1999-2016
SKU:RM00158
Free shipping over £150. Terms apply
Couldn't load pickup availability
Pickup Coil 236 Ohms for Kawasaki KFX 450 R, Polaris 500 600 RMK and Suzuki V-Strom 650
Kawasaki, Polaris and Suzuki models 1999-2016 - RMSTATOR reference RM00158
A brand new pick-up coil, also called a pulsar coil, rated at 236 ohms and supplied as a direct replacement for the pickup coil fitted to your original stator assembly. This is the small trigger coil that tells the ignition when to fire, and it is one of the most common failure points on an ageing charging and ignition system. It is frequently unavailable on its own from the vehicle manufacturer, which normally forces owners to buy a complete stator assembly to cure a fault in a single component.

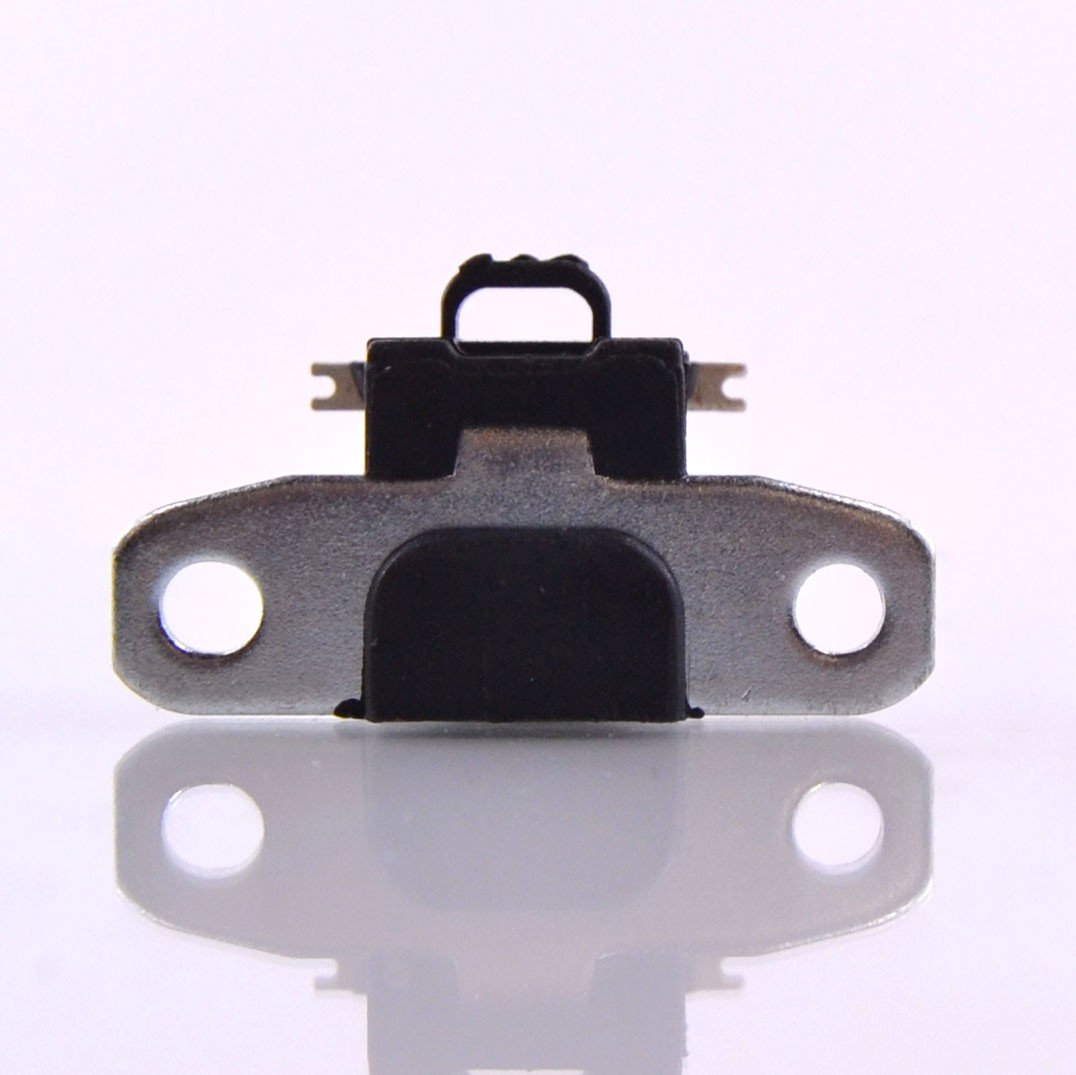

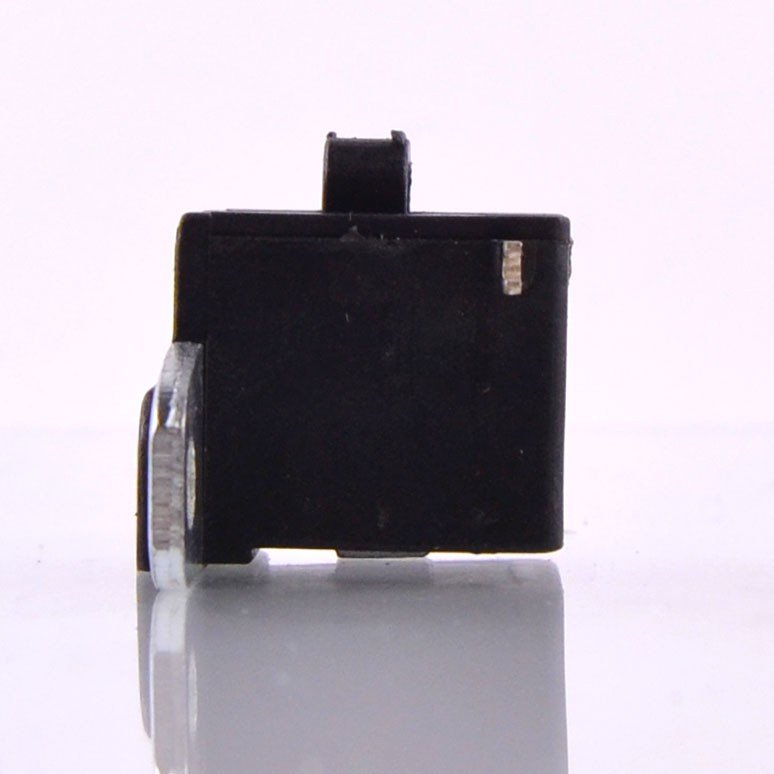

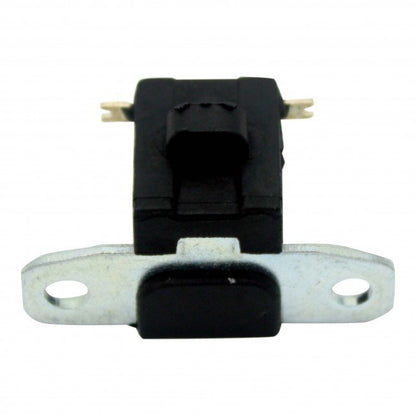

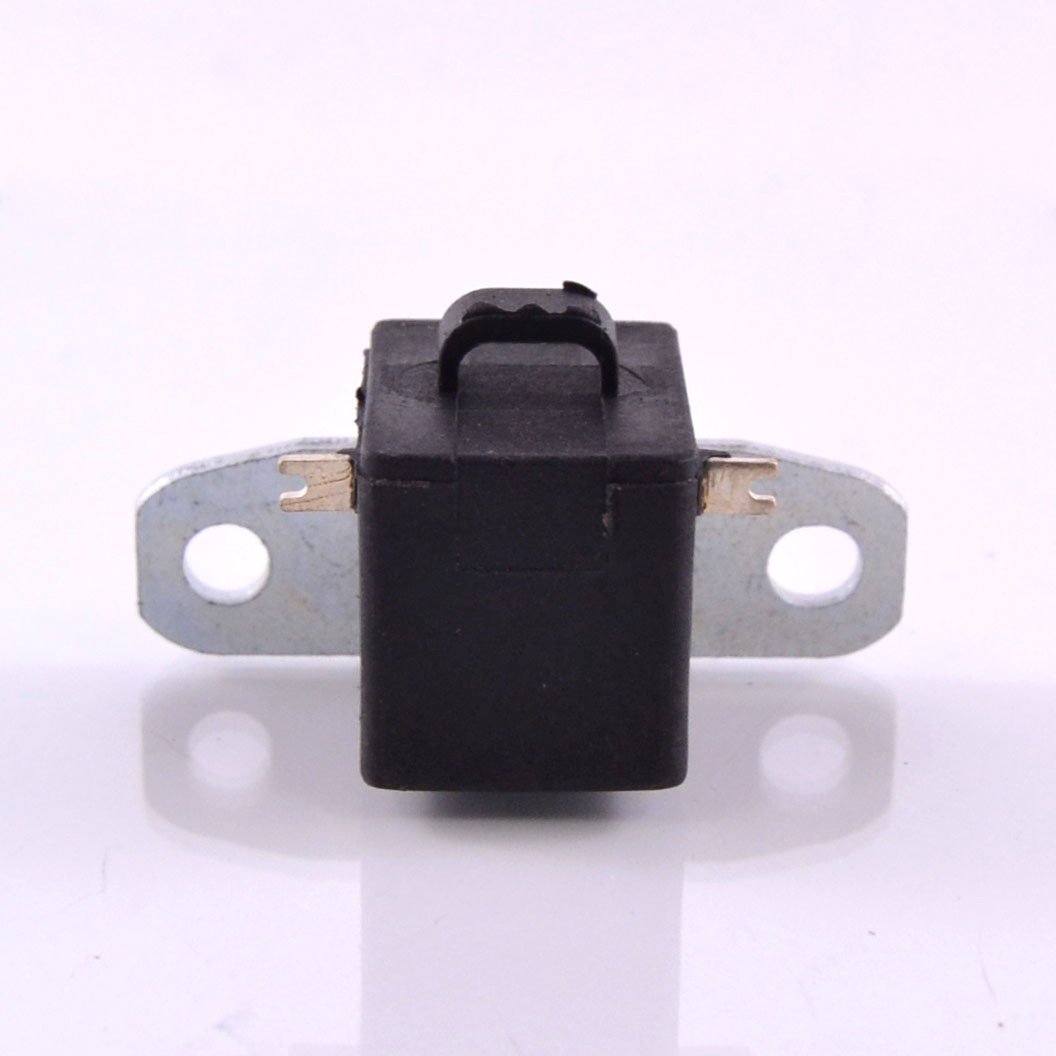

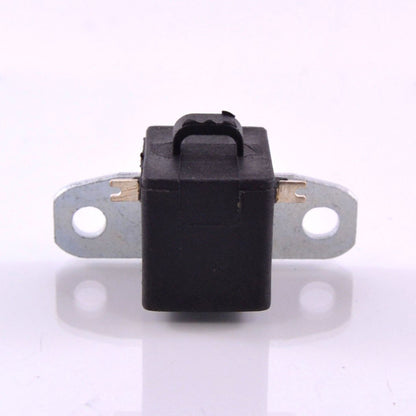

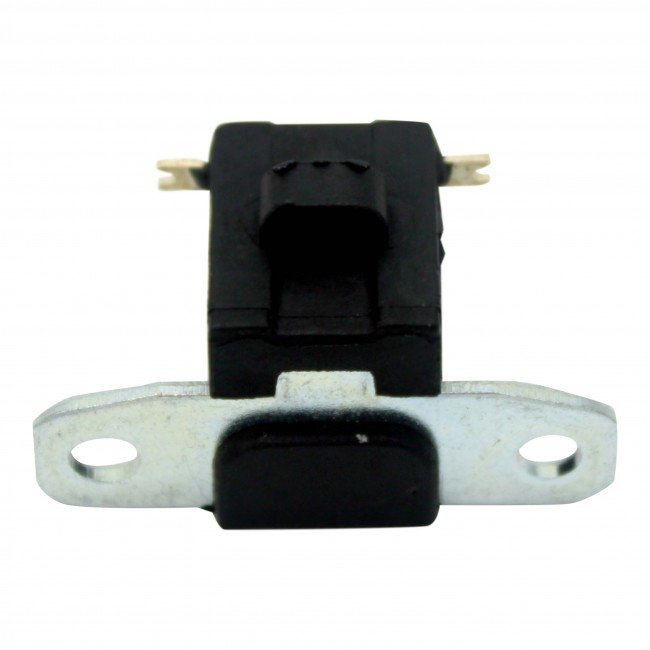

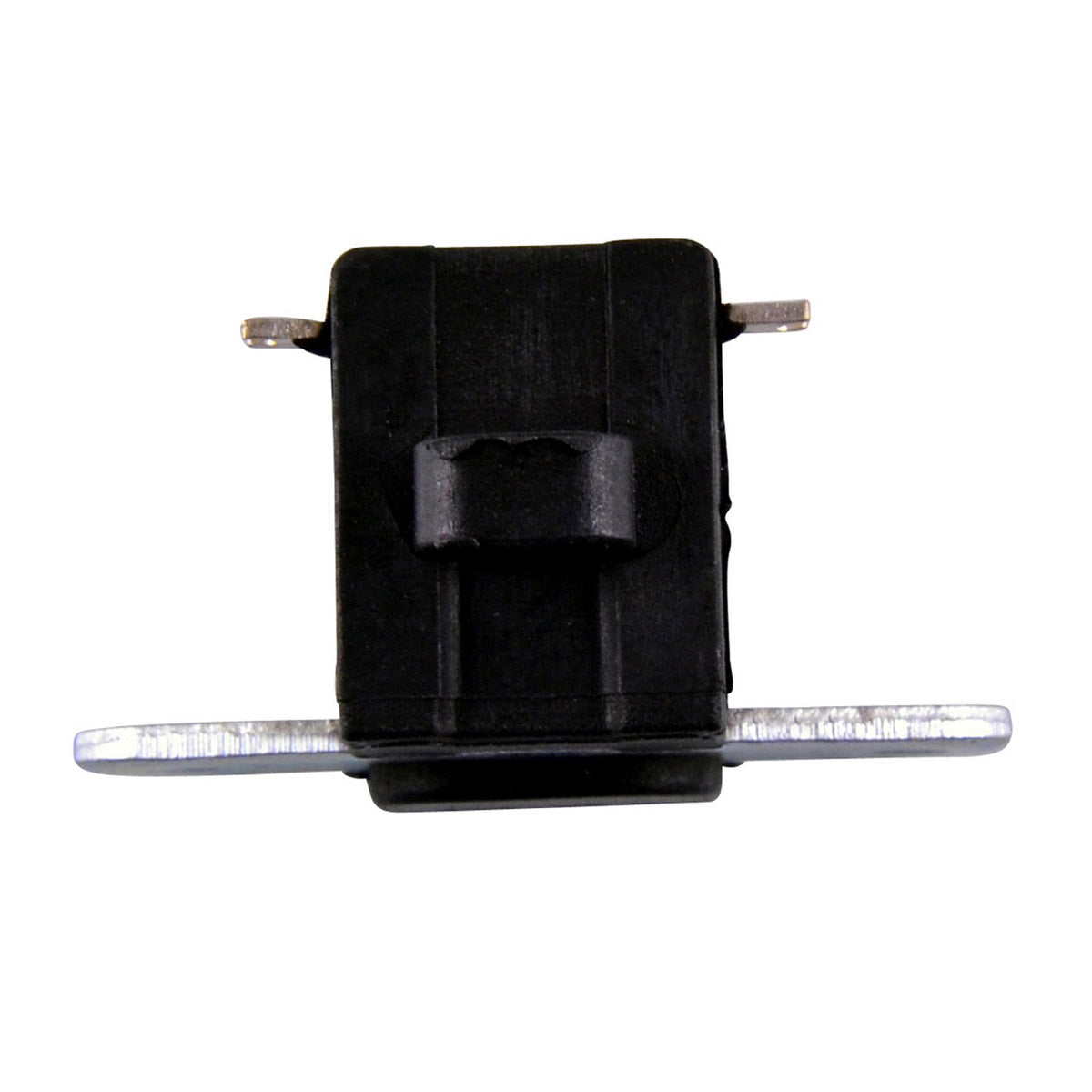

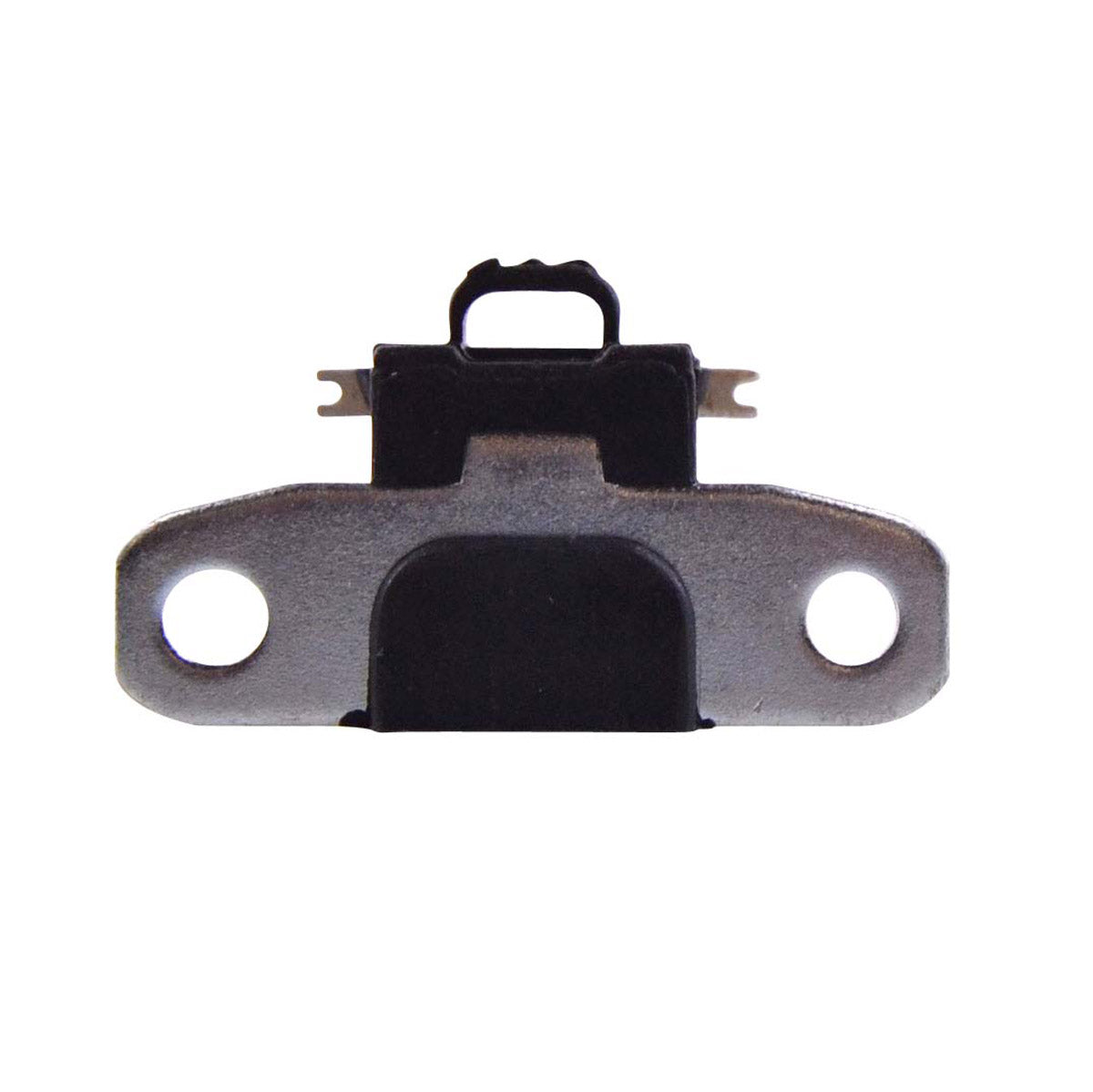

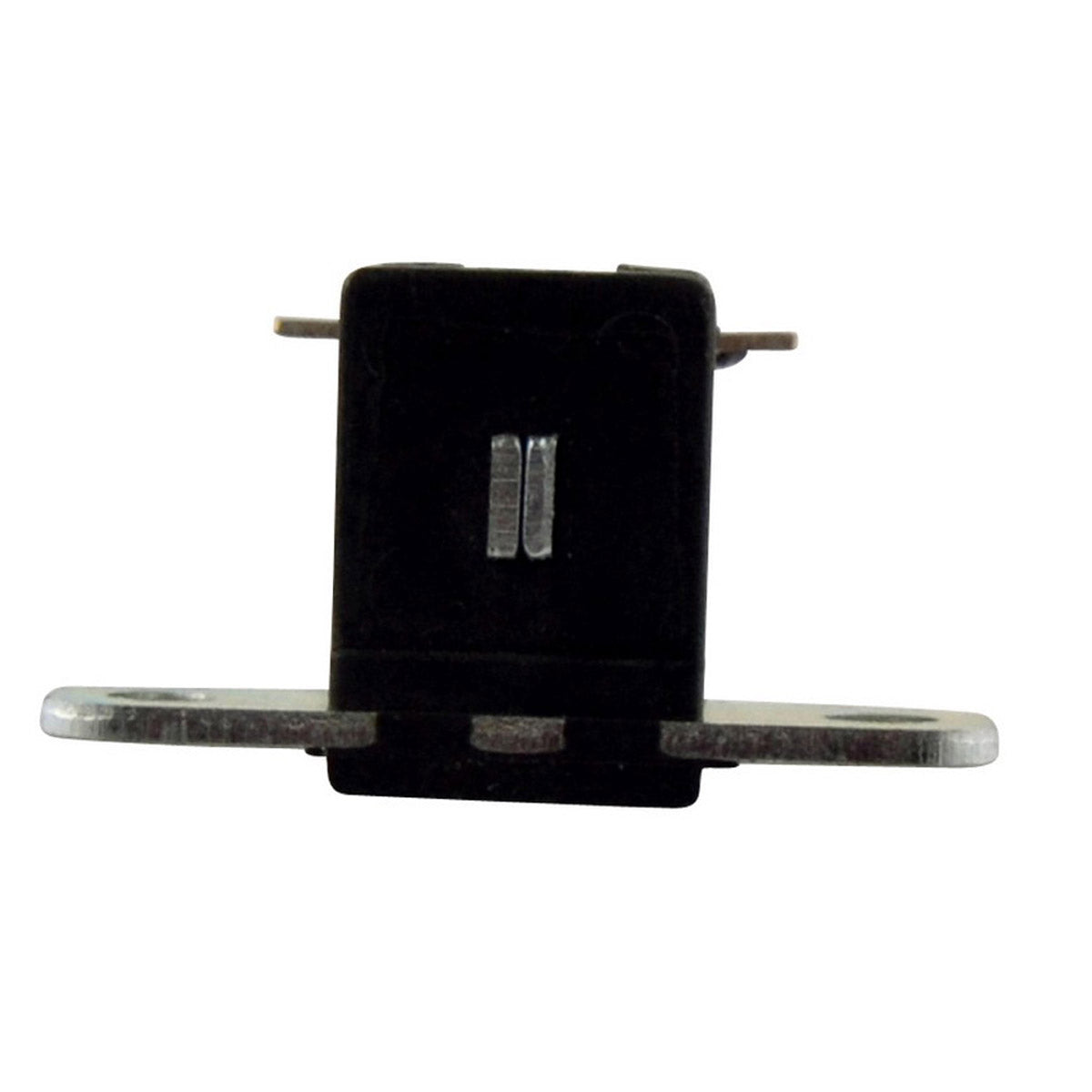

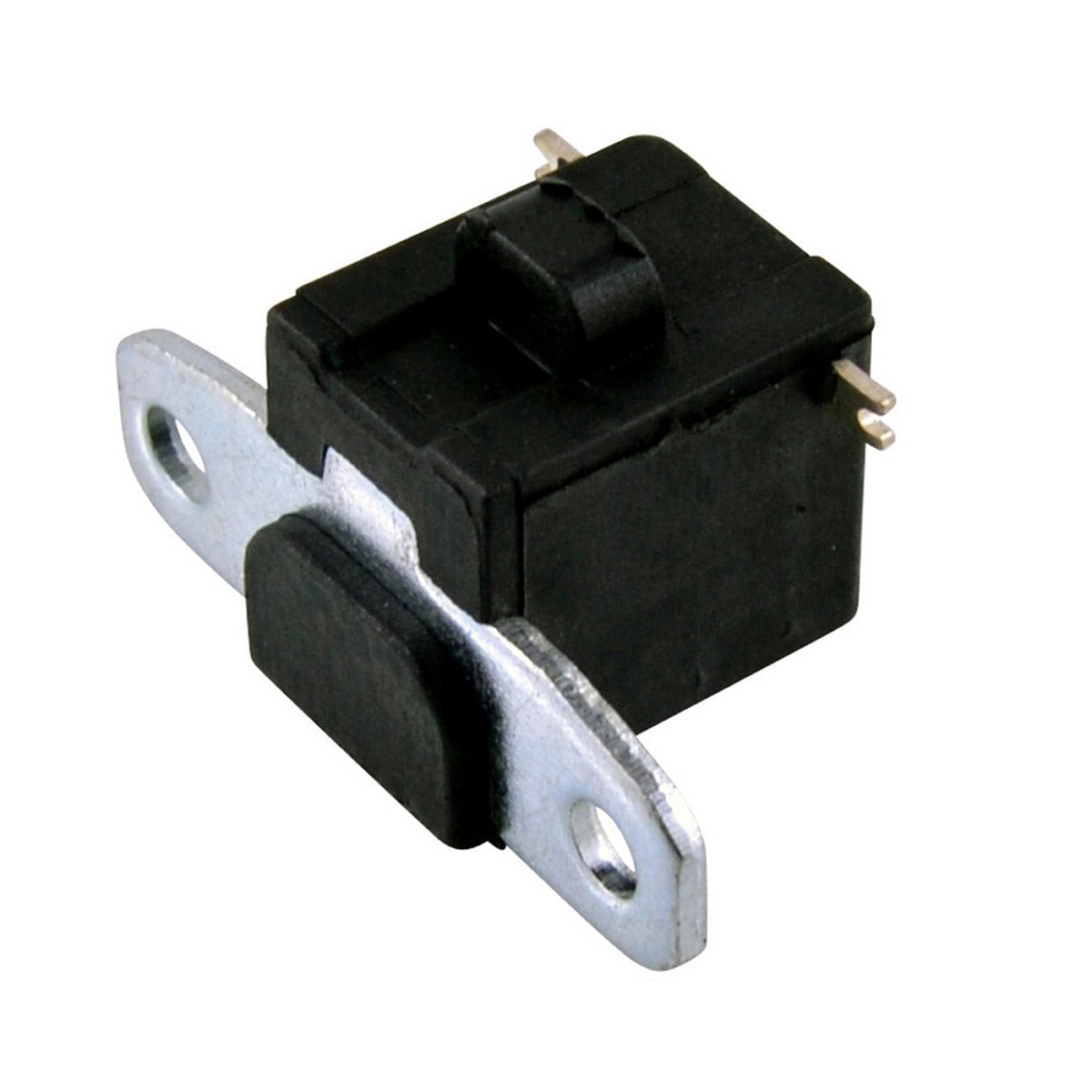

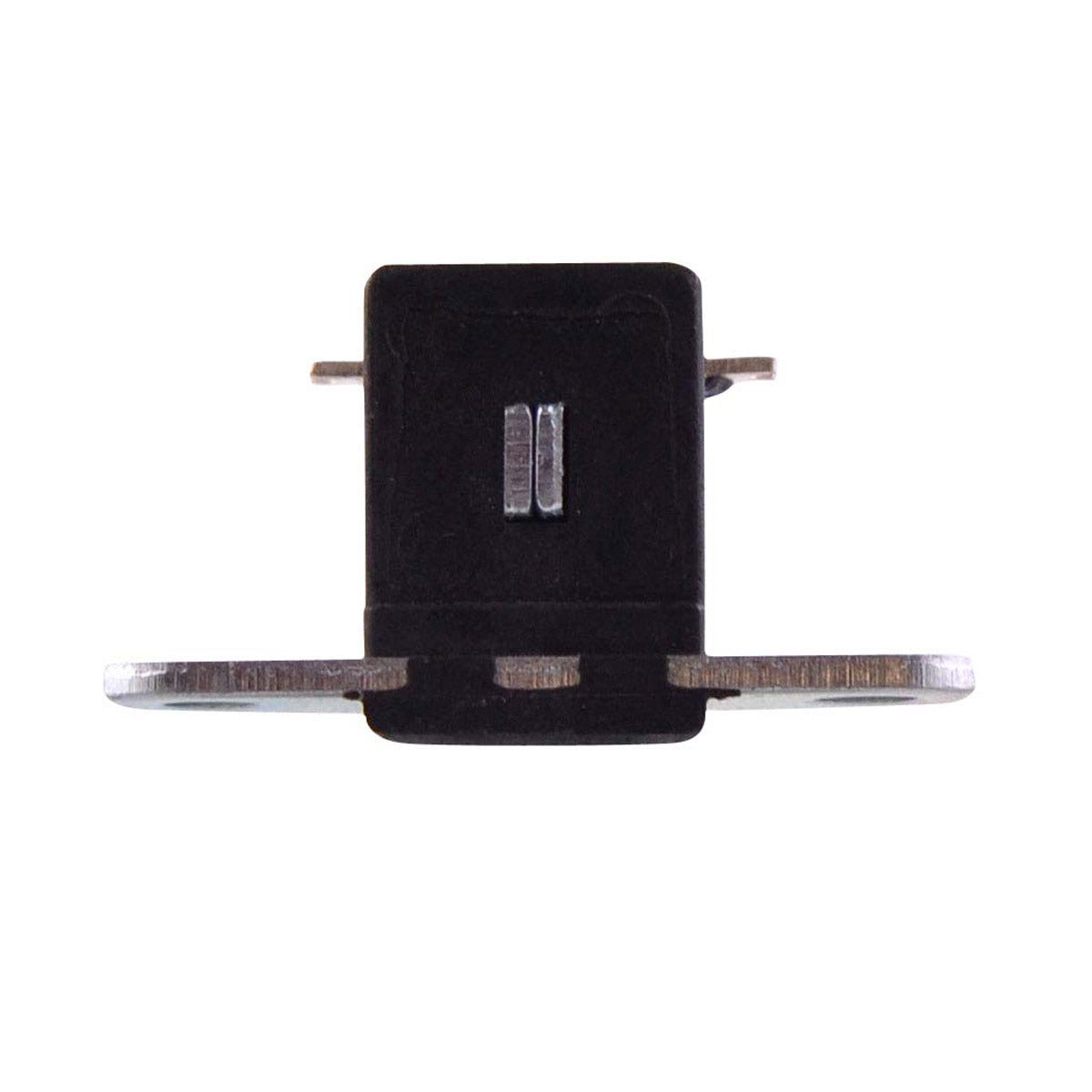

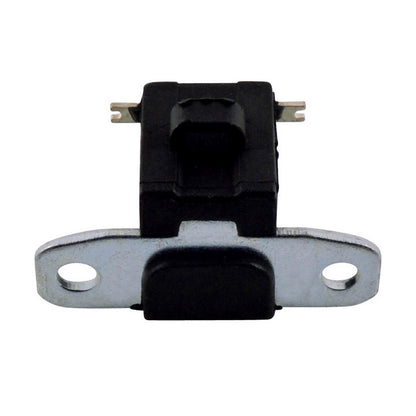

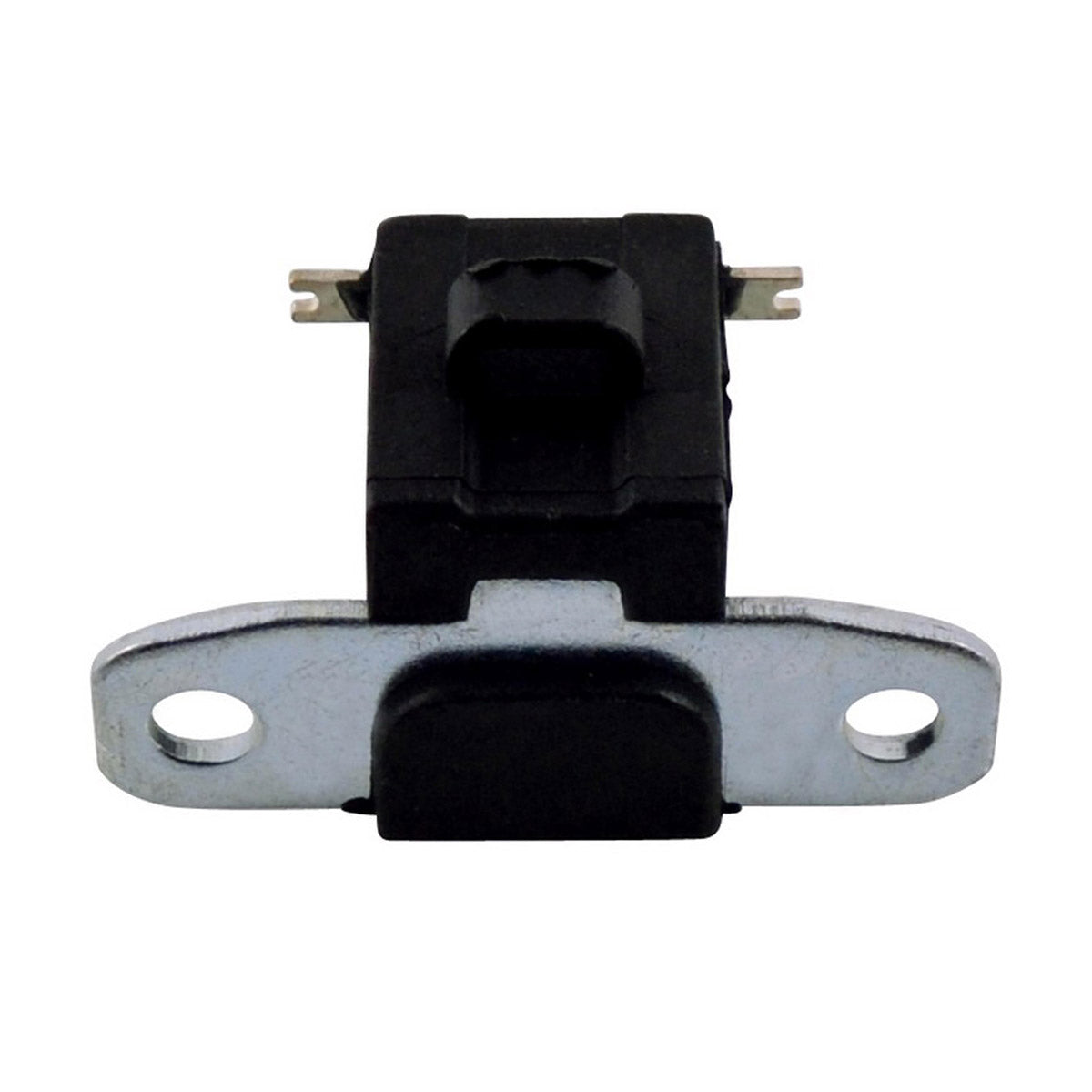

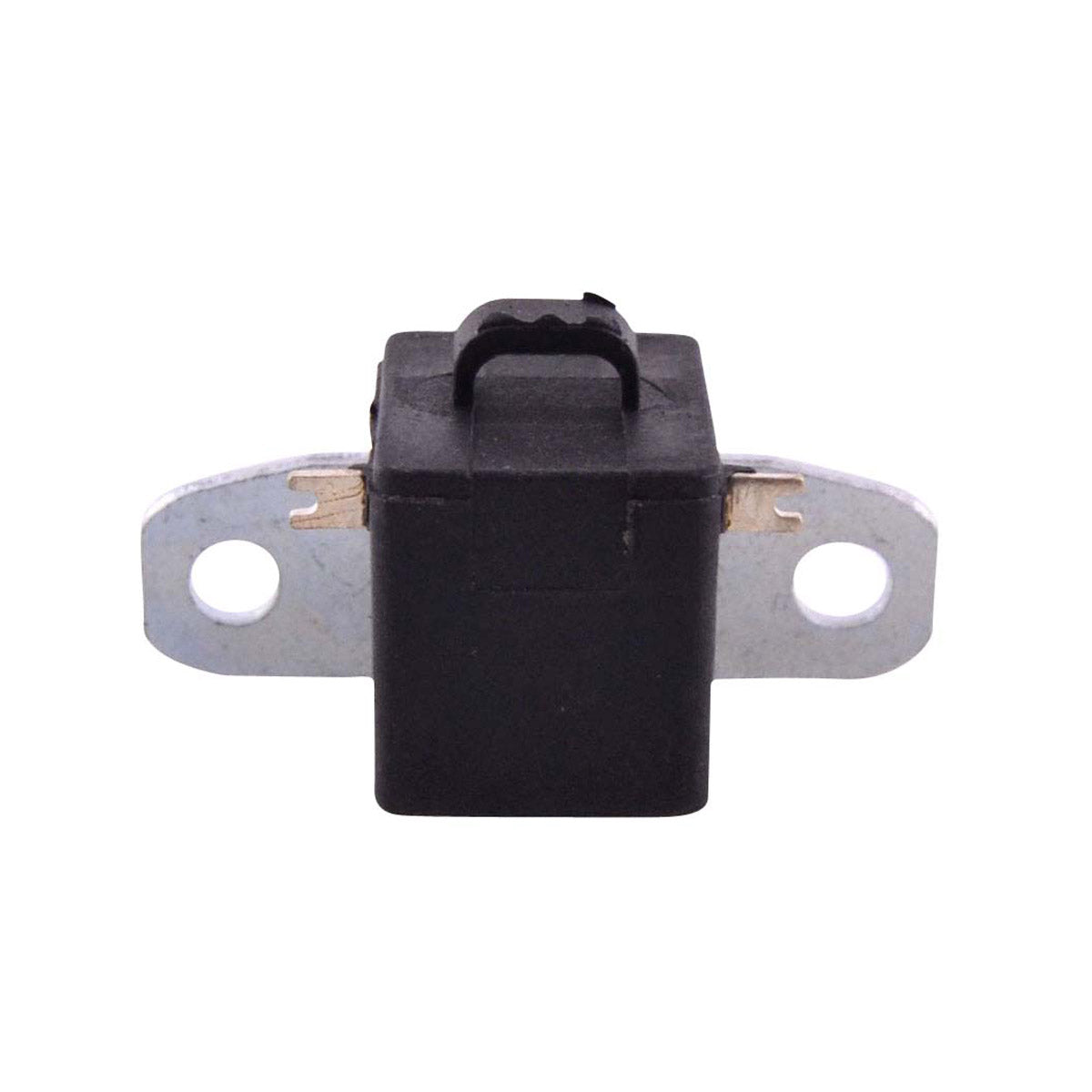

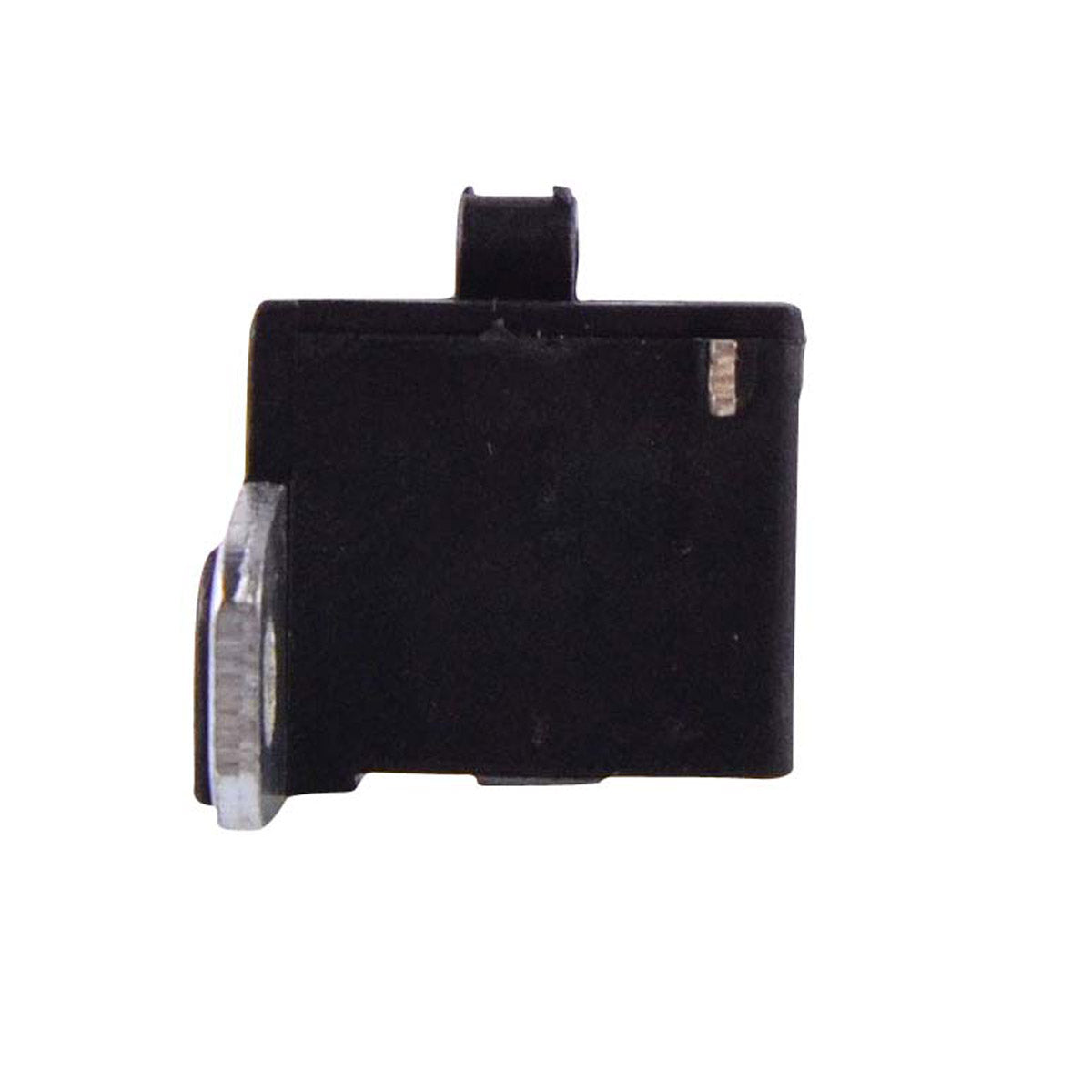

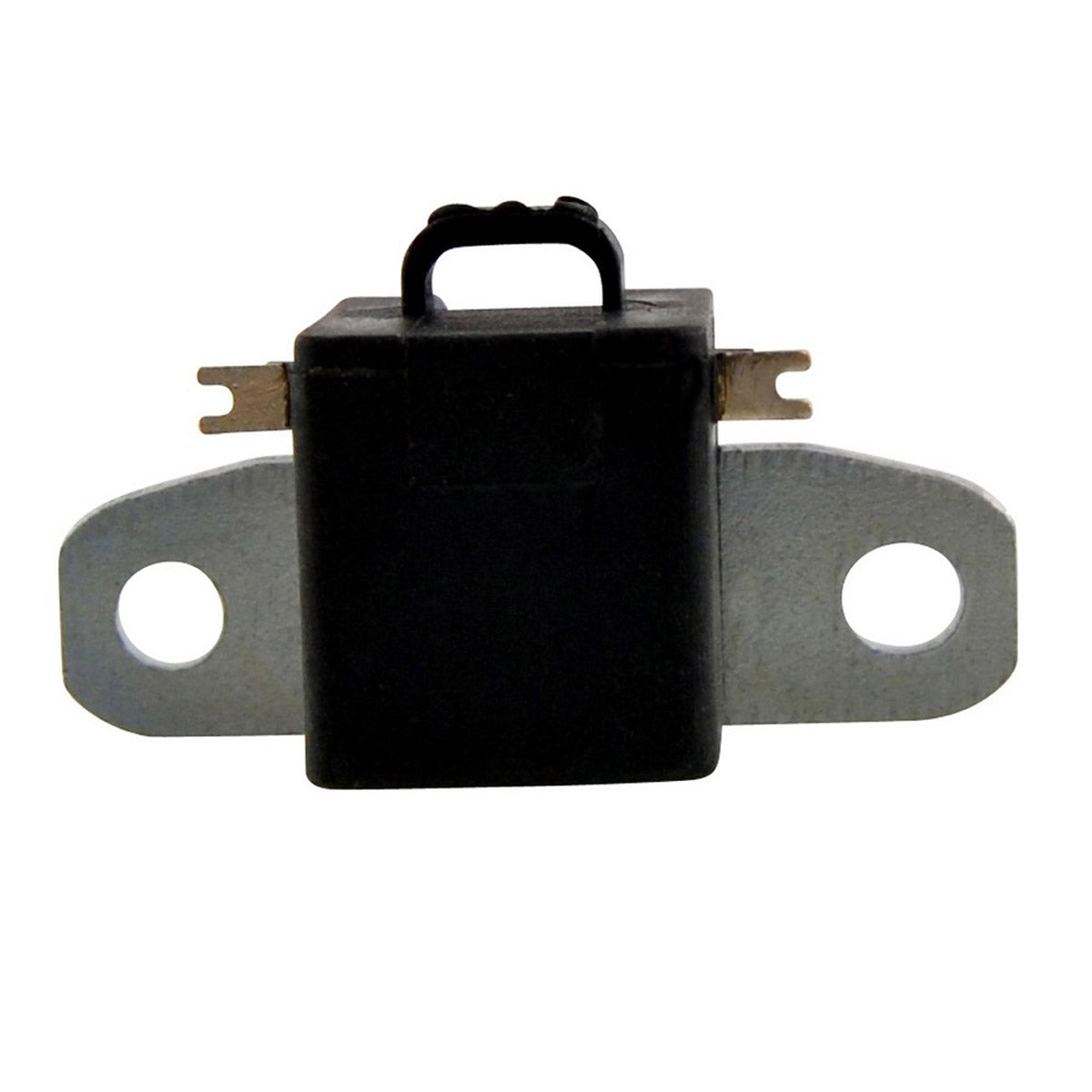

Offering the coil separately means an otherwise healthy stator can simply be repaired. The unit is supplied with 940 mm of wire and a bracket measuring 35 mm centre to centre, and every coil is electrically tested before it leaves the warehouse. The photographs on this listing show the actual part - if you are in any doubt, compare the bracket spacing, the wire colours and the wire length against your original component before ordering.
Key Features
- Brand new pick-up / pulsar coil rated at 236 ohms
- Repairs an existing stator instead of replacing the whole assembly
- Two wires - White and Blue/Yellow
- 940 mm wire length for flexible routing
- 35 mm bracket centre to centre
- Often no longer available separately from the original manufacturer
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Manufacturer reference | RM00158 |
| Bracket, centre to centre | 35 mm |
| Wire length | 940 mm |
| Number of wires | 2 |
| Wire colours | White, Blue/Yellow |
| Number of pins | Not applicable |
| Resistance, White to Blue/Yellow | 236 ohms +/-20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KFX 450 R | 1999-2016 |
| Polaris 500 RMK / XC SP | 1999-2016 |
| Polaris 600 RMK / XC SP | 1999-2016 |
| Suzuki V-Strom 650 | 1999-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0067 | OEM cross reference |
| 4060222 | OEM cross reference |
| 4011449 | OEM cross reference |
| 32101-17G10 | OEM cross reference |
| 32101-17G11 | OEM cross reference |
| 32101-17G12 | OEM cross reference |
| 32101-17G13 | OEM cross reference |
Frequently Asked Questions
Does this coil fit without modification?
Yes. It is built as a direct replacement for the original pickup coil, using the same 35 mm bracket centres and the same two-wire White and Blue/Yellow output. No cutting or drilling is required. Before ordering, check the part number stamped on your original unit against the cross reference table above.
What is included?
The pick-up coil itself, complete with 940 mm of lead wire. The stator windings, the flywheel and the vehicle wiring loom are not included - this component is intended to repair an existing stator assembly rather than replace it.
How do I know my pickup coil has failed?
A failing pickup coil typically shows up as no spark at all, an intermittent spark, or an engine that starts from cold but cuts out once it is hot. Measure the resistance across the White and Blue/Yellow wires with a multimeter: a healthy coil reads approximately 236 ohms, within a tolerance of plus or minus 20 per cent. An open circuit, a short to earth, or a reading well outside that band points to a failed coil.
Can I fit this if the rest of my stator is still good?
That is exactly what this part is for. If the alternator windings still test within specification and only the trigger circuit has failed, fitting a new pickup coil is the cheaper and quicker repair. Test the charging windings first so you are confident the rest of the assembly is sound.
