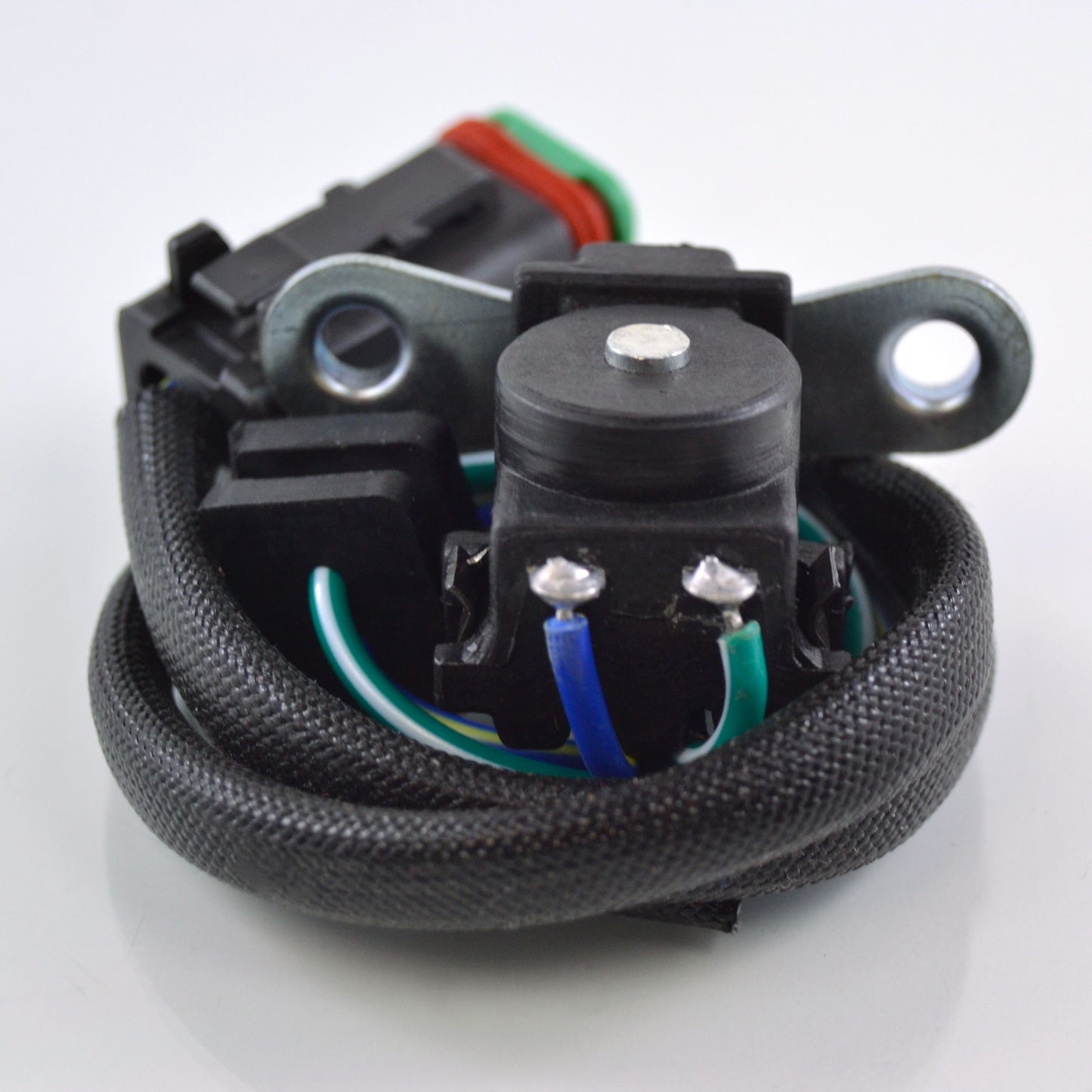

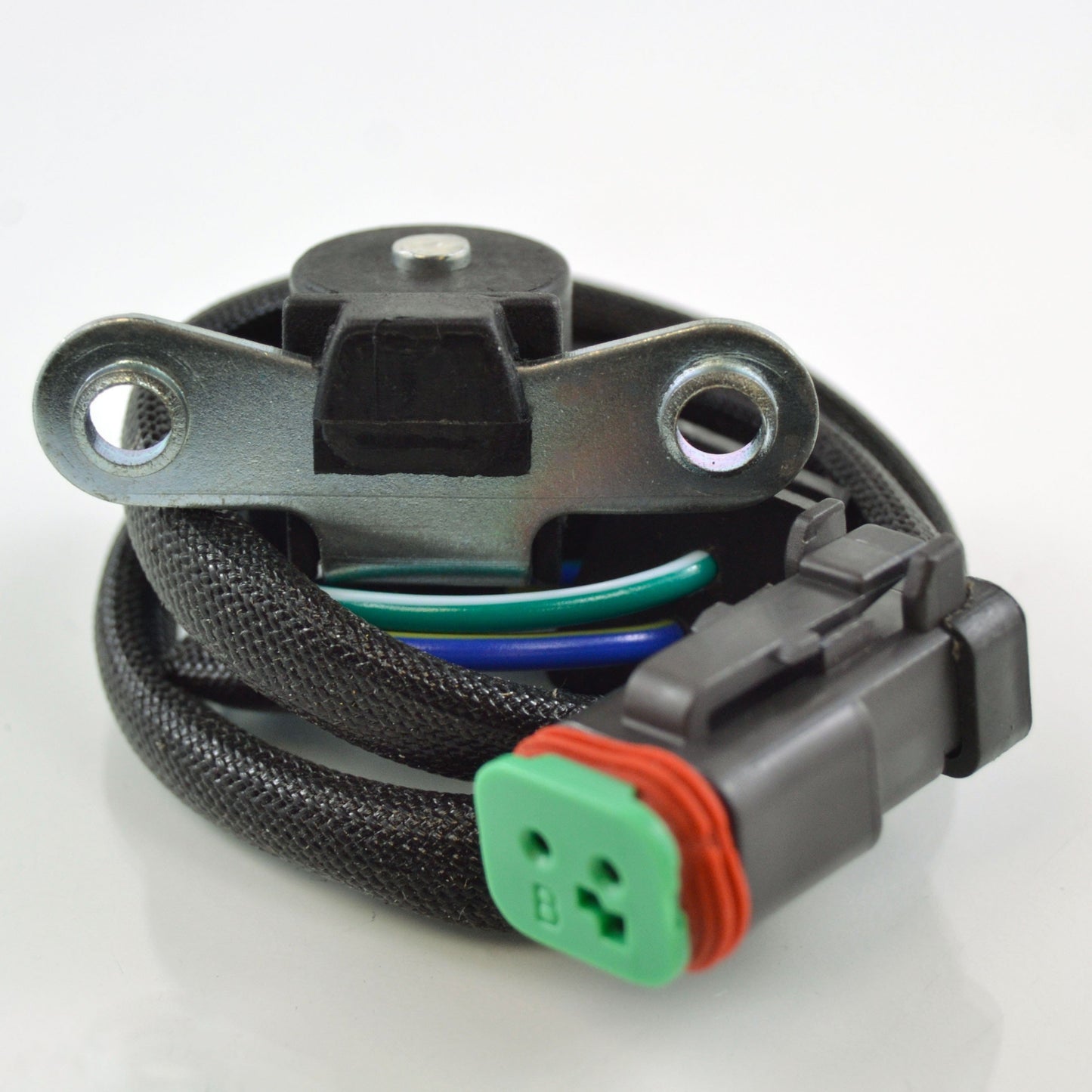

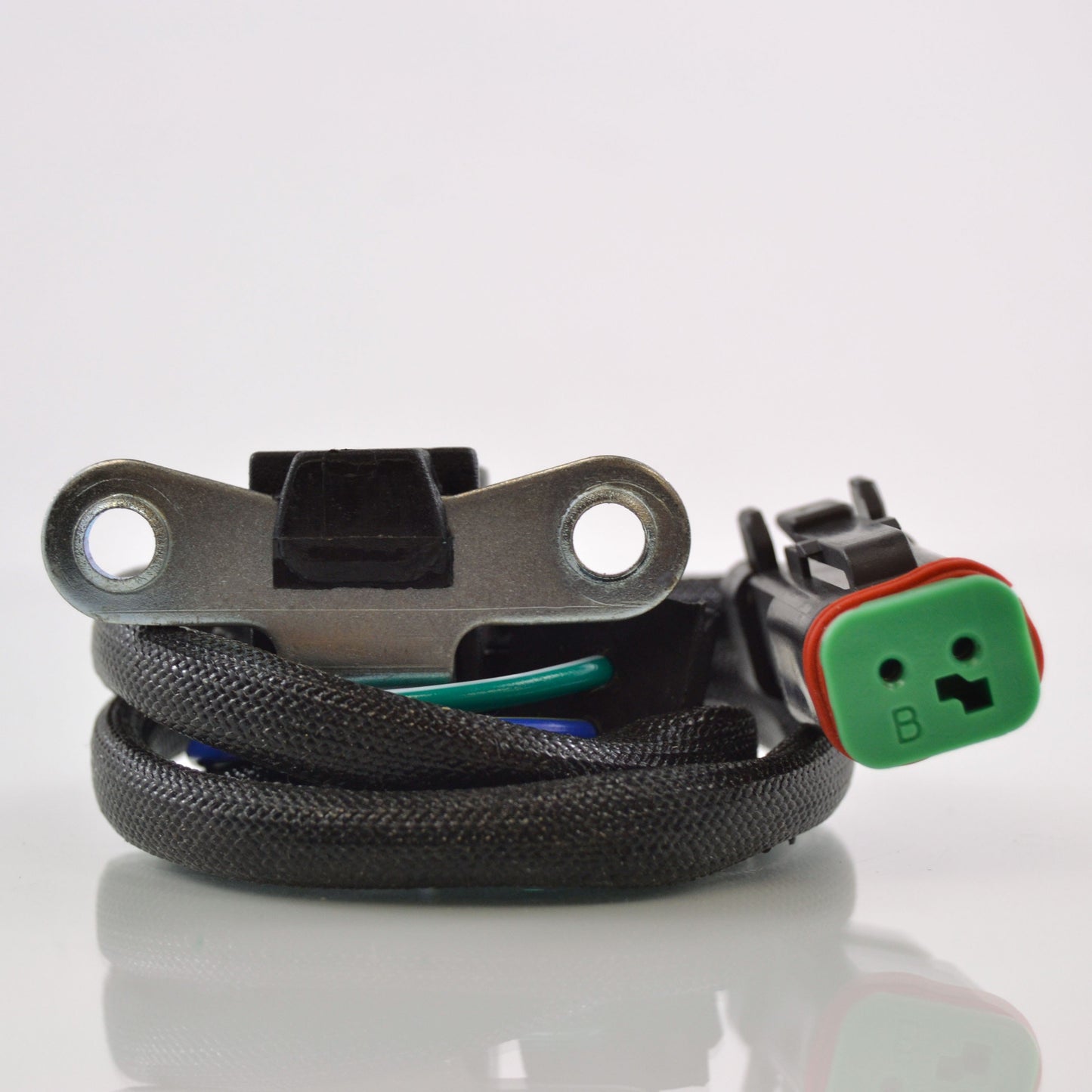

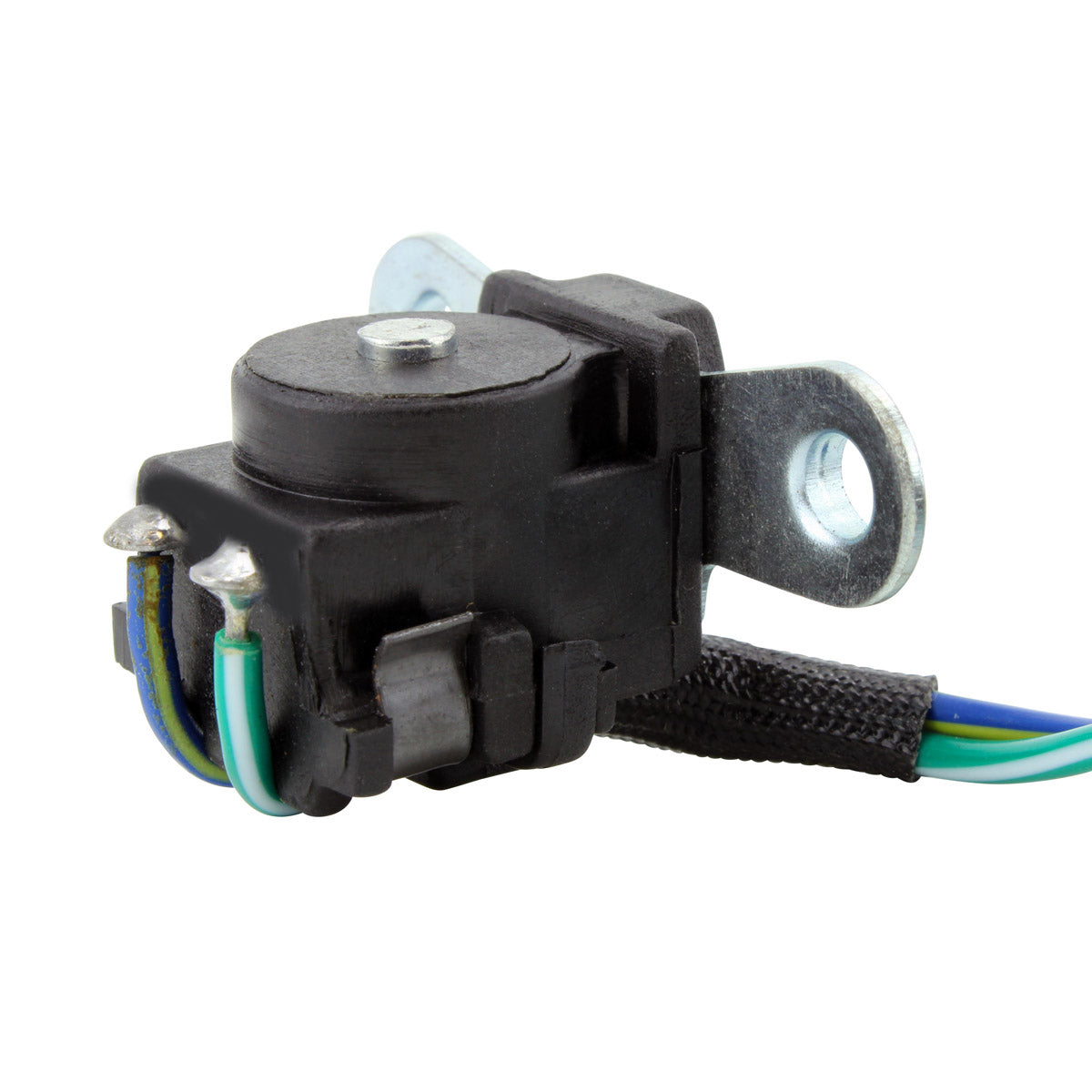

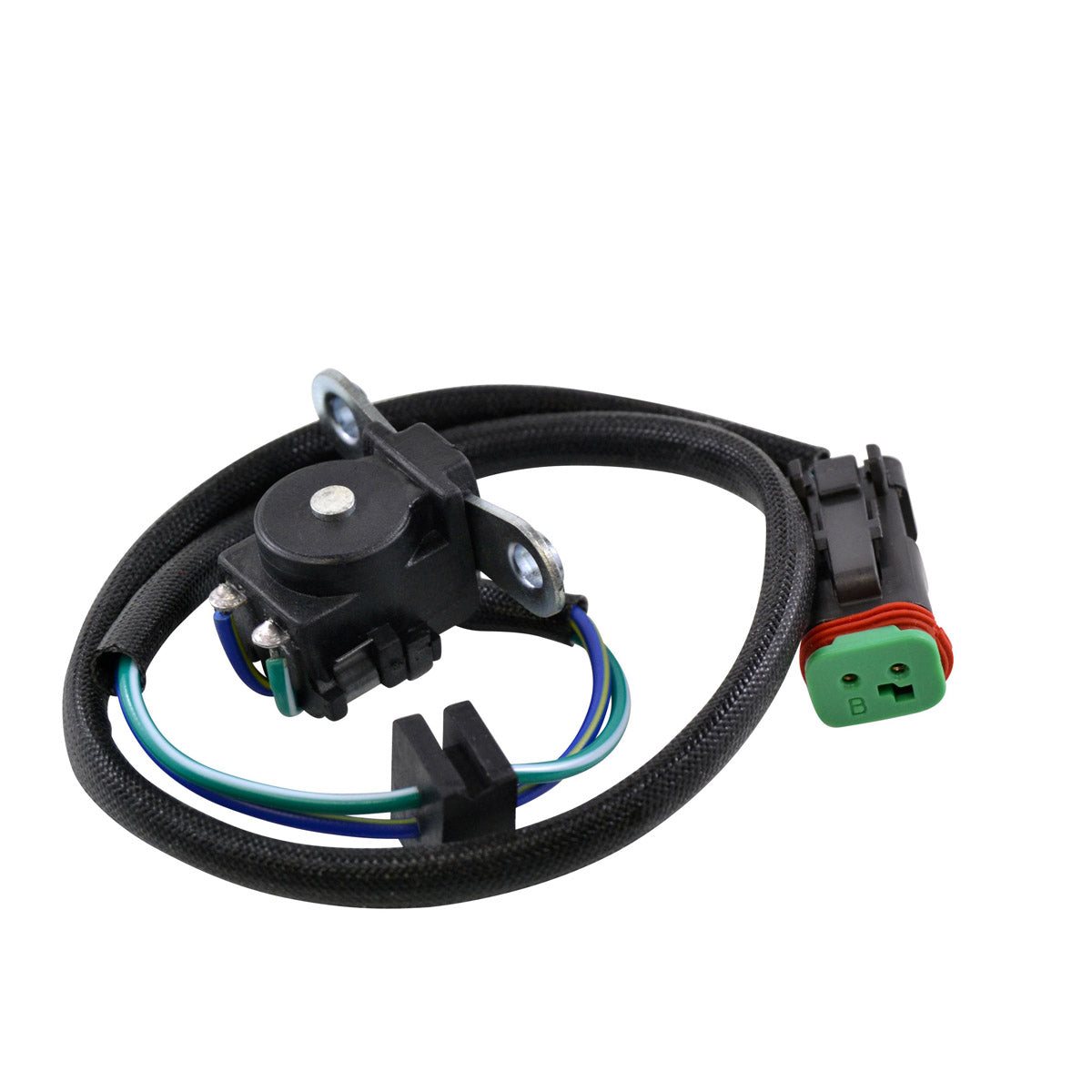

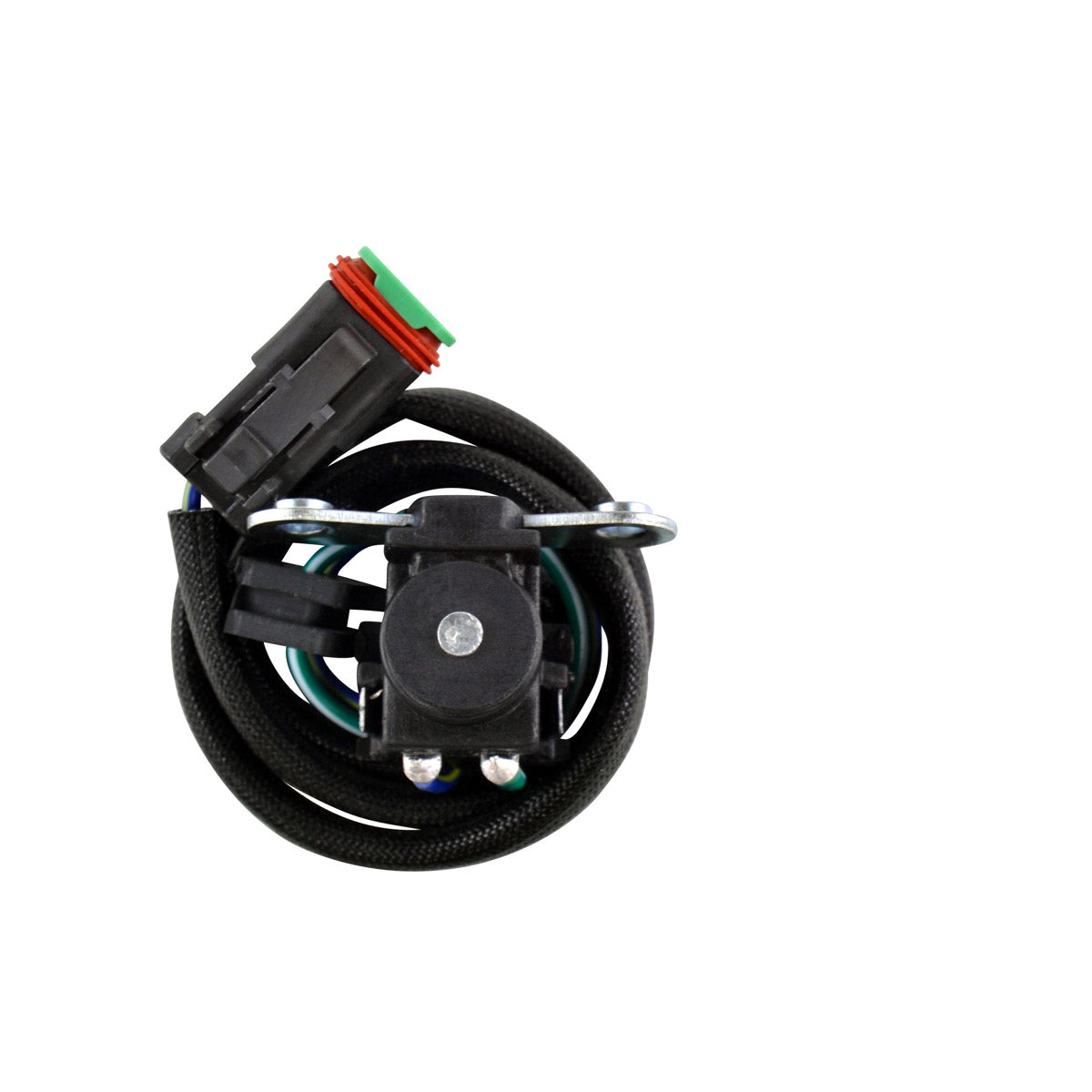

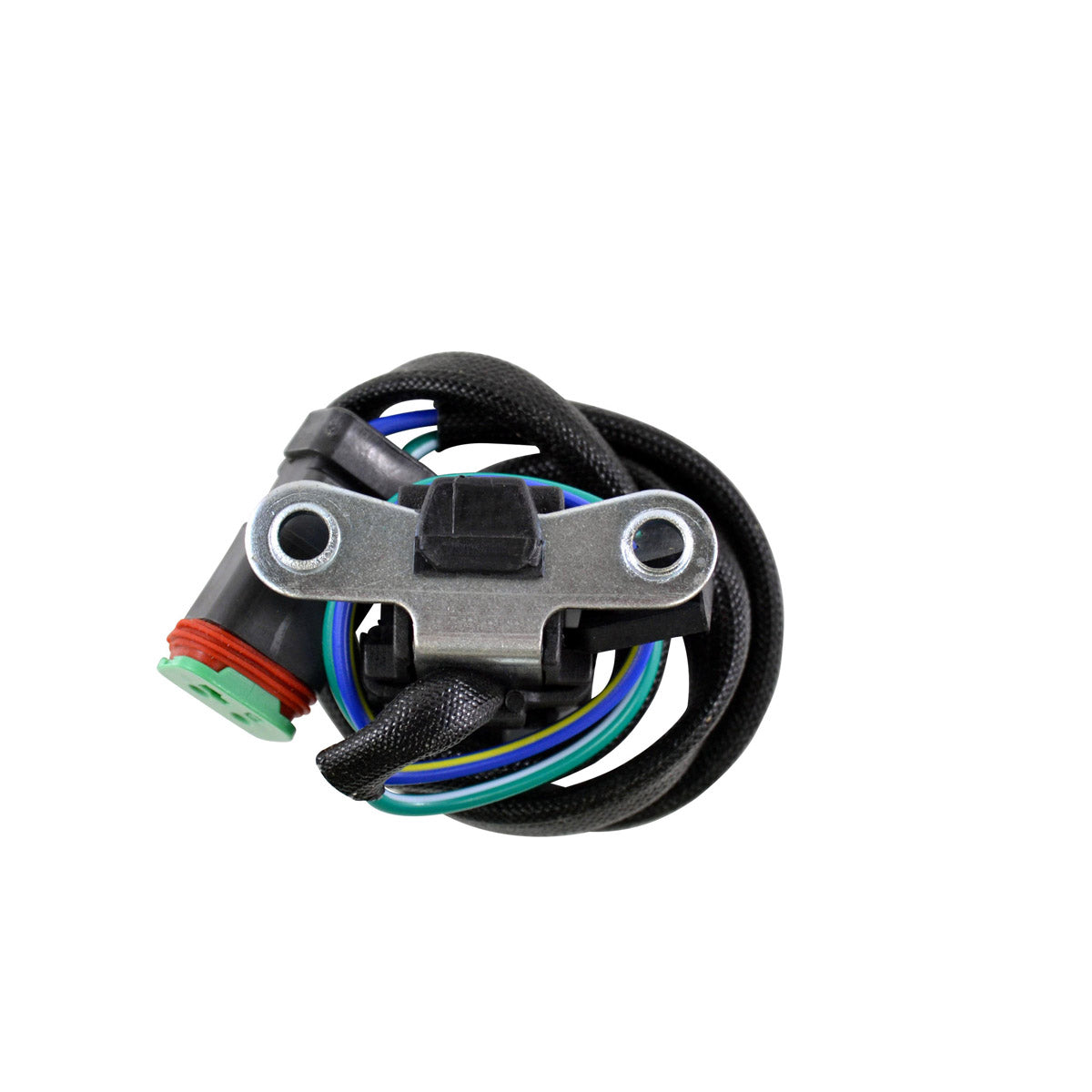

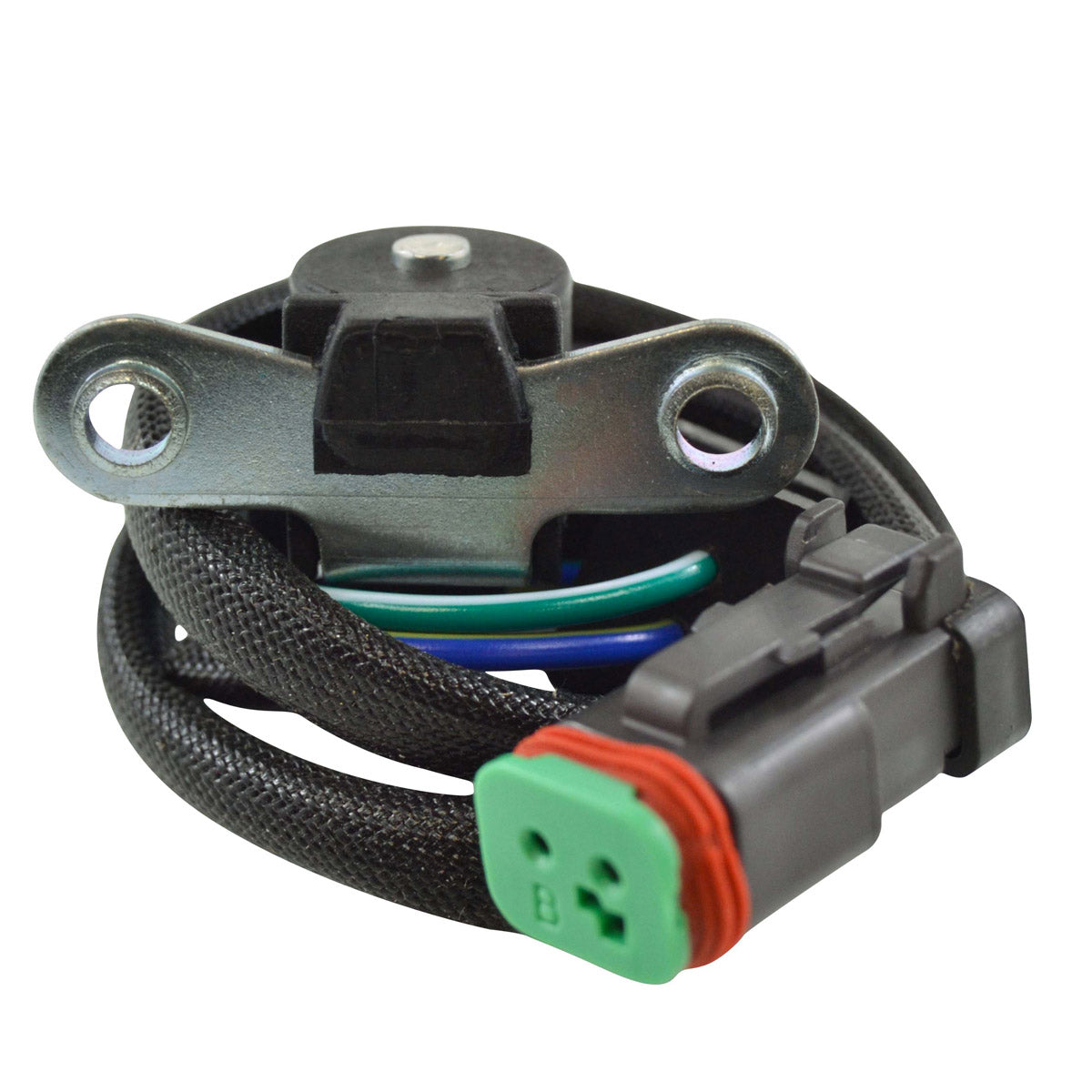

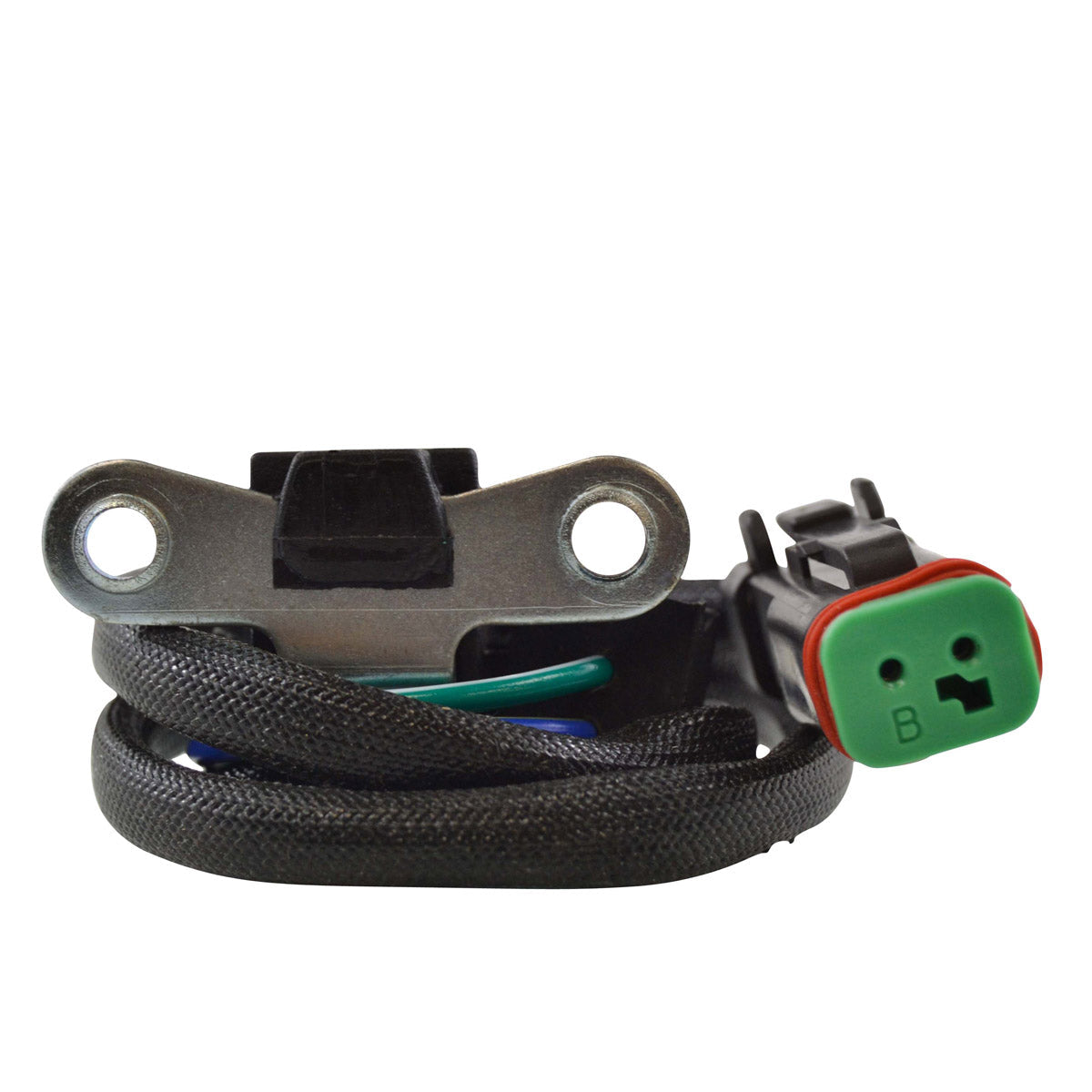

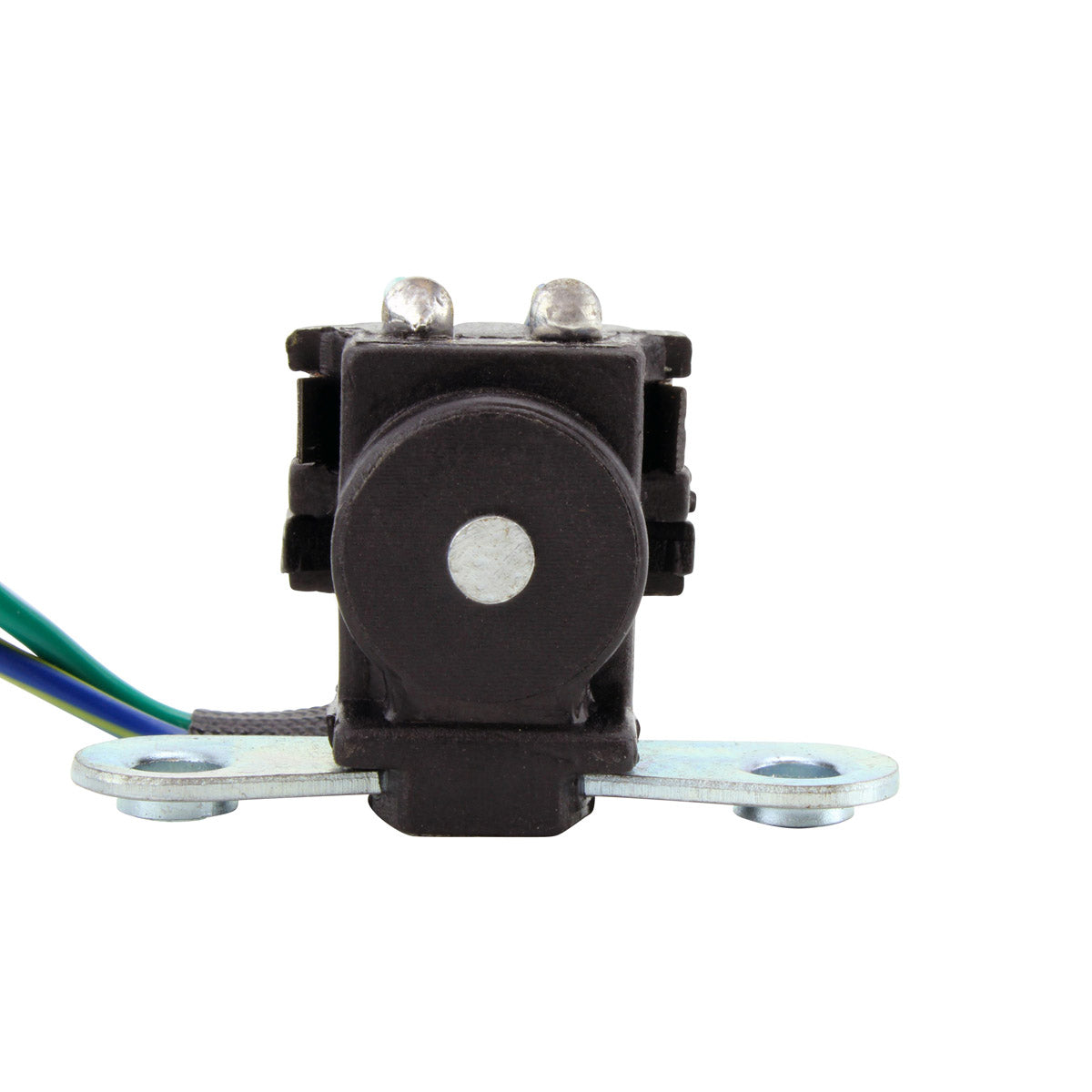

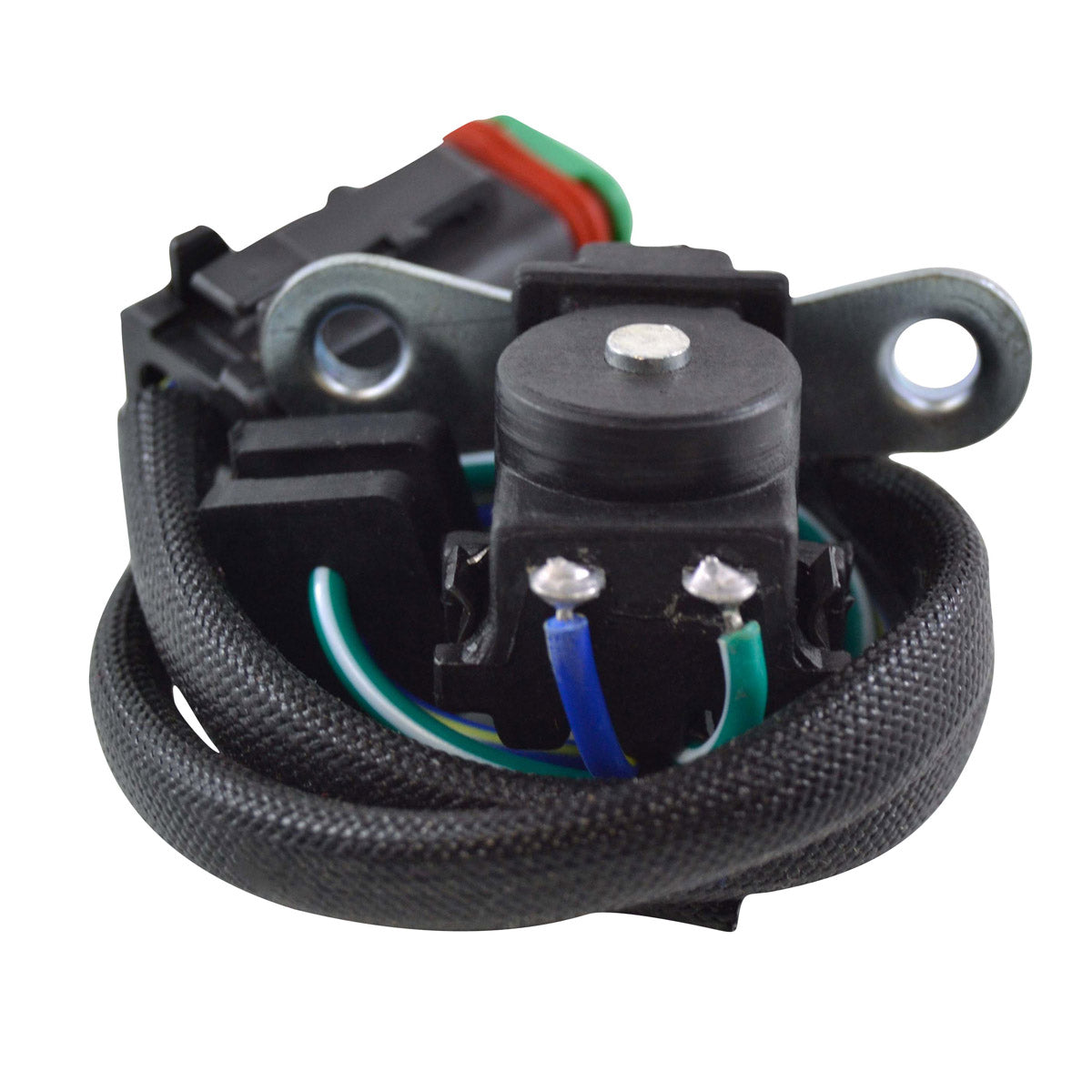

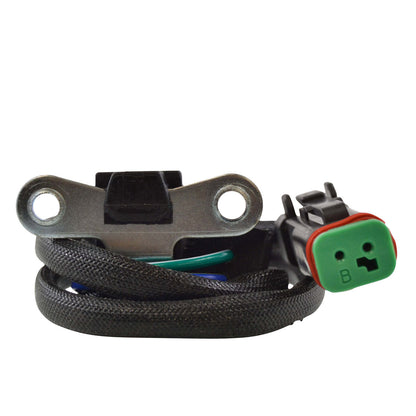

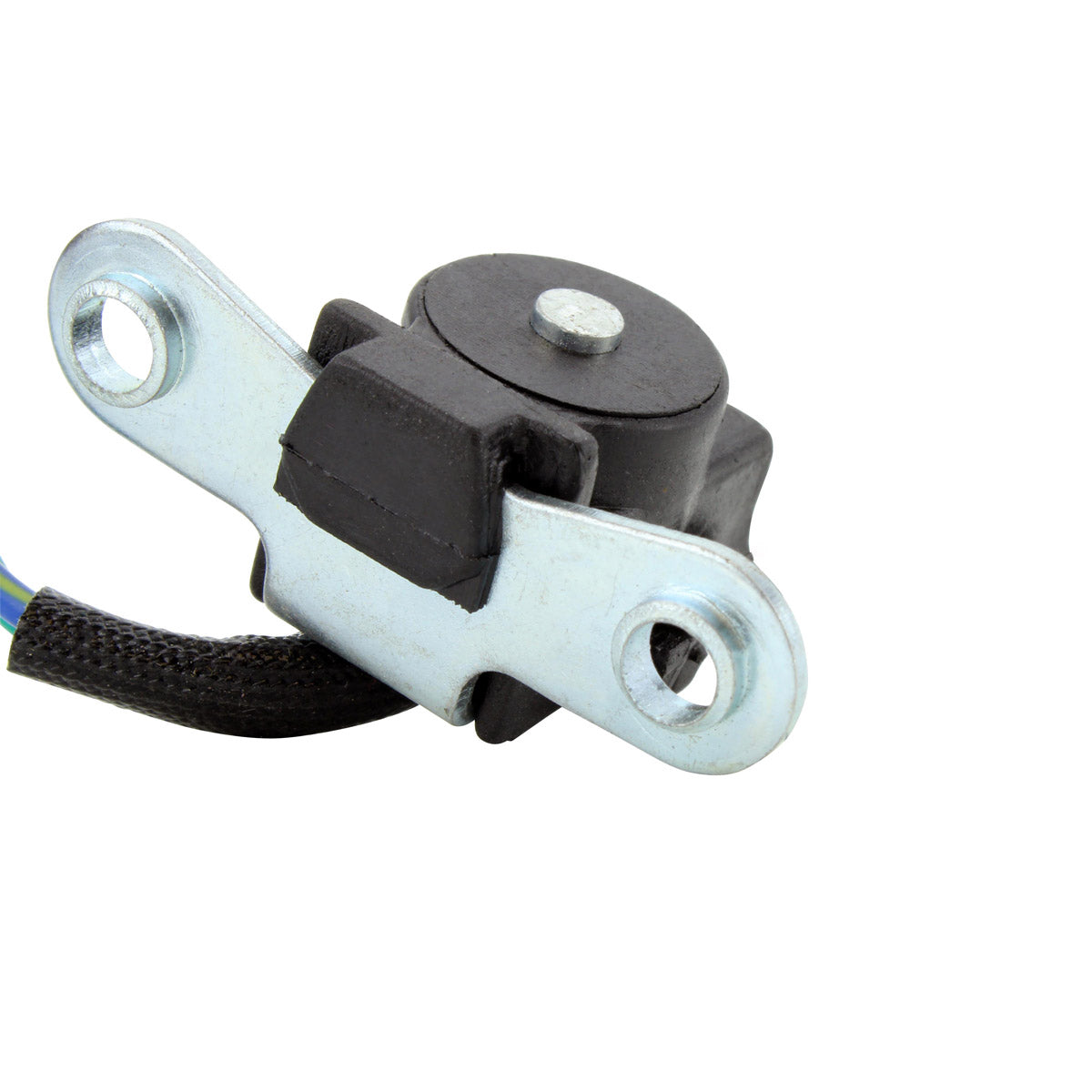

This is a brand new pick-up pulsar coil for the Can-Am DS 650 stator, supplied on its own so you can repair the stator rather than replace the complete assembly. The pick-up coil is the trigger that tells the ignition where the crankshaft is, and when it goes open circuit or drifts badly out of specification the engine will crank but refuse to fire, or will cut out once hot. On the DS 650 this individual coil is often no longer available from the original manufacturer, which is exactly why it is offered here as a separate service part.
It is built to the original dimensions with a 35 mm bracket centre-to-centre spacing, a 25 mm lead from the coil body to the grommet and a 400 mm run from the grommet to the plug, so it mounts on the standard stator plate and the harness sits where the original did. The coil reads 295 ohms +/- 20% from the green/white wire to the blue/yellow wire. Every unit is tested before it is shipped. All item pictures are accurate, so if you are in any doubt, compare the item to your original part before fitting.
Key Features
- Brand new pick-up pulsar coil for the stator
- Sold as a separate service part so the stator can be repaired rather than replaced
- Often unavailable from the original manufacturer
- Built to original dimensions and bracket spacing
- Two wires, one plug, two pins
- 295 ohms +/- 20% nominal resistance
- 400 mm harness run from grommet to plug
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Height |
22 mm |
| Length |
25 mm |
| Width |
23 mm |
| Bracket centre to centre |
35 mm |
| Wire length, pick-up coil to grommet |
25 mm |
| Wire length, grommet to plug |
400 mm |
| Number of wires |
2 |
| Number of plugs |
1 |
| Number of pins |
2 |
| Wire resistance |
Green/White to Blue/Yellow = 295 ohms +/- 20% |
| Part reference |
RM00129 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am DS 650 Baja |
2000-2007 |
| Can-Am DS 650 Baja X |
2000-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 711265153 |
Can-Am |
| 420265153 |
Can-Am |
| 711265156 |
Can-Am |
Frequently Asked Questions
Will it fit without modification?
Yes. It is built to the original dimensions, including the 35 mm bracket centre-to-centre spacing, and uses the original wire lengths and plug, so it bolts onto the standard stator plate and connects to the untouched loom.
What do I actually receive?

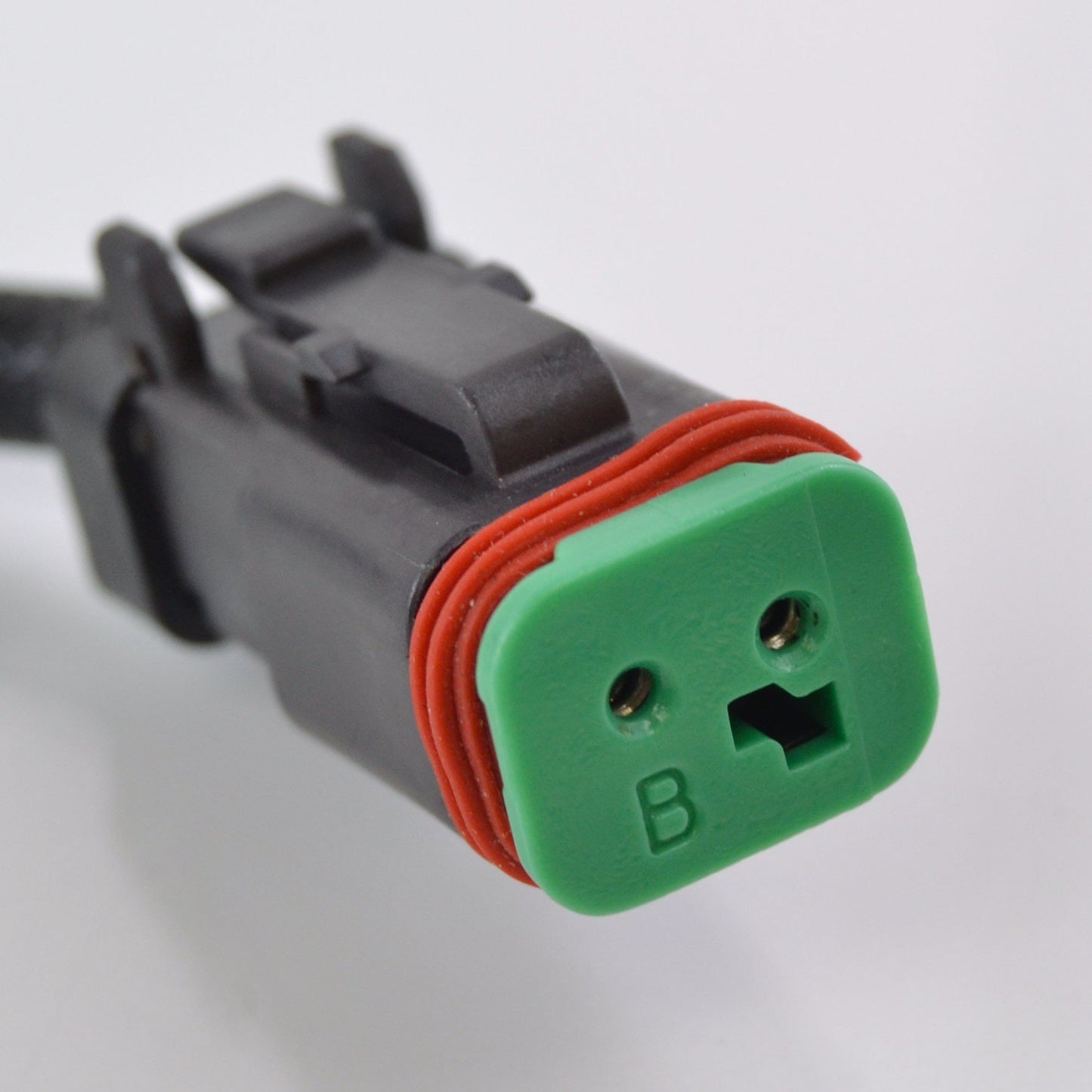

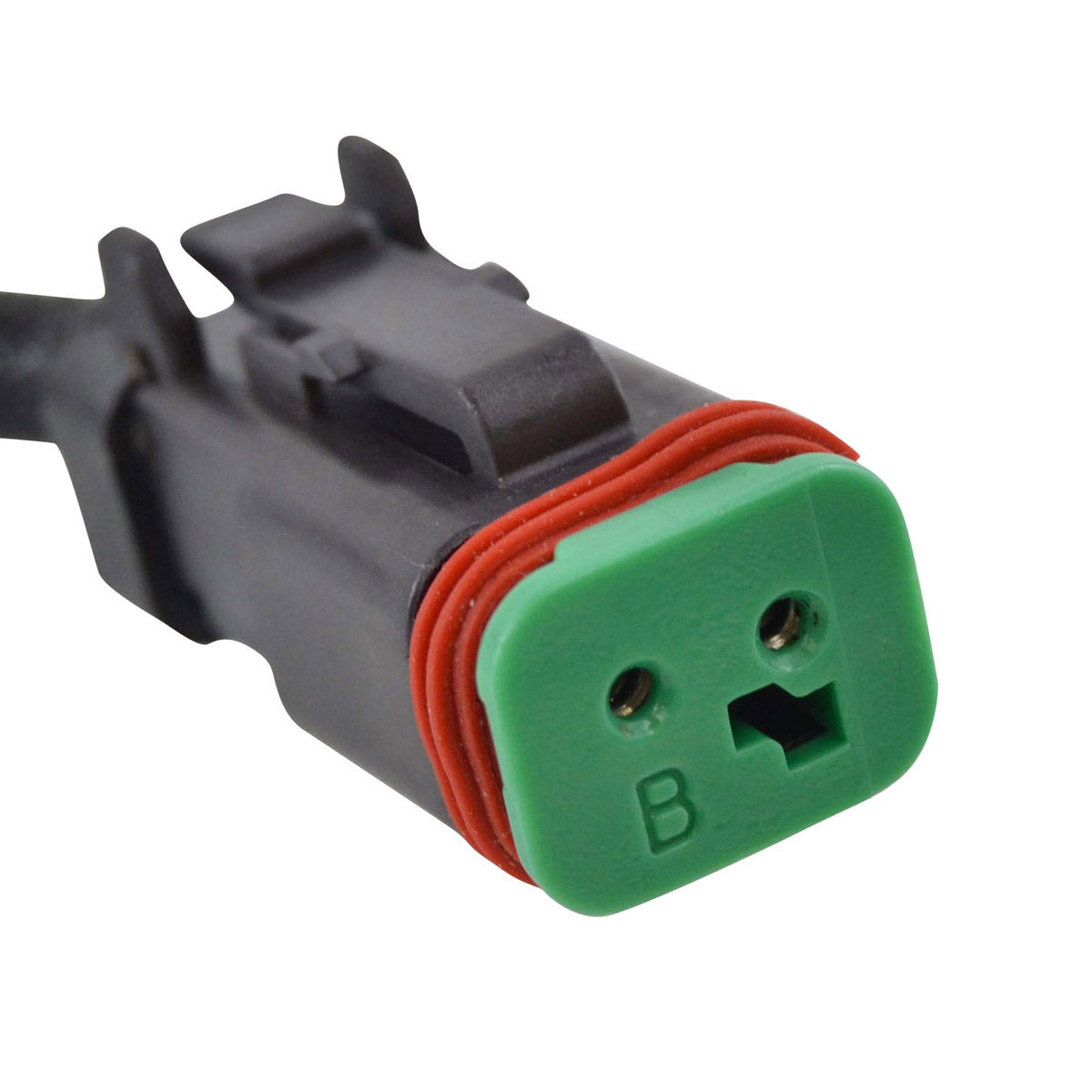

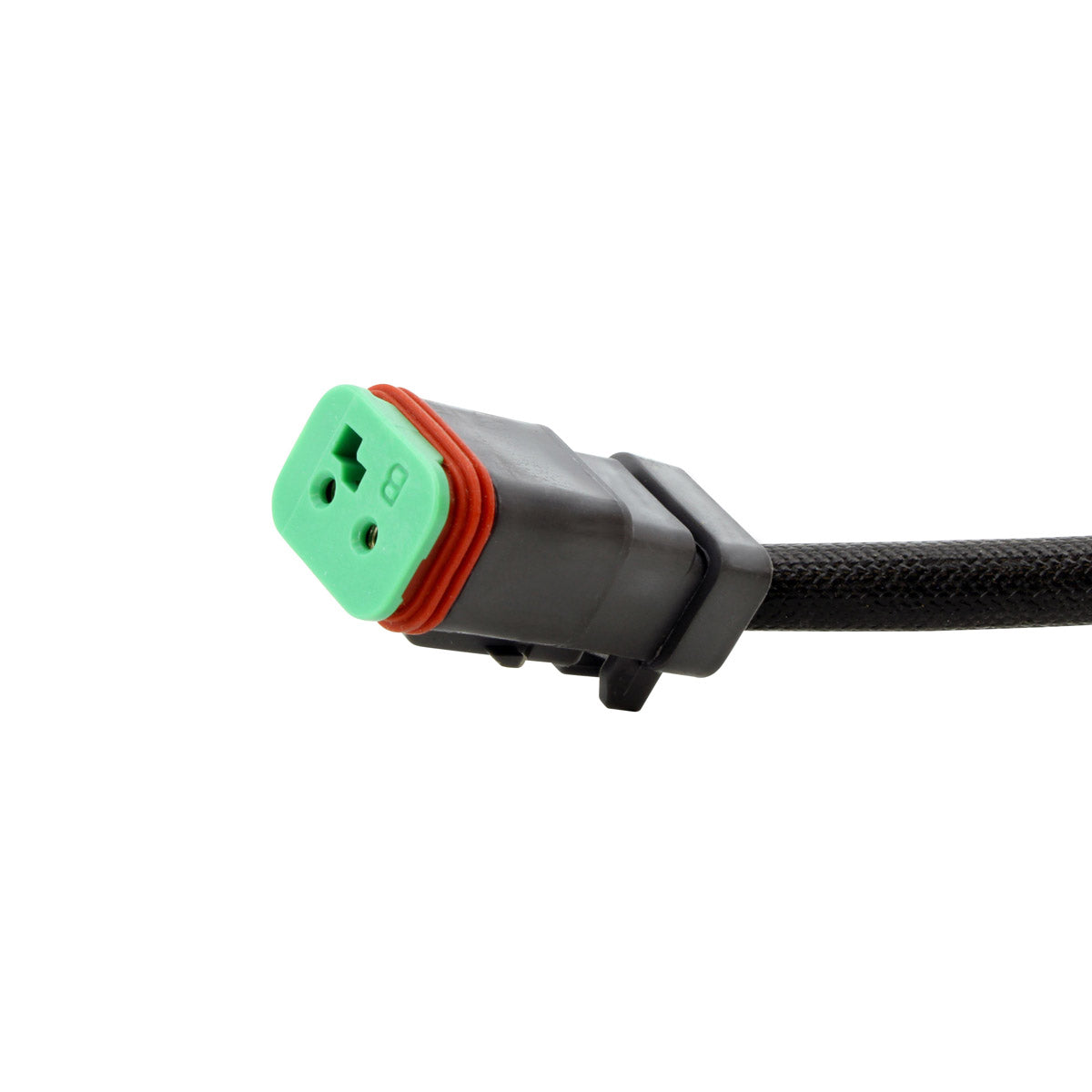

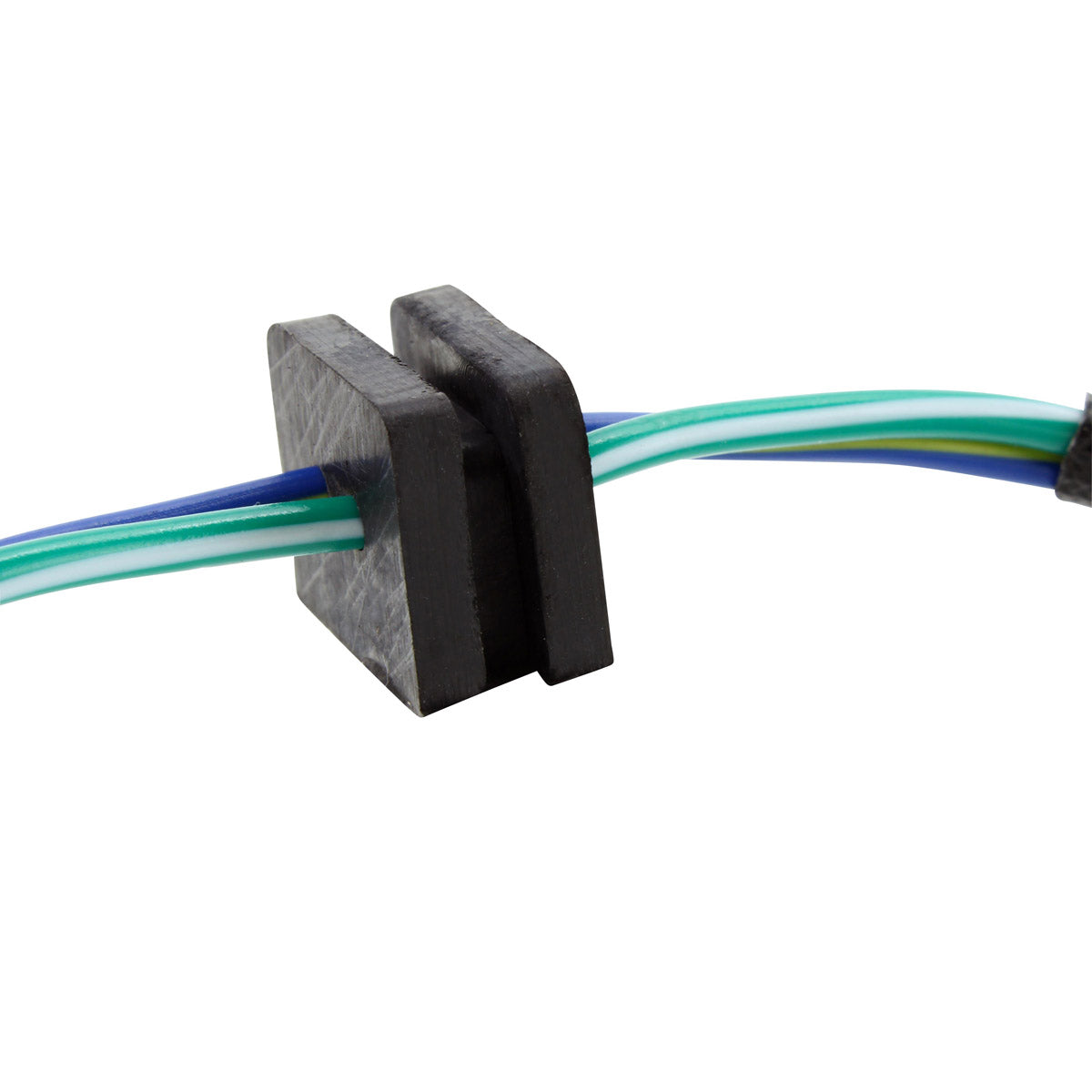

You receive the pick-up pulsar coil only, complete with its two wires, grommet lead and single two-pin plug. It is the repair part for the stator, not a complete stator assembly, so the existing charging windings stay in place.
How do I tell that my pick-up coil has failed?
Unplug it and measure across the two wires with a multimeter. Green/white to blue/yellow should read 295 ohms +/- 20%. An open circuit, a very low reading, or continuity from either wire to the coil body or engine case means the coil has failed. A failed pick-up coil typically gives no spark and no tachometer signal while the engine still cranks normally.
Why buy the coil rather than a whole stator?
On the DS 650 the charging windings frequently outlast the pick-up coil, and the coil on its own is often no longer supplied by the original manufacturer. Fitting this part lets you repair the existing stator plate instead of buying and rewiring a complete assembly.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
