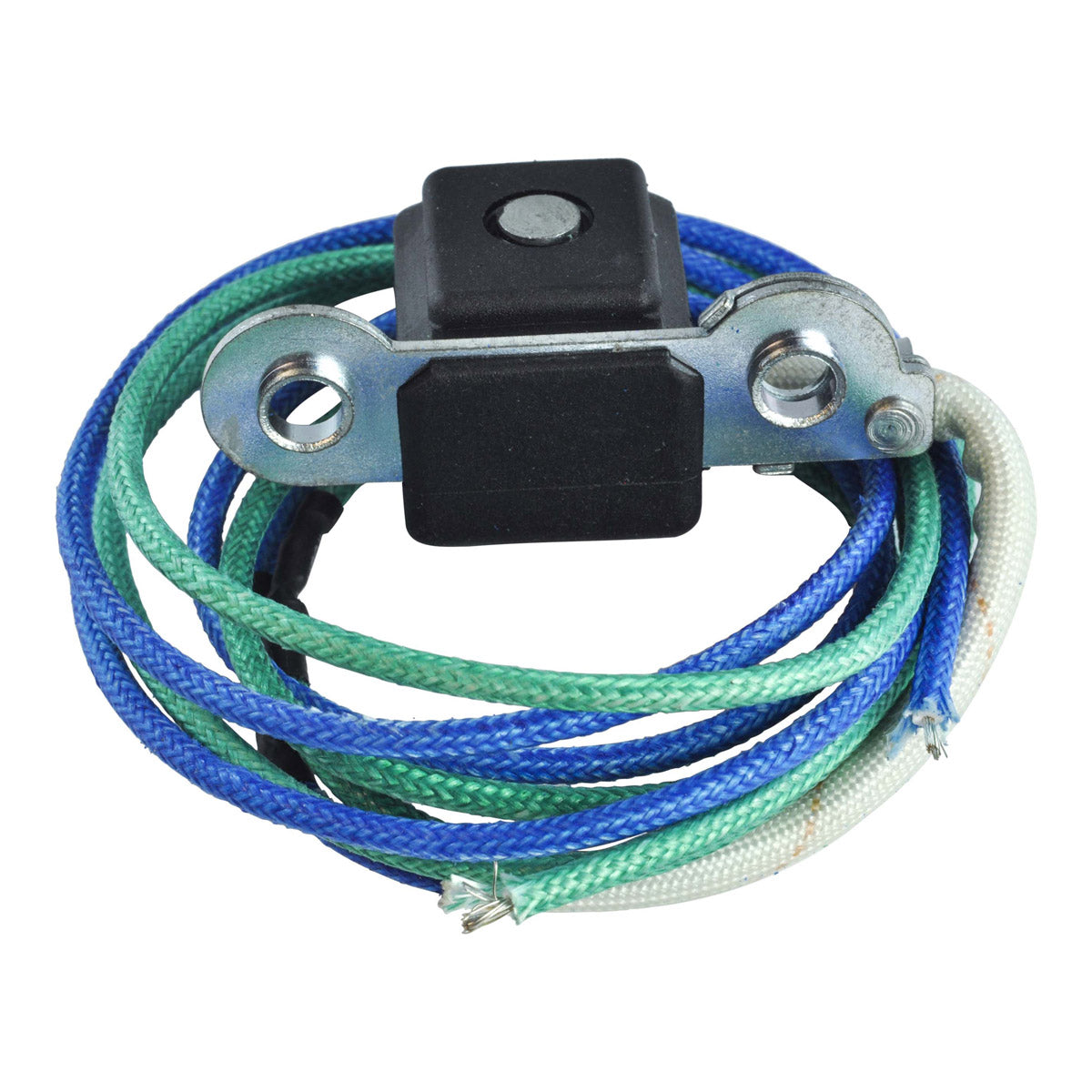

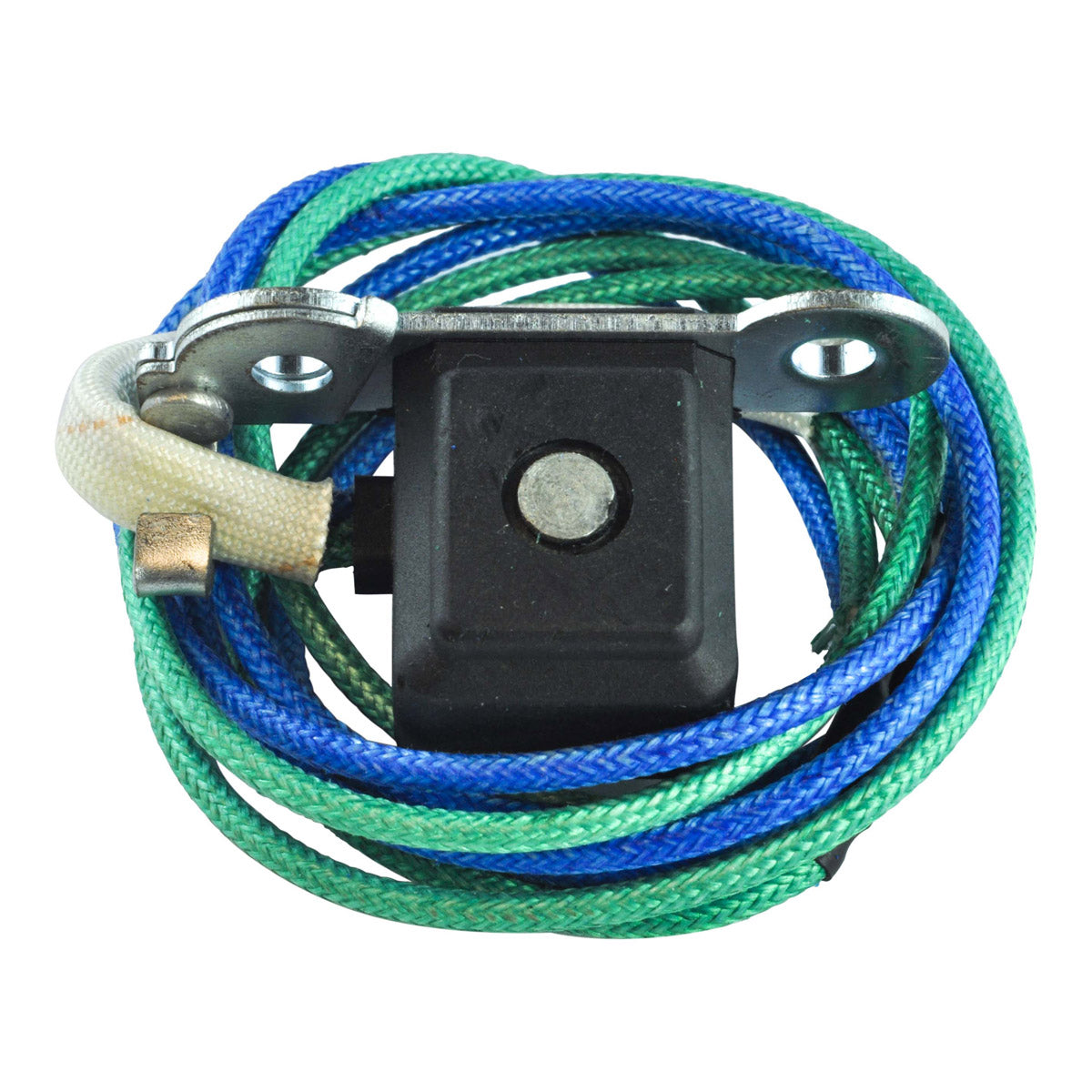

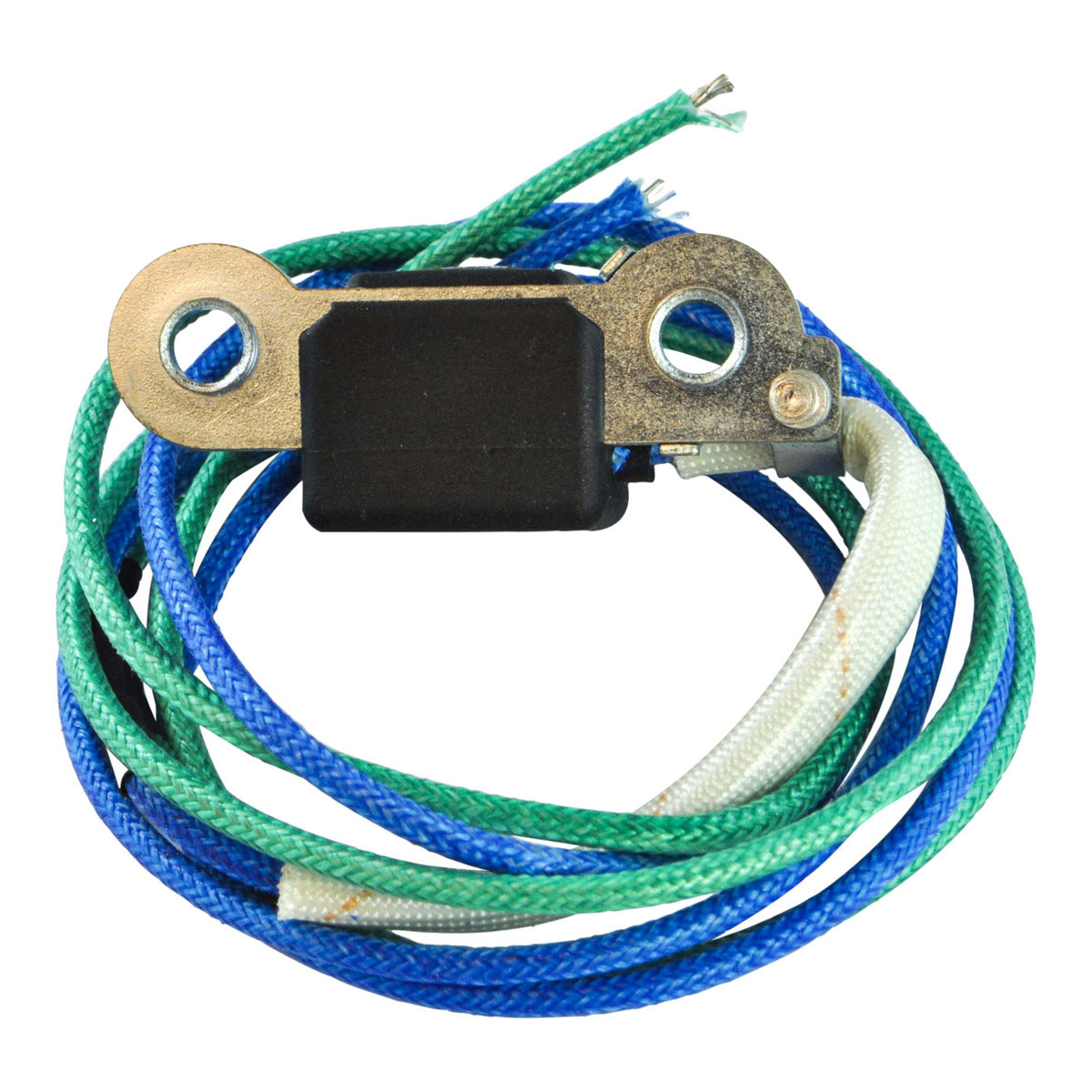

Stator Pick-Up Pulsar Coil for Honda ATC 250 R and TRX 250 R
Honda ATC 250 R and TRX 250 R - 1985-1989
This is a brand new pick-up pulsar coil for repairing the stator on the Honda ATC 250 R three-wheeler and the TRX 250 R quad. The pulsar coil is the trigger that tells the CDI where the flywheel is sitting, and it is one of the most common failure points on these machines after decades of heat cycling. When it goes open circuit the engine turns over but will not fire, and when it drifts out of specification you get a weak or intermittent spark that comes and goes with engine temperature.

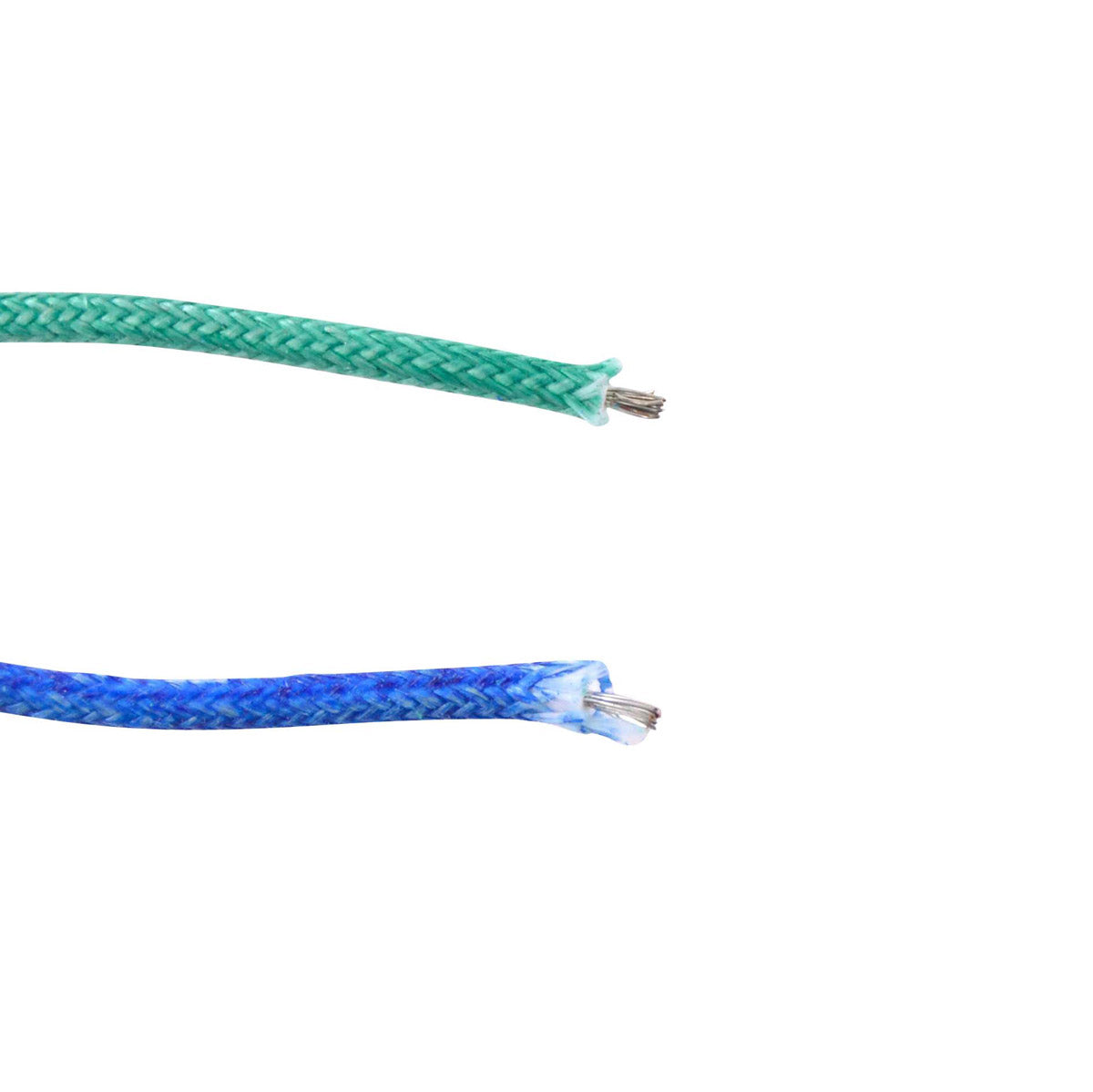

Honda has long stopped supplying this coil on its own, which normally leaves a complete stator assembly as the only route. This part lets you rebuild the stator you already have. Resistance measured between the blue and green wires is 115 ohms plus or minus 20 per cent, so your original can be checked against it with a multimeter before you commit. Fitting is a soldering job onto the original harness, insulated with heat shrink, followed by setting the air gap to a minimum of 0.010 in. Every unit is tested before it is shipped.
Key Features
- Brand new pick-up pulsar coil for repairing your existing stator
- Often unavailable from the OEM manufacturer as a separate part
- Fits both the ATC 250 R three-wheeler and the TRX 250 R quad
- Blue to green resistance of 115 ohms +/-20% for quick multimeter testing
- Replaces Honda 31120-HA2-004, 31120-HA2-671 and 31120-HB9-741
- Every unit is tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Wire to wire resistance (Blue to Green) | 115 ohms +/-20% |
| Resistance rating | 115 ohms |
| Installation method | Solder to the OEM harness and insulate with heat shrink |
| Minimum air gap | 0.010 in |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda ATC 250 R | 1985-1989 |
| Honda TRX 250 R | 1985-1989 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HA2-004 | Honda |
| 31120-HA2-671 | Honda |
| 31120-HB9-741 | Honda |
Frequently Asked Questions
Will this fit without modification?
It is the correct replacement coil for the ATC 250 R and TRX 250 R in the years listed, but it is not a plug-in part. The two wires are soldered to your original harness and insulated with heat shrink, then the air gap is set. Check the part number on your existing unit against the cross reference table before ordering.
What is included?
You receive the pick-up pulsar coil itself. Solder, heat shrink, the stator windings, the flywheel and any gaskets are not included.
How do I know my pulsar coil has failed?
Measure the resistance between the blue and green wires with a multimeter. A healthy coil reads 115 ohms plus or minus 20 per cent. An open circuit, a short to earth, or a reading well outside that band means the coil has failed. Typical symptoms are an engine that cranks but never fires, and a spark that disappears as the engine warms up.
What air gap should I set?
The coil must sit no closer than 0.010 in from the flywheel trigger. Set the gap after soldering and before refitting the flywheel cover, and confirm the figure against your workshop manual for your exact model year.
