Stator Pickup Pulsar Coil for Ski-Doo and Lynx
Formula, GSX, GTX, Skandic, Summit and Xtrim 1999-2020 - replaces OEM 420966835 and 410922925

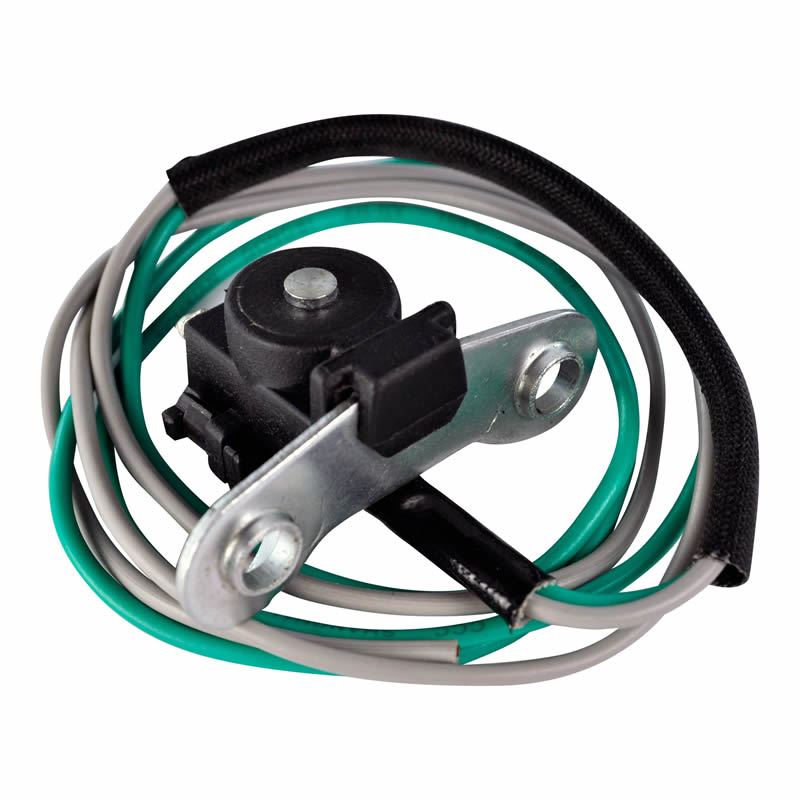

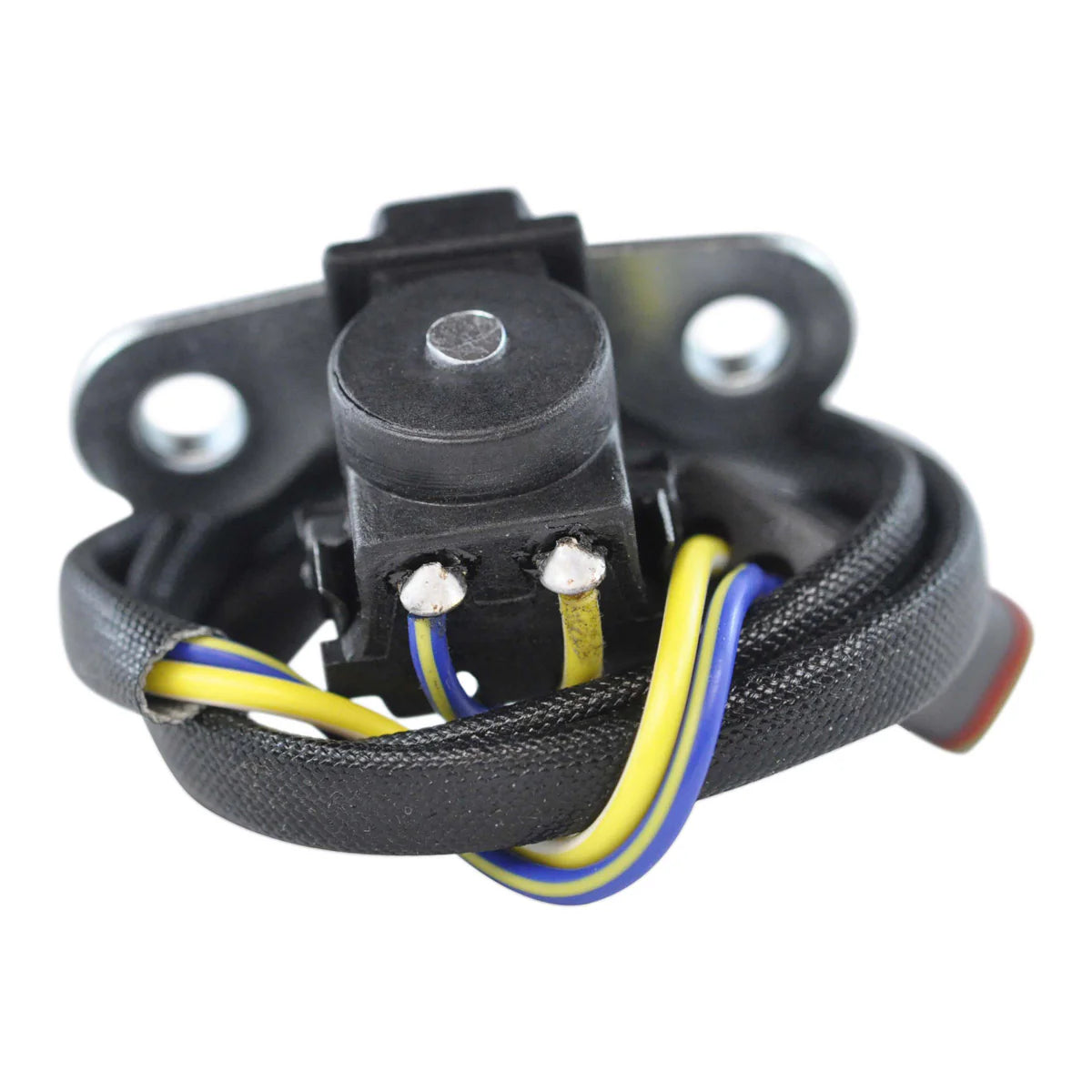

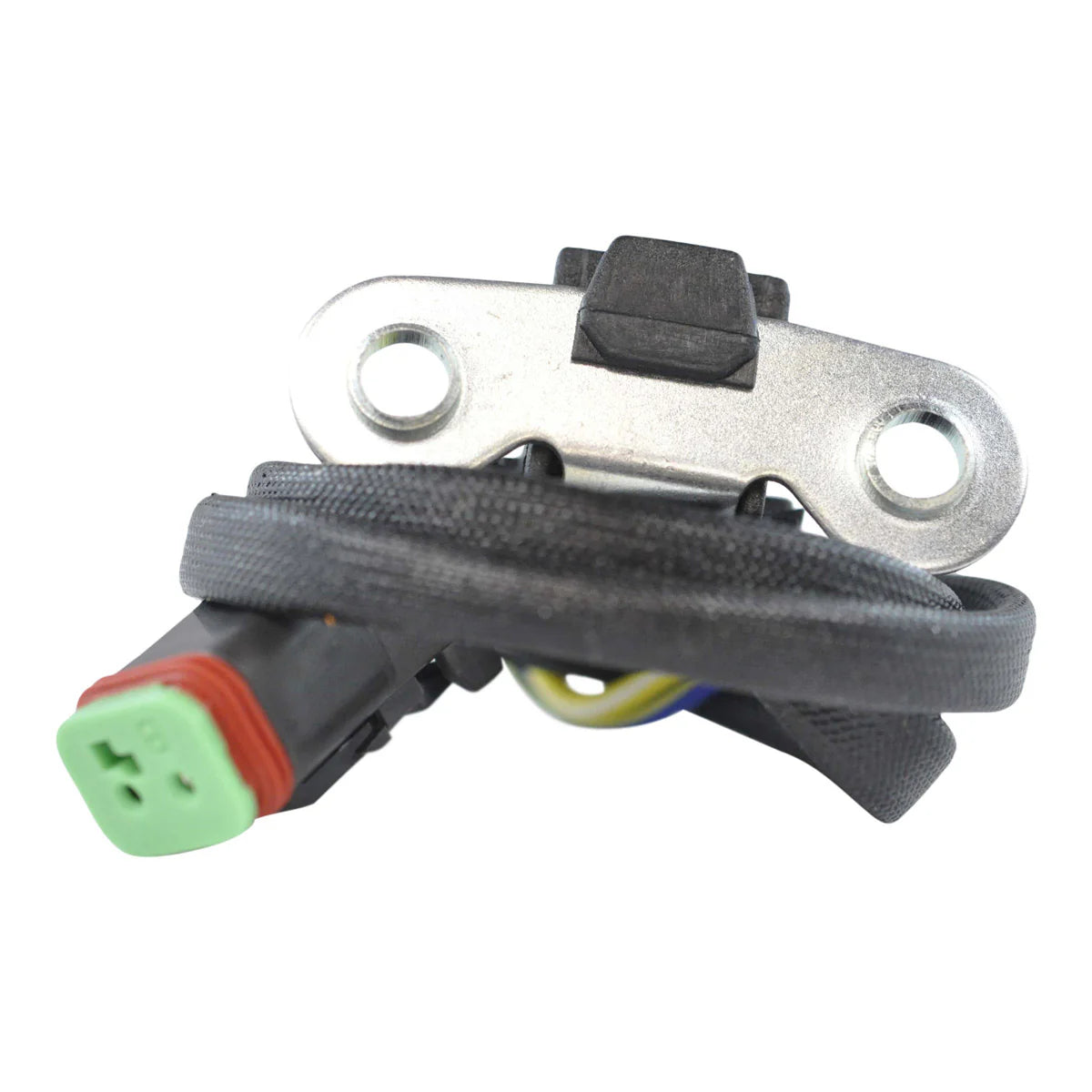

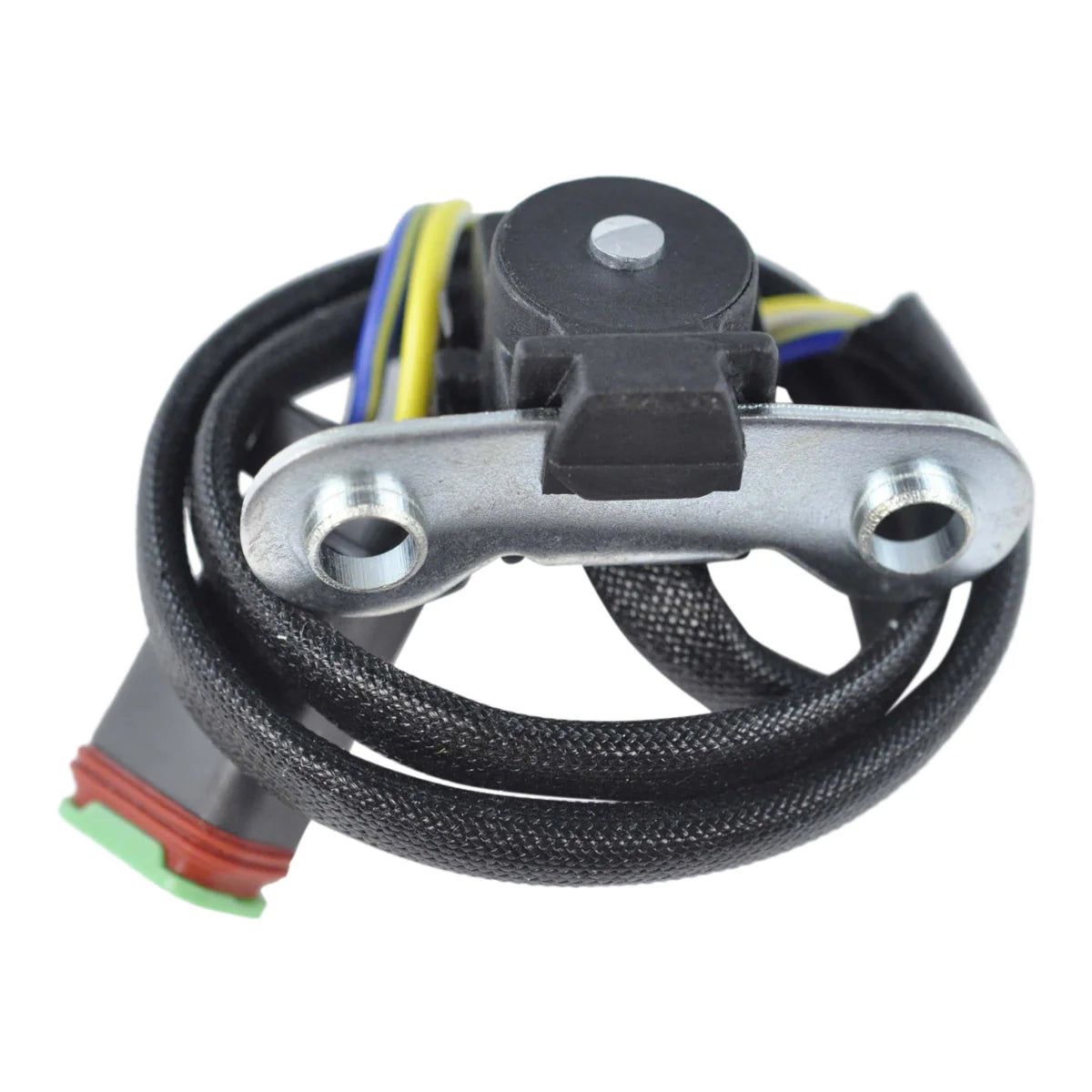

This is a brand new pickup pulsar coil for Ski-Doo and Lynx snowmobiles, supplied under part number RM00118. It is the trigger coil that signals the ignition when to fire, and it is sold as an individual component so that a stator with healthy charging windings but a dead trigger can be repaired instead of replaced in full.
This is a part that is often unavailable from the original manufacturer, which is precisely what strands otherwise sound machines. It covers a broad range of Ski-Doo and Lynx models built between 1999 and 2020 and cross references to ten different factory part numbers. Every coil is tested before it is shipped.
Key Features
- Brand new pickup pulsar coil for repairing an existing stator
- Covers Ski-Doo and Lynx Formula, GSX, GTX, Skandic, Summit and Xtrim, 1999-2020
- Often unavailable from the OEM manufacturer

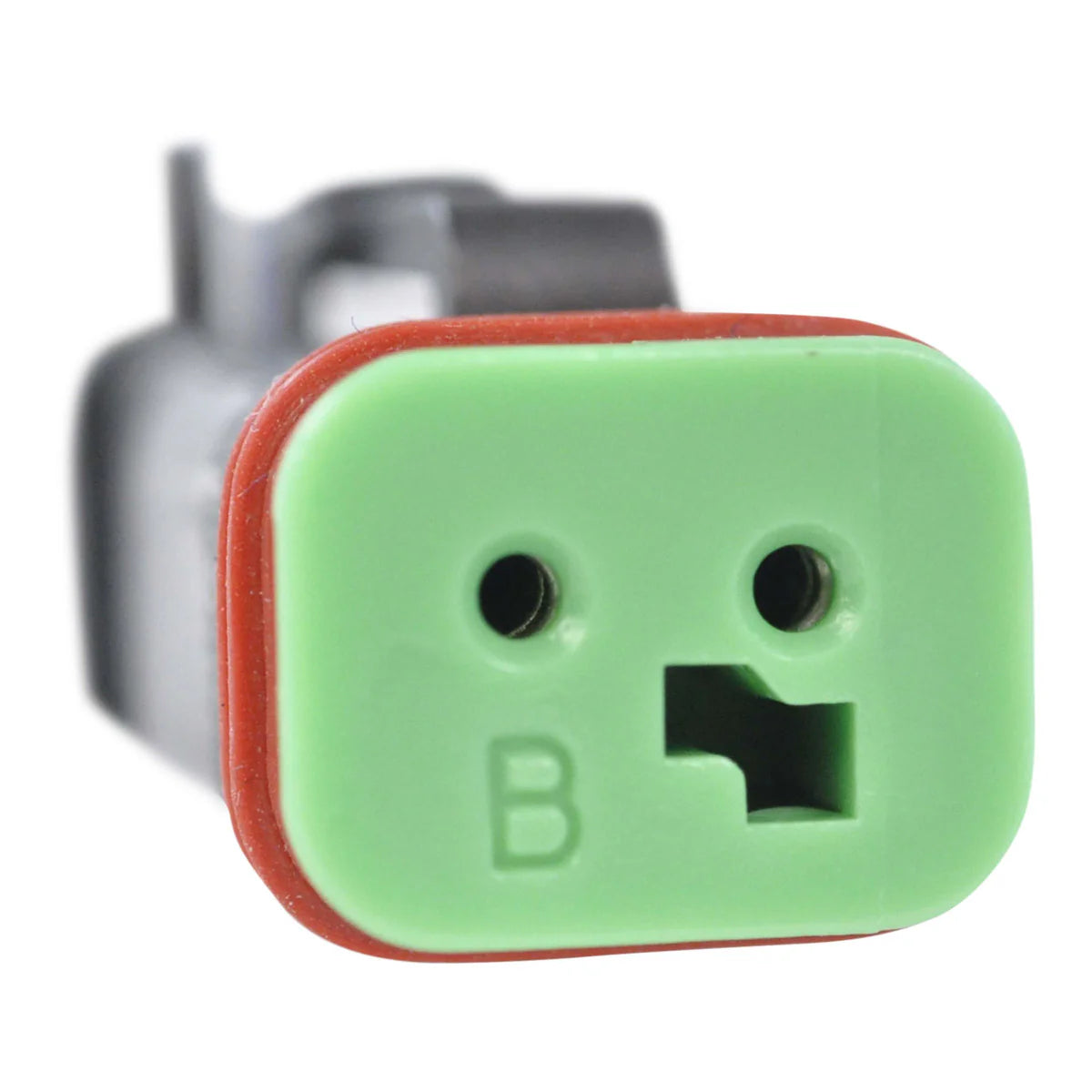

- 2 wire, 2 pin design with a generous 450 mm lead
- Bracket mounting holes 35 mm centre to centre
- Wire to wire resistance of 250 ohms blue to white
- Cross references to ten Ski-Doo and Lynx part numbers
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Height |
28 mm |
| Length |
24 mm |
| Width |
19 mm |
| Bracket centre to centre |
35 mm |
| Wire length |
450 mm |
| Number of wires |
2 |
| Number of pins |
2 |
| Wire to wire resistance (blue to white) |
250 ohms +/- 20% |
| Part number |
RM00118 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Ski-Doo Formula |
1999-2020 |
| Ski-Doo GSX |
1999-2020 |
| Ski-Doo GTX |
1999-2020 |
| Ski-Doo Skandic |
1999-2020 |
| Ski-Doo Summit |
1999-2020 |
| Lynx Xtrim |
1999-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420966835 |
Ski-Doo |
| 410922925 |
Ski-Doo |
| 410922932 |
Ski-Doo |
| 410922951 |
Ski-Doo |
| 410922955 |
Ski-Doo |
| 410922963 |
Ski-Doo |
| 410922969 |
Ski-Doo |
| 420866370 |
Ski-Doo |
| 420893060 |
Ski-Doo |
| 420966838 |
Ski-Doo |
Frequently Asked Questions
Will this coil fit without modification?
It is a direct replacement for the original pickup coil across the listed Ski-Doo and Lynx models from 1999 to 2020. The bracket holes are 35 mm centre to centre and the lead is 450 mm long with two wires and two pins, following the original. Given the breadth of models covered, check those dimensions and the cross reference numbers against the coil currently fitted before you order.
What is included?
One brand new pickup pulsar coil under part number RM00118. It is a repair component for an existing stator, so no stator plate, flywheel or mounting hardware is supplied with it.
How do I know the old pickup coil has failed?
The usual symptoms are no spark, an intermittent misfire, or an engine that cranks over but never fires. Measure resistance between the blue and white wires: a sound coil reads about 250 ohms within 20 per cent. An open circuit, a near zero reading, or continuity between either wire and the coil body all indicate a failed coil.
Why replace only the coil rather than the whole stator?
On these machines the pickup coil frequently fails while the charging and lighting windings remain in good order. Fitting just the coil is considerably cheaper than a complete stator, and it gets around the recurring problem that this particular part is often unavailable from the OEM manufacturer.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
