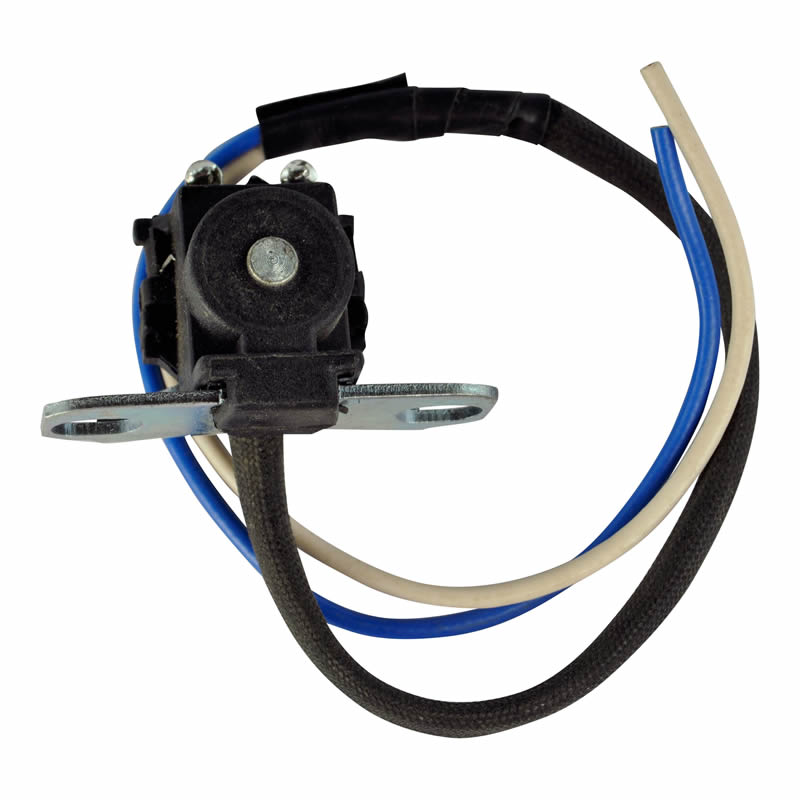

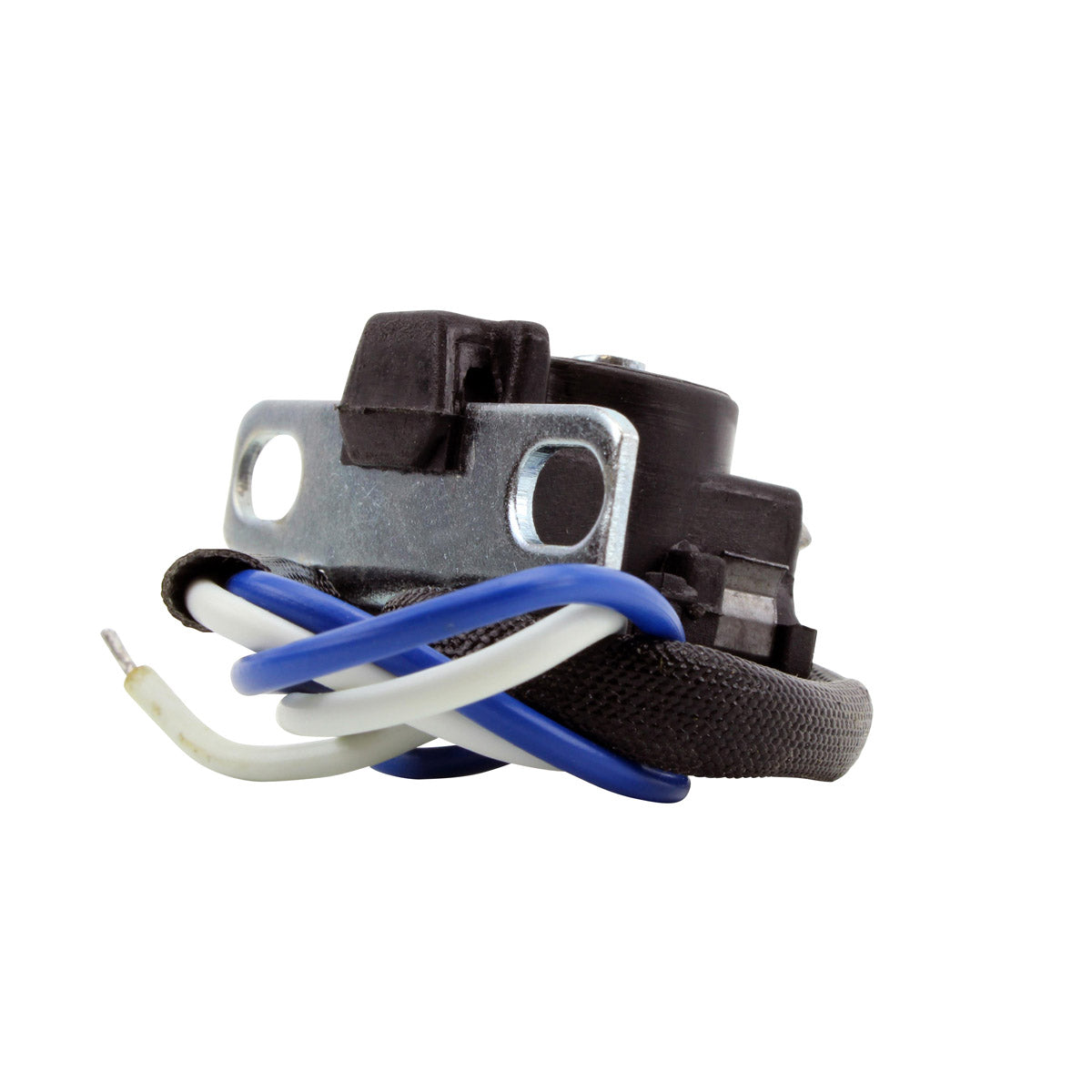

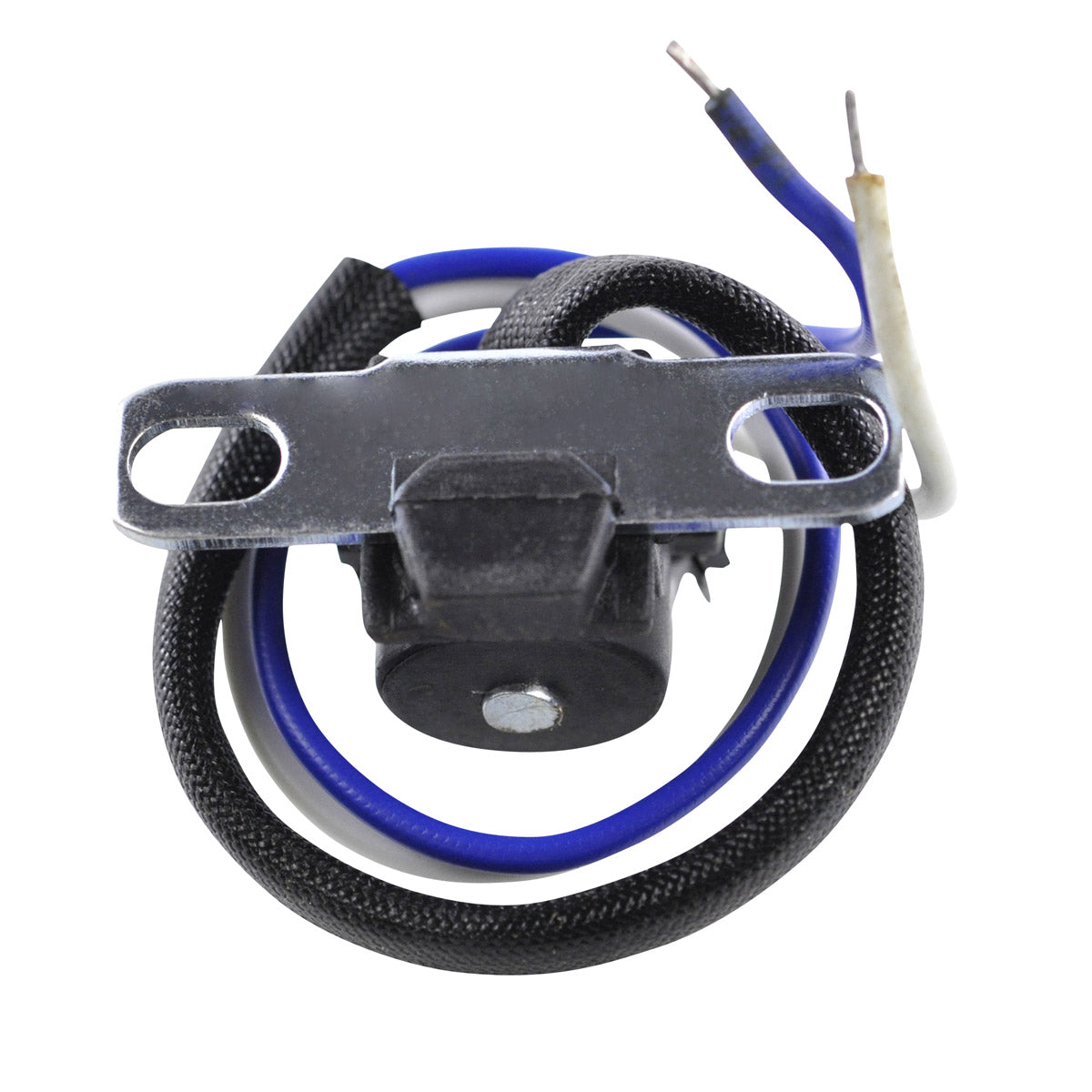

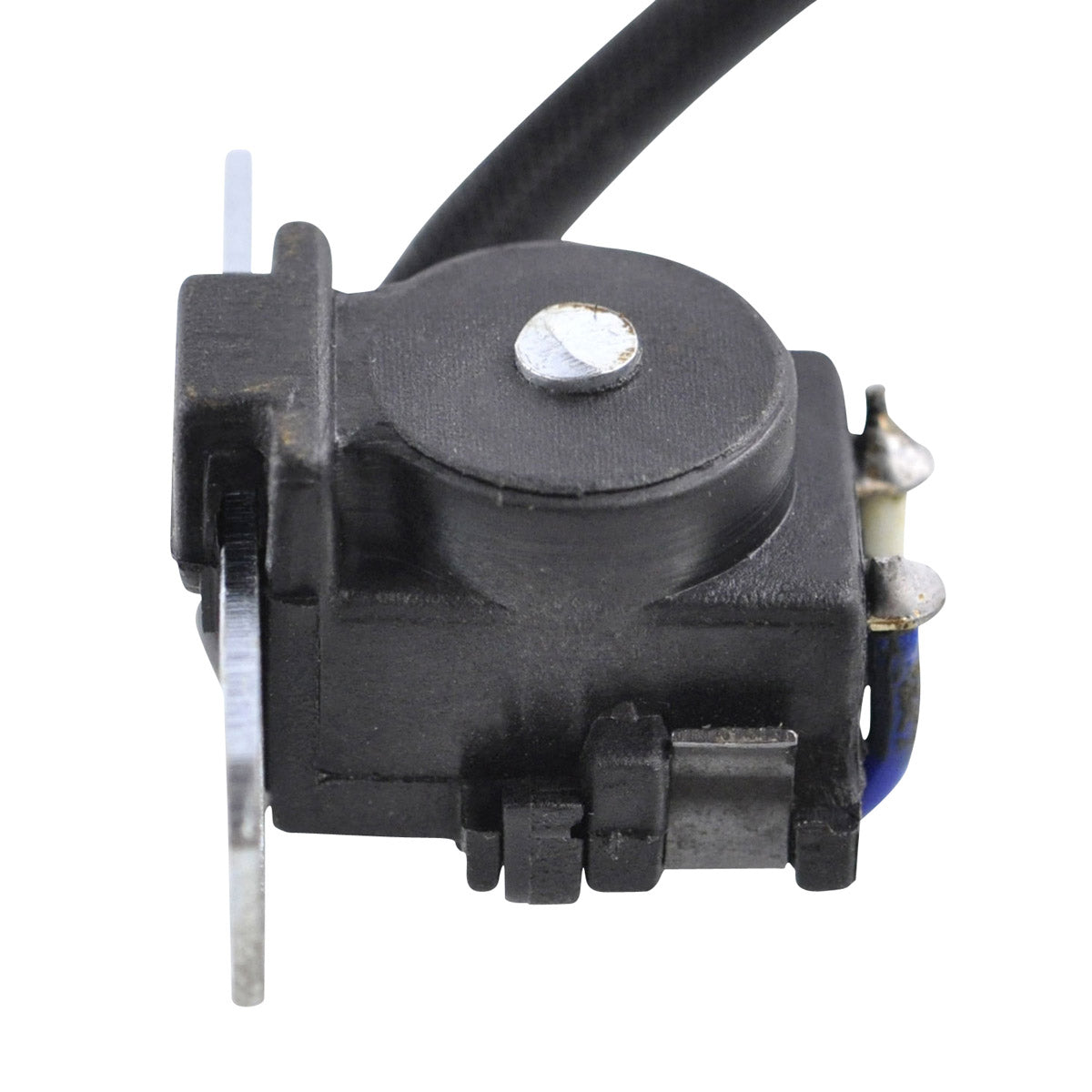

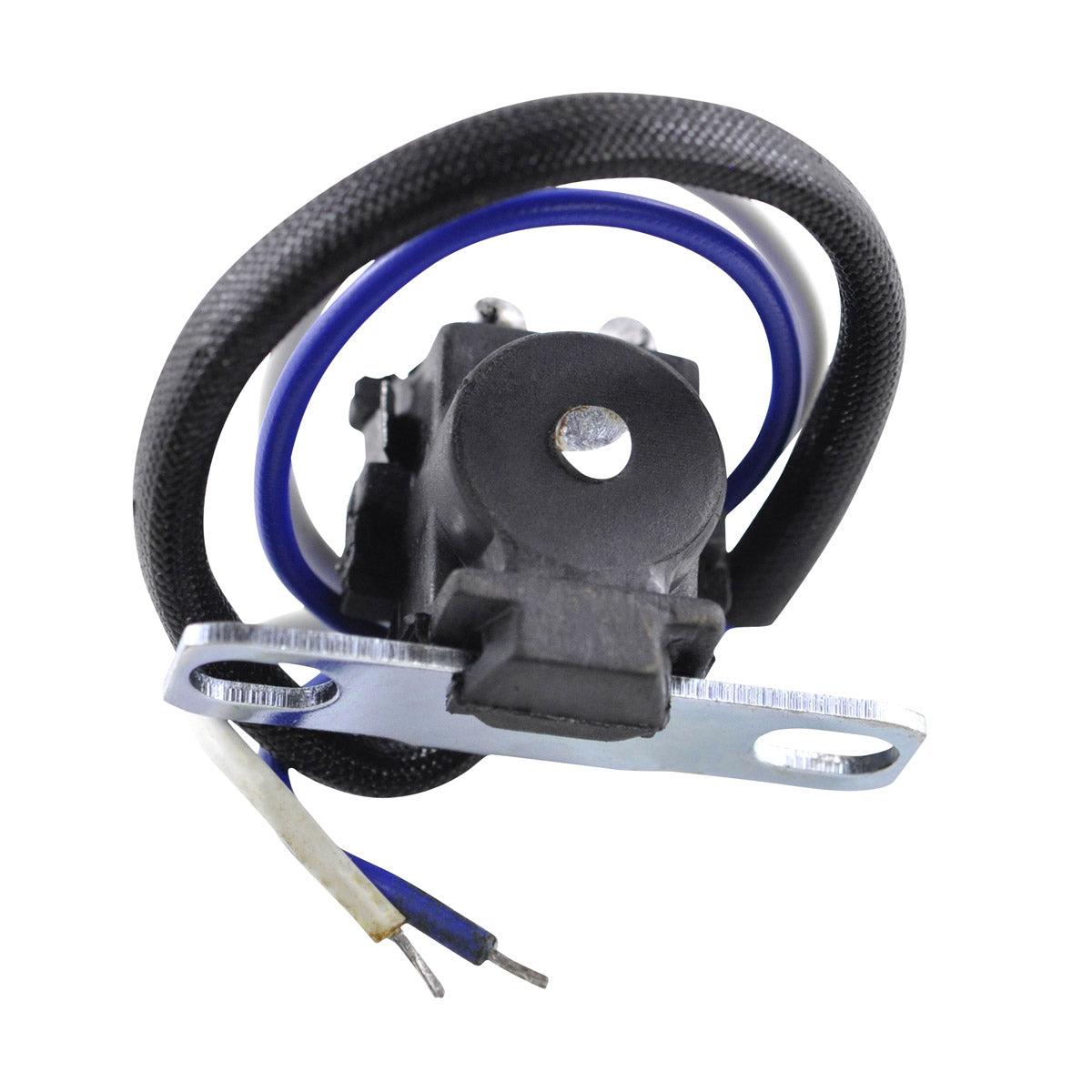

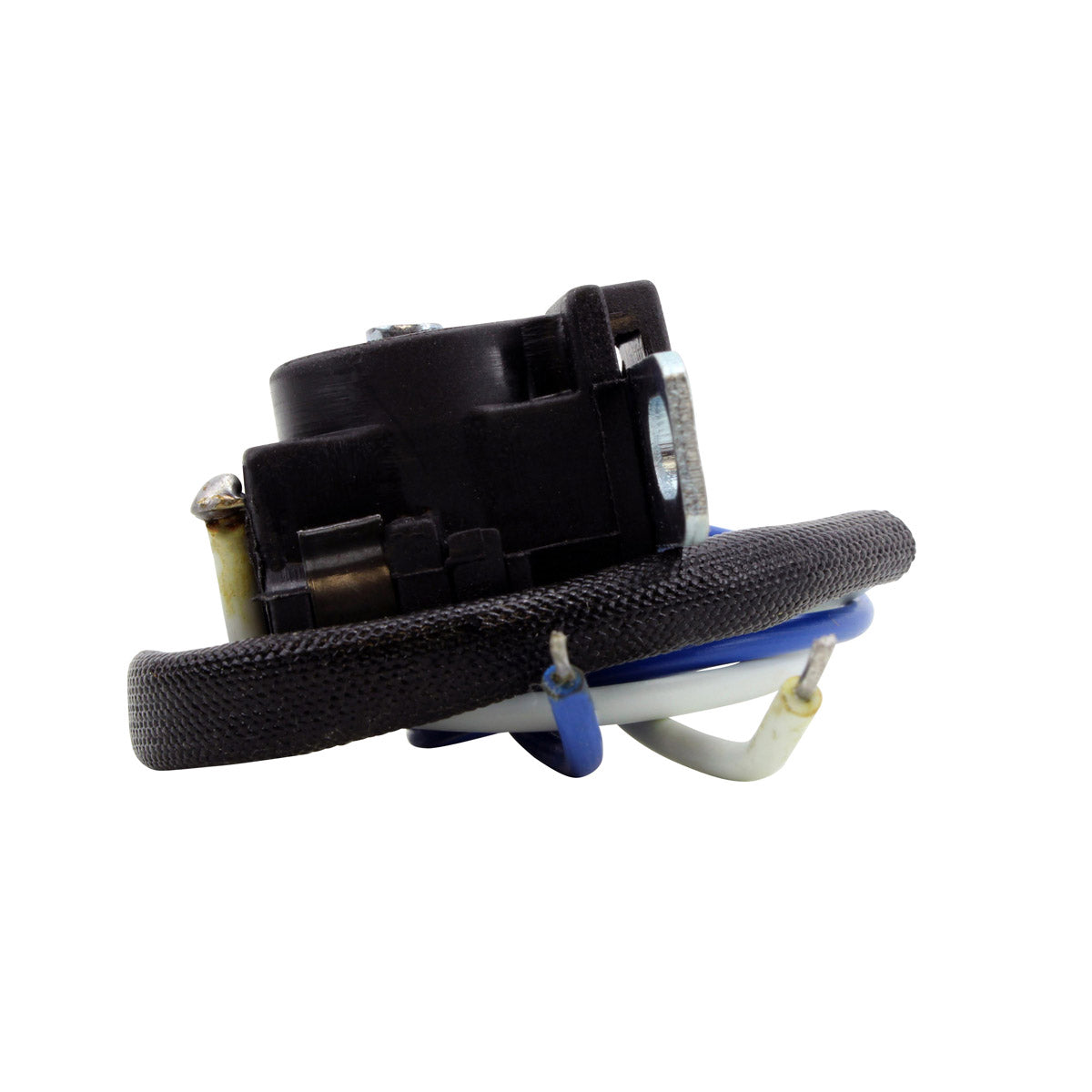

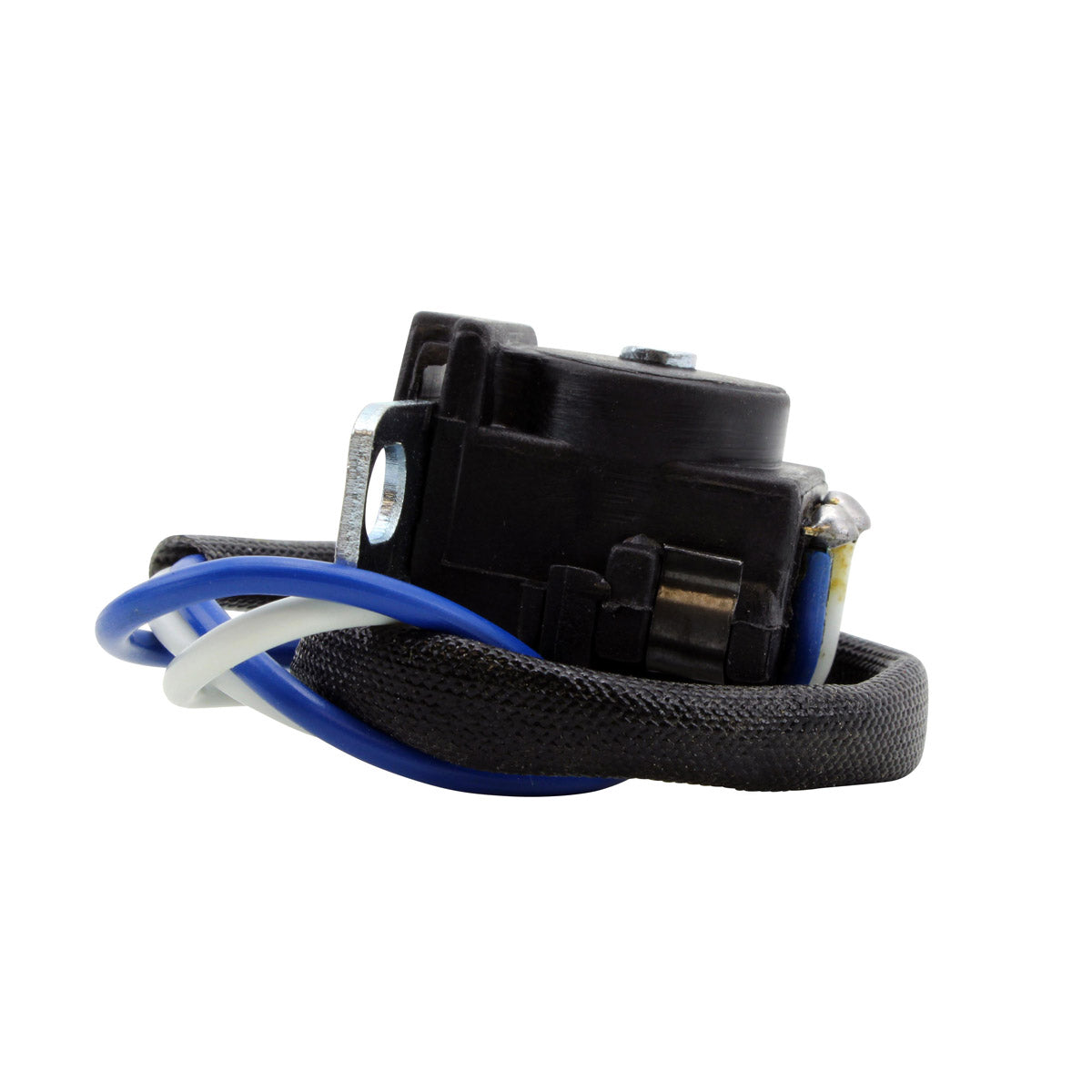

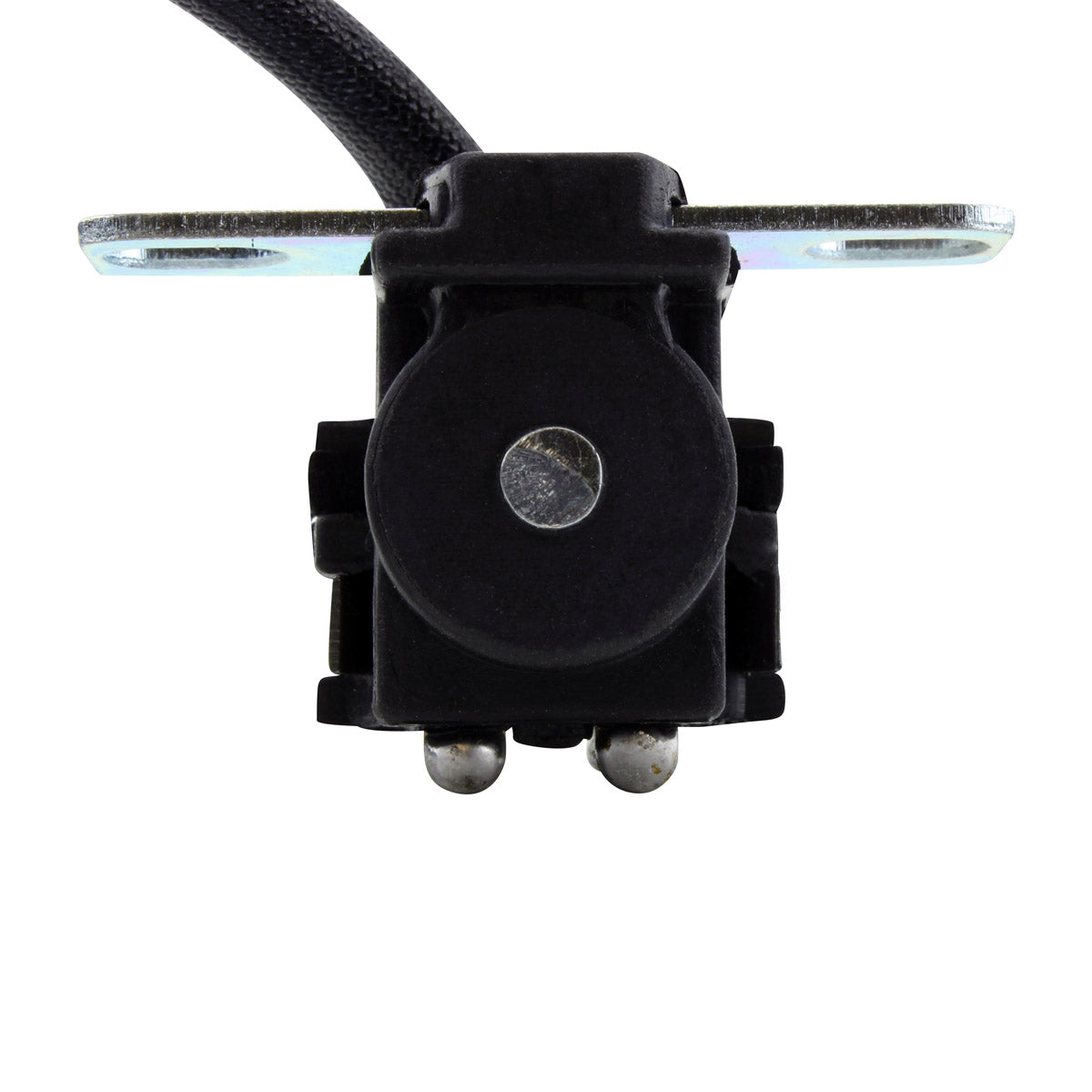

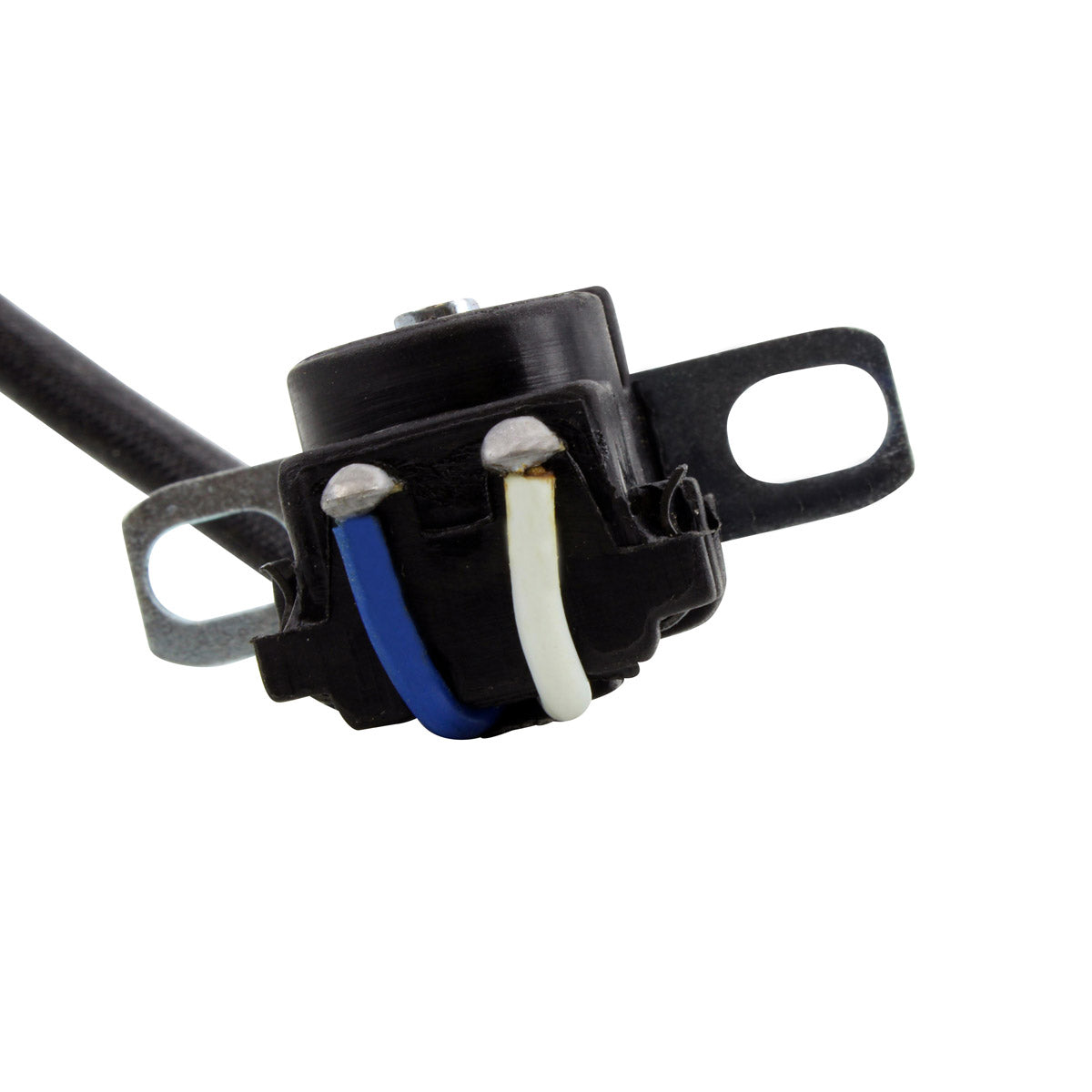

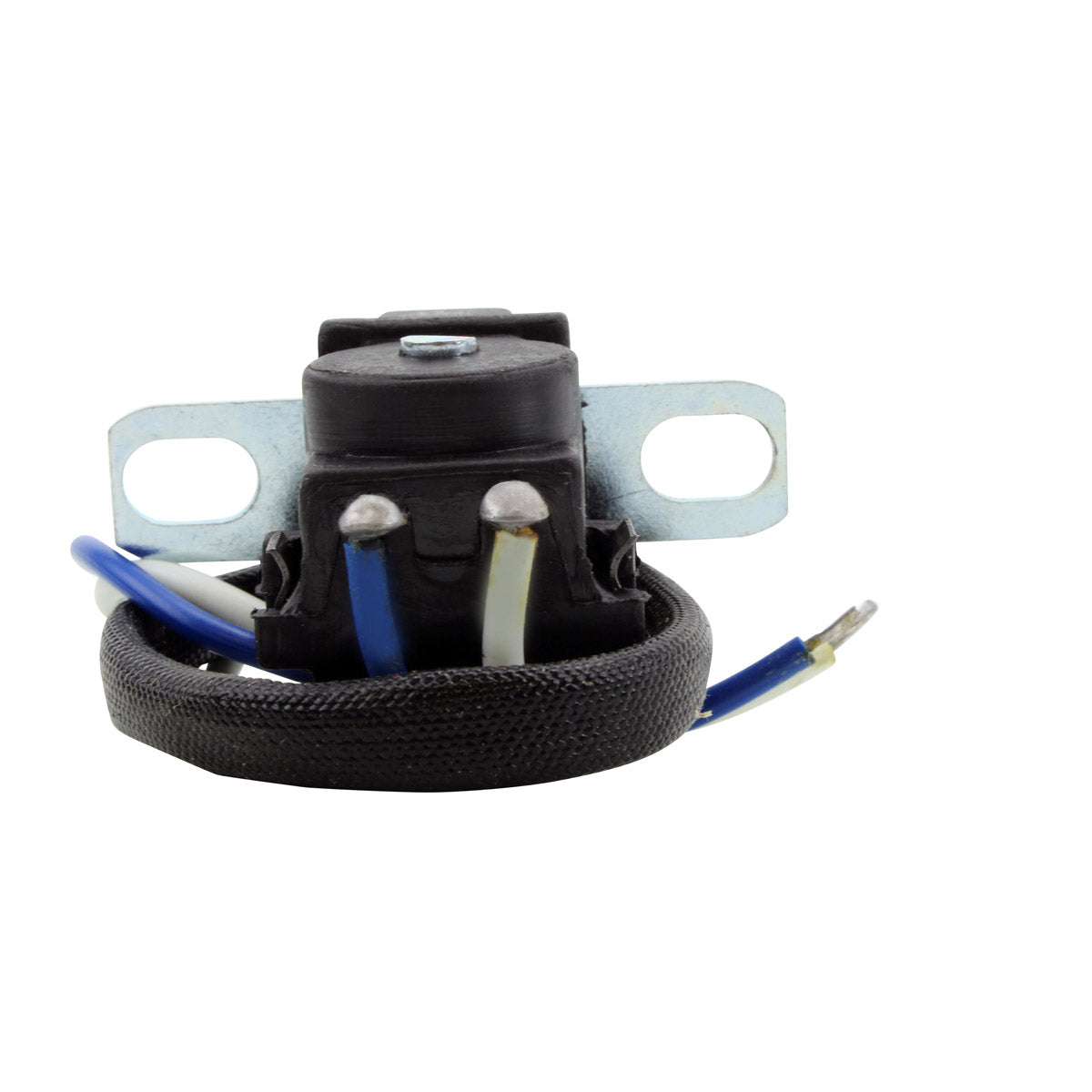

This is a brand new pickup pulsar coil for Ski-Doo carburettor liquid cooled engines, supplied under part number RM00116. It is the trigger coil that tells the ignition when to fire, and it is sold as a separate component so that a stator with sound charging windings but a dead trigger can be repaired rather than replaced outright.
This part is often unavailable from the original manufacturer, which makes it a common stumbling block on older sleds that are otherwise sound. It covers a wide span of Ski-Doo engine sizes from 440 through to 800 cc built between 1993 and 2000, and it cross references to four Ski-Doo part numbers. Every coil is tested before it is shipped.
Key Features
- Brand new pickup pulsar coil for repairing an existing stator
- Covers Ski-Doo 440 to 800 cc carburettor liquid cooled engines, 1993-2000
- Frequently unavailable from the OEM manufacturer
- 2 wire, 2 pin design with 305 mm of lead

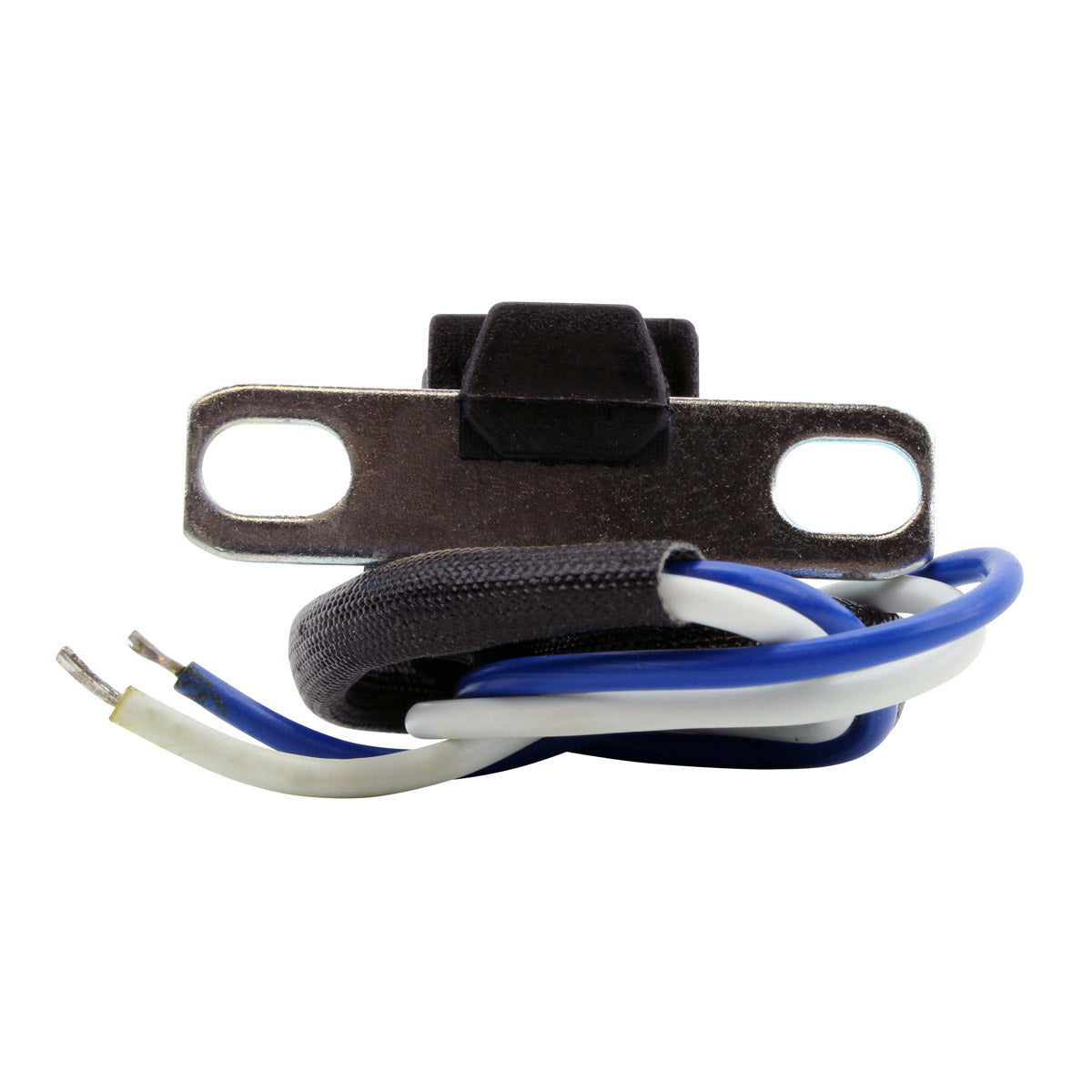

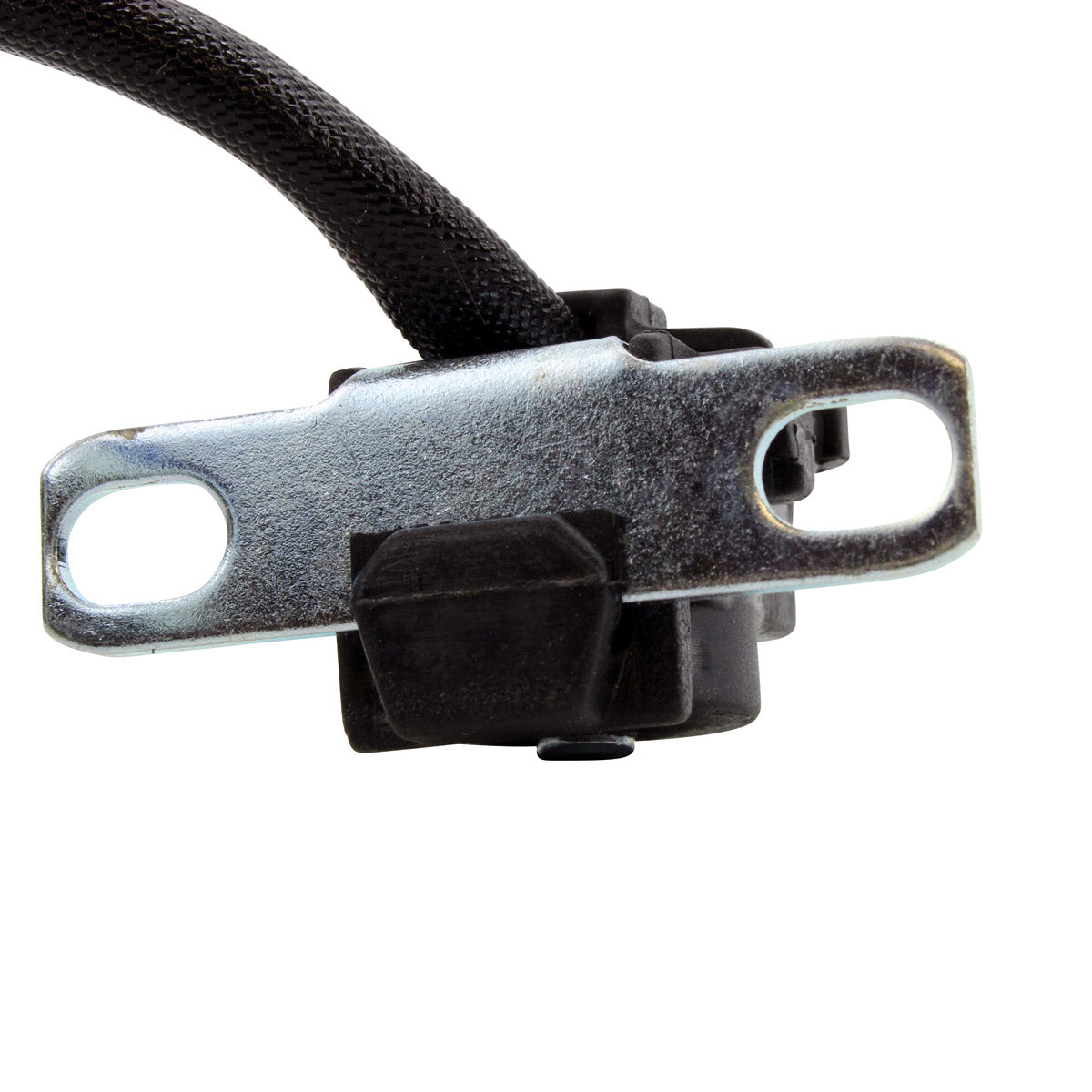

- Bracket mounting holes 35 mm centre to centre

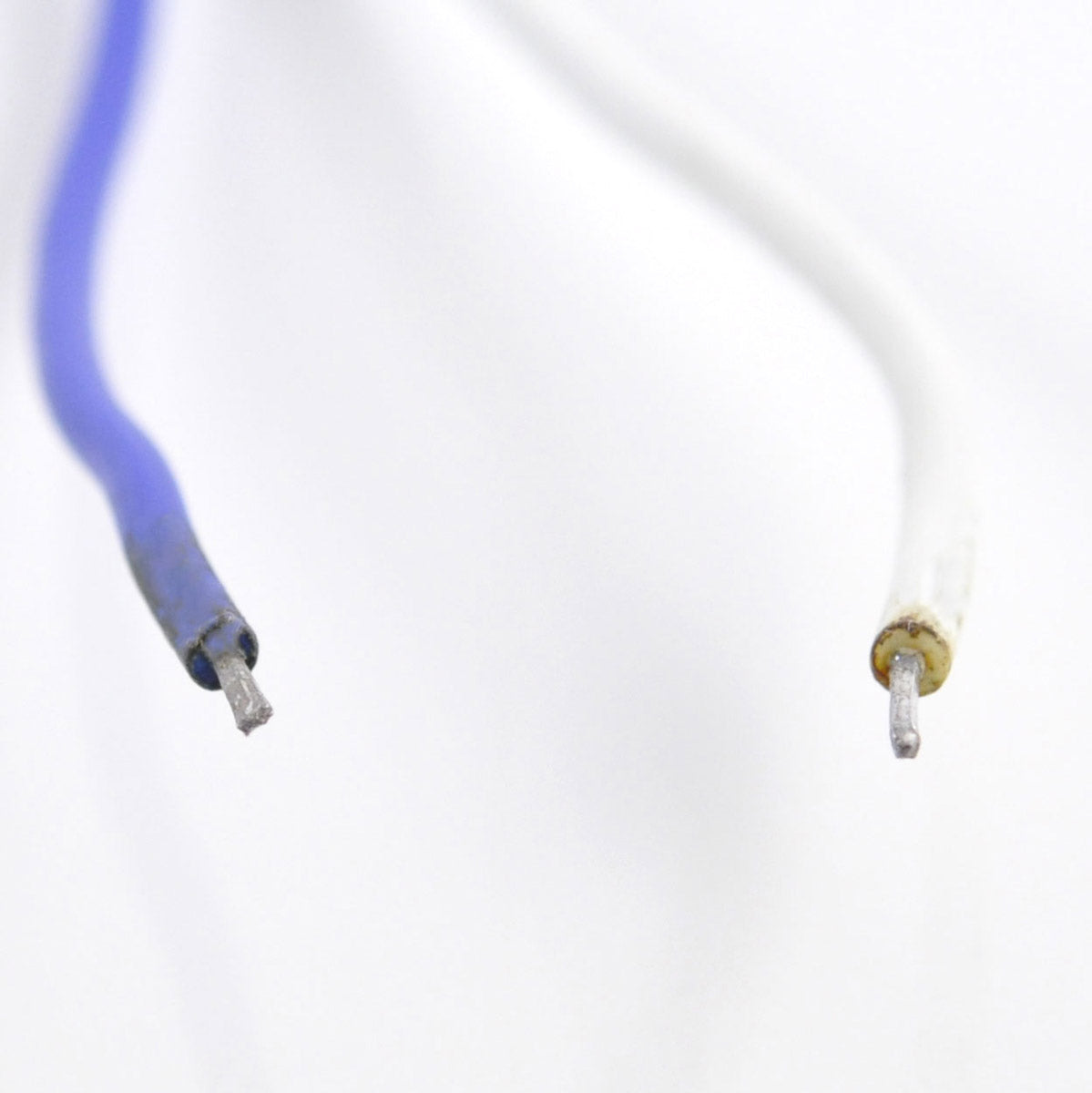

- Wire to wire resistance of 250 ohms blue to white
- Cross references to four Ski-Doo part numbers
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Height |
26 mm |
| Length |
23 mm |
| Width |
22 mm |
| Bracket centre to centre |
35 mm |
| Wire length |
305 mm |
| Number of wires |
2 |
| Number of pins |
2 |
| Wire to wire resistance (blue to white) |
250 ohms +/- 20% |
| Part number |
RM00116 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Ski-Doo 440 / 467 / 470 cc carburettor liquid cooled |
1993-2000 |
| Ski-Doo 500 / 580 / 583 cc carburettor liquid cooled |
1993-2000 |
| Ski-Doo 650 / 670 / 700 cc carburettor liquid cooled |
1993-2000 |
| Ski-Doo 780 / 800 cc carburettor liquid cooled |
1993-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420965642 |
Ski-Doo |
| 410921100 |
Ski-Doo |
| 410916700 |
Ski-Doo |
| 410922900 |
Ski-Doo |
Frequently Asked Questions
Will this coil fit without modification?
It is a direct replacement for the original pickup coil on the listed Ski-Doo carburettor liquid cooled engines from 1993 to 2000. The bracket holes are 35 mm centre to centre and the lead is 305 mm long with two wires and two pins, matching the original. Compare those dimensions and the cross reference numbers against your existing coil before ordering.
What is included?
One brand new pickup pulsar coil under part number RM00116. It is supplied as a repair component for an existing stator, so no stator plate, flywheel or mounting hardware is included.
How do I know the old pickup coil has failed?
A failed pickup coil normally shows as no spark at all, an intermittent misfire, or a sled that will crank but not fire. Measure resistance between the blue and white wires: a healthy coil reads about 250 ohms within 20 per cent. An open circuit reading, a near zero reading, or continuity between a wire and the coil body all point to a failed coil.
Why buy the coil separately instead of a whole stator?
Because on these engines the pickup coil often fails while the charging and lighting windings are still perfectly good. Replacing just the coil is far cheaper than a complete stator, and it solves the common problem that this part is frequently unavailable from the OEM manufacturer.
