Pickup Pulsar Coil for Ski-Doo Grand Touring
Grand Touring, Legend, Summit, Renegade RER 500 600 700 800 and Lynx 600, 1999-2020 - OEM 410922948

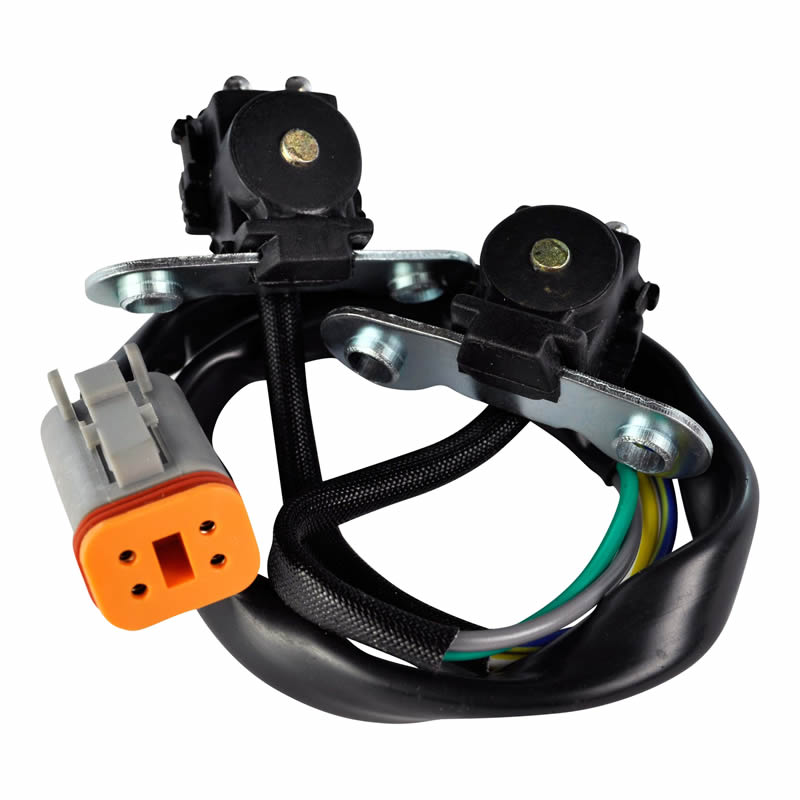

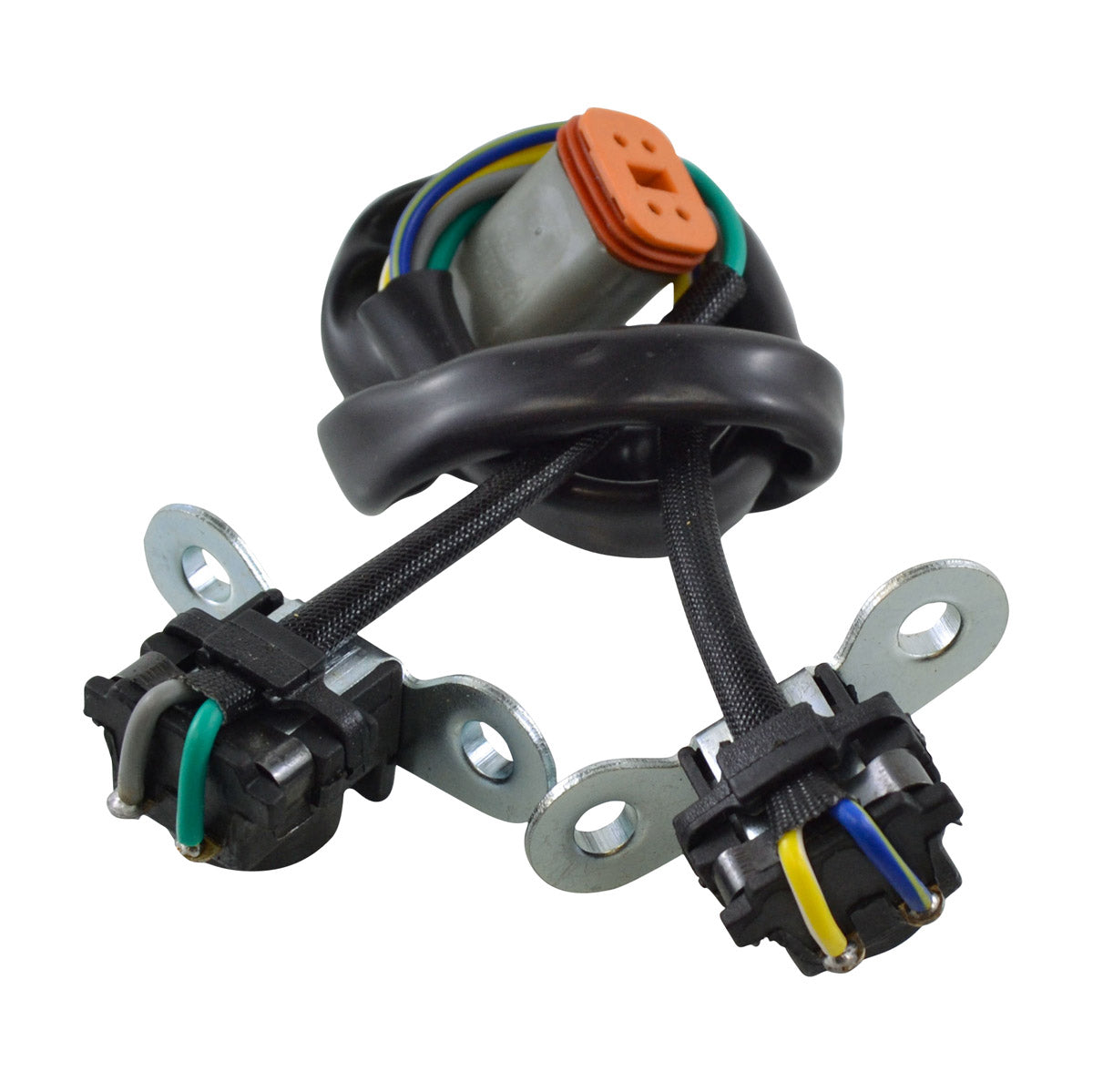

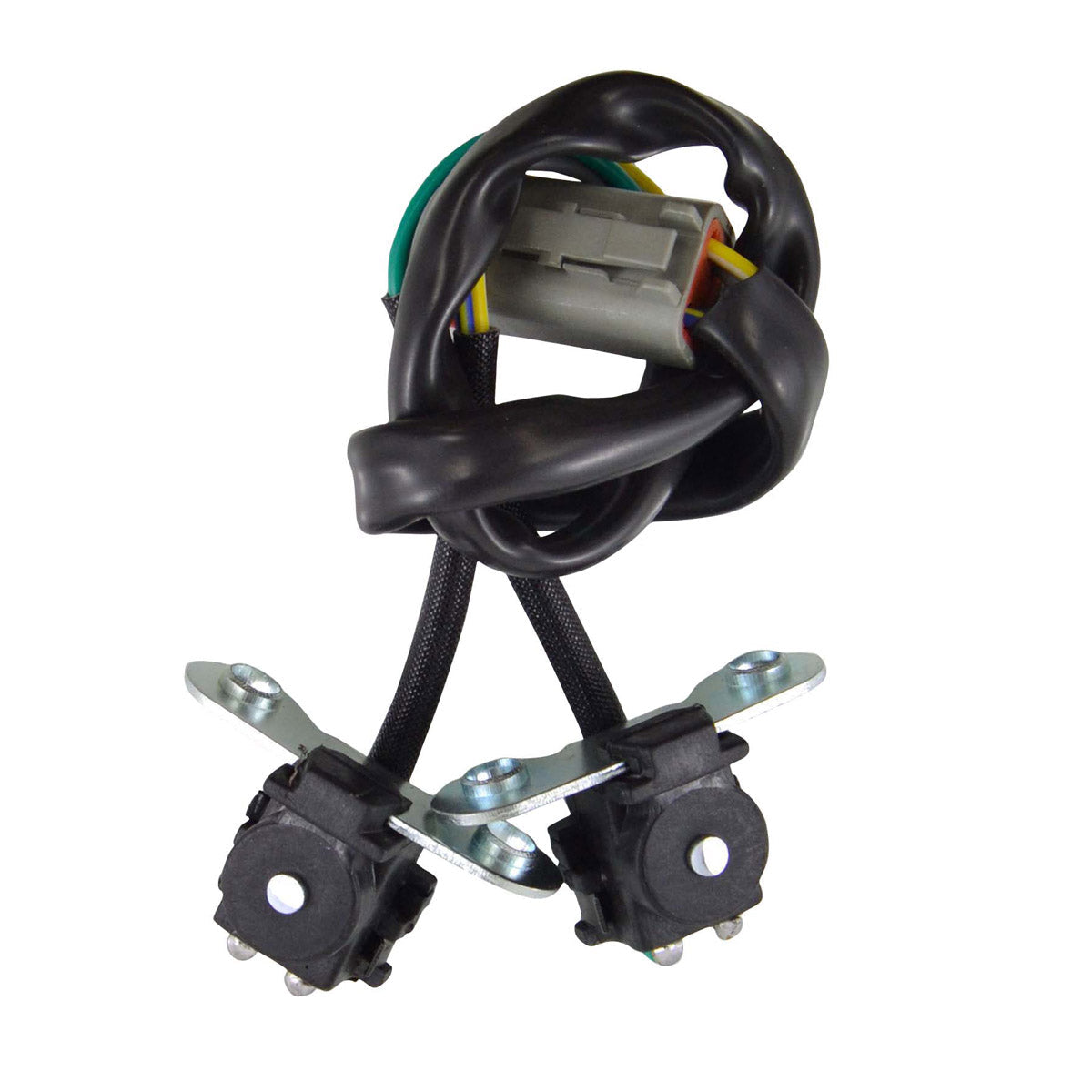

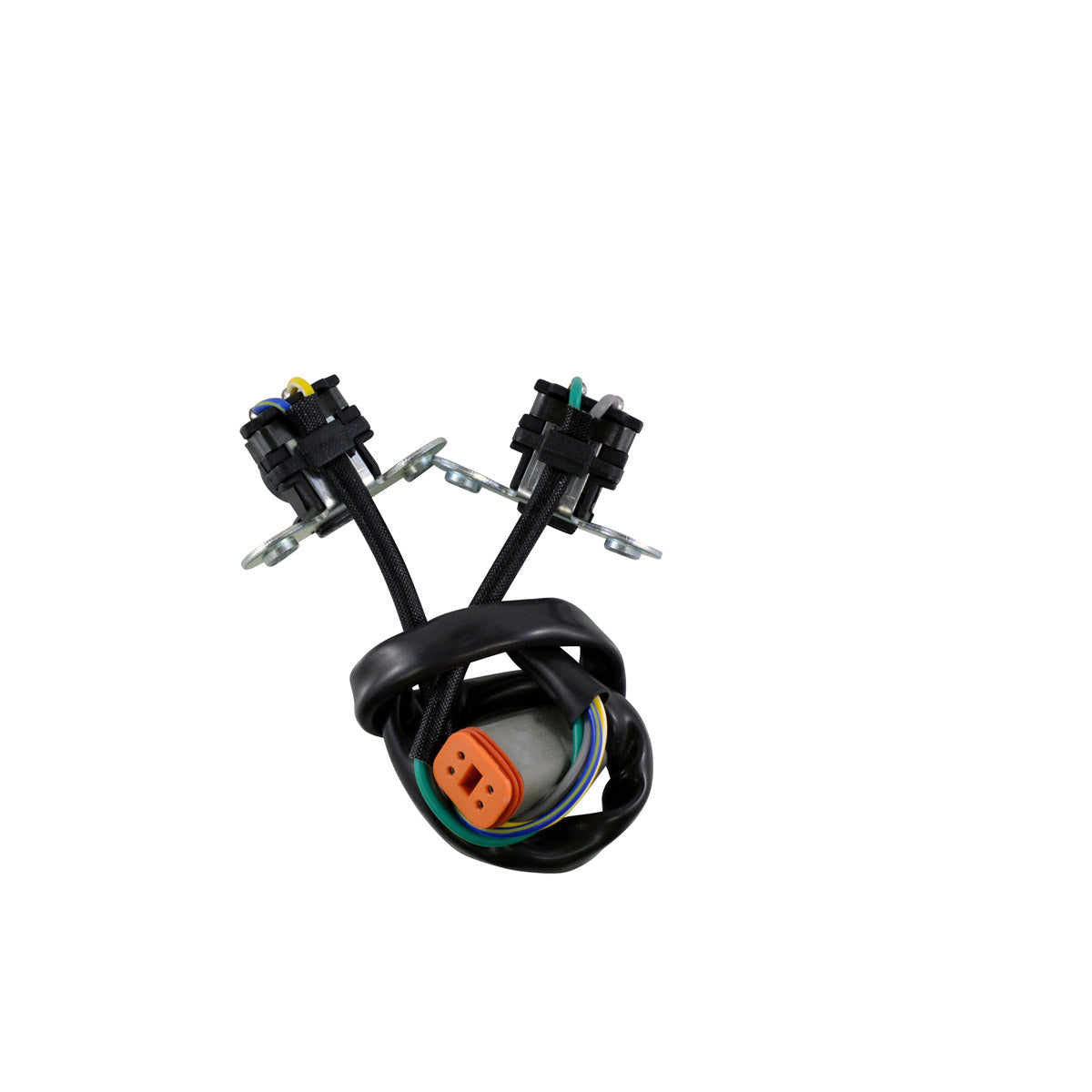

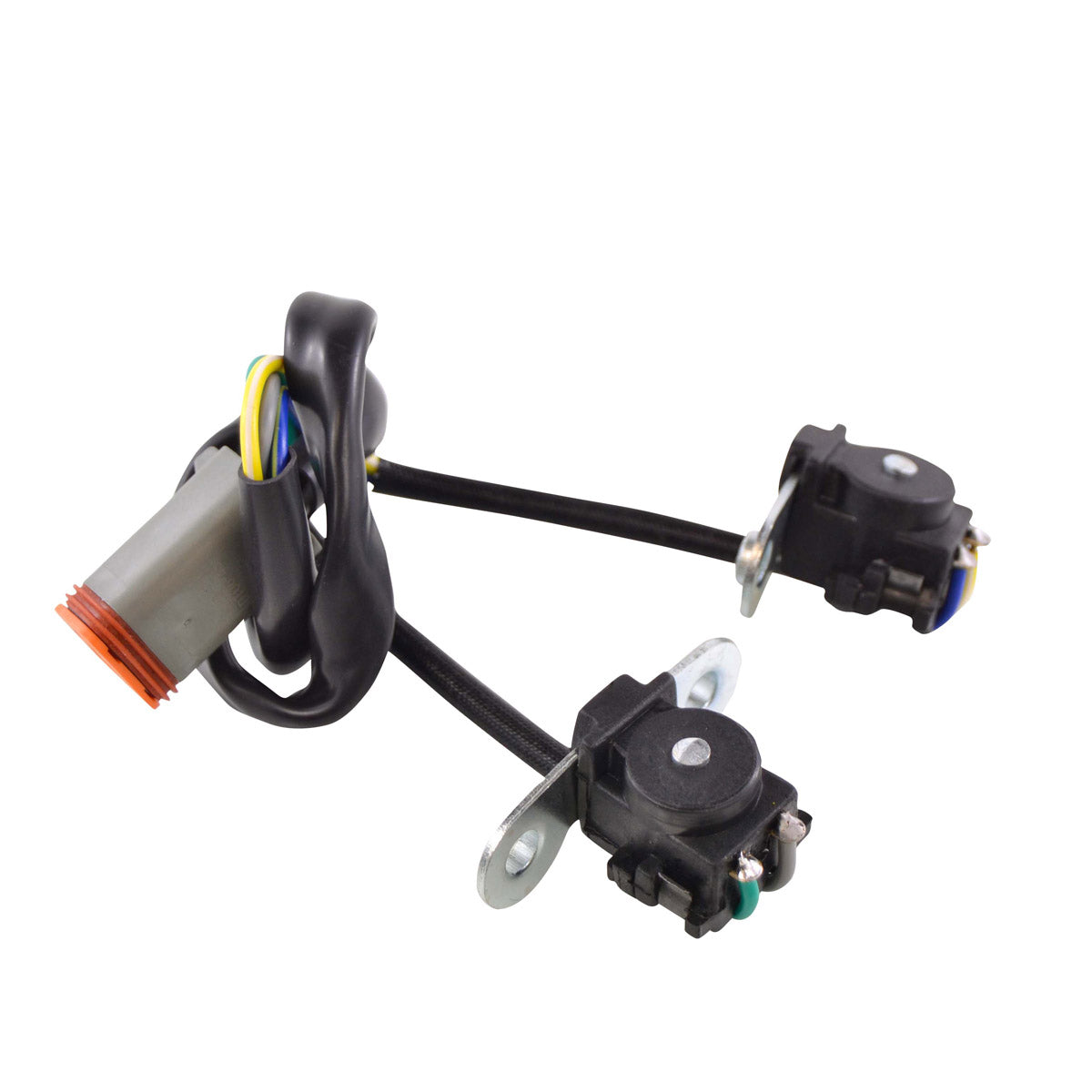

This is a brand new pickup pulsar coil for Ski-Doo and Lynx snowmobiles, supplied under part number RM00130. It is the trigger coil that tells the ignition system when to fire, and it is sold as a standalone component so a stator with sound charging windings but a failed trigger can be repaired rather than replaced outright.
This is a four wire coil with a single plug, distinguishing it from the simpler two wire pickups used on other Ski-Doo engines, so check the wire count on your machine before ordering. It is often unavailable from the original manufacturer, covers Grand Touring, Legend, Summit and Renegade RER models in 500, 600, 700 and 800 cc as well as the Lynx 600 from 1999 to 2020, and cross references to five factory part numbers. Every coil is tested before it is shipped.
Key Features
- Brand new pickup pulsar coil for repairing an existing stator
- Covers Ski-Doo Grand Touring, Legend, Summit and Renegade RER 500-800 cc plus Lynx 600
- Model years 1999 to 2020
- Often unavailable from the OEM manufacturer

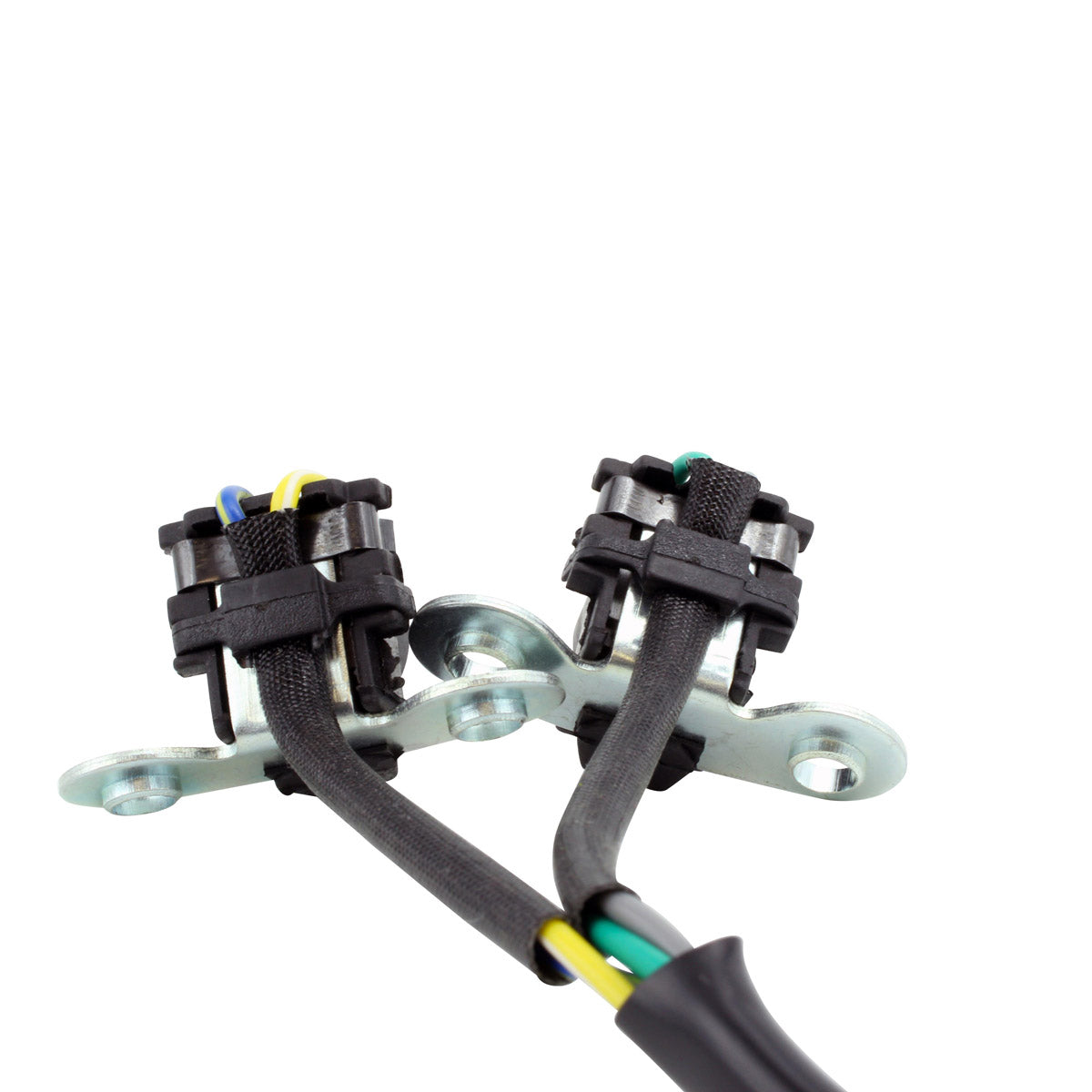

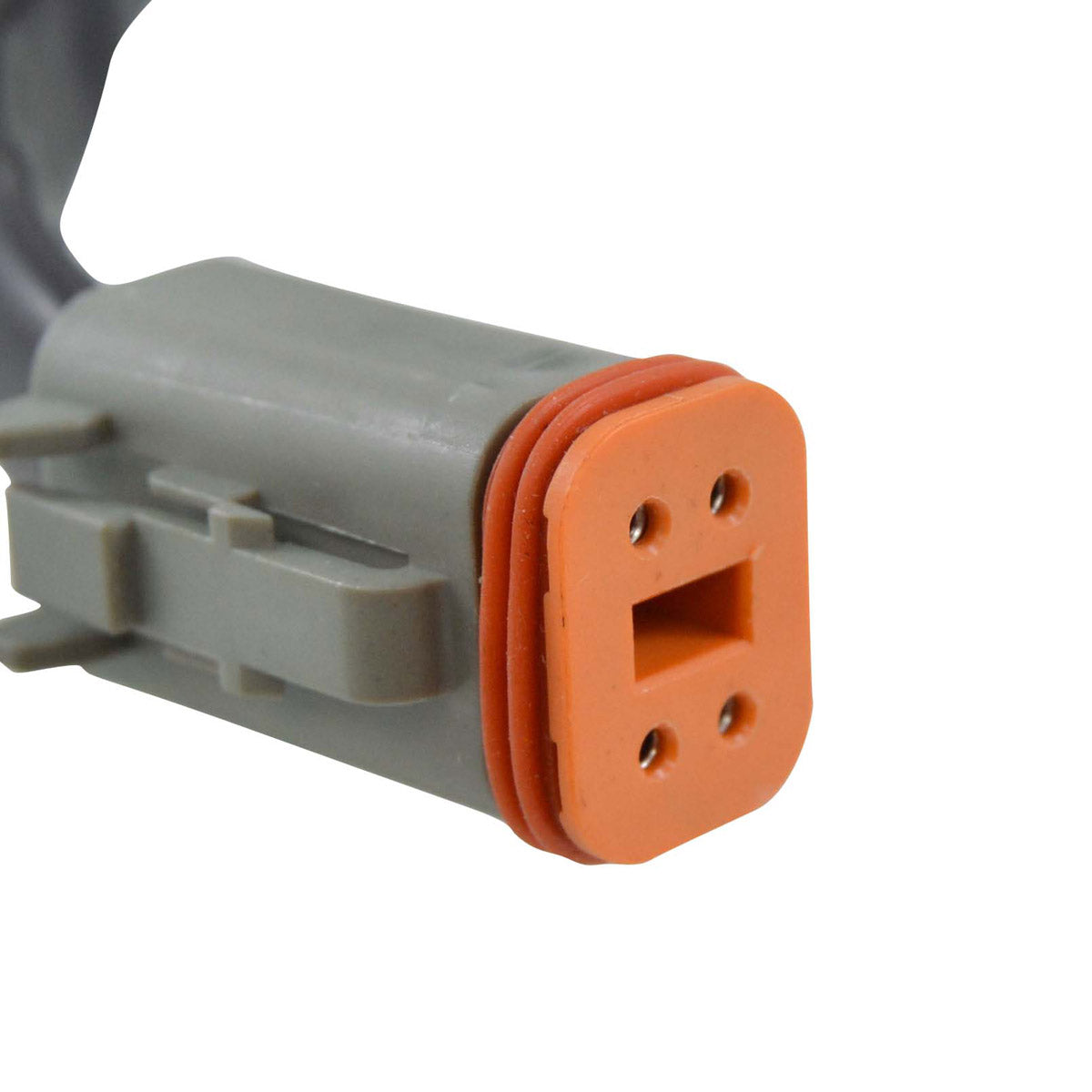

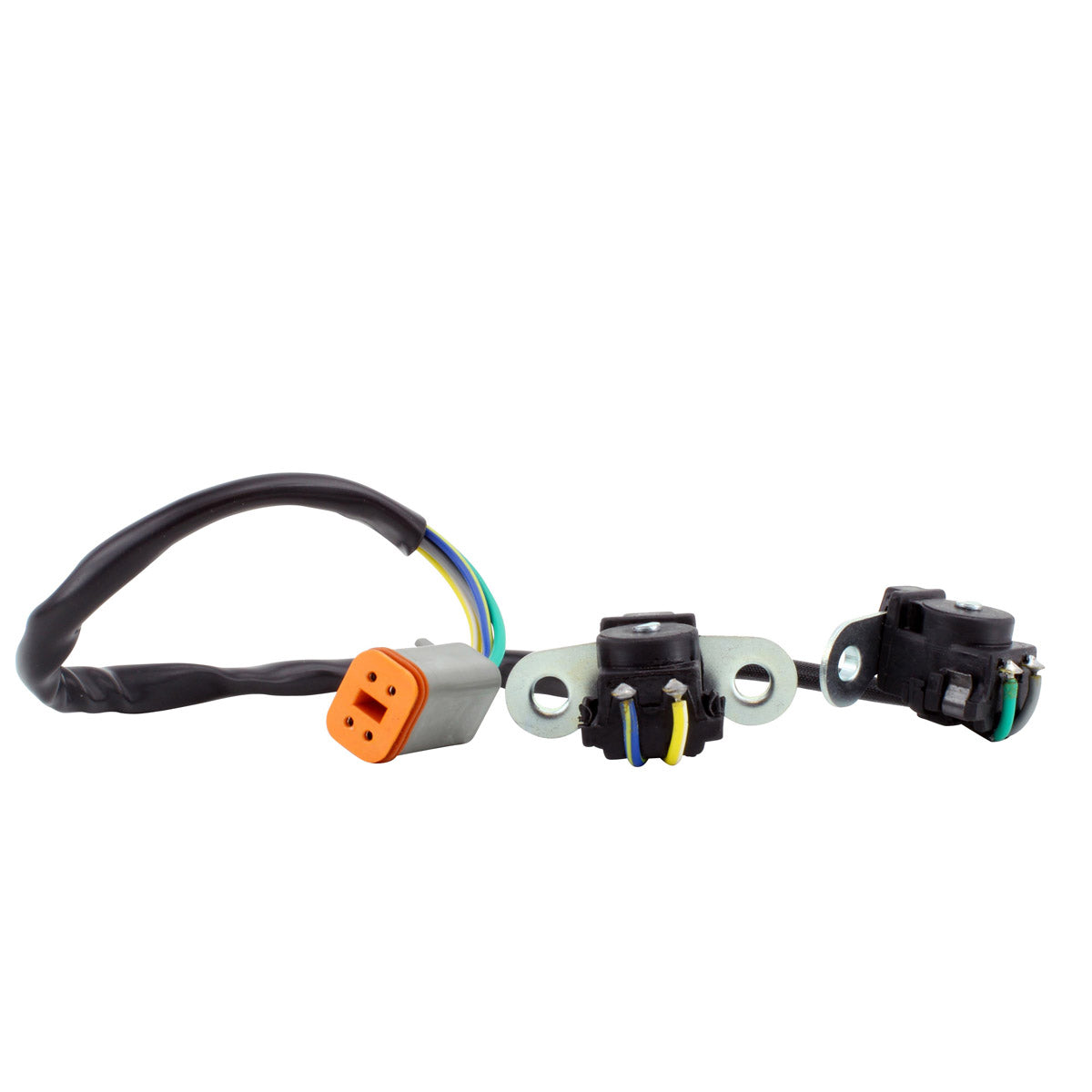

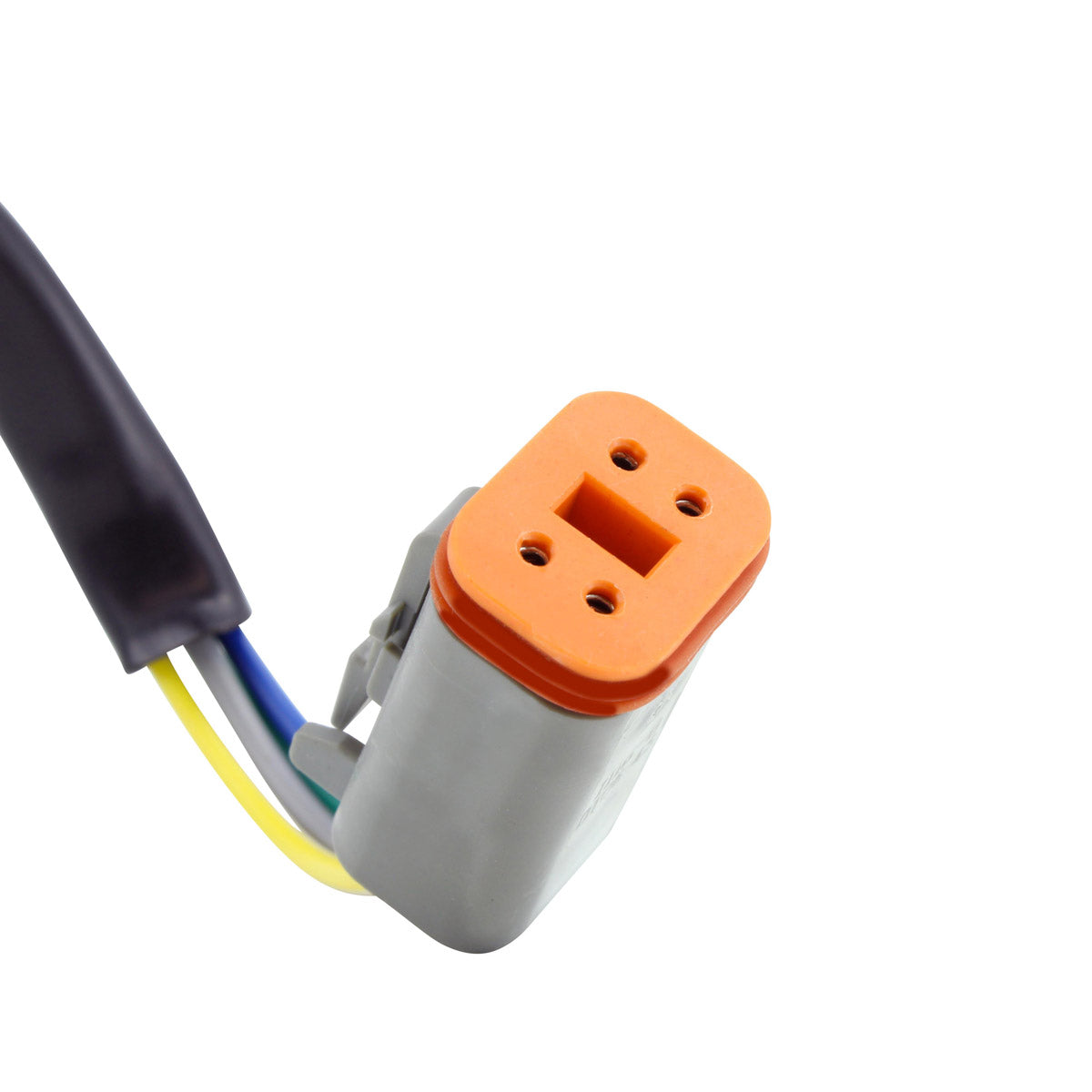

- 4 wire, 4 pin design with a single plug and 400 mm lead

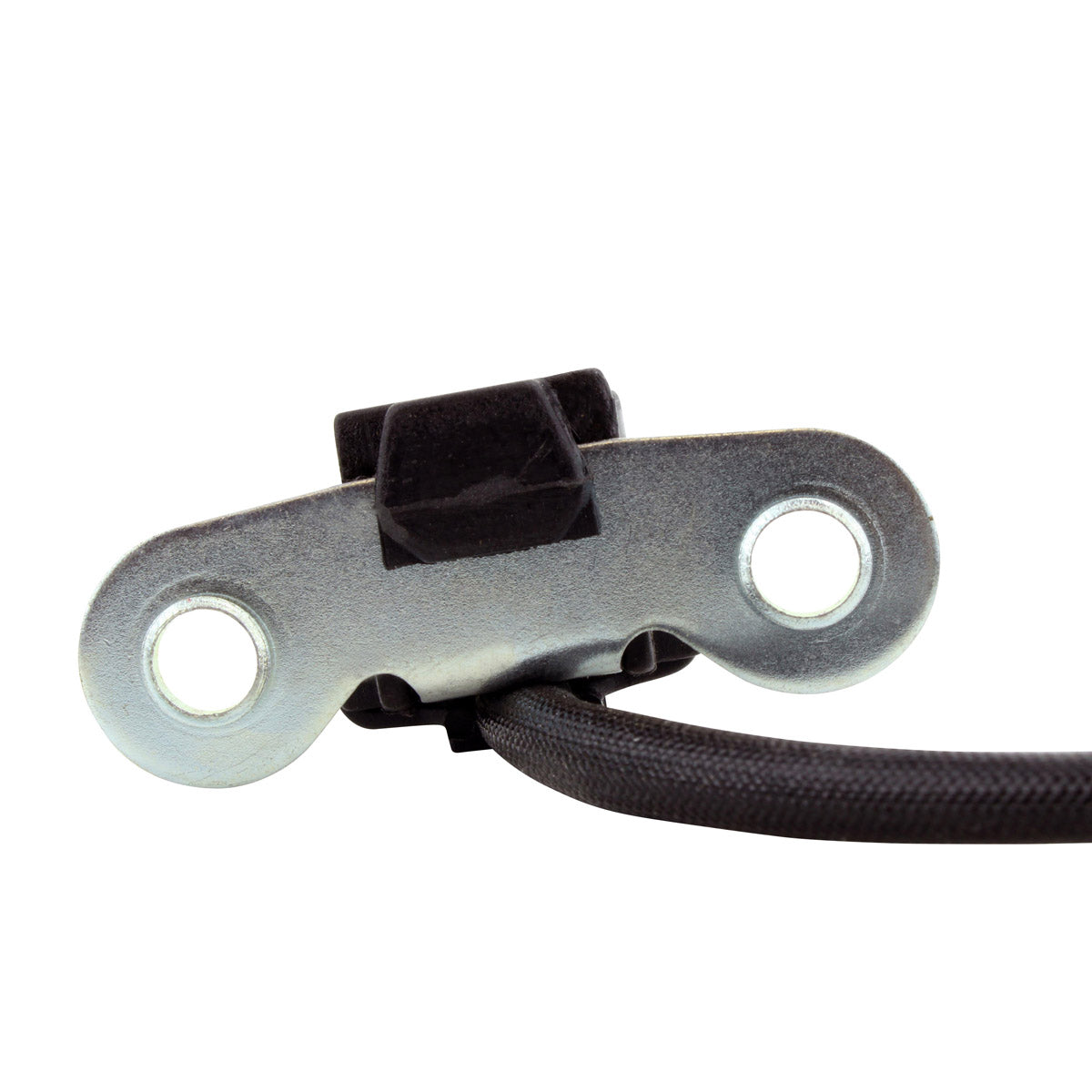

- Bracket mounting holes 35 mm centre to centre

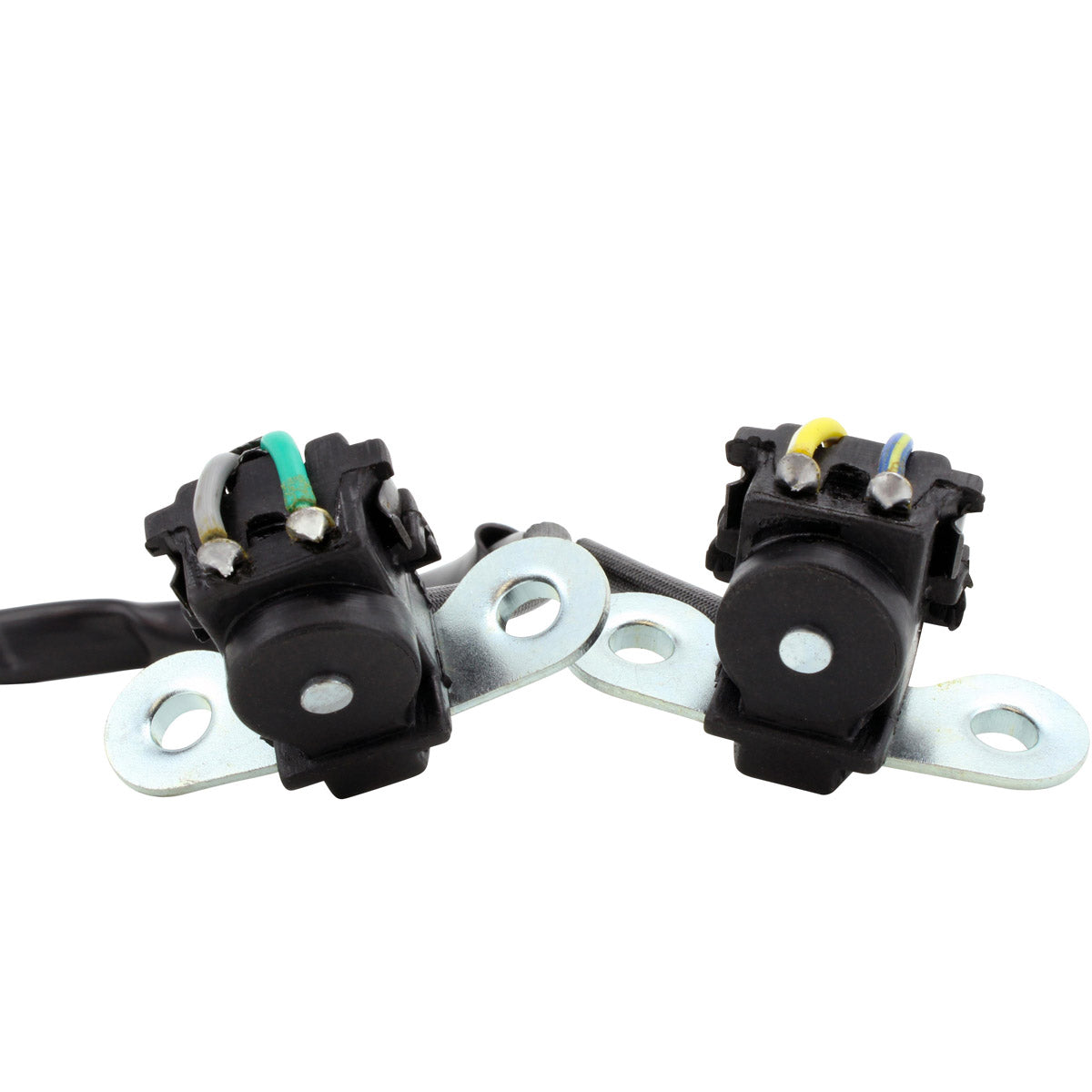

- Two independent windings, each reading 300 ohms
- Cross references to five Ski-Doo part numbers
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Height |
21 mm |
| Length |
27 mm |
| Width |
27 mm |
| Bracket centre to centre |
35 mm |
| Wire length |
400 mm |
| Number of wires |
4 |
| Number of pins |
4 |
| Number of plugs |
1 |

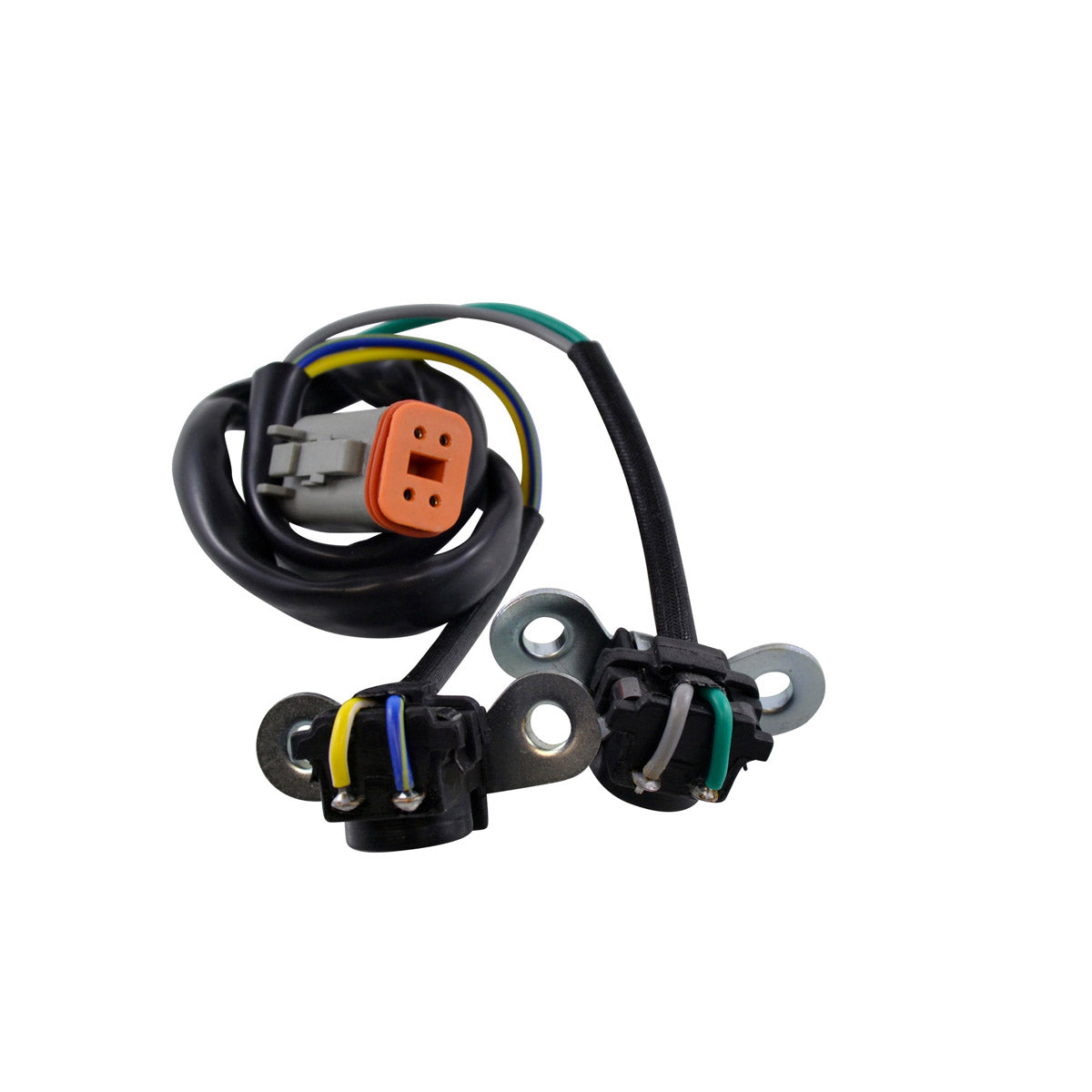

| Resistance (blue/yellow to yellow/white) |
300 ohms +/- 20% |
| Resistance (green to grey) |
300 ohms +/- 20% |
| Part number |
RM00130 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Ski-Doo Grand Touring 500 / 600 / 700 / 800 |
1999-2020 |
| Ski-Doo Legend 500 / 600 / 700 / 800 |
1999-2020 |
| Ski-Doo Summit 500 / 600 / 700 / 800 |
1999-2020 |
| Ski-Doo Renegade RER 500 / 600 / 700 / 800 |
1999-2020 |
| Lynx 600 |
1999-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 410922948 |
Ski-Doo |
| 410922909 |
Ski-Doo |
| 410922940 |
Ski-Doo |
| 420966802 |
Ski-Doo |
| 420966804 |
Ski-Doo |
Frequently Asked Questions
Will this coil fit without modification?
It is a direct replacement for the original pickup coil on the listed Ski-Doo and Lynx models from 1999 to 2020. The bracket holes are 35 mm centre to centre and the 400 mm lead carries four wires into a single four pin plug. Because Ski-Doo used both two wire and four wire pickups across this period, confirm your machine has the four wire type before ordering.
What is included?
One brand new pickup pulsar coil under part number RM00130. It is supplied as a repair component for an existing stator, so no stator plate, flywheel or mounting hardware is included.
How do I know the old pickup coil has failed?

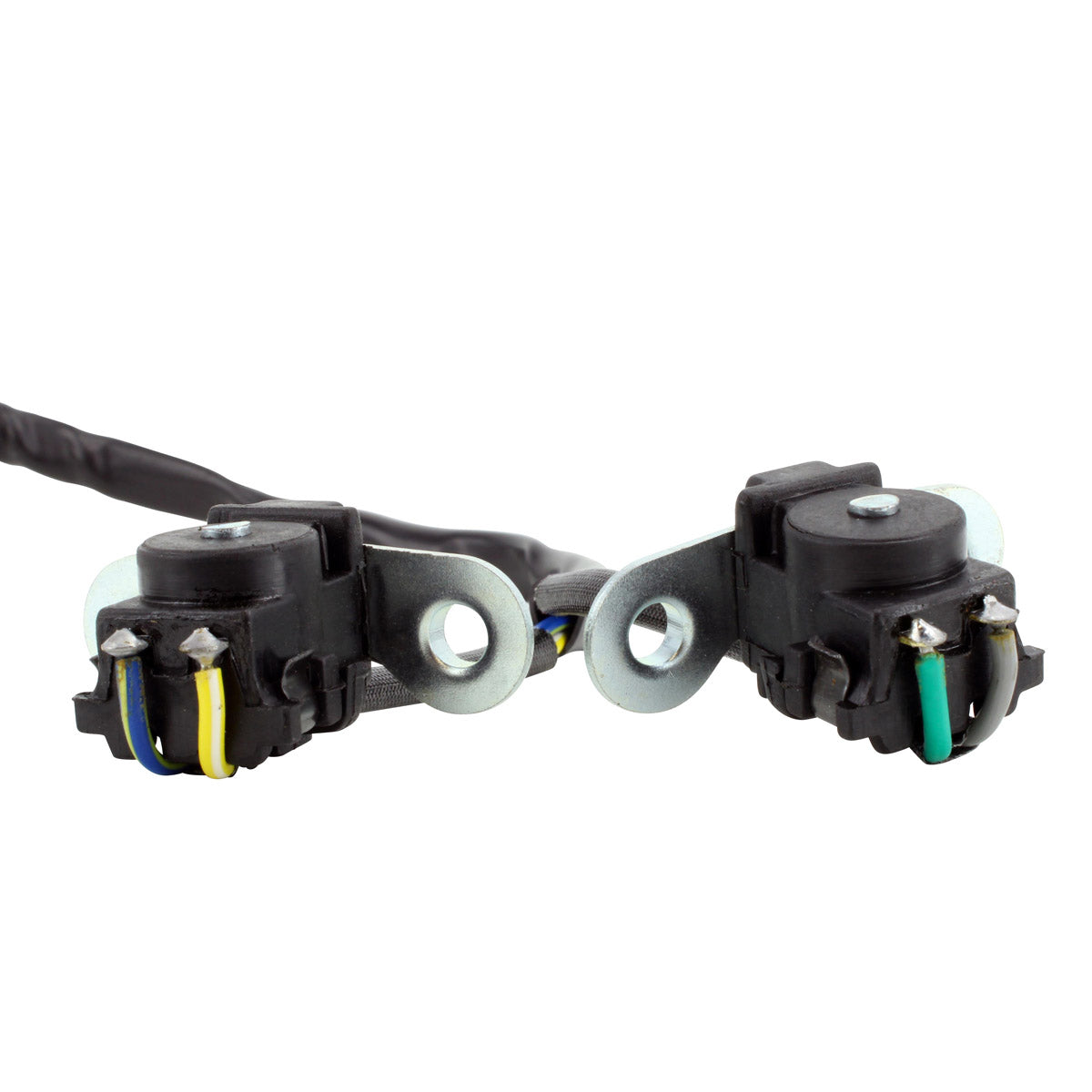

Typical symptoms are no spark, an intermittent misfire, or an engine that cranks but will not fire. Test both windings with a multimeter: blue/yellow to yellow/white should read about 300 ohms, and green to grey about 300 ohms, each within 20 per cent. One winding open circuit while the other reads correctly is a classic partial failure and still means the coil needs replacing.
Why does this coil have four wires?
It carries two separate 300 ohm windings rather than one, feeding the ignition system through a single four pin plug. That is why both pairs need to be tested when diagnosing a fault - a machine can run poorly rather than not at all if only one winding has gone down.
