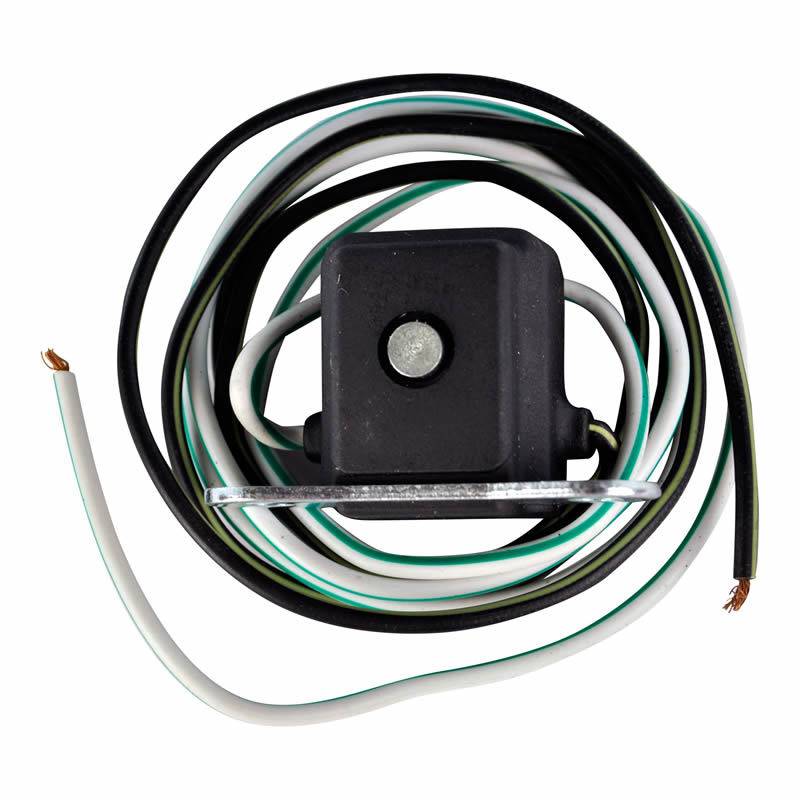

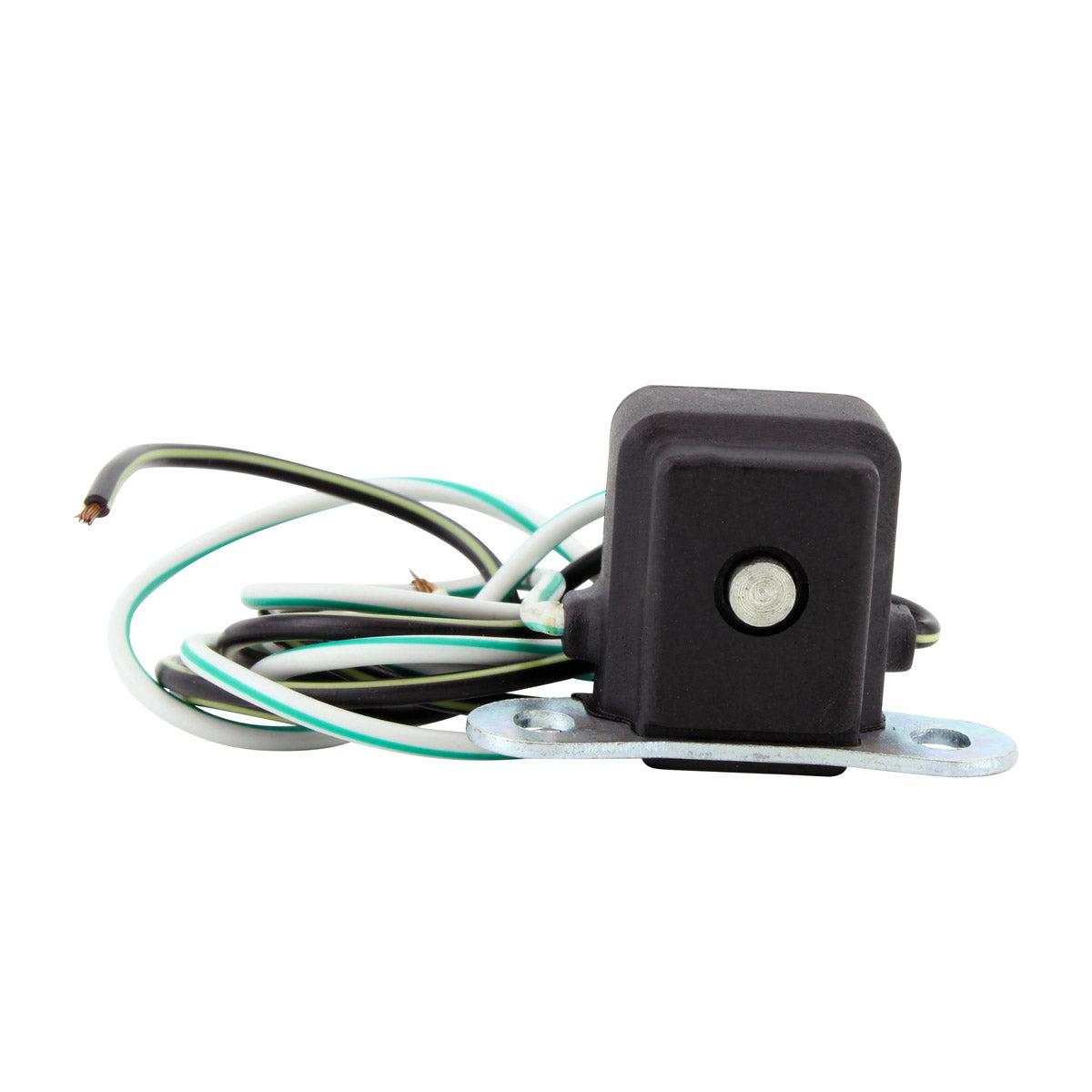

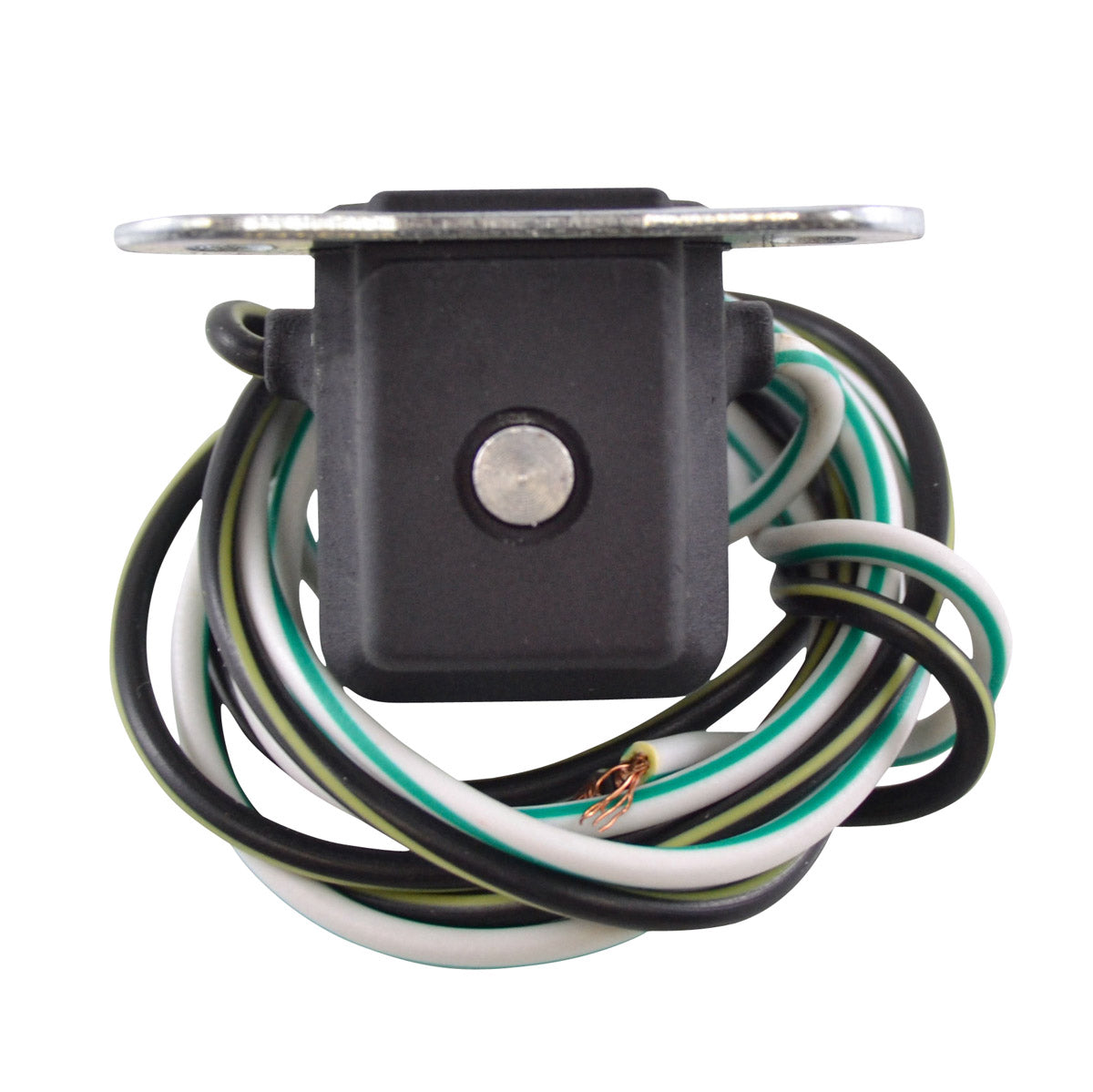

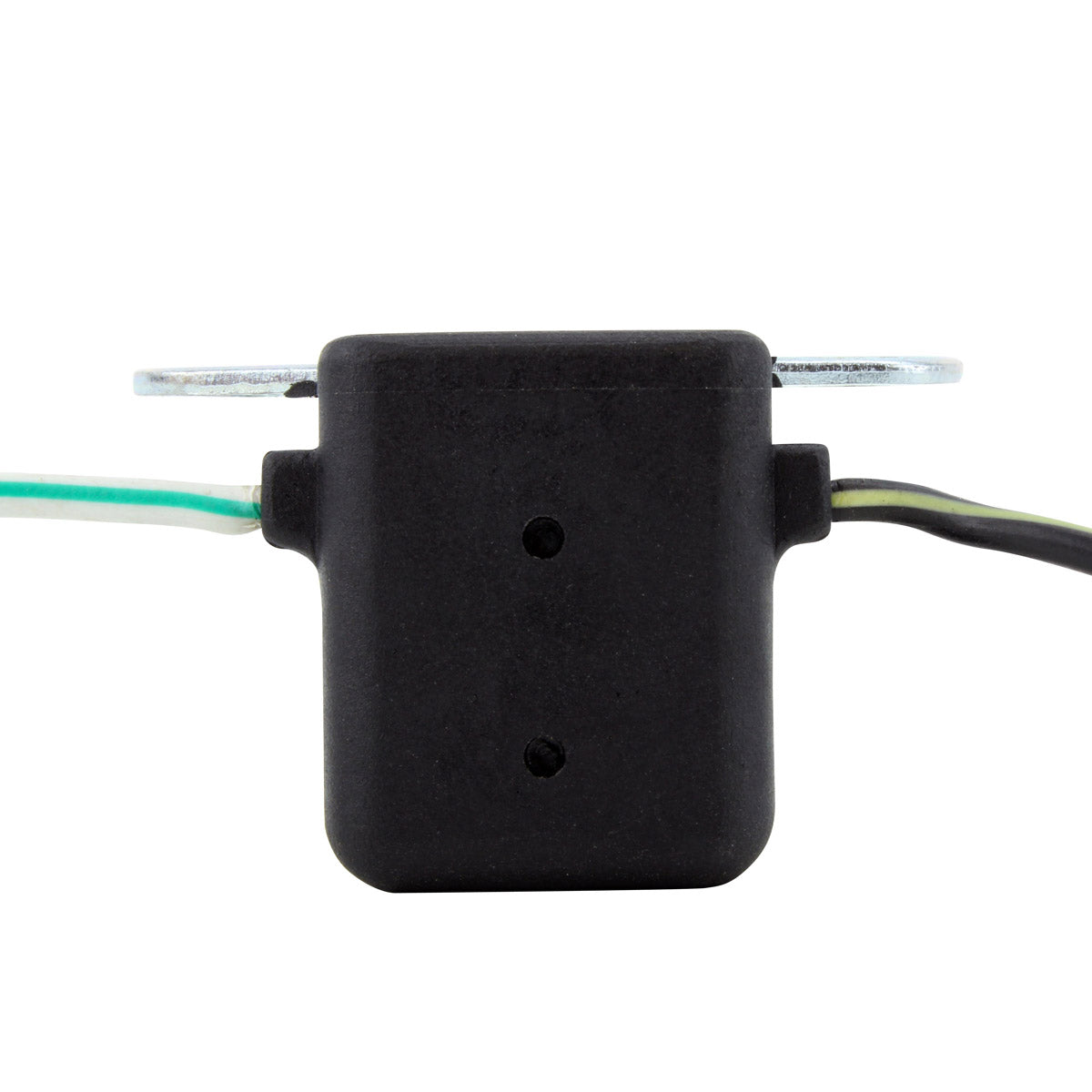

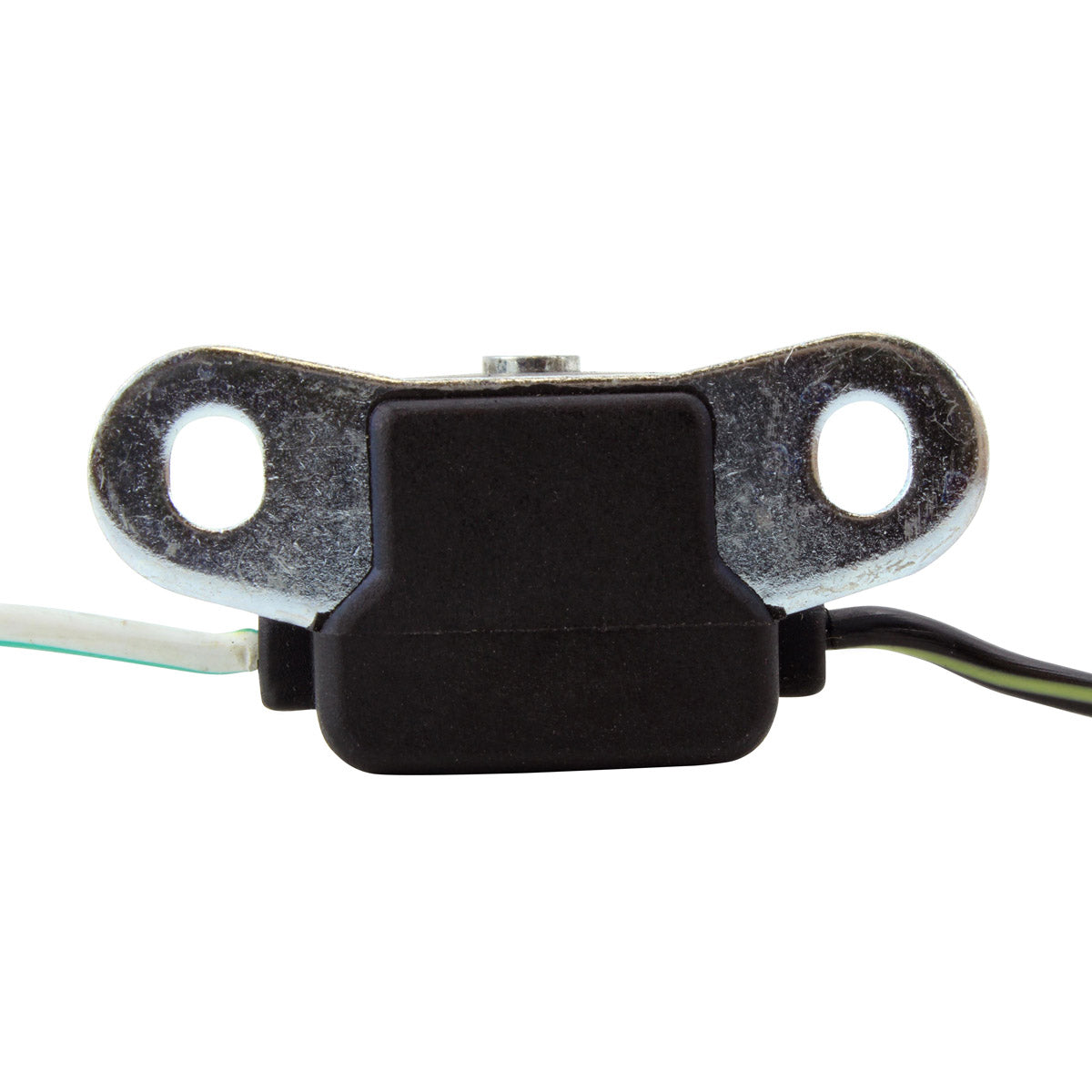

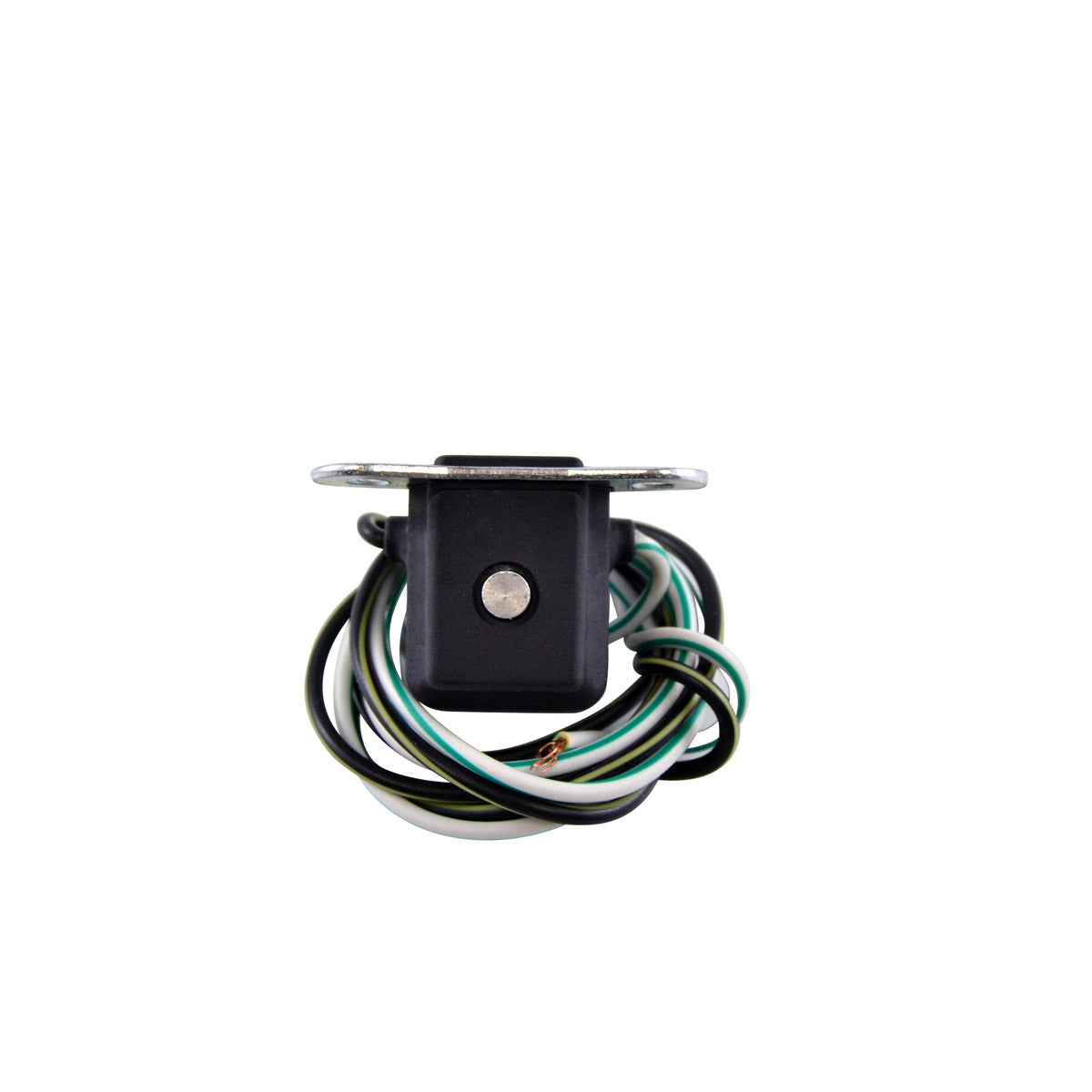

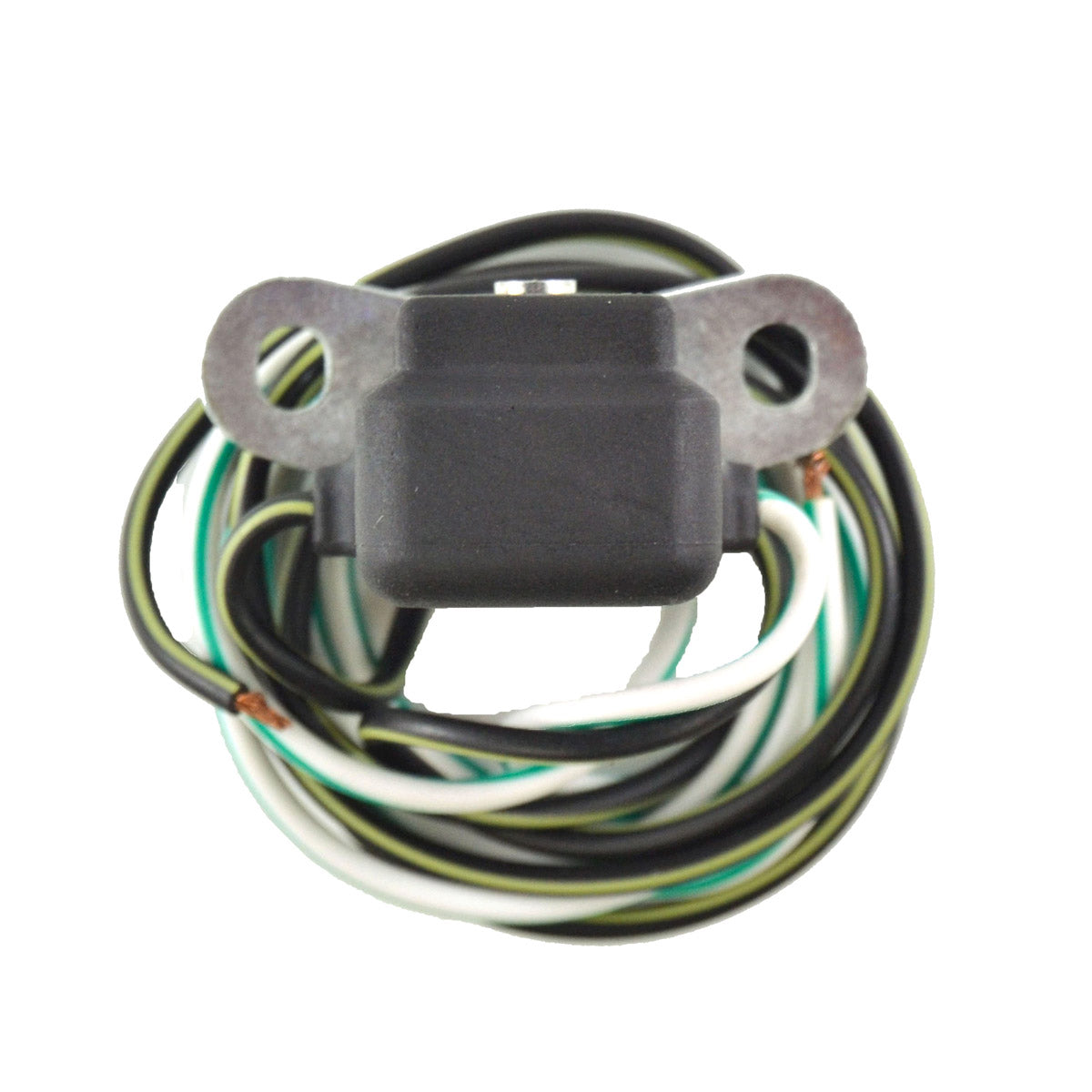

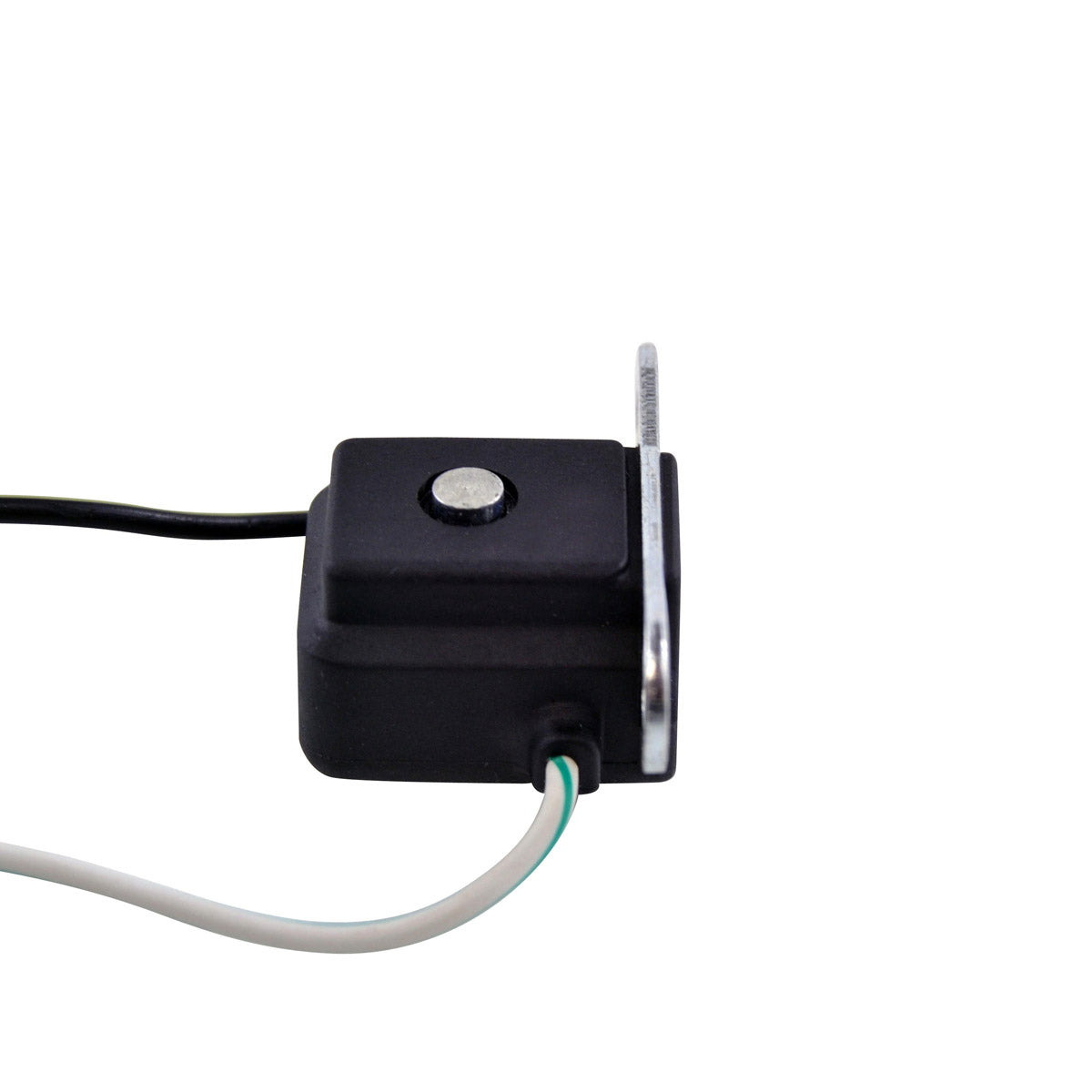

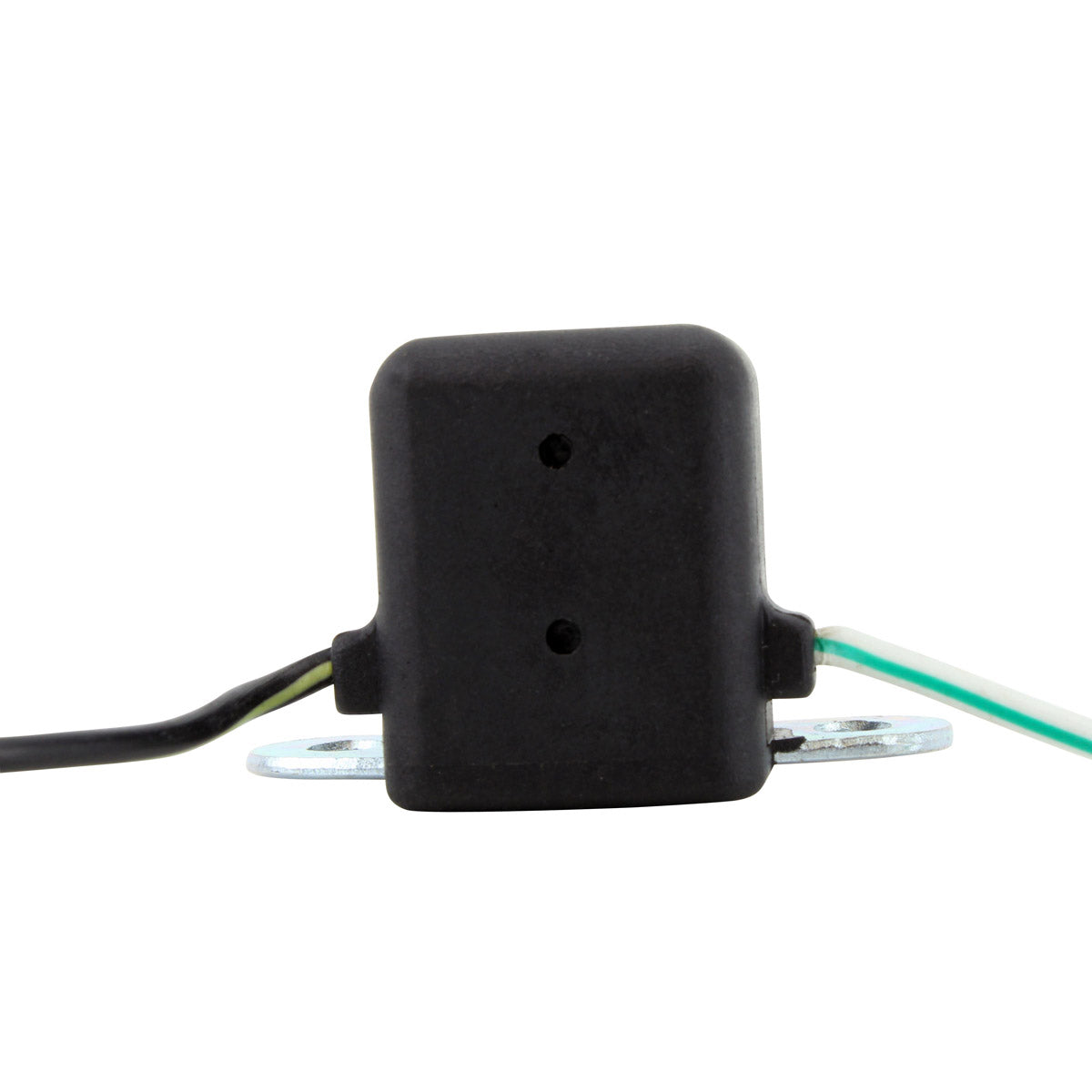

This is a brand new pick-up pulsar coil for repairing the stator on the Suzuki DR, LT Quadsport and SP models built through the 1980s. The pulsar coil is the trigger that tells the ignition where the flywheel is, and after thirty or more years of heat and vibration it is one of the first parts on these machines to go open circuit. The result is an engine that cranks over healthily but never produces a spark.
The coil measures 26 mm long, 21 mm wide and 18 mm high, with 35 mm between the bracket centres and a 750 mm lead ending in a two-pin connector. Resistance measured from the green and white wire to the black wire is 100 ohms plus or minus 20 per cent, so your original can be checked with a multimeter before you order. Suzuki no longer supplies this coil separately for most of these models, so being able to replace just the coil saves buying a whole stator. Every unit is tested before it is shipped.
Key Features
- Brand new pick-up pulsar coil for repairing your existing stator
- Often unavailable from the OEM manufacturer as a separate part

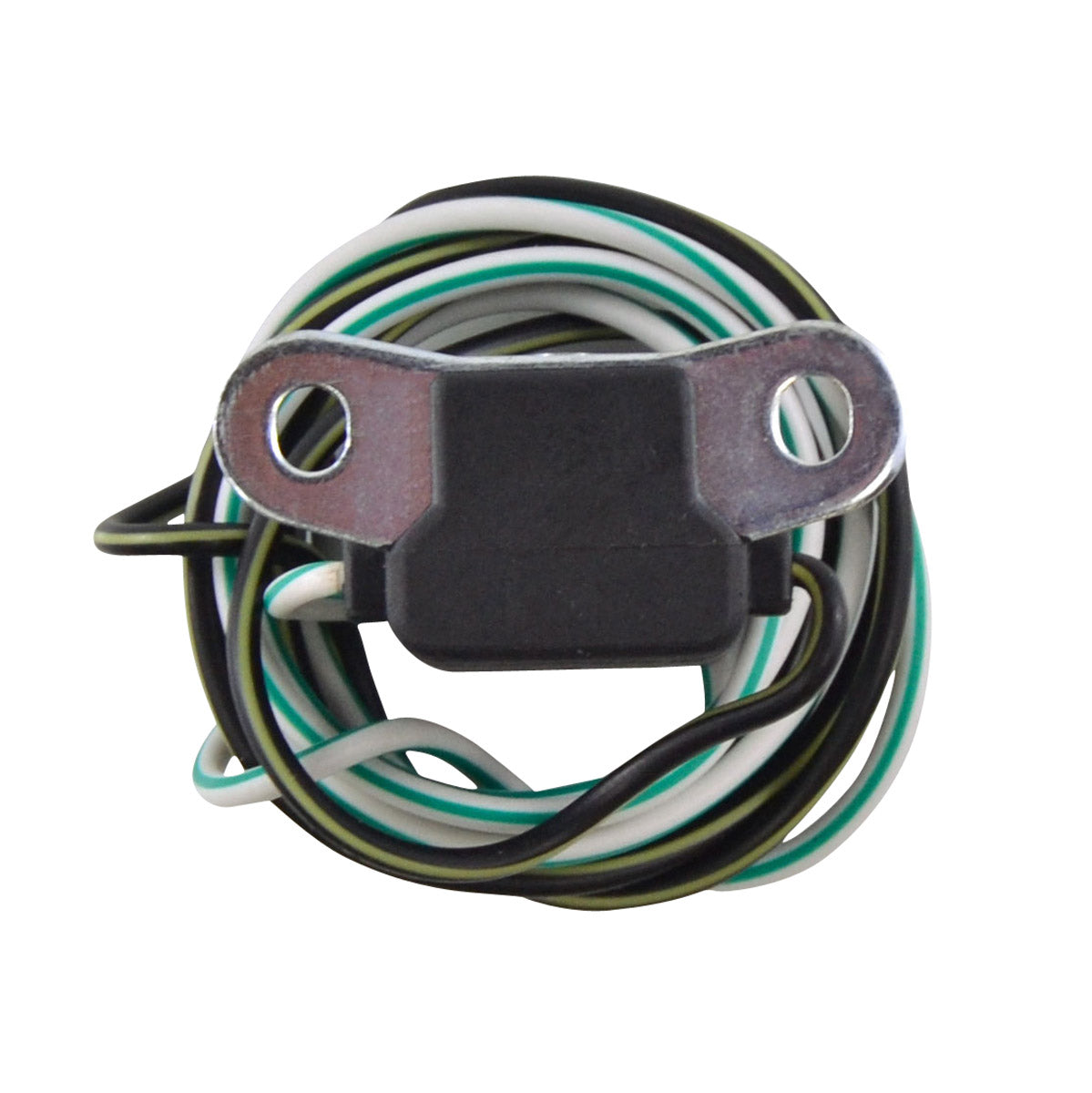

- 750 mm wire lead terminating in a two-pin connector

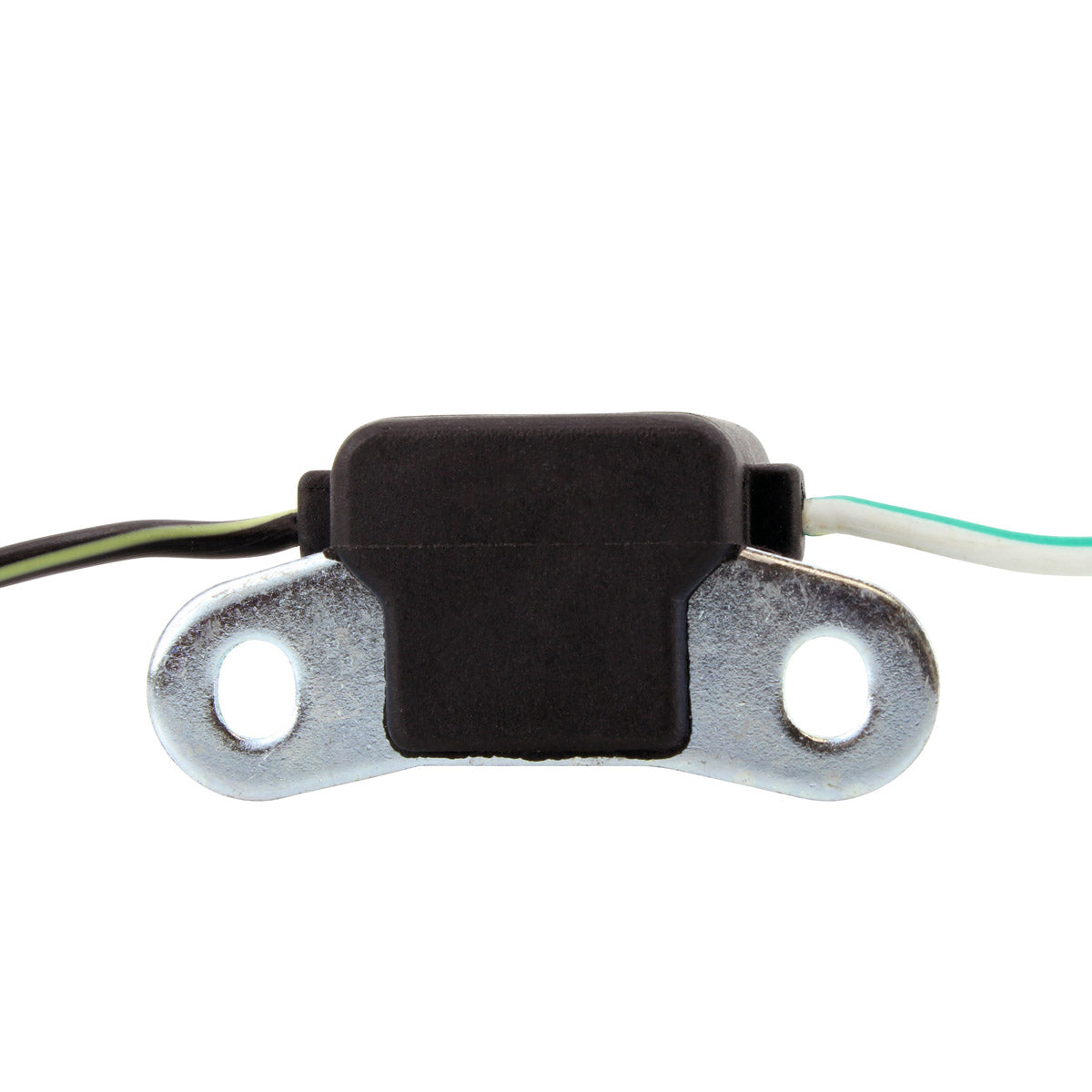

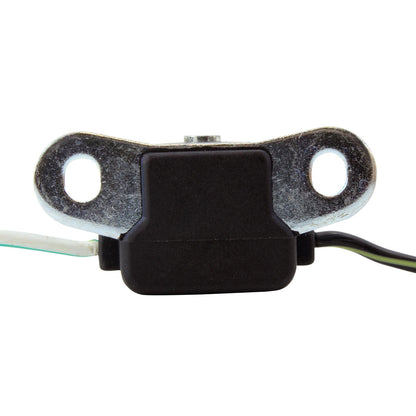

- 35 mm bracket centre to centre mounting, matching the original

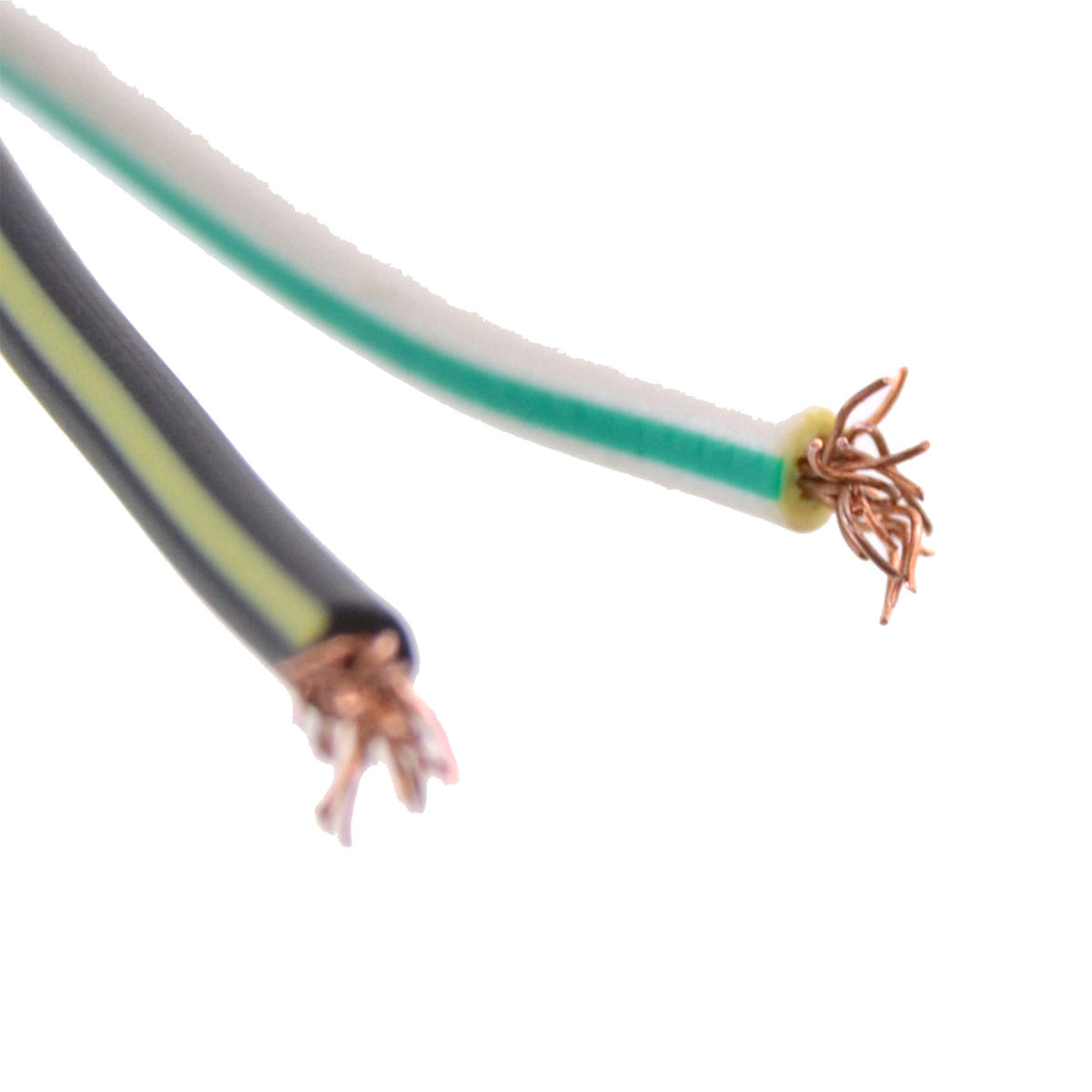

- Green/white to black resistance of 100 ohms +/-20% for quick testing
- Every unit is tested before it is shipped
Technical Specs
| Specification |
Detail |
| Height |
18 mm |
| Length |
26 mm |
| Width |
21 mm |
| Bracket centre to centre |
35 mm |
| Wire length |
750 mm |
| Number of wires |
2 |
| Number of pins |
2 |
| Wire resistance (Green/White to Black) |
100 ohms +/-20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki DR 100, DR 125 and DR 200 |
1982-1990 |
| Suzuki LT 230 S and LT 250 S Quadsport |
1982-1990 |
| Suzuki SP 100, SP 125 and SP 200 |
1982-1990 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32150-05210 |
Suzuki |
| 32150-22A01 |
Suzuki |
| 32150-22A00 |
Suzuki |
Frequently Asked Questions
Will this fit without modification?
It is a direct replacement for the original pulsar coil on the listed models, using the same 35 mm bracket spacing and a two-pin connector. Check the number stamped on your existing coil against the cross reference table before ordering, as Suzuki used several similar coils across this era.
What is included?
You receive the pick-up pulsar coil with its 750 mm lead and two-pin connector. The stator windings, the flywheel and any gaskets are not included.
How do I know my pulsar coil has failed?
Measure the resistance from the green and white wire to the black wire with a multimeter. A healthy coil reads 100 ohms plus or minus 20 per cent. An open circuit, a short to earth, or a reading well outside that band confirms the coil has failed. The usual symptom is strong cranking with no spark at the plug.
Does it fit both the road and off-road models?
The same coil covers the DR trail models, the SP dual sport models and the LT 230 S and LT 250 S Quadsport quads within the years shown. The physical mounting and the 100 ohm winding are common to all of them, but confirm the OEM number on your own unit first.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
