Stator Pick-Up Pulsar Coil for Arctic Cat, Can-Am, Kawasaki, Yamaha & Suzuki
ATV, personal watercraft and scooter applications 1992-2026 - Part RM00102

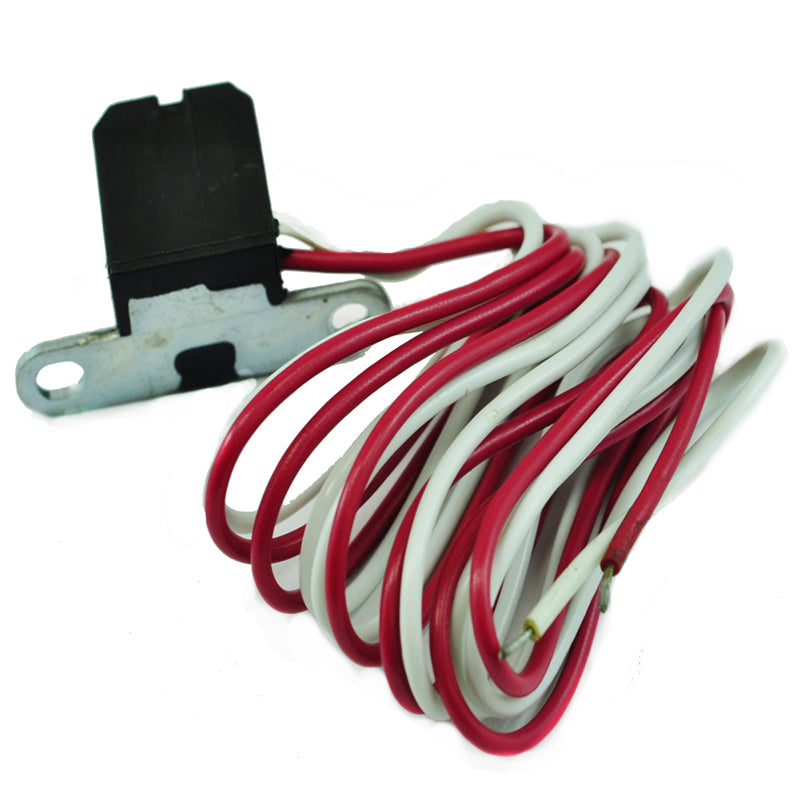

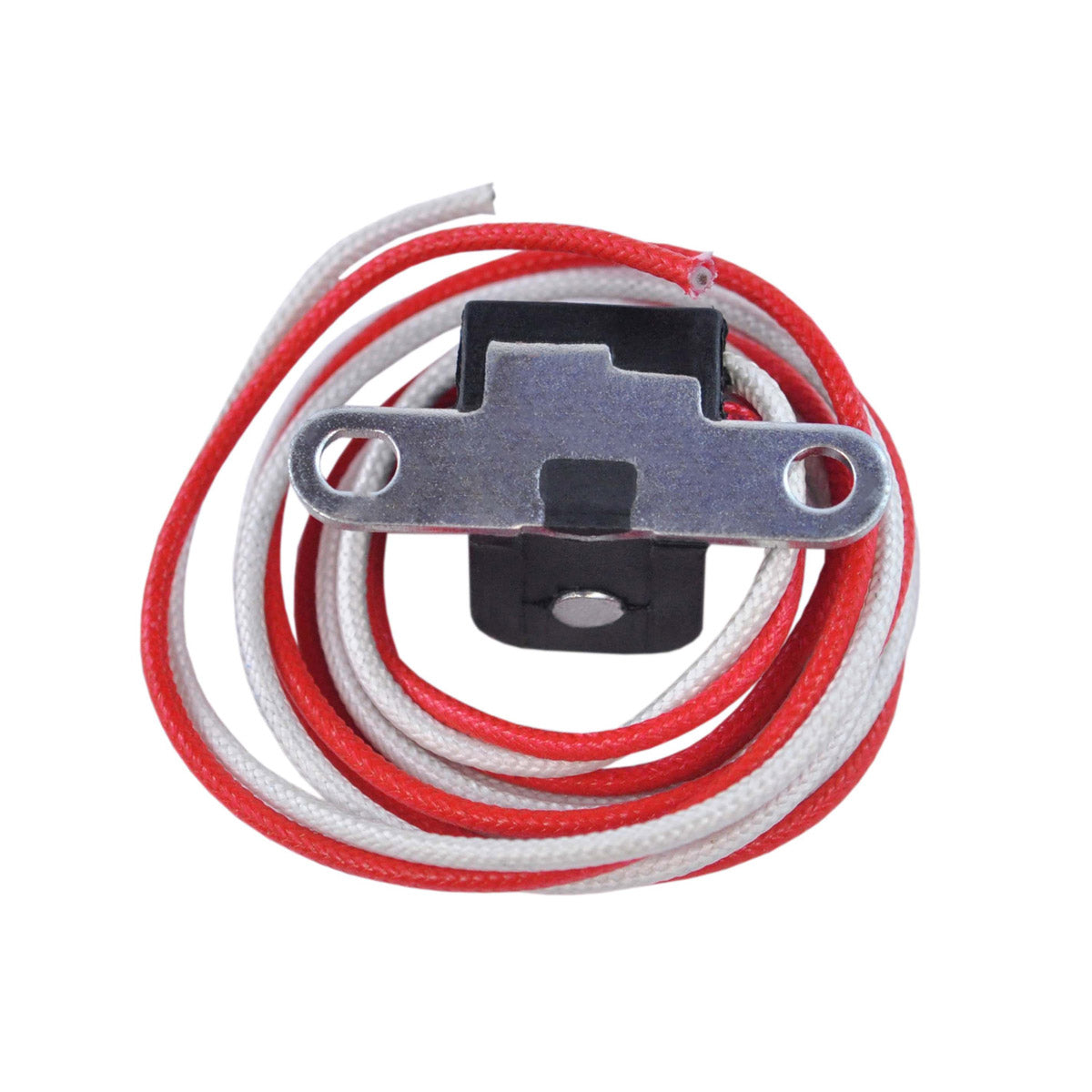

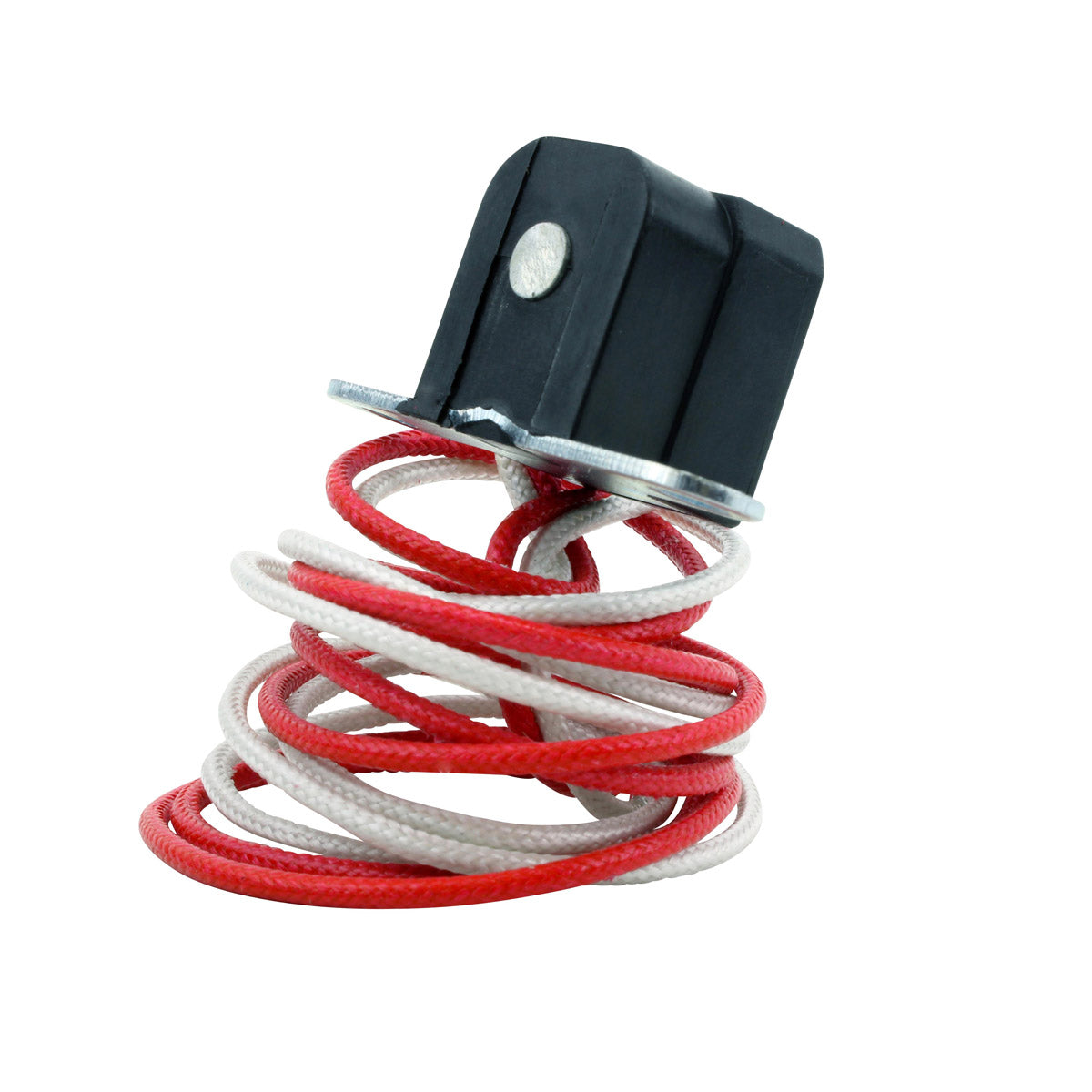

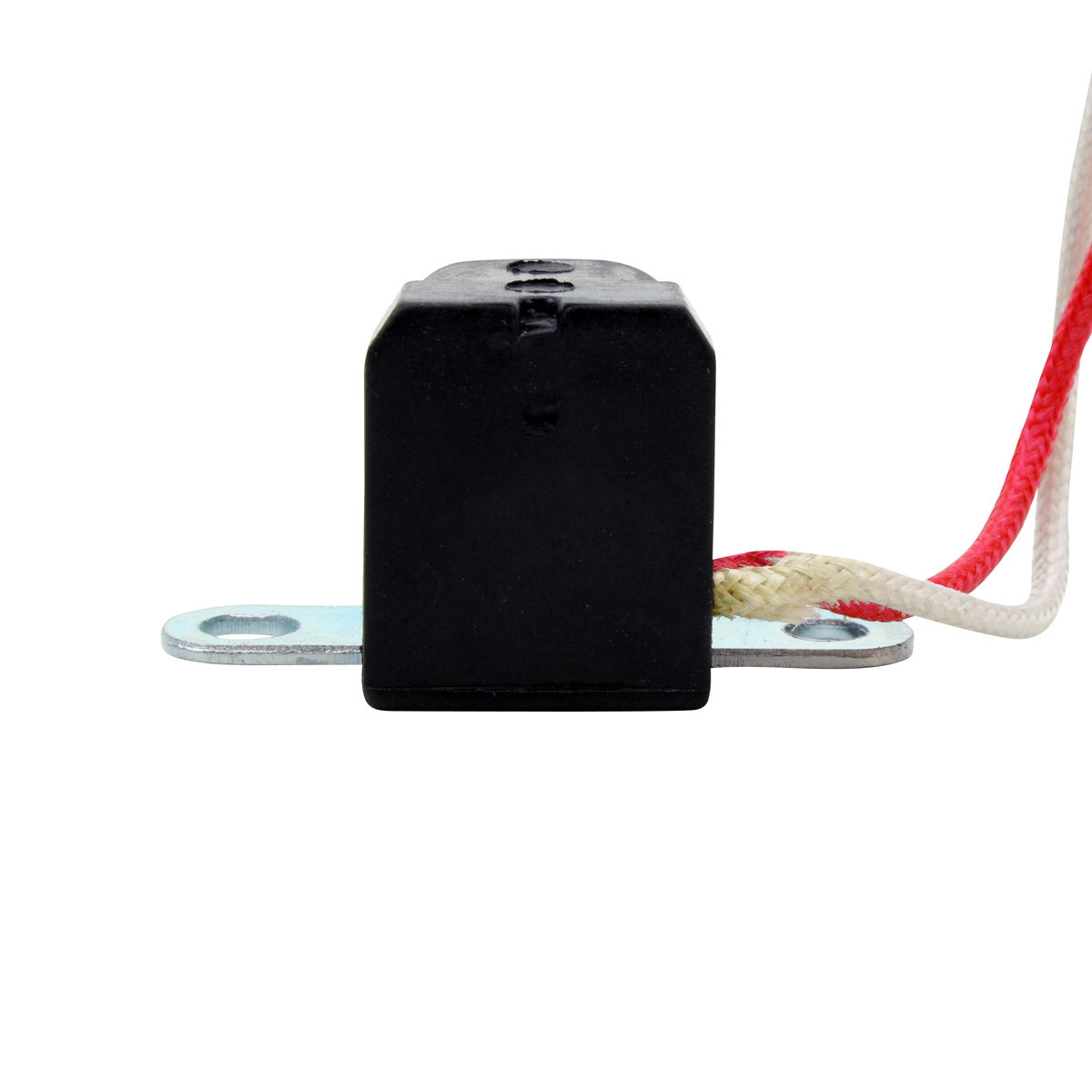

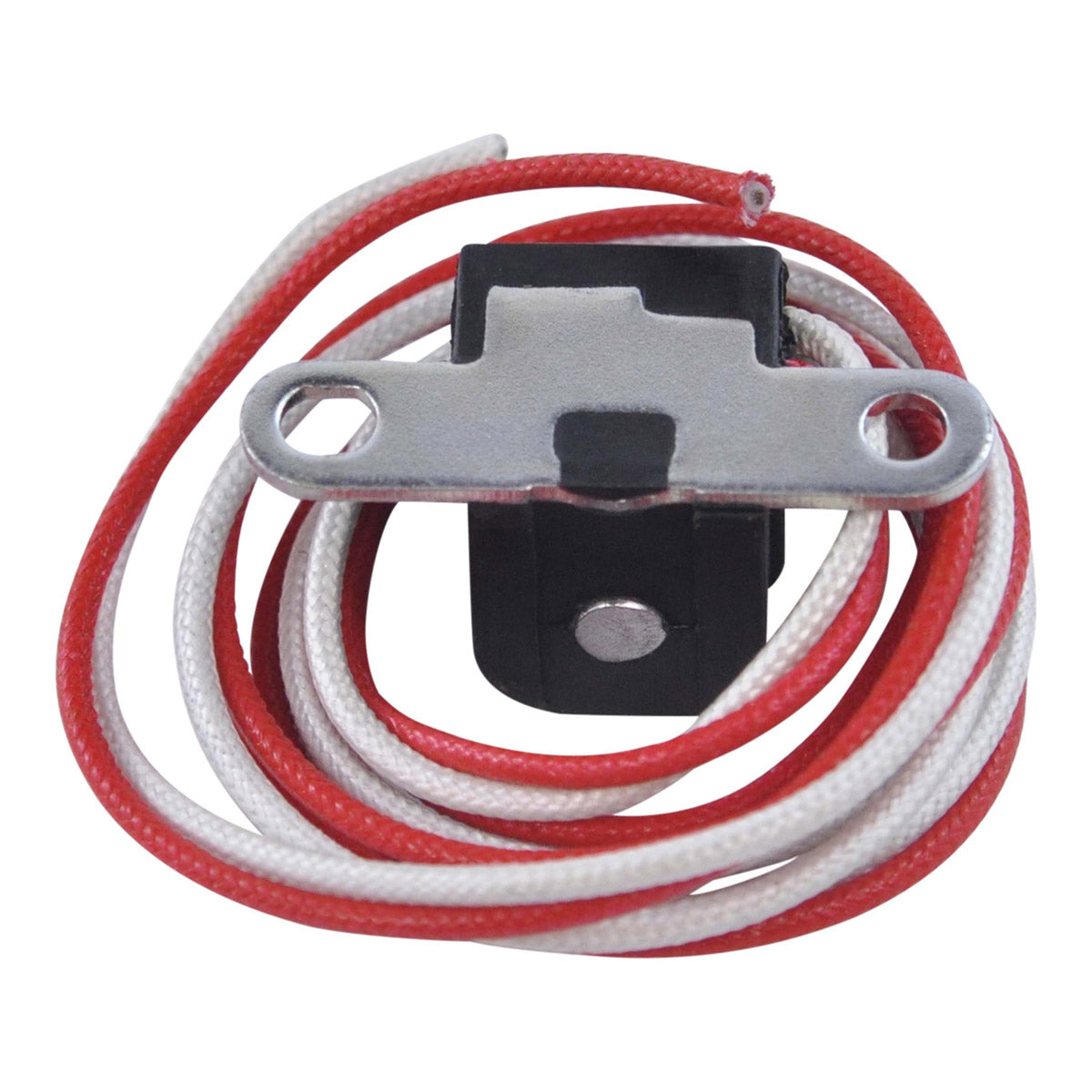

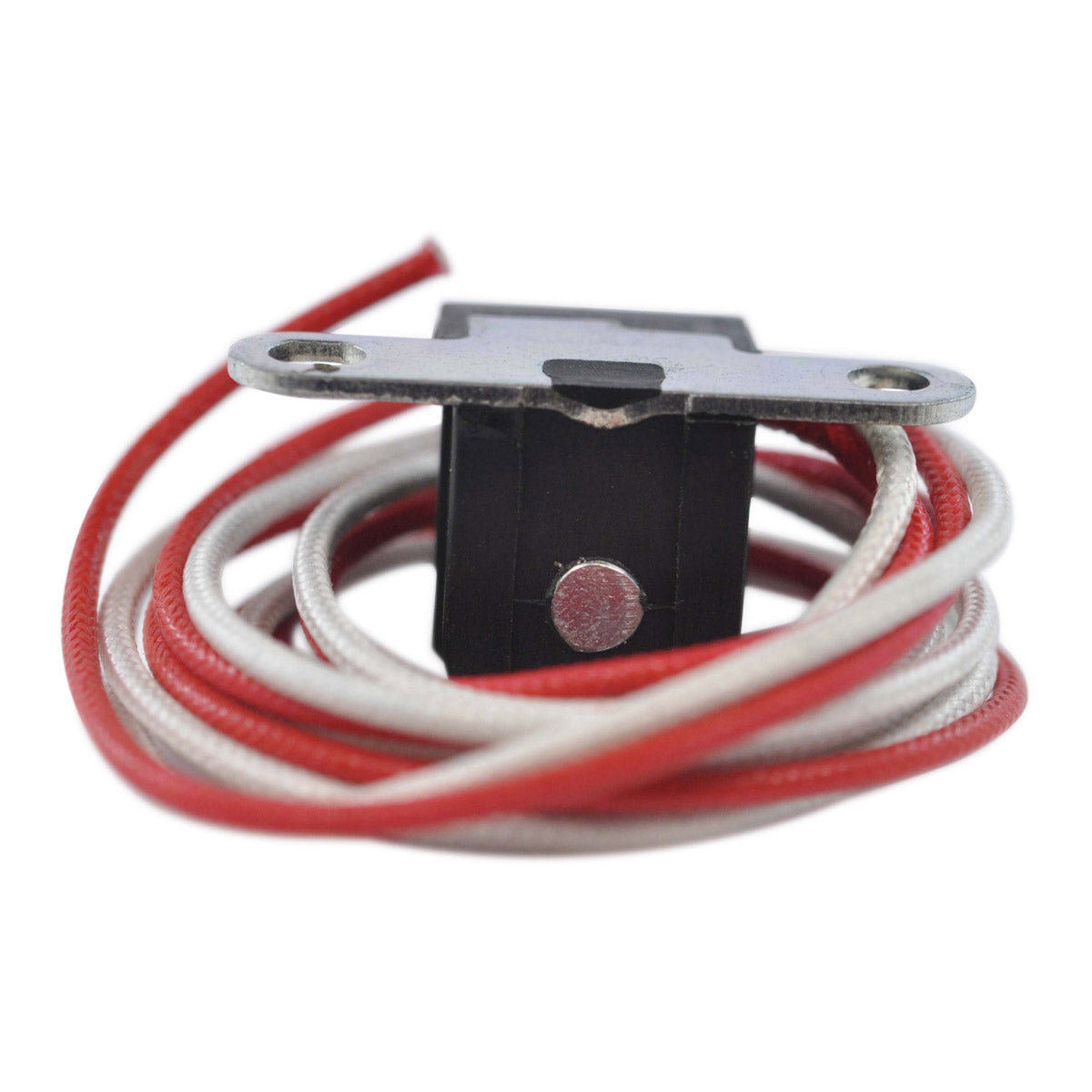

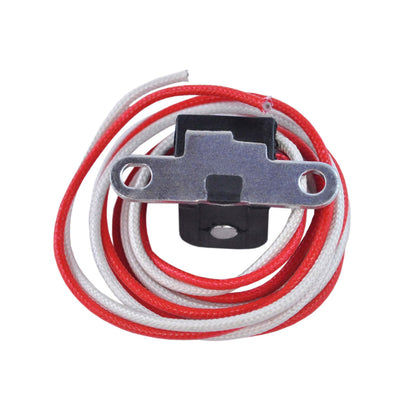

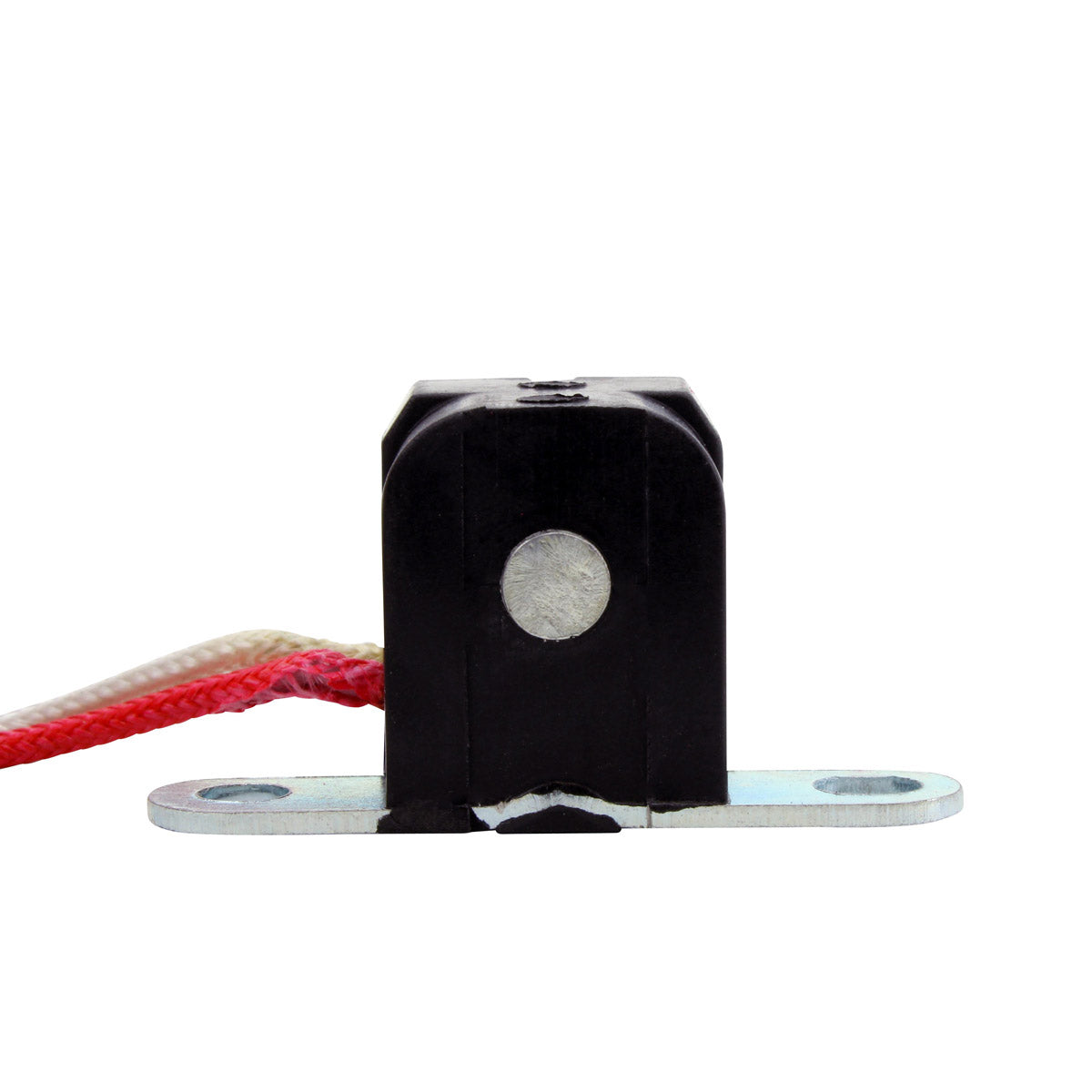

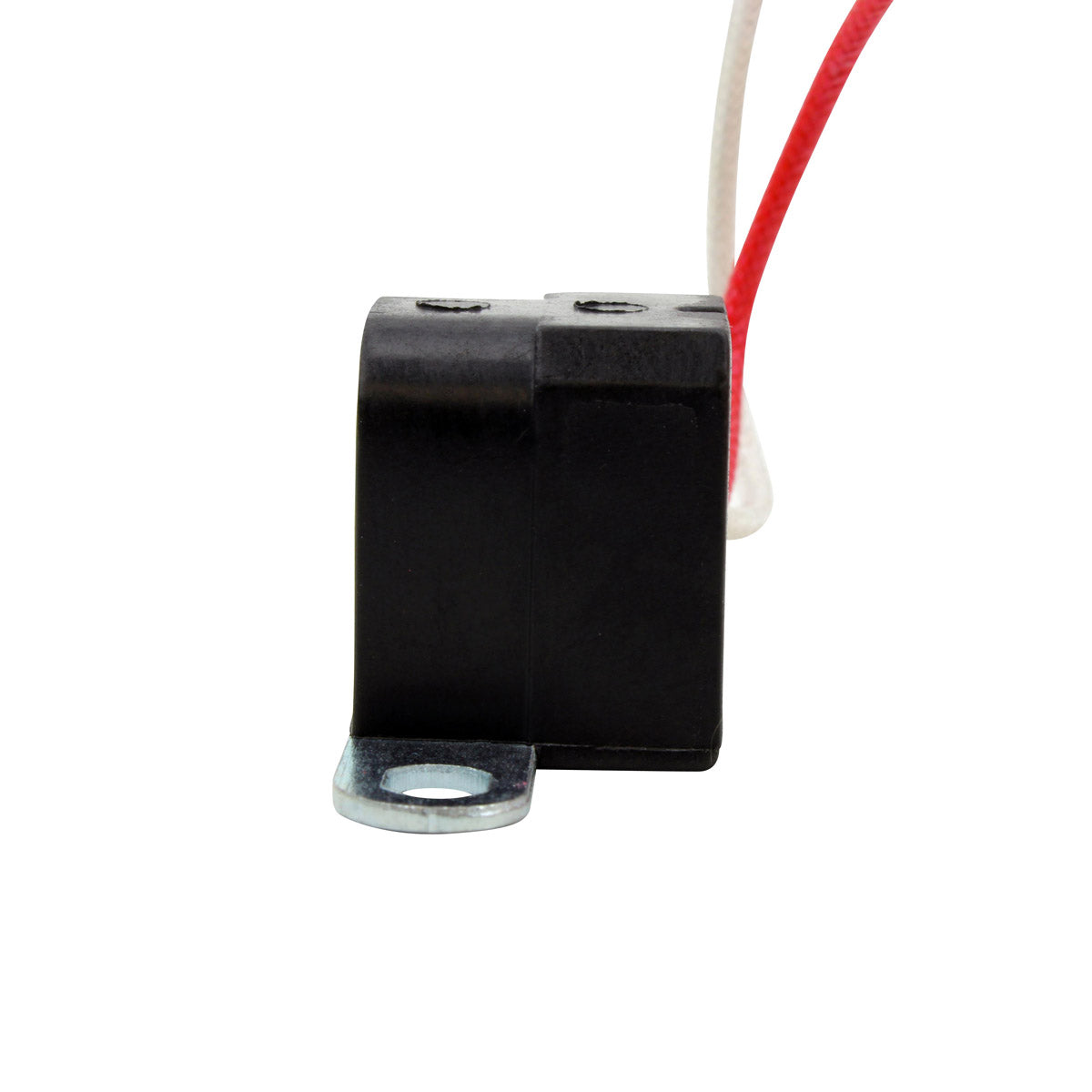

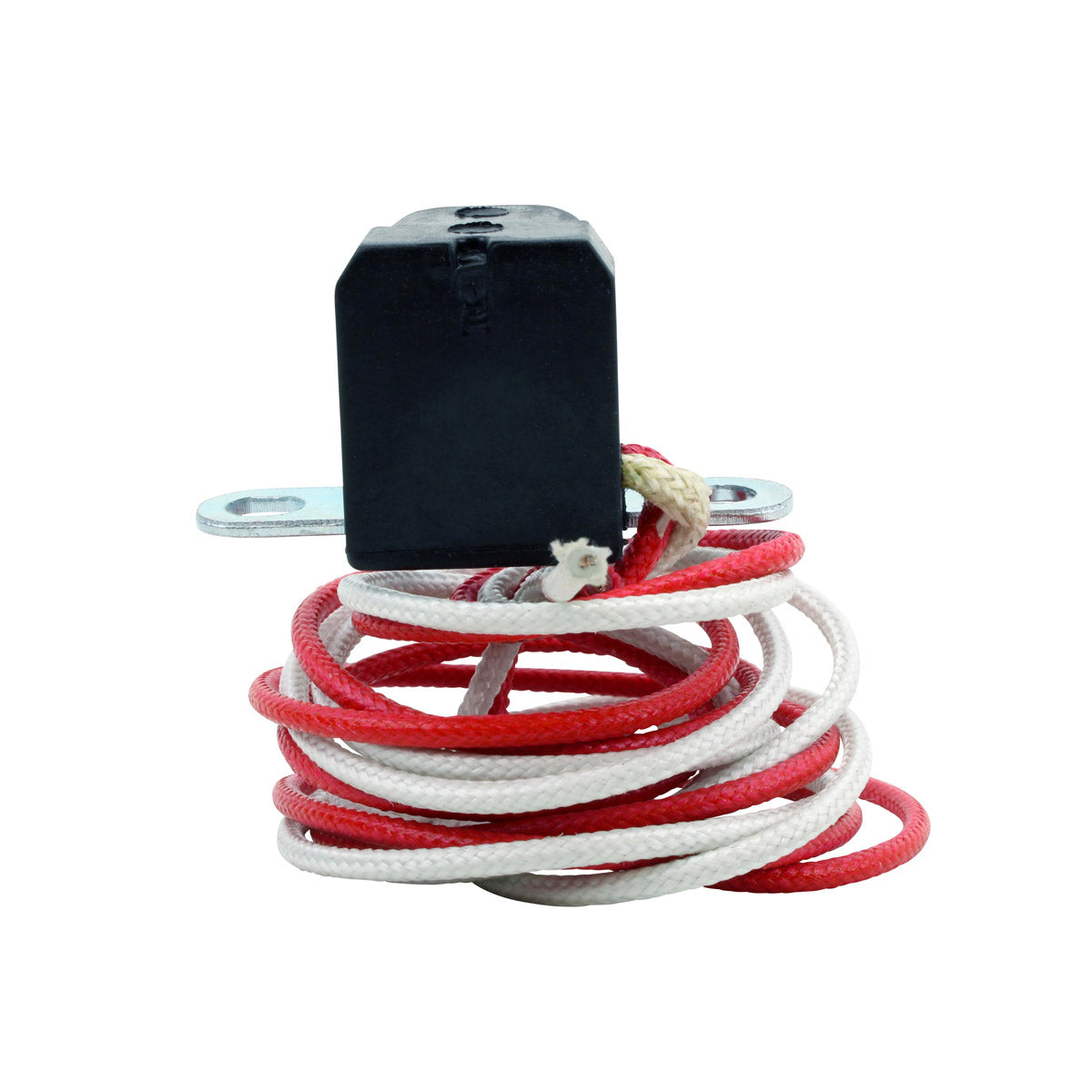

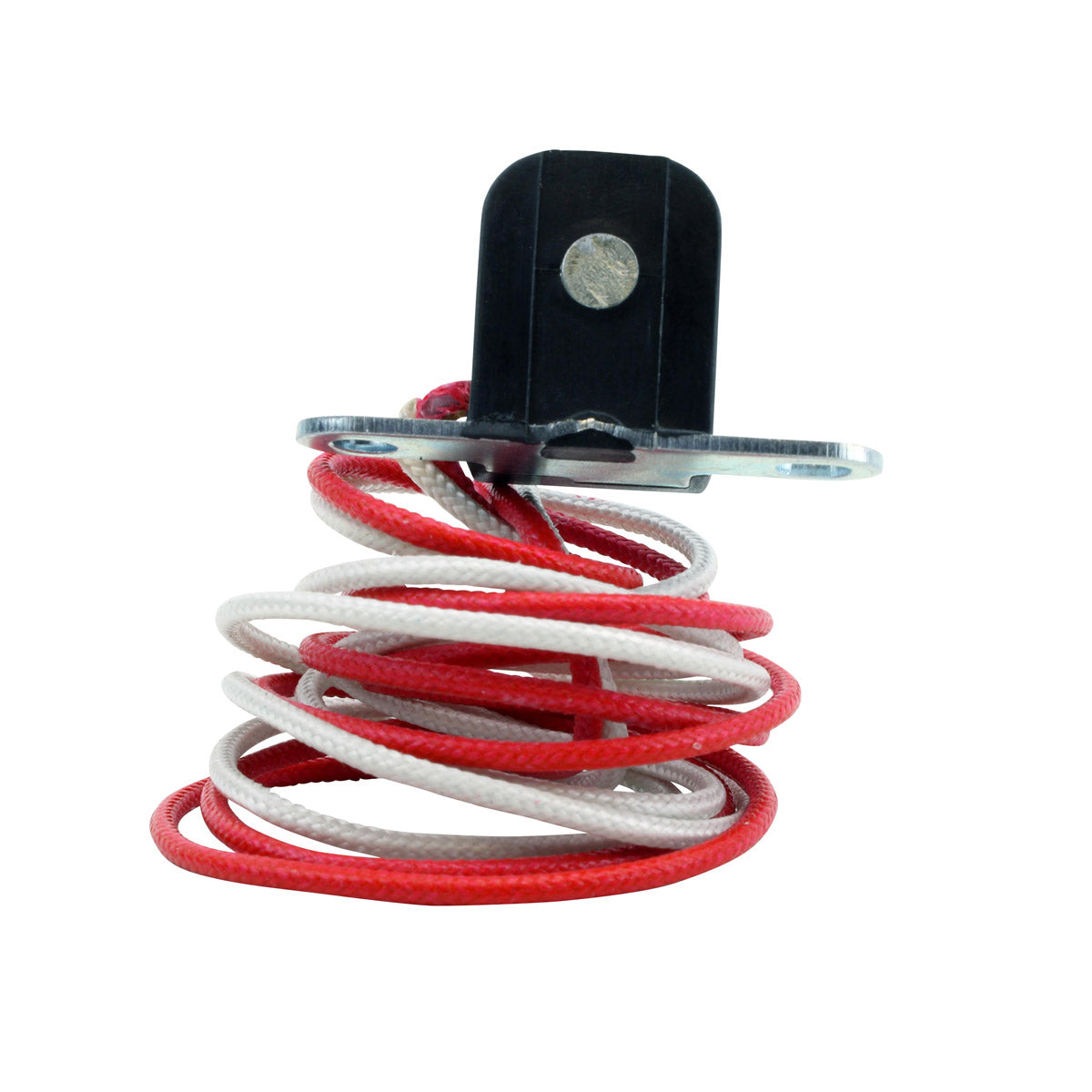

A brand new pick-up pulsar coil, supplied so that you can repair your existing stator rather than buy a complete assembly. The pulsar coil is the ignition trigger: as the flywheel turns, a raised reluctor sweeps past the coil and induces a small pulse, and the CDI or ECU reads the timing of that pulse to decide precisely when to fire the plug. Lose the pulse and the engine will crank strongly but never fire, however healthy the coil, plug and battery may be.
This is one of the most widely used pulsar coils across ATV, personal watercraft and scooter applications, which is why it supersedes more than forty interchange numbers across Arctic Cat, Can-Am, Kawasaki, Yamaha and Suzuki machines built between 1992 and 2026. It is a two-wire, two-terminal coil reading 500 ohms between the red and white wires, measuring 19 mm long by 19 mm wide by 23 mm high with 35 mm bracket centres and an 800 mm lead. Every coil is tested before dispatch, and the item photographs are accurate representations of what is supplied, so if you are in any doubt please compare them against your original part before ordering.
Key Features
- Brand new pick-up pulsar coil for stator repair
- Avoids buying a complete stator assembly
- Resistance held to 500 ohms plus or minus 20 per cent

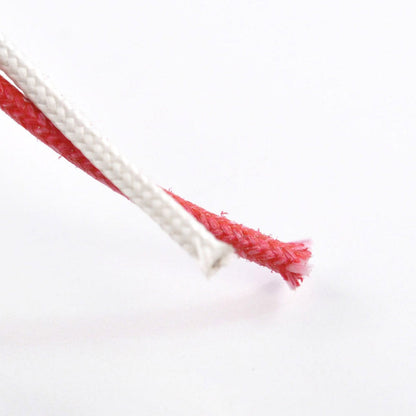

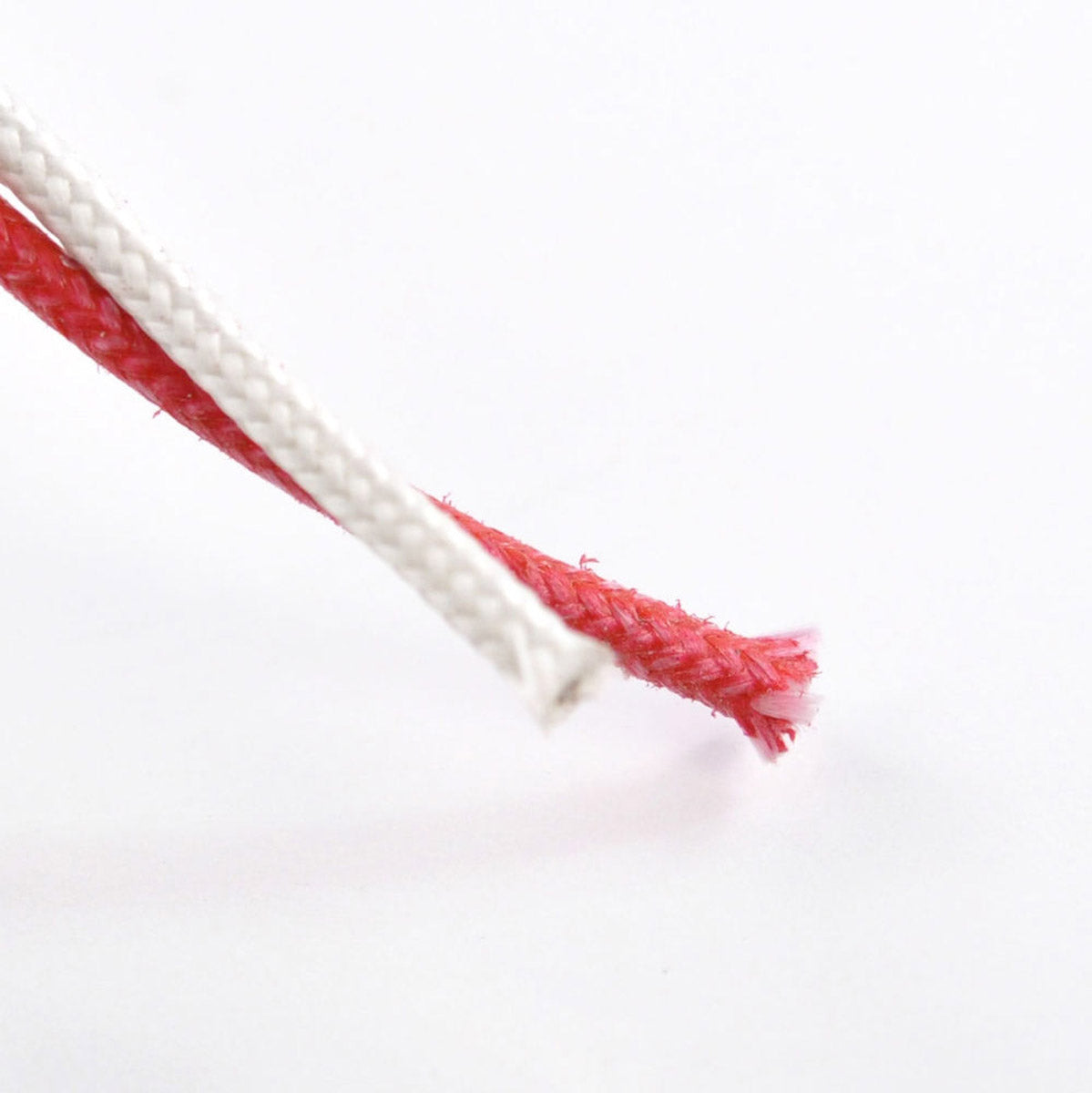

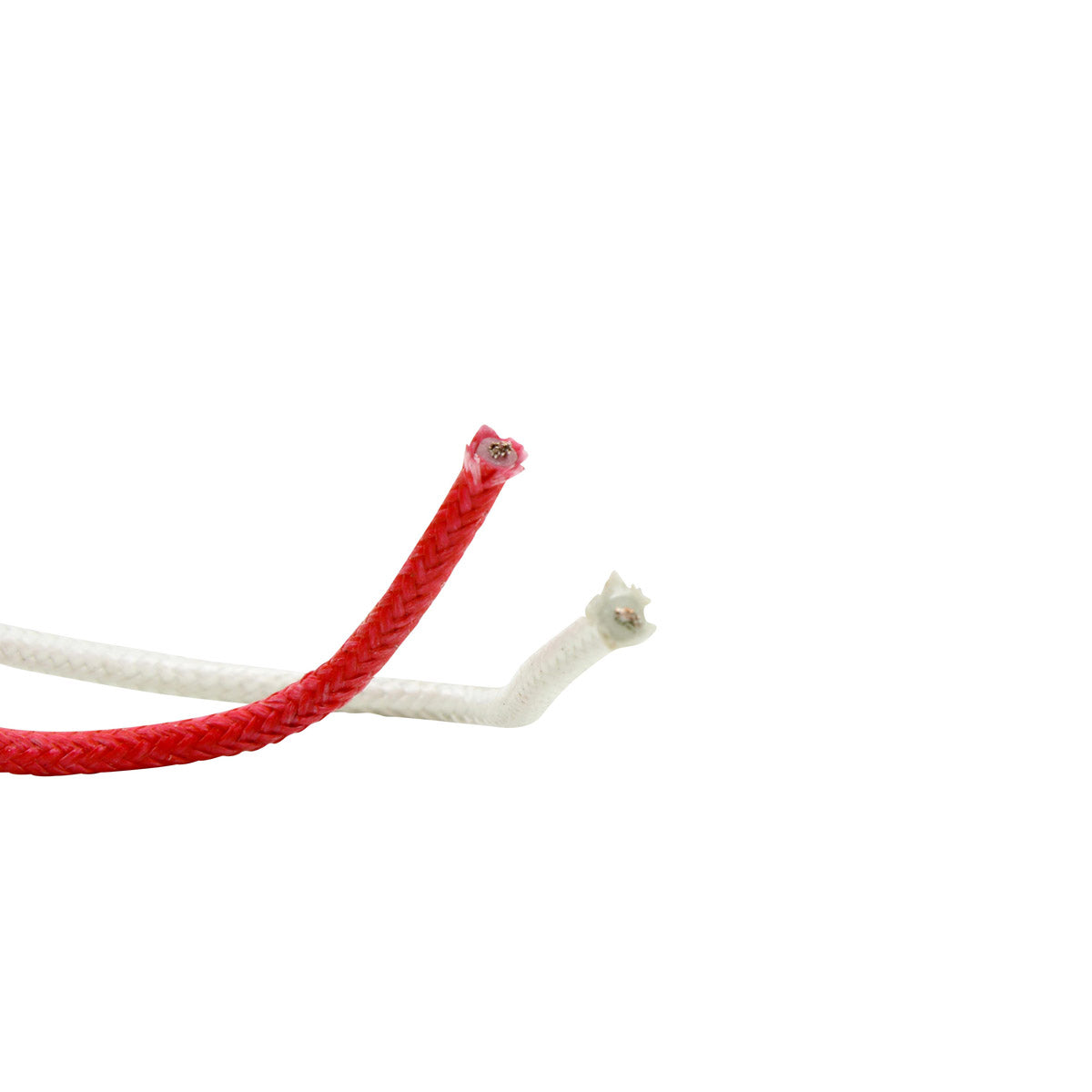

- Long 800 mm lead to reach the original connector

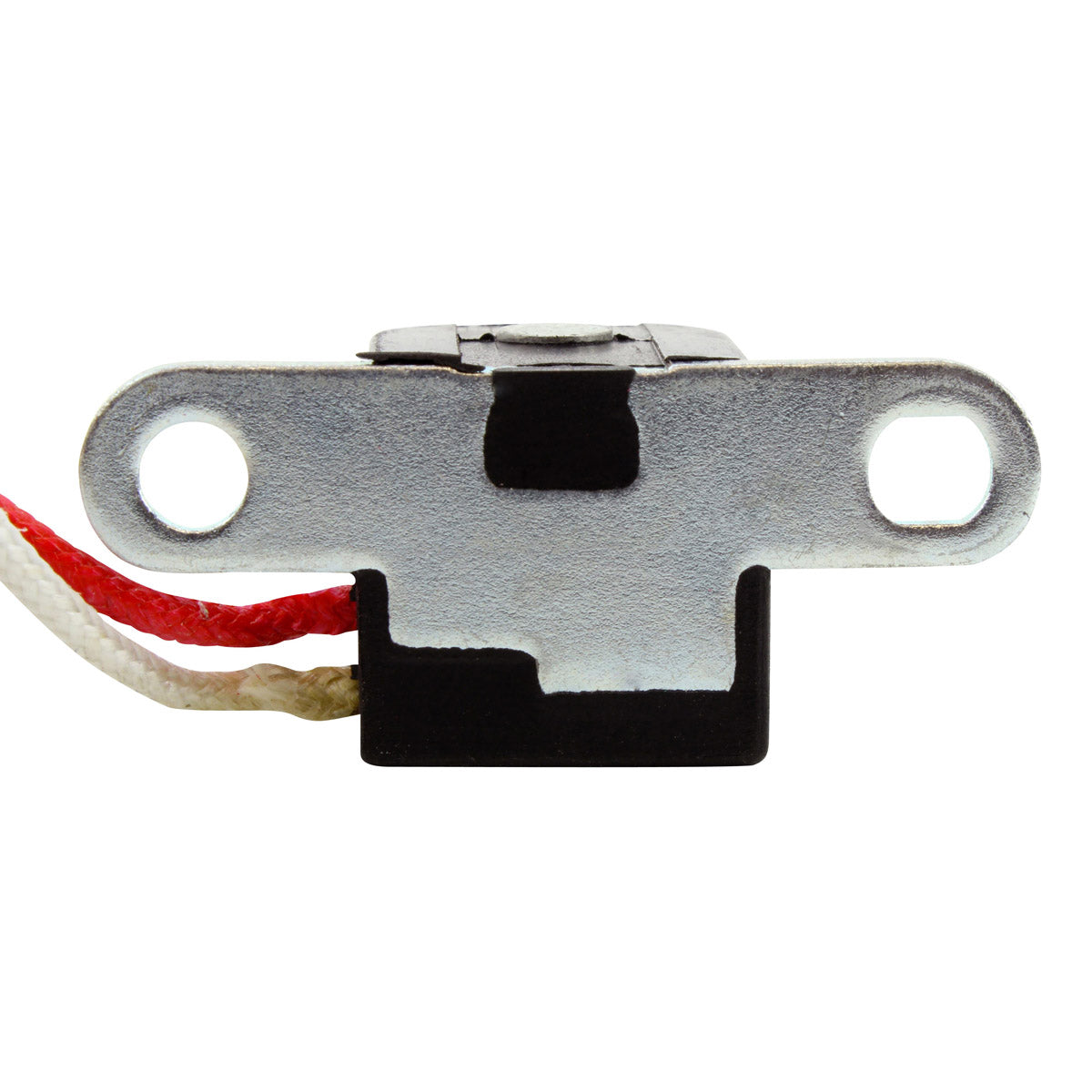

- 35 mm bracket centres to match the original
- Supersedes over forty OEM interchange numbers
- Often unavailable from the OEM manufacturer
- Every unit tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM00102 |
| Wire to wire resistance, red to white | 500 ohms +/-20% |
| Number of wires | 2 |
| Number of terminals | 2 |
| Height | 23 mm |
| Length | 19 mm |
| Width | 19 mm |
| Bracket centre to centre | 35 mm |
| Wire length | 800 mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat ATV | 1992-2026 |
| Can-Am ATV | 1992-2026 |
| Kawasaki ATV and personal watercraft | 1992-2026 |
| Yamaha ATV, personal watercraft and scooter | 1992-2026 |
| Suzuki ATV and scooter | 1992-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 66V-85510-00-00 | OEM interchange |
| 21003-3746 | OEM interchange |
| 21003-3740 | OEM interchange |
| 21003-3726 | OEM interchange |
| 21003-3720 | OEM interchange |
| 21003-1243 | OEM interchange |
| 21003-S006 | OEM interchange |
| 21003-S012 | OEM interchange |
| 32101-13F00 | OEM interchange |
| 32101-13F01 | OEM interchange |
| 32101-07G00 | OEM interchange |
| 32101-07G01 | OEM interchange |
| 4XE-81410-00-00 | OEM interchange |
| 5NF-81410-00-00 | OEM interchange |
| 5FU-81410-00-00 | OEM interchange |
| 5ND-81410-00-00 | OEM interchange |
| 5GH-81410-00-00 | OEM interchange |
| 5LP-81410-00-00 | OEM interchange |
| 5LP-81410-01-00 | OEM interchange |
| 5LP-81410-02-00 | OEM interchange |
| 5KM-81410-00-00 | OEM interchange |
| 5KM-81410-01-00 | OEM interchange |
| 5UH-81410-00-00 | OEM interchange |
| 2P5-81410-00-00 | OEM interchange |
| 3B4-81410-00-00 | OEM interchange |
| 28P-81410-00-00 | OEM interchange |
| 28P-81410-01-00 | OEM interchange |
| 1P0-H1410-00-00 | OEM interchange |
| 1PO-H1410-00-00 | OEM interchange |
| 4KB-85510-00-00 | OEM interchange |
| 4KB-85510-10-00 | OEM interchange |
| 4KB-85510-11-00 | OEM interchange |
| 4KB-85510-12-00 | OEM interchange |
| 4GB-85510-00-00 | OEM interchange |
| 4WV-85510-00-00 | OEM interchange |
| 5GT-85510-00-00 | OEM interchange |
| 3HN-85510-10-00 | OEM interchange |
| 5EH-85510-00-00 | OEM interchange |
| 3409-026 | OEM interchange |
| 3430-458 | OEM interchange |
| S31120RCA000 | OEM interchange |
Frequently Asked Questions
Will it fit without modification?
On the applications covered by the cross reference list, yes. The 35 mm bracket centres put it in the original position and the 800 mm lead reaches the original connector. Because this coil covers so many different machines, the reliable way to confirm fitment is to check the number on your existing coil or in your parts manual against the table above.
What is included?
You receive the pick-up pulsar coil with its 800 mm lead. The stator plate, flywheel and cover gasket are not supplied, as this is a repair part for the stator already on your machine.
How do I know my pulsar coil has failed?
The engine cranks strongly but never fires, or it starts from cold and cuts out once everything warms through. Disconnect the plug and measure between the red and white wires: a healthy coil reads about 500 ohms, within 20 per cent either way. An open circuit, or continuity from either wire to the stator core, points at the coil rather than the CDI.
Why does one coil cover so many different machines?
Pulsar coils are simple sensors, and the same physical coil was fitted under dozens of part numbers across Arctic Cat, Can-Am, Kawasaki, Yamaha and Suzuki ATVs, watercraft and scooters over more than thirty model years. The forty-plus interchange numbers listed above are all the numbers that supersede into this one part.
