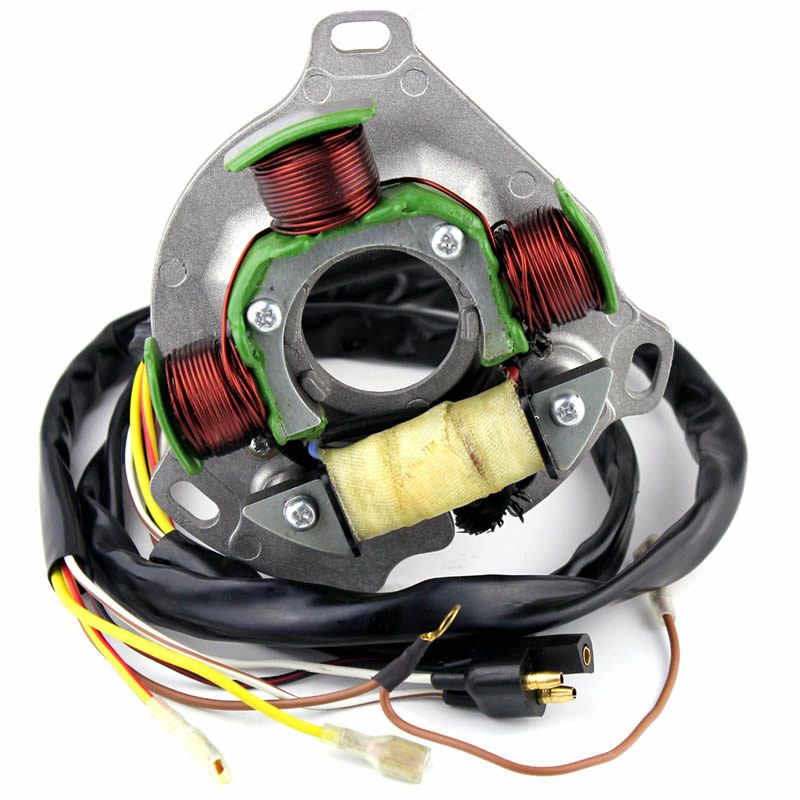

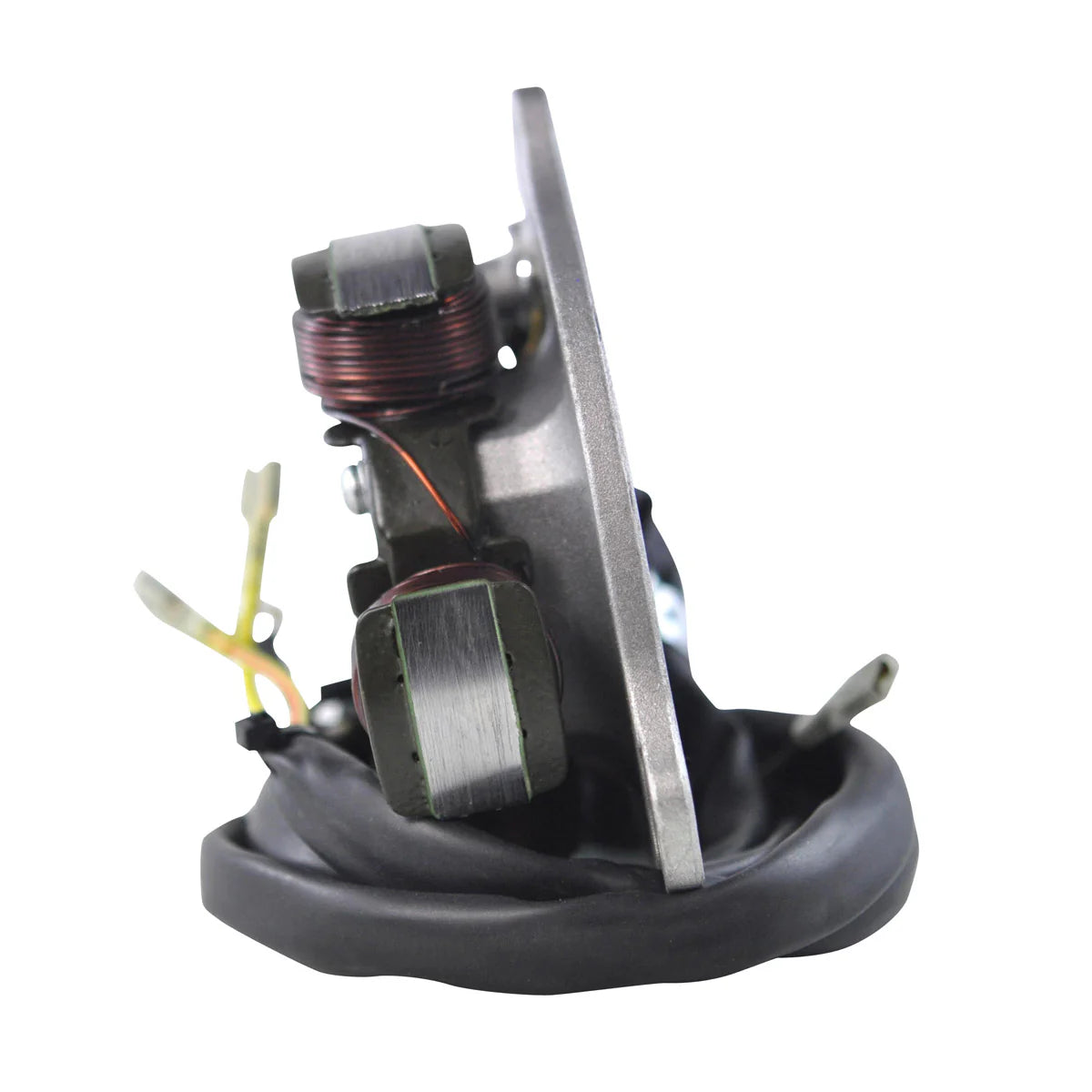

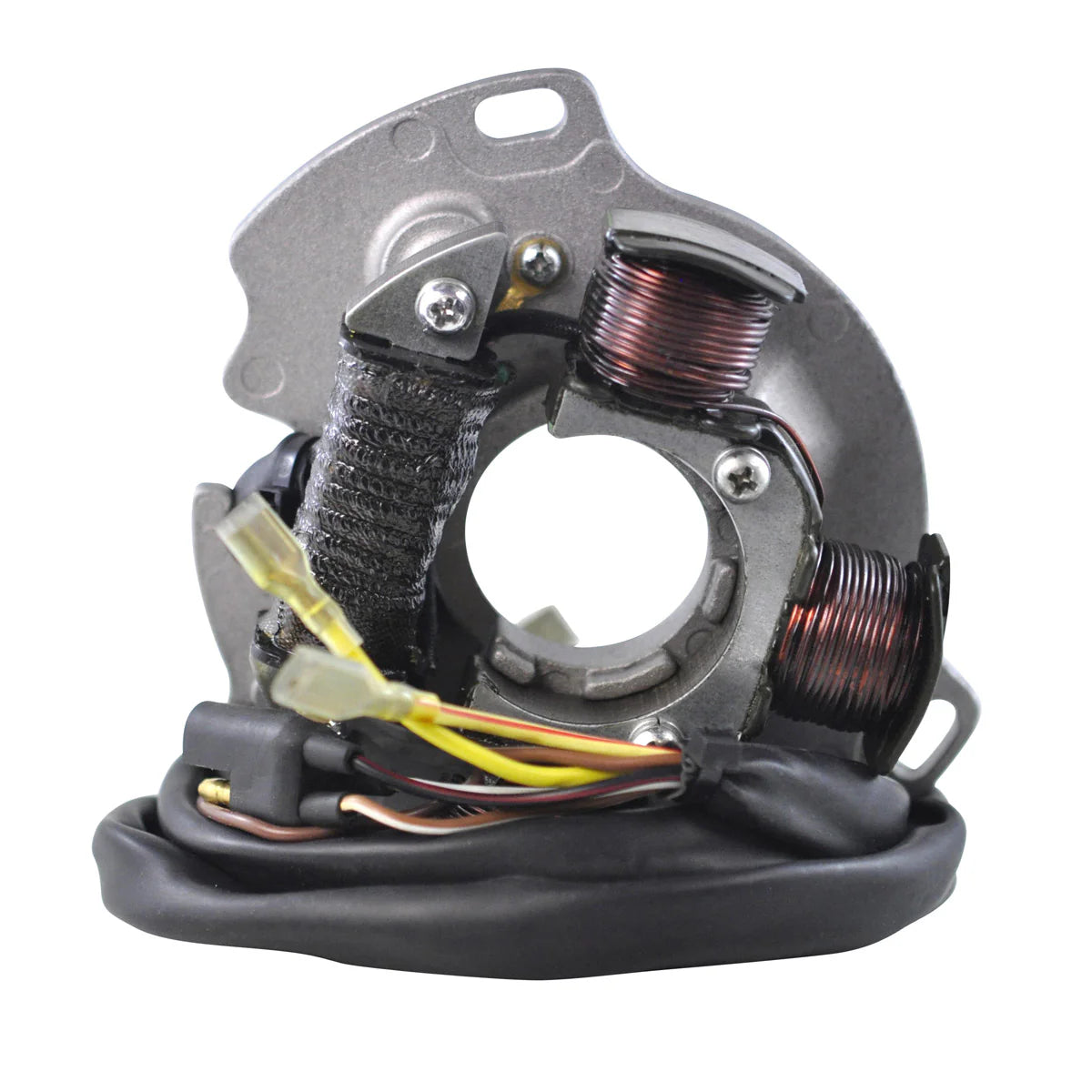

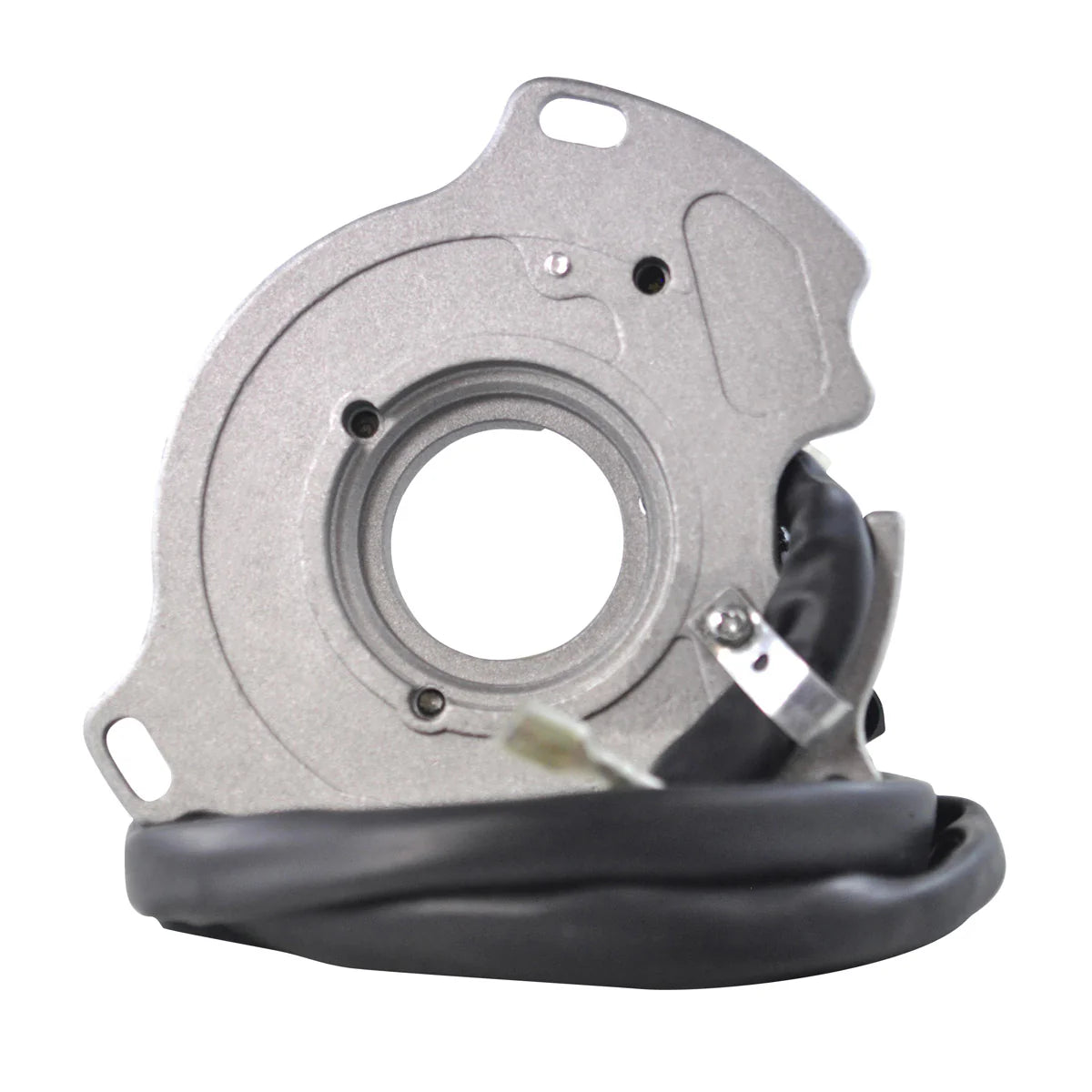

Stator for Polaris 300 - Trail Boss, Xplorer and Xpress
Part RM01199 - Polaris 300 models 1994-1999 - OEM reference 3084814
The RM01199 is a brand new aftermarket stator for the Polaris 300 range built between 1994 and 1999, covering the Trail Boss 300, the Xplorer 300 and the Xpress 300. It is a direct replacement for the original charging coil and cross references to Polaris part number 3084814.

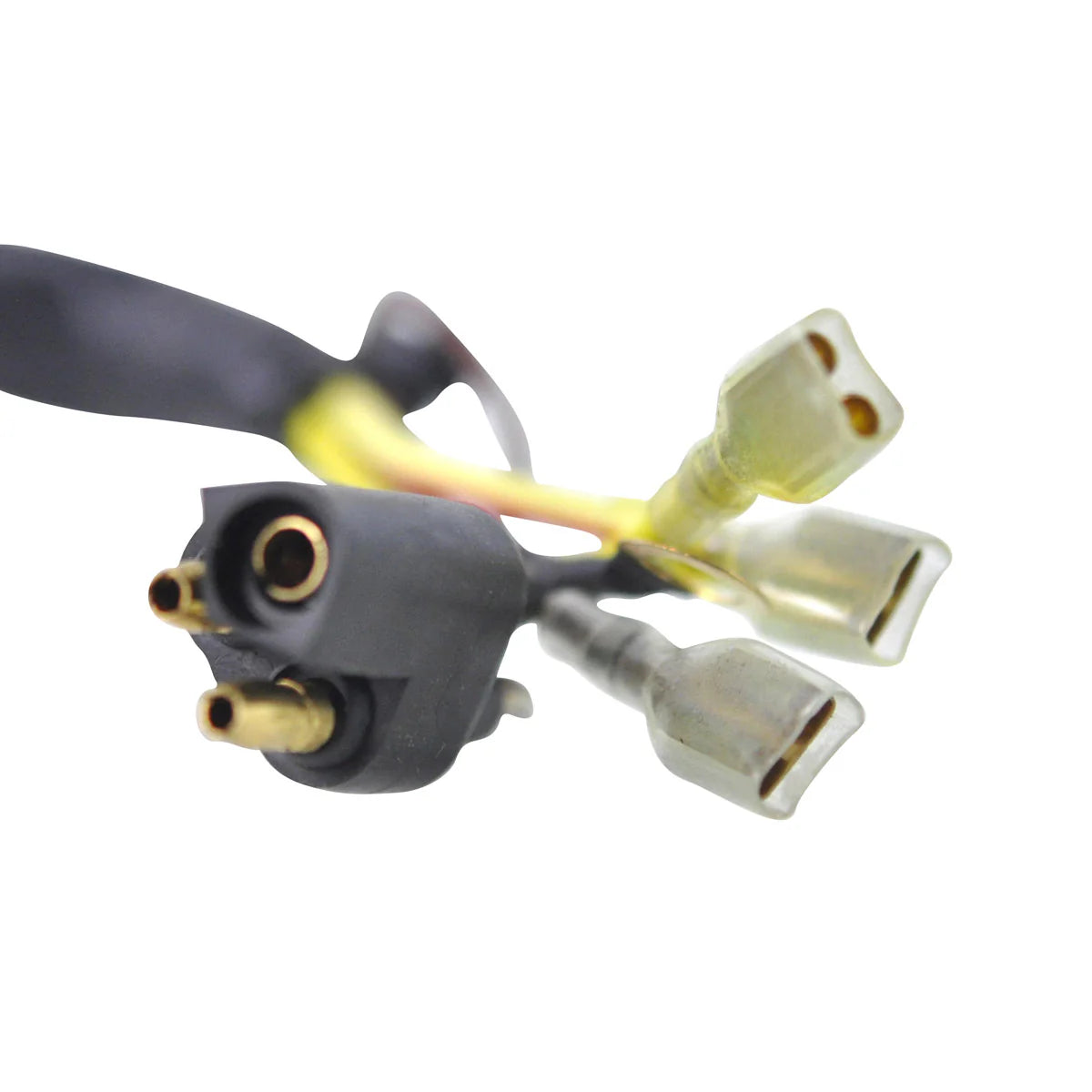

Fitting is plug-and-play and direct, using the standard mounting points and the original connectors, so no cutting, drilling or splicing of the loom is required. The stator is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The connector, the rubber grommet and the back plate are all included in the box, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Back plate included
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01199 |
| Interior diameter | 43 mm |
| Exterior diameter | 104 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 77 mm |
| Wire length, grommet to plug | 400 mm |
| Pick-up coil wire to grommet | 65 mm |
| Number of wires | 5 |
| Number of plugs | 3 |
| Number of pins | 5 |
| Alternator resistance, Yellow to Yellow/Red | 0.4 ohms +/-20% |
| Source resistance, Black/Red to Brown/White | 125 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Polaris Trail Boss 300 | 1994-1999 |
| Polaris Xplorer 300 | 1994-1999 |
| Polaris Xpress 300 | 1994-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3084814 | Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. The RM01199 is a direct replacement for the original stator on the Polaris Trail Boss 300, Xplorer 300 and Xpress 300 from 1994 to 1999. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting, drilling or splicing is required.
What is included in the box?
You receive the stator, the connector, the rubber grommet and the back plate.
How do I know my old stator has failed?
Measure the wire-to-wire resistance with a multimeter and compare against the table above. The alternator winding should read about 0.4 ohms from Yellow to Yellow/Red and the source coil about 125 ohms from Black/Red to Brown/White, each within 20 percent. Also check each output wire to ground, which should show no continuity. An open circuit, a short to ground, a flat battery or a weak spark all point to a failed stator.
Does the back plate need to be transferred from my old unit?
No. The back plate is supplied with the RM01199, along with the connector and the rubber grommet, so the assembly can be fitted complete rather than reusing parts from a stator that has already overheated.
