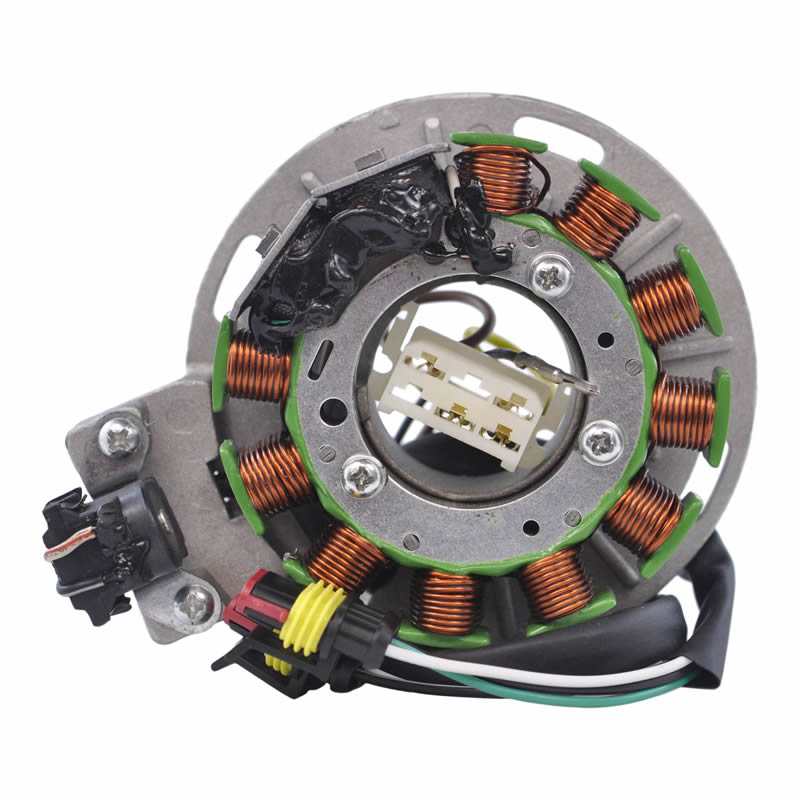

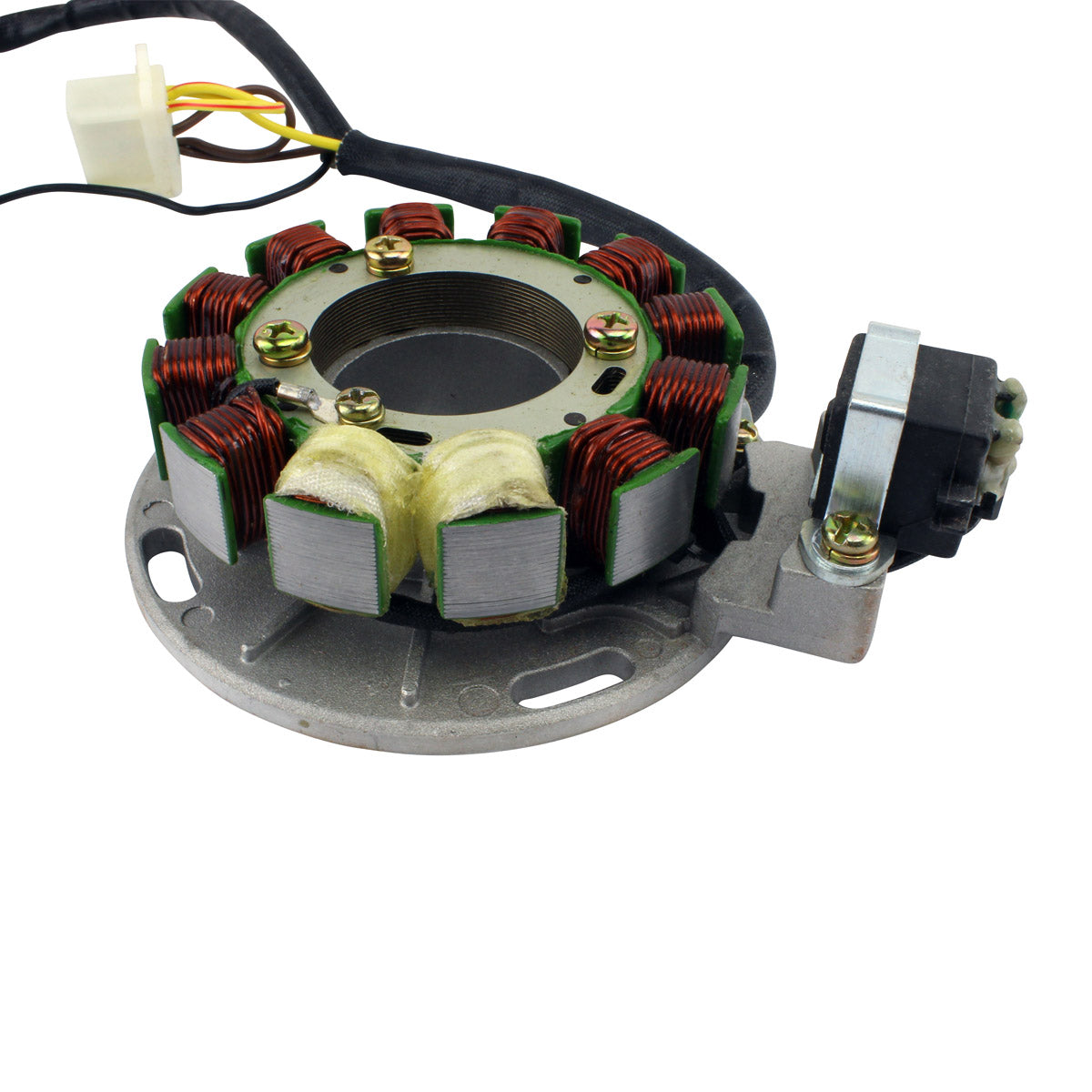

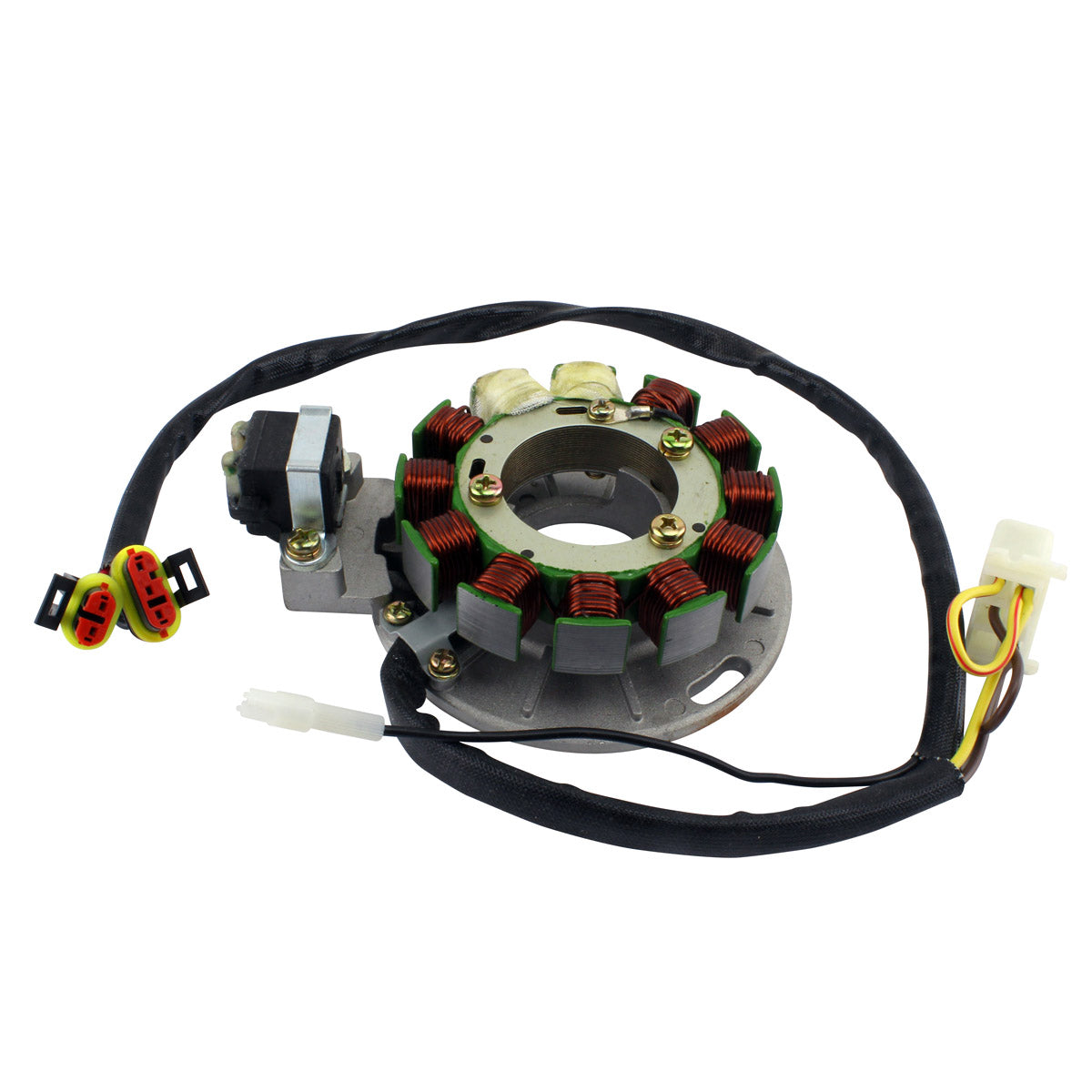

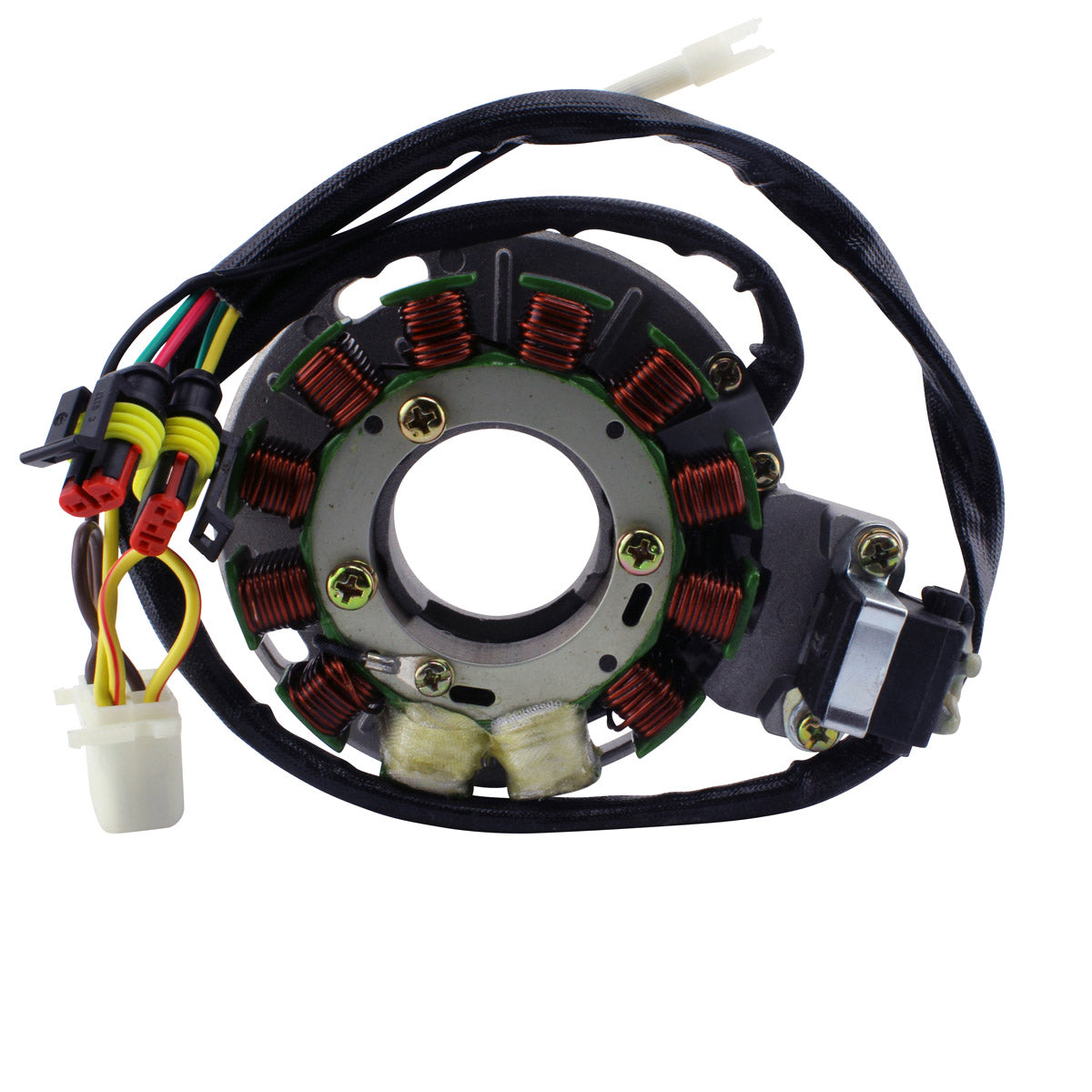

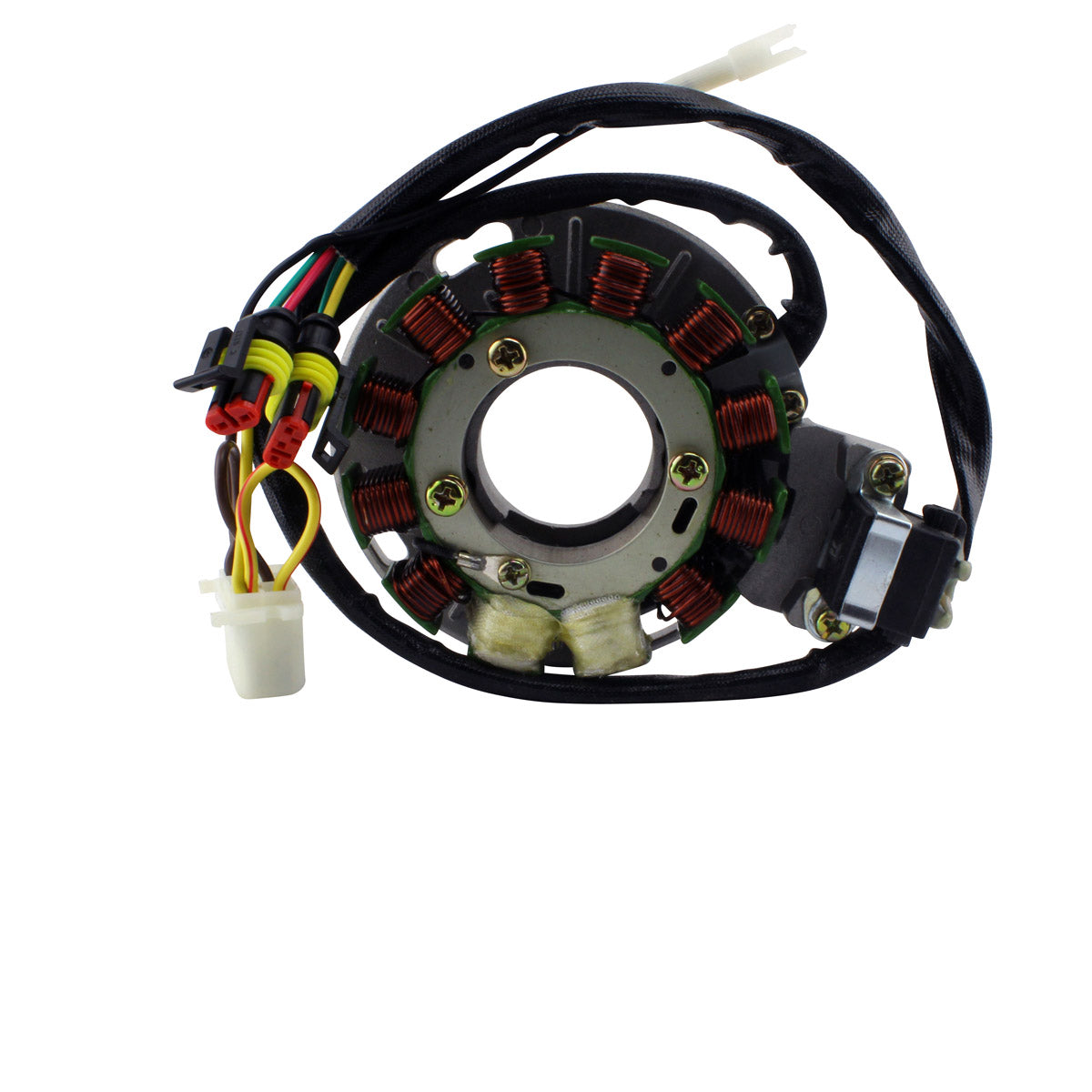

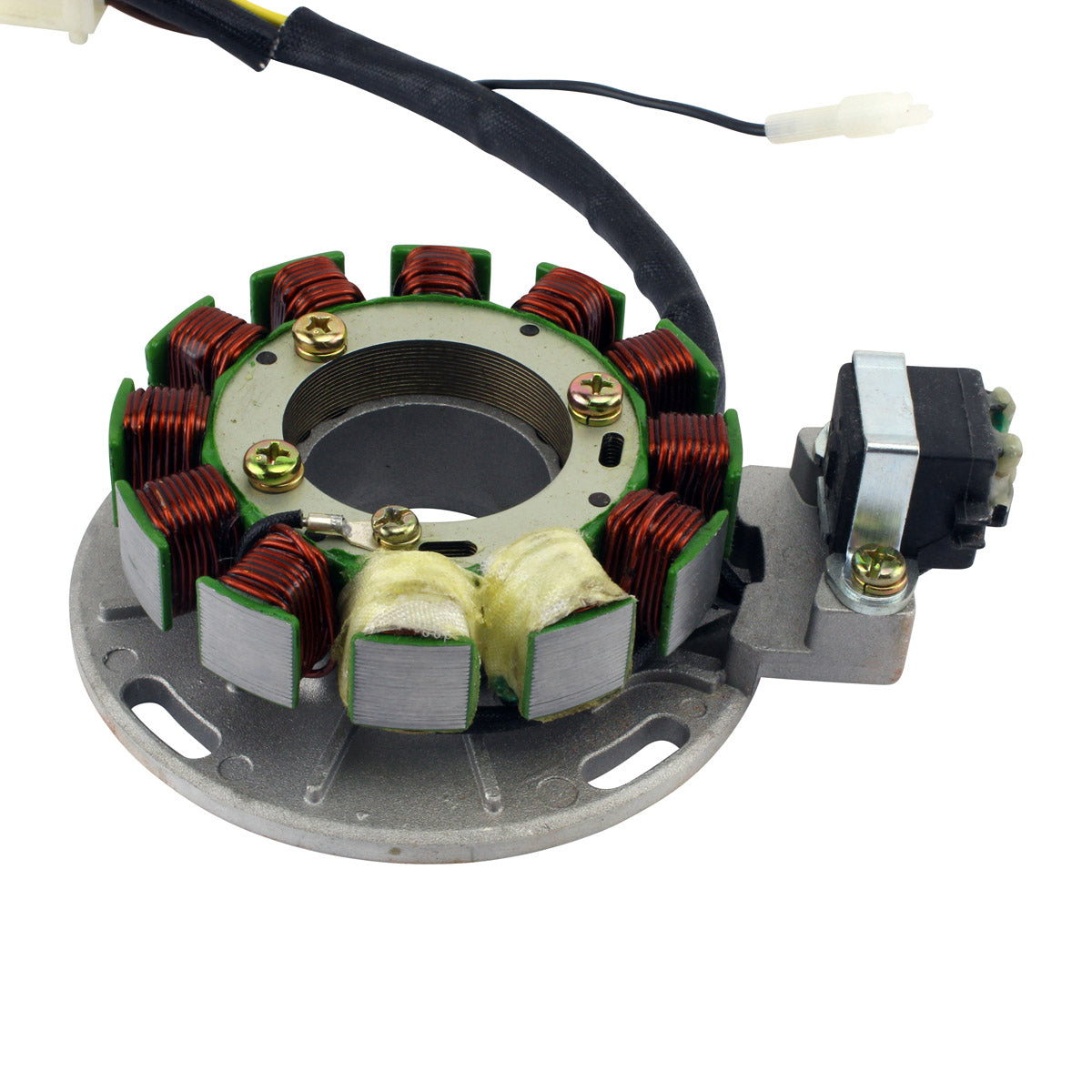

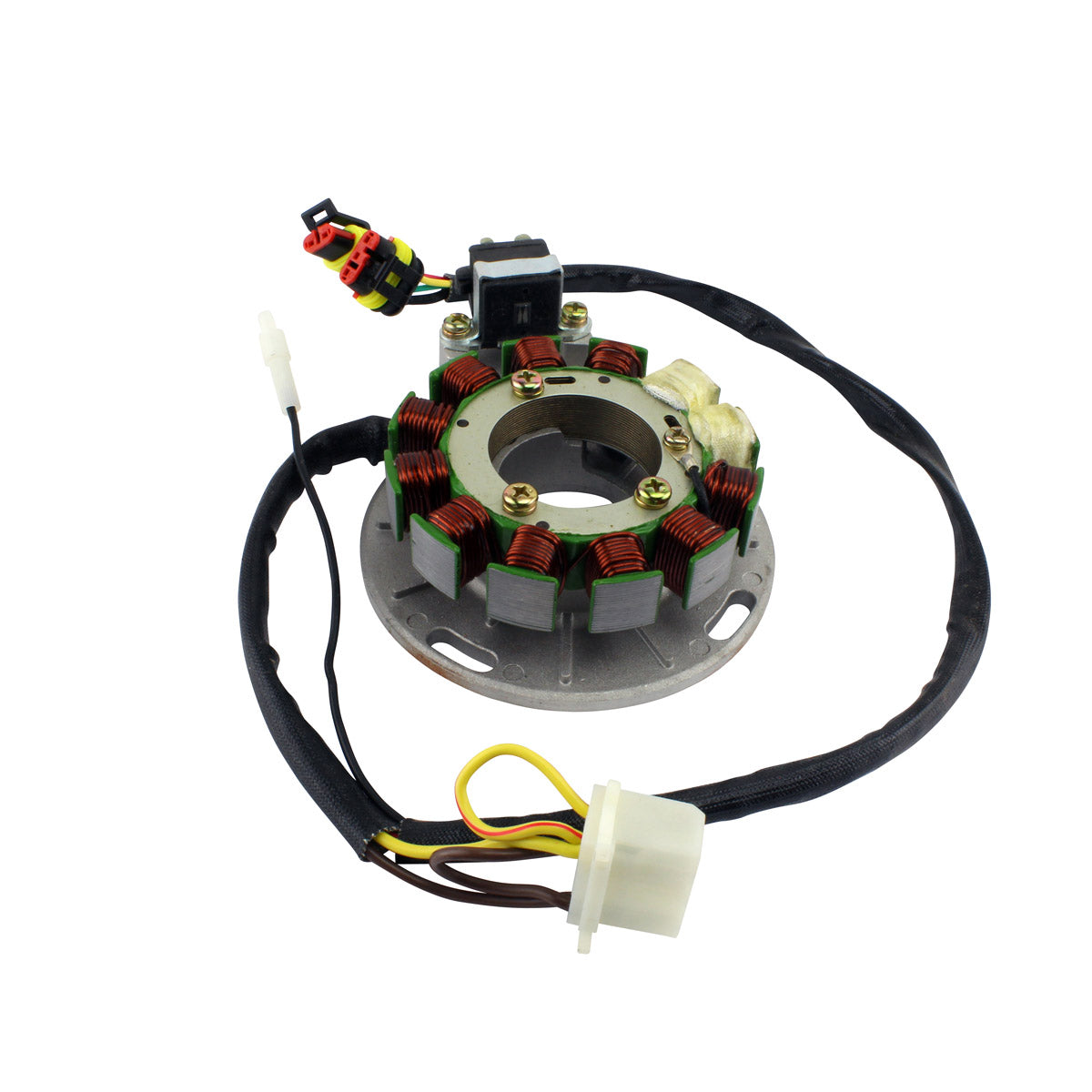

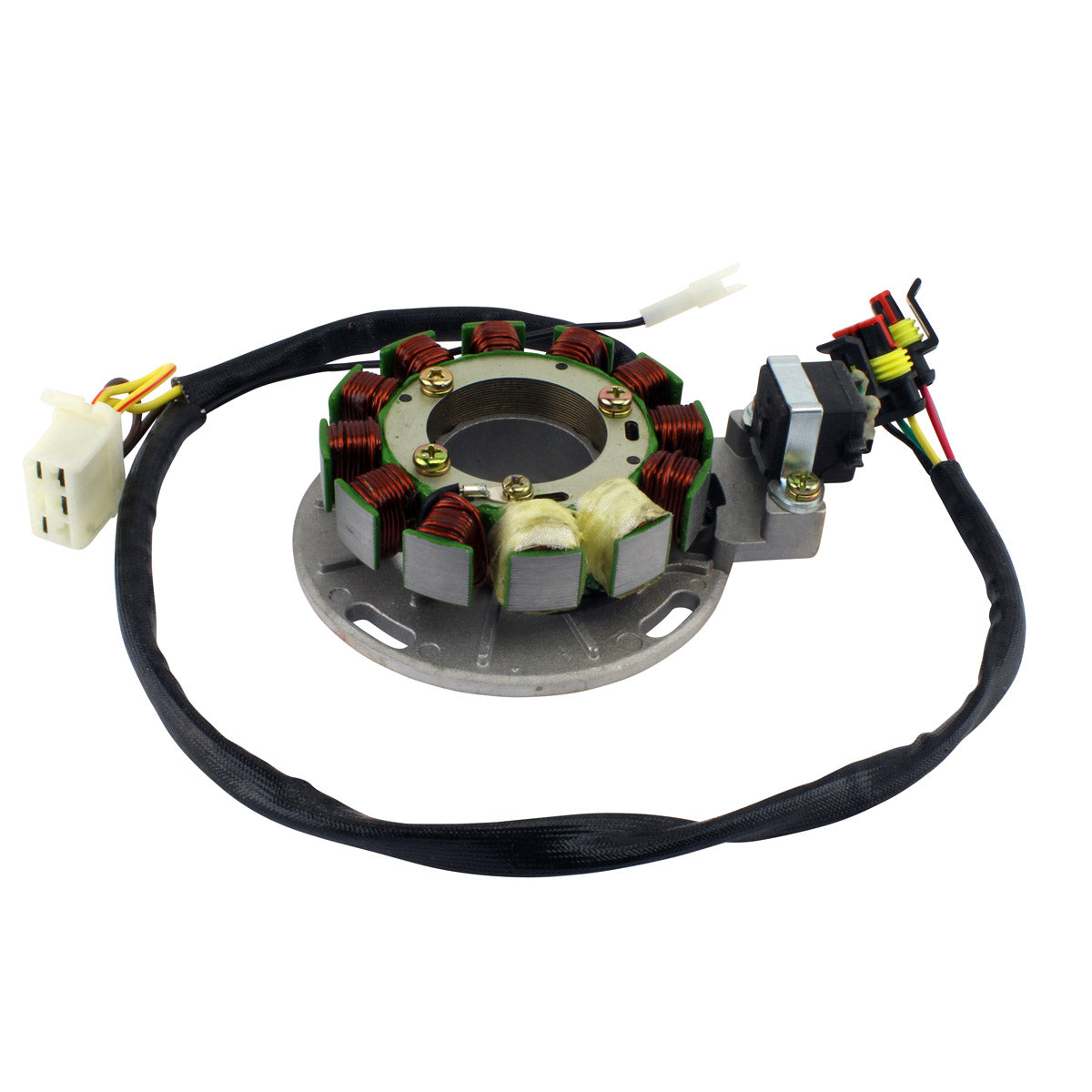

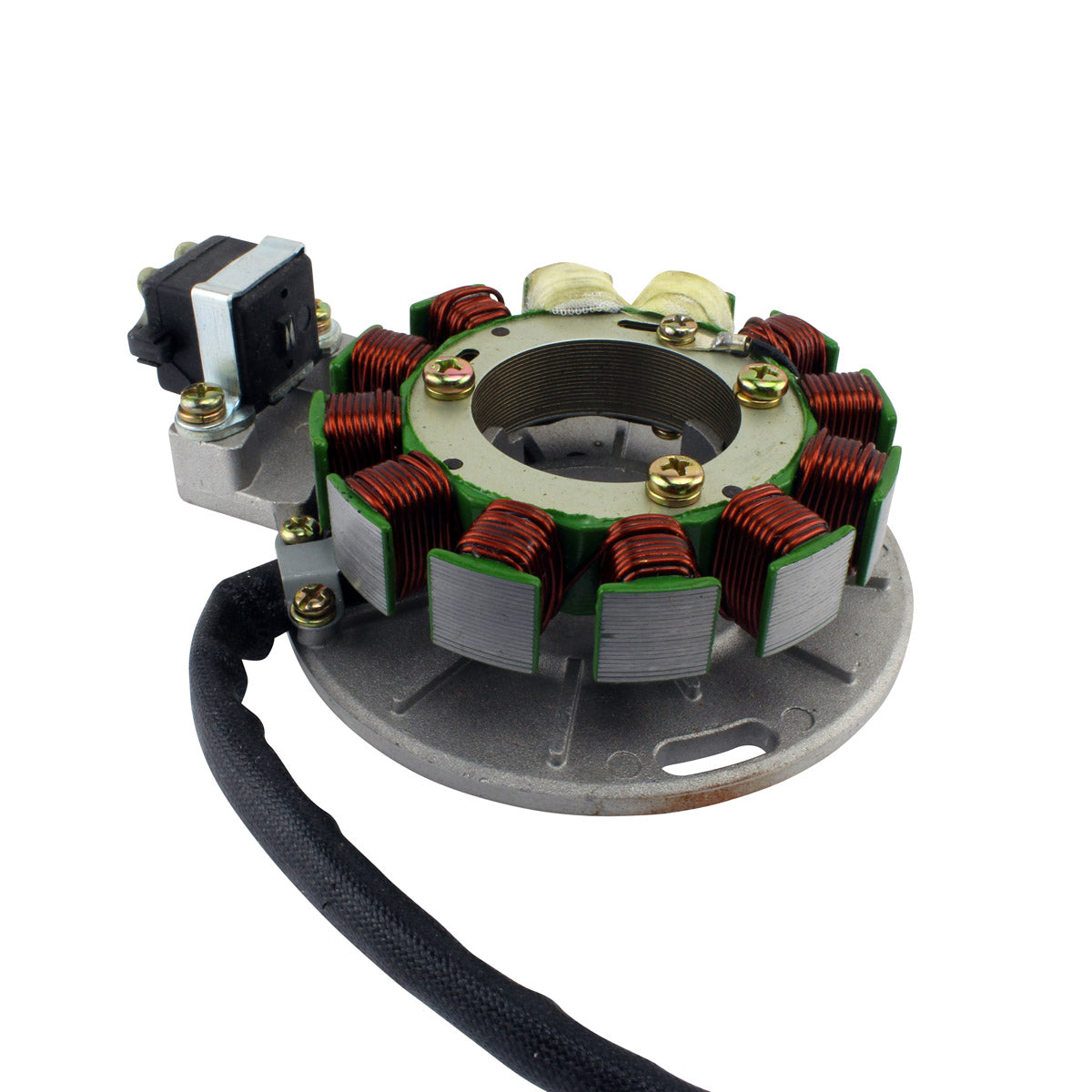

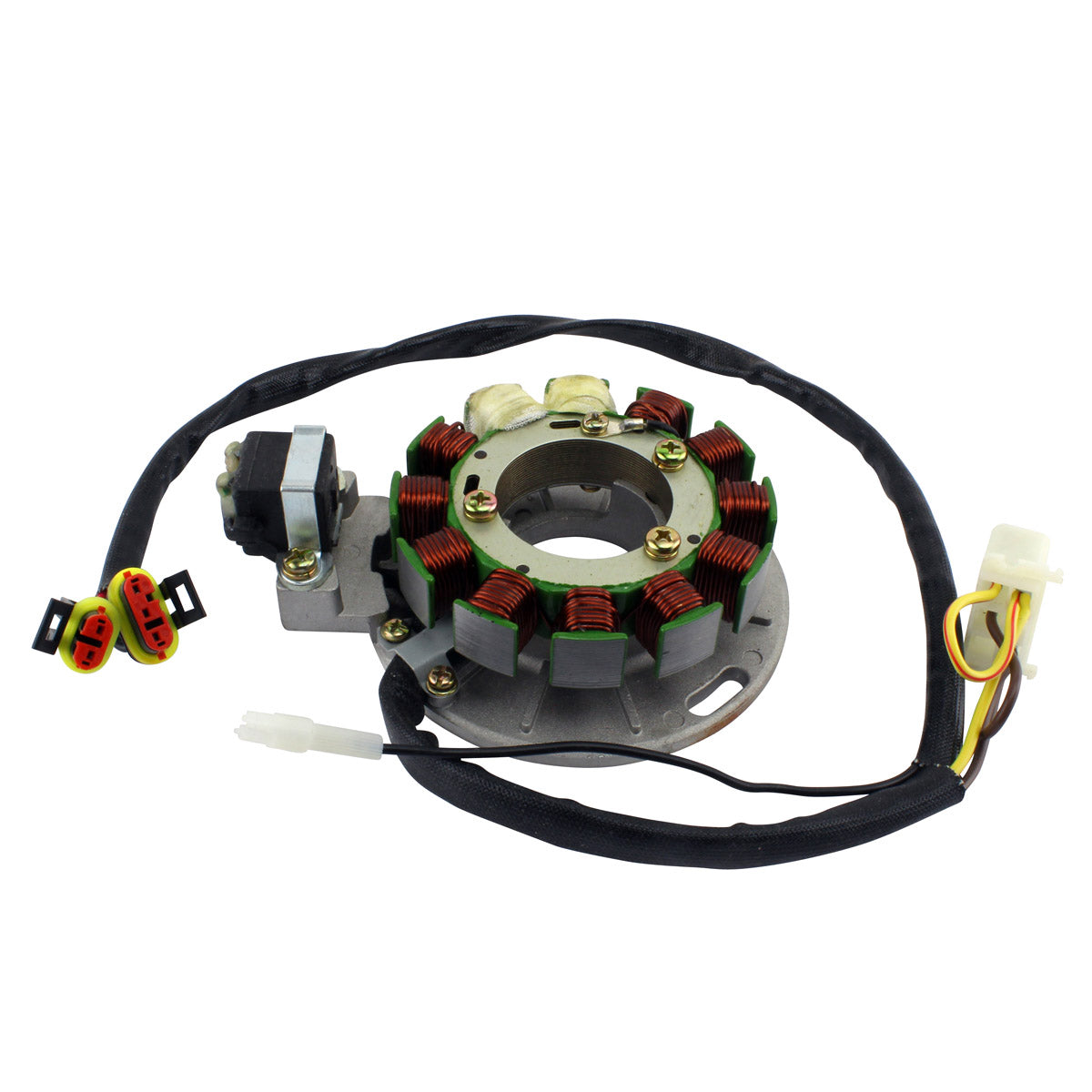

This is a brand new stator for the Polaris 400 and 440 XCR, 500 XC SP and 600 and 700 RMK and SKS built between 1996 and 2001. It is a direct replacement for the original unit - plug-and-play, direct fit and straightforward to install, mounting in the original position and connecting to the existing loom with no cutting or rewiring.

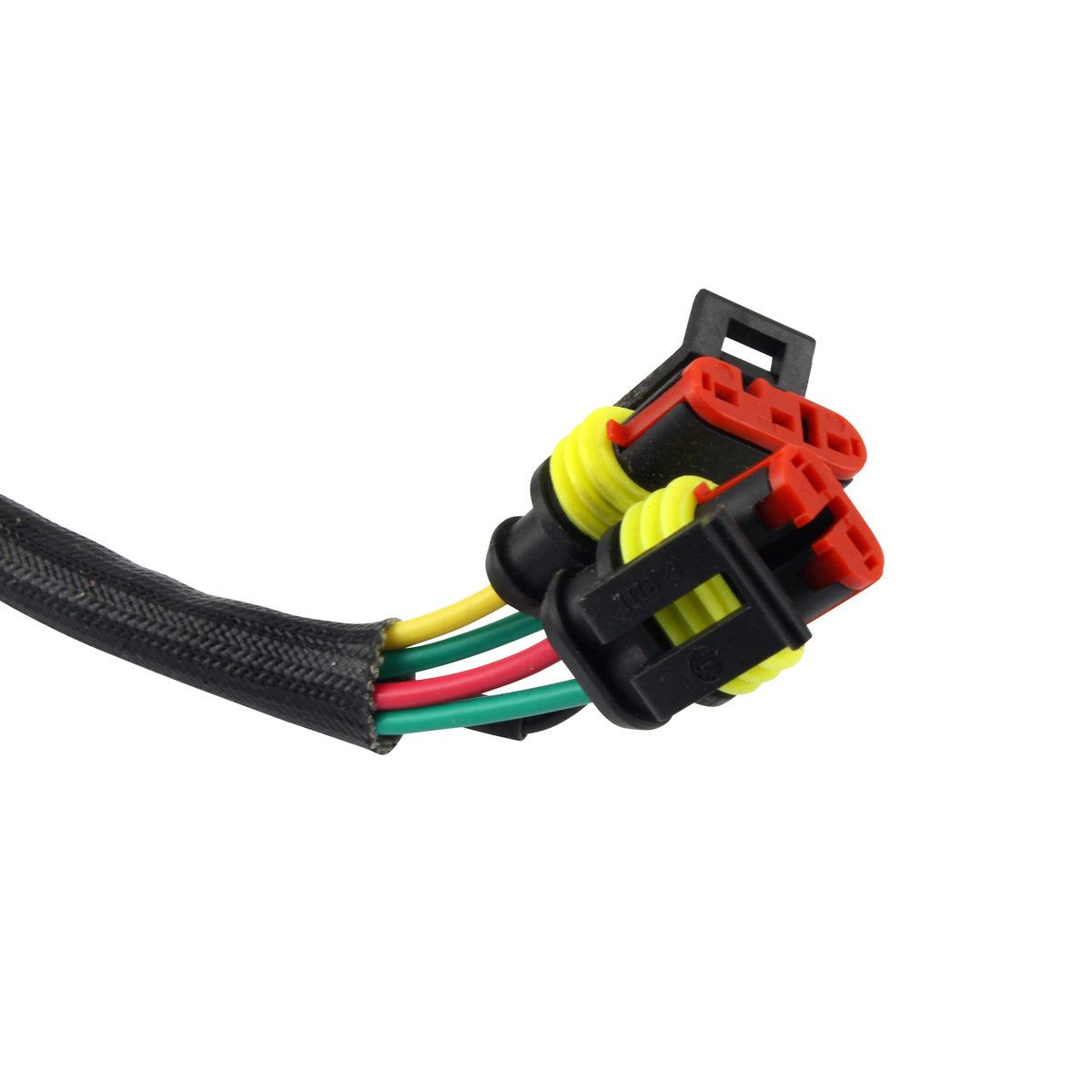

The stator is built on the highest grade lamination materials and wound with copper windings resistant to 200 degrees Celsius, which is the property an original unit loses after years of heat cycling behind the flywheel. The pickup pulsar coil, the connector and the back plate are all included, so this is a complete assembly rather than a bare plate. The unit measures 96 mm on the exterior diameter with a 44 mm interior diameter and a 15 mm thickness, and carries eight wires into four plugs across ten pins, on lead lengths of 190 mm and 740 mm from the stator to the plug and 400 mm from the pickup coil to the plug.
Key Features
- Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius

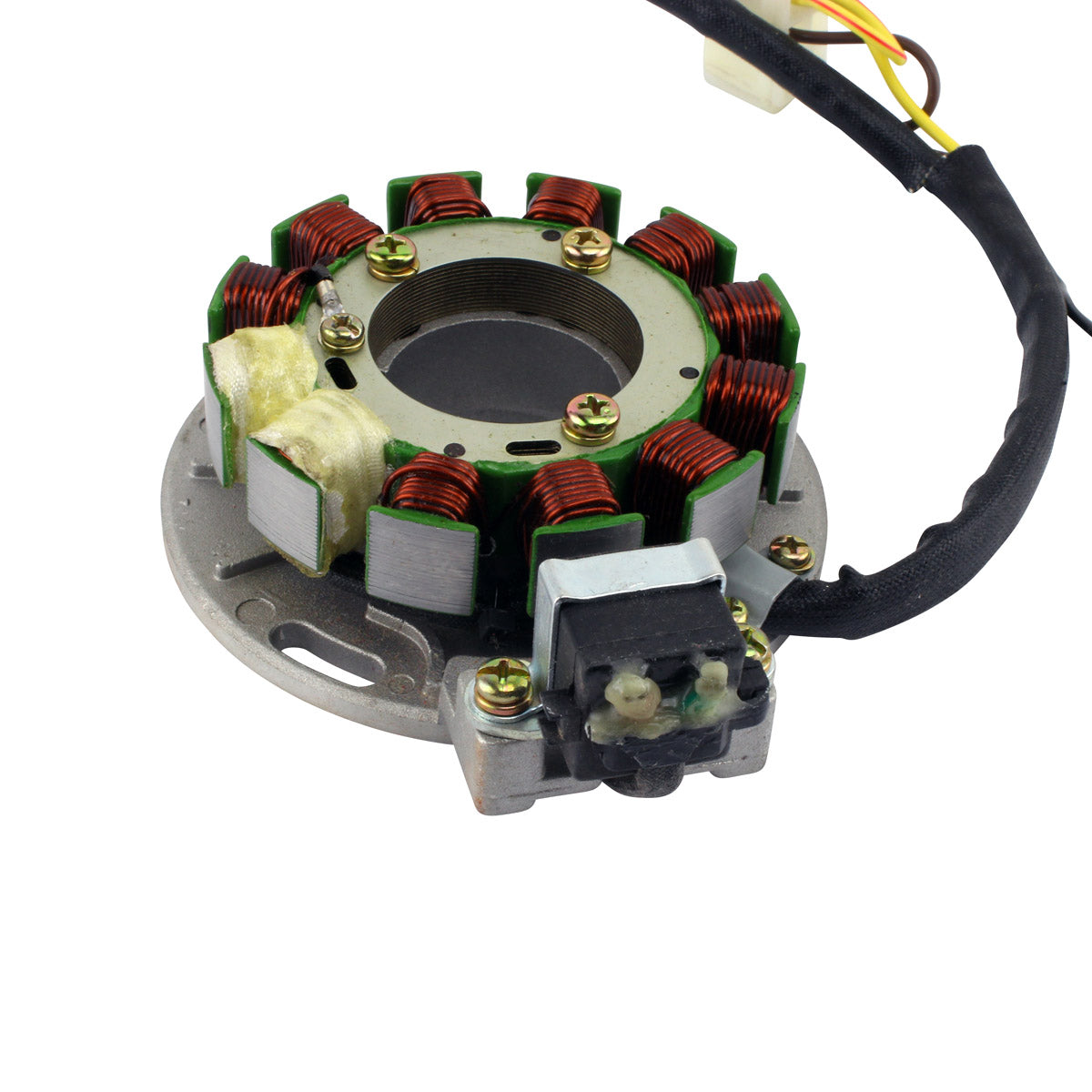

- Pickup pulsar coil included

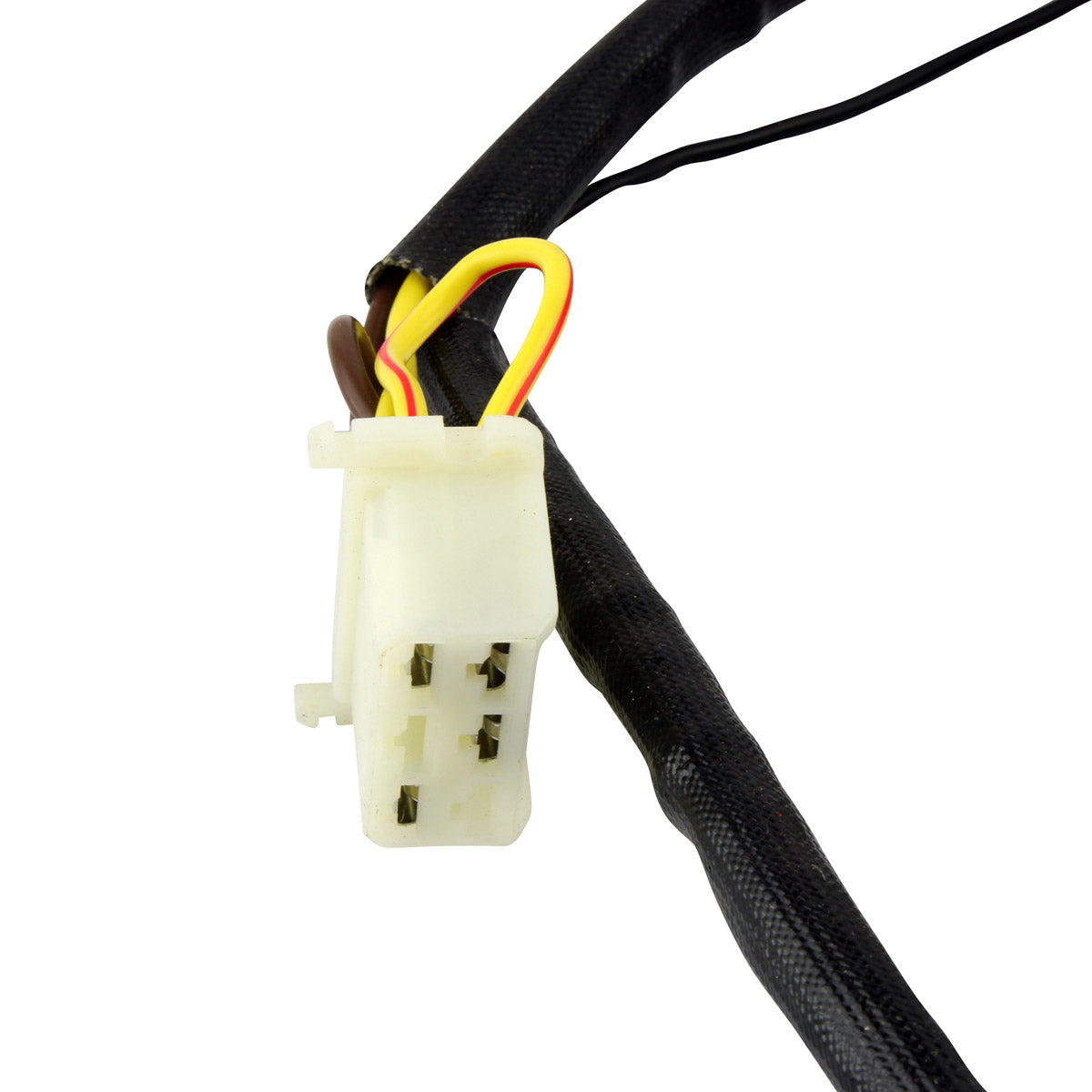

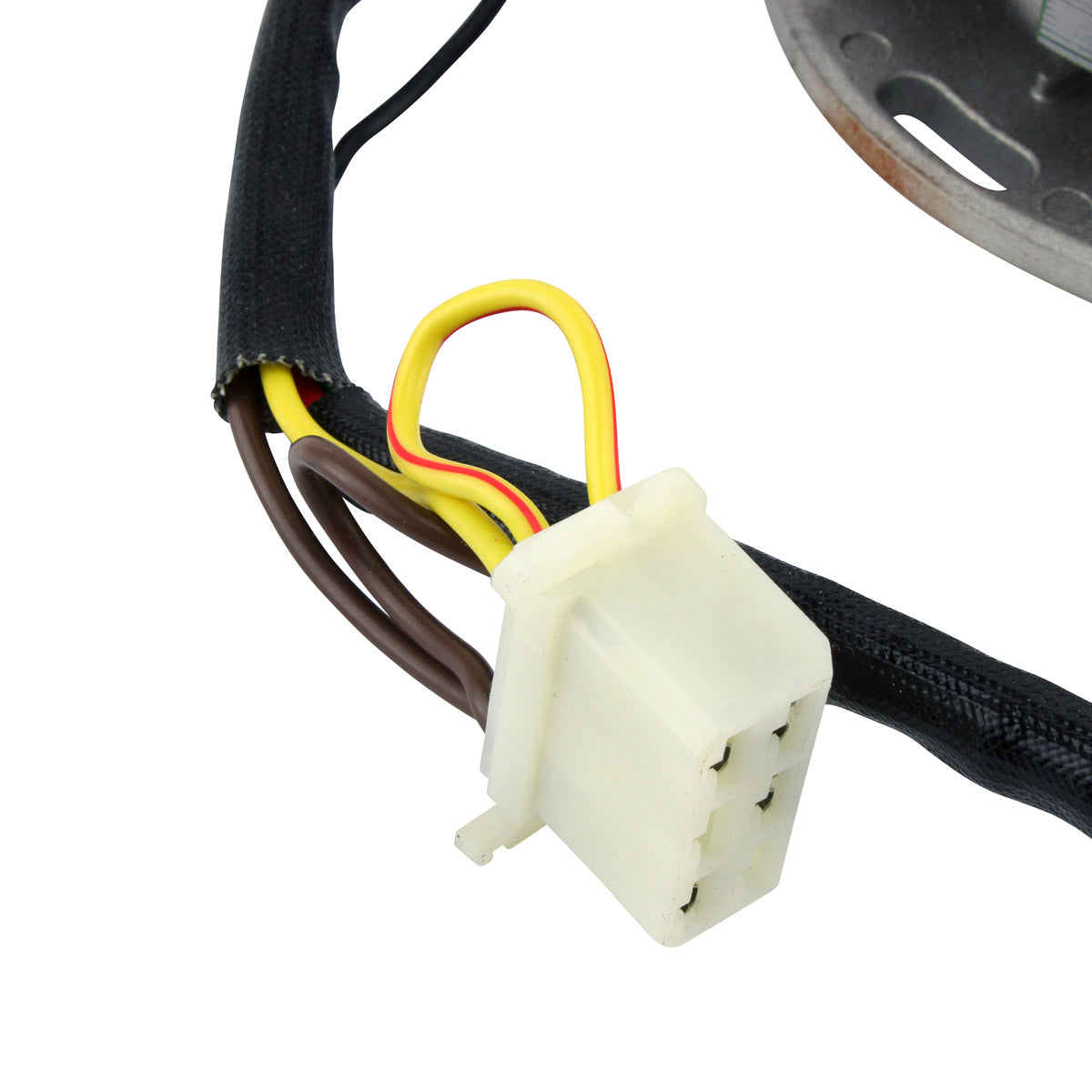

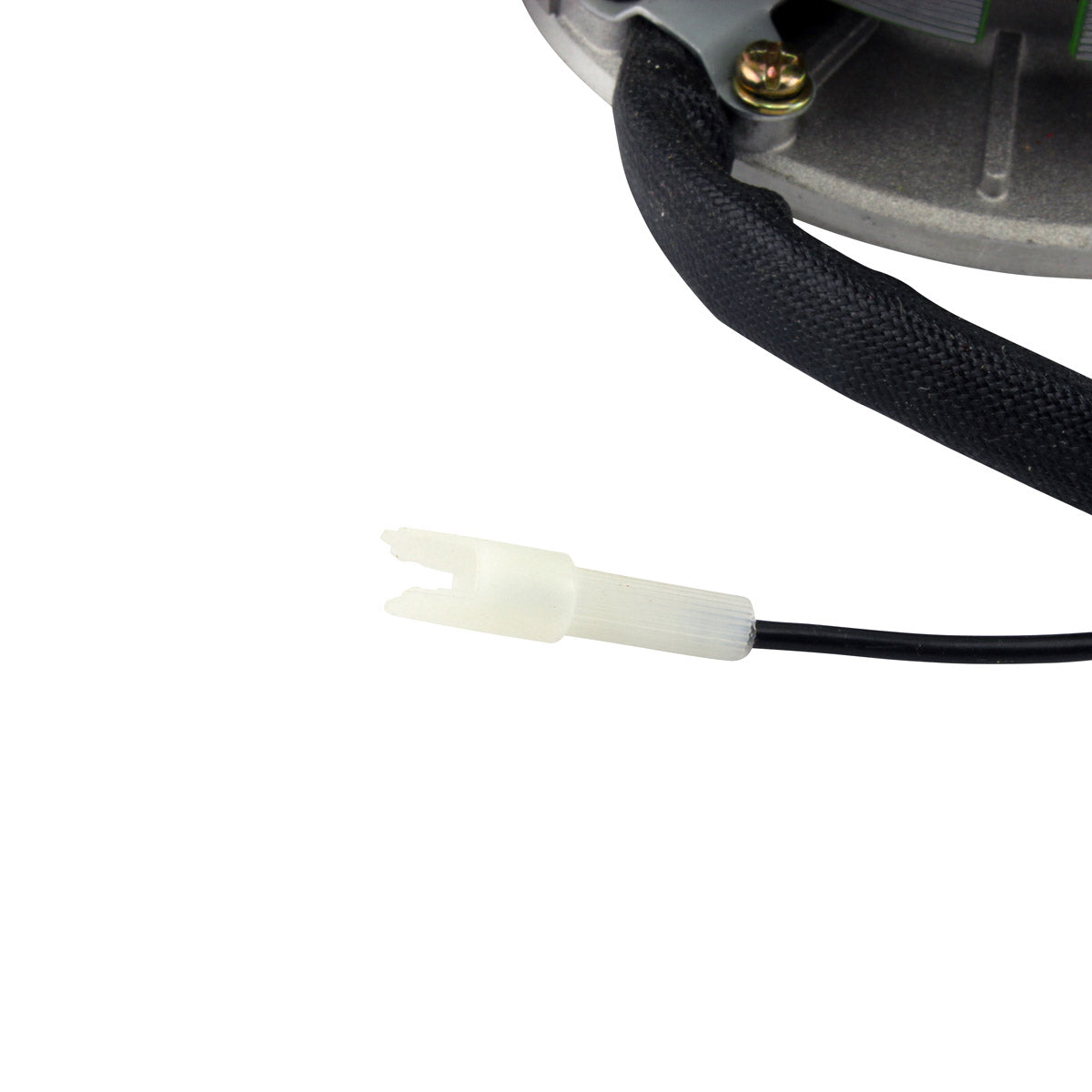

- Connector included
- Back plate included
Technical Specs
| Specification |
Detail |
| Part number |
RM01204 |
| Interior diameter |
44 mm |
| Exterior diameter |
96 mm |
| Thickness |
15 mm |
| Wire length (stator to plug) |
190 mm and 740 mm |
| Wire length (pickup coil to plug) |
400 mm |
| Number of wires |
8 |
| Number of plugs |
4 |
| Number of pins |
10 |
| Alternator resistance (Yellow to Brown) |
0.4 ohms +/-20% |
| Pickup resistance (Red to Blue) |
180 ohms +/-20% |
| Source resistance (White to Green) |
6 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris 400 / 440 XCR |
1996-2001 |
| Polaris 500 XC SP |
1996-2001 |
| Polaris 600 / 700 RMK / SKS |
1996-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4060140 |
Polaris |
| 4060185 |
Polaris |
| 4060187 |
Polaris |
| 4060206 |
Polaris |
| 4060213 |
Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models and years listed above, it mounts in the original position and it is plug-and-play, so no cutting or rewiring is needed. Because this part covers several chassis, check the number on your existing unit against the cross reference table before ordering.
What is included?
The stator, the pickup pulsar coil, the connector and the back plate.
How do I tell whether my old stator has failed?
Typical symptoms are a battery that will not hold its charge, dim or flickering lights, a weak or missing spark and an engine that cuts out. Confirm with a meter against the specification table: the alternator winding reads approximately 0.4 ohms +/-20% from Yellow to Brown, the pickup approximately 180 ohms +/-20% from Red to Blue and the source approximately 6 ohms +/-20% from White to Green.
Does this replace the pickup coil as well?
Yes. The pickup pulsar coil is supplied as part of this assembly, so a failed pickup is replaced at the same time as the stator windings rather than being carried over from the old unit.
