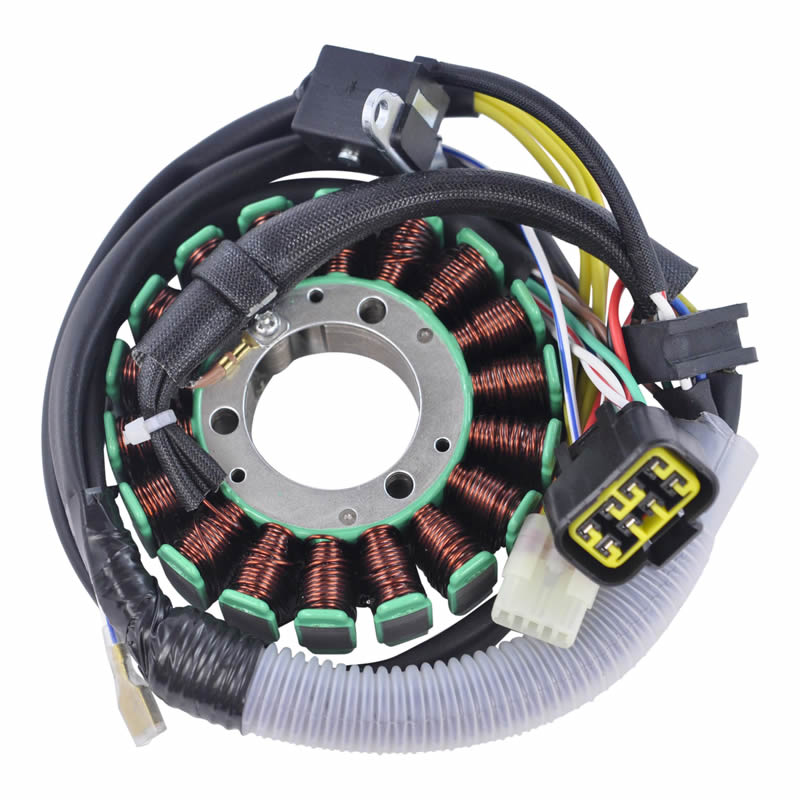

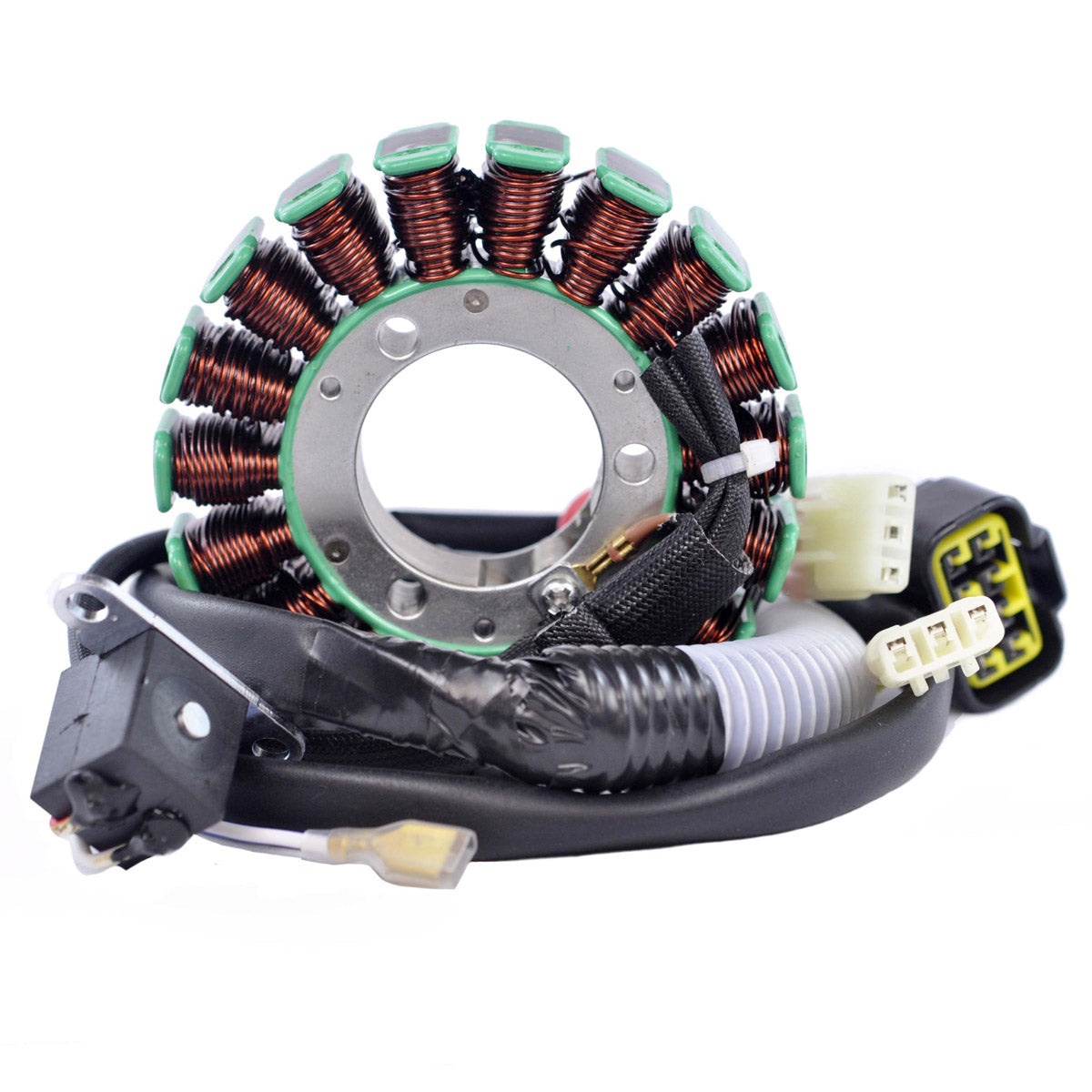

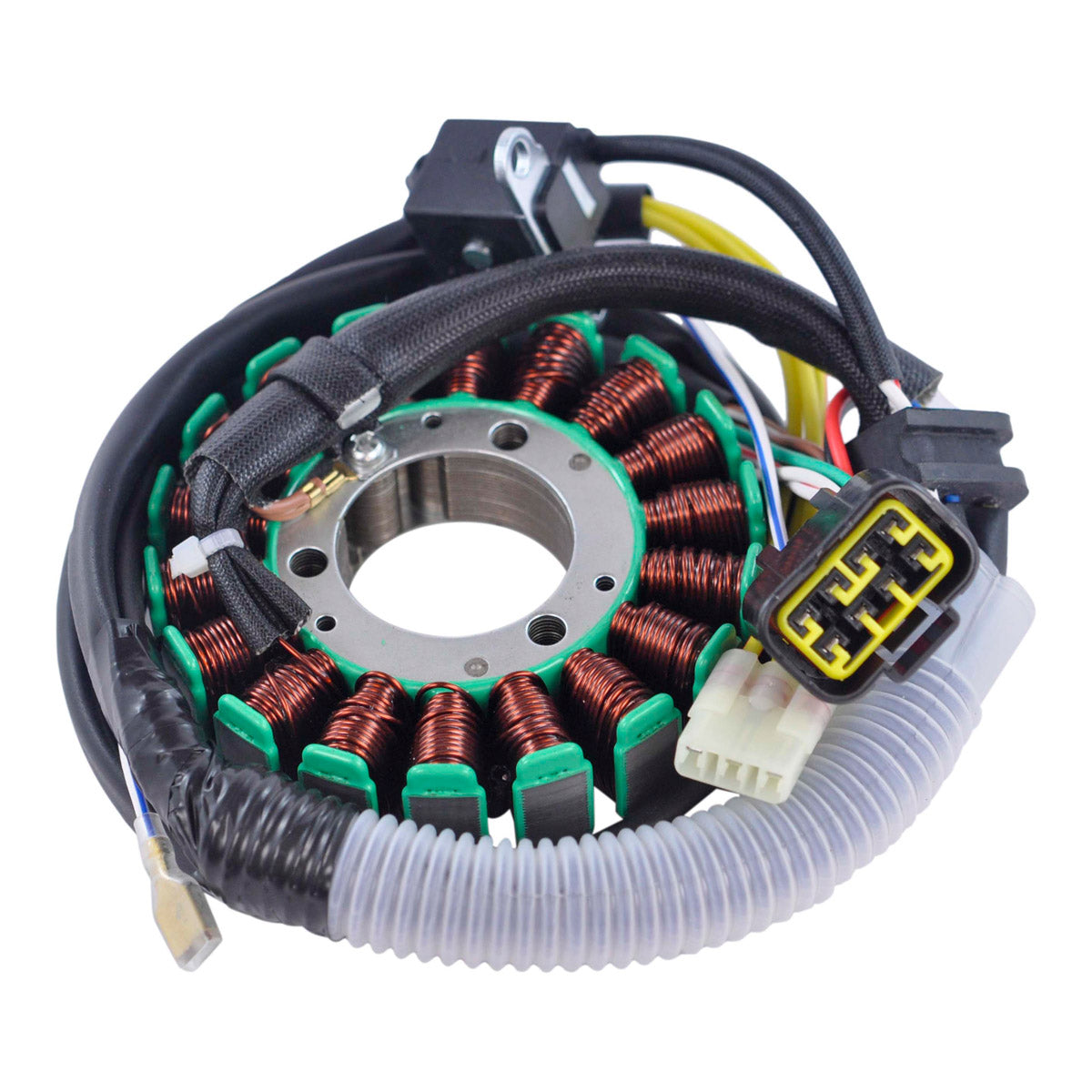

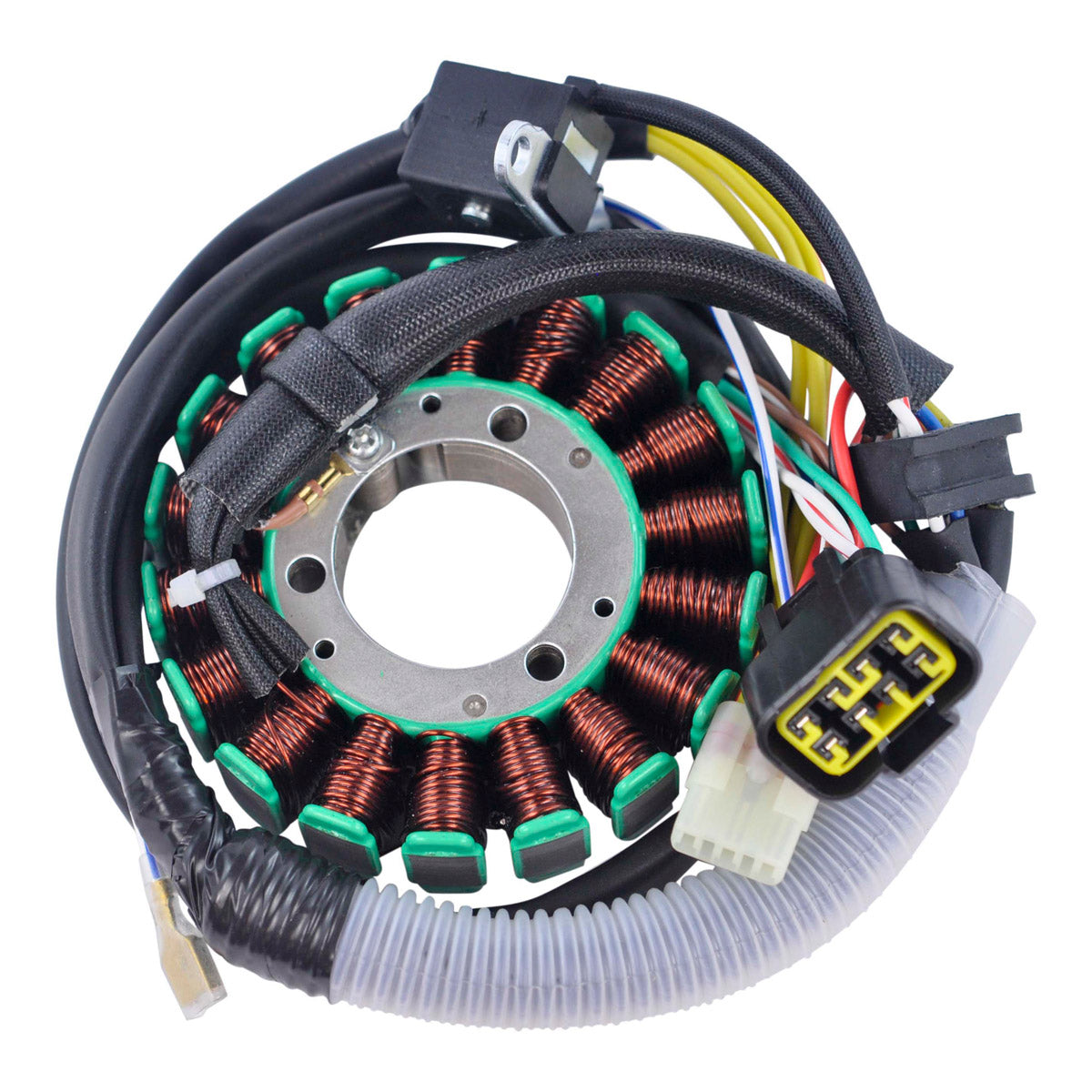

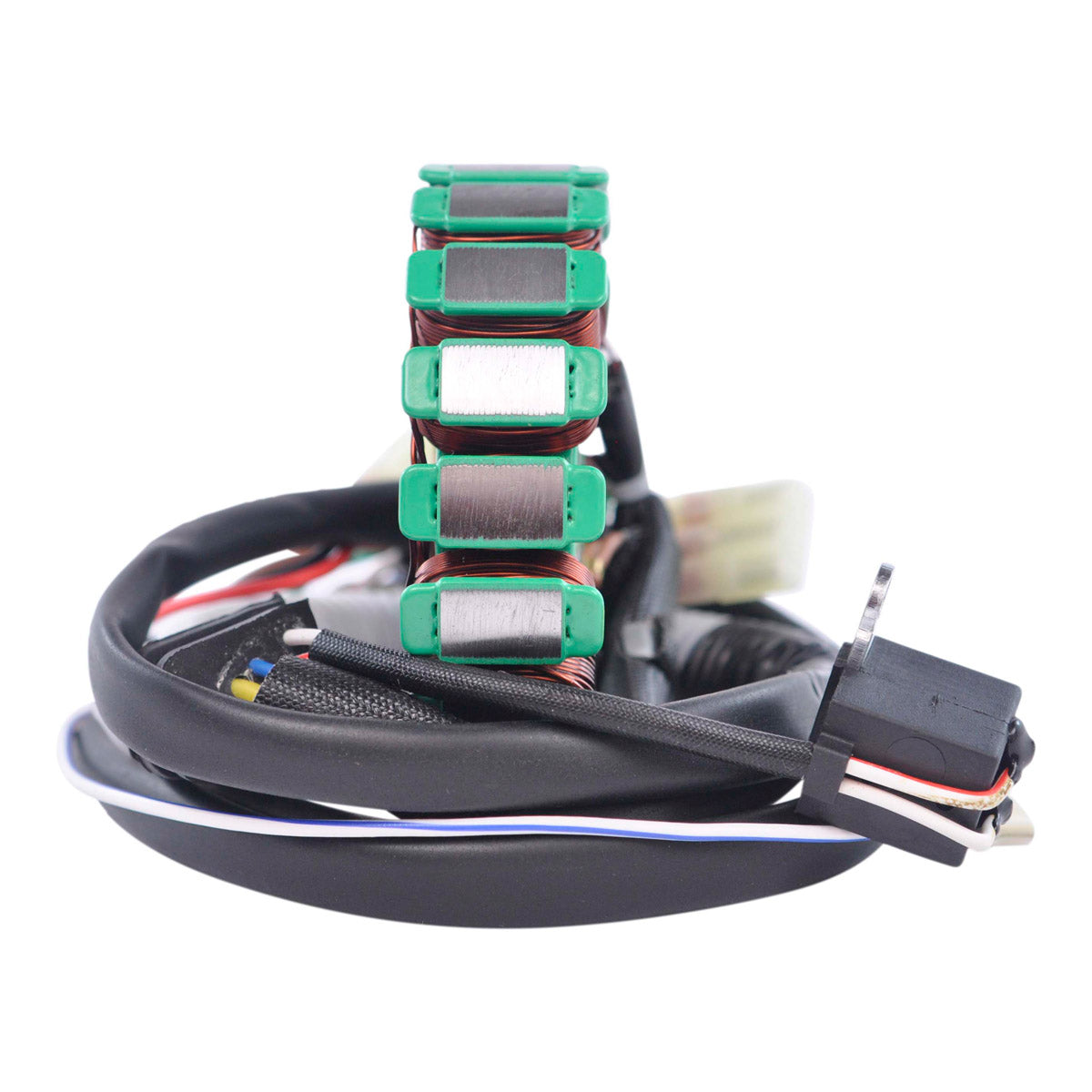

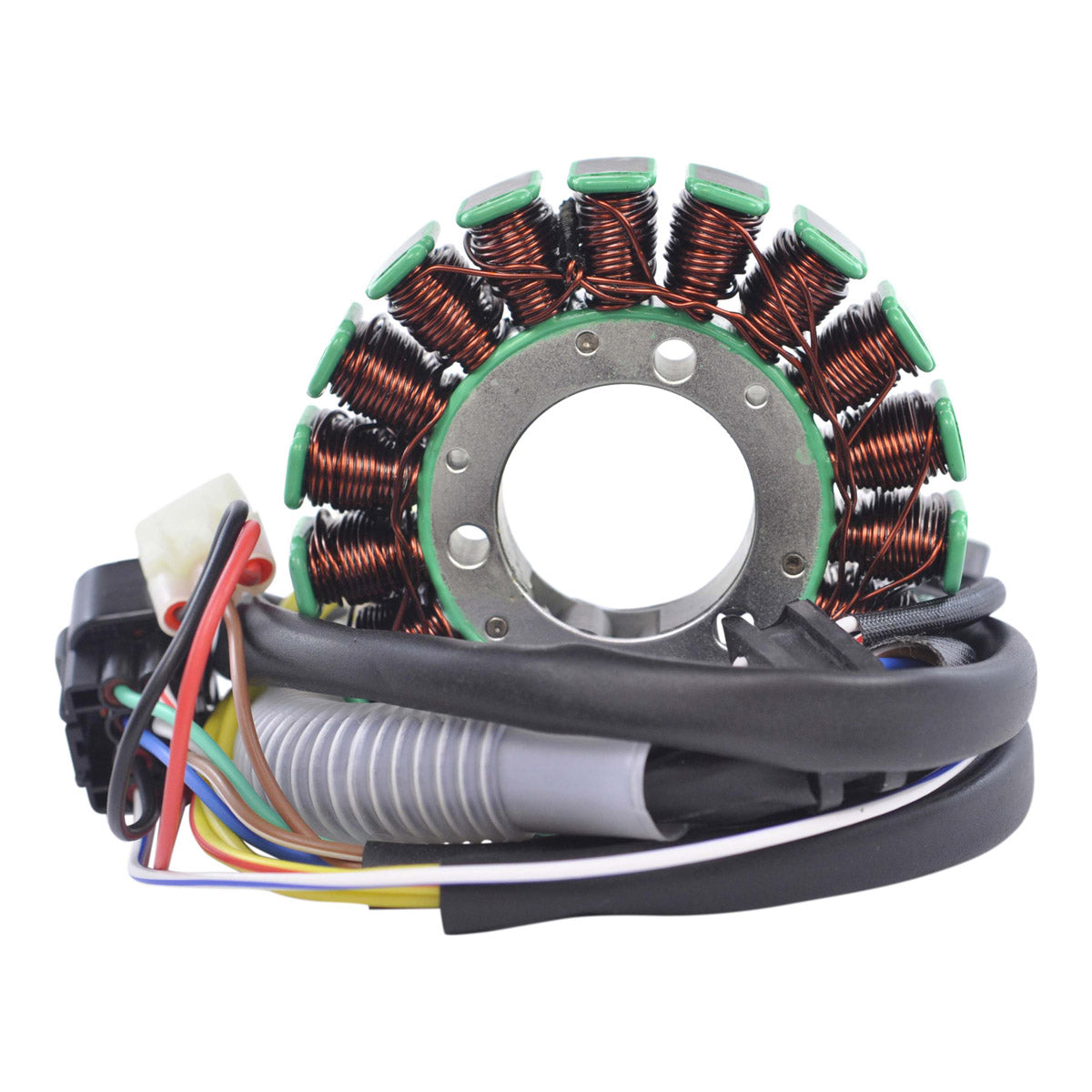

Generator Stator for Polaris Predator 500
Polaris Predator 500, 2003-2004 - pick-up pulsar coil, connector and grommet included
This is a brand new aftermarket generator stator for the Polaris Predator 500, covering the 2003 and 2004 model years. It is a direct replacement for your original unit - plug-and-play, direct fit and easy to install, with no modification needed to the wiring loom or the engine cases. The core is built from the highest grade lamination materials and wound with the highest grade copper, rated to resist 200 degrees Celsius, which is the temperature at which lesser rewinds typically begin to break down.

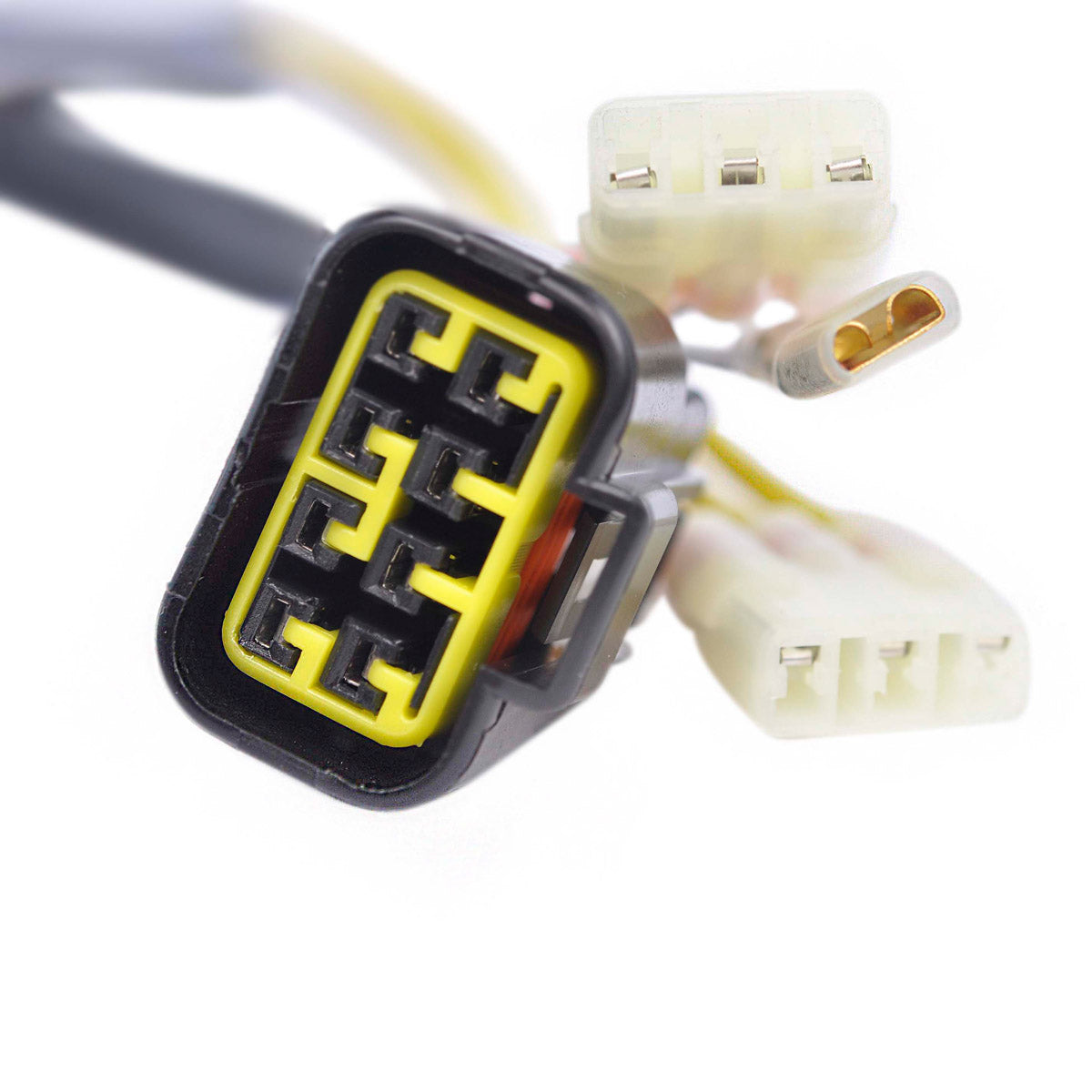

This is a nine-wire assembly running through four plugs and fourteen pins, and it carries the alternator windings, the pick-up pulsar coil and the source coil circuit. The pick-up pulsar coil, the connector and the rubber grommet are all included, so the complete unit fits as one piece with nothing to transfer from the old stator. Every product shipped is tested. All item pictures are accurate - if you are in any doubt, compare the item to your original part before ordering.
Key Features
- Brand new aftermarket generator stator
- Pick-up pulsar coil included
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 93 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 150 mm |
| Wire length, grommet to plug | 750 mm, 400 mm and 600 mm |
| Pick-up coil wire to grommet | 115 mm |
| Number of wires | 9 |
| Number of plugs | 4 |
| Number of pins | 14 |
| Alternator resistance, Yellow between each Yellow | 0.4 ohms +/-20% |
| Pick-up resistance, White to White/Red | 200 ohms +/-20% |
| Source resistance, Green to Blue | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Predator 500 | 2003-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3088159 | Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Polaris unit, so no cutting, splicing or drilling is needed. The Predator 500 changed specification during its production run, so please confirm the OEM part number on your original stator against the cross reference above before ordering.
What is included?
The generator stator complete with its pick-up pulsar coil, the connector and the rubber grommet. Nothing needs to be transferred across from your old unit.
How do I tell whether my old stator has failed?
Look for a battery that will not stay charged, lighting that dims or surges with engine speed, or a no-spark condition. Test with a multimeter against the specification table: the Yellow alternator wires should read about 0.4 ohms plus or minus 20 per cent between each other, the pick-up about 200 ohms plus or minus 20 per cent from White to White/Red, and the source coil about 0.4 ohms plus or minus 20 per cent from Green to Blue. An open circuit or continuity to the stator body confirms a failed winding.
Why are the plug leads different lengths?
This assembly runs four separate plugs to different points on the machine, so the leads from the grommet measure 750 mm, 400 mm and 600 mm. Those lengths match the original routing, so the harness sits where the factory loom clips expect it.
