Generator Stator for Polaris Predator 500
Polaris Predator 500, 2005-2007 - pick-up pulsar coil, connector and grommet included

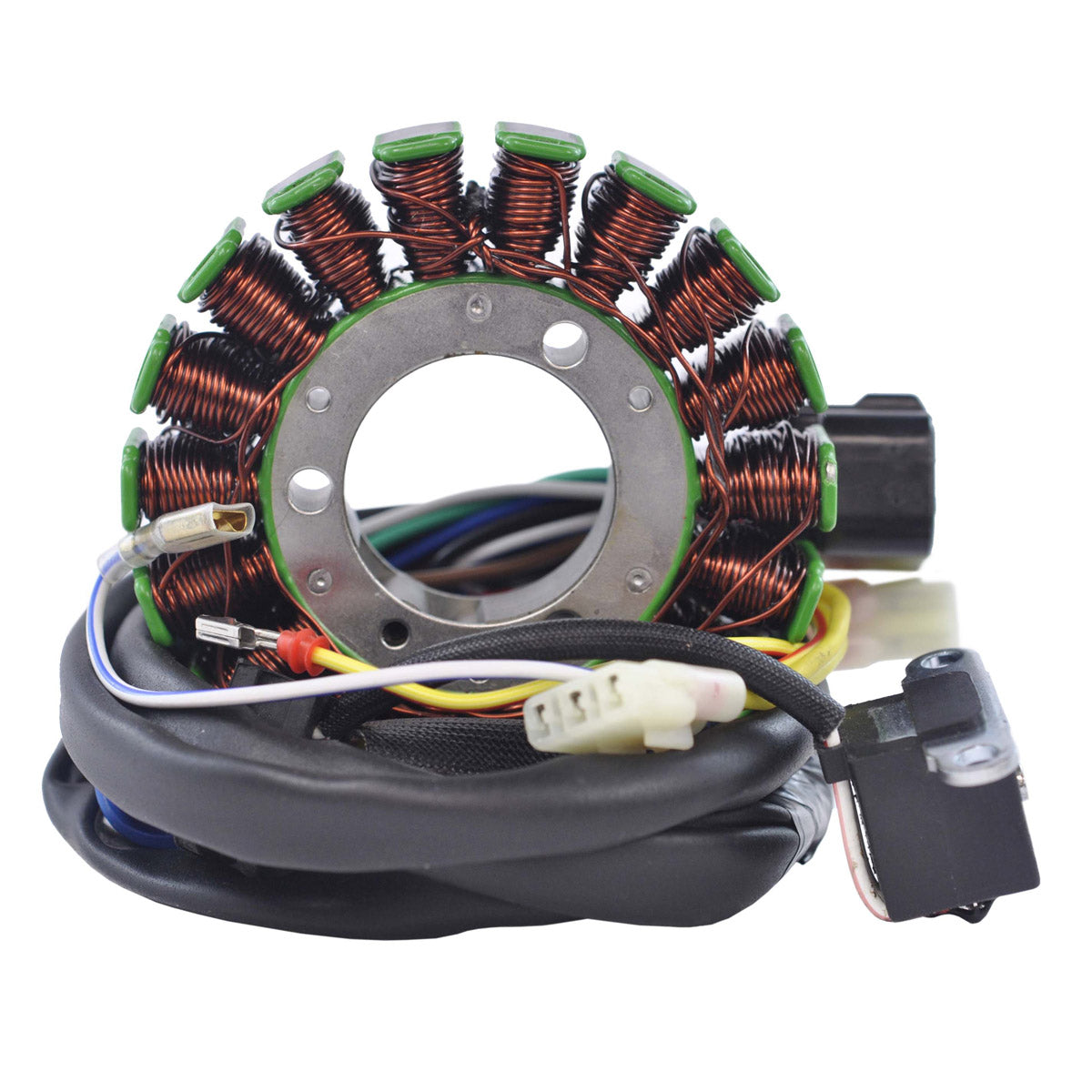

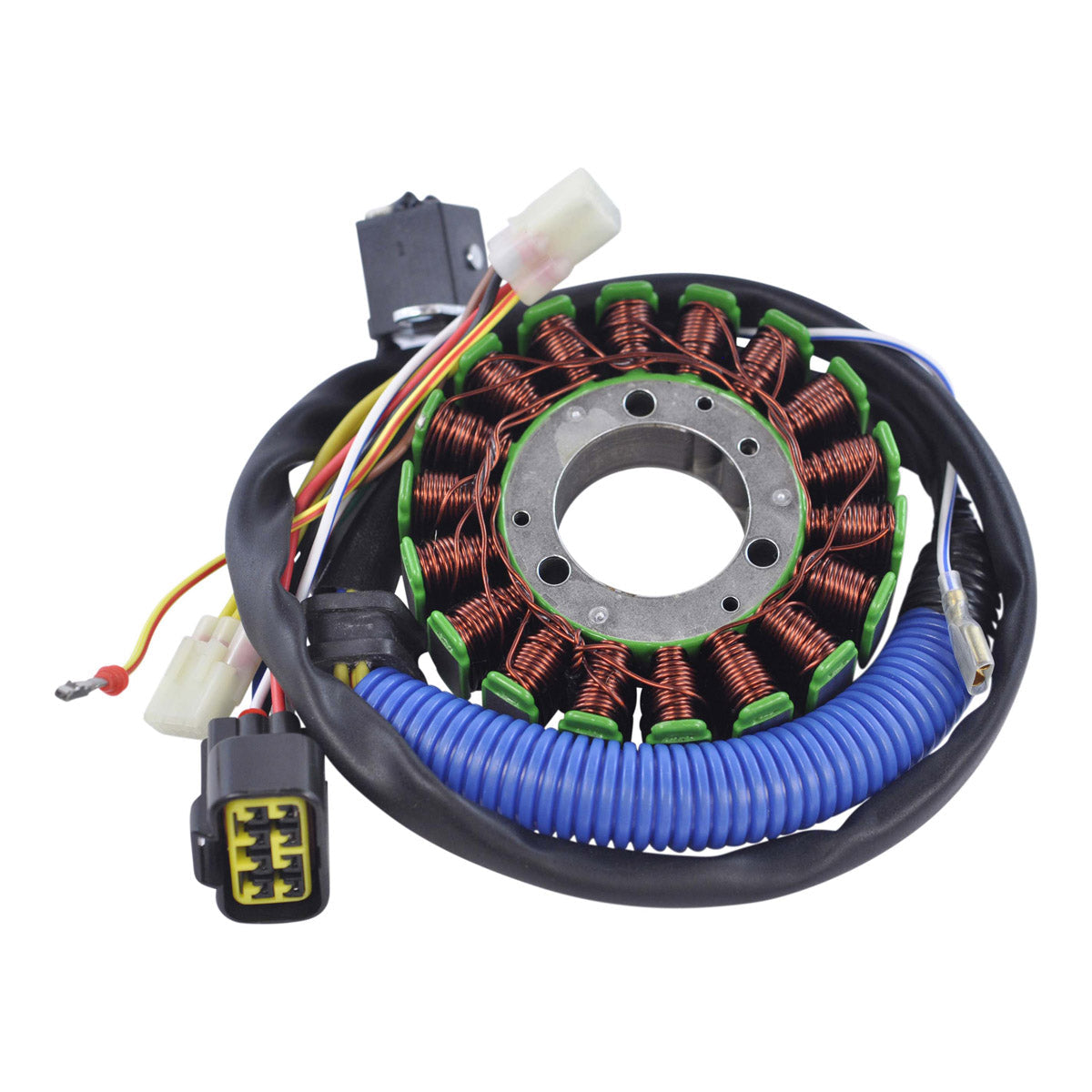

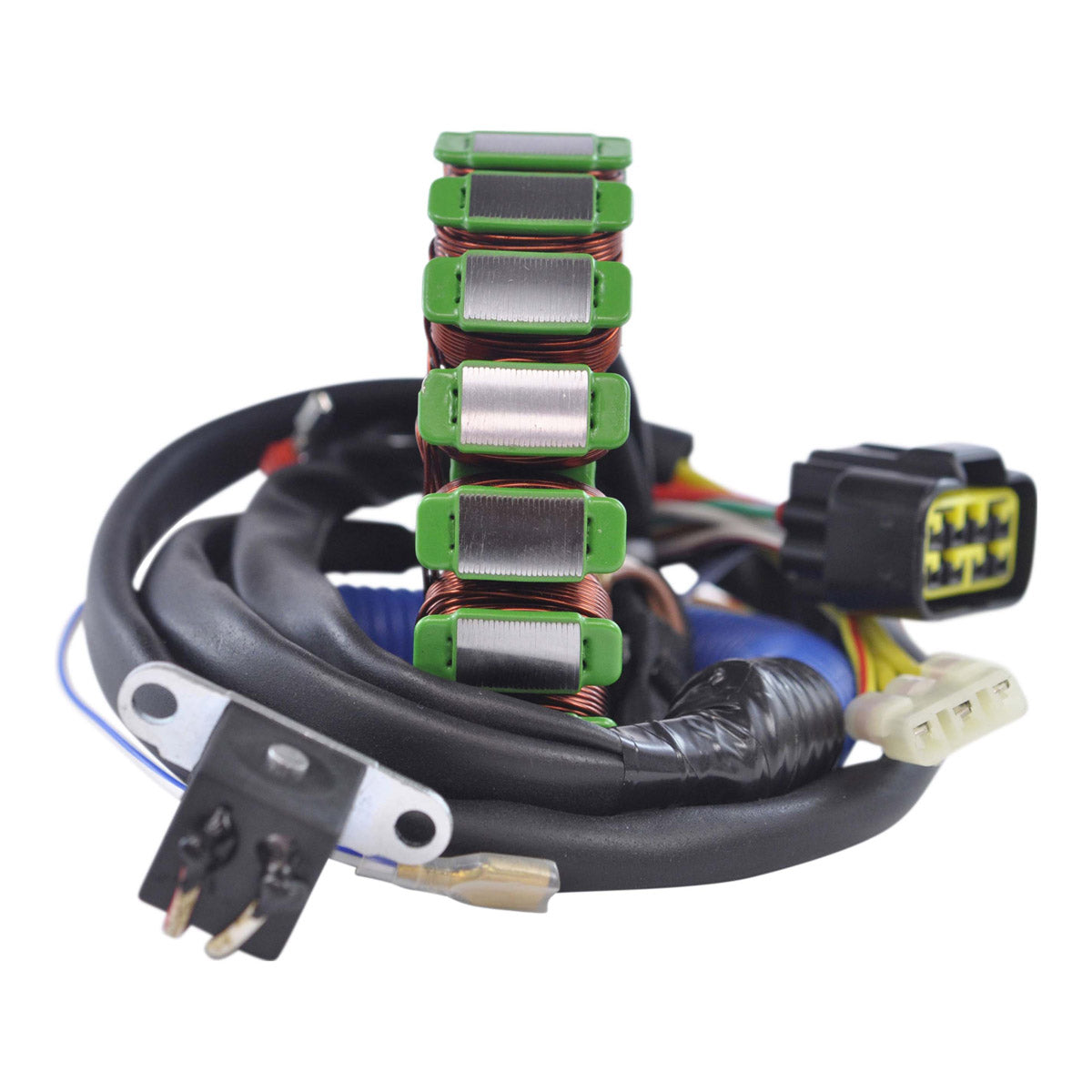

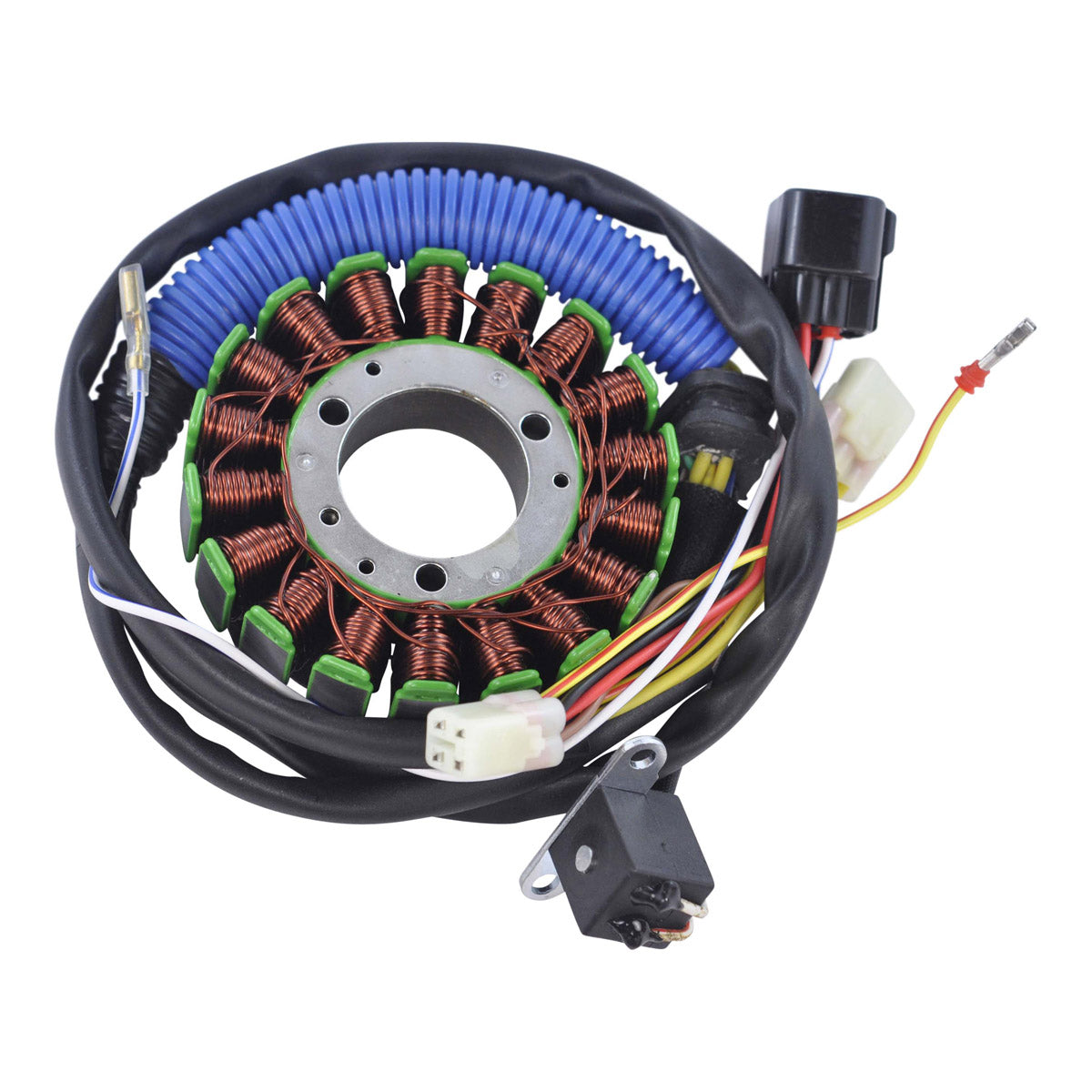

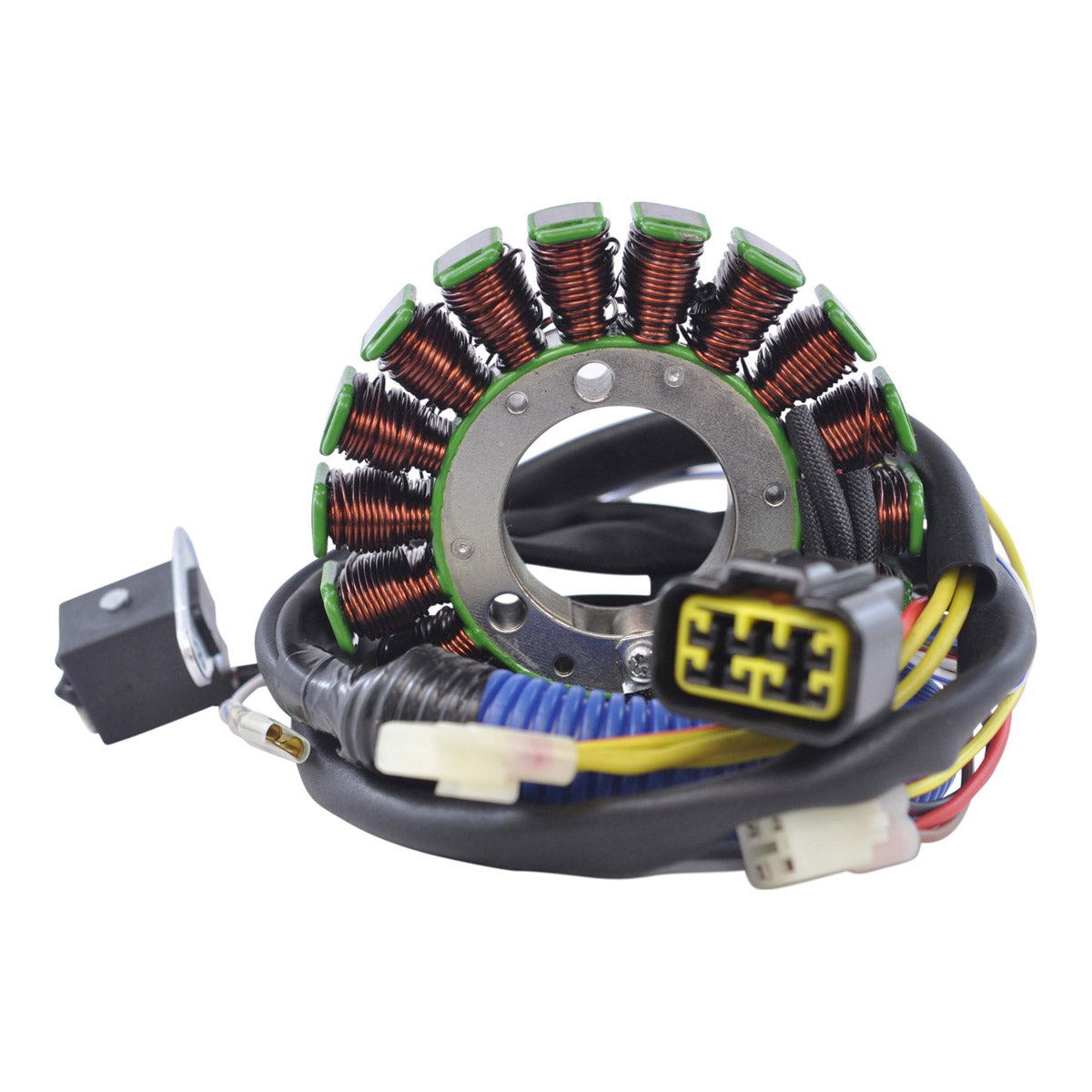

This is a brand new generator stator for the Polaris Predator 500, covering model years 2005 to 2007. It is a direct replacement for your original unit - plug-and-play, direct fit and easy to install, with no modification needed to the wiring loom or the engine cases. The core is built from the highest grade lamination materials and wound with the highest grade copper, rated to resist 200 degrees Celsius, which is the temperature at which cheaper rewound stators typically begin to break down and fail a second time.

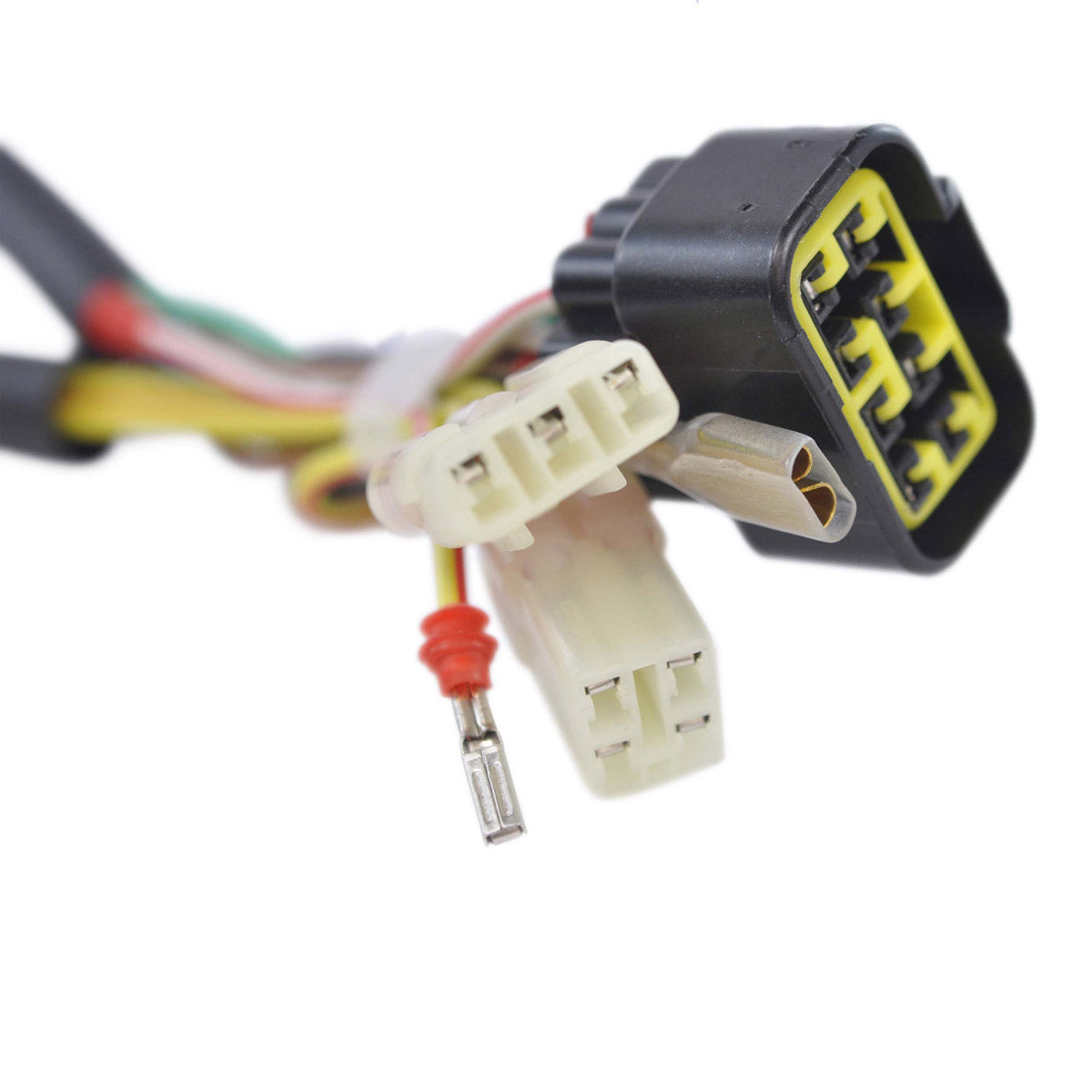

The pick-up pulsar coil is included as part of the assembly, along with the connector and the rubber grommet, so the complete unit fits as one piece with nothing to salvage from the old stator. This unit carries three separate circuits - the alternator windings, the pick-up pulsar coil and the position sensor - and the resistance figures for each are listed below so that you can confirm a diagnosis before ordering. All product shipped is tested before dispatch.
Key Features
- Brand new generator stator
- Pick-up pulsar coil included
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All product shipped is tested
Technical Specs
| Specification | Detail |
|---|---|
| Alternator resistance, Yellow to Yellow/Red | 1.3 ohms +/-20% |
| Pick-up resistance, White to White/Red | 200 ohms +/-20% |
| Position sensor resistance, Blue to Green | 3.5 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Pick-up pulsar coil | Included |
| Connector | Included |
| Rubber grommet | Included |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Predator 500 | 2005-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3089612 | Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Polaris unit, so no cutting, splicing or drilling is needed. The Predator 500 uses more than one stator specification across its production run, so please check the OEM part number on your original unit against the cross reference table above before ordering.
What is included?
The generator stator, the pick-up pulsar coil, the connector and the rubber grommet, all supplied together as one assembly.
How do I tell whether my old stator has failed?
The usual symptoms are a battery that will not hold its charge, lighting that changes brightness with engine speed, or a no-spark condition. Test each circuit with a multimeter against the specification table: Yellow to Yellow/Red should read about 1.3 ohms plus or minus 20 per cent, White to White/Red about 200 ohms plus or minus 20 per cent, and Blue to Green about 3.5 ohms plus or minus 20 per cent. An open circuit on any of those, or continuity from a winding to the stator body, means the unit has failed.
Is this the same part as the 2003-2004 Predator 500 stator?
No. RMSTATOR lists this unit for the 2005 to 2007 machines under OEM 3089612, while the earlier 2003-2004 Predator 500 uses a different stator. Match the OEM number on your original unit rather than the model name alone.
