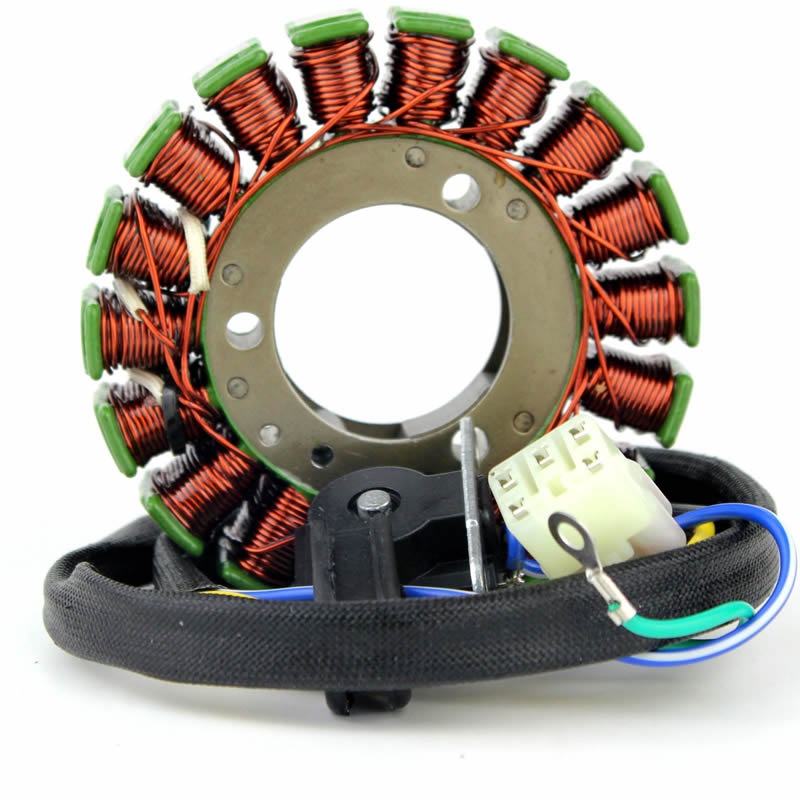

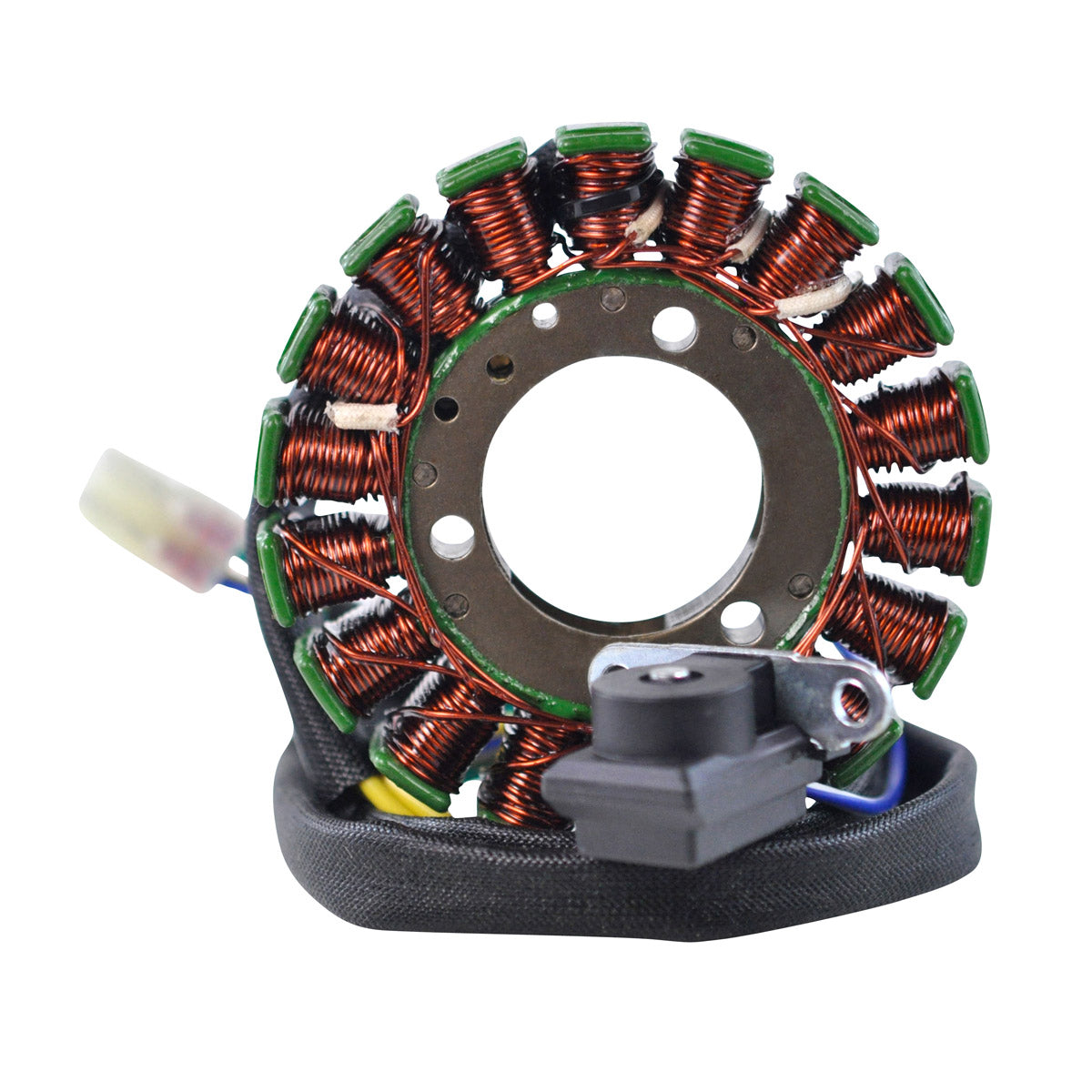

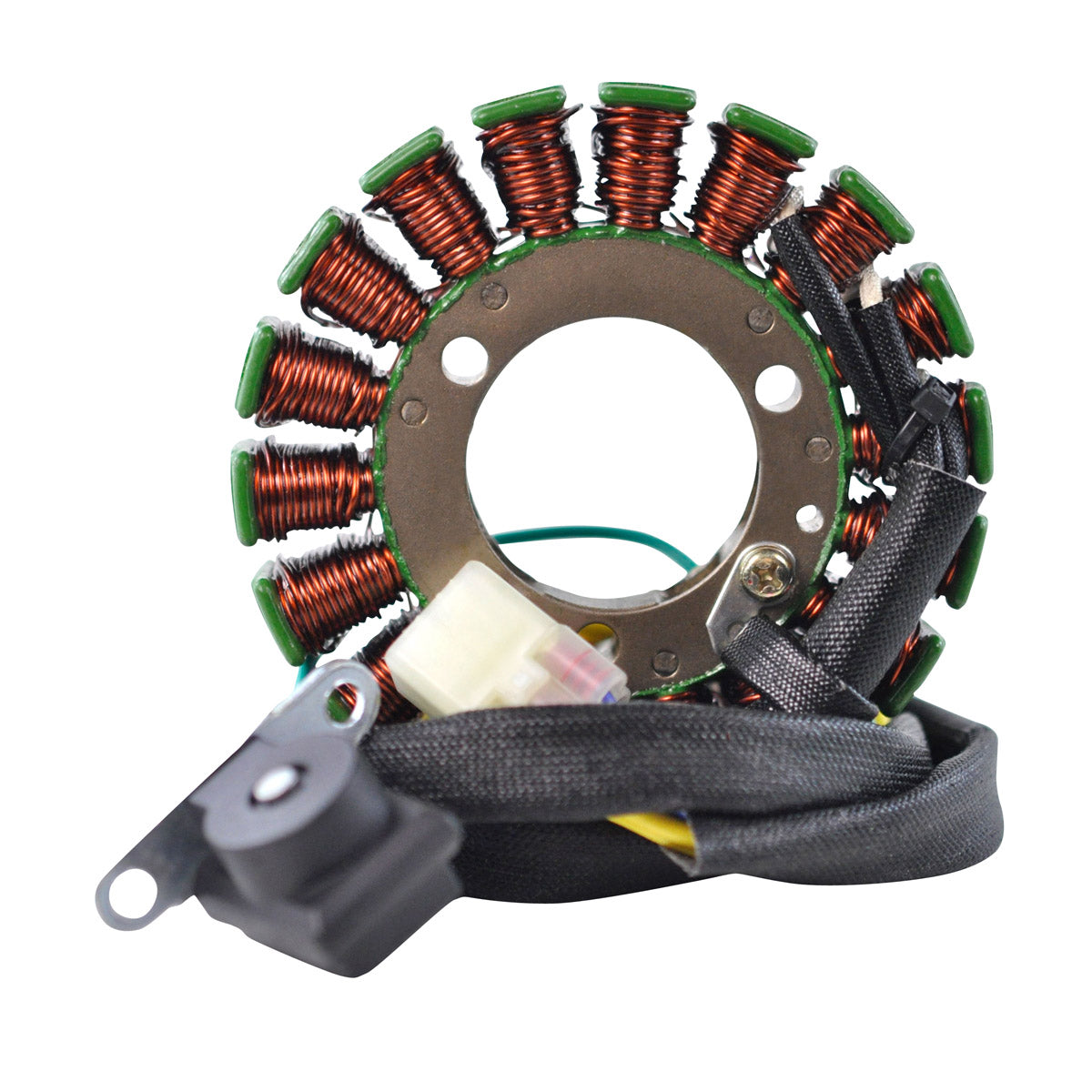

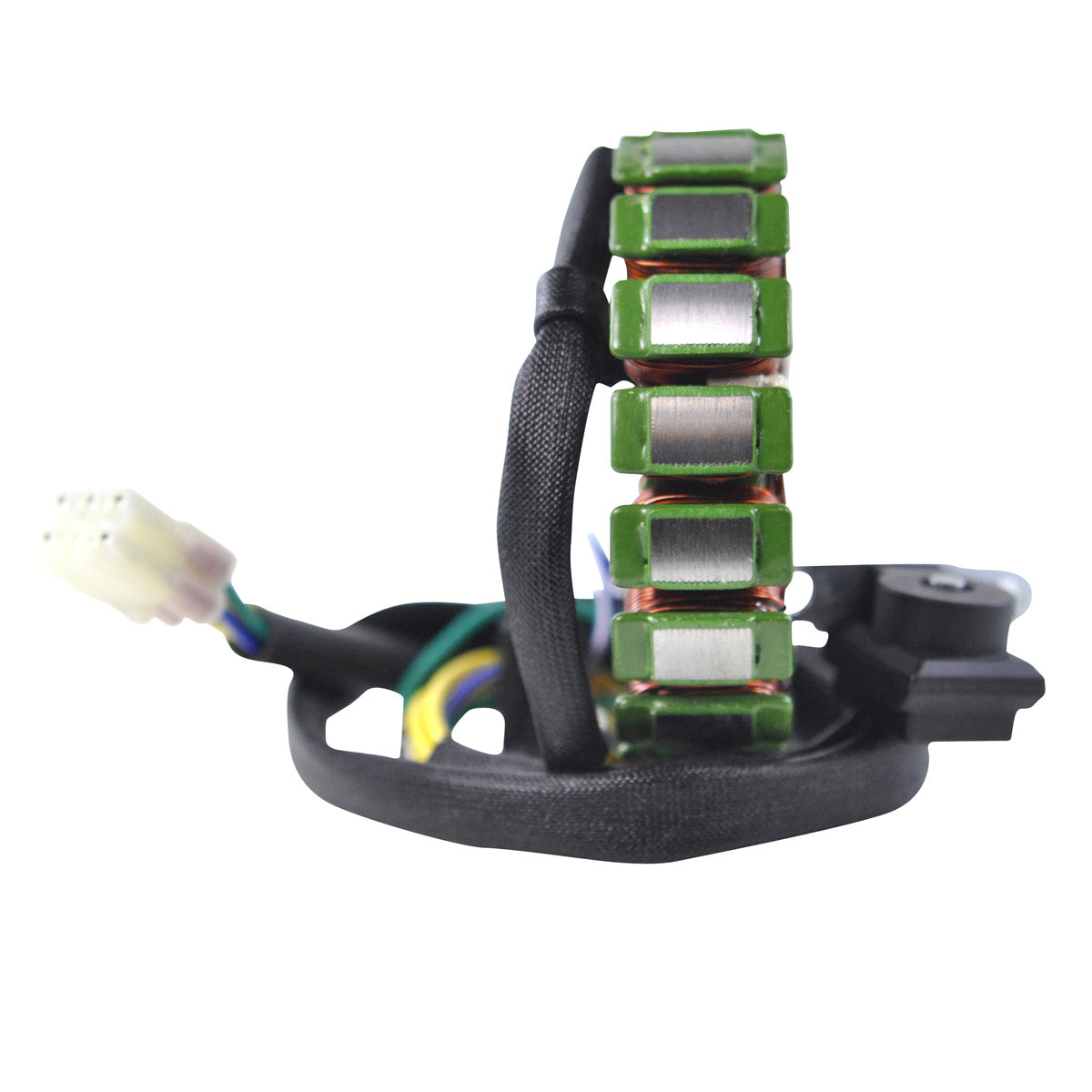

Generator Stator for Polaris Sawtooth 200 & Phoenix 200
Polaris Sawtooth 200 and Phoenix 200, 2005-2024 - pick-up pulsar coil, connector and grommet included
This is a brand new aftermarket generator stator for the Polaris Sawtooth 200 and Phoenix 200, covering model years 2005 to 2024. It is a direct replacement for your original unit - plug-and-play, direct fit and easy to install, with no modification needed to the wiring loom or the engine cases. The core is built from the highest grade lamination materials and wound with the highest grade copper, rated to resist 200 degrees Celsius, which is where lower grade rewinds typically break down and fail again.

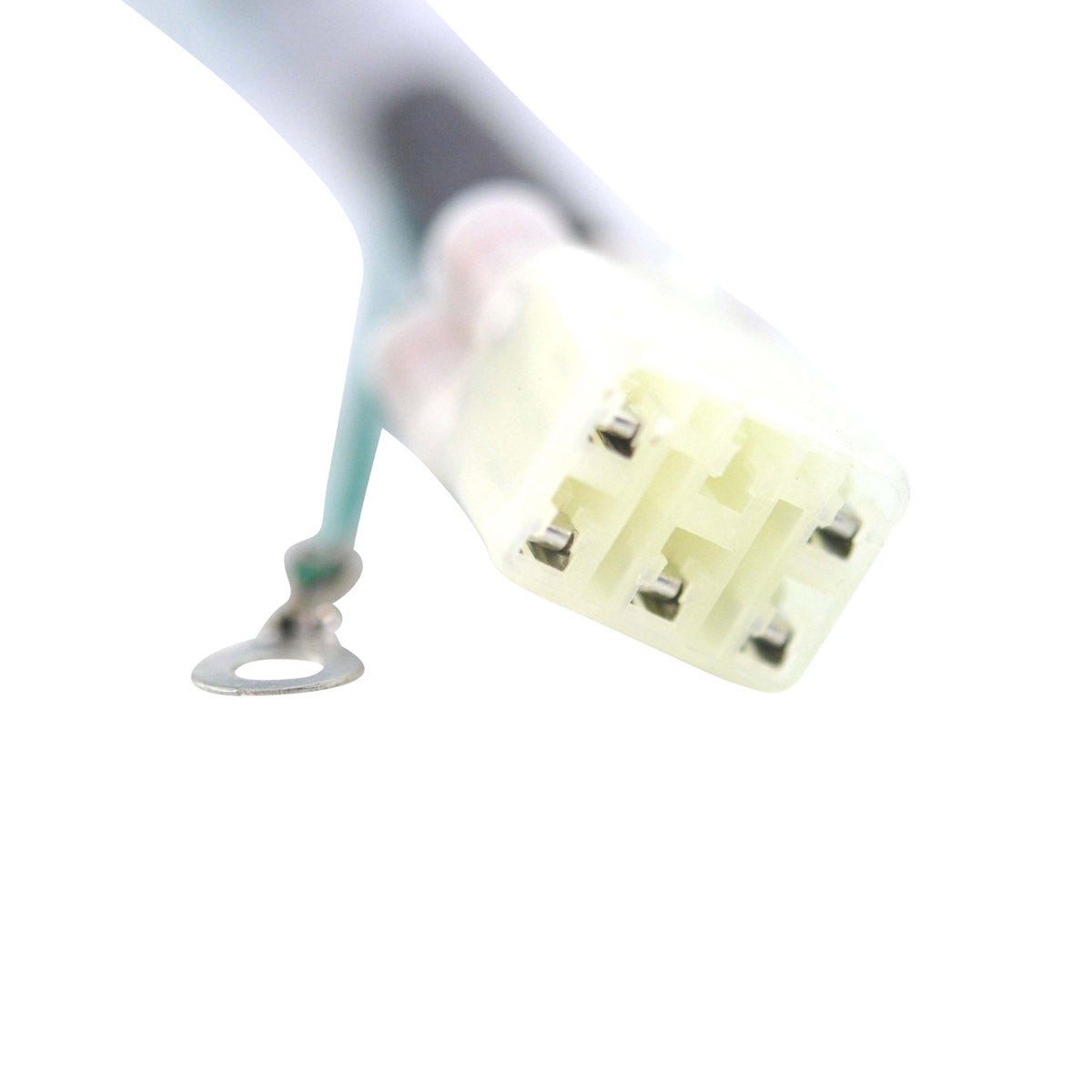

The pick-up pulsar coil is supplied as part of the assembly, together with the connector and the rubber grommet, so the complete unit fits as one piece and nothing needs to be transferred from the old stator. It is a five-wire, single-plug, five-pin assembly with 110 mm of lead from the stator to the grommet and 560 mm from the grommet to the plug, matching the original routing. All products shipped are tested. All item pictures are accurate - if you are in any doubt, compare the item to your original part before ordering.
Key Features
- Brand new aftermarket stator
- Pick-up pulsar coil included
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 95 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 110 mm |
| Wire length, grommet to plug | 560 mm |
| Pick-up coil wire to grommet | 90 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Alternator resistance, Yellow between each Yellow | 0.4 ohms +/-20% |
| Pick-up resistance, Blue/White to Green/Ground | 150 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Sawtooth 200 | 2005-2024 |
| Polaris Phoenix 200 | 2005-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0454947 | Polaris |
| 0454228 | Polaris |
| 0452449 | Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original Polaris unit, so no cutting, splicing or drilling is required. Because the coverage span is long, please confirm the OEM part number on your original stator against the cross reference table above before ordering.
What is included?
The generator stator, the pick-up pulsar coil, the connector and the rubber grommet, supplied as one assembly ready to fit.
How do I tell whether my old stator has failed?
Watch for a battery that will not stay charged, lighting that dims or surges with engine speed, or a no-spark condition where the pick-up coil has gone open circuit. Test against the figures above: the Yellow alternator wires should read about 0.4 ohms plus or minus 20 per cent between each other, and the pick-up about 150 ohms plus or minus 20 per cent from Blue/White to Green/Ground. Readings well outside those, or continuity to the stator body, confirm a failed winding.
Does one stator really cover both the Sawtooth and the Phoenix?
Yes. The Sawtooth 200 and the Phoenix 200 share the same engine and charging system, so RMSTATOR lists a single stator for both across the 2005 to 2024 span. The OEM numbers in the cross reference table are the quickest way to confirm your machine takes this unit.
